云中屋丨Argentina

Architects:MALVINA ZAYAT estudio de arquitectura

Area:106m²

Year:2021

Photographs:Gonzalo Viramonte

Manufacturers:AutoDesk,Chaos Group,Aberturas Aluminio Aluar,Adobe,FV,Jhonson,Marcelo Castaño,Pisos WPC Industria S.A.S (Wood Plastic Composite),Qutral,Trimble Navigation

Design Team:Lucía Ruiz Venicio.

Structural Design:Edgar Moran

City:Córdoba

Country:Argentina

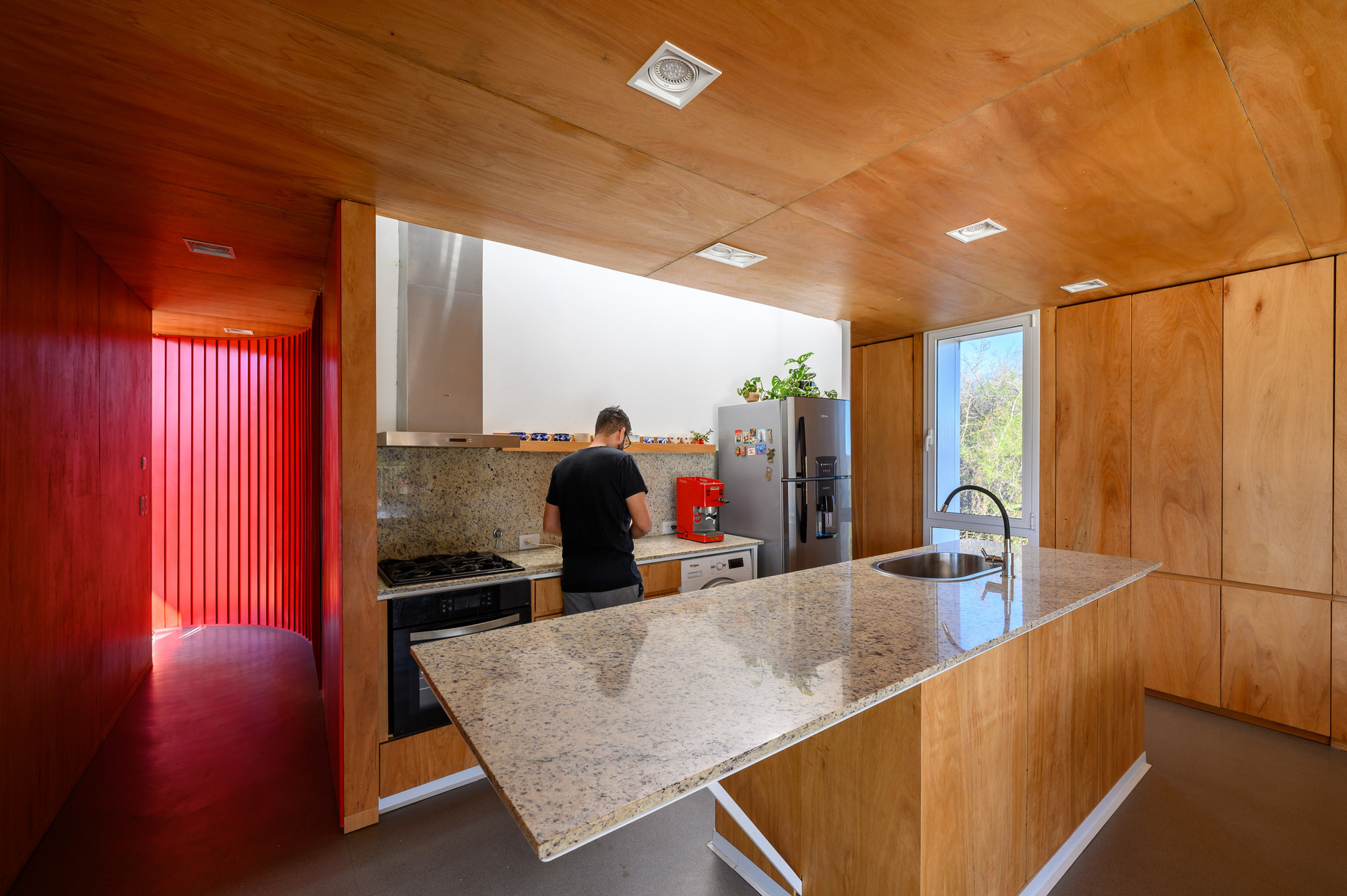

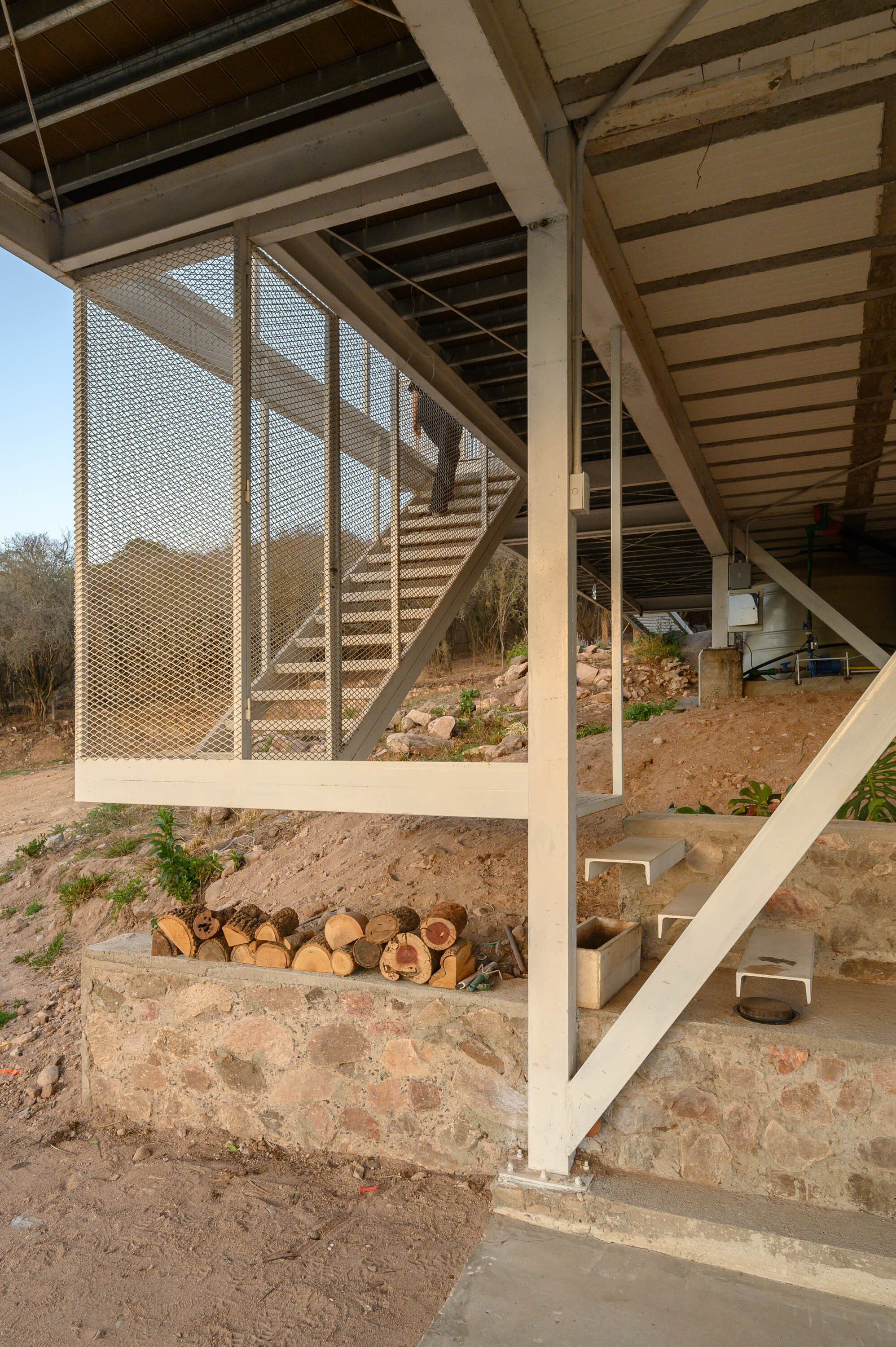

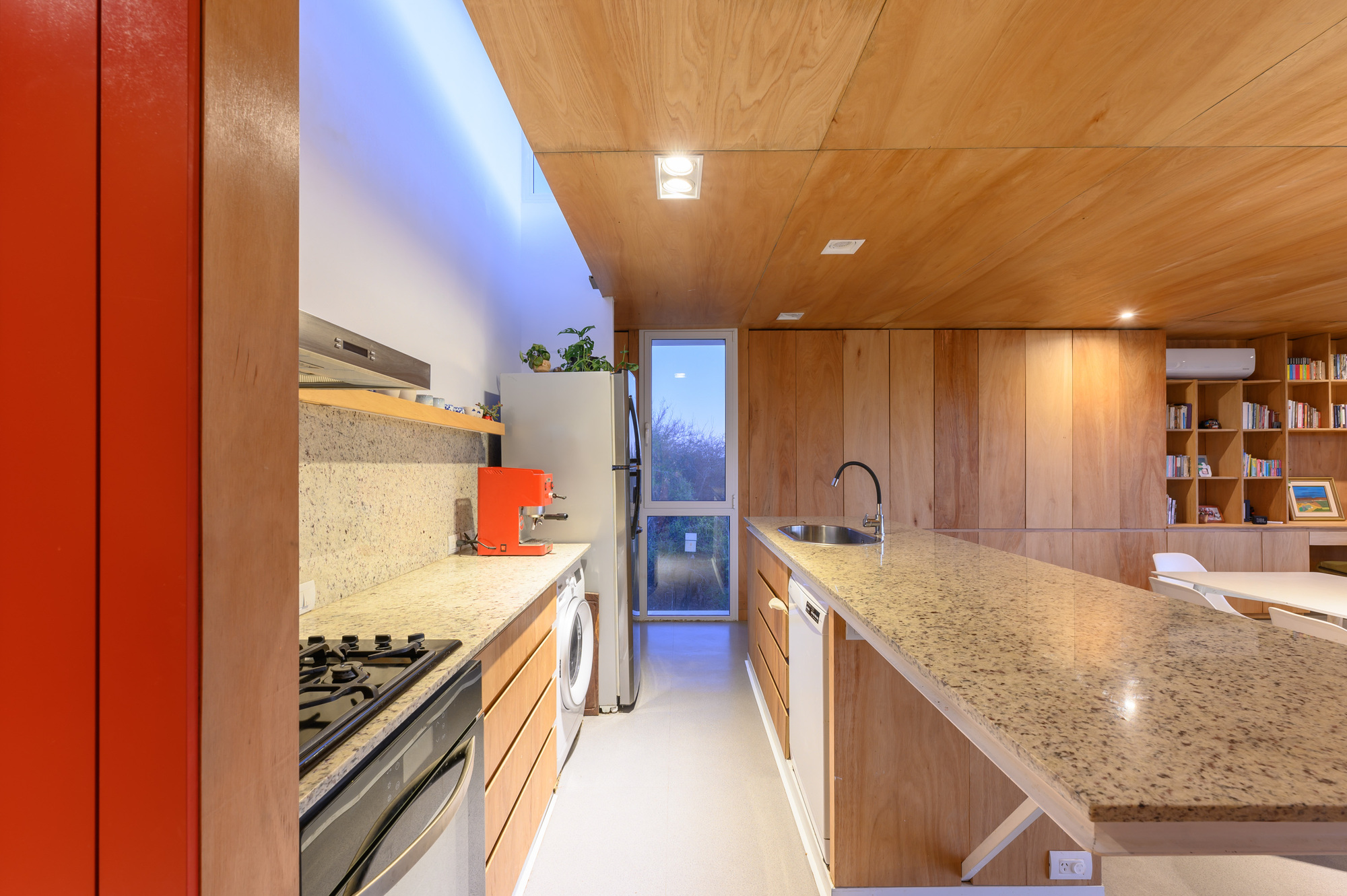

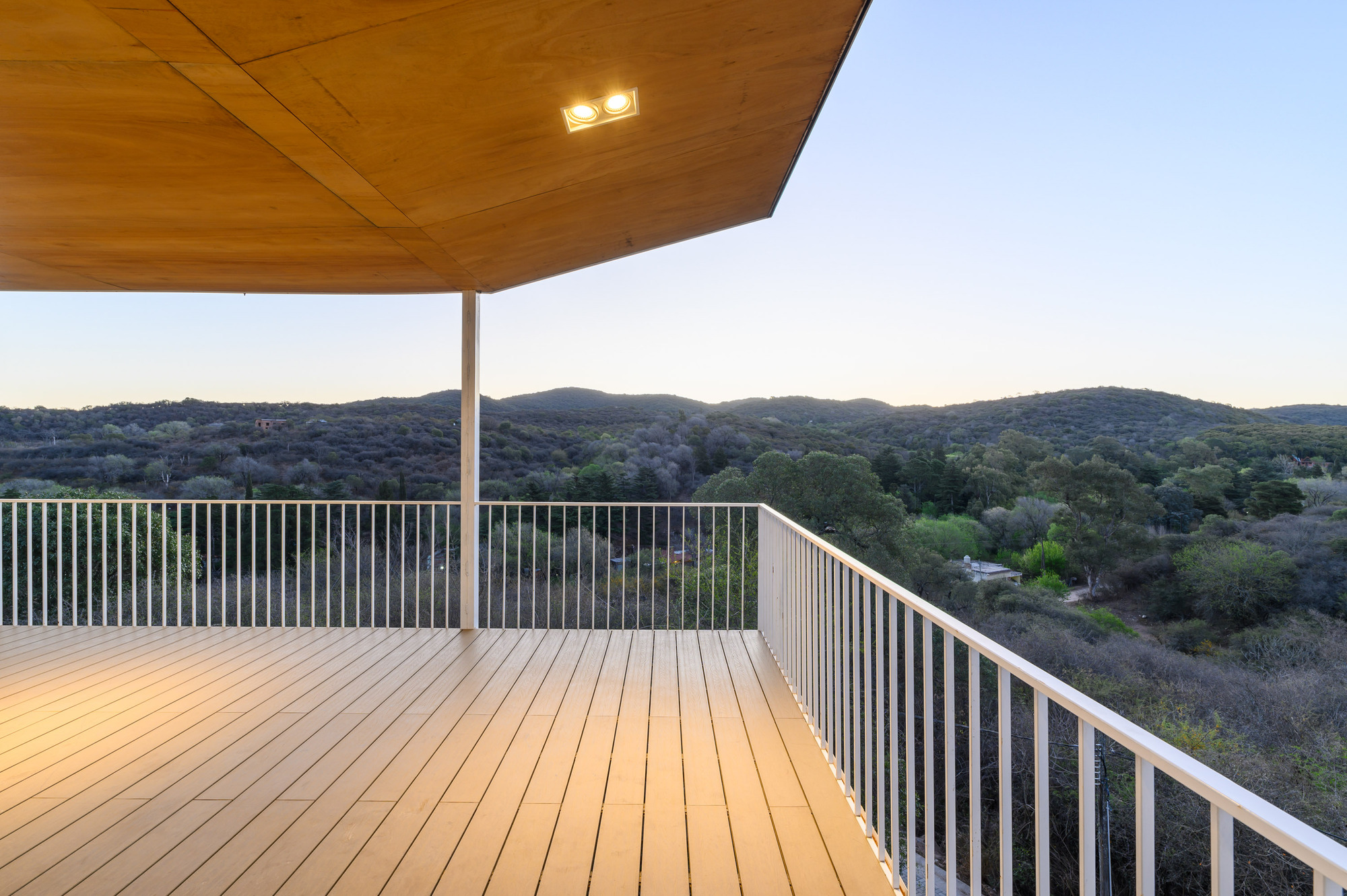

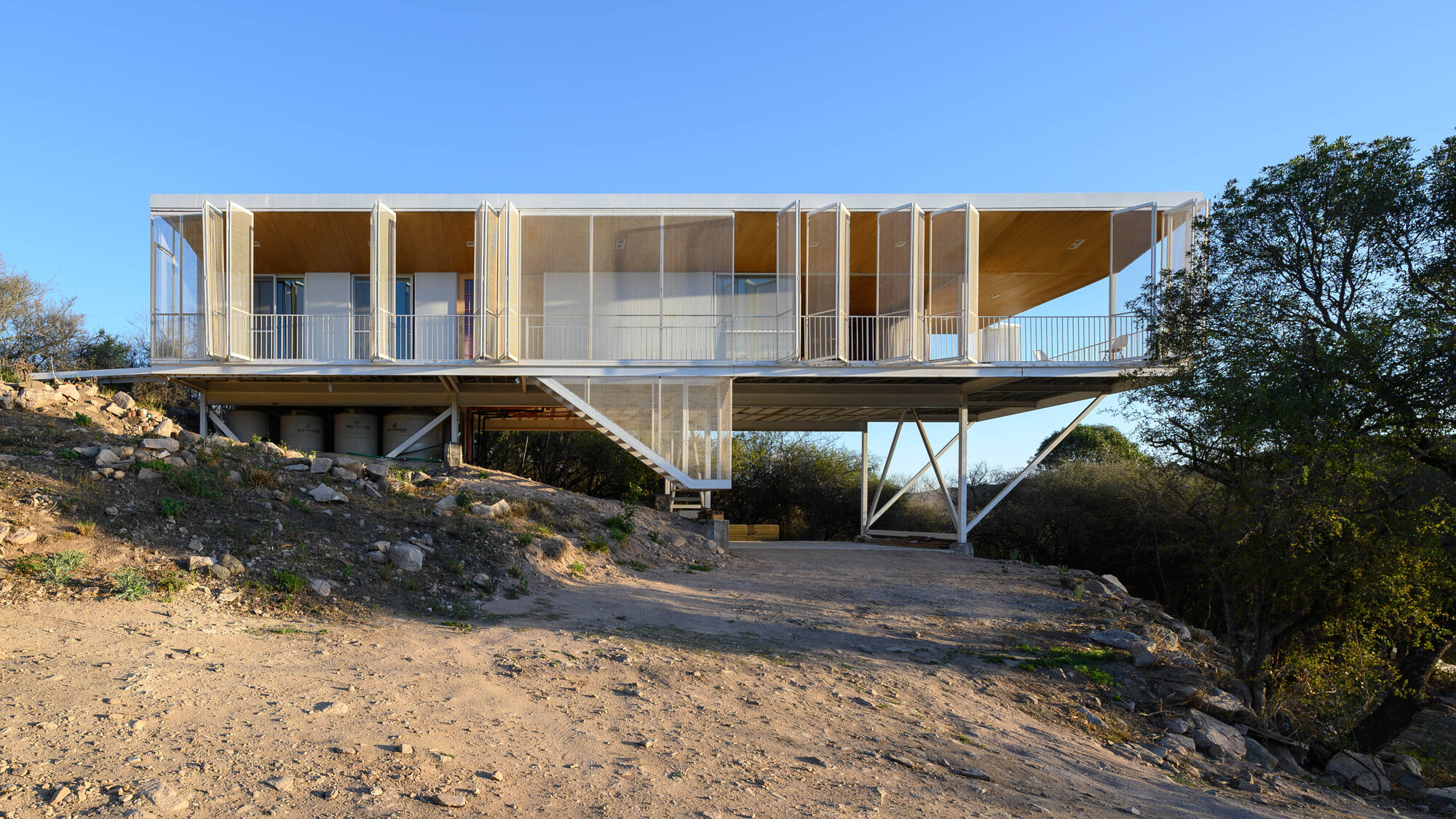

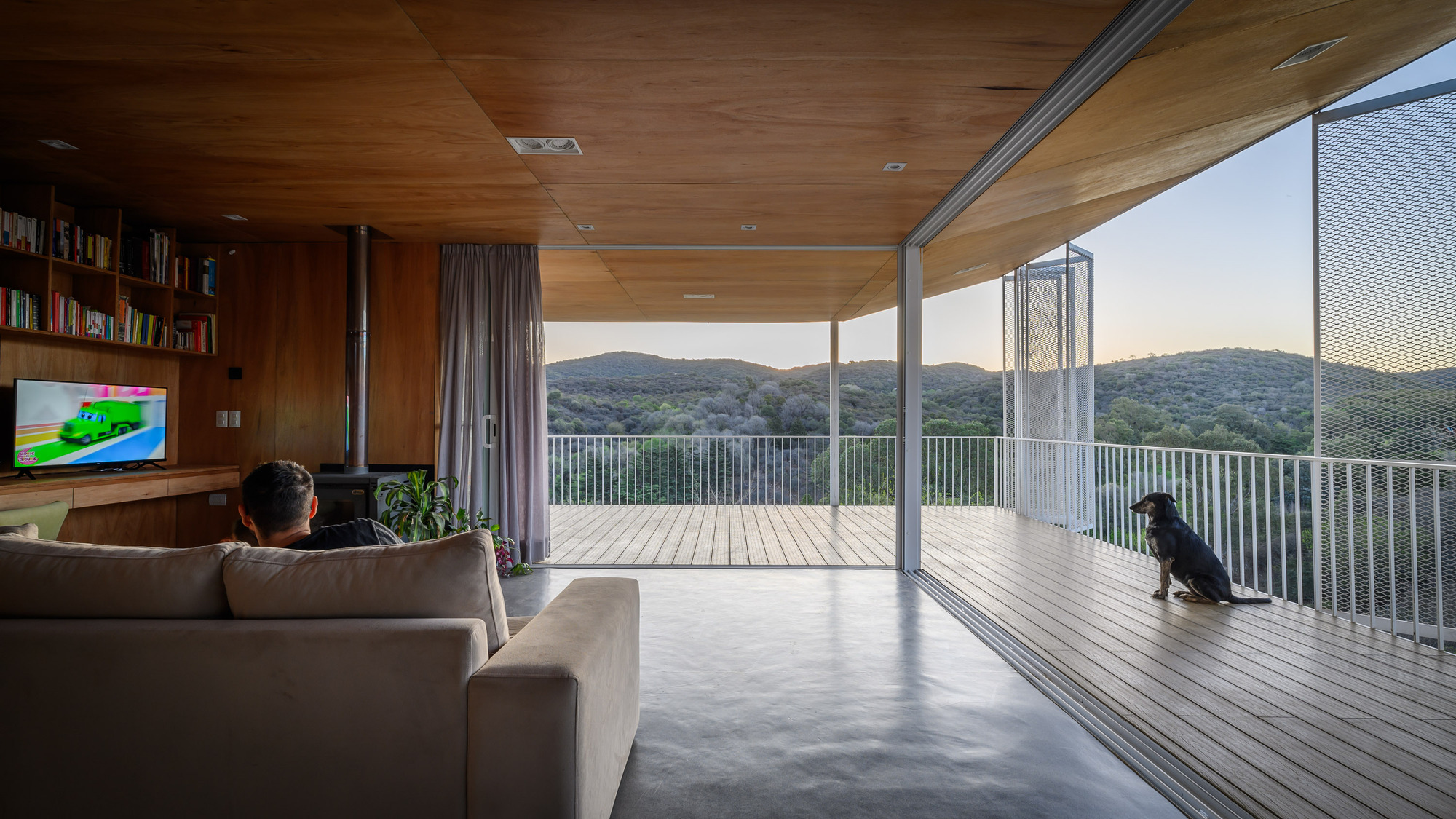

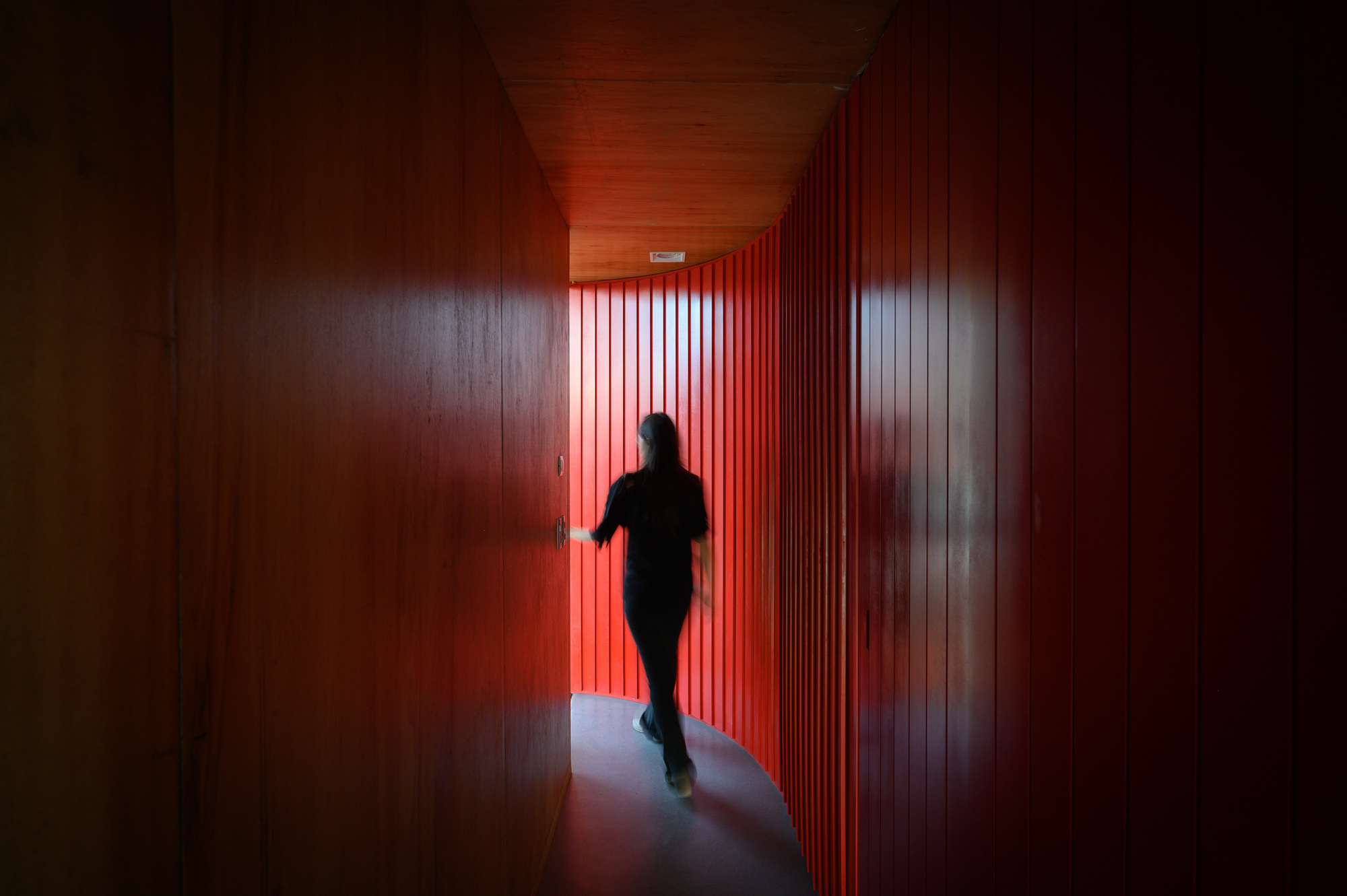

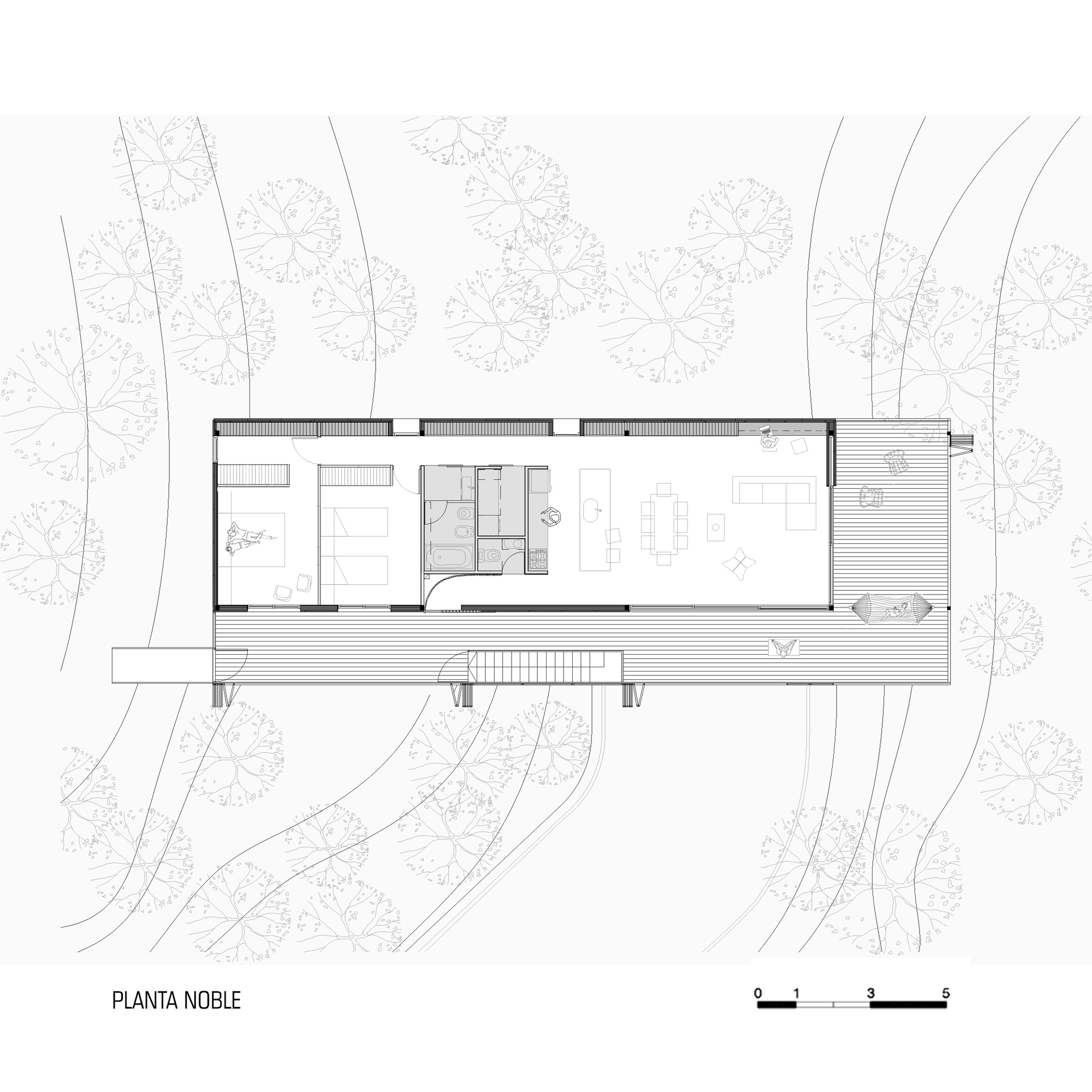

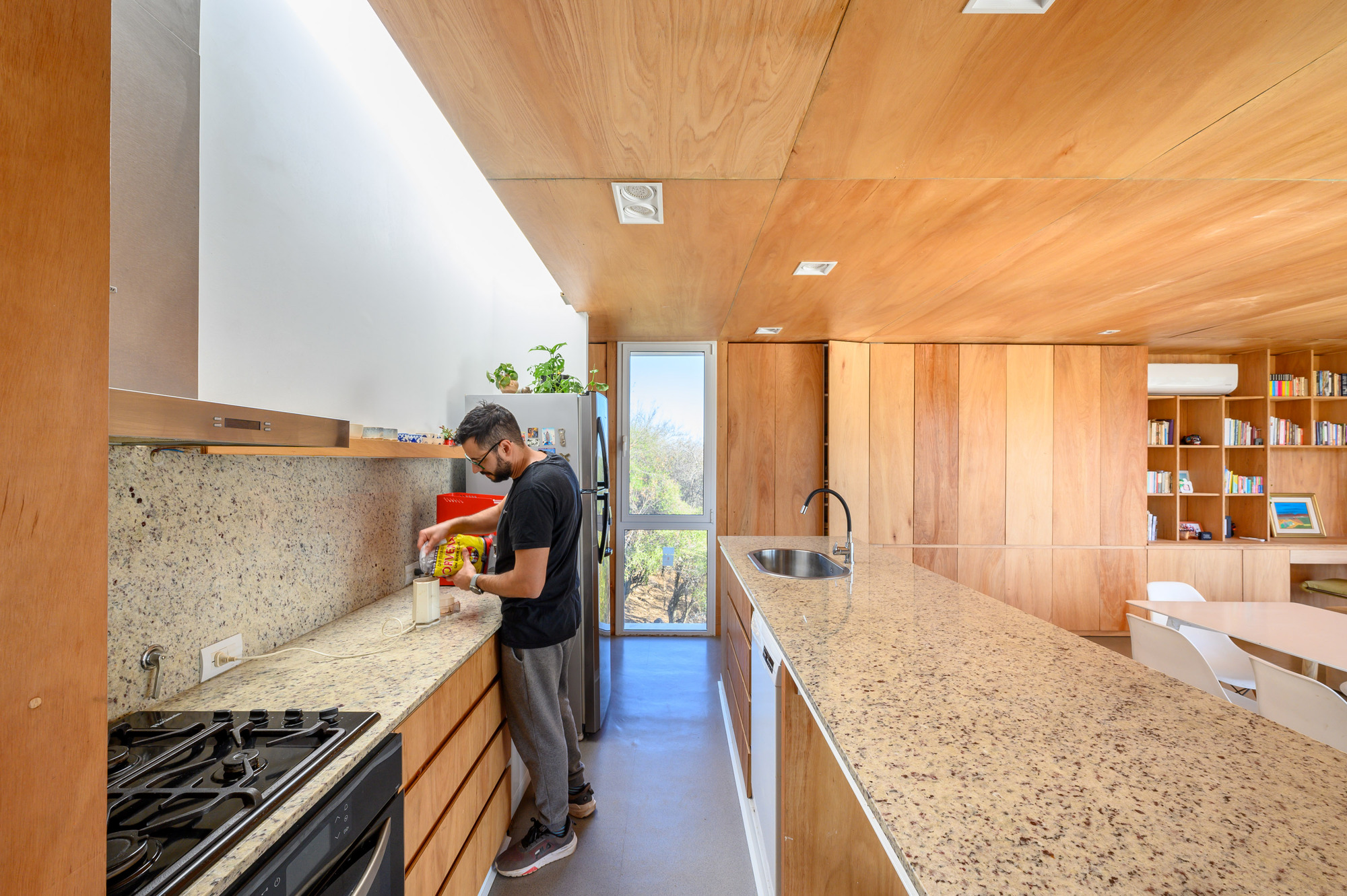

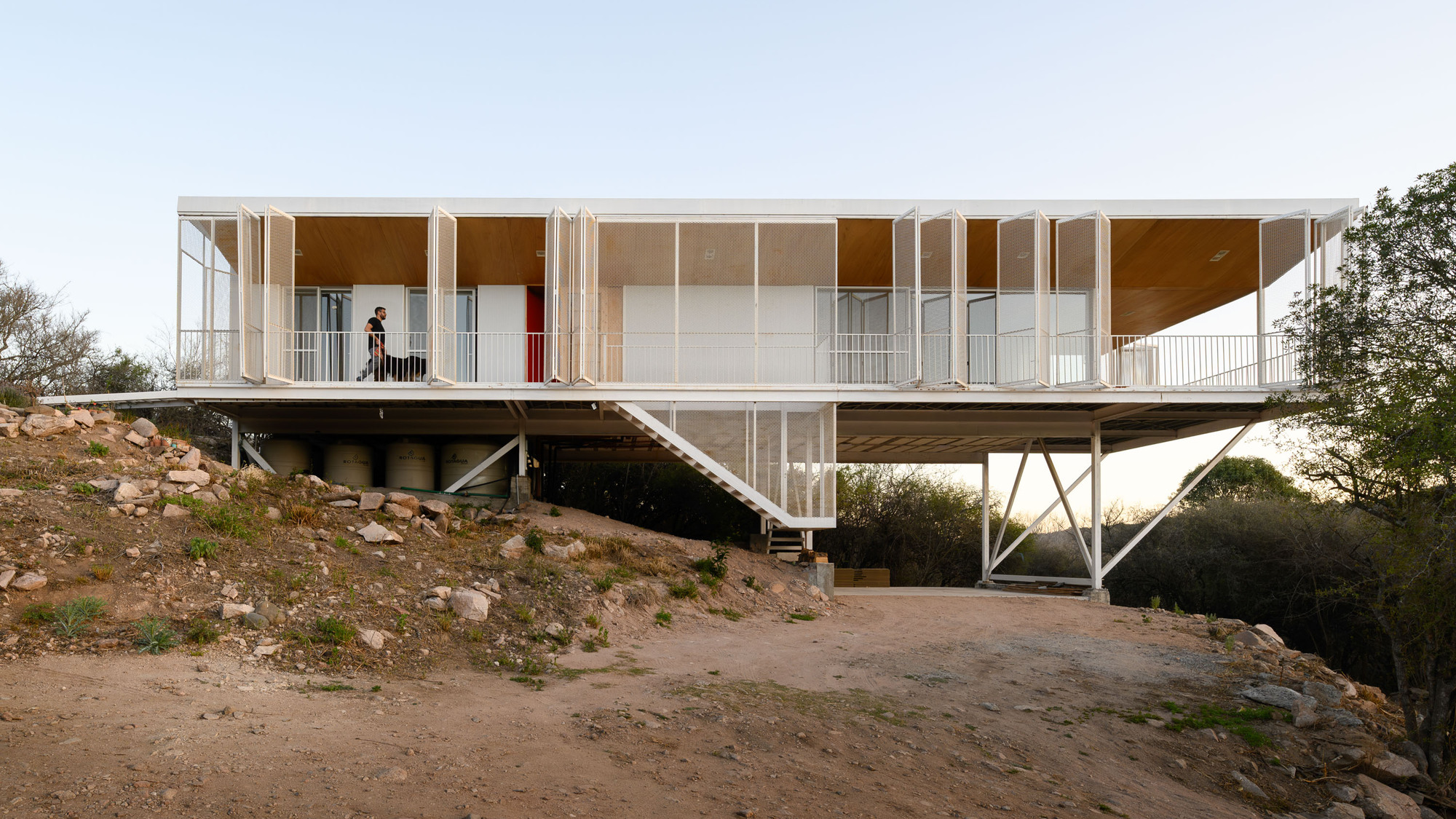

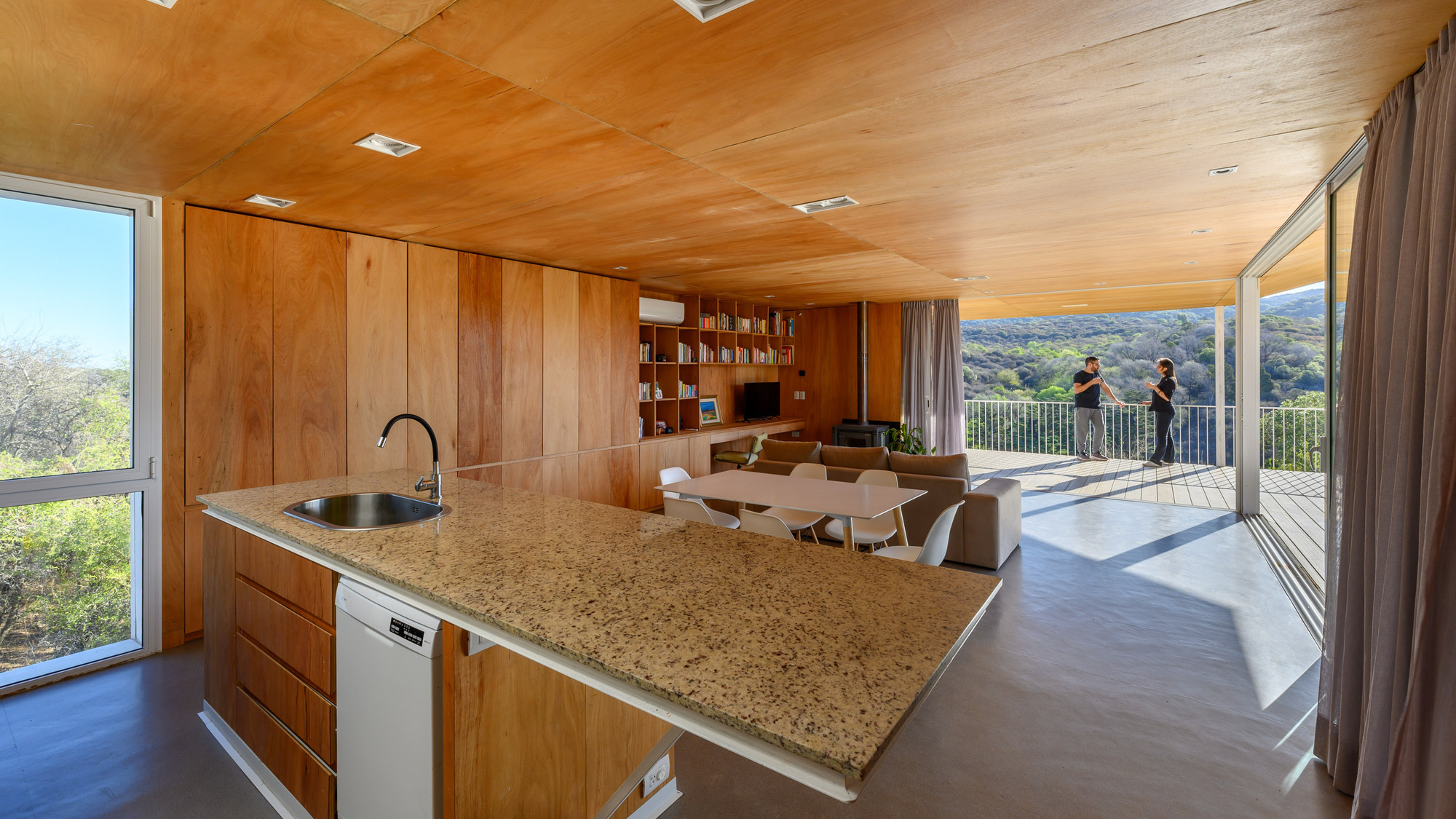

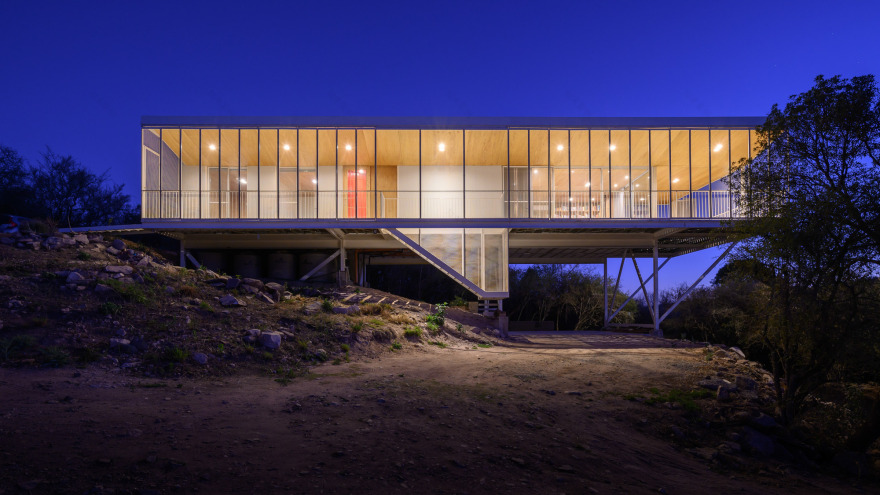

The stones of the terrain are arranged to form beds and steps, which culminate in the door of a hanging staircase. From there, you begin to travel in the air, to the north gallery, where the reception of a sliding wooden door allows you to glimpse the interior. When opened, the incidence of light on the vermillion-colored wood paneling generates a scenography spatial experience that culminates in the heart of the home: the social area, in total communion with the mountains. The house is organized linearly within a space of 18.50m by 5.50m, where an island of services, illuminated and ventilated from above, separates the social area from the private area.

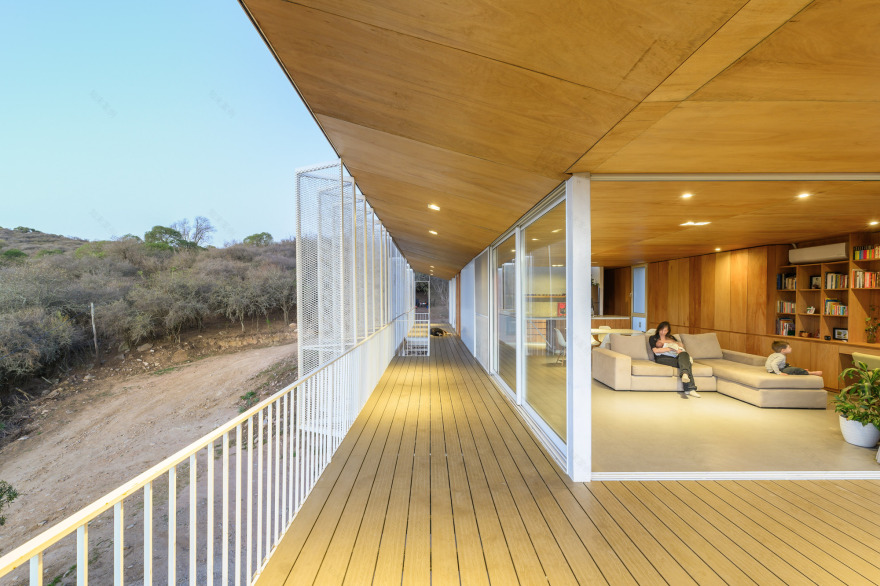

The entire south side is made up of a storage unit that gives thickness to the envelope and meets the functional demands of each space. Towards the north and west, the house is fully open, generating an expansion of the interior activities towards the gallery. The materiality of the project was defined jointly with the site study.

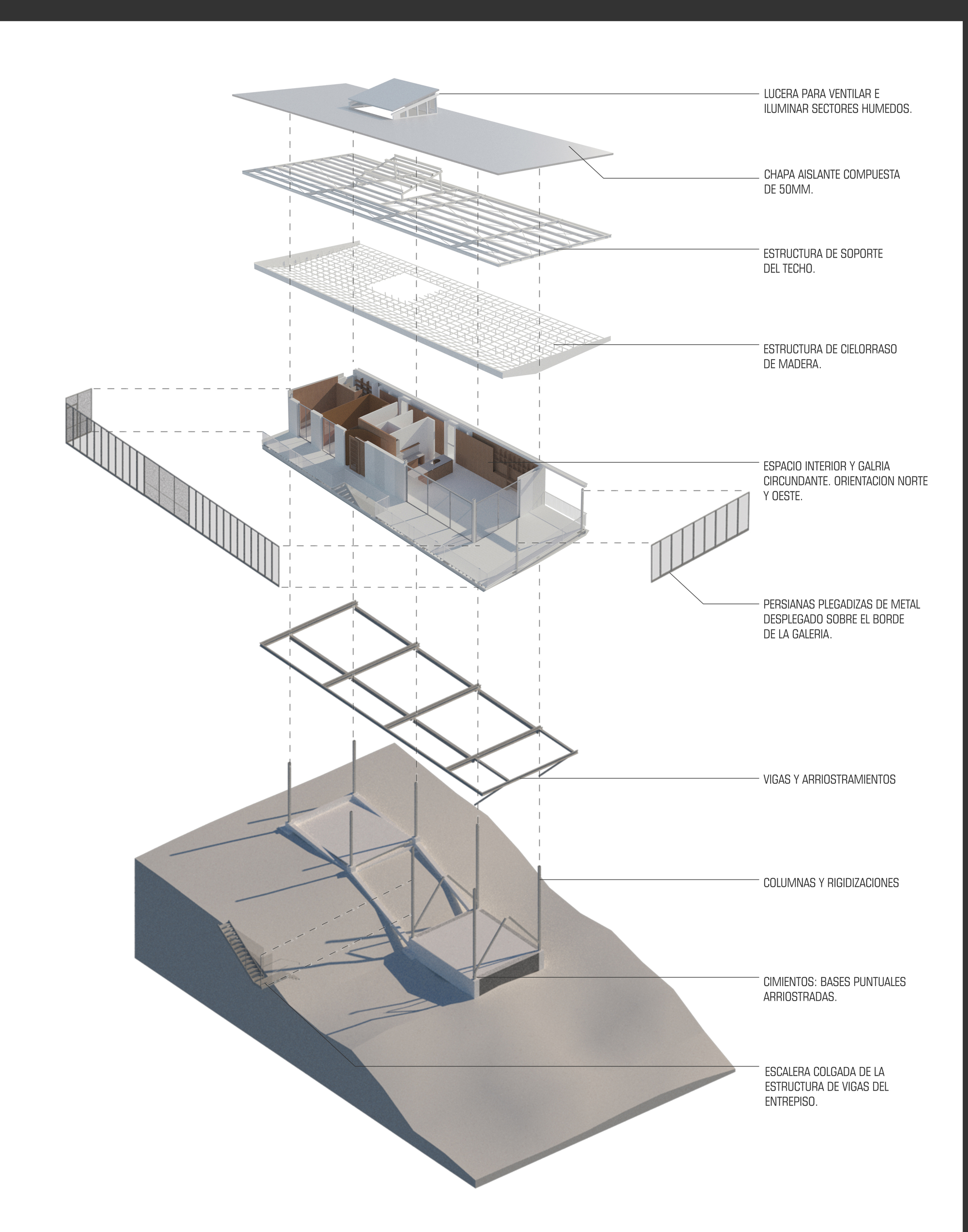

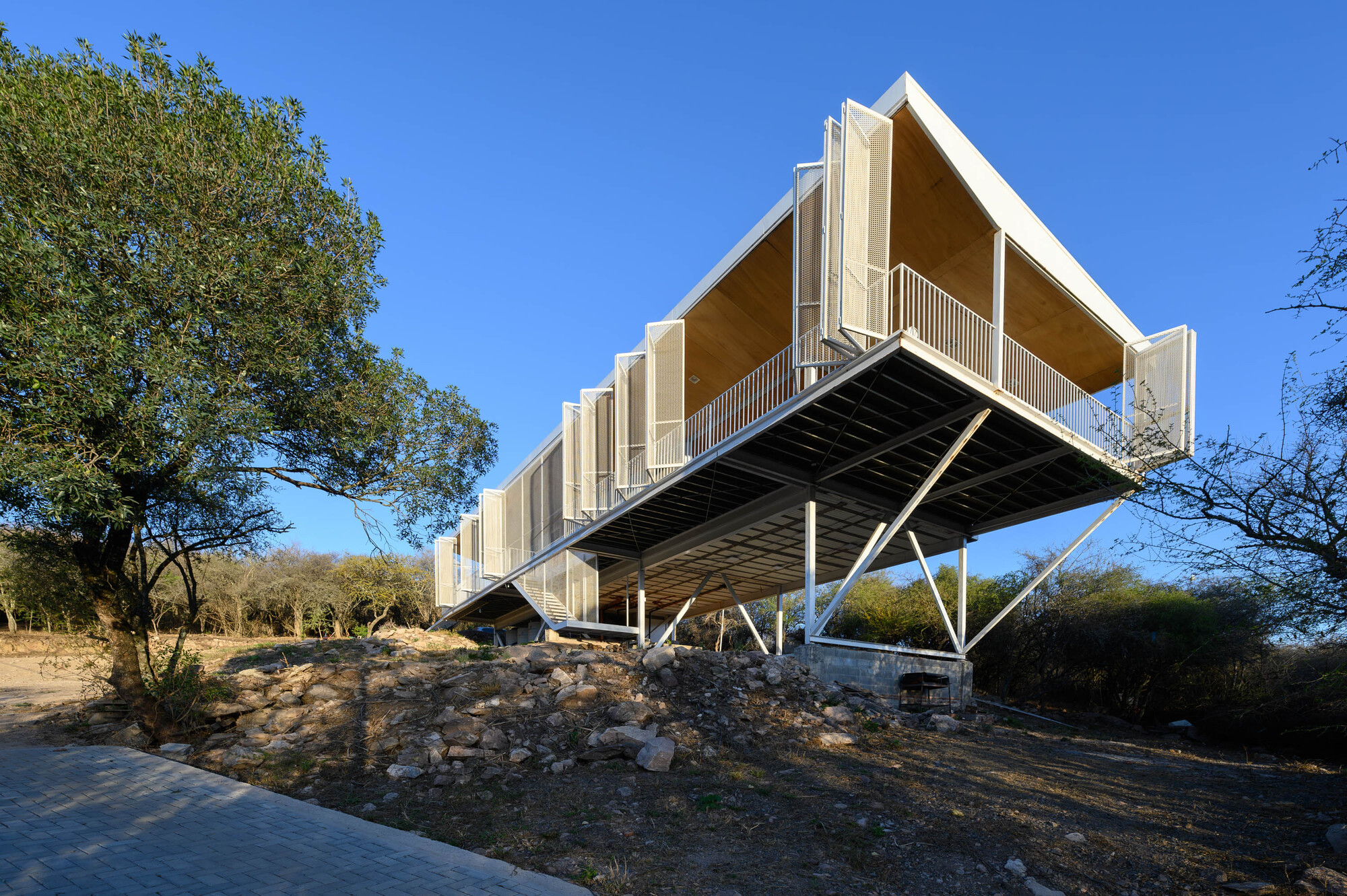

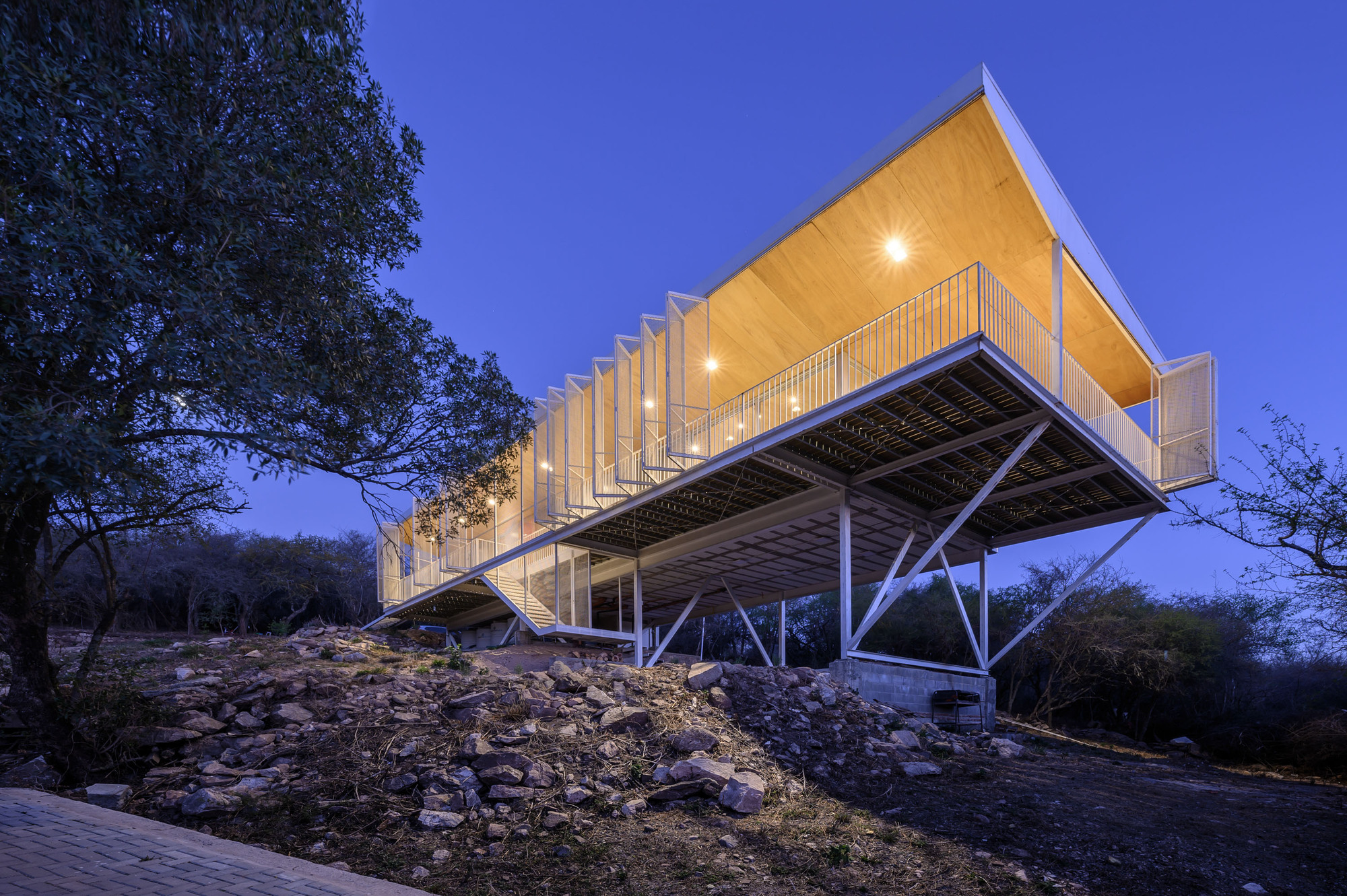

The great unevenness of the terrain, its composition, the thermal amplitude, the absence of running water, the type of vegetation, and its height, among other aspects, established that the construction system was mostly dry. In the workshop, a system was composed, made up of metal profiles, which were transferred in sequence to the site for assembly. The parts arrived ready to assemble, the main structure, the secondary structure, and then the horizontal and vertical enclosure panels.

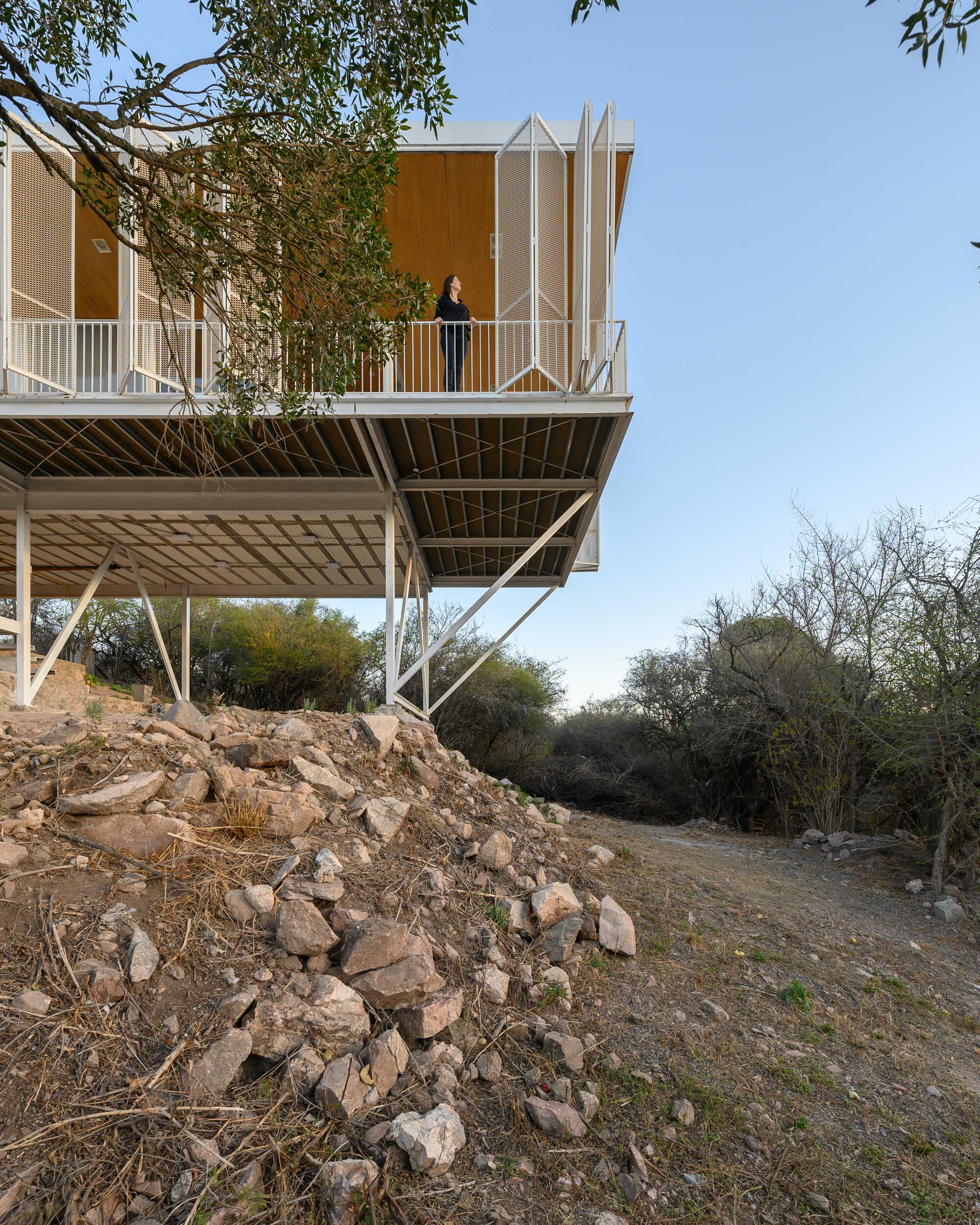

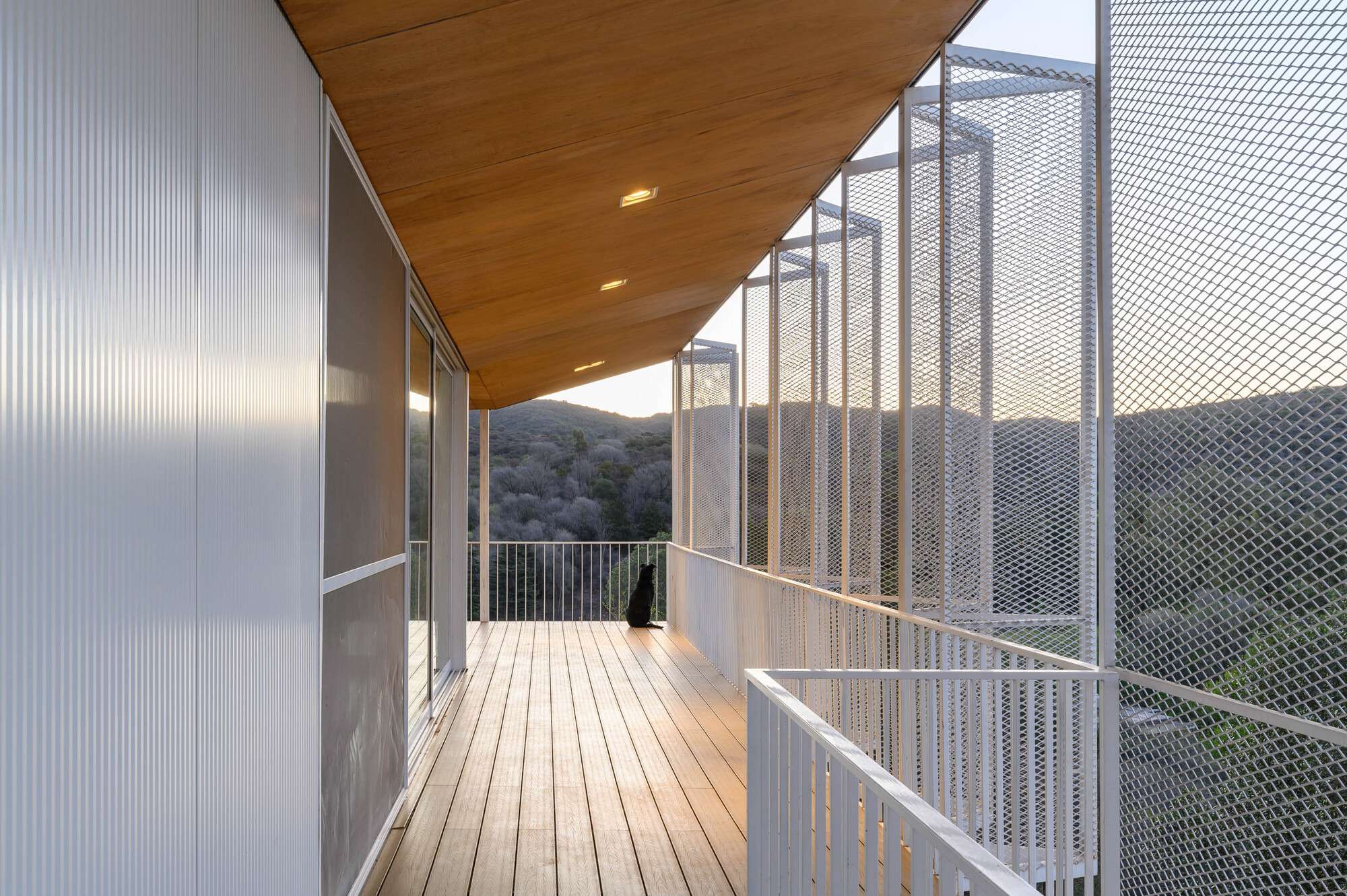

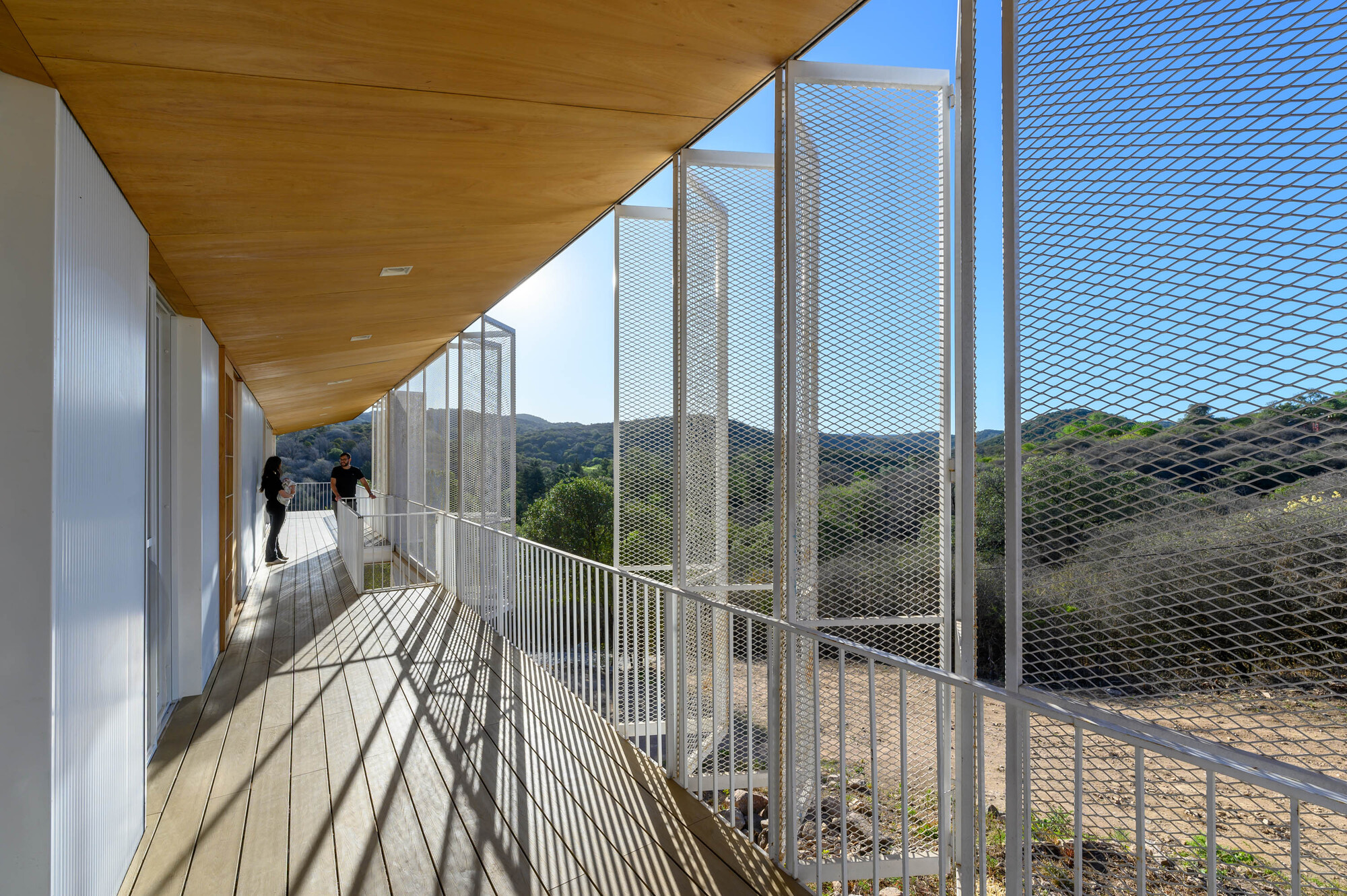

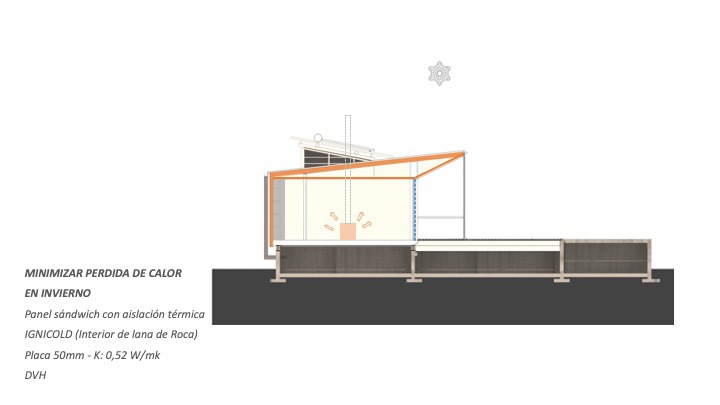

The only parts that were developed wet on site were the foundations and the mezzanine slab, using a system of precast joists. This decision had to do with the need to accumulate heat in the mass of the slab when the winter sun enters the interior space from the north. A system of folding panels attenuates the winds in the gallery and filters the entry of sun from the west in summer. At the same time, it guarantees the security of the home when its users are not there.

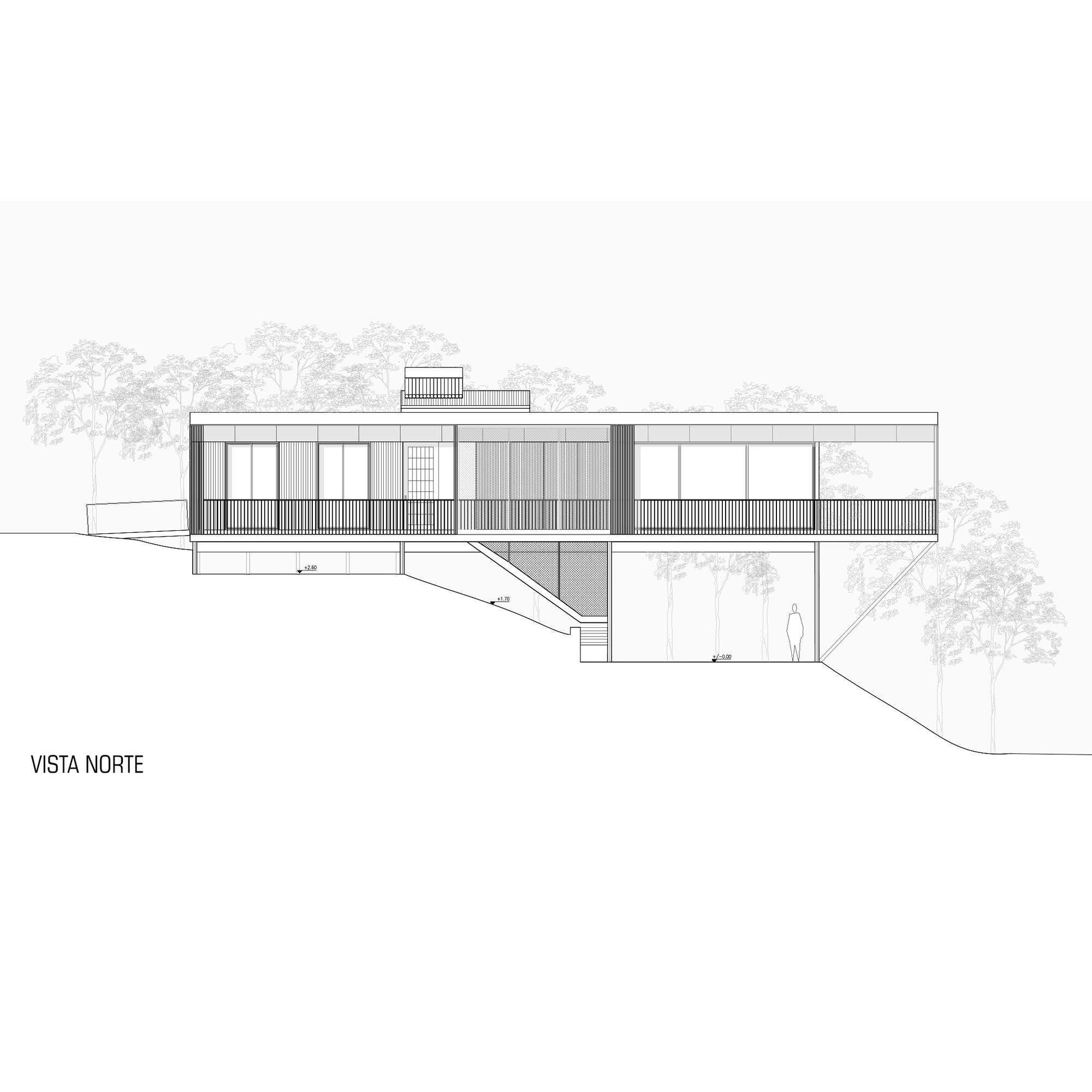

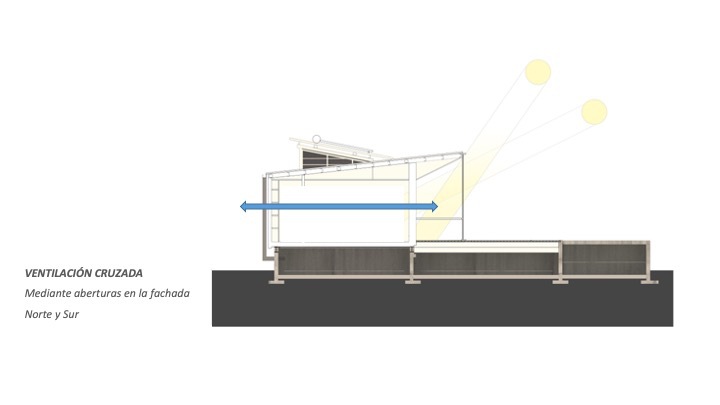

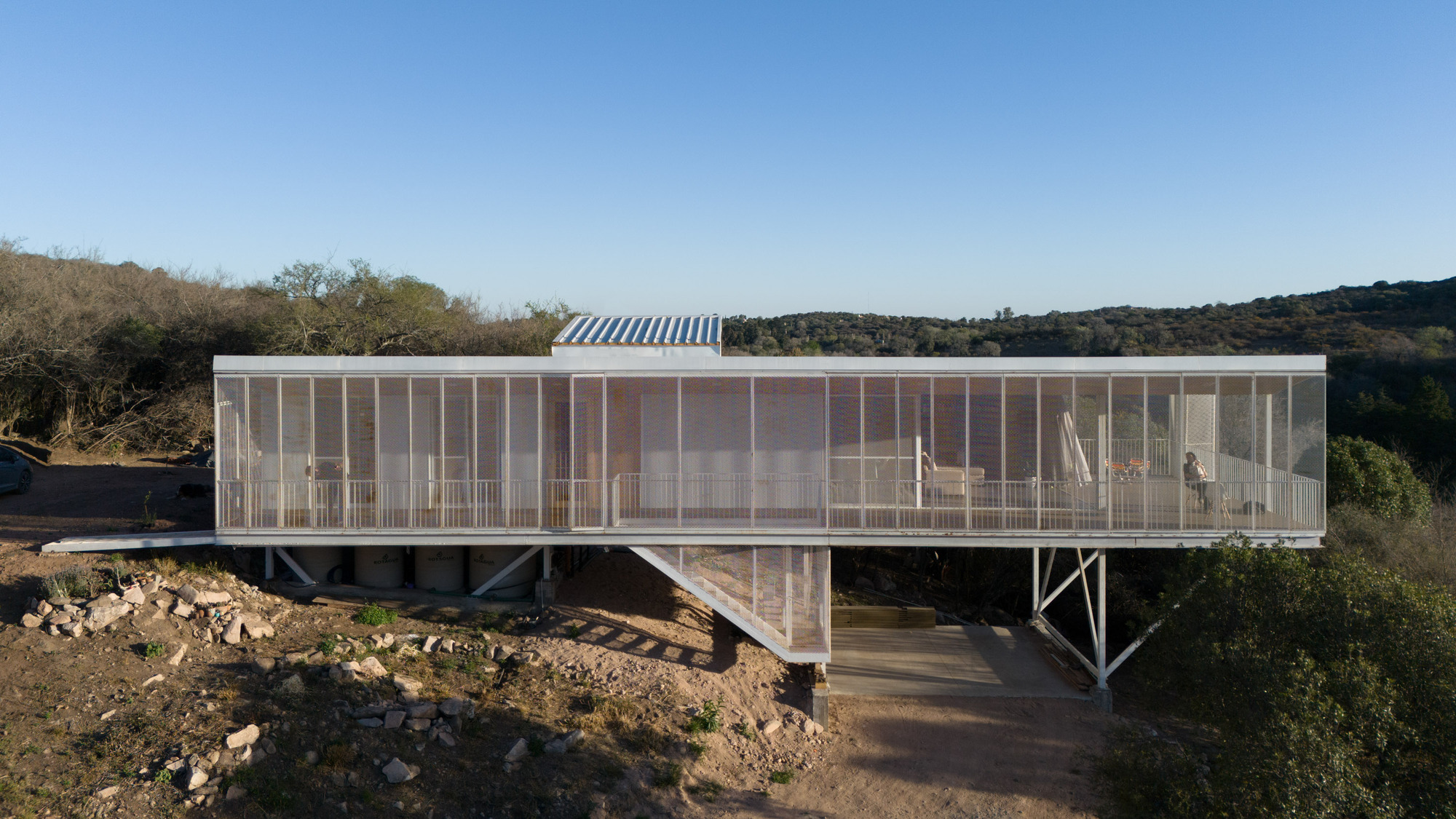

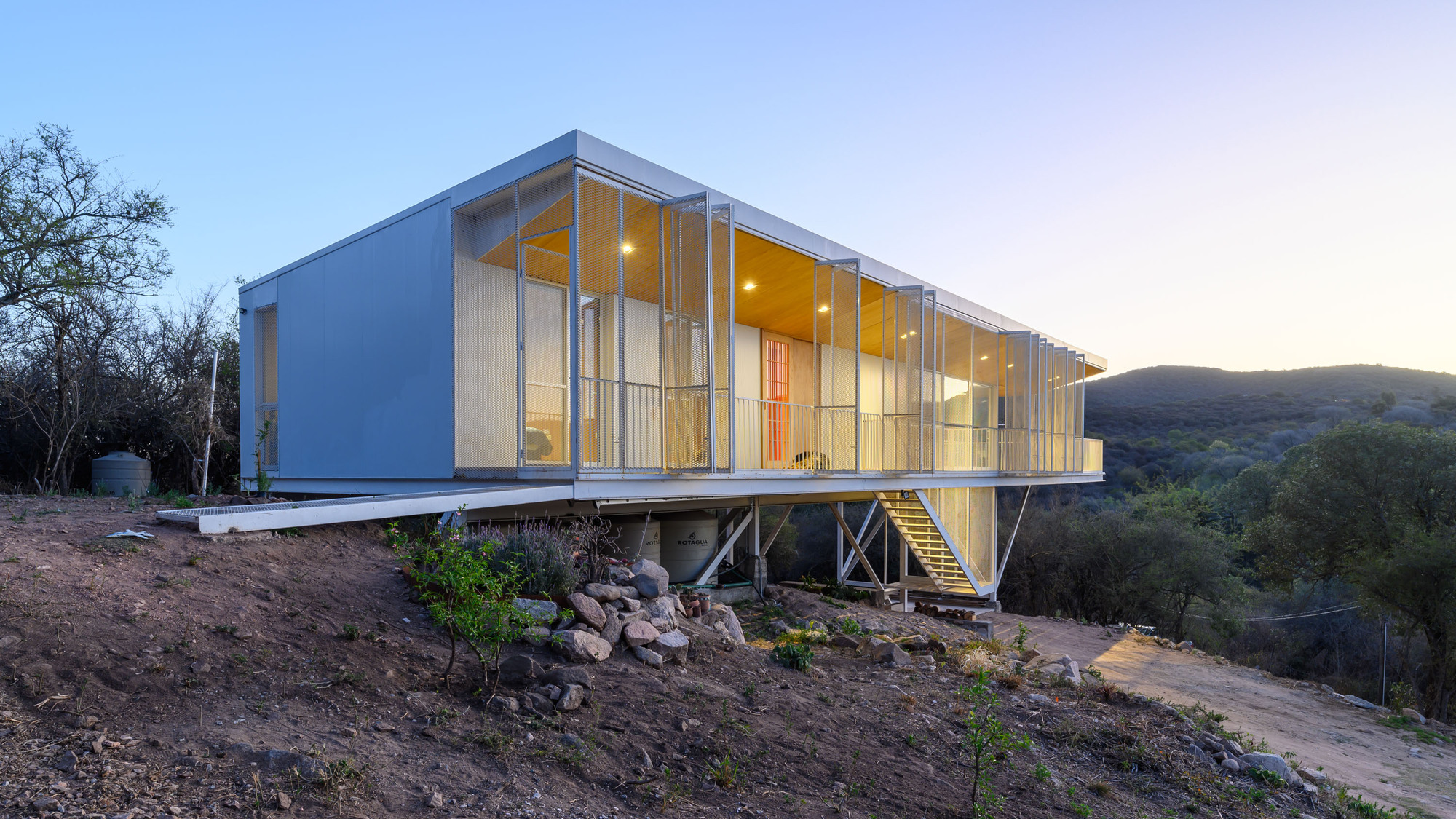

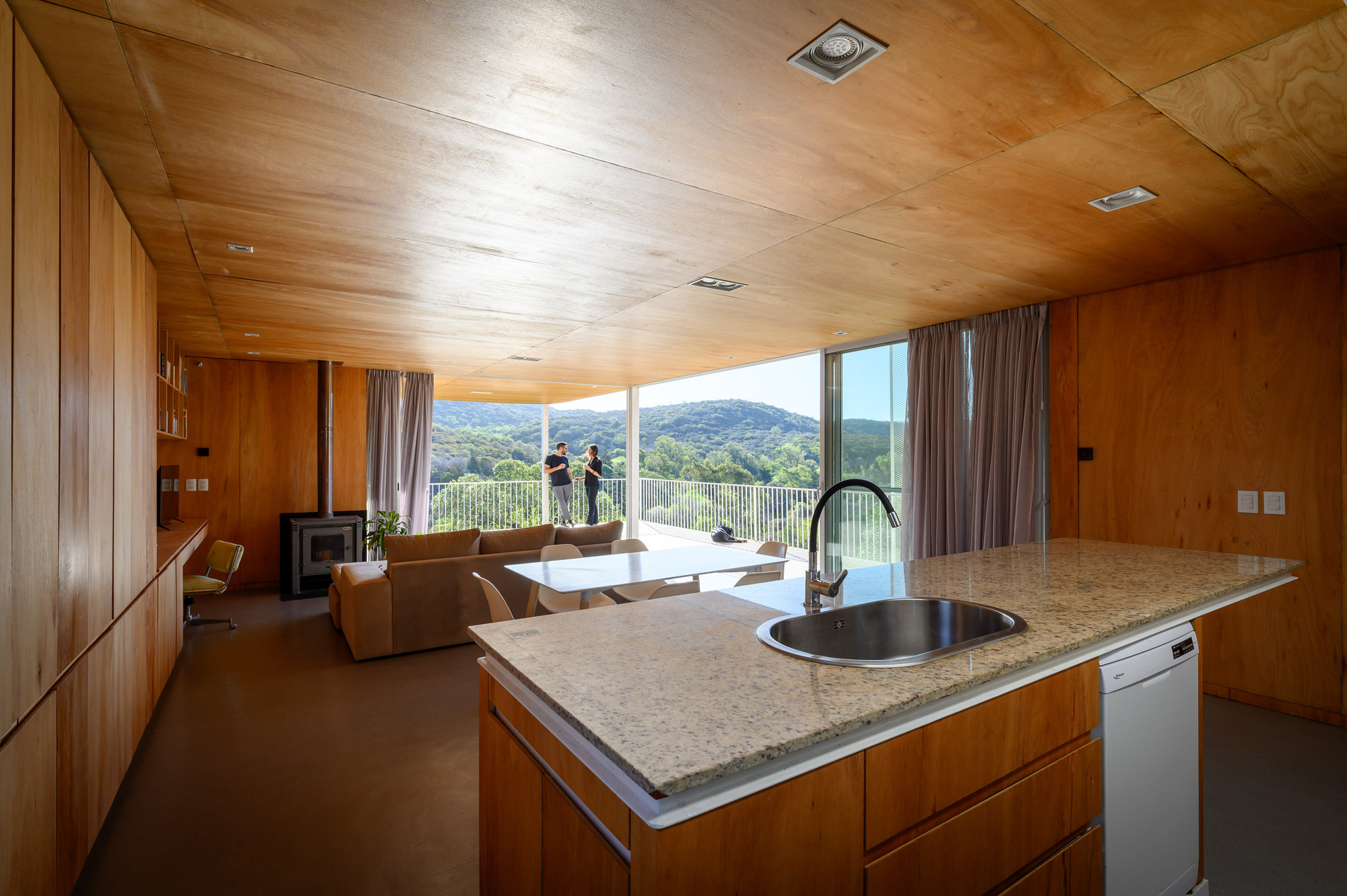

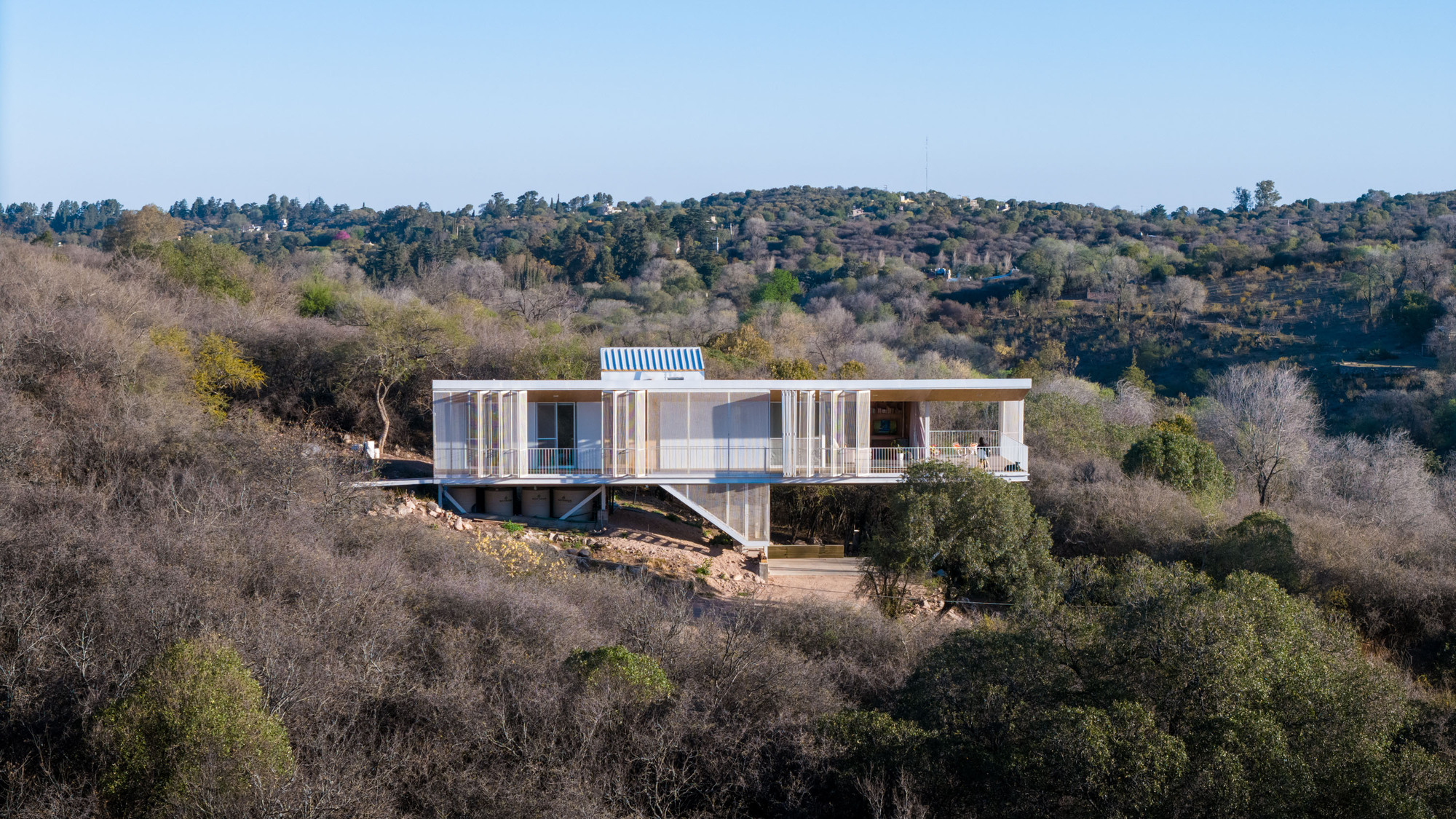

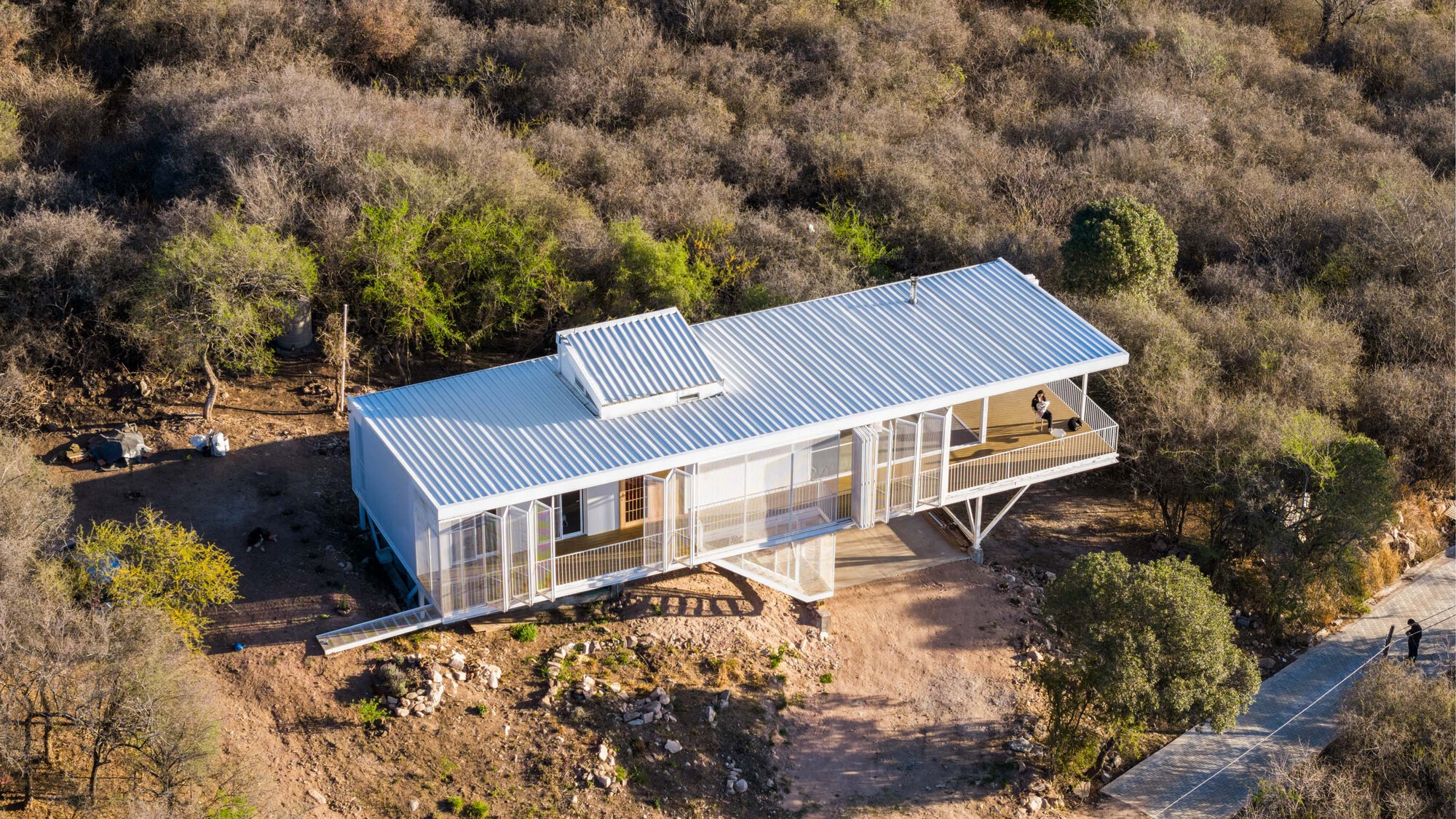

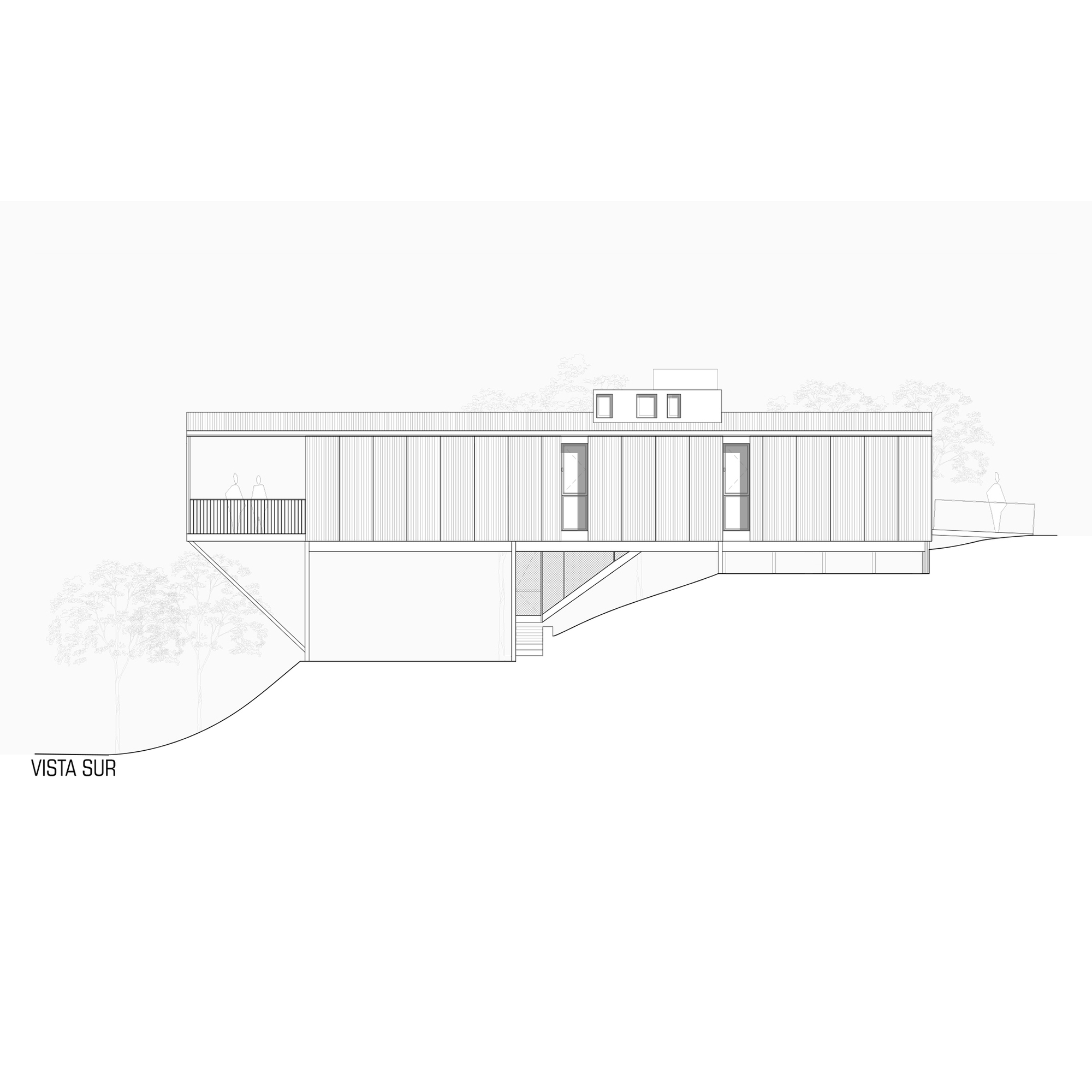

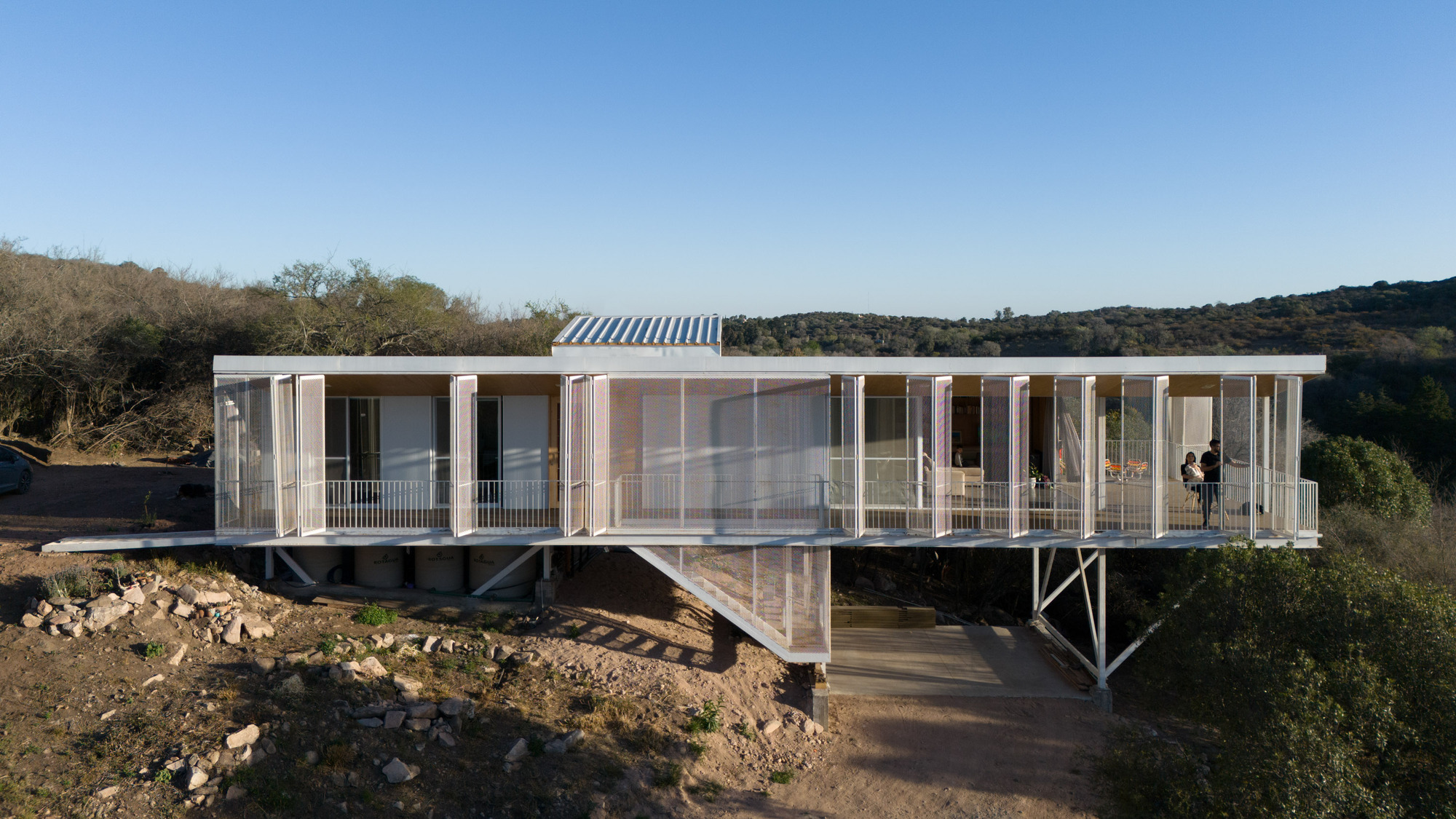

The building on the outside is conceived with a clear geometry of a single material, which on the northern perimeter appears as a veil to the intermediate space (movable panels of deployed metal), while towards the south the perimeter is compact (panels composed of white sheet metal) with strategic perforations for cross ventilation. The color of the volume and its suspended arrangement establish an intimate dialogue with the sky and clouds on the outside. On the other hand, the interior spaces aim to merge with the environment, exploring the warmth of wood in ceilings, walls, doors, and furniture. All are solved with the same material, eucalyptus phenolic.
