山谷中的避难所丨巴西南里奥格兰德丨Oazo + Zanesco Arquitetura

Architects:Oazo + Zanesco Arquitetura

Year:2022

Photographs:Ezequiele Panizzi

Manufacturers:Cammino Pedras,Center Steel,Cristo Rei Materias Elétricos,D'Carvi,D'art Comércio e Decoração,Dry Store,Friza Comércio de Materiais Elétricos e Hidráulicos,Metalúrgica Progresso,Movelarte Móveis,Orion Inovação em Alumínio,Spido Comércio e Decorações,Thermo Aquecimento

Execução:Rodrigo Cervieri e Matheus Sgarbi - Acartonale

Graficação De Projeto:Emanuelle Carraro

City:Bento Gonçalves

Country:Brazil

Text description provided by the architects. The Refuge was born as a prototype developed by a partner company specializing in dry construction. A minimal typology with the same concept as a camping tent, but with all the necessary infrastructure for a comfortable experience.

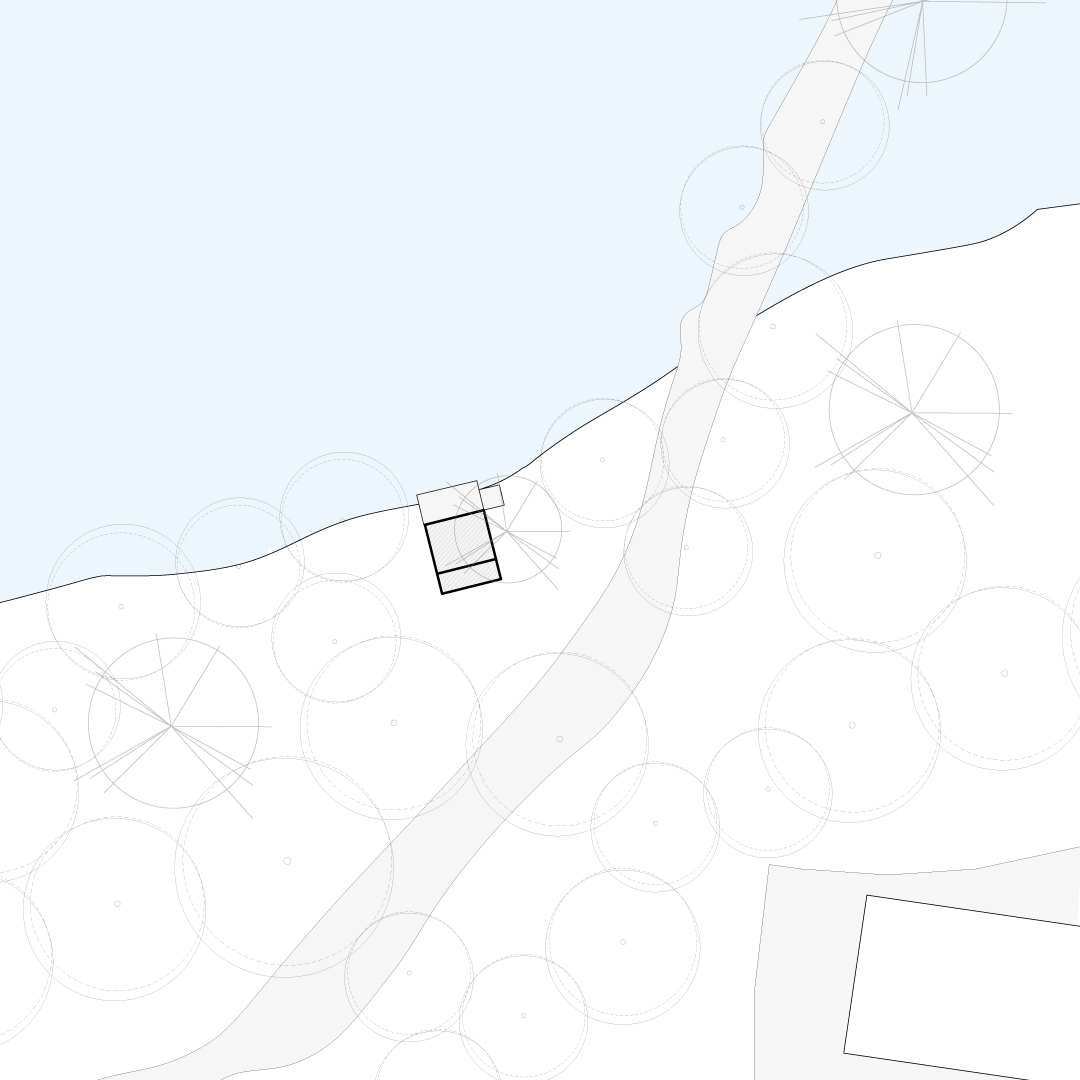

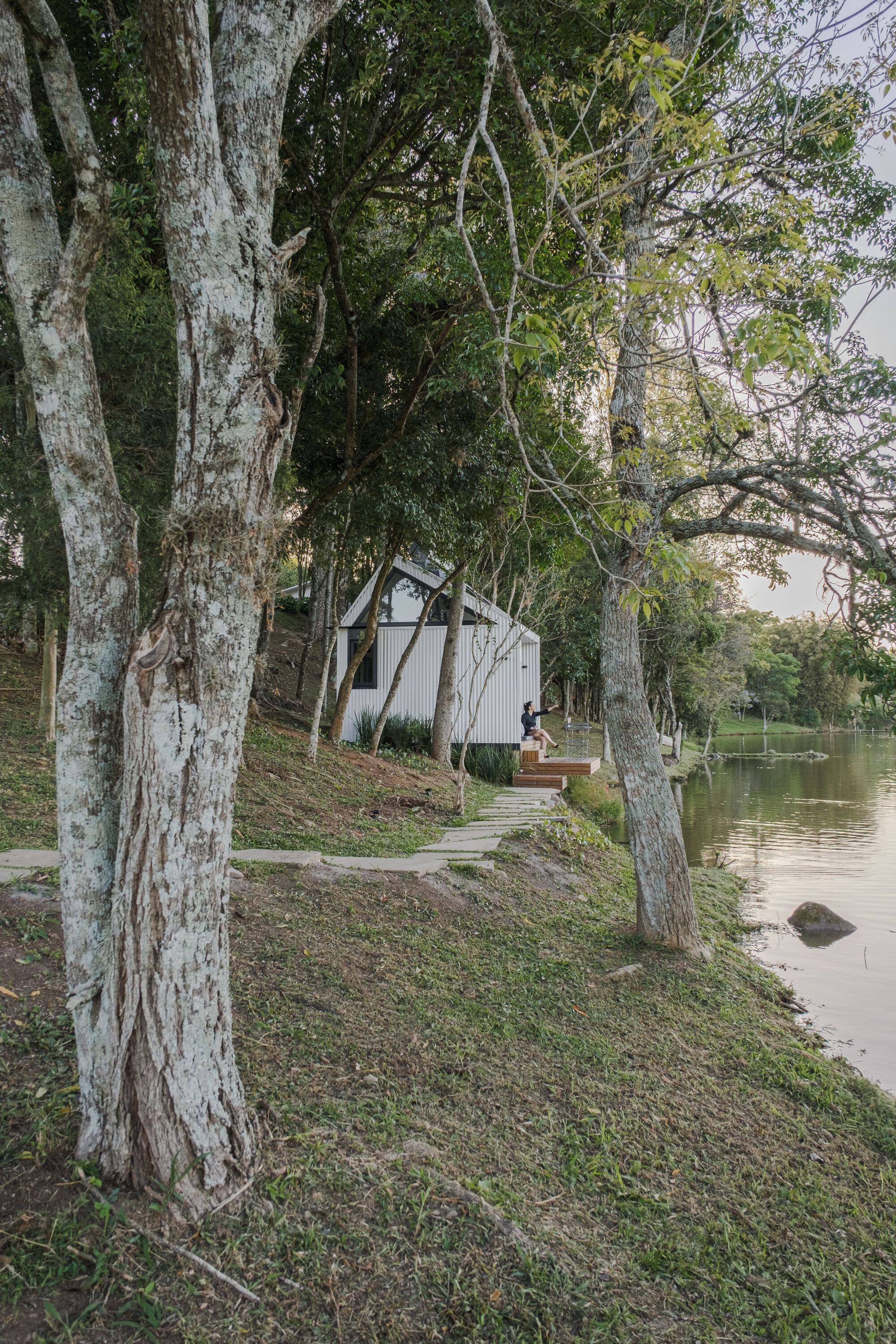

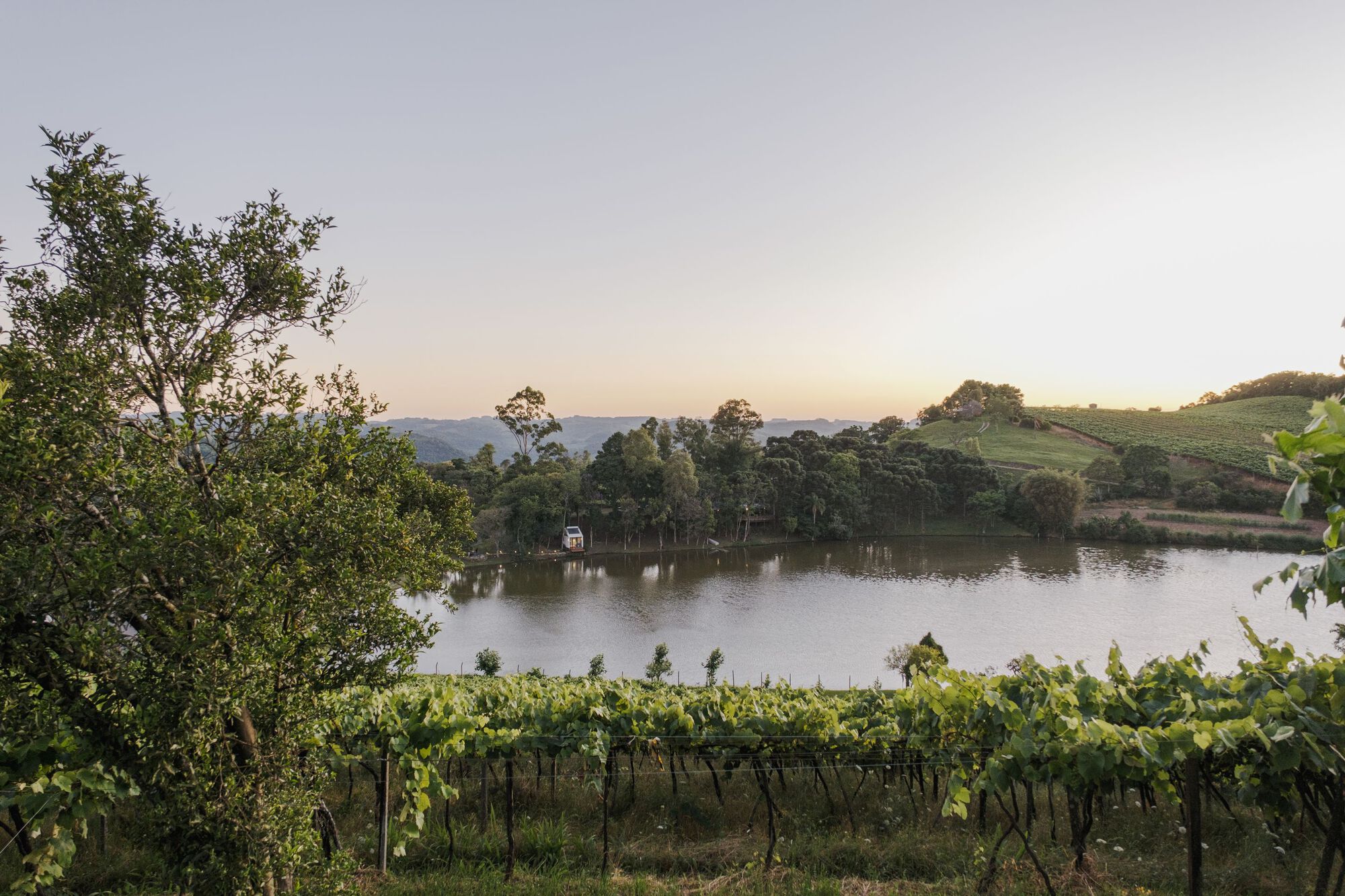

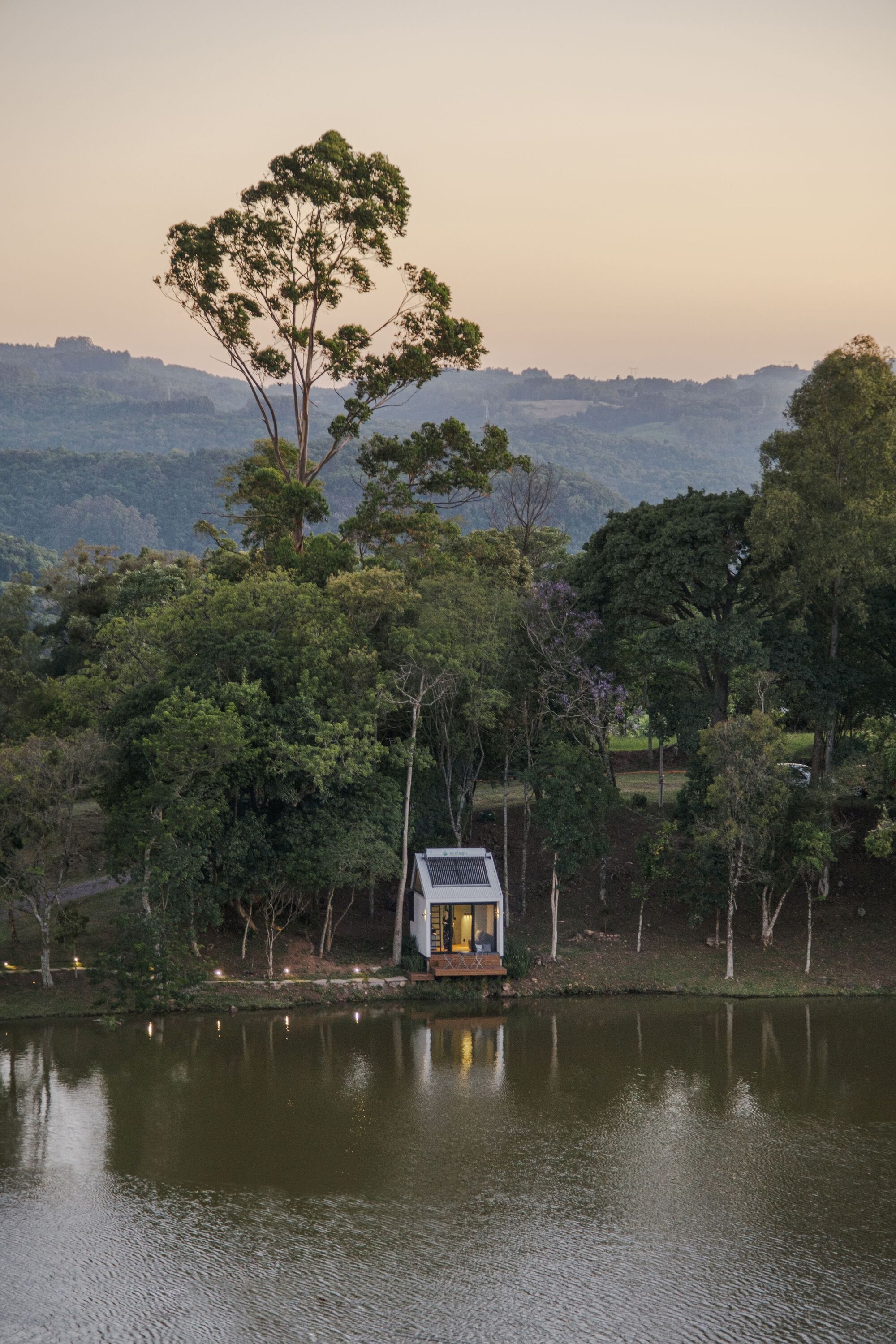

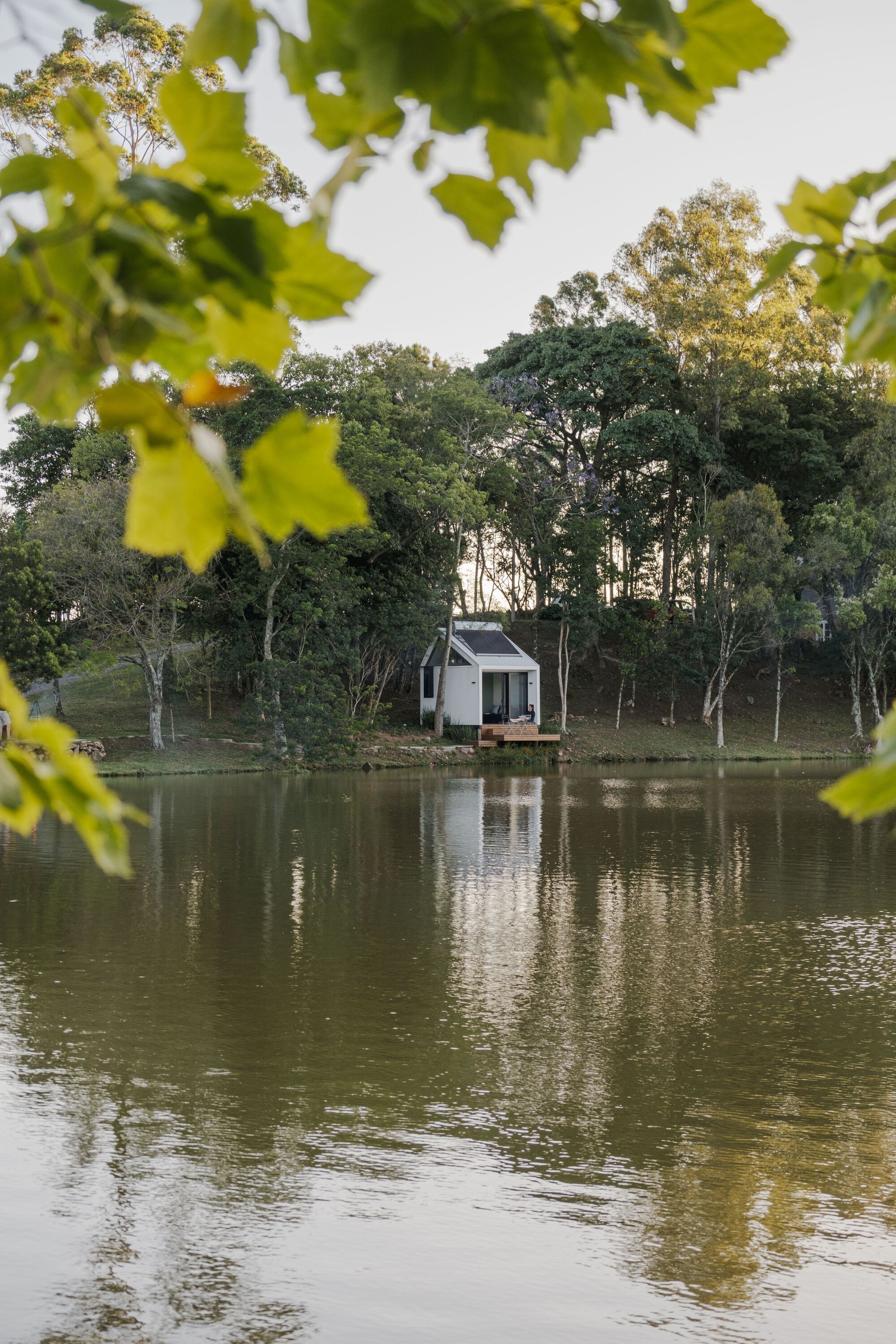

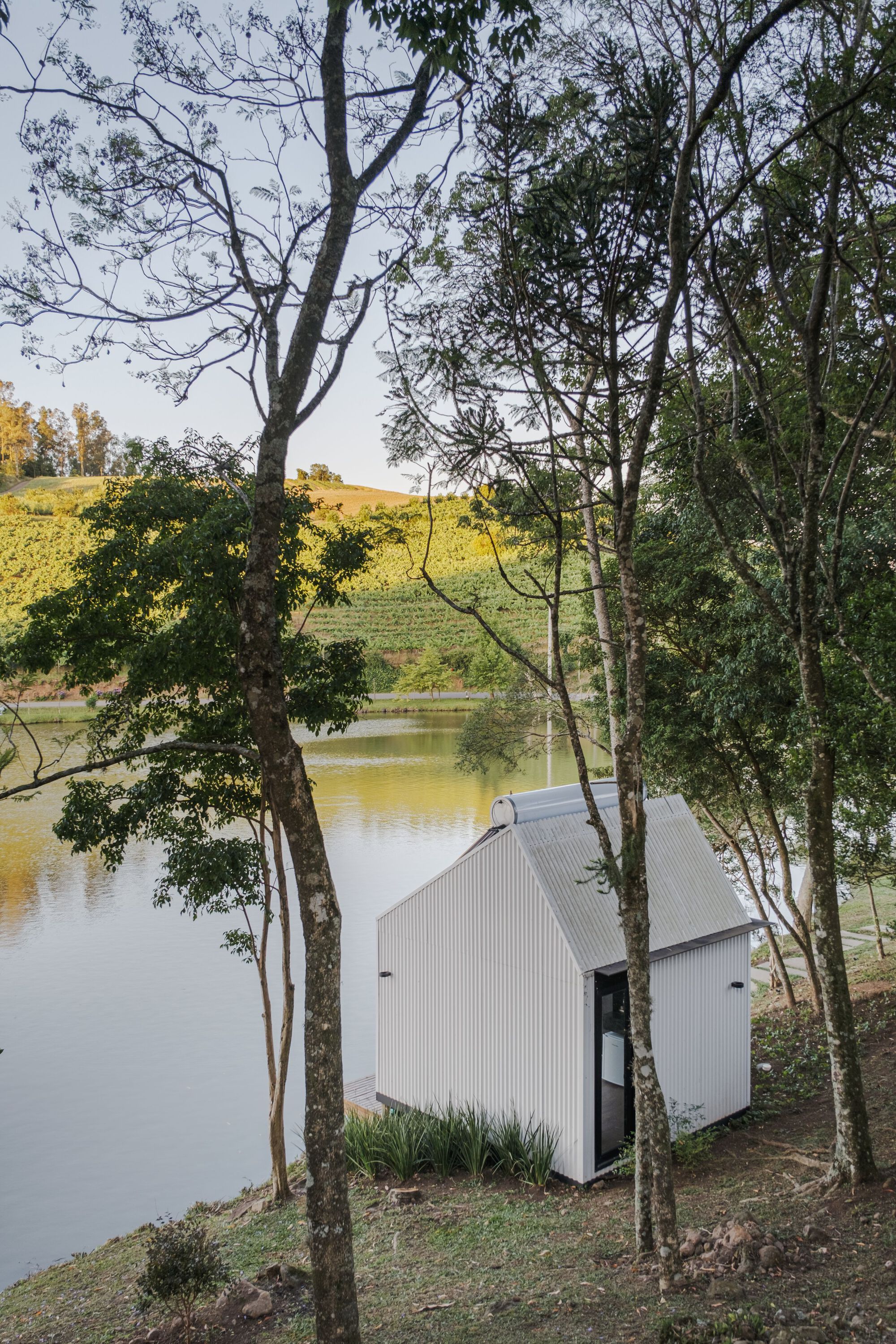

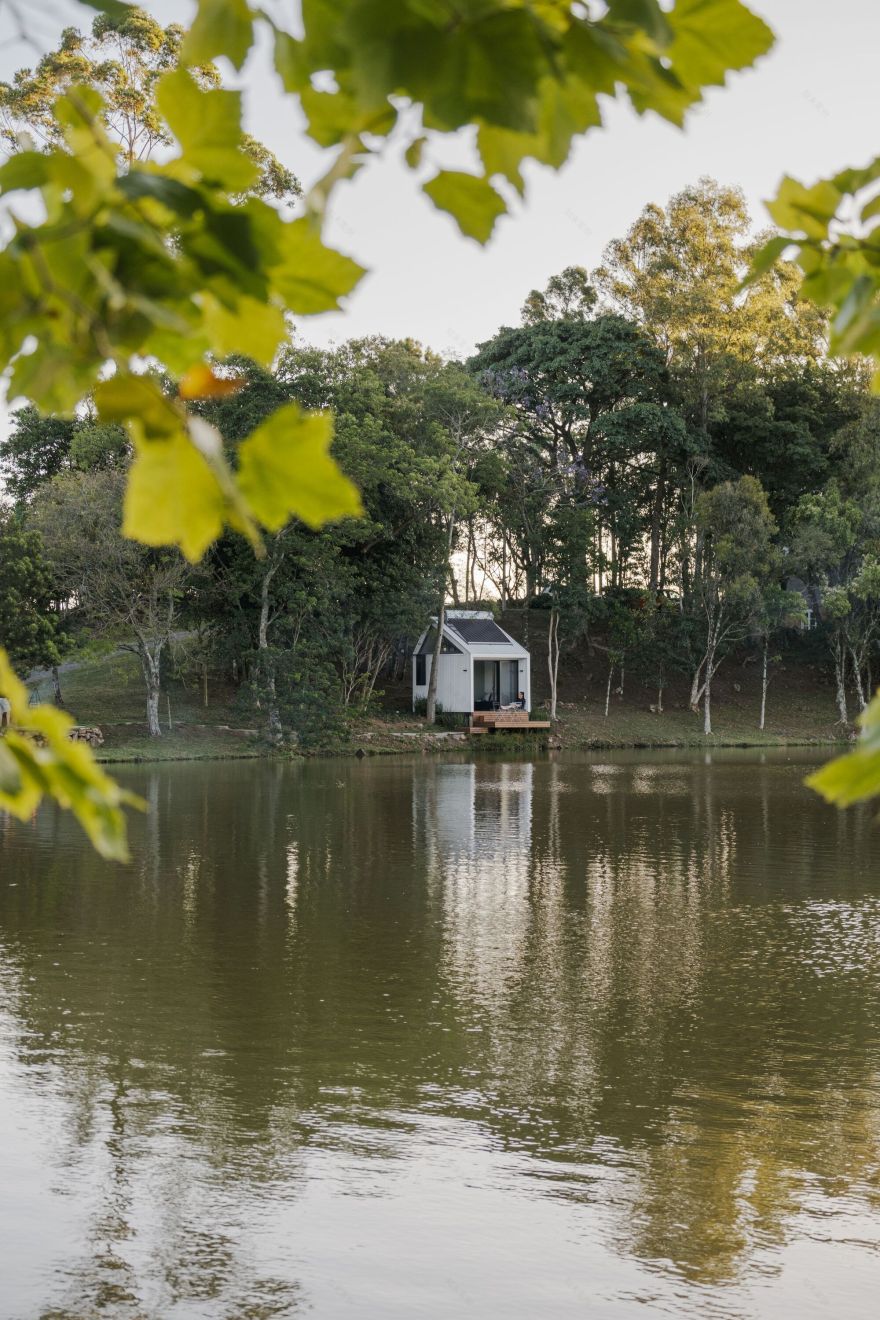

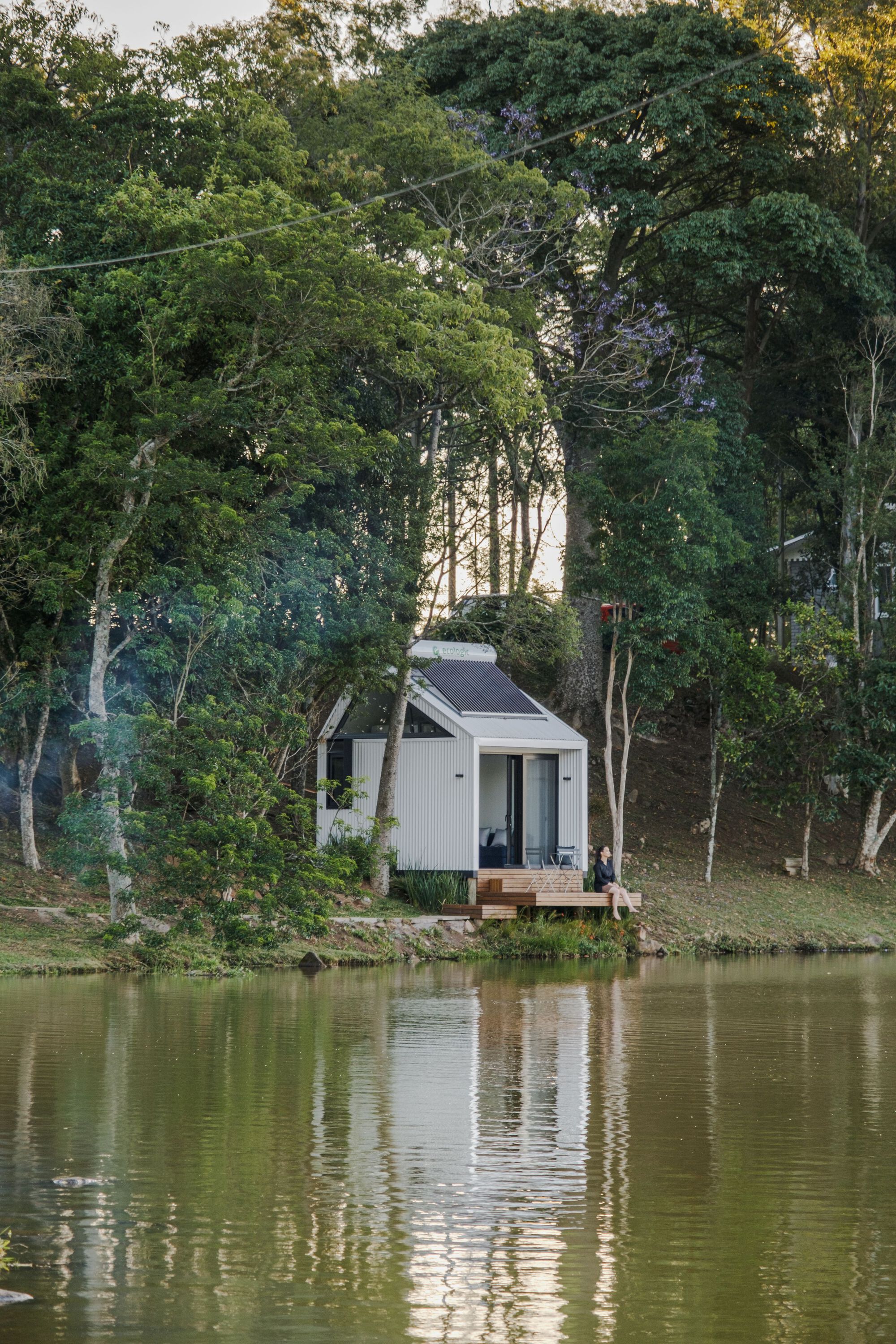

As soon as the project was completed, it was understood that it was interesting to test its functionalities "outdoors". The entire structure was pre-assembled up to the location where it would be inserted: a site in the interior of Serra Gaucha, in Rio Grande do Sul. The chosen position was strategic. Inserted between trees, inserted in an existing environment, and facing a lake and a beautiful landscape of the Vale dos Vinhedos region. The sensation from inside the space is that of being inside a boat, because of the view.

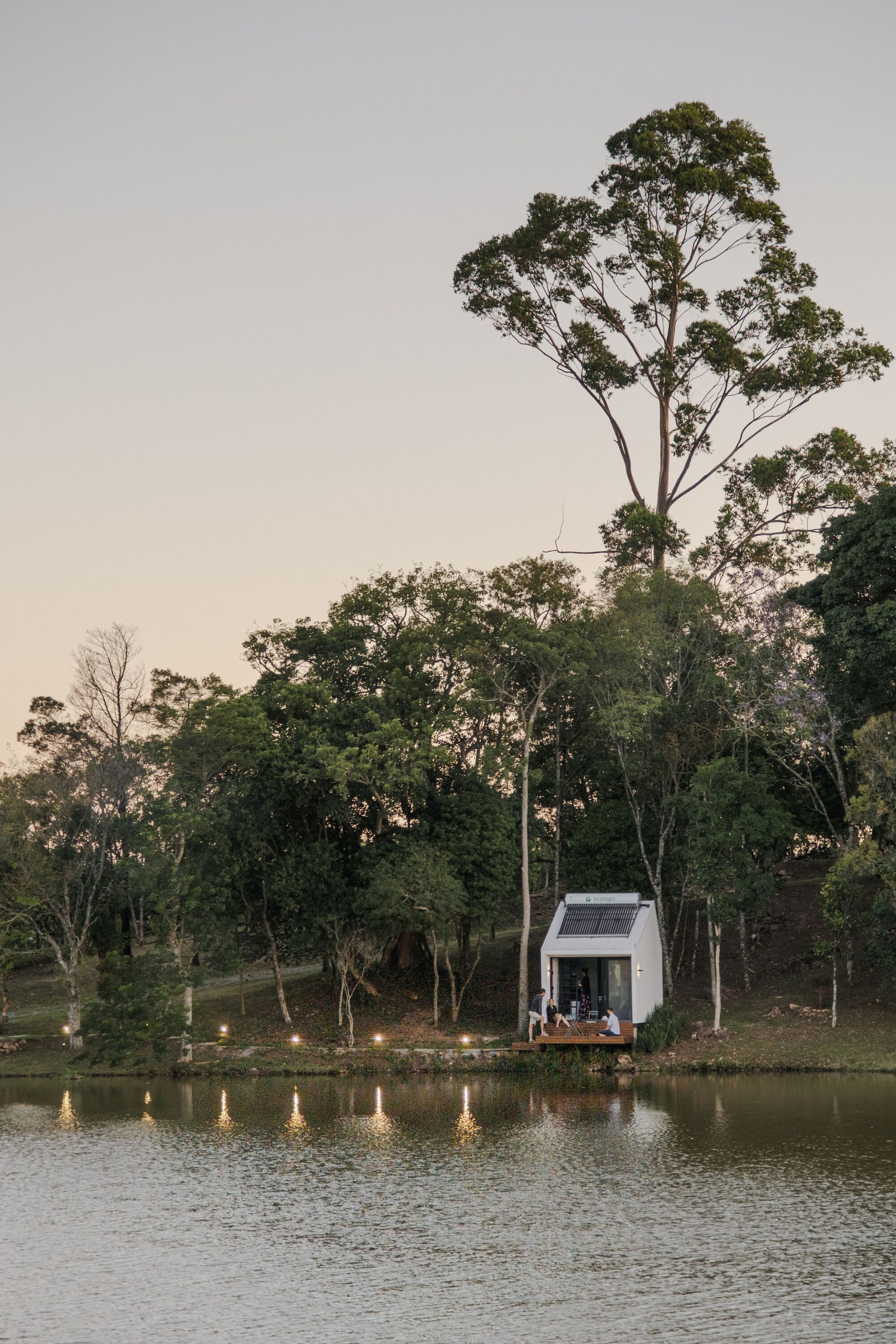

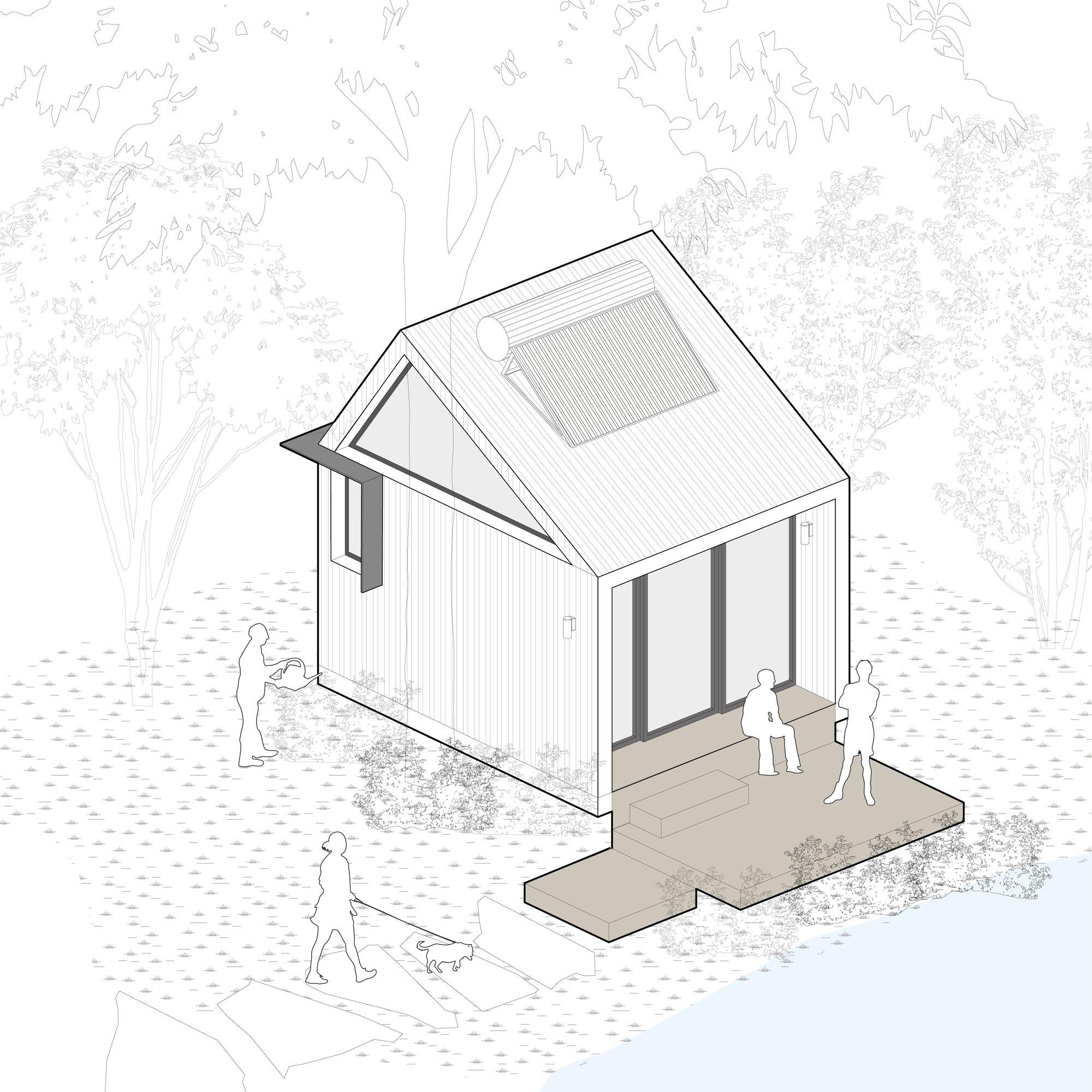

To ensure that the construction was self-sufficient, solar energy capture was the first item to be considered in the project. It serves to meet the demands for electricity consumption and water heating. The roof has two slopes with steep inclinations, guaranteeing easy maintenance, such as removing leaves that fall from the trees.

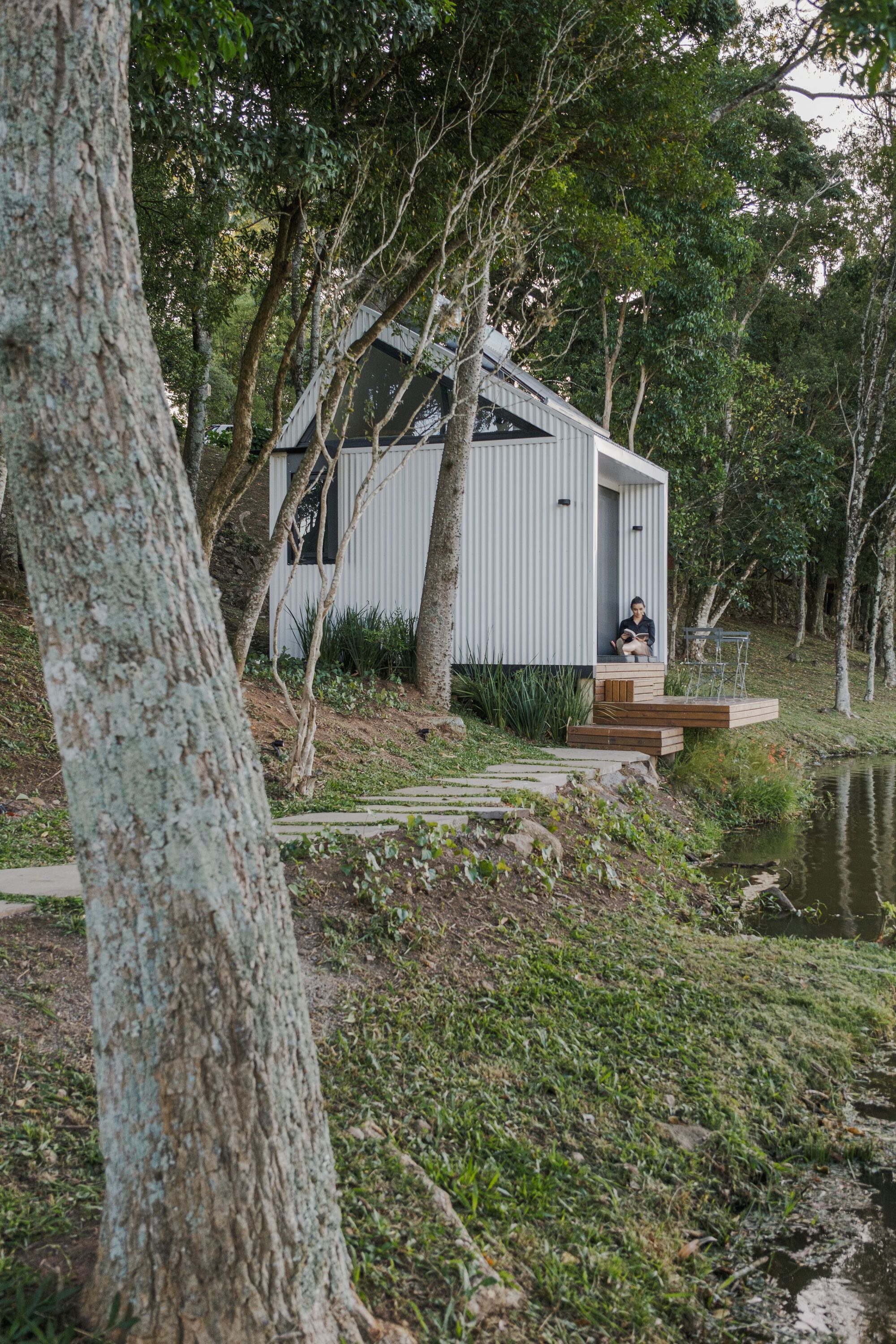

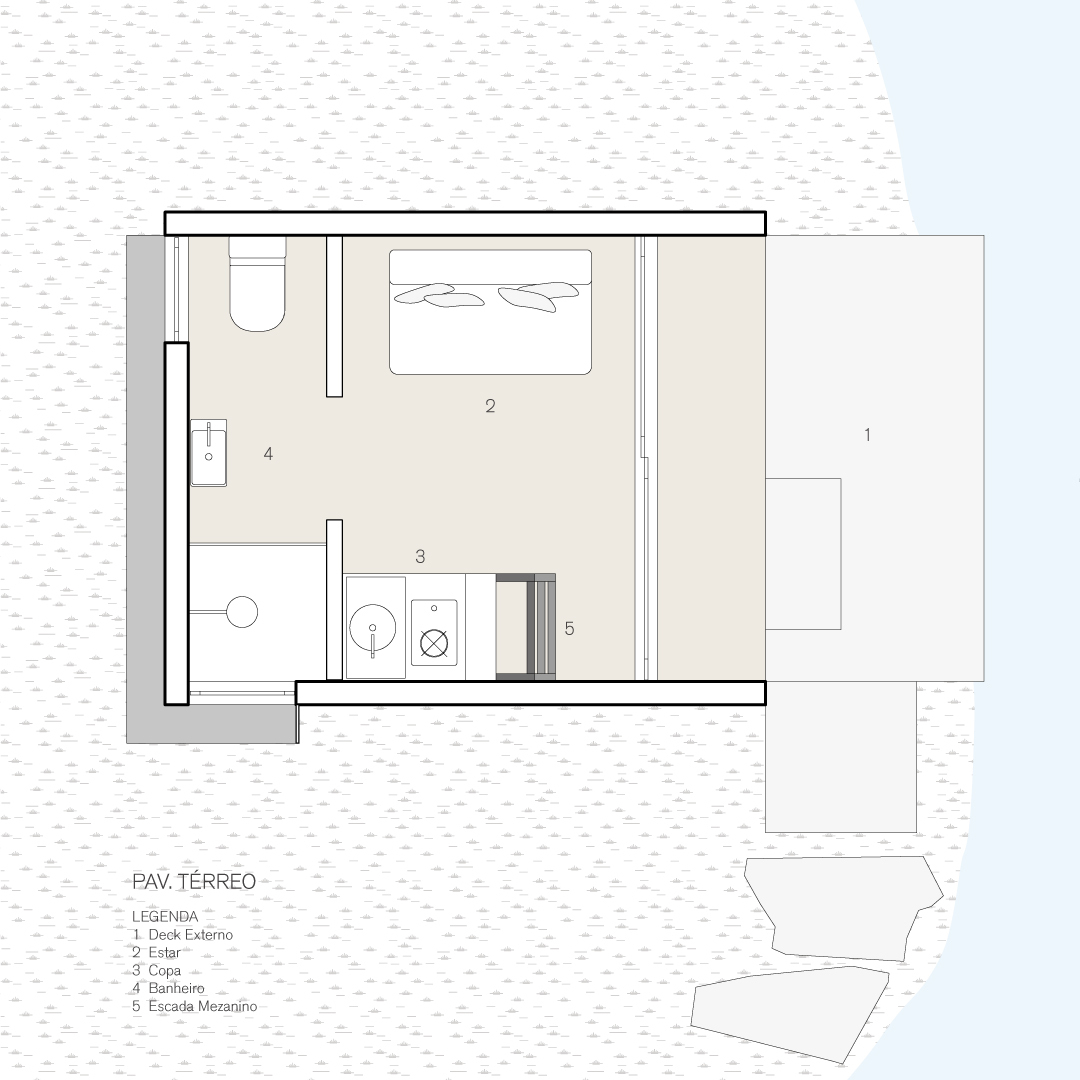

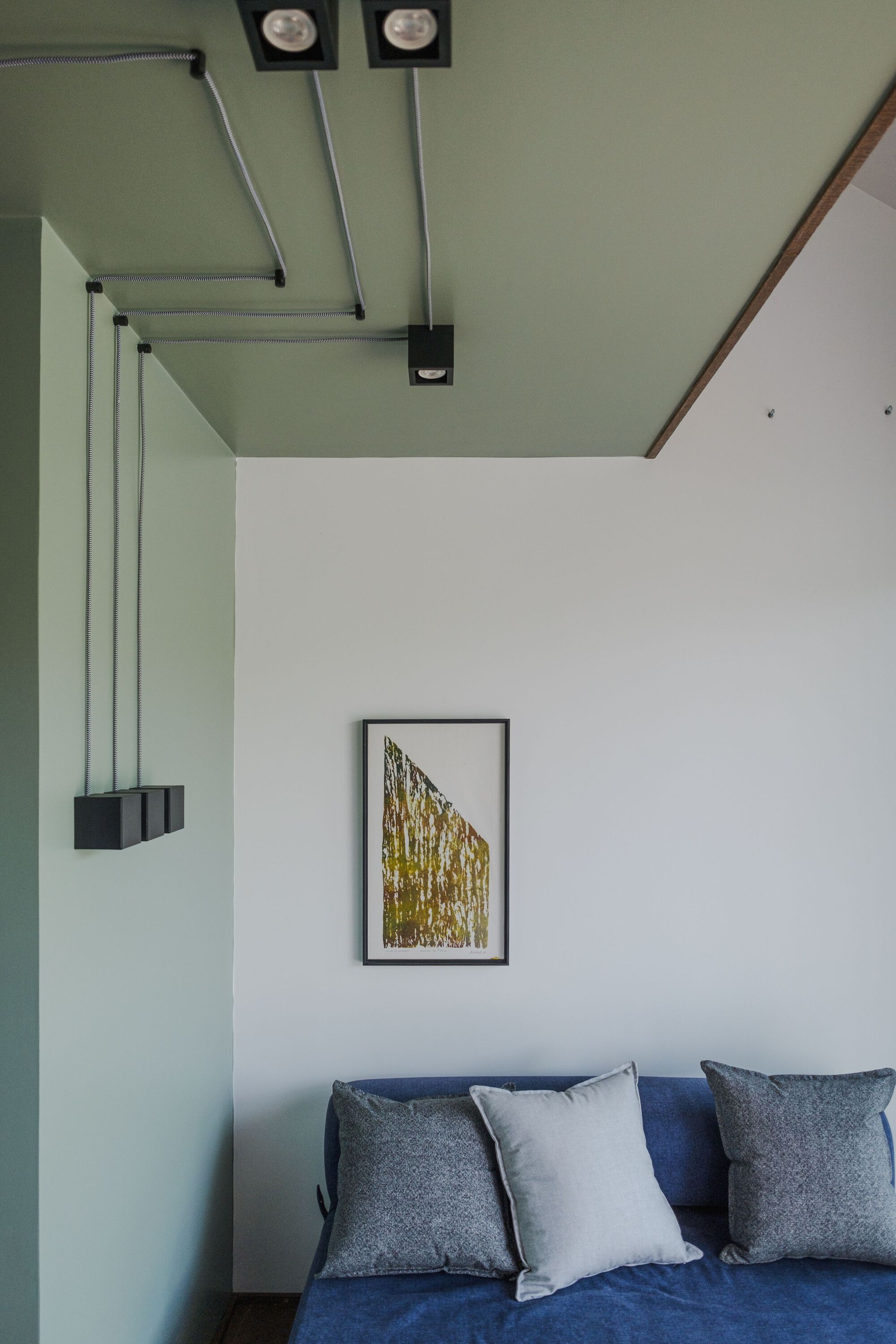

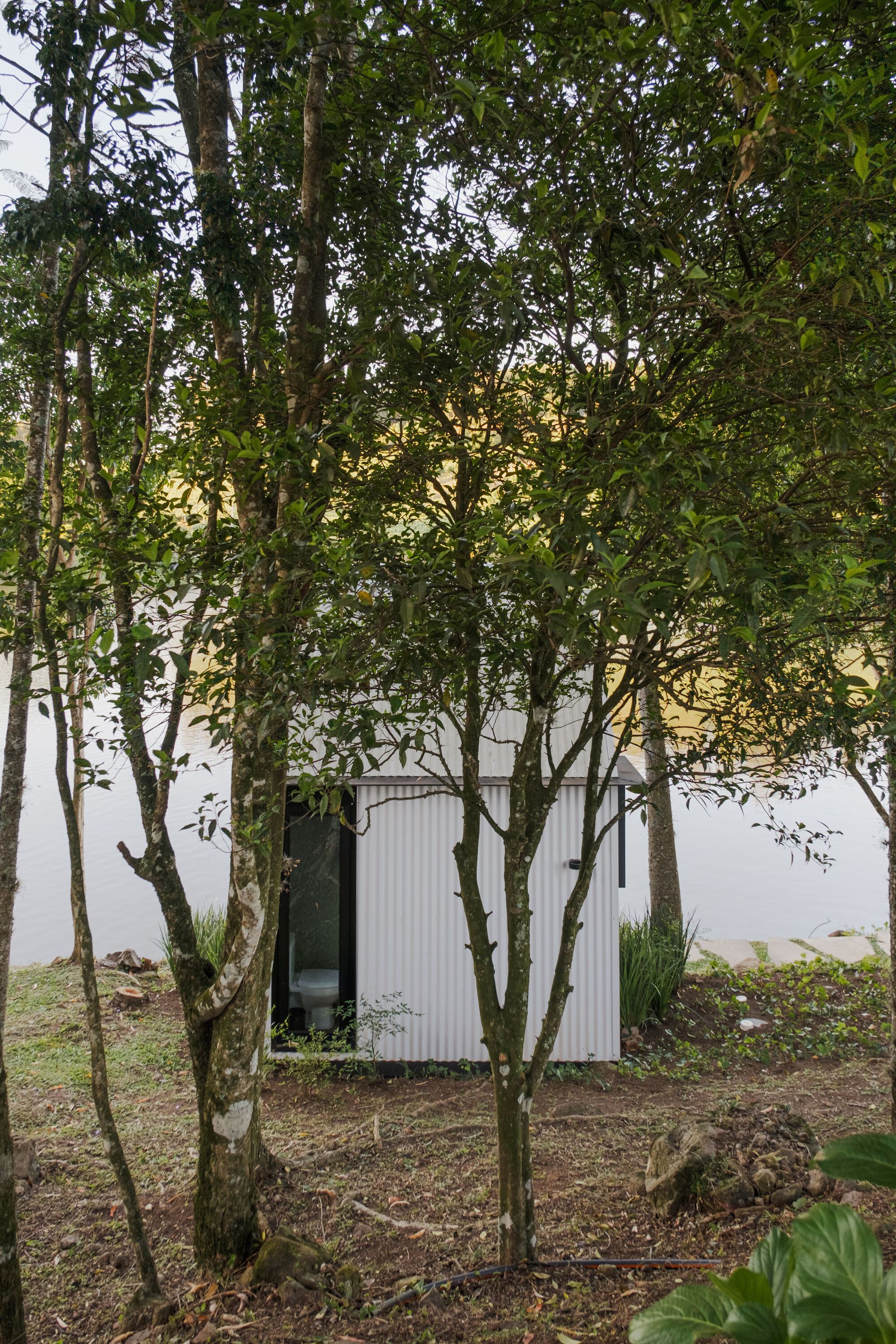

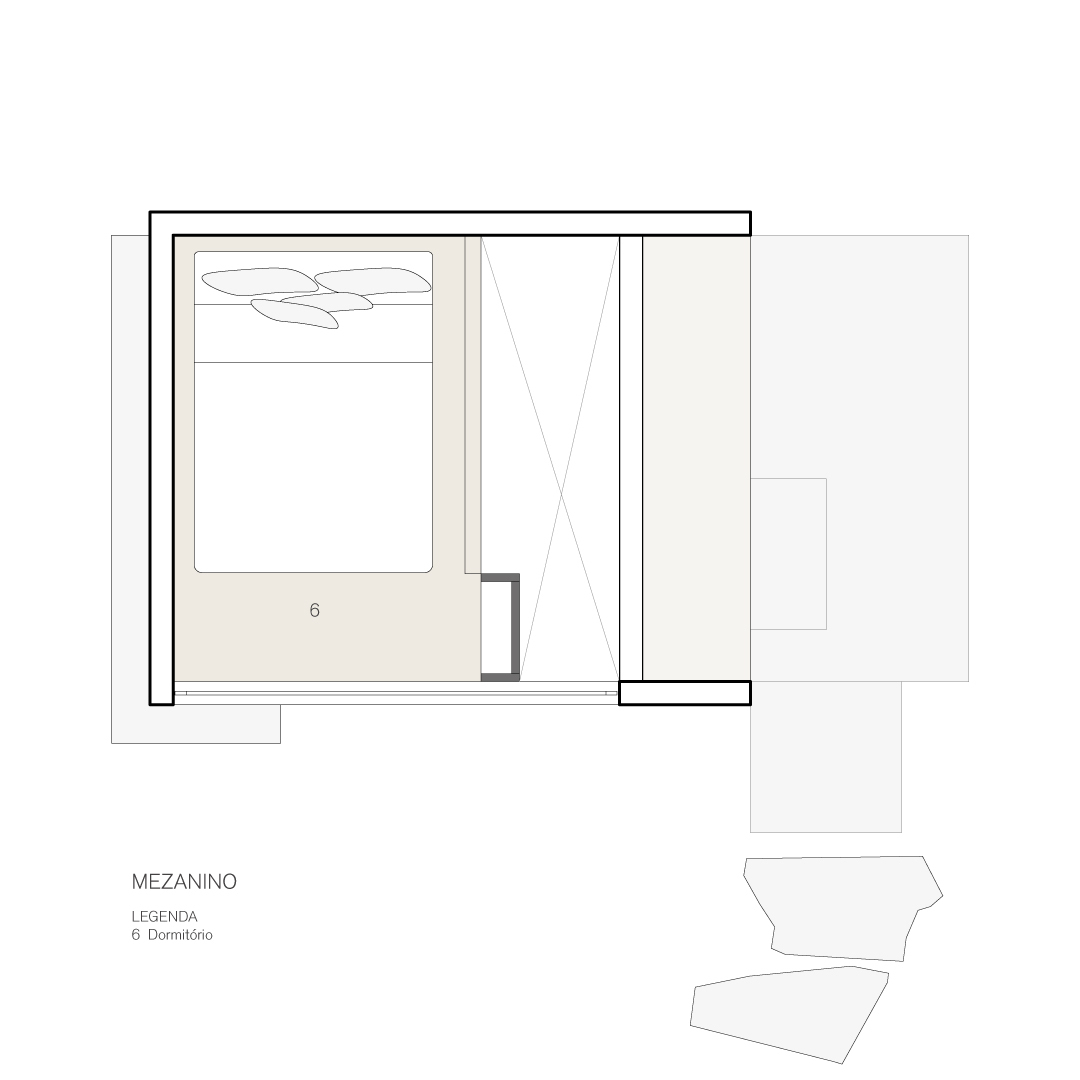

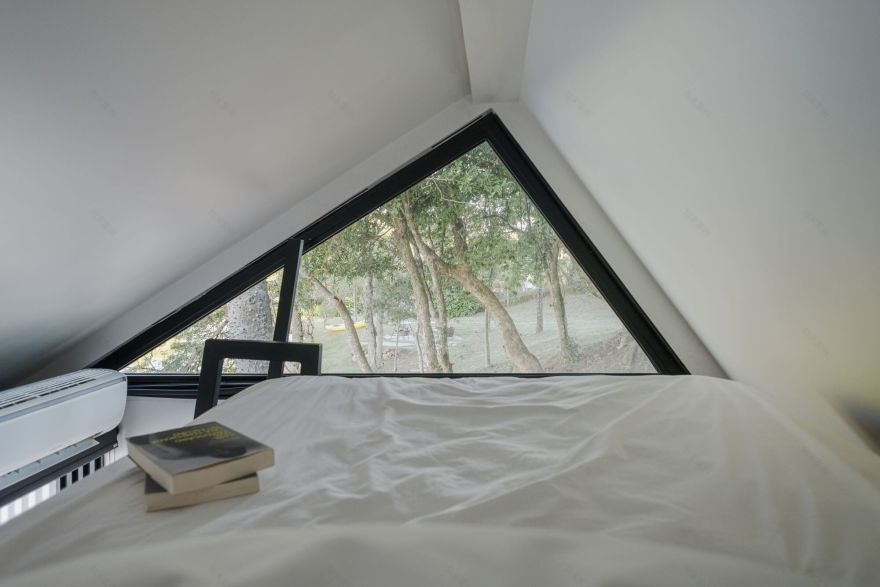

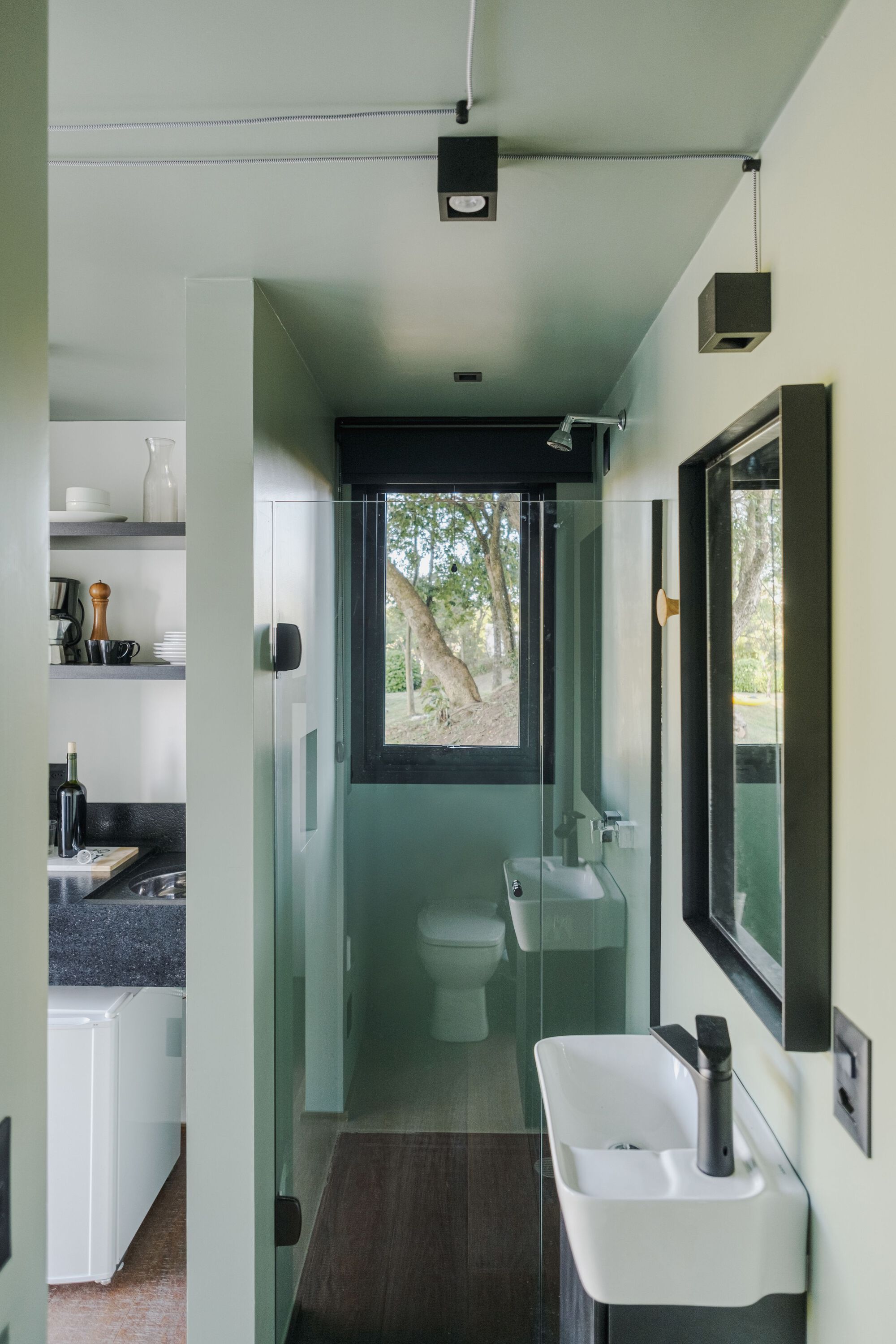

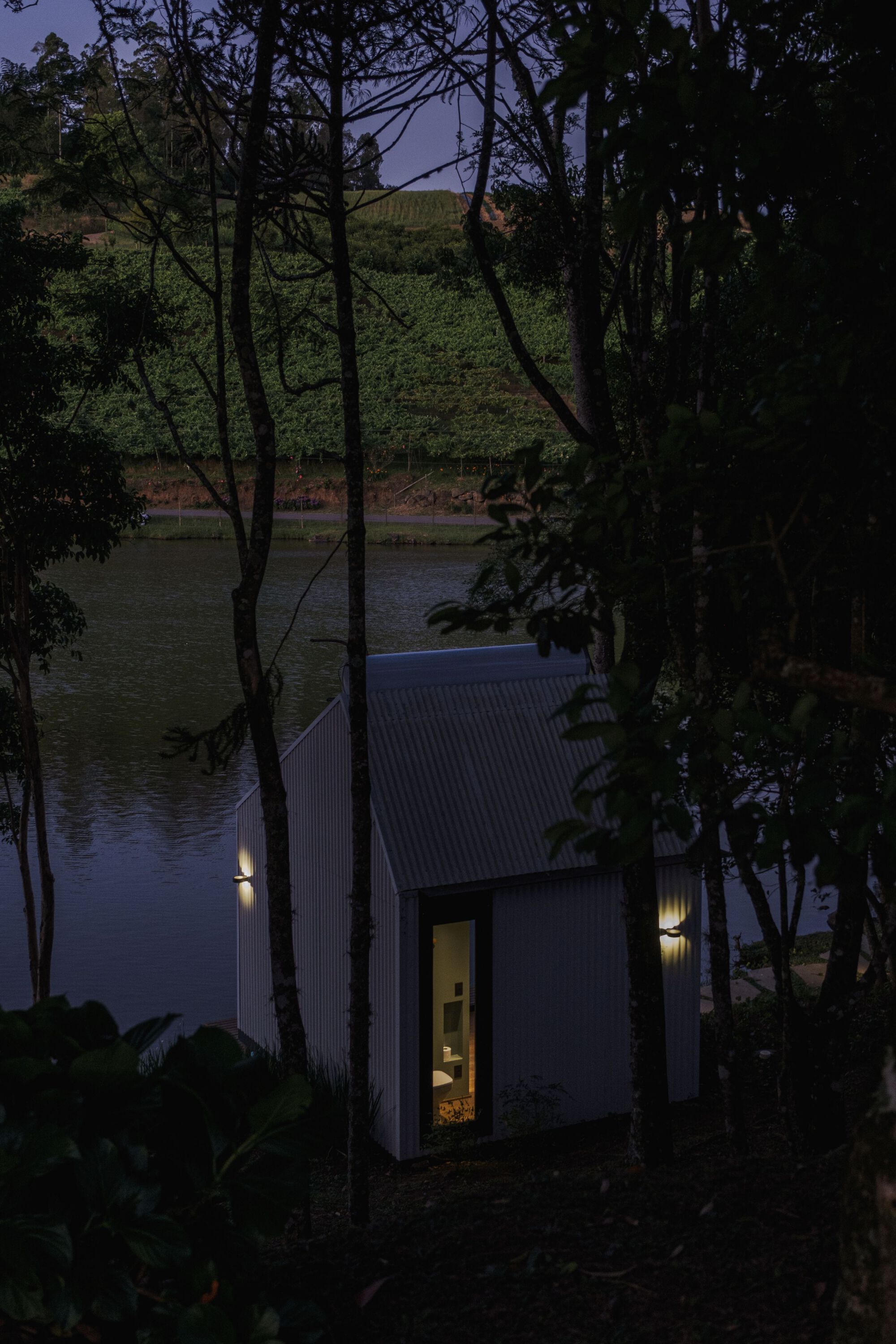

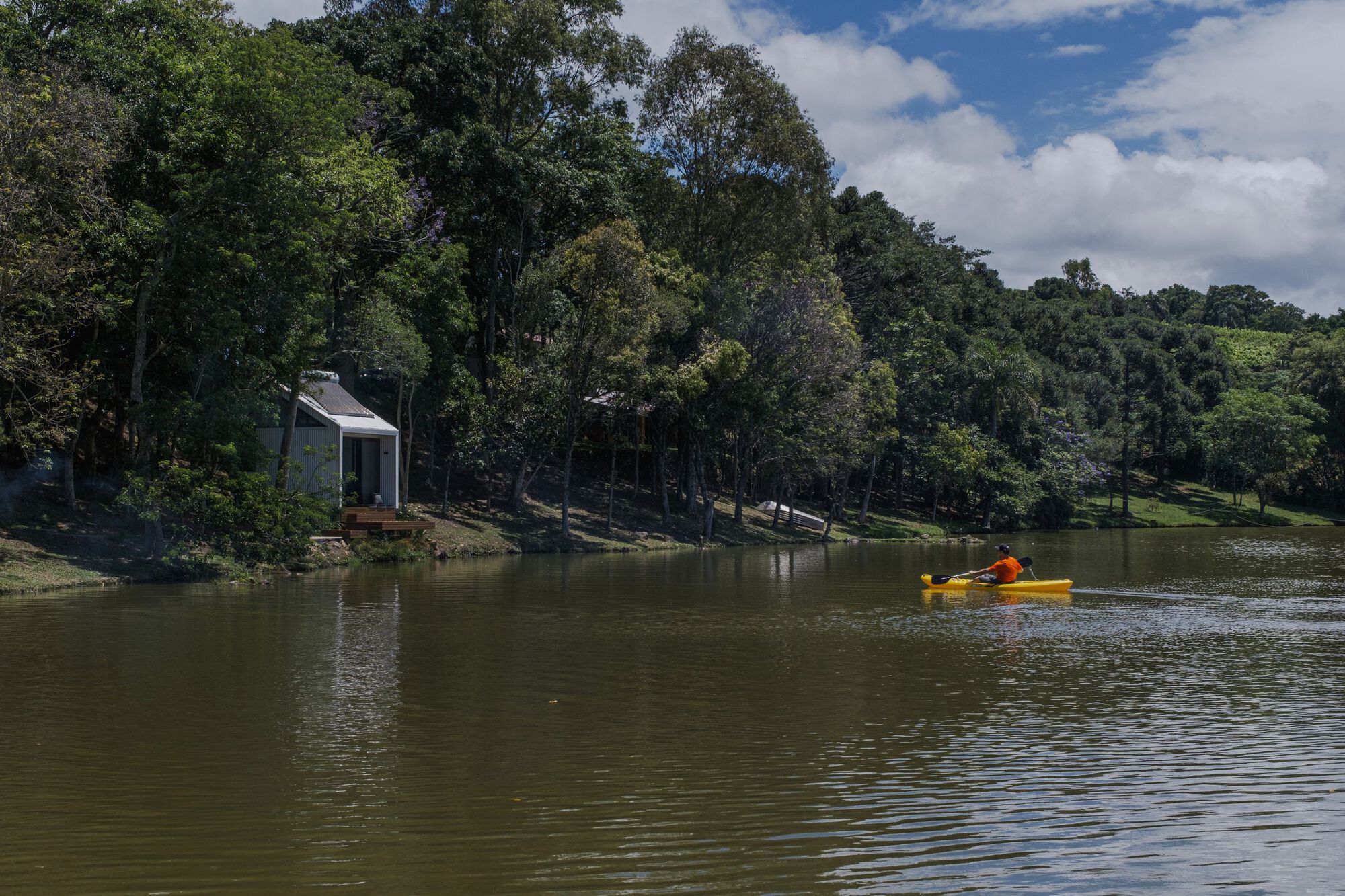

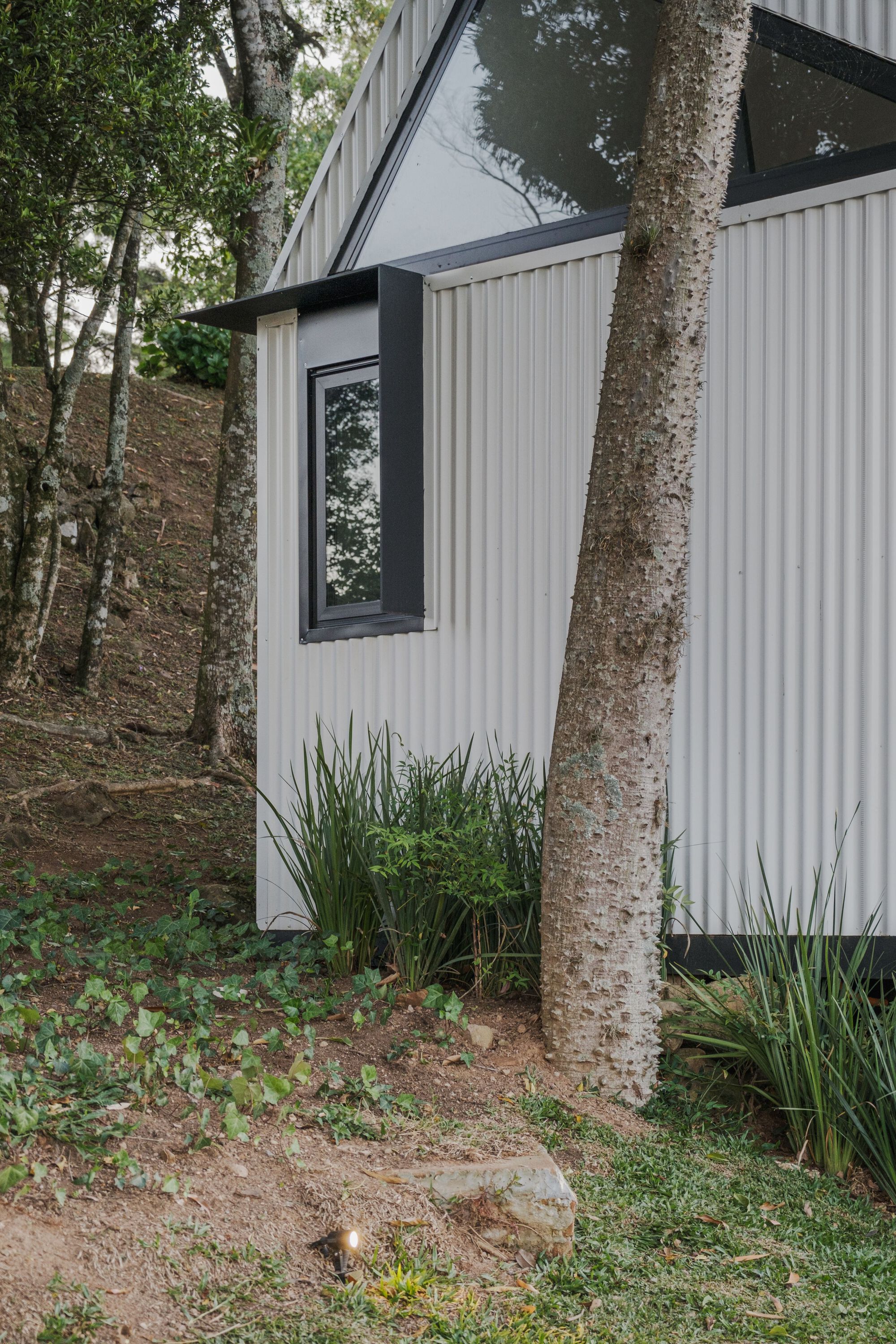

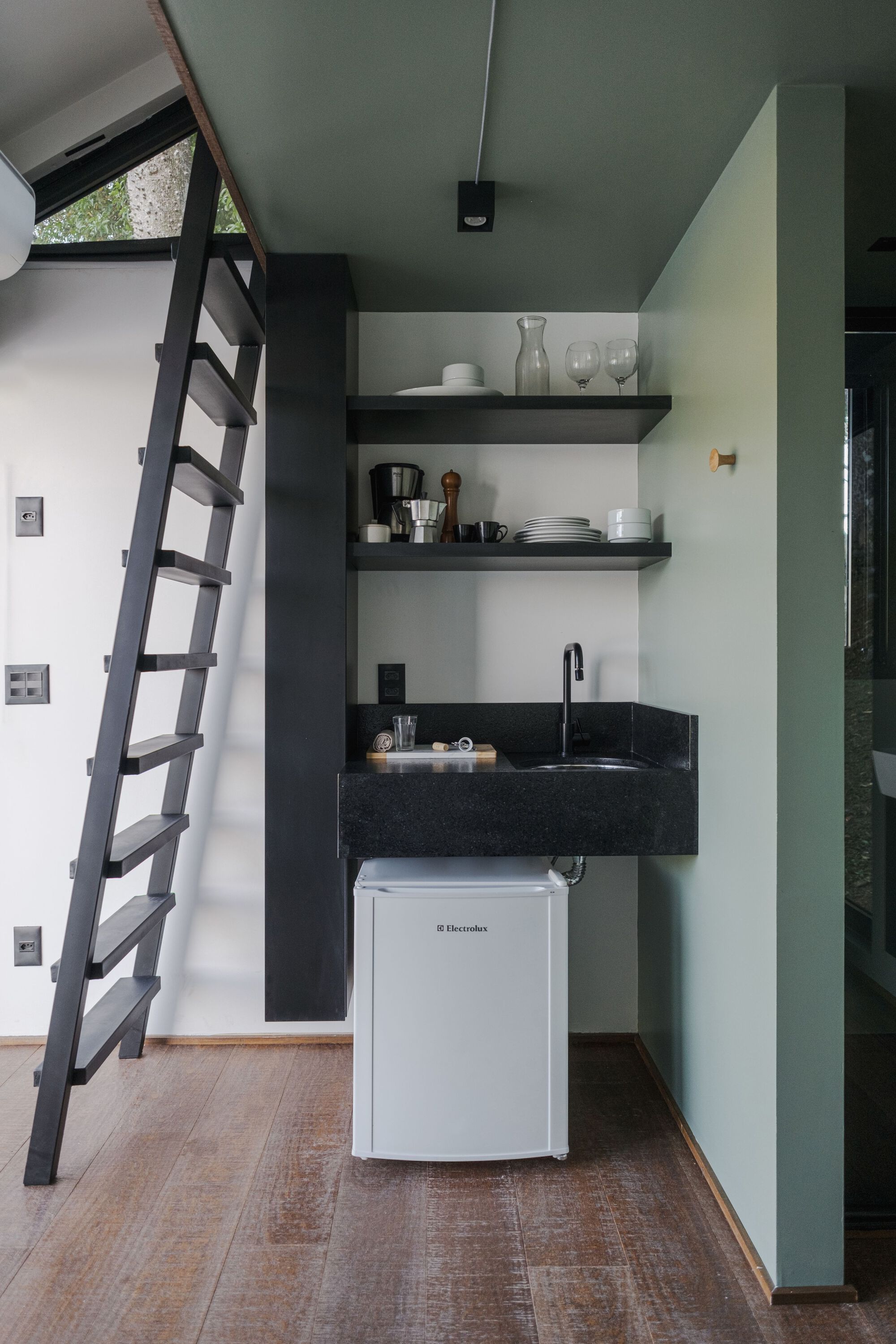

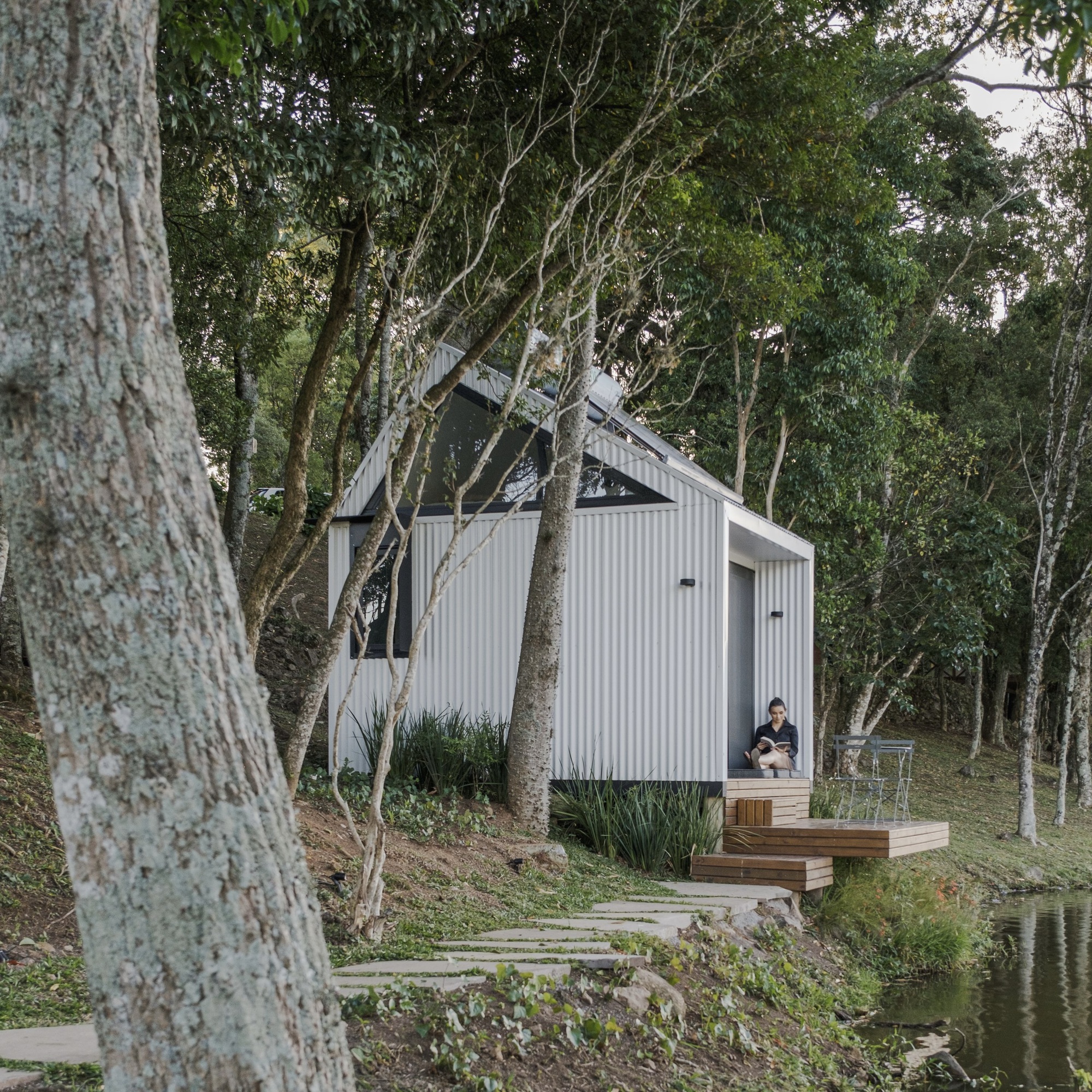

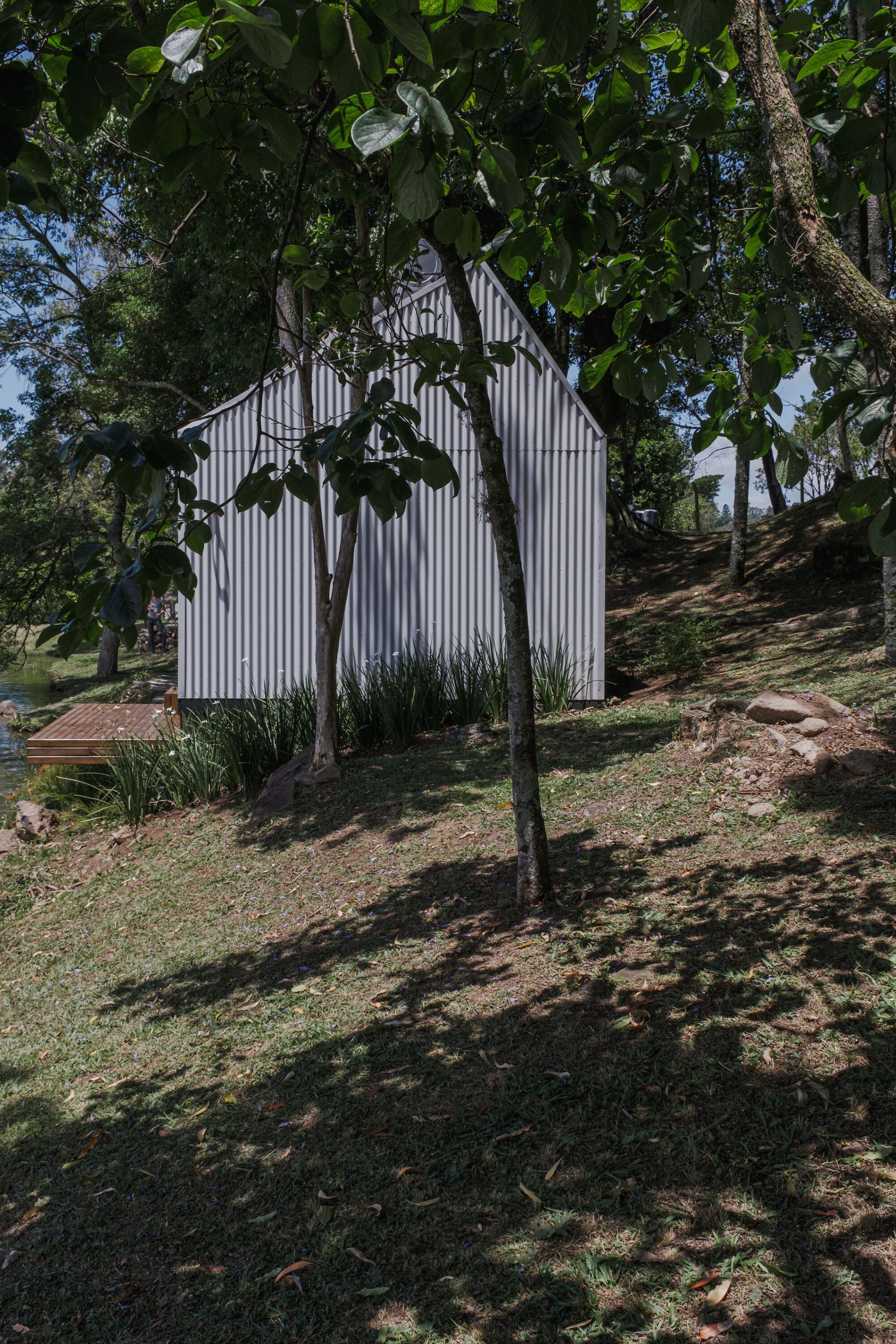

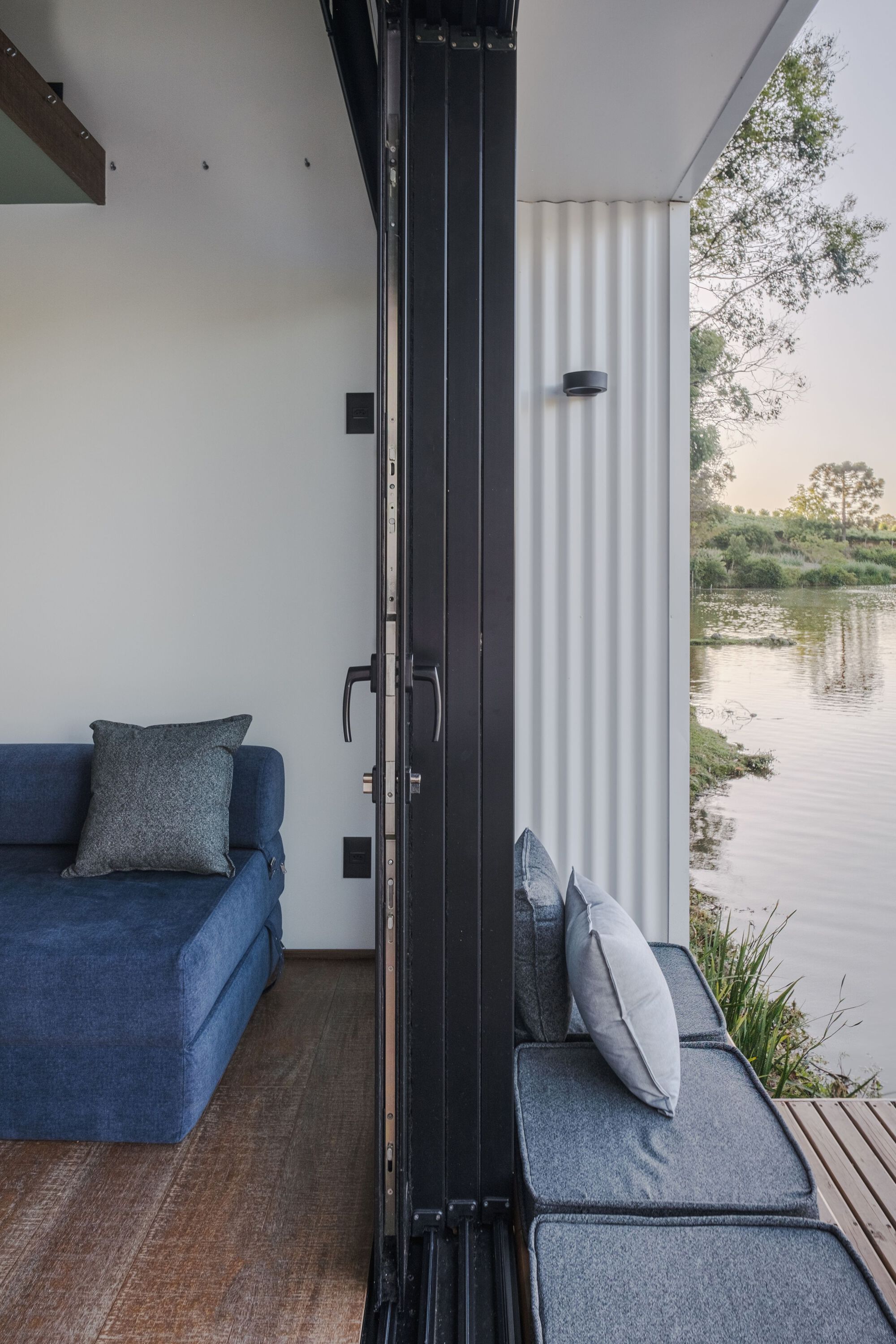

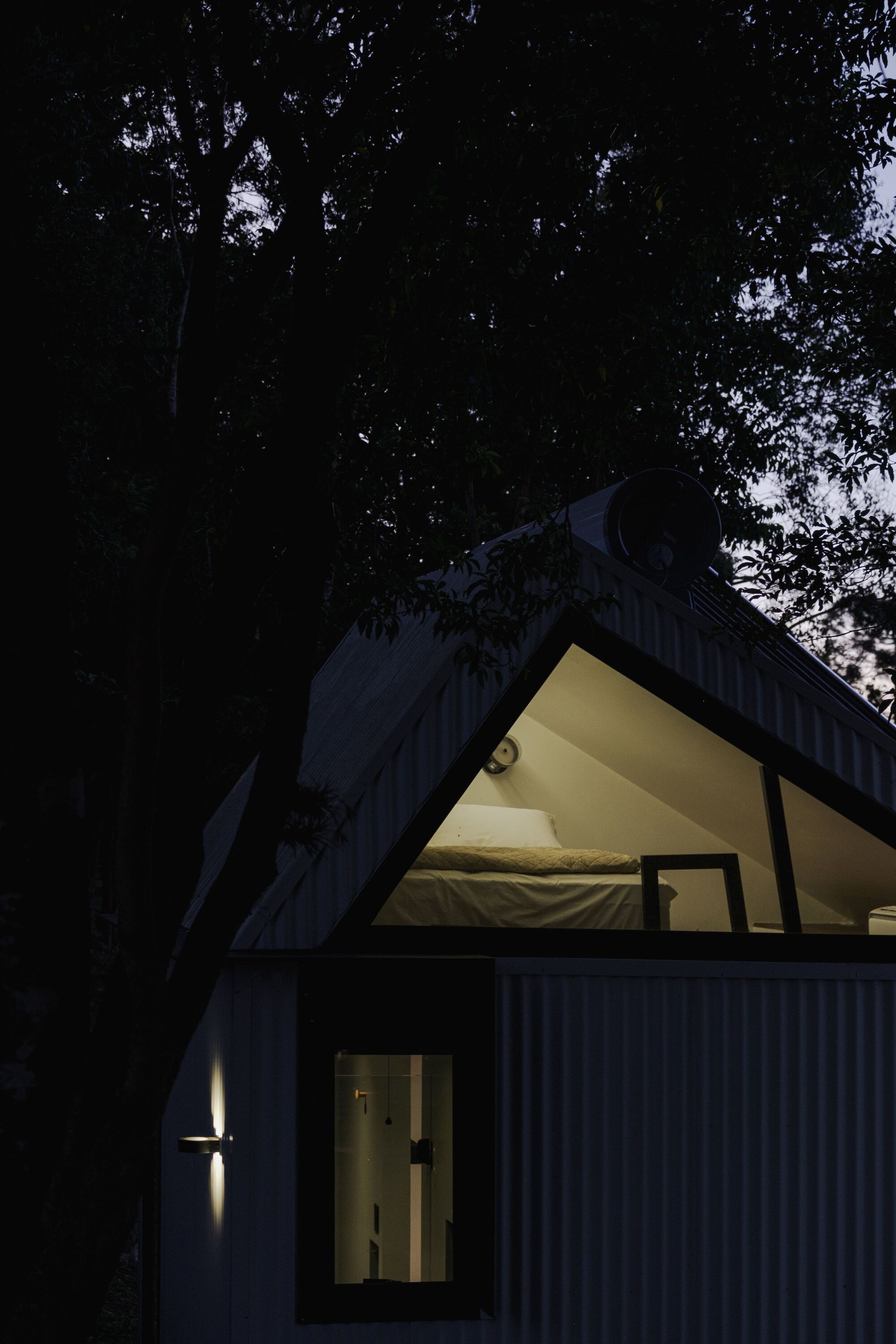

Its entire structure is in the light steel-frame system with cold-formed steel structural profiles, with thermal insulation in OSB panels and glass wool, and external closure in pre-painted corrugated tiles, in white. Access to the Refuge is made through a path of irregular basalt - a typical stone of the region - and a wooden deck that advances over the lake, where users can fish or take a canoe ride. Internally, natural wood flooring and a shared space between the living room, equipped kitchen, and bathroom. For maximum use of space and the sensation of a cabin, there are no doors between these environments. In the mezzanine, a space reserved for sleeping, a window entirely made of glass in front of the bed brings the sensation of being in the treetops.
