厘米之家丨巴西丨parte arquitetura

Architects:parte arquitetura

Area:3154ft²

Year:2019

Photographs:Lucas Daneris

Manufacturers:Sherwin-Williams,Alubra Esquadrias,Broilo Aquecimento,Dryko,Eucatex,Fell Esquadrias,Floricultura Jardim do Éden,Fortlev,Funilaria Dois Irmãos,Gerdau,Gessopel,Grupo Schumann,Intelbras,Maciel Gill Mármores e Granitos,Madeireira Petetim,Metalúrgica Samfel,OCS Engenharia,Olaria Guido Einhardt,Osram,PORTAL DAS PEDRAS, +10Portobello,Protelha,Quartzolit,SCA Móveis,Sika Brasil,Stam,Stella,Tigre,Vedacit,Vidraçaria Toniglass-10

Lead Architect:Eduardo Riemke

Architectural Project Co Author:Alice Moraes

Foundations:Gigante e Simch

Structural Project:Rodrigo Riemke

Builder:N.M. Peters

Program:Abrigo para carros, sala de jantar, sala de estar, lavabo, cozinha, área de serviço, depósito, churrasqueira/varanda; 2 dormitórios, banheiro social, suíte com closet e banheiro, escritório.

City:Pelotas

Country:Brazil

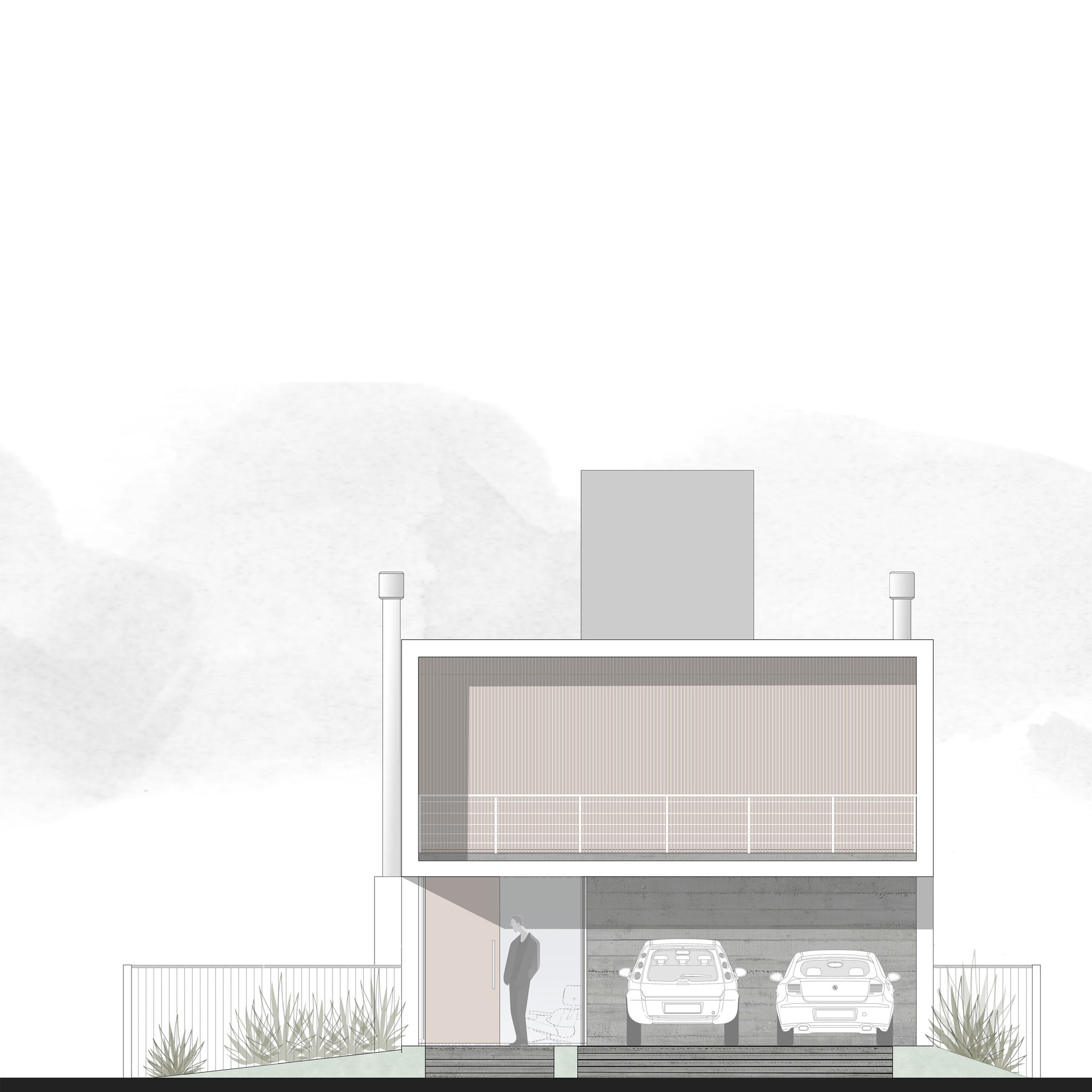

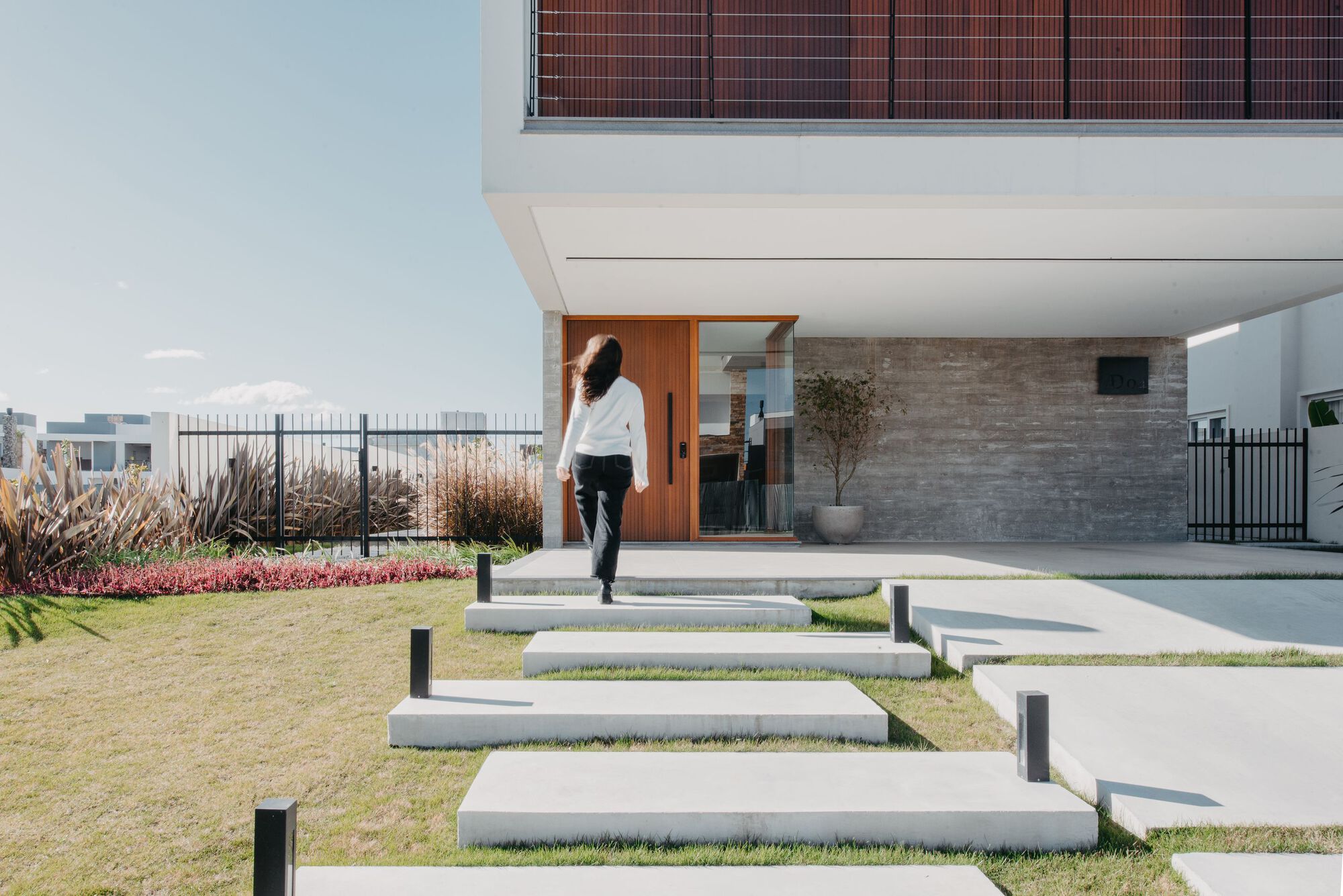

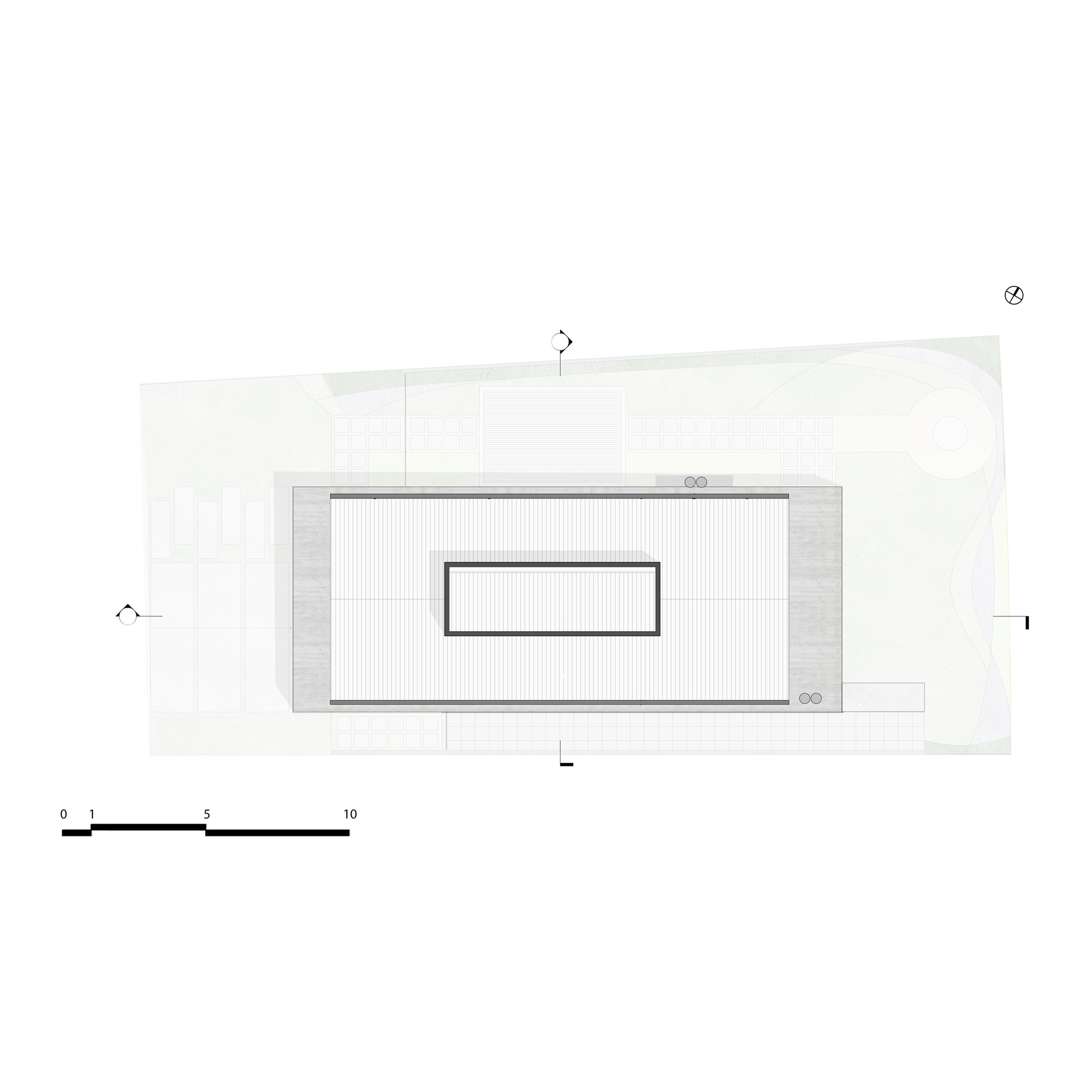

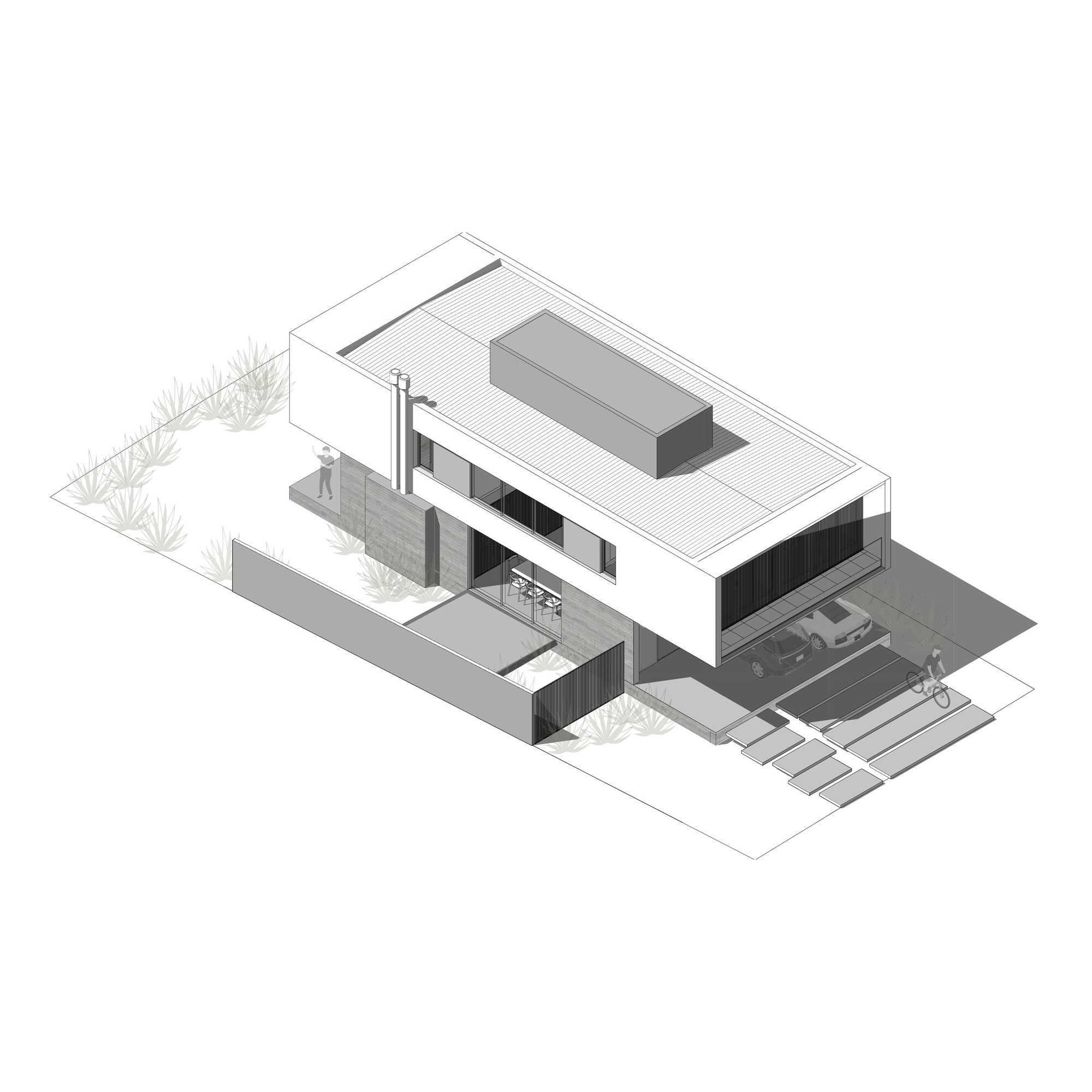

Text description provided by the architects. The house is located on an urban site in the city of Pelotas, southern Brasil, with a surface area of 420m². The project consists of a linear and compact composition, inside lot’s boundary, carefully placed on the land favoring the solar orientation, close to the southeastern boundary. The volume is marked by a white rectangular prism that rests on top of a concrete volume and is projected in a cantilever, at the front, and at the back.

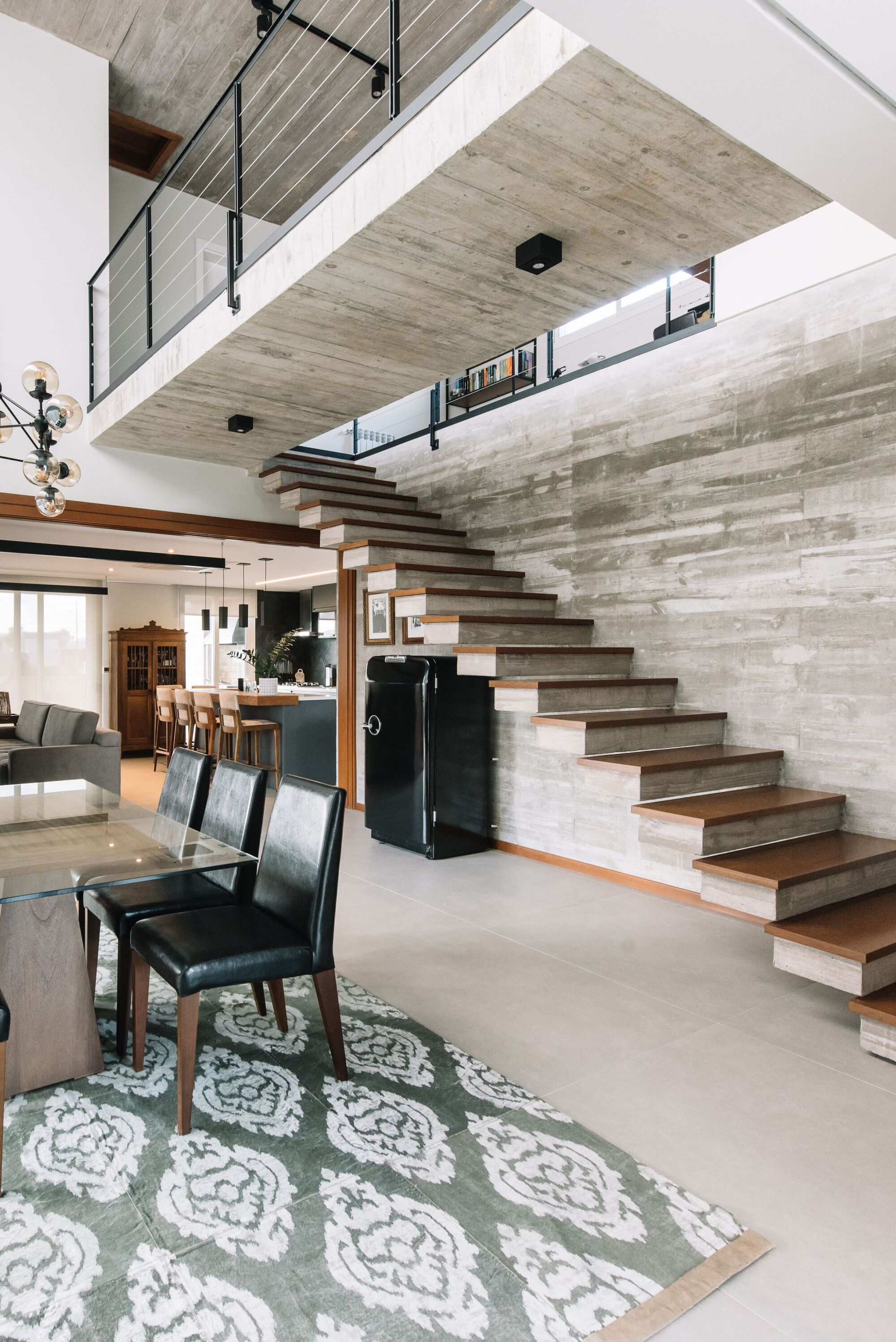

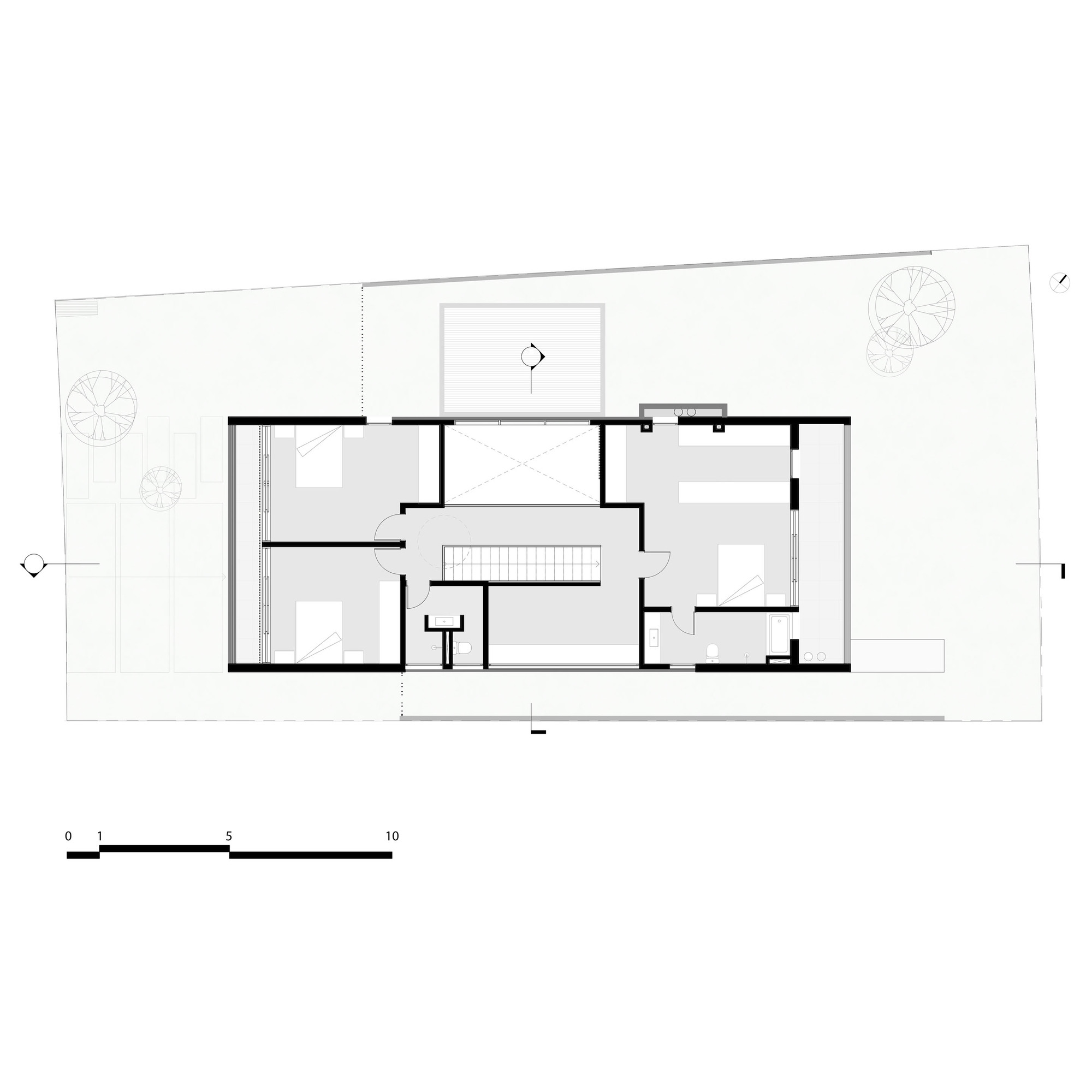

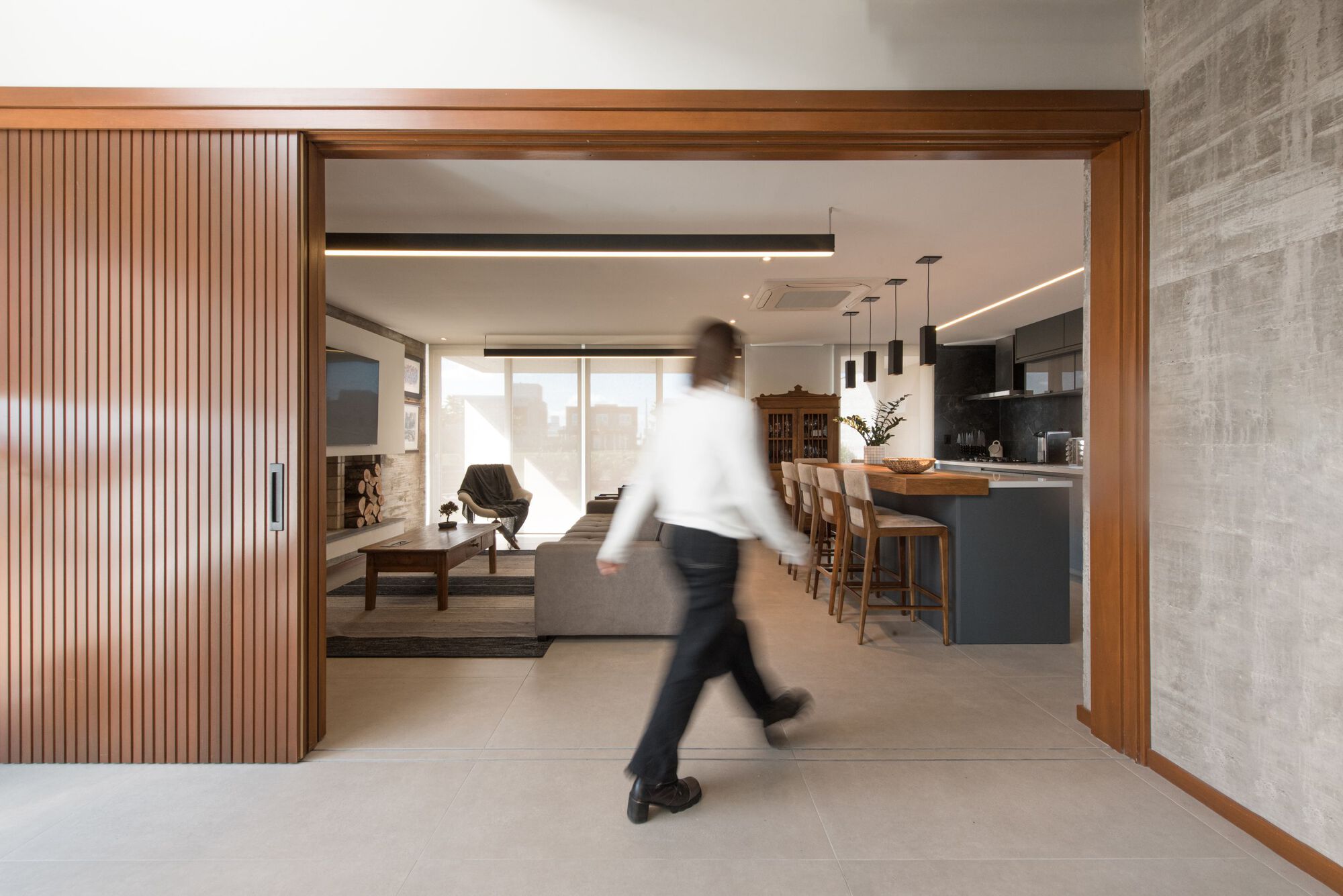

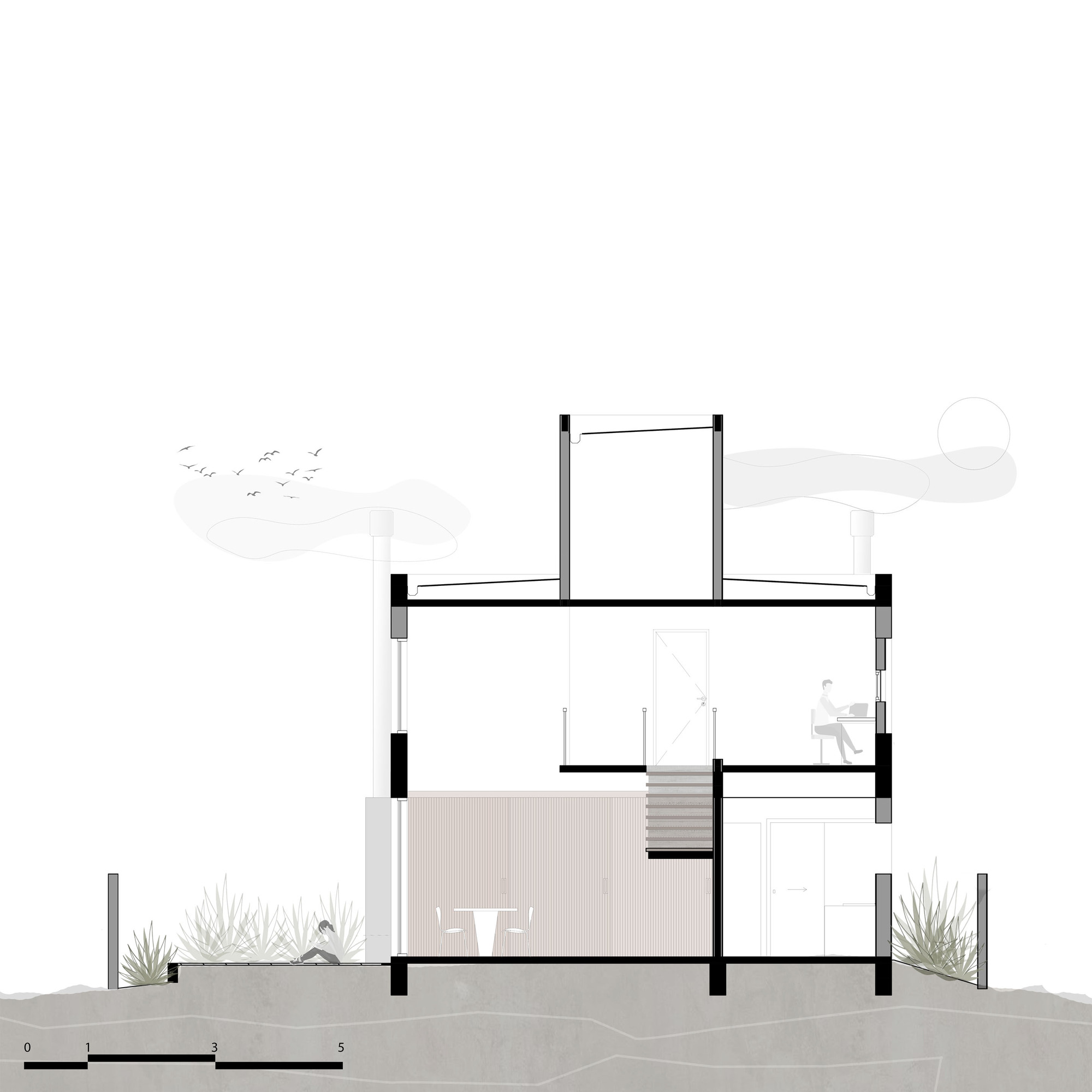

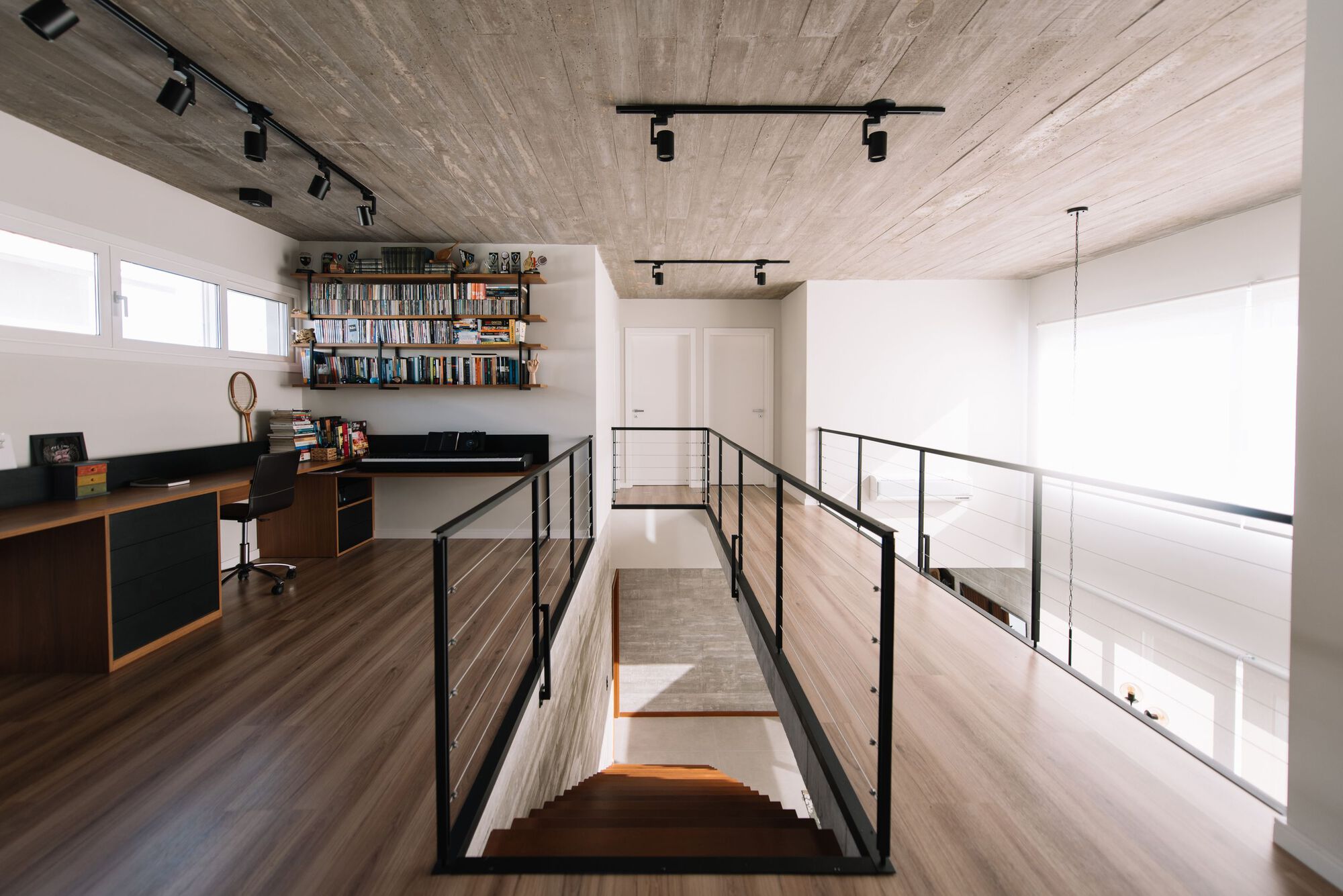

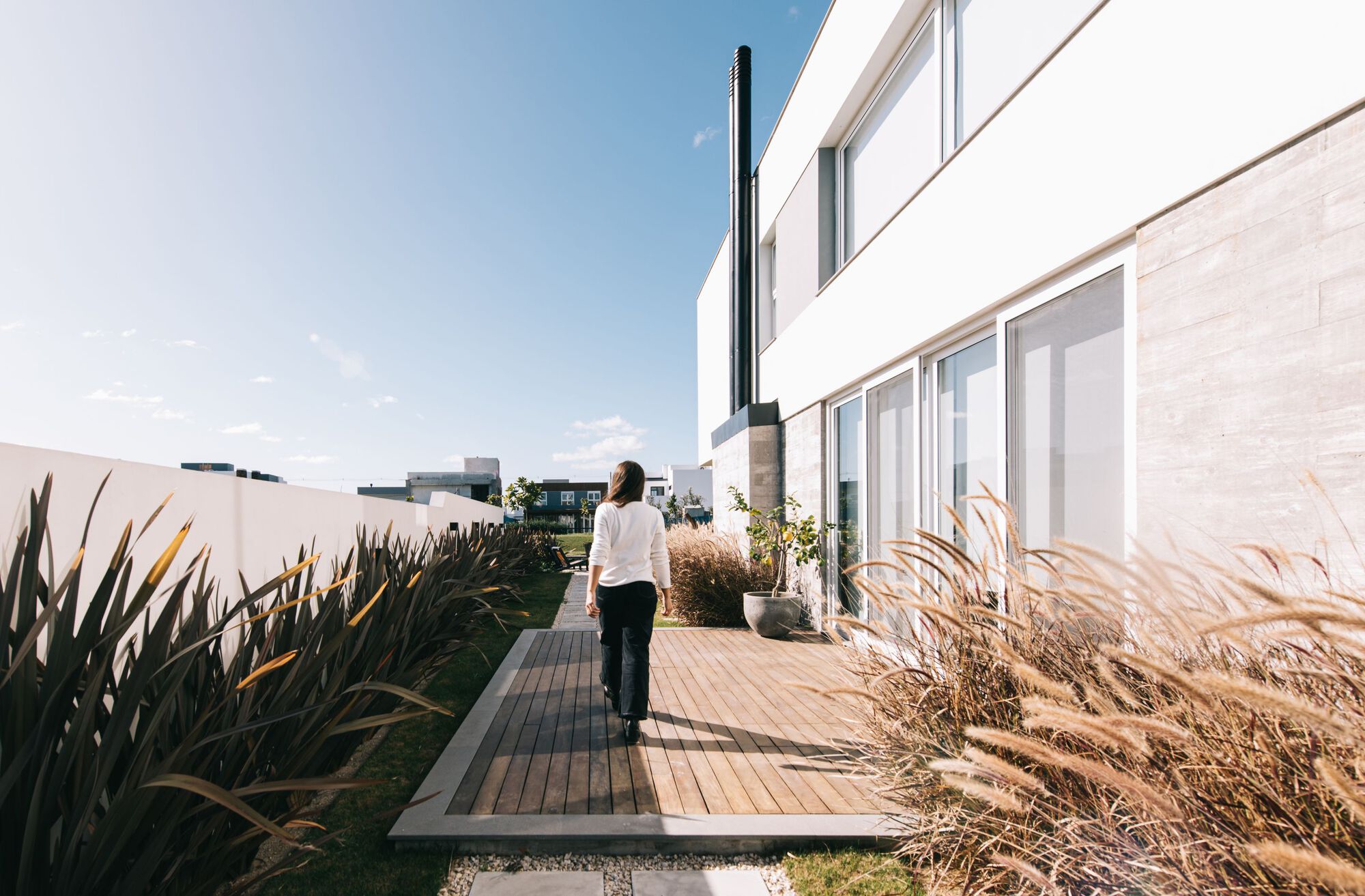

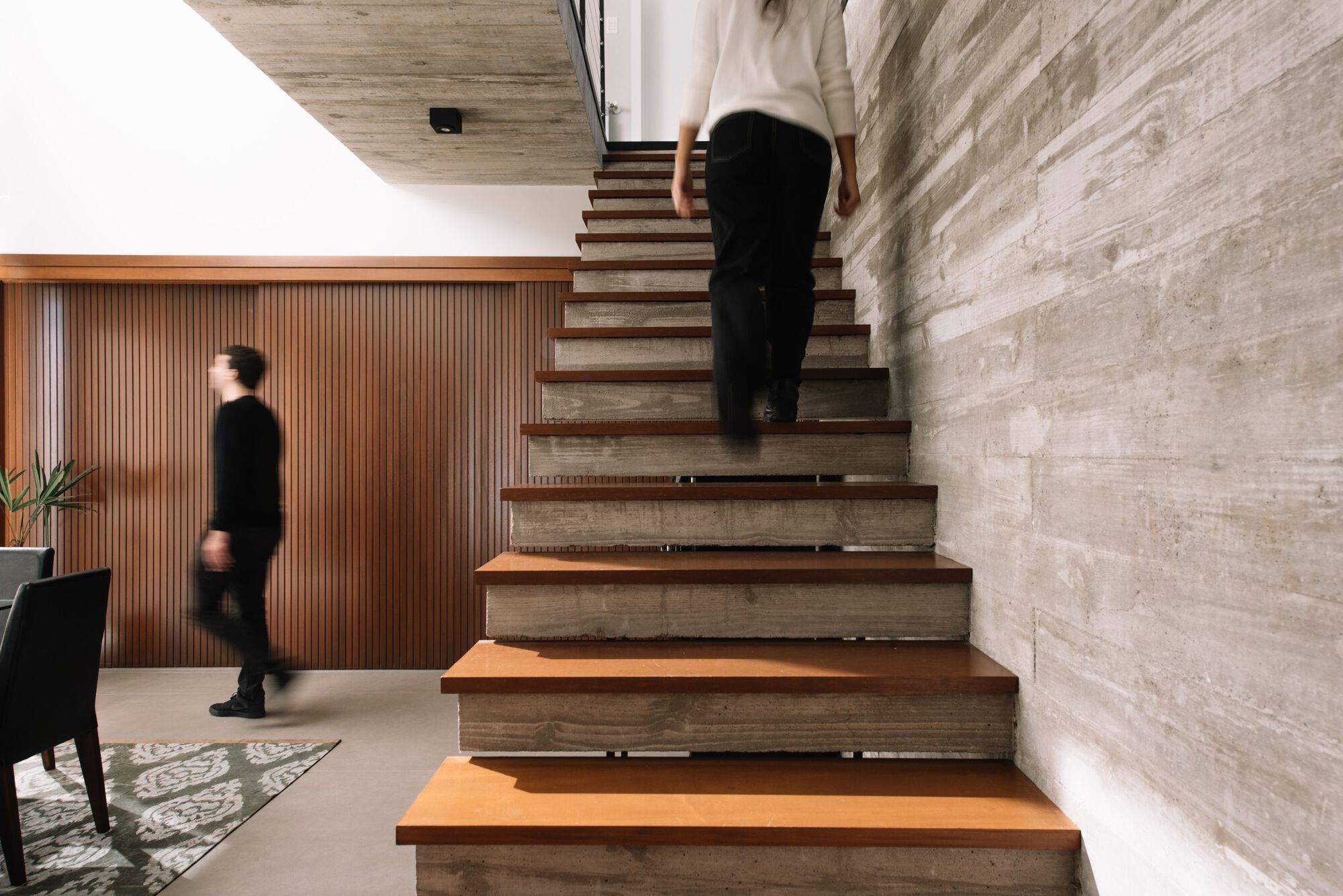

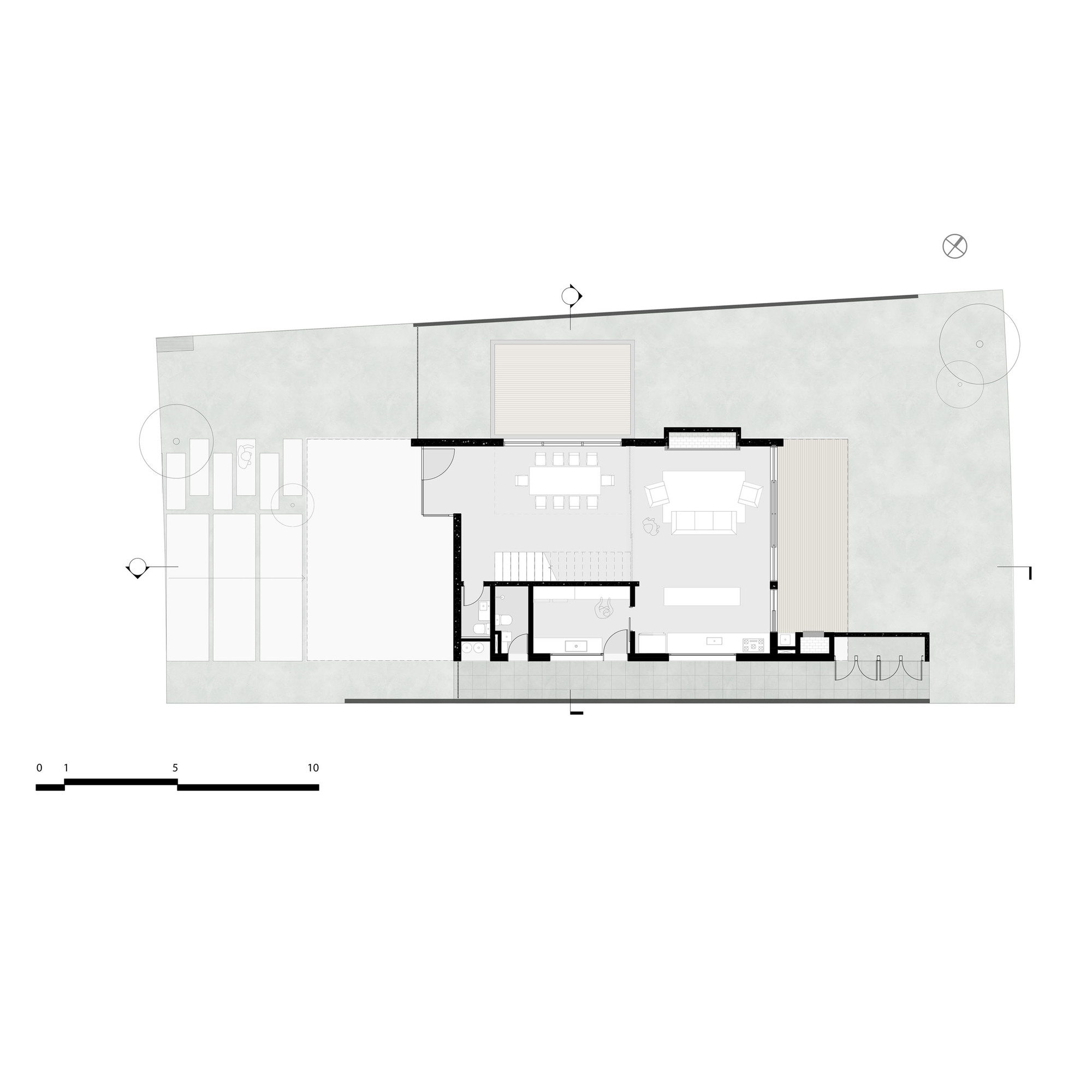

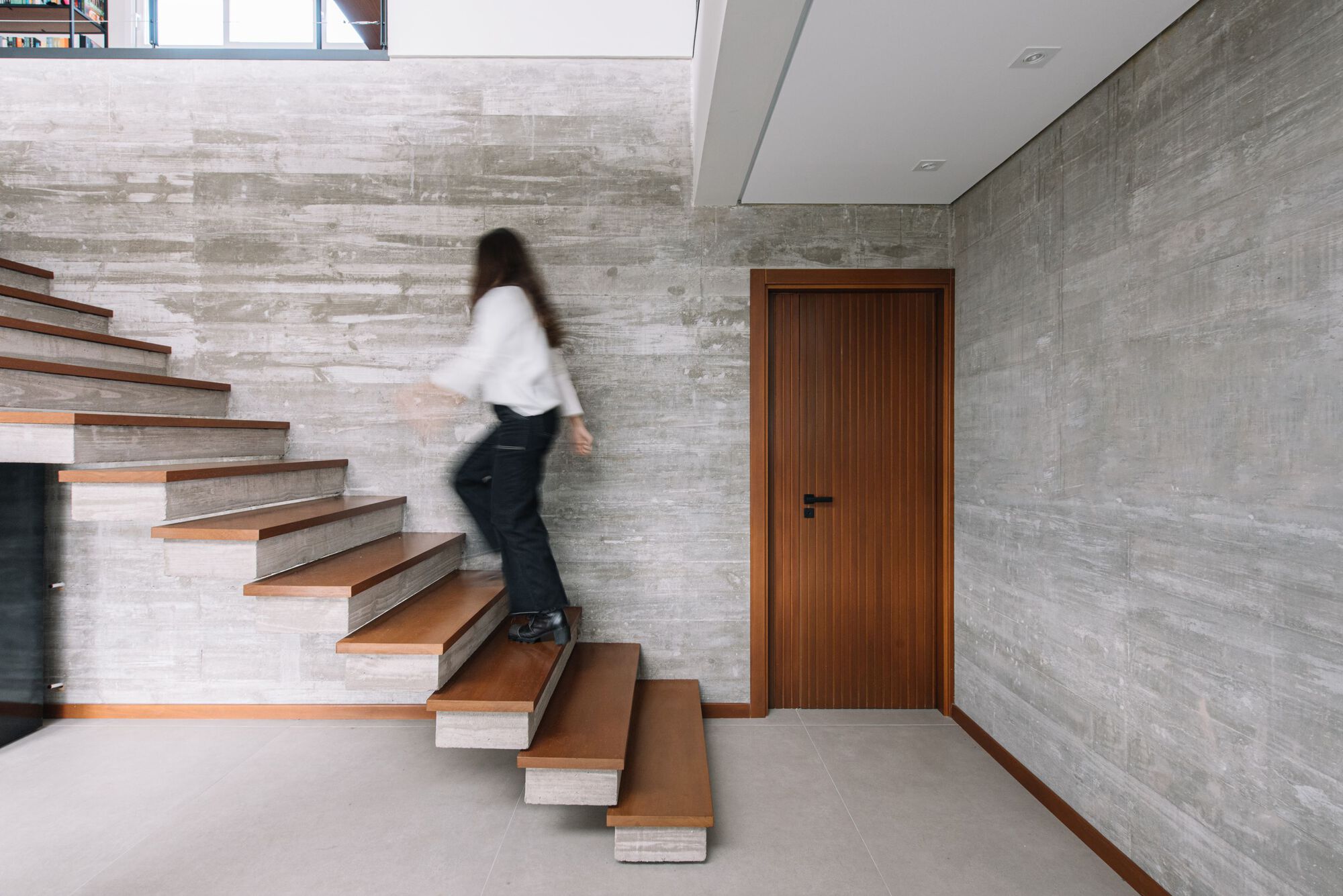

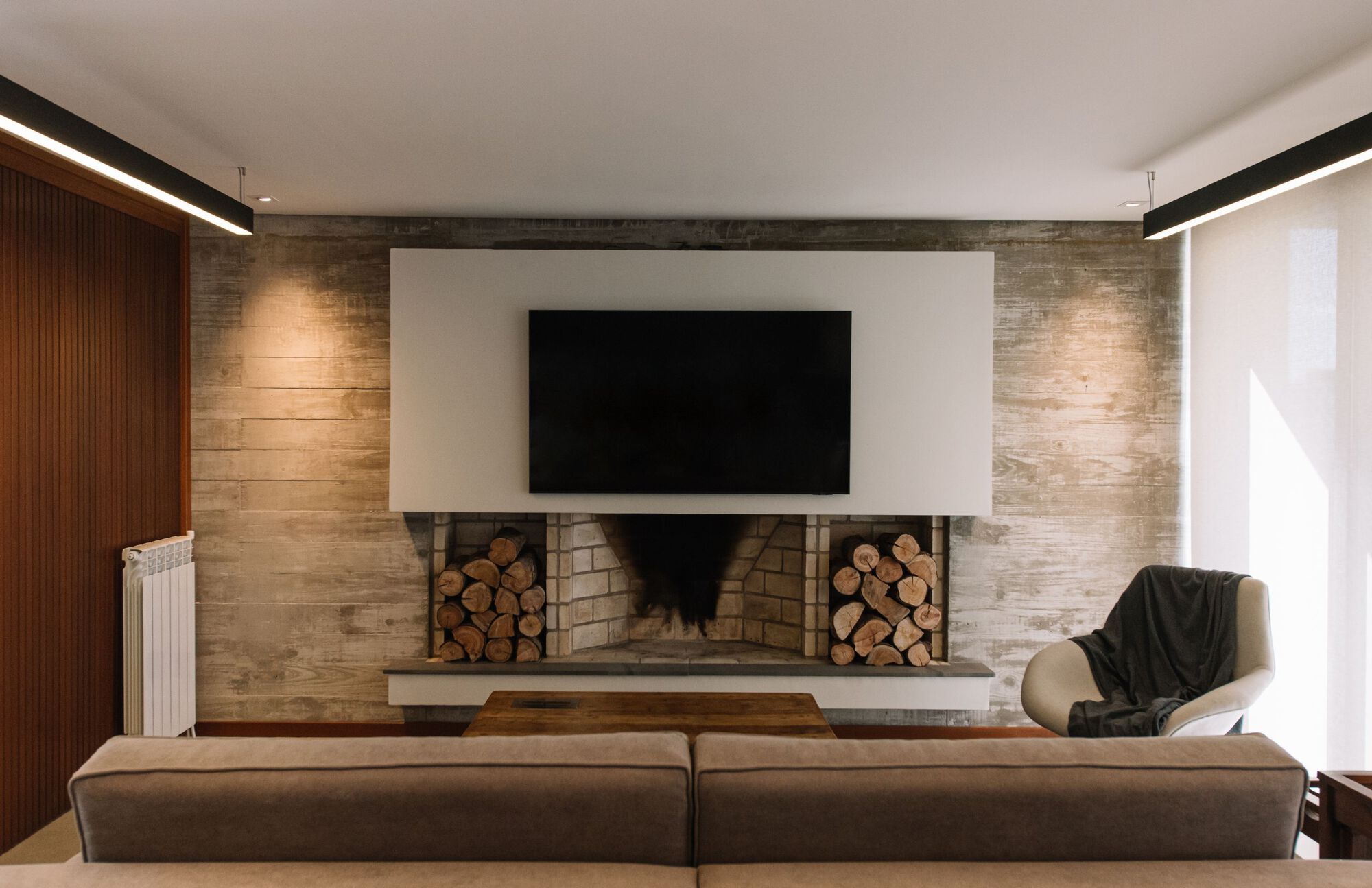

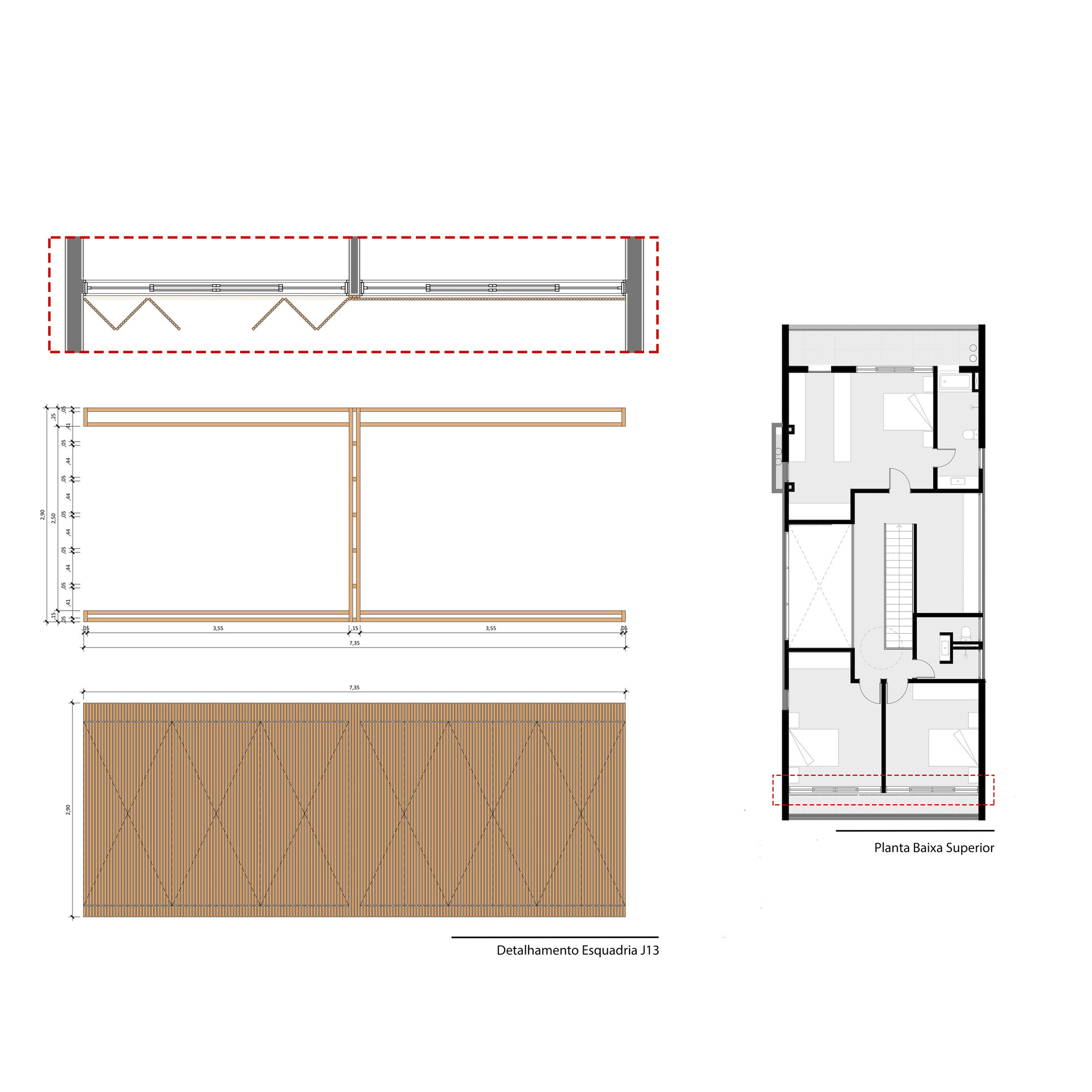

On the ground floor, the different areas are divided into two lanes: the first one with the social areas; the living room, and dining area, and the second one with the wet areas. The living room is connected to the kitchen and porch and is separated from the rest of the rooms through slatted movable wood panels, to facilitate acclimatization from the most extreme periods of summer and winter. The dining room's double-height ceiling integrates the two levels and turns the second floor into a walkway. The staircase is longitudinally centralized on the plan, which imposes the transverse arrangement of the rooms on the second floor: the master suite faces towards the back, overlooking the lake, and two other bedrooms face the front of the lot, all connected to balconies that, in addition to providing greater openings for lighting and ventilation purposes, they also protect the windows and doors and form porches on the ground floor.

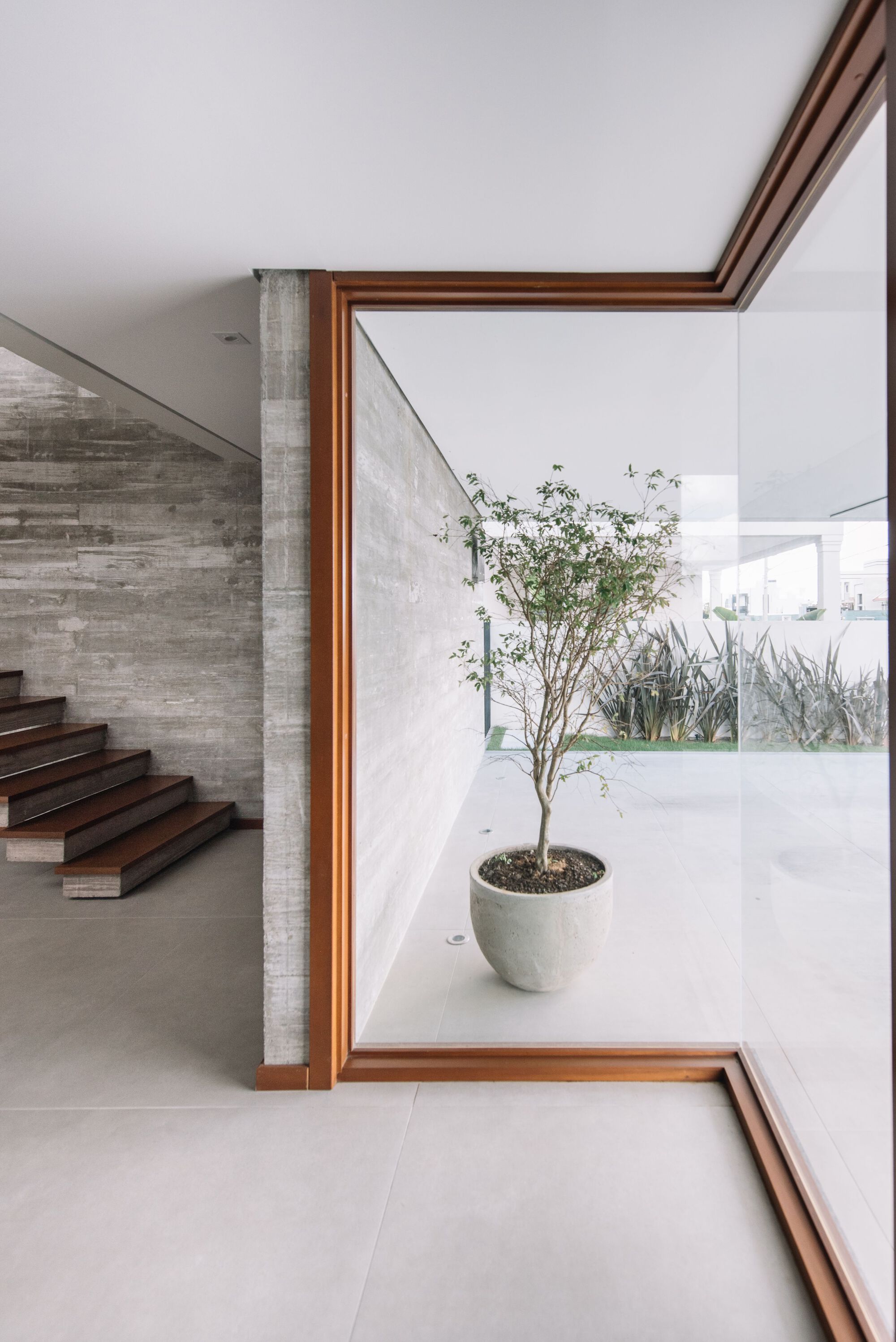

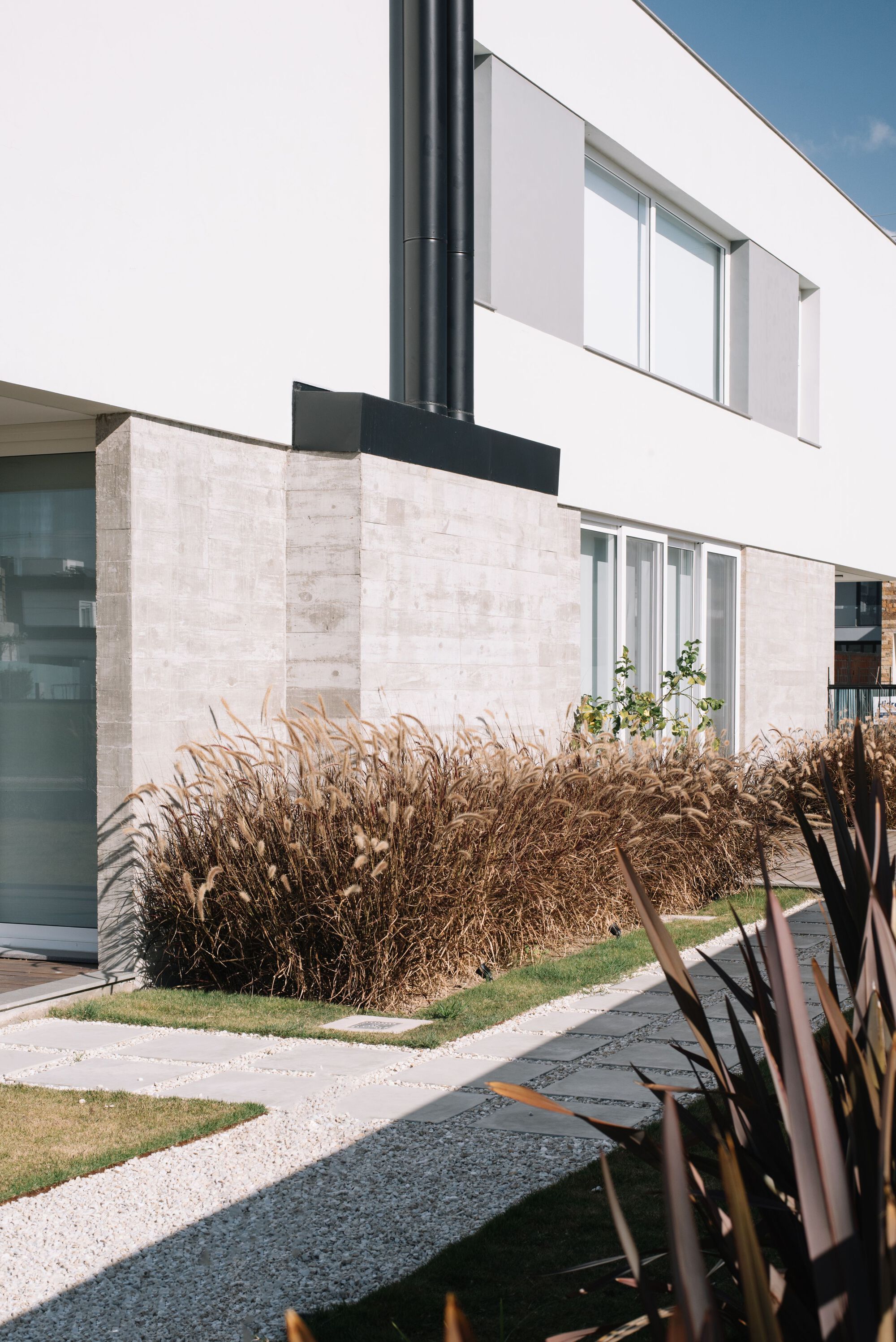

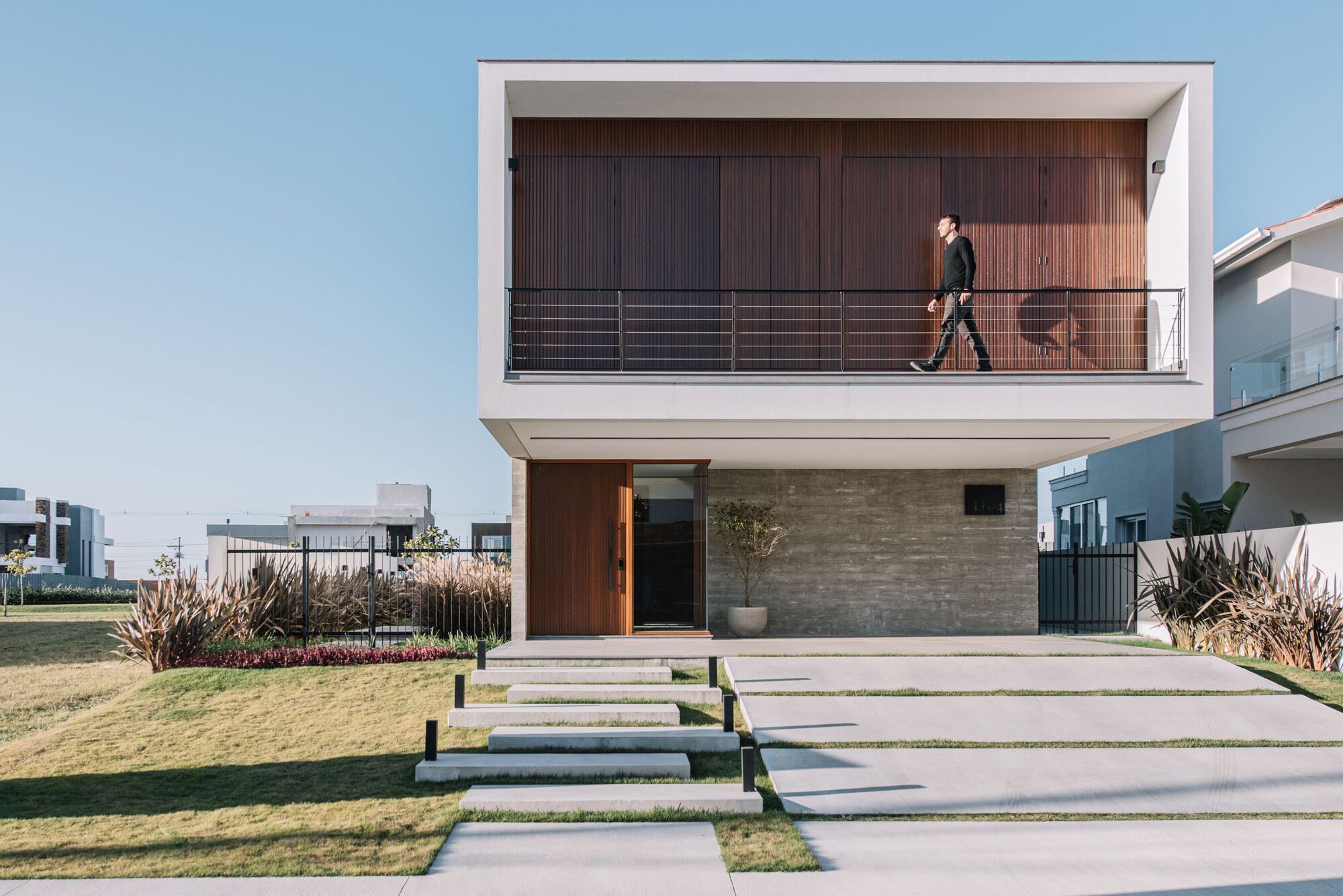

The use of an independent structure of reinforced concrete as a construction technique makes it possible for a formal arrangement and influences the house materials: overhangs of up to 5 meters disconnect the prismatic volume of the second floor from the ground floor, with the second floor’s front and back facades subtracted, and on the ground floor, the necessary supports are intentionally prominent figures forming planar facades with the use of apparent concrete and alternating with glass elements. This combination of opaque and transparent textures and volumes composes the different environments and controls the privacy of the interior areas as well as the external, striving for the maximum amount of natural lighting and ventilation.
