凸窗塔式住宅丨日本

Architects:Takaaki Fuji + Yuko Fuji Architecture

Area:84m²

Year:2020

Photographs:Masao Nishikawa,Shohei Yokoyama

Manufacturers:Lauan Plywood & Plasterer Finish,Lauan Plywood & Steel Beam,Lighting,Teak Flooring

Environmental Consultant:Kensuke Hotta, Akito Hotta

Lighting Design:Atsushi Mitsui

Structural Engineer:Tomonori Kawata

Site Area:43.91 m2

B1 F Area :15.66 m2

1st Floor Area :21.95 m2

2nd Floor Area :21.61 m2

3rd Floor Area :22.30 m2

Roof Area :2.83 m2

Design Period:August 2018 - February 2019

City:Shibuya

Country:Japan

Text description provided by the architects. Built for a couple, their two children, and their two cats, this combined residence and office on a tiny urban lot features bay windows on all sides. Our research into bay windows from around the world revealed that they take many forms and play many appealing roles, from a device for bringing in light to a type of furniture for sitting on to a decorative interface with the city.

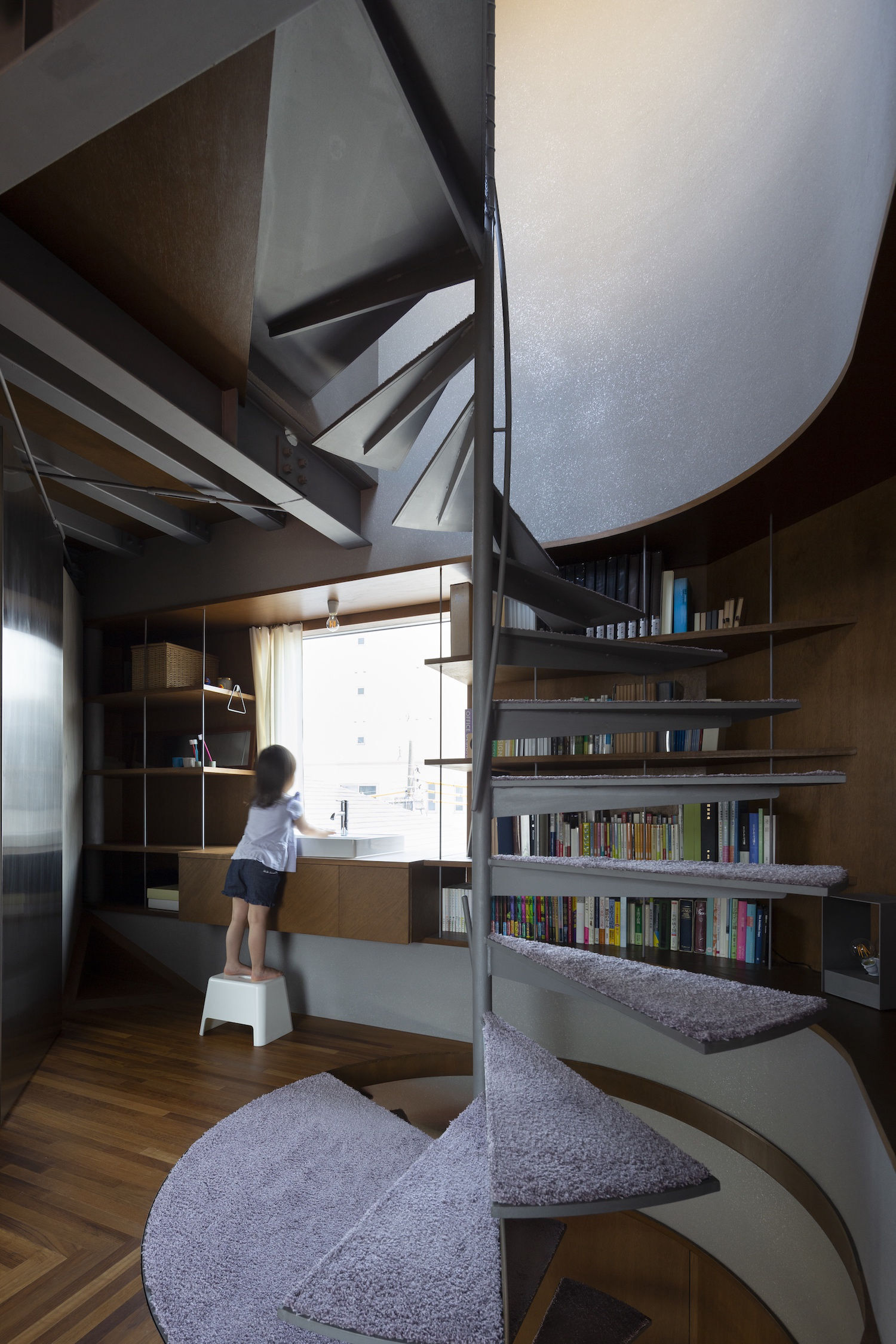

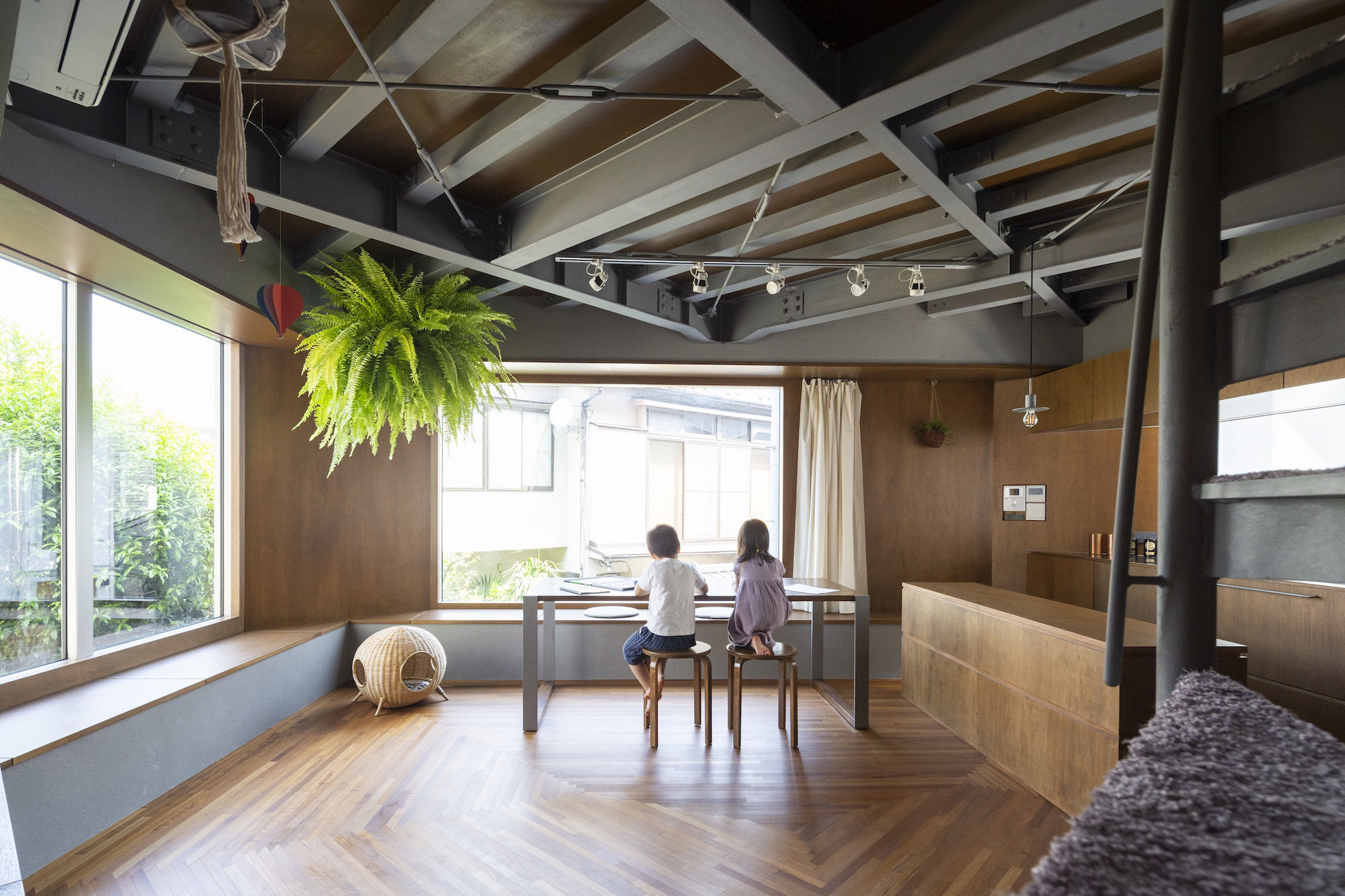

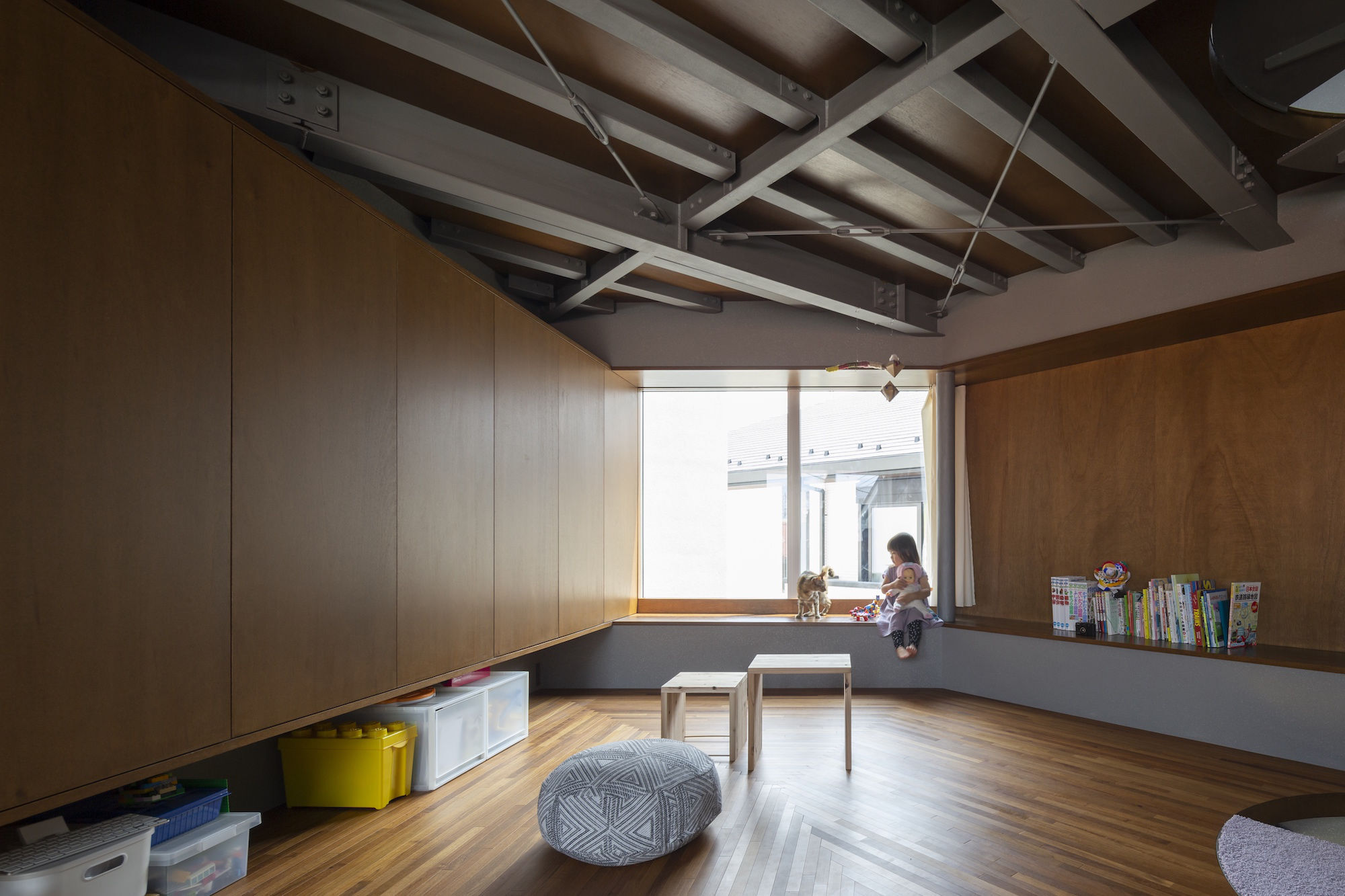

Our design features bay windows on every floor and every side of the building, giving the residents many options for where to spend their time. In this tower, windows become sites for sitting, writing, sleeping, decorating, and many other activities.

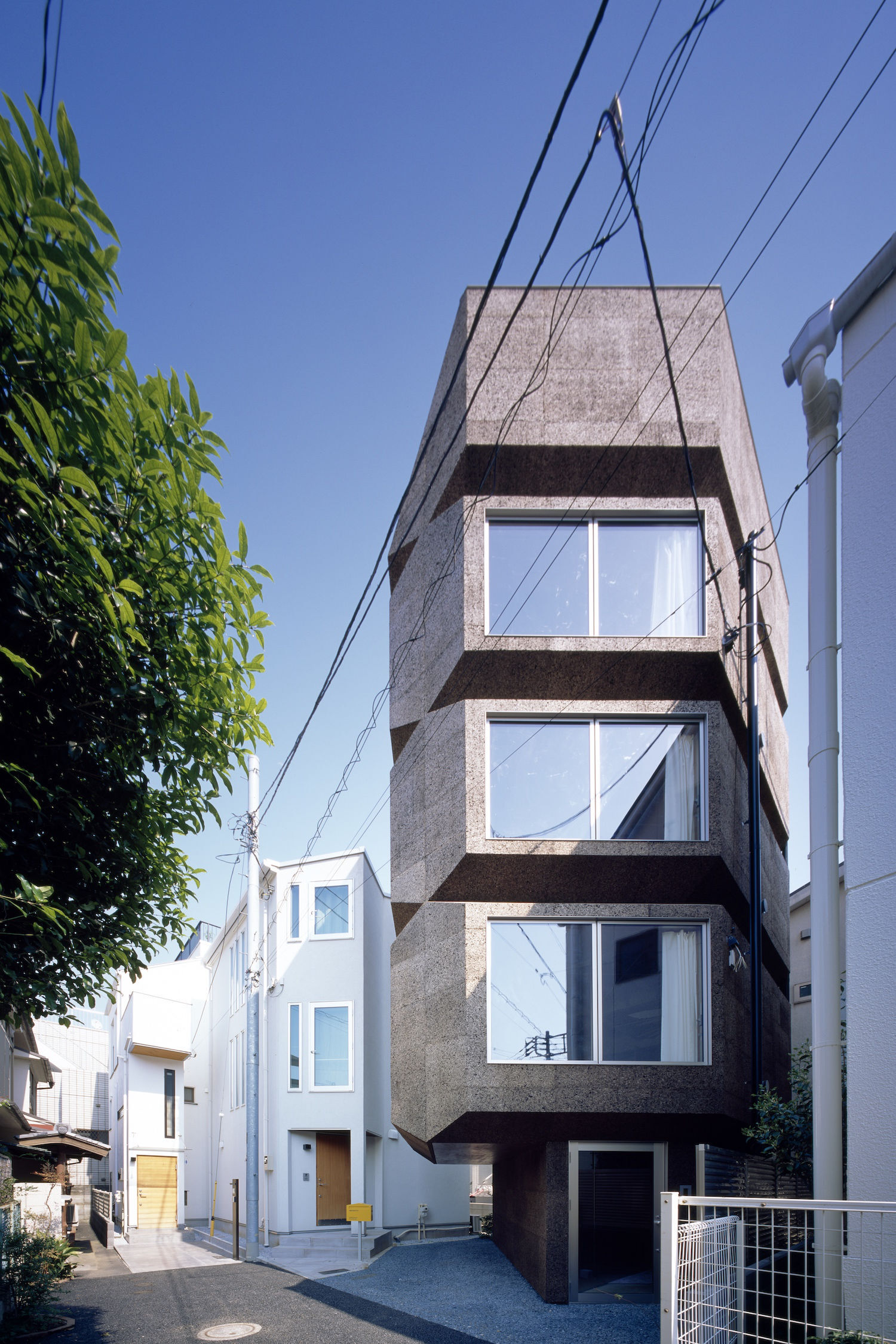

Another important consideration was how to construct a positive relationship between the tower and the buildings surrounding it, most of which are single-family houses. The fate of new buildings on tiny urban lots is often to block the windows of surrounding buildings, leading to a sense of suffocating confinement for neighbors. We solved the problem by slicing off the corners of the building, creating pockets of space in the four corners of the lot.

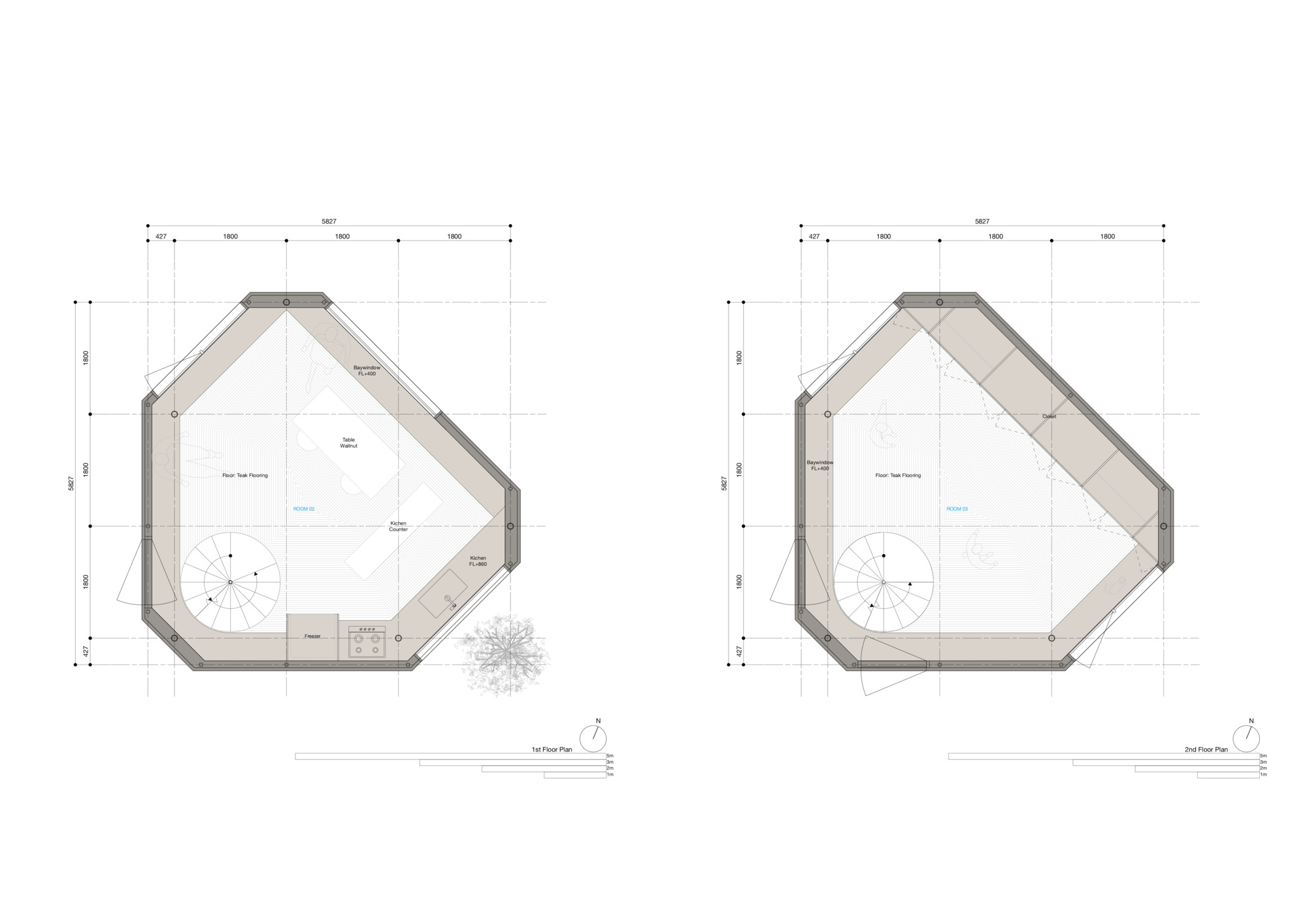

For the tower’s residents, these pockets are little gardens, while for neighbors, the expanded space in front of their windows in a sense turns them into bay windows, too. Slicing off the corners resulted in an octagonal footprint. In many Asian countries, octagons are viewed as lucky according to feng shui. This shape is also extremely effective in reducing turbulence in the airflow around the building.

In addition, we analyzed the surrounding microclimate in order to reduce reliance on mechanical devices such as air conditioning as much as possible. By observing simulations of light, wind, and heat conditions that included surrounding buildings, we came up with three types of bay windows: transparent windows to let in light; windows that function like openable walls, blocking light and heat but letting in breezes; and windows that function like fixed walls, blocking both heat and breezes. We distributed these three types of windows throughout the building in a way that maximized their efficacy in terms of light, ventilation, and heat.

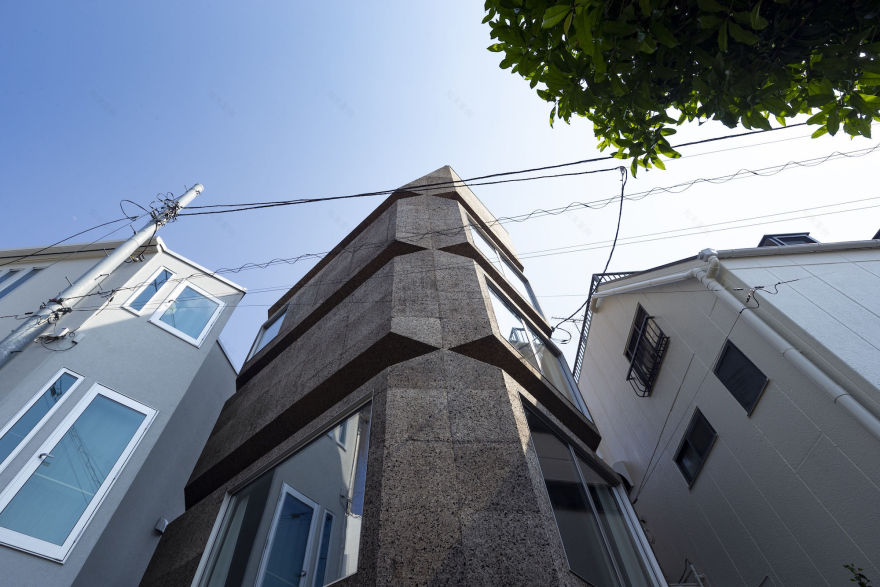

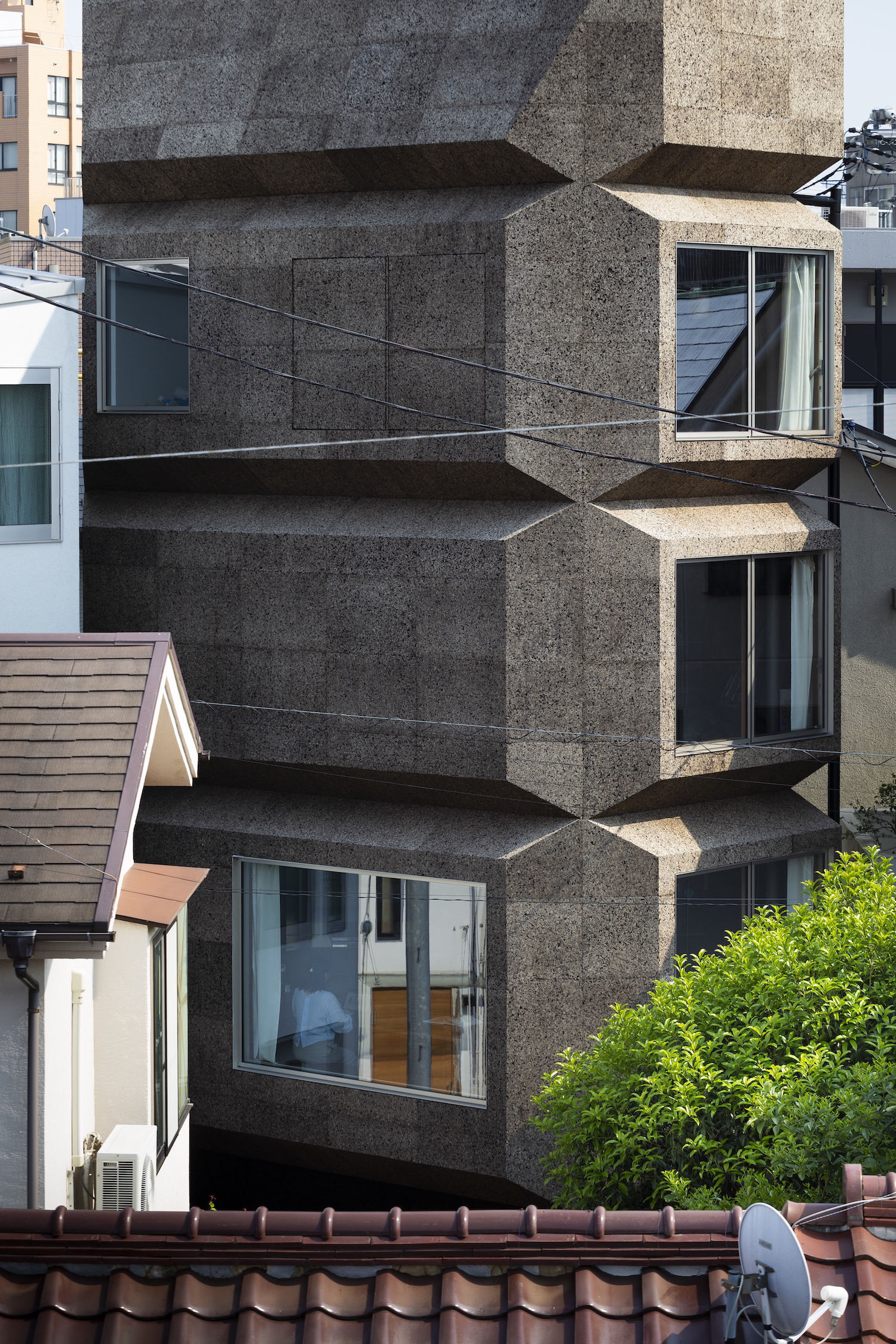

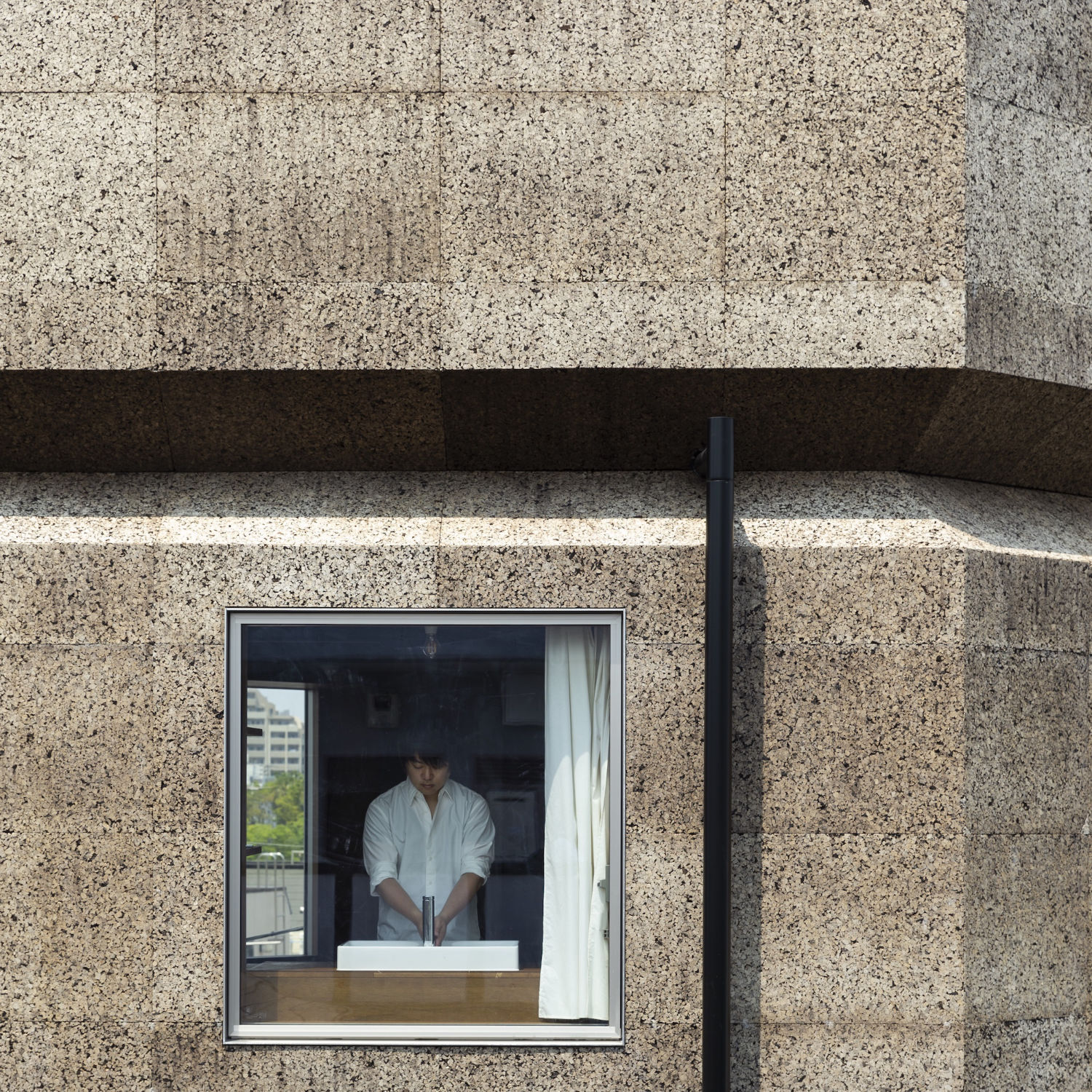

Nevertheless, at certain times of the year parts of the house have a high heat load. To address this issue, we covered the exterior with carbonized cork, which is light, highly insulating, rot-resistant, and easy to work with. The carbonized cork serves as high heat-capacity insulation to lower the heat load.

The tower contains a variety of places whose environments vary according to season, time, floor, and orientation. The family’s two cats show them the place which has the perfect mix of sunlight, temperature, and breezes at any given moment.
