科帕克湖景房丨美国纽约丨Desai Chia Architecture

Architects:Desai Chia Architecture

Area:3926ft²

Year:2021

Photographs:Paul Warchol

Manufacturers:Duravit,Benjamin Moore,Get Real Surfaces,Kohler,LV Wood,Nemo Tile,PaClad,Sierra Pacific Windows,Stickbulb,reSAWN Timber

Lead Architects:Katherine Chia, Arjun Desai

Structural Engineer:David Kufferman PE

Civil Engineer:Crawford Associates

Lighting Consultant:Christine Sciulli Light + Design

Design Team:Ryan Erb, Dustin Heim

General Contractor :Bill Stratton Building Company

Landscape Architect:Jamie Purinton

City:Craryville

Country:United States

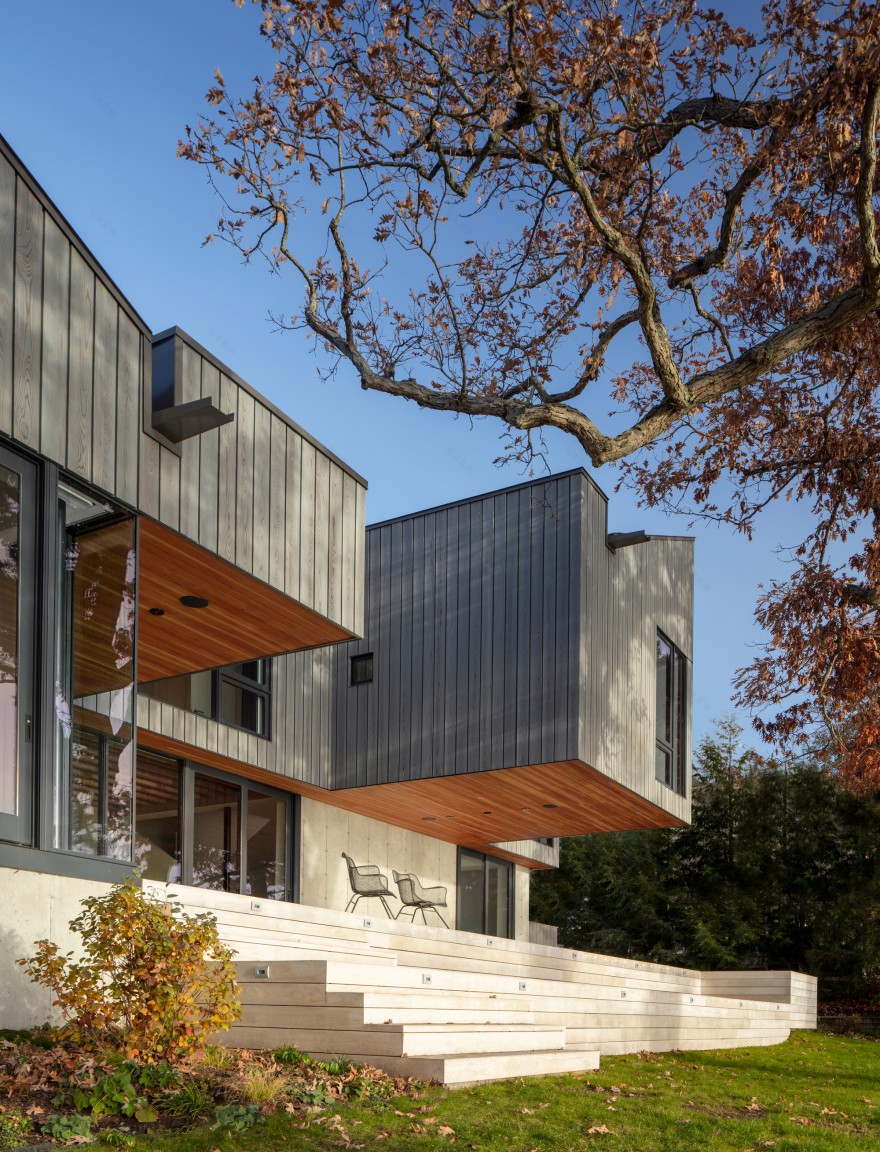

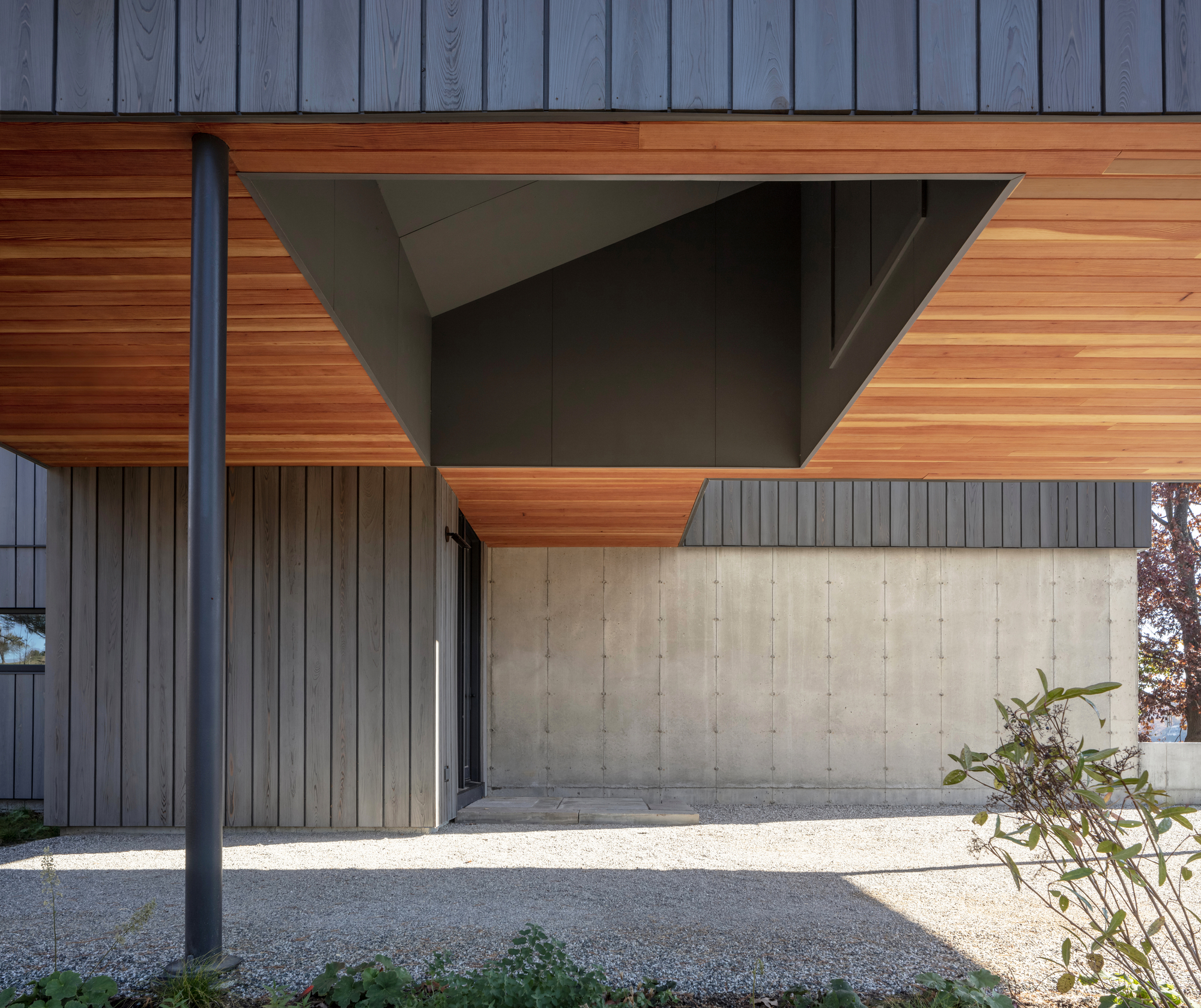

Text description provided by the architects. The Copake Lake House engages this lakefront property through a series of framed volumetric compositions and material details that capture views of the water. Cantilevering program elements create a flow between indoor and outdoor social programs while also shading the outdoor seating areas below.

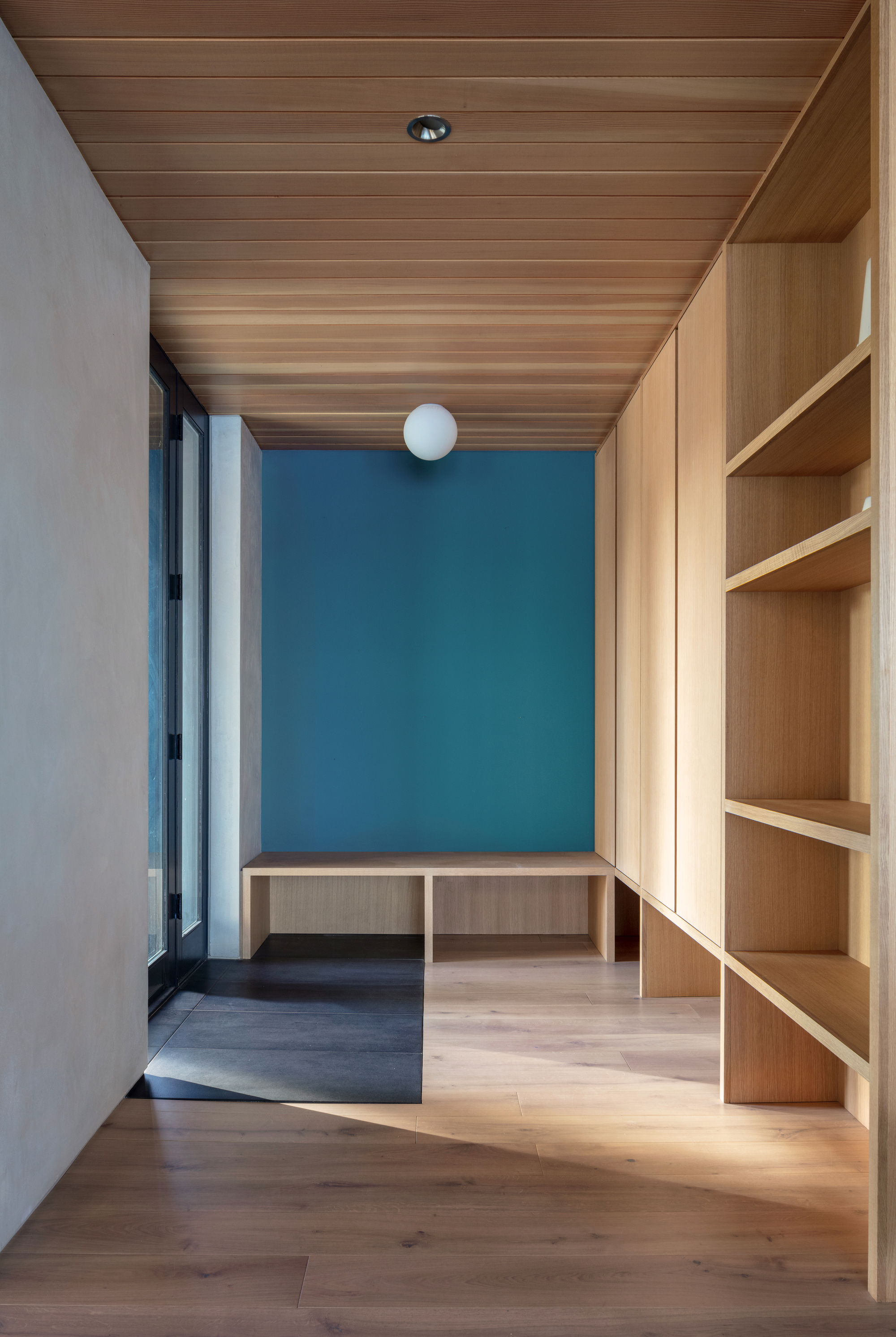

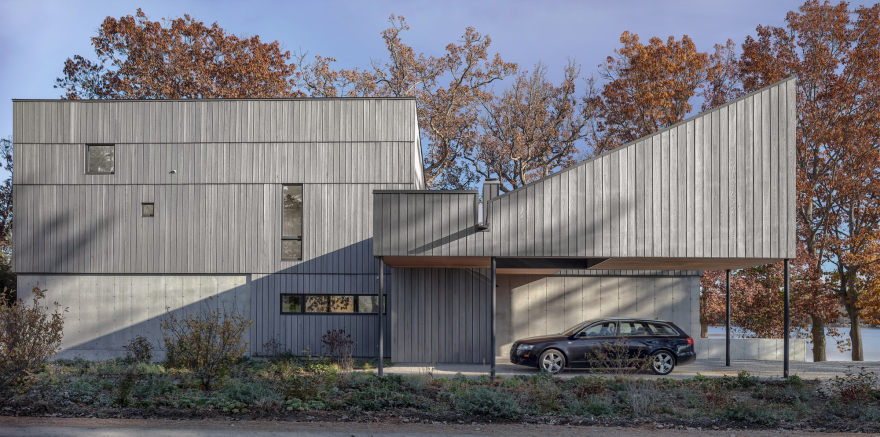

The position of the cantilevers responds to the spacing of existing tall oak trees that grow along the water’s edge. The clients of Copake Lake House wanted an escape from their city life and an oasis for indoor and outdoor entertaining. From the moment they arrive at the carport and enter the home, a ritual of leaving behind the bustling urban life begins to unfold.

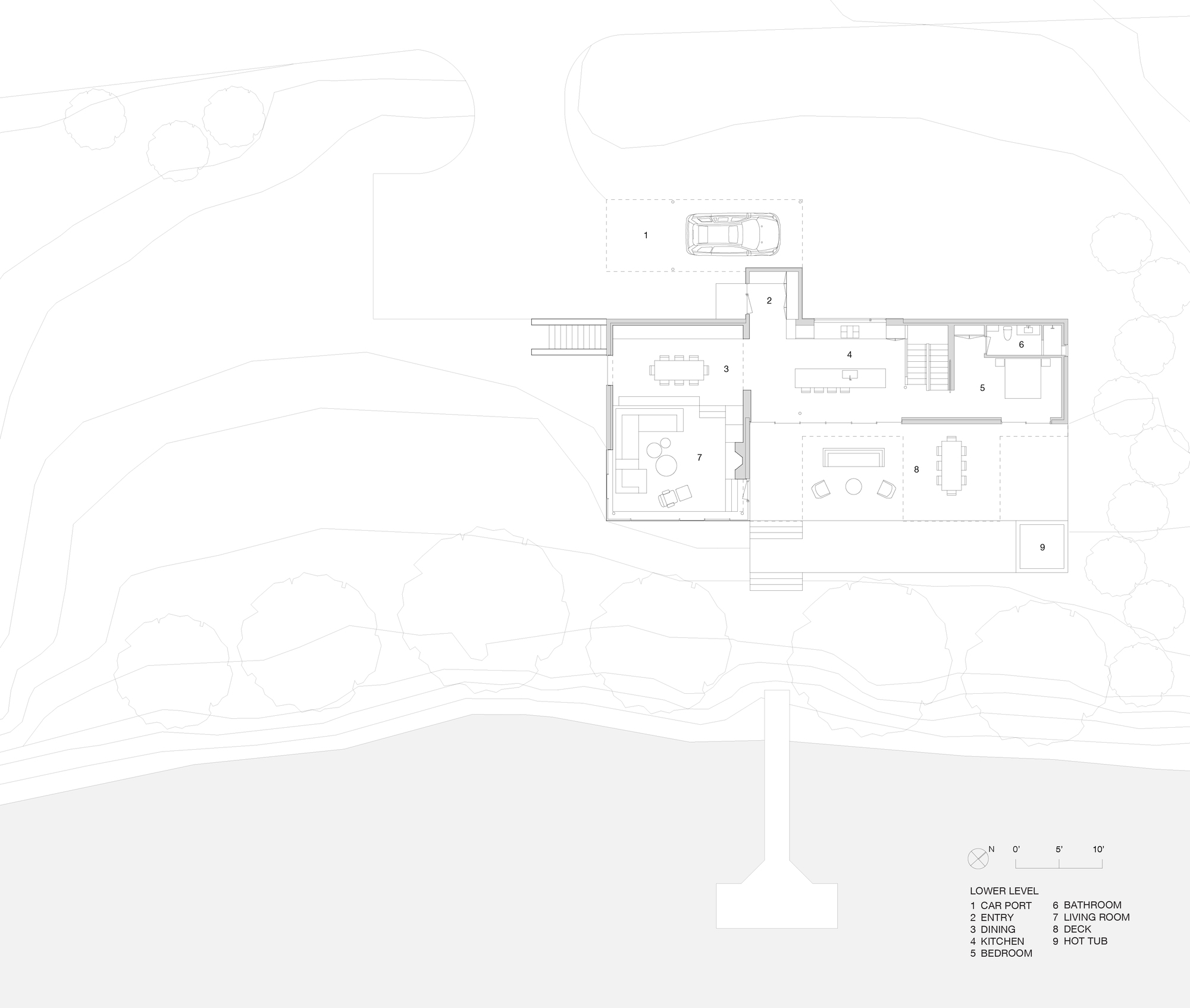

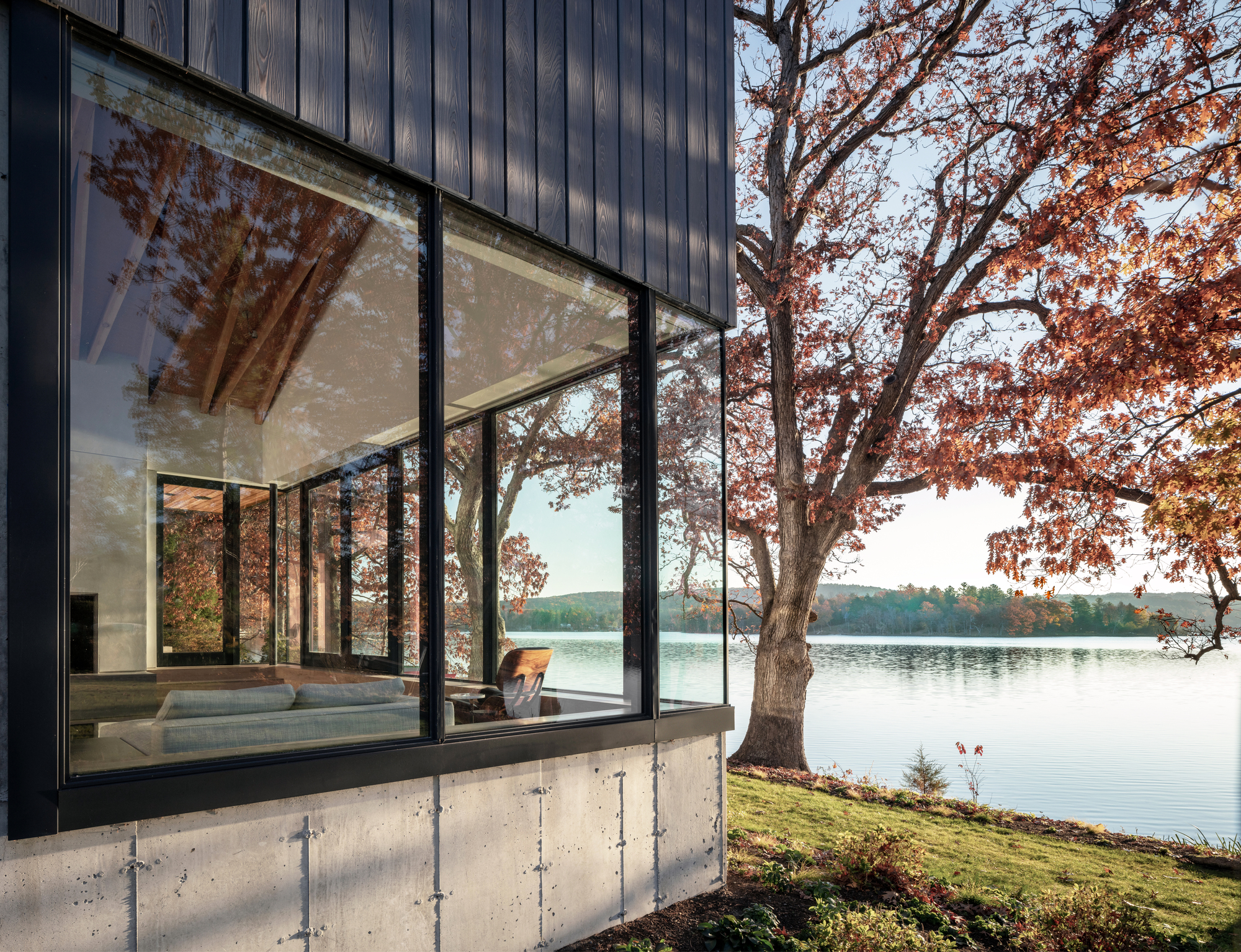

The lake views from the sunken living room make one feel nestled within the water. By stepping the living room down towards the water, the lake views from the adjacent dining area are unobstructed as well. Overhead, crisscrossing structural wood members support a vaulted ceiling like a canopy of tree branches. The exposed structural system provides material texture and scale to the room.

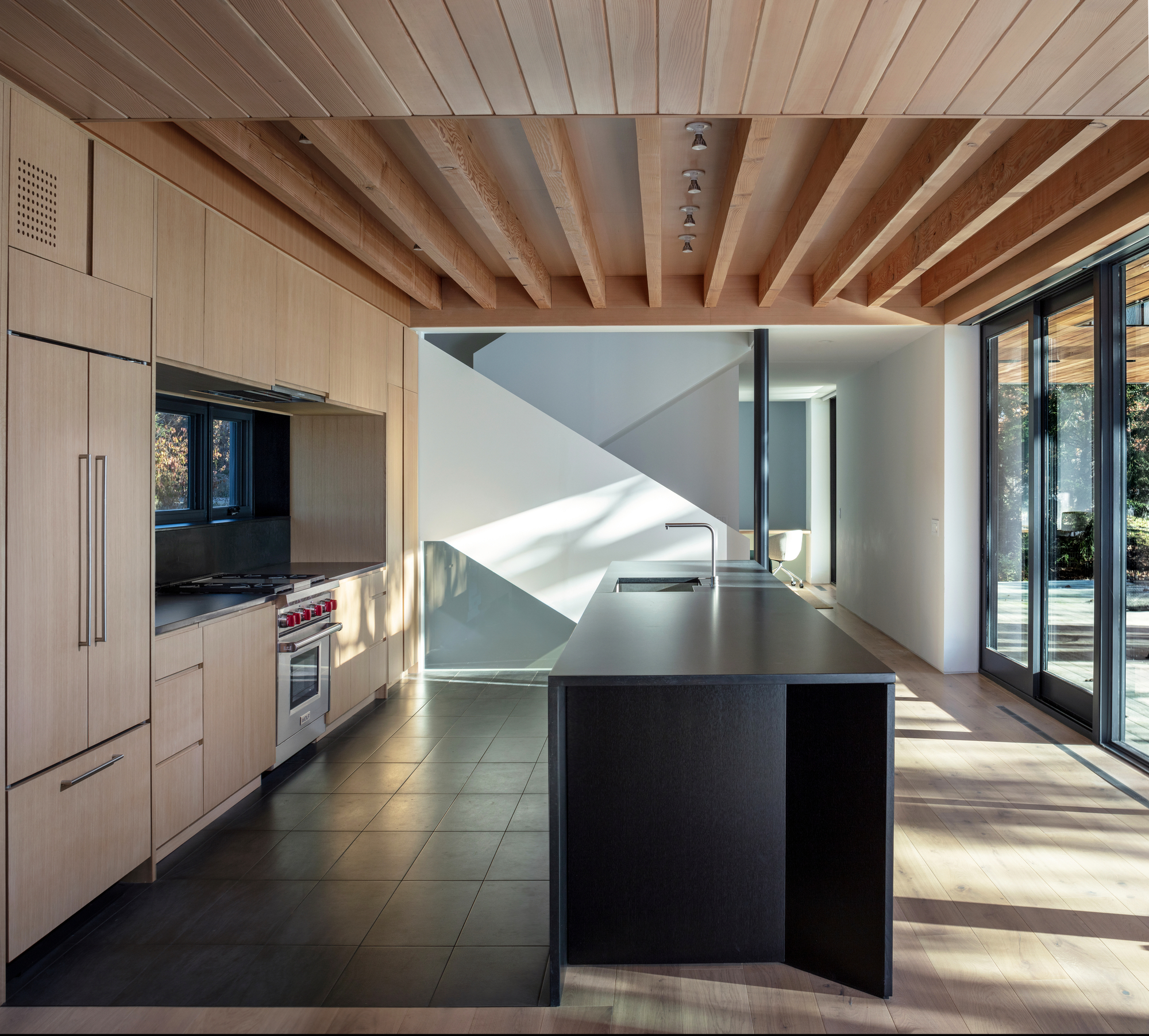

An upper window on the high side of the vault was positioned to allow sunlight to rake the crisscrossing members from mid-afternoon to early evening and bounce warm light into the spaces below. The kitchen functions as a connector hinge between private and communal programs; the kitchen’s direct relationship with the outdoor terrace provides seasonal flexibility for outdoor barbequing and dining.

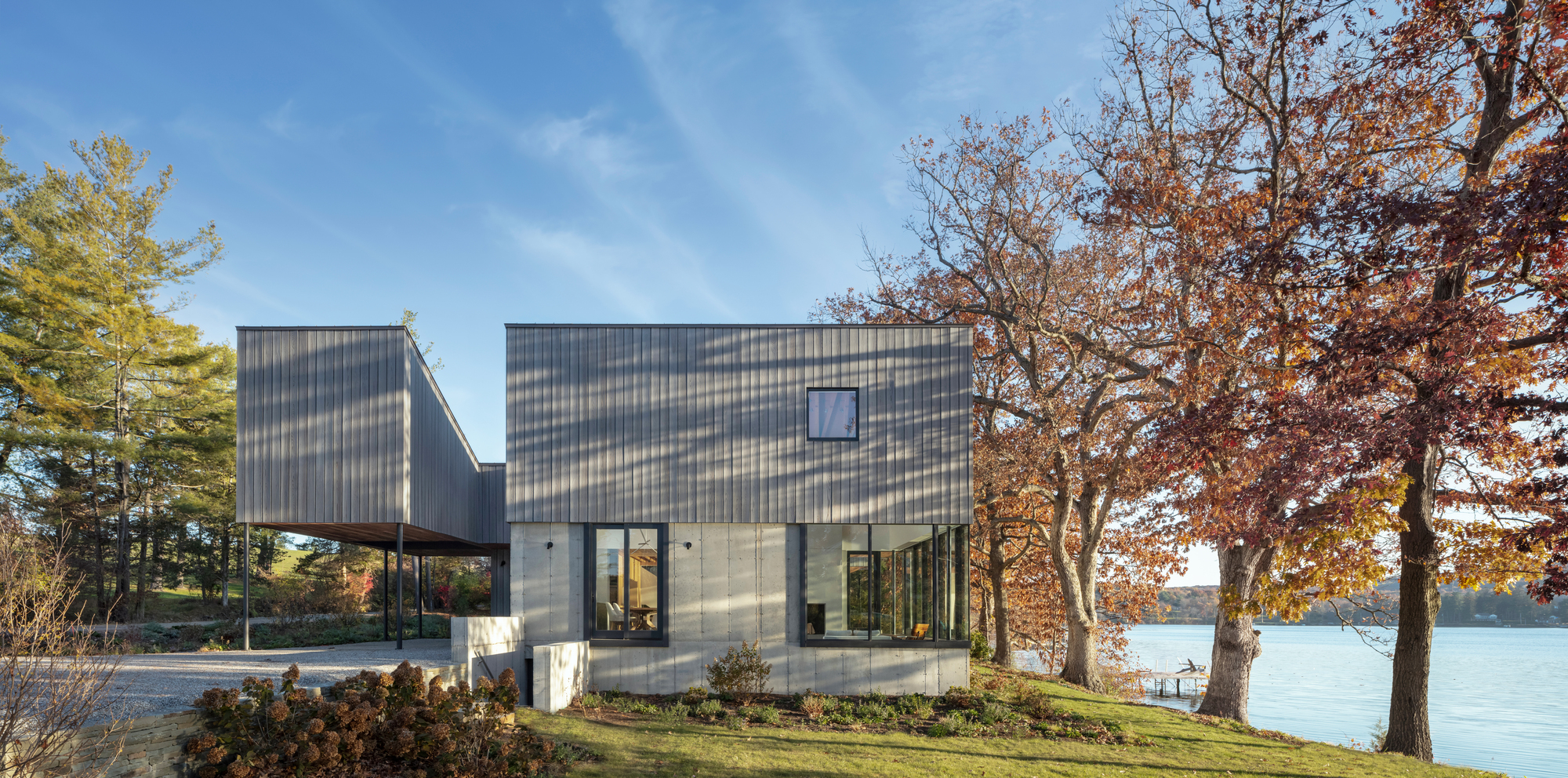

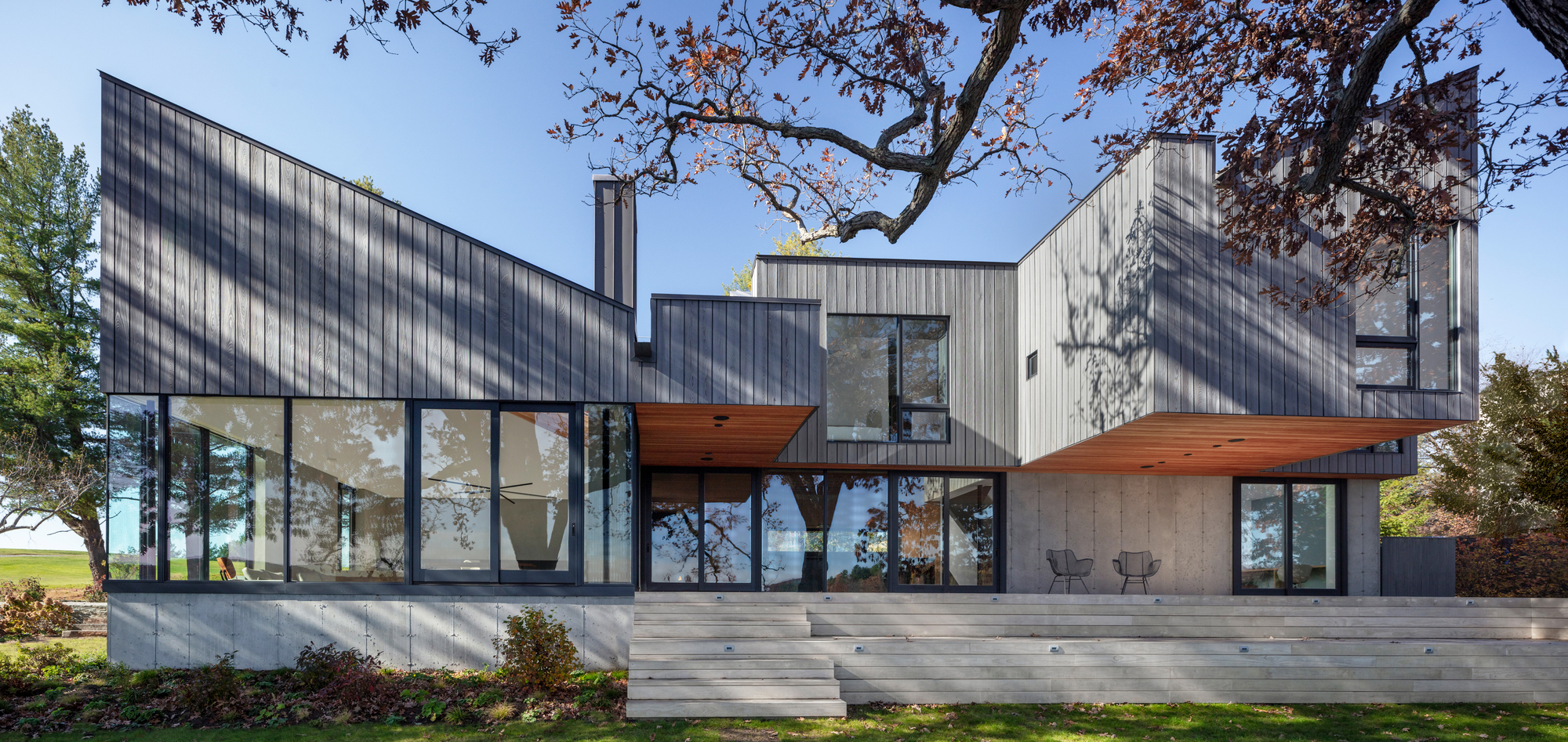

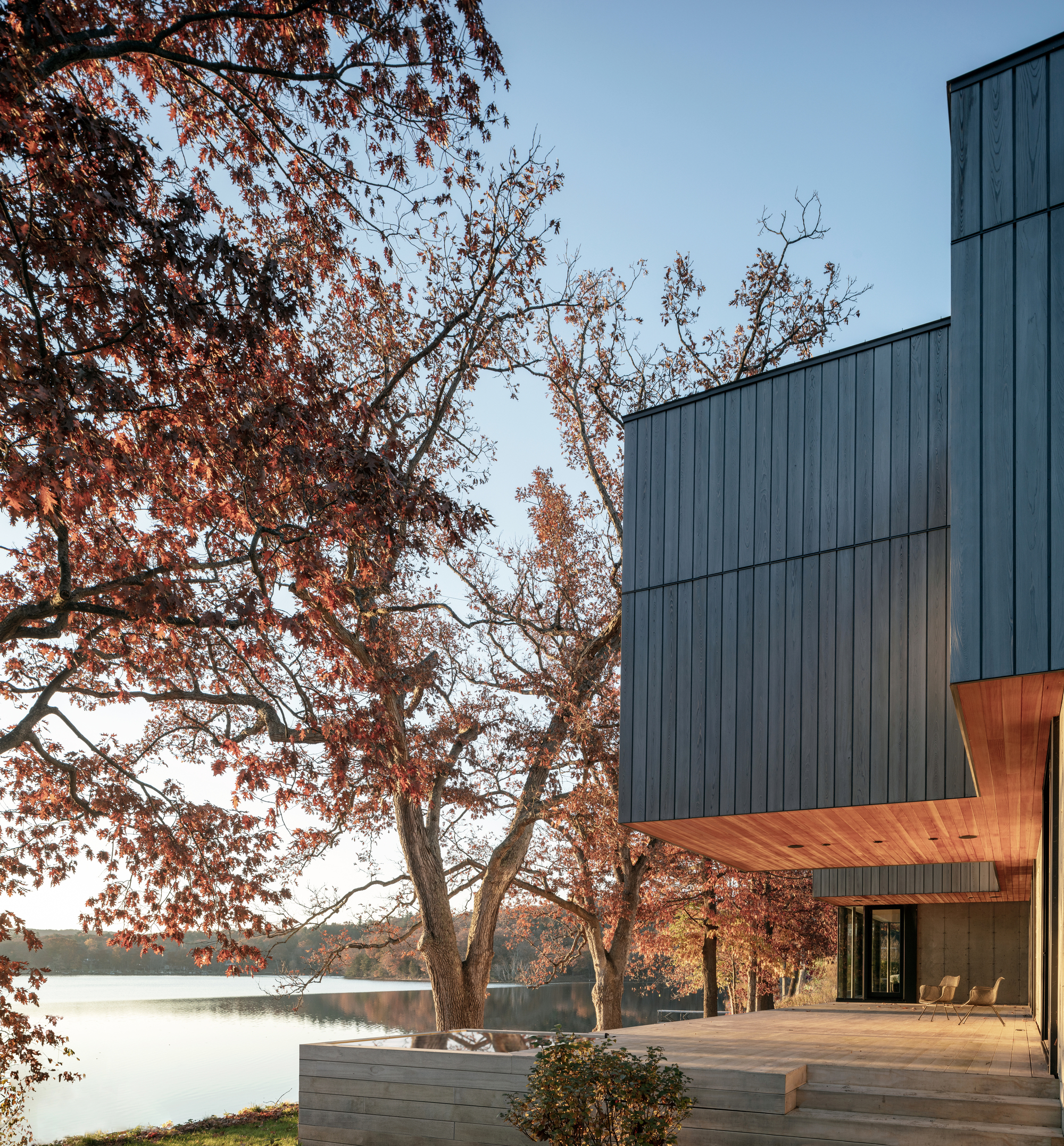

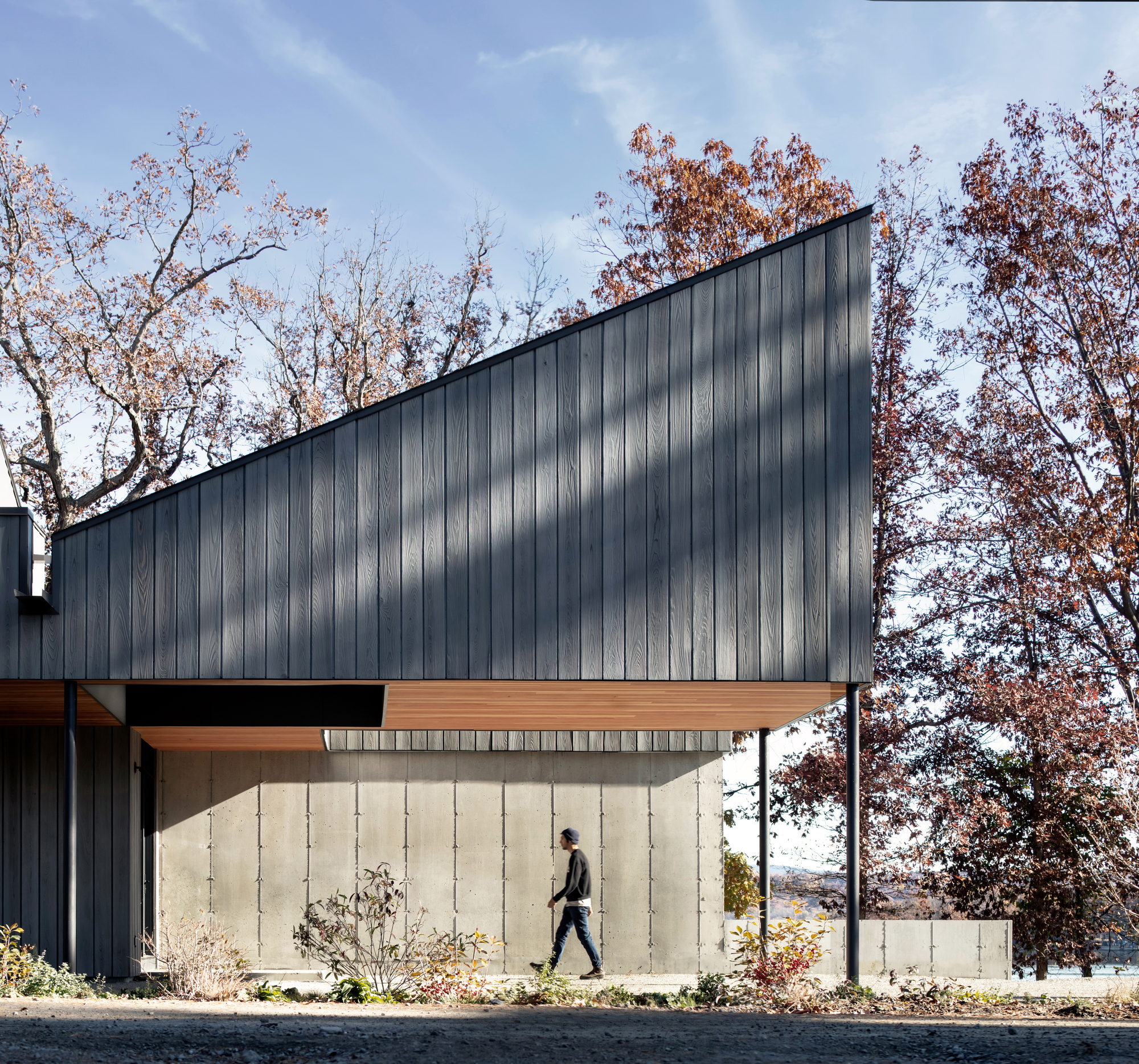

The volume of the house is anchored by an exposed concrete plinth that wraps the first floor; the mass of concrete also serves as a structural counterweight to the cantilevered bedroom that hovers and extends fourteen feet over the deck.  The upper level of the home is sheathed in cypress wood that was charred in the shou sugi ban method of burning the surface, so it is rot and bug resistant.

As the site is prone to flooding and erosion, stormwater management was a priority of the project. Rain gardens and drainage swales with riprap prevent excess water and sediment from pouring into the lake. The restored lakefront wetlands and rain gardens encourage habitat for pollinators as well as the preservation of native plant species. Microclimate sun and wind studies were part of the design process to determine the placement of windows and overhangs/cantilevers to reduce solar heat gain and sun glare.
