Parametric Modeling and Prototyping

Location: Islamic Azad University Central Tehran Branch -Tehran–IRAN   - Area:800x200cm    - Completion Year: 2023

The main idea of this project is pyramids of different scales placed next to each other. Essentially, they have used a game and origami called salt cellar. In this game, different job names are written on the inner sides of this salt cellar and it is moved, then the person chooses one side randomly which contains the desired job name for that person. We have used 4-sided pyramids as symbols for these salt cellars and chosen two sides white and the other two sides golden and black colors to show movement.

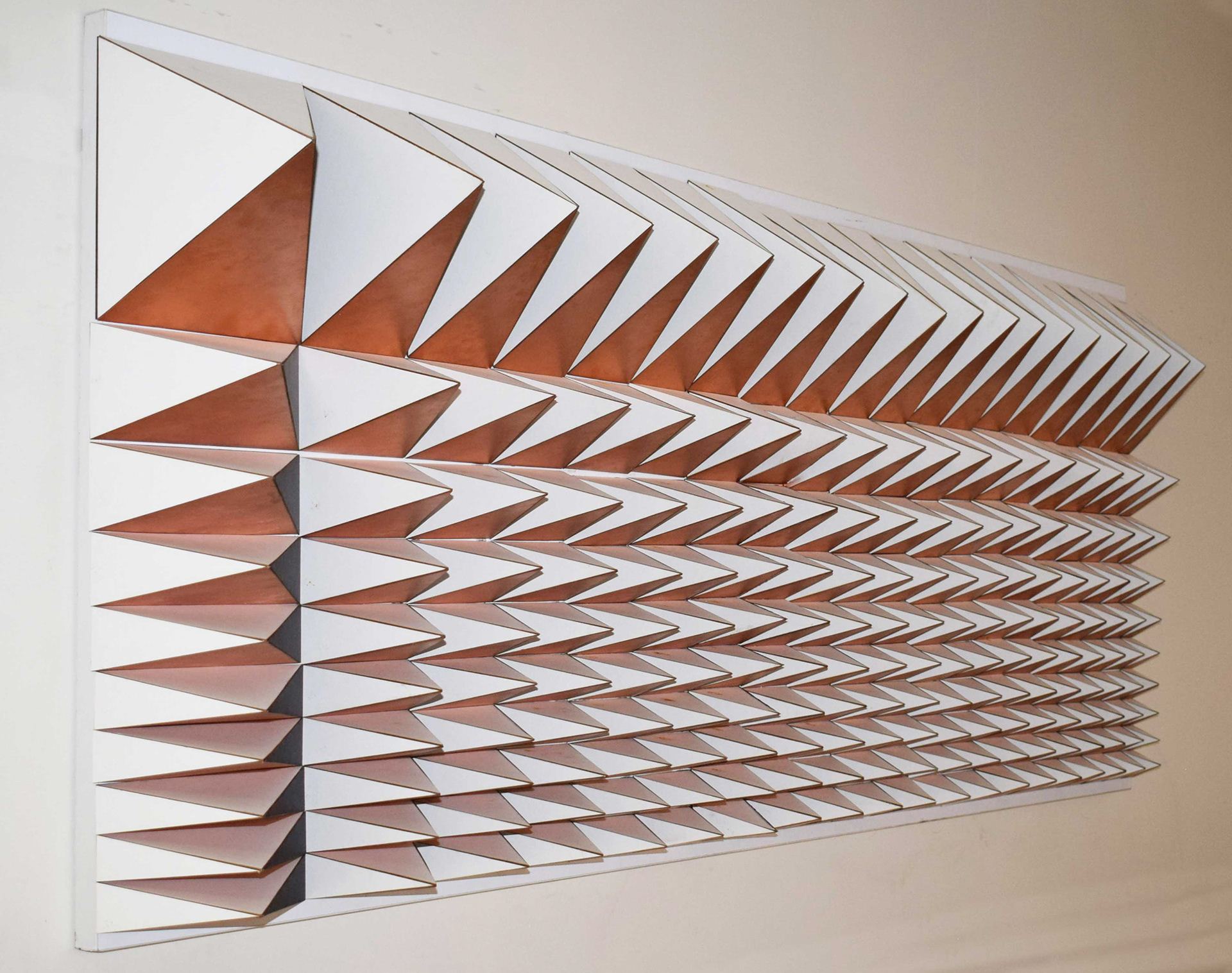

In the next step, we made some small scale models of salt cellars and then started modeling it in Grasshopper. We transformed the initial idea of the salt cellar into pyramids of different scales in height, length and width with a wavy surface

This course has two parts, an introductory part of 5 sessions where students will get to know volumes, materials, modeling tools and techniques. After that is a 10 session part of which 3 sessions are informal. In this part, a total of 20 students were divided into 5 main groups in the following sub-categories:

Modeling and Software

In this stage, volumes are initially created using Grasshopper, expanded and then prepared for laser cutting and finally placed on 100x70 centimeter sheets in a way that occupies minimum space.

Laser Cutting

In this stage, first the required material for cutting sheets (1.4 mm thick Dutch cardboard) is selected and the important point here is the placement of sheets so that the numbers are on one side and the colored cover is on the opposite side. After cutting the sheets that need coloring, they are painted with acrylic paint and finally packaging and sorting is started to present to the groups.

Installation

Step 1

All three groups initially place the parts next to each other under the group leaders and with regard to the thickness of cardboard and its impact on placement and choice of glue and method of gluing, start gluing the pieces with their subgroups.

Step 2

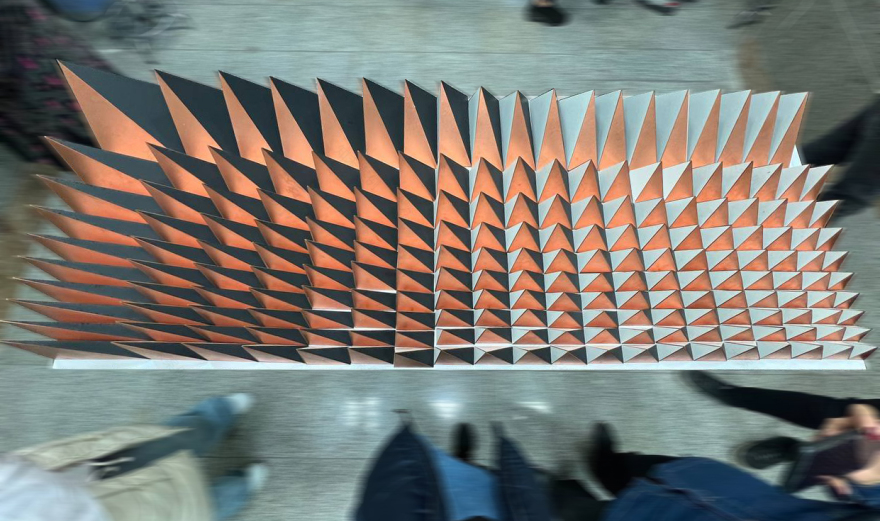

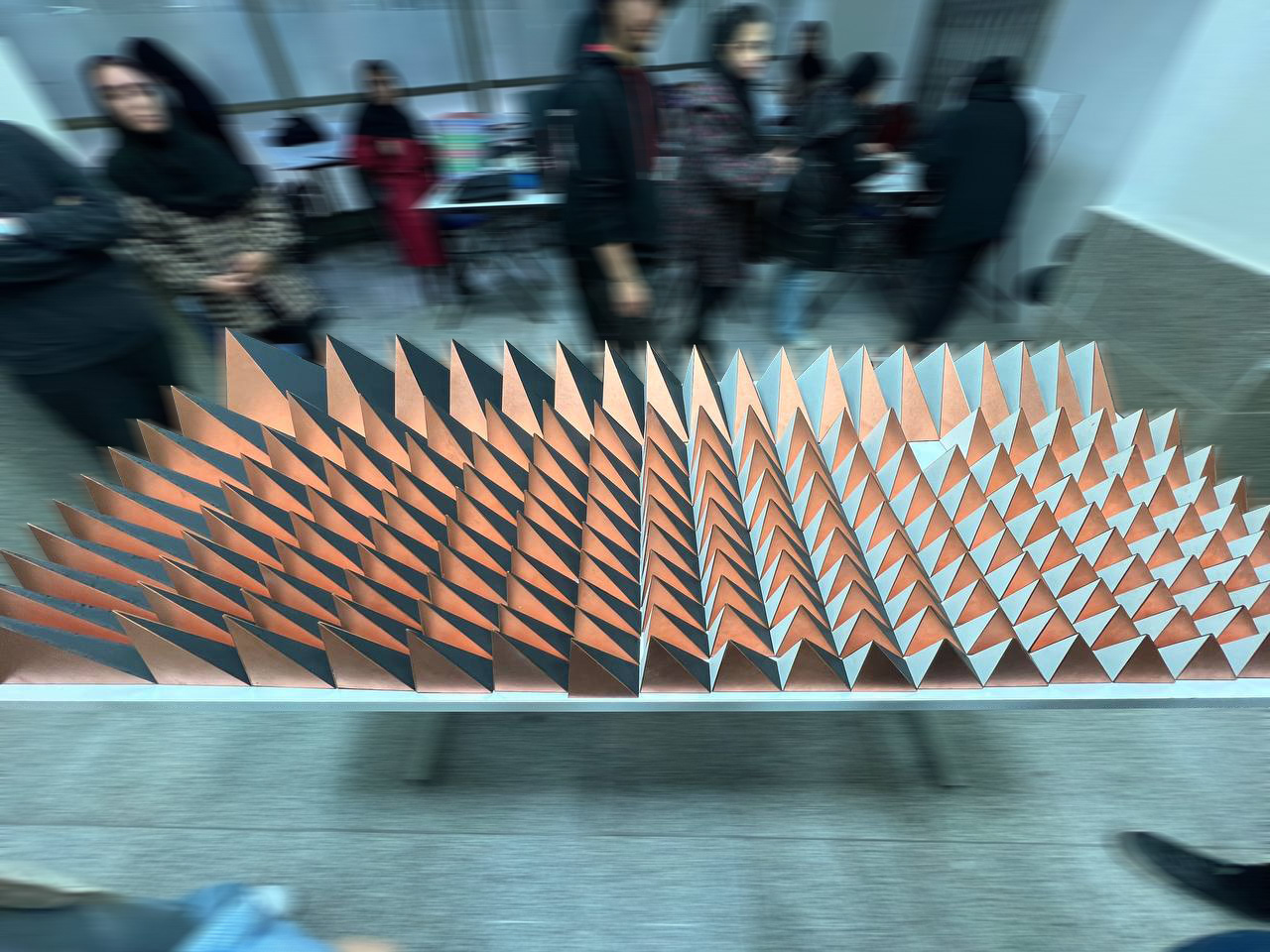

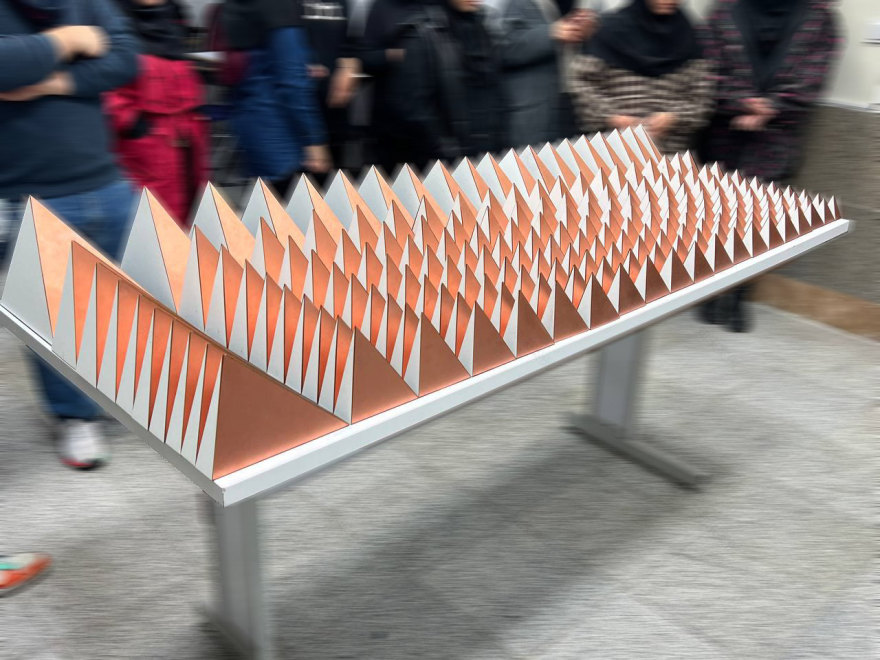

In this stage, the groups connect 200 pyramids consisting of 1000 pieces together and finally place the pieces experimentally on the main 200x80 centimeter board and then install the pieces in their proper places.

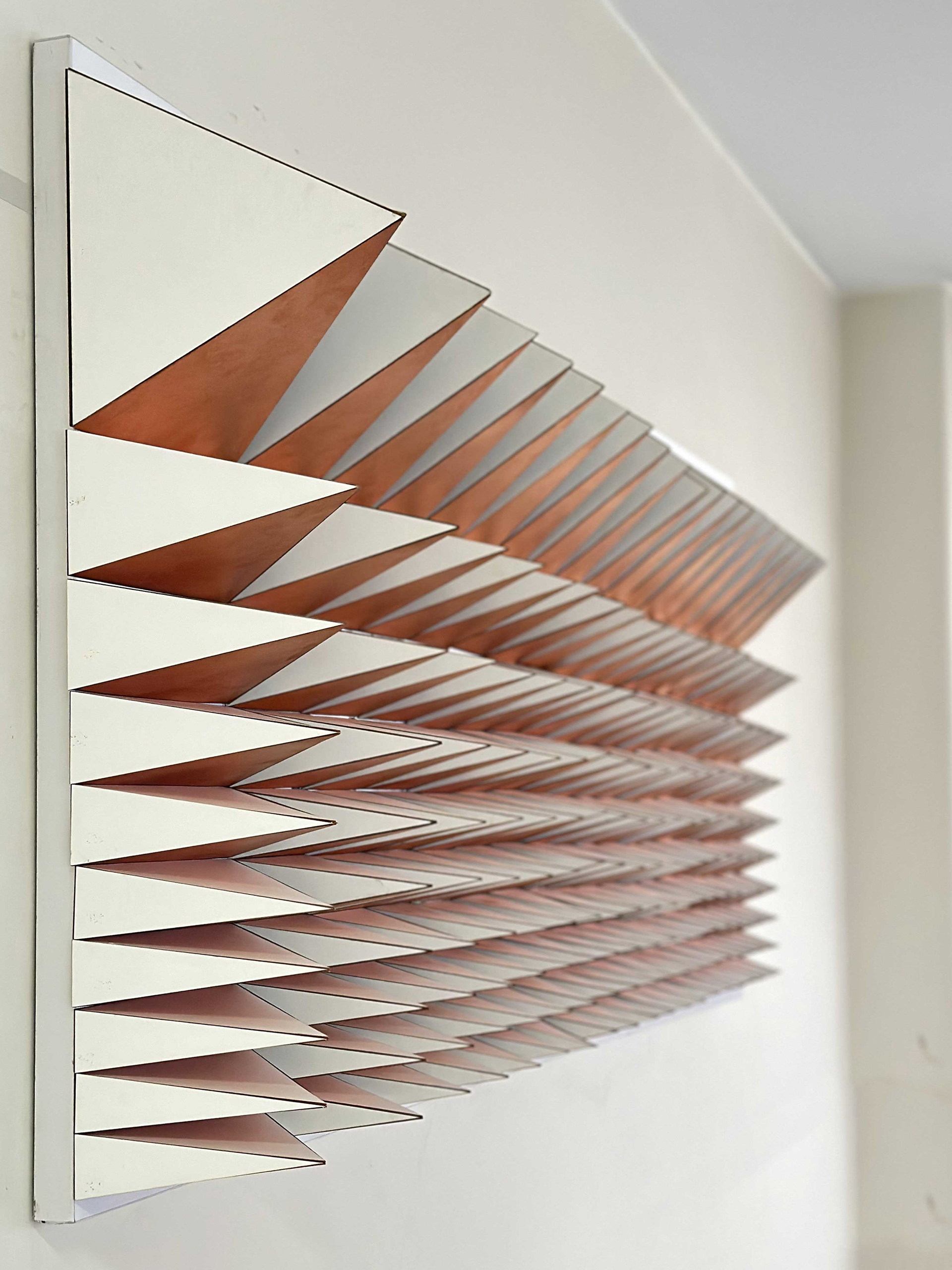

The location of this work is in the illuminated hallway so that the viewer has the opportunity to look at it and also show the different color schemes of their work.

Colors

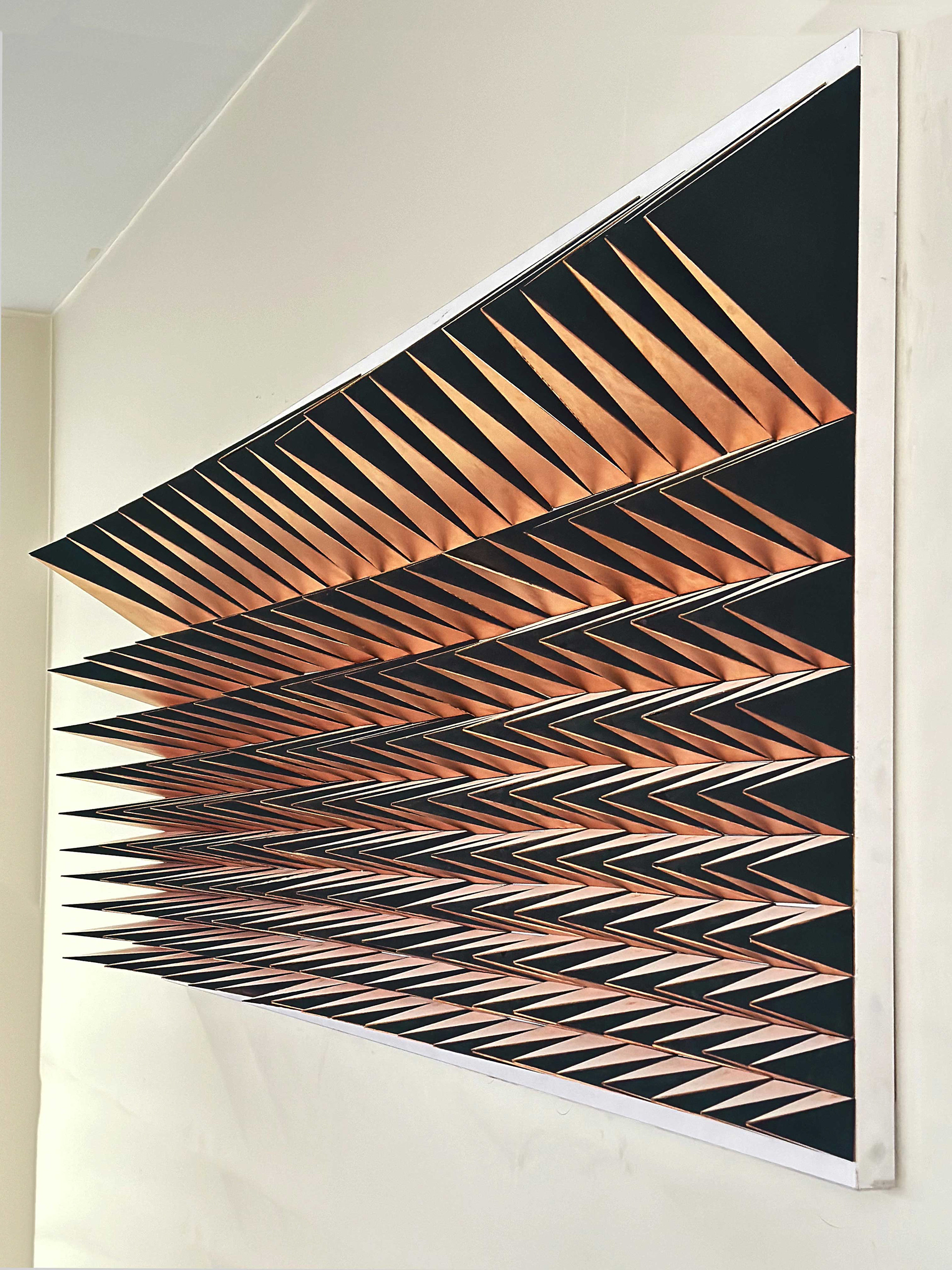

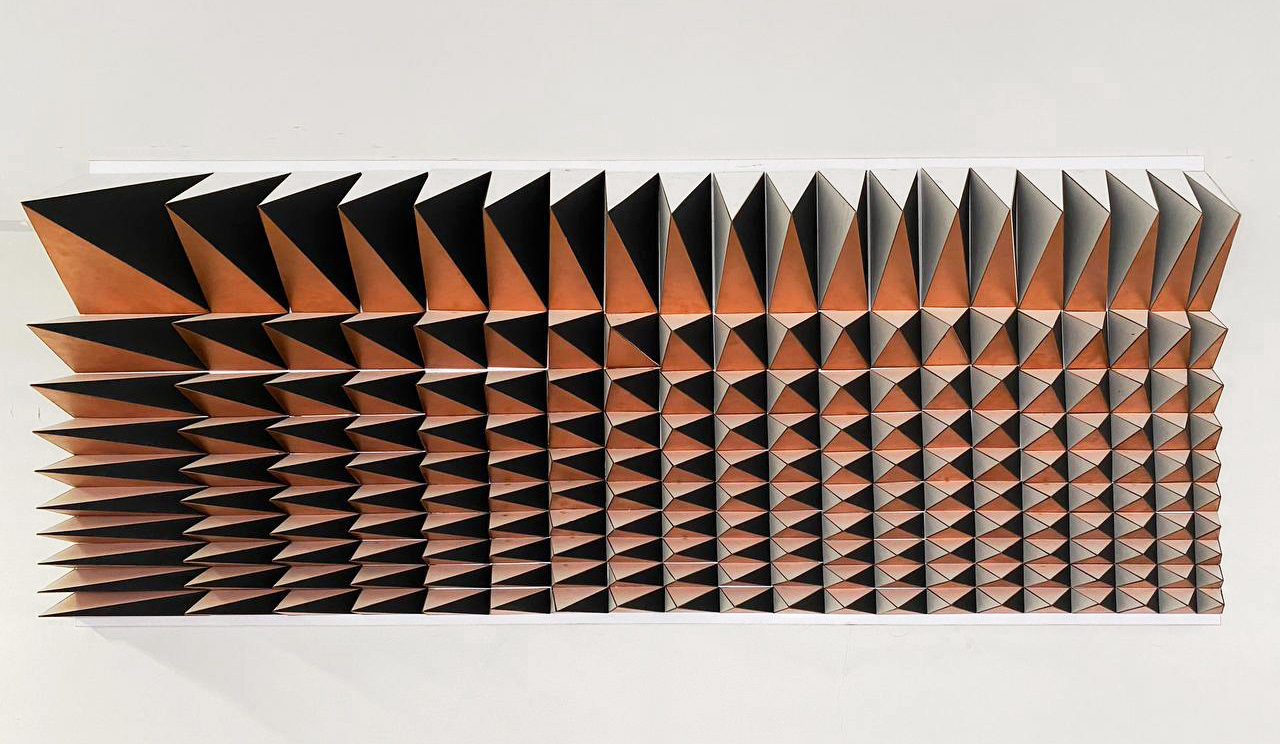

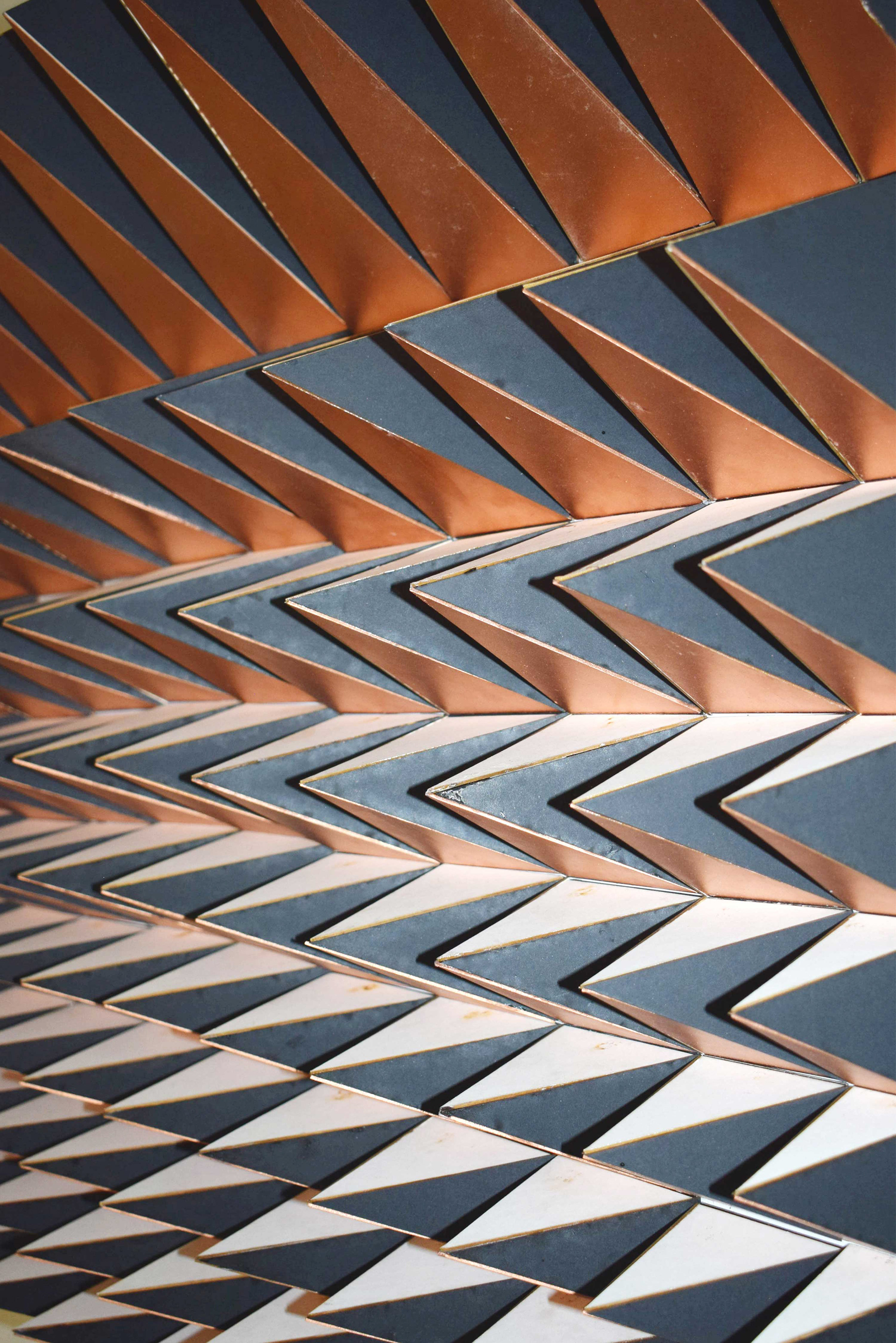

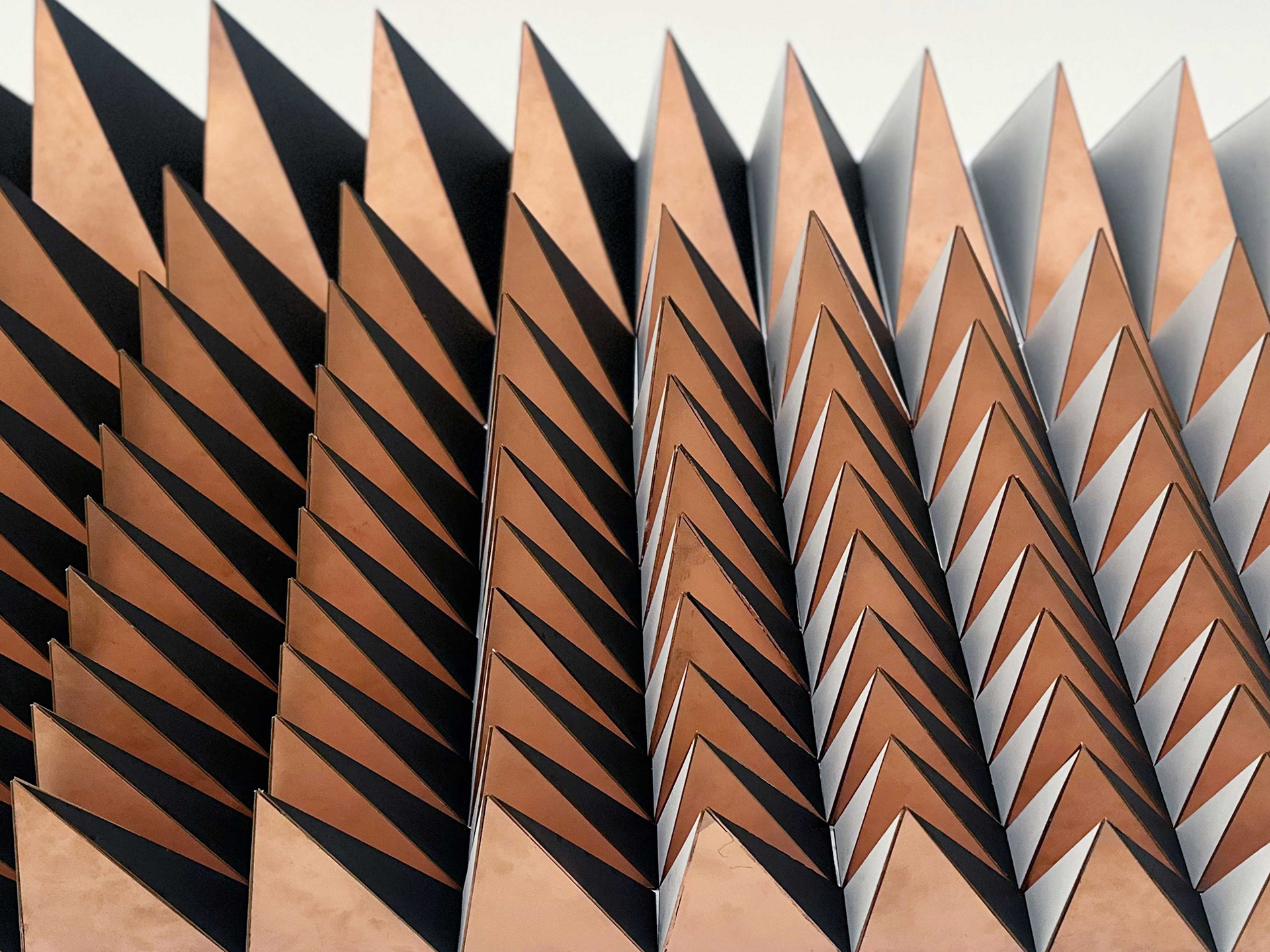

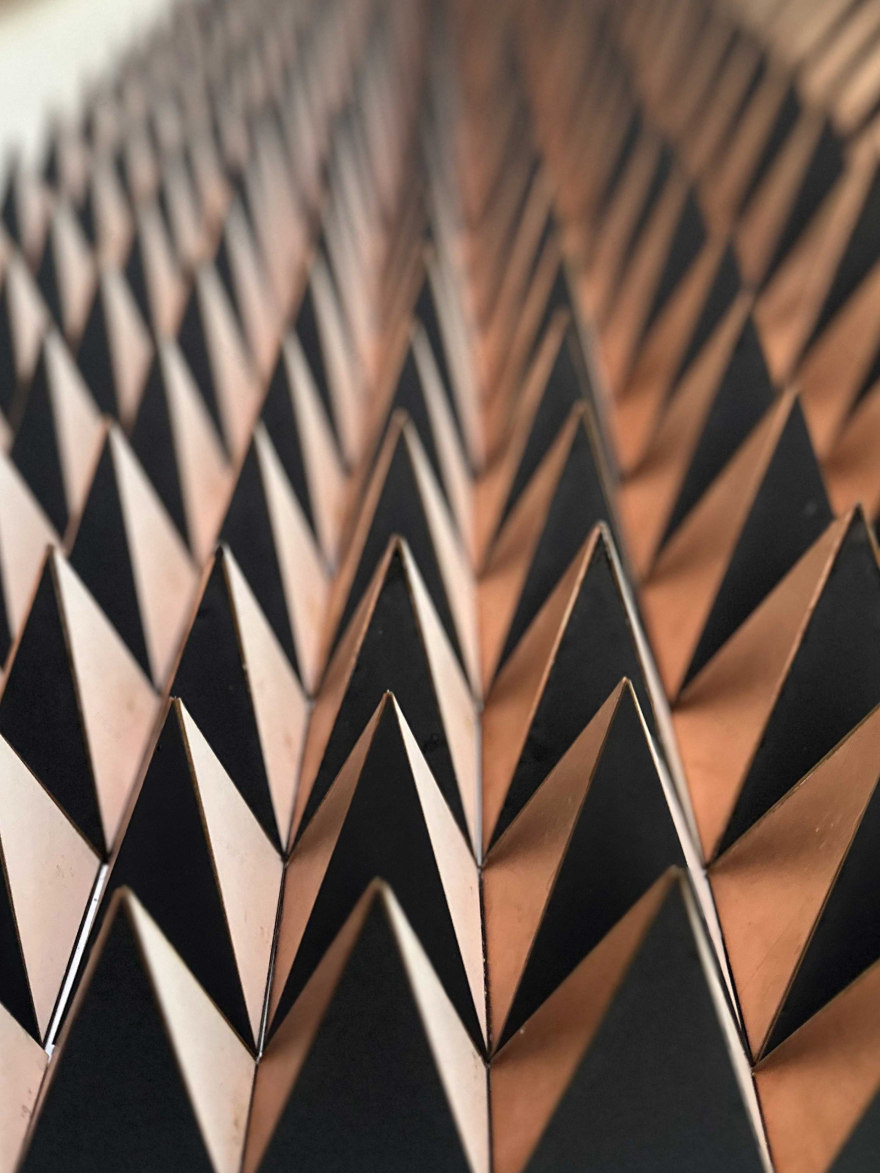

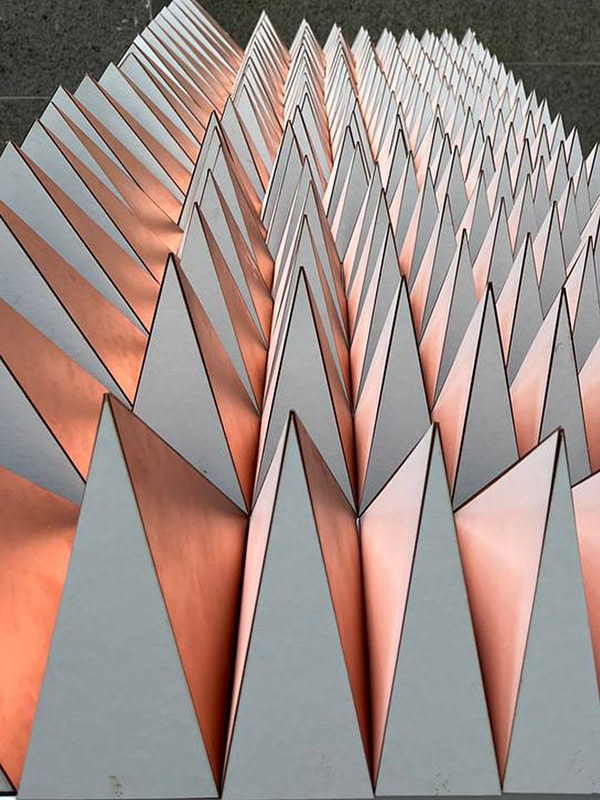

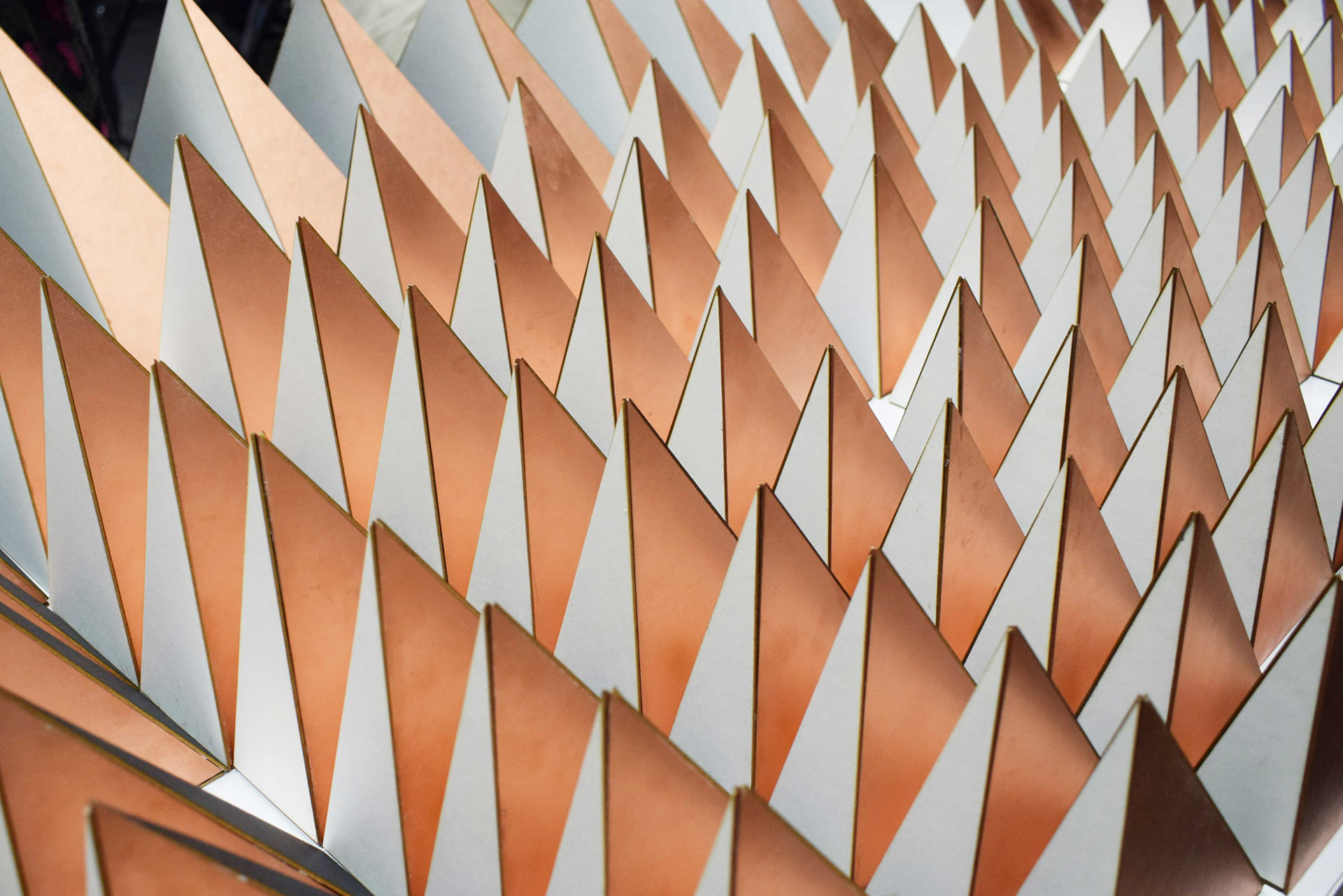

In the end, we did the color scheme in a way that when looking from the right side the mold color is black-golden and when looking from the left side the mold color is golden-white and from the direct and perpendicular angle the golden and black colors are in balance
