存在状况展馆丨墨西哥墨西卡利丨Veintedoce Arquitectura

Architects:Veintedoce Arquitectura

Area:220m²

Year:2023

Photographs:Fidel Gallaga

Manufacturers:Estructuras y Perfiles,Maderas Unión,Telas Parisina

Lead Architects:Beatriz Villegas, Ángel Verduzco, Giancarlo Reyes

Design Team:Alexia Hernández, Sofia Aguirre

Drawing:Ivan Ramirez, Sofia Aguirre, Lesly Flores

Work Supervision:Gissel Mariscal, Javier Mireles, Fernando Preciado

Main Contractor:Cirilo Zavala

Costs:Dayan, Ivan Andrés

Concept Design:INSITE

Editor And Curator:Andrea Torreblanca

City:Mexicali

Country:Mexico

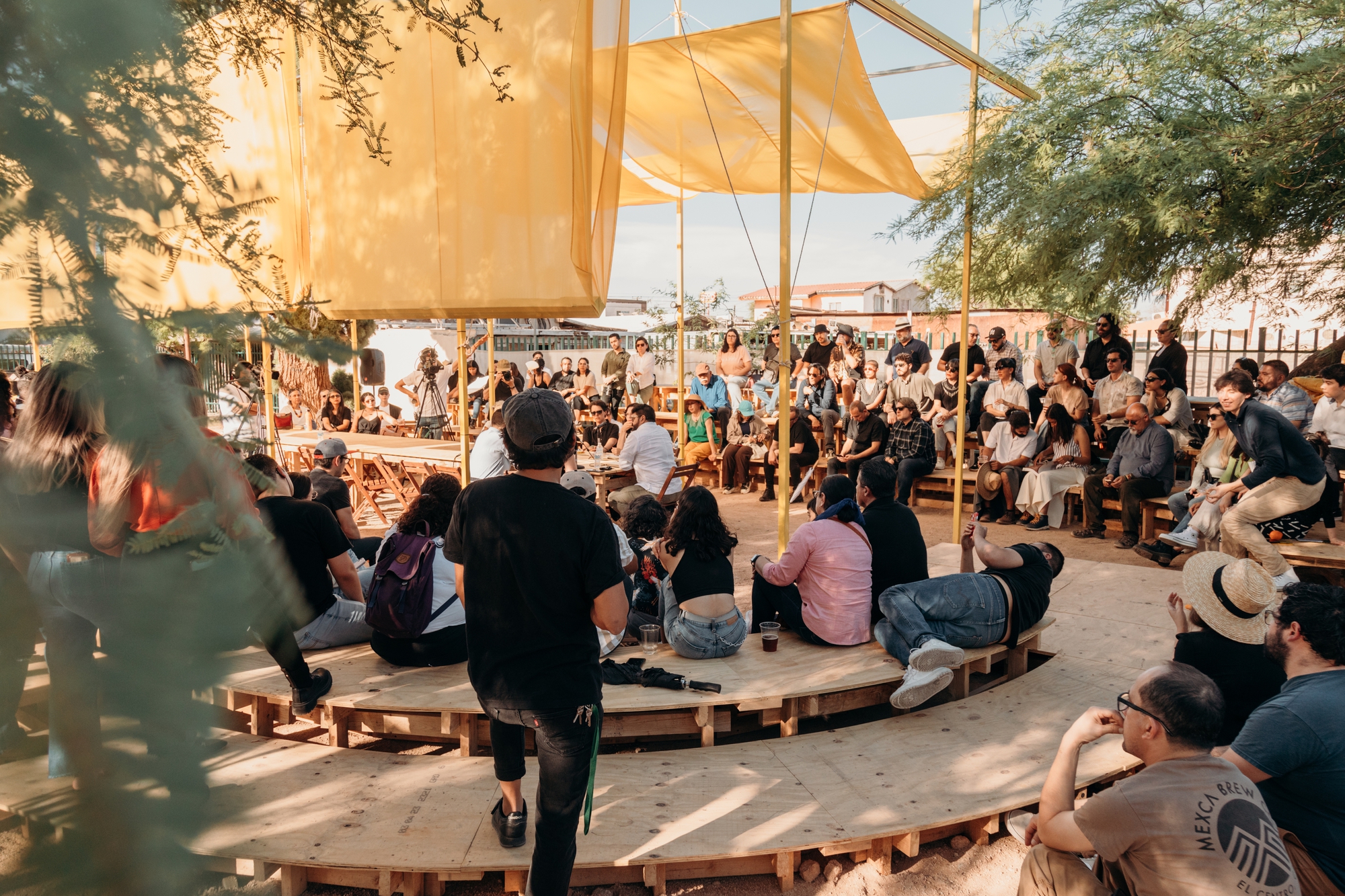

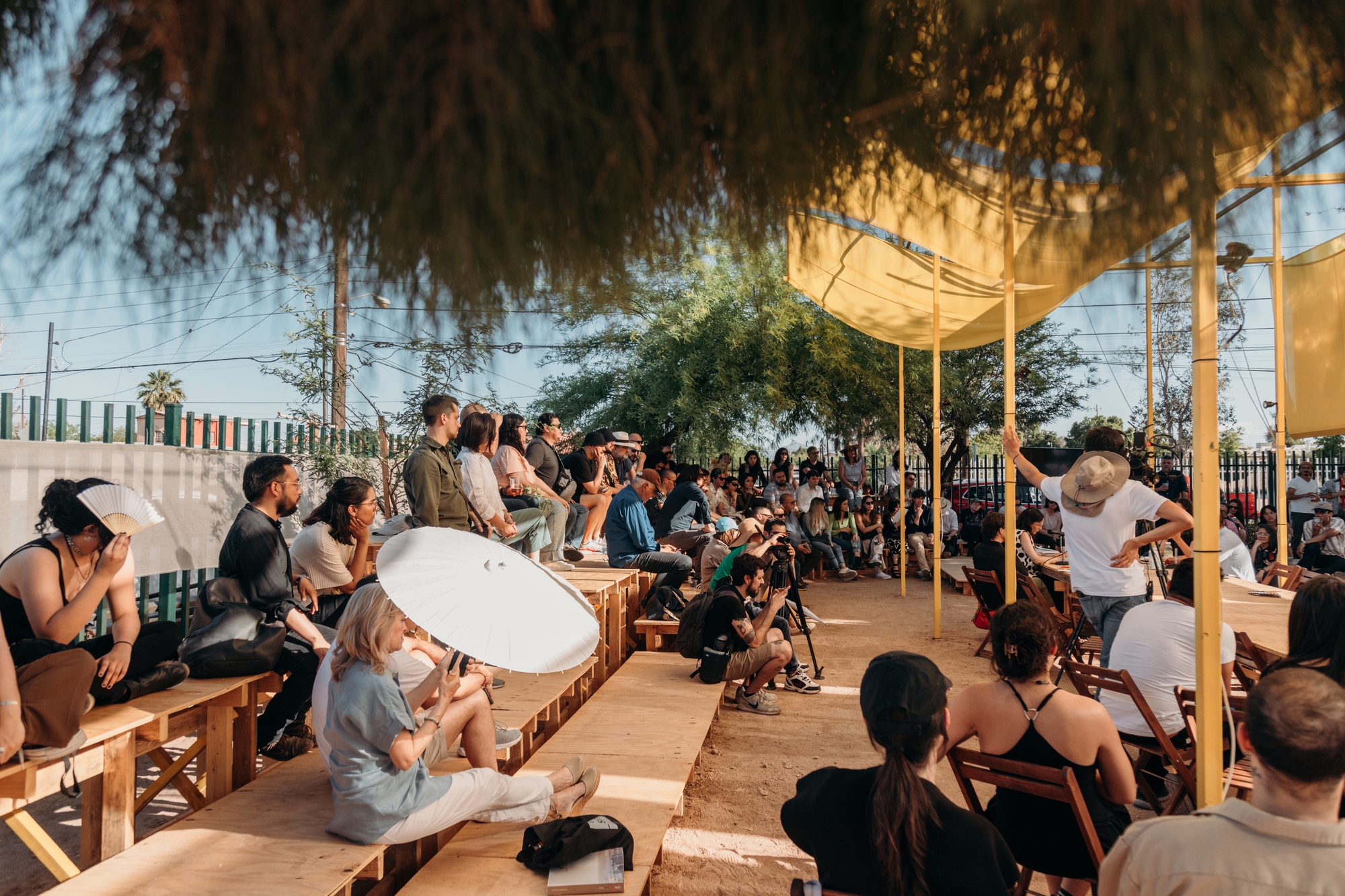

Text description provided by the architects. Within the framework of its curatorial project The Sedimentary Effect, the cultural organization INSITE invited us to collaborate on its third chapter A Timeless Way of Building, based on the book by Viennese architect Christopher Alexander (1979) and the experimental social housing known locally as El Sitio (1976) in Mexicali, Mexico, through the commissioning of a pavilion with the specific intention of projecting Christopher Alexander's legacy. In what used to be the "Builder's Yard" of El Sitio and most recently a parking lot, stands Situations of Being; a pavilion that facilitated creative exchanges and social dynamics during A Timeless Way of Building, an event curated by INSITE in which architects, philosophers, and urbanists from the region and beyond participated in conversations, in light of Alexander's theories, about housing production, communal living, architectural philosophy, and urgent urbanism in border cities.

The pavilion had brief and context specific needs: a dynamic walkthrough of El Sitio, screenings, and conversations; for which thermal comfort was necessary due to Mexicali's hot summer climate. We consulted Alexander’s book "A Pattern Language" (1977) and noted that both programmatic and contextual forces could be translated into its patterns. We then defined the patterns, or situations of being, that the pavilion would facilitate:94 Sleeping in Public106 POSITIVE OUTDOOR SPACE119 ARCADES171 TREE PLACES176 GARDEN SEAT243 SITTING WALL244 CANVAS ROOFSWith these behavior and spatial patterns in mind, we envisioned a pavilion that would serve the many situations of being that could take place: to sit, to lie down, to observe, to see the breeze, to feel awe, to share, to listen, to really listen, to dance, to daydream, to sleep, to eat…

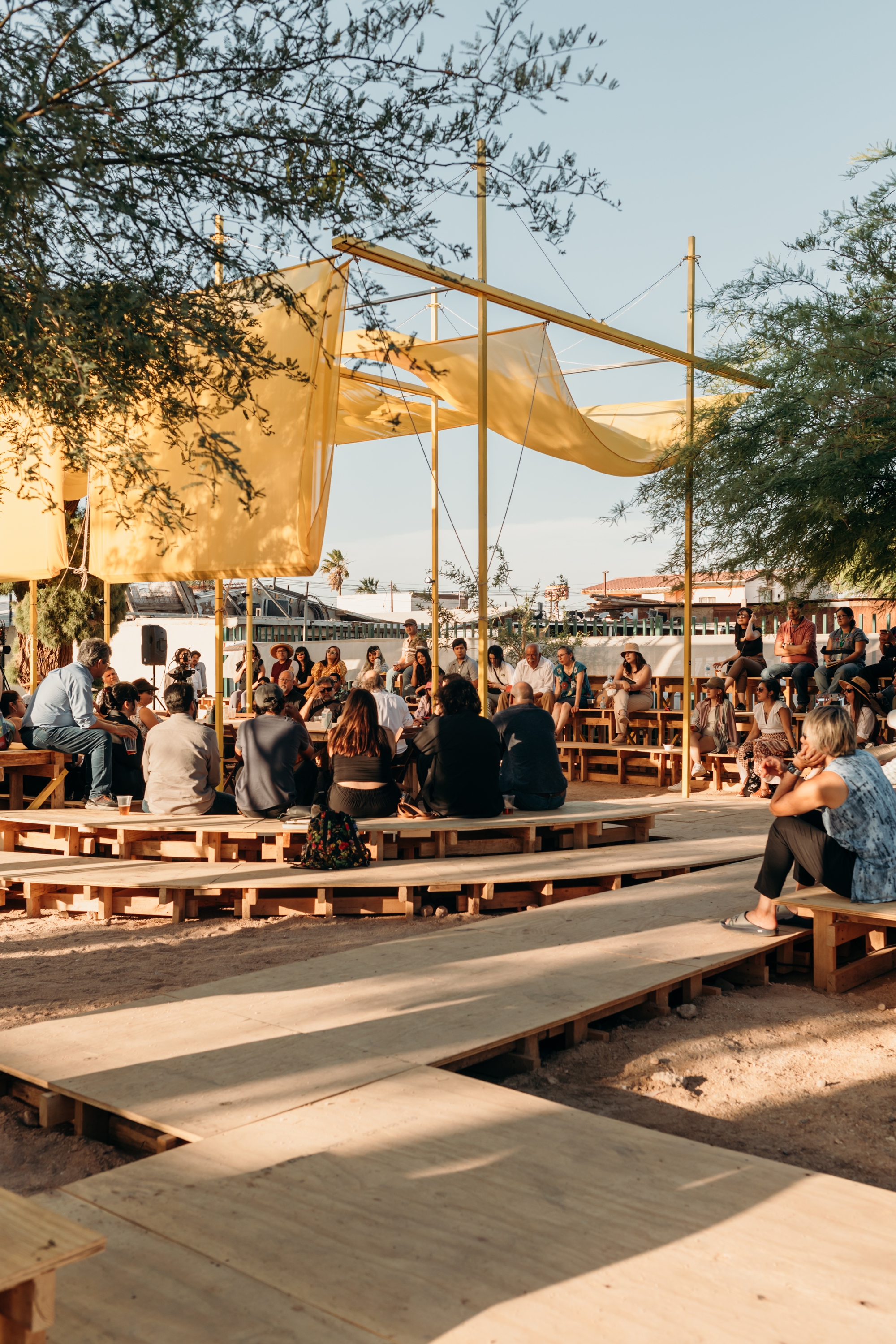

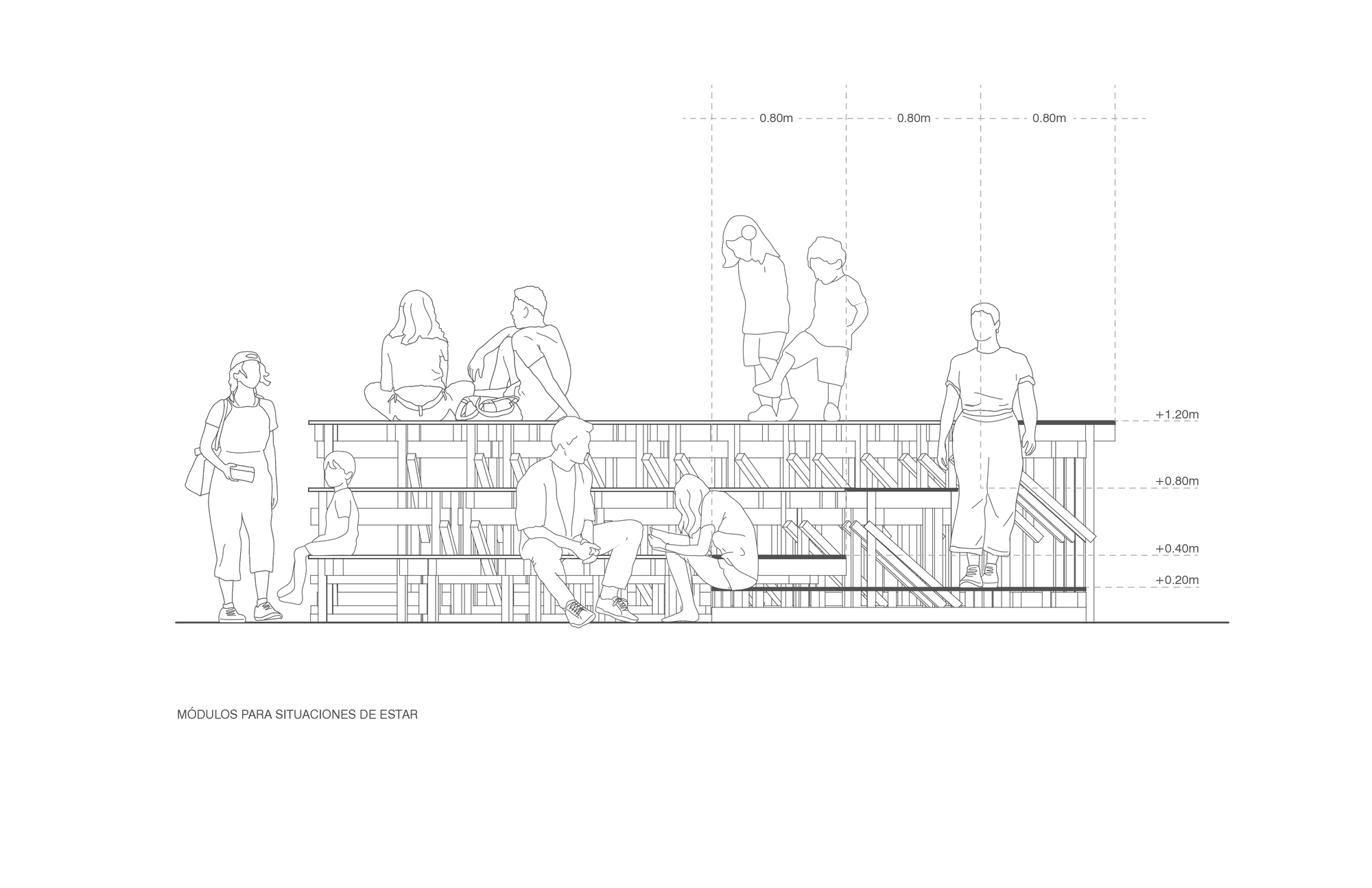

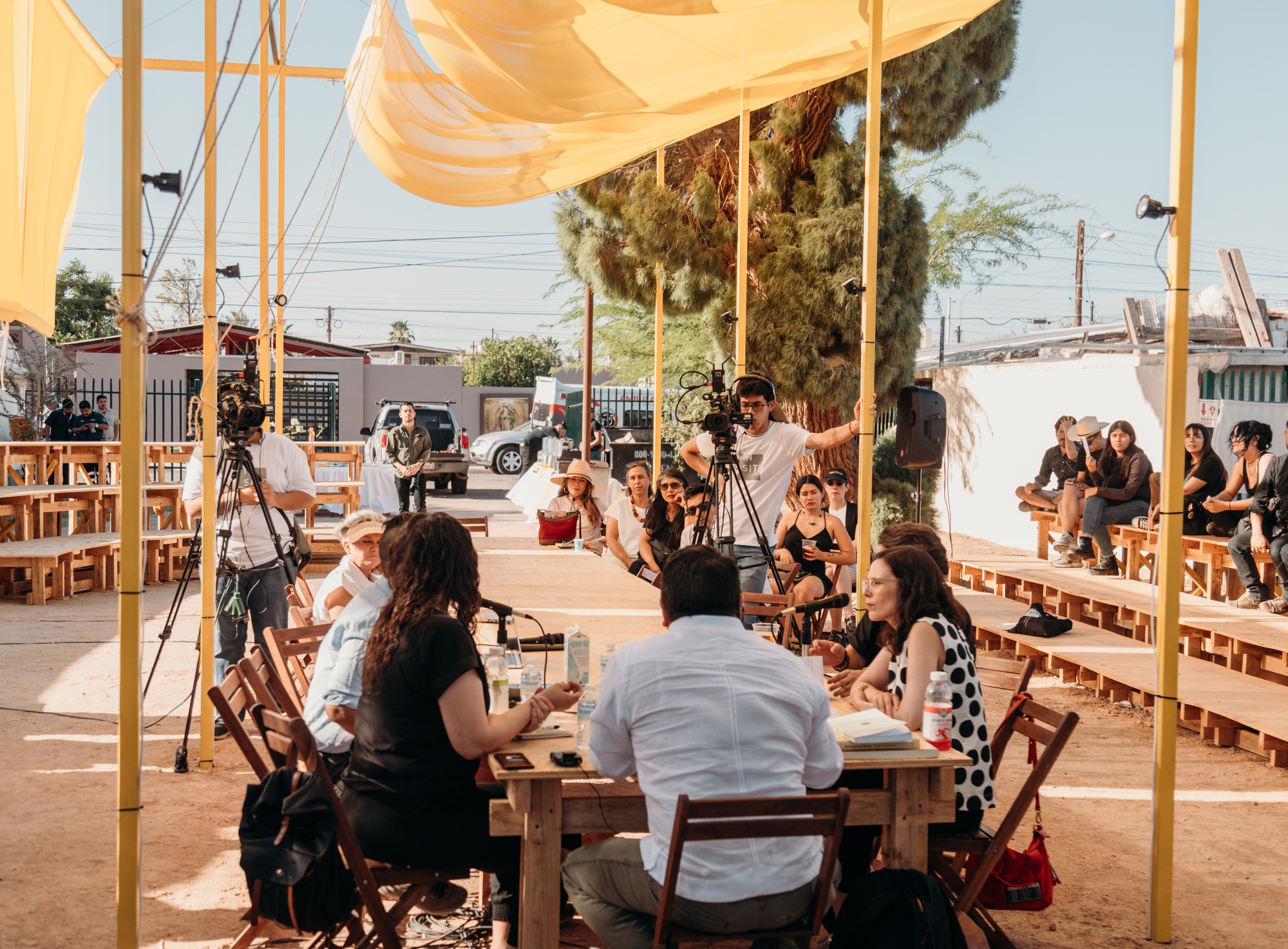

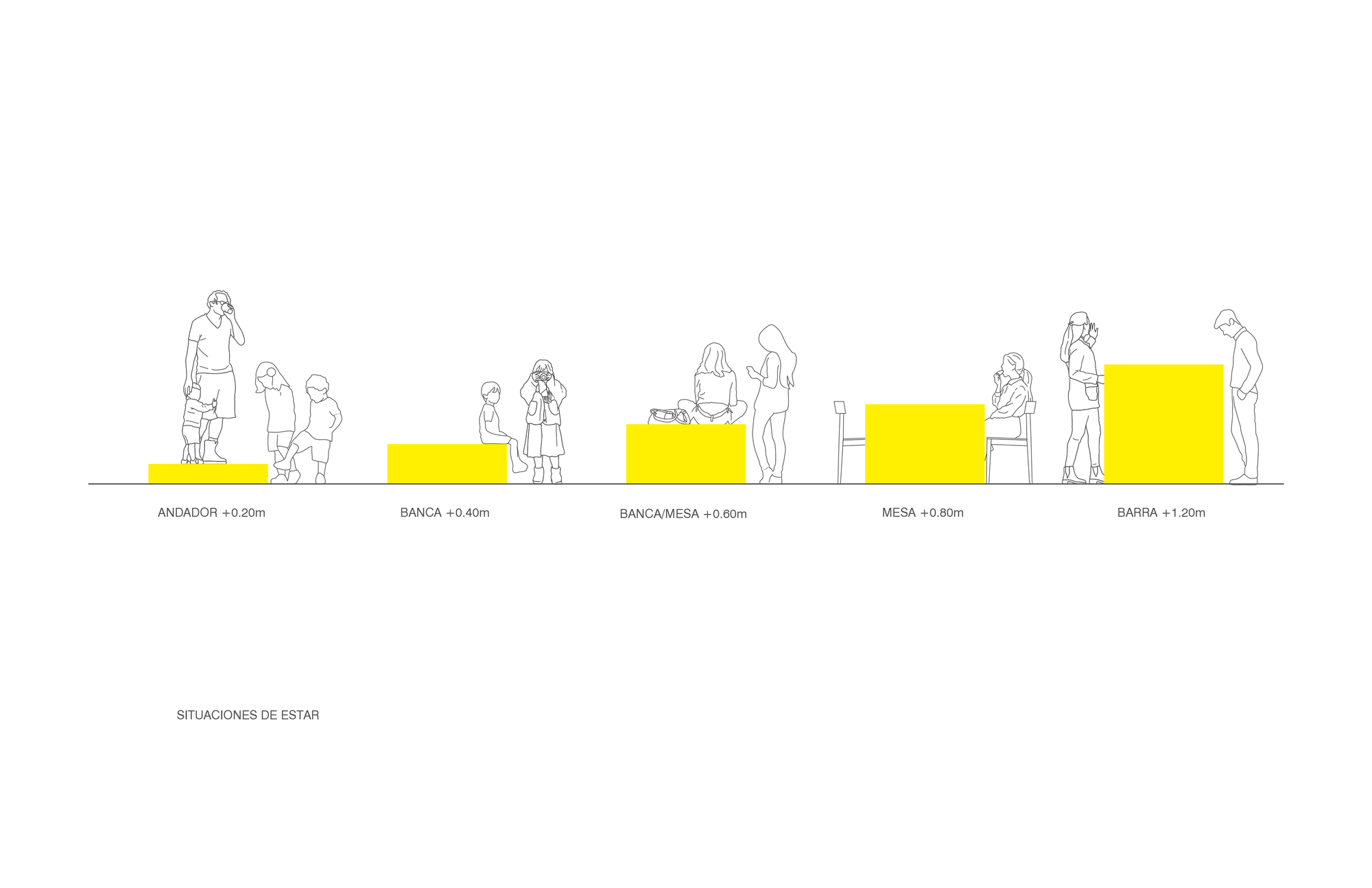

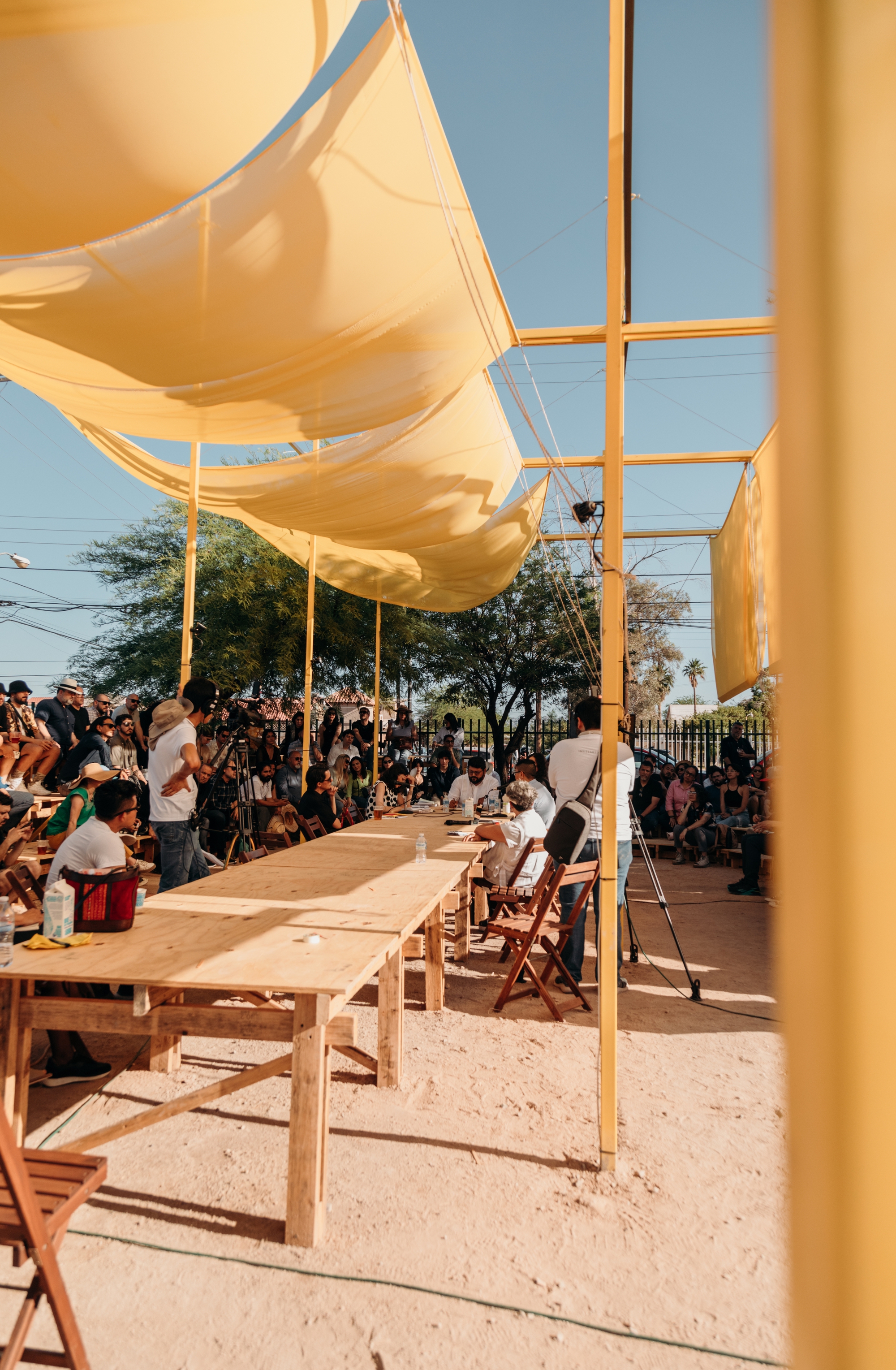

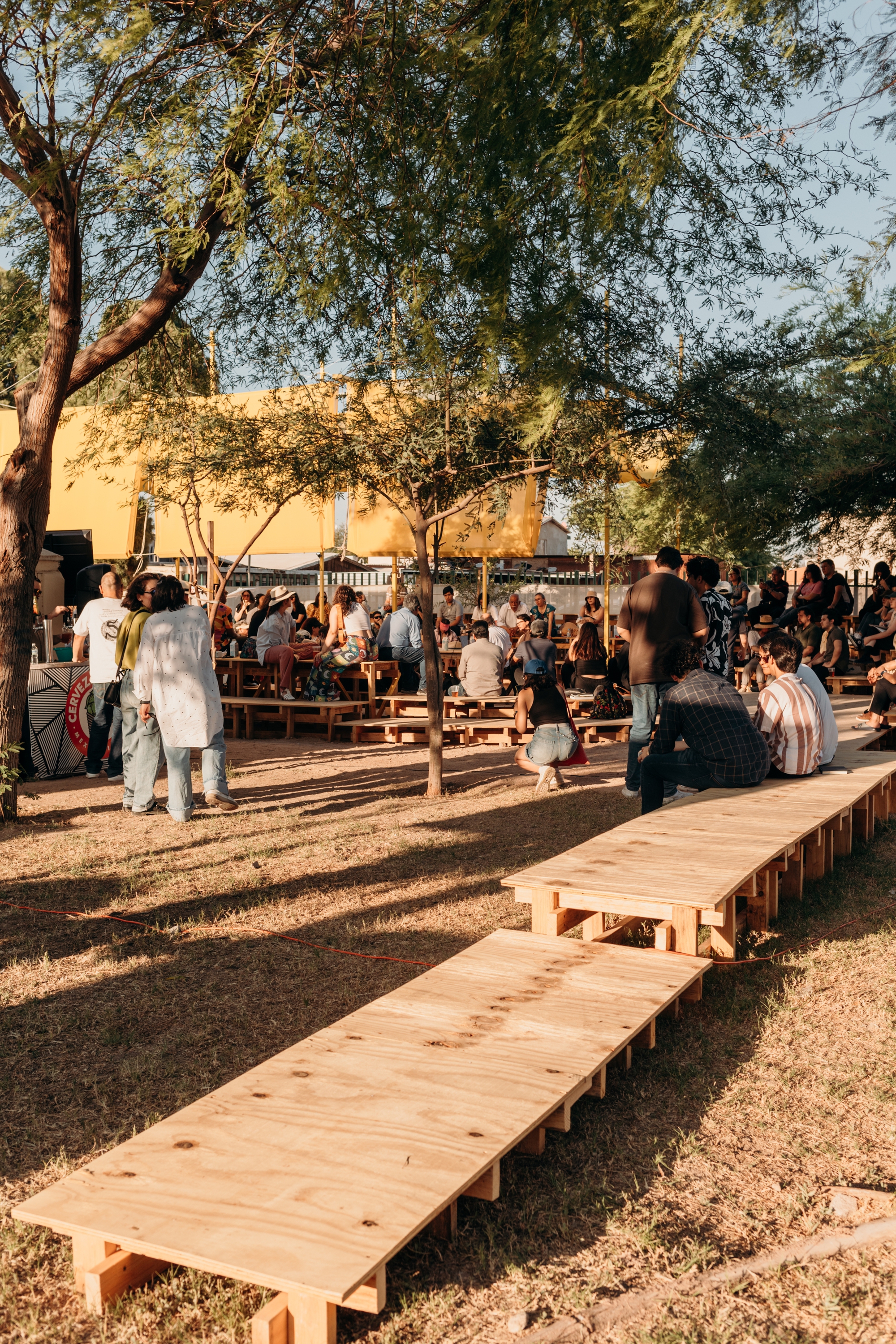

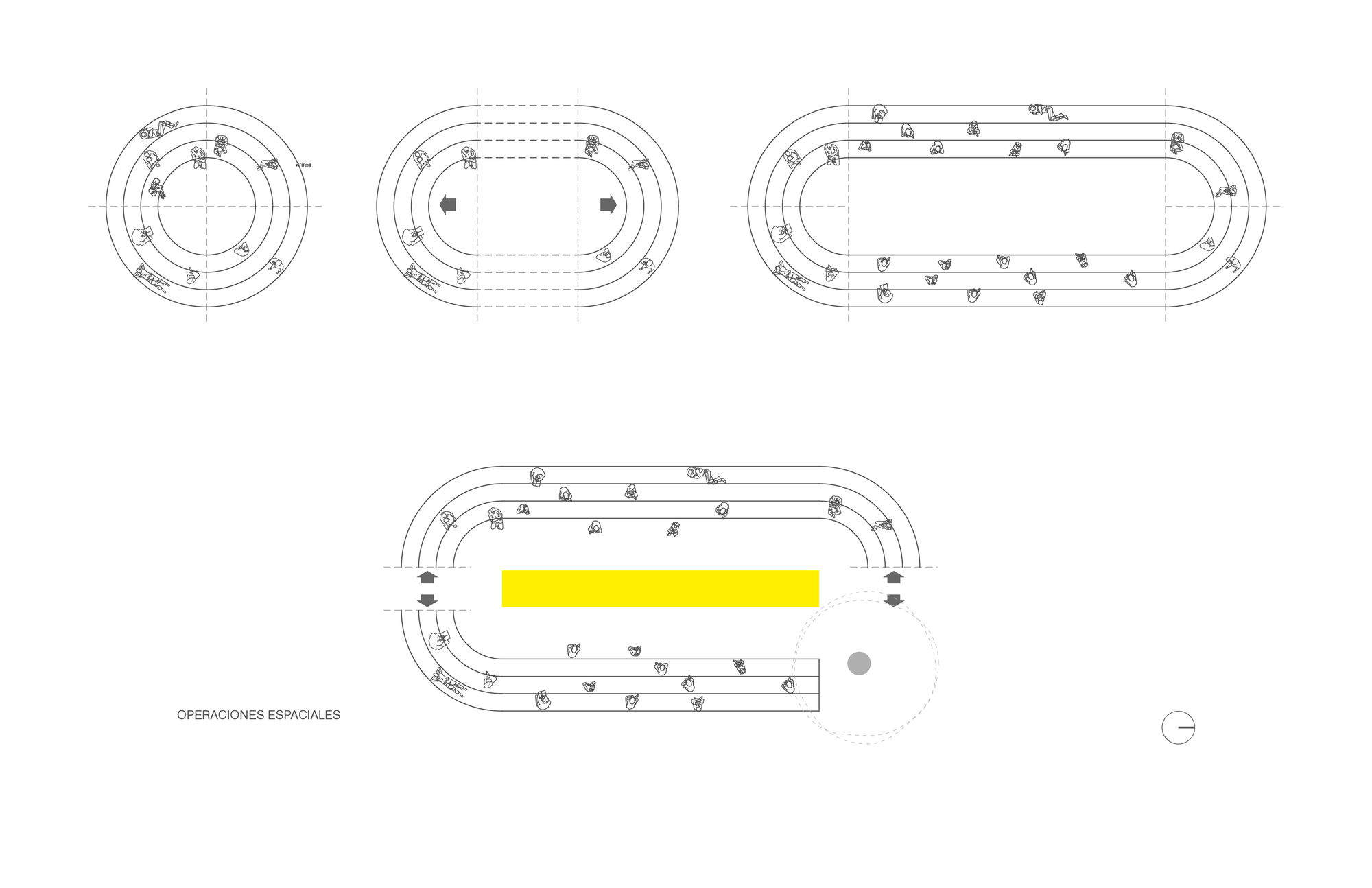

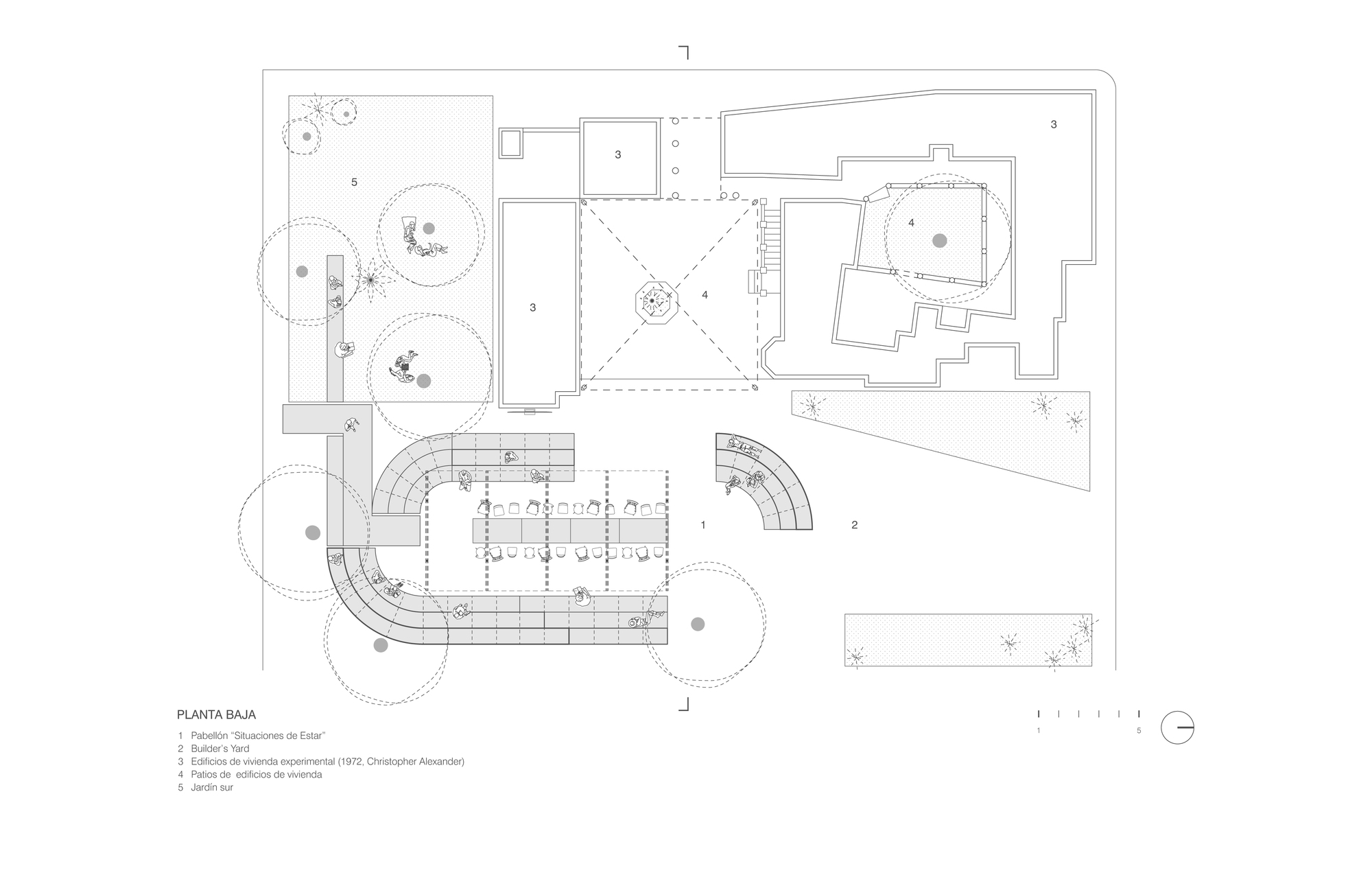

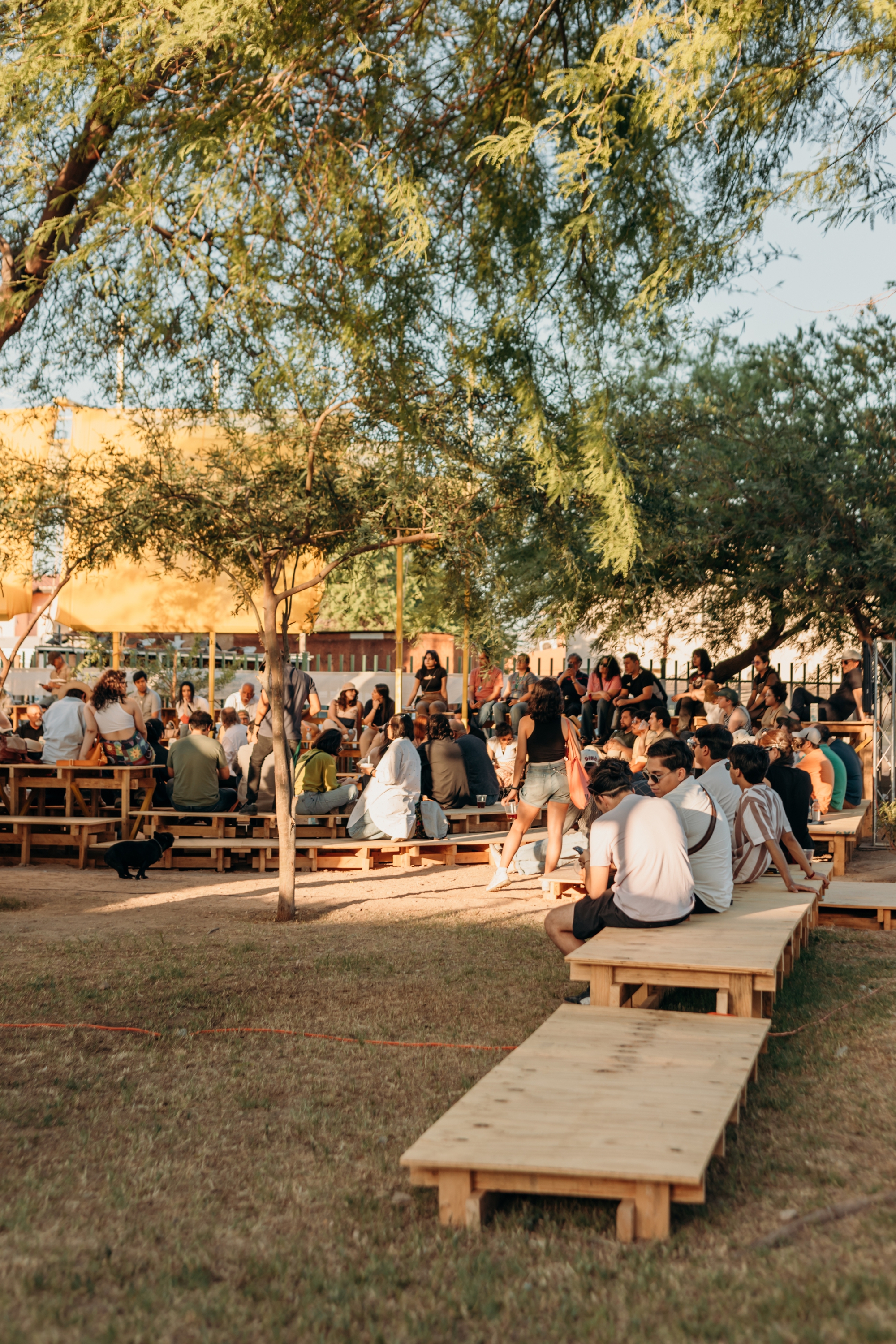

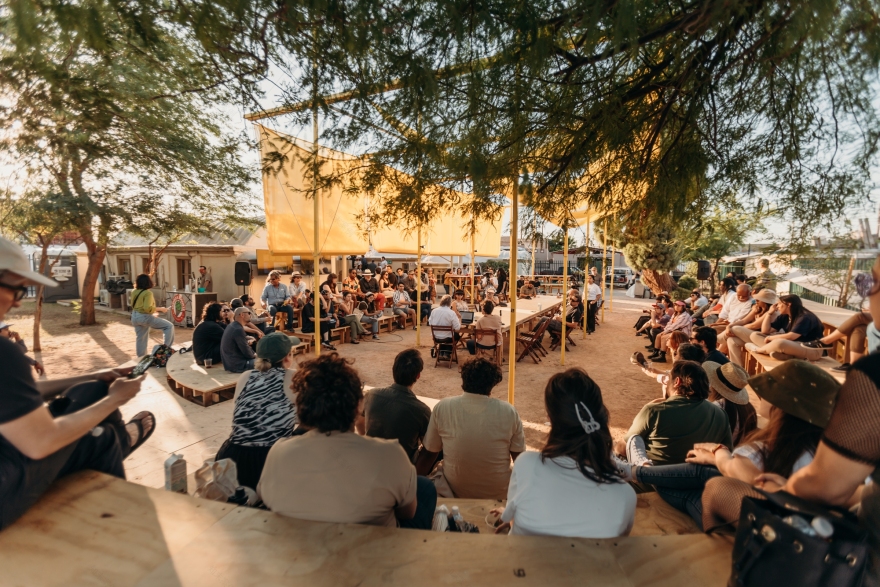

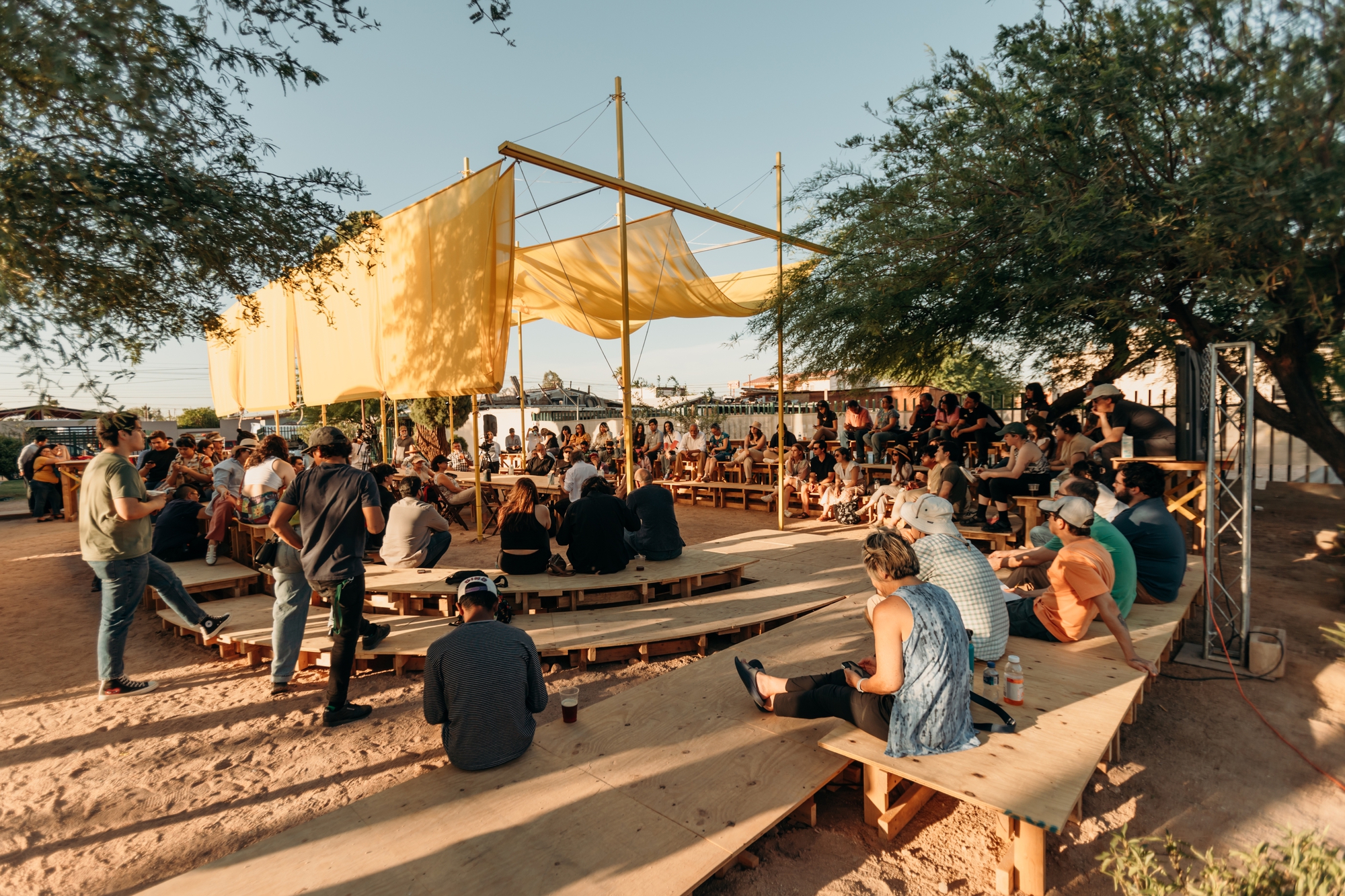

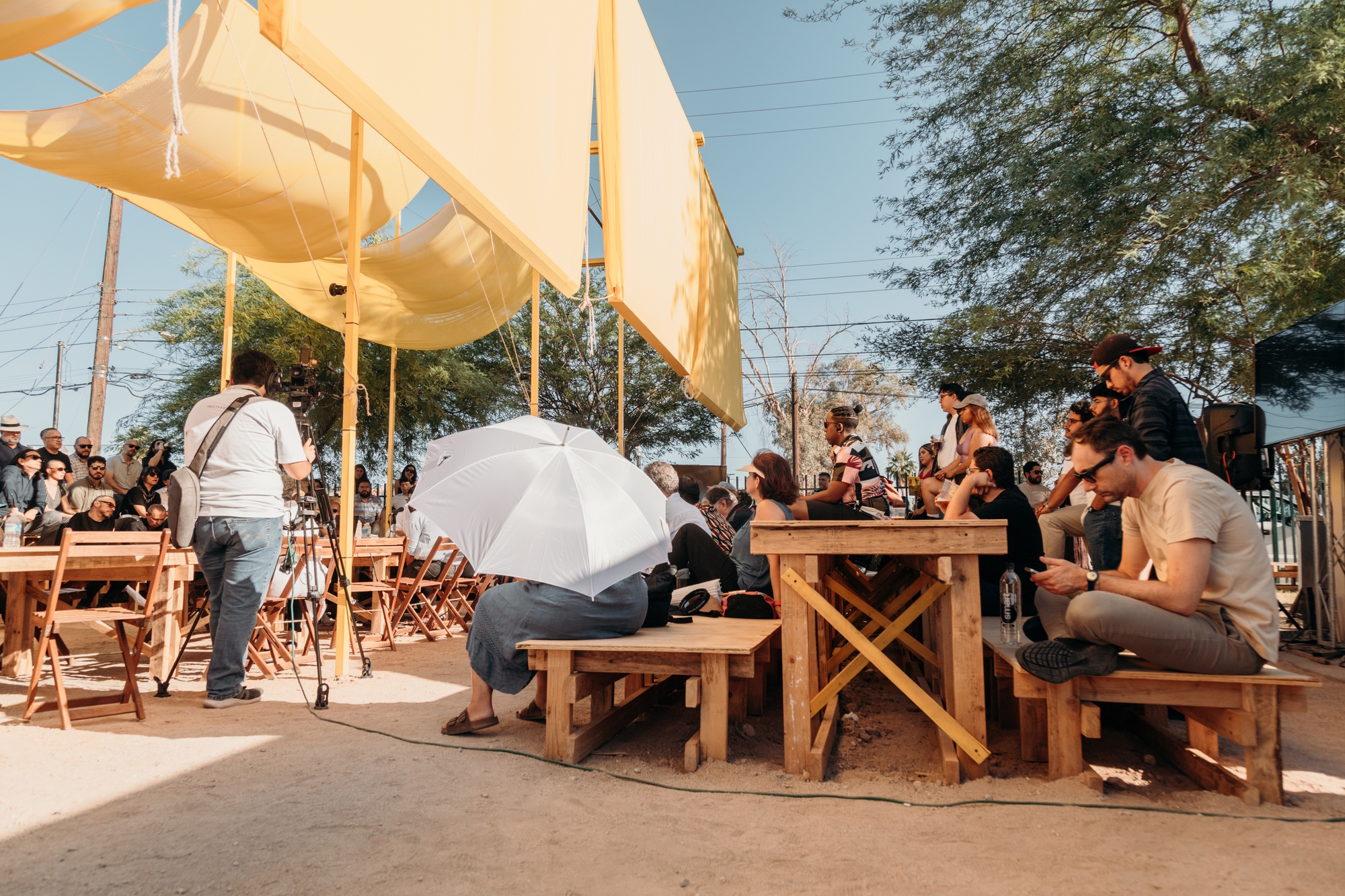

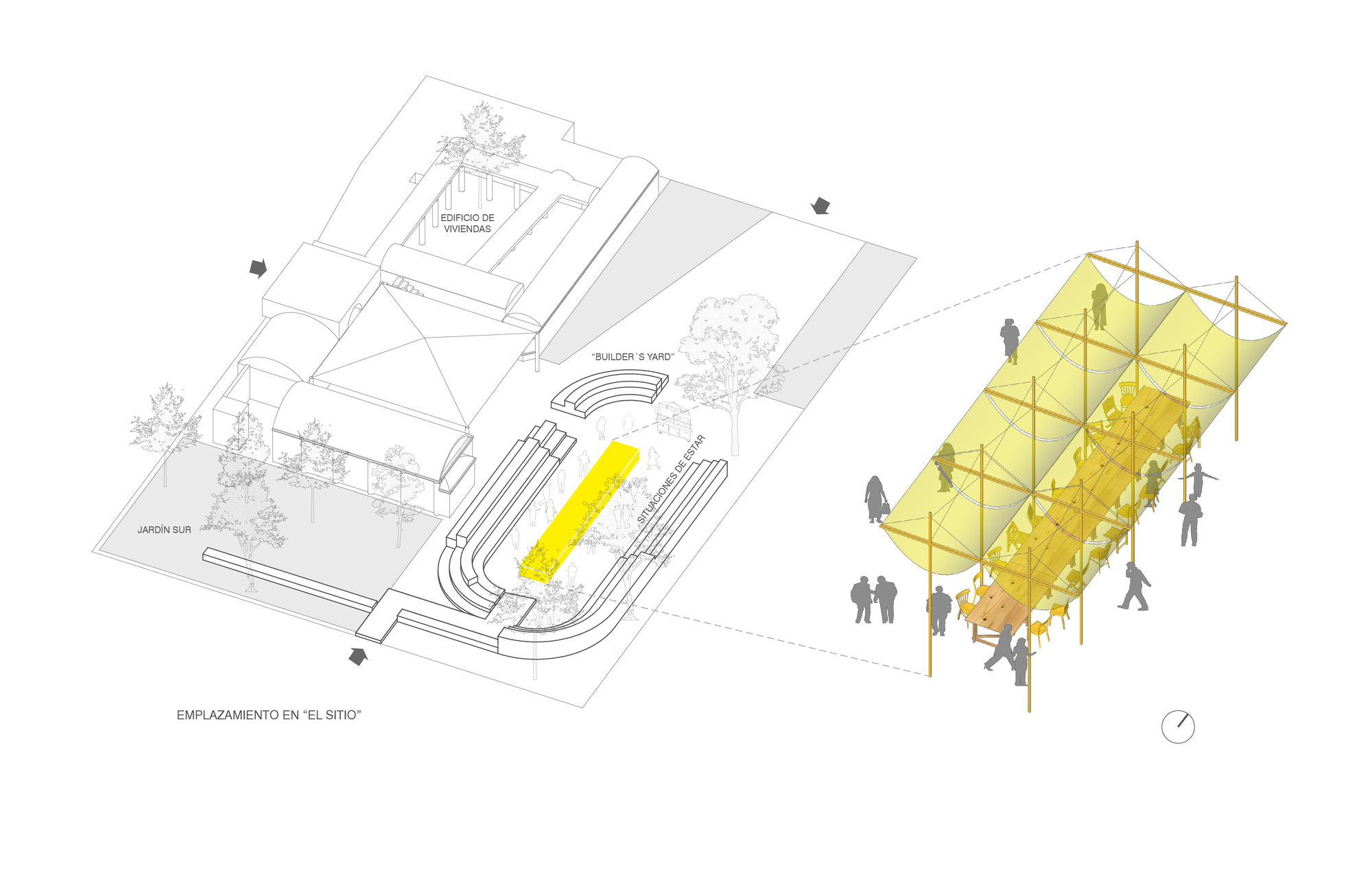

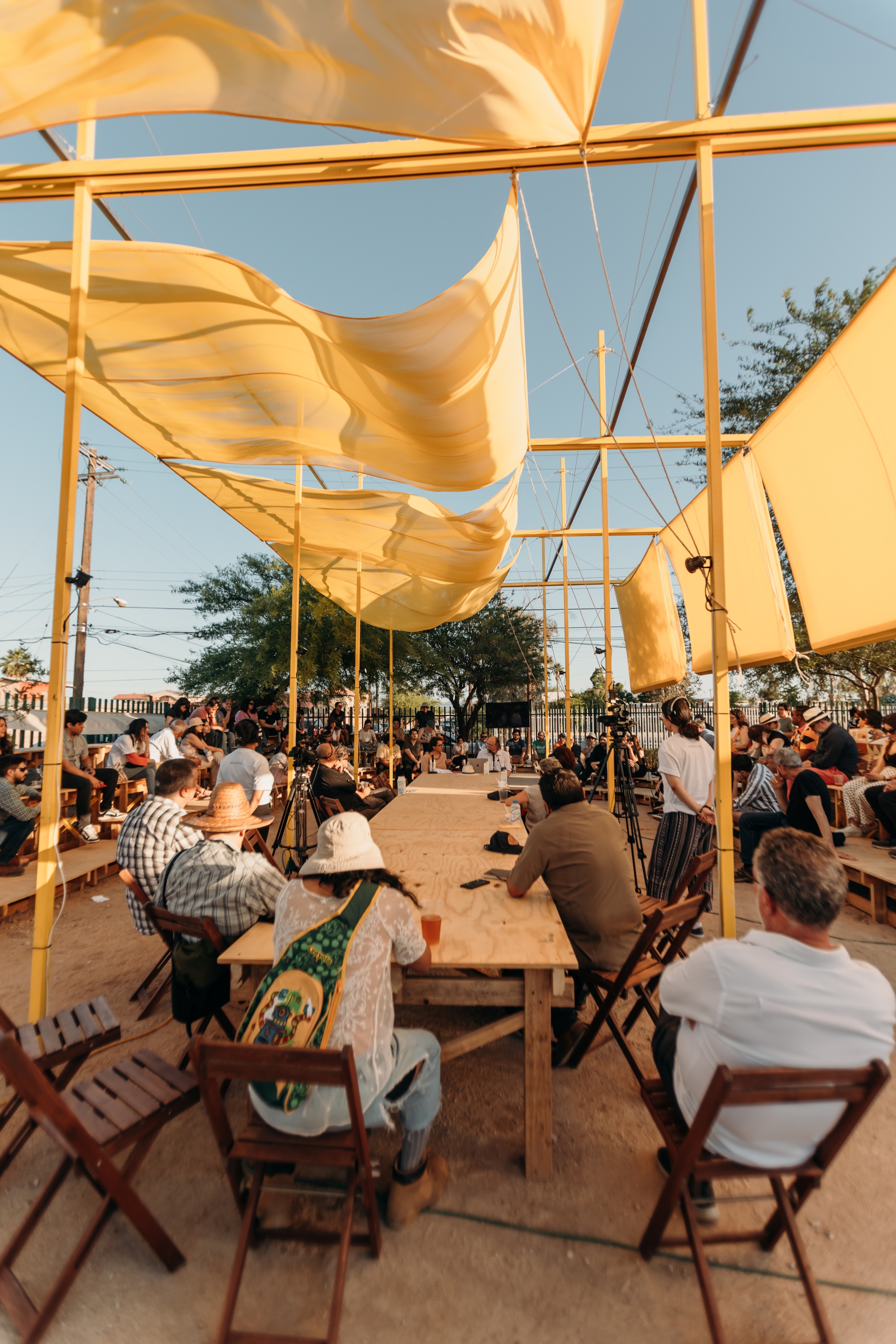

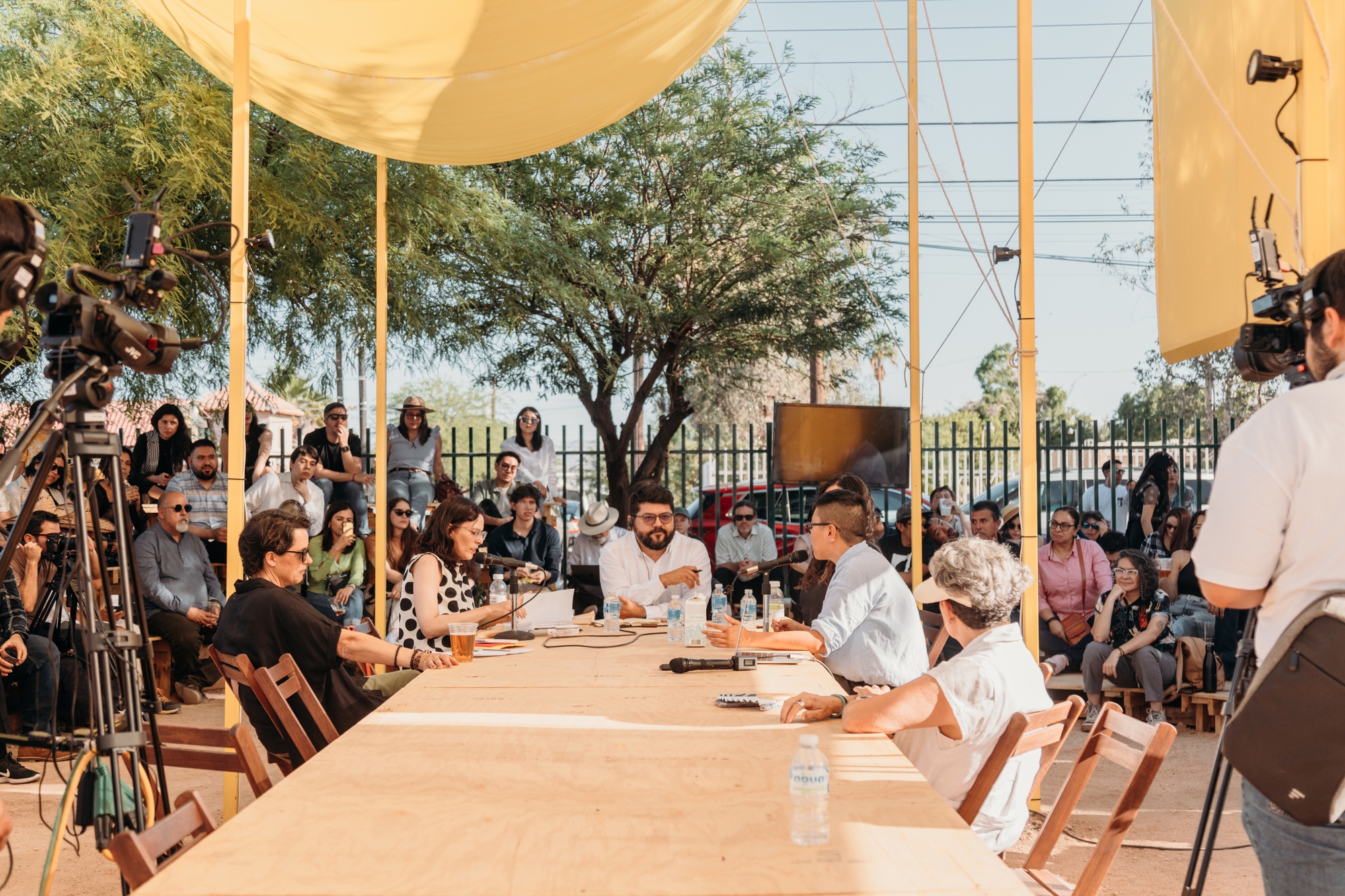

Placed in the center of the builder's yard, with Alexander´s housing building situated to the west and wide desert tree canopies to the east, is a circle that contains offsets wide enough to accommodate the considered behavioral and spatial patterns. The concentric circles are then stretched to accommodate 120 persons and consequently split longitudinally to position a long communal table on its longitudinal axis. The table seats more persons than needed for the conversation's participants to promote a casual and less hierarchical interaction between exponents and listeners. The predicted situations of being needed different heights for their support. The bands of its floor plan are divided into modules; consequently, a height is assigned to each module. These are removed where needed to facilitate circulation towards the garden, entrance, and housing building. A band stretches well into the south garden, offering a quiet place to seat beneath the trees (pattern 171).

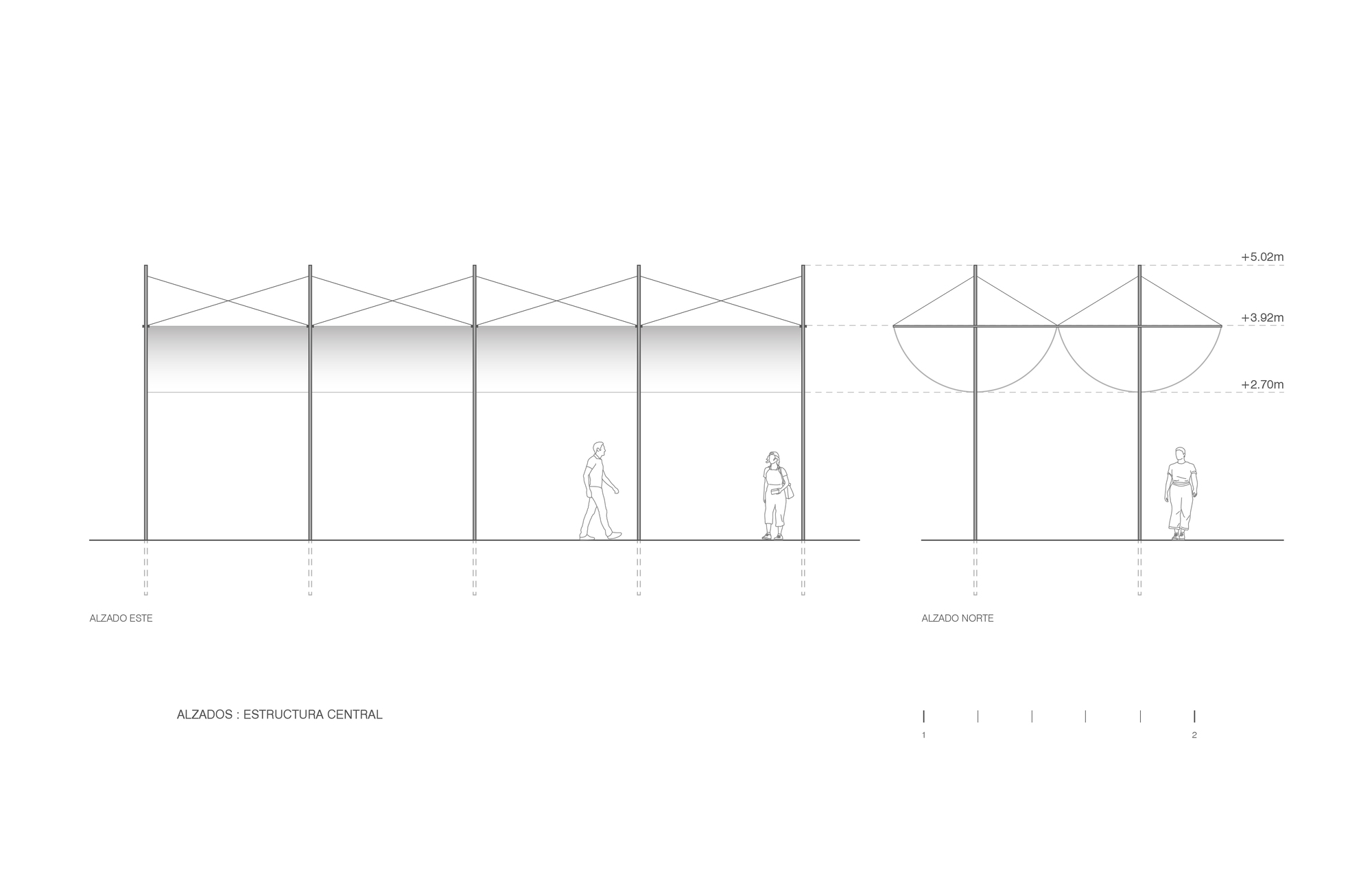

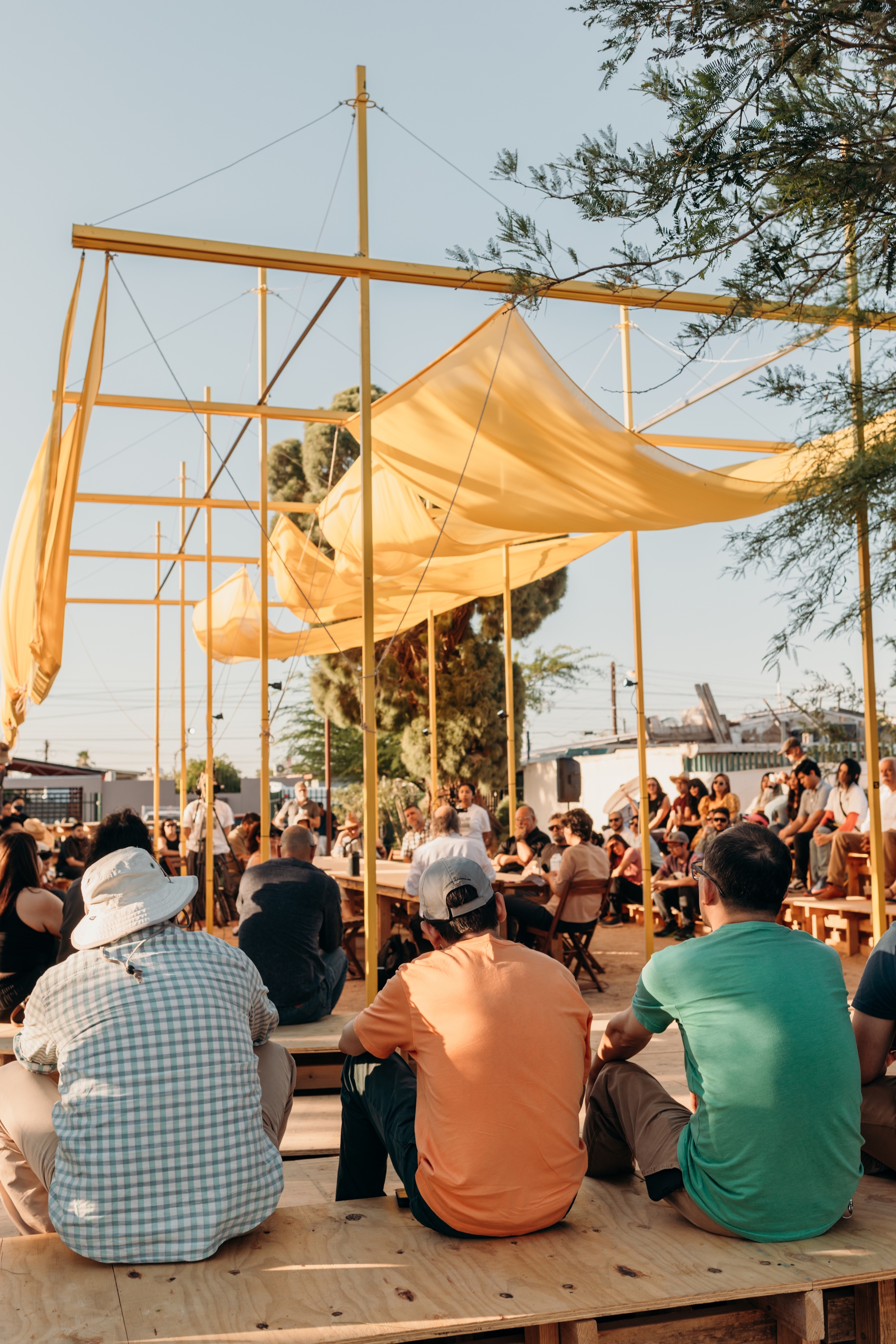

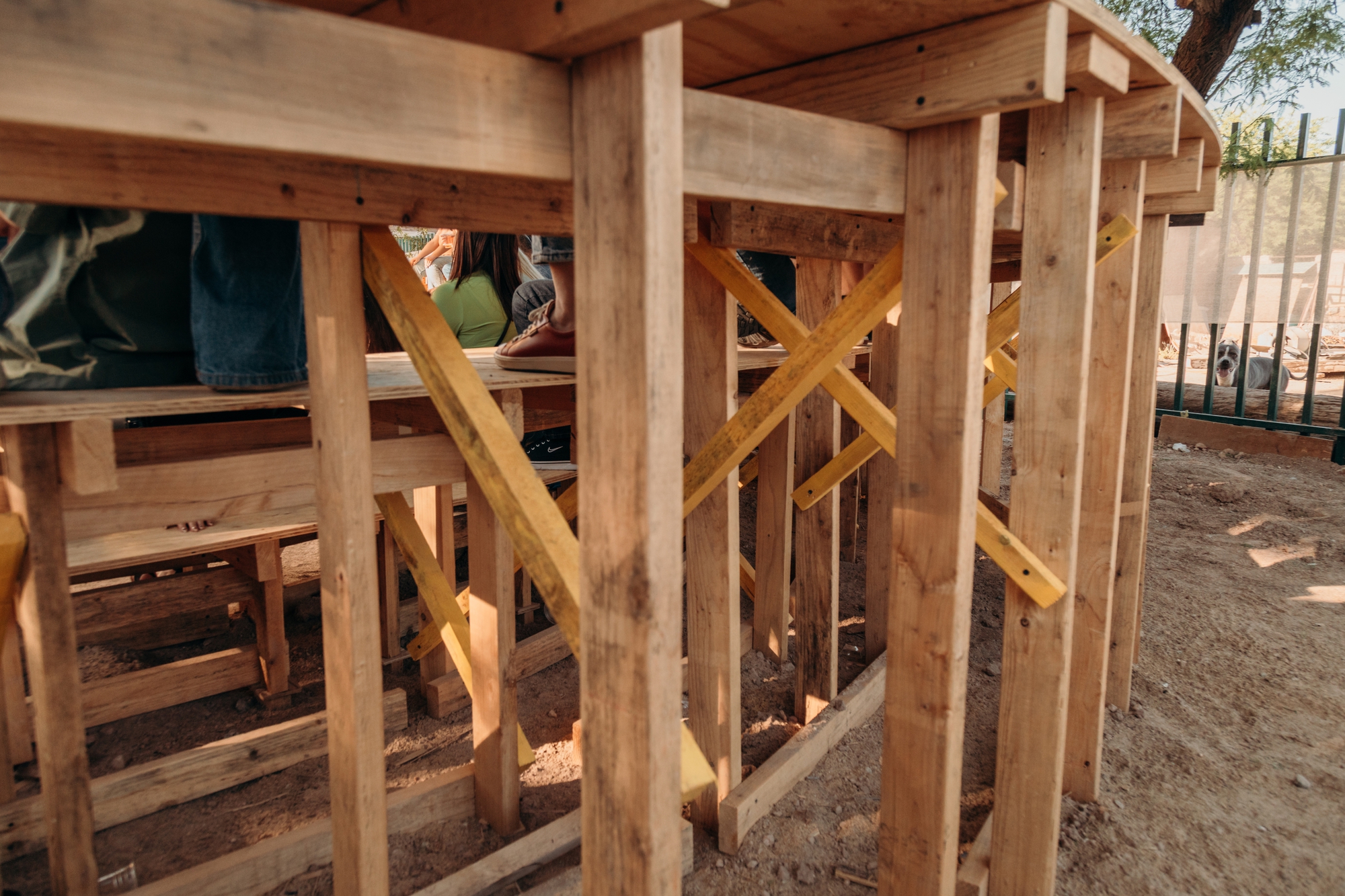

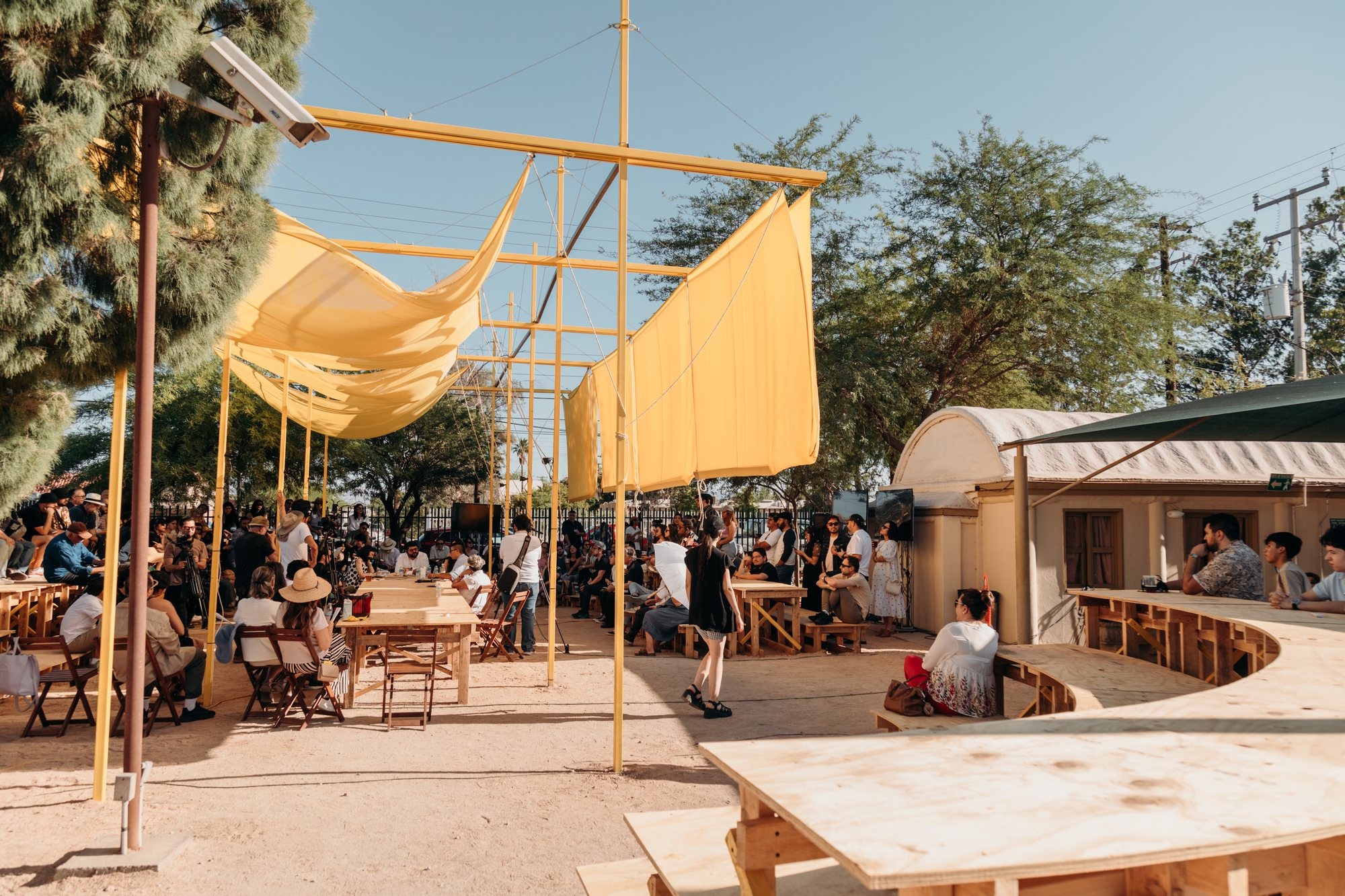

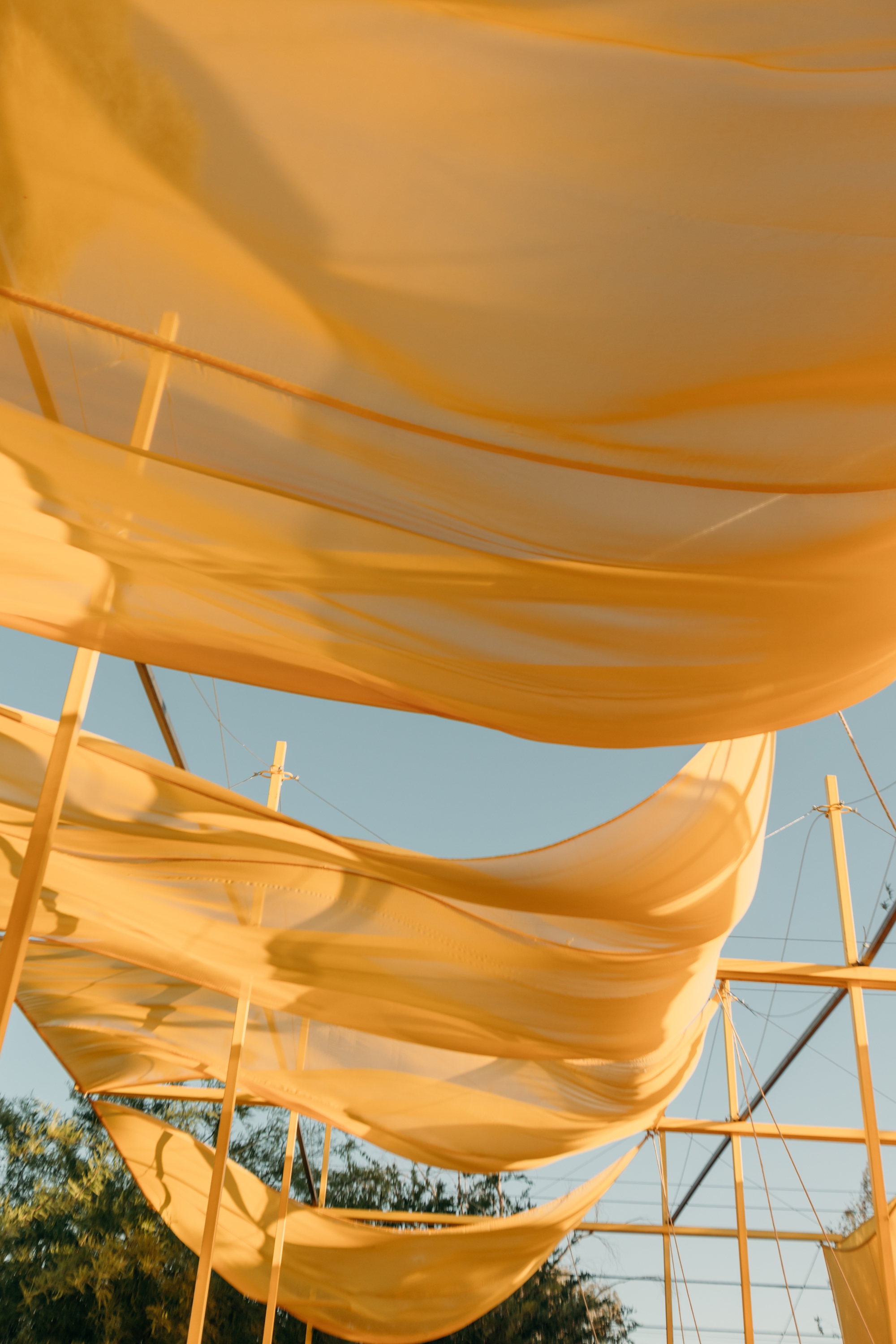

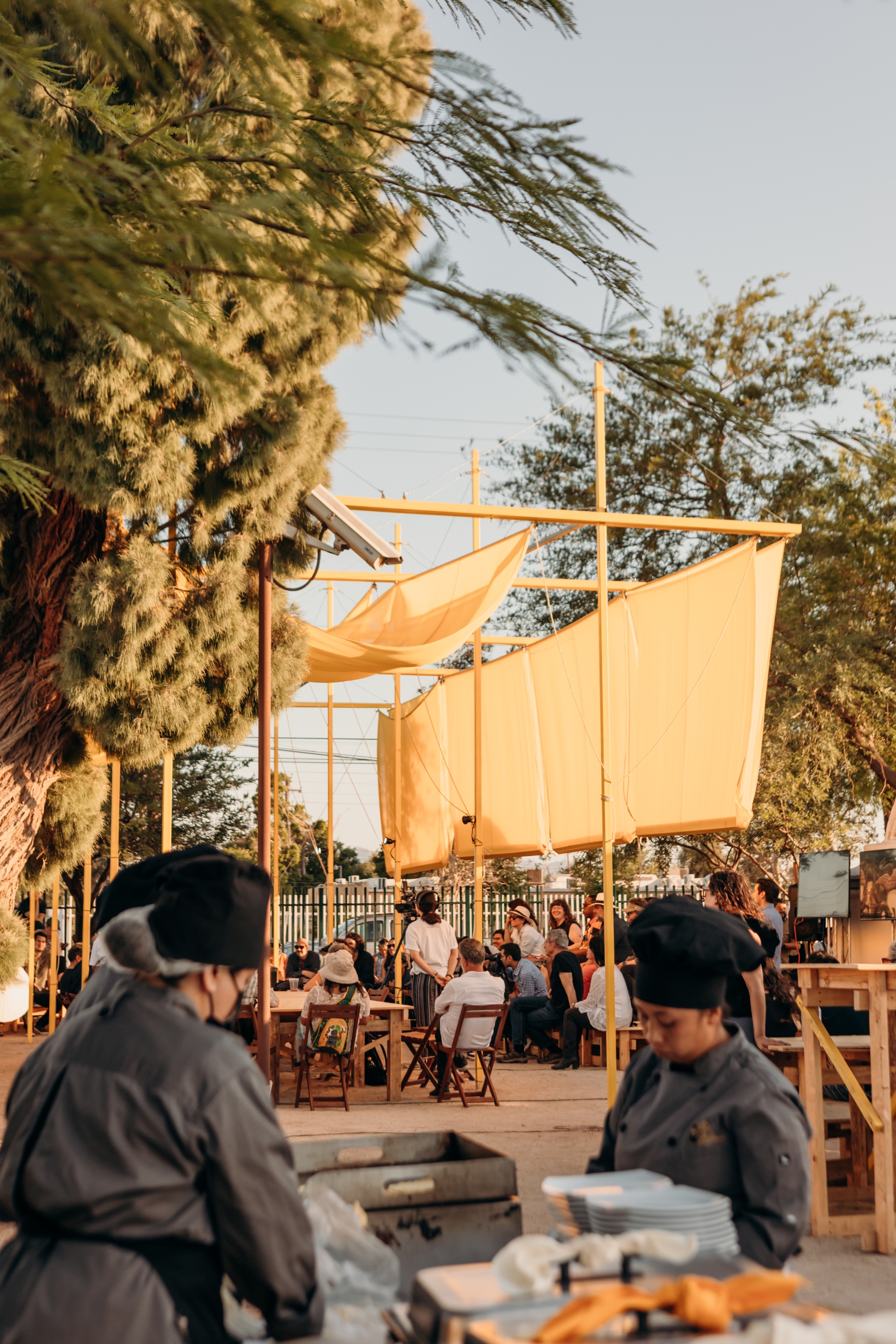

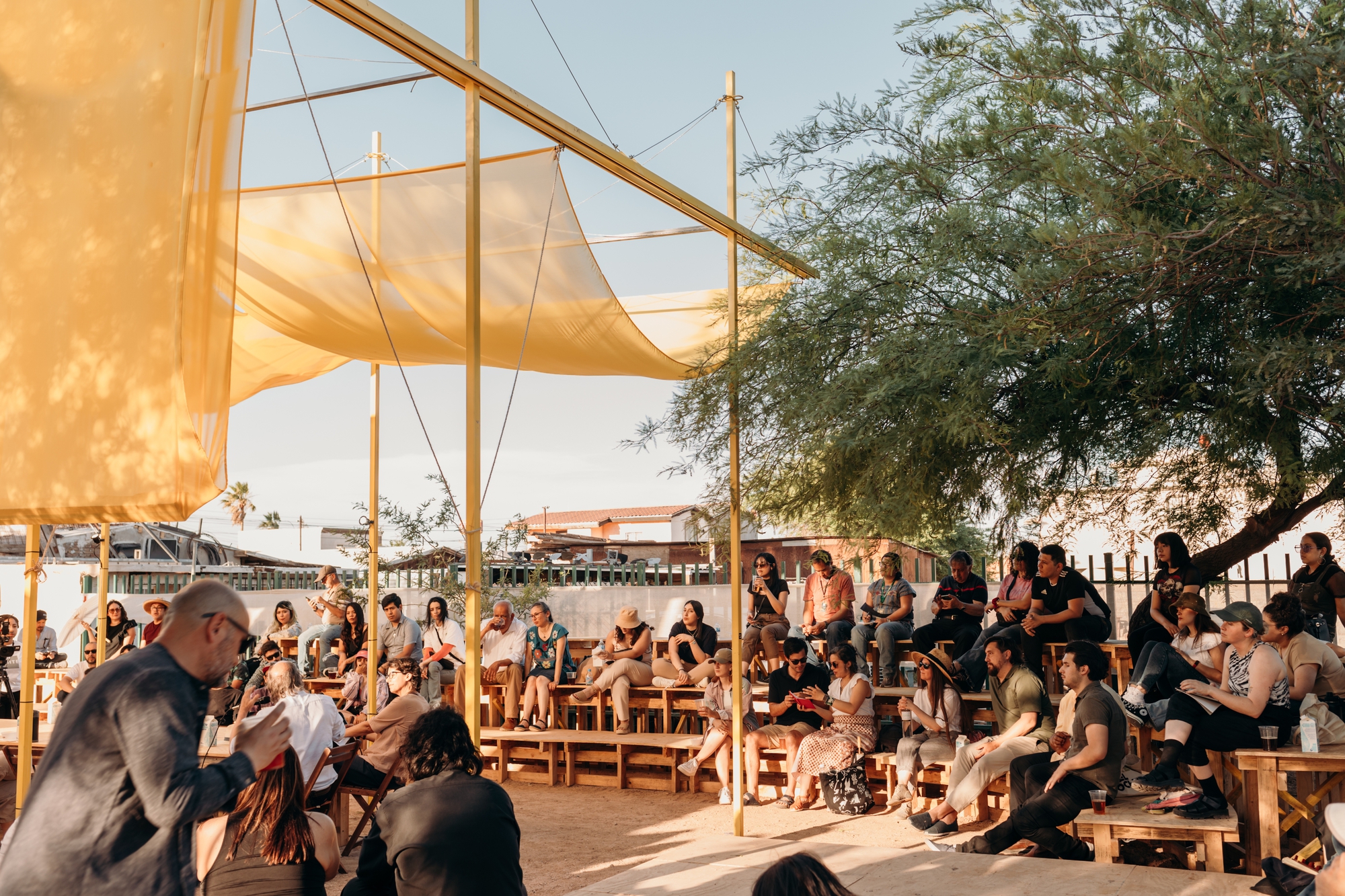

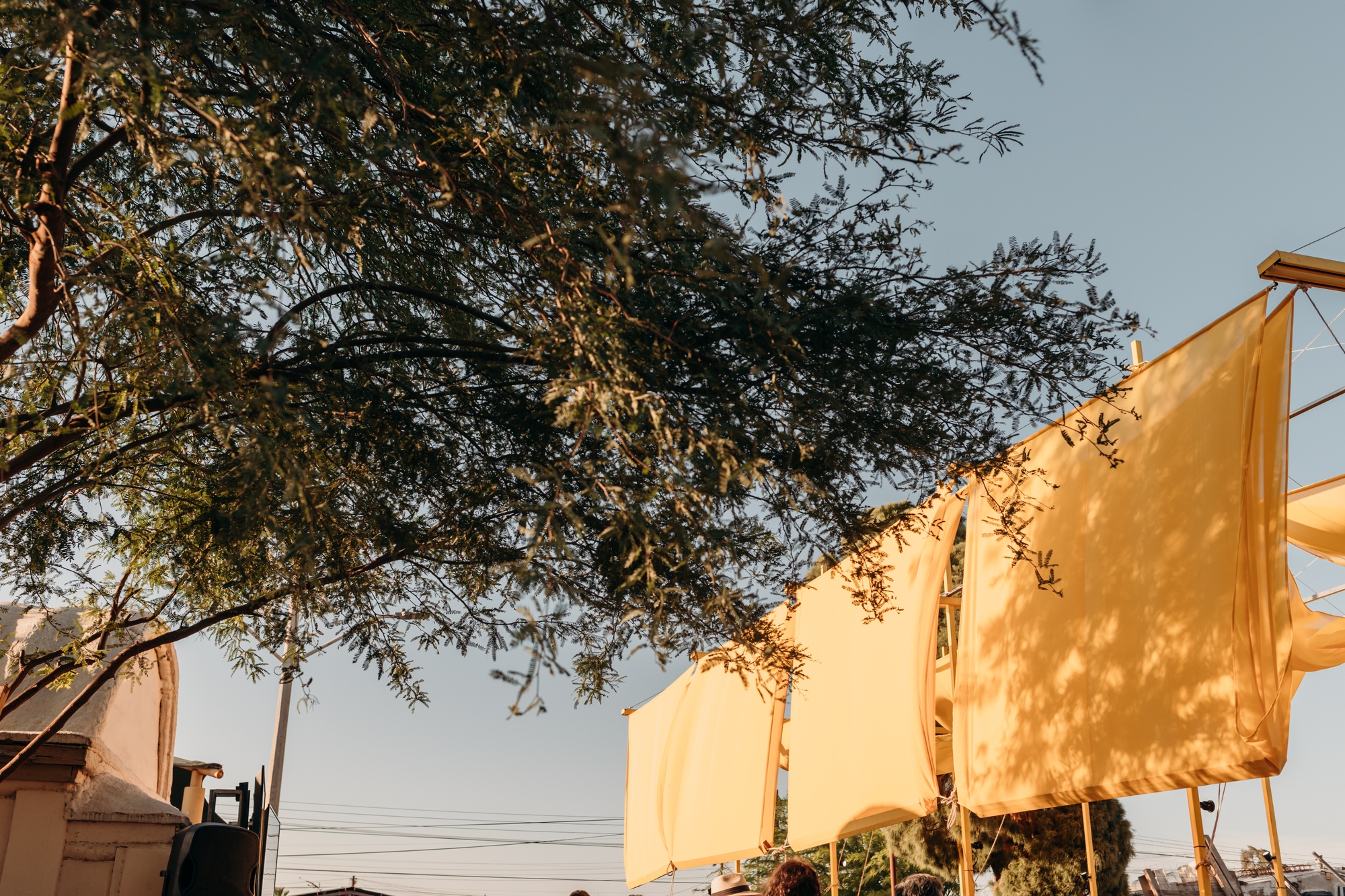

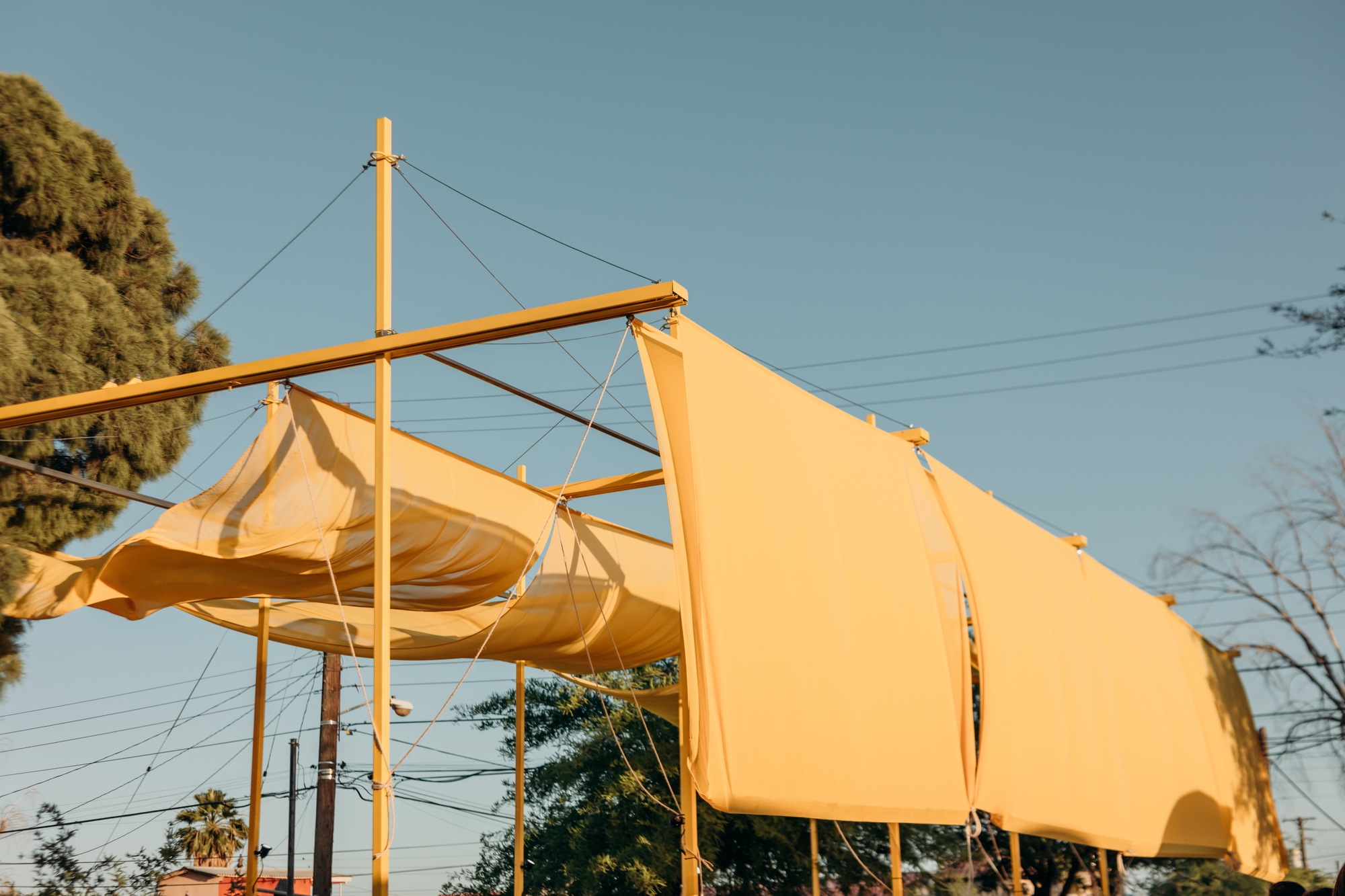

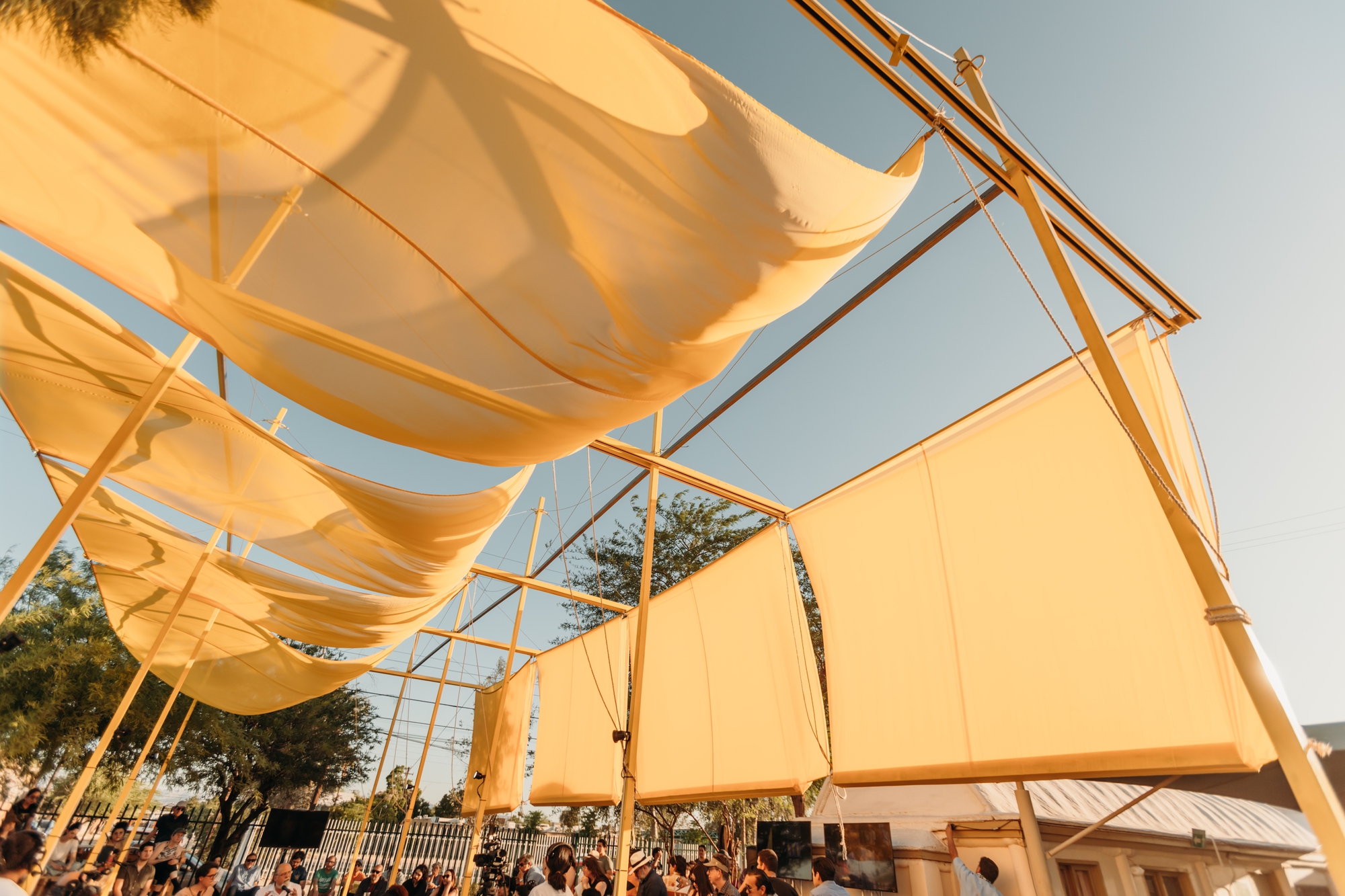

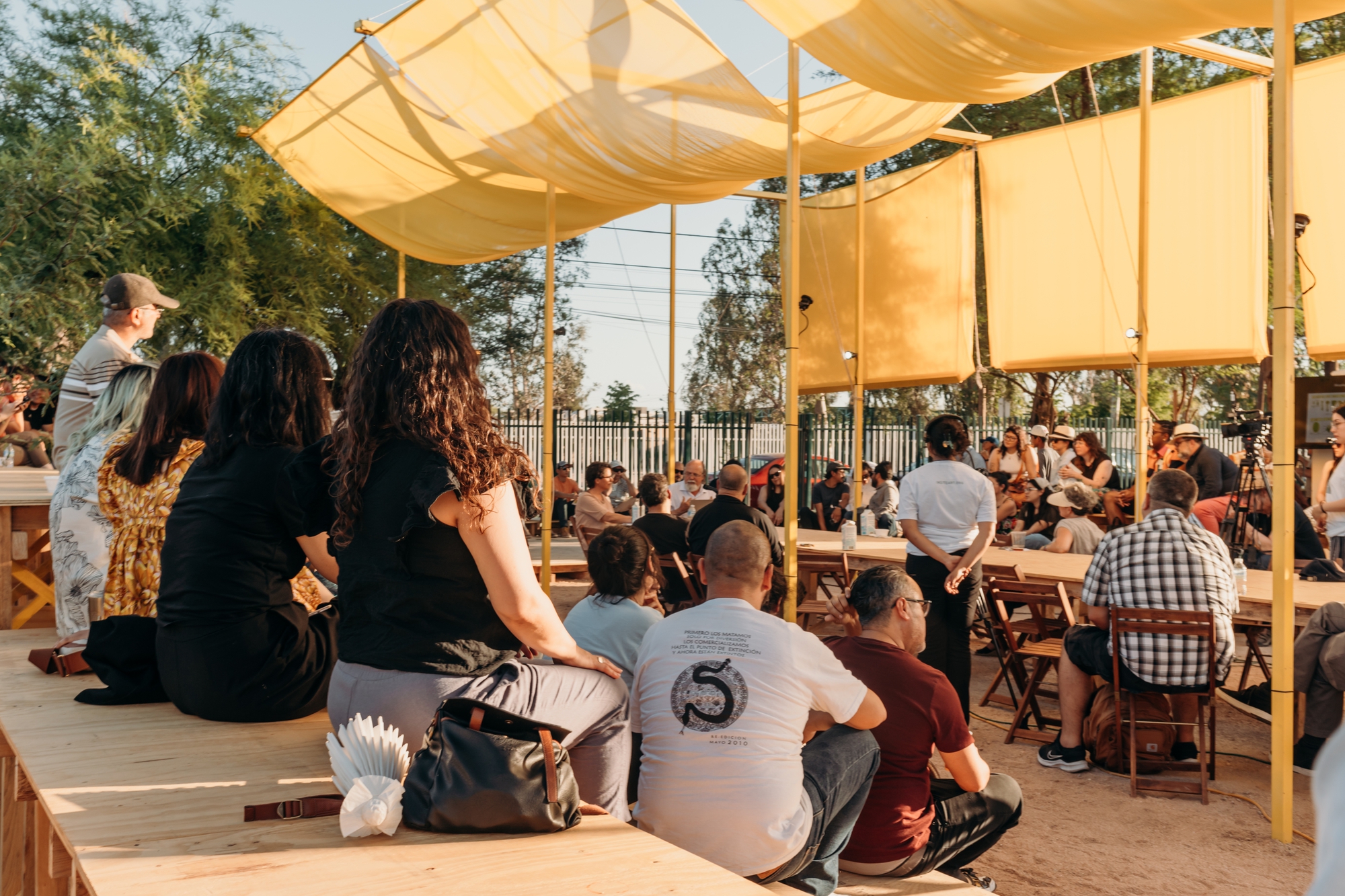

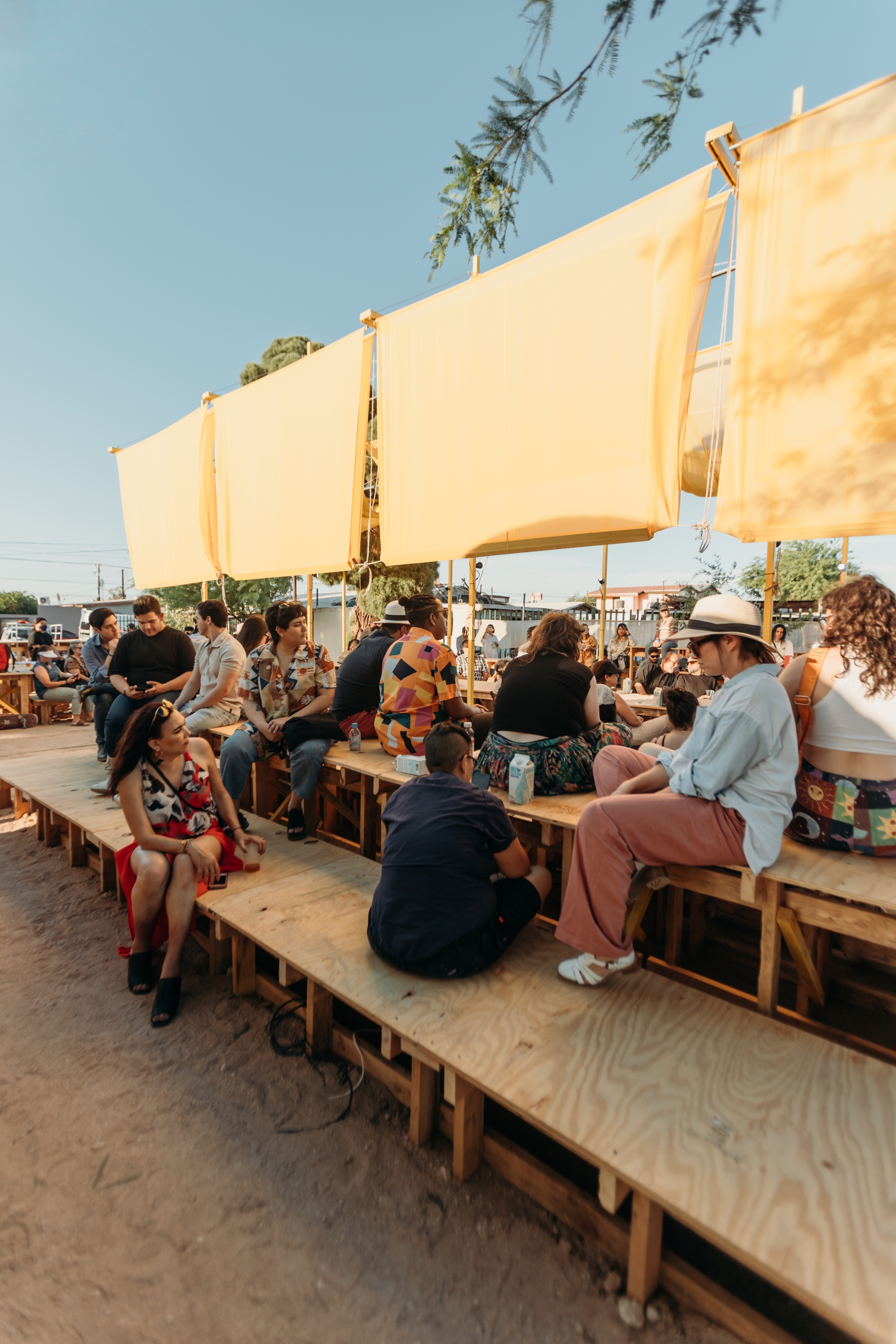

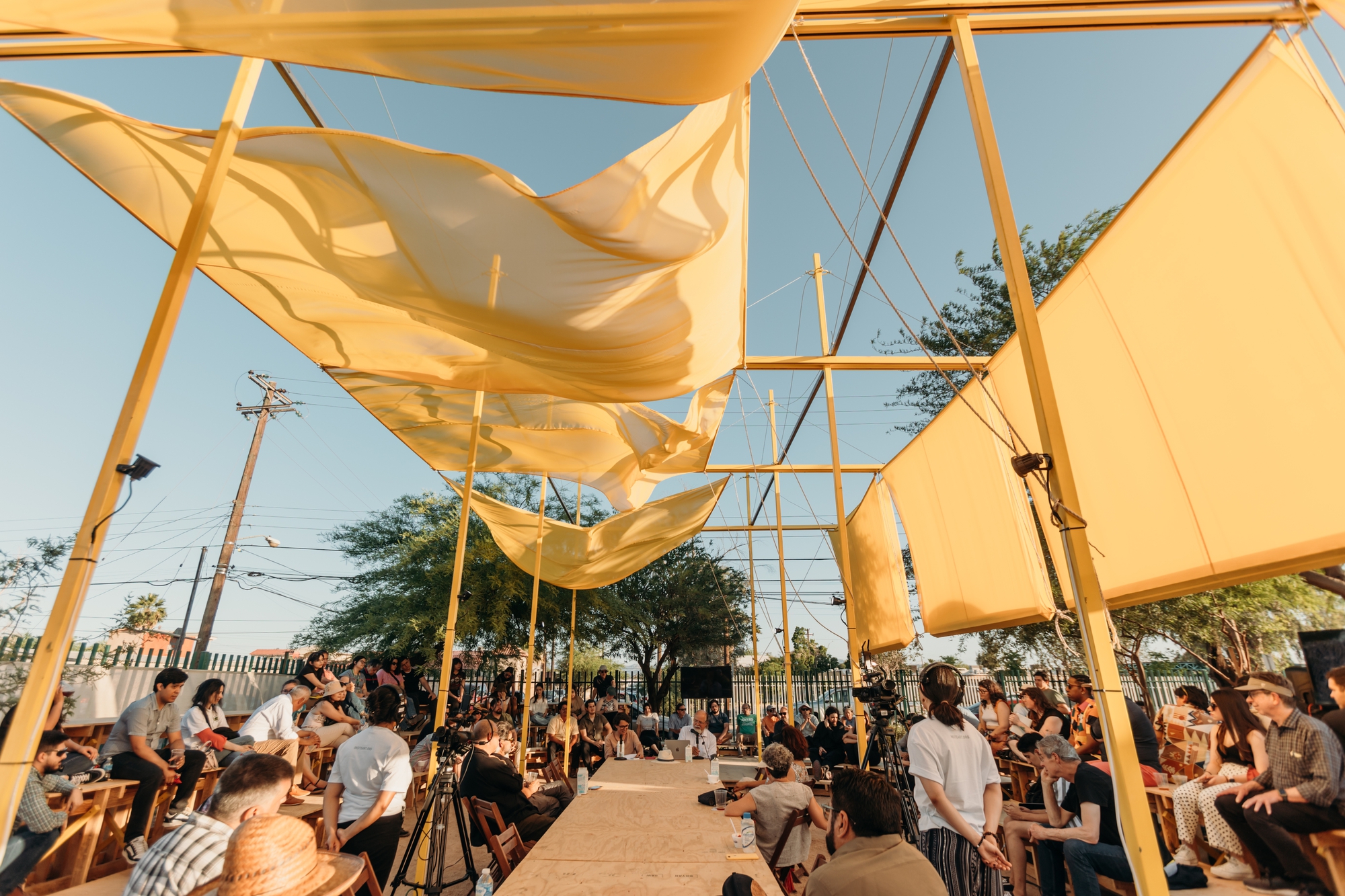

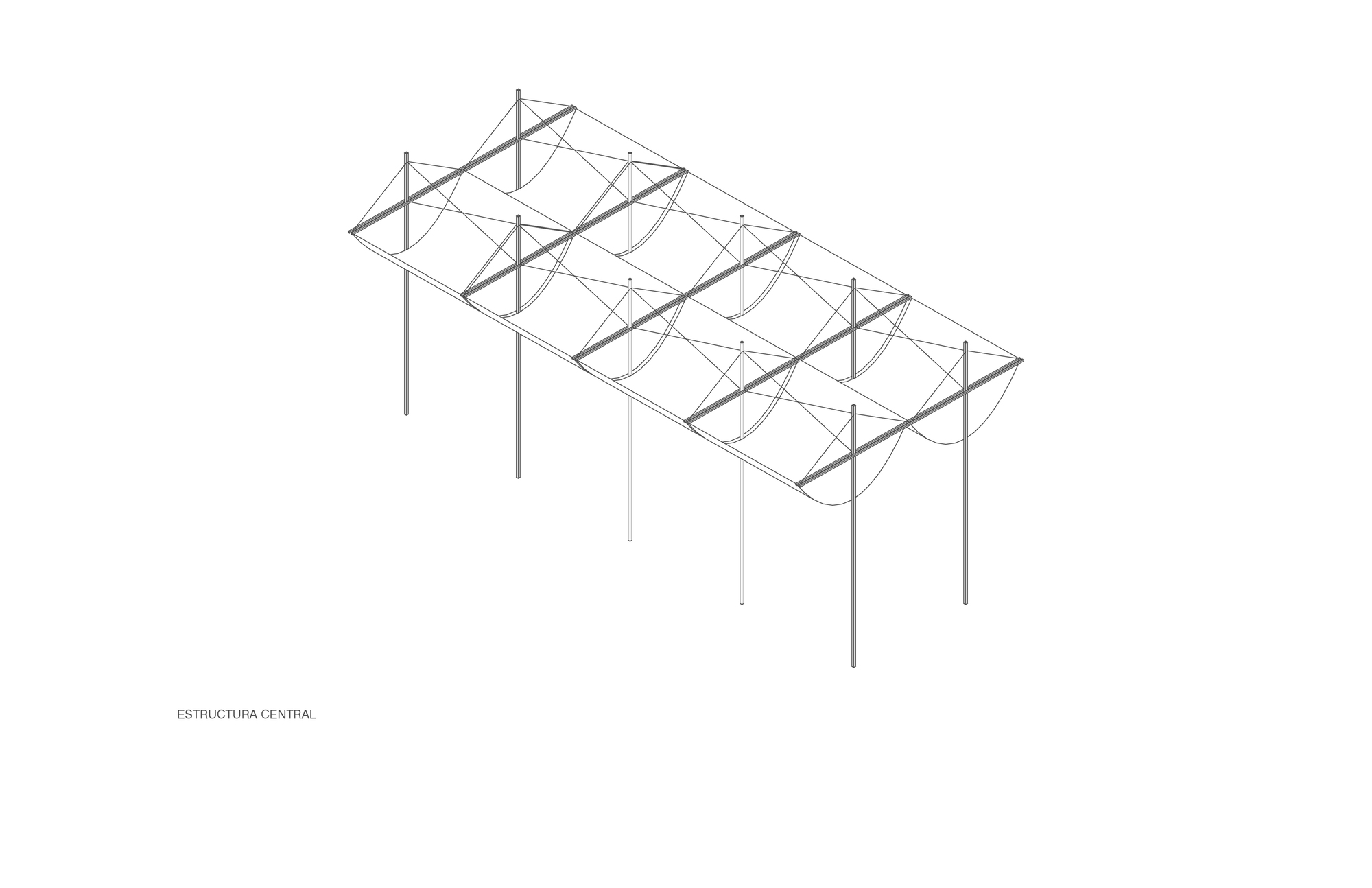

Above the table stands a structure from which yellow fabric hangs. The fabric forms arches reminiscent of the wooden casted vaults utilized by Alexander in El Sitio. The fabric is pulled down where needed to offer vertical shade in the evening hours. The structure contrasts the building with cannary yellow, a color familiar to the desert flora. The modules are pine wood structures, with canary yellow accents. During these three days, the builder's yard once again hosted a community that shared views, hopes, and ideas on community-driven design and human dwelling, an echo of the conversations initiated by Alexander himself in 1972 with students and teachers.

Project gallery

Project location

Address:Mexicali, B.C., Mexico
