风之形态丨韩国丨Yong Ju Lee Architecture

Architects:Yong Ju Lee Architecture

Area:74m²

Year:2019

Photographs:Yong Ju Lee Architecture,Studio Goo

Manufacturers:Robert McNeel & Associates

Lead Architects:Yong Ju Lee

Design Team:Minji Park

Clients:Soda Museum

Fabrication:Sunjin Plus

City:Hwaseong-si

Country:South Korea

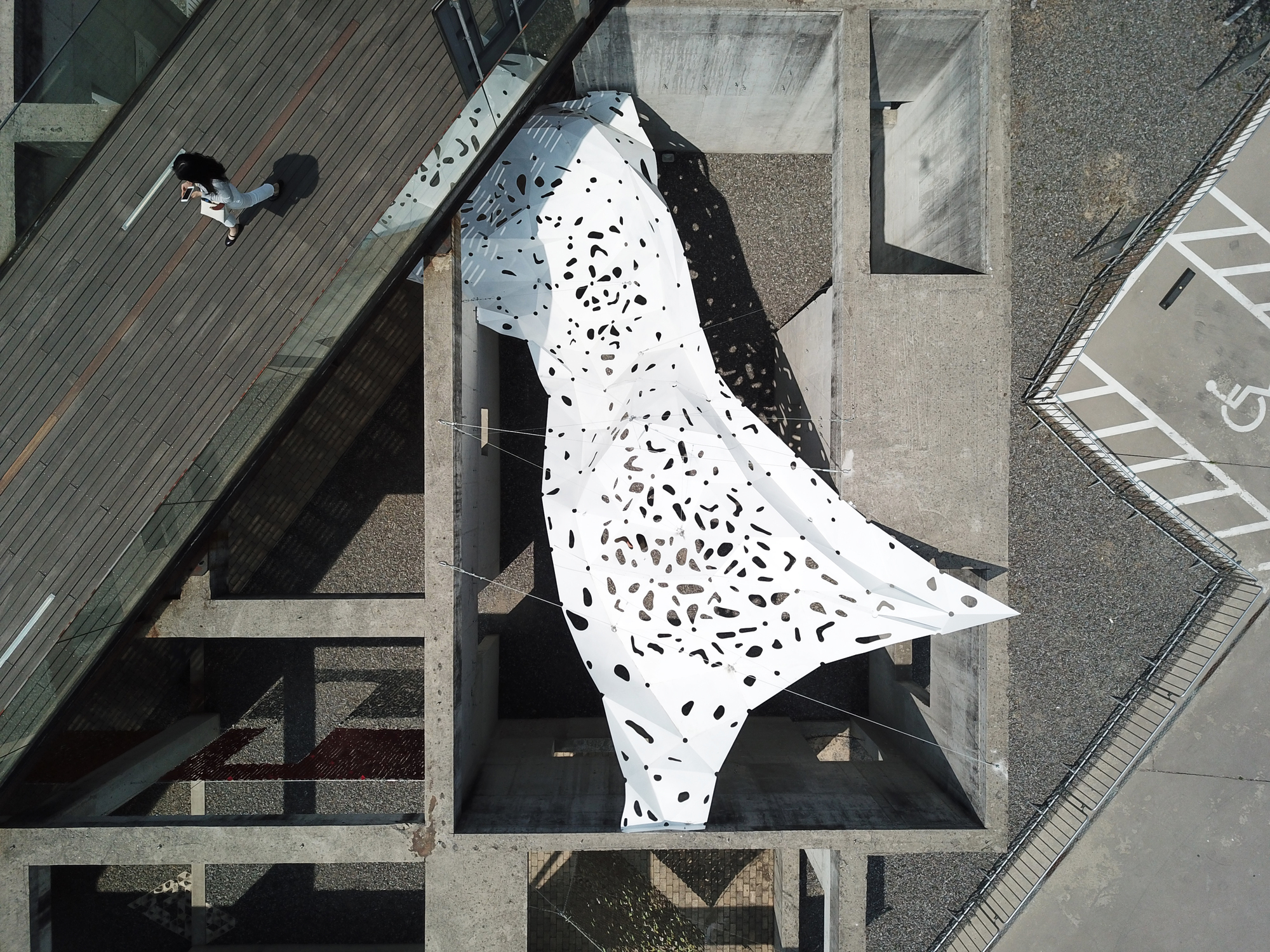

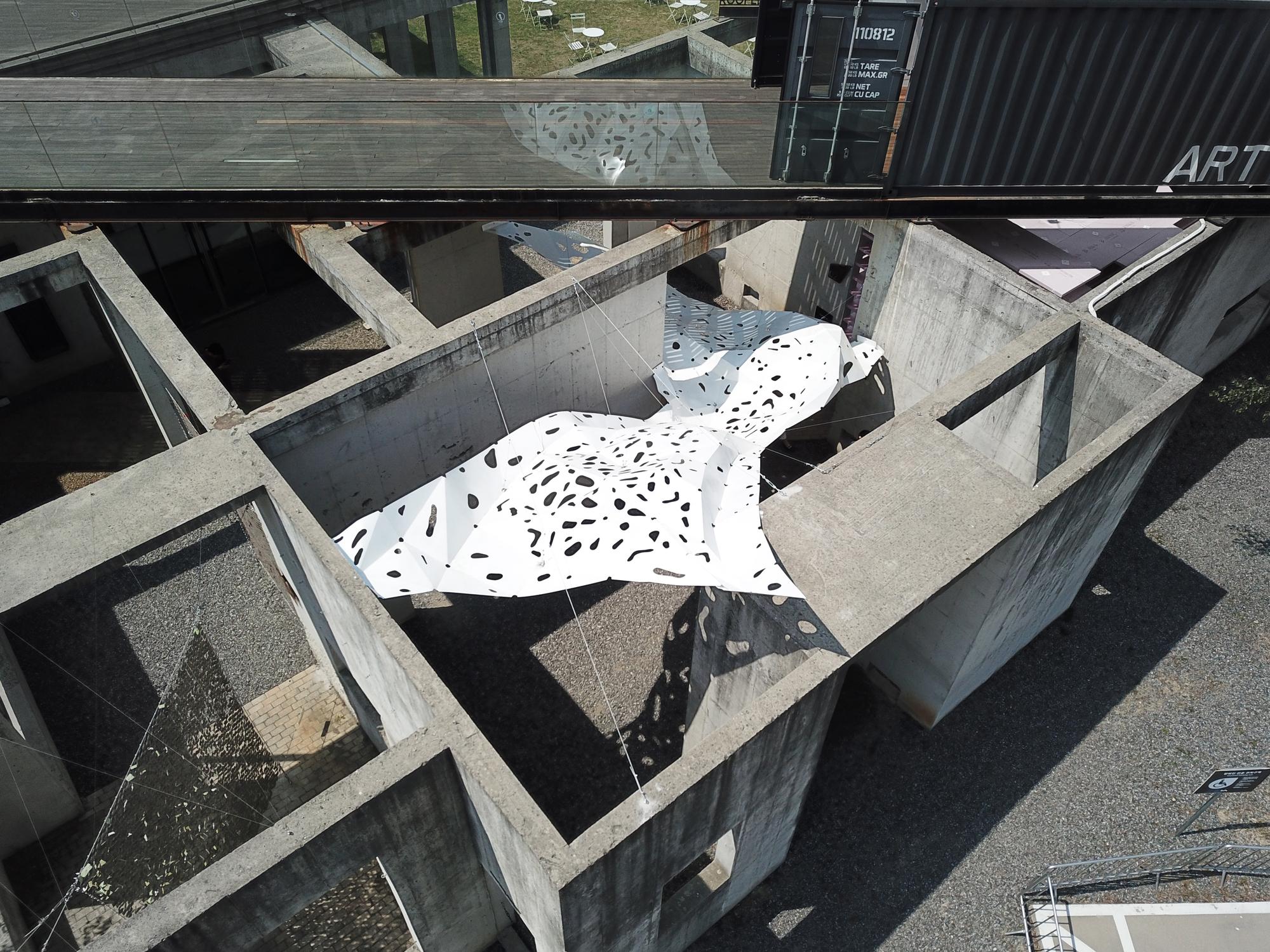

Text description provided by the architects. The Wind Shape is a large-scale installation simulating the continuous movement of fabric blowing in the wind. The installed site is at Soda Museum in Hwaseong, South Korea, renovated from abandoned public bath facility and its old exposed concrete walls are used for the outdoor gallery.

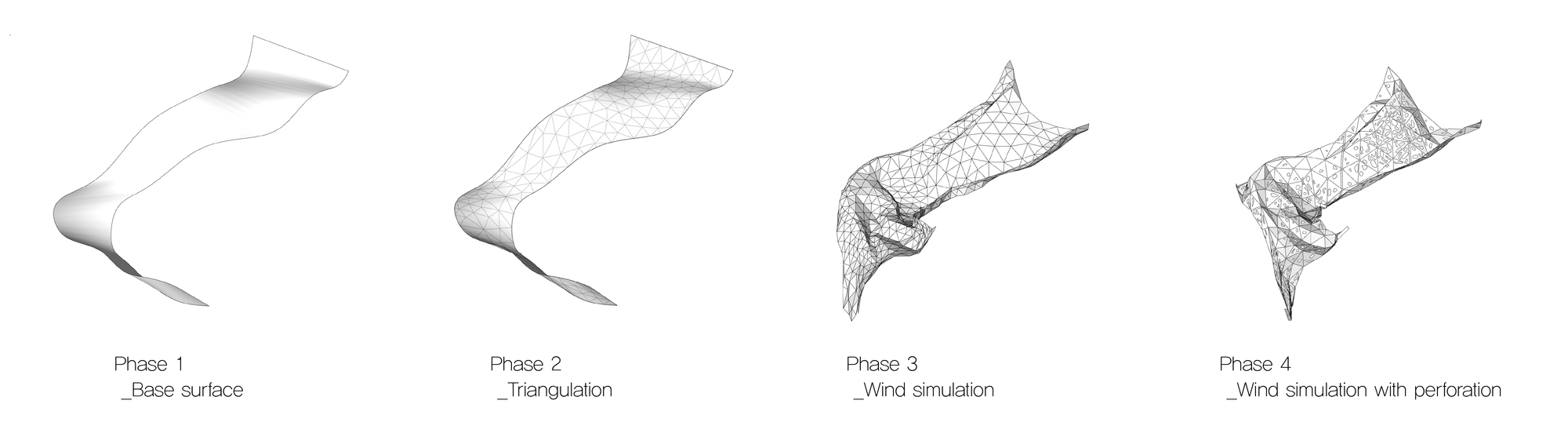

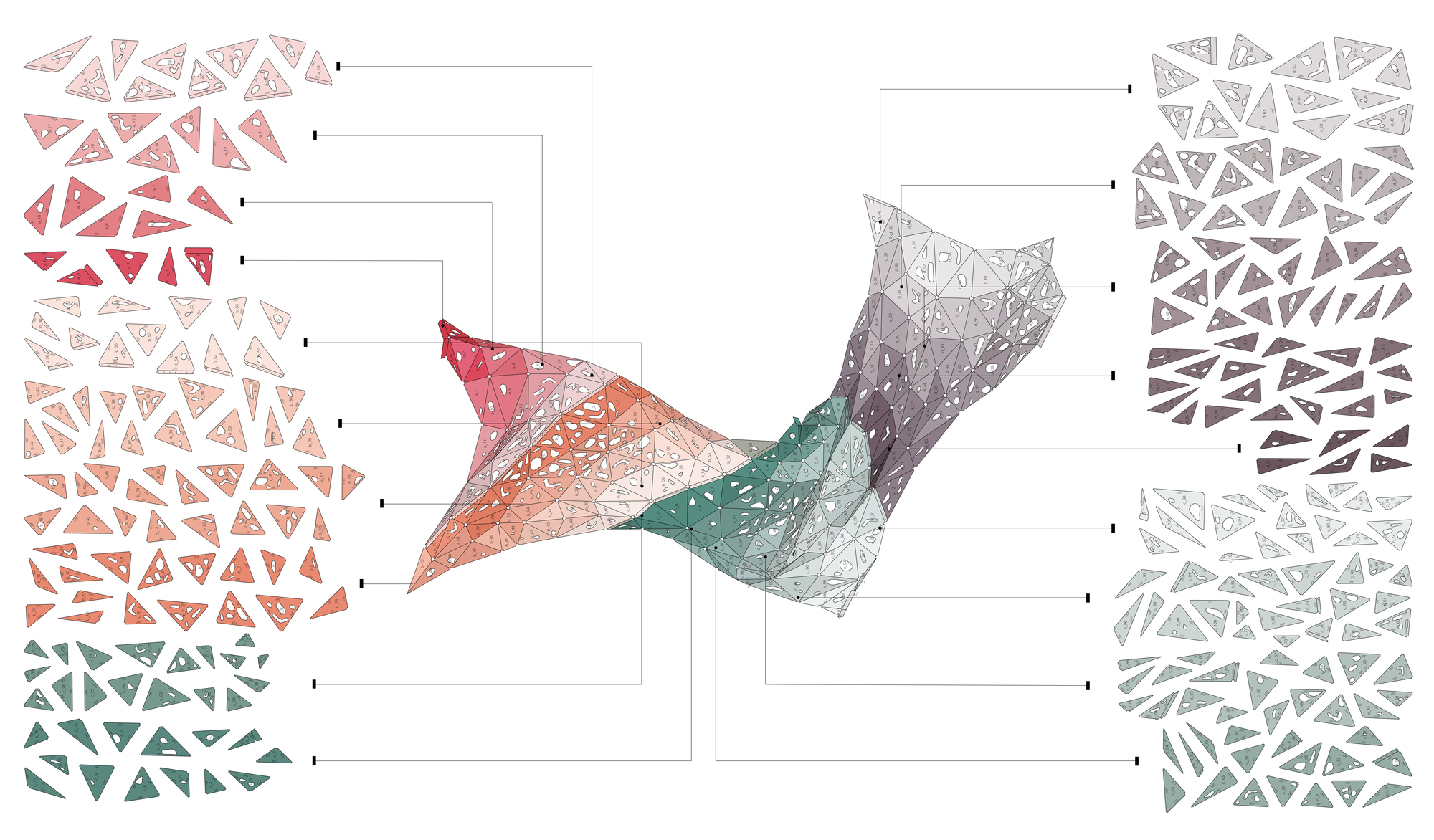

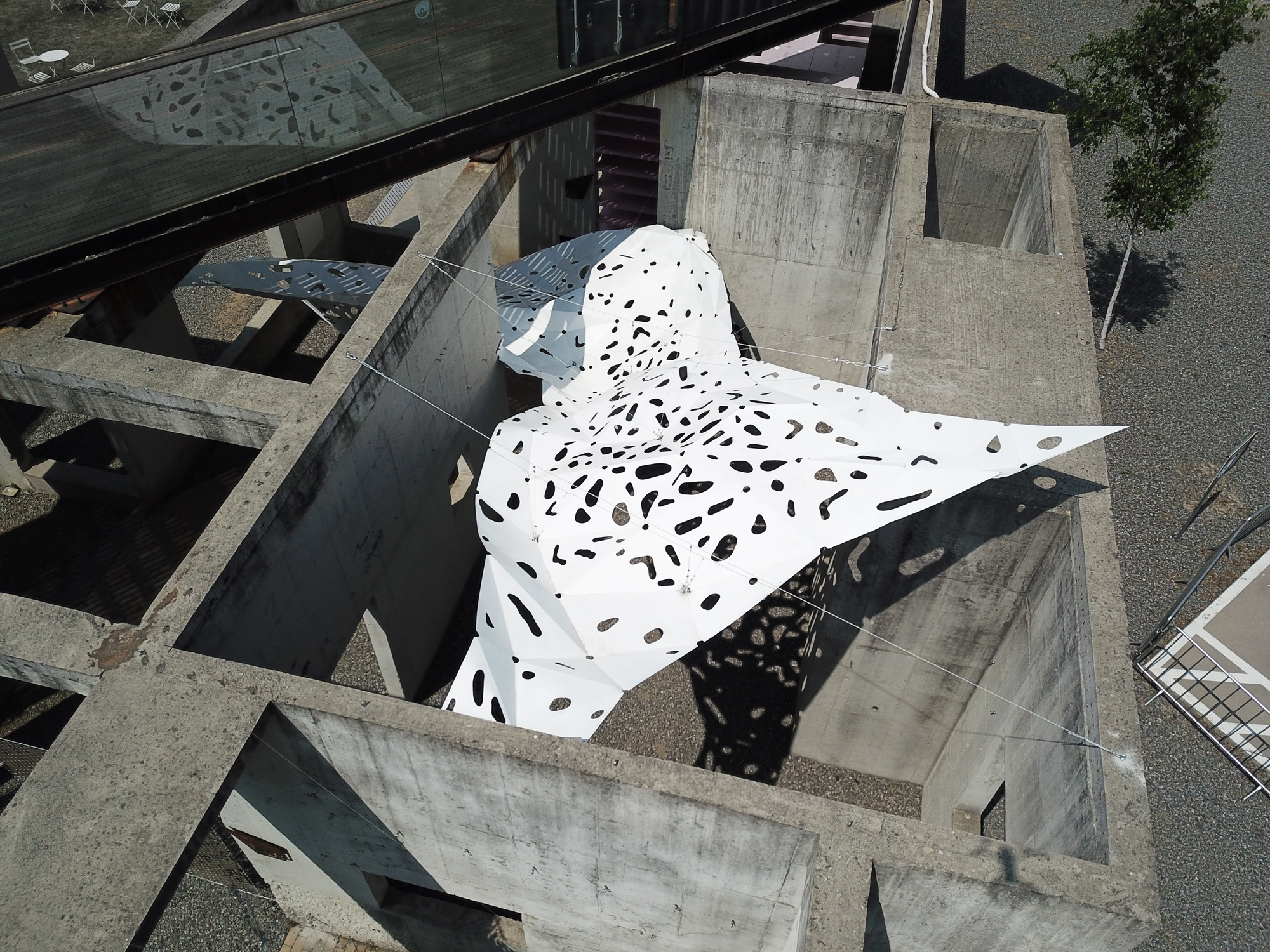

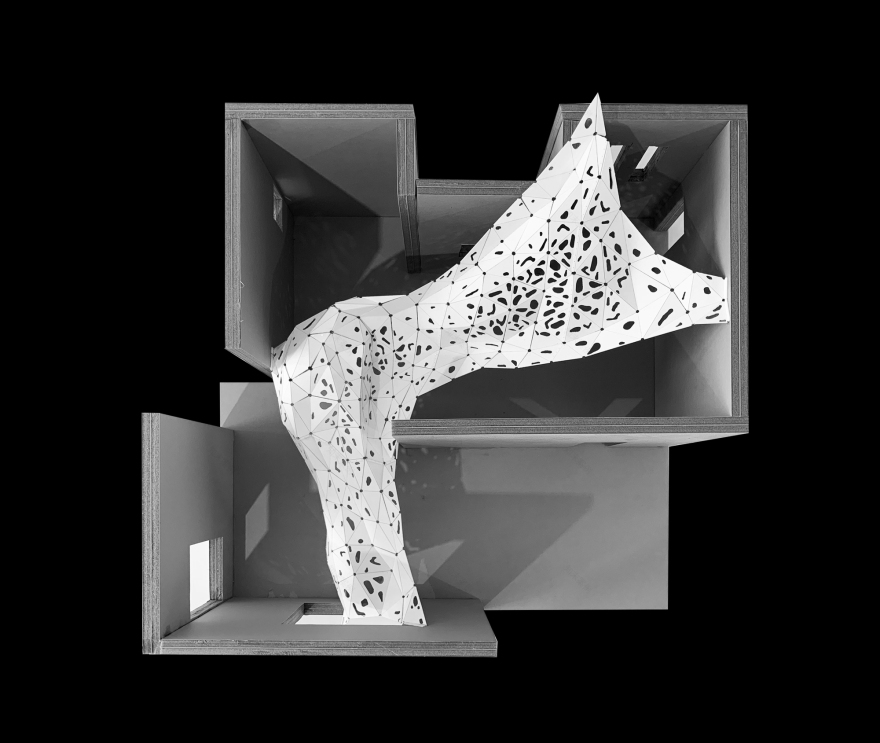

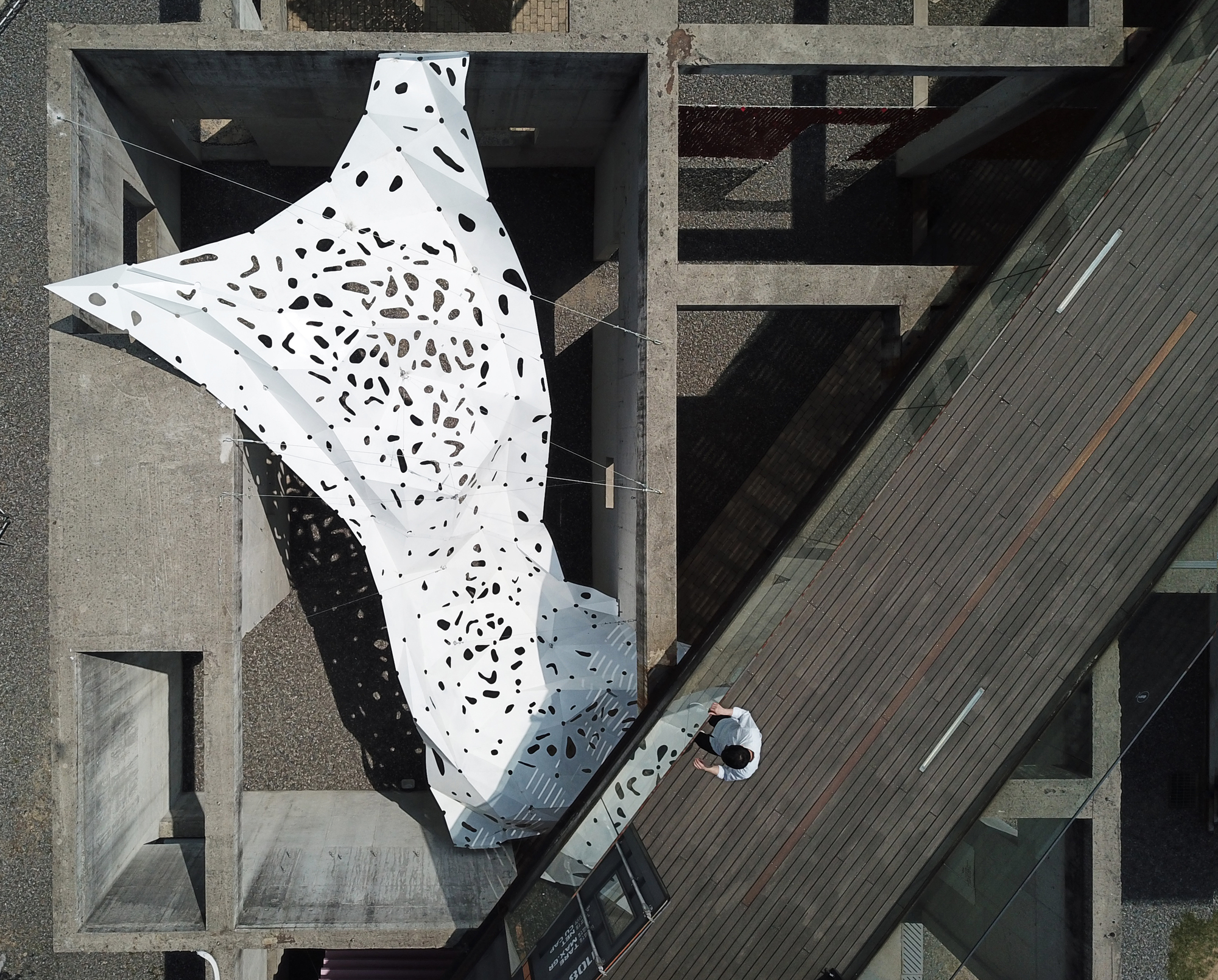

Through a computer dynamic engine in real time, overall shape with 300 different triangles are manipulated to find the optimized form for site condition, structure and cost as well as intuitive design of wind itself. Wind blowing canopy occupies the site and leads visitors’ route in bending form. It moves up and down, touching ground and sticking out over the wall.

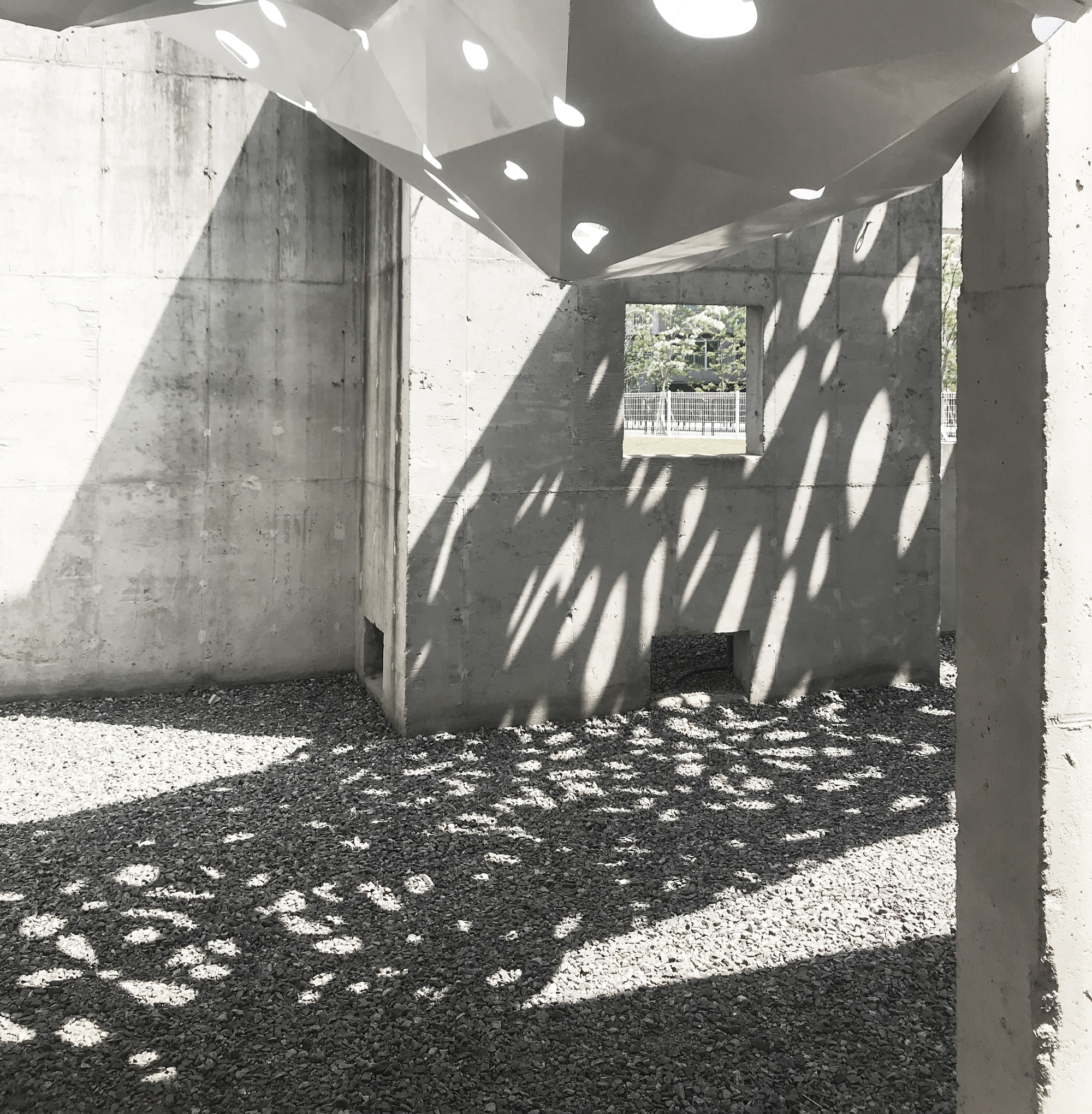

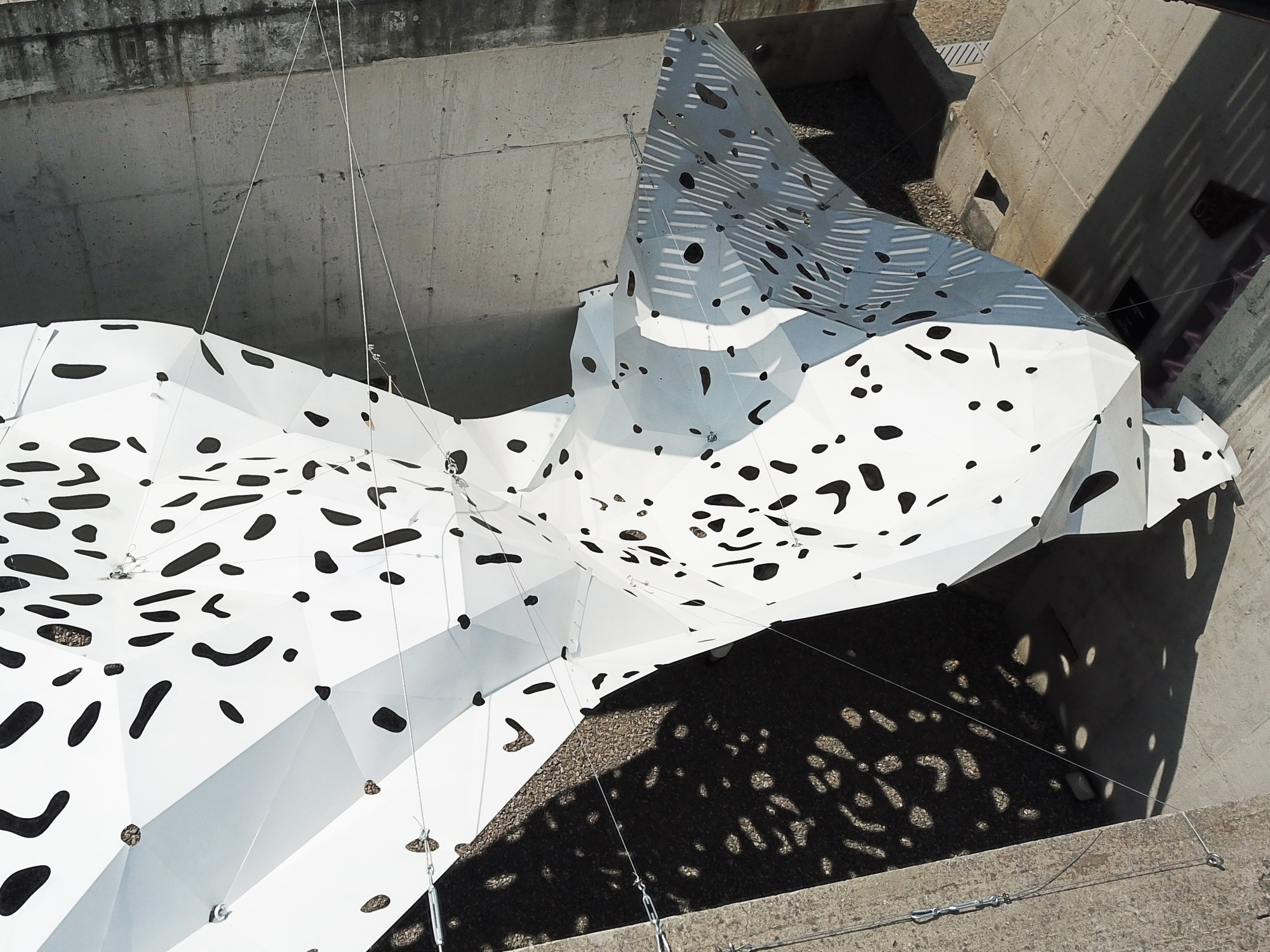

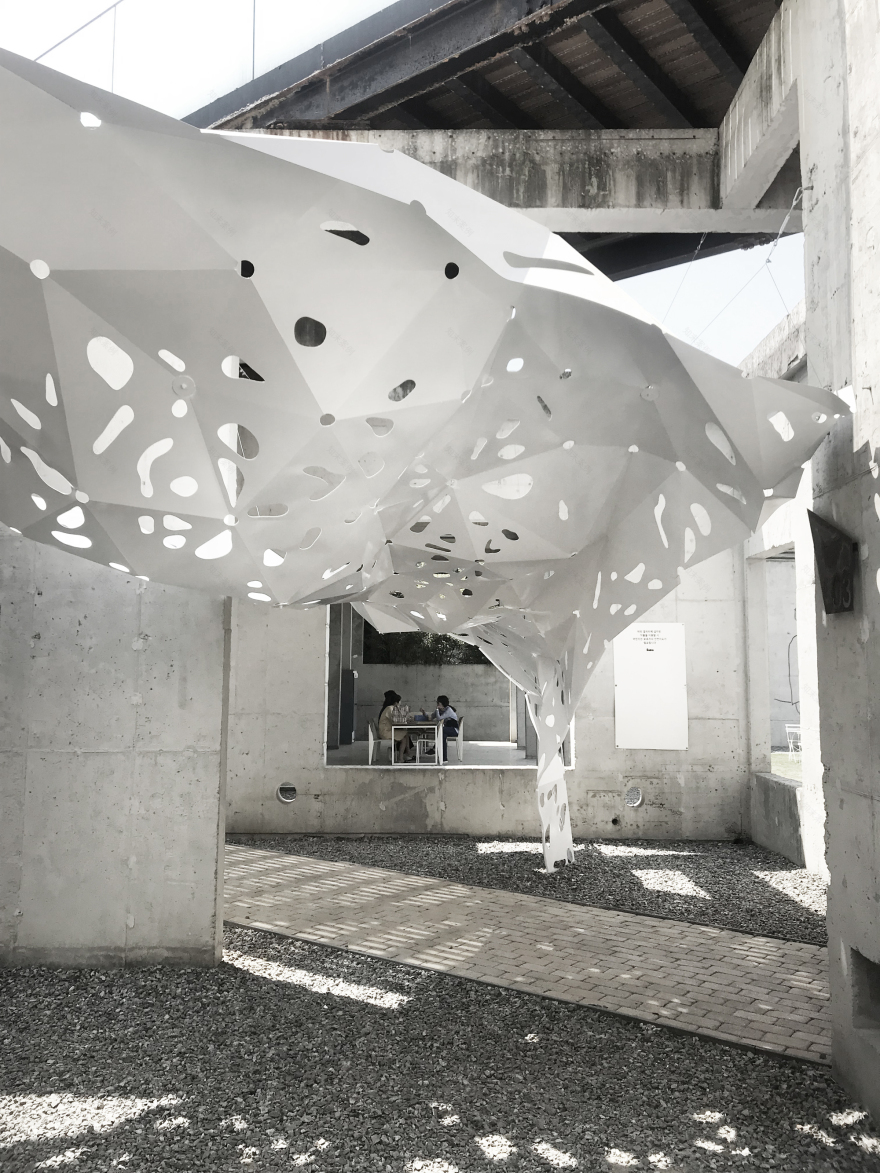

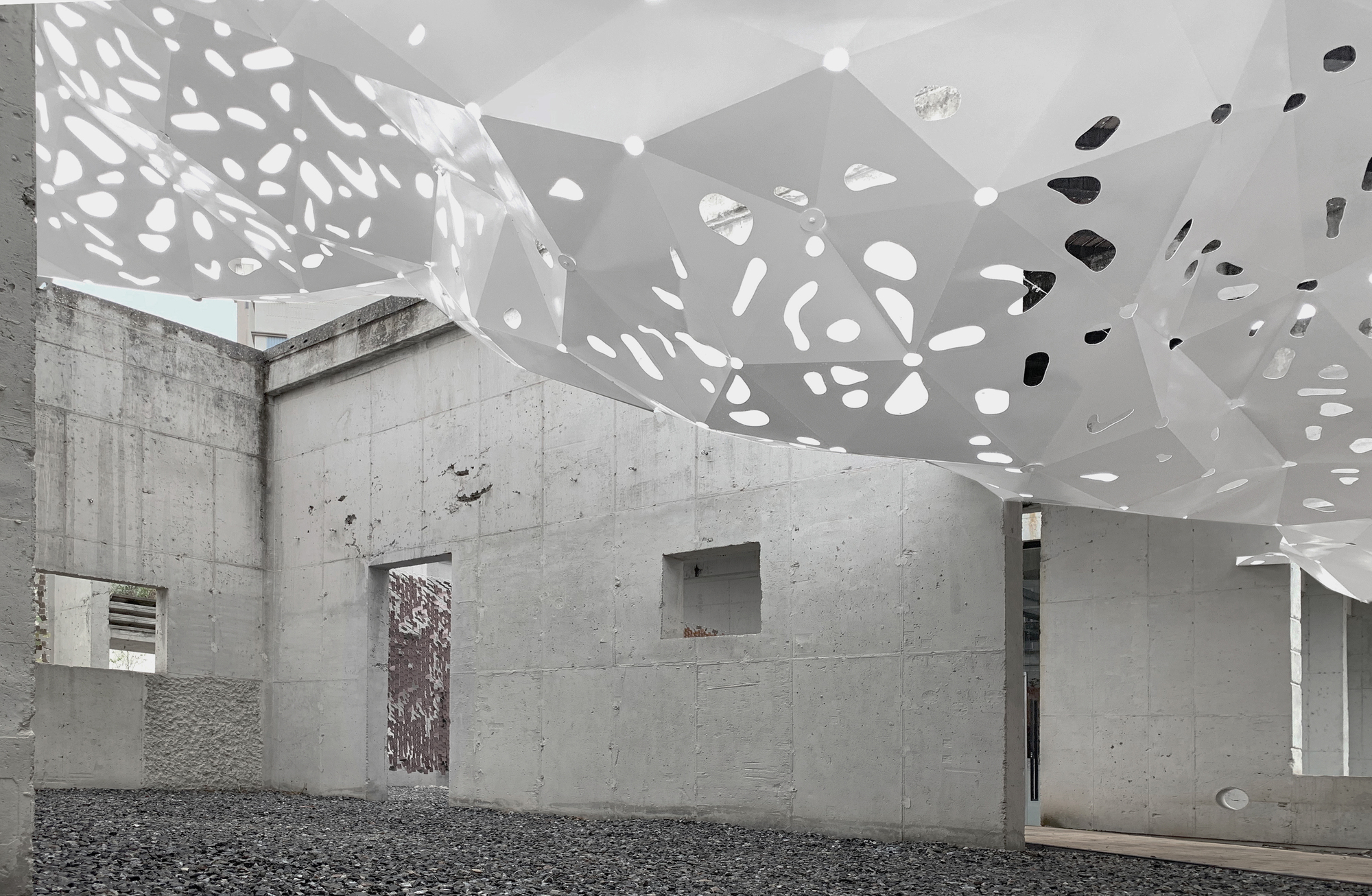

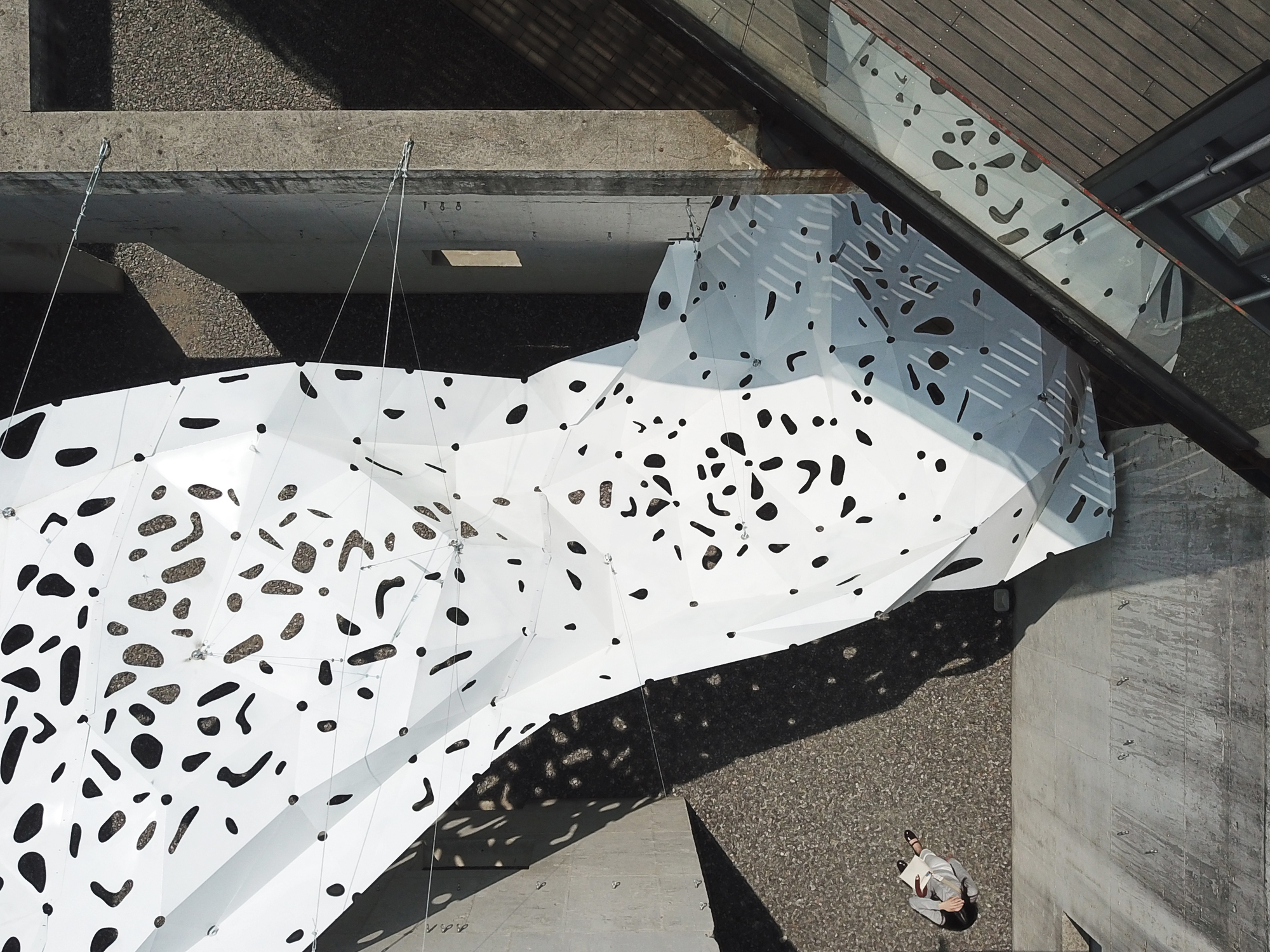

Perforated pattern on the surface emphasizes the flow and wrinkle on the metal fabric and creates the shade under to rest and play with. Making visual contrast to raw concrete wall, white metal fabric attracts visitors and provides surreal atmosphere with spatial quality.

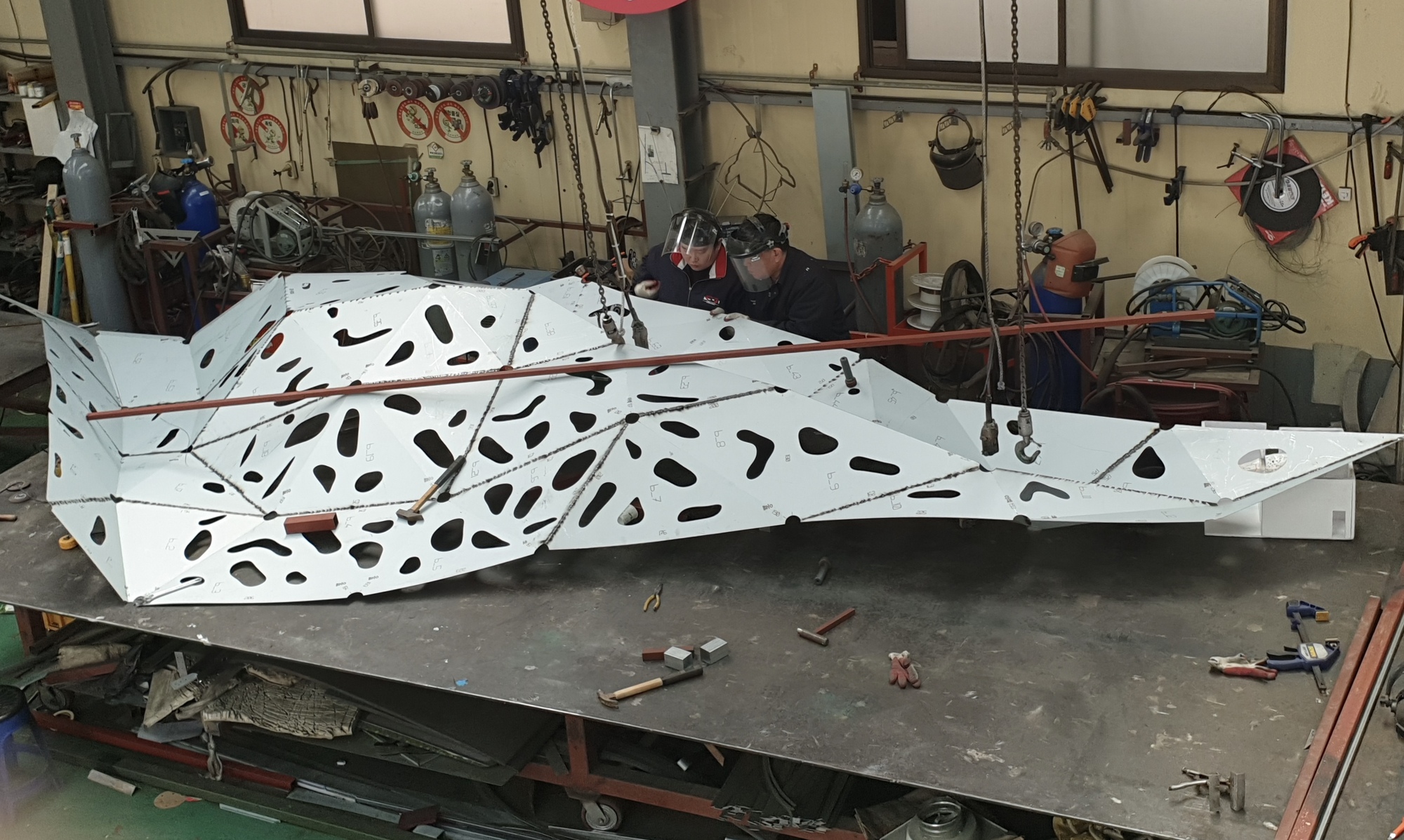

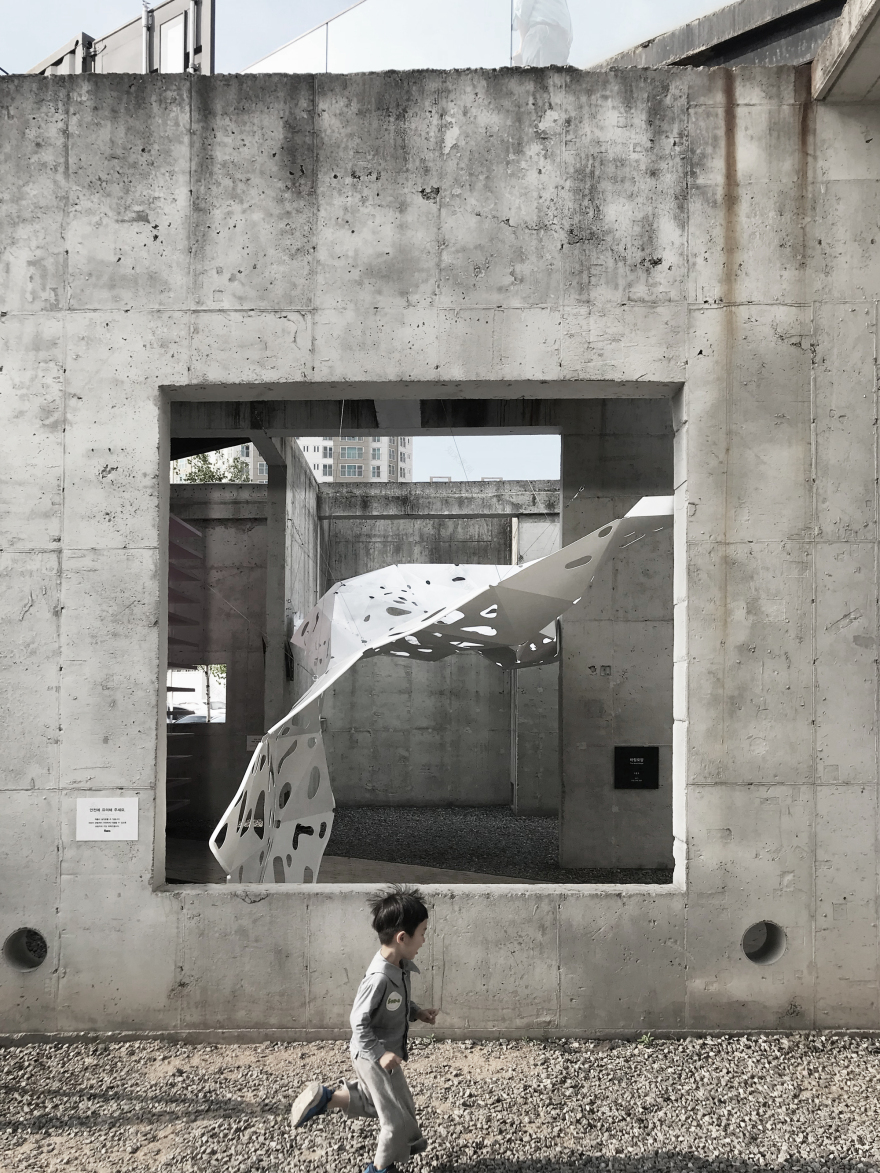

People can also perceive this three dimensional installation though various opening in existing wall. 1.2mm and 1.6mm metal plates fabricated by CNC machine are assembled by welding and bolting and attached to the existing wall by mechanical anchoring.

The Wind Shape is design for the exhibition “Flow Project : Building the Movement” at Soda Museum.

Project gallery

Project location

Address:138-109 Annyeong-dong, Hwaseong-si, Gyeonggi-do, South Korea
