Architects:Architecture School, Harbin Institute of Technology,International Ice Snow Architecture Innovation Research Center

Area:554m²

Year:2019

Photographs:Peng Luo, Shuxiang Wei,Shuoyong Yang,Yuxin Nie

Consultant:Harbin GuoZe ice and snow culture development Co.Ltd

Architect In Charge:Peng Luo

Design Team:Peng Luo, Yuxin Nie, Shuoyong Yang, Ruinan Zhang， Yongxin Liu

Client:HARBIN ICE AND SNOW WORLD PARK LIMITED BY SHARE LTD

Engineering:Yue Wu, Jiafeng Chen, Junkai Huang, Xiuming Liu

Landscape:Peng Luo, Yuxin Nie

Collaborator:International Association for Shell and Spatial Structures, 21 work group

City:Harbin

Country:China

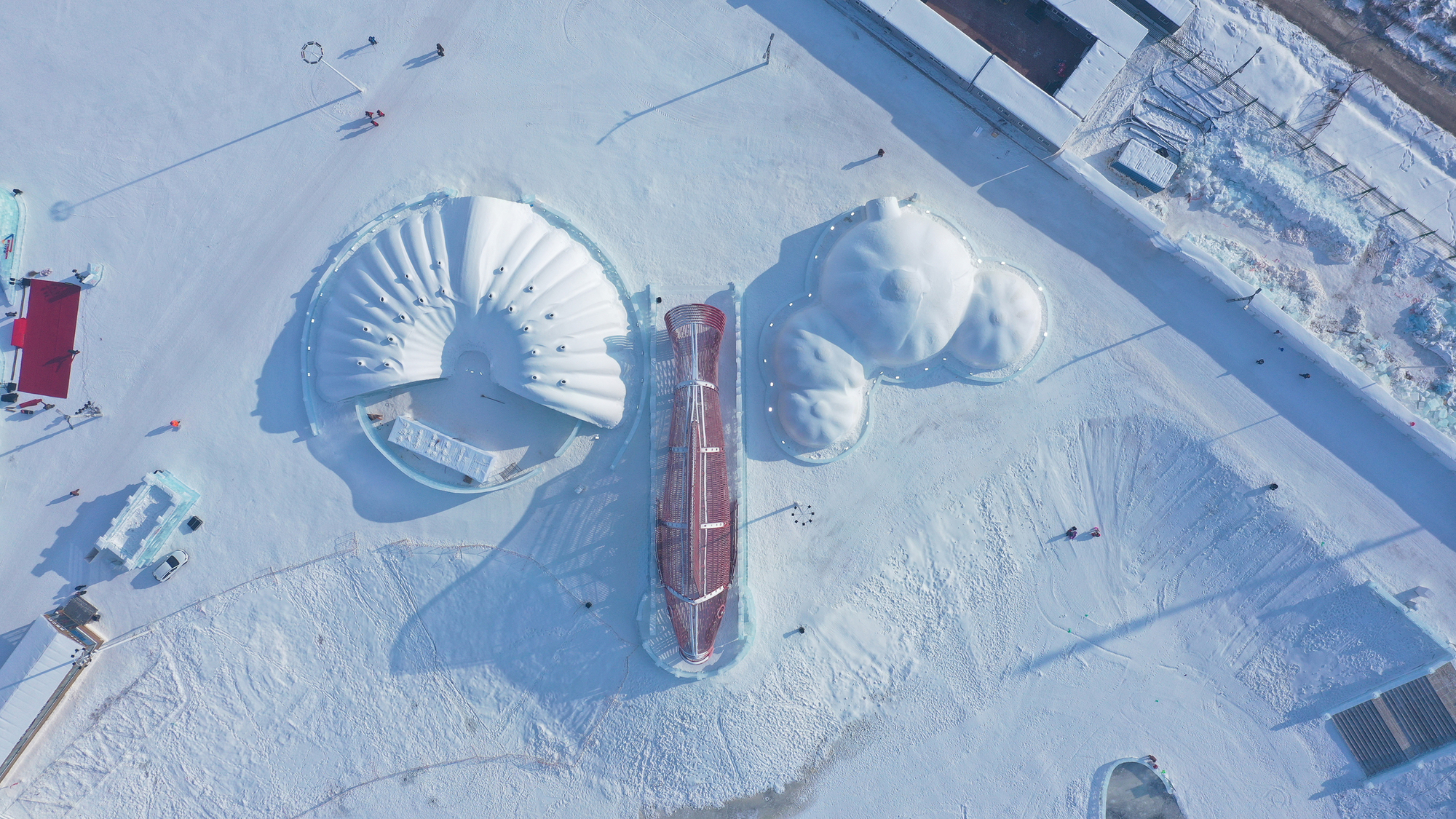

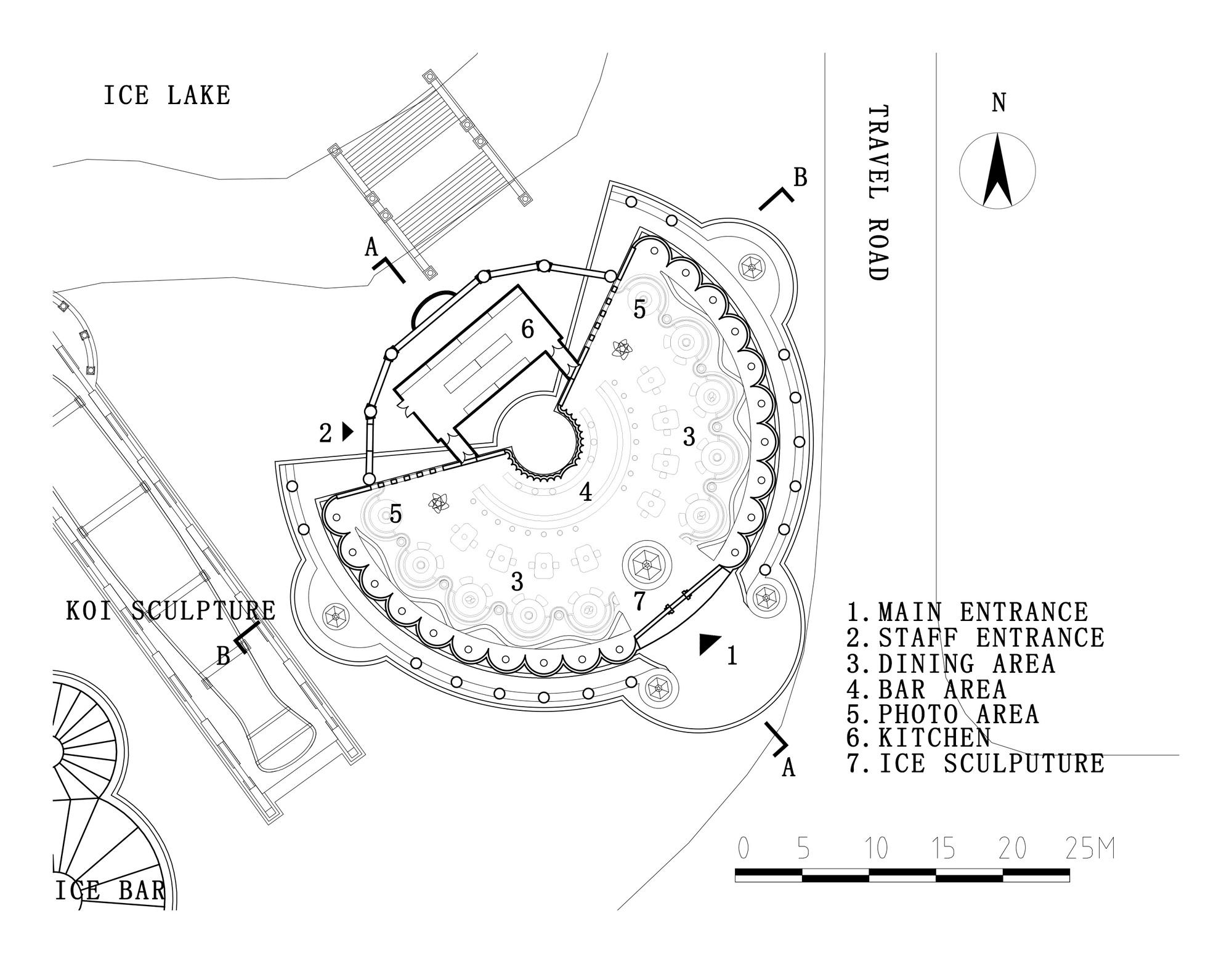

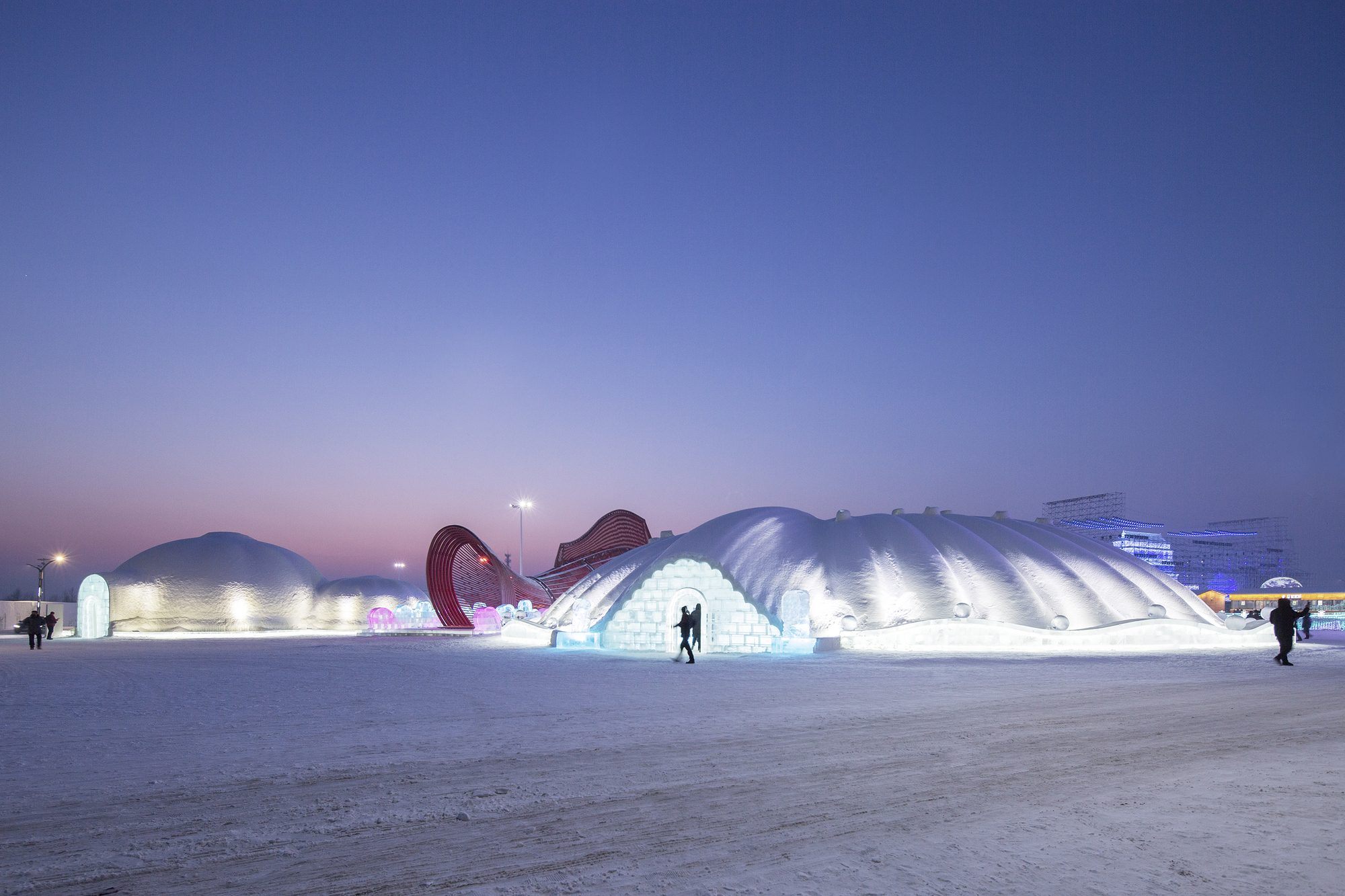

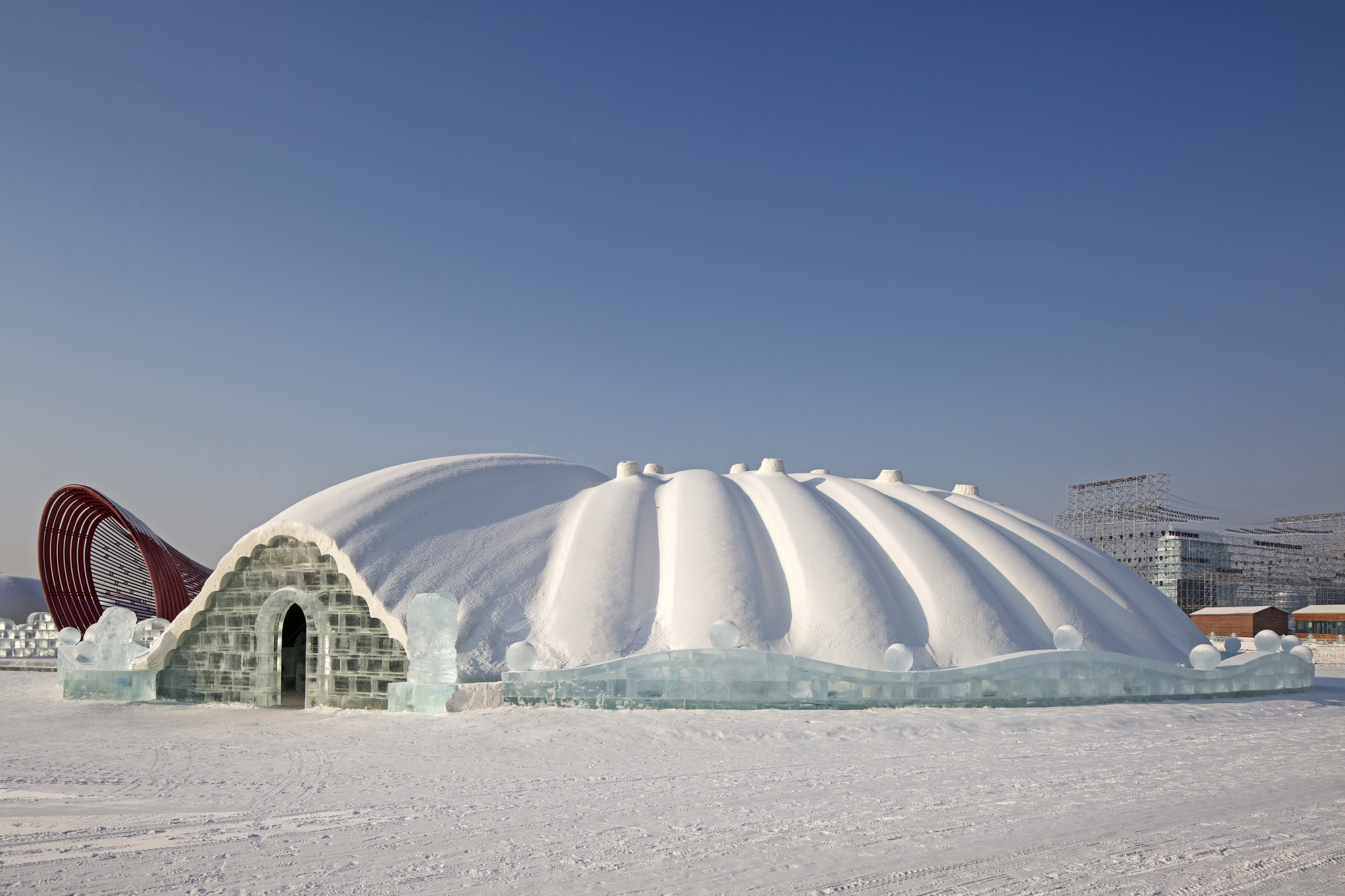

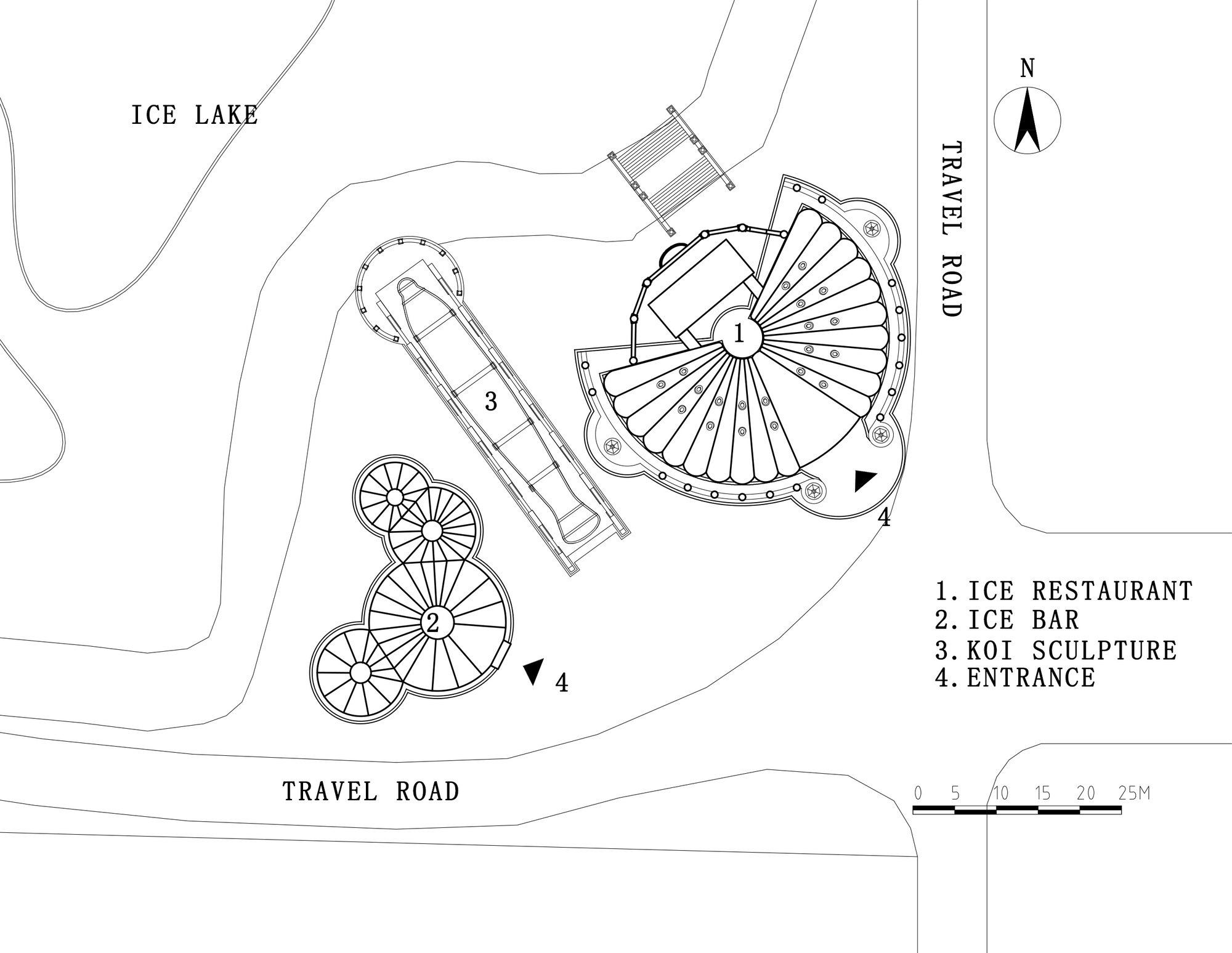

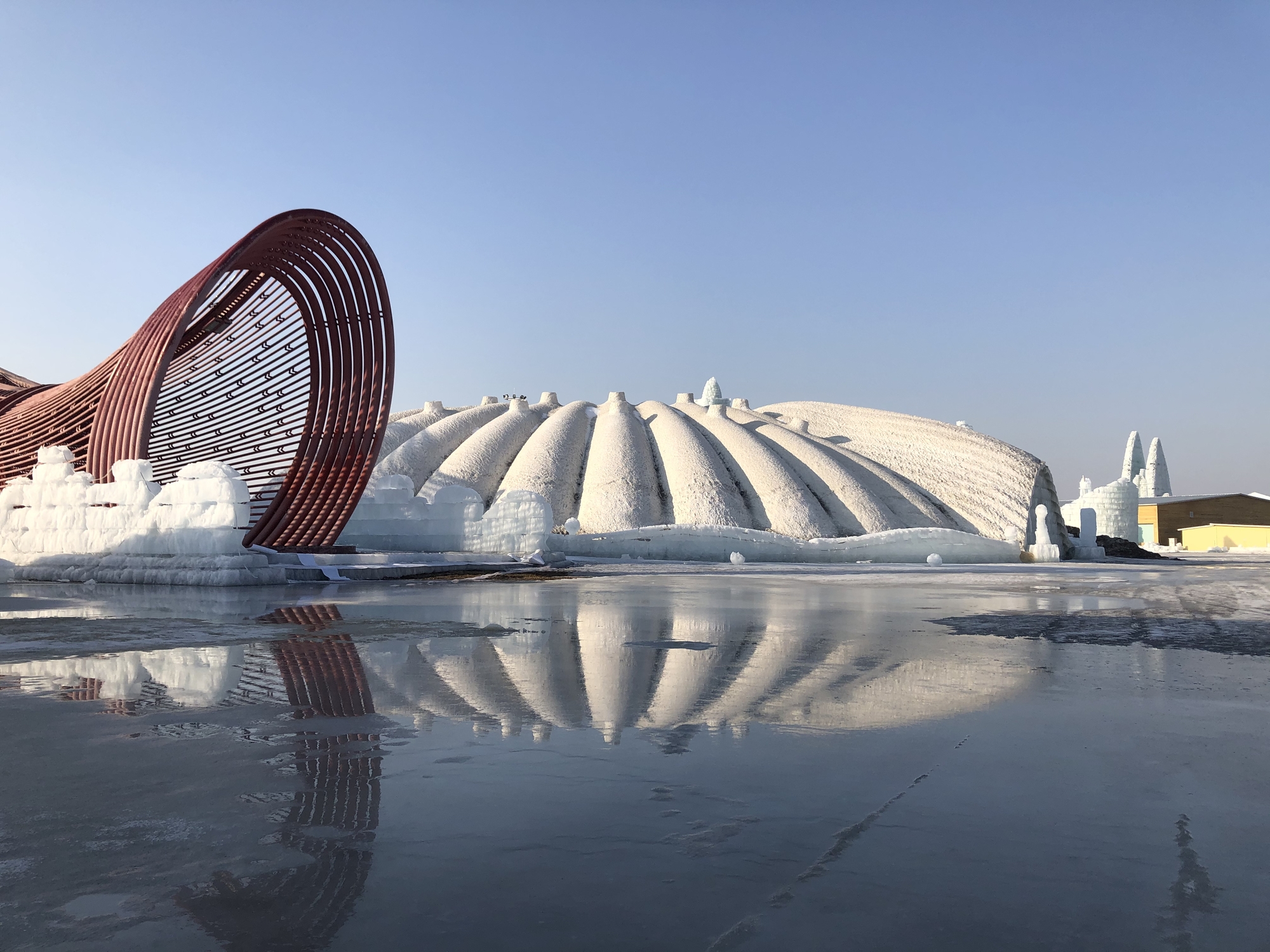

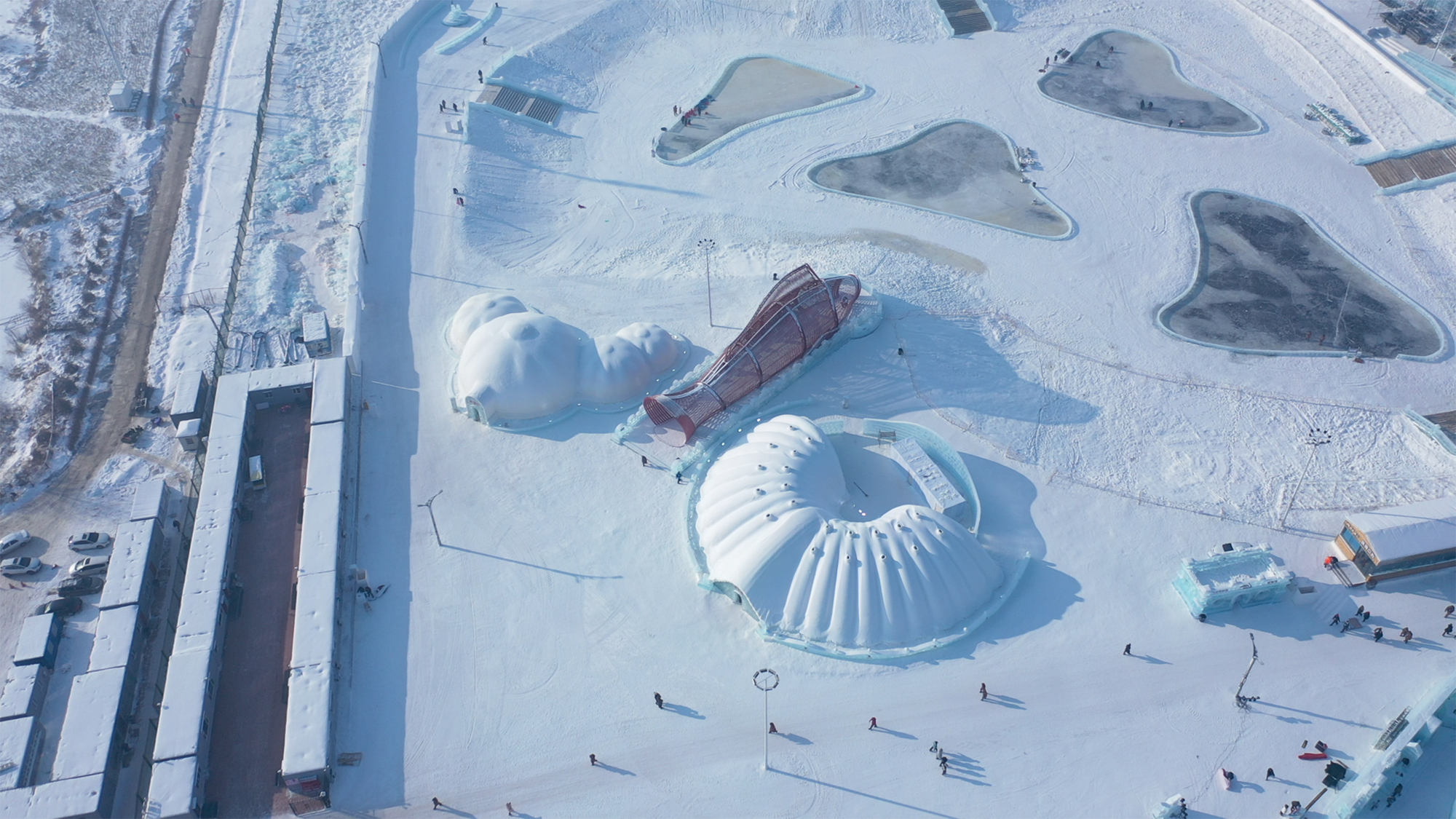

Text description provided by the architects. The project is the first complex ice shell which is used to operate in China. The site is located in the southwest corner of the 21st Harbin ICE& SNOW WORLD park, with a total area of 3900m2. The west side of the site is an artificial lake, the south side is a planned road, and there is a steel structure Koi sculpture inside the site.

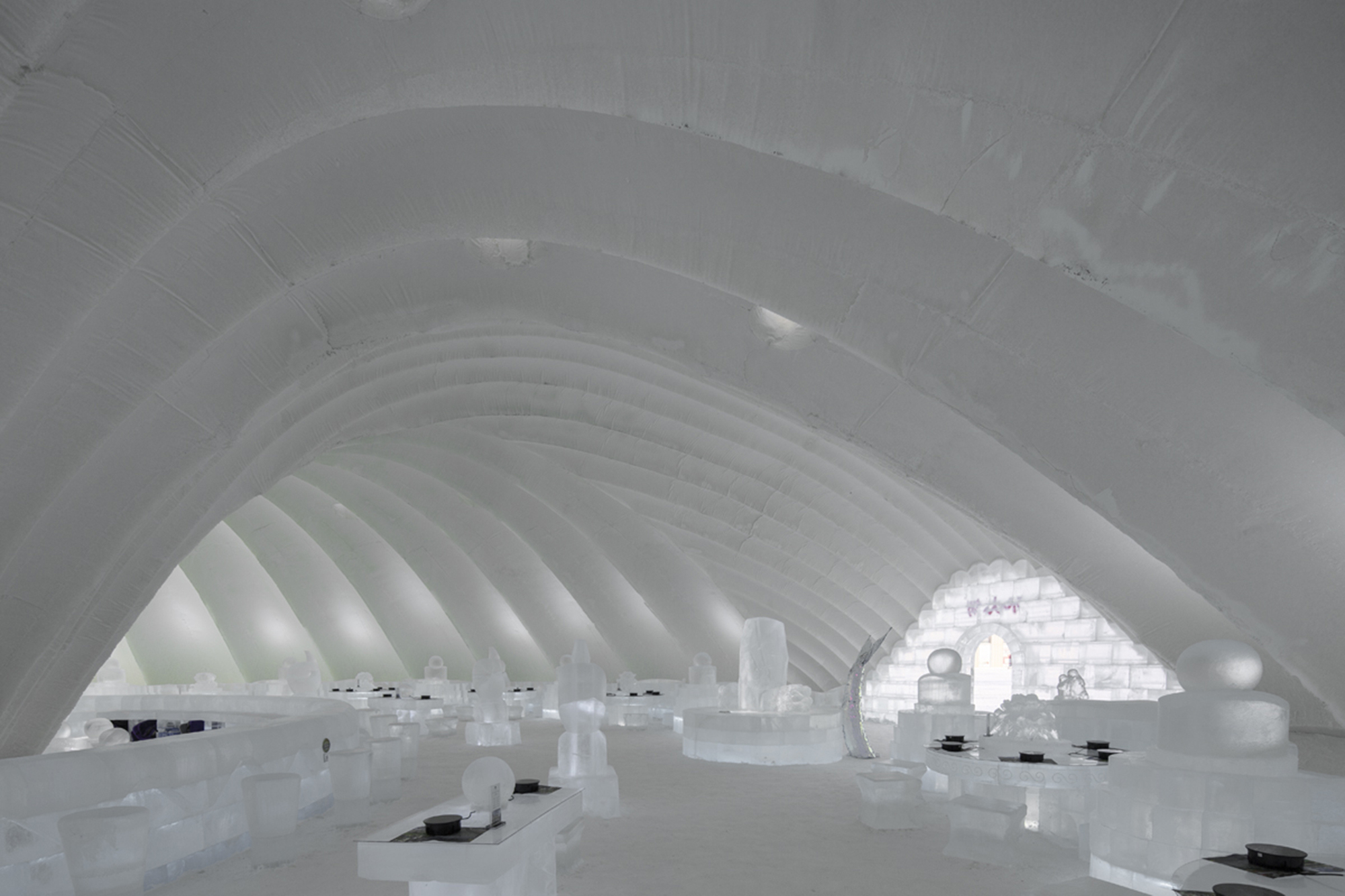

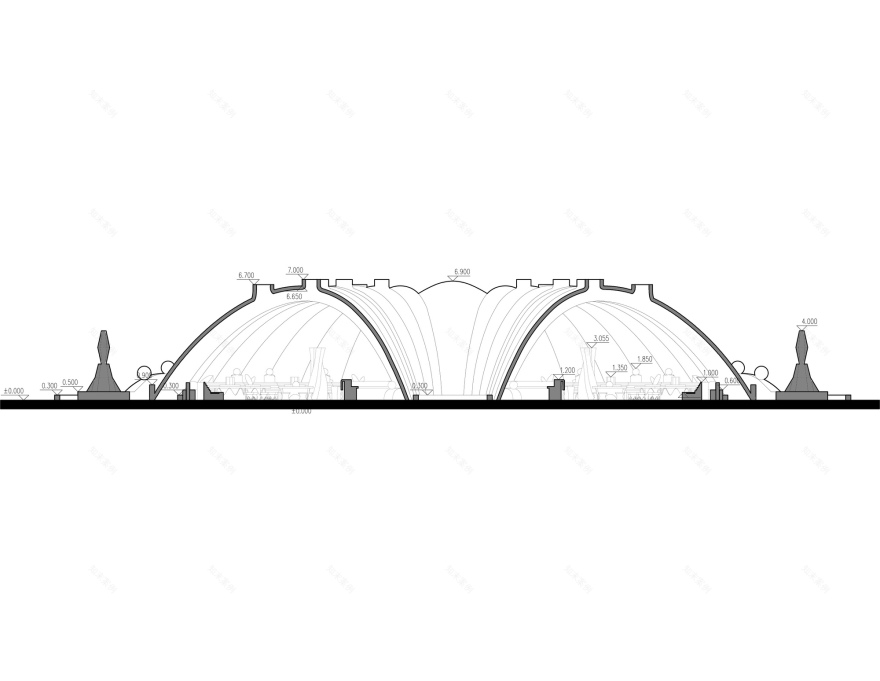

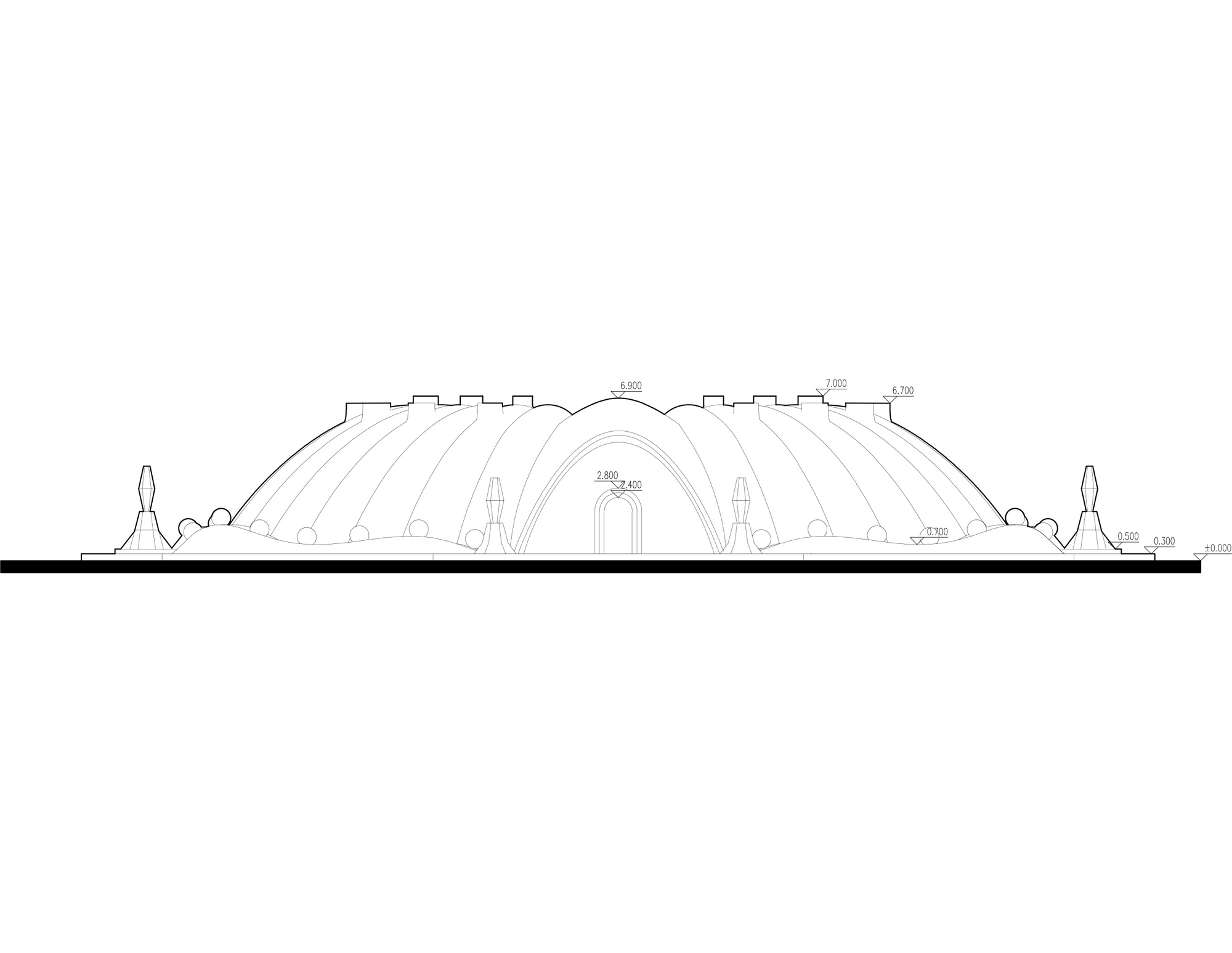

The investor hopes to complete two ice and snow innovation projects with internal function in this area. This project is one of  them, and its function is ice hot-pot restaurant. The floor area is 554m2, the height is 7m, and the span is 13m.

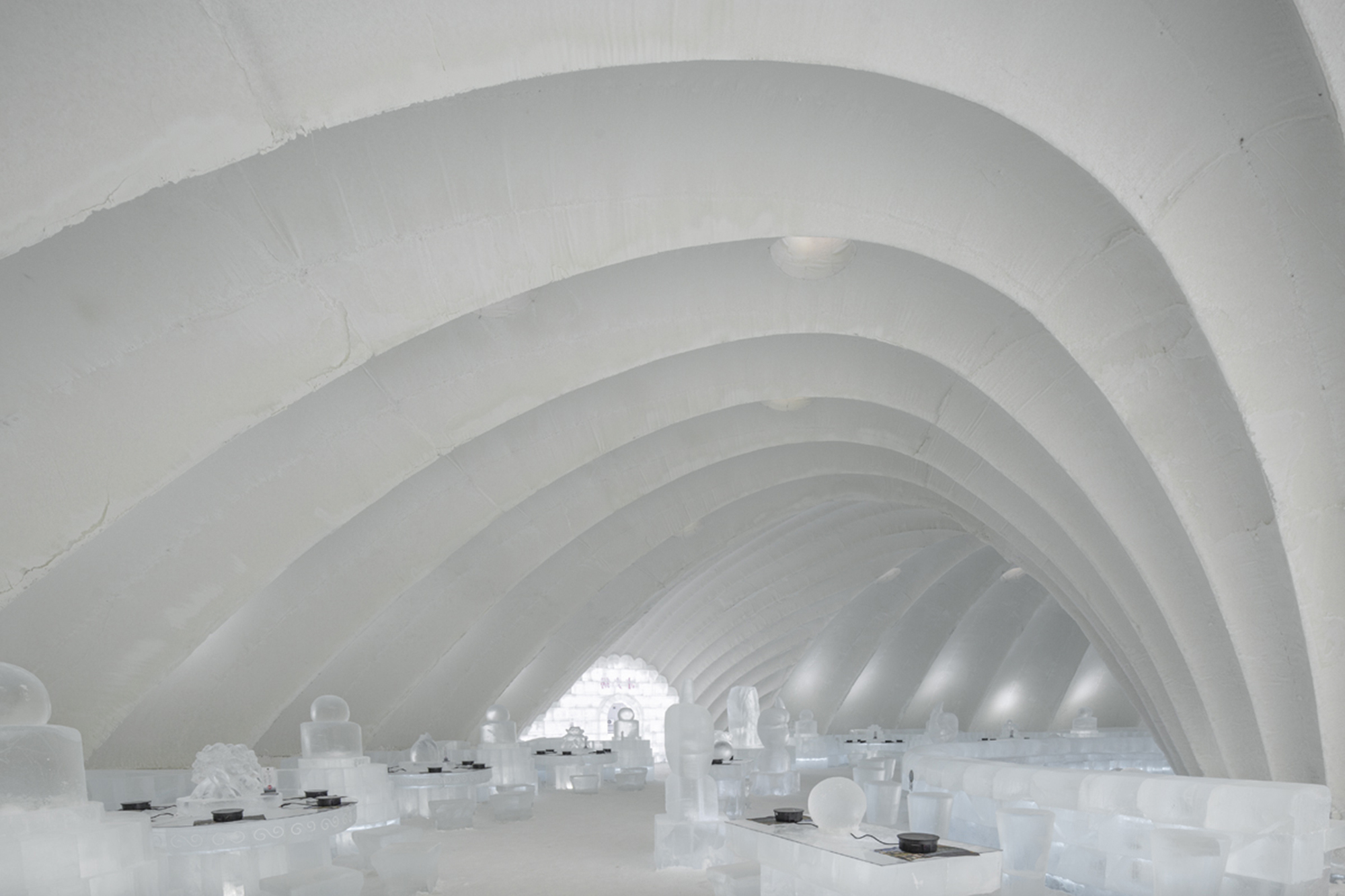

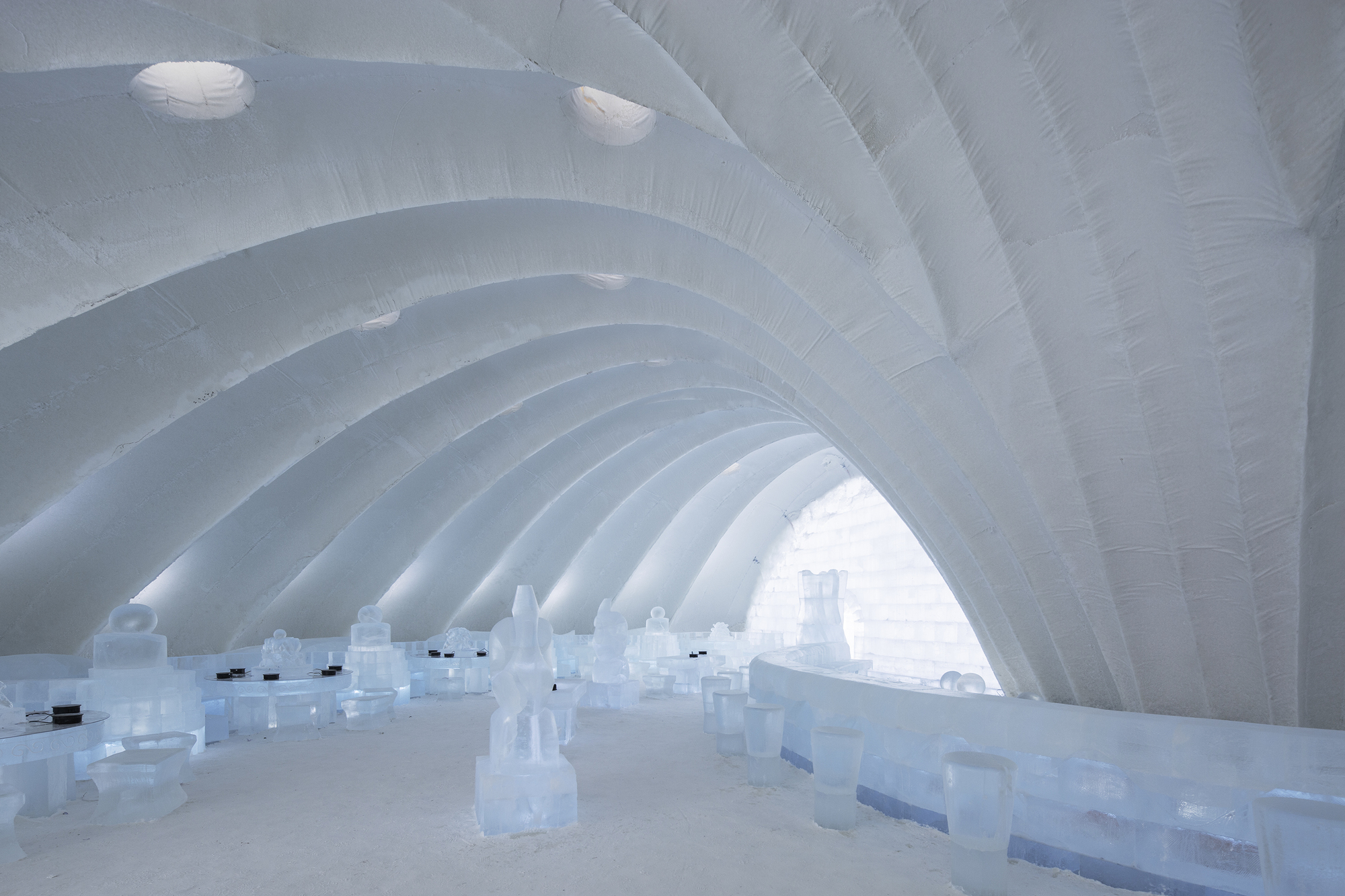

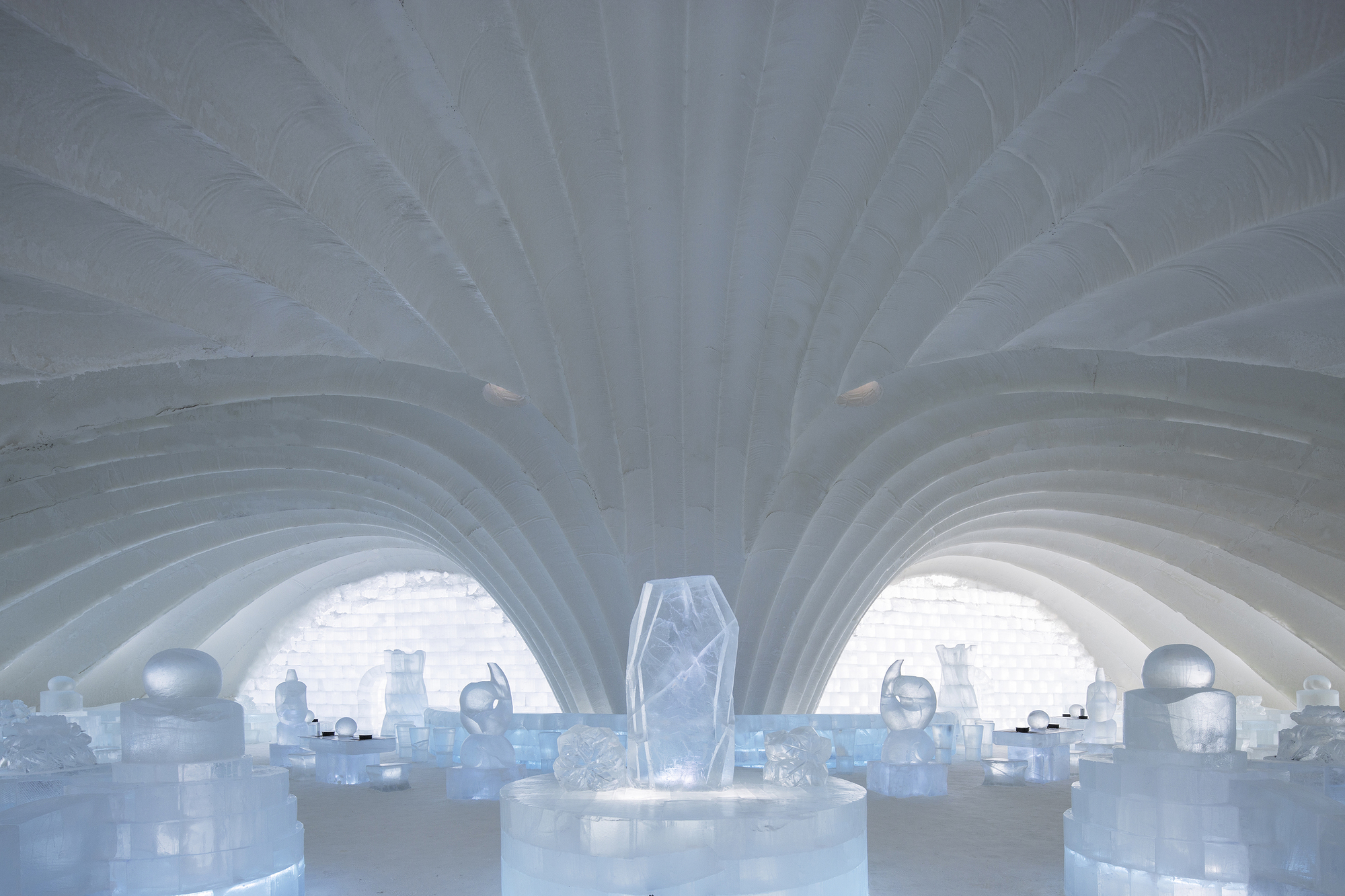

According to the requirements of the investor, the building must safe, the space need hold 40 people eating together. Also have the artistic function of ice and snow landscape architecture.Creating special space experience and make it one of the characteristic highlights in the park.

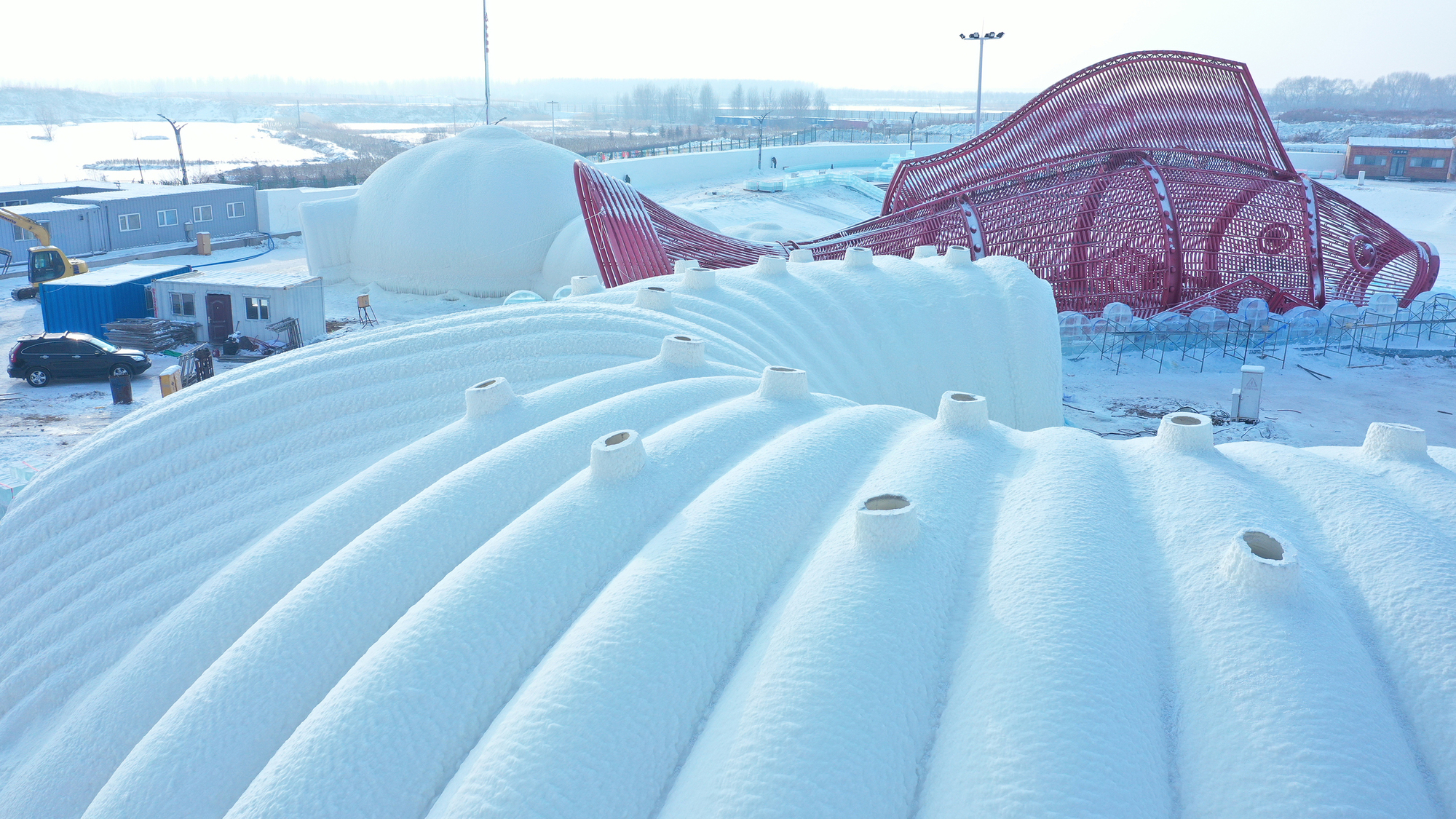

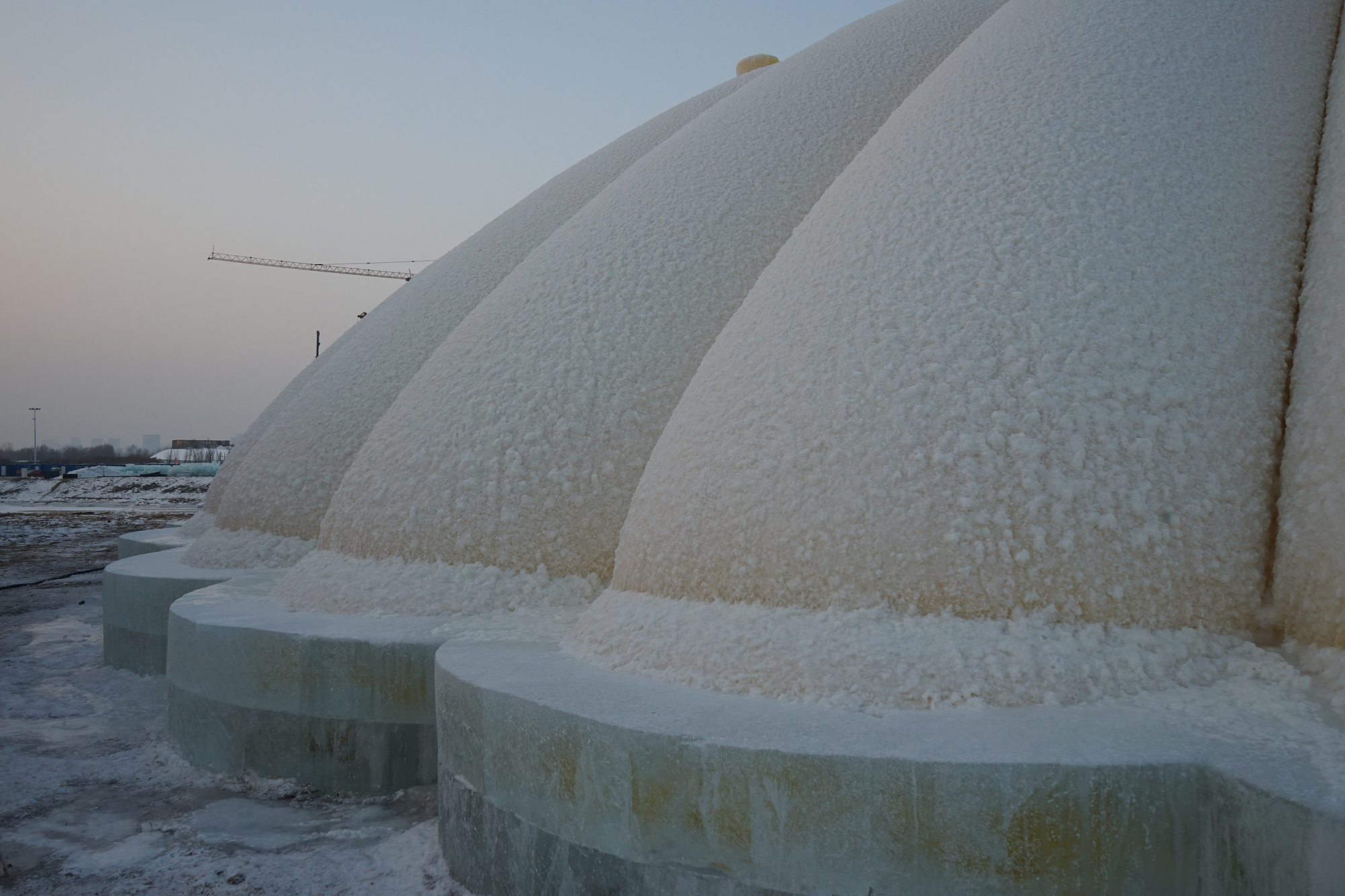

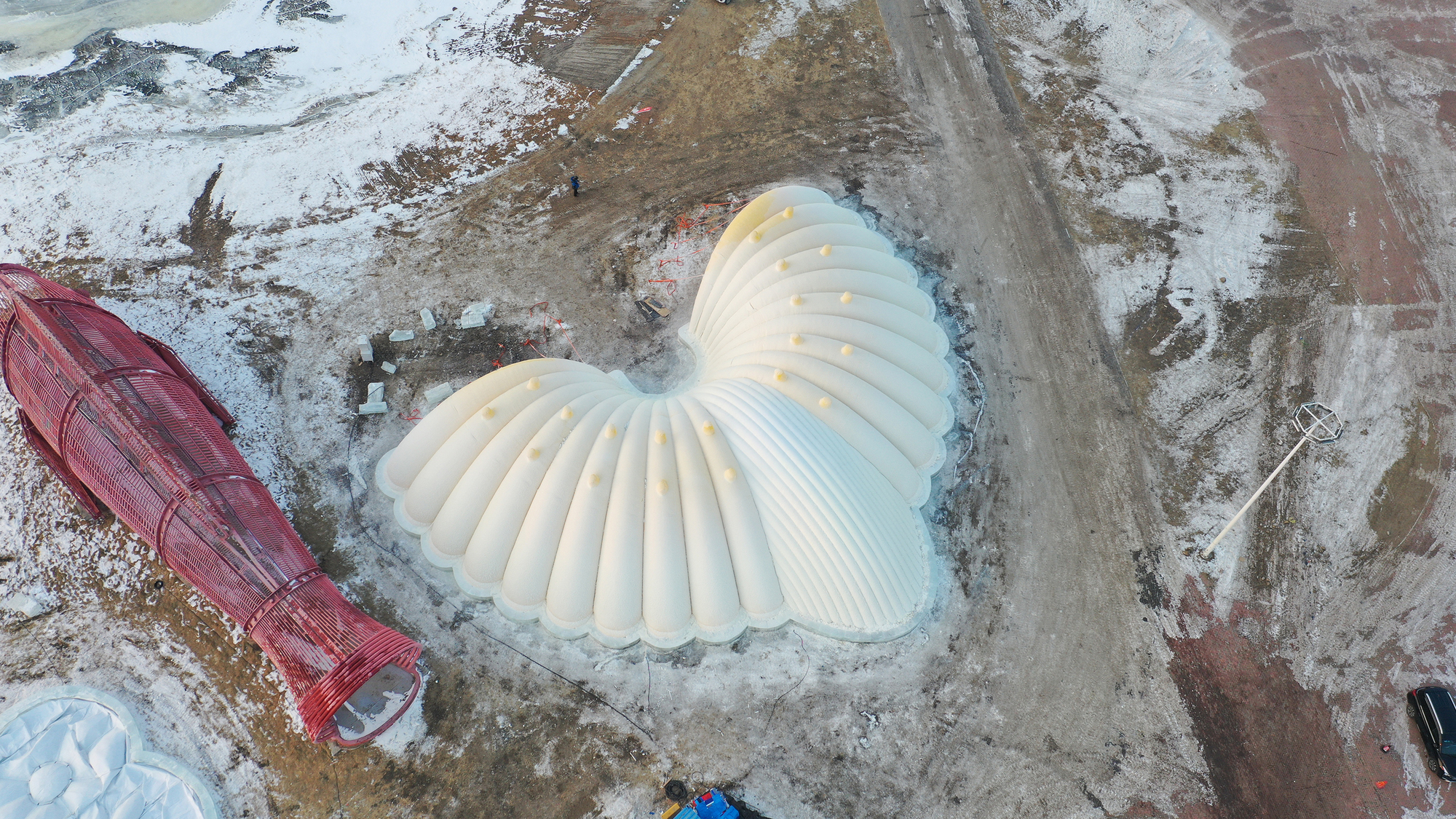

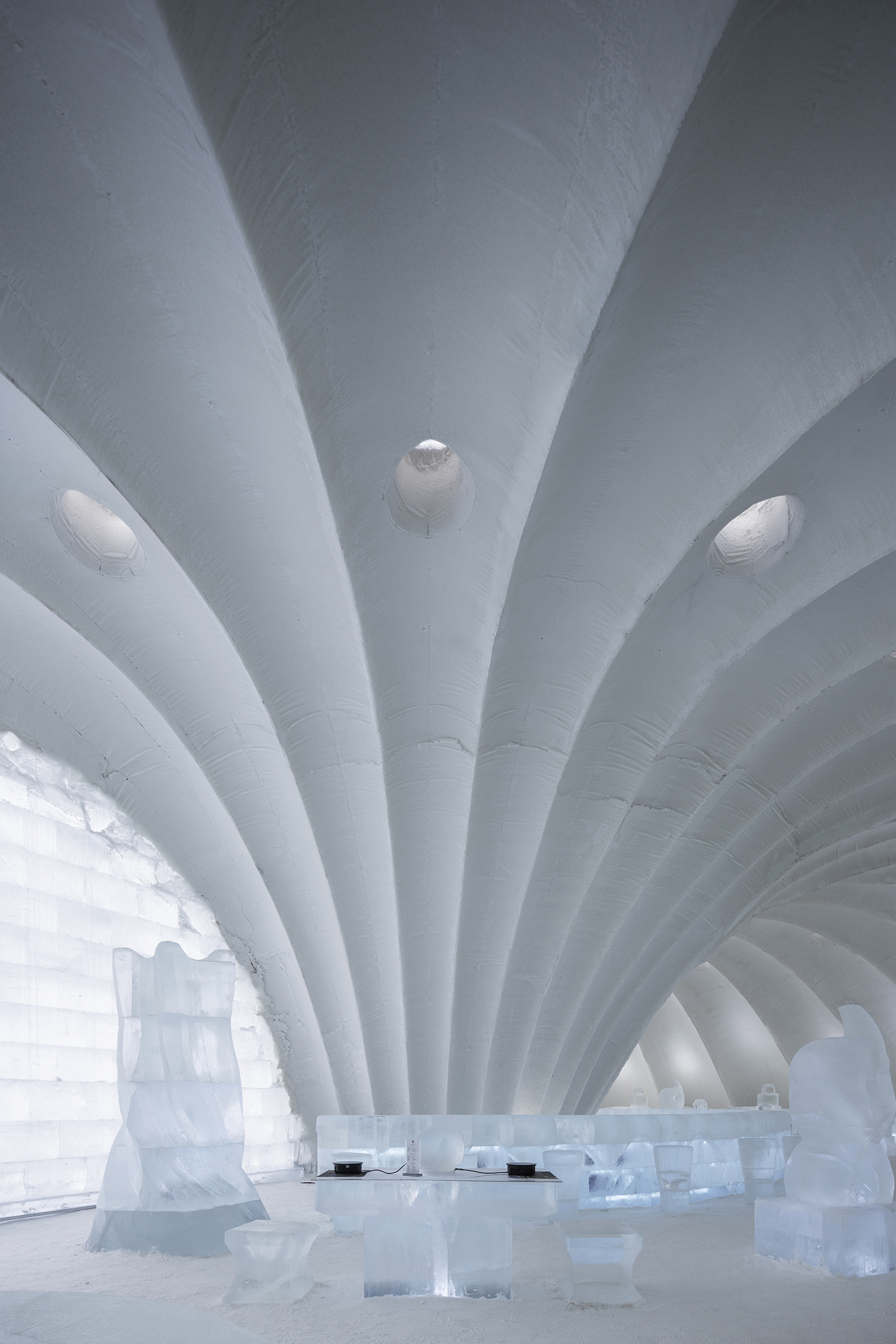

With years of innovative design and research experience of ice and snow buildings, the team has designed and guided the construction and maintenance of  this project through collaborative design of buildings, structures and indoor environment with digital model,The project using innovative technologies such as joint exhaust ribs, paper fiber composite reinforced ice (pykrete) spraying, and achieved the predetermined design goal.

The design embodies the organic combination of architecture, structure and art, and explores the new possibilities of ice and snow architecture in space, technology, function and artistic expression.

The project began to operate on December 23rd, 2019. Due to the impact of the "COVID-19", it was closed on January 27st, 2020. Working for 35 days safely. On March 22nd, 2020, the project was demolished, during which the temperature fluctuated to more than 0 ° C for many times, but the ice shell structure performance, internal use space functionality and artistry were intact.

Project gallery

Project location

Address:21st Harbin ICE& SNOW WORLD park, Harbin, Heilongjiang, China
