更多小屋丨加拿大魁北克丨Kariouk Architects

Architects:Kariouk Architects

Area:1000ft²

Year:2021

Photographs:Scott Norsworthy

Manufacturers:Abet Laminati,Diamond Steel Roofing,Elite Windows,Forbo,Handwerk Millwork,Stûv America,Zublin Timber

Lead Architects:Paul Kariouk

Structural Engineer:Daniel Bonardi Consulting Engineers

General Contractor:GPL Construction

Architect:Chris Davis

Intern Architect:Adam Paquette

Design Associate:Frederic Carrier, David King, Sarah McMurtry, Steven Schuhmann, Joel Tremblay

City:Wakefield, Quebec

Country:Canada

Text description provided by the architects. The paradigmatic North American cottage is romanticized as a wilderness log cabin. Nonetheless, typical cottages are “woodsy” versions of suburban homes with every modern convenience. These buildings sustain the myth that appearing to be one with the land equates to a reduced impact on the environment. The m.o.r.e. Cabin inverts this idea through a separation from the landscape that is more sustainably constructed than other cottages. This unraveling of eco-fictions is not cynical, but optimistic: while organic environments are being degraded, what remains can be engaged more responsibly. To this end, m.o.r.e. Cabin touches the land lightly through:- Interpreting the law creatively to uphold its principles.- Reducing foundation size through a steel mast.- Low-waste cross-laminated timber (CLT) structure.- Achieving greater tensile strength through a “folded” structure.- Off-grid power and high-efficiency heating.- Creating a home for endangered bats.

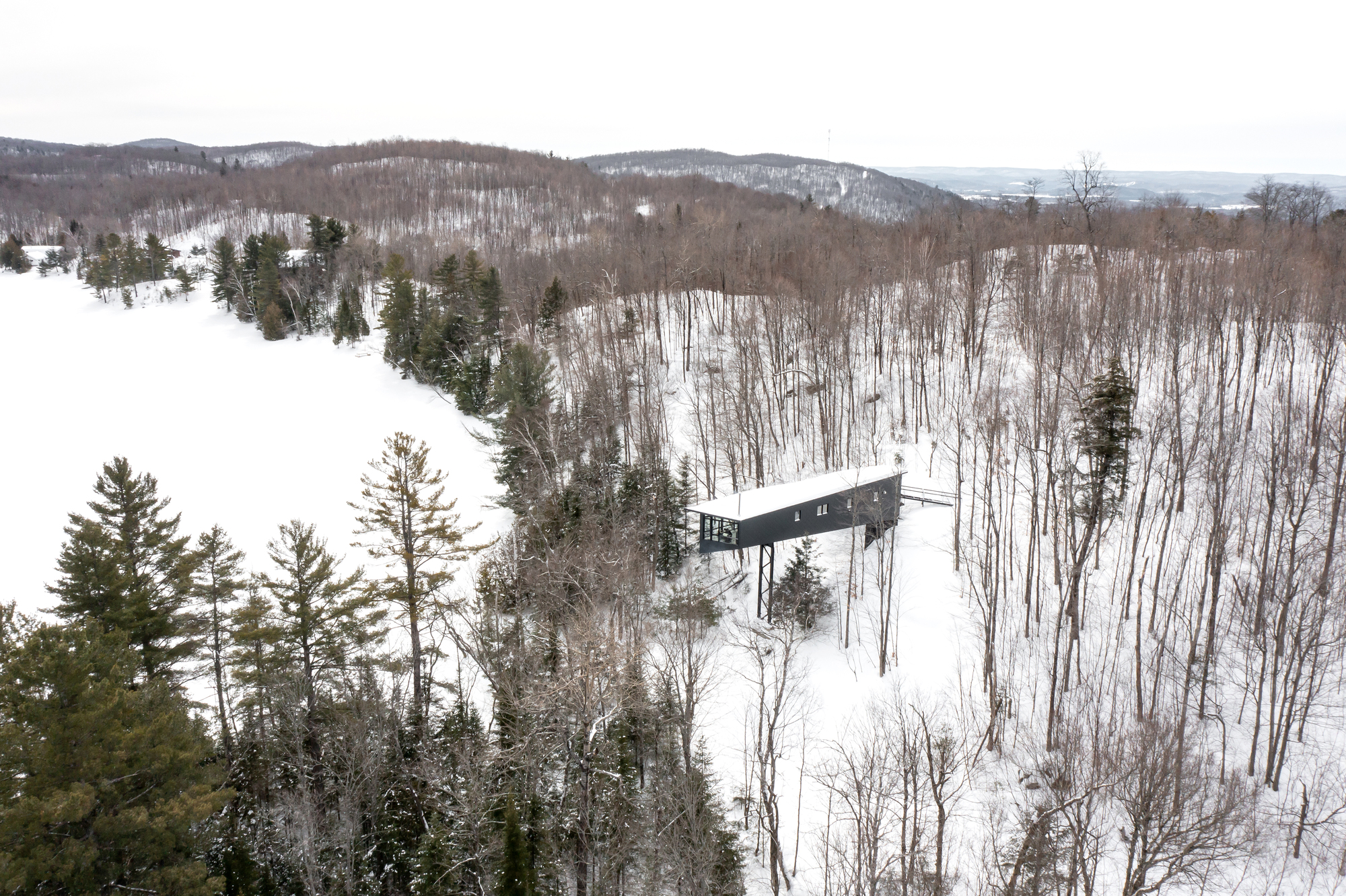

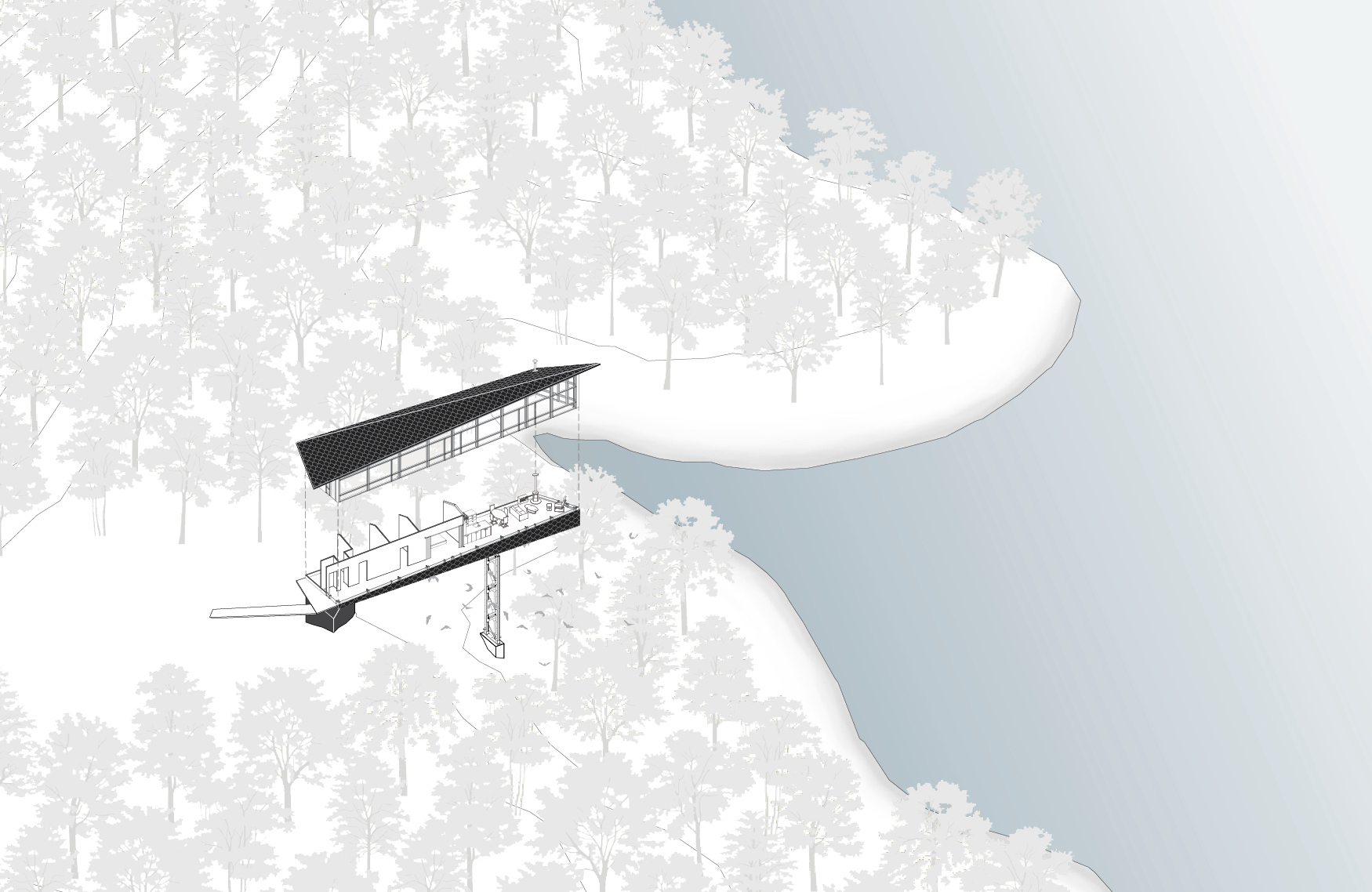

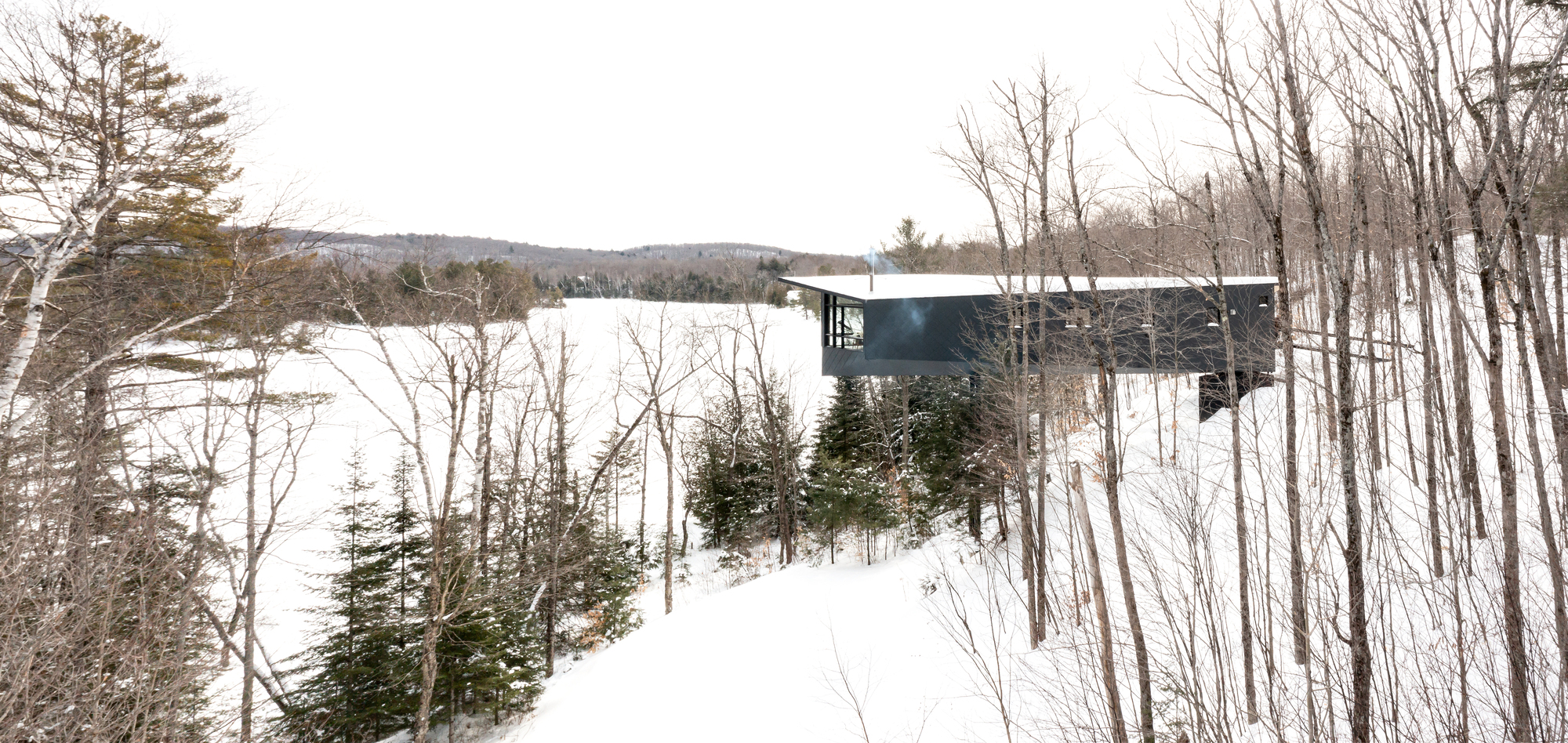

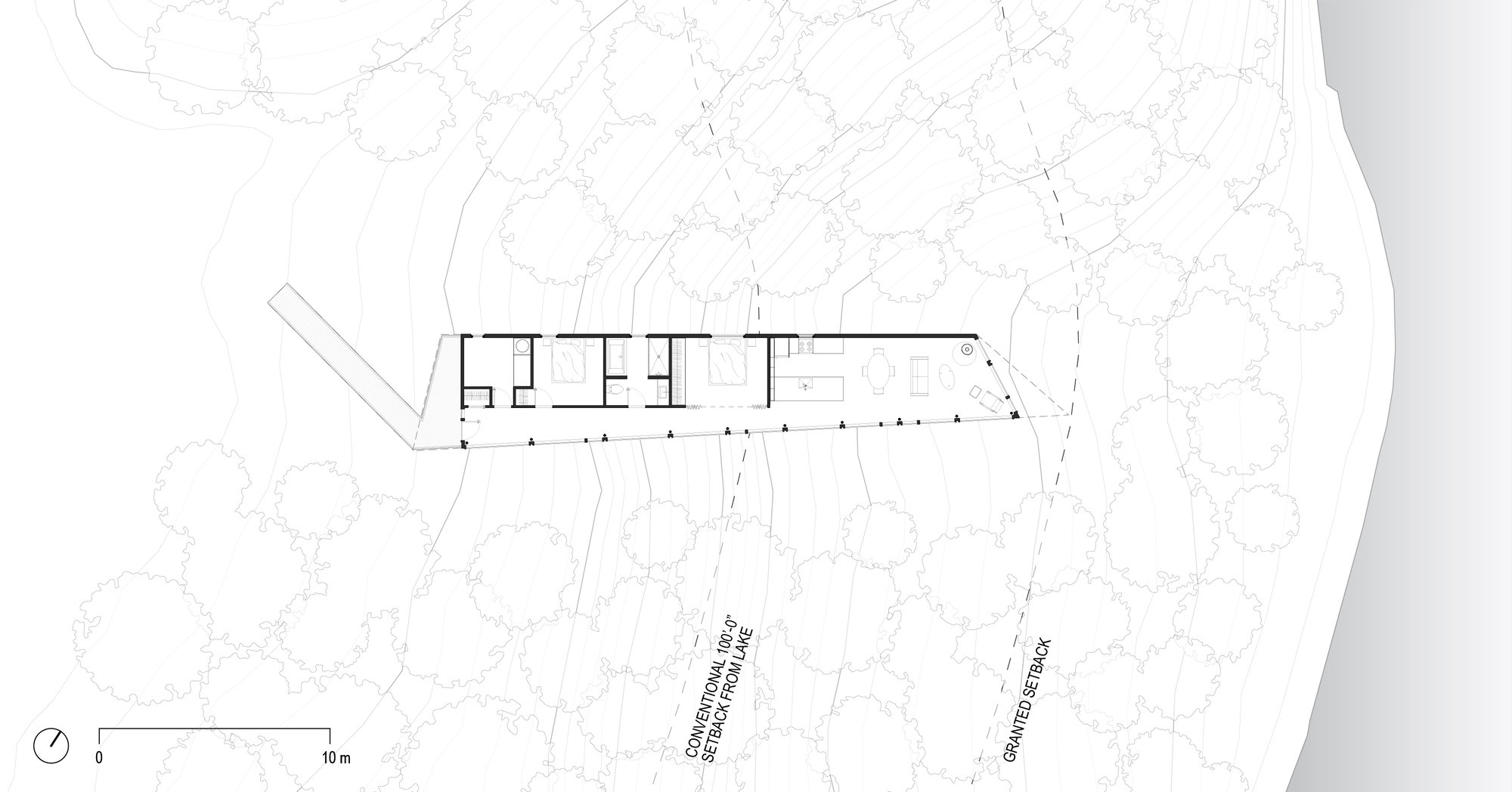

Interpreting the Law with Finesse. Zoning rules required a 100-foot (30-metre) setback from the lake. A cliff face at that 100-foot mark was incorporated into the design, whereas conventional construction approaches would entail blasting. To minimize harm to the hillside and forest, a zoning variance was obtained to allow the front of m.o.r.e. Cabin to hover above, rather than sit on, the 100-foot (30-metre) mark.

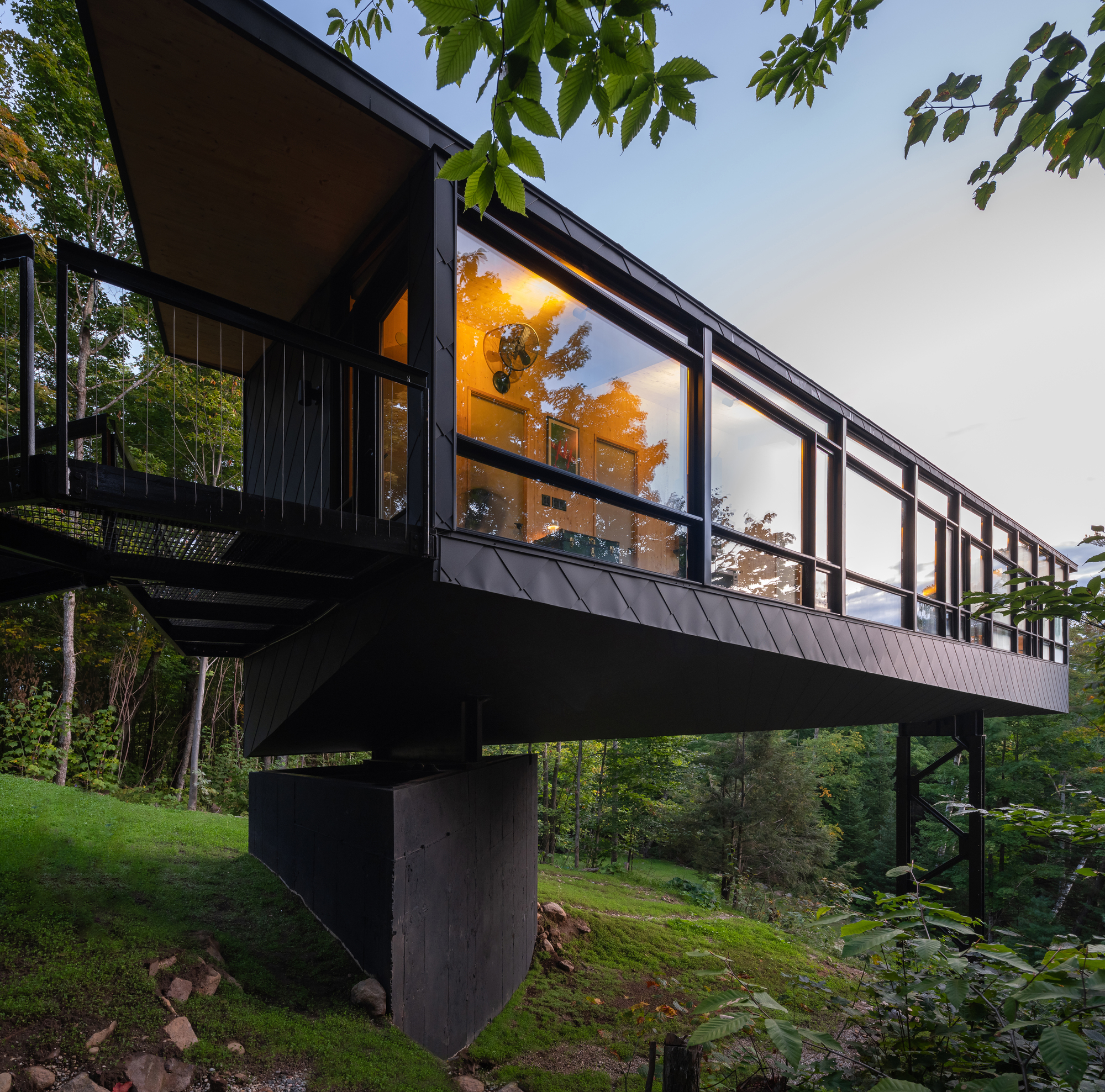

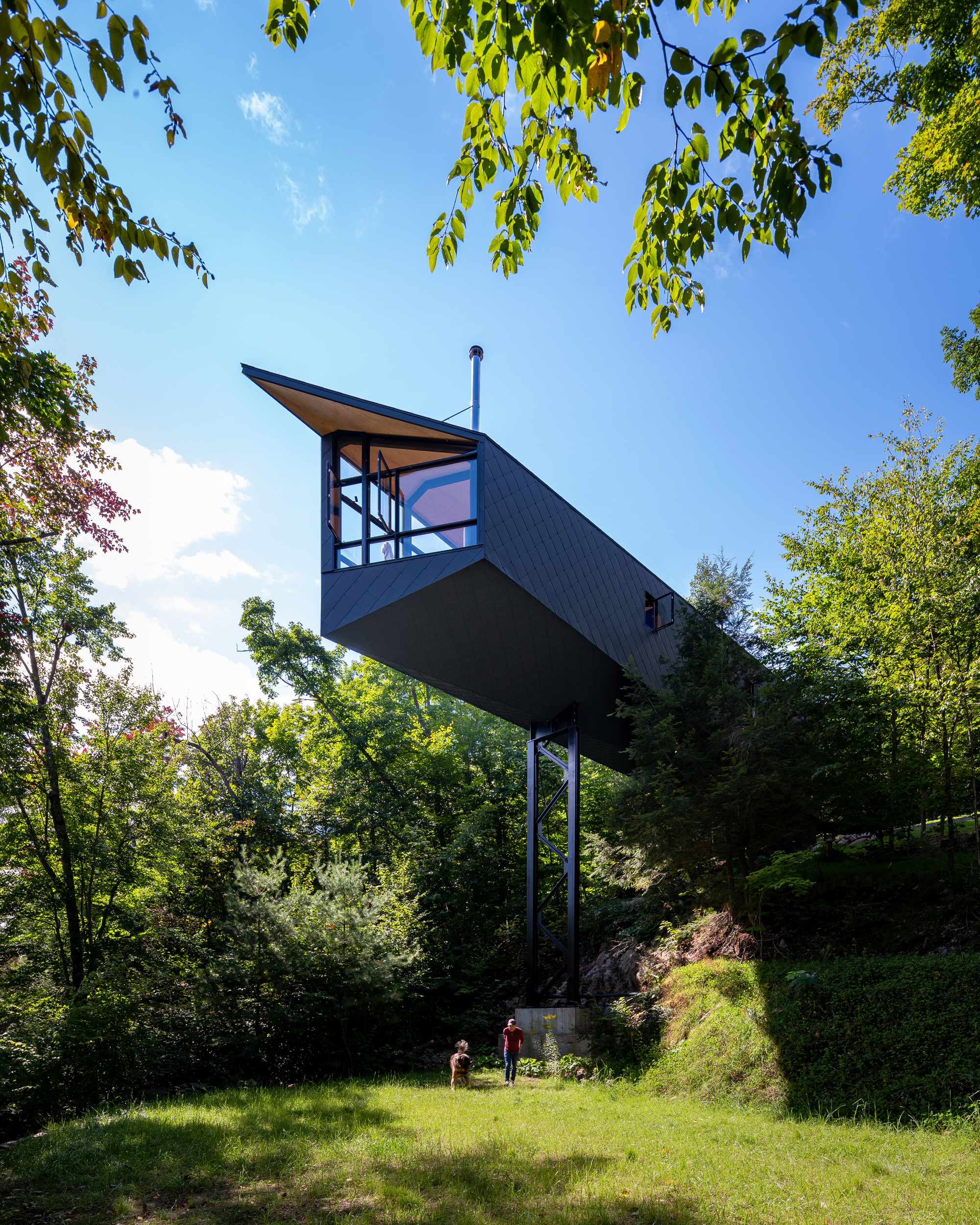

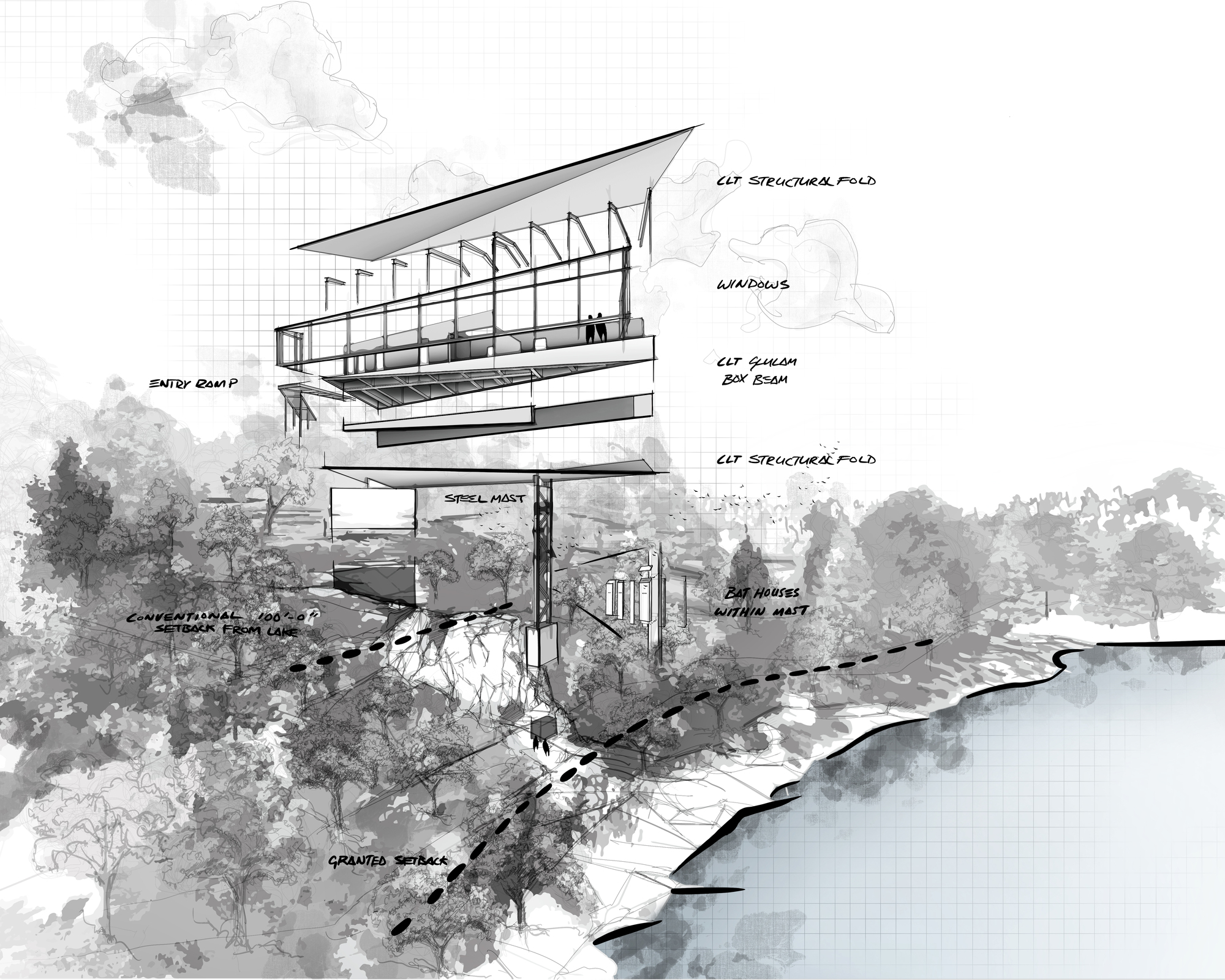

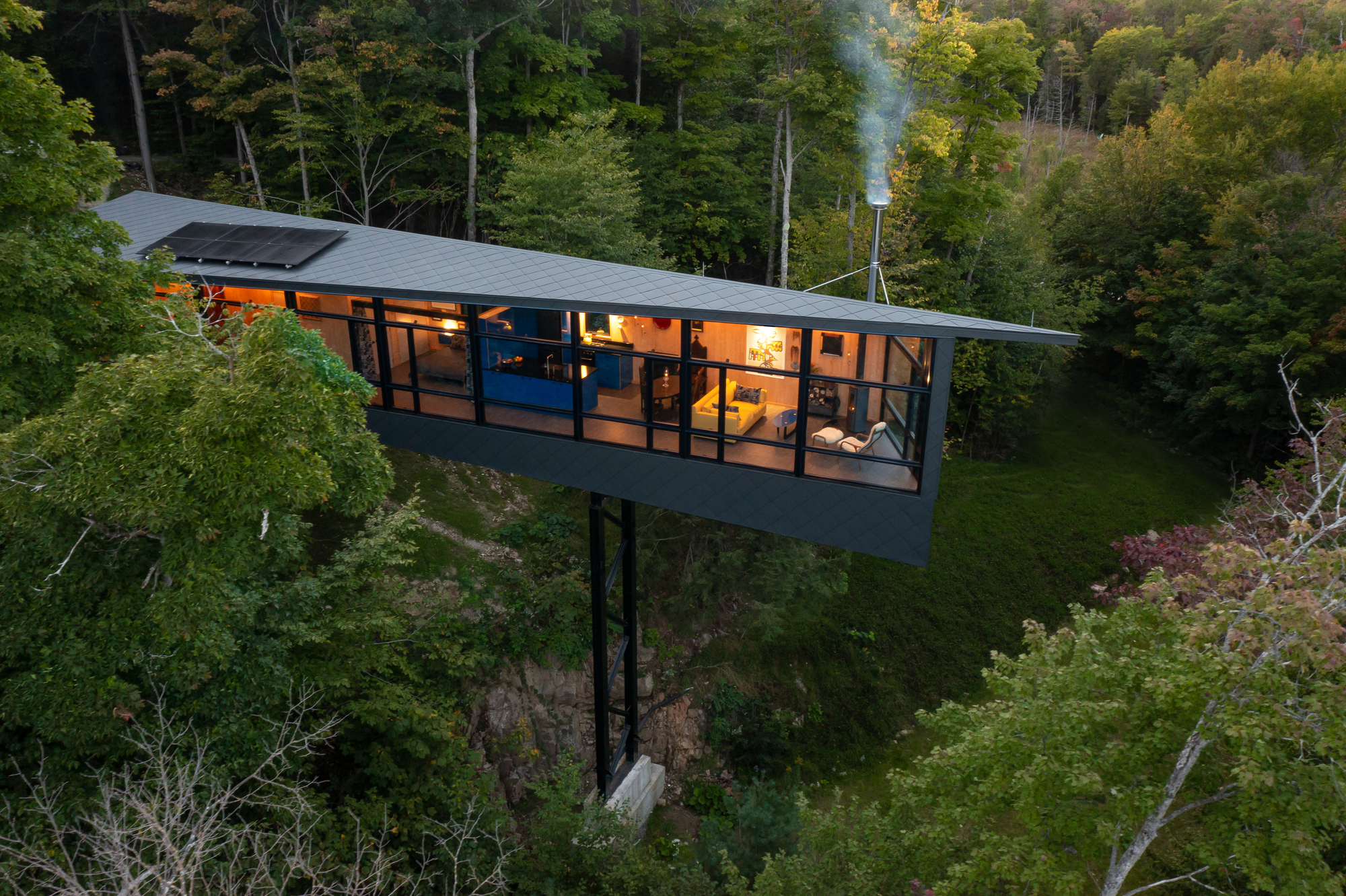

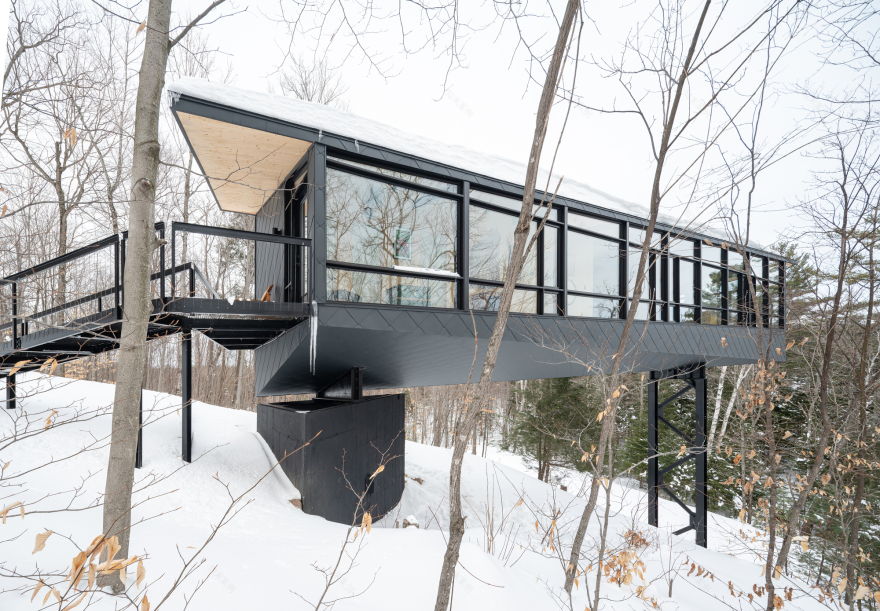

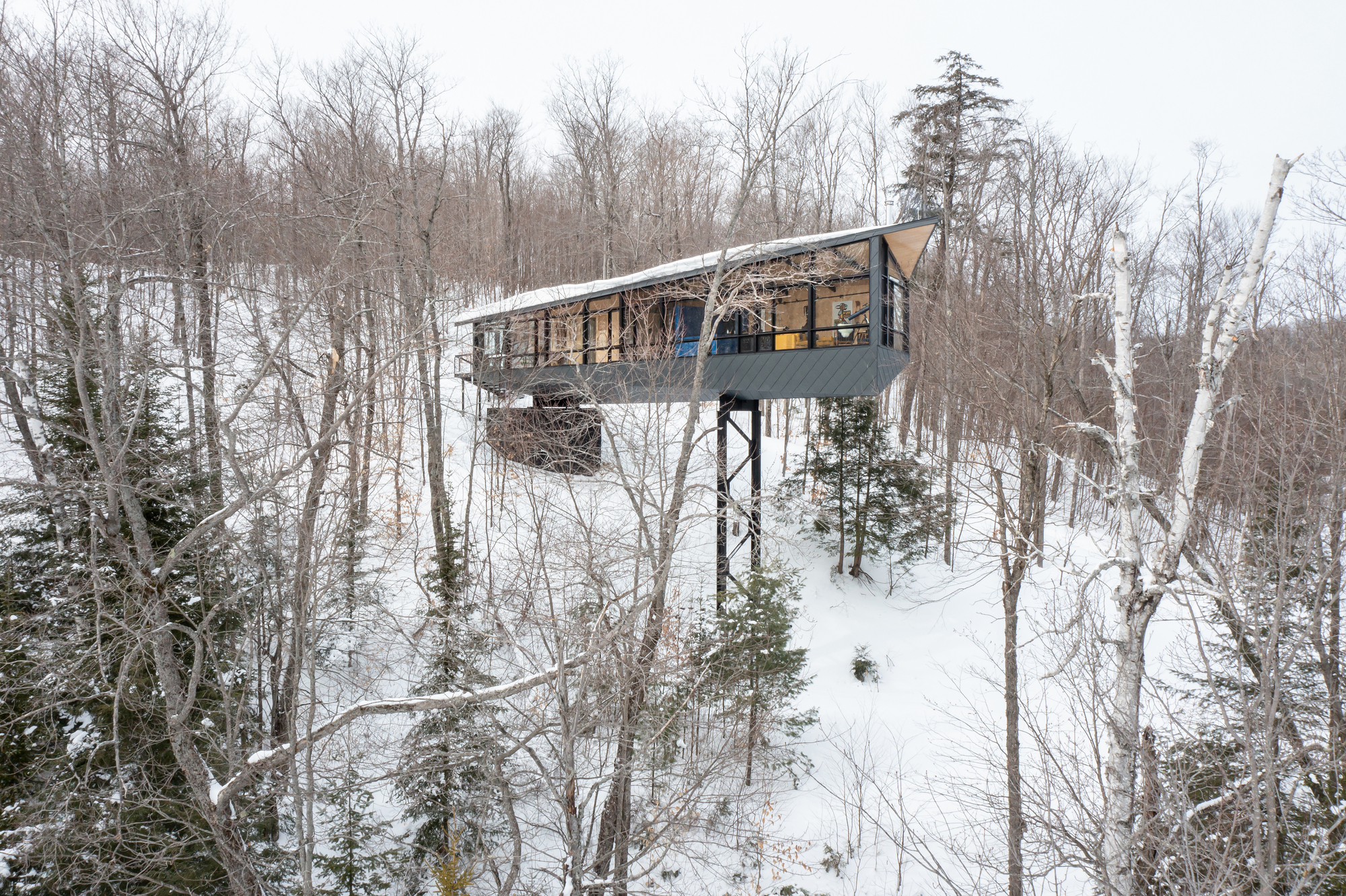

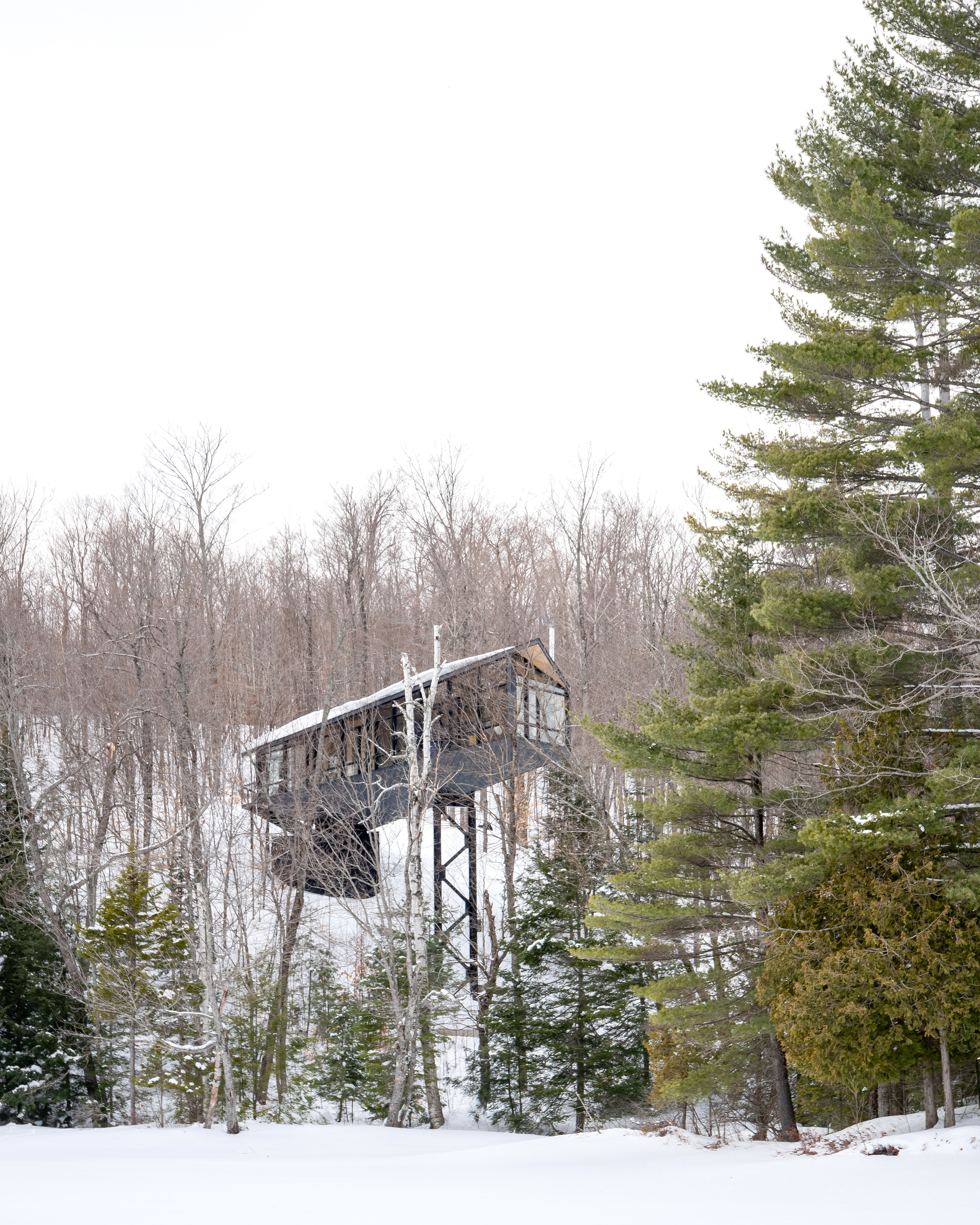

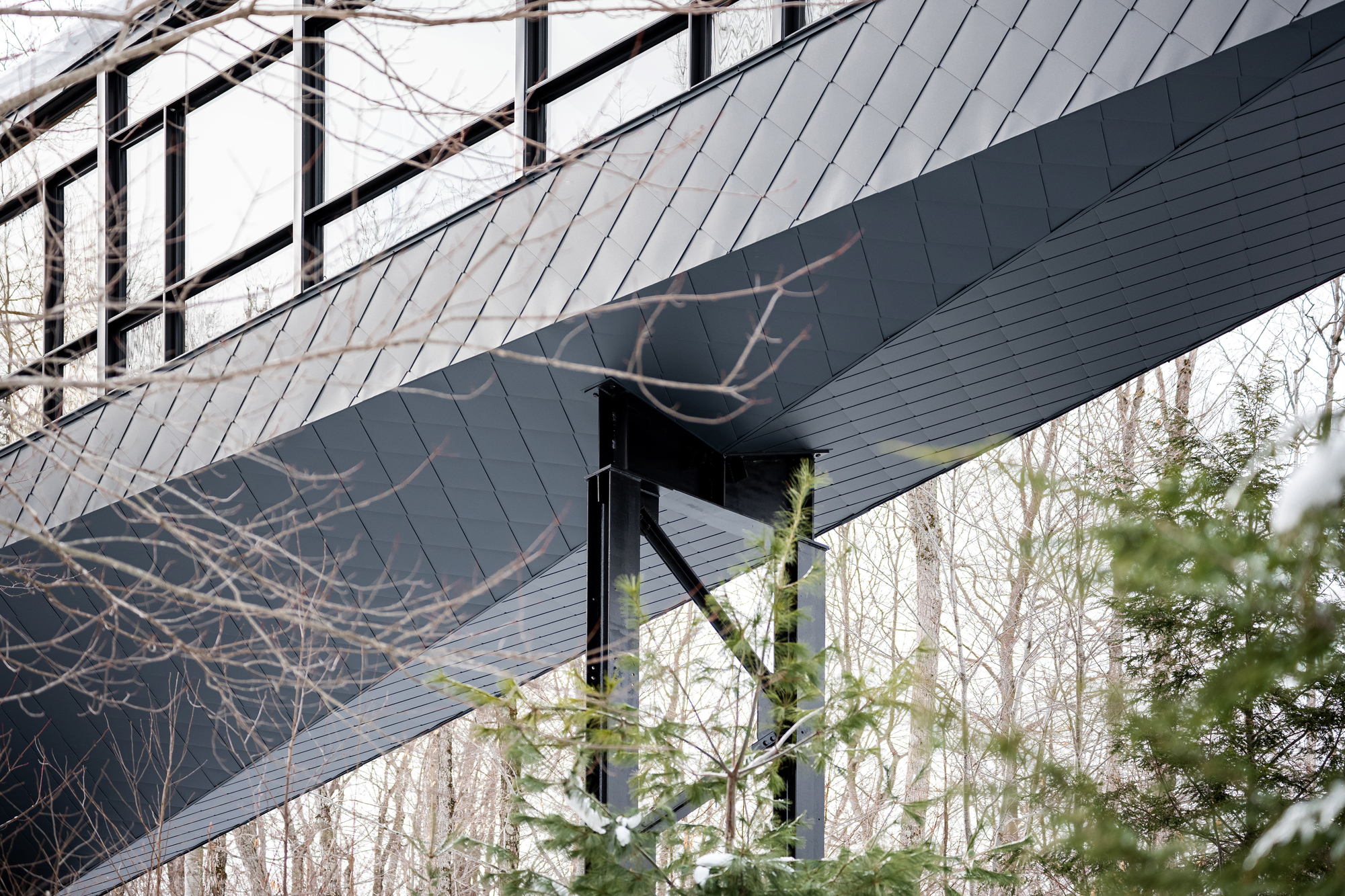

The Mast. The technical solution to the environmental issue involved a single concrete footing and a steel “mast” placed within the required setback. Avoiding a conventional large foundation preserved the watershed and prevented erosion, as did elevate the construction zone. The use of carbon-intensive concrete was also reduced for a lower carbon footprint. m.o.r.e. Than One Way to Skin a Home. m.o.r.e. Cabin is built with suitably-sourced CLT panels and glulam beams. The CLT was milled offsite and then hoisted into place, avoiding damage to the landscape by the maneuvering of construction machinery.

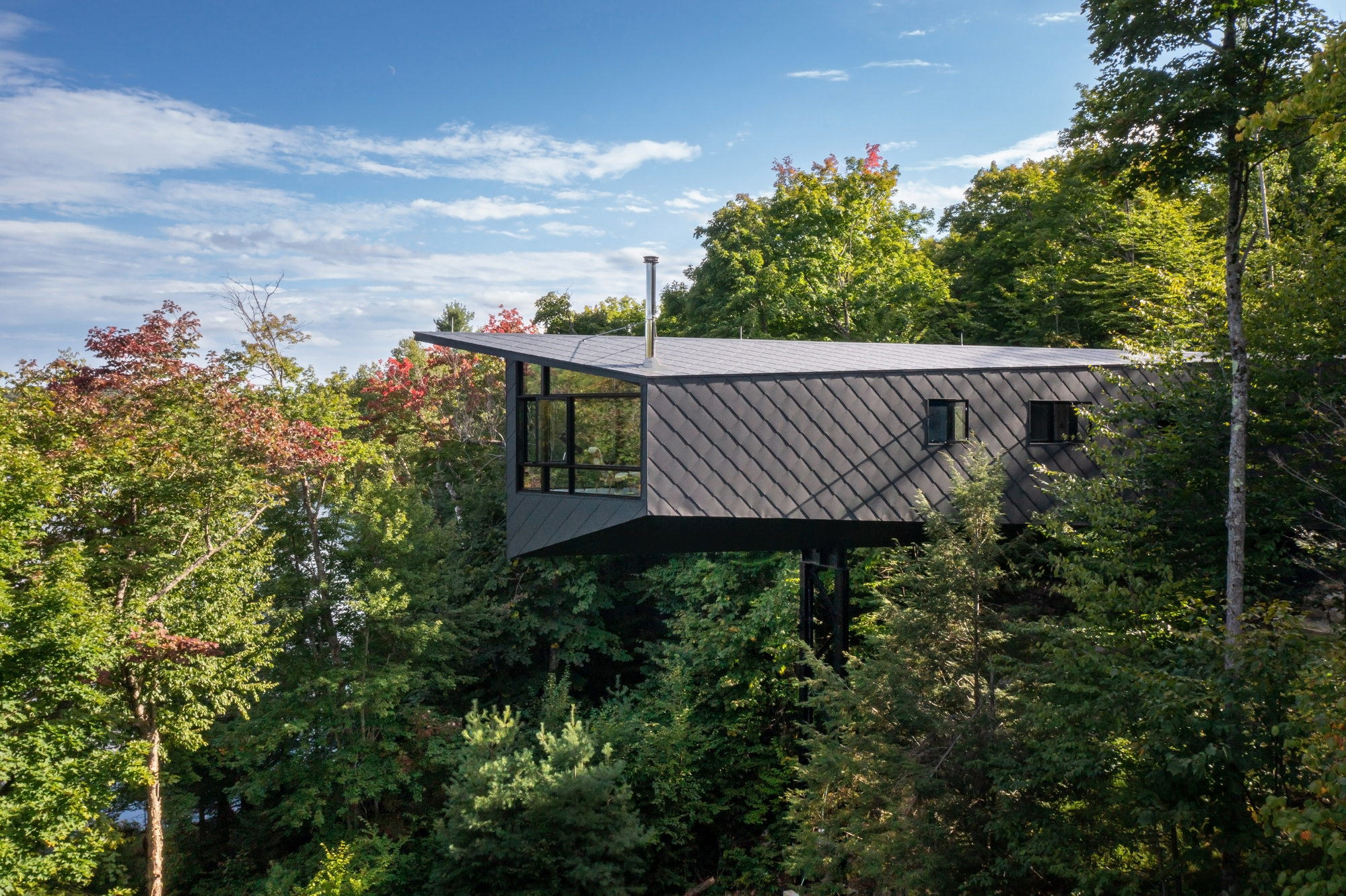

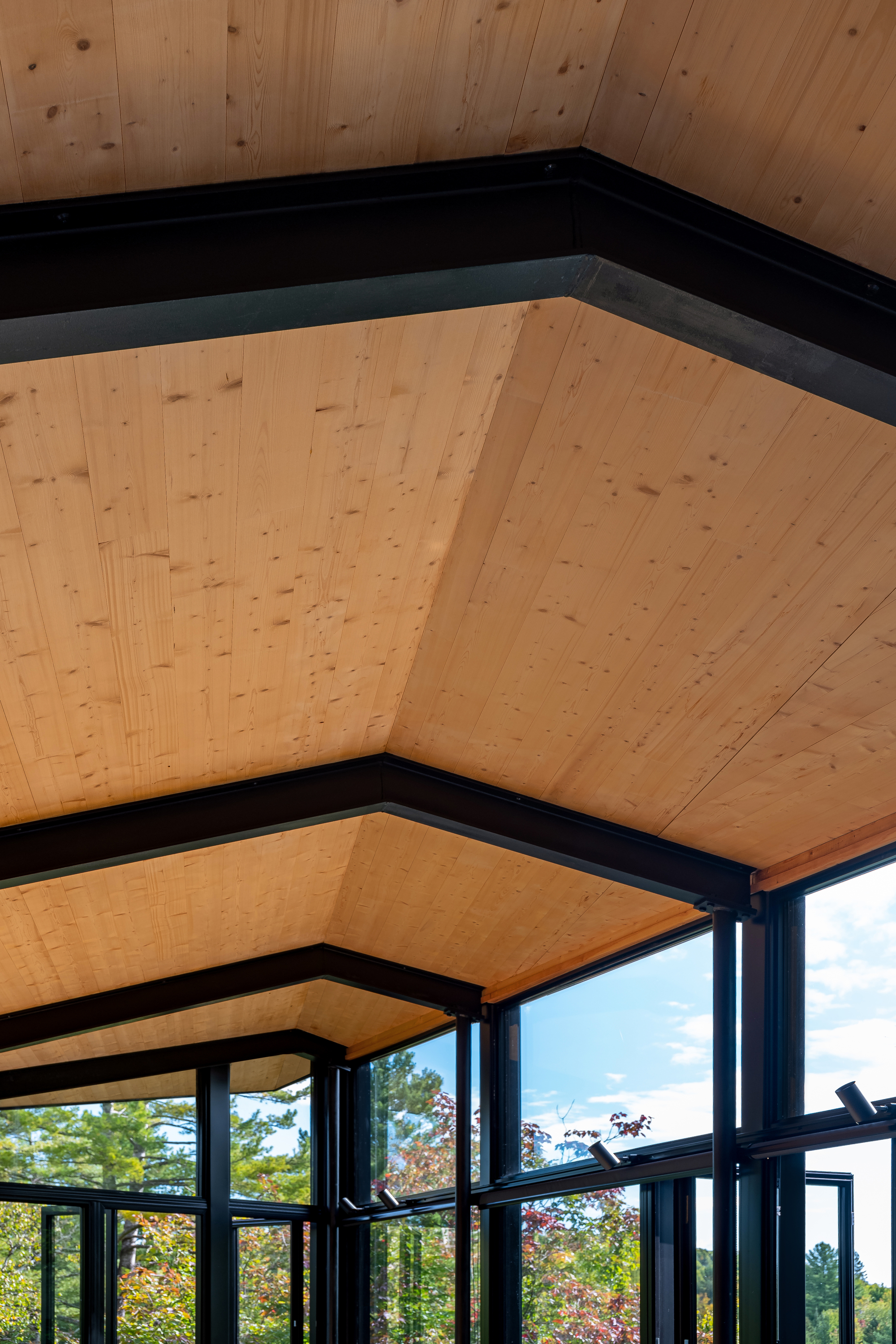

Cabin-as-Beam. m.o.r.e. Cabin’s environmental considerations yielded structural innovation. Our challenge became to develop a structural strategy using cantilevered CLT panels as a response to the zoning variance that we obtained; CLT is fundamentally deployed in vertical/compressive sections, not horizontally in tension. Conventional 5-ply CLT is too heavy to support itself over longer spans. The solution used thinner 3-ply CLT, with structural capacity ensured through “folding” (just like paper gains strength when folded).

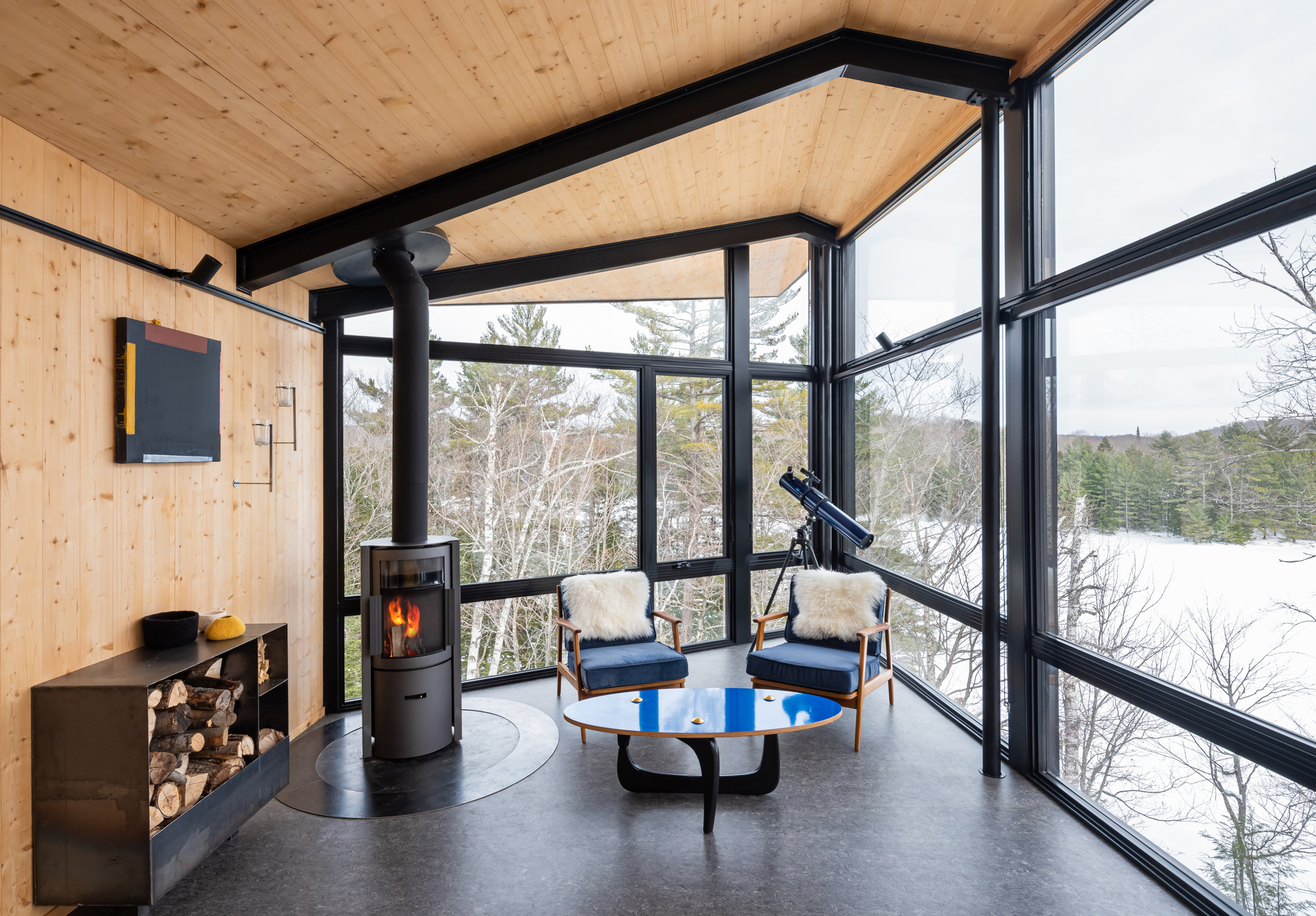

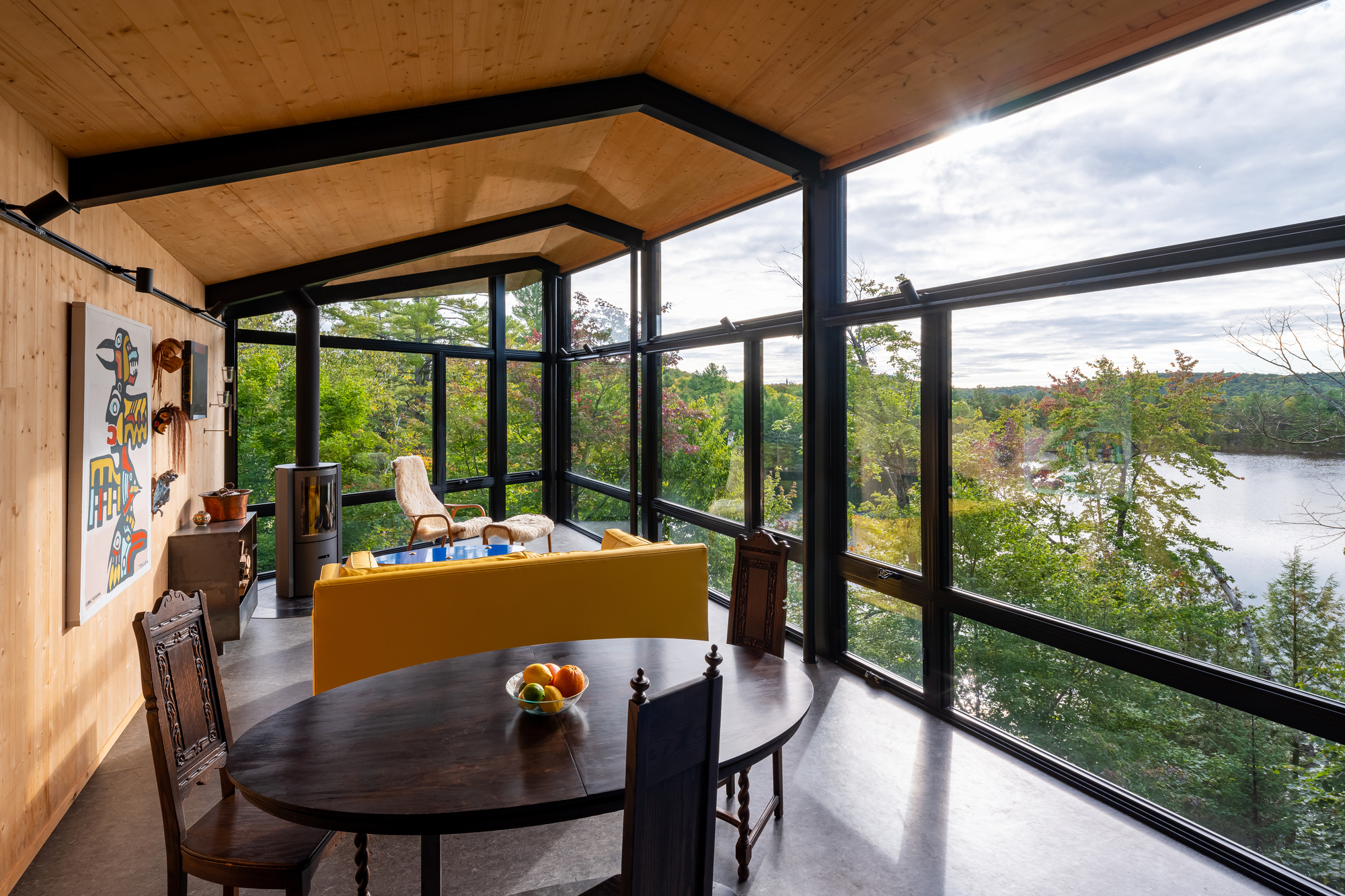

Off-Grid. The home is solar-powered. The elevated cottage catches more breezes and has excellent cross-ventilation. Heat is provided by a high-efficiency “green carbon” wood stove. Good R-value and thermal comfort are provided by CLT’s mass, and precise joinery provides air-tightness. Inviting Over the Neighbours. One goal of the home was to create extensive lodging for endangered brown bats. Bat pods were integrated into the mast to provide safety from climbing predators and a clear flight path to the lake. *“m.o.r.e.” stands for the clients’ grandmothers’ names; all of whom did more with less — and gracefully so.

Project gallery

Project location

Address:Wakefield, Quebec, Quebec J0X 3G0, Canada
