Casamia 社区住宅丨越南丨VTN Architects

Architects:VTN Architects

Area:1600m²

Year:2021

Photographs:Hiroyuki Oki

Bamboo Contractor:VTN Architects

Principle Architect:Vo Trong Nghia, Nguyen Tat Dat

Design Team:Nguyen Cong Hoan, Ha Nguyen Nhan, Nguyen Hai Dang

City:Hội An

Country:Vietnam

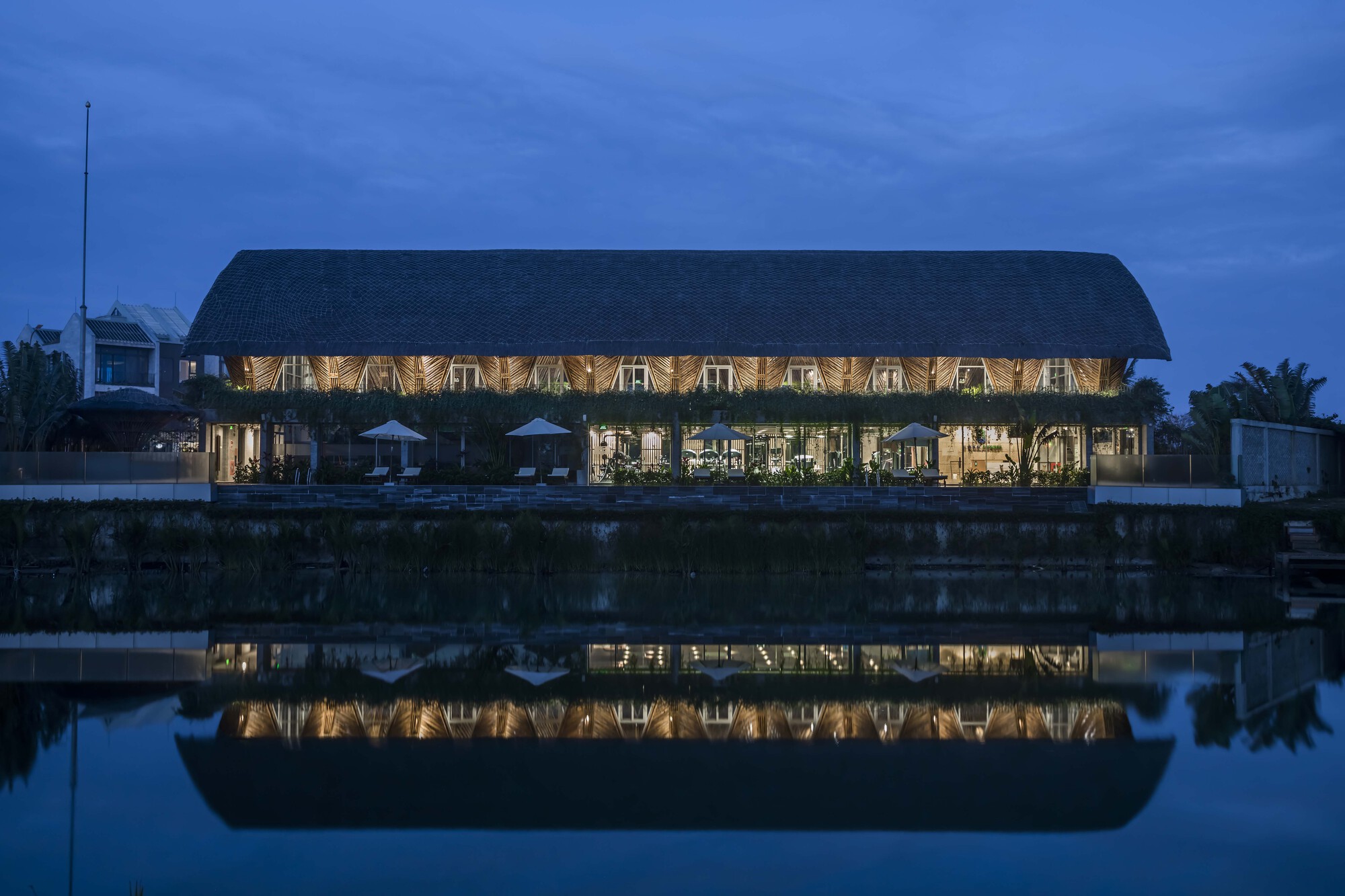

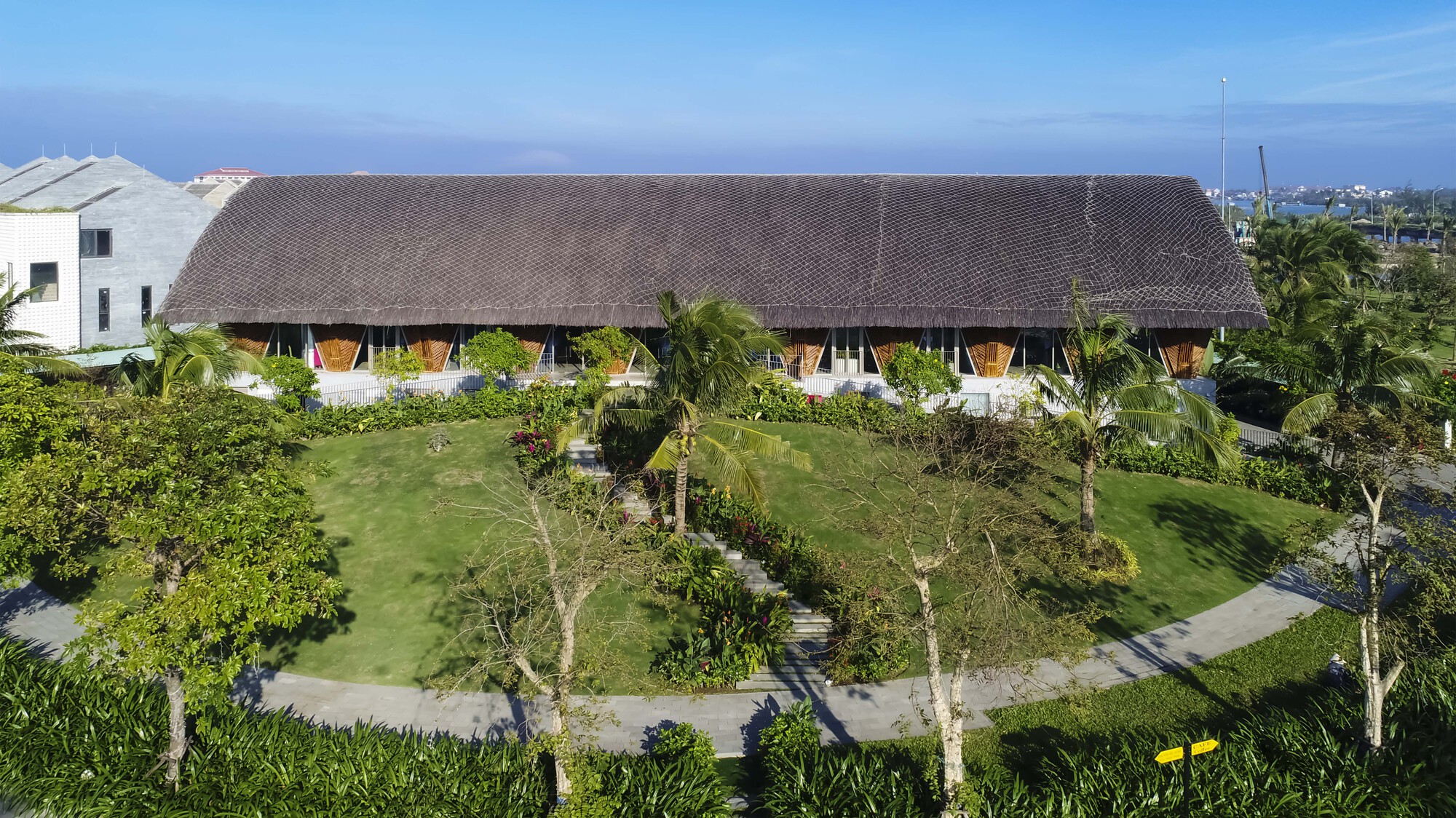

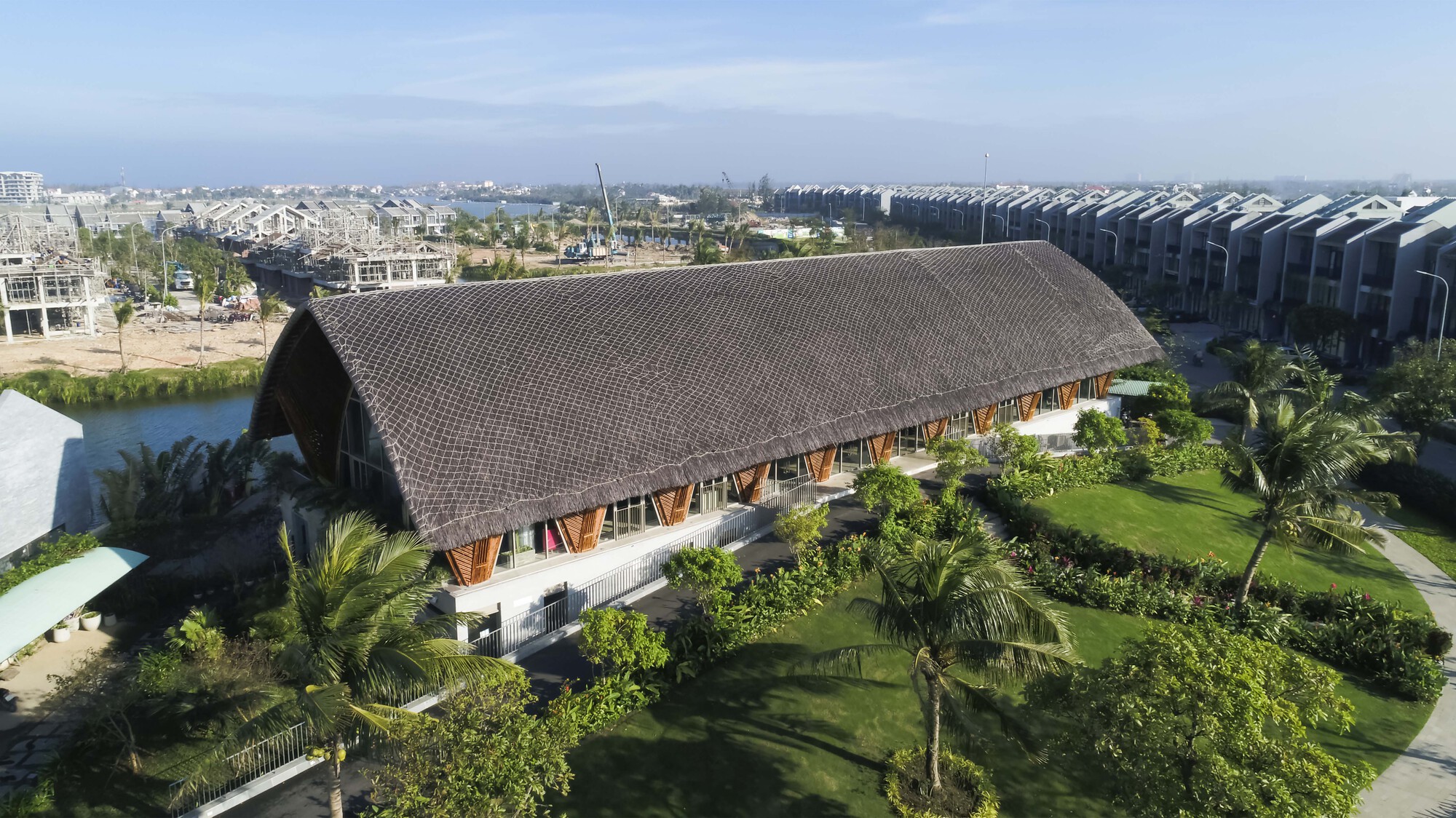

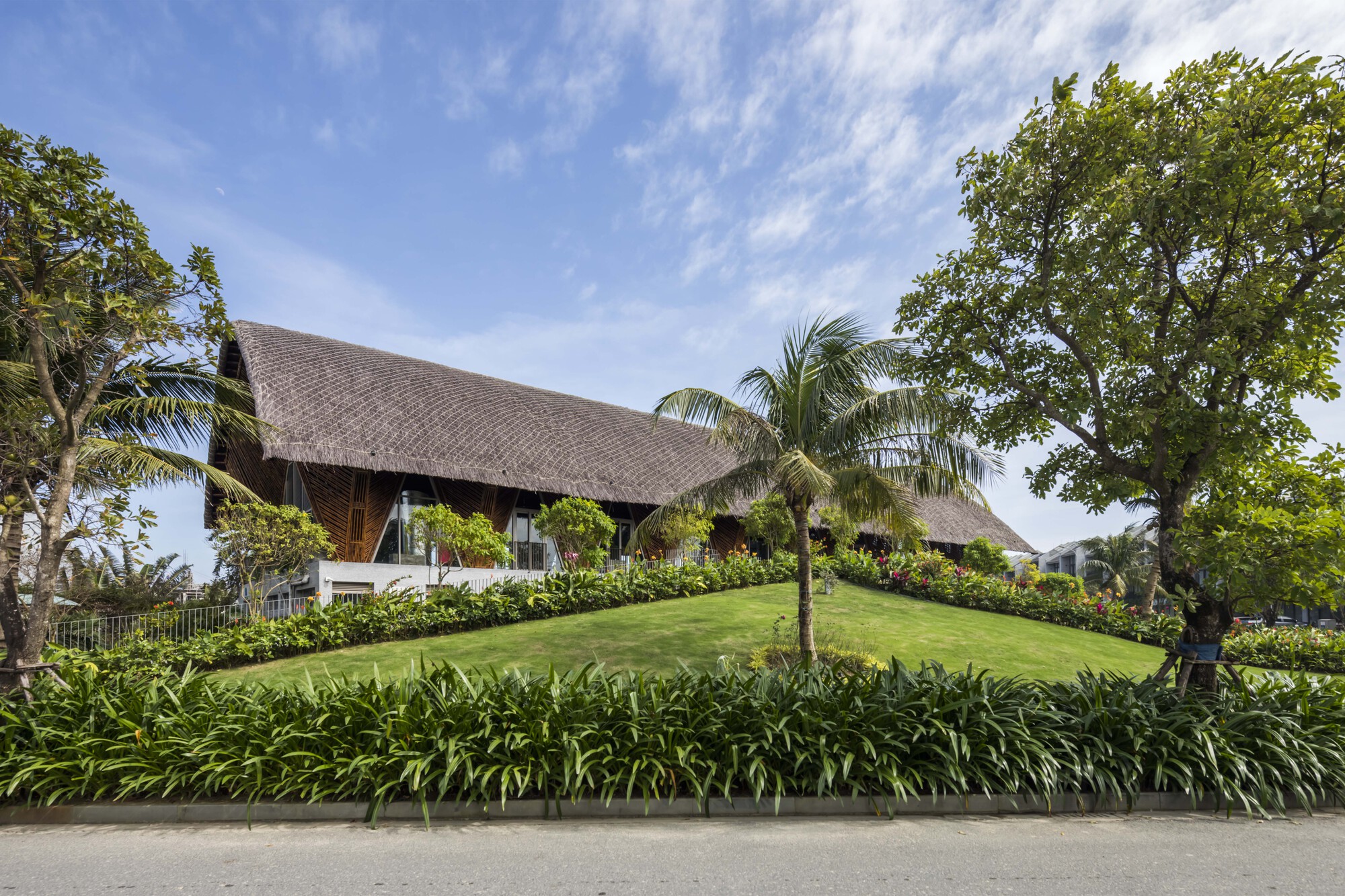

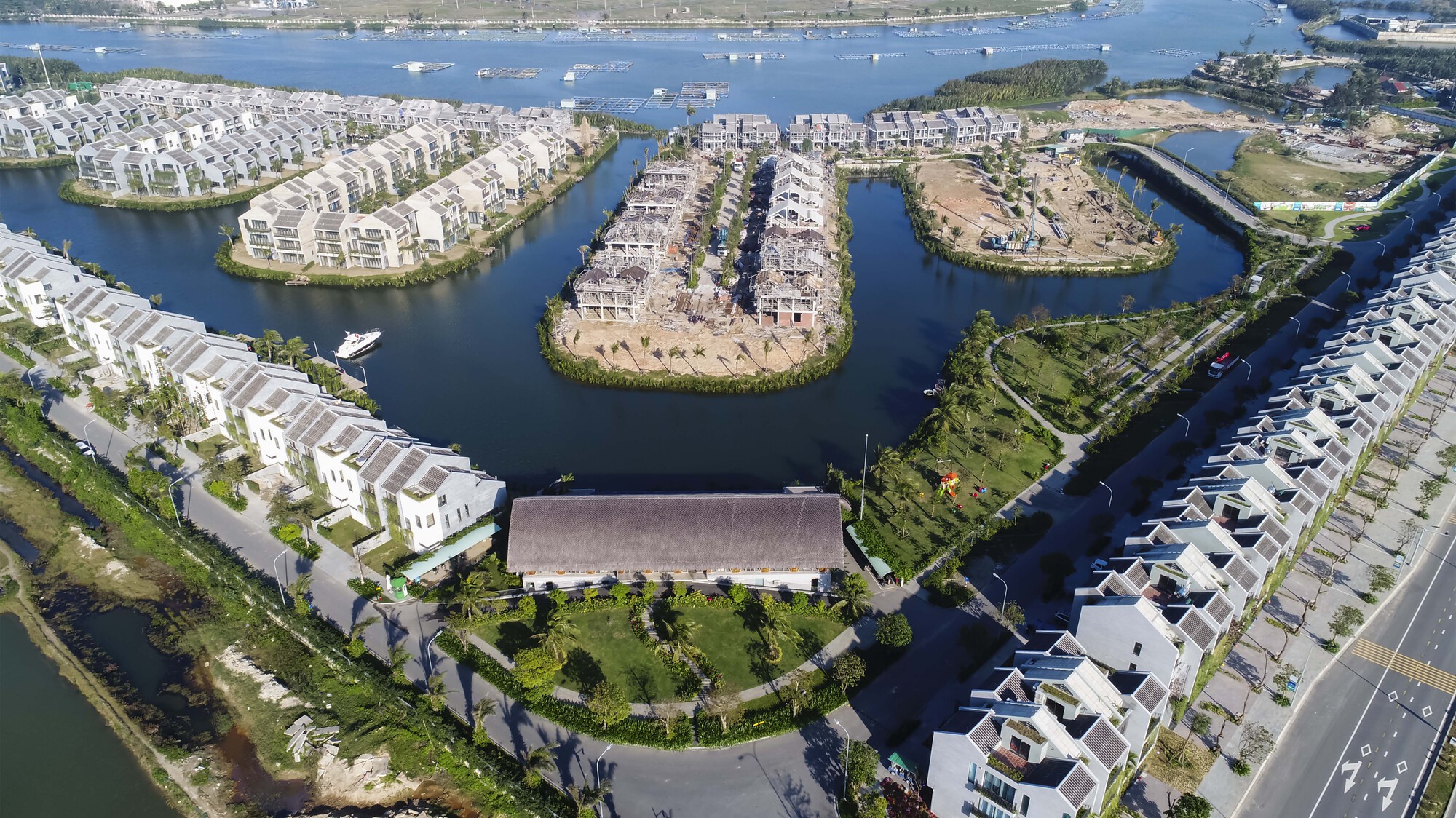

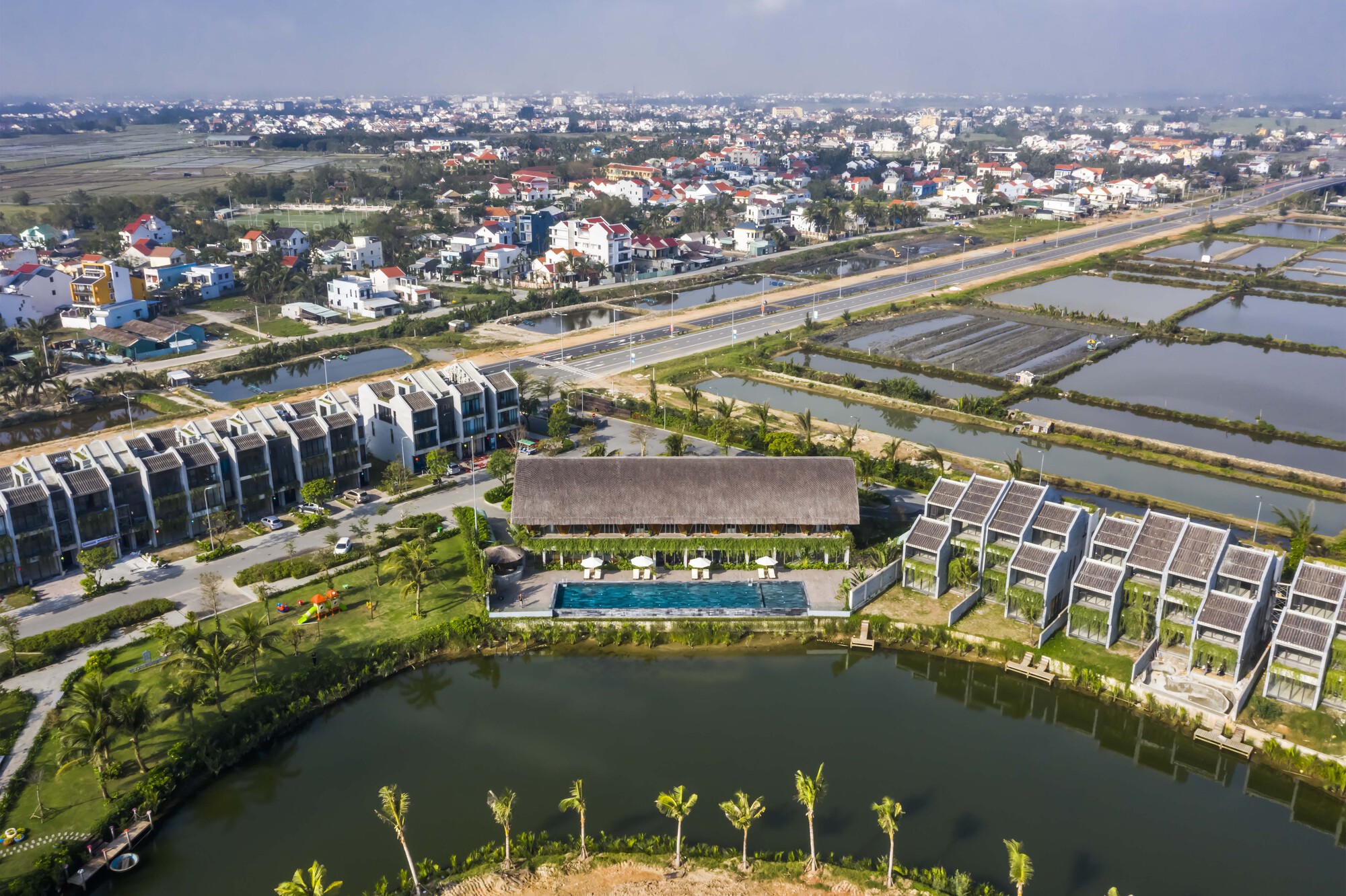

Text description provided by the architects. Casamia Community house is located in Cam Thanh, Hoi An city. Inspired by the image of nipa palms from Cam Thanh, the building is erected from bamboo- a material familiar to Vietnamese culture. It is located at the end of a river and gets a lot of wind. Although the building is covered by a lot of greenery, natural sunlight can still get in.

Using bamboo as the main material for this building brings many advantages. Bamboo structures have many layers of woven bamboo elements, making them efficient for acoustic absorption. This cheap construction allows social interaction inside the building. Moreover, the thatch roof also contributes to absorbing acoustics.

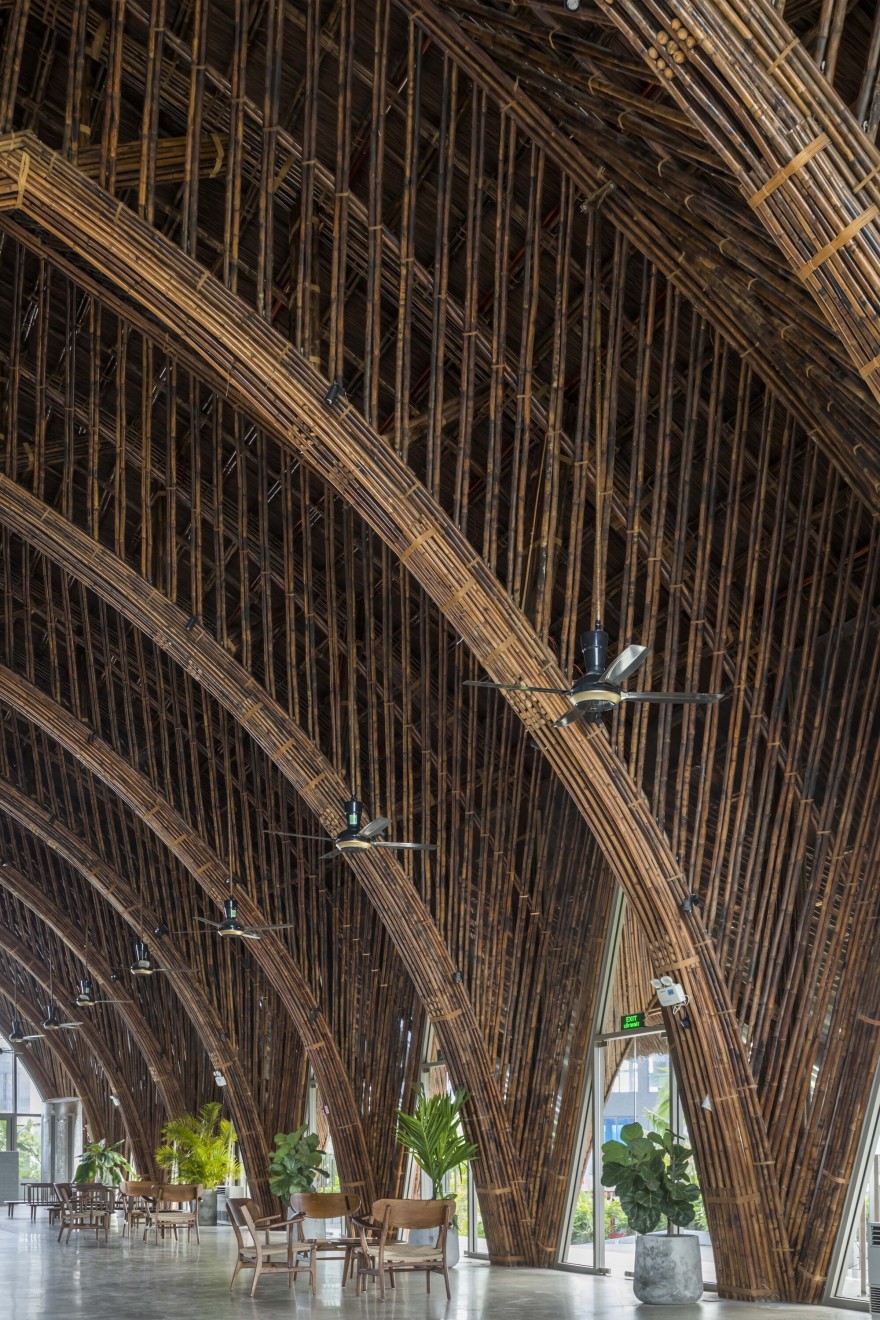

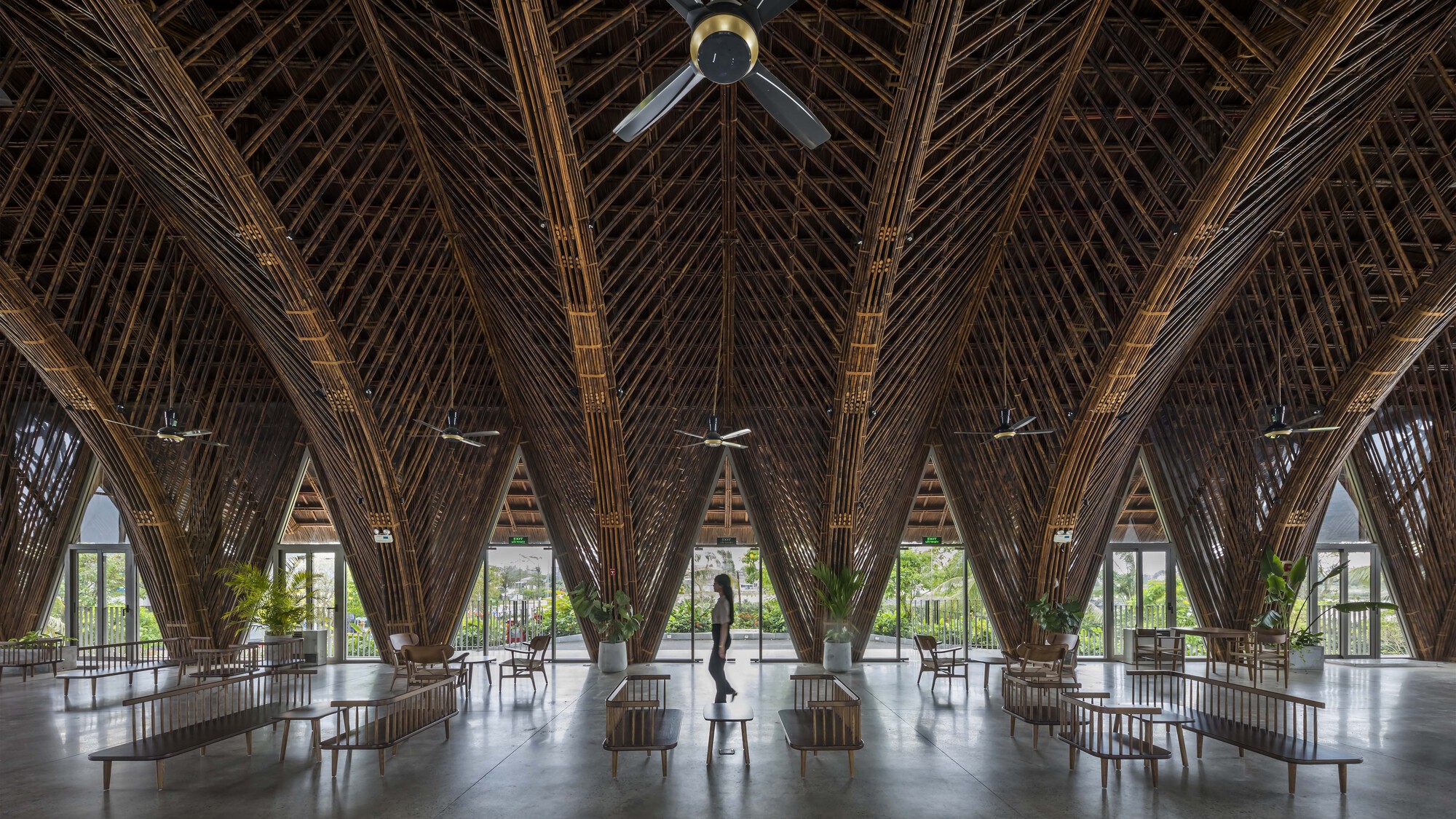

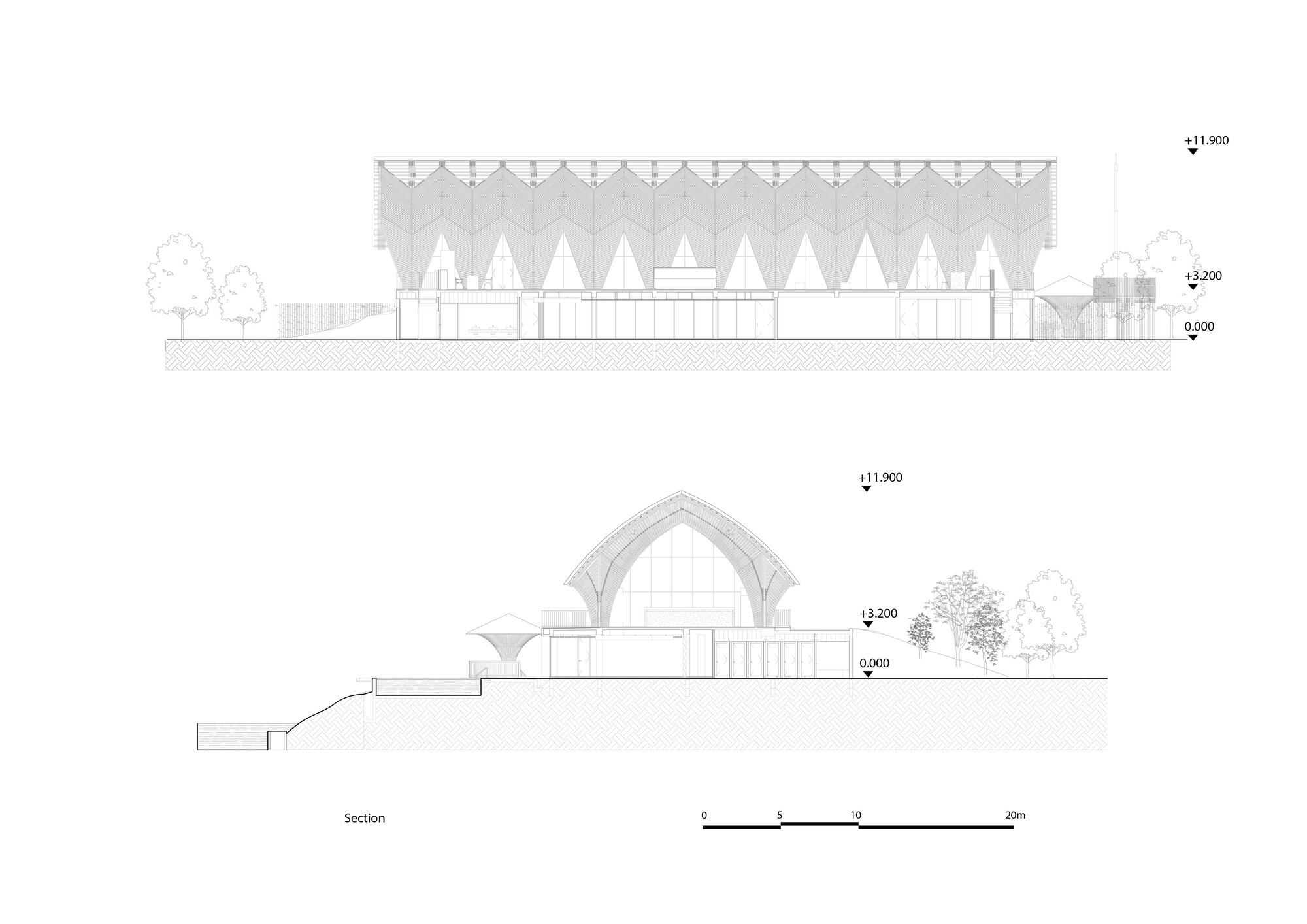

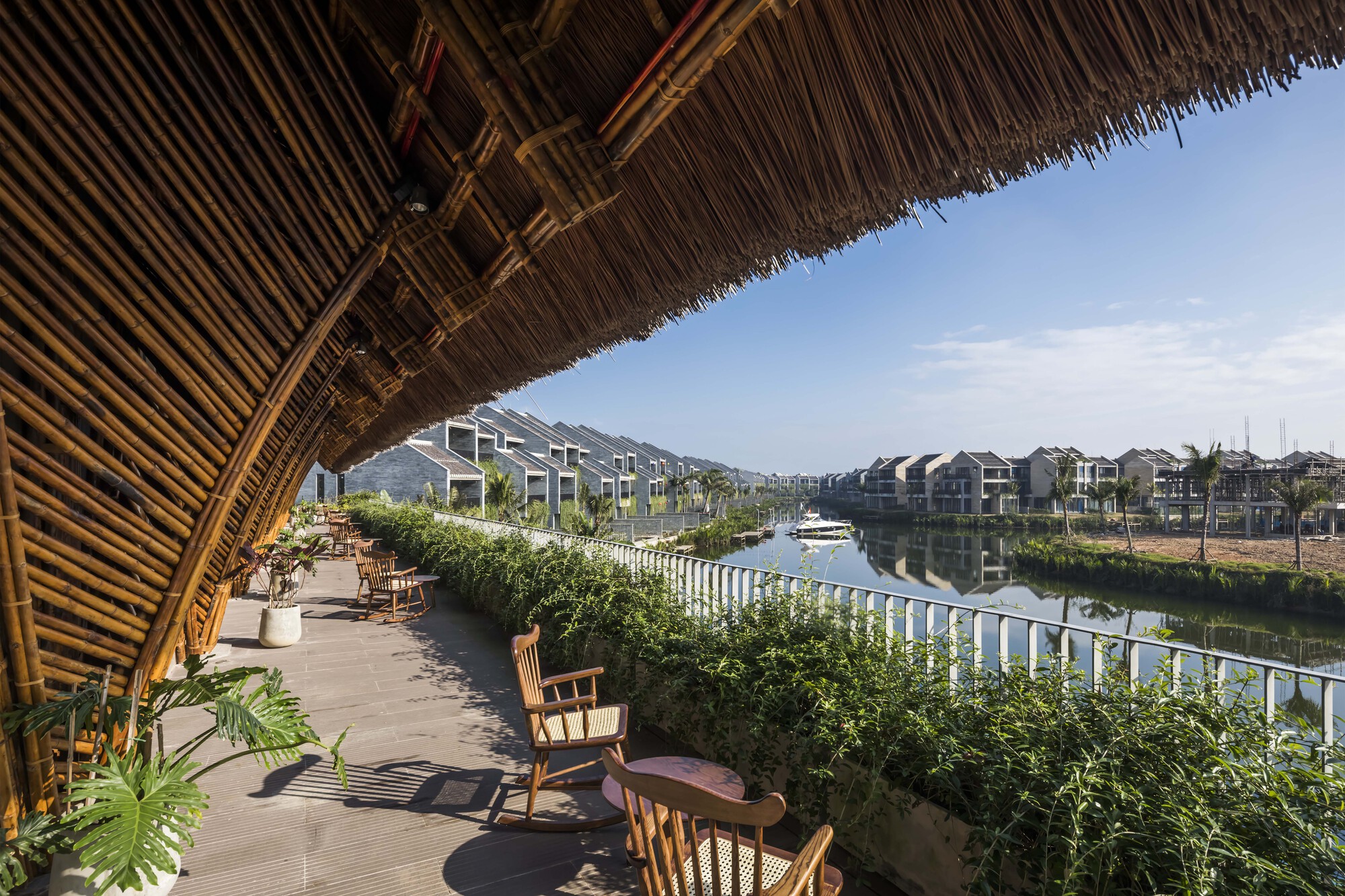

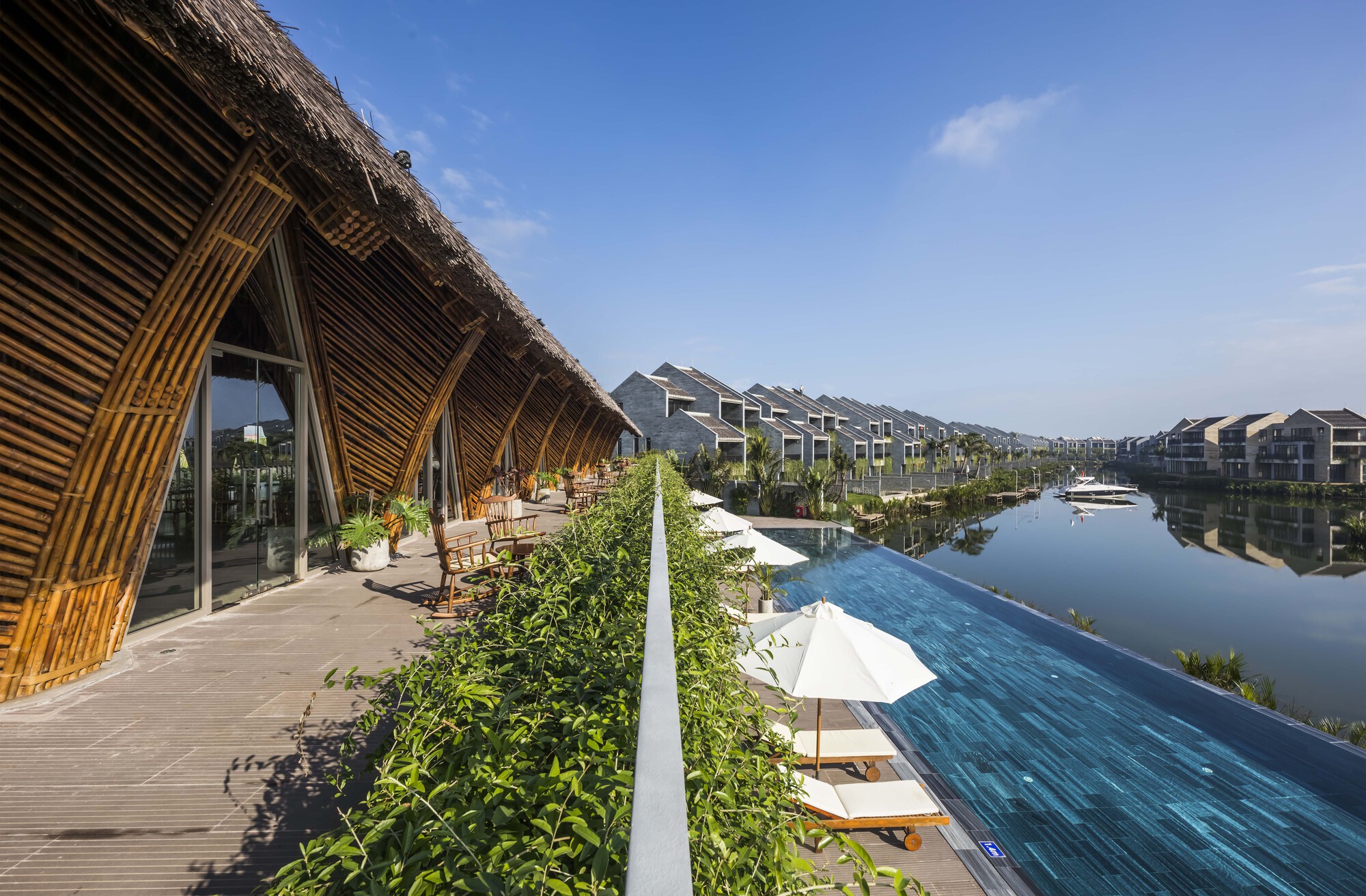

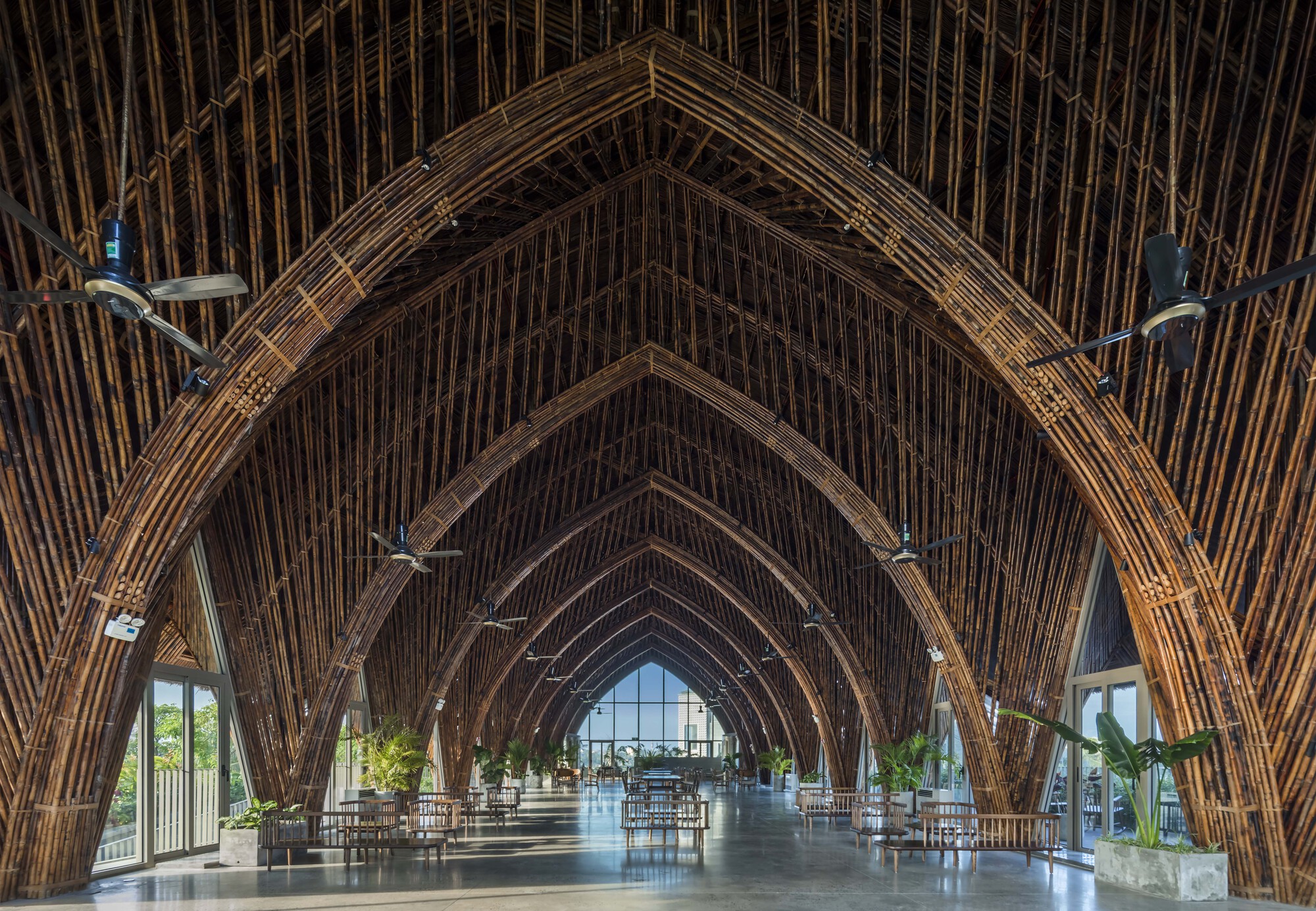

The hybrid bamboo structure consists of 22 arch frames of columns and trusses combined with bracing. This structure is almost 9m high and placed on a concrete plinth.

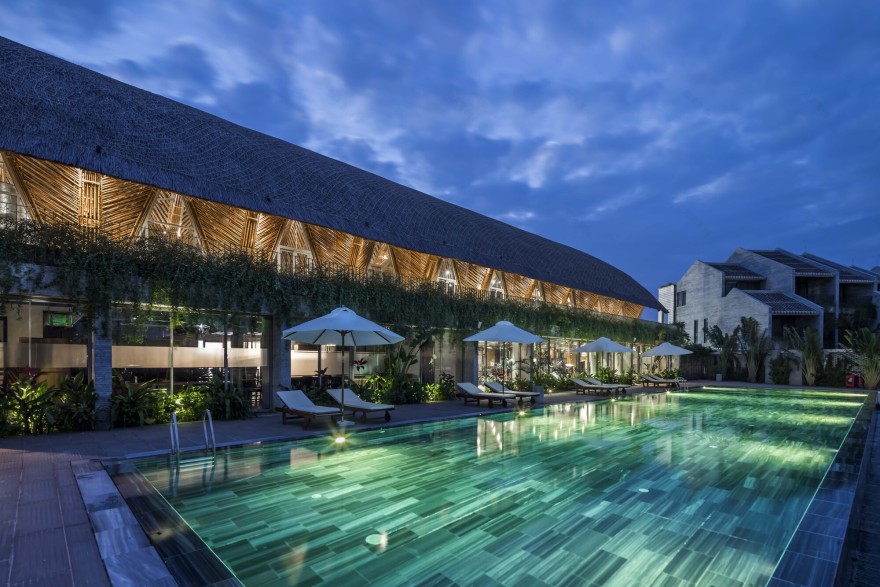

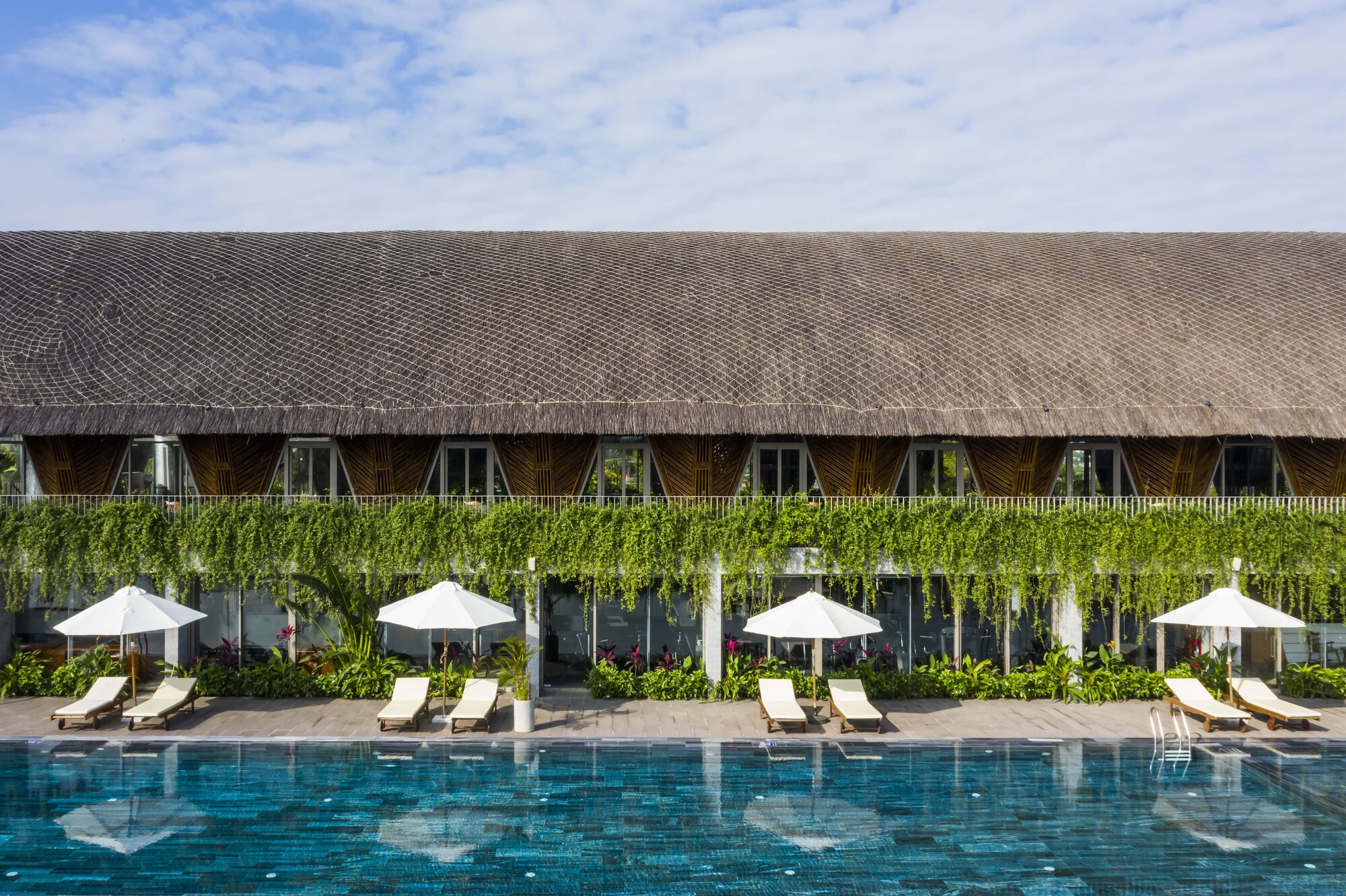

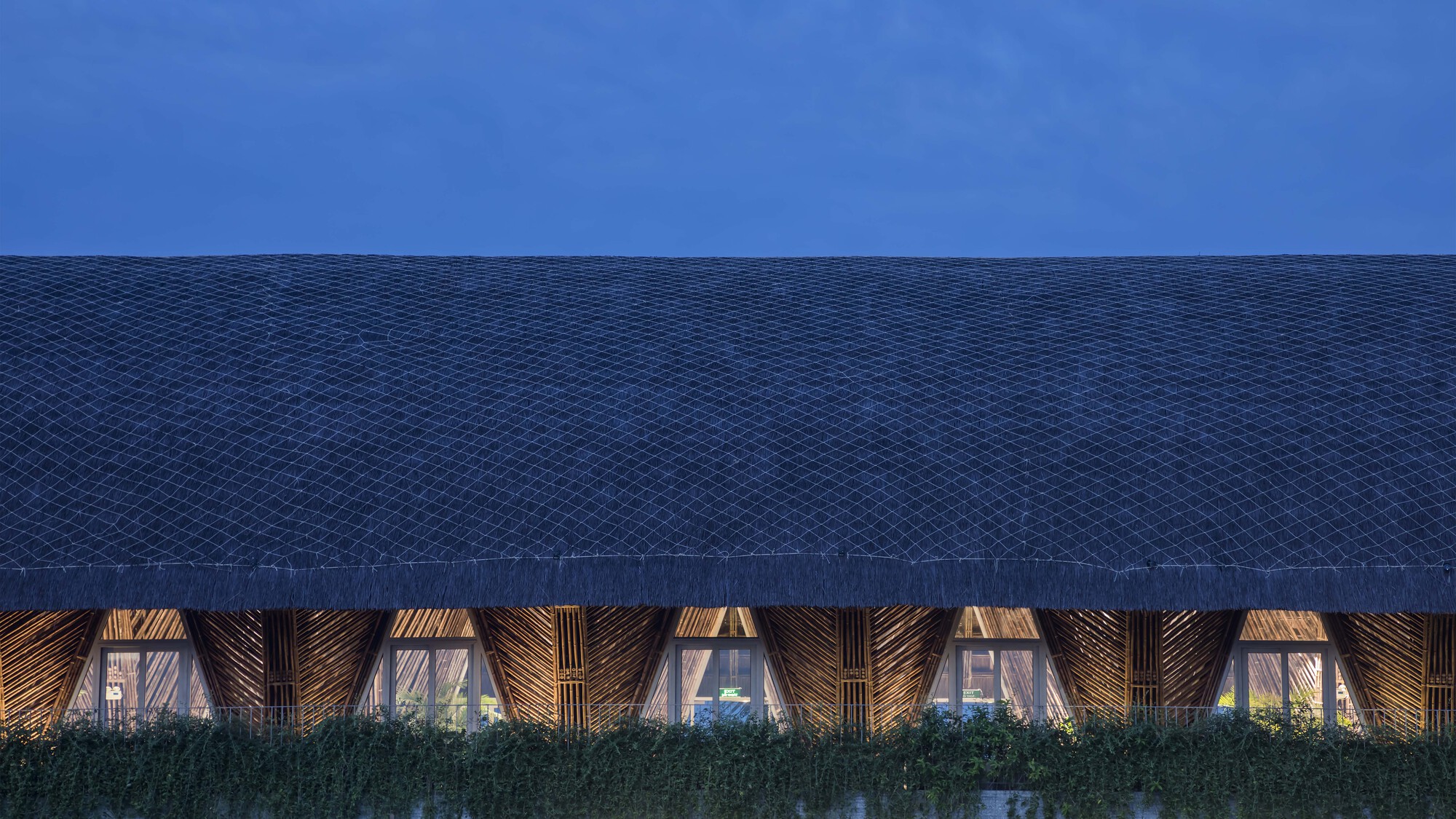

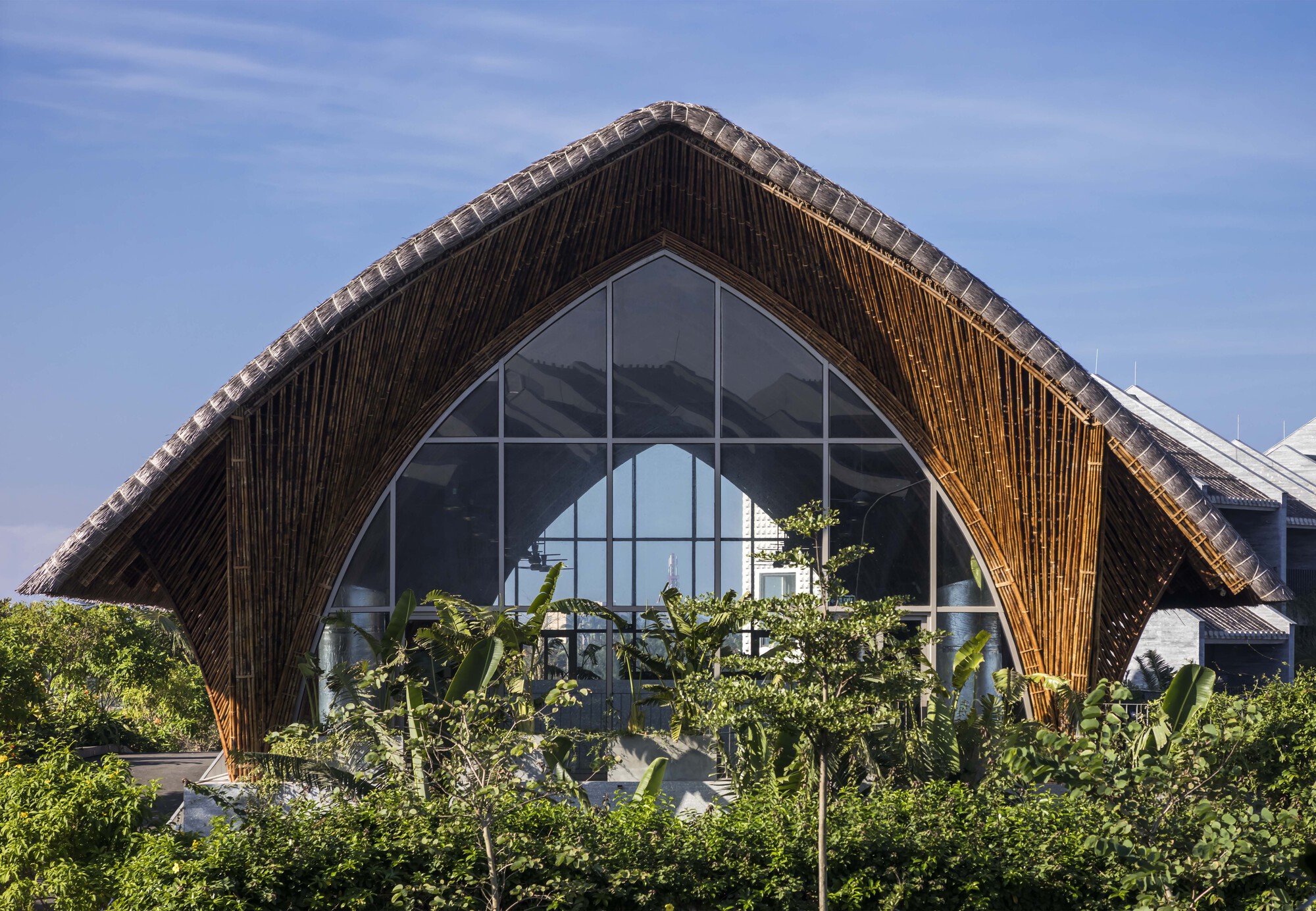

The typical vault structure illustrates the image of nipa palms. At the same time, it is suitable for a longer span. This structure also allows resisting horizontal forces, which helps fighting occurring storms in Central Vietnam. Moreover, the thatch roof combined with a layer of wire netting helps to protect the interior from external natural forces. This building is an example of how to use natural materials to create durable structures, lasting hundreds of years. This is something VTN Architects wants to achieve when designing.

Project gallery

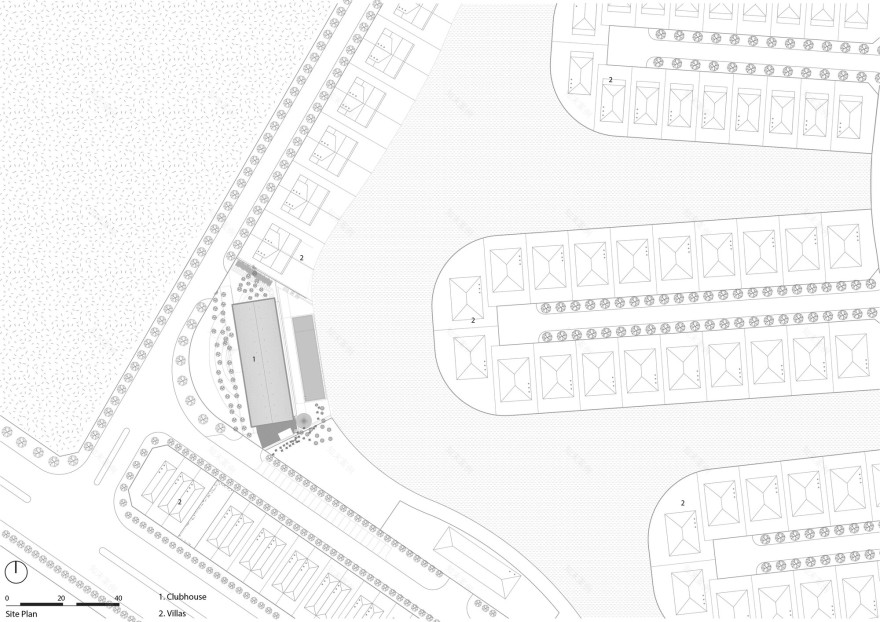

Project location

Address:Cẩm Thanh, Hội An, Quang Nam Province, Vietnam
