Wu·iang 自然学校服务中心丨中国南京丨Han Xiaofeng 设计工作室

Architects:Han Xiaofeng Design Studio, SEU-ARCH

Area:150m²

Year:2019

Photographs:Wenhan Shen,Qing Zhang,Yuxi Lin,Xiaofeng Han

Manufacturers:PowerWood,XuanYi,ZhengDa

Lead Architect:Xiaofeng Han

Landscape:Han Xiaofeng Design Studio

Design Team:Diego Puja, Haifei Zhou

Engineering:Haifei Zhou

Client:Lishui Business Travel group

Consultant:Nanjing Buyunxuan Building Technology Company

City:Nanjing

Country:China

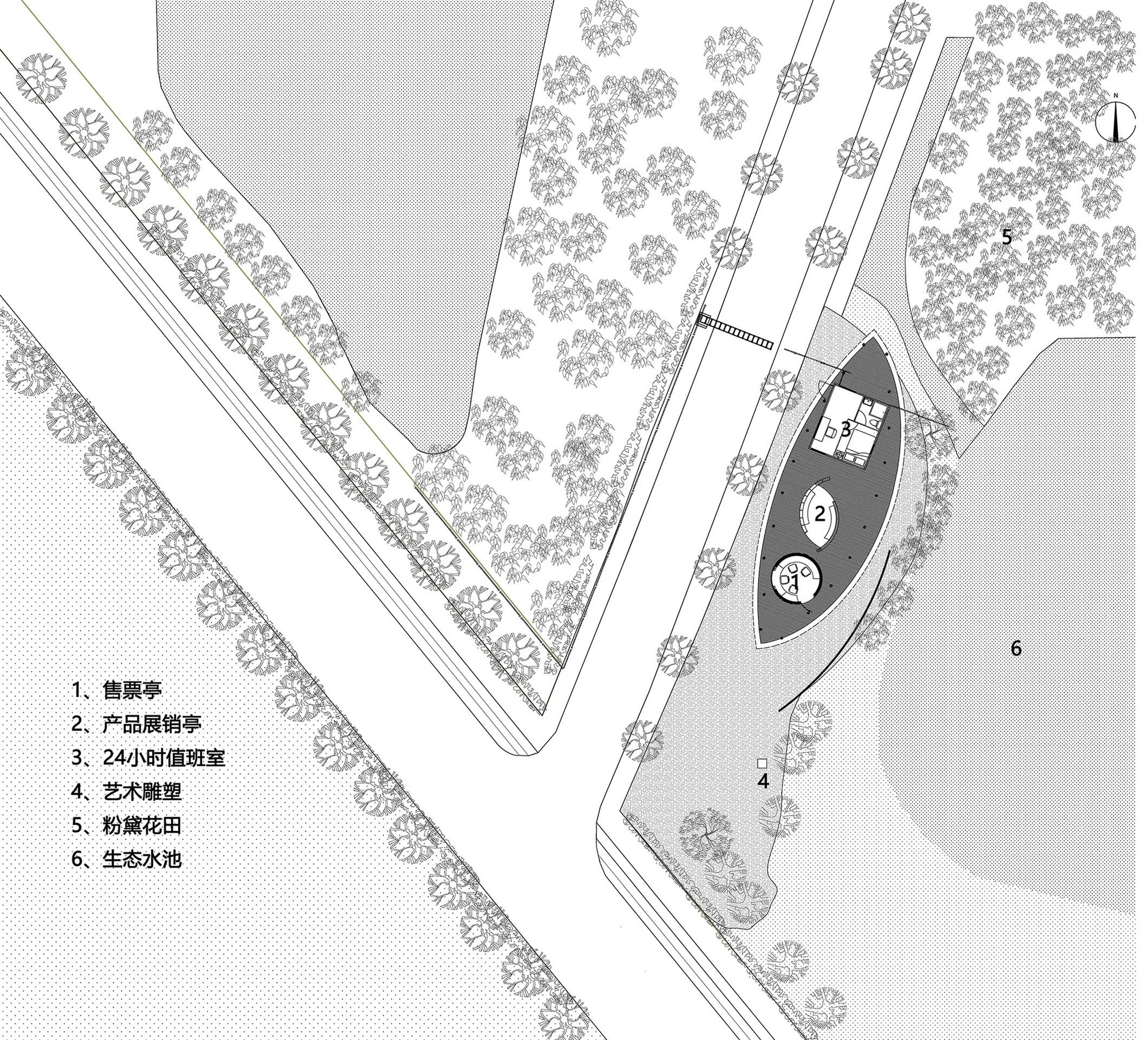

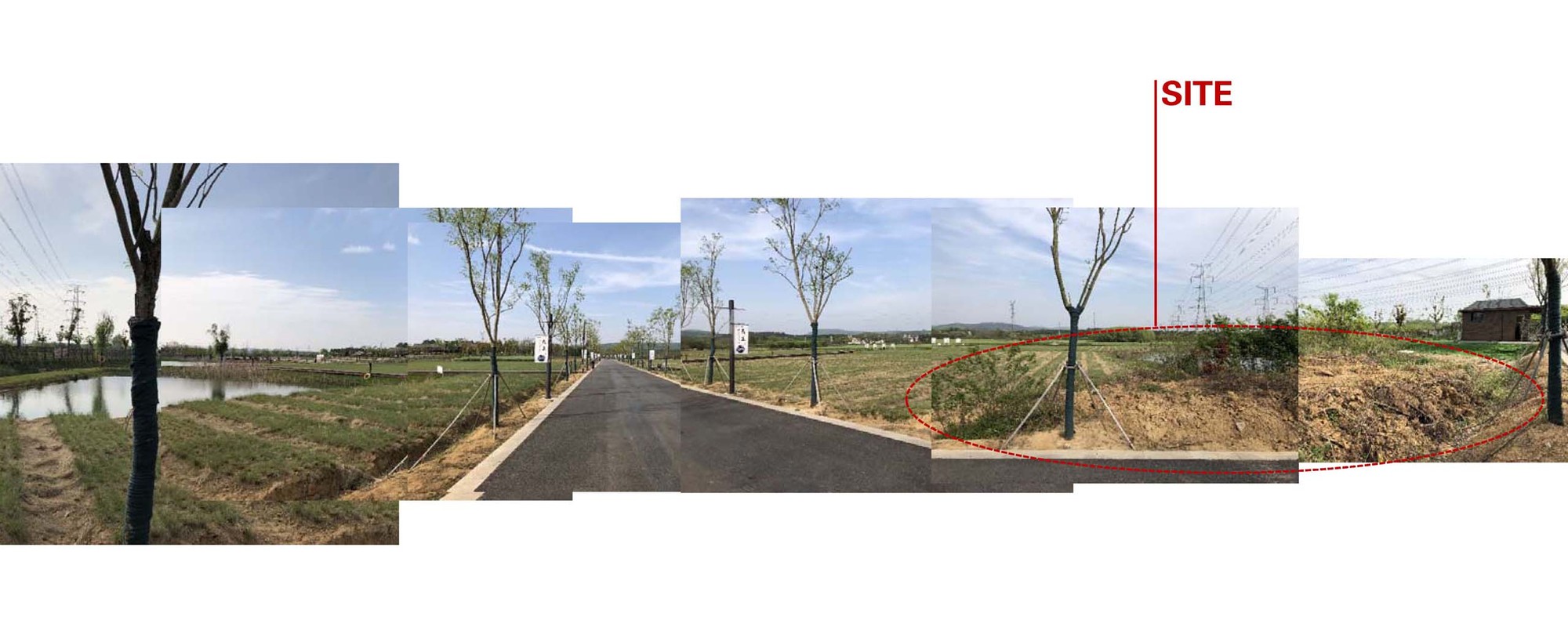

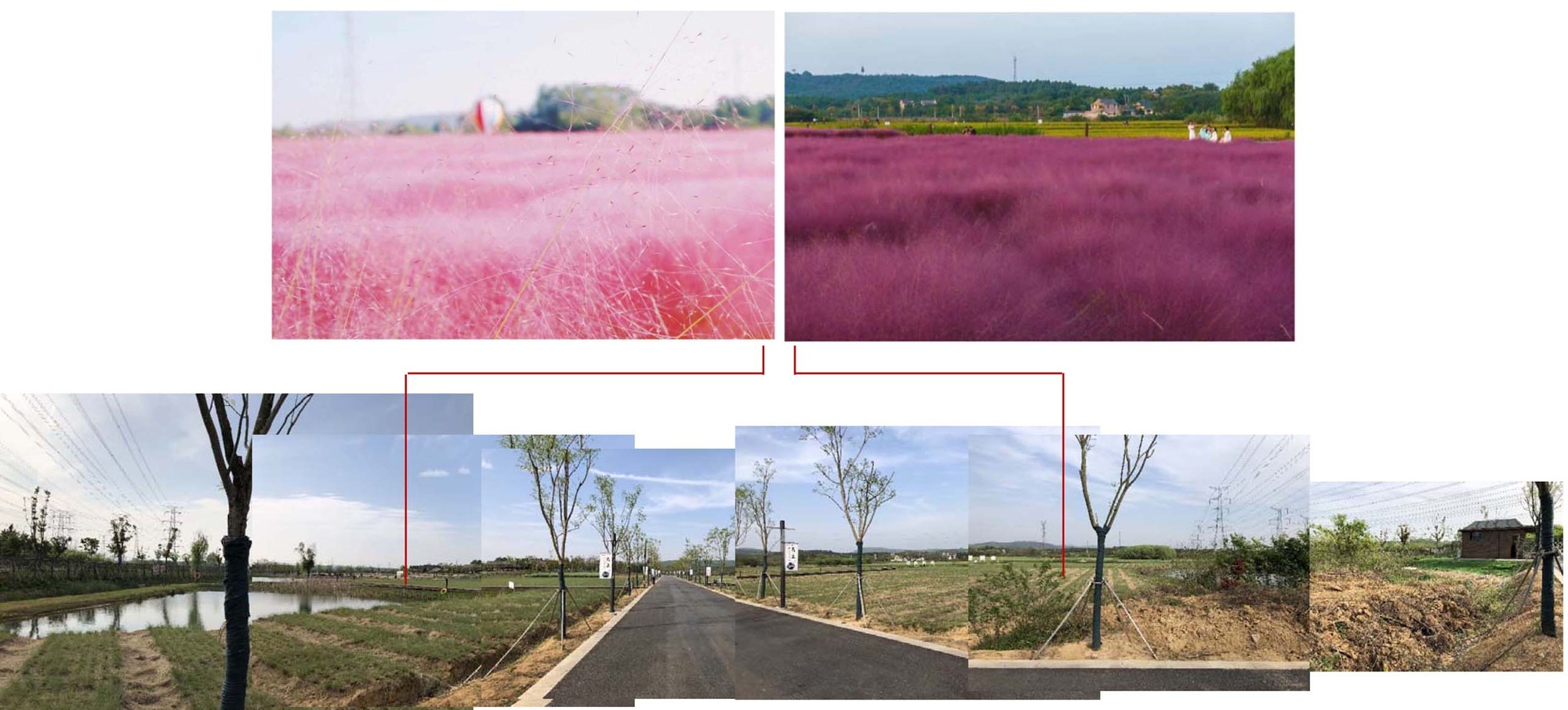

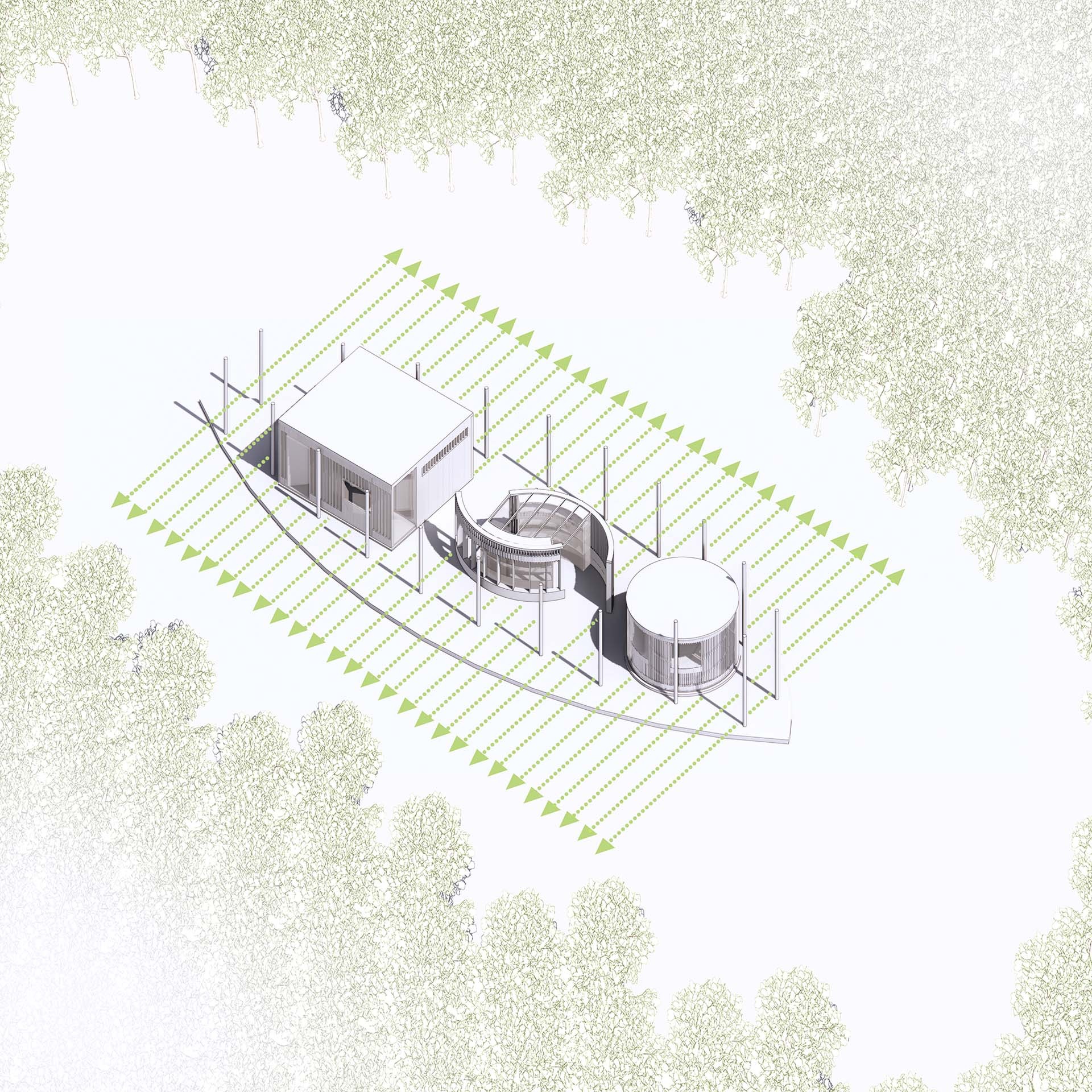

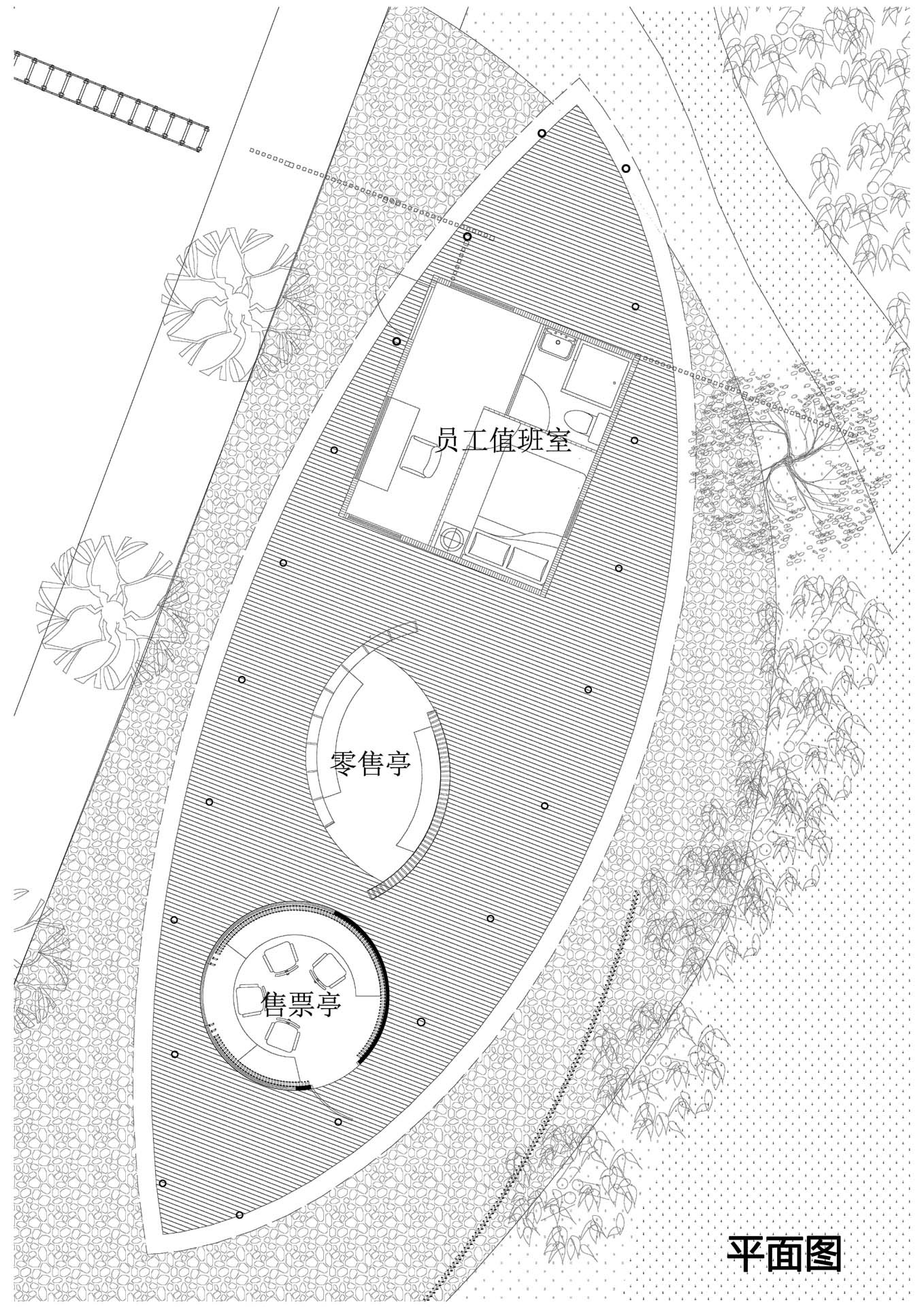

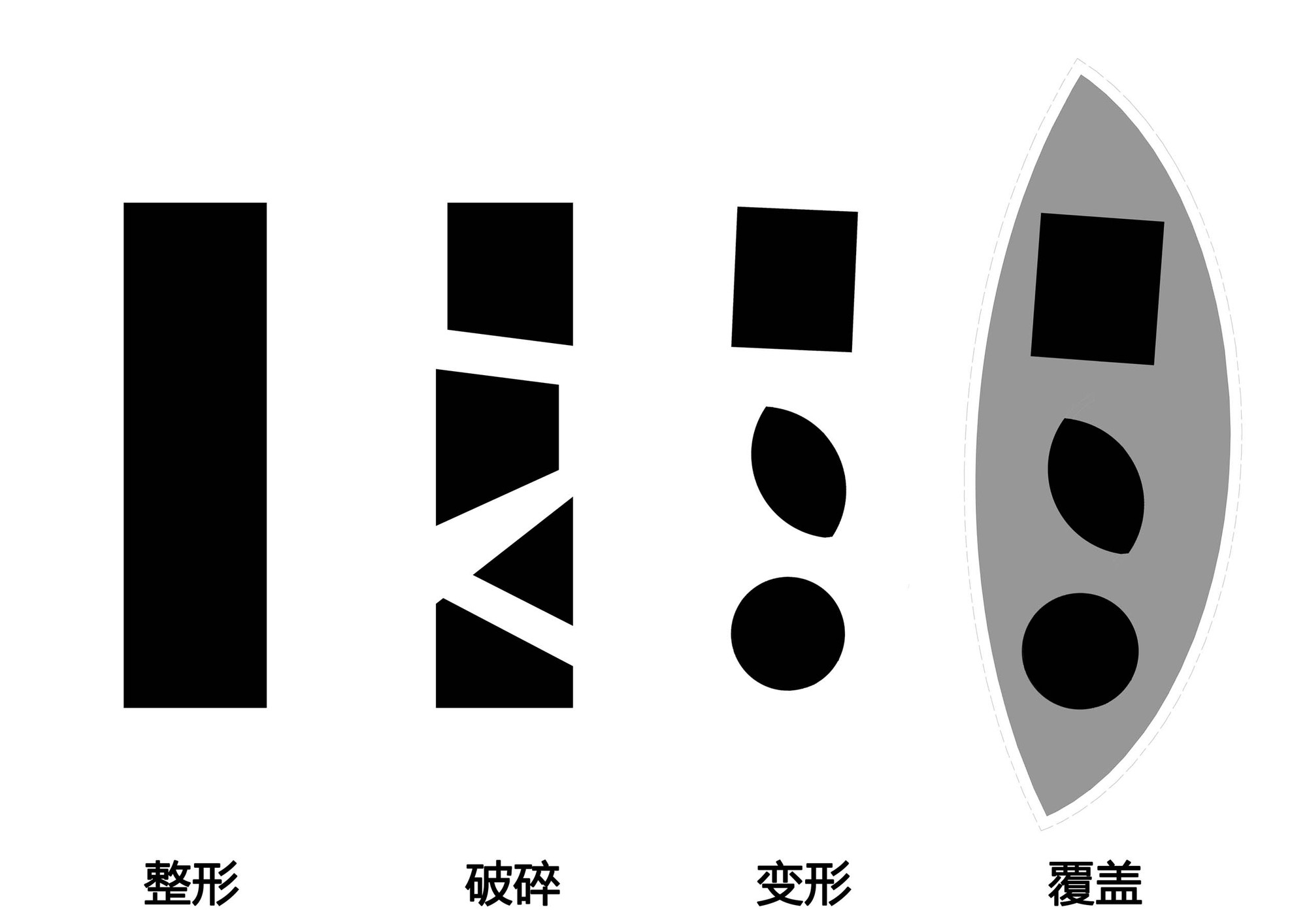

Text description provided by the architects. Wuxiang Nature School is located at the west-southern corner of the Wuxiang Mountain. This project is just at the entrance of this natural school. This building provides all the services to the people who want to enter the school. Beyond the very fundamental function, the design focus on the more complex design problem such as the landscape, material, construction technology, etc. We designed three small units which have one particular function.

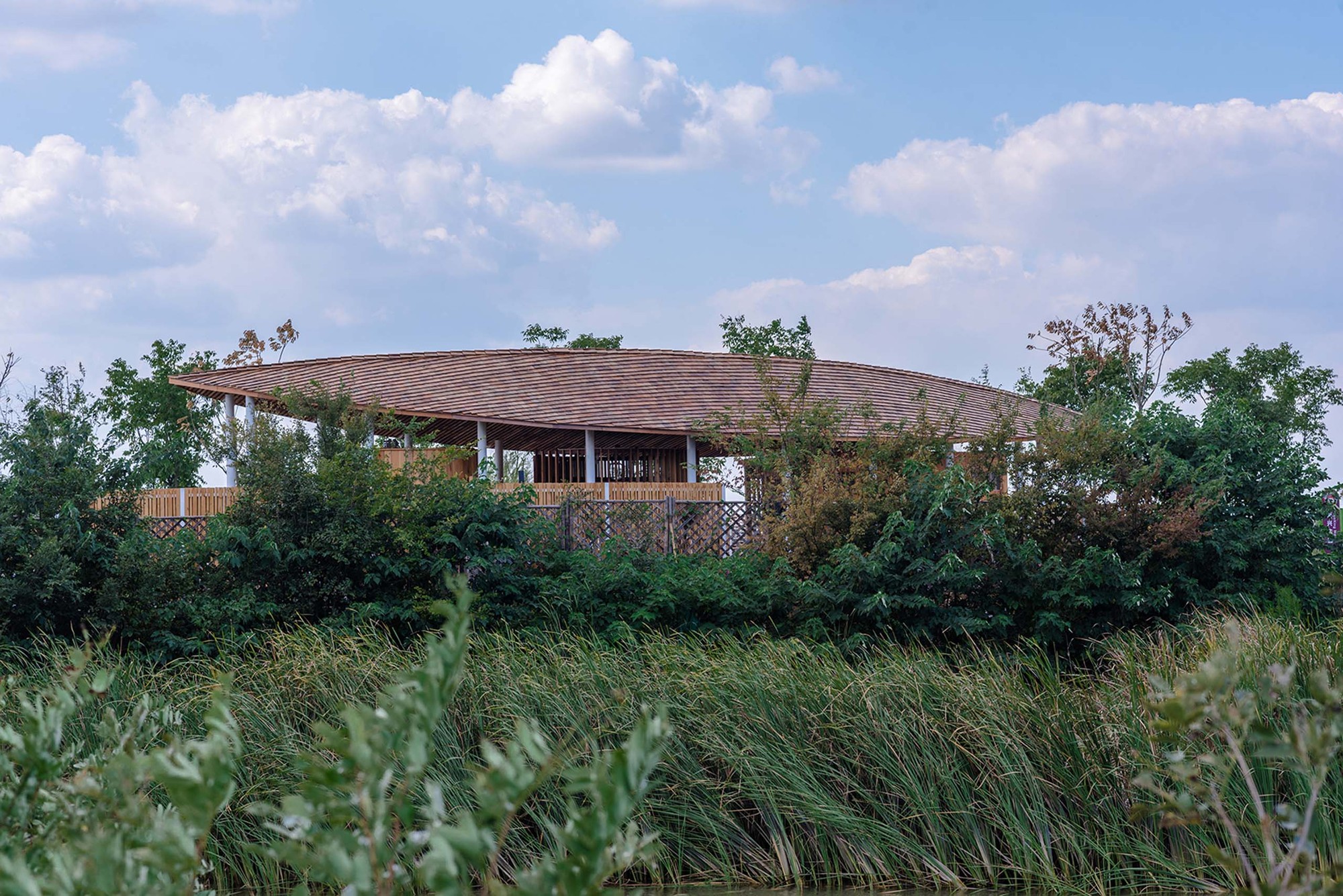

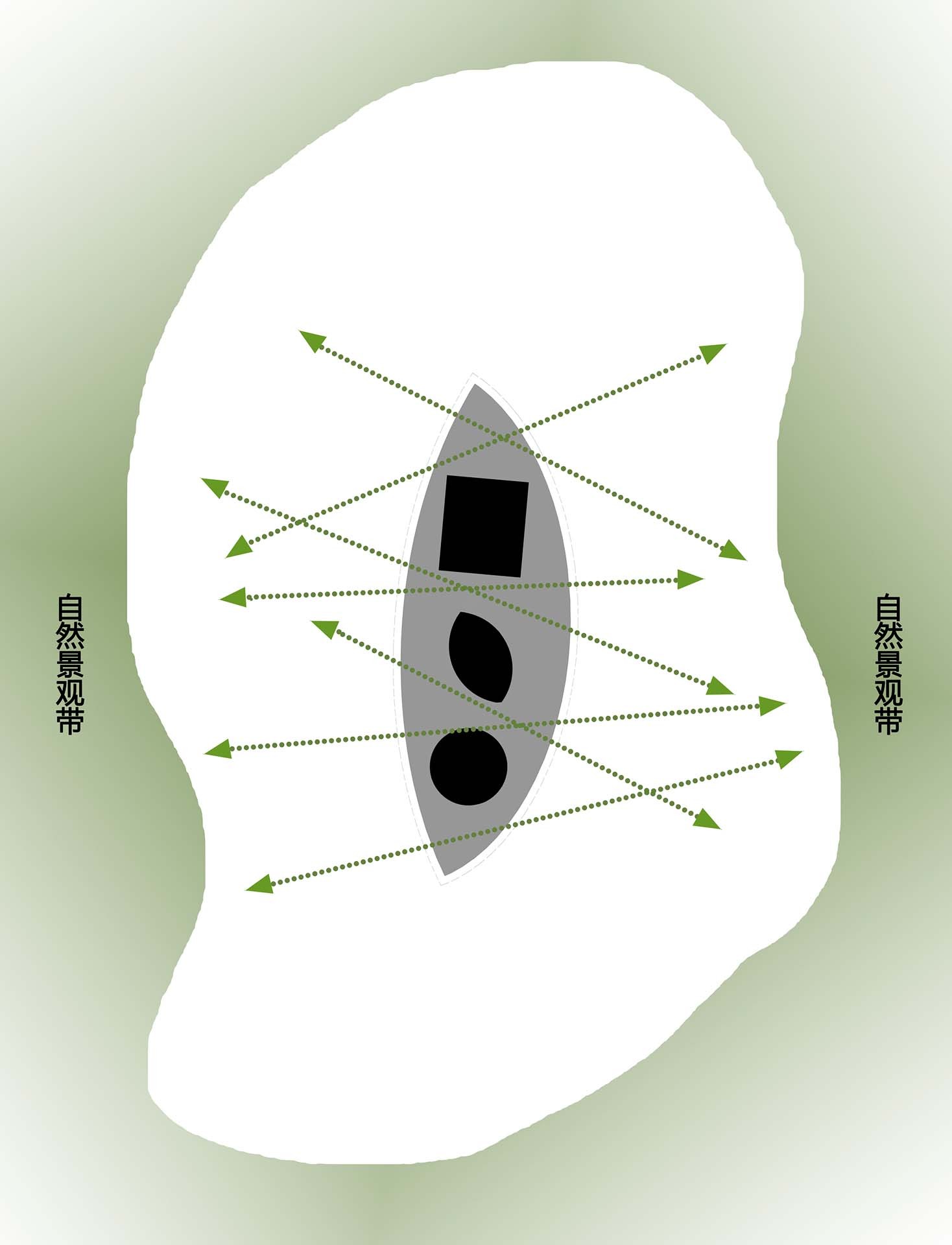

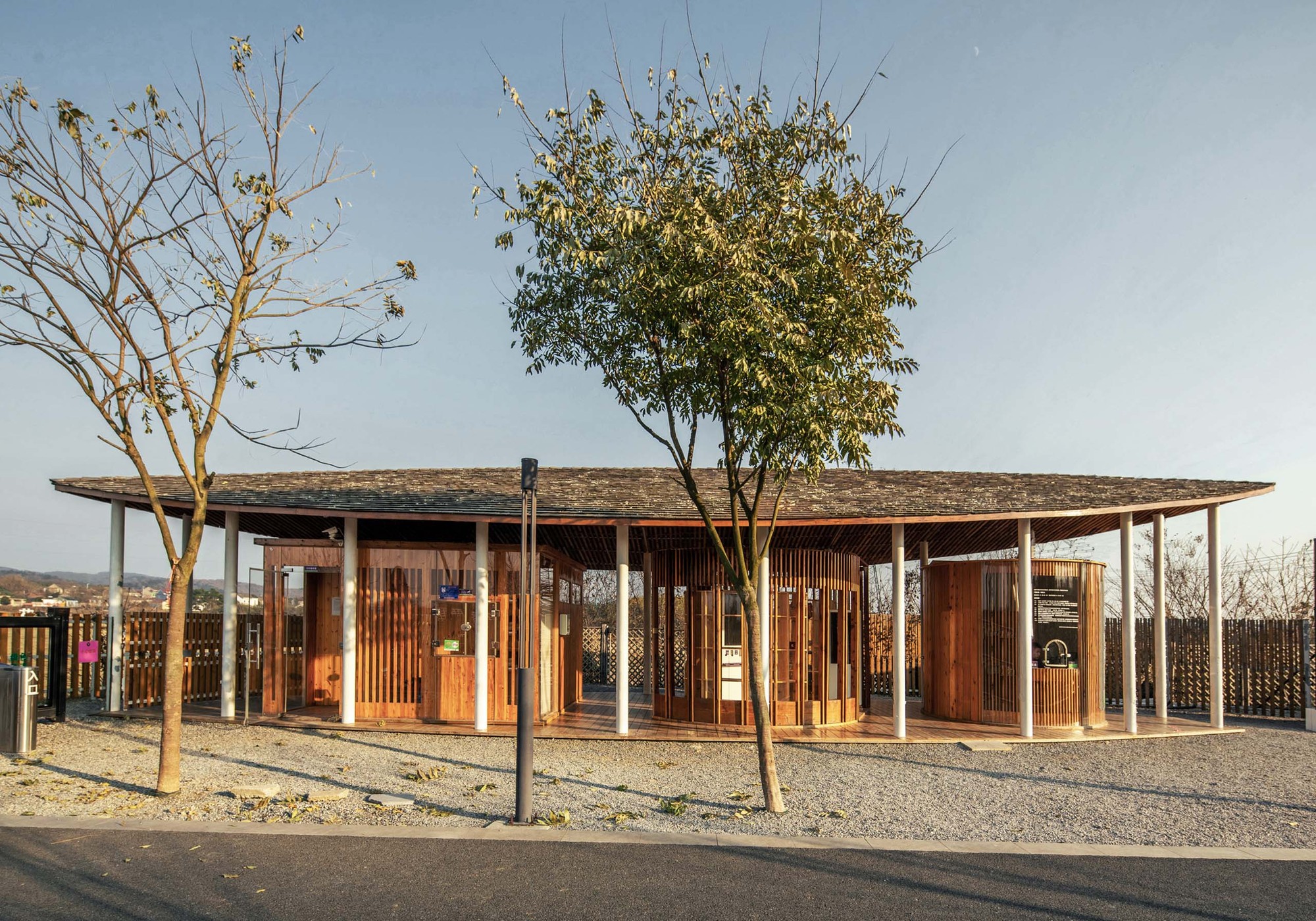

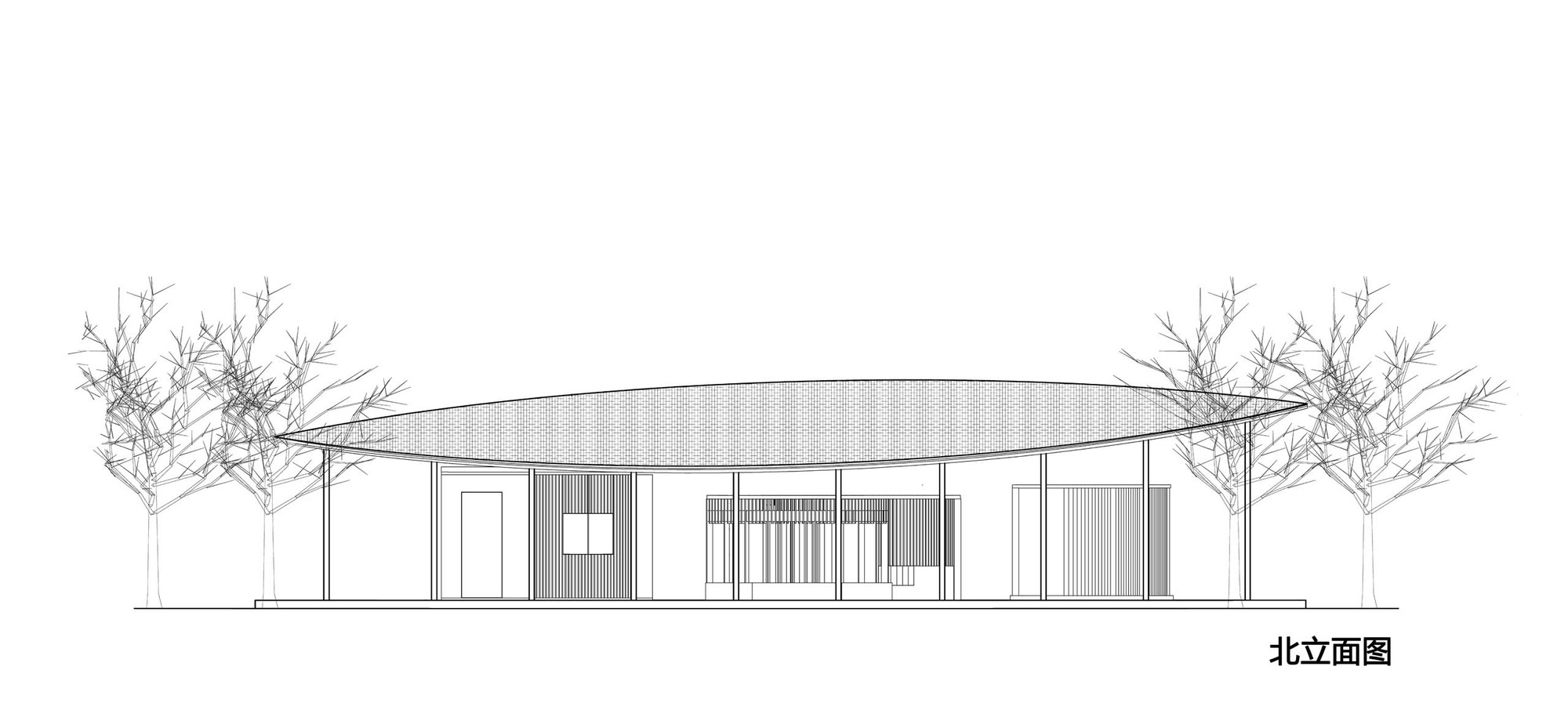

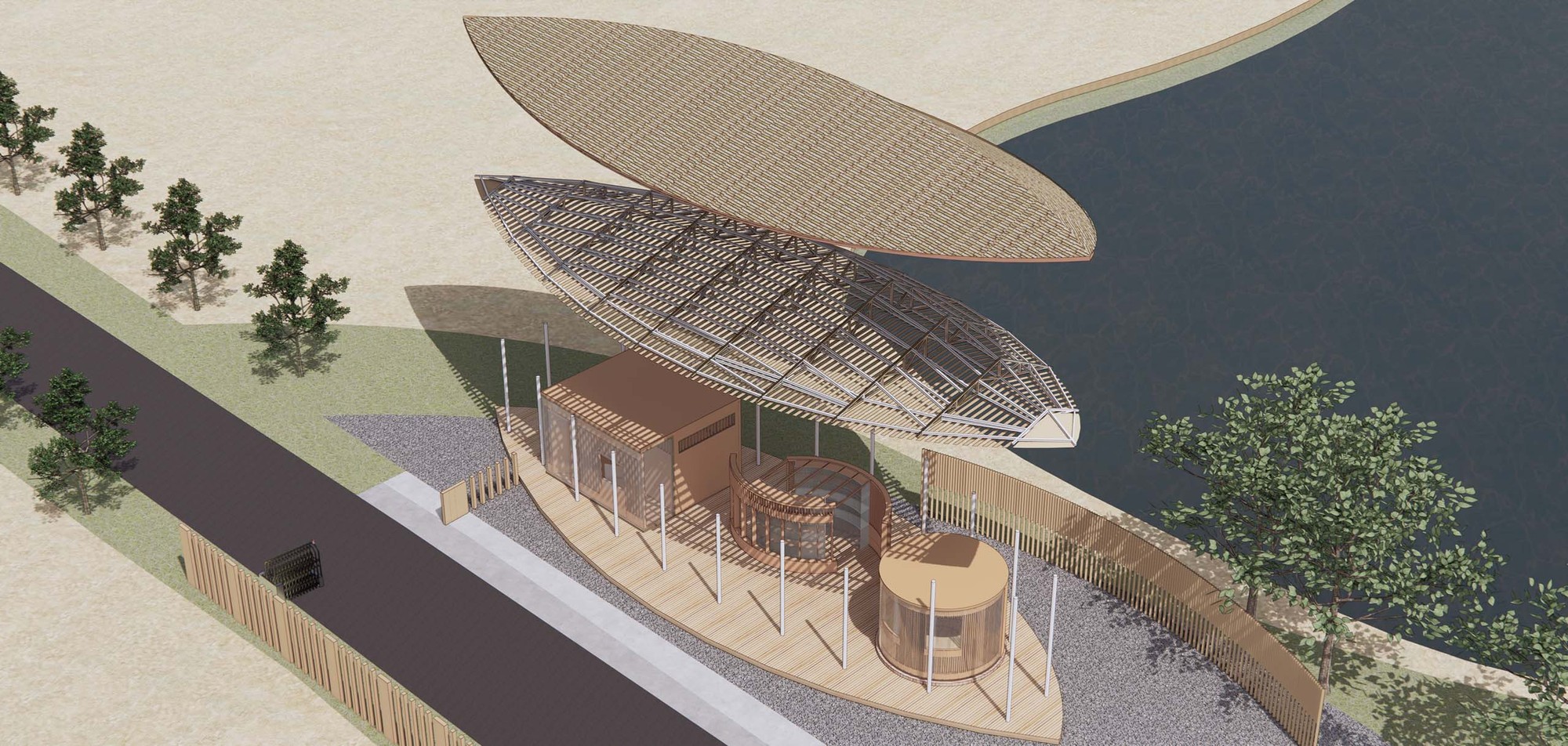

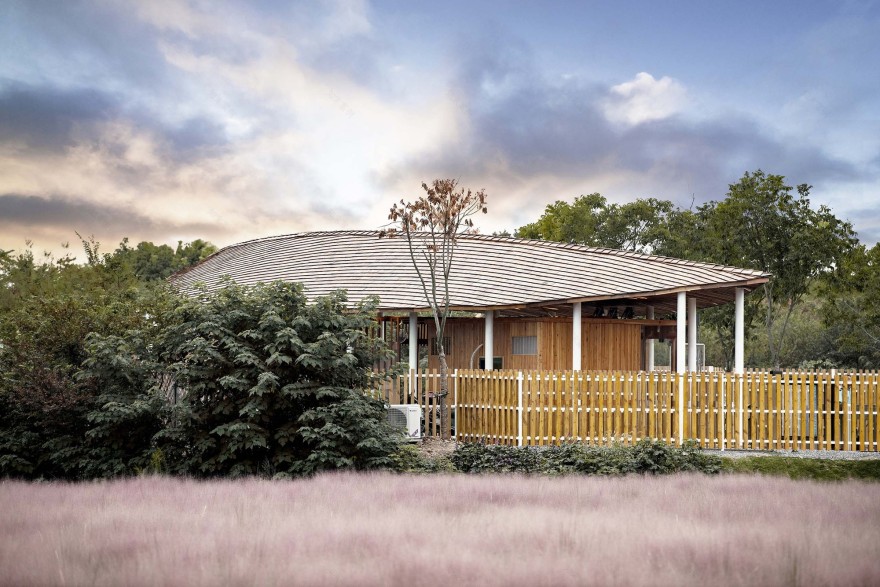

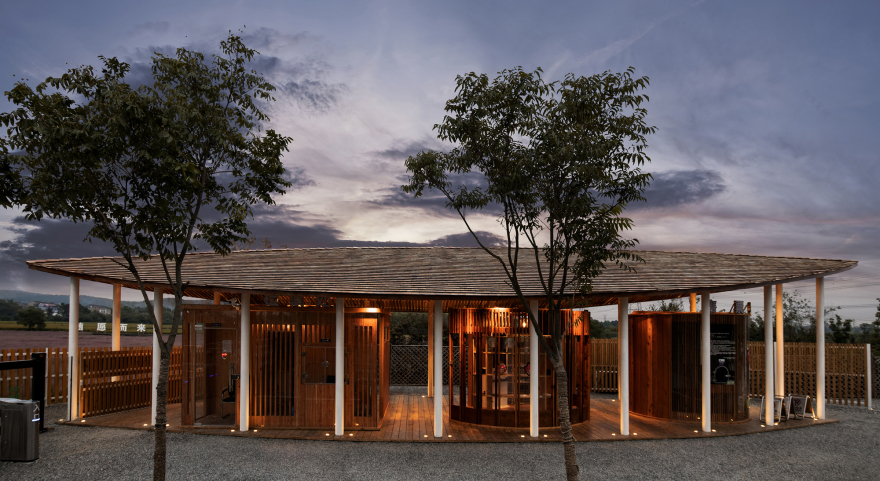

The space between the three small units becomes a very free public space for the local people and tourists. The leaf shape roof is the identical form for the building. This soft and elegant shape works very harmony with the context. The time for the construction is very limited. We choose the steel and wood structure system which can be prefabricated in the factory. Wood is the major material.

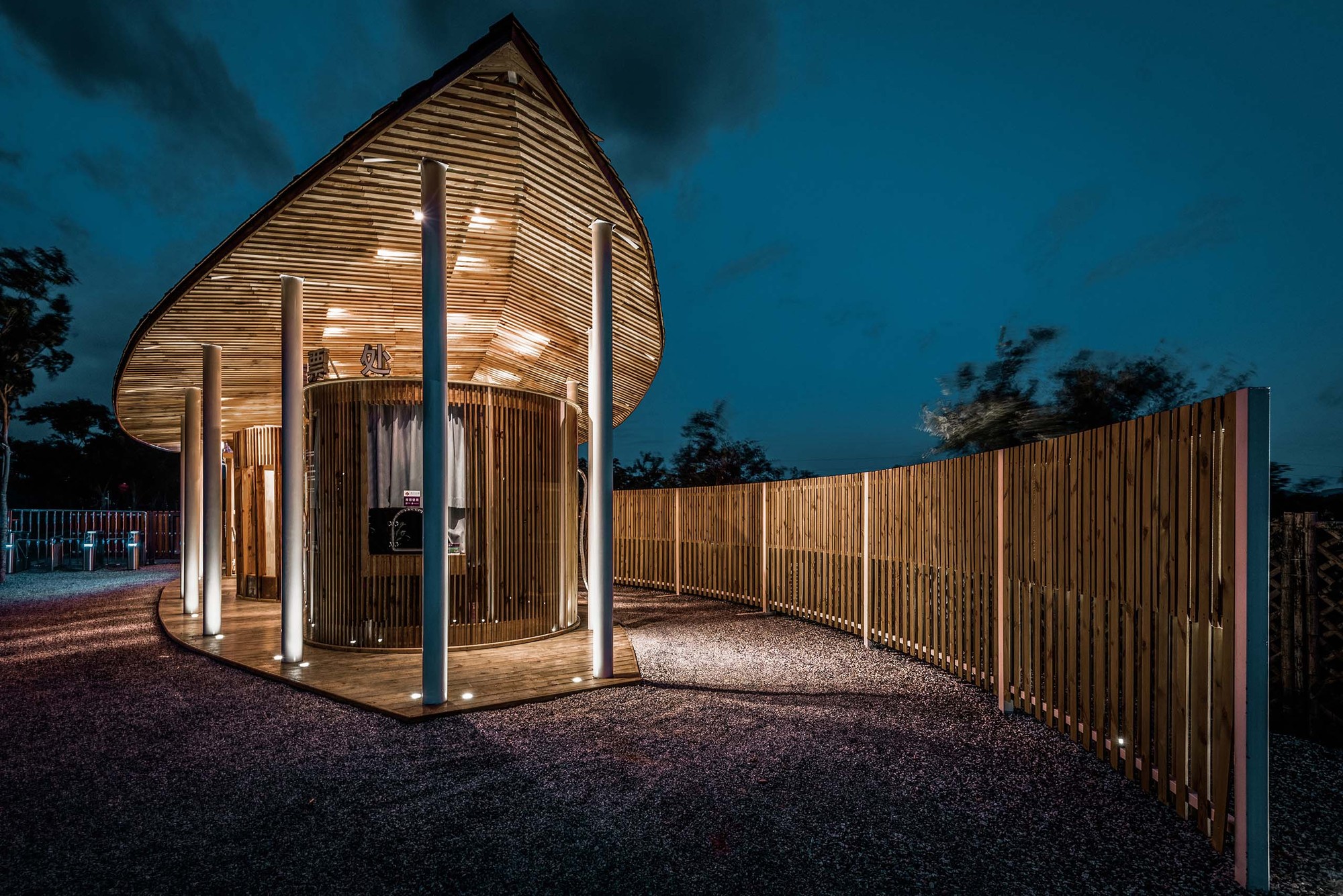

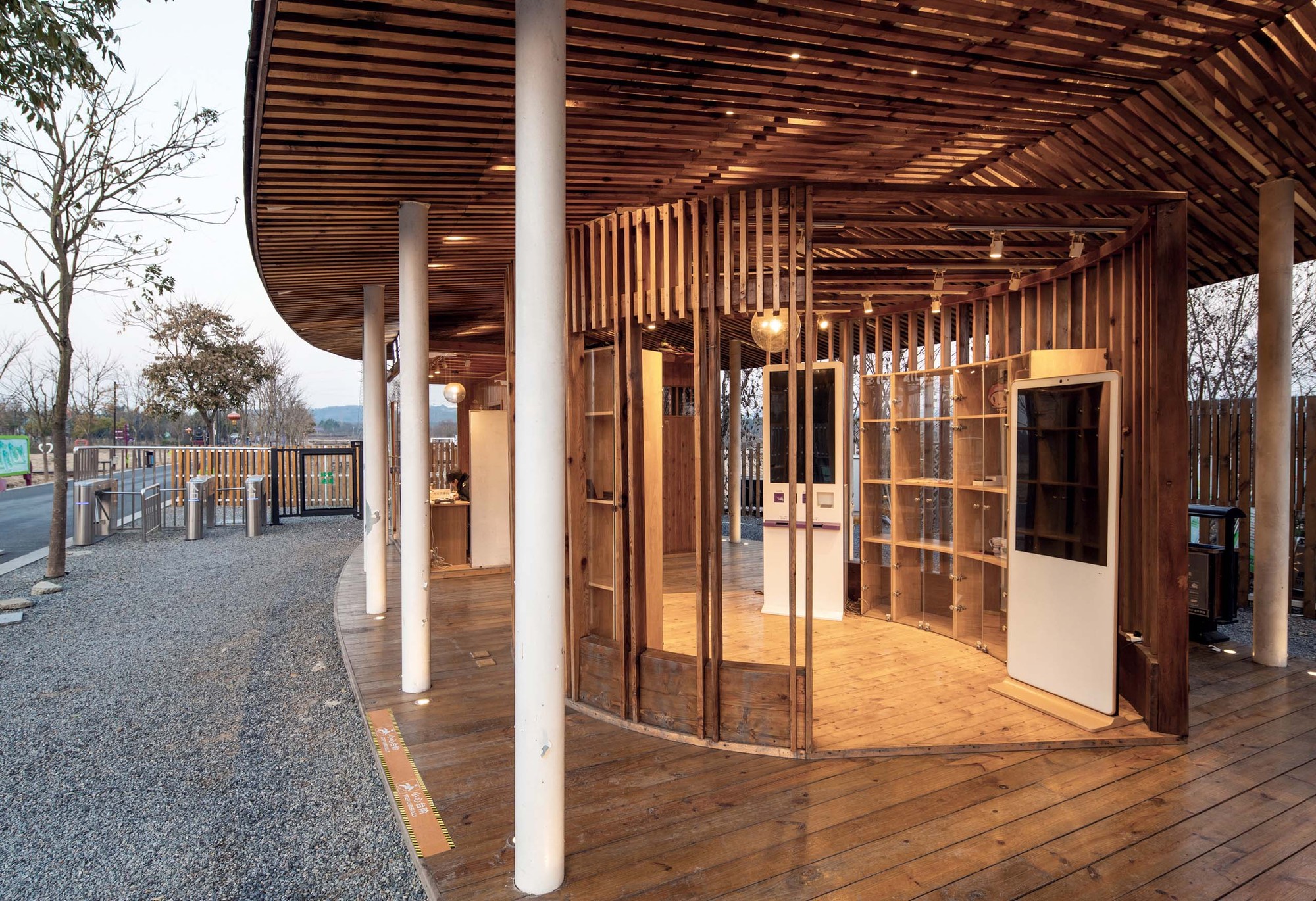

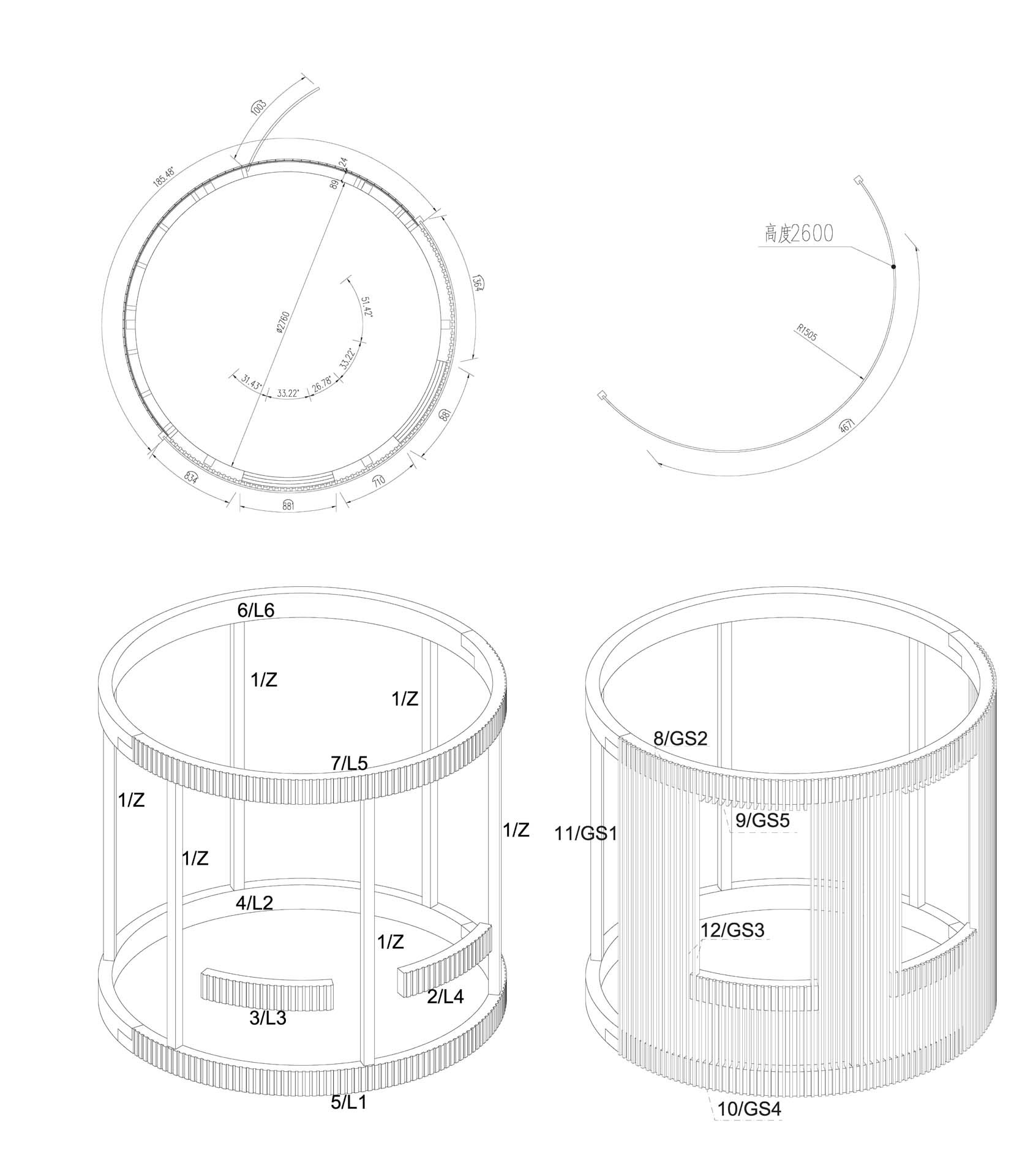

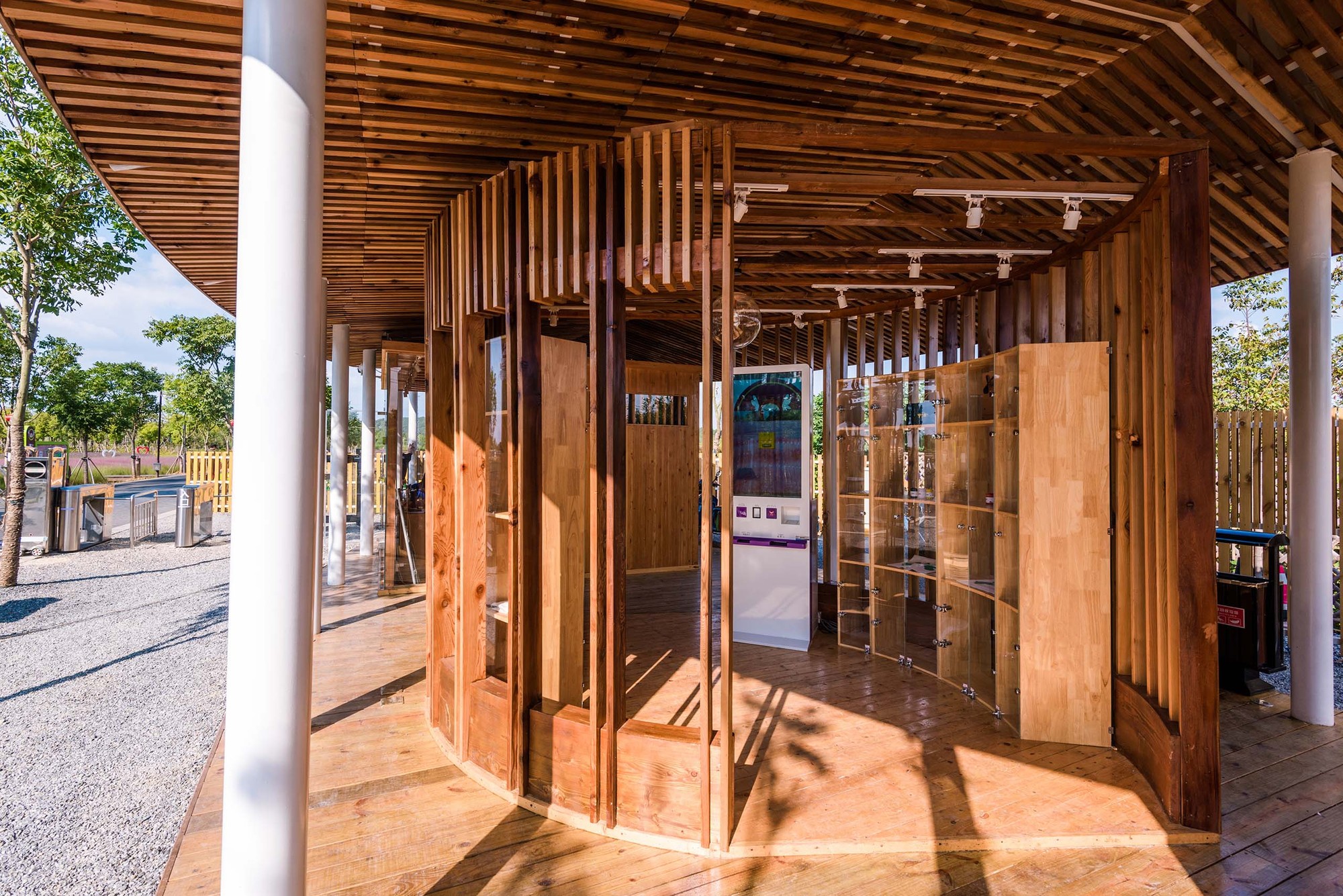

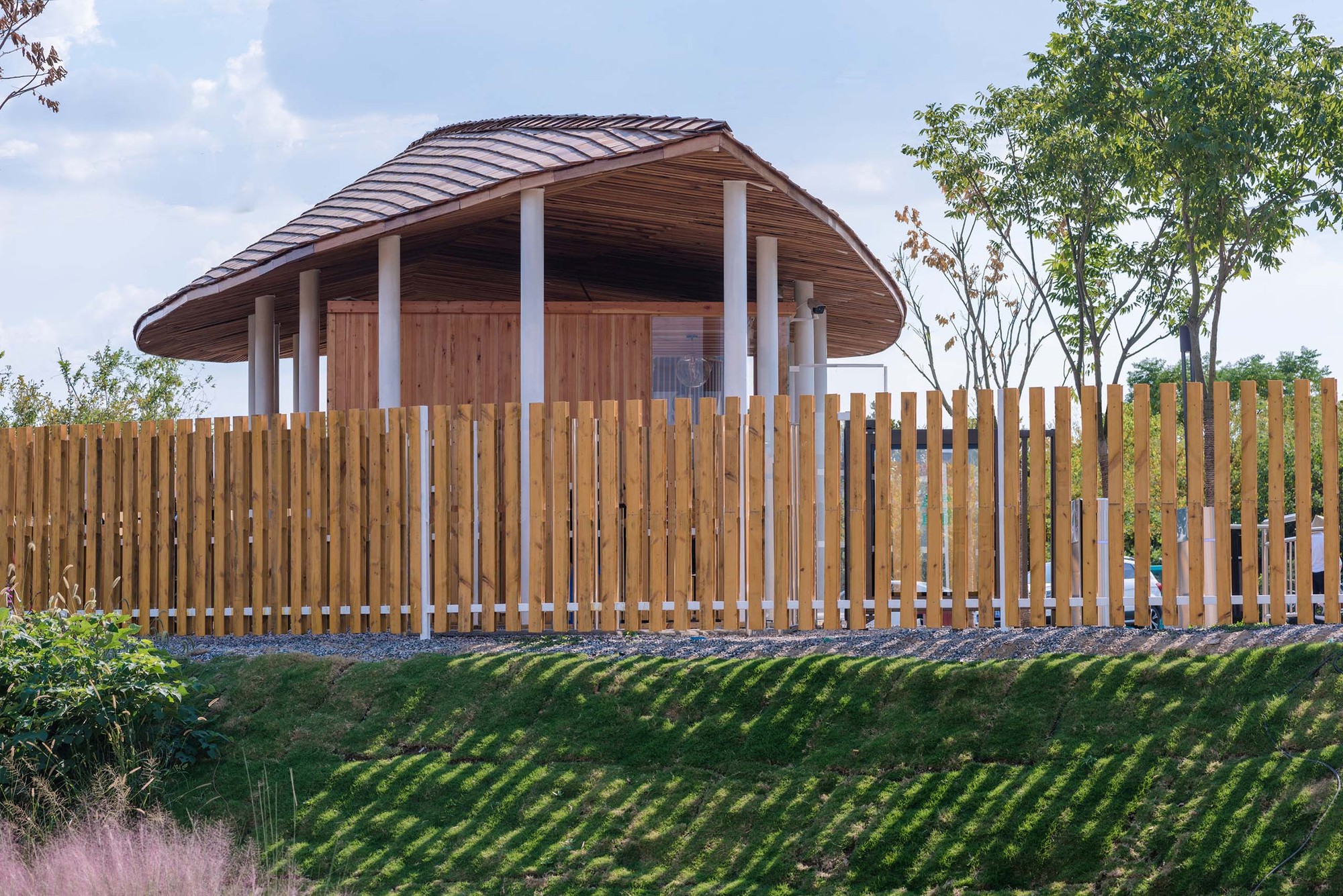

We design the wood with some traditional Chinese wooden technology, at the same time we also design with innovative modern wood technology. The structure of the circle ticket unit is a wooden post-beam system. The section size of the 6 main wooden columns is 20X20cm. The section size of the circular beam is 20X30cm.

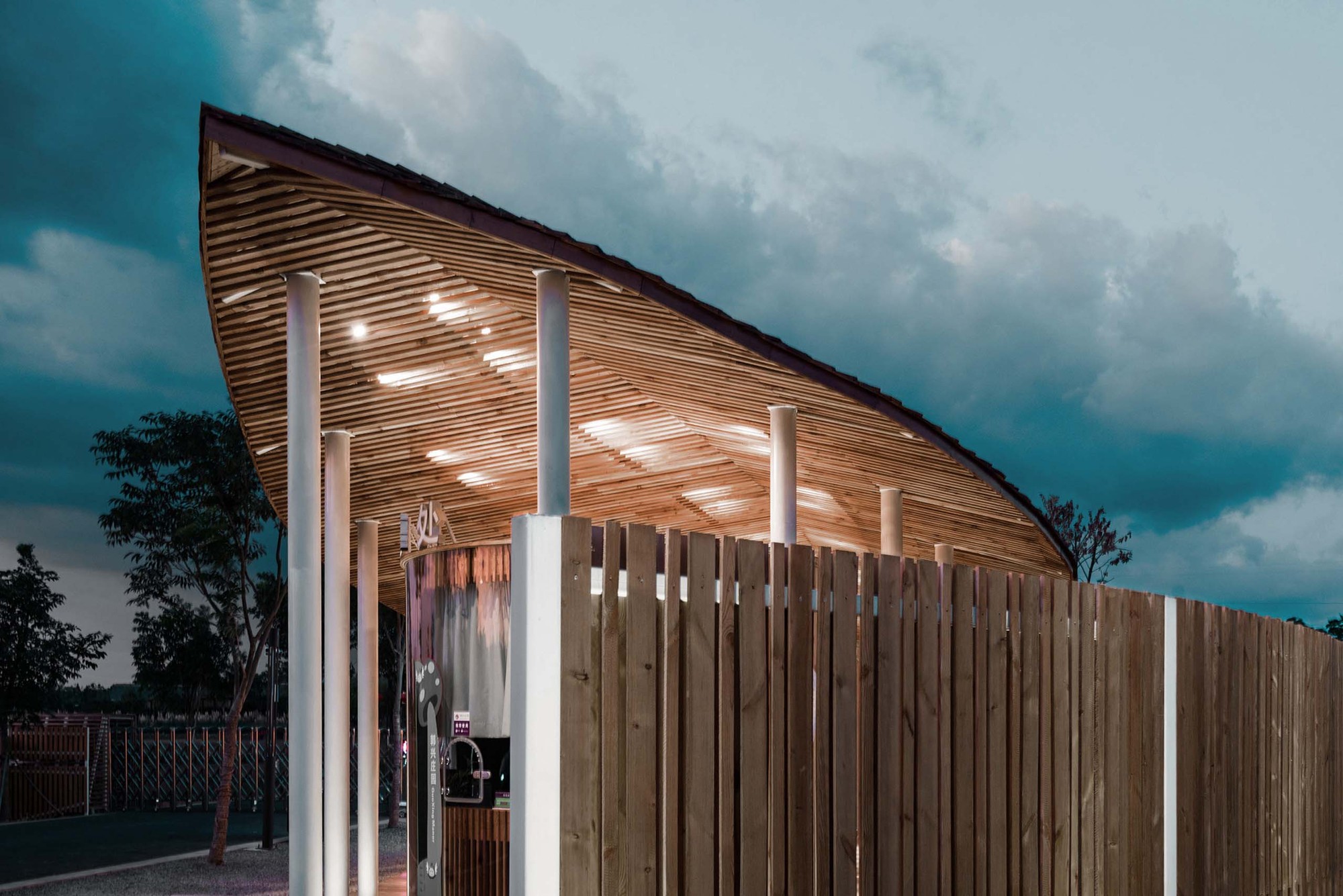

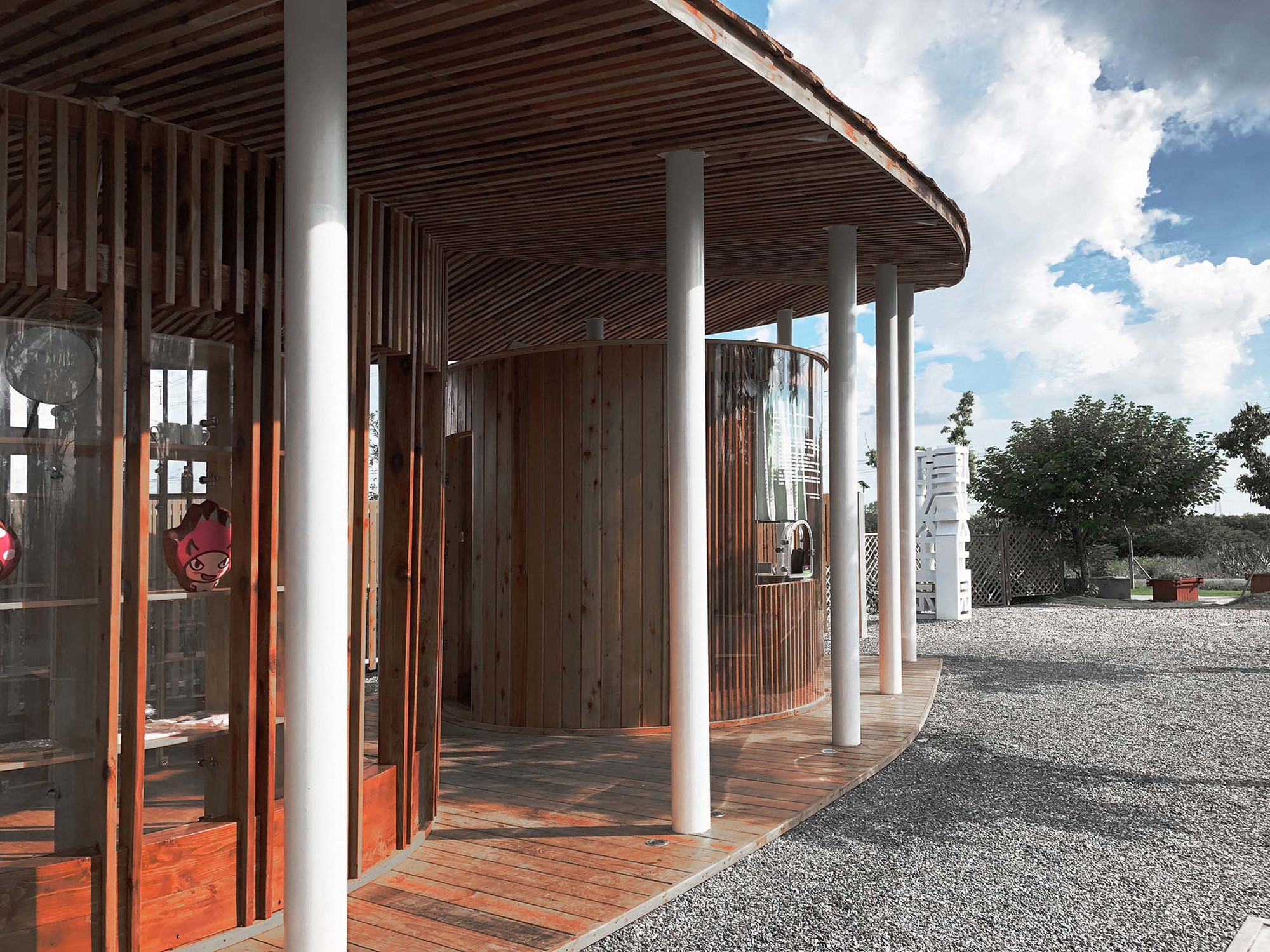

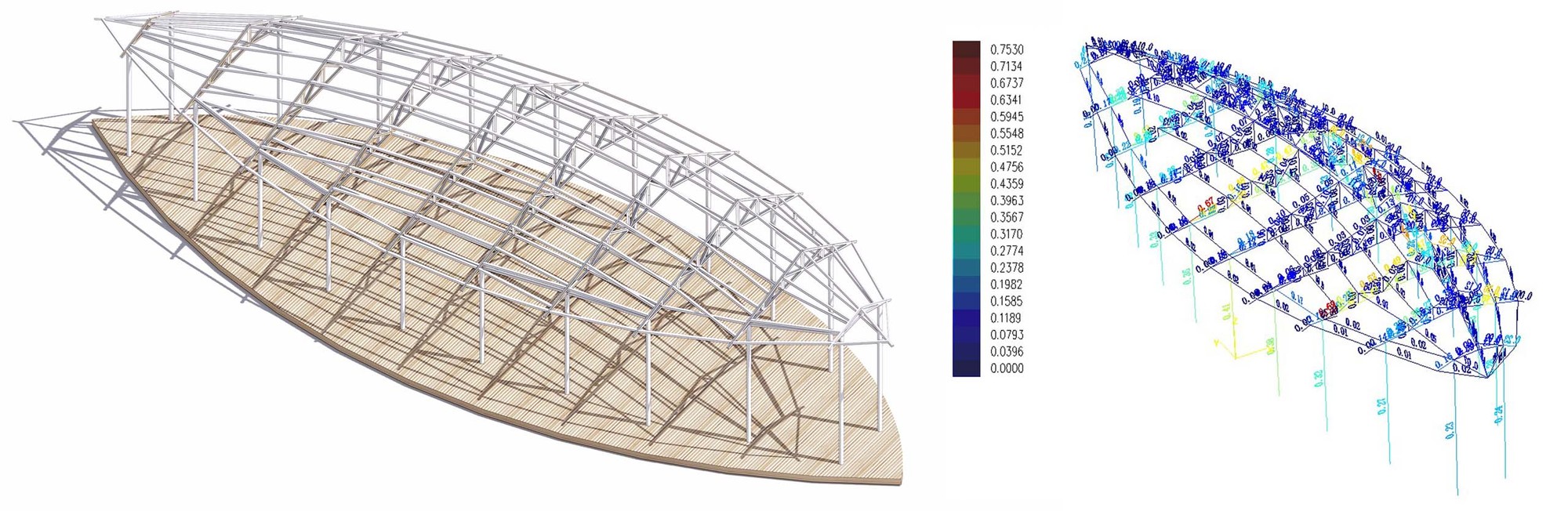

The 24-hours guardian’s house is made of 6 pieces of glued laminated wood panels. The product exhibition pavilion is made of two pieces of big curved wood walls which have two curve furniture. The skeleton of the leaf shape roof is made of steel truss which transformed from the local village building.

Project gallery

Project location

Address:Jinniu South road 88#, Honglan Town, Lishui District, Nanjing, China
