PARAMETRIC BUILDINGS PART 2

RailClone free template

link's below

Description:

Here is the second version of template for making parametric building for any purpose with Corona renderer and RailClone in 3ds Studio Max.

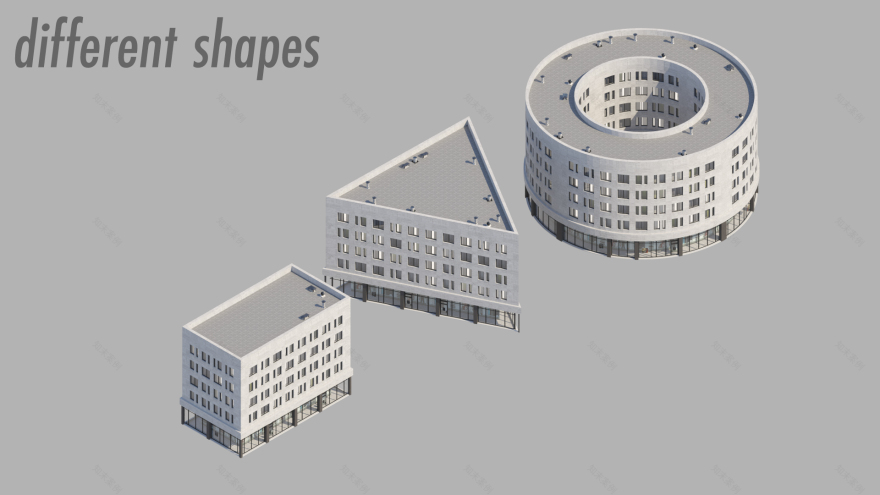

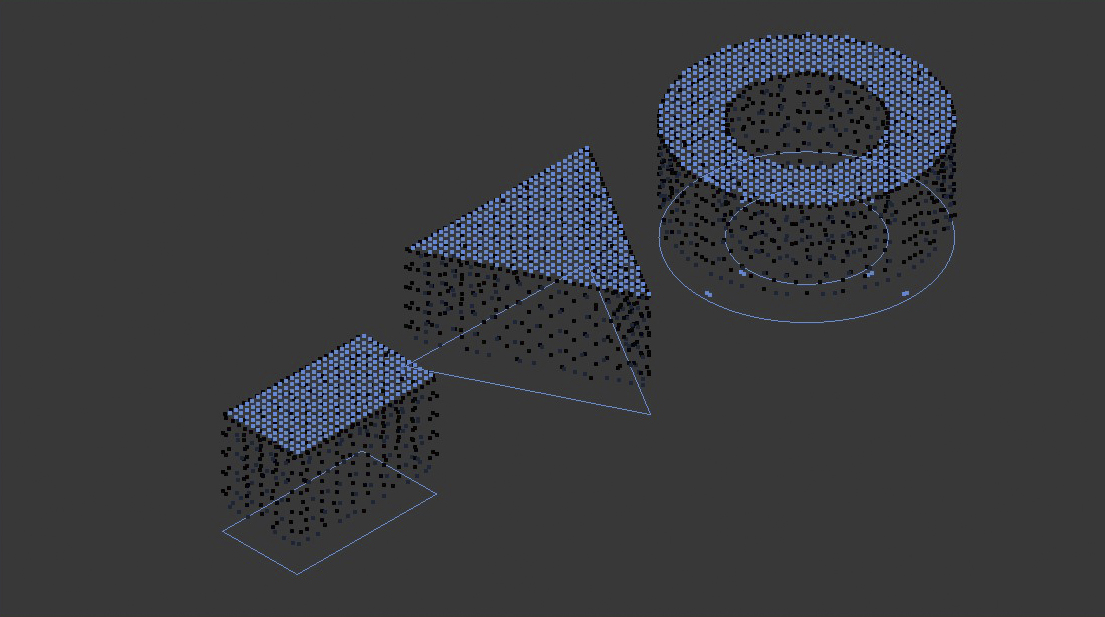

Now it uses only 1 spline for building.

The rules are much simpler:

System units MUST BE mm! Or it cause UVW artifacts​​​​.

How to use:

For now you must only choose spline for RC.

Storeys selection located in parameters in RC.

When you can choose ( or make your own ) variatios of every type of array.

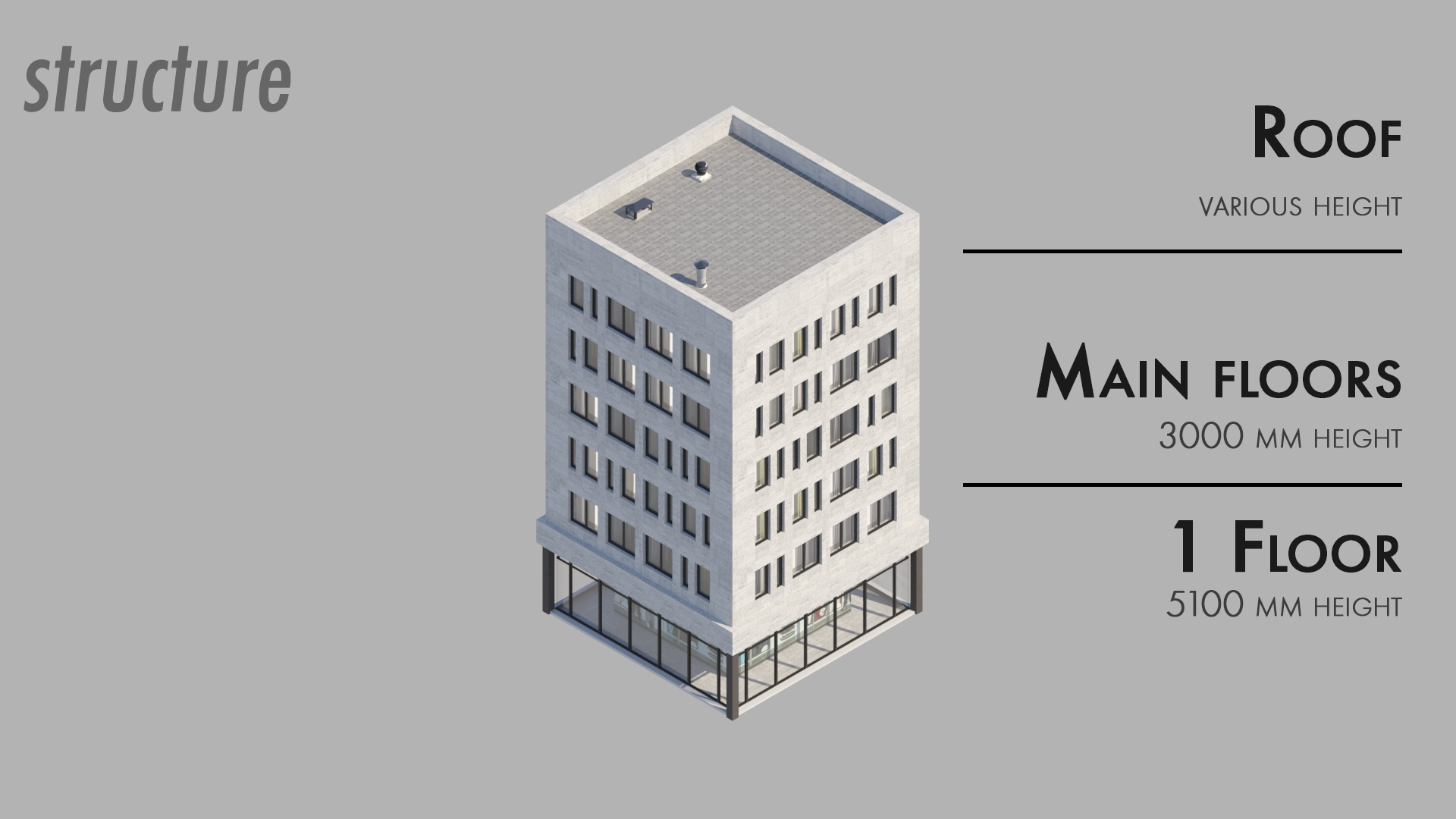

Basically it hold 3 types:

1. First floor

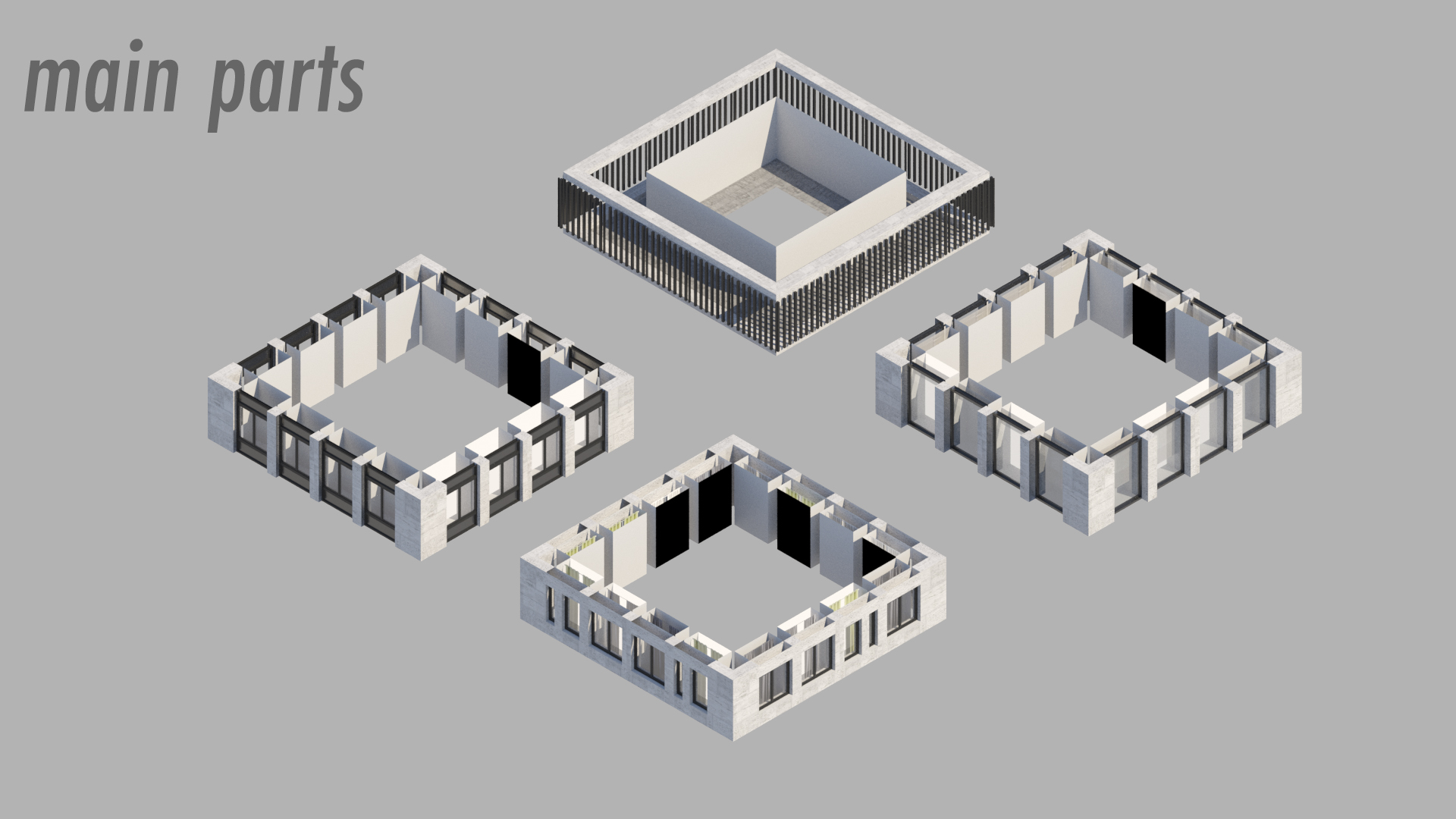

2. Main part

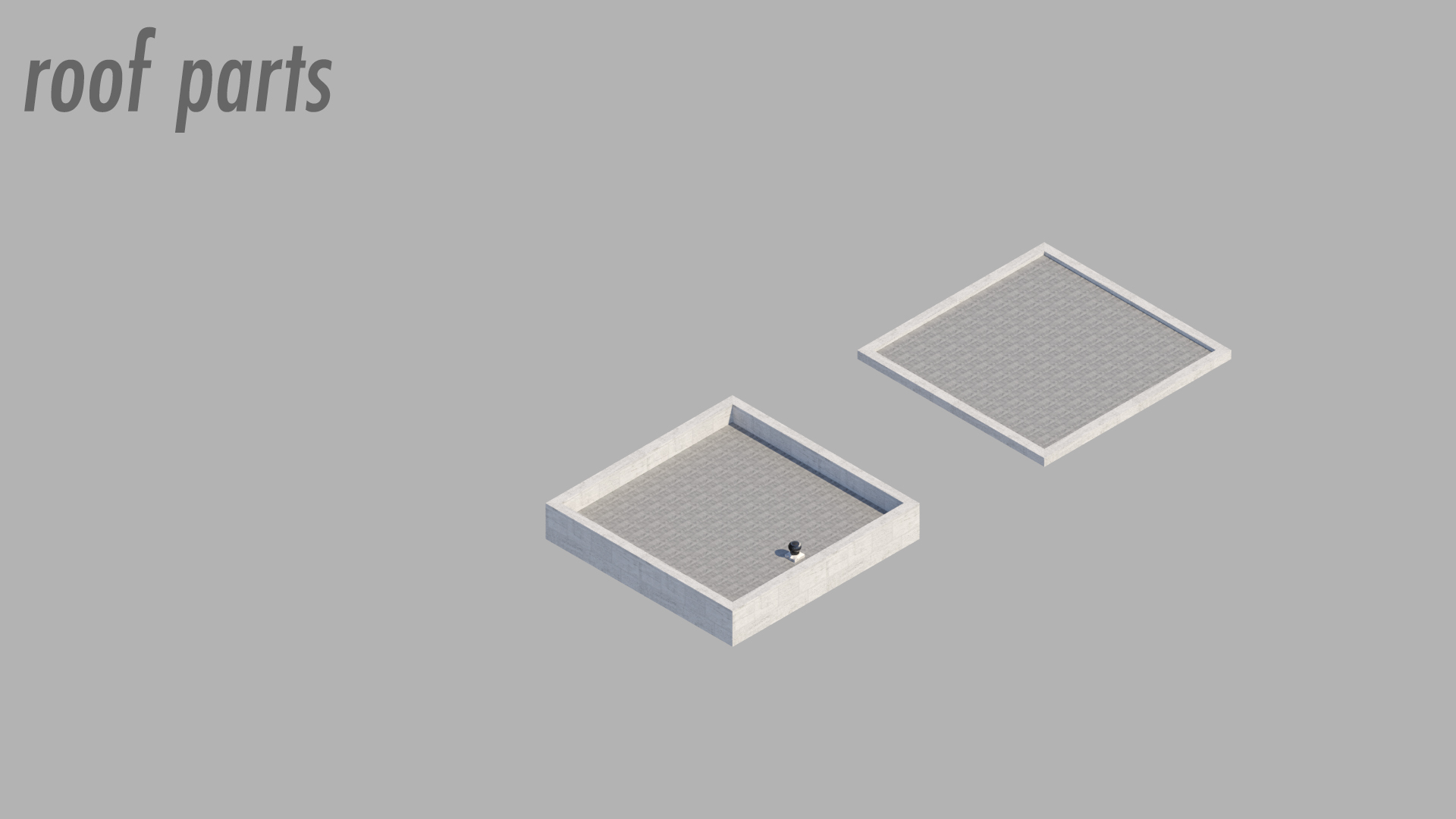

3. Roof and roof stuff

​​​​​​​

​​​​​​​Below is provided buildings parts for better understanding.

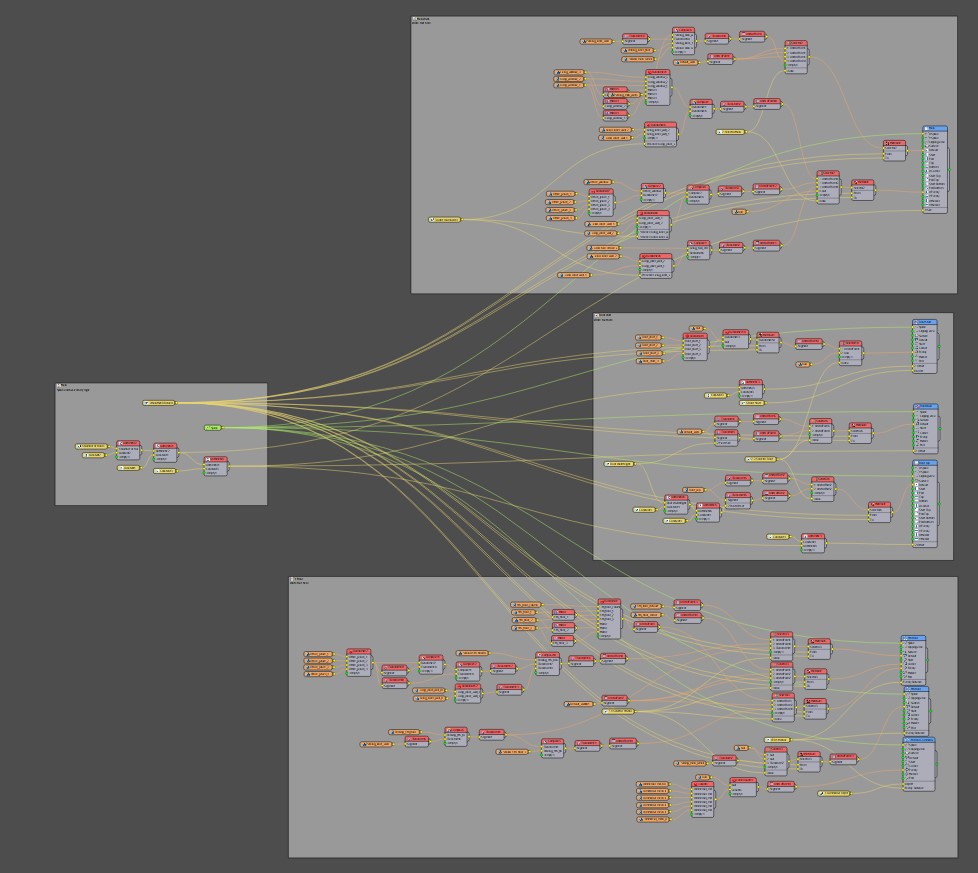

NODE TREE

Brief explanation of logic:

Render.ru

3ddd.ru

(In russian)

works with

3DS Max 2018

Corona 5

RailClone 4.0.9
