巴巴罗斯三驾马车丨土耳其伊斯坦布尔丨Salon Alper Derinbogaz

Architect：Salon Alper Derinbogaz

Location：İstanbul, Turkey; | ;View Map

Project Year：2016

Category：Offices;Shopping Centres

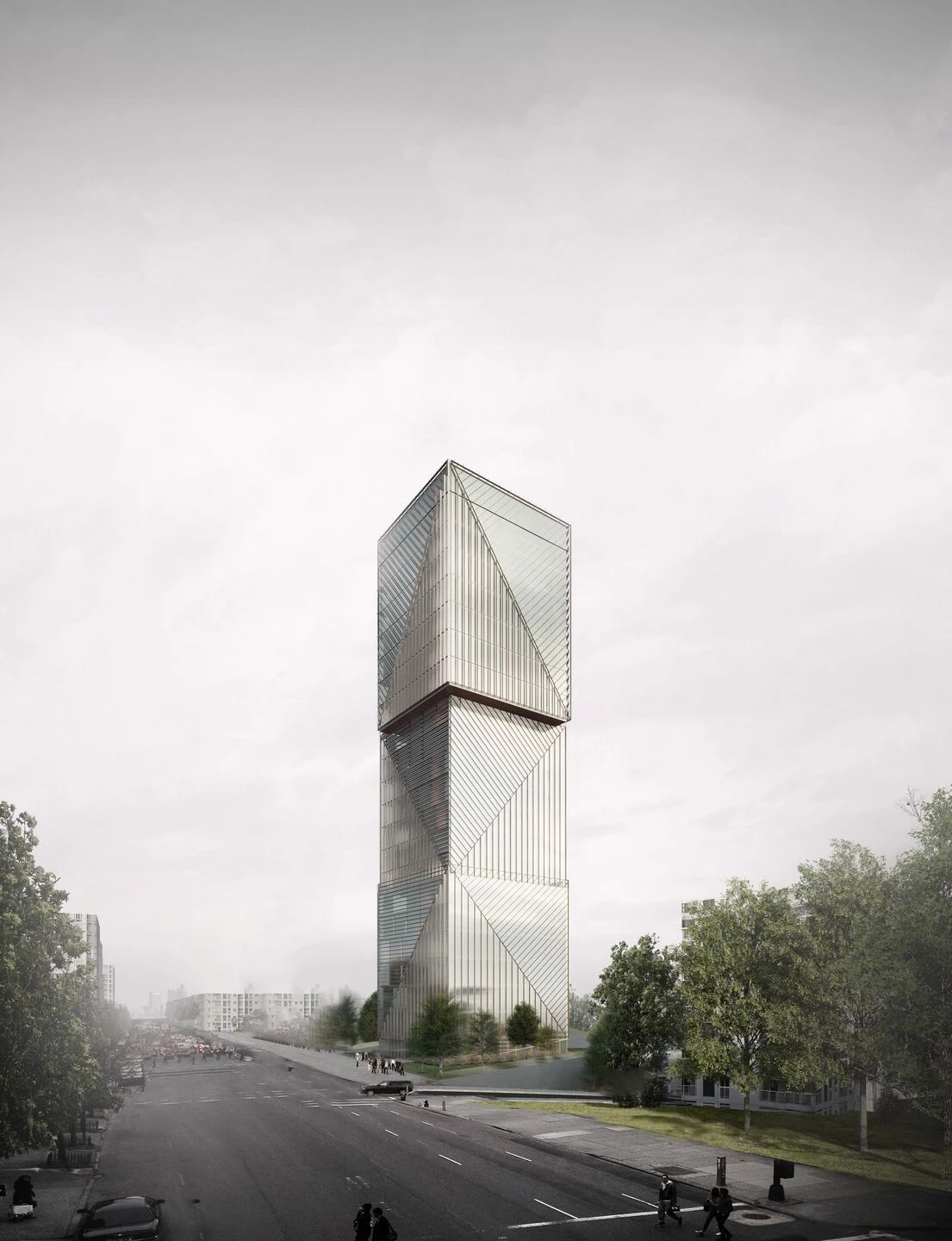

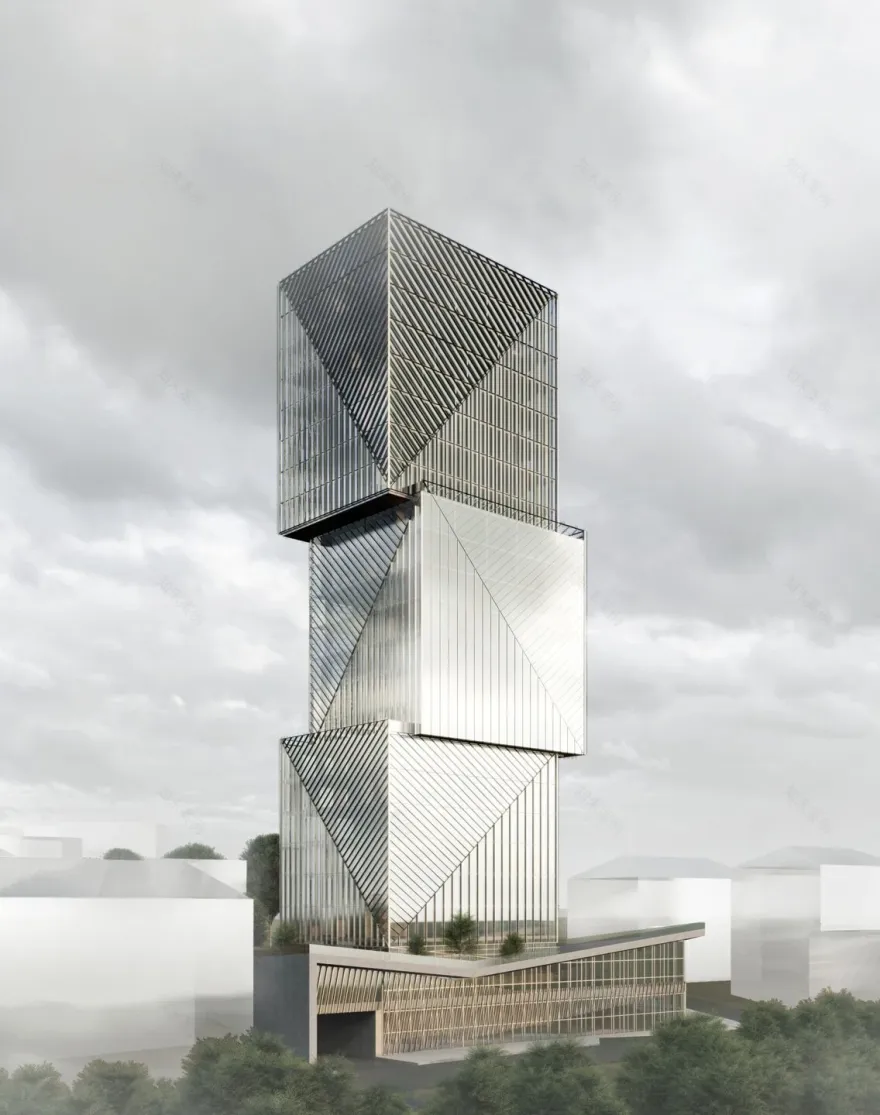

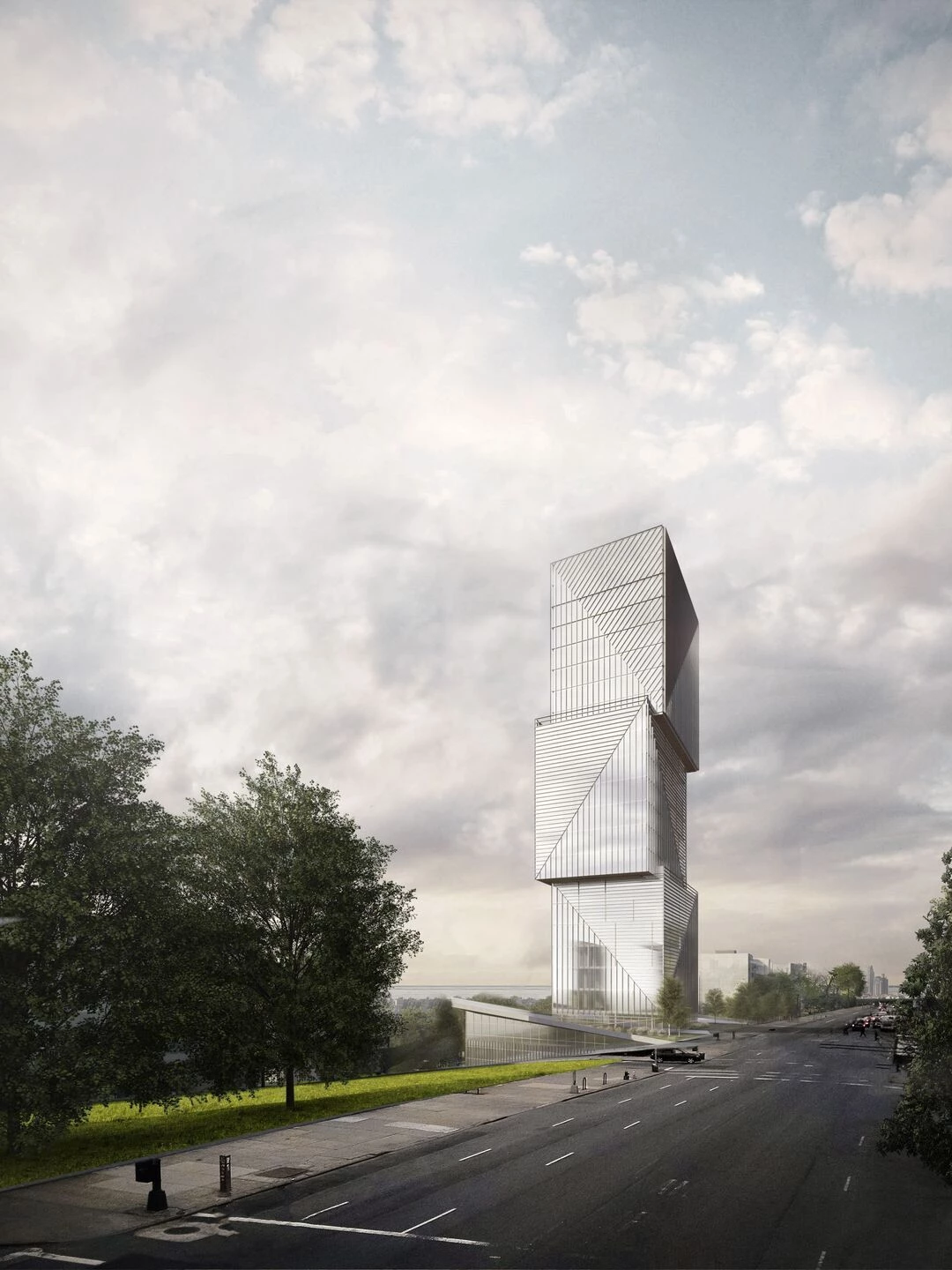

The Barbaros Troika takes its name from an ecology of functions created by three different characters of usages where the project site is next to one of the most vibrant and central boulevards in Istanbul, Barbaros. Located at the intersection of business and residential districts of the city, the project attempts to merge three typologies with various requirements under the same skin, such as office, residential, and mixed use functions. Beside different entrances allowing different functions to create their own space characteristics, the project anticipates common areas at the intersections to create opportunities for collocations of workspaces, residences, and mixed uses. Architectural design, reflecting this diversity and unity, consists of the movement of three masses. Within this geometrical composition divided into three, the architectural design positions commercial usage in the lower, mixed use space in the middle, and residential usage in the upper mass. The project provides a symbiosis of the three functions, creating an advantageous coexistence for each other.

Regarding the site being settled next to the Bosphorus waterfront, maximizing the view of the landscape was one of the intentions during the design phase. But the aim was not only to observe nature, but also to generate better connections with the environment. By dividing the massing into three and slightly moving parts from each other, it becomes possible to increase the relationship of the high-rise building with the outside environment, while creating terraces that bring greenery within functions inside. Prioritizing environmentally friendly production methods and material palettes facilitates both ecological and spatial qualities. The project is built as a combination of reinforced concrete core and steel elements. In this way, using thinner section thickness for the structural elements becomes possible although fulfilling all earthquake requirements for the building. Less material demand for structural modulation resulted in lower ecological footprint.

A combination of insulated glass and polycarbonate surfaces is applied to the facade of the high-rise building. The composition of these transparent and semitransparent surfaces allows natural light to pass through the interior spaces and reduces the energy needs for artificial lighting for interiors. The aluminum profiles framed on the outer layer helps to control incoming light while reducing the reflections from the surrounding area. Natural ventilation is encouraged through the installation of smart windows with built-in sensor operated shafts and the potential for automatic and operable opening. And material recycling methods are invended throughout the production phases of the building. The residue of aluminum profiles, that comes from the facade cladding, is reused in the production of flooring of the workspace areas as an ingredient of the polished terrazzo.

Şevki Topçu, Semih Alkan, Ece Cömert, Emre Taş, Ece Nur Honca, Orçun Girgin, Thibault Jalby, Mazvydas Samuolis, Ecem Çınar

1. Facade cladding: Curtain Wall, CV50, Reynaers

2. Flooring: Terrazzo, Microterrazzo, Durakraft

3. Doors: Pivoting Door, VISS Pivot, Jansen

4. Windows: Ventilation Control unit, IQ box KNX, GEZE

5. Roofing: Green Roof, Vapro premium bitumen system, Soprema GmbH

6. Interior lighting: Suspended Lighting, Alphabet of light system , Artemide

7. Interior furniture: Desks and Tables,Recycling von Bestandsmöbeln, Kinnarp
