奥亚基农场（日语罗马音：OYAKI） 由井波堂丨日本长野丨Tono Mirai architects

Firm： Tono Mirai architects

Type： Commercial › Office Retail Showroom Pop-Up Hospitality + Sport › Restaurant Industrial › Factory Laboratory Landscape + Planning › Public Park

STATUS： Built

YEAR： 2022

SIZE： 10,000 sqft - 25,000 sqft

BUDGET： Undisclosed

OYAKI FARM BY IROHADO

■ A place with a life force that unites with nature

A new factory, cafe, and direct sales store were built in the city of NaganoCity, Japan as a new development of the long-established oyaki shop ``Iroha-do''.

"Oyaki" is a baked "food" using vegetables and wheat that has been rooted in the region 'Shinshu' since the Jomon period in Japan, and this architecture also aims to be a place where "the architecture that was born and returns to the earth" over a long time axis of tens of thousands of years—using lumber produced in the prefecture and surplus soil from construction sites.

For the concept, we focused on 1 Memories of the earth. / Genius loci 2 Local natural materials and traditional techniques. 3 Making process: collaboration with design and construction. 4 Uplift of the earth. A place connected to the earth. 5　Movement as a Life-living organism: creation, change, growth, and circulation.

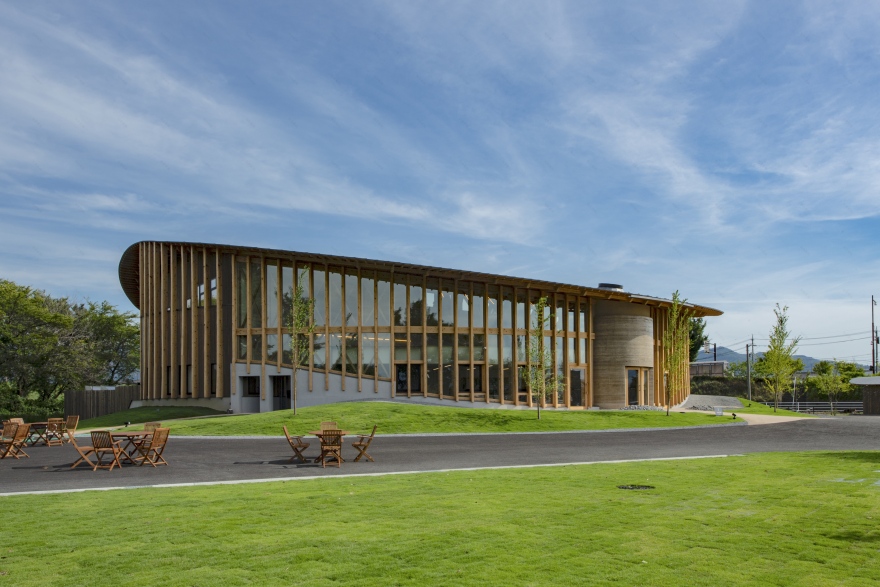

The two circles representing the factory/region and the cafe/society overlap and interlock, while the arc-shaped roof resonates with the surrounding mountains built to meet primary energy consumption standards in Japan.

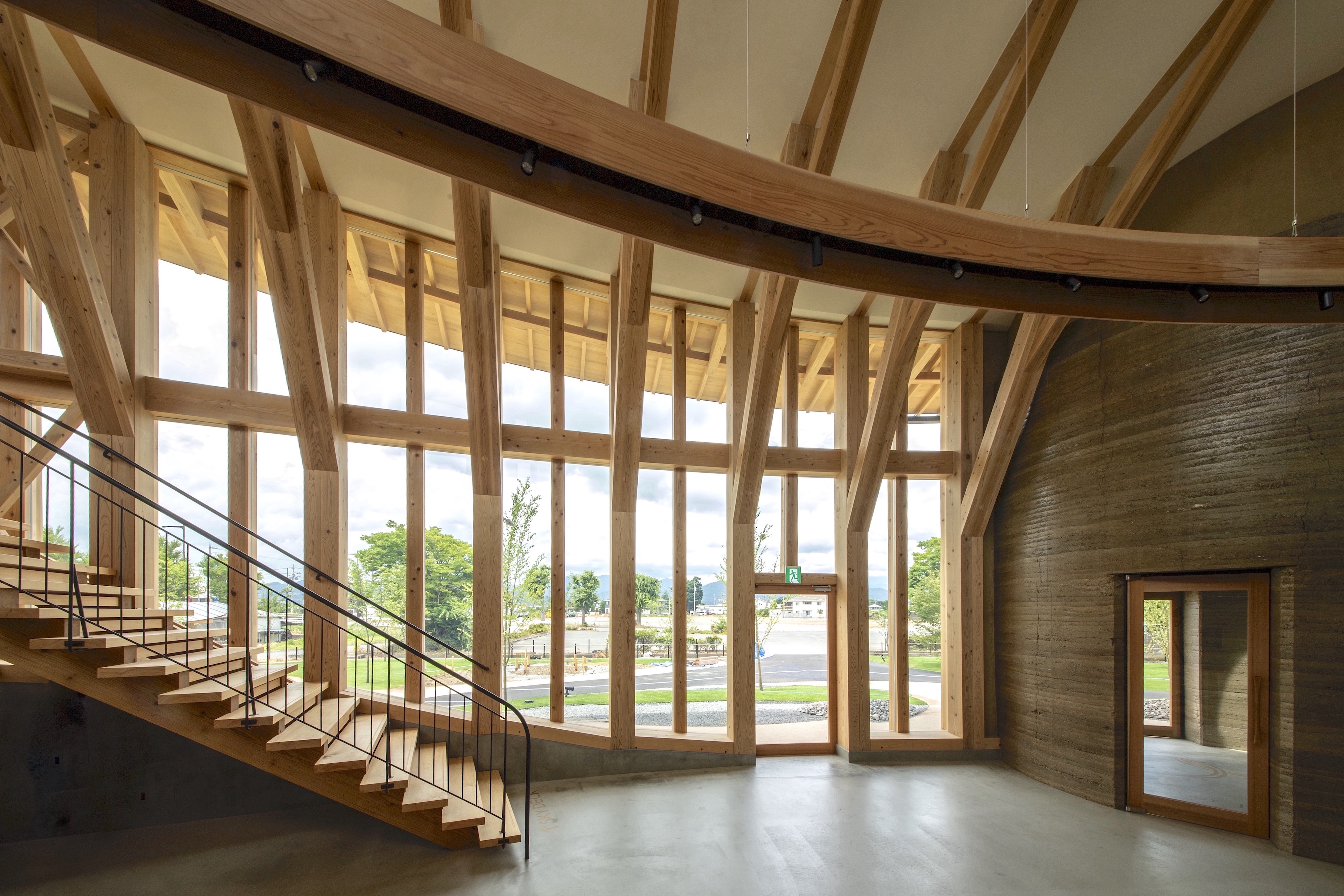

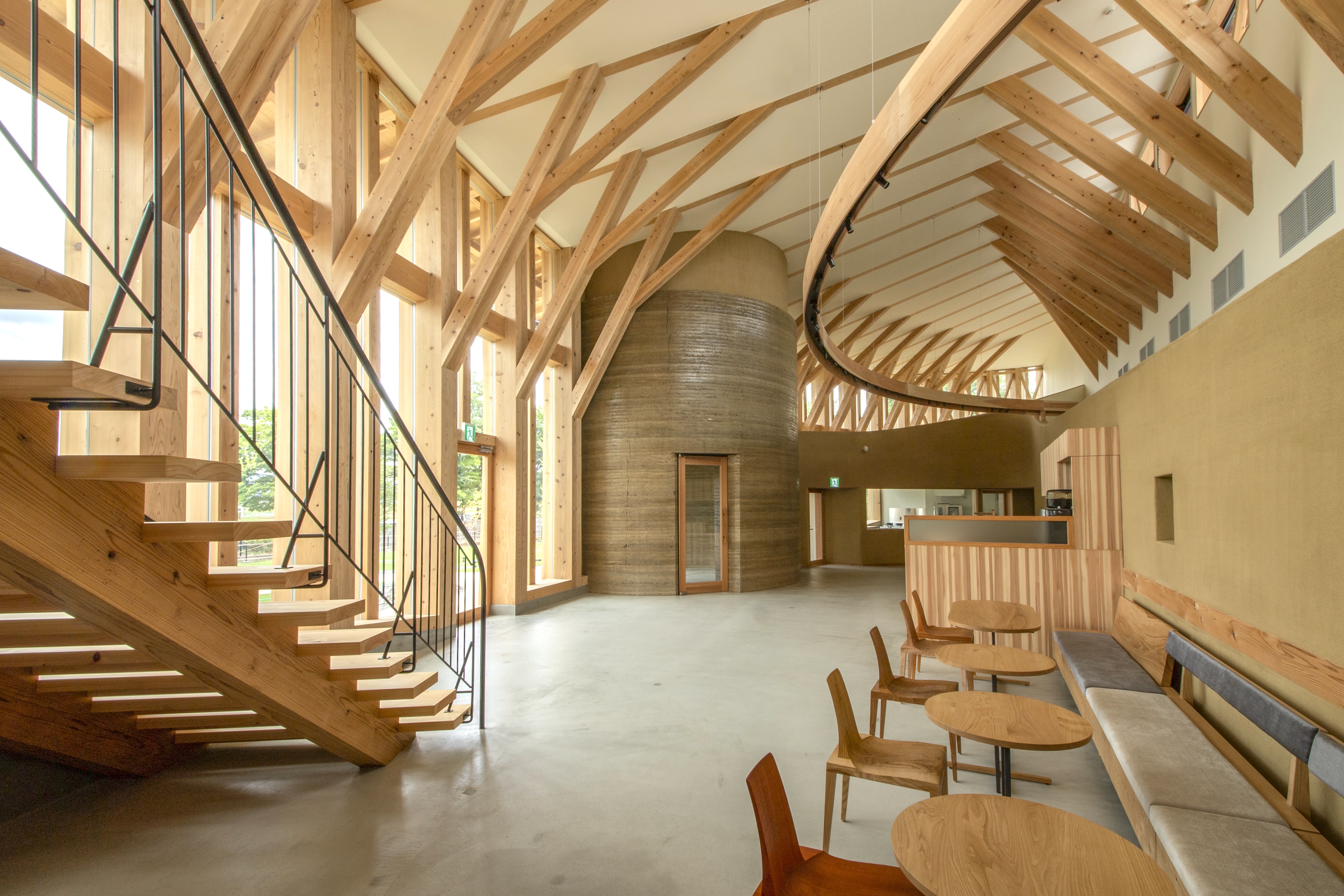

The entire building is a 1,500m2 semi-fire-resistant wooden building with structural materials of cedar and cypress. The north side is a glass curtain wall with cedar drum pillars with a maximum length 7m.

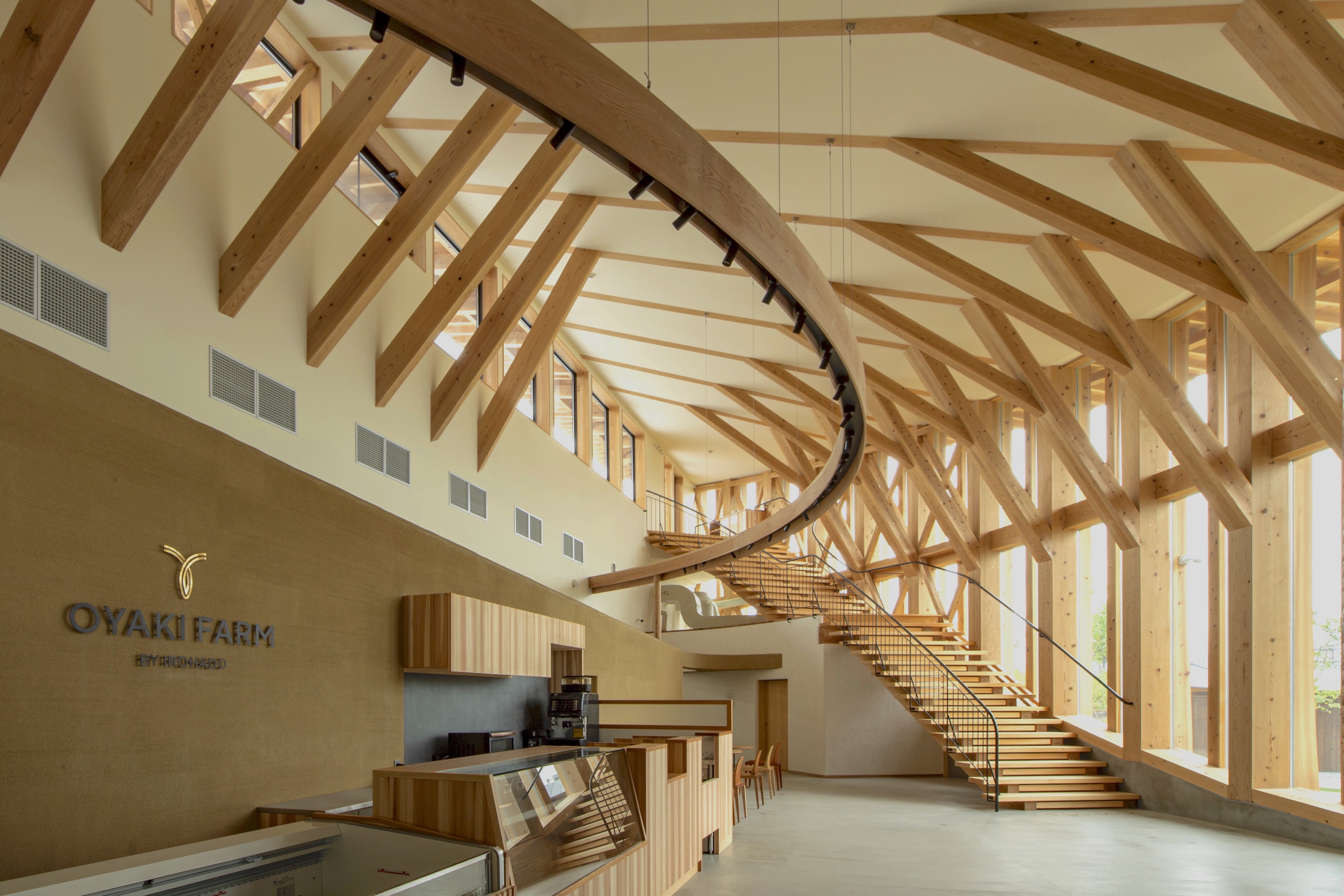

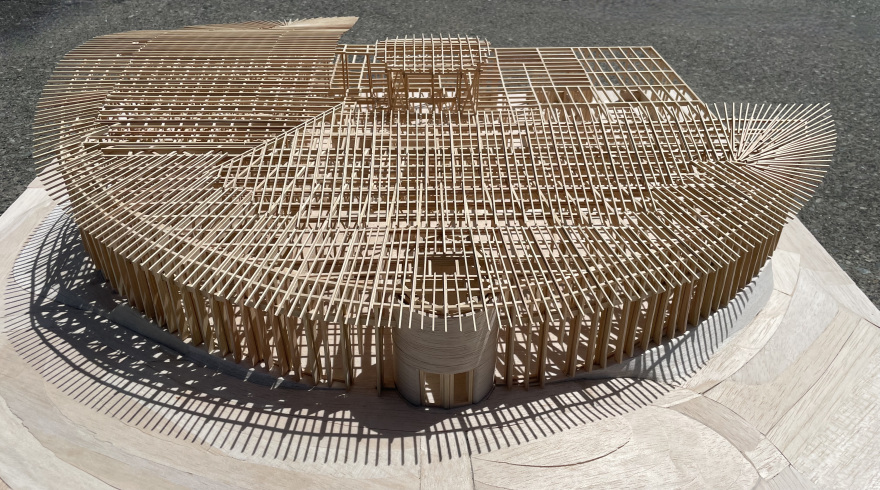

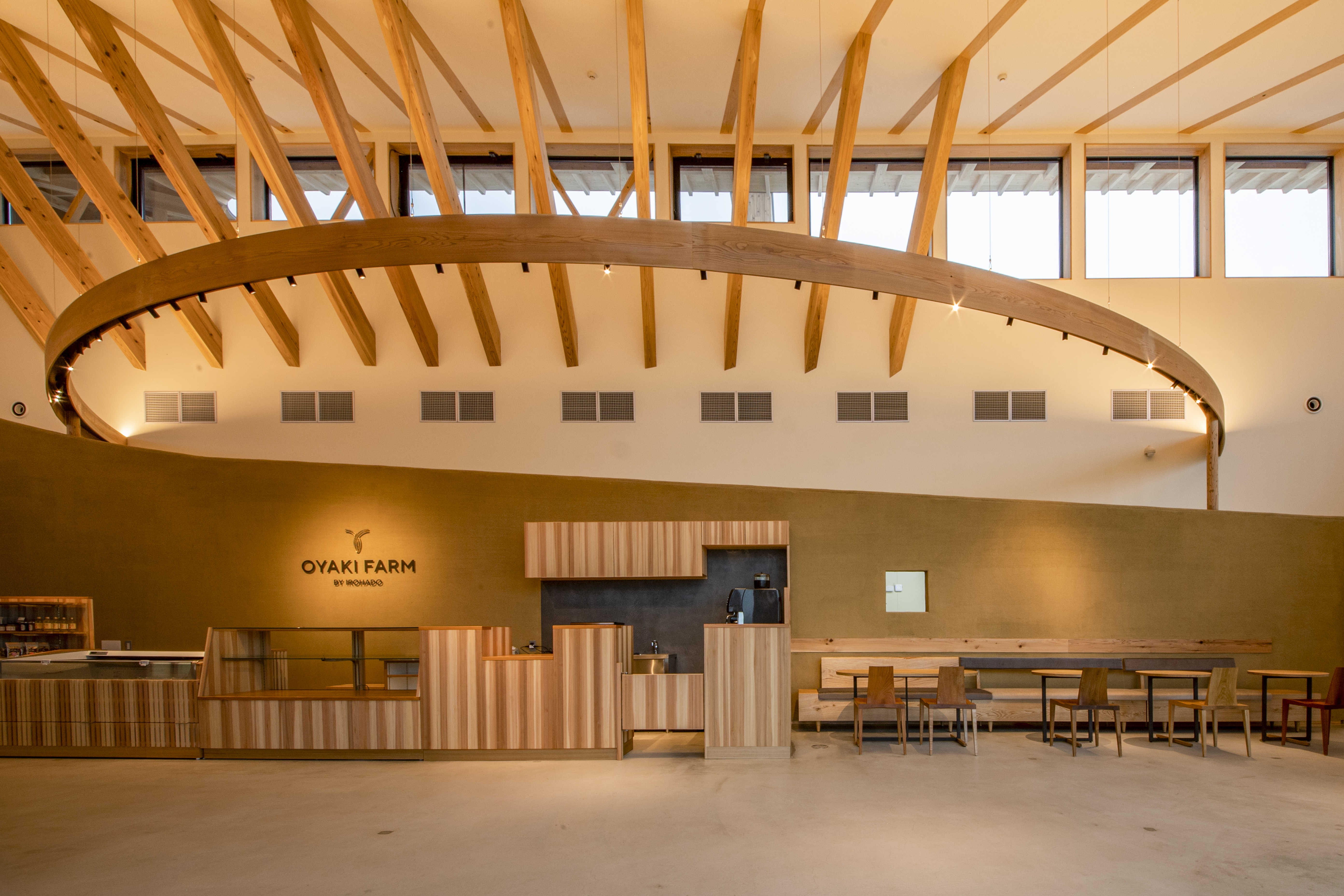

The Cedar beams and purlin on top of the radiating cypress beams, a rafter and roof with a 3m overhang of the eaves were hand-carved by a local carpenter without the use of a cane.It is done with Japanese traditional craftsmanship method fan rafters in the corner roof .

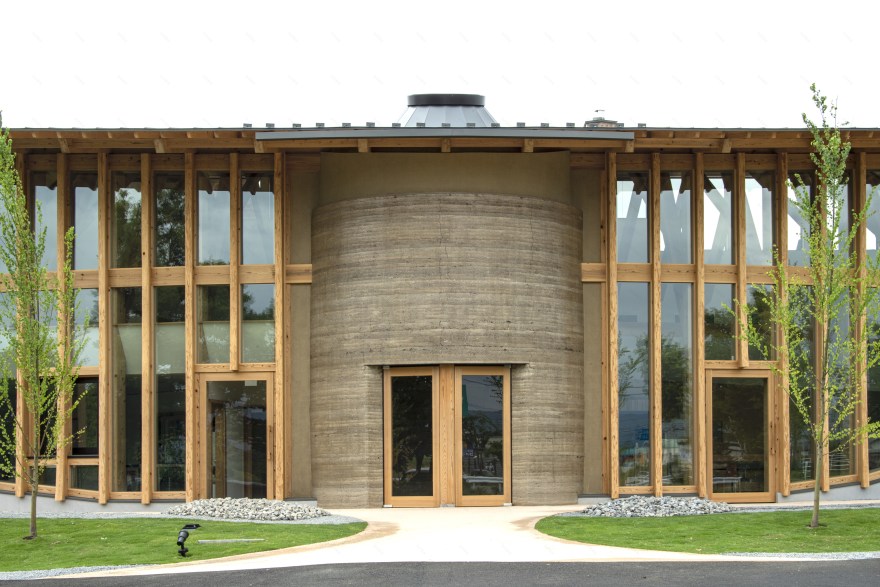

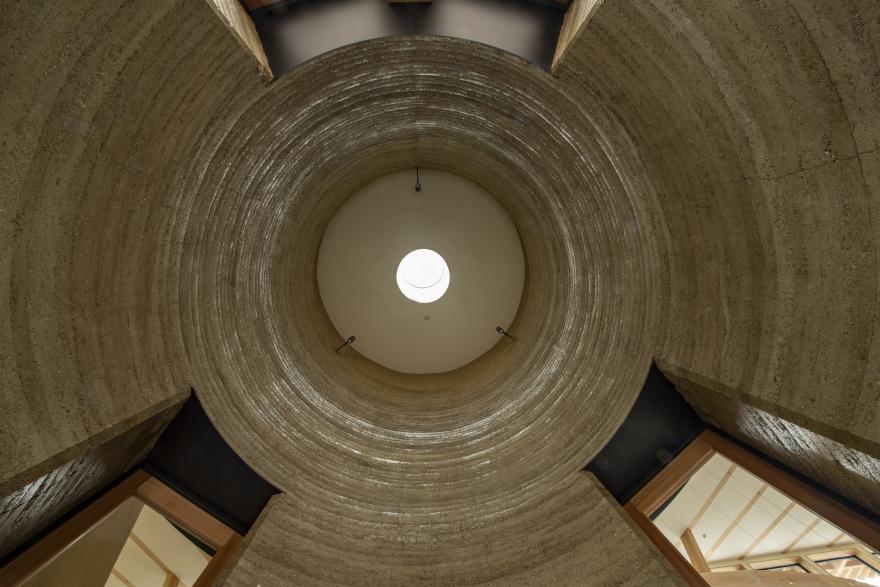

Toplight of rammed earth wall, natural ventilation high side window of the hall , falling rain water from the roof are connecting sky and earth with this architecture and landscape, reducing CO 2 and regenerating earth.

＝＝＝＝＝＝＝＝

■　DATA　OYAKI FARM

Location : Nagano City Japan

Funtion : Factory , drive inn (shop cafe)

Owner : Irohado Ltd.

Design:　Tono Mirai architects Tono Mirai

Structural Design: Kishinoue structural office Daisuke Kishinoue

Construction: 　 Freezer system / Moriya Corp. ,Terashima construction Ltd., Kyoei Corp, Miumi landscape

Site Area　 9214.56m2

Building Area　1415.34m2

Floor Area　 1733.64m2

building coverage ratio　16.46%（Max：60%）

Floor area ratio　18.81%（Max：200%）

Stories　2　

Structure 　 Wooden

Design term 　Sep. 2020- Oct.2021

Construction term　 Oct. 2021 - 31 July 2022

Completion　 31 July 2022

Max height　 10,920mm

Eaves height 　8,980mm
