Urban Loritz Platz

Architect：Architekten Tillner & Willinger ZT GmbH

Location：Urban-Loritz-Platz, 1070 Wien, Österreich; | ;View Map

Project Year：1999

Category：Masterplans;Transports;Streets

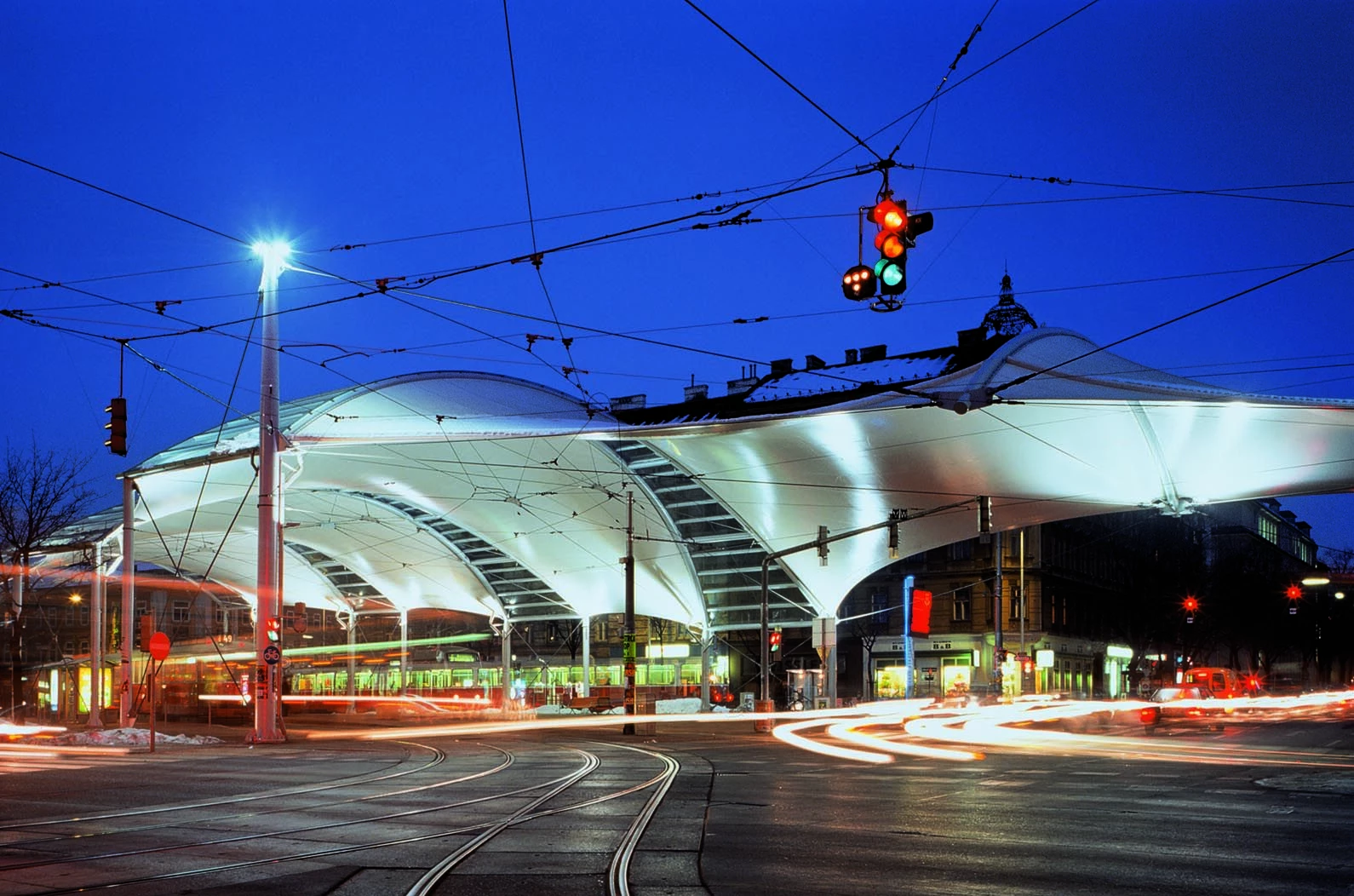

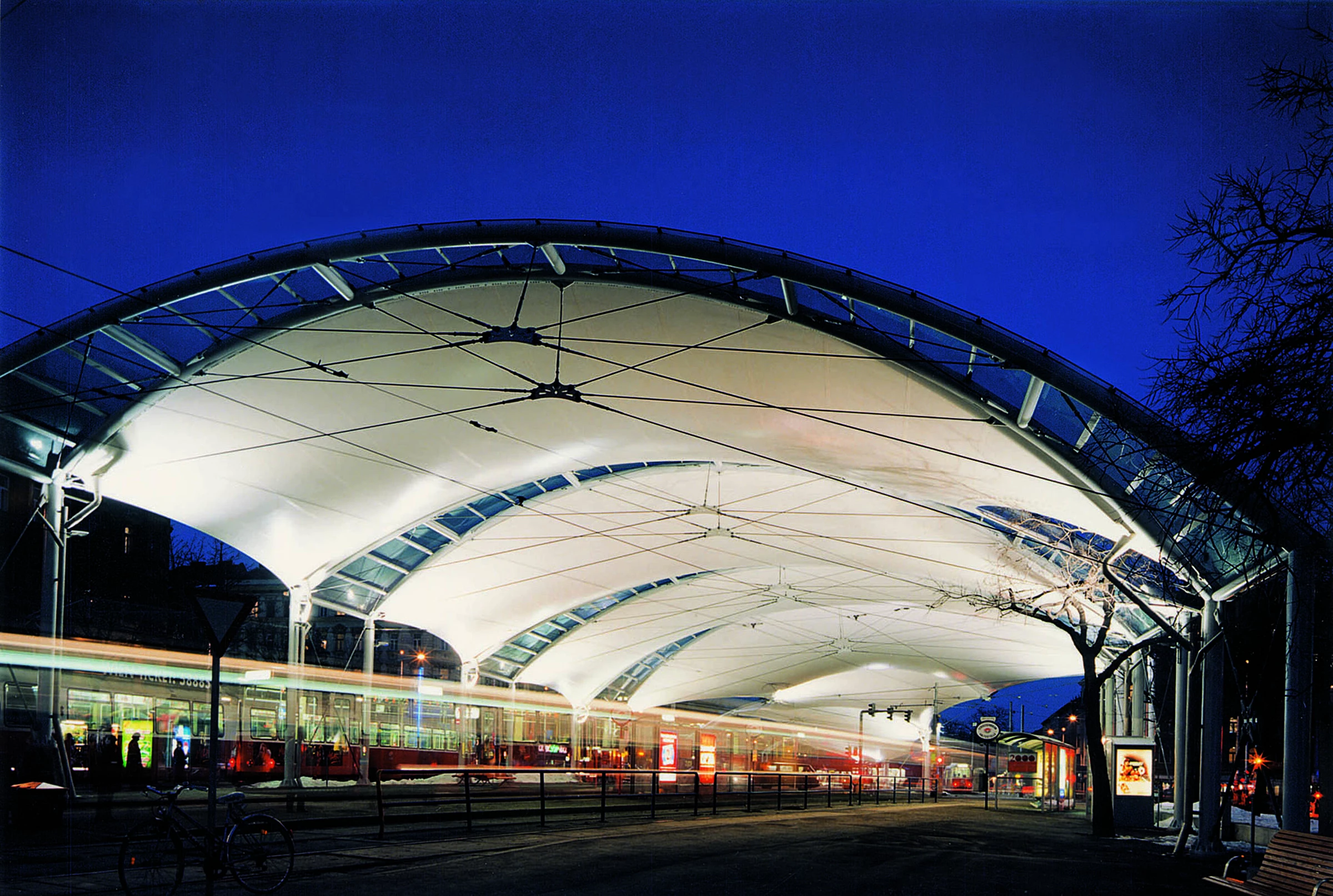

The Urban Loritz Platz on the Gürtel is a centrally located public space and a major public transportation hub, where several street cars and subways connect. Transforming the formerly unappealing and entangled traffic hub into an attractive, contemporary urban space, the new design for the Urban Loritz Platz heralds the revitalization of the entire Gürtel region. The design reorganized the traffic patterns of streetcars, cyclists and pedestrians to achieve a clearly ordered public space. A light and airy steel structure with a membrane roof shelters the main paths and waiting areas. The overarching cover not only protects the square from the elements, but also emphasizes a sense of general unity and urban orientation. At night the entirety is illuminated by indirect light, reflected off the translucent membrane. The membrane roof leads to the base of the grand public stairs of the New Main Central Library, completed by the City of Vienna a year later.

Structural system

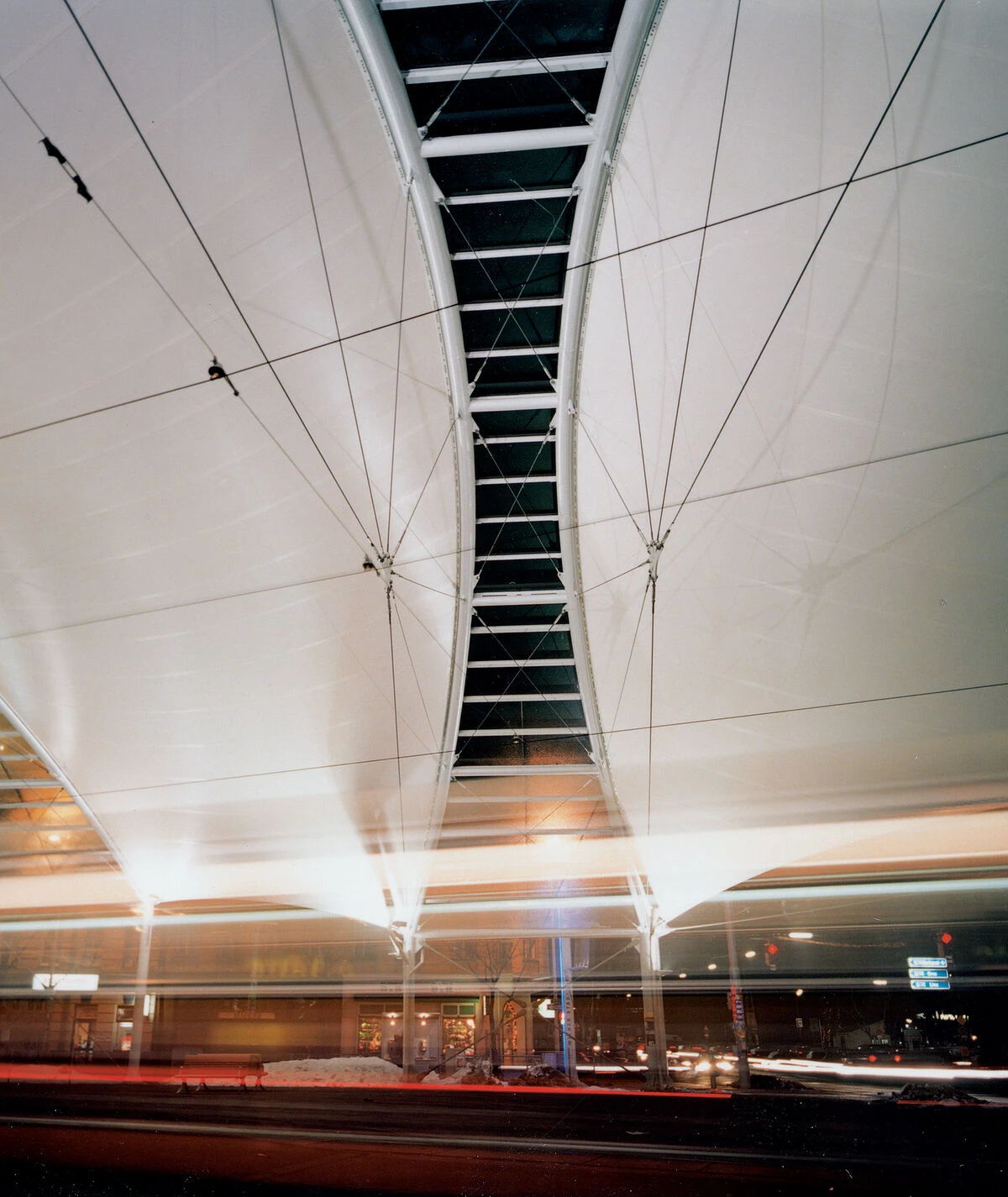

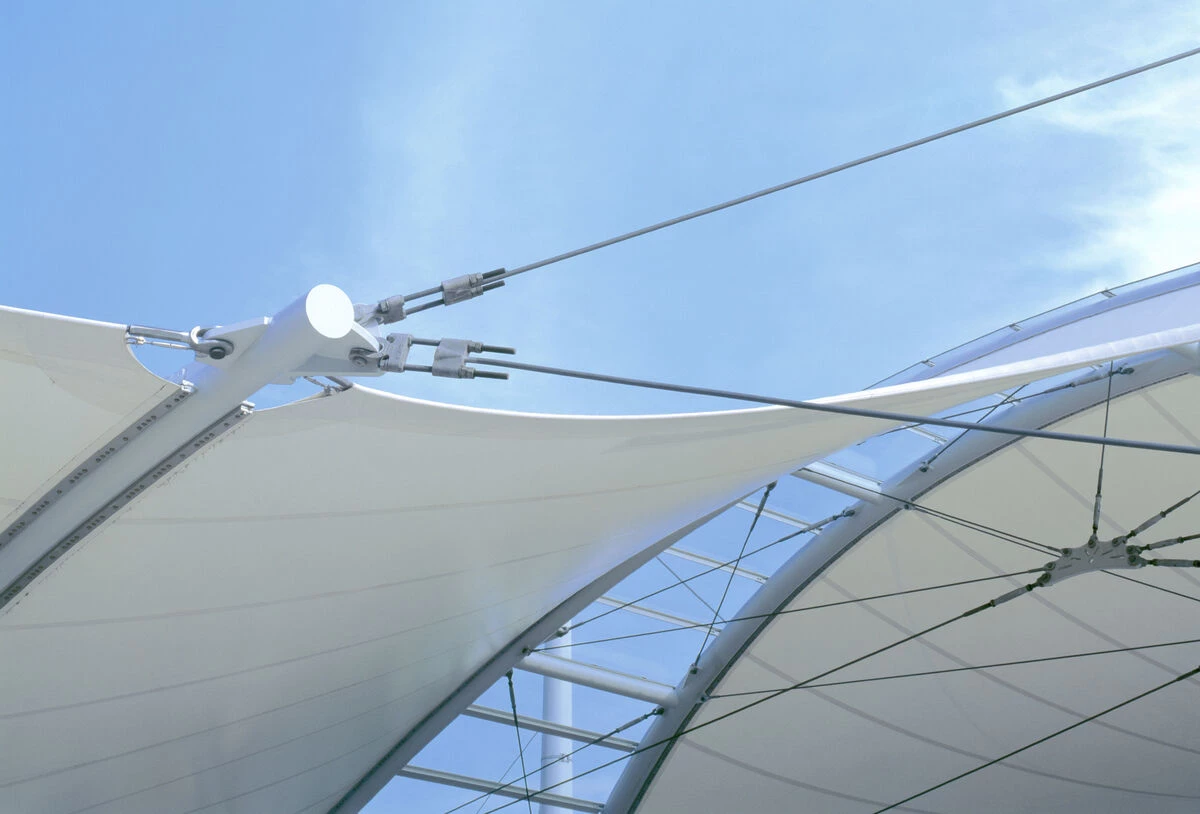

The membrane roof has a total length of 140 meters. Due to the subway tunnel under the site, all the loads had to be brought down vertically to keep foundations minimal. The numerous street-car tracks under and adjacent to the roof posed an additional challenge since they prevented back-stays or ties. Therefore the structural system consists of steel arches on supporting pillars that transmit all loads directly into the foundation. In all, the roof consists of ten membrane sections and rests on 28 steel supports. Horizontal forces are received by tie–rods. Six inclined pairs of arches converge at the ridge, which are supported by four columns each. The membranes stretch between the double arches. The narrow section of the roof consists of four cantilevered arches, that rest on four pillars. In essence, the membrane floats above the street.
