奥地利英飞凌芯片工厂丨Architects Collective

Architect：Architects Collective

Location：Villach, Austria; | ;View Map

Project Year：2021

Category：Factories

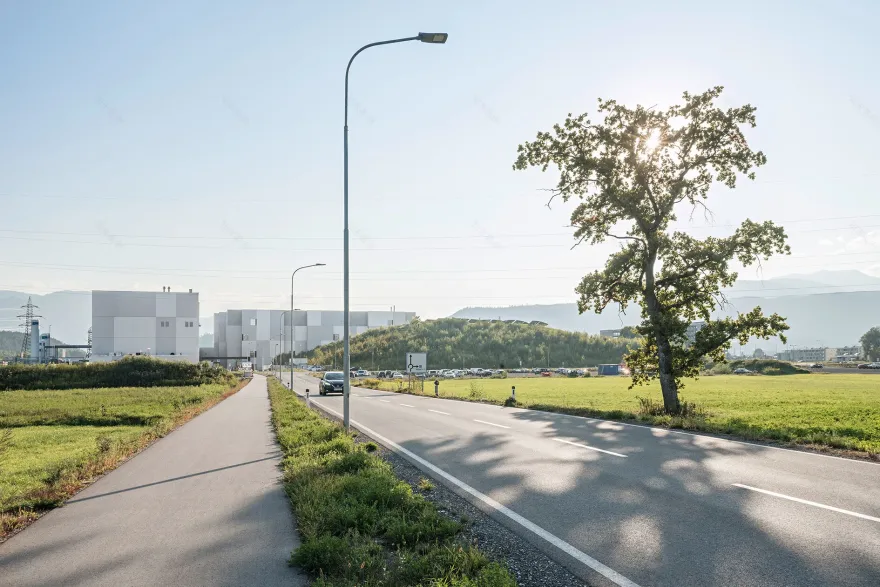

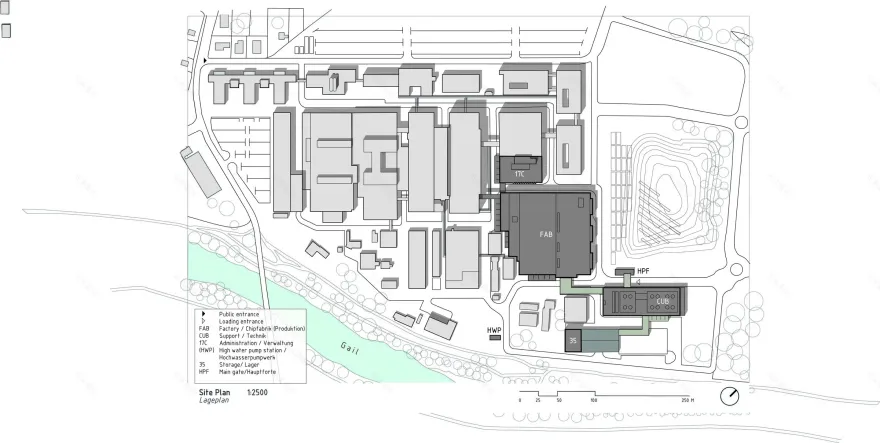

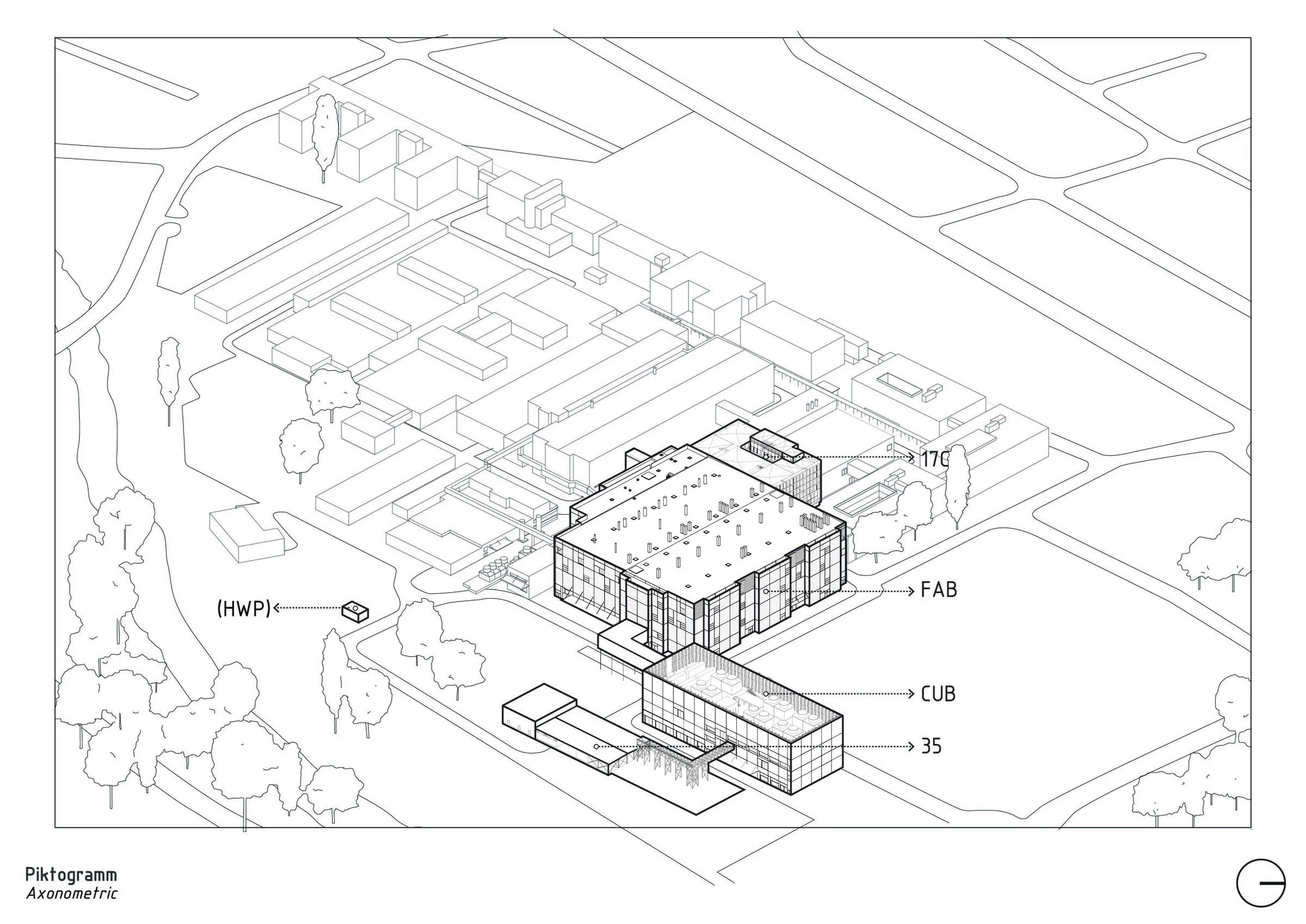

A leap into the future: Hi-tech company Infineon is expanding its Austrian headquarters in Villach with a new, fully automated chip factory for the production of power semiconductors on 300-millimeter thin wafers. The expansion includes the 60,000 m2 cleanroom factory, a central utility building, ancillary and storage buildings, offices, a fire station as well as road, flood prevention and power production infrastructure. With an investment of 1.6 billion Euros, the project will create 400 high qualified jobs.

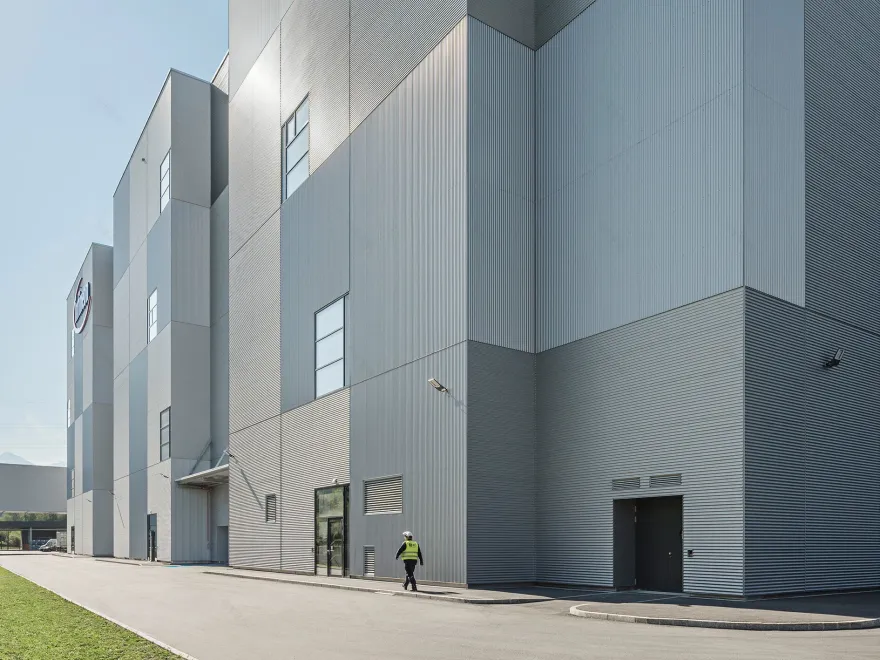

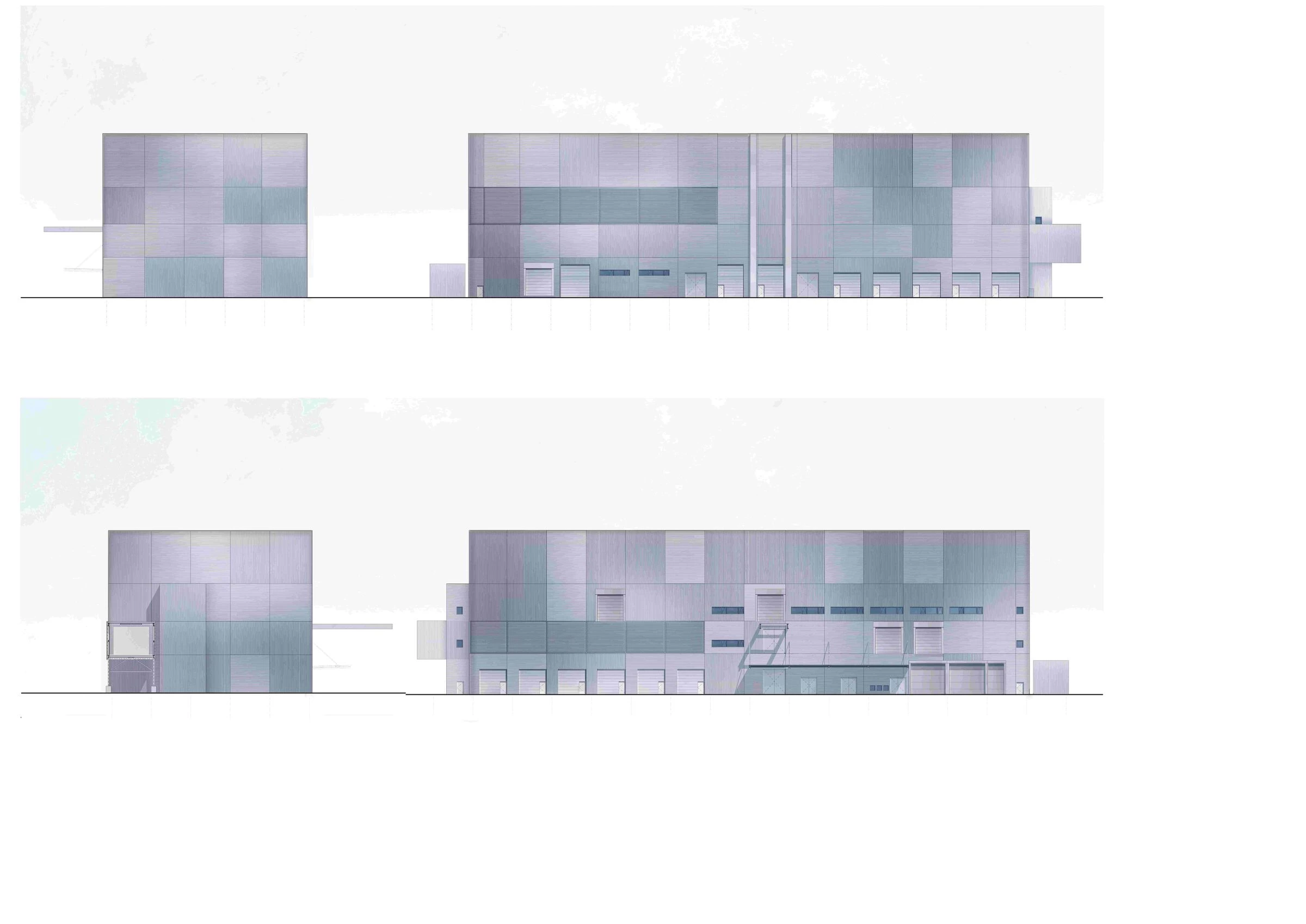

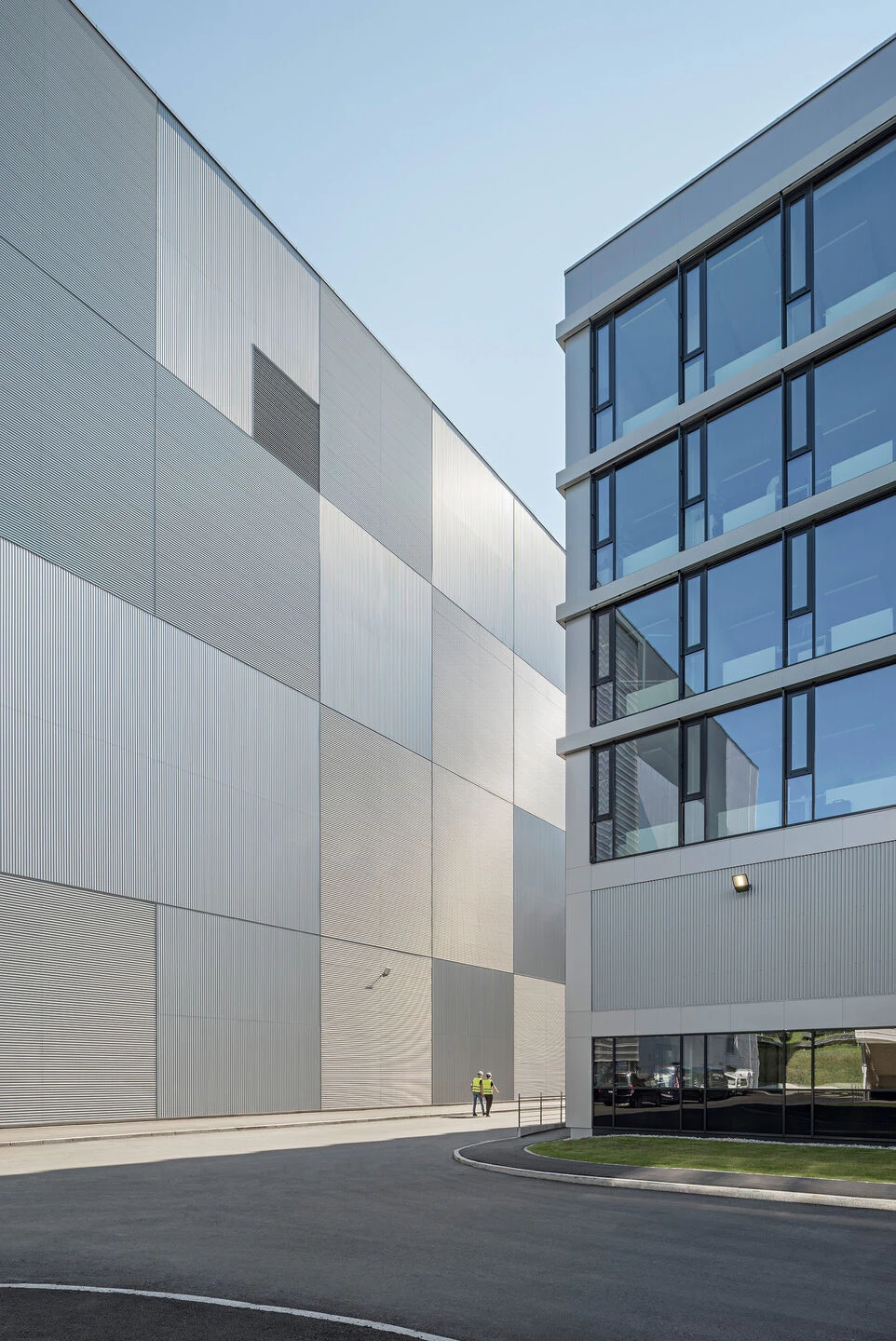

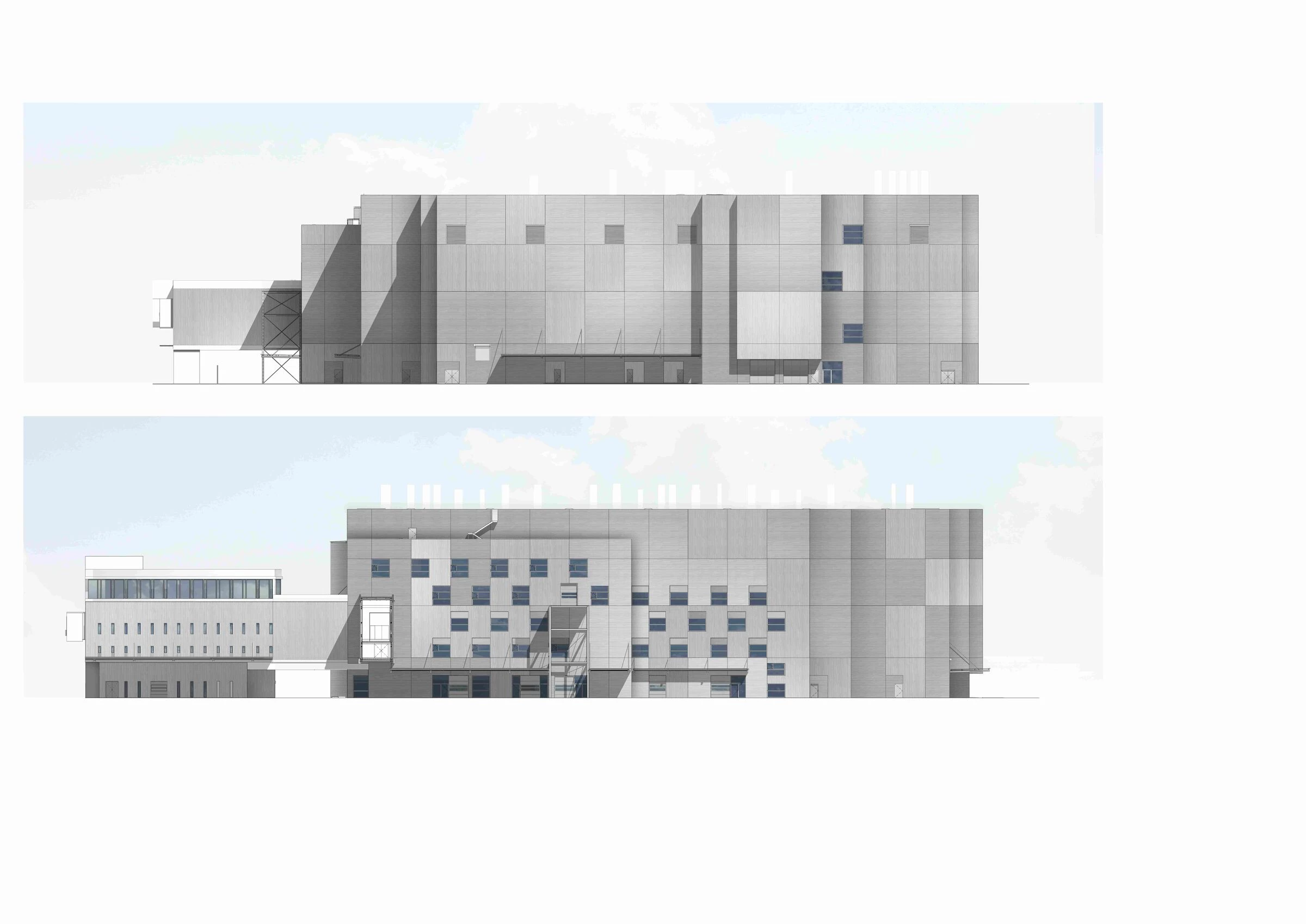

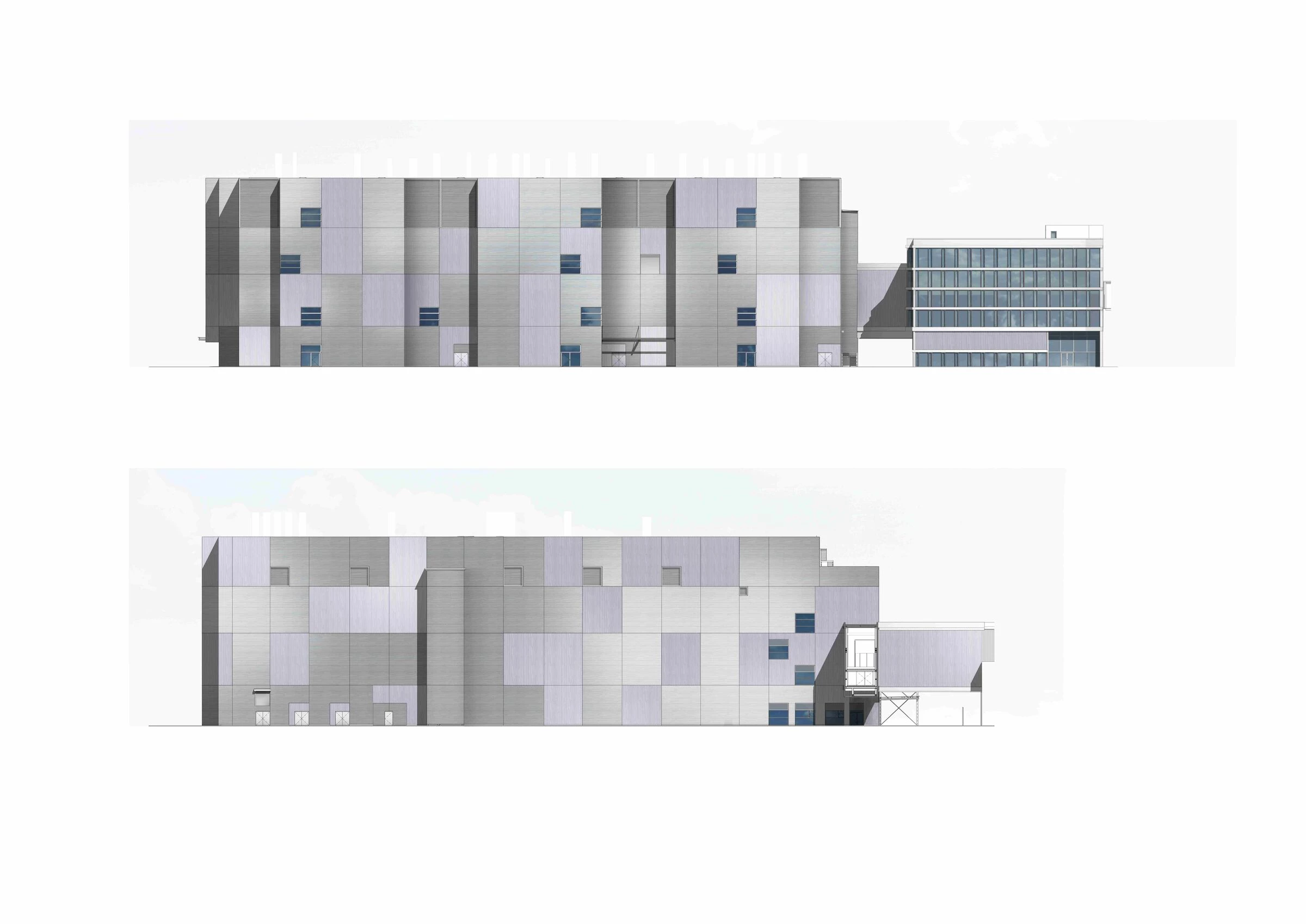

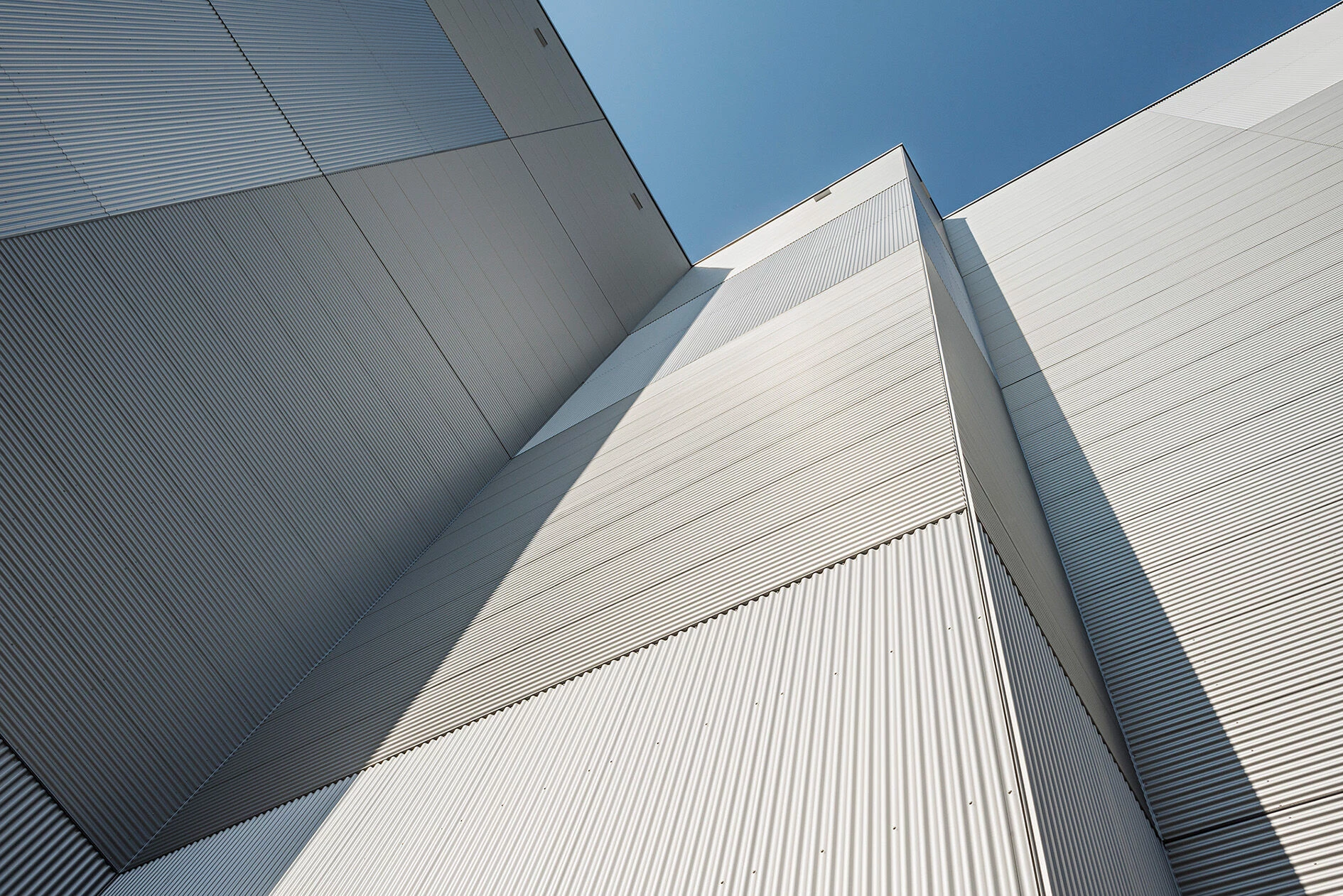

The design refers to the existing structures while at the same time breaking up the very large mass of the whole and giving the extension its own individual character. In order to mirror the façade style of the existing buildings – albeit on a significantly larger scale -, corrugated aluminium panels were used. This time however, the panels were also rotated 90 degrees at irregular intervals, creating a dynamic but clear patchwork pattern that visually breaks up the large volume of the various buildings. This arrangement reacts to the weather and light conditions, constantly changing the appearance of the building through a play of light and shadows.

Austria’s largest private investment project of the last several decades makes full use of BIM and fast-track project management processes. Planning and construction phases seamlessly overlap, creating a dynamic planning environment. The planning of extremely diverse building types with international partner firms is a challenging undertaking which was achieved thanks to virtual spaces and the latest IT technology.

Project description: Construction of a fully automated chip factory, offices and ancillary buildings

Location: Villach, AUT

Client: Infineon Technologies Austria AG

Scope of services: Strategic definition, concept design, planning permission, technical design

Planning: 2018 – 2019 (Design and planning application)

Completion: 2019 – 2021 (Technical design and construction)

Gross floor area: 105.000 m2 (BGFabc)

Floor area: 34.850 m2

Investment volume: € 1.6 Billion (Buildings, production facilities, cleanroom technology)

General planning: Clean Room Consulting, Freiburg

Structural engineering: Boll & Partner. Beratende Ingenieure VBI IngenieurgmbH & CO. KG

Building physics planning: Drees & Sommer SE, Stuttgart

Architecture spatial coordination and technical design: Architects Collective ZT-GmbH & UNIT4 GmbH & Co KG, Stuttgart

General contractor: Exyte GmbH, Stuttgart

Structural engineering: HELT Ziviltechniker GmbH, Wien & IBH – Tragwerksplanung GmbH, Stuttgart

Building physics planning: Drees & Sommer SE, Stuttgart
