福特，DTE 中央能源计划丨美国迪尔伯恩丨OPN Architects

Architect：OPN Architects

Location：1641 Carroll Shelby Wy E, Dearborn, MI 48124, USA; | ;View Map

Project Year：2020

Category：Power Plants

This new Central Energy Plant is at the core of a 10-year master plan to overhaul and modernize a major automotive manufacturer’s research and engineering campus.

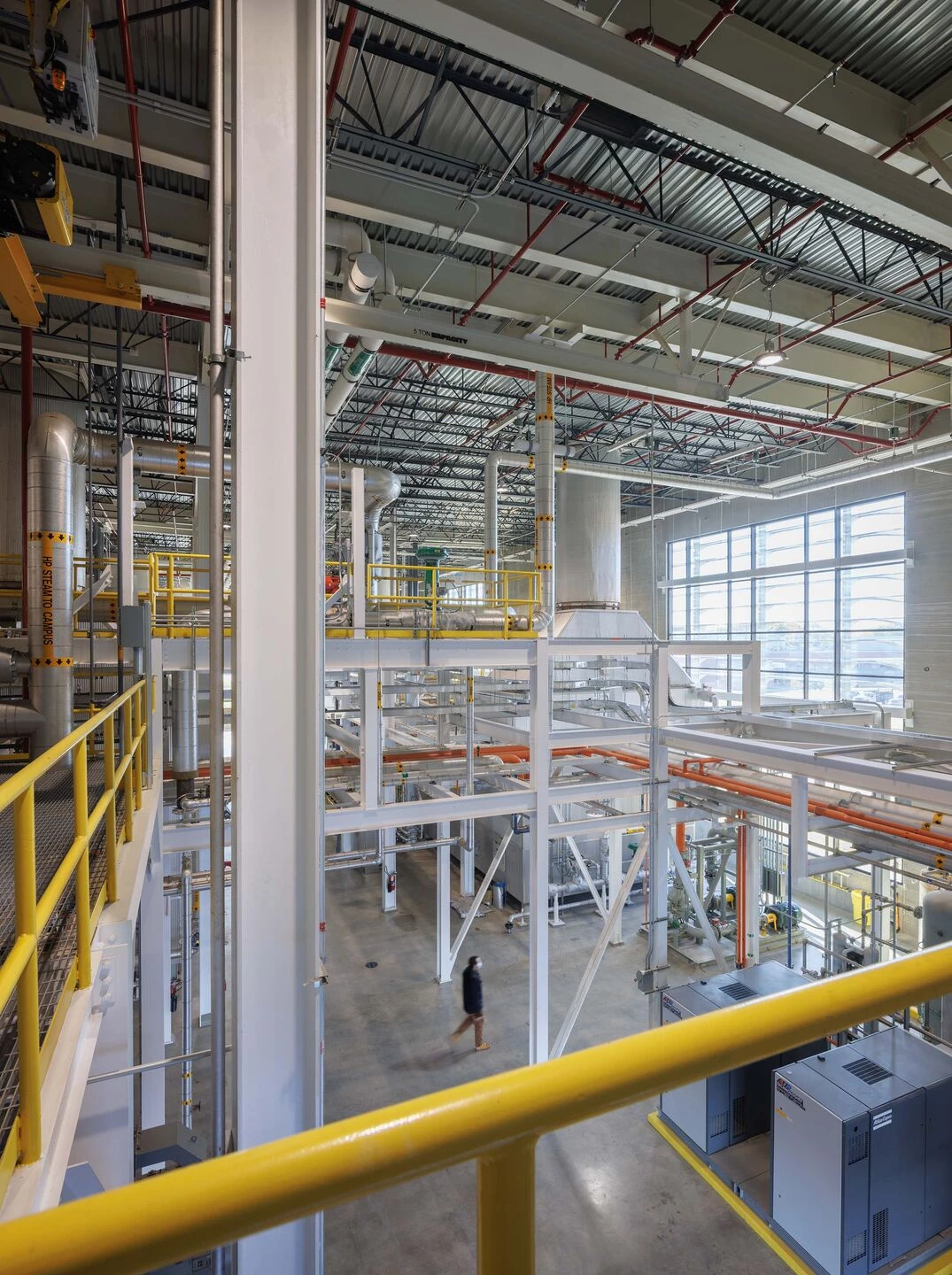

The new facility fulfilled multiple initiatives: the replacement of an aging central steam system, distributed cooling assets with a 3,000 ton geothermal system, a 19,000 ton chilled water system, as well as low-temperature water-based energy distribution loops, 40,000 ton-hours of thermal energy storage, and on-site electrical generation via combined heat and power.

The design team used the latest in three-dimenional modeling software to navigate the complex web of MEP systems to balance space utilization, efficiency, and system requirements.  In addition to using clash detection and virtual design coordination on the interior mechanical areas, a combination of traditional analog methods such as sketching, paper models and three-dimensional physical modeling influenced the façade of the building.  The series of ‘twisted’ blades were developed to clad what would typically be a mundane precast building, with the goal of differentiating the heartbeat of the campus and highlighting the systems that allow it to operate.

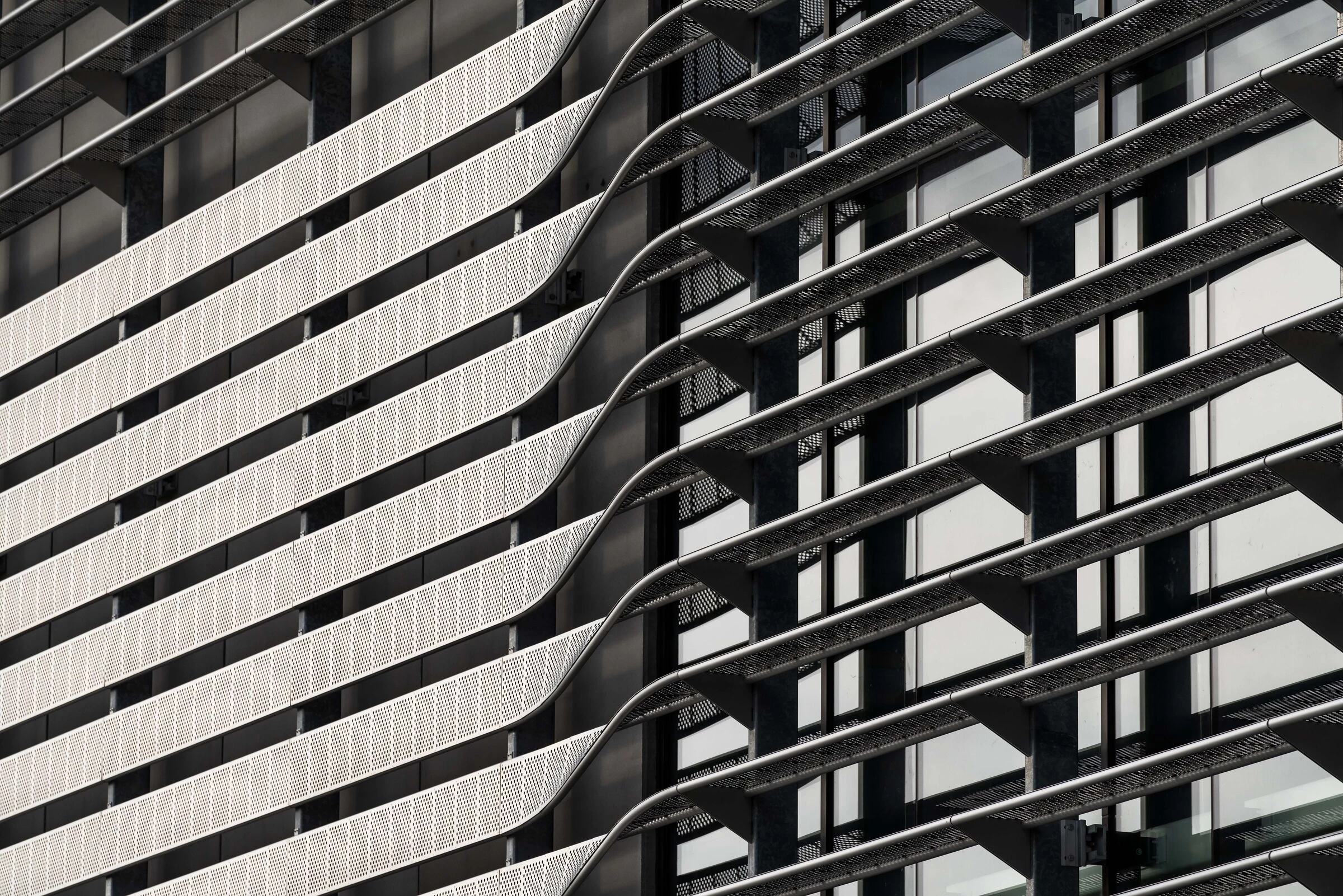

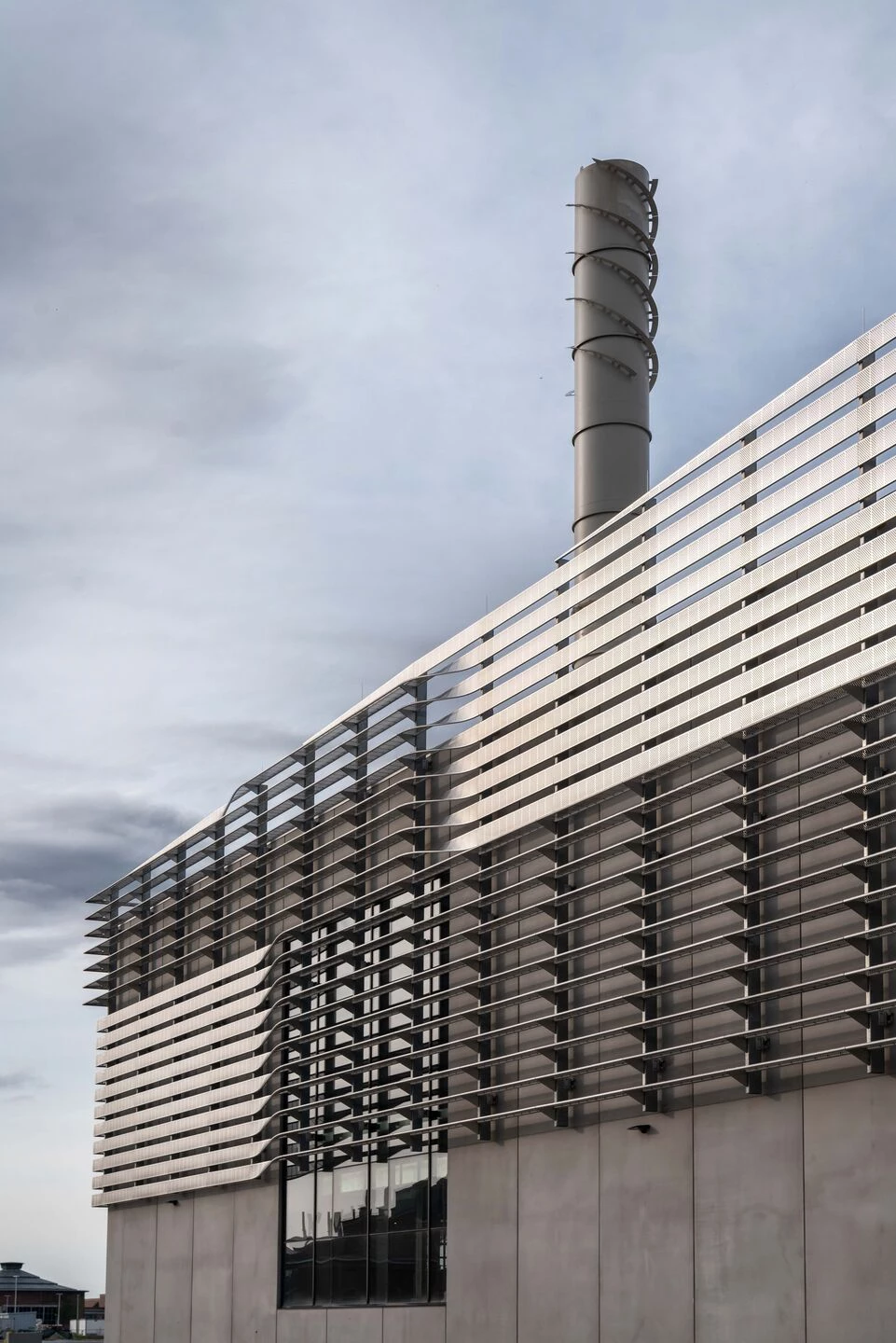

The façade responds by ‘louvering’ open to shade the curtain wall, thus providing thermal comfort for the occupants while creating visual movement at the exterior elevations from all vantage points.  The façade system required rounds of iteration, calculation, computation, and several mock-ups working closely with fabricators to develop. It pushes the boundaries of what metal can do as well as what industrial buildings can be within a design context.

The end result is a highly efficient and flexible central energy plant that exceeds the company’s high-performance sustainability objectives and pushes the envelope of modern distributed gas power.

▼项目更多图片
