拉诺里亚二世之家丨墨西哥丨Garza Camisay Arquitectos

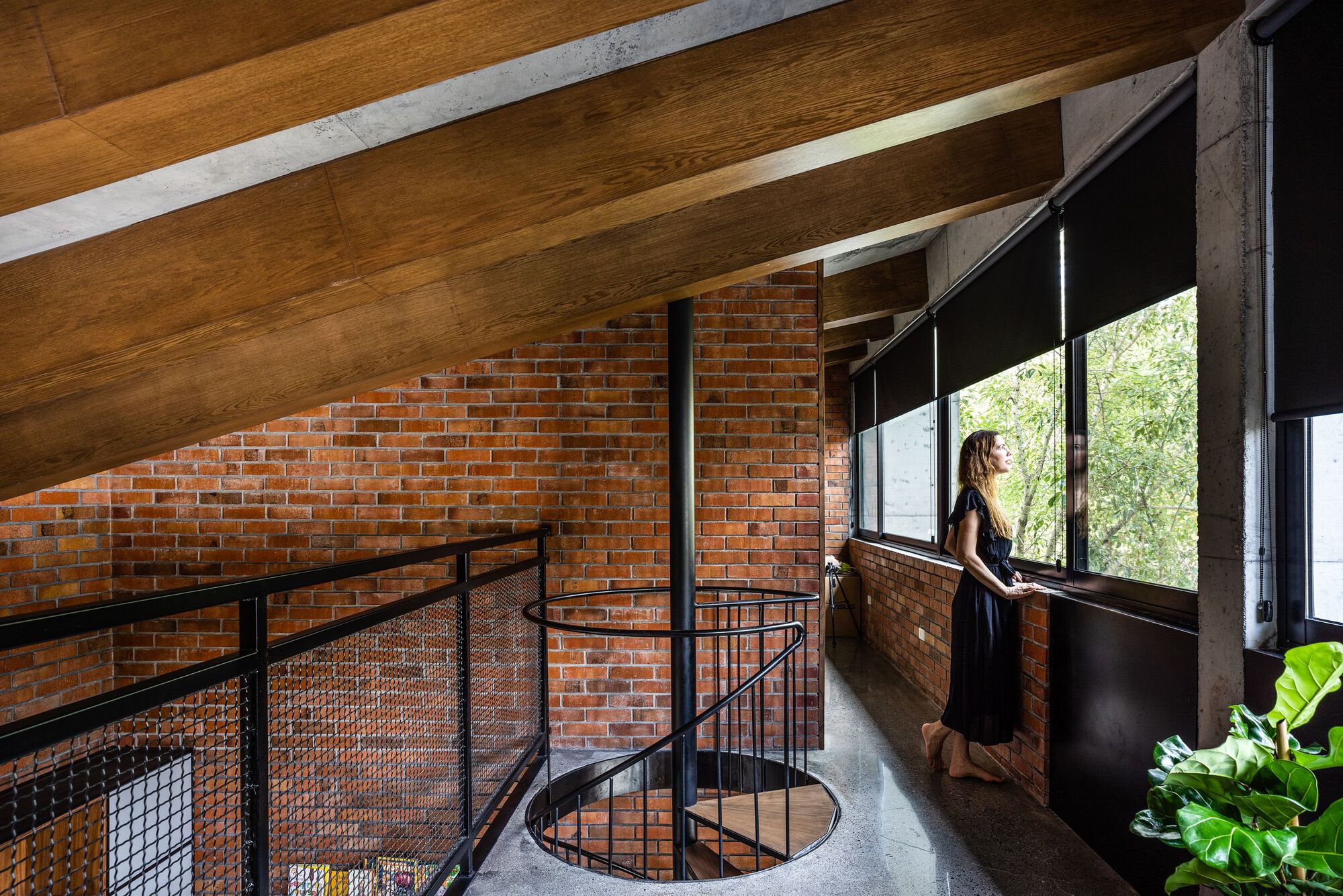

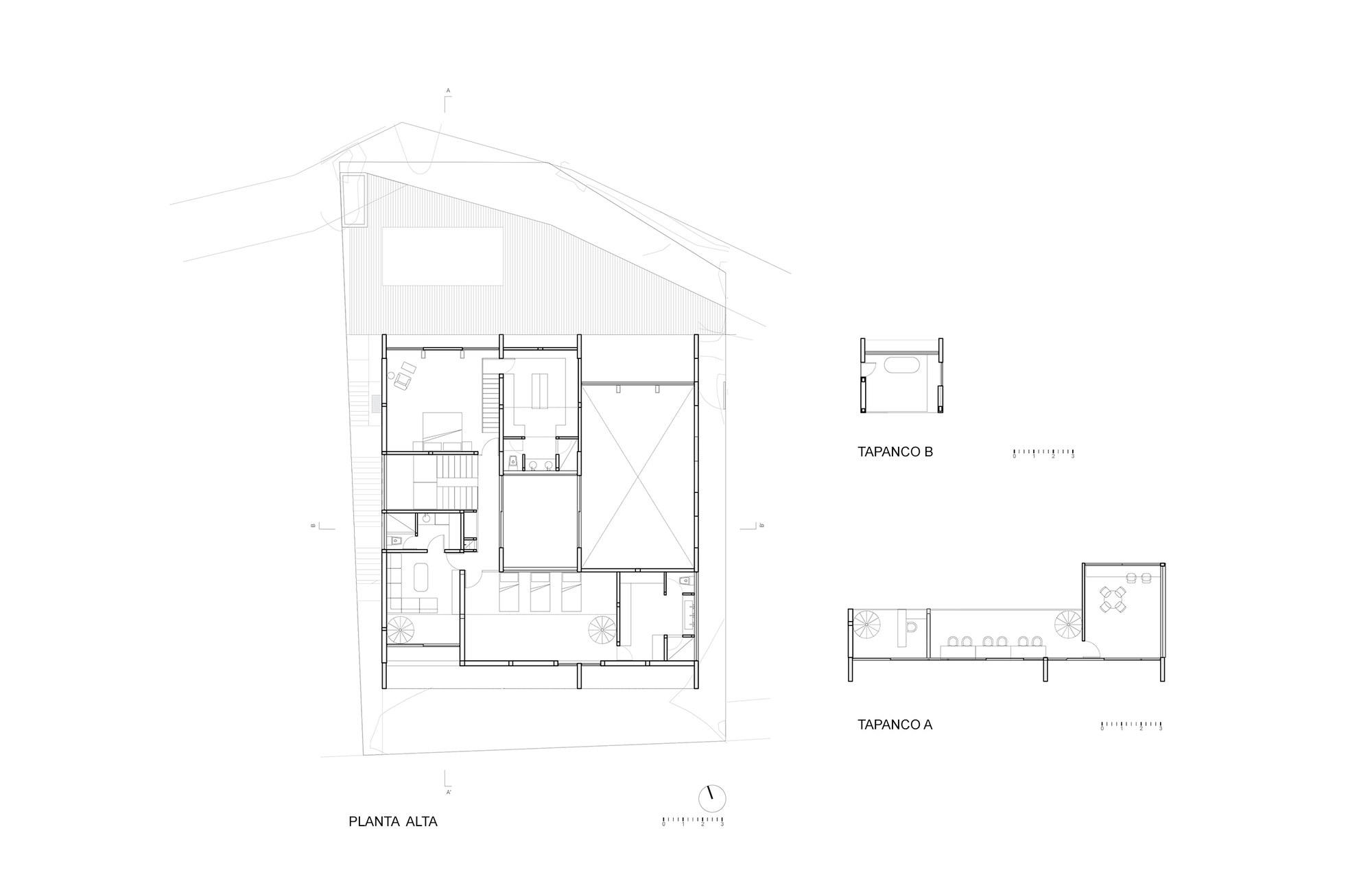

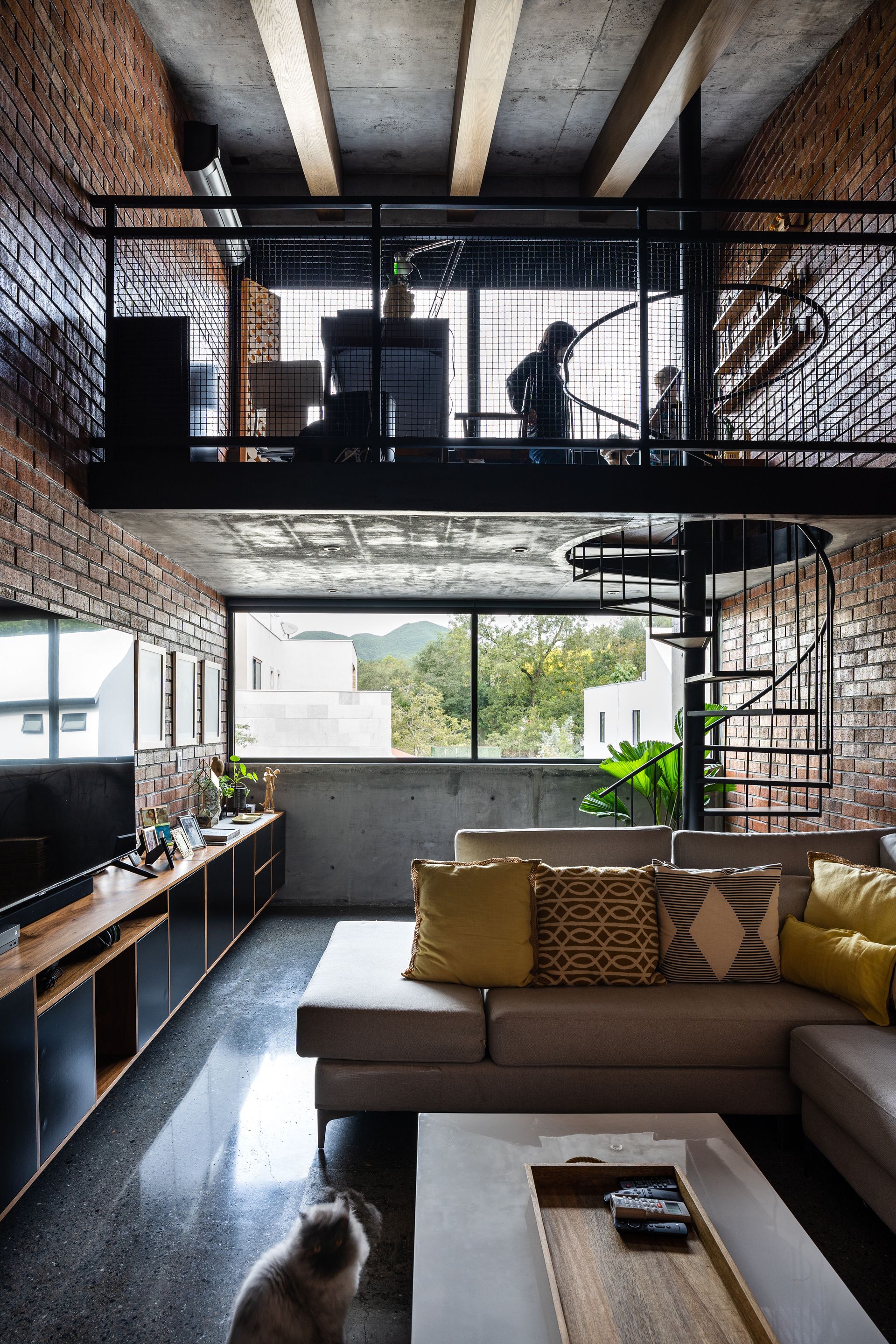

Both objectives are reached by optimizing the allowed height towards the front and back and concentrating the program on both sides with two levels and a mezzanine as a third level that generates a large area that takes advantage of the complete height.

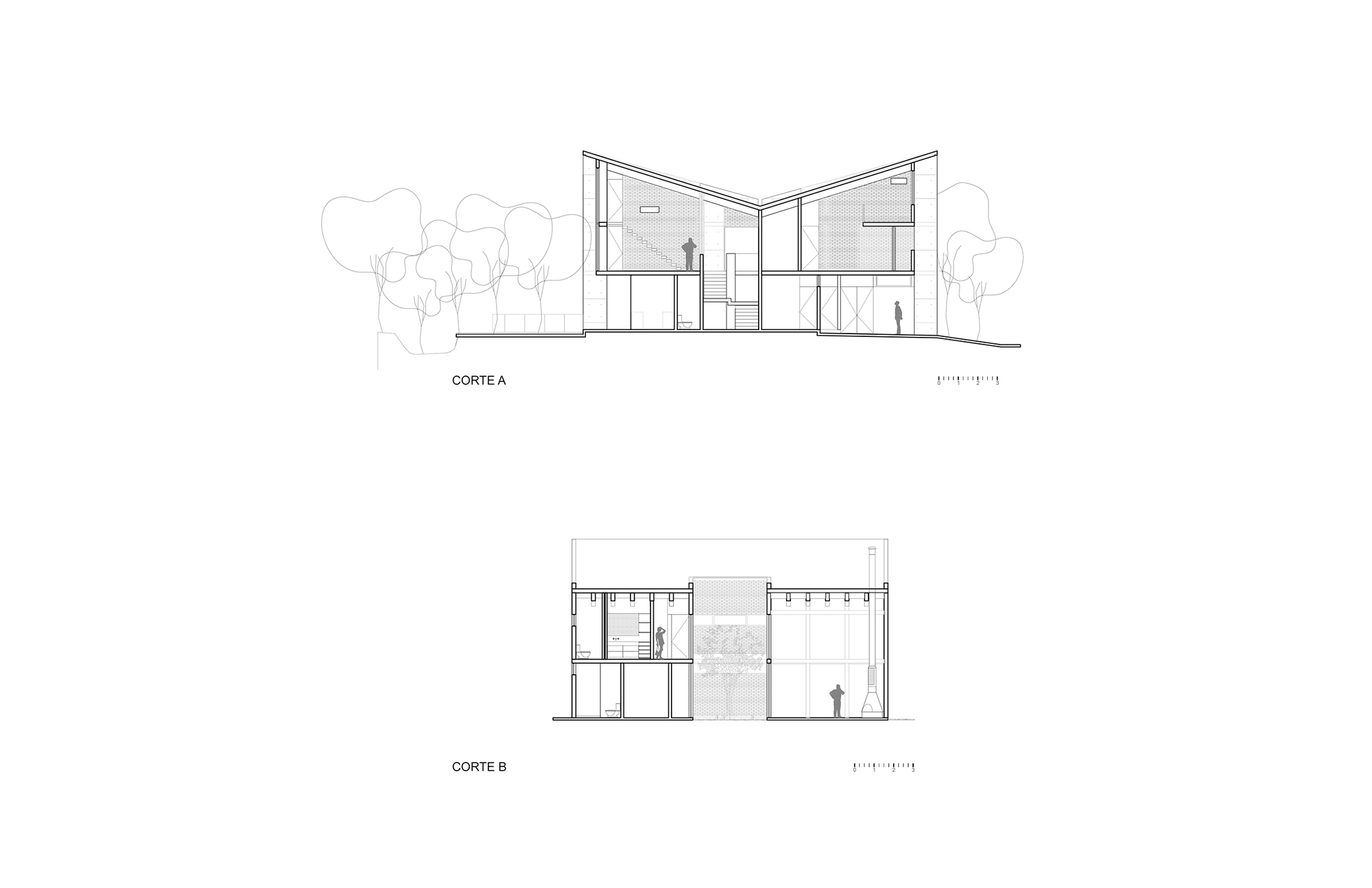

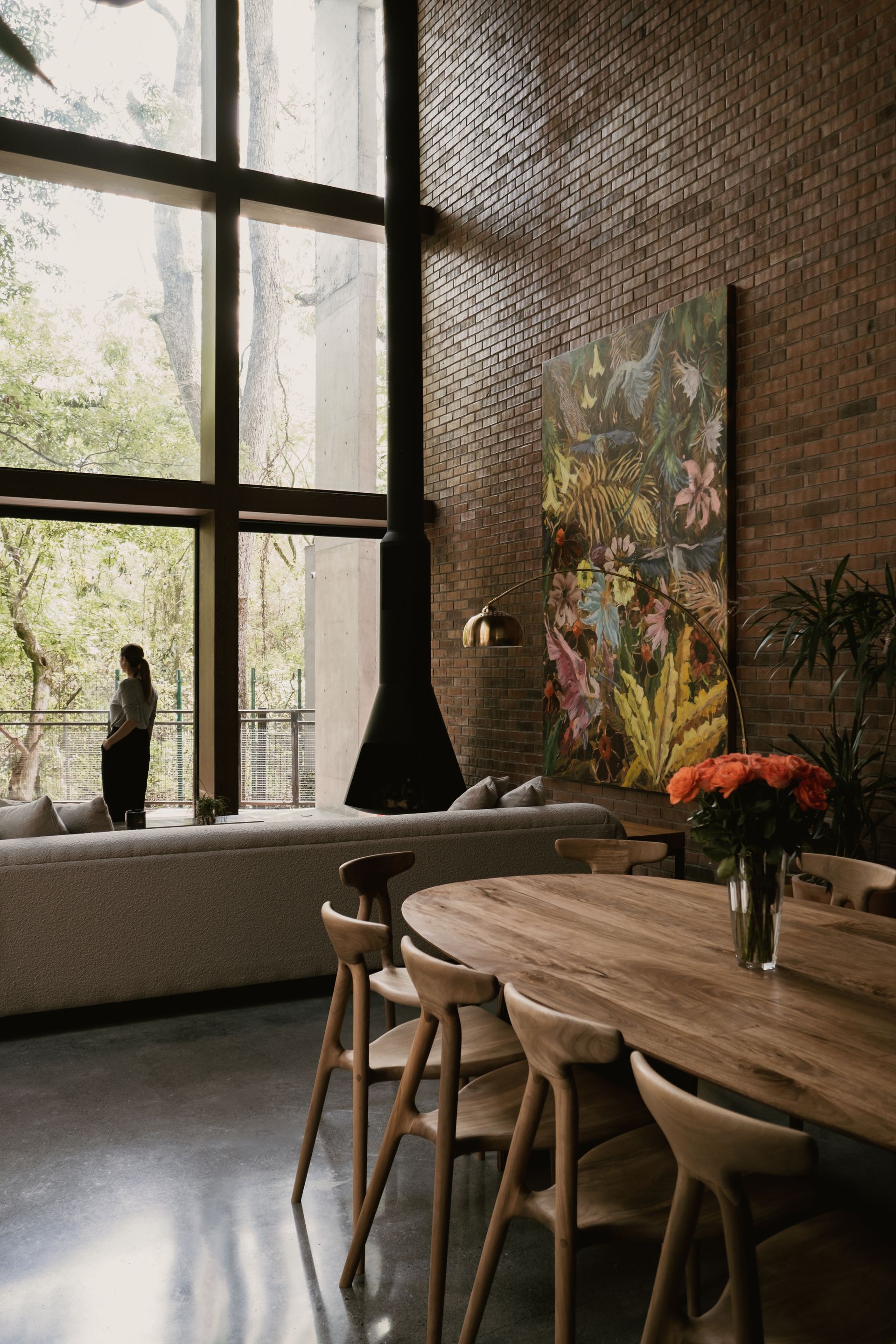

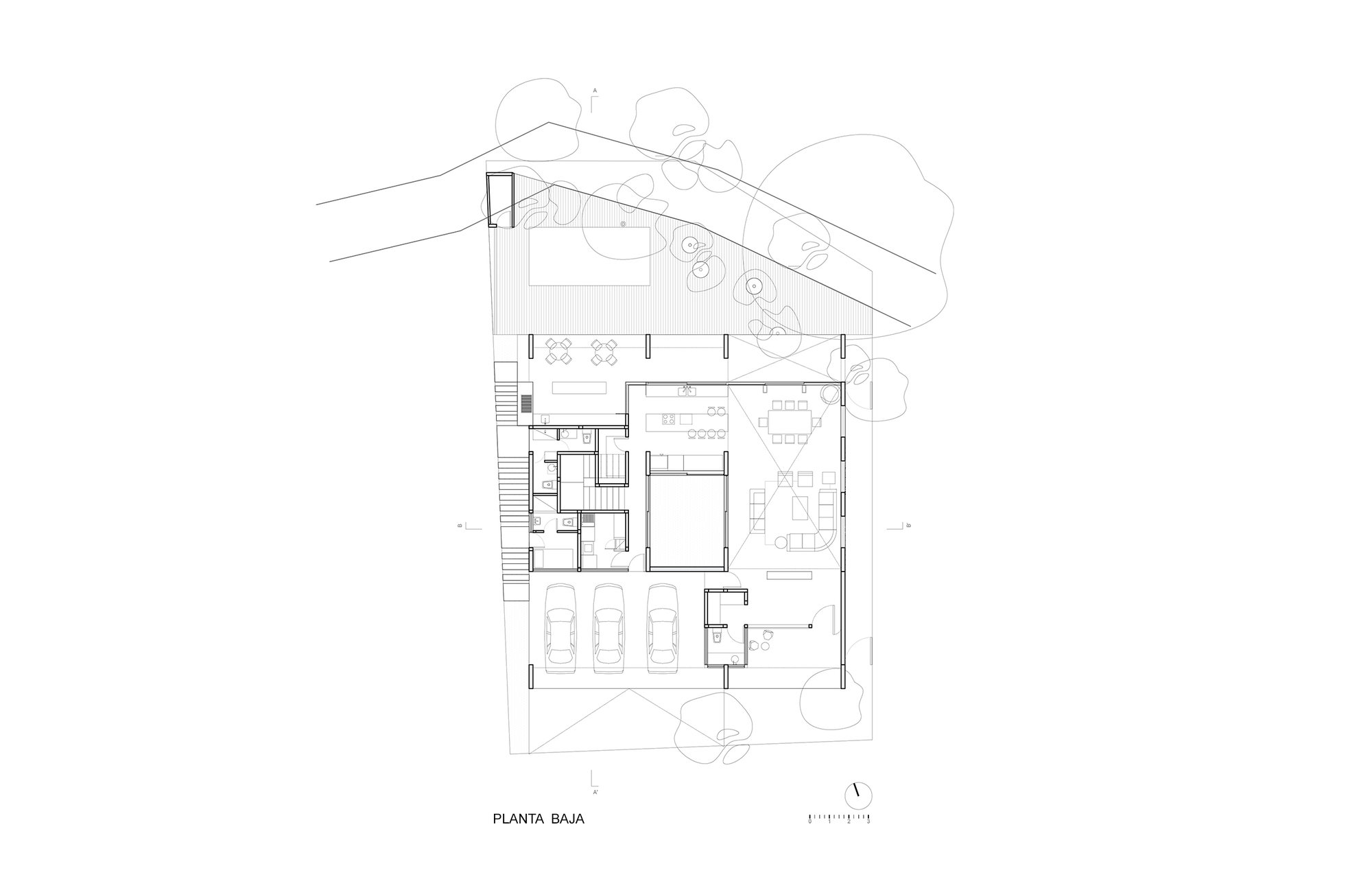

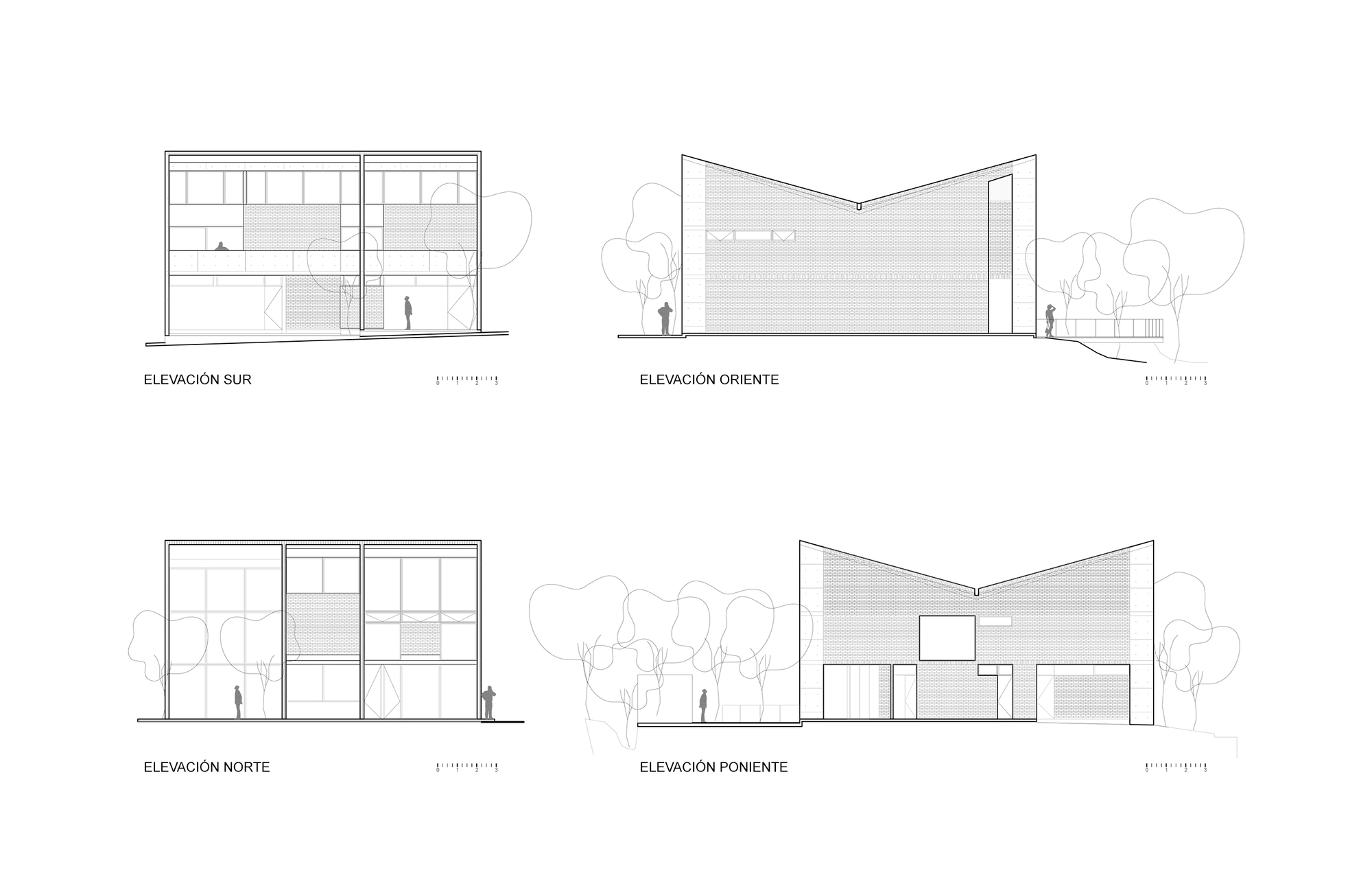

Since it is a long lot, we propose a central courtyard that helps illuminate and ventilate each space. This middle element is an impluvium where the sloping roofs converge. The difference in height between the center and the edges of the house determines the organization of spaces. The living areas are towards the sides with single, double, and triple heights, while the service areas are closer to the central area where the house allows only two levels. The maximum height on the building's exterior is adjusted to follow the height of the neighboring dwellings.

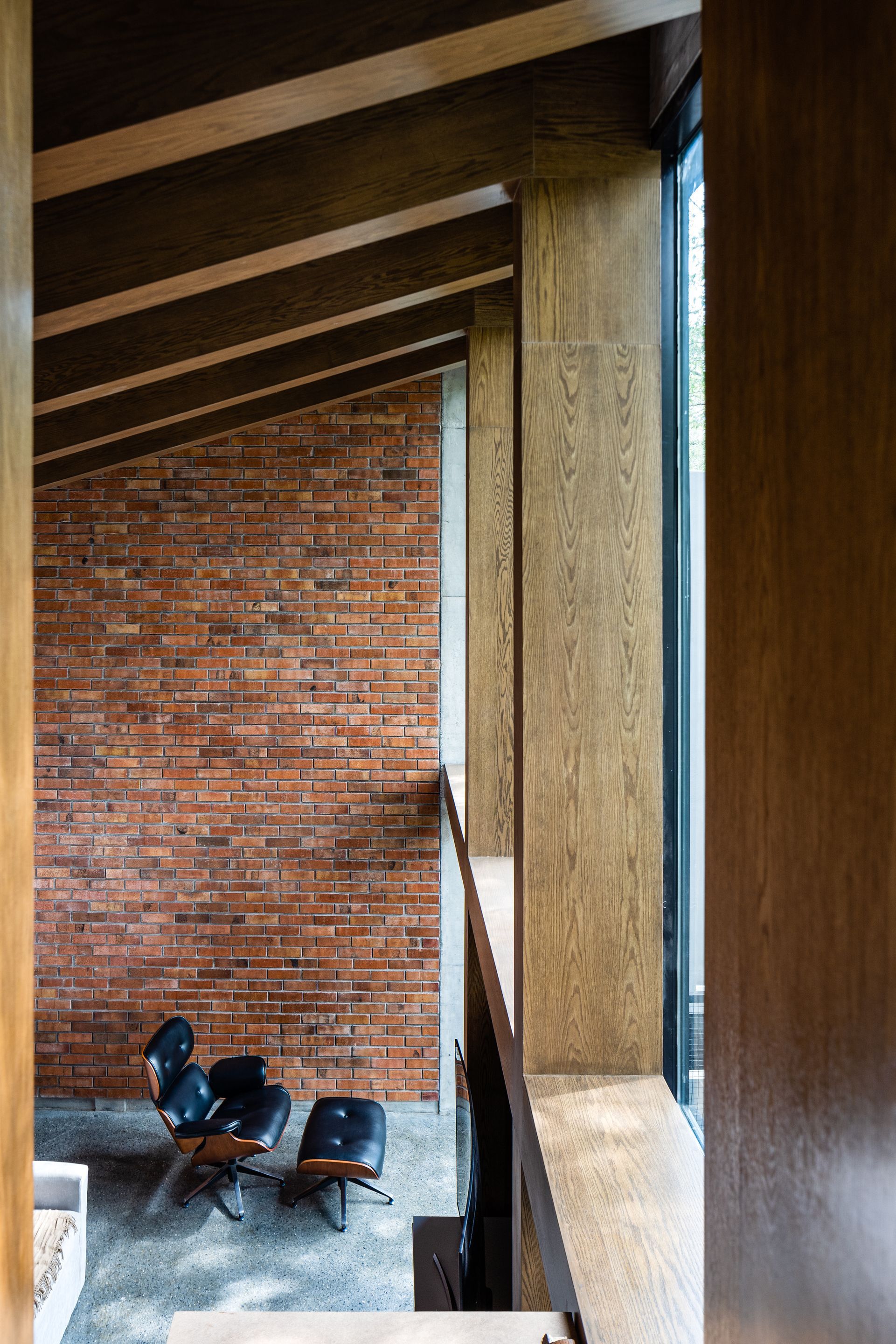

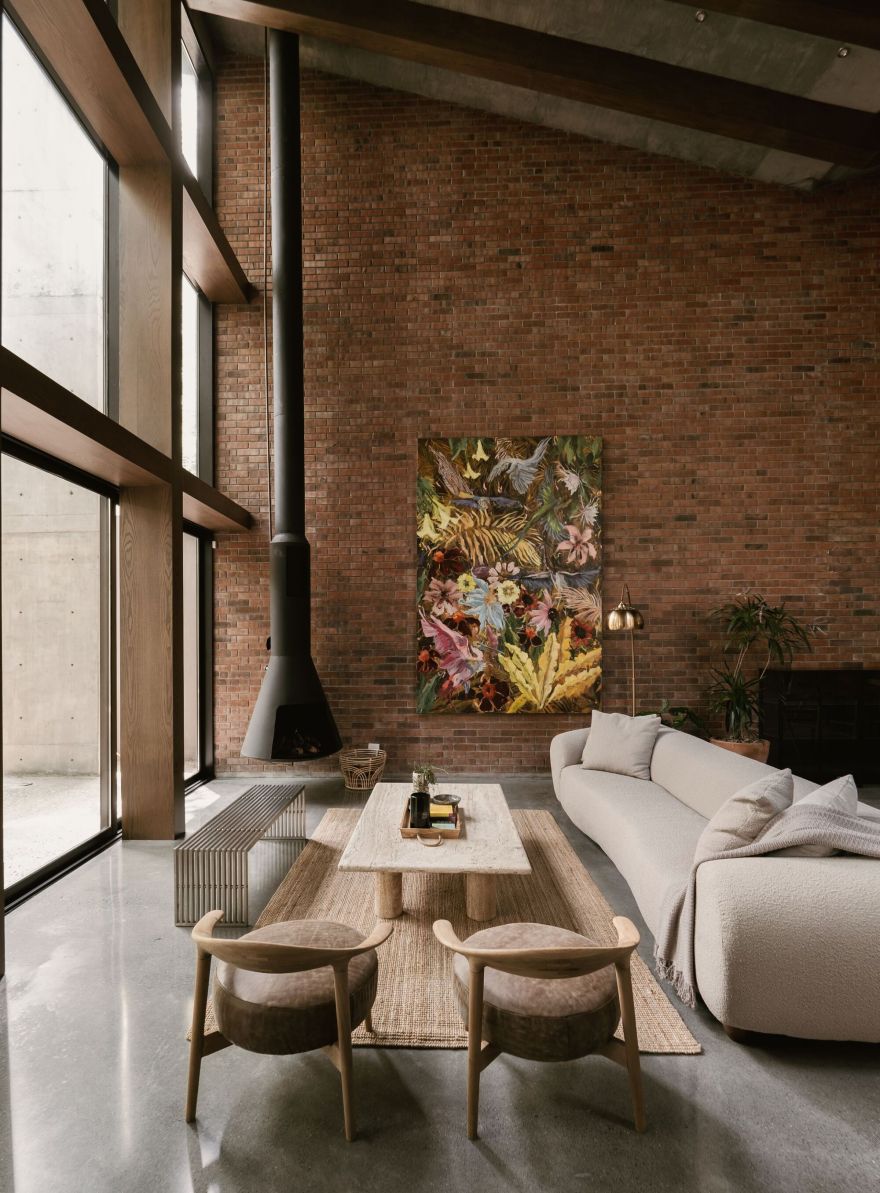

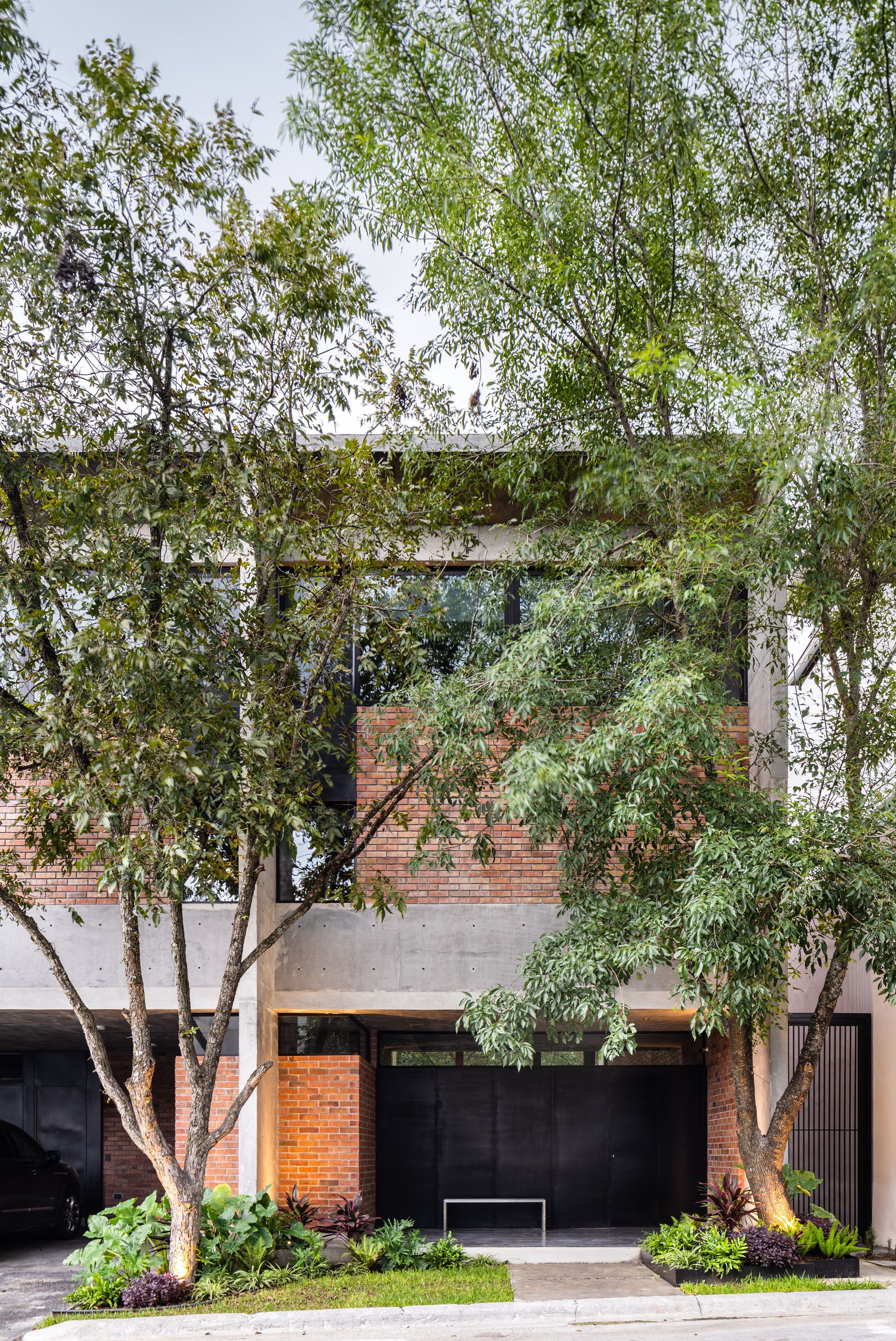

The concrete structure shows the modular order, while the evenly spaced repetition of wooden beams on the roof defines the dimensions of the interior spaces, as does the enclosing elements on the facade. Finally, the brick wall acts as a boundary with the exterior or internal division without being load-bearing elements.

项目设计：Garza Camisay Arquitectos

项目面积： 498.2501349m²

项目年份：2021

项目摄影：Apertura Arquitectónica

首席建筑师：Edna Garza, Darío Camisay

项目成市： Monterrey

项目国家： Mexico

设计师：Garza Camisay Arquitectos

语言：英语
