Boiler House and Engine House 改造丨德国不来梅丨SMAQ

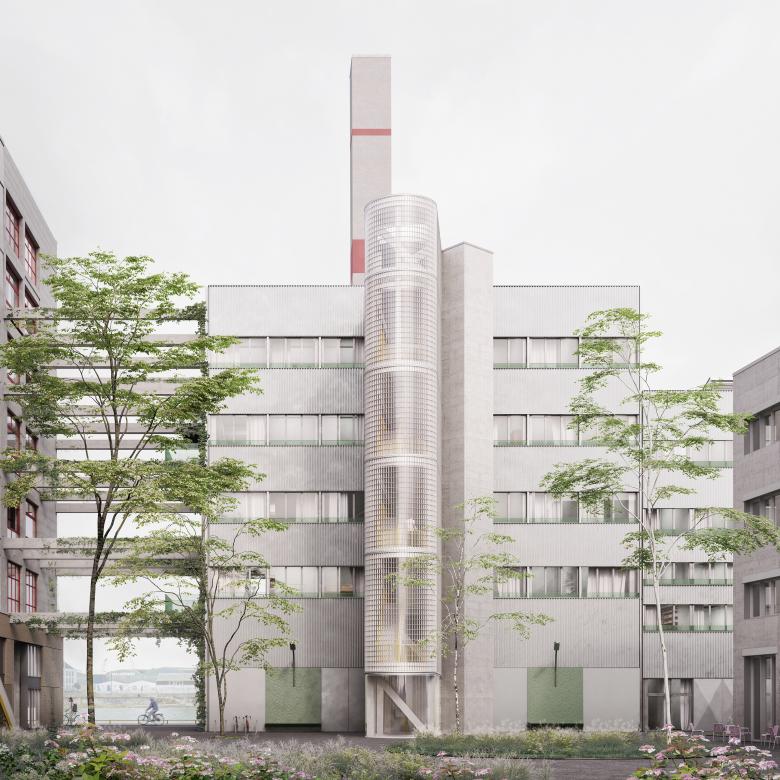

Courtyard side of the boiler house with newly attached staircase

可视化 © SMAQ | PONNIE images

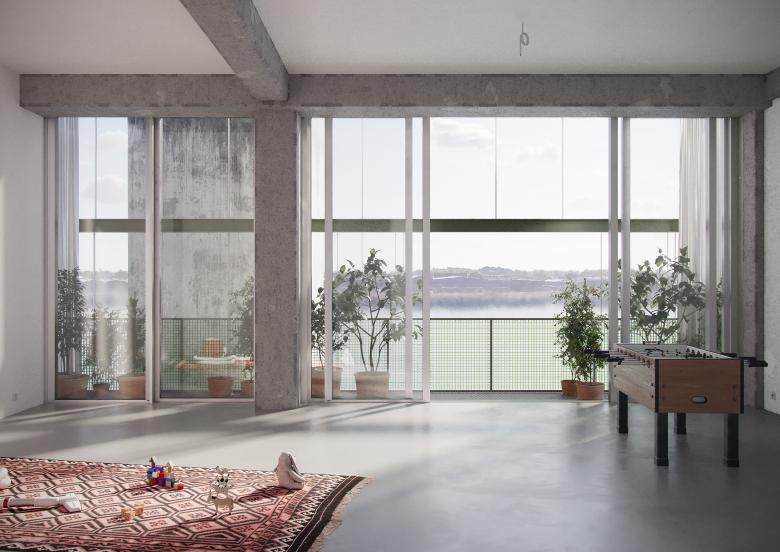

View from apartment in the boiler house with view of river Weser

可视化 © SMAQ | PONNIE images

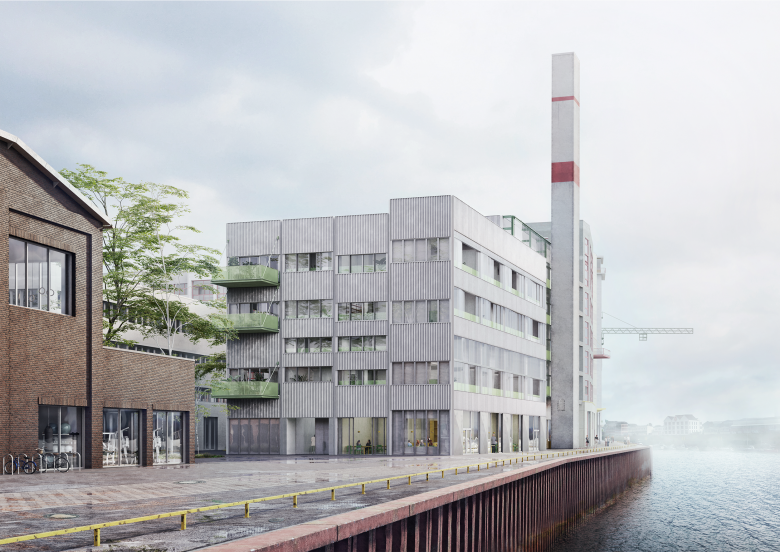

Engine house at promonade along the river Weser

可视化 © SMAQ | PONNIE images

Engine house, boiler house and Flakes Factory at river Weser

可视化 © SMAQ | PONNIE images

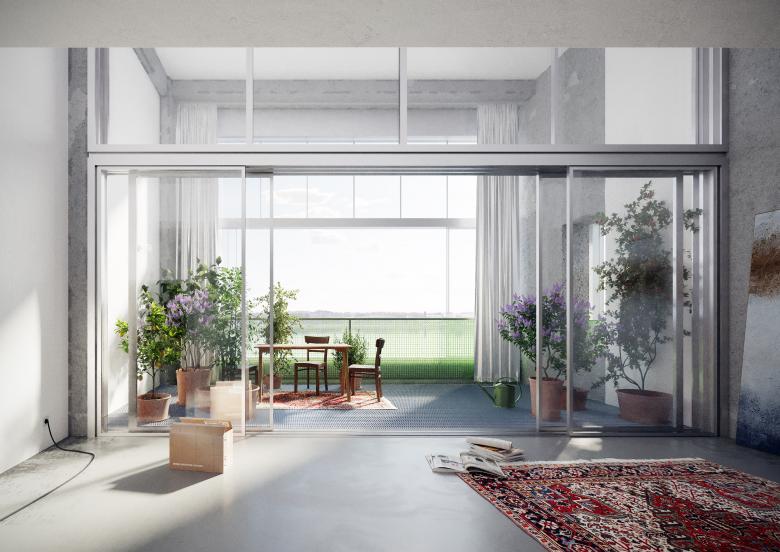

View from apartment in the boiler house on the river Weser

可视化 © SMAQ | PONNIE images

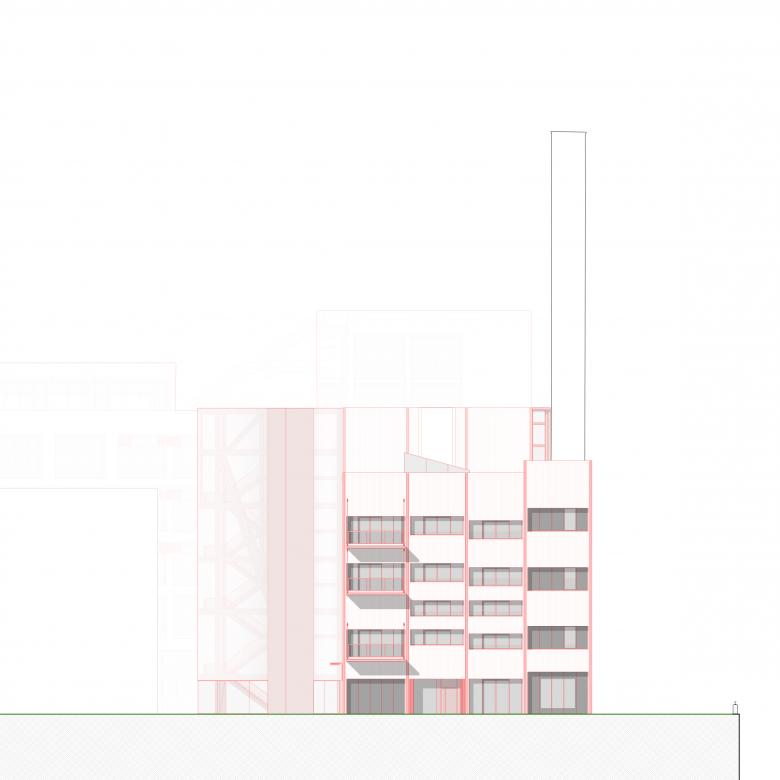

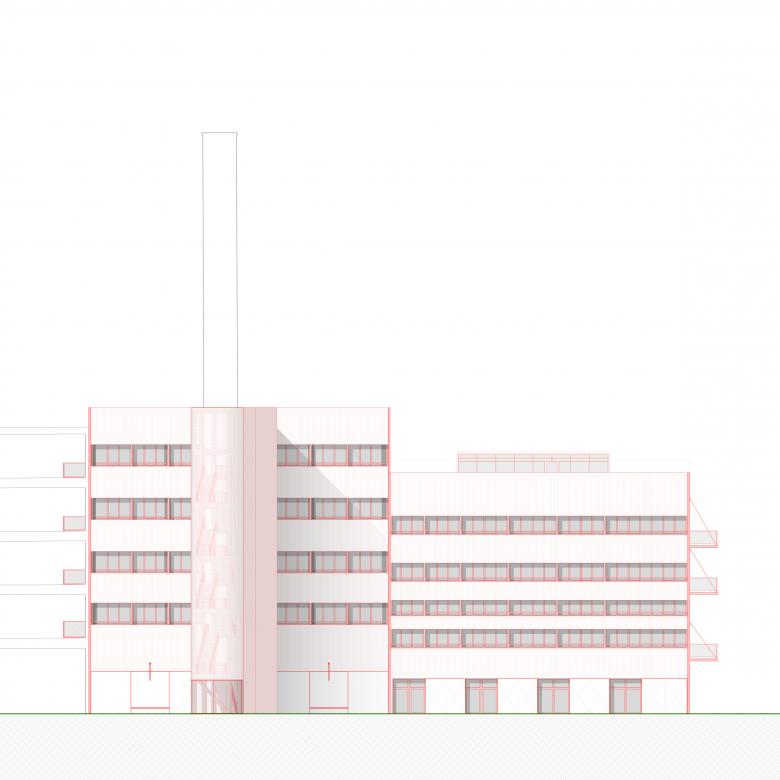

Elevation south-west

图纸 © SMAQ

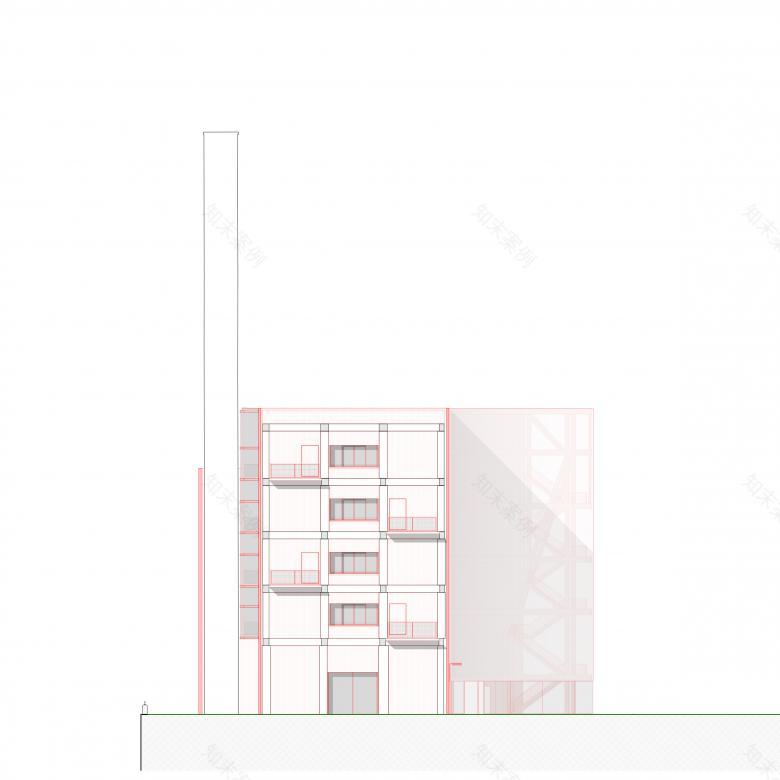

Elevation north-west

图纸 © SMAQ

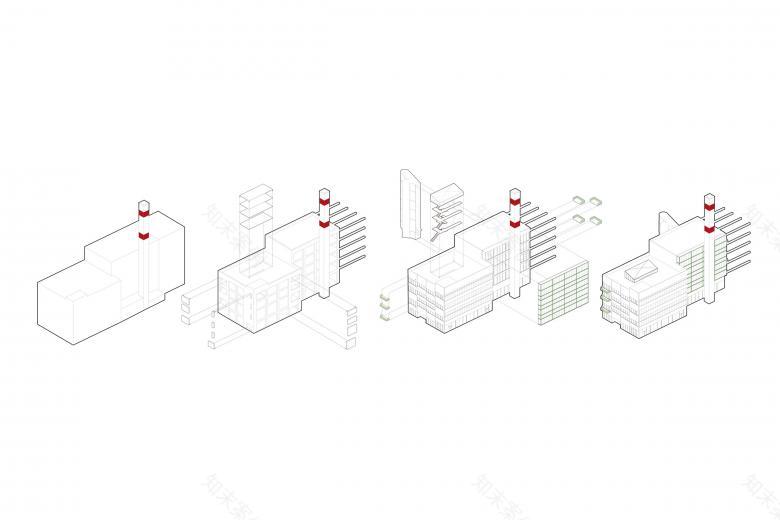

Steps of transformation

图纸 © SMAQ

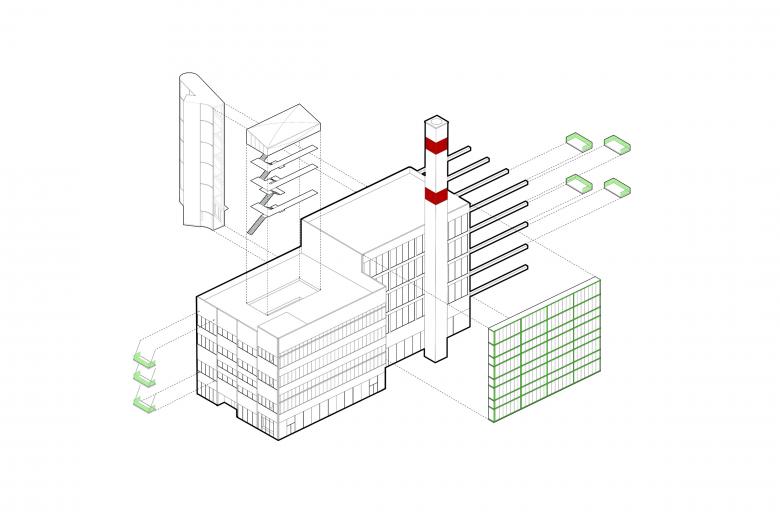

Newly added elements

图纸 © SMAQ

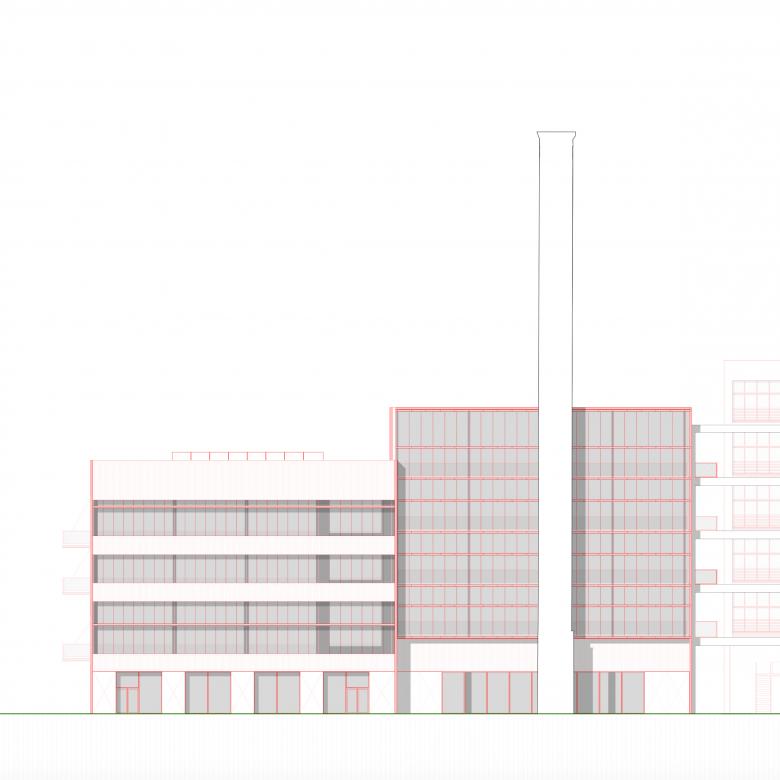

Elevation south-east

图纸 © SMAQ

Section boiler house

图纸 © SMAQ

Elevation north-east

图纸 © SMAQ

Section engine house

图纸 © SMAQ

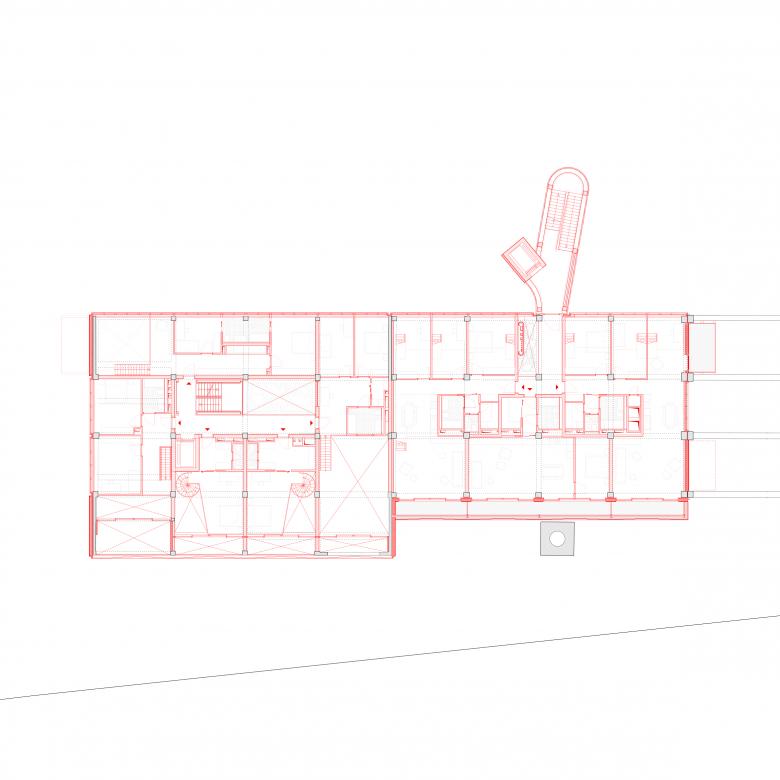

4. floor engine house | 3. floor boiler house

图纸 © SMAQ

Ground floor: commercial unit in engine house | power plant in boiler house

图纸 © SMAQ

2. floor engine house | 1. floor boiler house

图纸 © SMAQ

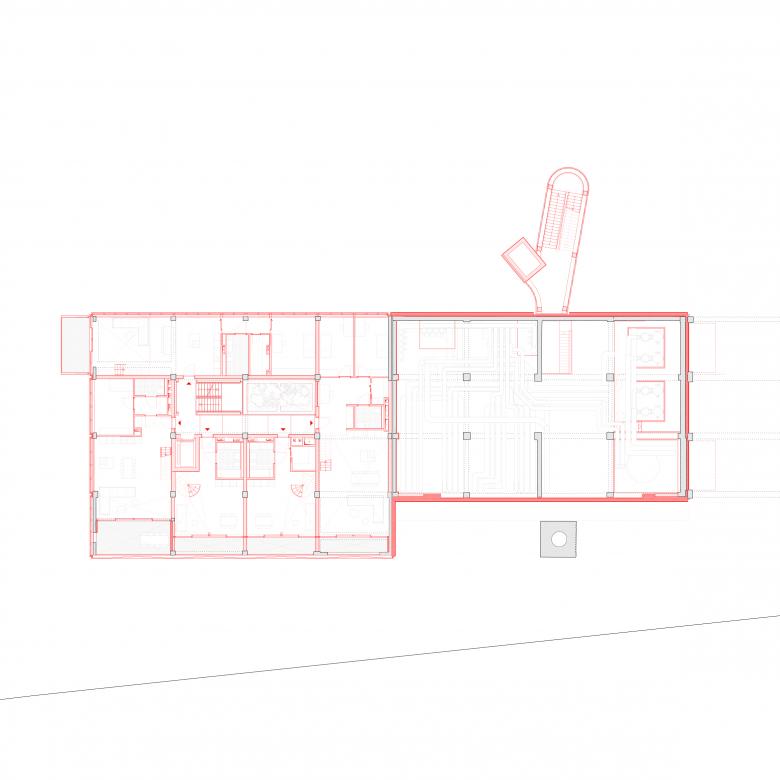

1. floor engine house | void above power plant

图纸 © SMAQ

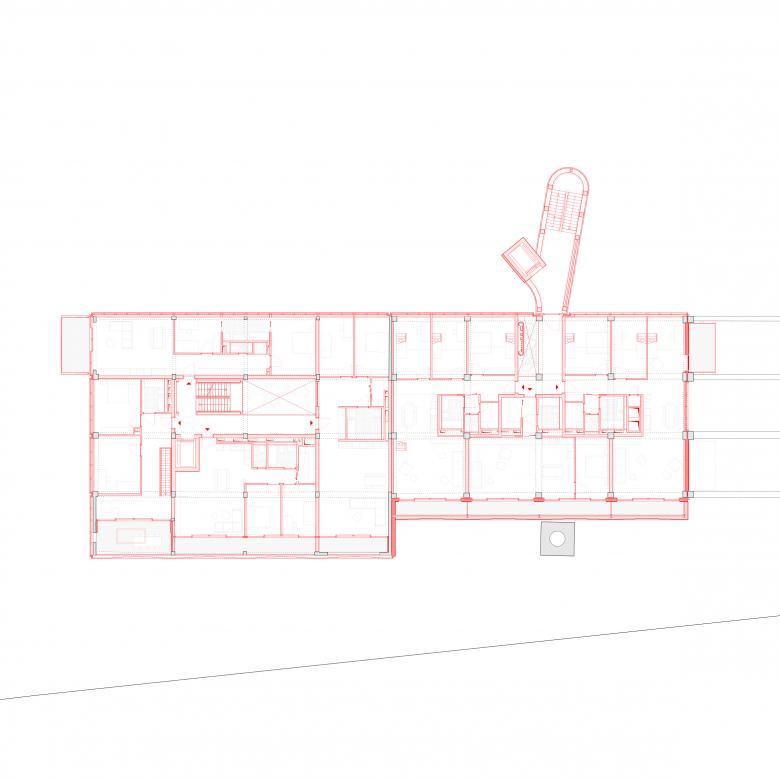

3. floor engine house | 2. floor boiler house

图纸 © SMAQ

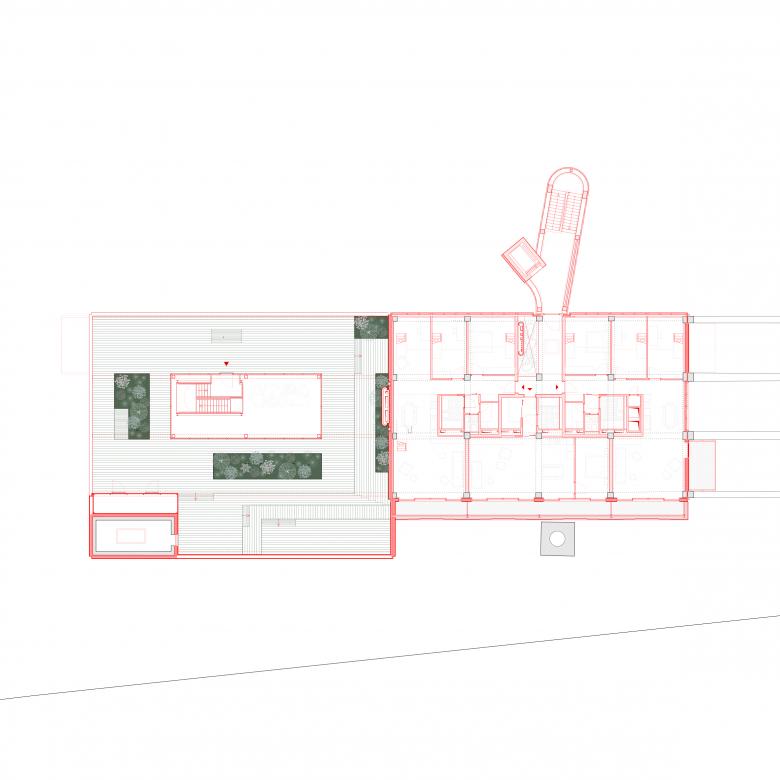

Roof terrace on top of the engine house | 4. floor boiler house

图纸 © SMAQ

建筑师：SMAQ

位置：Bremen, 德国

年份：2026

客户：Überseeinsel GmbH

团队：Andreas Quednau, Sabine Müller, Anton Leibham, Marie Jacobsen, Sebastian Pitoni, Valentin Lepley-Schuhmann, Loránd Mittay

Structural engineers：OP engineers

Building technology：Hansa Planung

Landscape architecture：Man Made Land

The transformation of the engine house and boiler house of the former Kellogg factory on the banks of the Weser in Bremen reinterprets the qualities of the existing structure. The existing buildings will be stripped back to their reinforced concrete skeleton and clad with a lightweight façade made of glass and folded sheet metal, so that parts of the reinforced concrete skeleton remain visible from the outside behind the glazing.

An atrium will be cut into the engine house, into which an internal staircase will be inserted, providing access to 13 flats on the upper floors. A new staircase with a lift and a glass block façade will be added to the courtyard side of the boiler house, providing access to twelve flats on the upper floors. Winter gardens attached to the boiler house on the Weser side serve as wind-protected outdoor spaces and offer an excellent view of the river. Additional balconies use the remaining supporting structure between the boiler house and the neighbouring factory building as a support.

A new energy plant on the ground floor of the boiler house will supply the emerging Überseeinsel urban quarter, which is based on a masterplan by SMAQ with Man Made Land and is currently being realised, with sustainable energy from wind, sun and the river. The power plant utilises the free-standing chimney of the former boiler house in front of the building. A commercial unit is being created on the ground floor of the engine house, which is accessible from the Weser promenade.
