东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司

2019/09/25 15:06:37
查看完整案例
微信扫一扫
收藏
下载
项目位于东绒线胡同64号,与国家大剧院仅距离150米,业主要求将原本仅能供1人使用的37平米值班室改造为能服务3-4人的完善居所,本改造设计就是探讨如何在这典型而又极限的情况下实现符合现代需求的37平米三居。

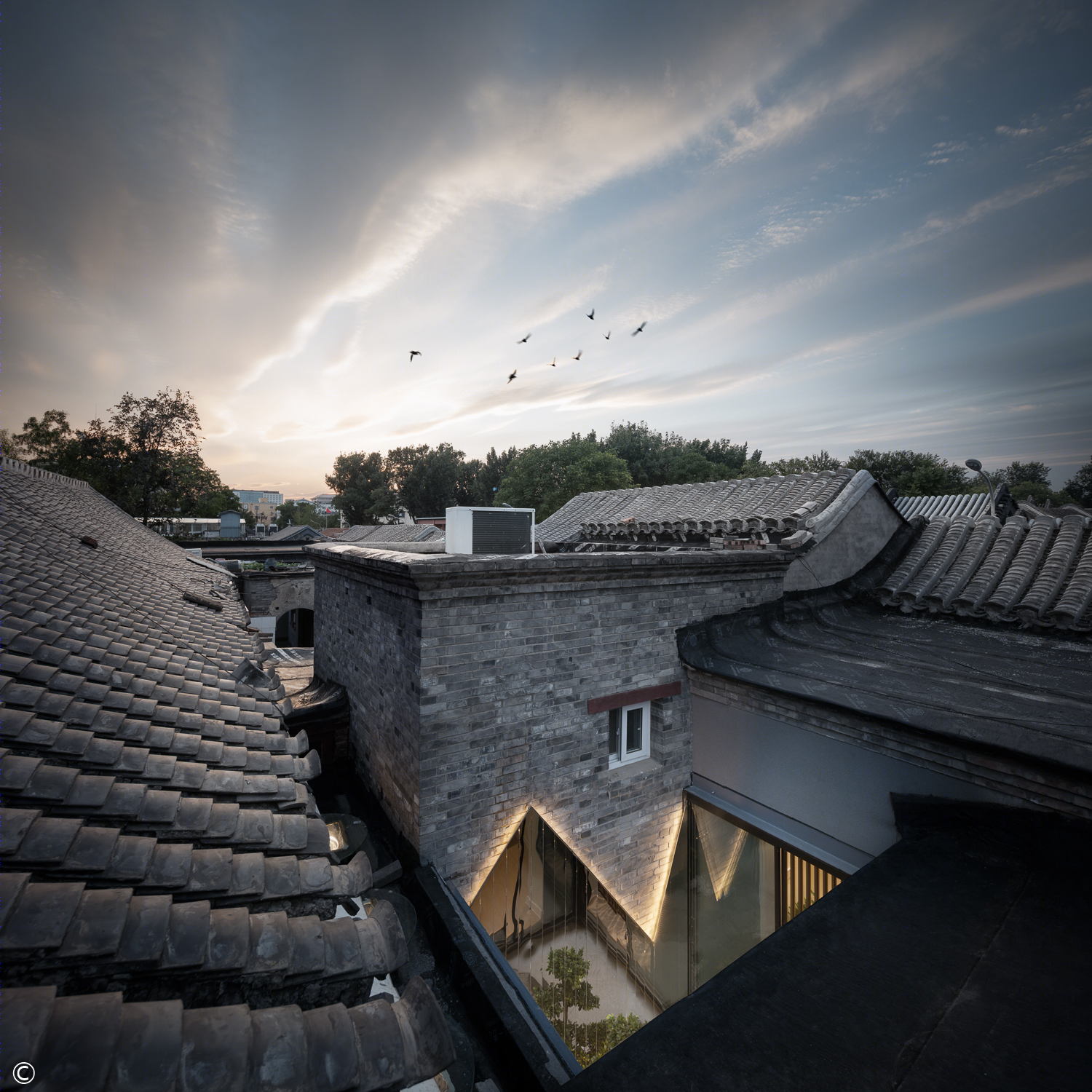

▼傍晚的院,Yard at dusk
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-2

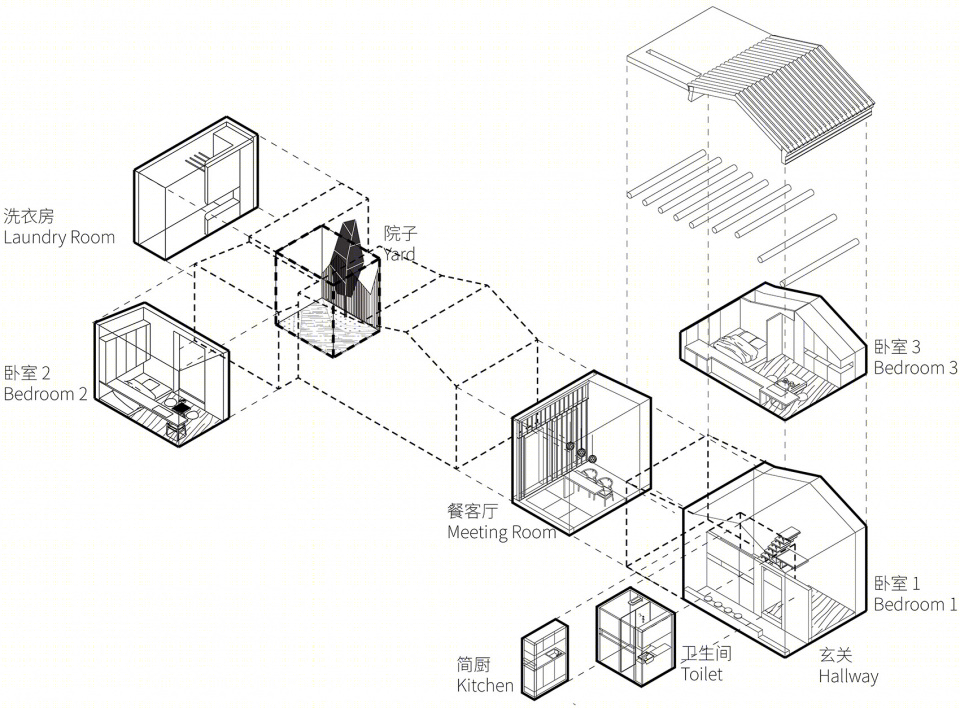

▼爆炸图,Exploded diagram
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-4
The project is located in No. 64 Dongrongxian Hutong and 150 meters away from the National Grand Theatre. The owner requests that the 37 square meters duty room, which could only be used by one person, should renovate to a perfect apartment fo 3-4 people. This design shows how to renovate a 37 square meters traditional building to a modern Three-bedroom apartment.

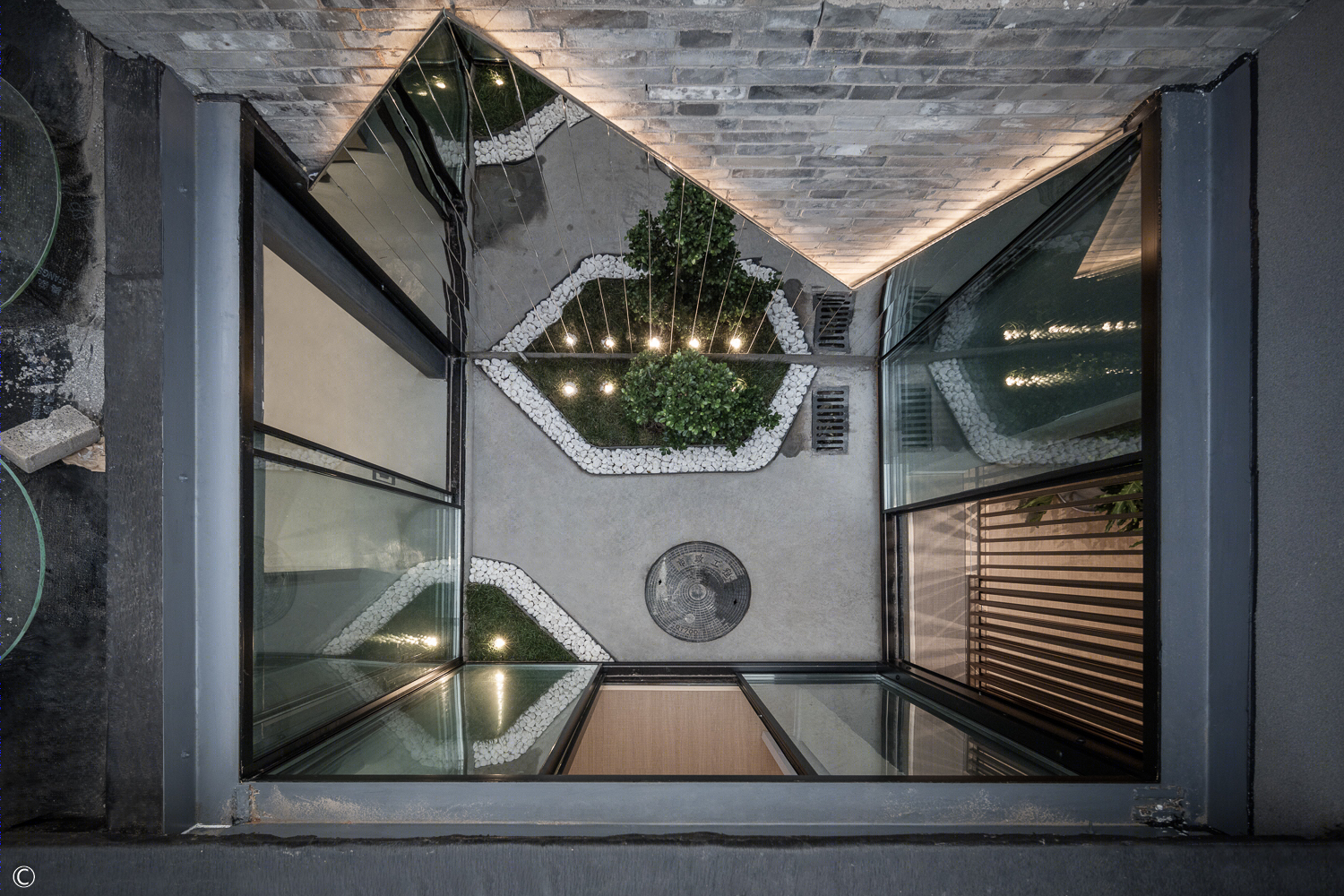

▼庭院俯视,Courtyard overlooking
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-7

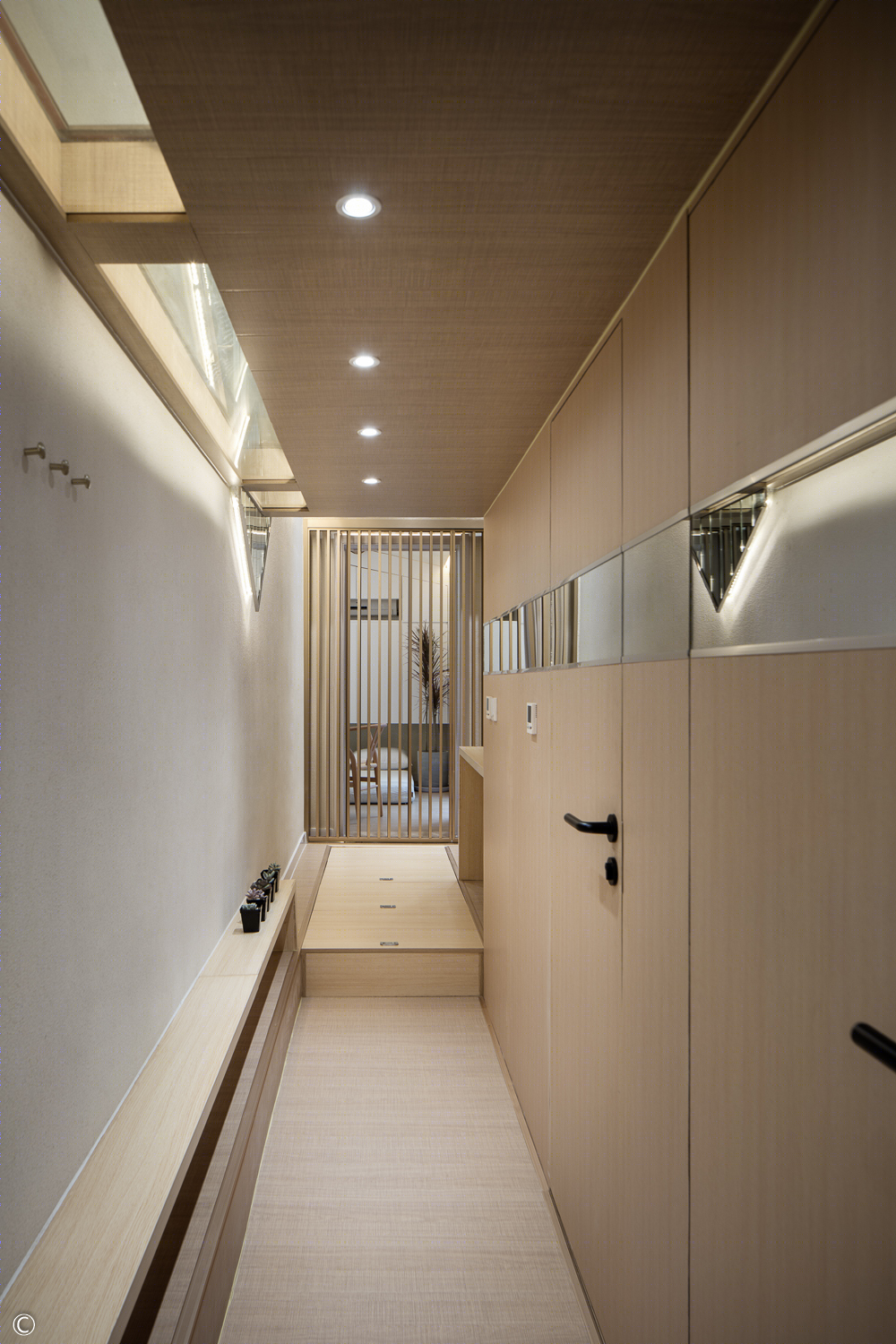

▼玄关走廊,Hallway & corridor
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-9

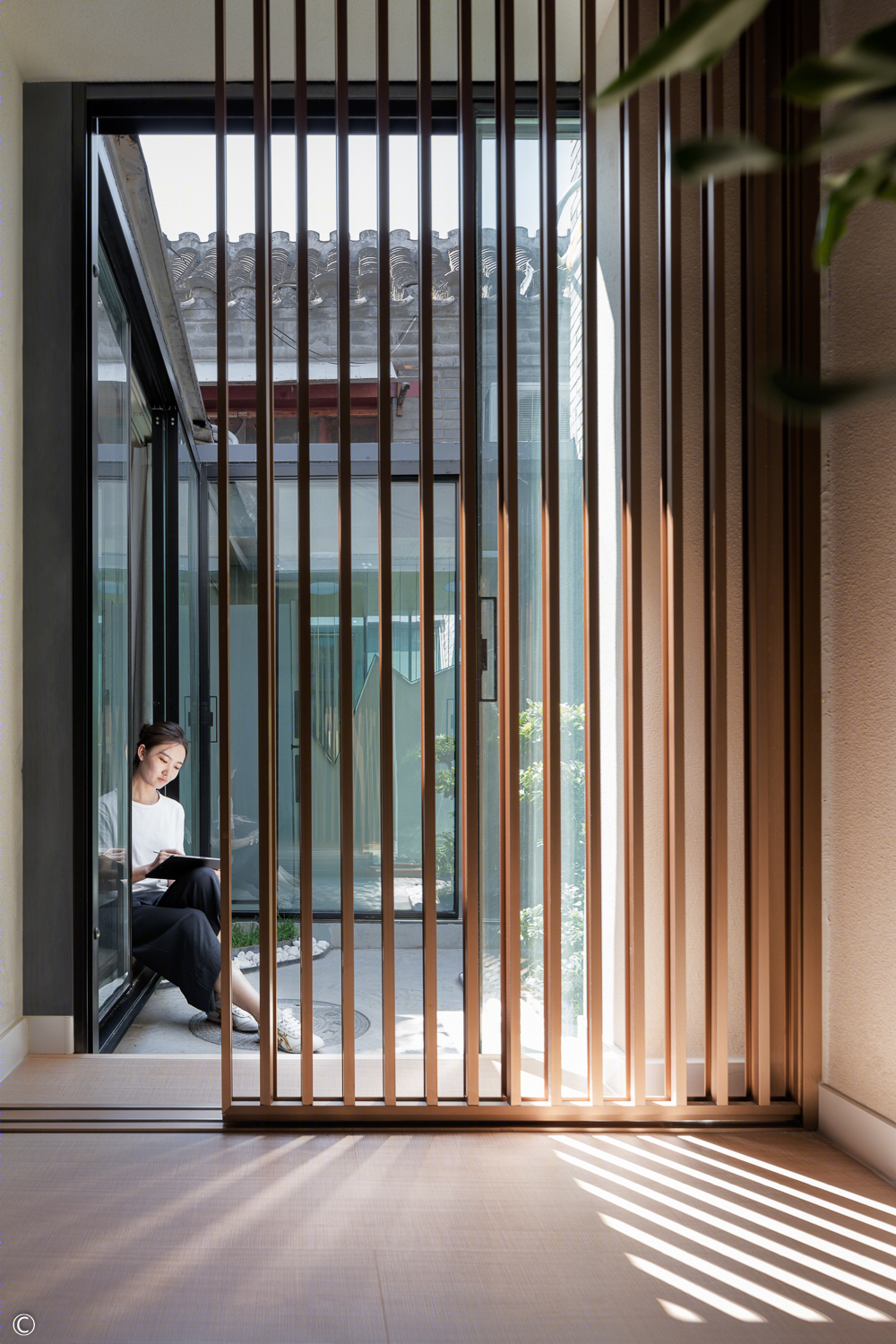

▼午后庭院,Yard in the afternoon
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-11

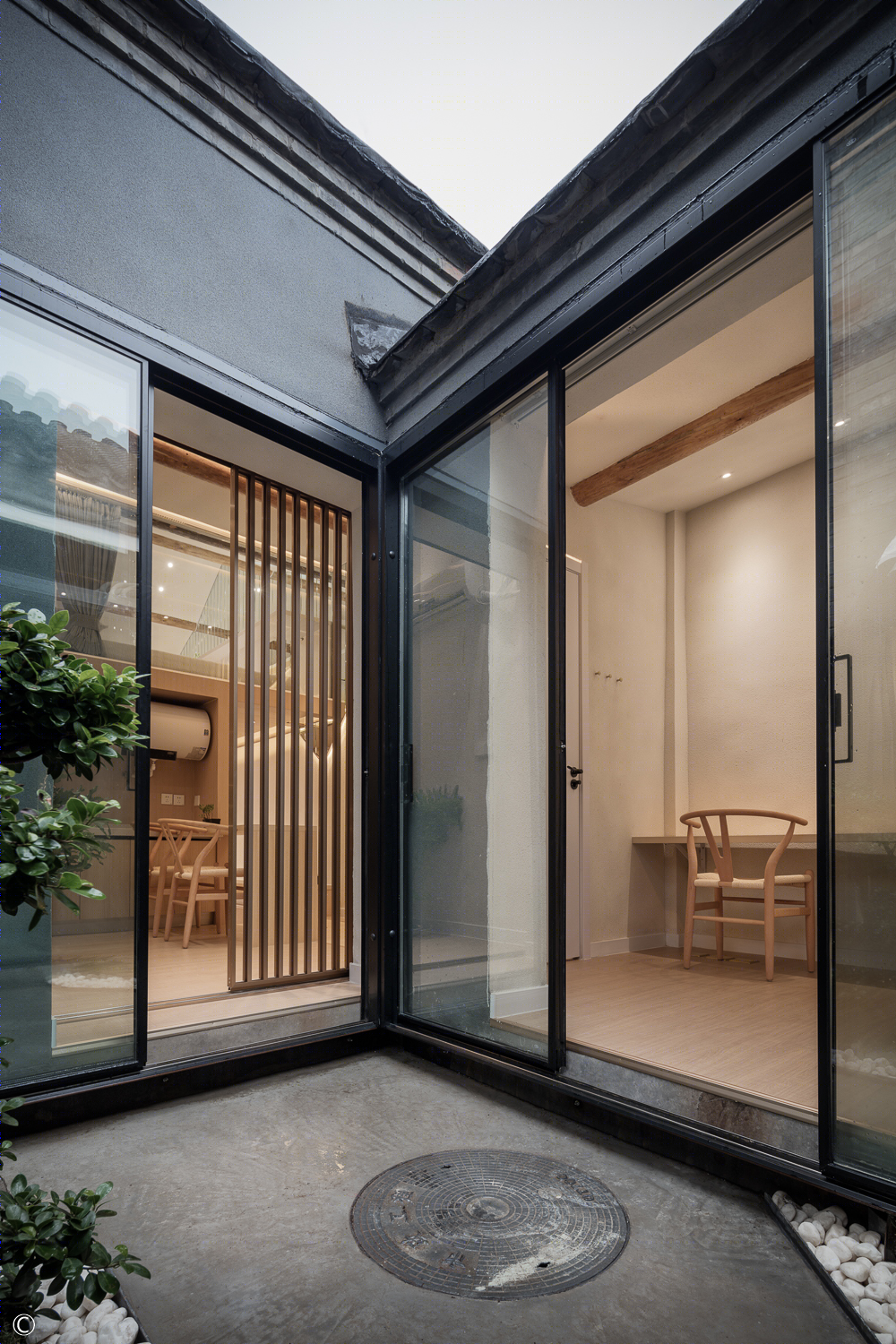

▼双人床大小的院子,A double bed -size yard
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-13

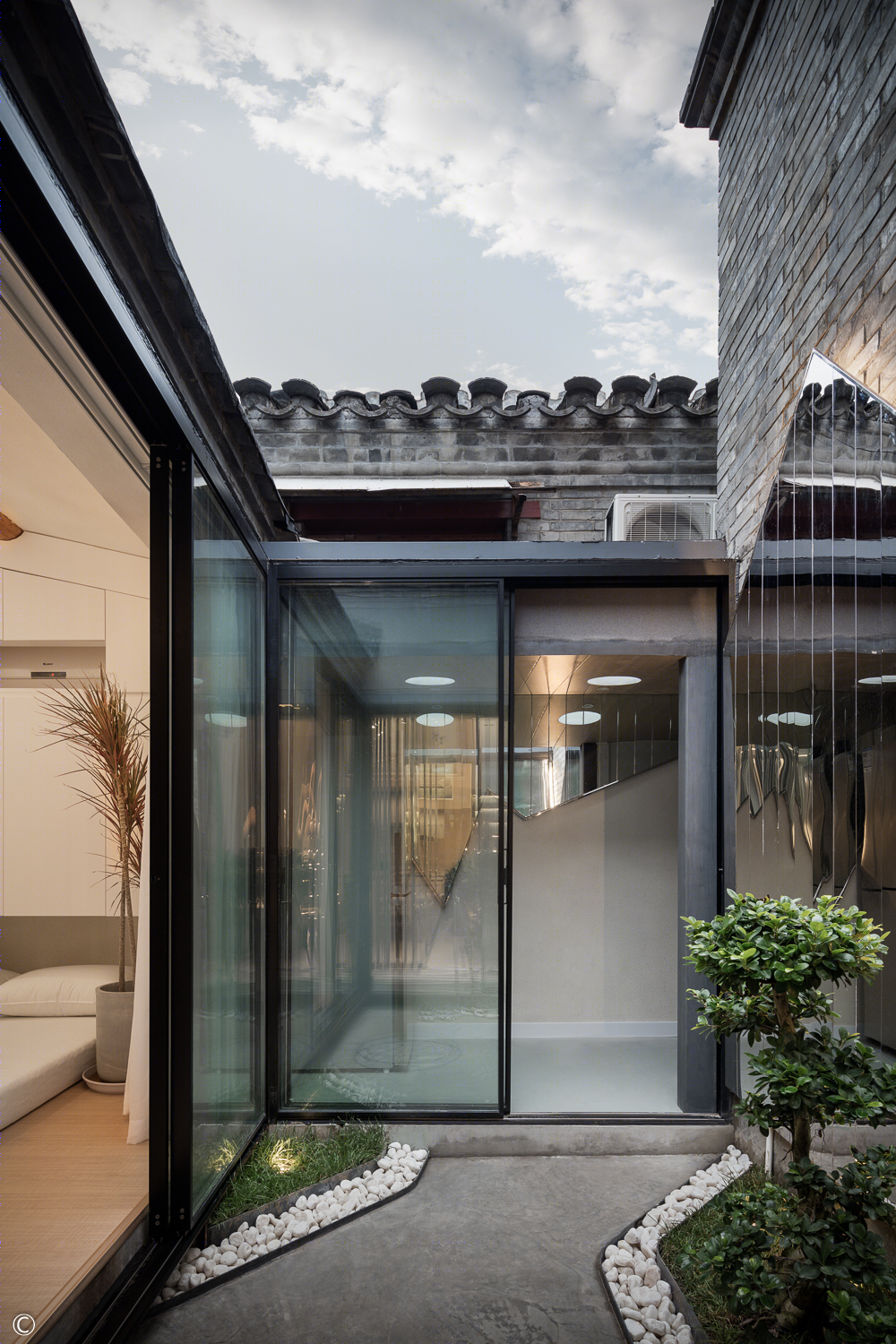

▼景观由镜子渗透进室内,Landscape enter through mirrors
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-15

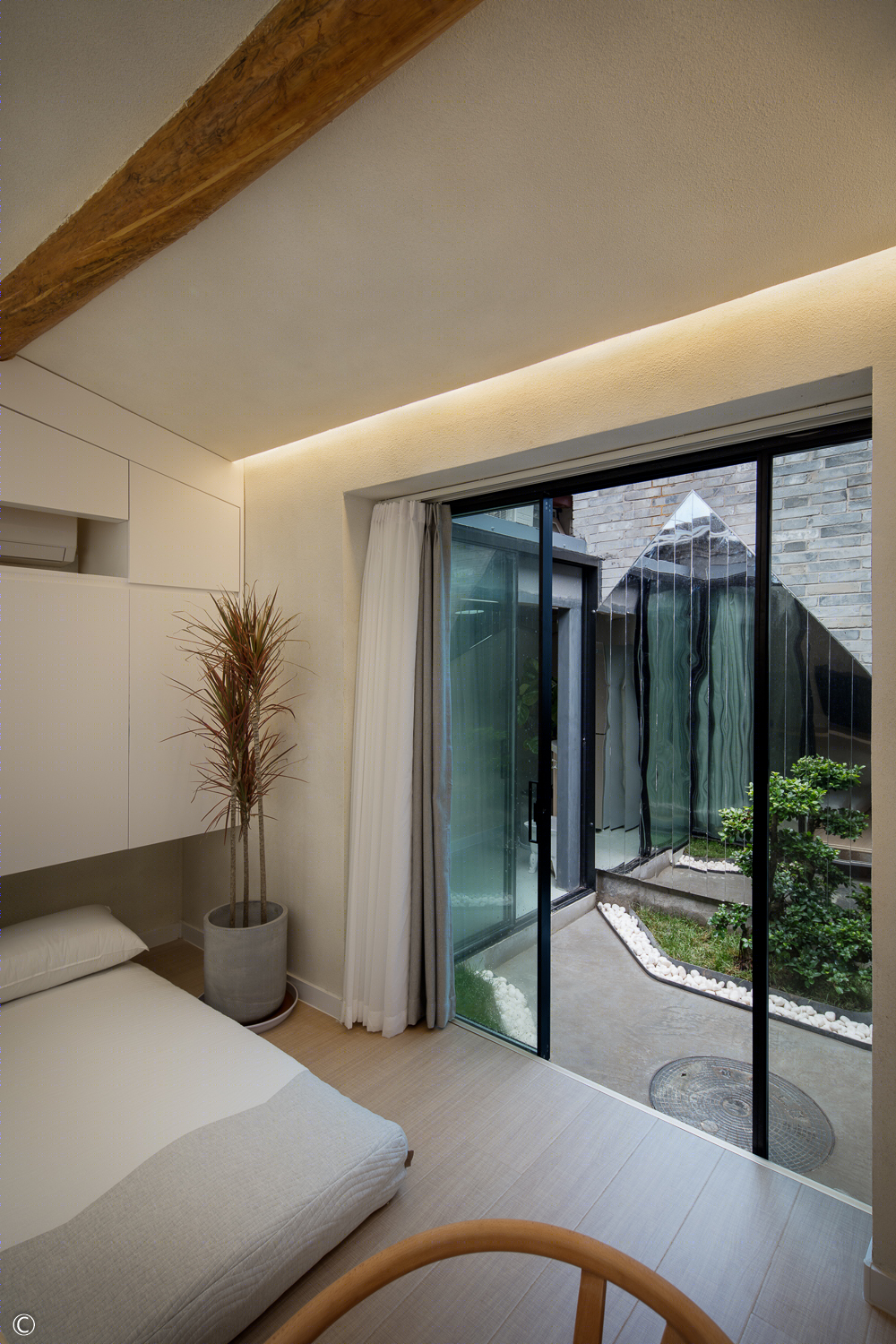

▼卧室望向院子,Yard from the bedroom
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-17

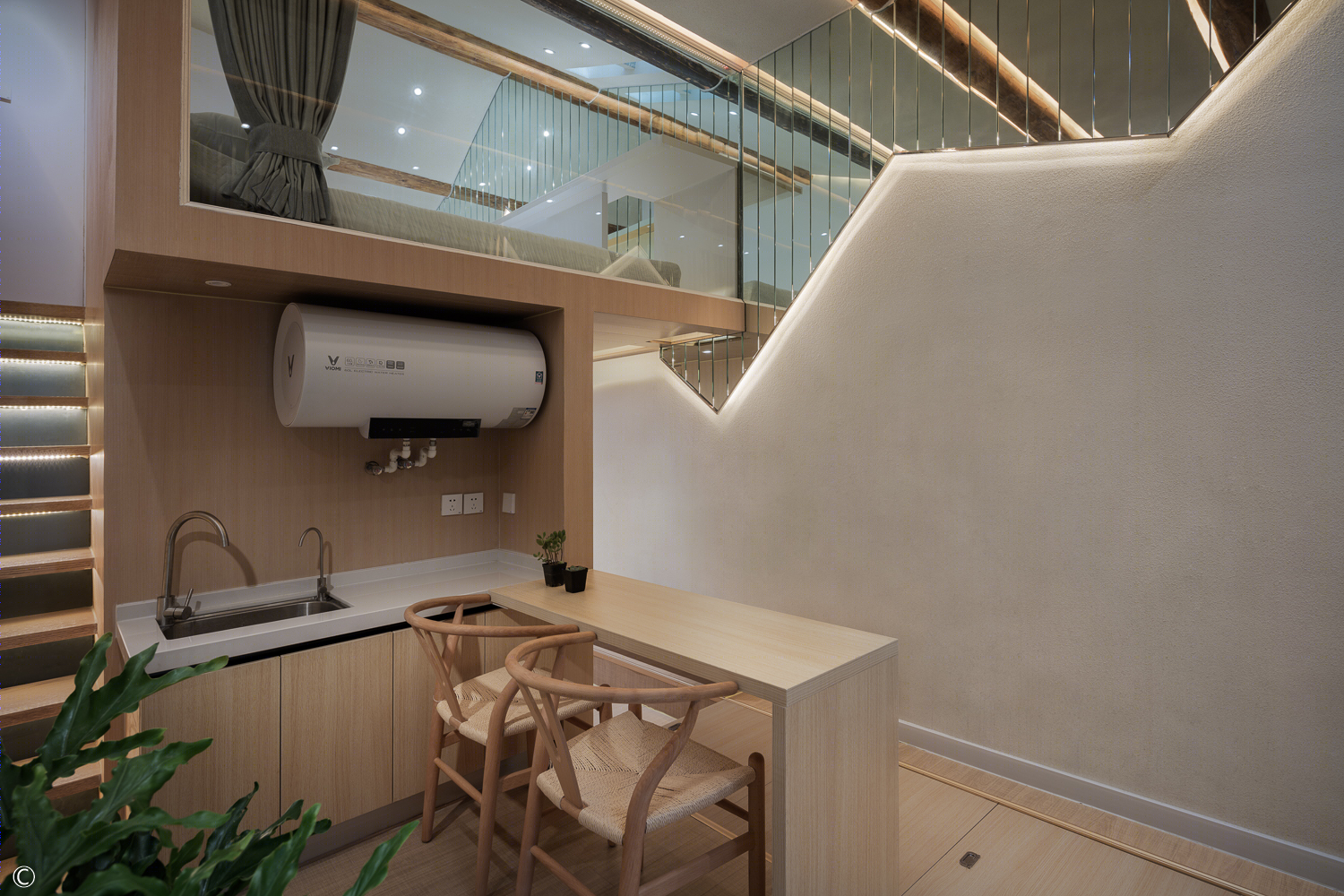

▼客餐厅与简厨,Meeting Room & Kitchen
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-19

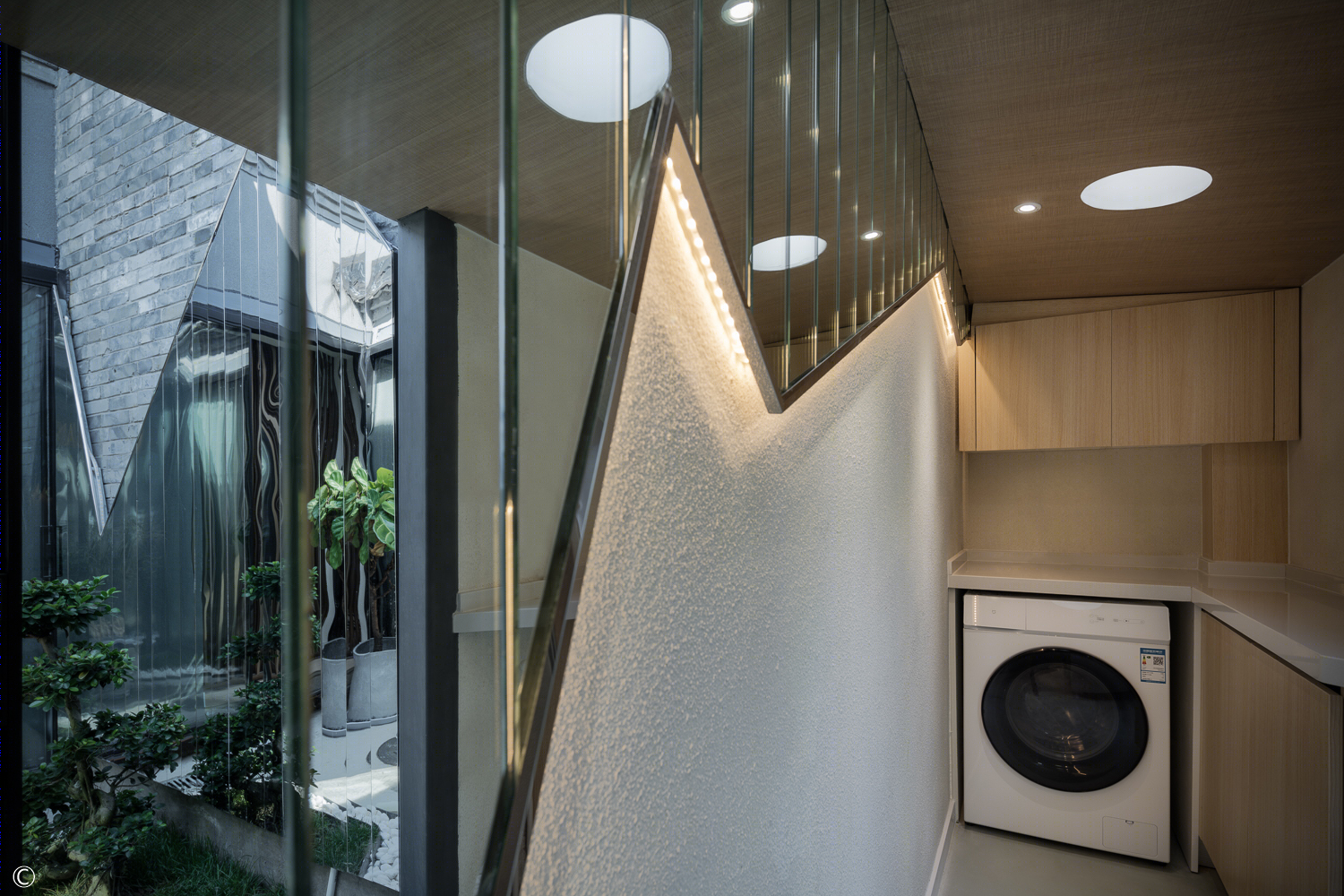

▼洗衣间,Laundry
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-21
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-22

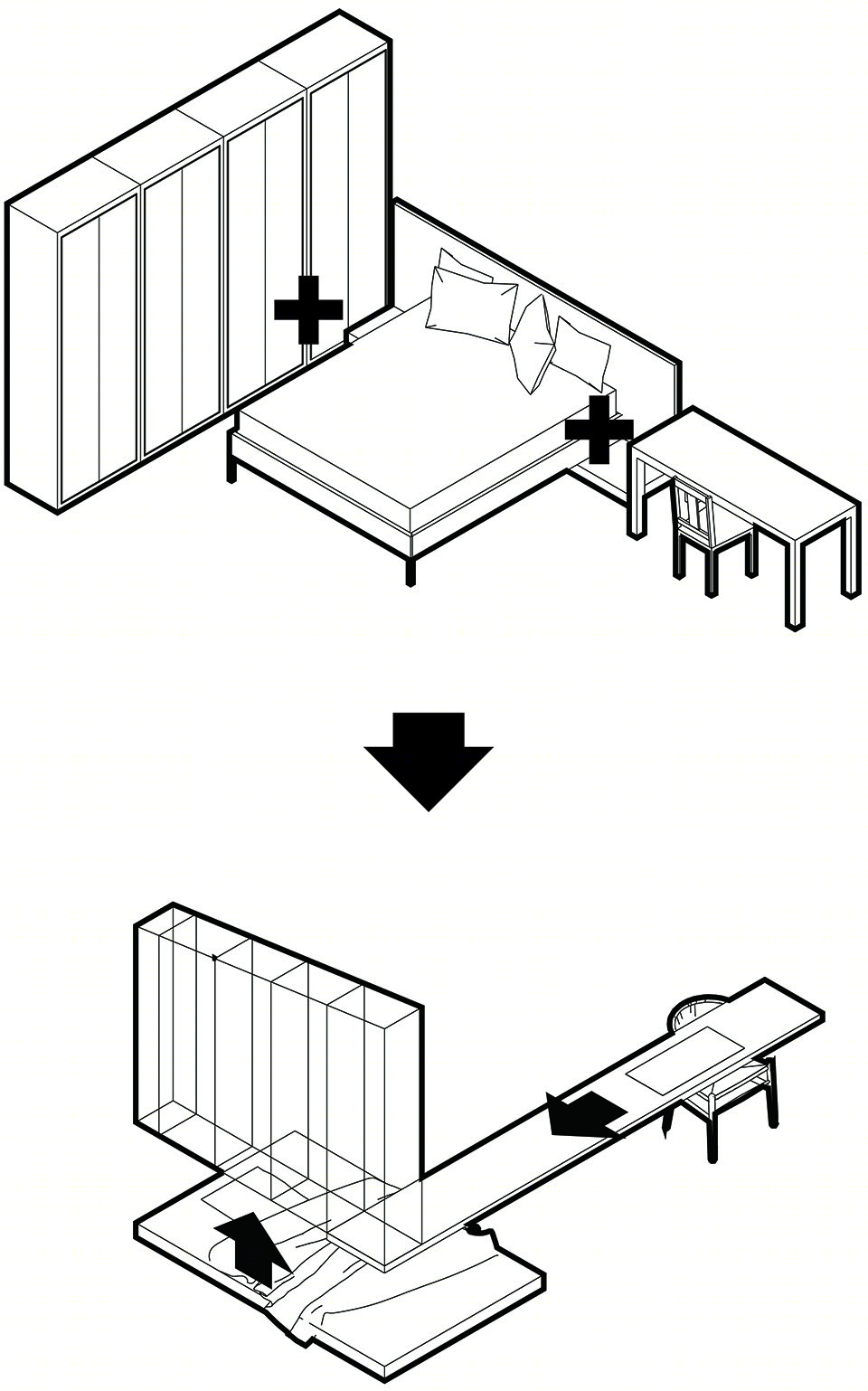

将传统的家具布置方式优化为复合型的家具布置方式,充分考虑了不同家具之间的空间借用。
The composite furniture layout mode, full use of the space between different furniture.

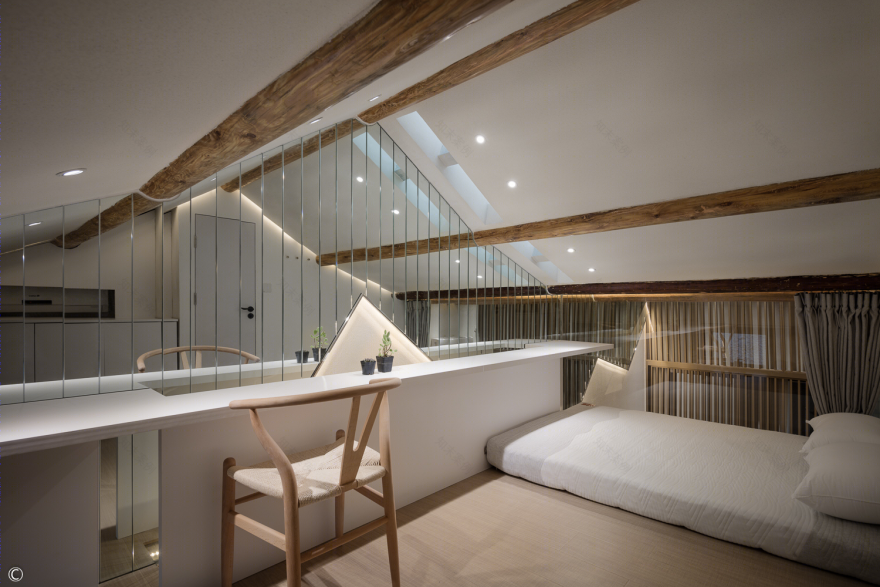

▼二楼卧室,Second floor bedroom
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-26
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-27

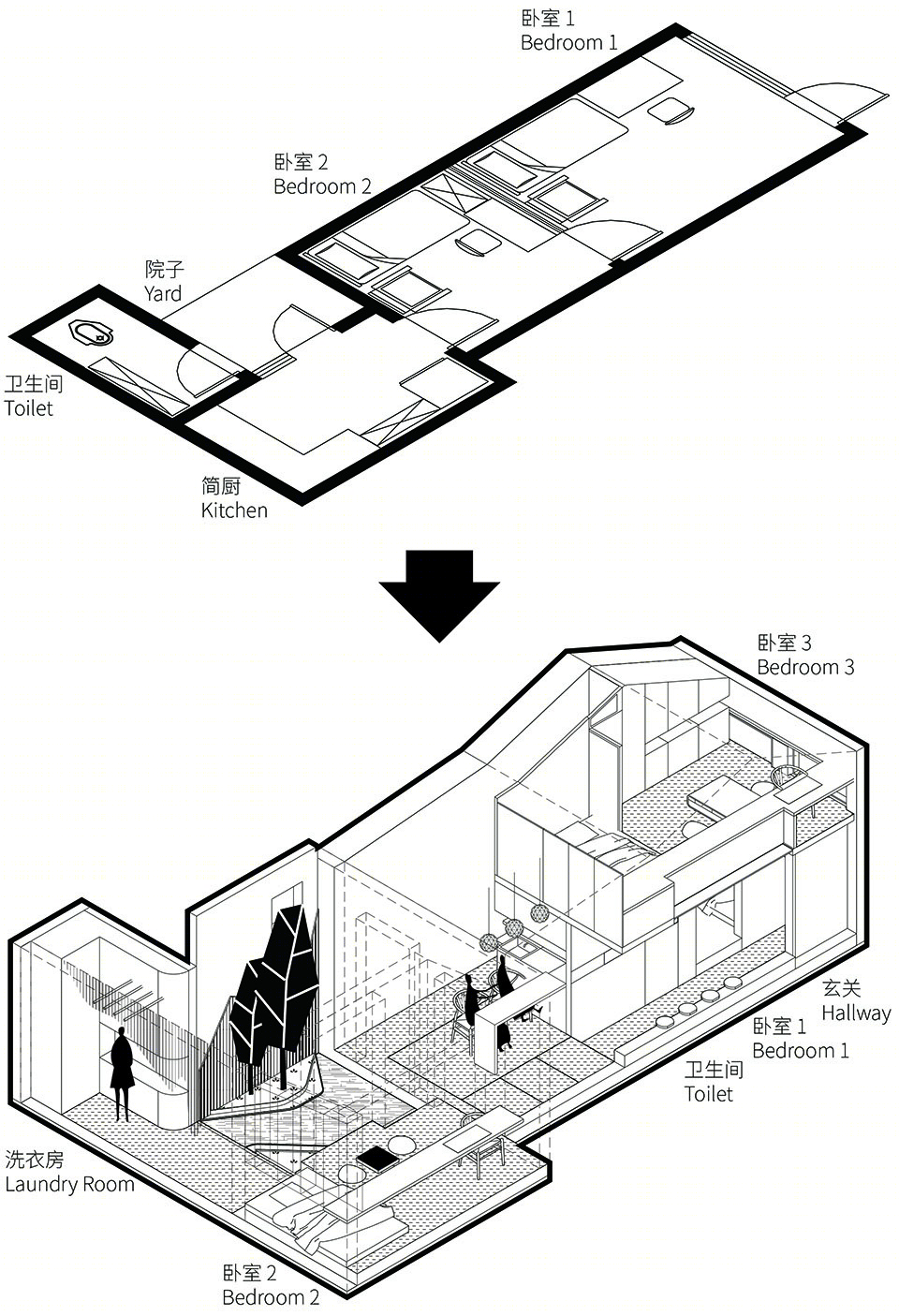

原布局仅在二维平面上布置家具,改造后在三维上作了空间上的划分并安排进功能。
The original layout is on the two-dimensional plane. After the renovation, the three-dimensional space is divided and arranged into functions.

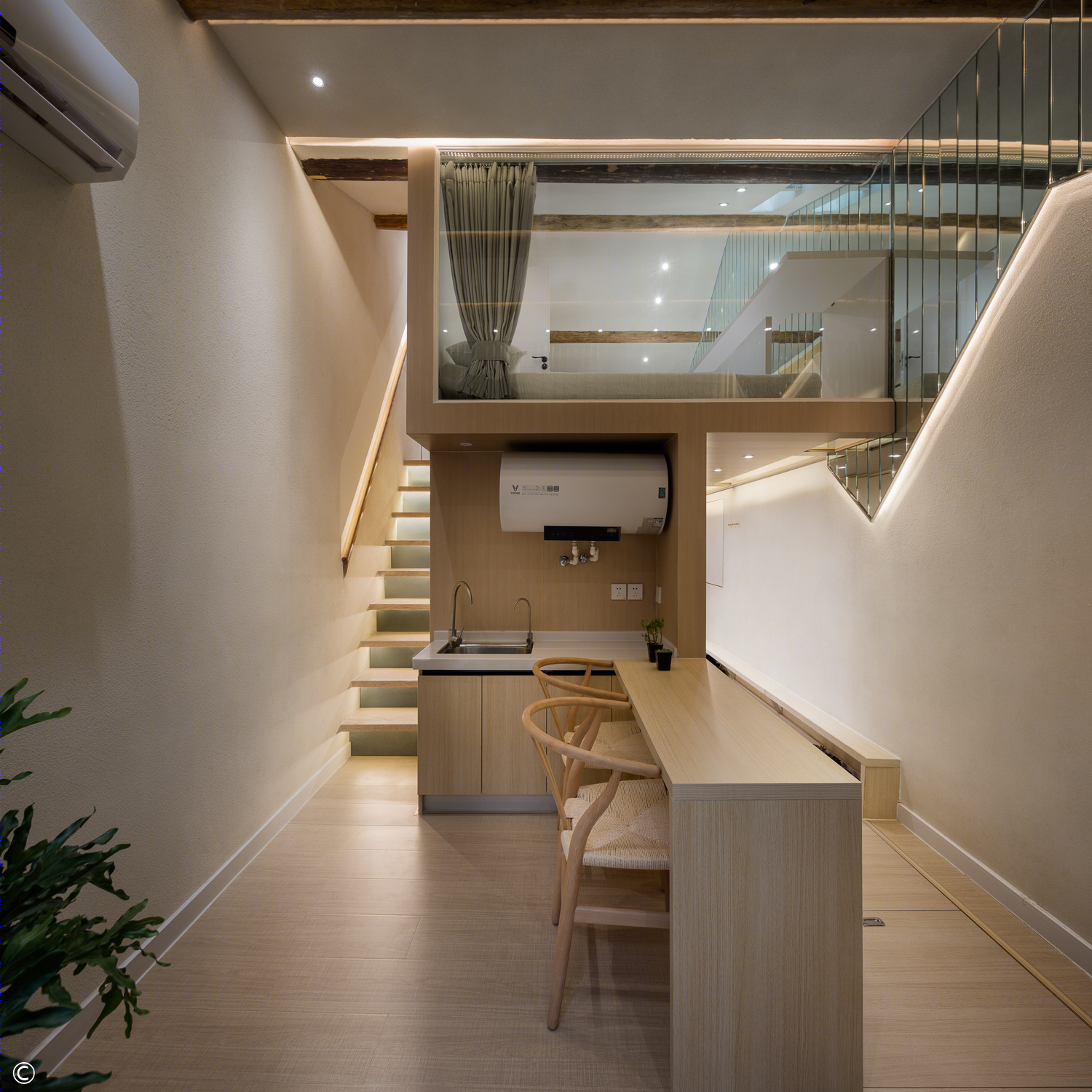

▼主房充分利用了不同功能之间对层高的不同需求,The main house makes full use of the different height for different functions.
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-31
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-32

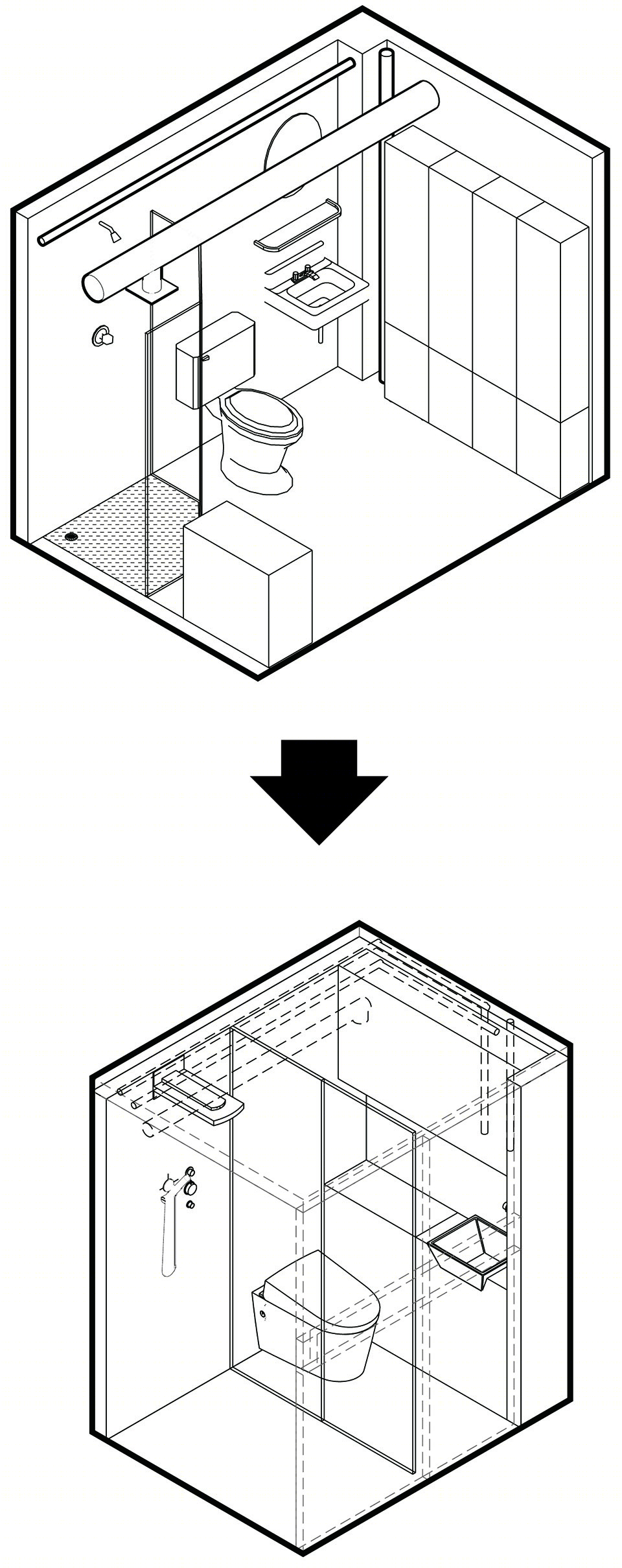

为了避免管道占用而造成空间完整性的破坏和空间浪费,建筑所有管道全部嵌入墙内。
In order to make full use of the space, all pipelines are arranged in the floors and walls.

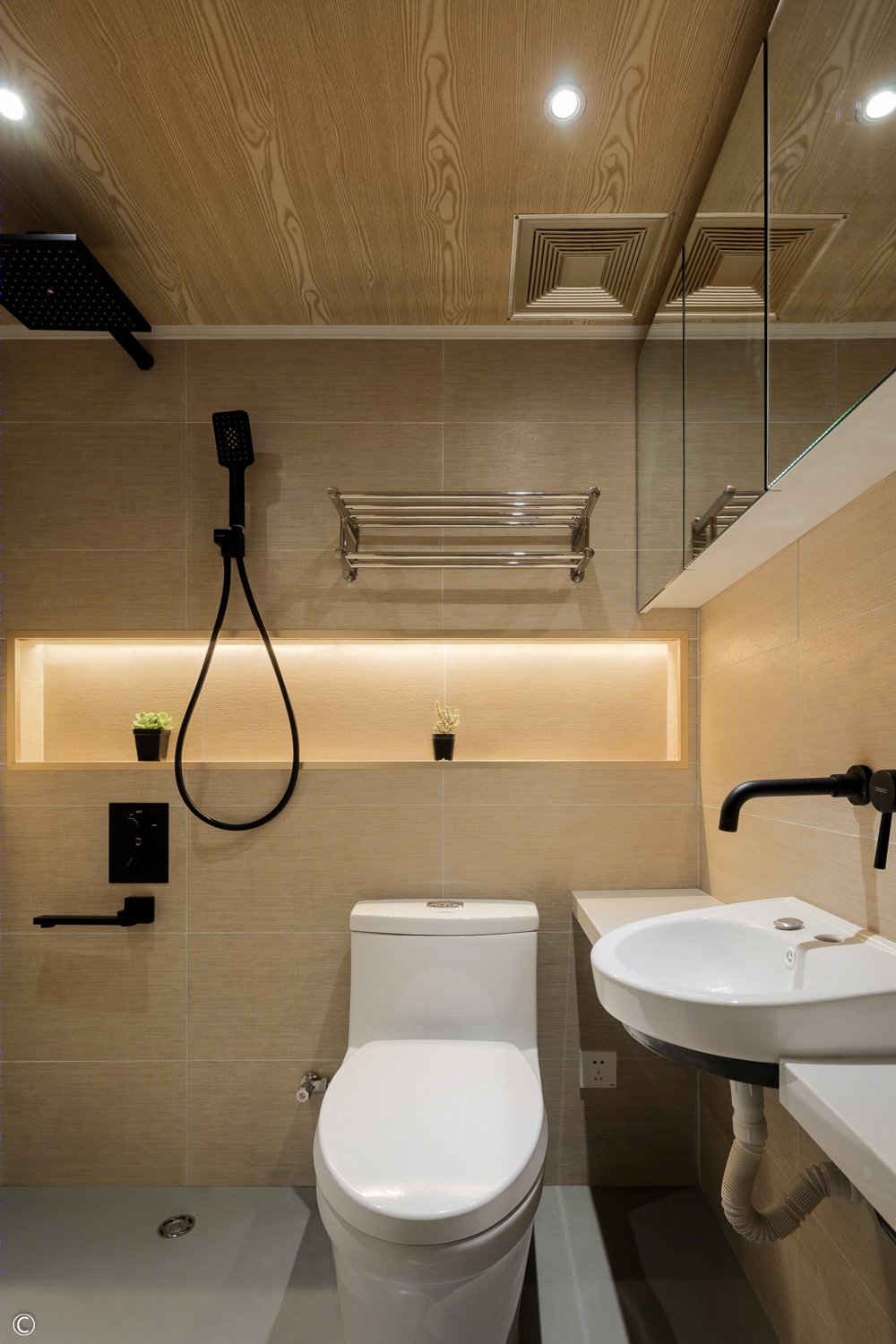

▼所有的管线全部嵌入楼板与墙壁,All pipelines are arranged in floors and walls
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-36

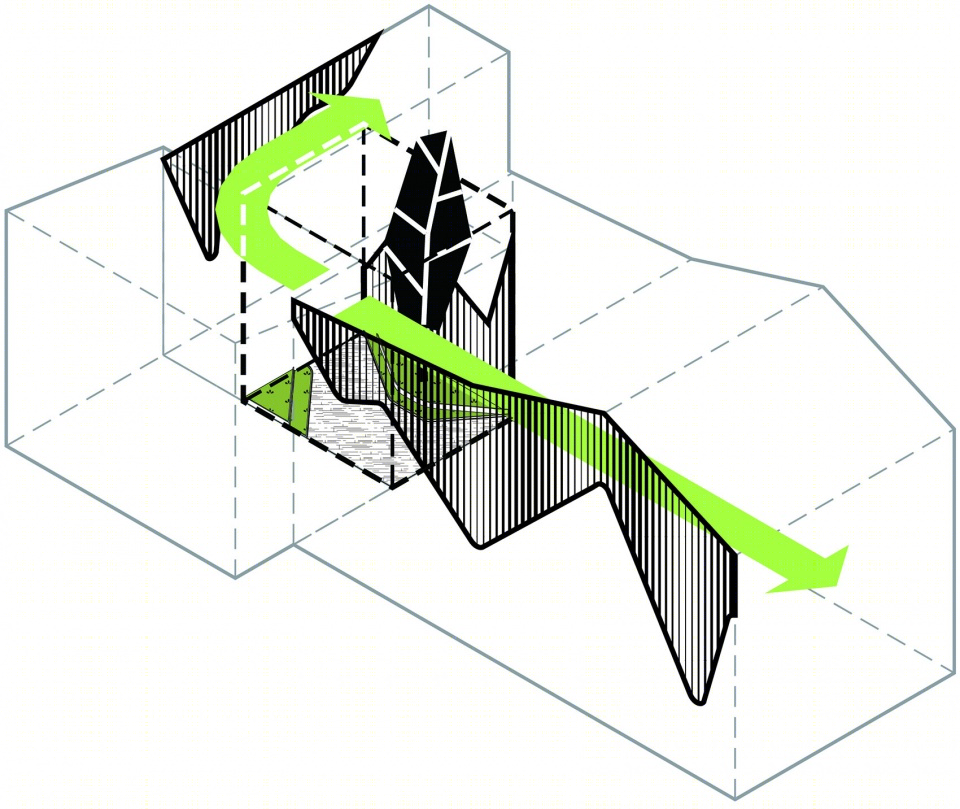

▼通景画,Panorama
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-38
建筑师使用了“通景画”的手法将小院的景观渗透进主要空间,并引入采光和通风。
The architect used “panorama” to infiltrate the landscape of the courtyard into the main space.

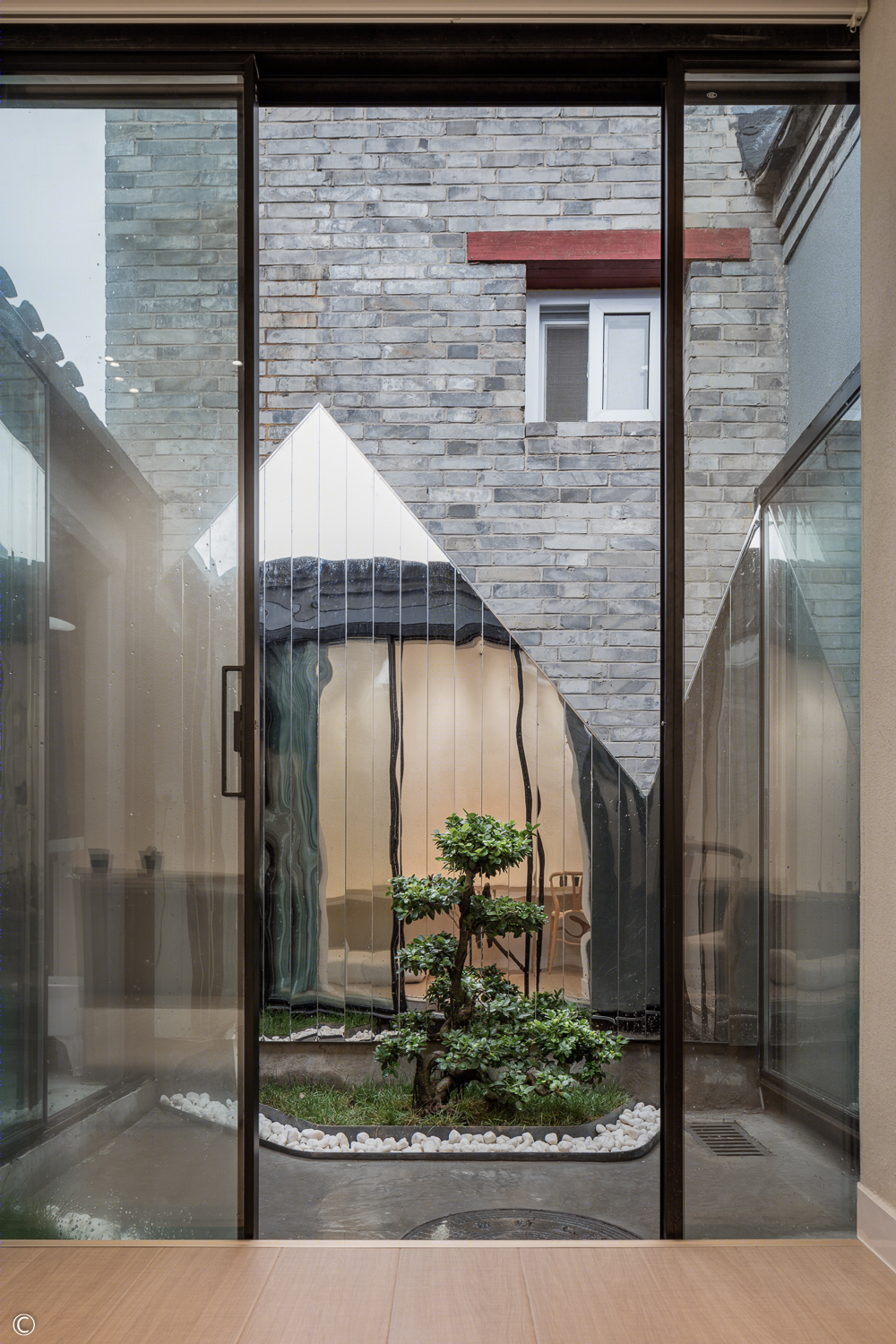

▼院子与室内的相互映照,courtyard and interior
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-42

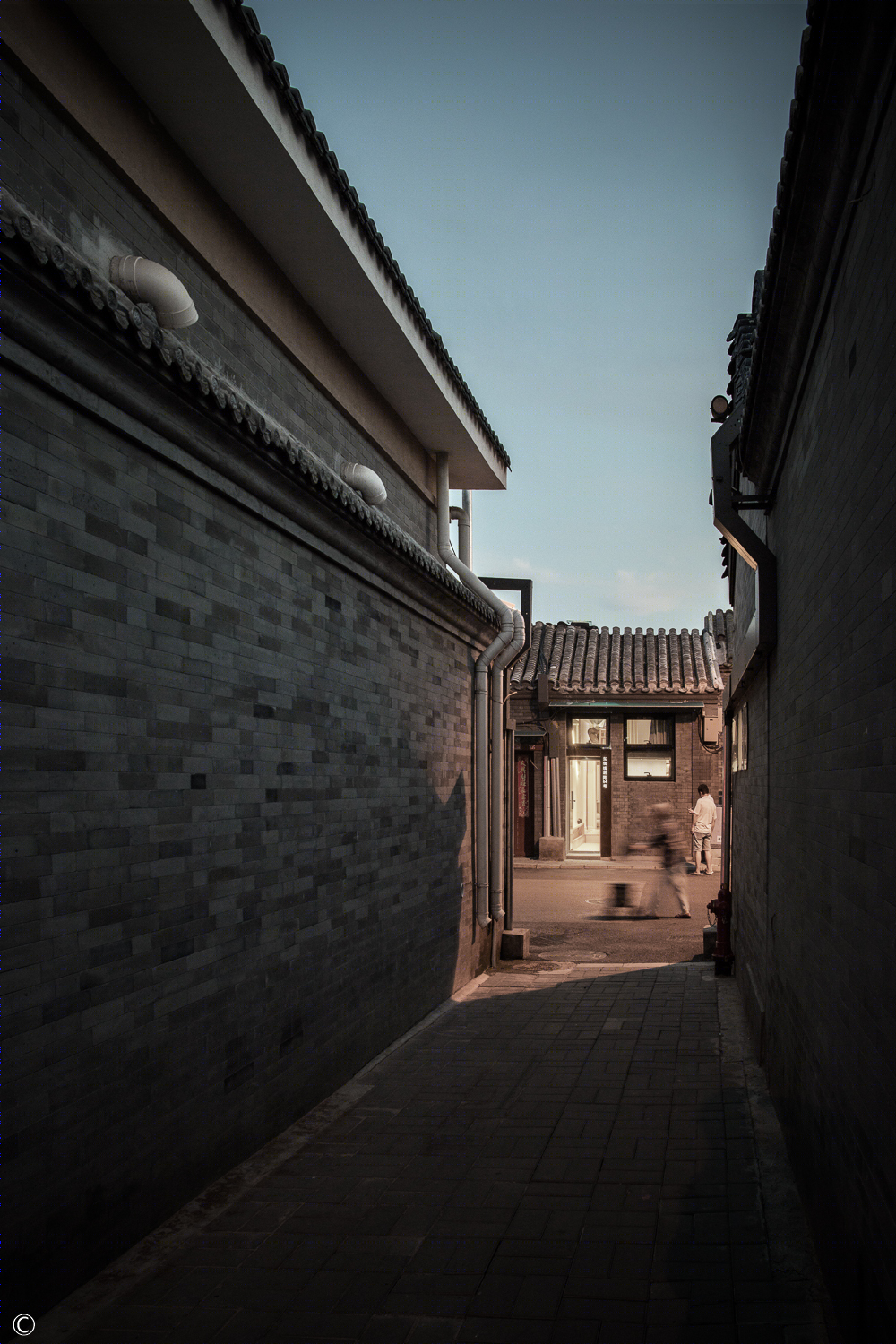

▼门前小巷,Front Hutong
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-44

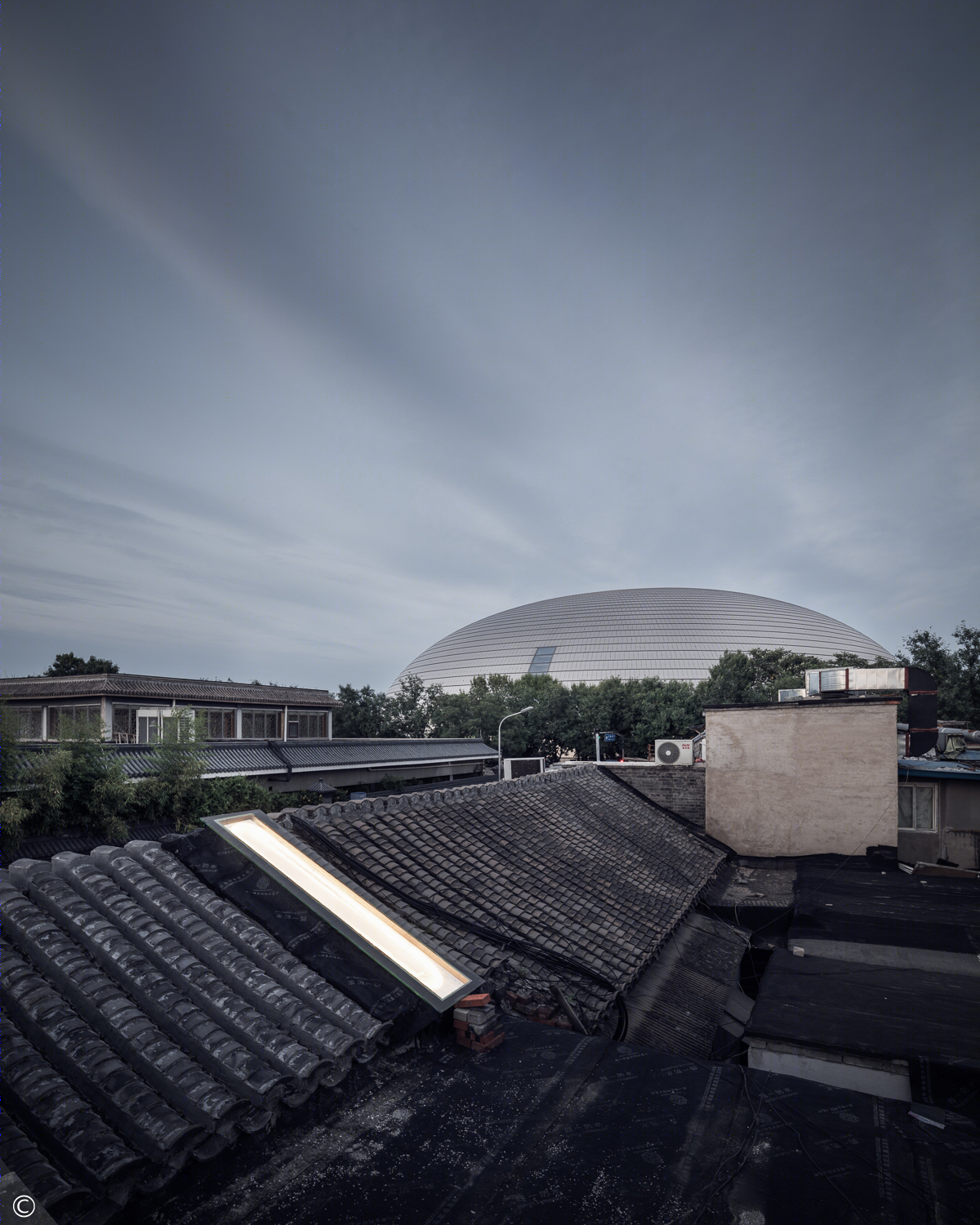

▼望向大剧院,Looking at the Grand Theatre
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-46

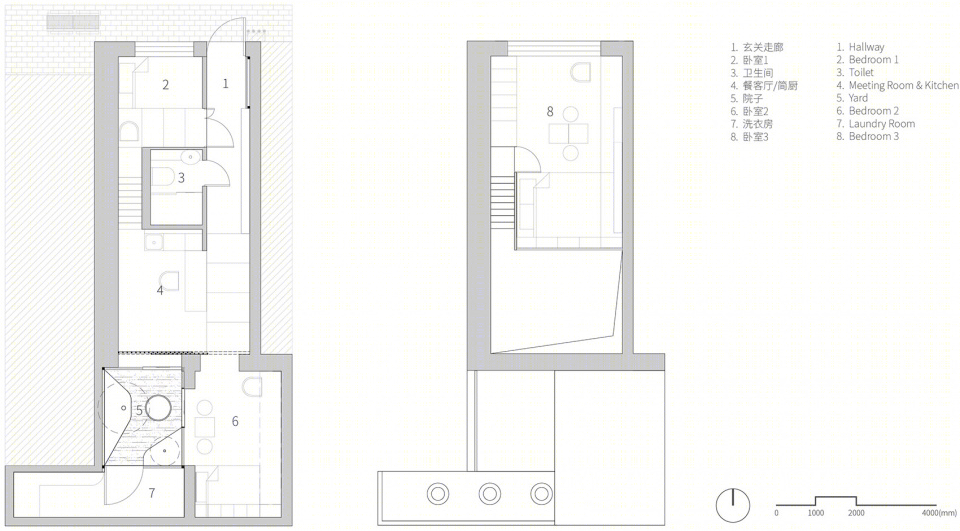

▼平面图,Plan
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-48
▼剖面图,Section
东绒线胡同64号改造项目丨北京八作建筑设计事务所有限公司-50
