运动员村 E2B 地段丨法国丨CoBe Architecture & Paysage

Firm： CoBe Architecture & Paysage

Type： Residential › Apartment Private House Multi Unit Housing Commercial › Office

STATUS： Built

YEAR： 2024

SIZE： 5000 sqft - 10,000 sqft

Sector E of the Athletes’ Village is first and foremost a family resemblance. As coordinator architect of the sector, CoBe Architecture & Paysage has pre-written the main guidelines that govern the design of the various buildings while leaving some leeway to the individual designers. Discover.

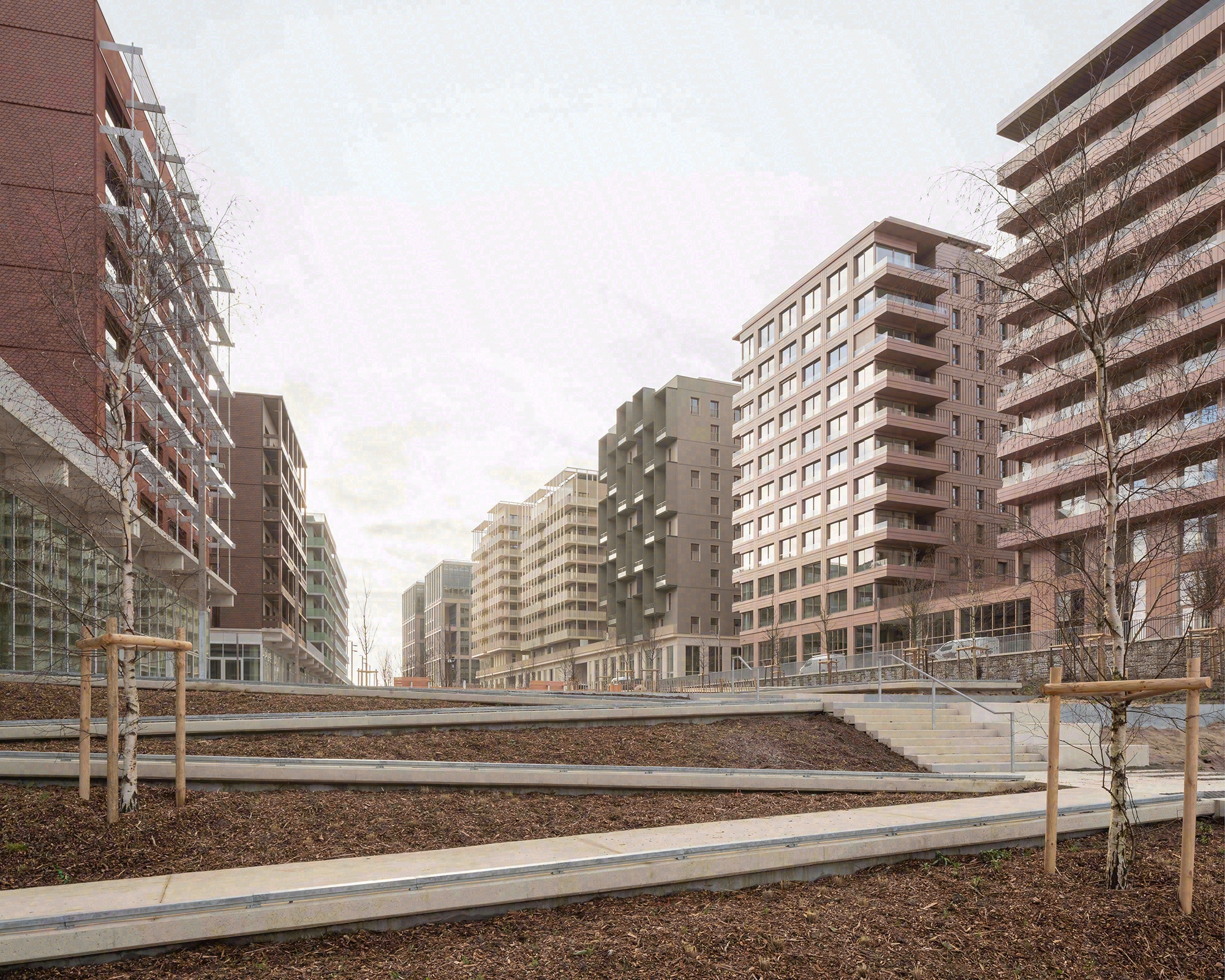

A new district

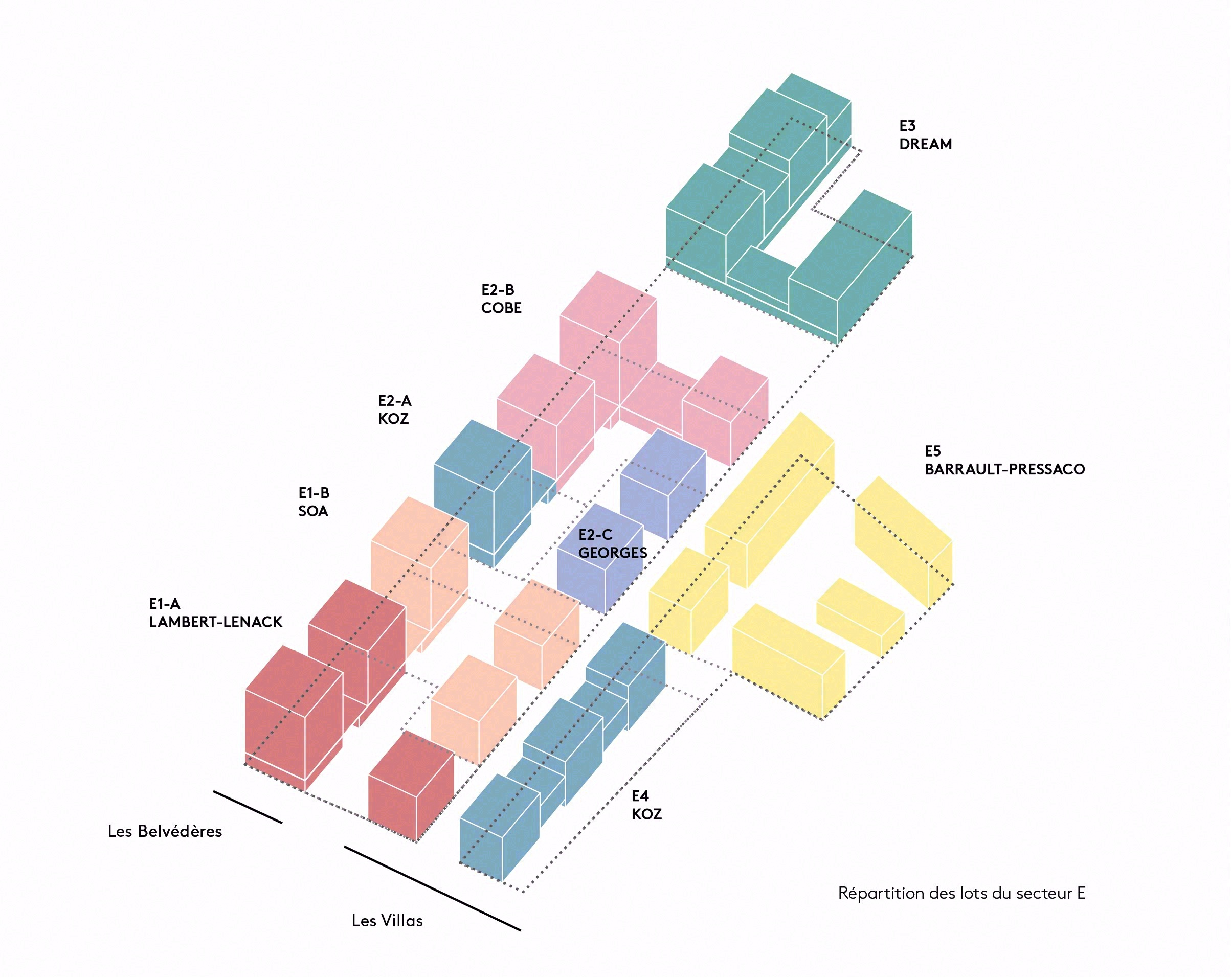

Embodying the most domestic part of the Athletes’ Village, Lot E is in line with the existing domestic districts of the city of Saint- Ouen. It draws its inspiration from the urban context to insert itself coherently into it and to enhance it. To ensure a smooth transition, it is divided into two parts: « Les Villas » and « Les Belvédères ».

Lot E2B: a homogeneous language

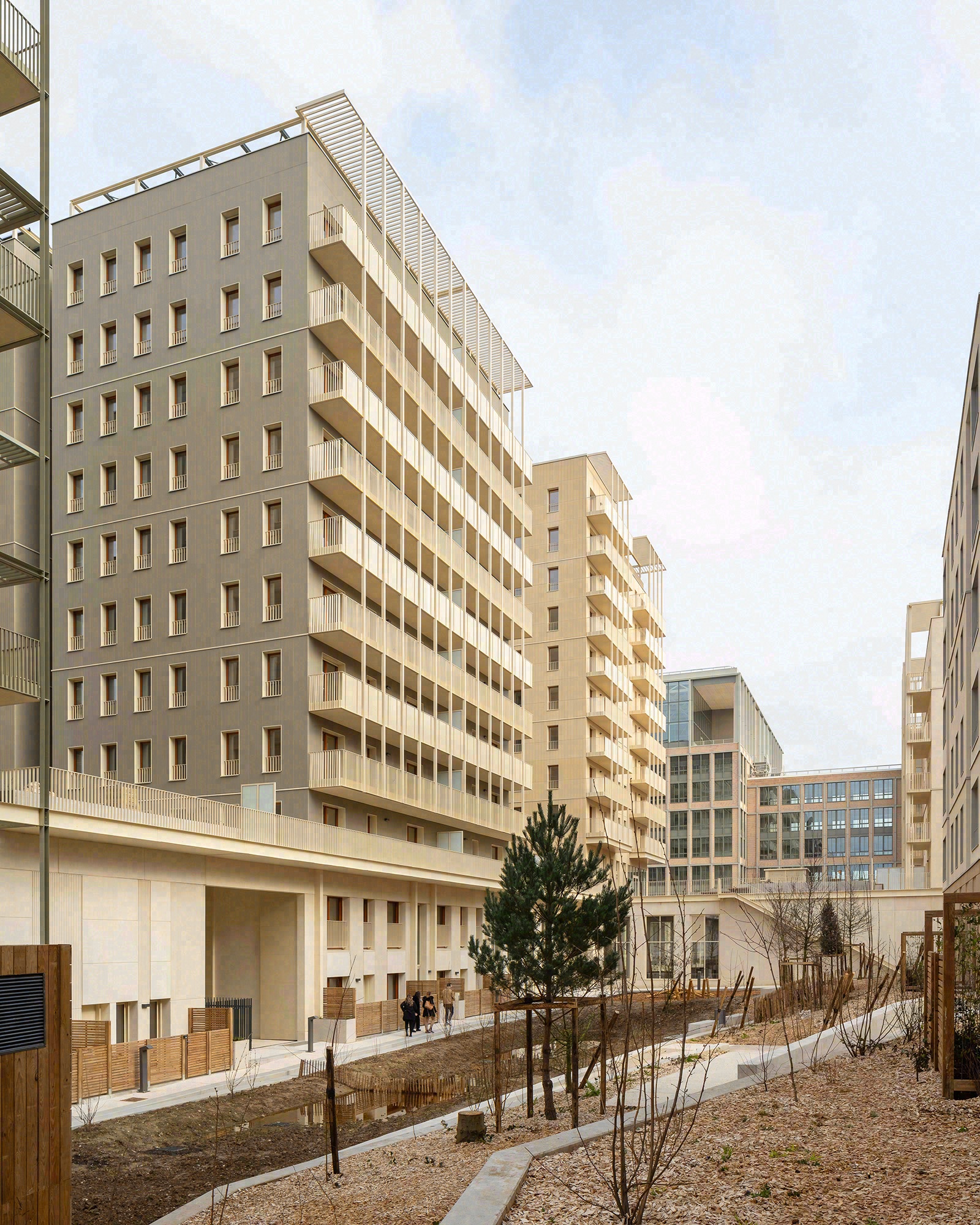

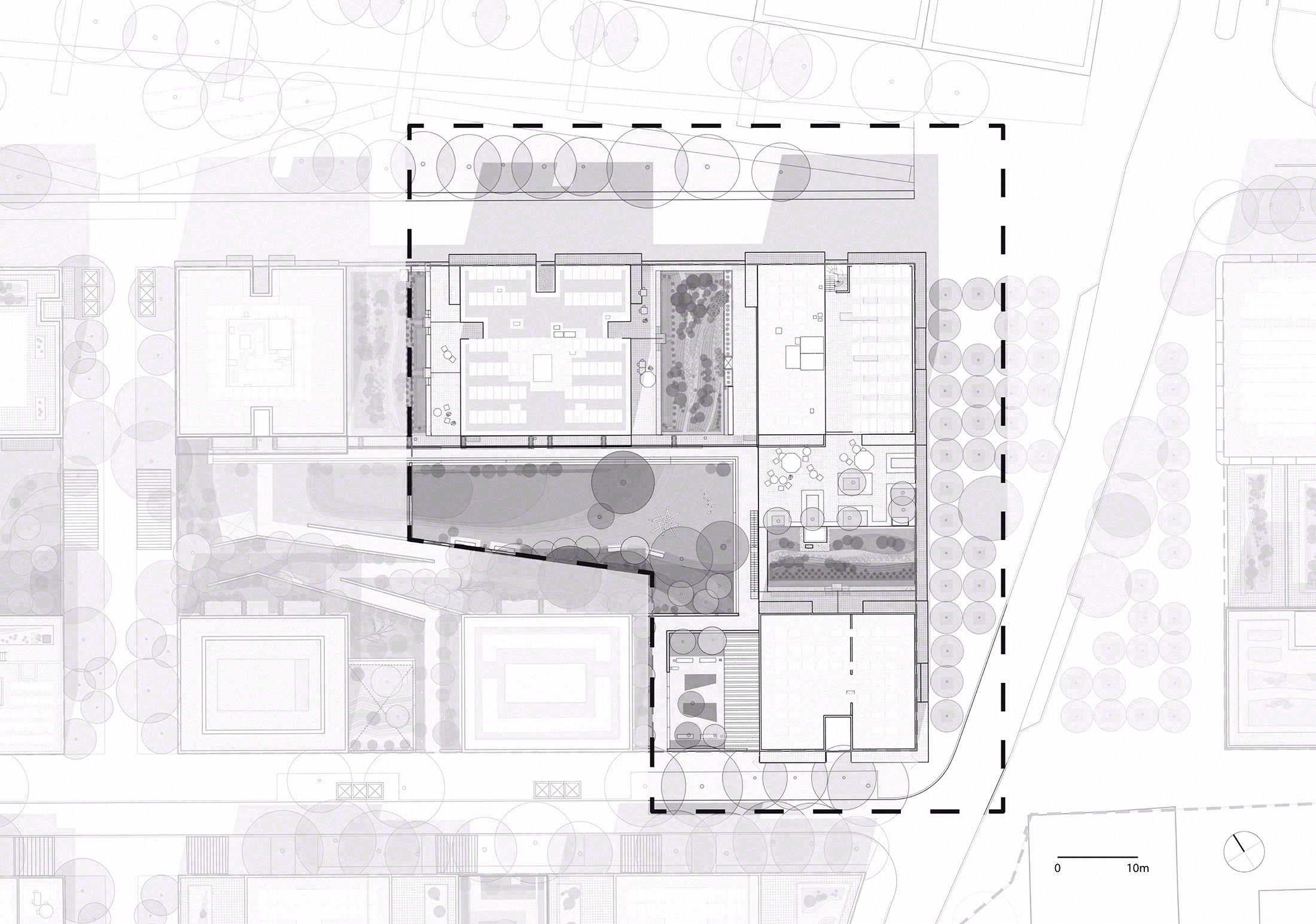

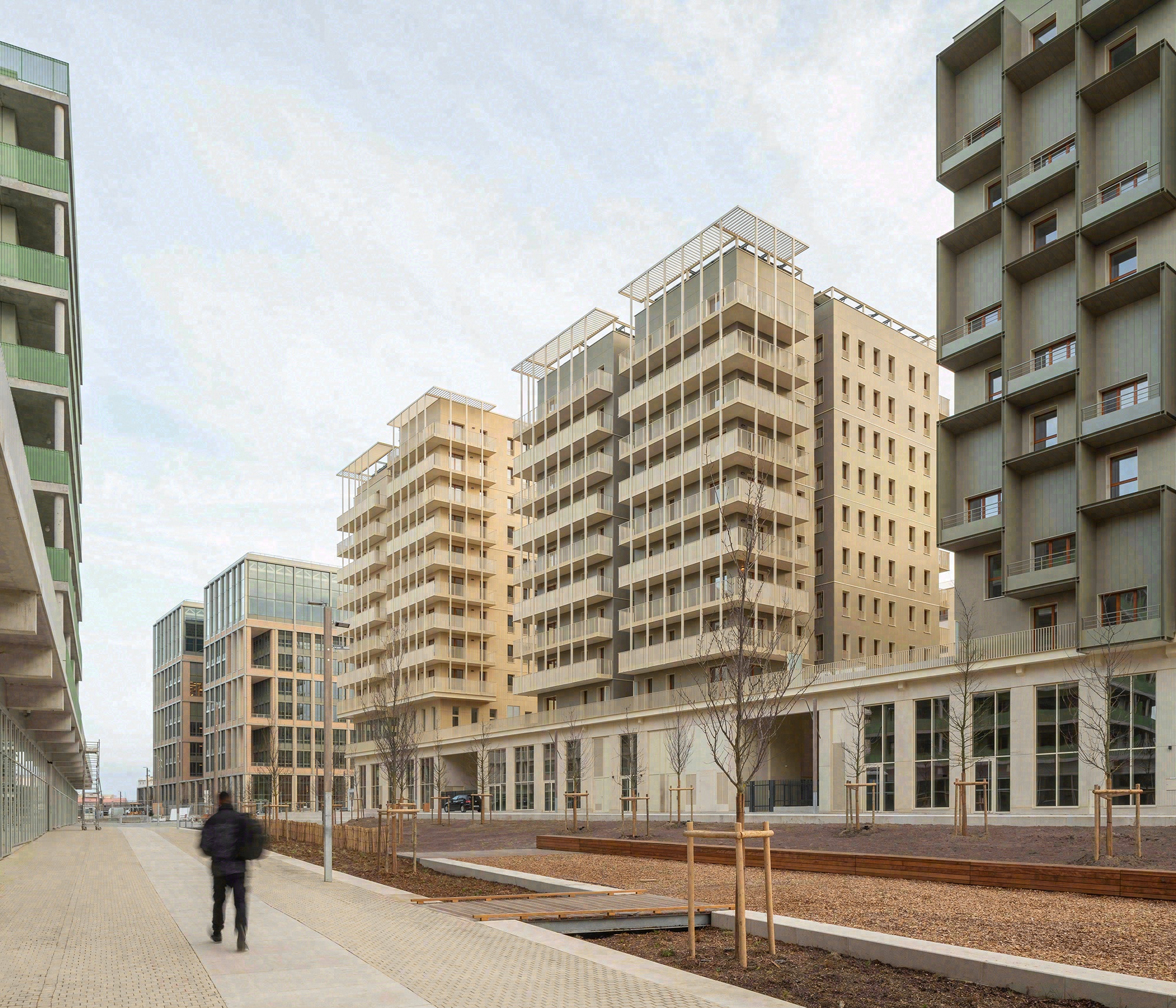

The three buildings designed by CoBe are located on the eastern edge of the Belvederes, at the crossroads of three major public spaces: the Finot street, the Ampère Square and the Coteaux Alley. This situation puts the E2B block in a central position.

Reversibility, durability

The ephemeral and transitory dimension of this large-scale project required a major design principle affecting both spaces and uses, as well as the structure of the buildings: reversibility.

Materials

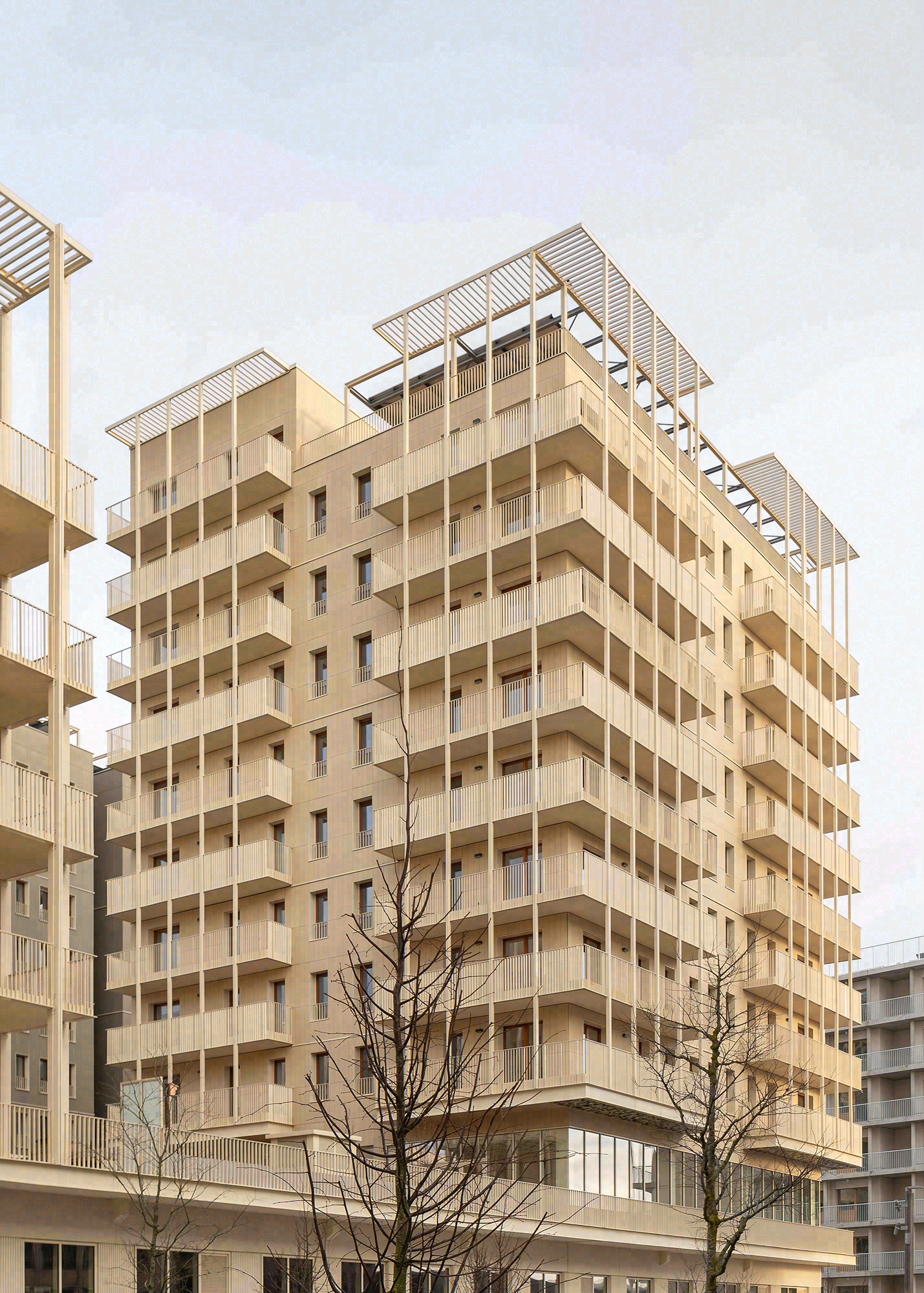

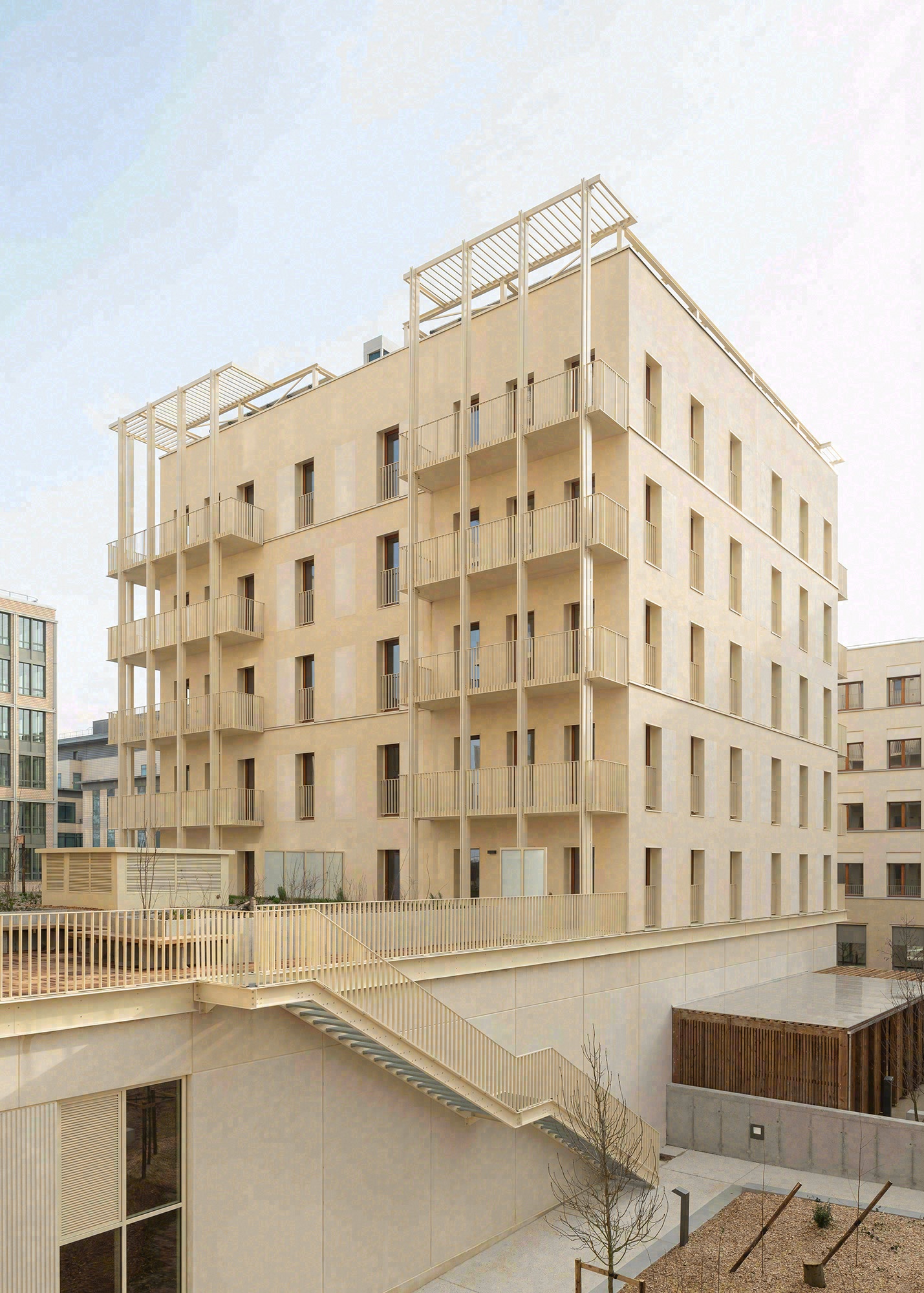

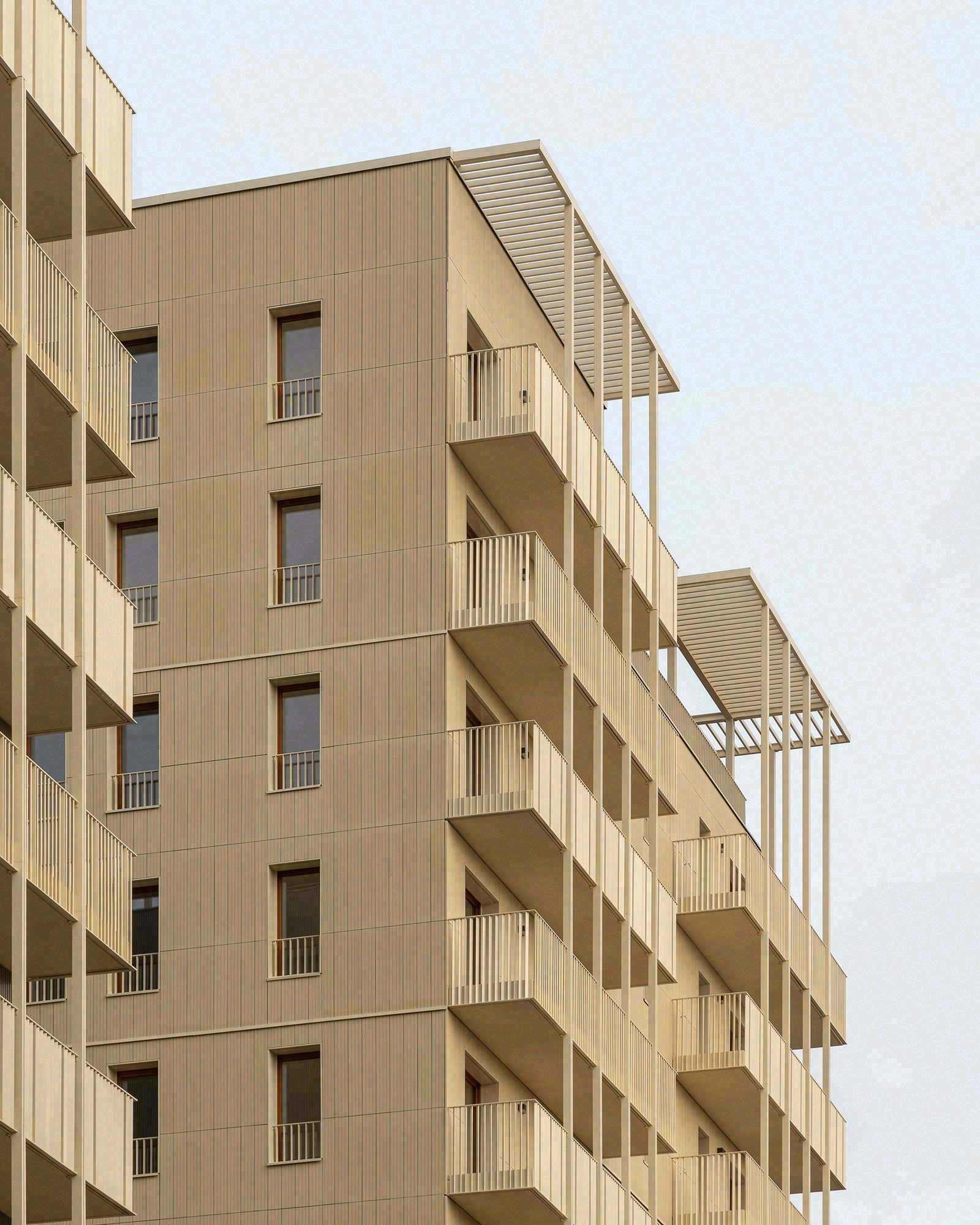

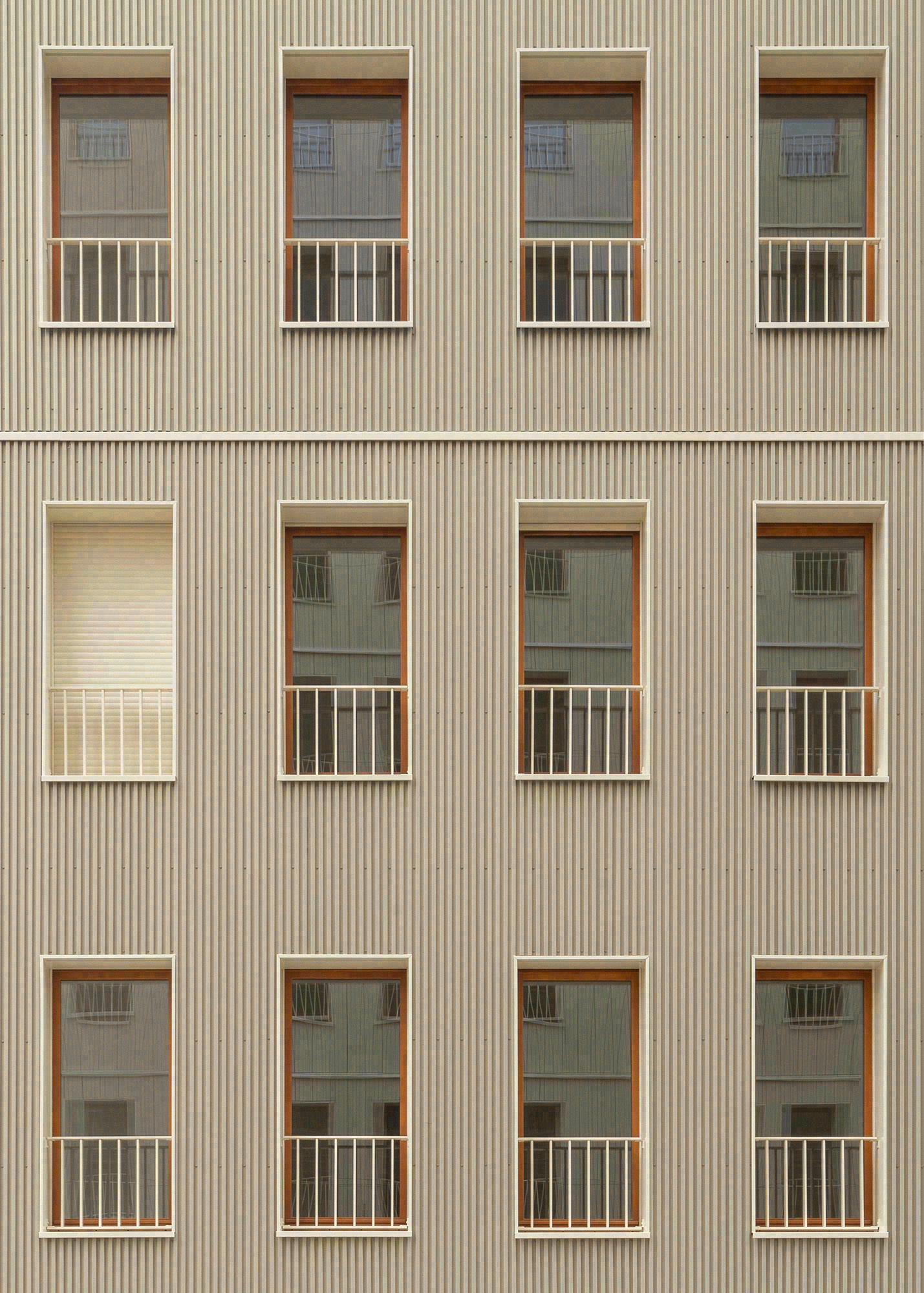

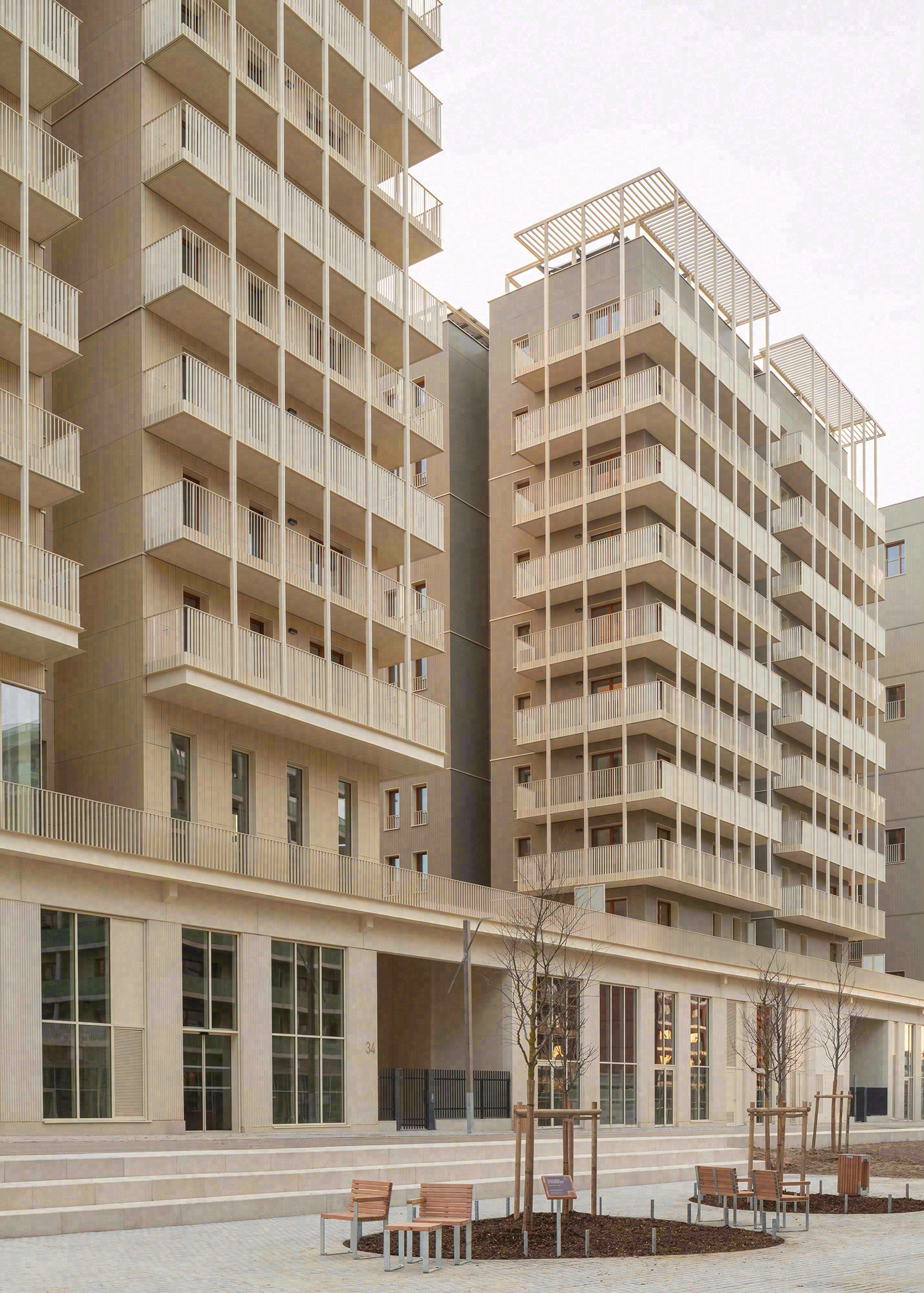

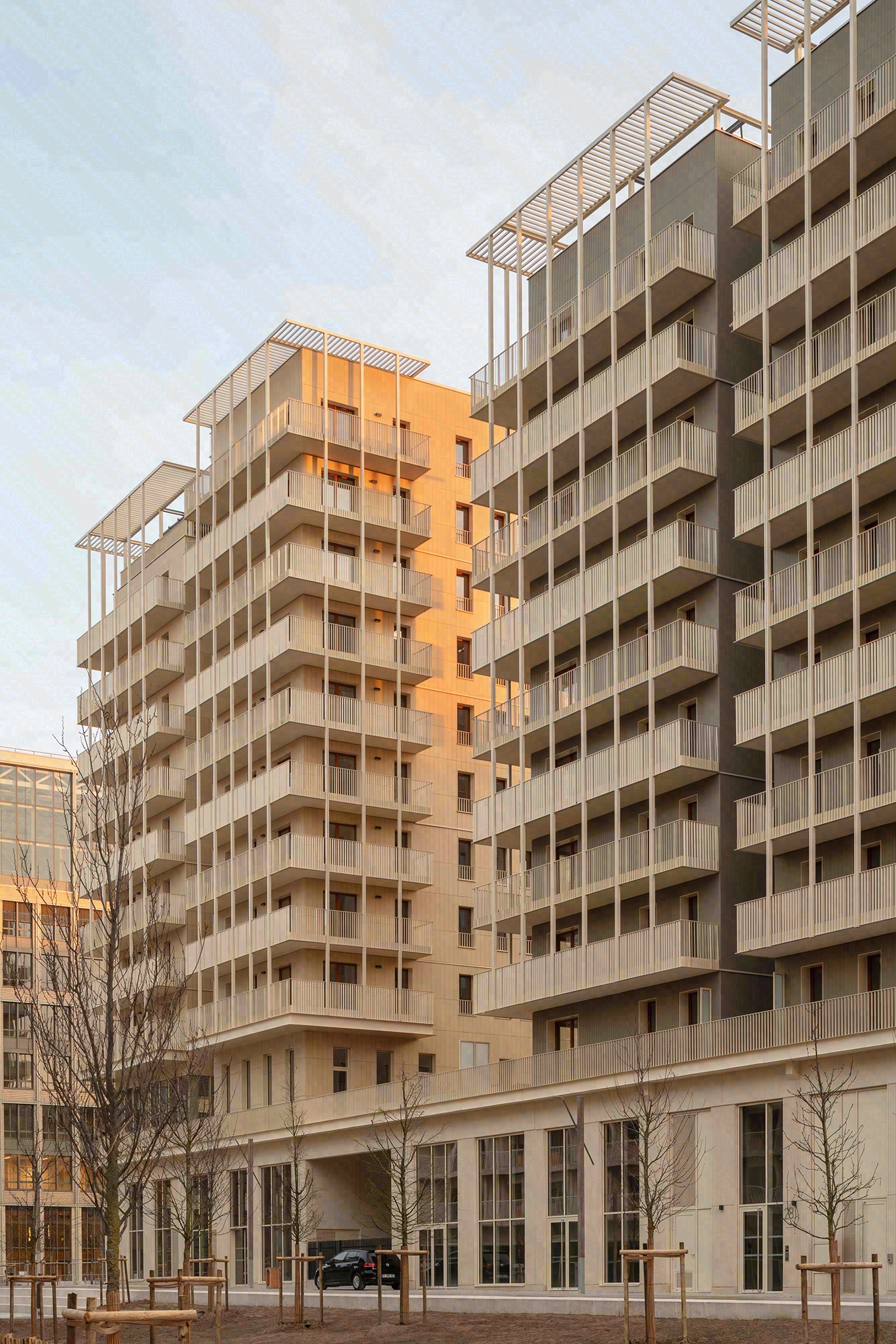

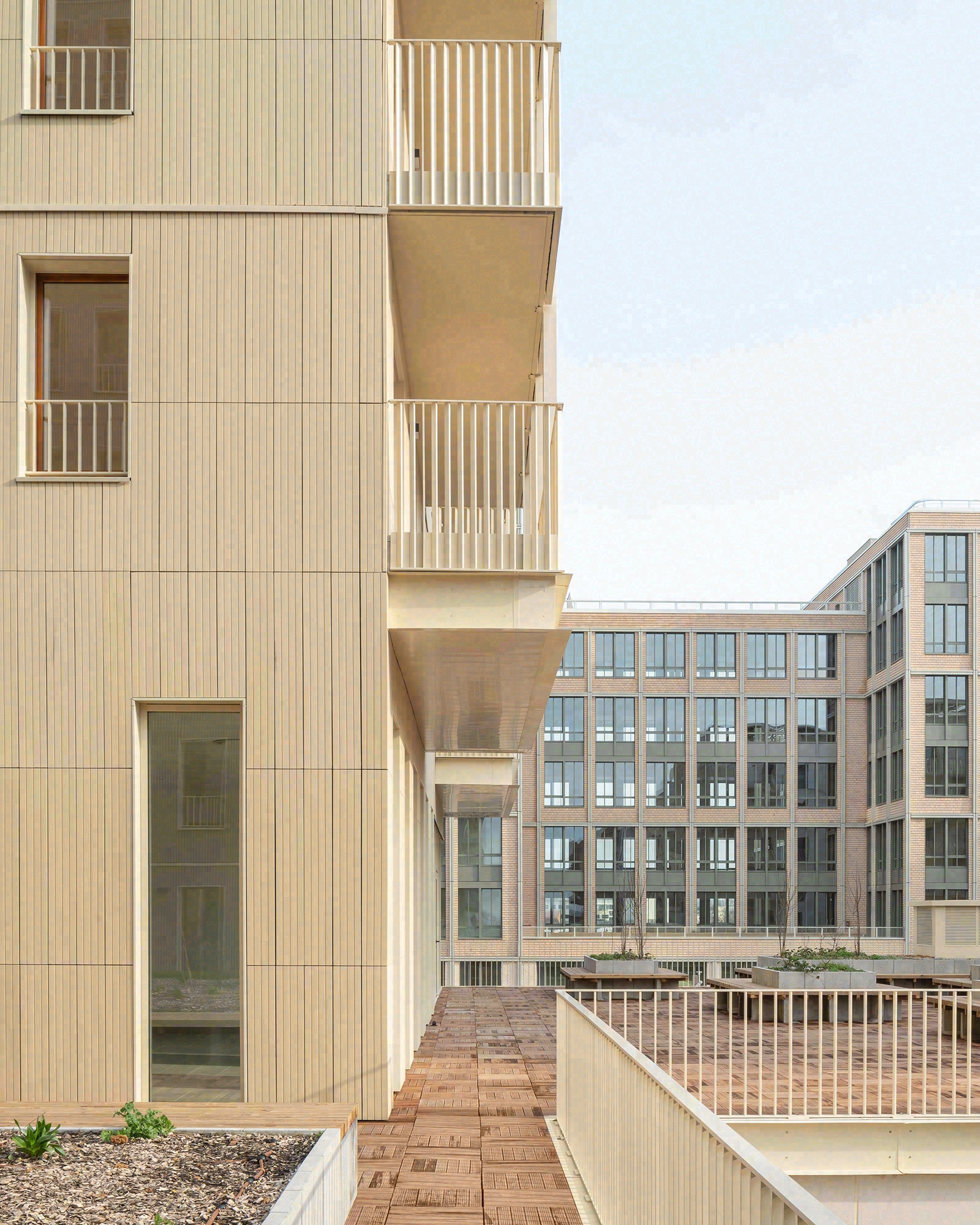

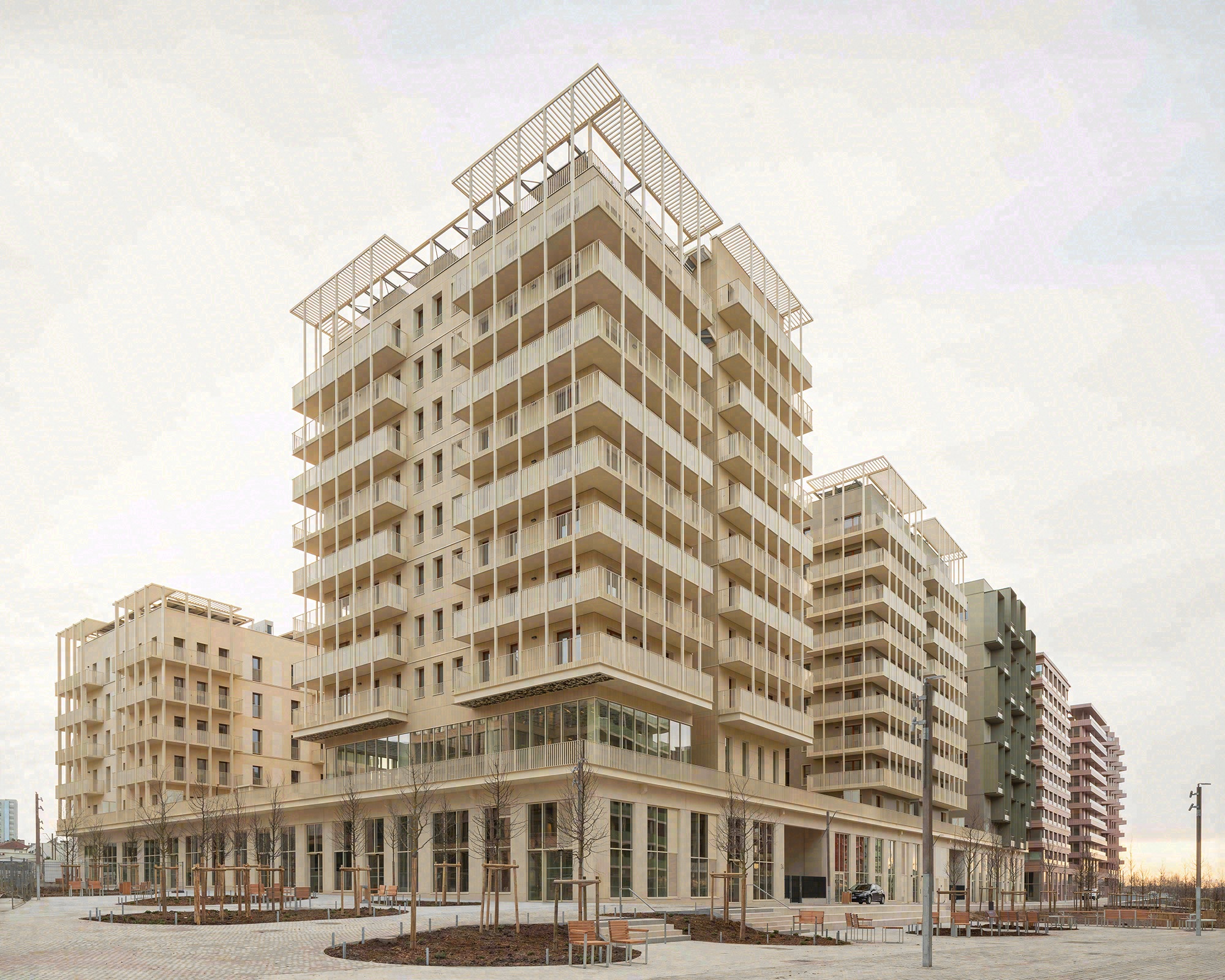

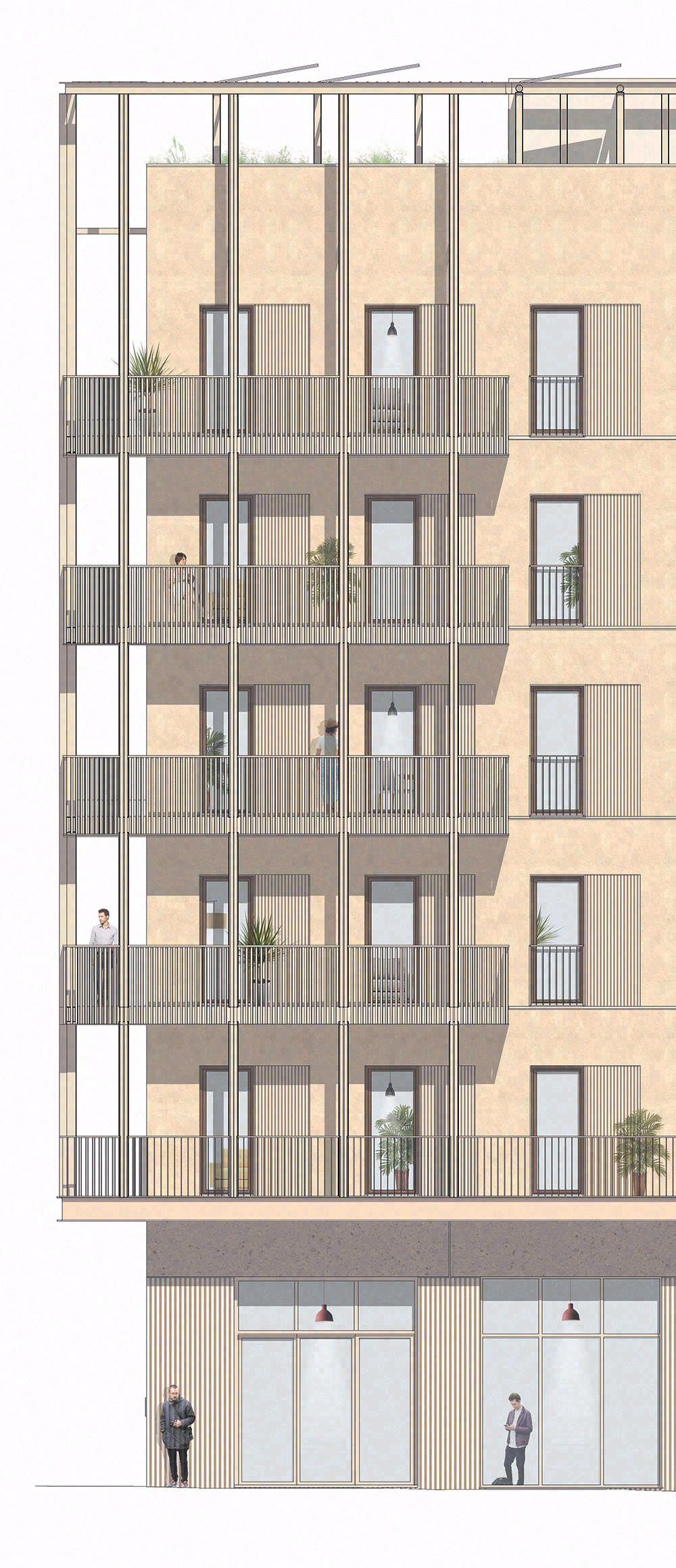

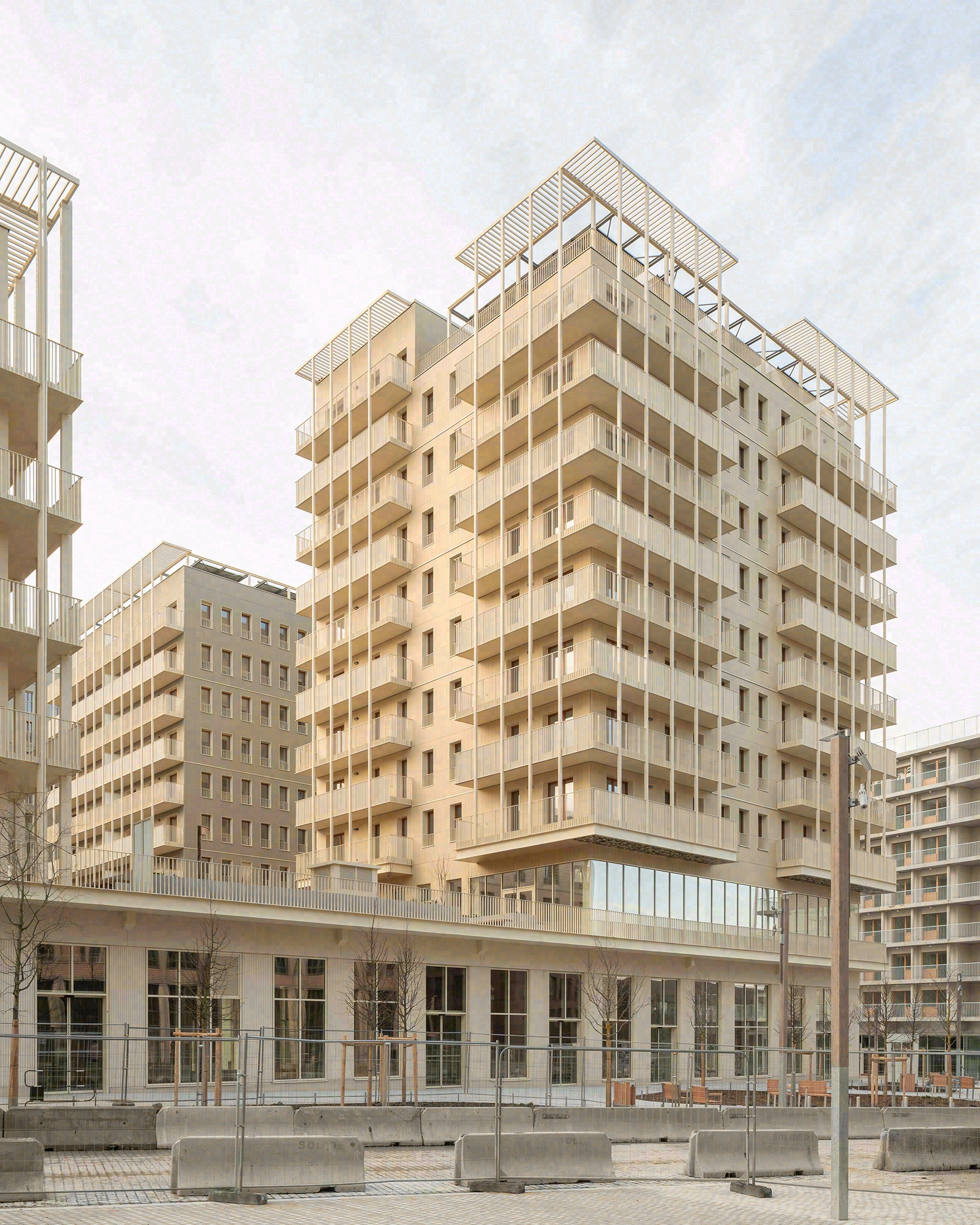

While ensuring a high fidelity to the initial design, the facades of the buildings were refined during the design. In order to harmonize the 3 buildings of the lot, an exoskeleton composed of vertical metal profiles runs over all the floors, highlighting the verticality of the buildings and providing additional support to the private balconies of building B3. On the top level, these profiles are transformed into pergolas protecting the roof terraces and supporting the photovoltaic panels placed at the top of each of the buildings.

TECHNICAL DATA

Program E2B :

Games phase: 23 simple rooms and 145 double rooms

Heritage Phase: 98 housing units, 6 shared spaces and 7 shops, spread over three buildings including 1 coliving building

Client : Nexity, Eiffage, CDC Habitat,

Groupama, EDF

Design team (sector E) :

Coordinators : CoBe (architectural coordinator), KOZ (technical coordinator), Atelier Georges (landscape architect)

Architectes : CoBe, KOZ, Lambert-Lenack, Soa, Dream, Barrault-Pressacco, Atelier Georges

Cotraitants : Setec, Socotec, Arp Astrance, Aida, RRA, Accessmétrie, Topager, Nadine Schutz, Cera, Elément Terre, Geolia, GV ingénierie

CoBe's missions : Architectural coordination of Sector E

Architectural design of lots E2B (E2B1, E2B2, E2B3)

Sustainability: Label E+C- niveau E3C2, BBCA niveau Excellence, NF Habitat, Biodivercity

Surface E2B : 8 880 sqm

Completion : March 2024

Photo credits: Cédric Colin

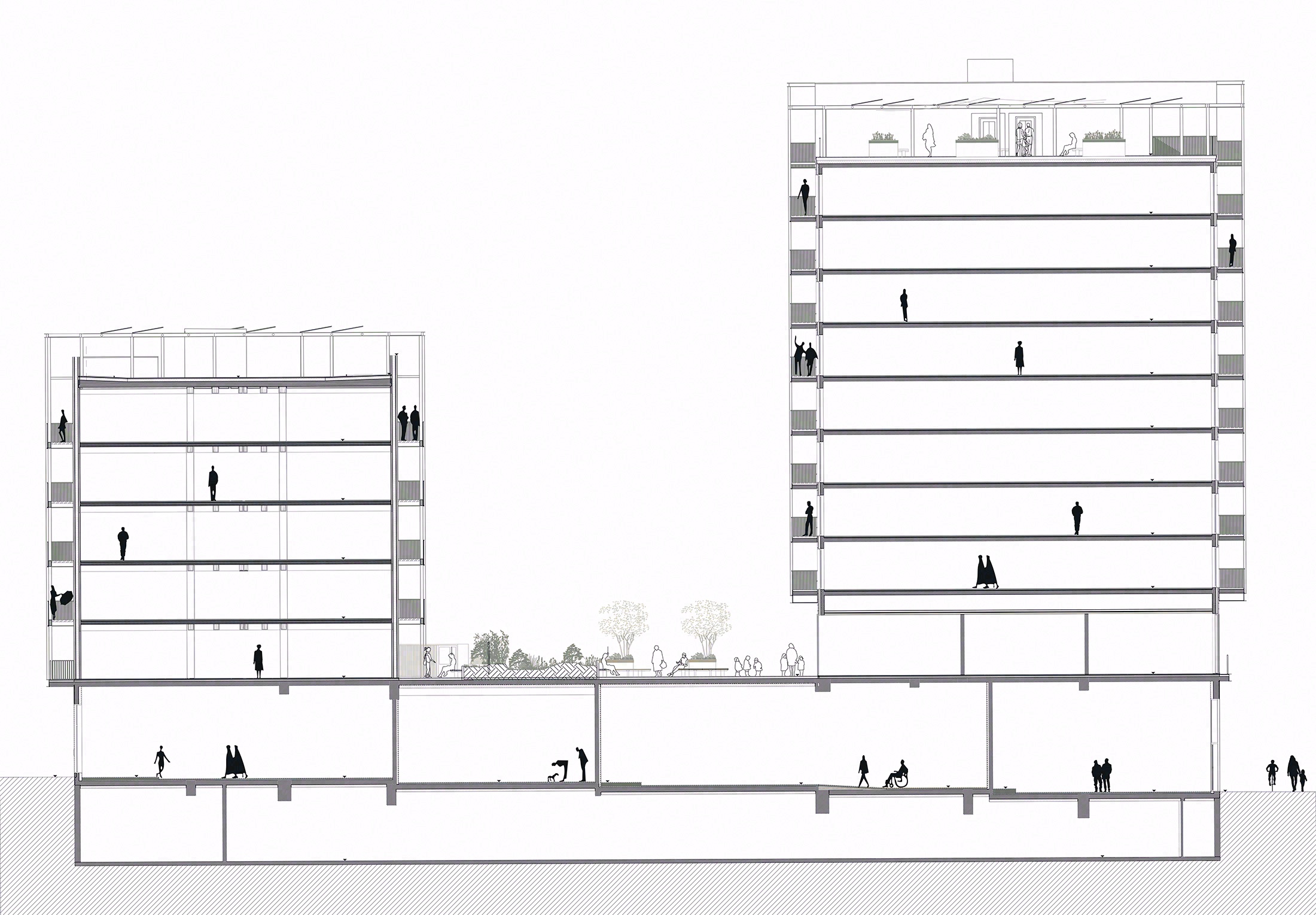

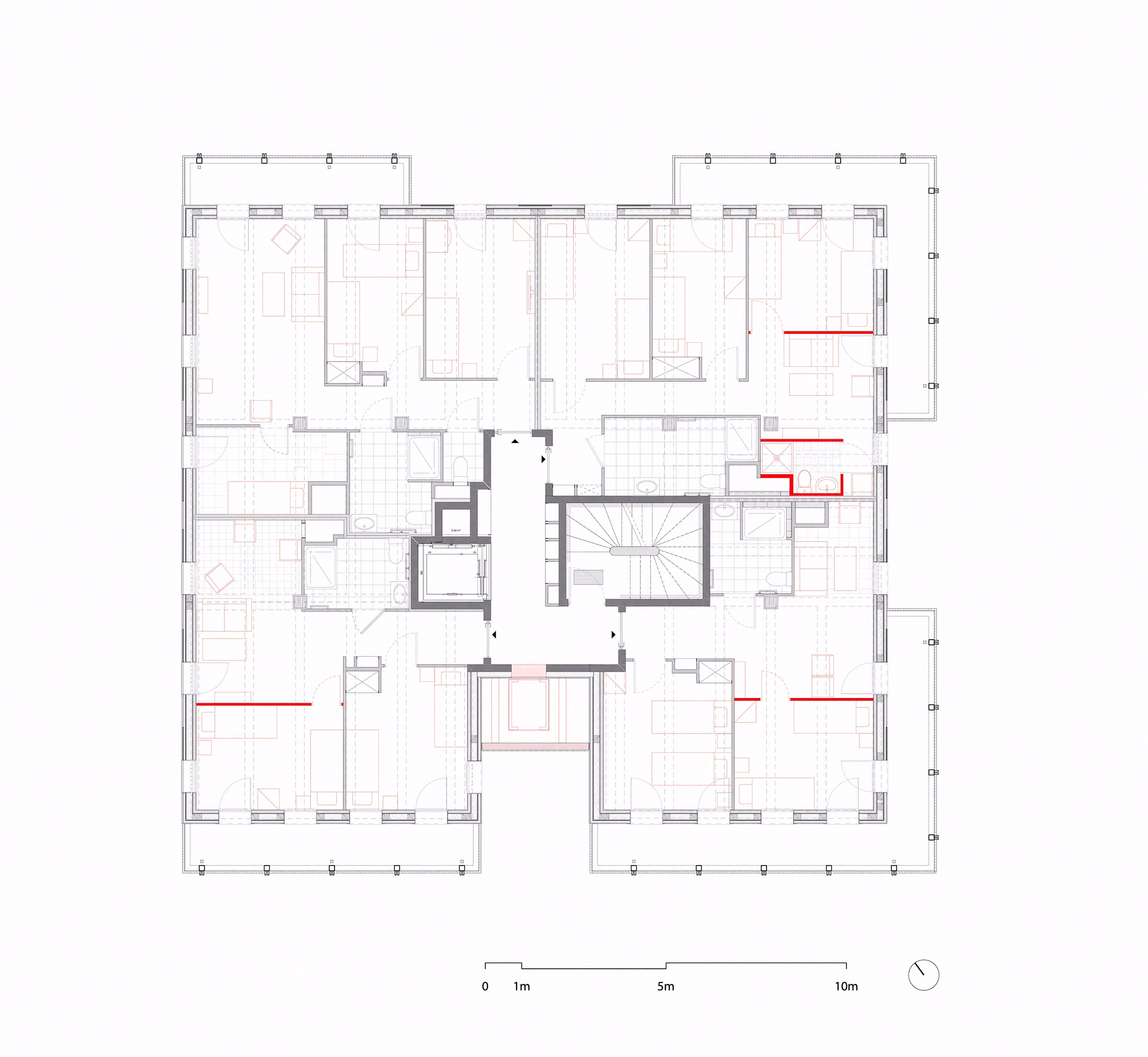

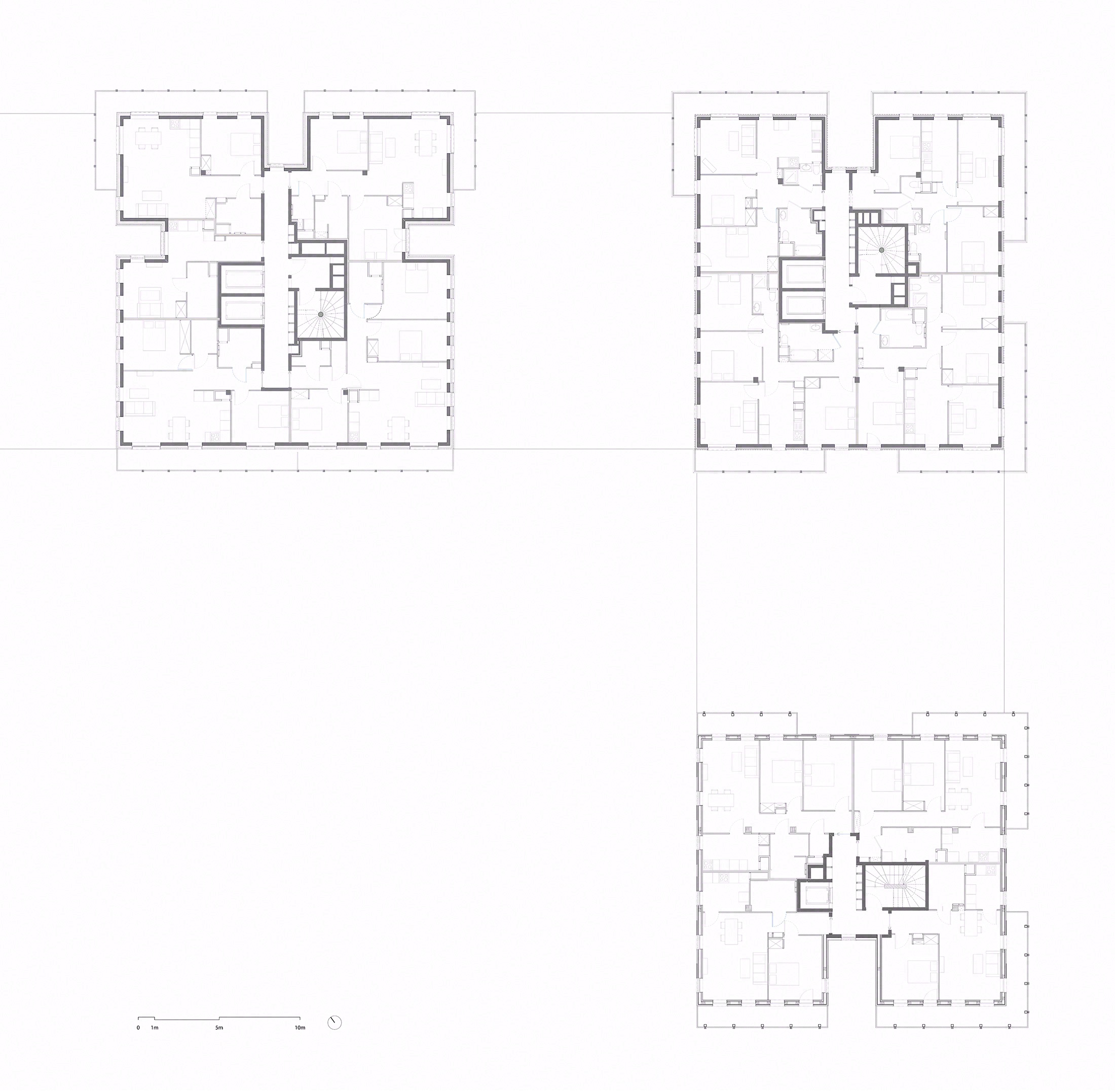

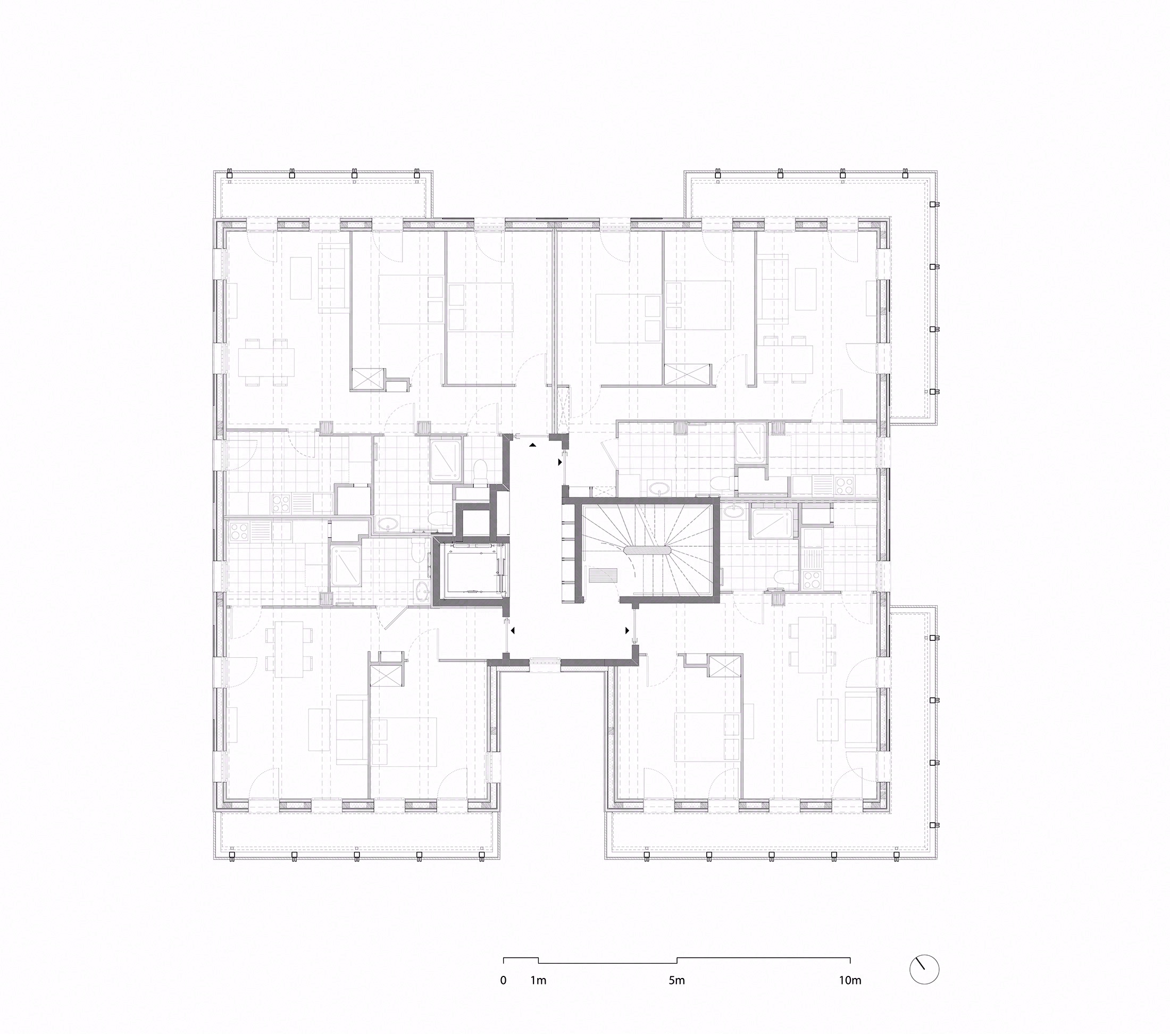

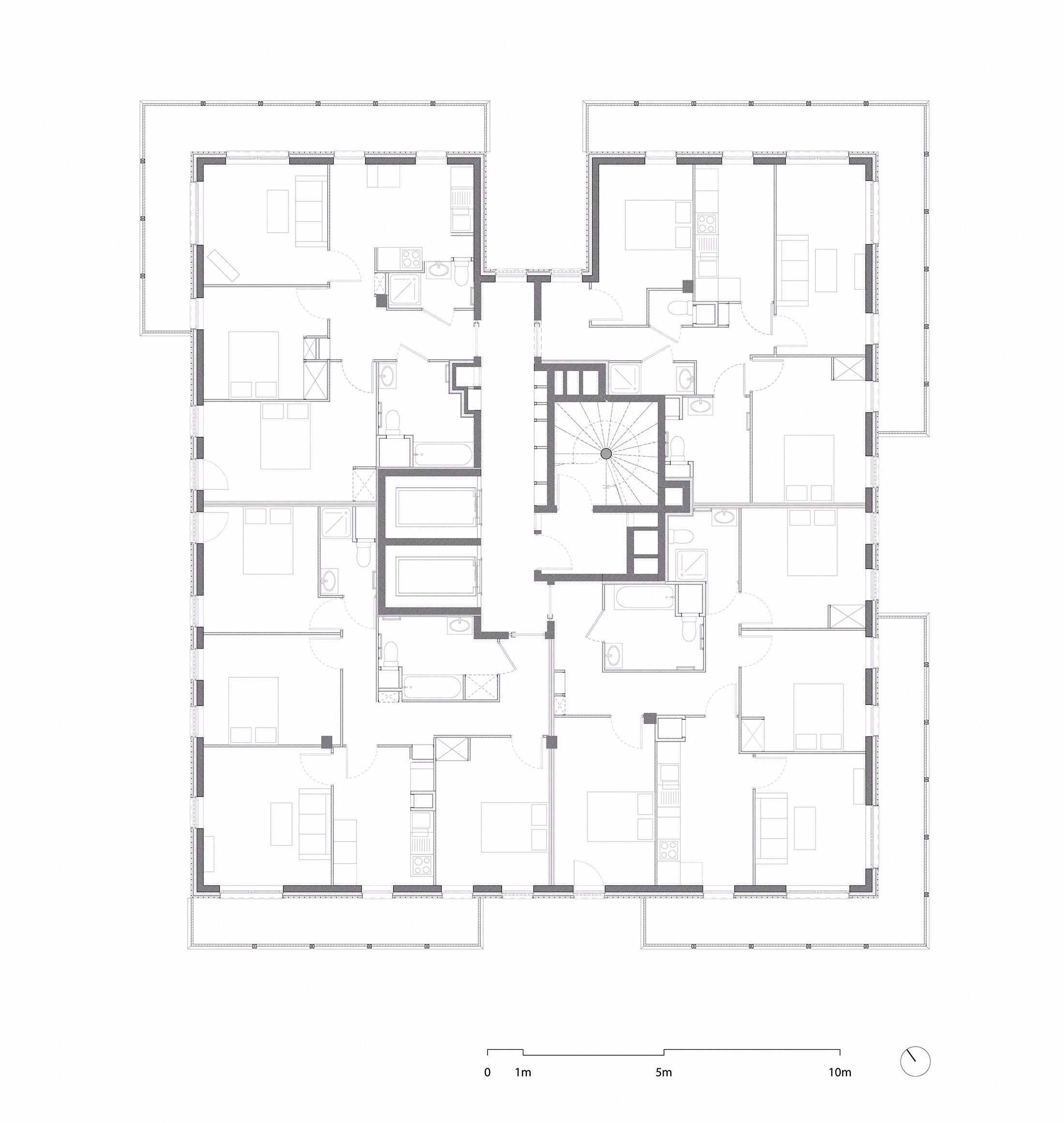

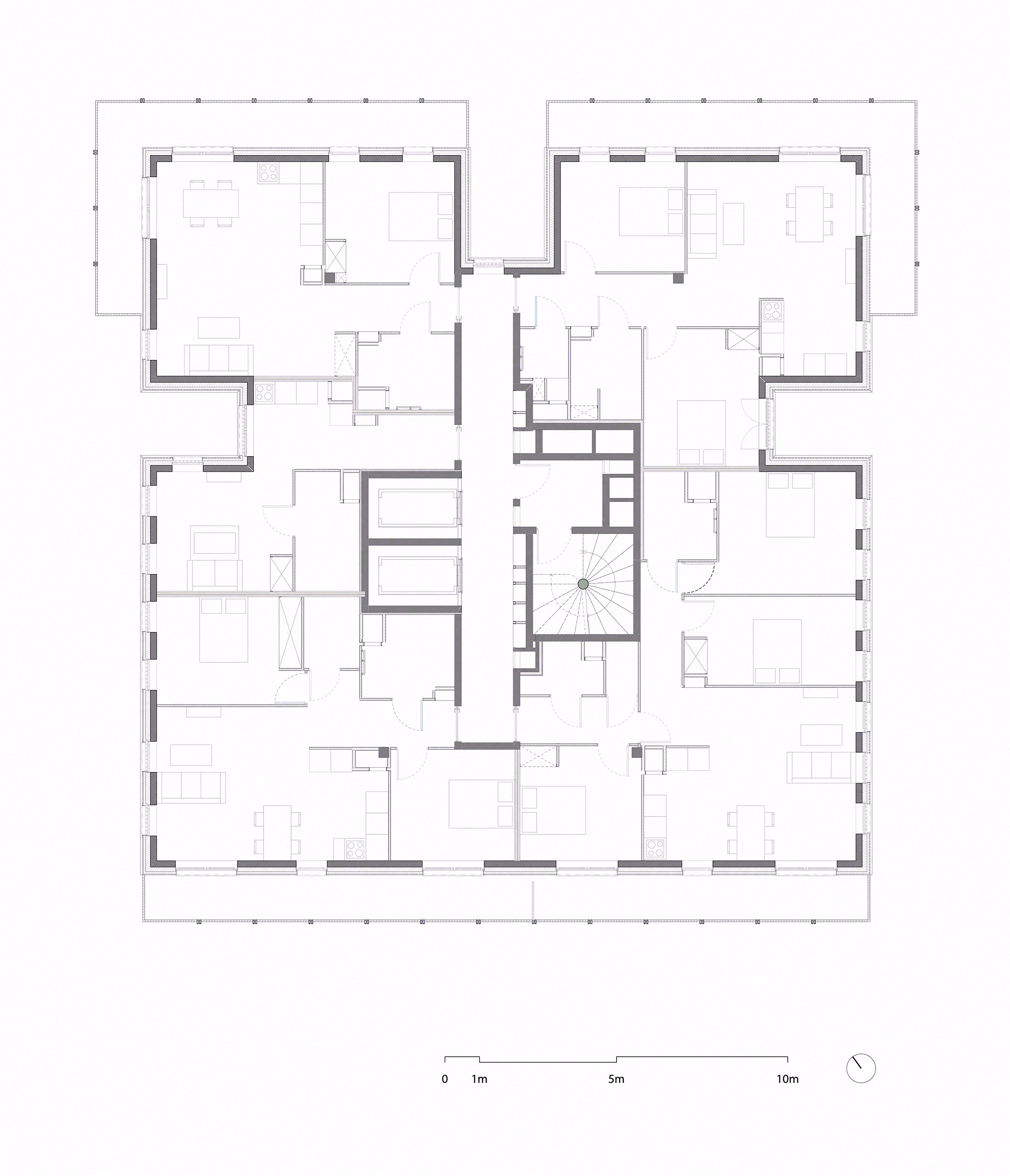

Plans : CoBe Architecture & Paysage
