宁波·大家中心 / 李上阳-line+建筑事务所

2024/06/04 15:12:23

查看完整案例

微信扫一扫

下载

抛弃只用一种设计语言的方式，希望这次的设计语言是多元的，以此来回应场地形态及业态的复杂性。面对各个业态的不同诉求，打破常规以硬质为主的商办空间，以“山林”为主线，强化立体阶梯层次，以层层绿植将人们引入场景之中，营造独具特色的多层山林街区，串联整个场地。同时融入各个对应的空间来满足不同业主的喜好与功能需求。层叠的都市山林景观弱化了建筑体量过大的现状，同时以景观特有的方式引导人们登山穿林，使整个街区既有多层的山林体验感，又有不一样的商业氛围体验。——李上阳

▼项目鸟瞰，Bird’s eye view© IAM 岸木摄影

▼ 项目一瞥，Project overview© 三棱镜摄影

「场域」场地思考过程及梳理

SITE SELECTION

The project is located at the intersection of Heqing North Road and Tongtu Road, Yinzhou District, Ningbo City, in the core area of Ningbo.Tongtu Road is a traffic artery, with a large amount of traffic flow, and the surrounding area is dominated by offices and residences, which provides a strong support for the development of the demand of the project.

▼项目区位，site© line+

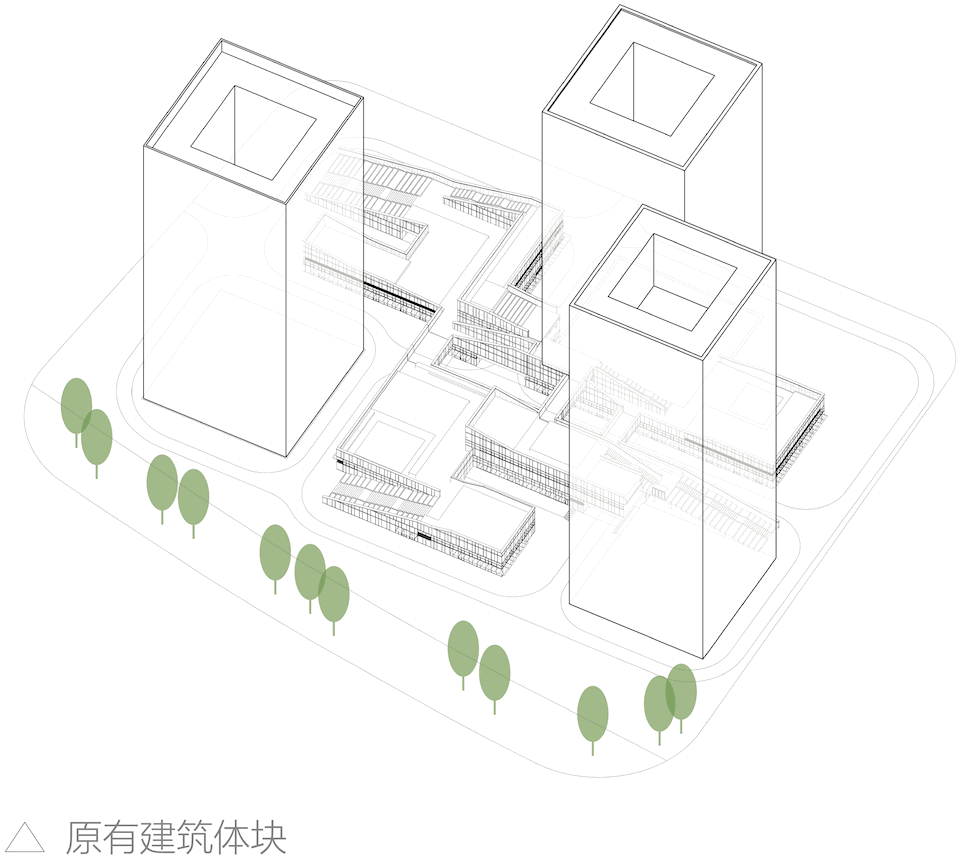

项目场地整体由建筑总领，景观穿插于高楼之间，丰富的竖向变化也为景观提供了更丰富的空间设定。

The project site as a whole is led by the building, and the landscape is interspersed between the high-rise buildings. The rich vertical changes also provide a richer space setting for the landscape.

▼鸟瞰，Bird’s eyeview© IAM 岸木摄影

场地南侧为对外市政公园绿地，但作为主干道与场地内部连接的重要空间，景观在满足市政规范的同时，也增加了编织状的休闲小径，加强了城市空间与场地的通达度。

The south side of the site is an external municipal park and green space. As an important space connecting the main road with the interior of the site, the landscape not only meets the municipal regulations, but also adds a woven leisure path to strengthen the accessibility of the urban space and the site.

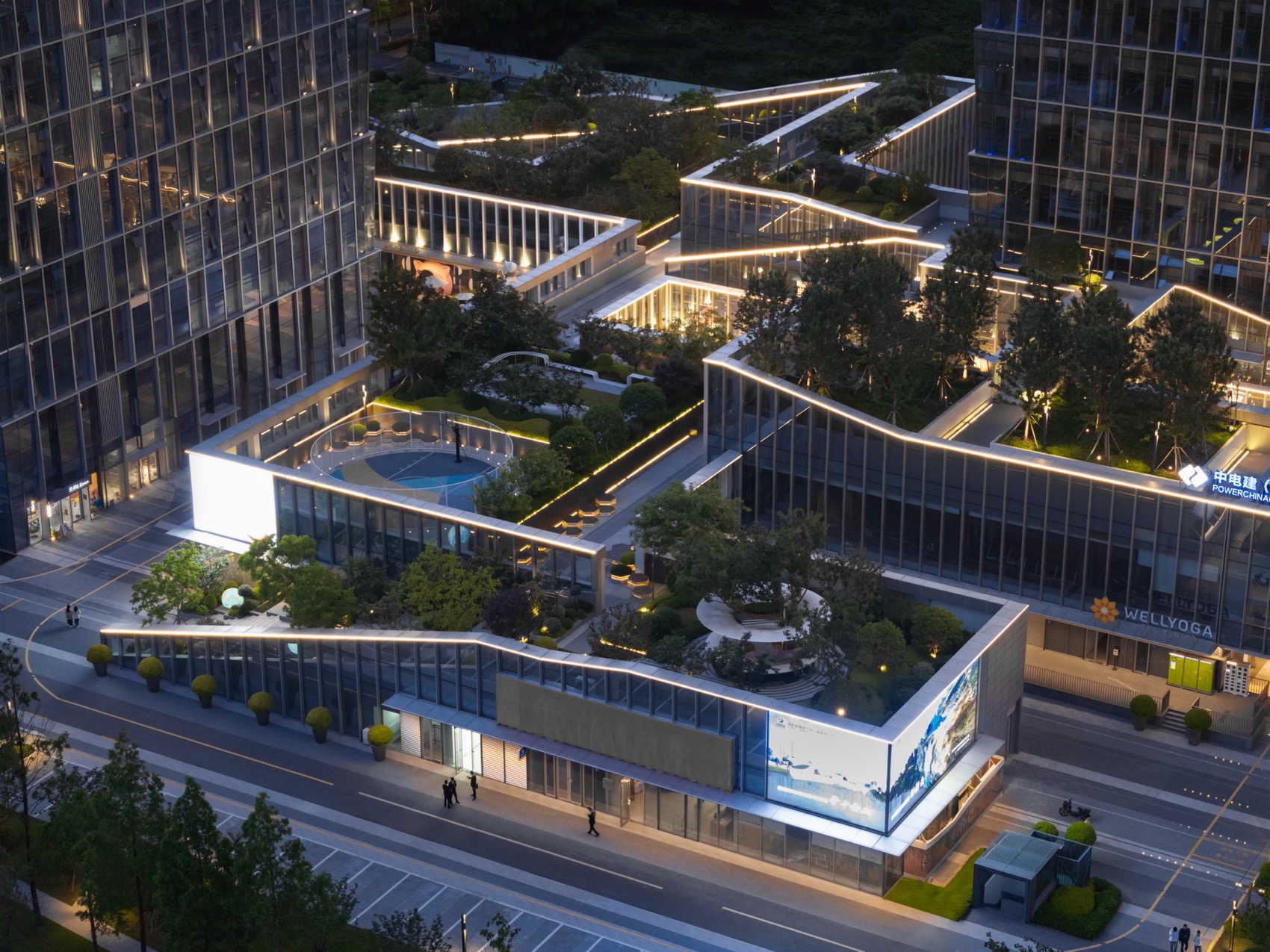

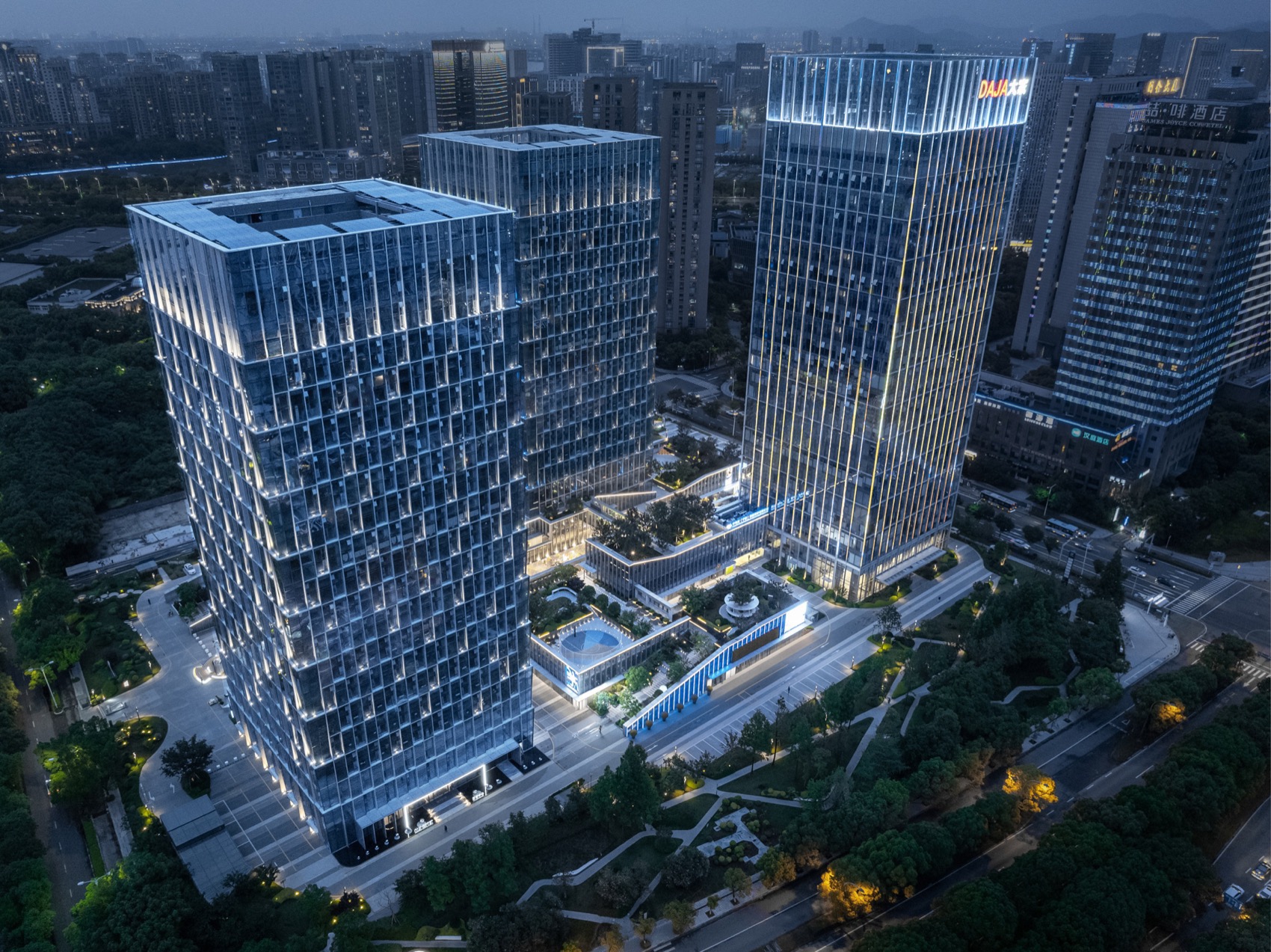

▼夜景鸟瞰，Night bird’s eye view © IAM 岸木摄影

一层业态遍布了整个配套商业用房，其中包含餐饮、超市、宠物用品等多元轻商业。因此，一层商业主动线景观选择用最纯粹的方式，为餐饮外摆、商业活动留足空间，发挥最大的能动性。二三层业态除特色餐饮外，还包含会所、健身房等多功能场所。景观也结合多元业态的需求，设置有对应的活动空间。

The first floor of the business is spread throughout the entire supporting commercial buildings, including catering, supermarkets, pet supplies and other diversified light businesses. Therefore, the landscape of the commercial active line on the first floor chooses to use the purest way to leave enough space for catering and commercial activities to give full play to the greatest initiative. In addition to special catering, the second and third floors also include multi-functional places such as clubs and gyms, and the landscape is also combined with the needs of multiple formats, and corresponding activity spaces are set up.

▼多层渗透，Multi-layer penetration ©line+

「场景」空间的多元表达

SCENE EXPRESSION

设计依然延续“山林”的概念，以“山林”为主线贯穿，串联各个活动空间。同时将先行区块中“礁岛、海浪、氧气”等设计元素延伸，在多层空间中营造漫游山林之趣。

▼顶视， Top view © IAM 岸木摄影

镜头一 | 元气街区，商业主线。一层以自由空间为主，线型铺装引导路线。筒状树池、庭院灯分割空间，大面留白为商业活动提供了无限想象。

The first floor is dominated by free space, with linear pavement guiding routes, cylindrical tree pools, and courtyard lights dividing the space. Large blank spaces provide infinite imagination for commercial activities.

▼元气街区，Vitality street © 三棱镜摄影

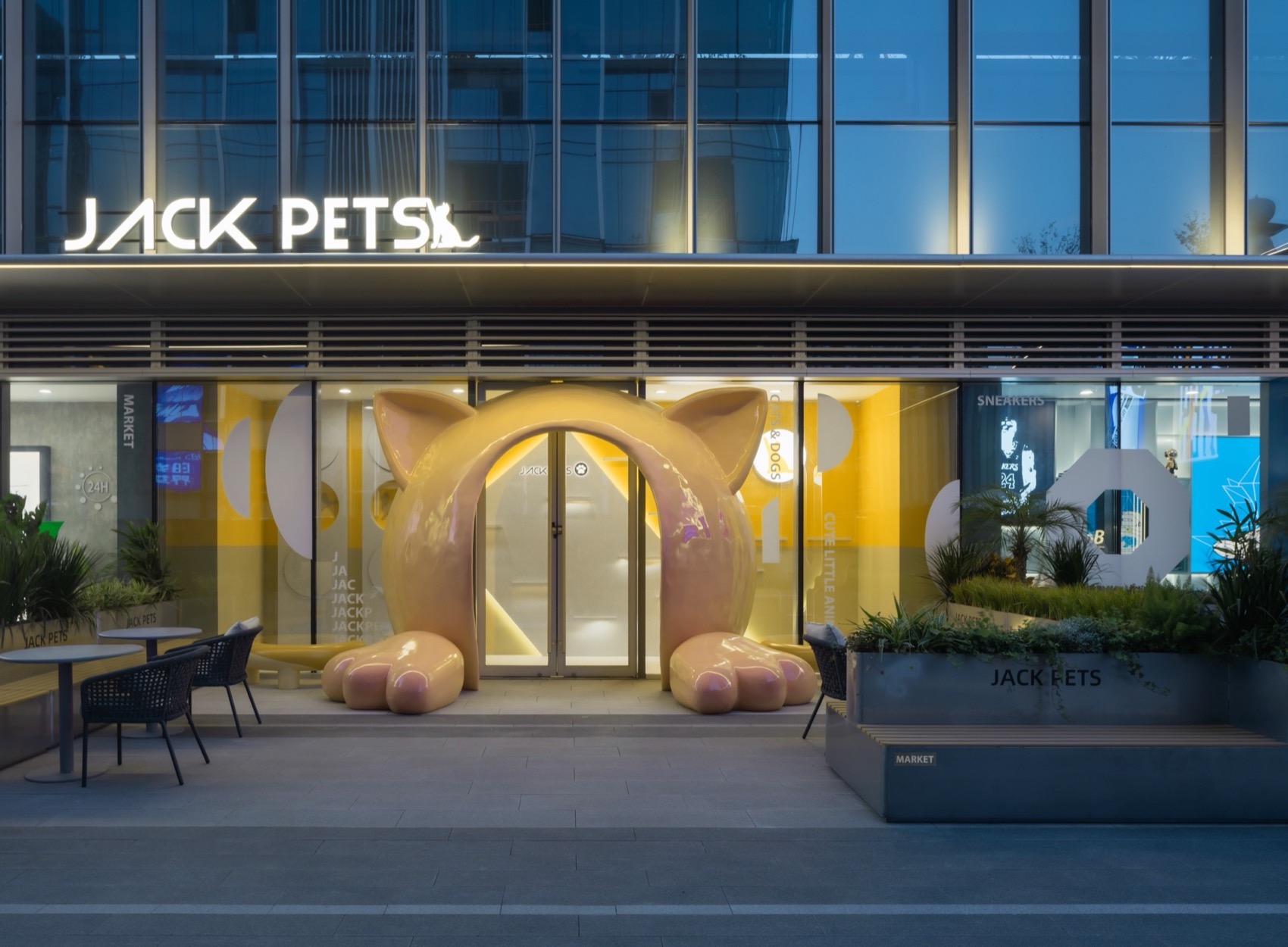

▼商业外摆氛围浓厚，Strong commercial outdoor atmosphere©三棱镜摄影。

▼商业外摆互动场景，Interactive scenes © 三棱镜摄影

镜头二|氧气渗透，山海漫游

多层景观设置，通过元素延伸、植被蔓延的方式，将人们由一层街区引至山林之中。

山林入园，层层绿岛，axo©line+

The multi-level landscape setting leads people from the first floor to the mountains and forests through the extension of elements and the spread of vegetation.

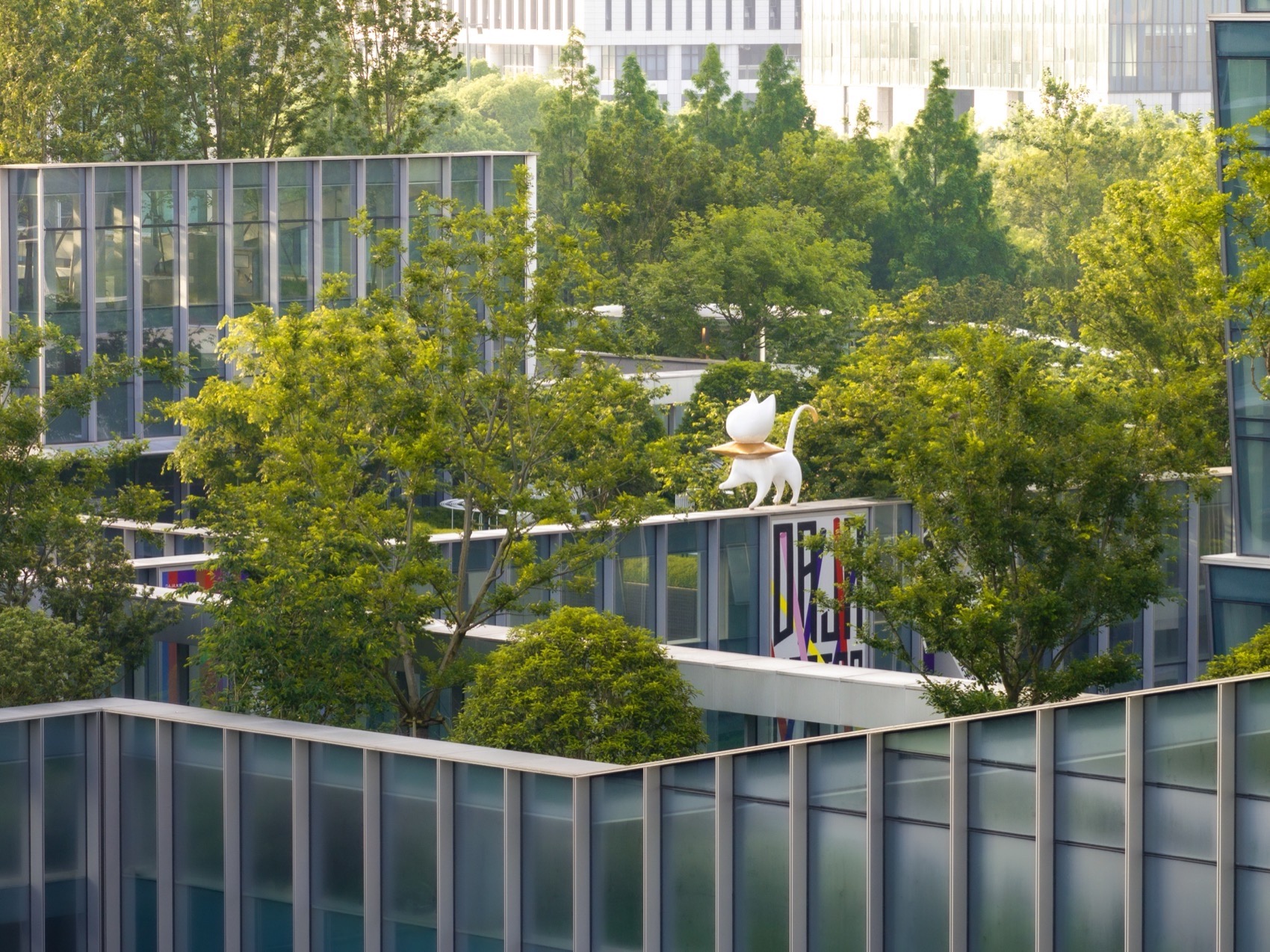

▼抱枕猫丛林漫步，Jungle walk © IAM 岸木摄影

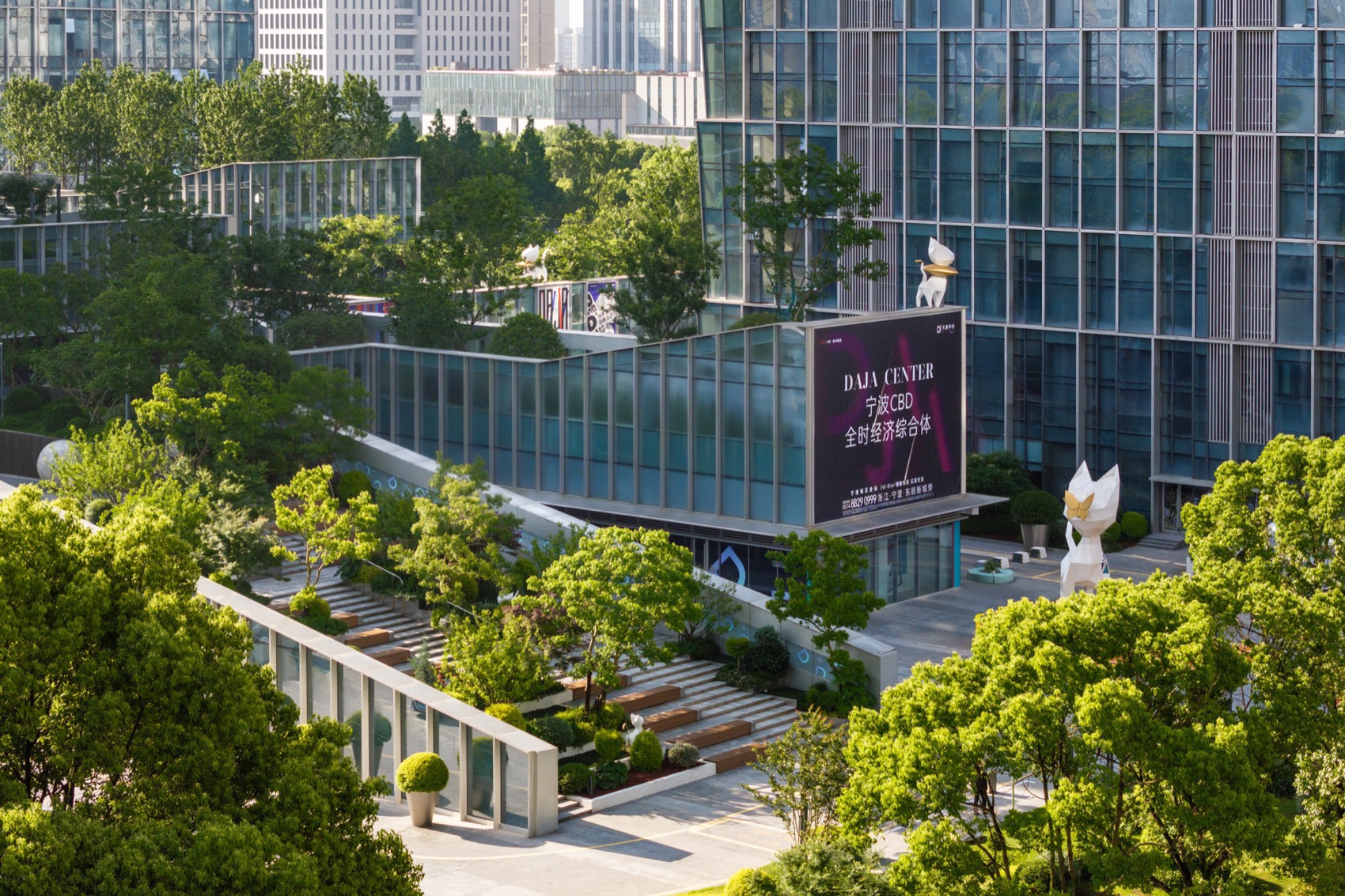

▼远眺丛林，Overlooking the jungle © IAM 岸木摄影

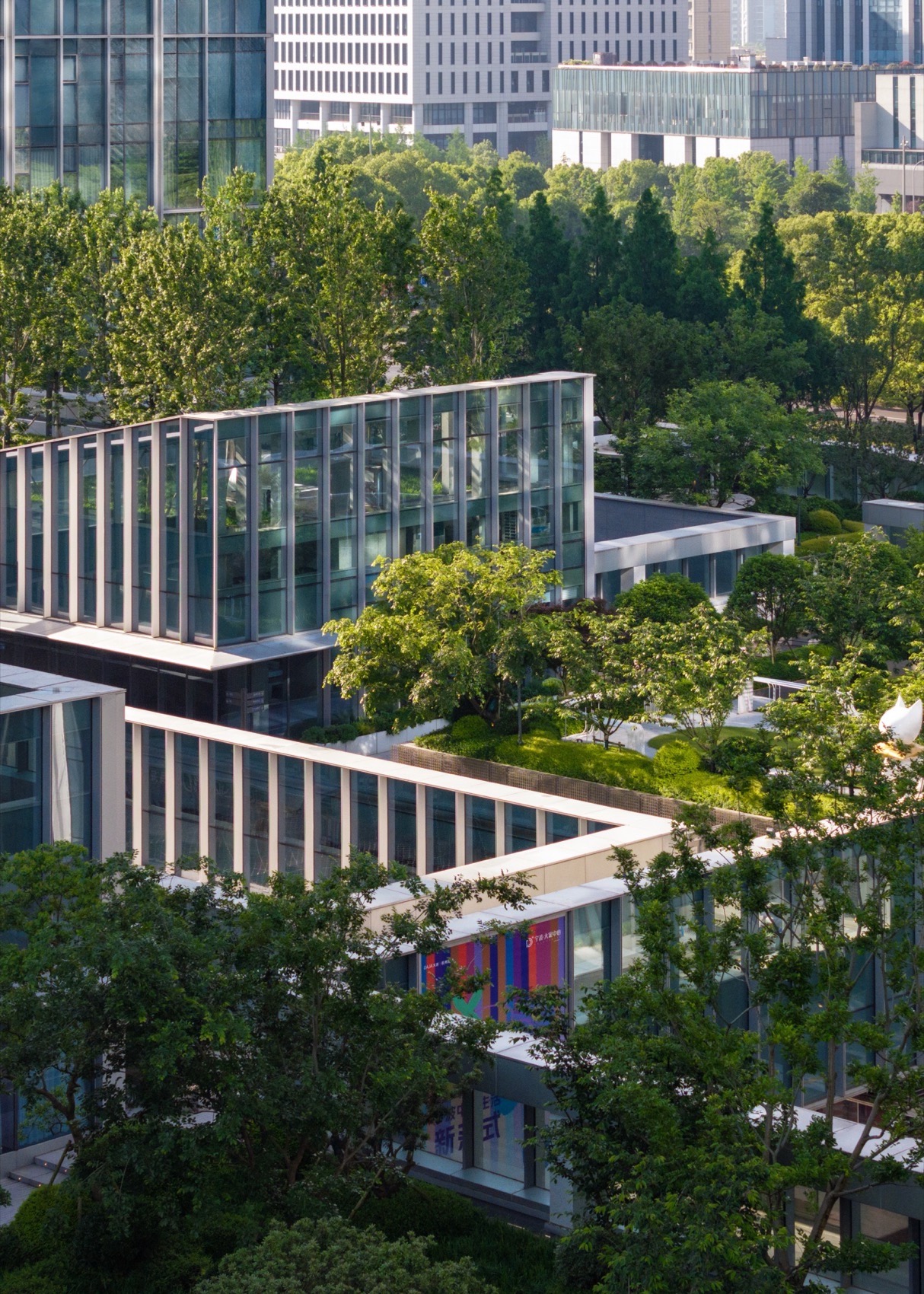

植物与建筑、城市远景穿插交织，将建筑隐藏在植物中，形成城市中央独有的绿色景观。

Plants, buildings, and urban vistas are intertwined, hiding buildings in plants, forming a unique green landscape in the center of the city.

▼绿意层层蔓延，Greenery spreads © IAM 岸木摄影

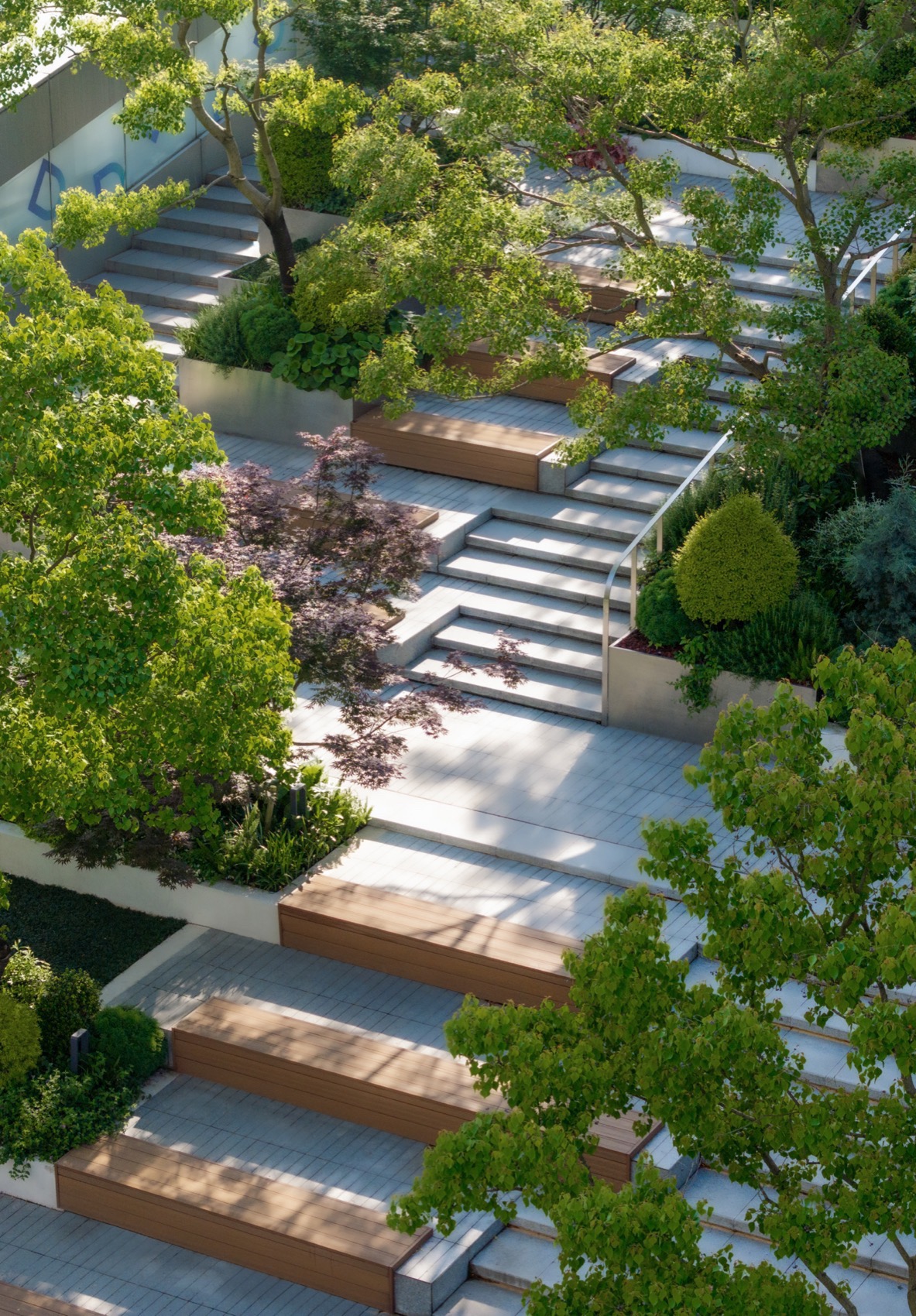

台阶设计多样化，丰富台地步行体验，同时利用台地多层的特点，提供充足的互动休憩空间，增加交流共享的场景功能。

▼台阶分析图，step analysis diagram ©line+

The design of the steps is diversified, enriching the walking experience of the platform. At the same time, using the multi-layer characteristics of the platform, it provides sufficient interactive rest space and increases the scene function of communication and sharing.

▼抱枕猫在花丛嬉戏，Playing in the flowers

▼山林交流场所，Forest exchange place © IAM 岸木摄影

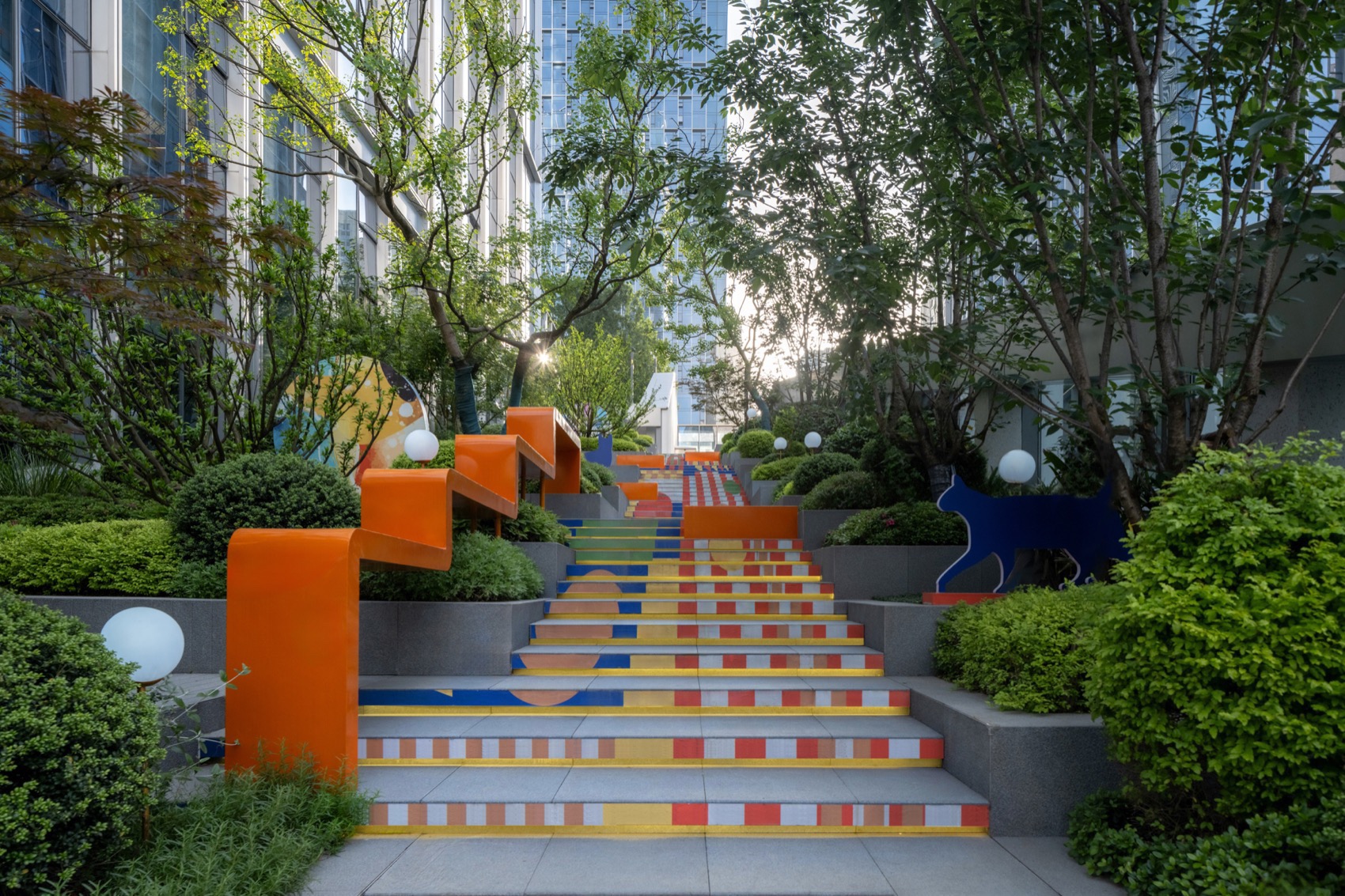

▼艺术色彩涂鸦引入台阶场景中 Artistic color graffiti © IAM 岸木摄影

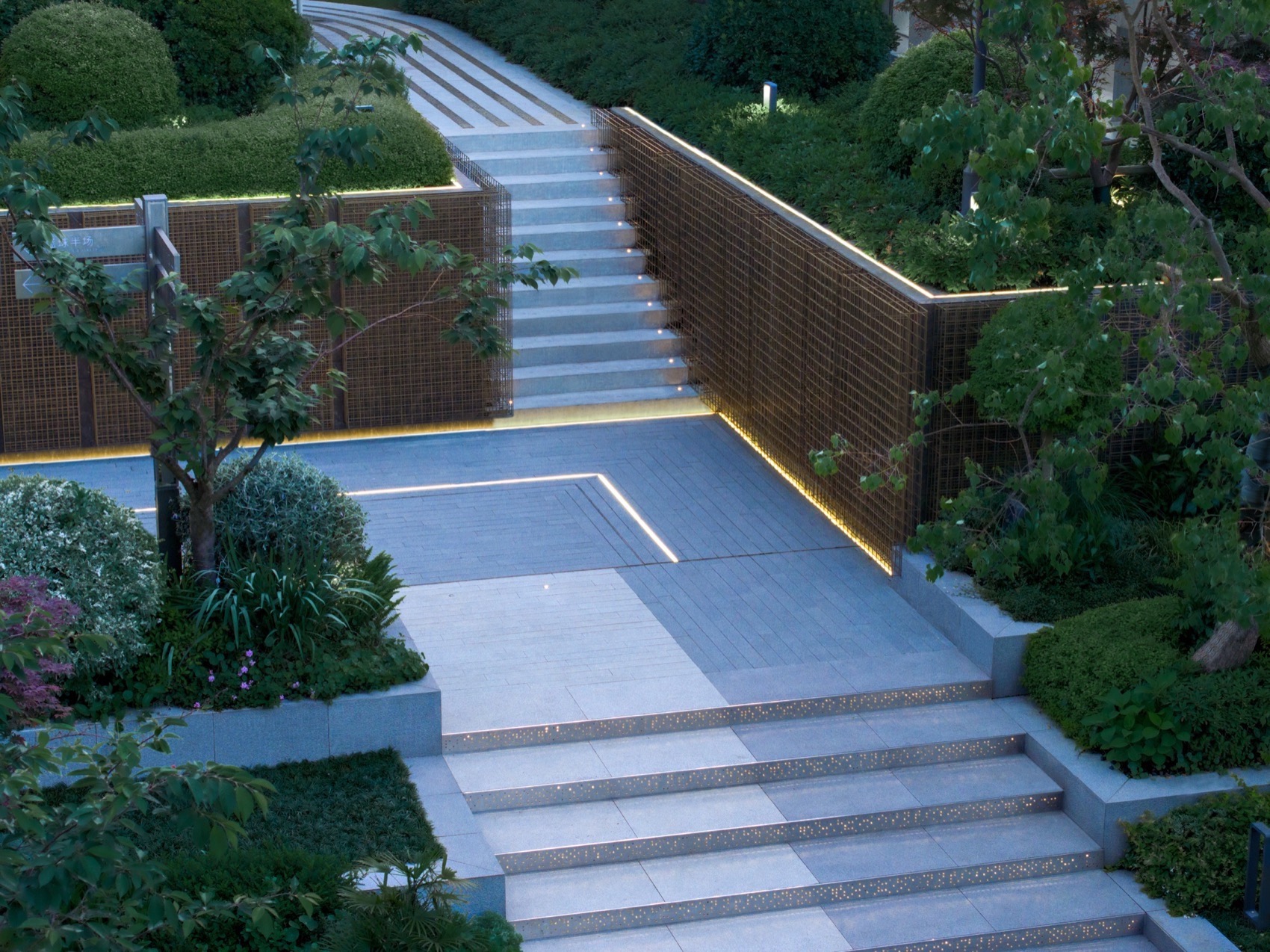

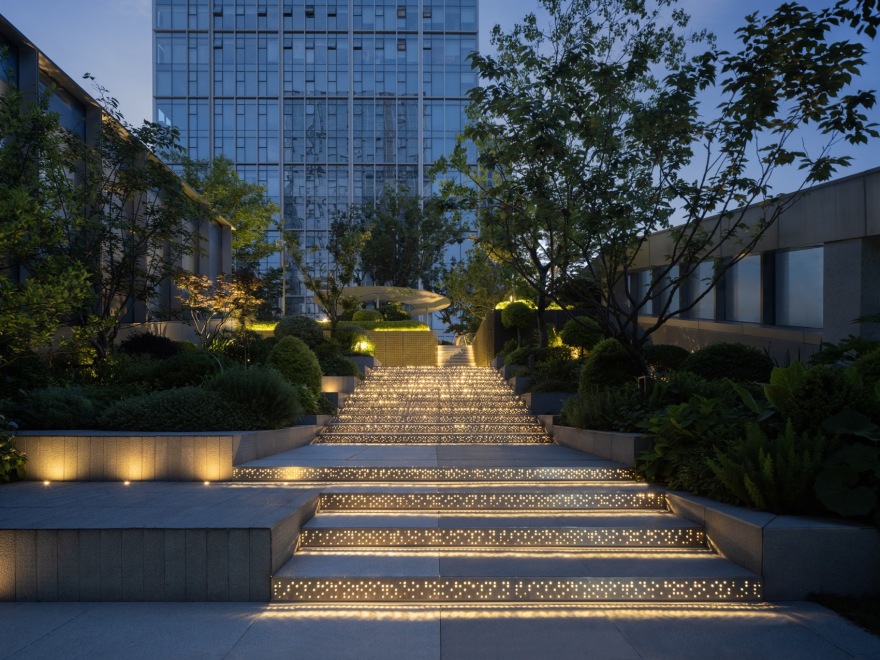

▼星光台阶层叠而上，The starlight steps are stacked up © IAM 岸木摄影

镜头三|山林探索，路径串联

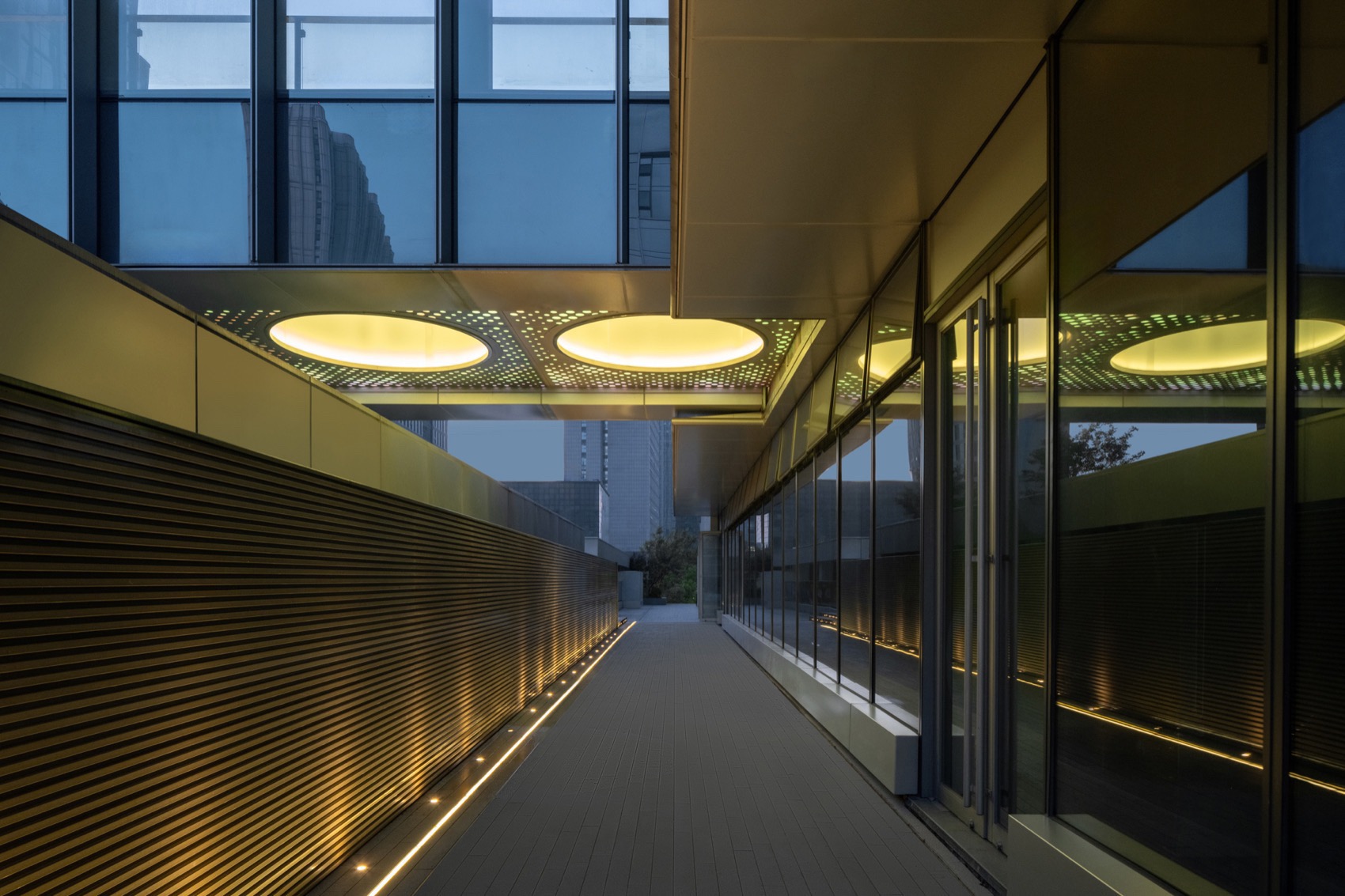

屋面路径贯穿所有功能模块，受整体绿地率、建筑结构等因素影响，道路被墙体及玻璃幕墙包裹。为保证人行视角的丰富性及舒适性，景观在设计中将墙体及地面赋予了不同的肌理。

The roof path runs through all functional modules, and due to factors such as the overall green space rate and building structure, the road is wrapped by walls and glass curtain walls. To ensure the richness and comfort of pedestrian perspectives, the landscape is designed to give different textures to the walls and floors.

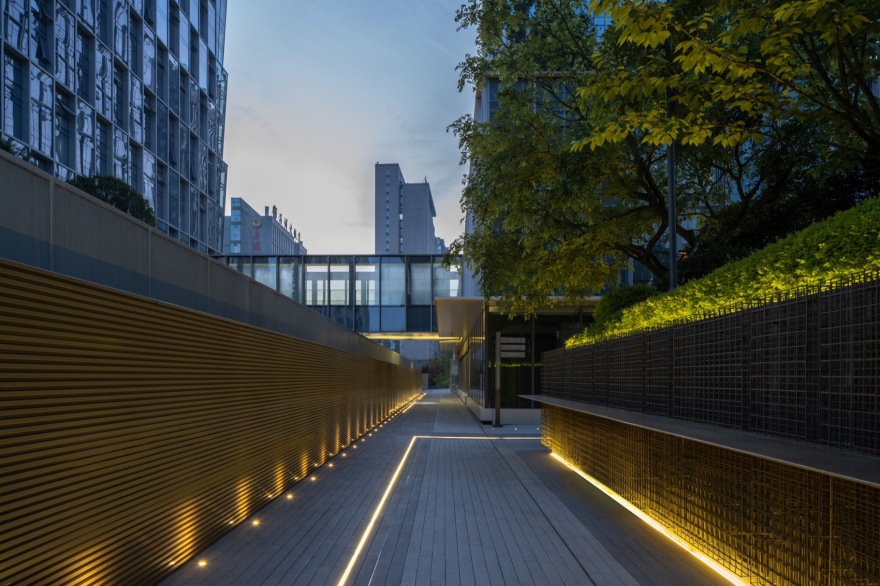

▼屋面路径，The roof path © IAM 岸木摄影

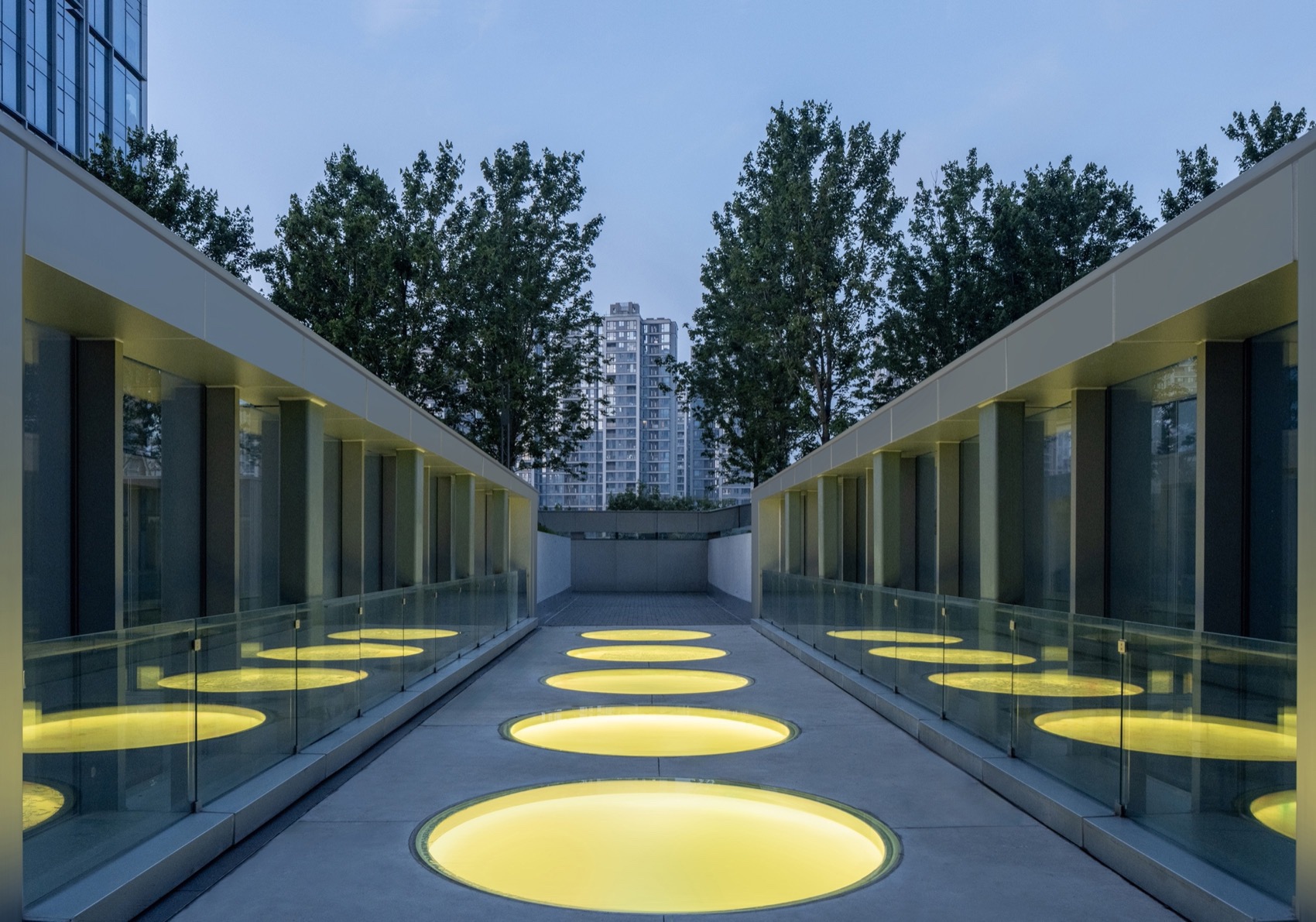

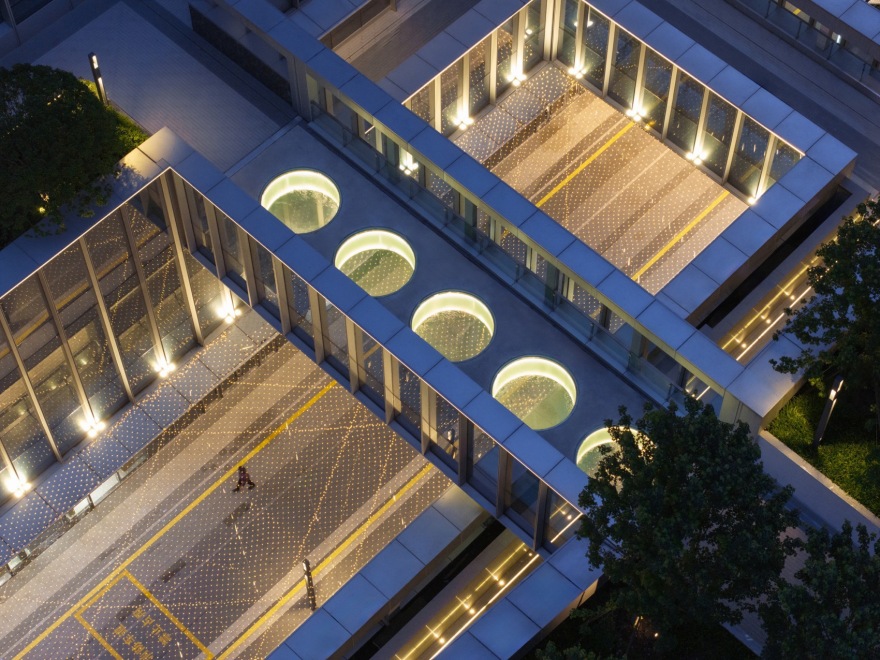

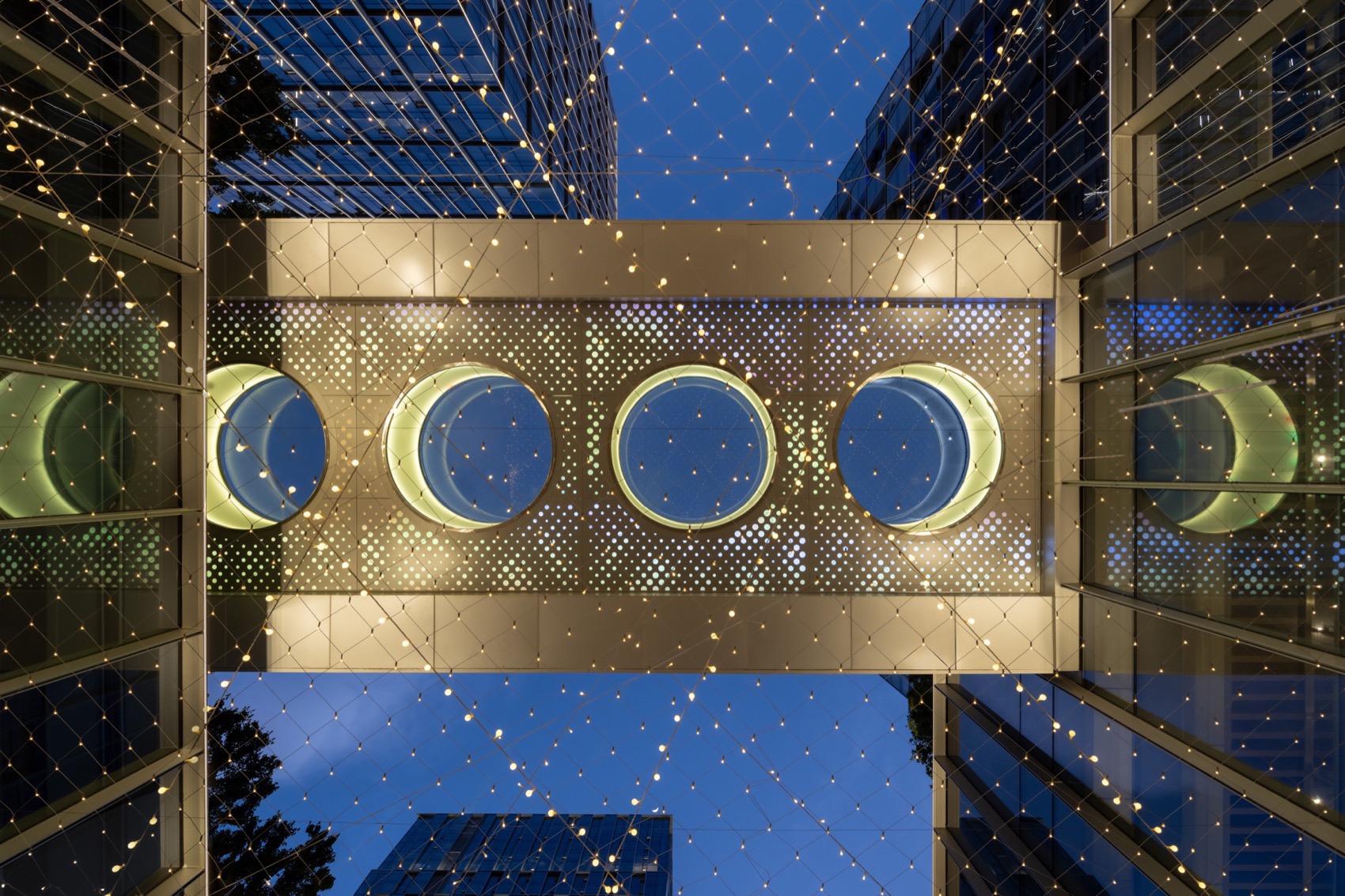

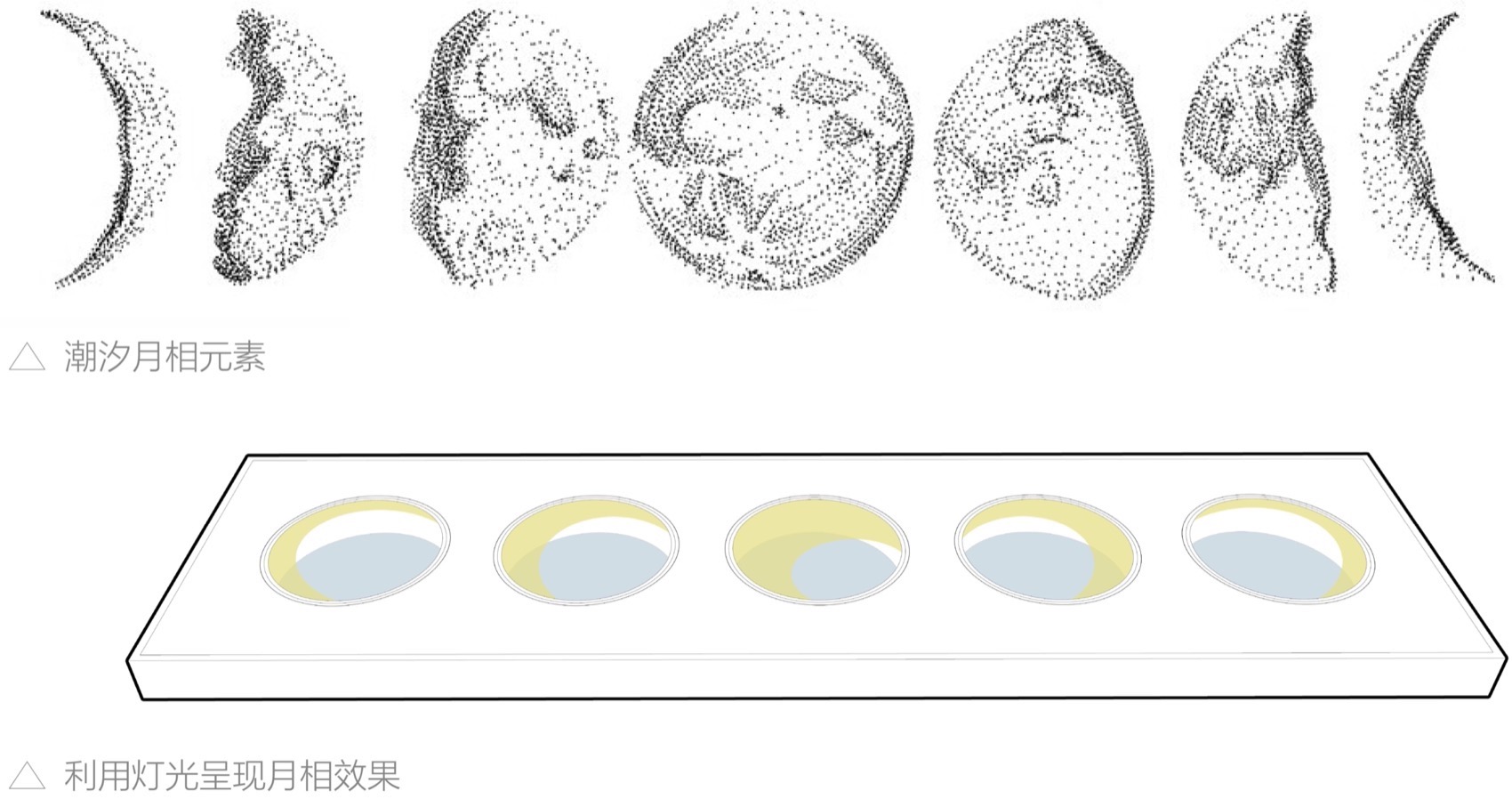

三层玻璃栈桥架空于所有平面之上，每个角度都有独特的趣味，在夜景灯光下呈现月相变幻效果。

▼灯光分析图，lighting analysis diagram ©line+

The glass trestle on the third floor is elevated above all planes, and each angle has its own unique interest, showing the effect of the moon changing in the night lights.

▼道路穿插交叠，Roads intersect and overlap © IAM 岸木摄影

▼夜景灯光效果，Night lighting effects

镜头四|山林深处，多重空间。屋面景观以功能为主要导向，由主要步行道路串联起来，形成一个个被植物包裹的独立空间。

The roof landscape is mainly function-oriented, and is connected by the main pedestrian paths to form independent spaces wrapped in plants.

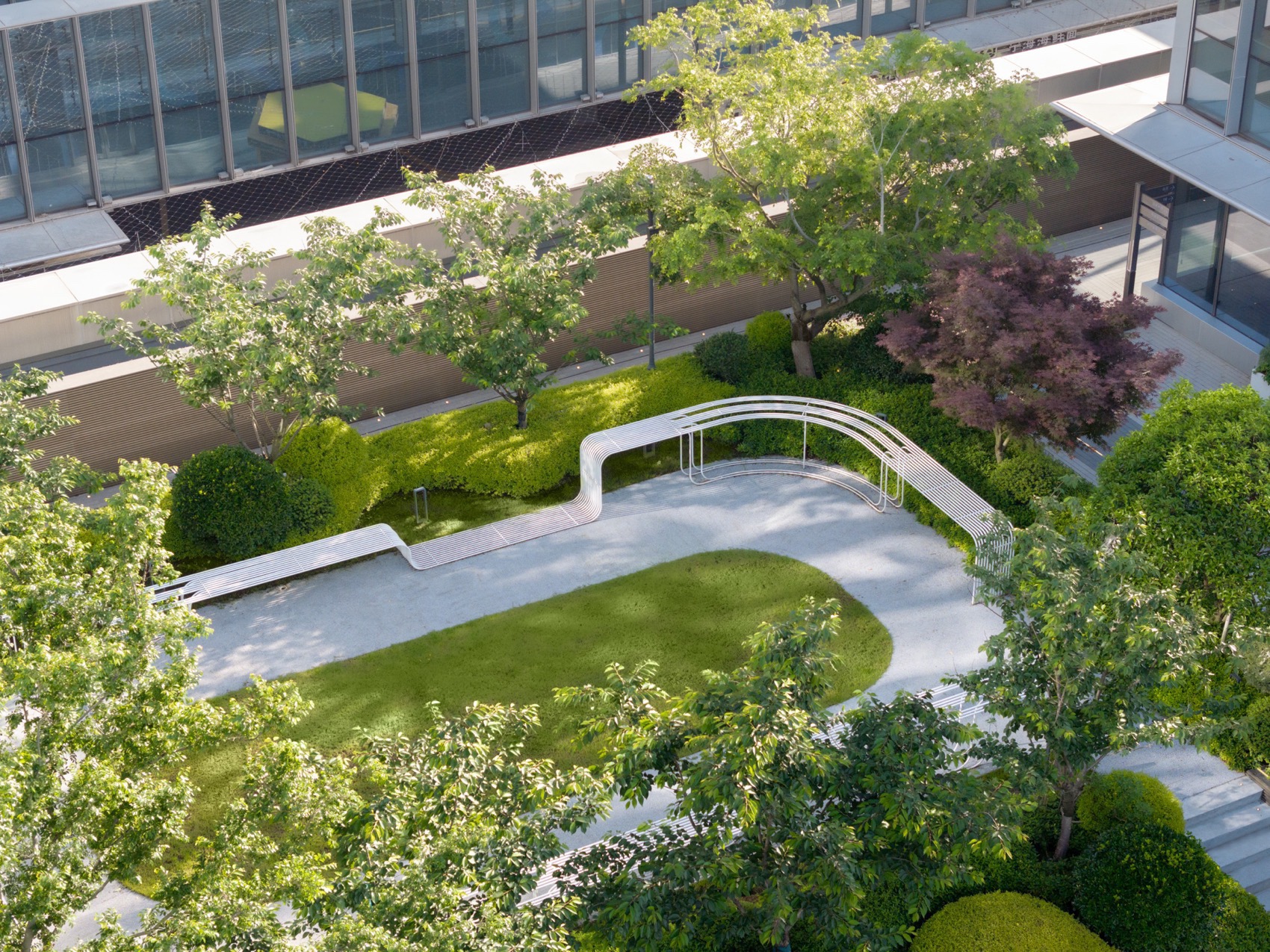

▼屋面景观，The roof landscape © IAM 岸木摄影

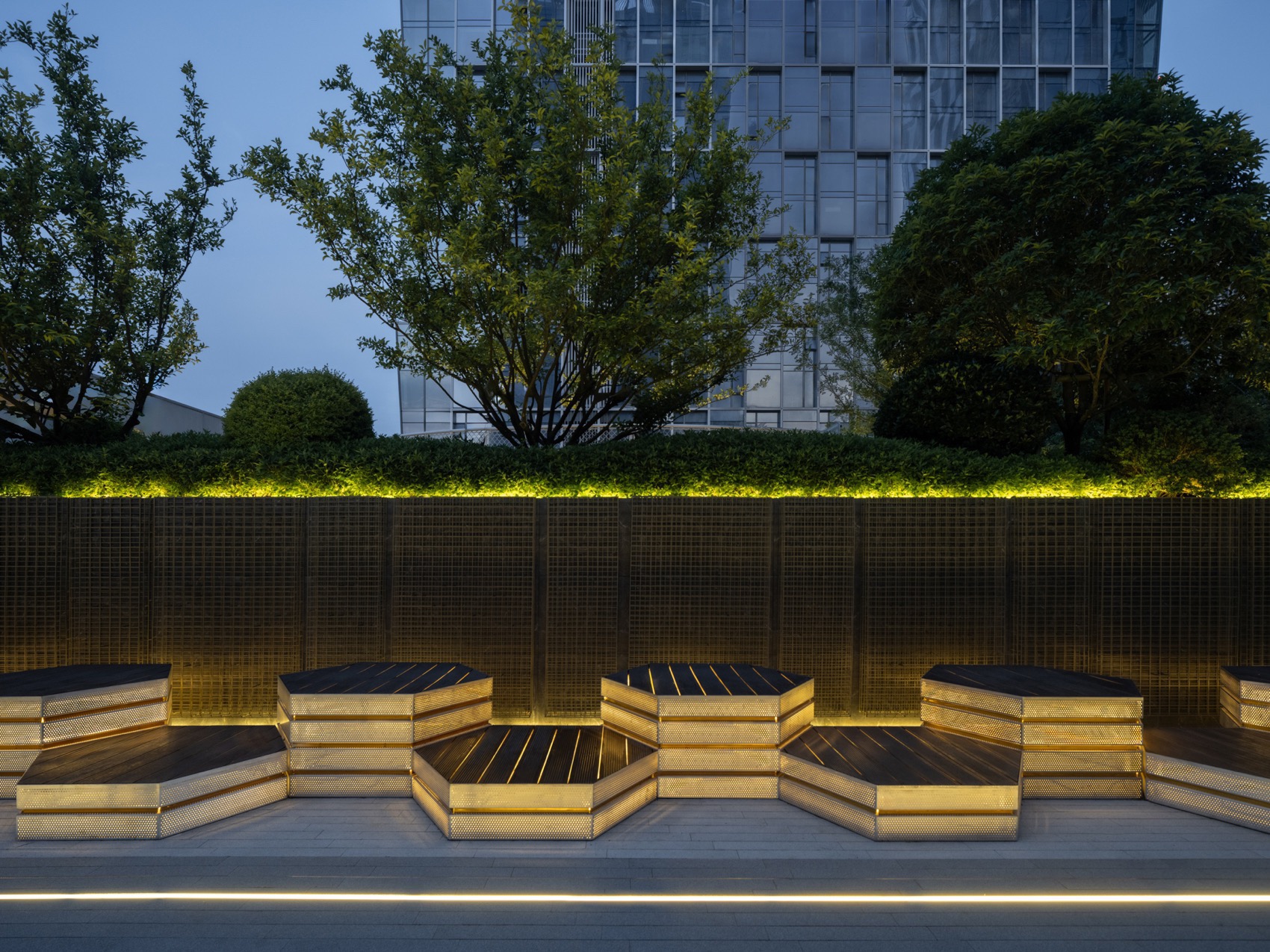

▼六边形模块自由组合，Hexagonal modules can be freely combined © IAM 岸木摄影

宠物友好空间与篮球半场由小路进入，包裹在多层绿化中。既与主要步行道路连接，又动静分离互不干扰。

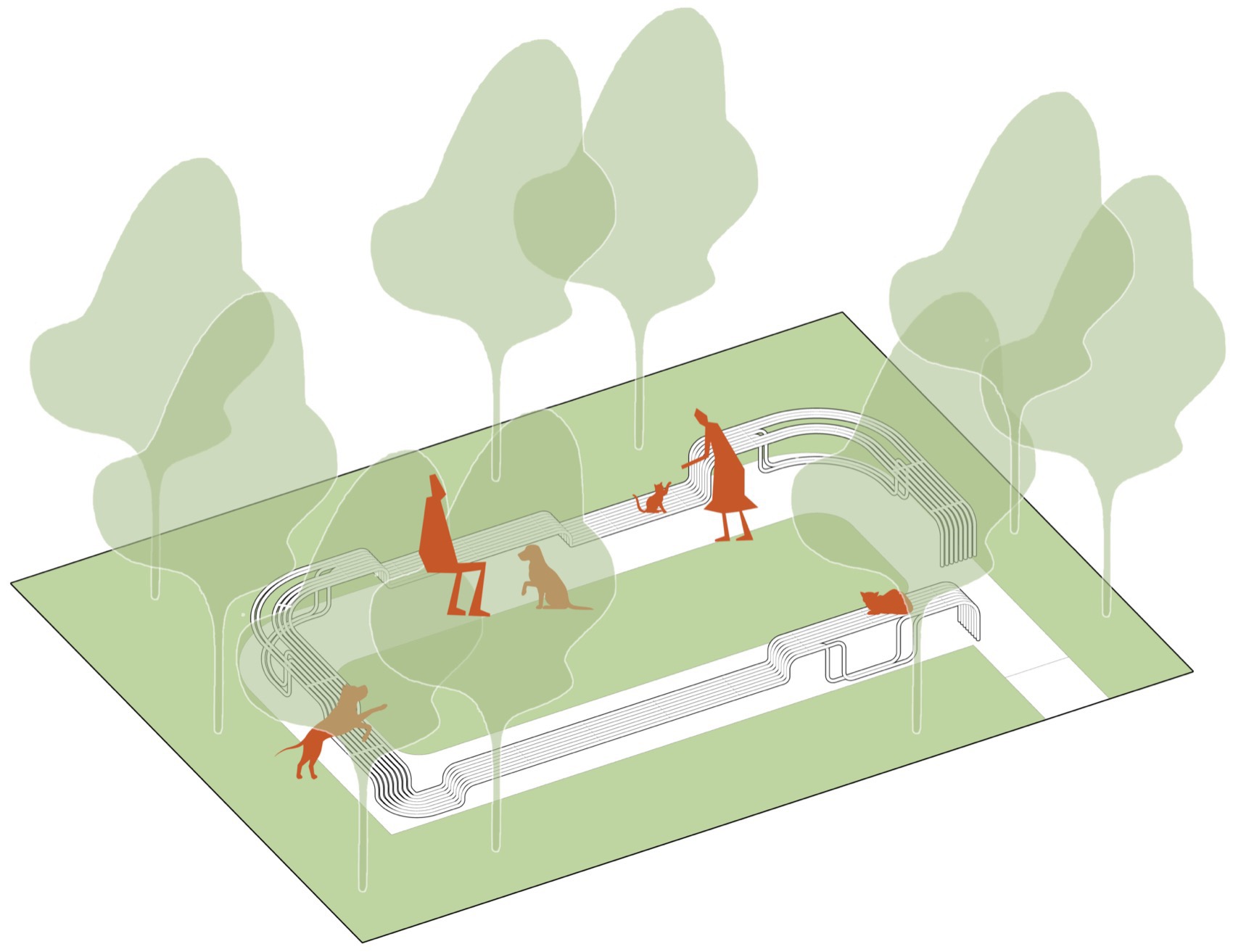

▼宠物友好空间分析图，pet-friendly space analysis©line+

The pet-friendly space and basketball half are accessed by a pathway, wrapped in multiple layers of greenery, which is connected to the main pedestrian path and is separated from each other.

▼宠物友好空间，Pet-friendly space © IAM 岸木摄影

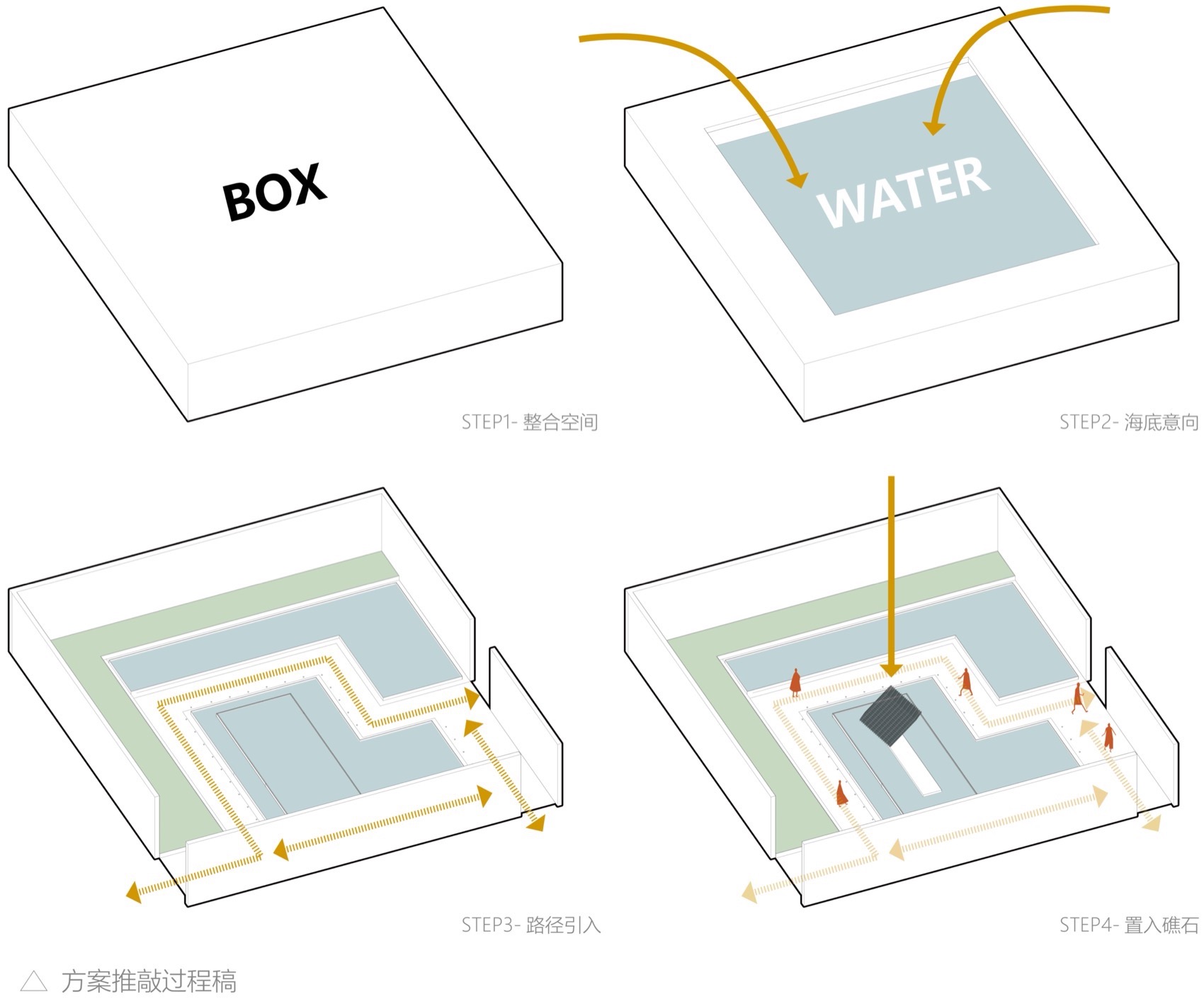

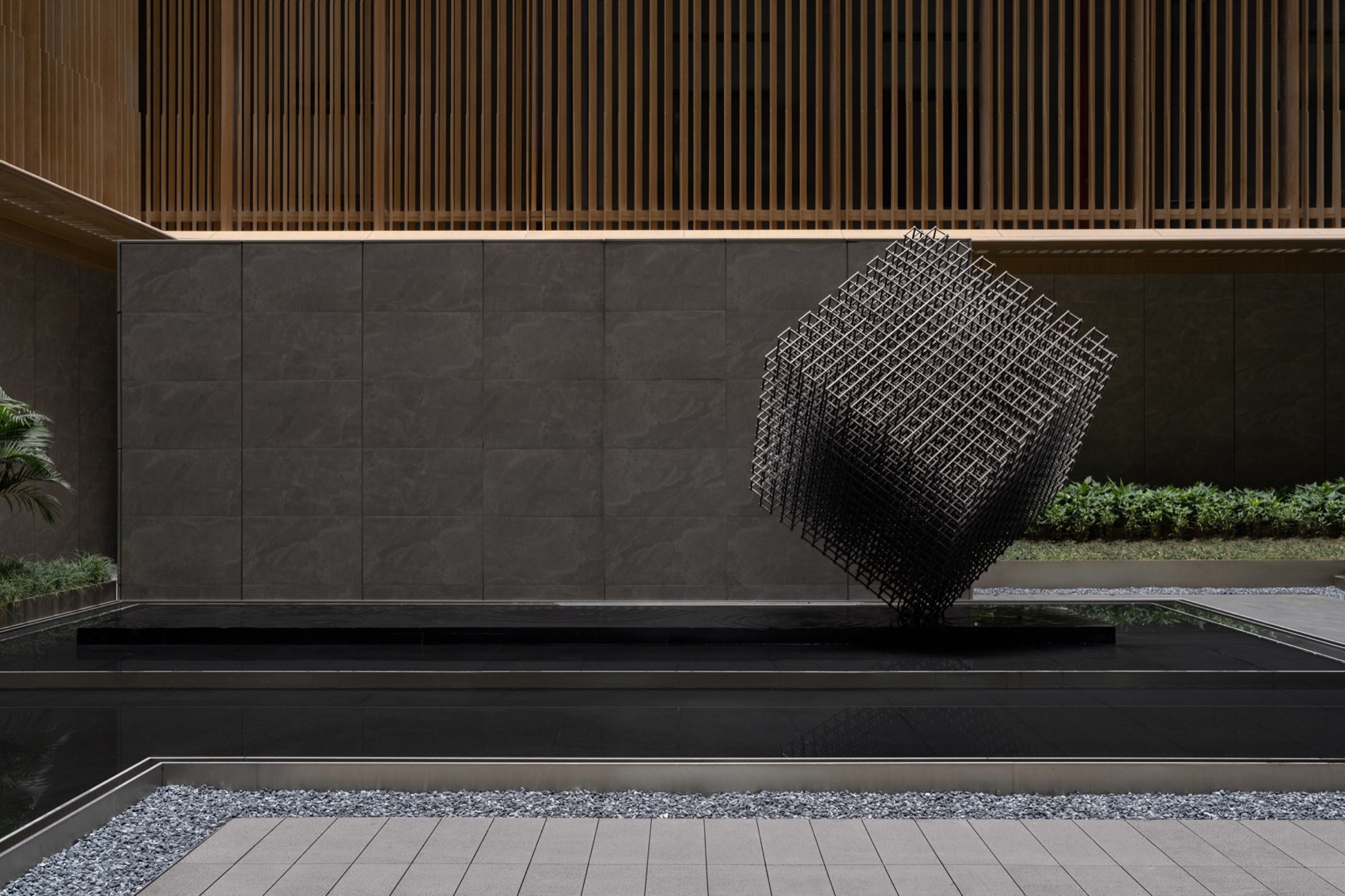

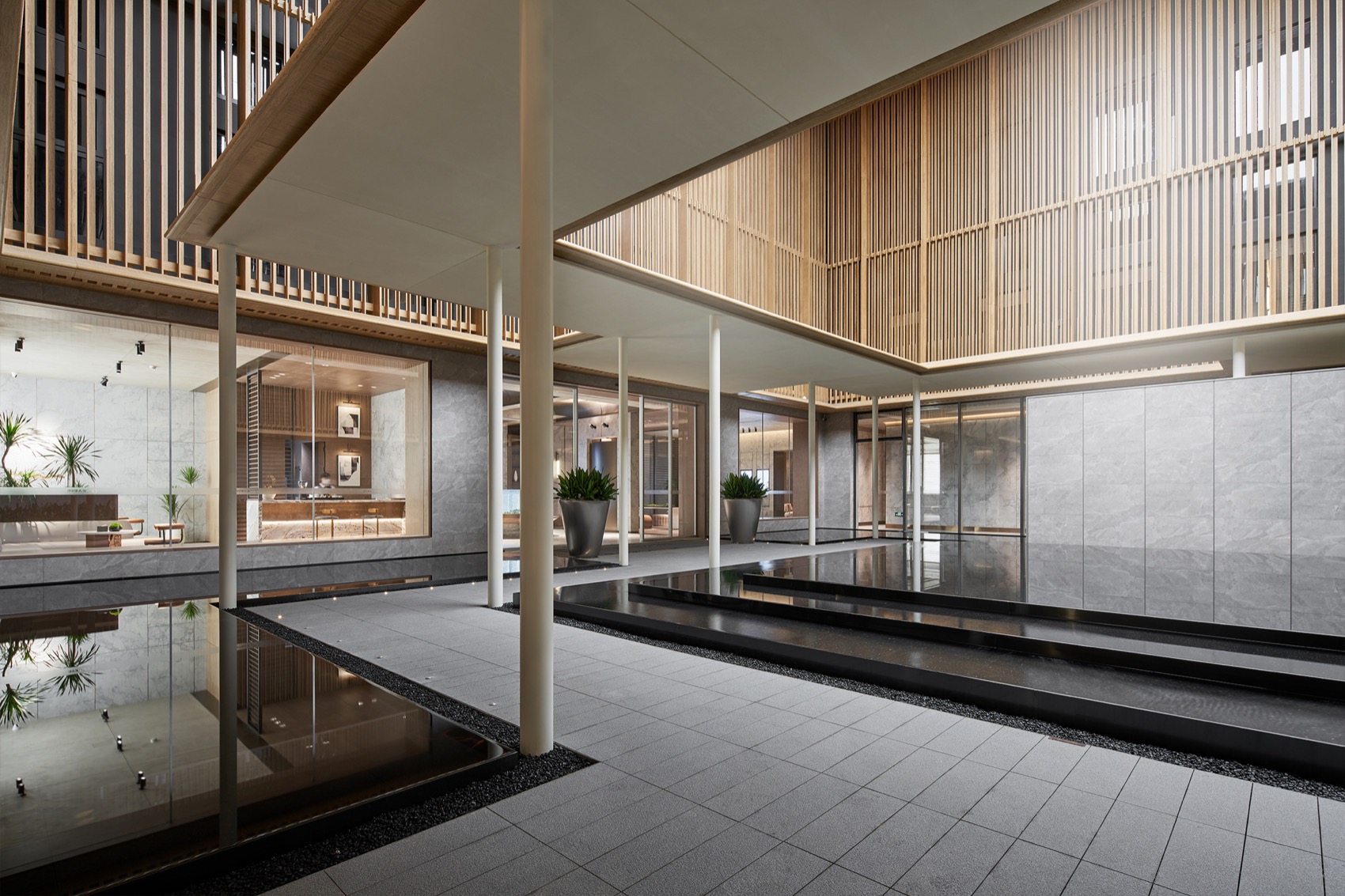

镜头五|光影深海，静谧回廊。办公、公寓中庭空间，是大堂进入之后的必经之路，需具备一定的迎宾仪式感。整体均由水景、雕塑、曲折路线构成，现代空间场景中又有一定的科技感，具有多角度的观赏效果及体验。

The atrium space of the office and apartment is the only way to enter the lobby, and it needs to have a certain sense of welcome ceremony. The whole is composed of waterscapes, sculptures, and tortuous routes. There is a certain sense of science and technology in the modern space scene, with multi-angle viewing effects and experiences.

静海面微泛涟漪。

▼多层曲廊引入，Multi-layered curved corridor introduction © 三棱镜摄影

▼水面与室内空间交互，Interaction between water surface and interior space © 三棱镜摄影

▼海面礁石，Sea reef © 三棱镜摄影

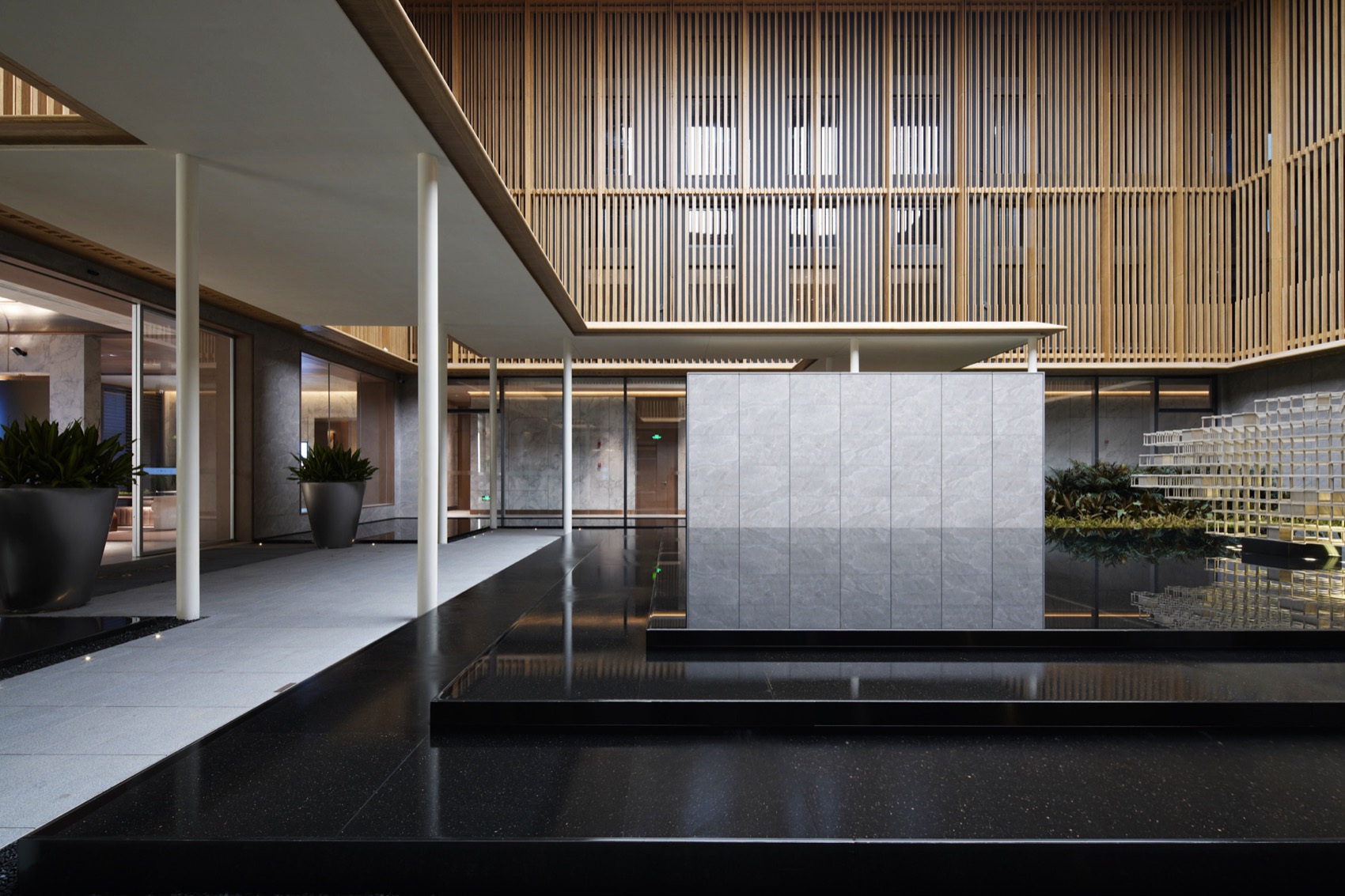

▼静水面倒映天光，Still water reflecting the sky © 三棱镜摄影

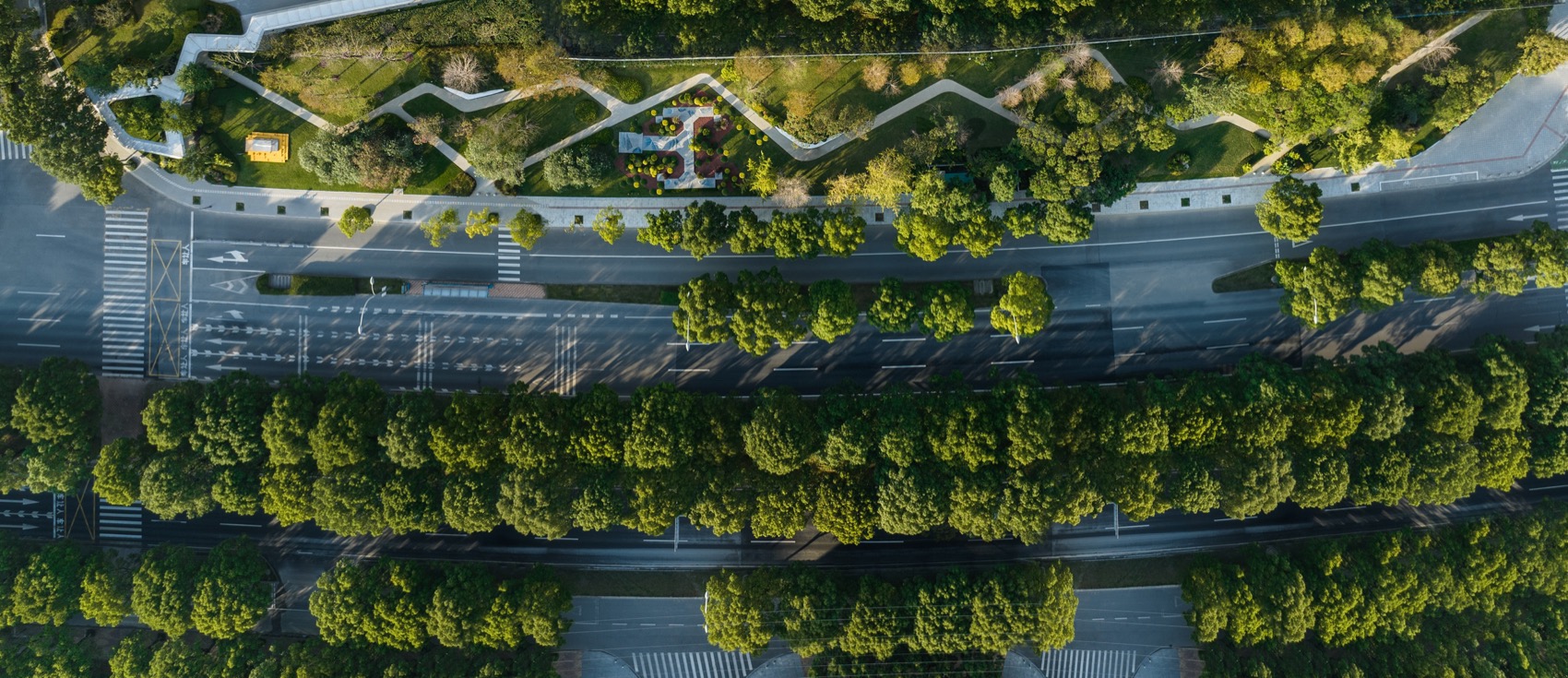

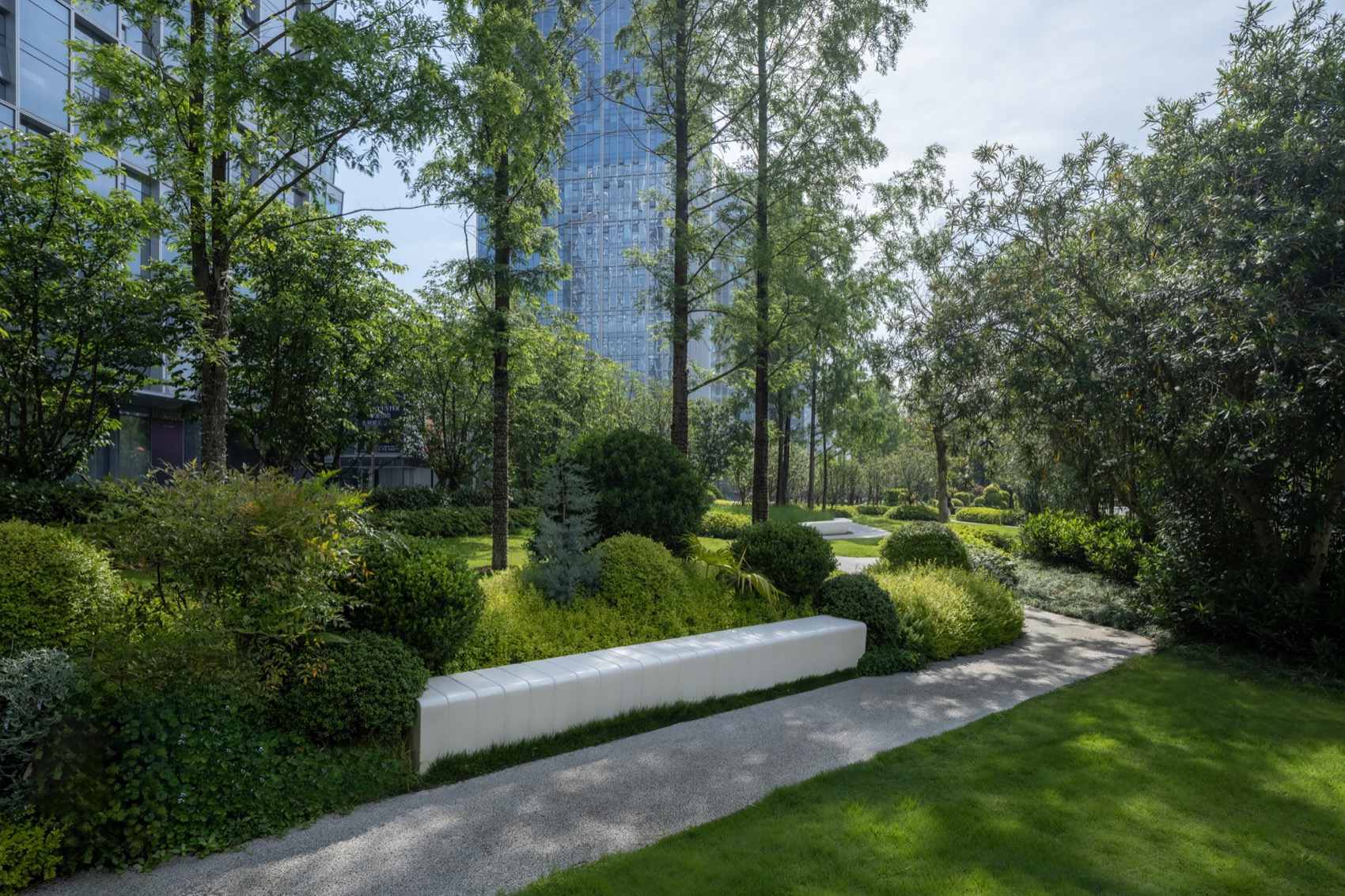

镜头六|多重密林，自然交织。在保留大部分原始乔木的前提下，设计中重新整理树种和位置，增加节点花境的运用，局部设置坐凳点缀，使之成为一处既可供周边市民漫步的绿地公园，又为未来内部的商业街区带来引流效果。

On the premise of retaining most of the original trees, the design reorganizes the tree species and locations, increases the use of node flower landscapes, and sets up benches to make it a green park for the surrounding citizens to stroll, and bring drainage effects to the commercial blocks in the future.

▼ 原貌，original site

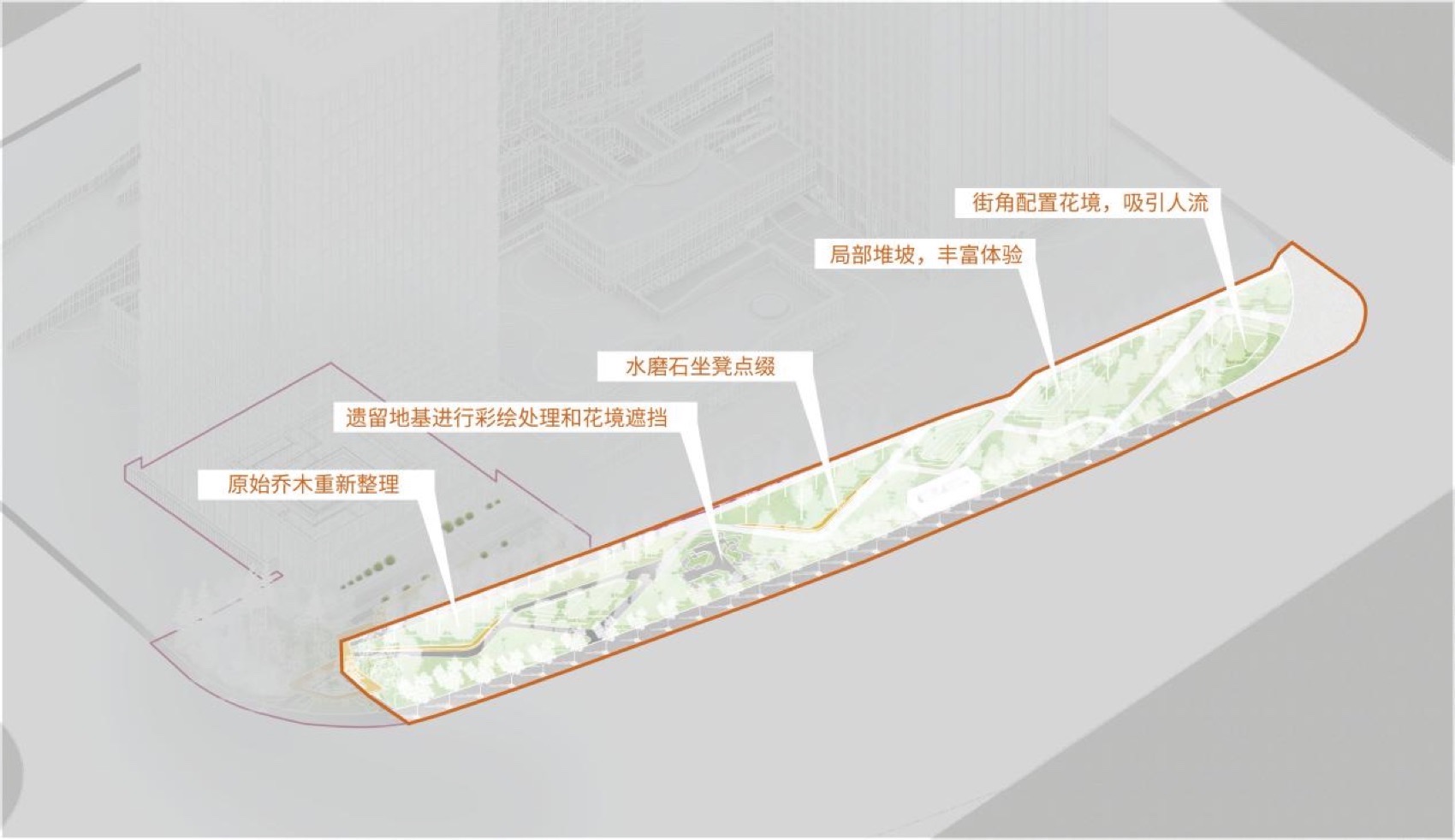

▼景观设计分析图，landscape design analysis diagram © line+

原场地受限于市政方“保留原有绿地完整性”的要求及已铺设管线，在满足各方要求的前提下，将场地打造成为宁波海绵城市示范点之一。

The original site is limited by the municipal government’s requirement to "retain the integrity of the original green space," and the pipelines have been laid. On the premise of meeting the requirements of all parties, the site will be built into one of the demonstration sites of Ningbo sponge city.

「场记」空间的细部表达

DETAIL EXPRESSION

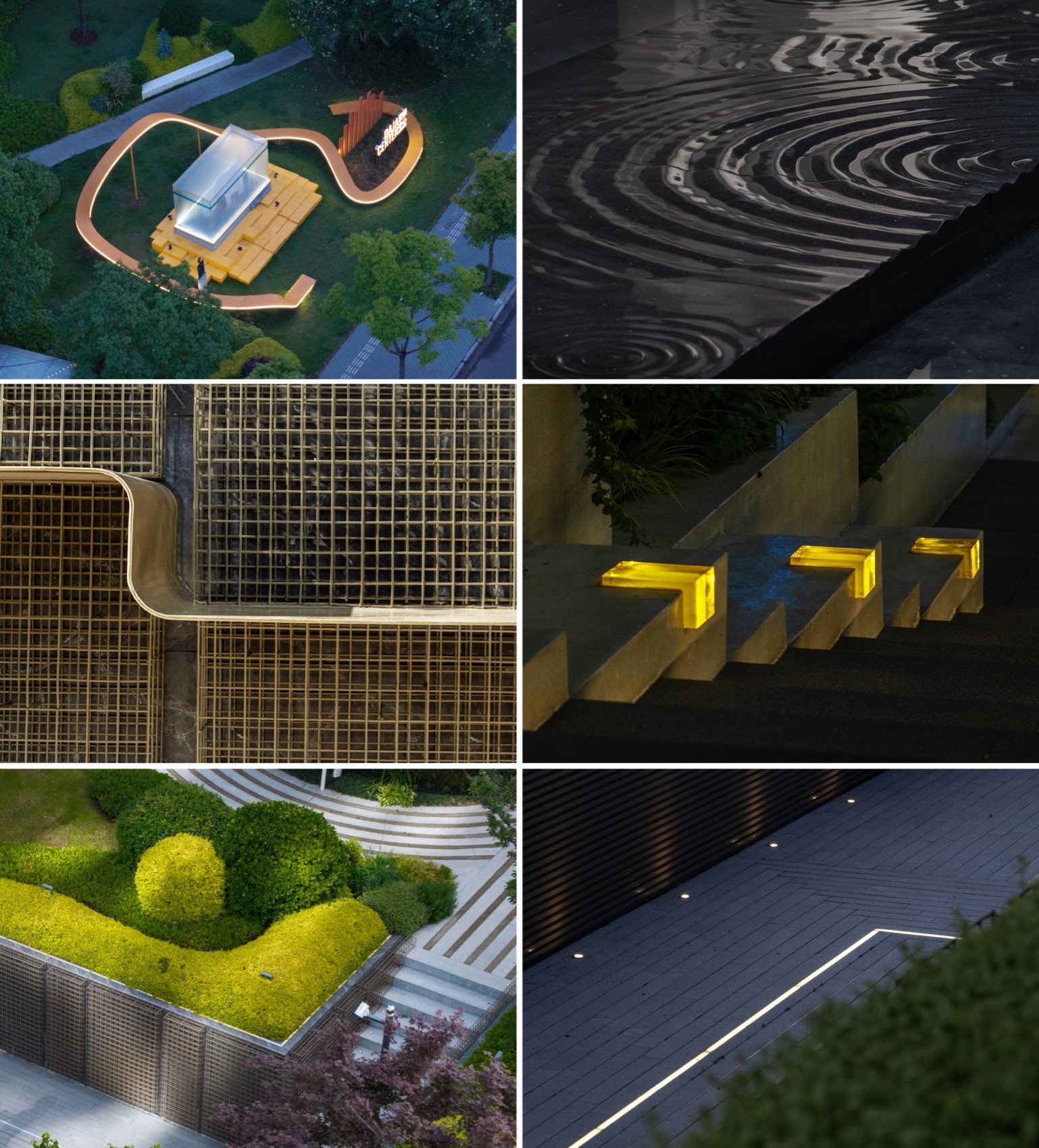

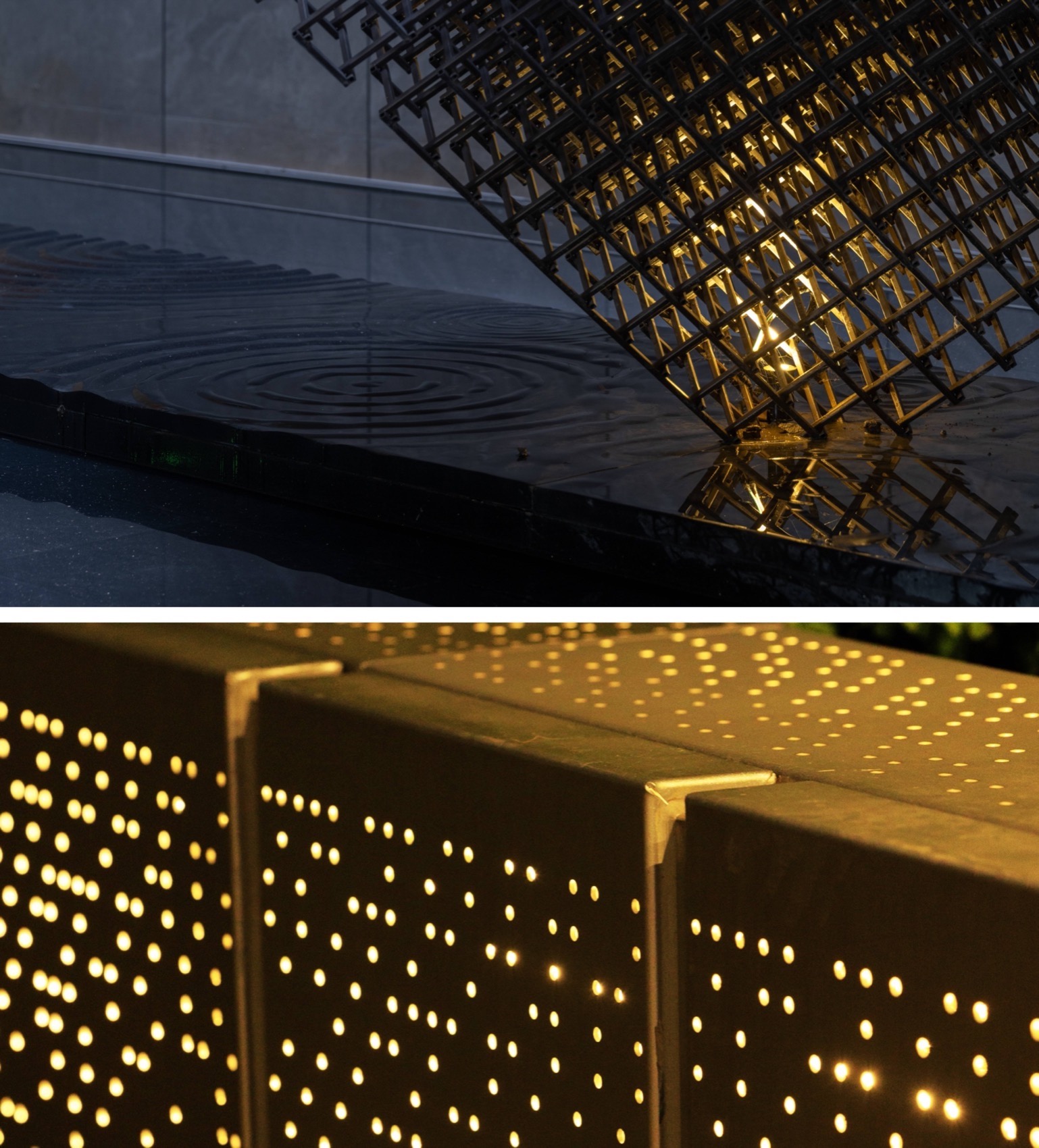

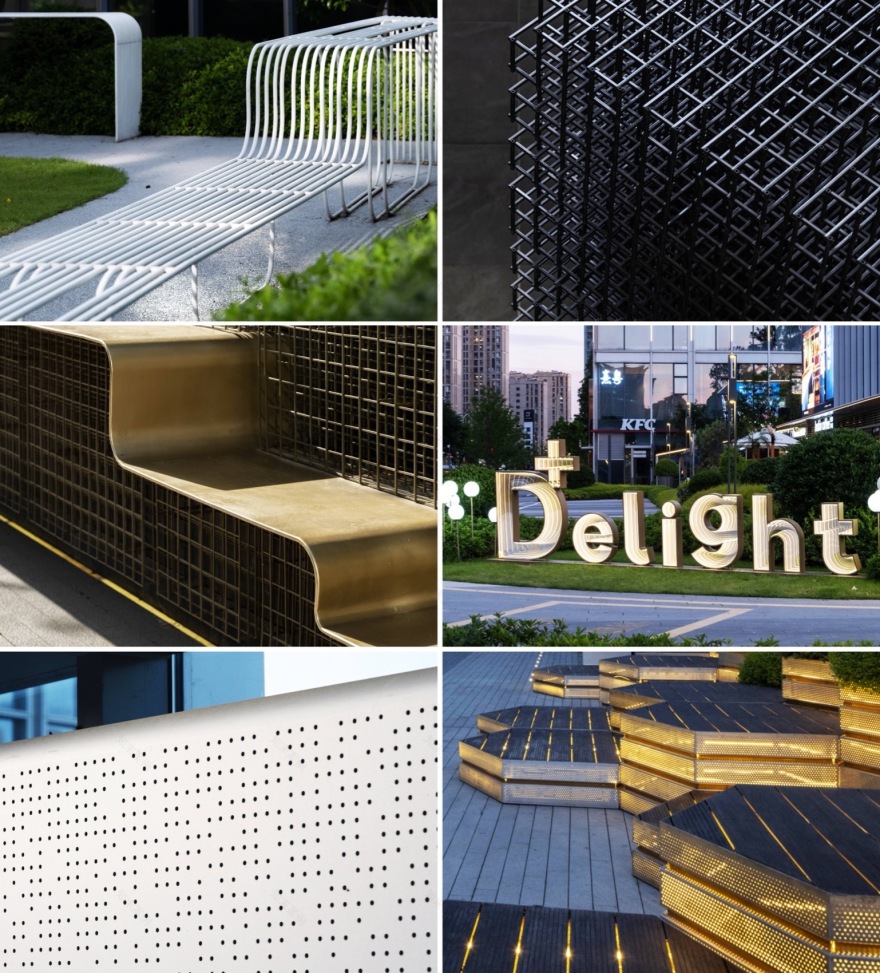

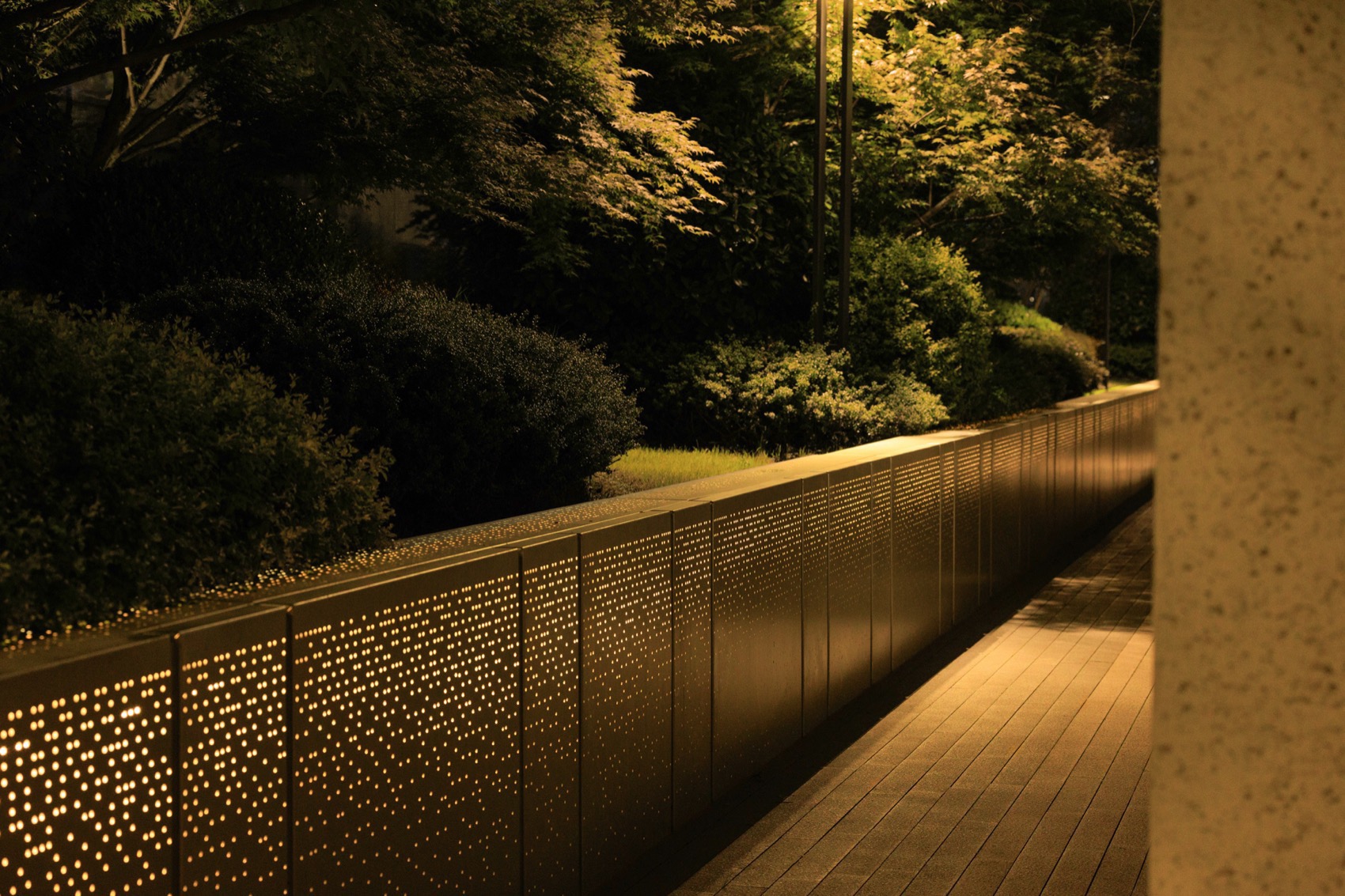

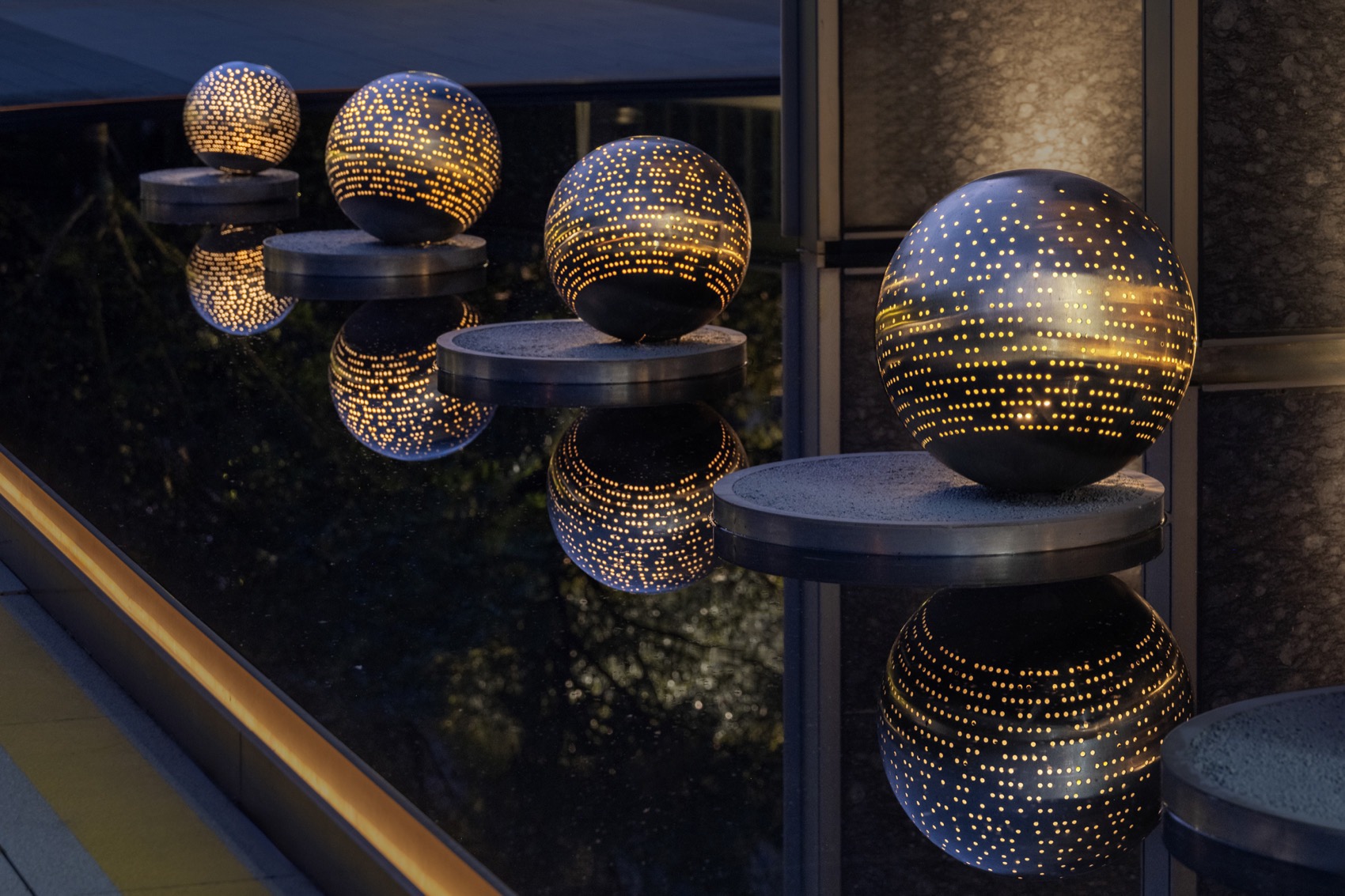

设计的多元性还体现在各处细节的表达中，金属或石材，木质或亚克力，格纹或水纹，都点缀在各处对应的场景中。

The diversity of the design is also reflected in the expression of the details in various places, such as metal or stone, wood or acrylic, check or water grain, all of which are embellished in the corresponding scenes.
