光伏遮阳 II丨西班牙马德里丨Ignacio Borrego Arquitectos

Architect：Ignacio Borrego Arquitectos

Location：Calle de Manuel Tovar, 16, Madrid, Spain; | ;View Map

Project Year：2024

Category：Pavilions

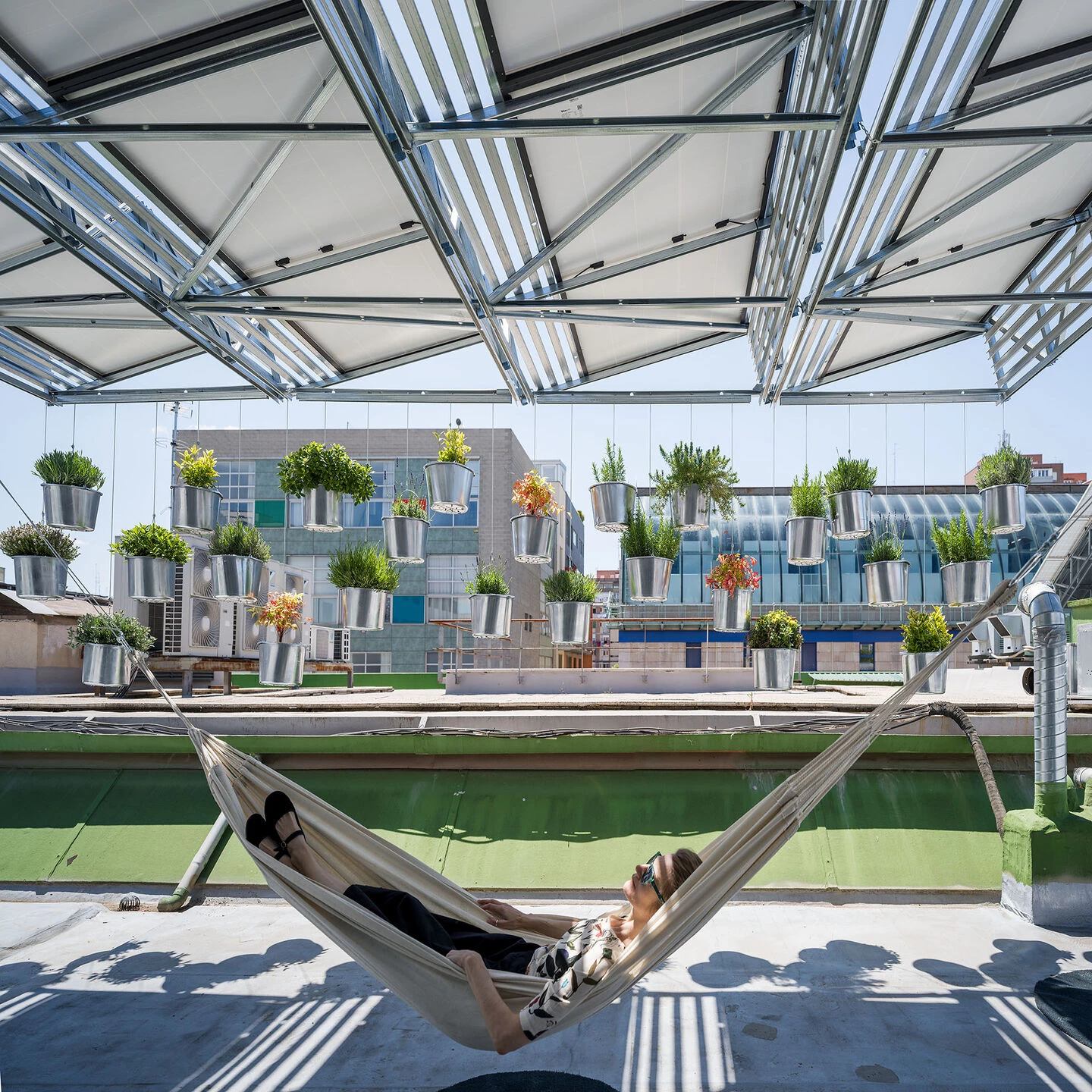

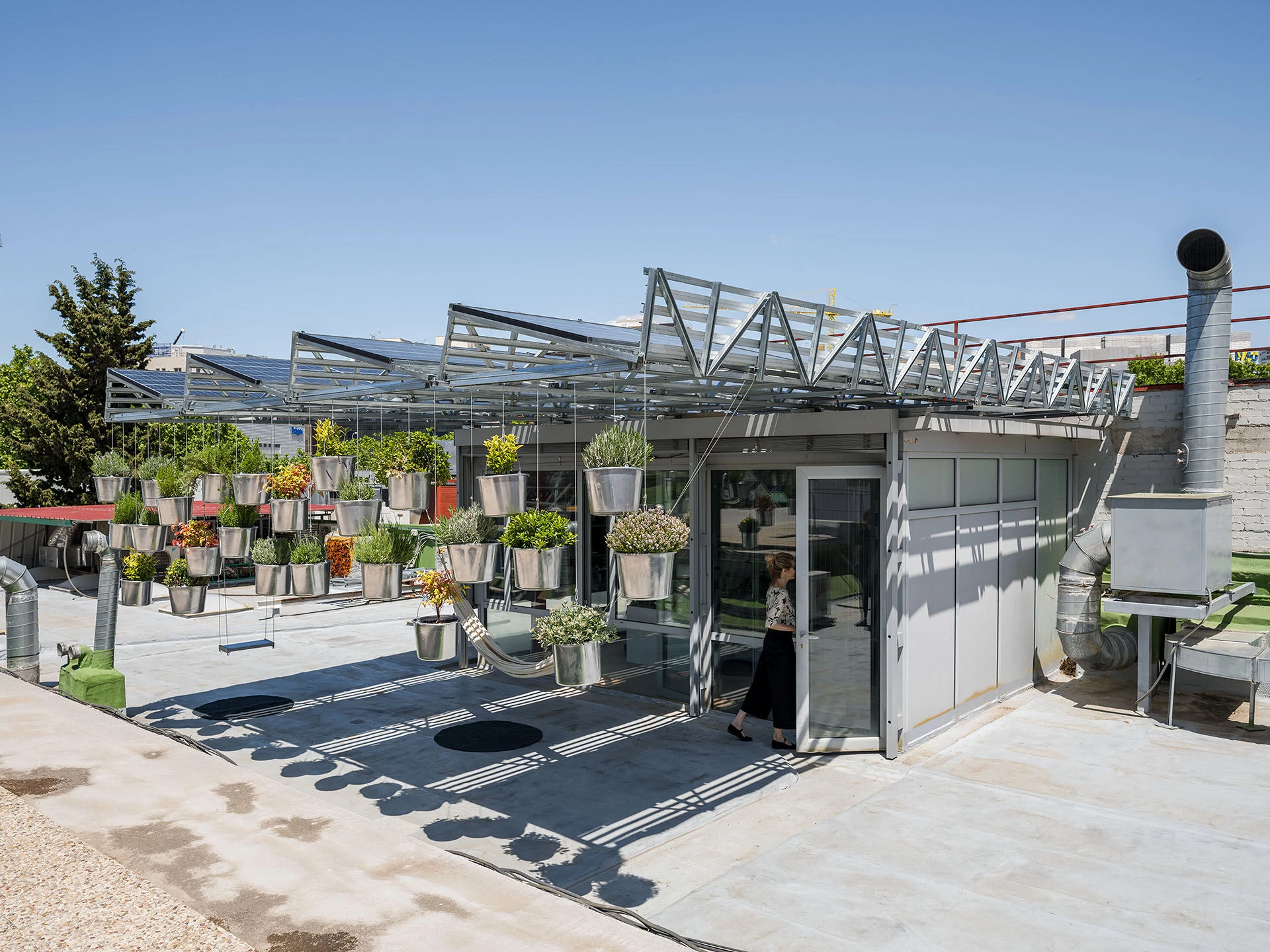

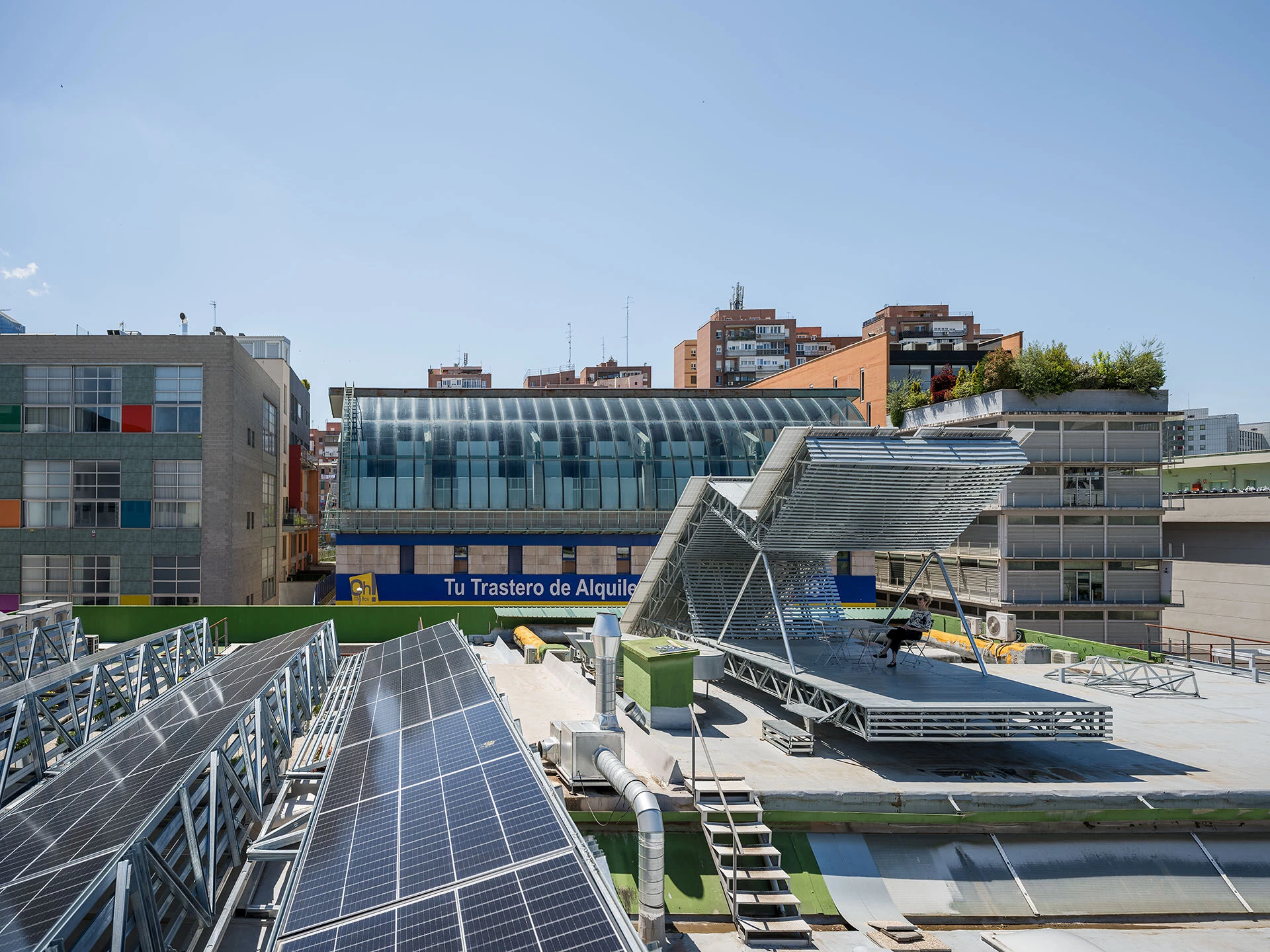

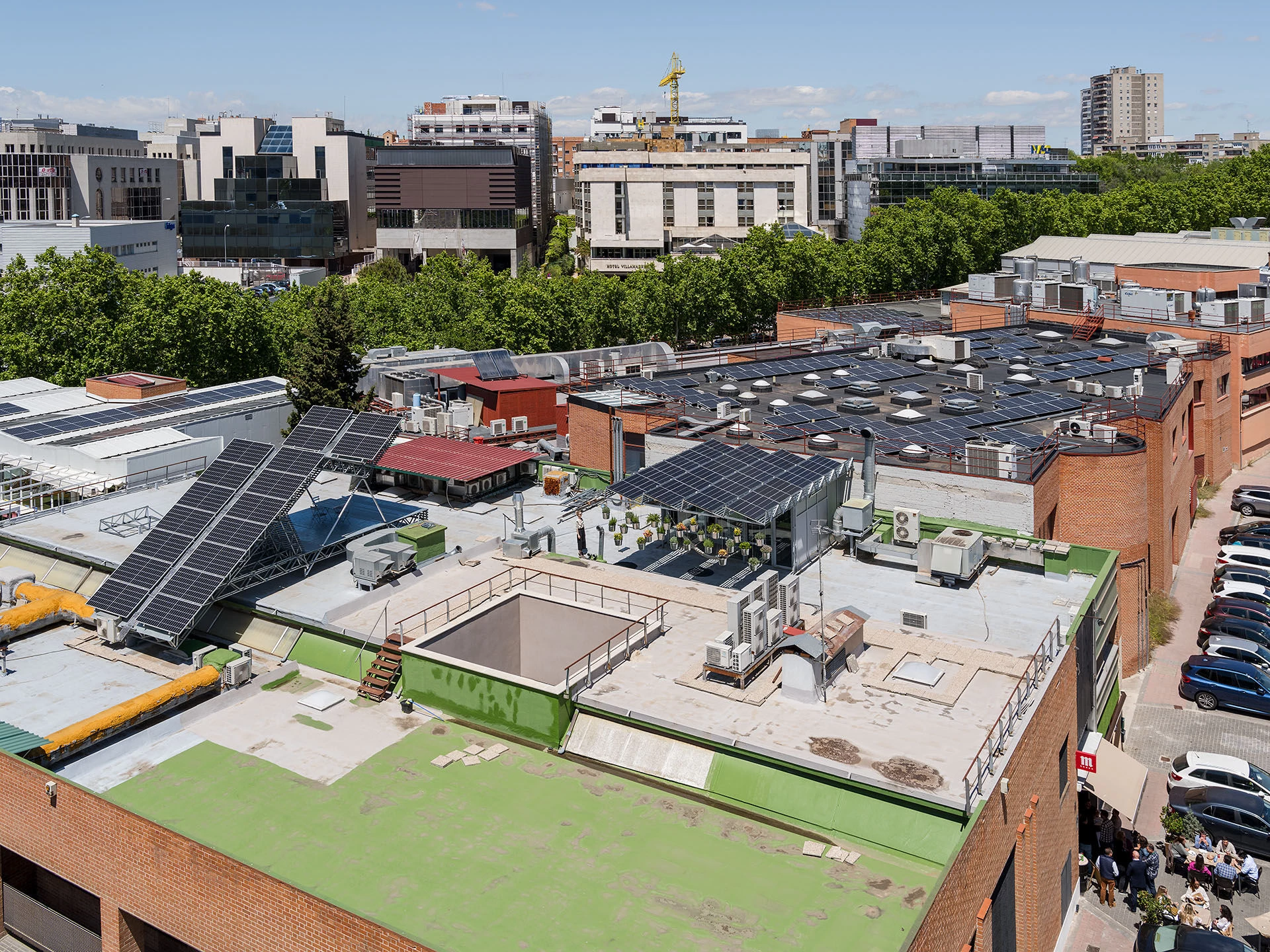

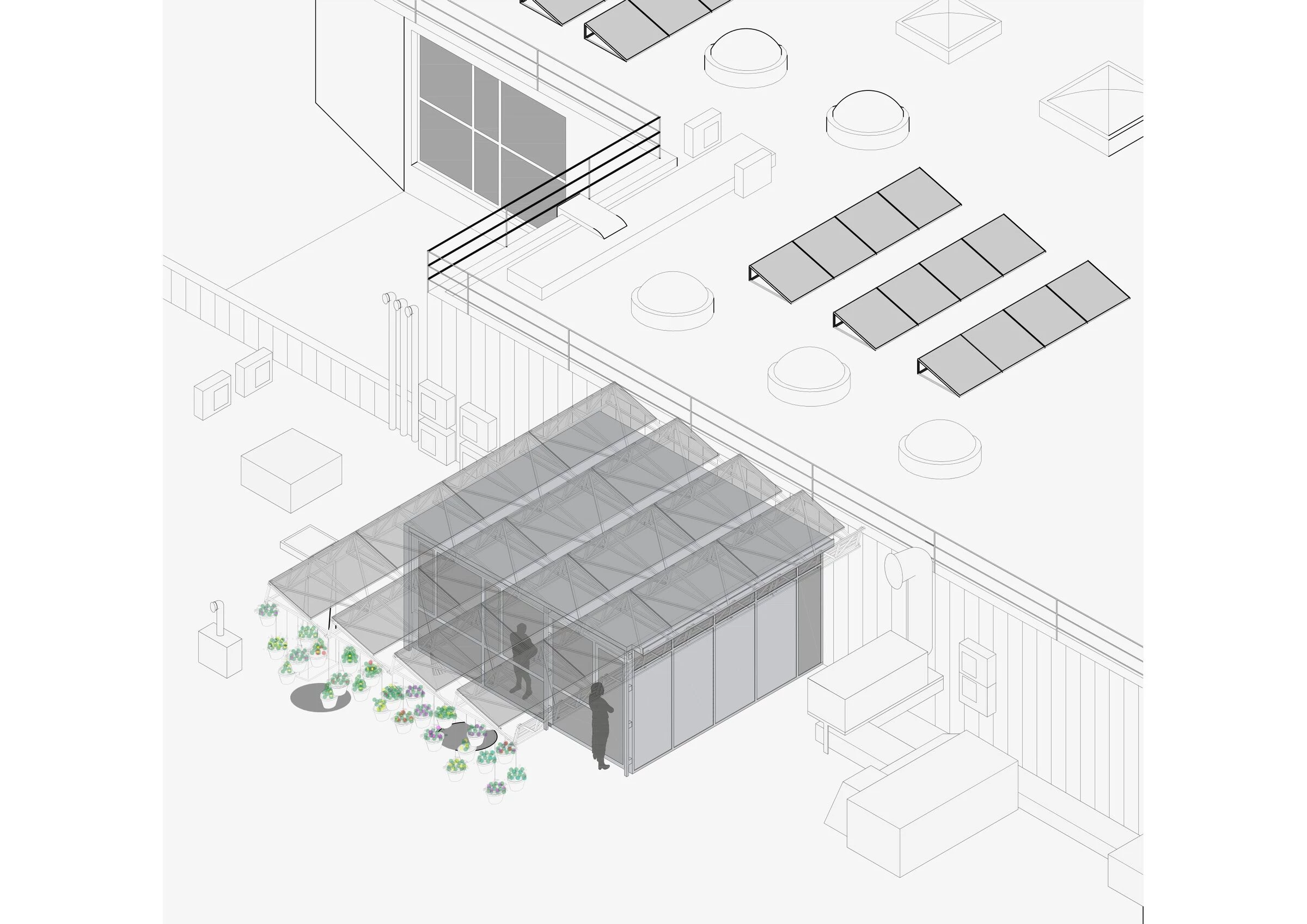

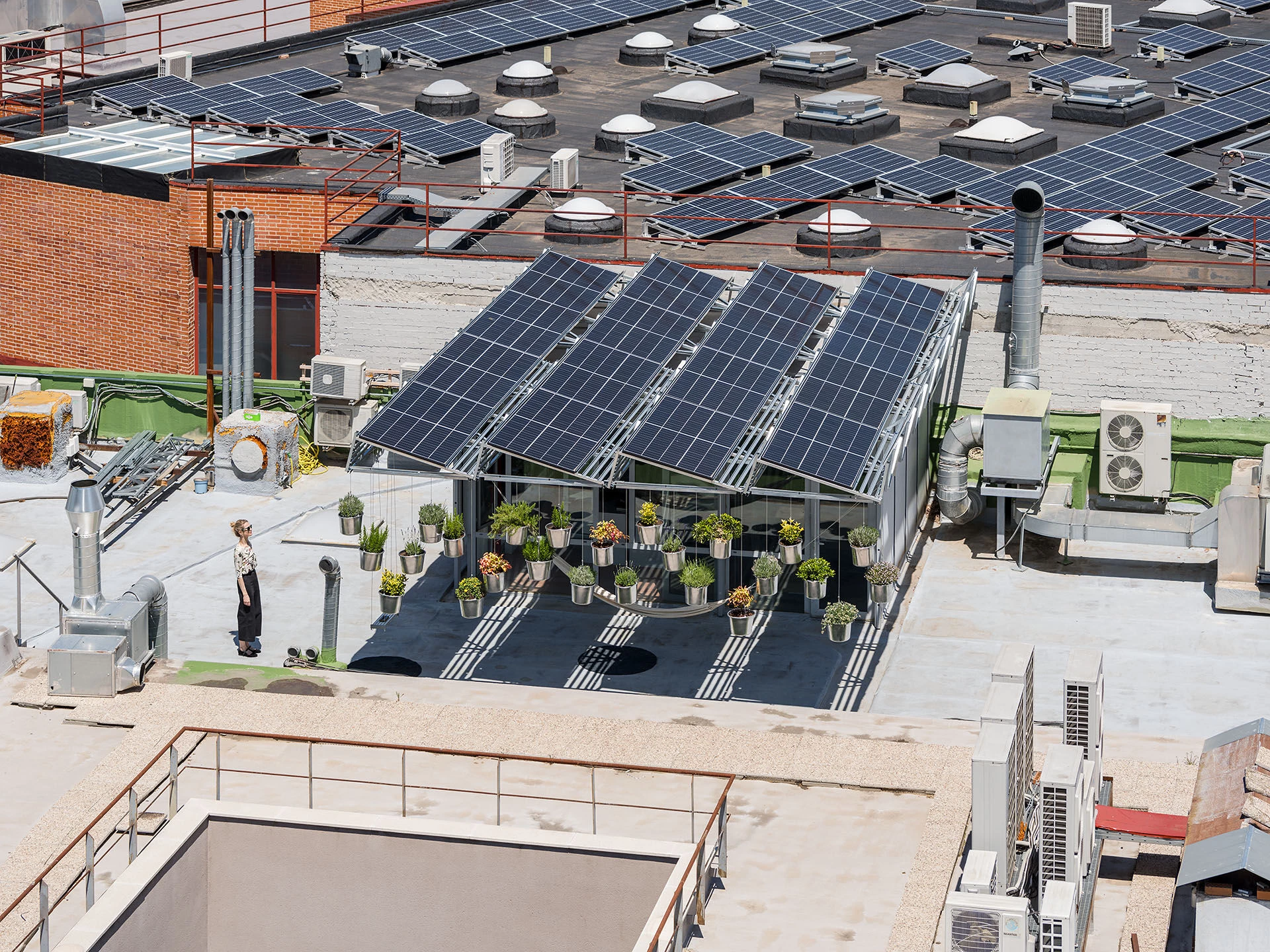

This photovoltaic canopy is a structure built on top of a small existing pavilion on the roof of a main building. It is a support of solar panels that generate electrical energy for the self-consumption of an office and at the same time shades the pavilion and an outdoor rest area for its employees. Additionally, sun overheating of the roof is reduced.

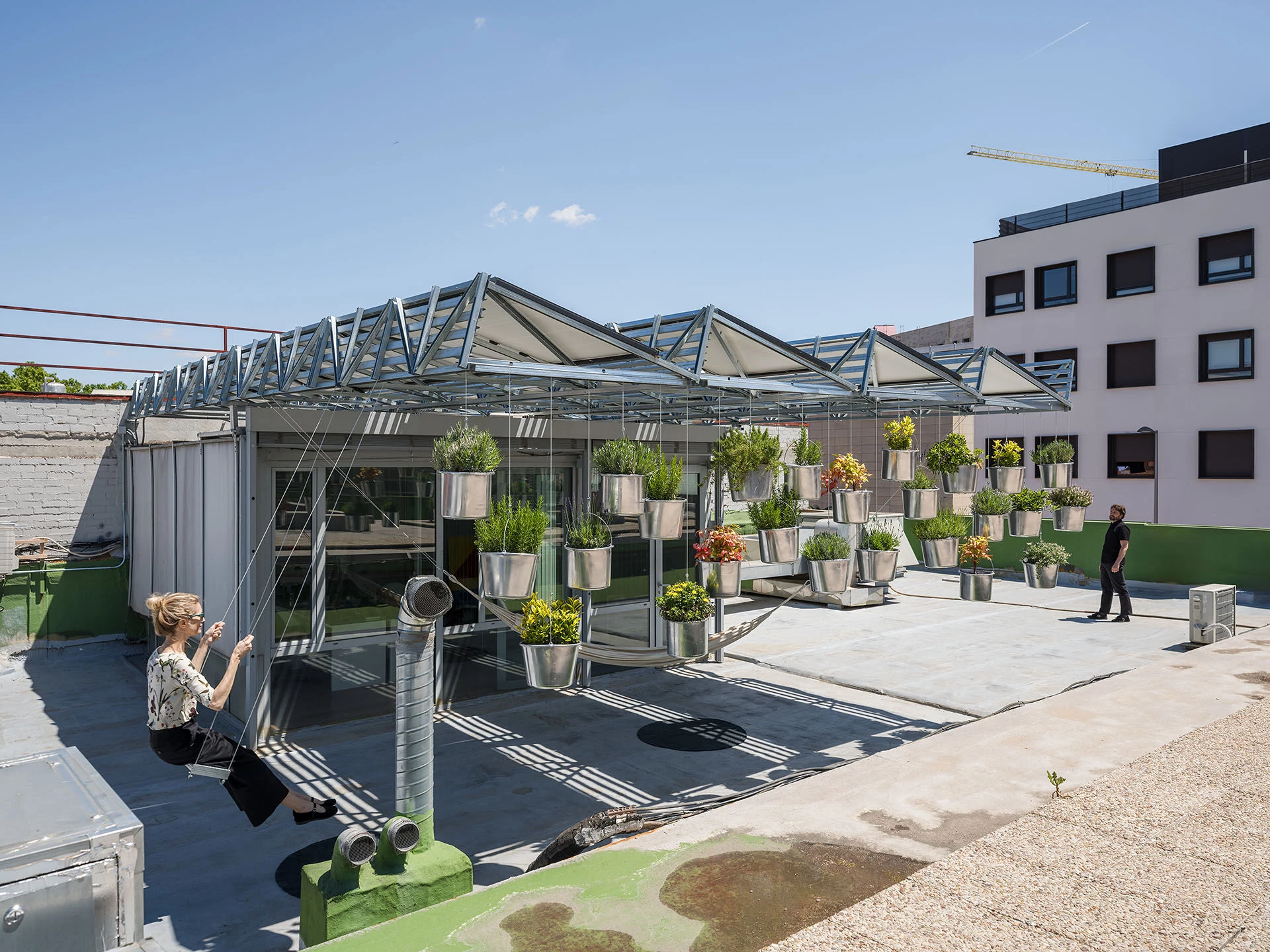

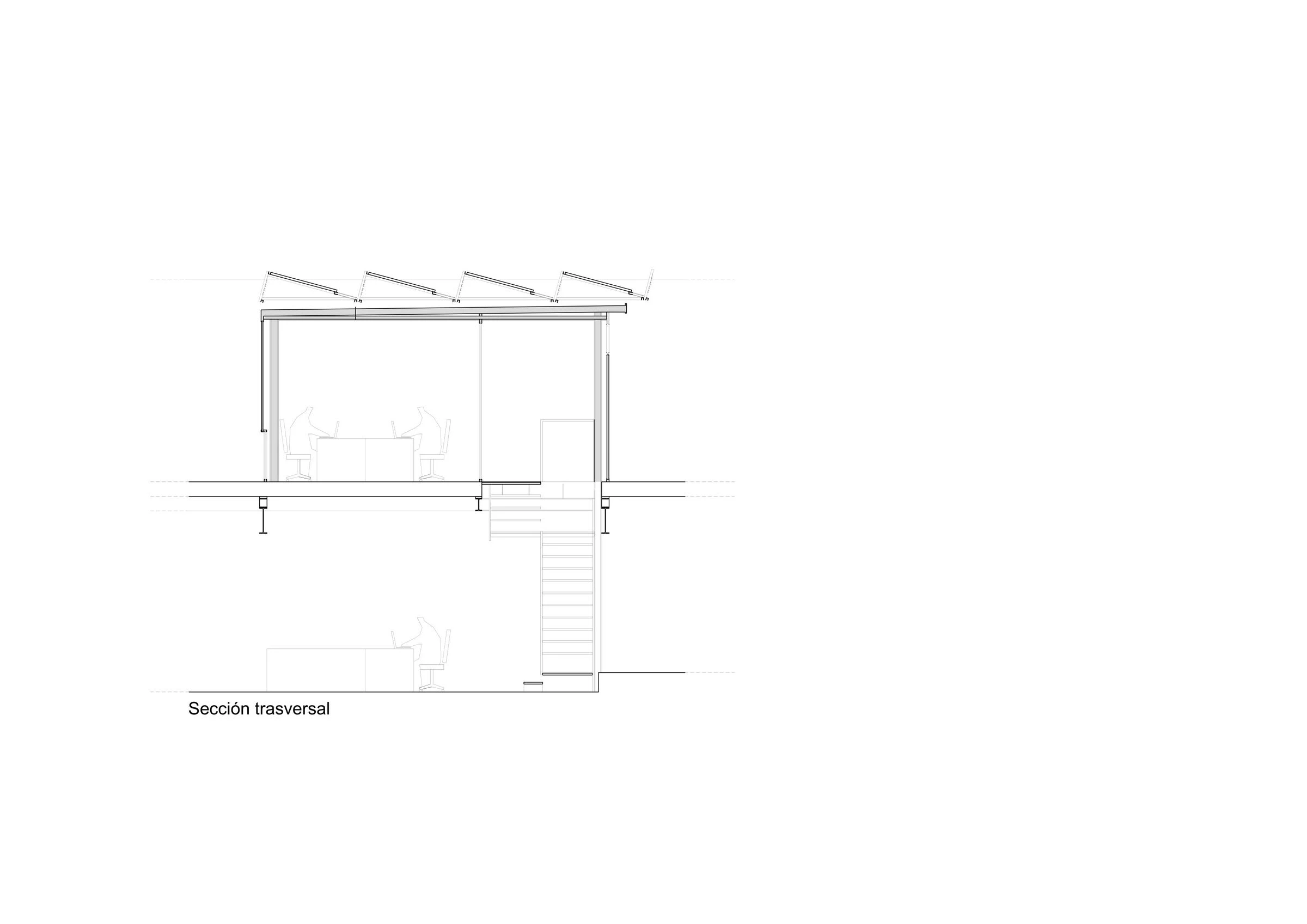

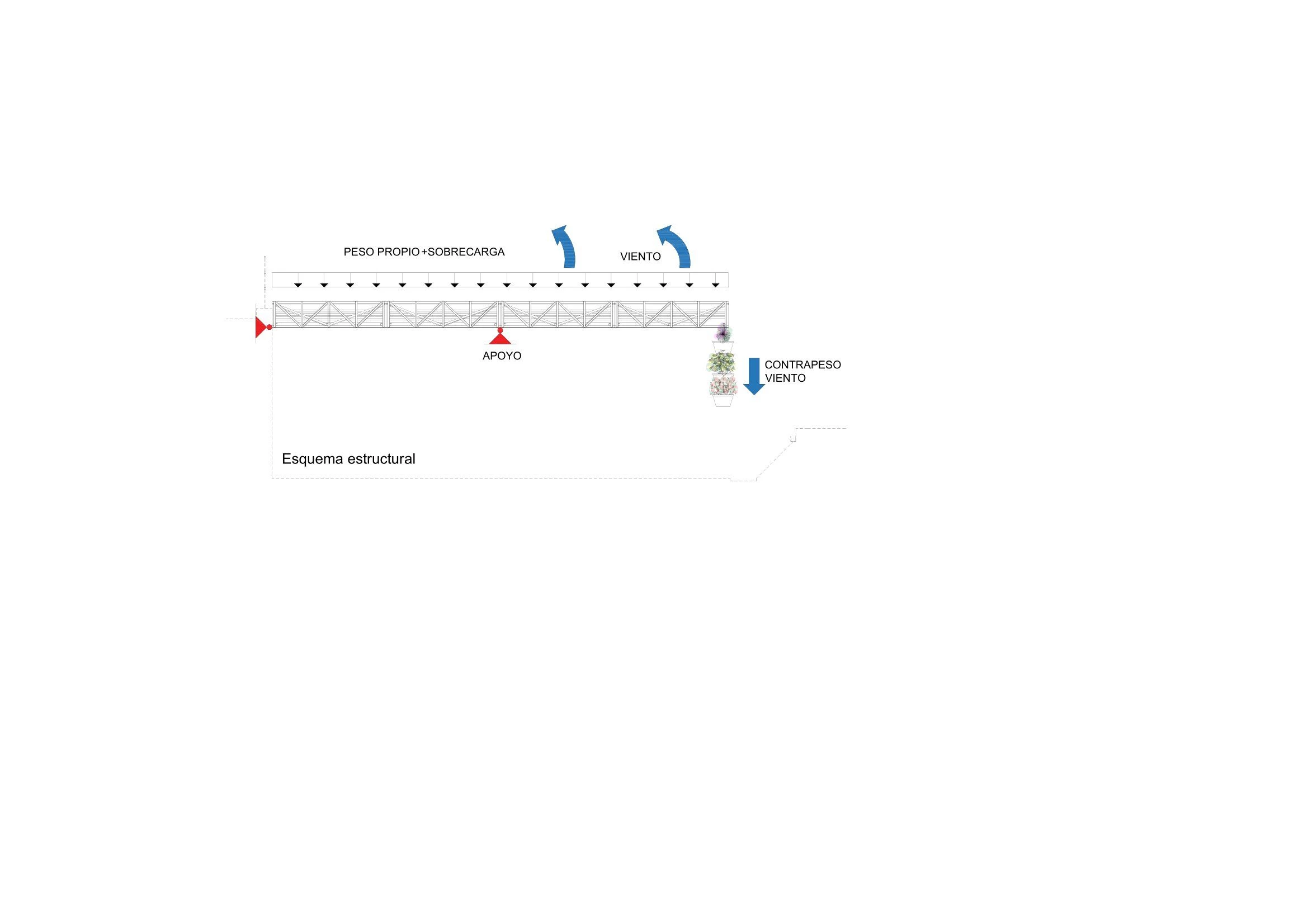

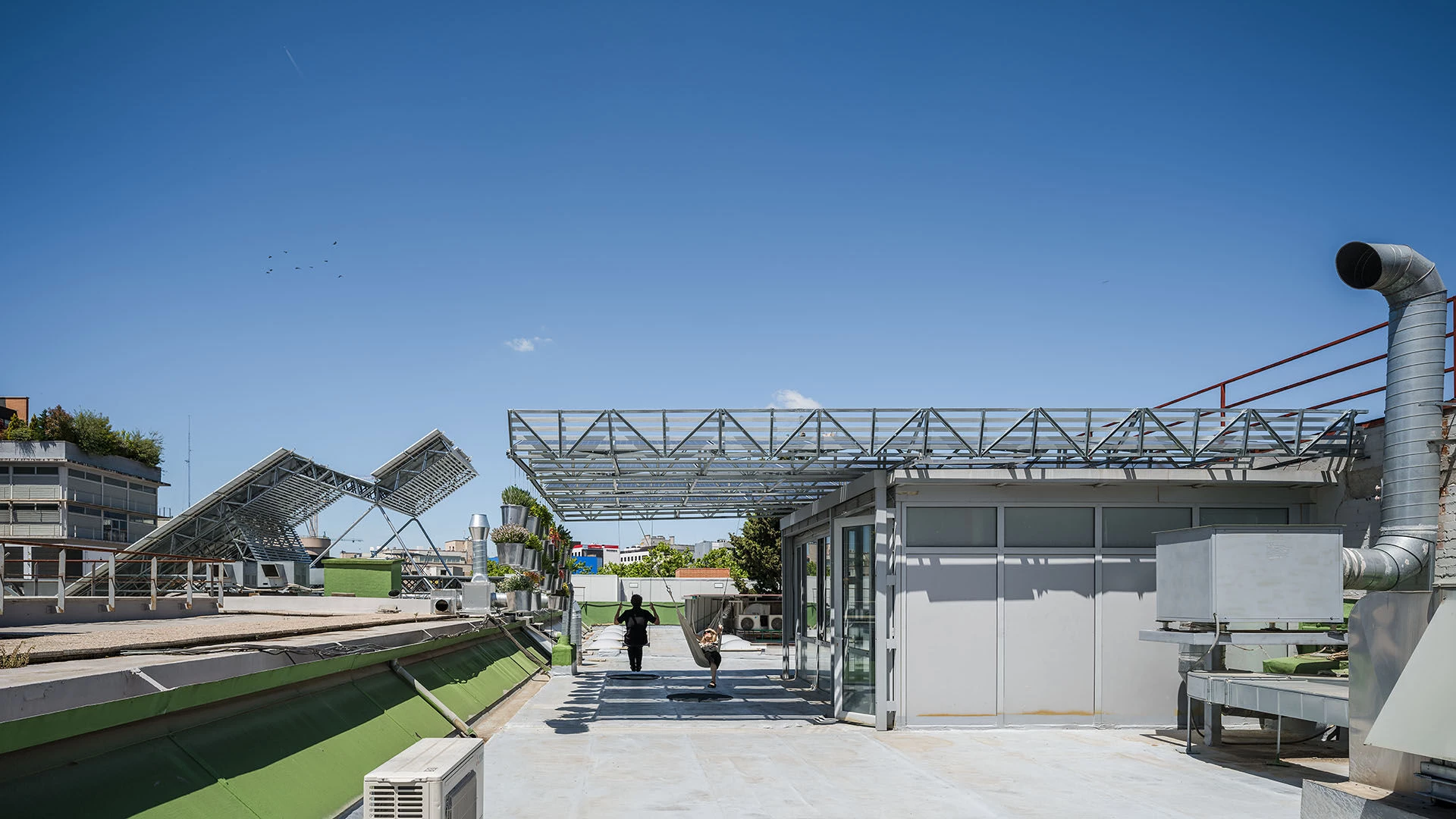

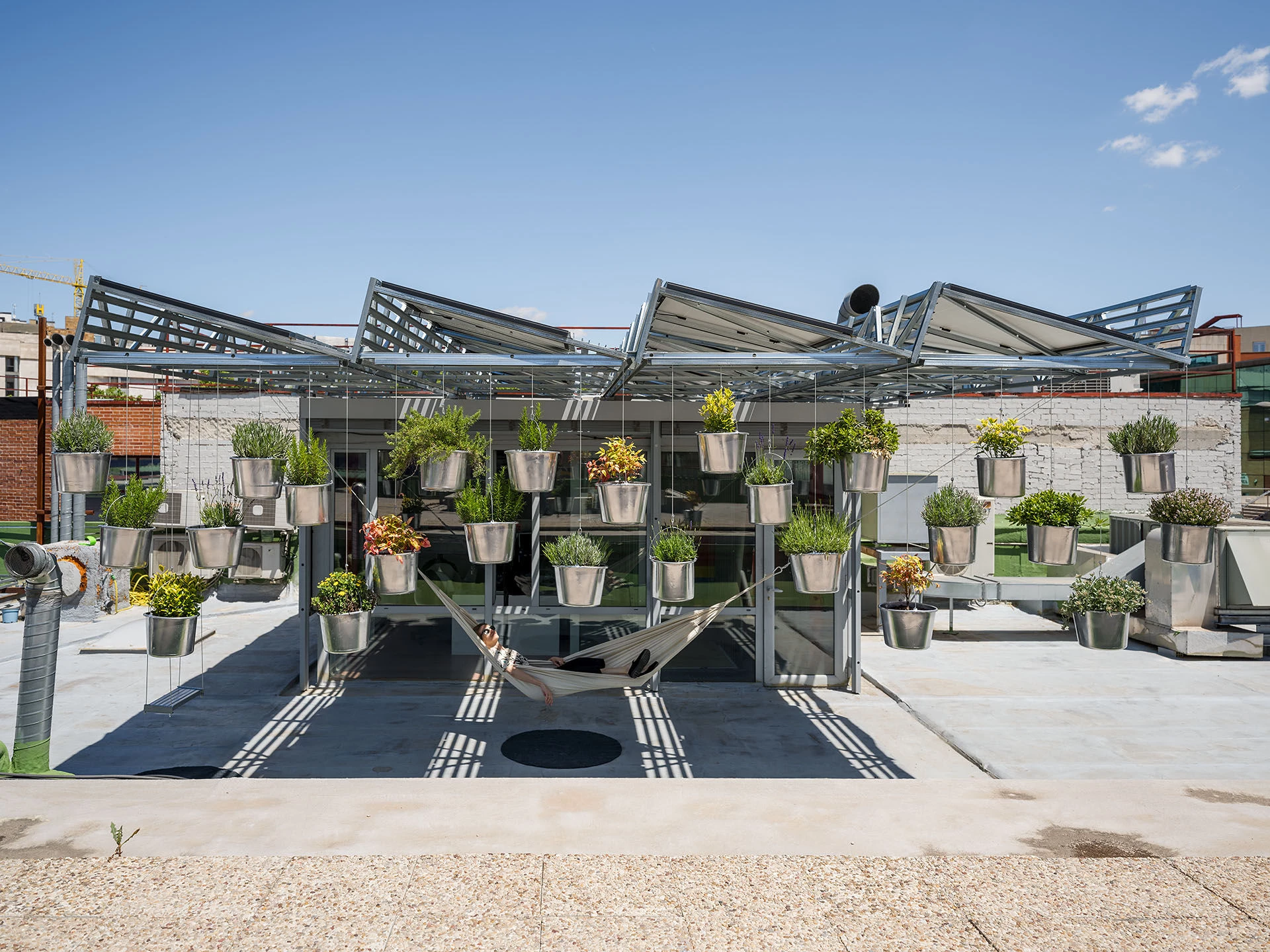

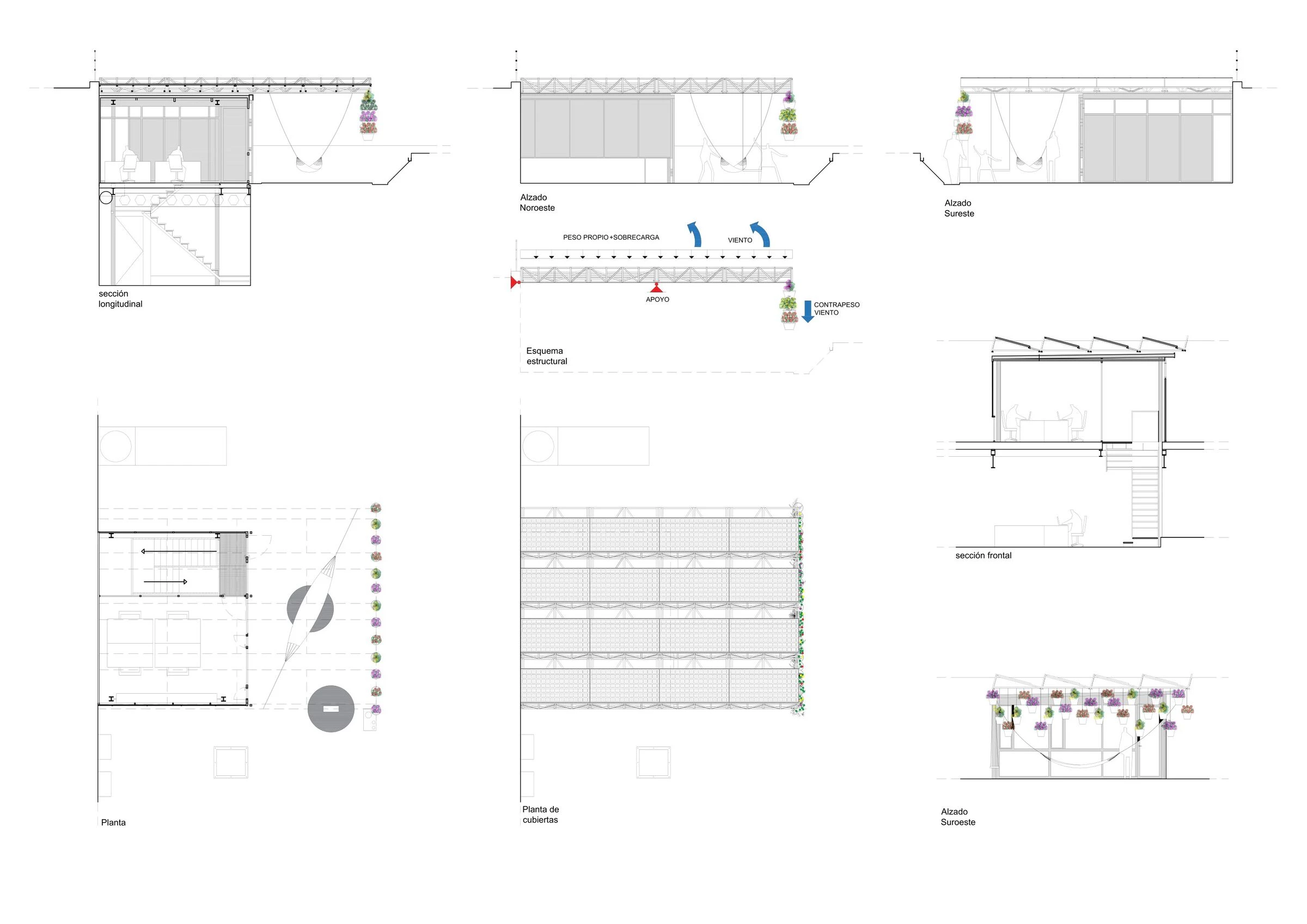

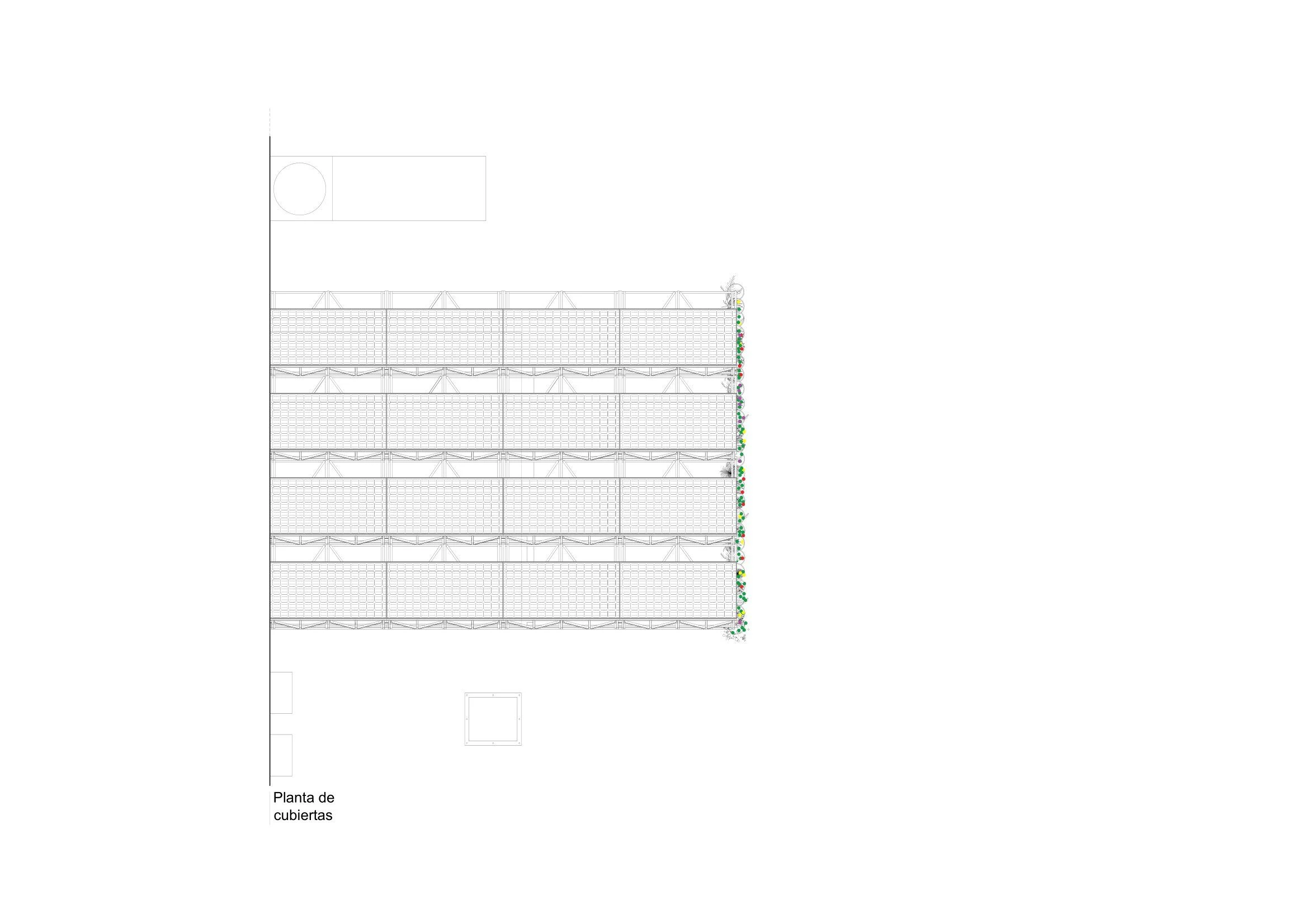

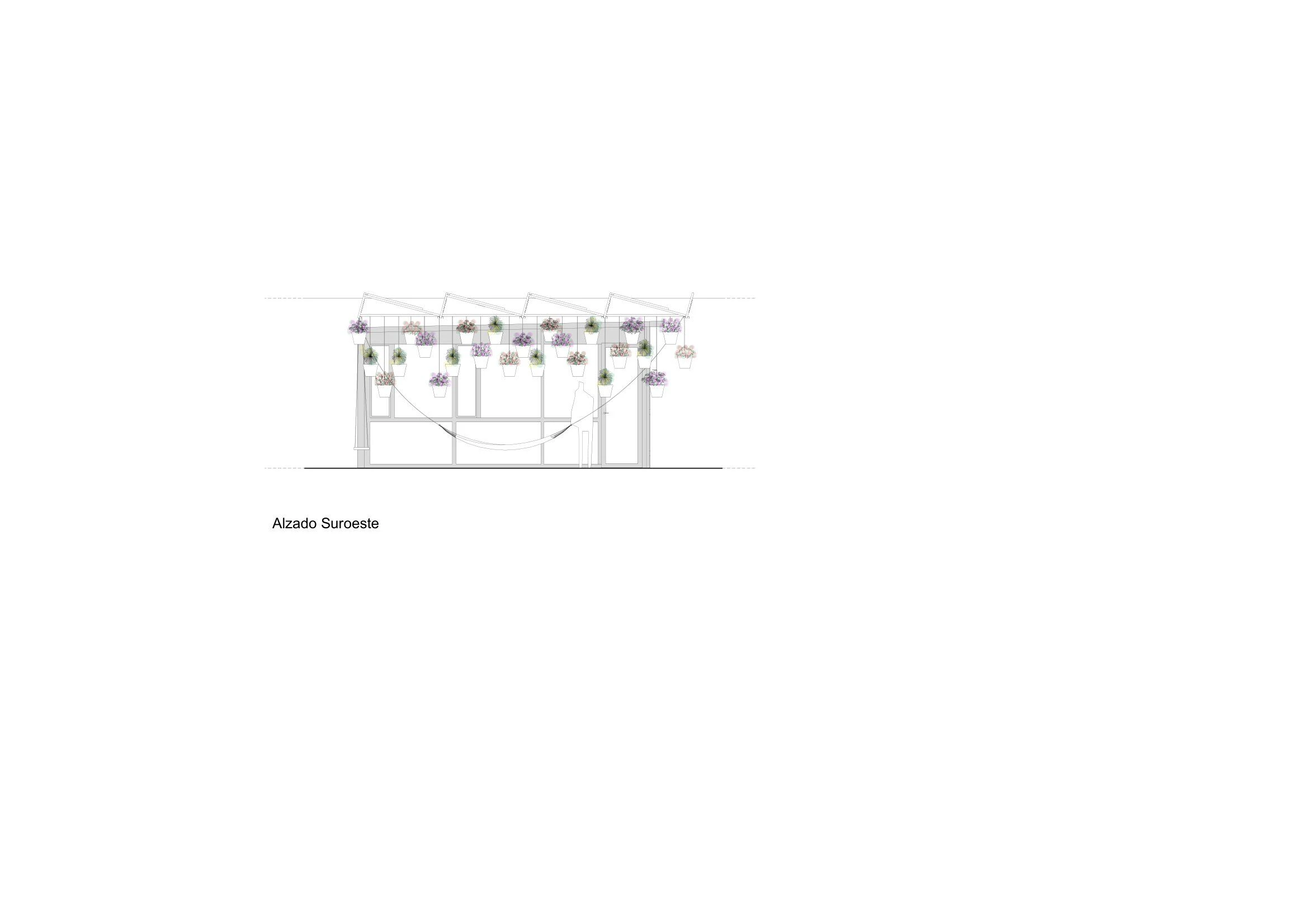

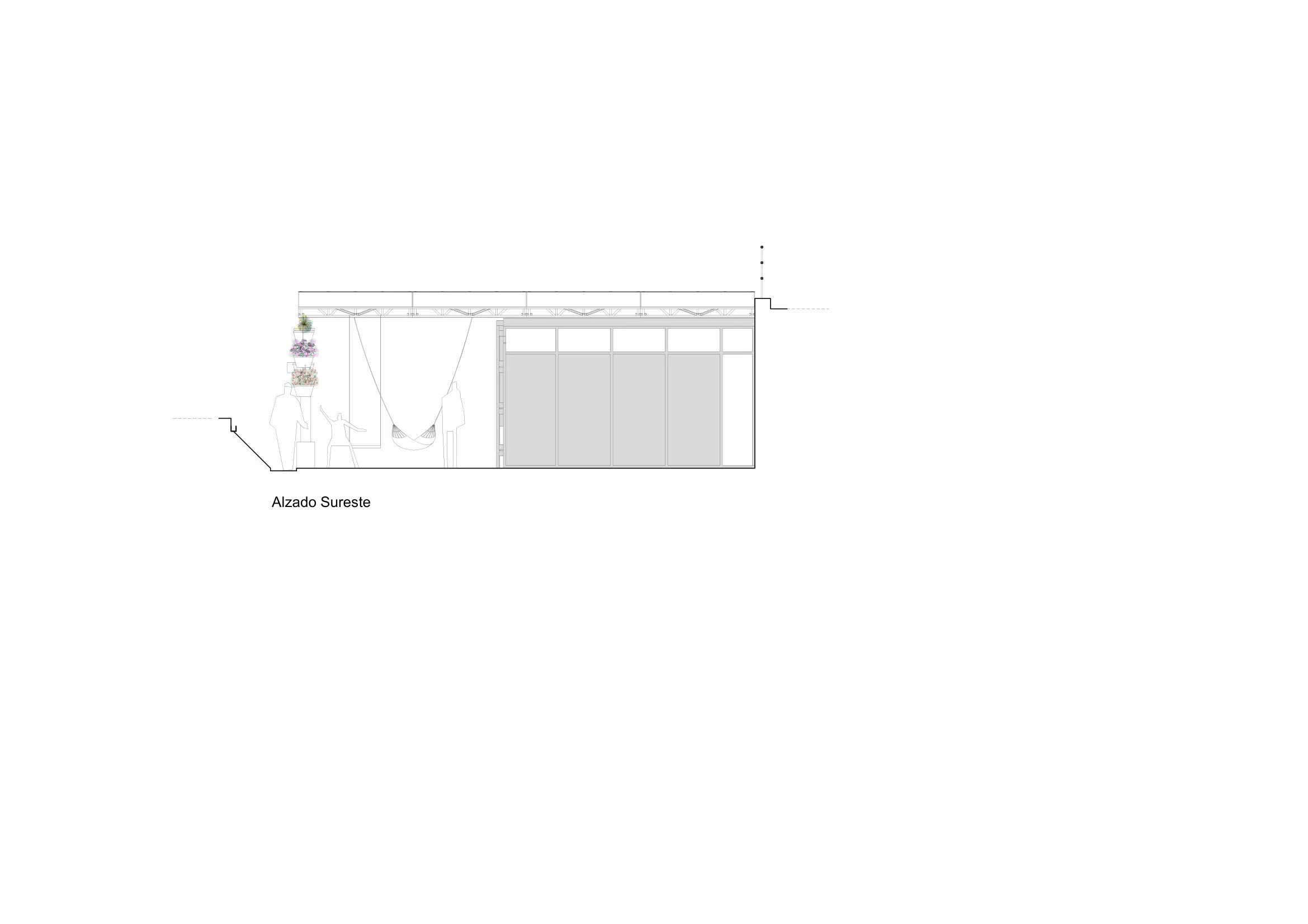

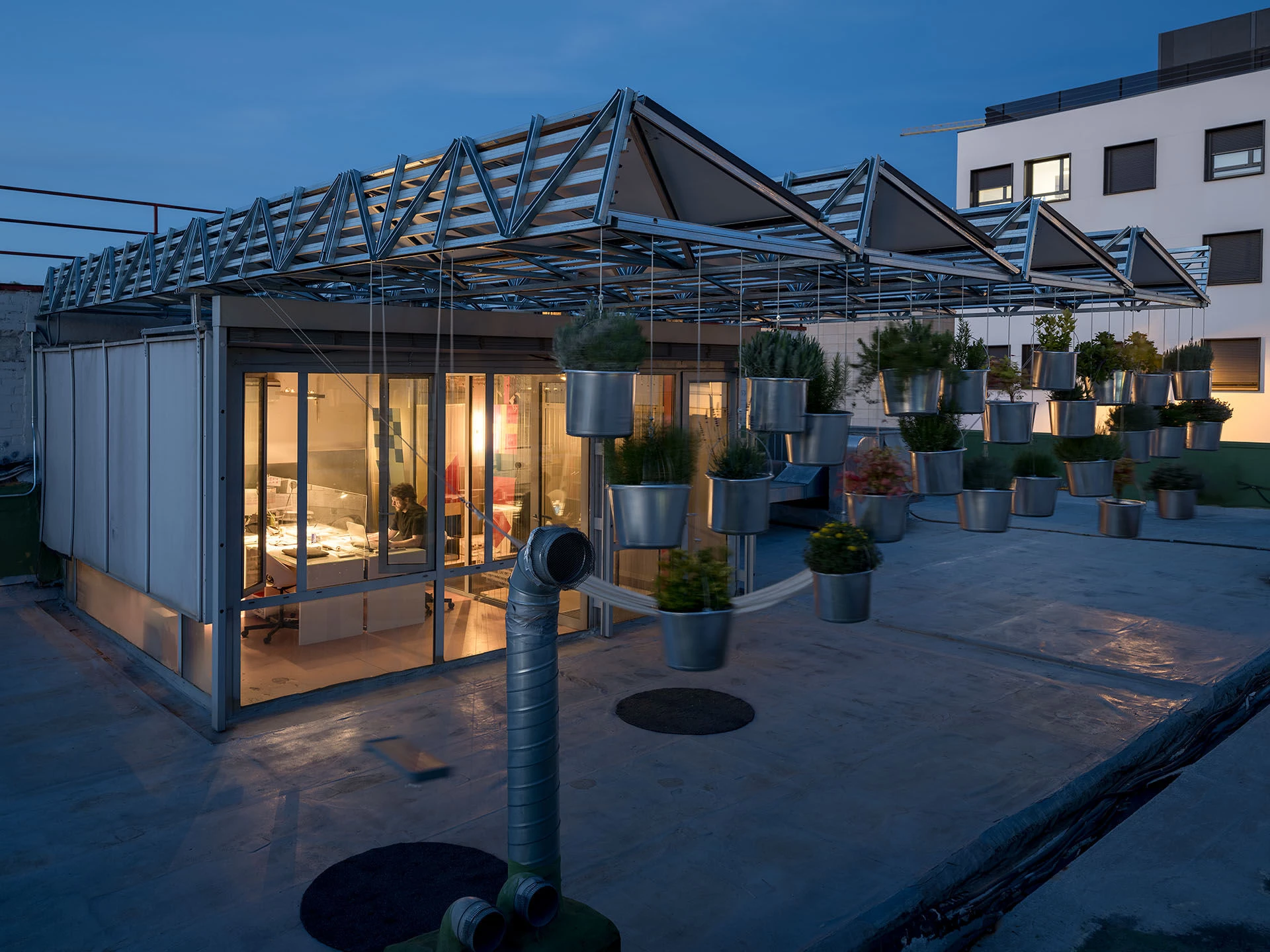

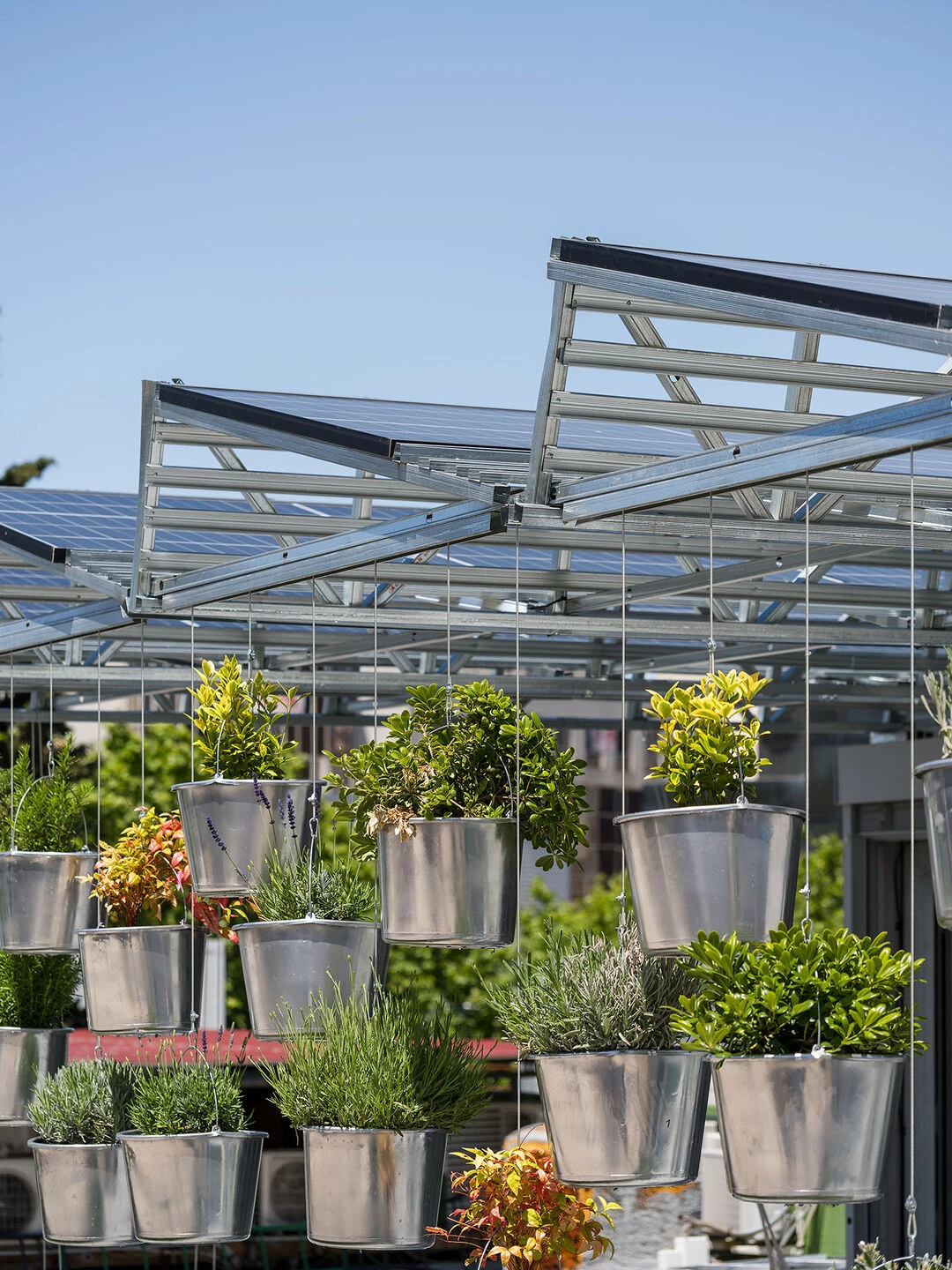

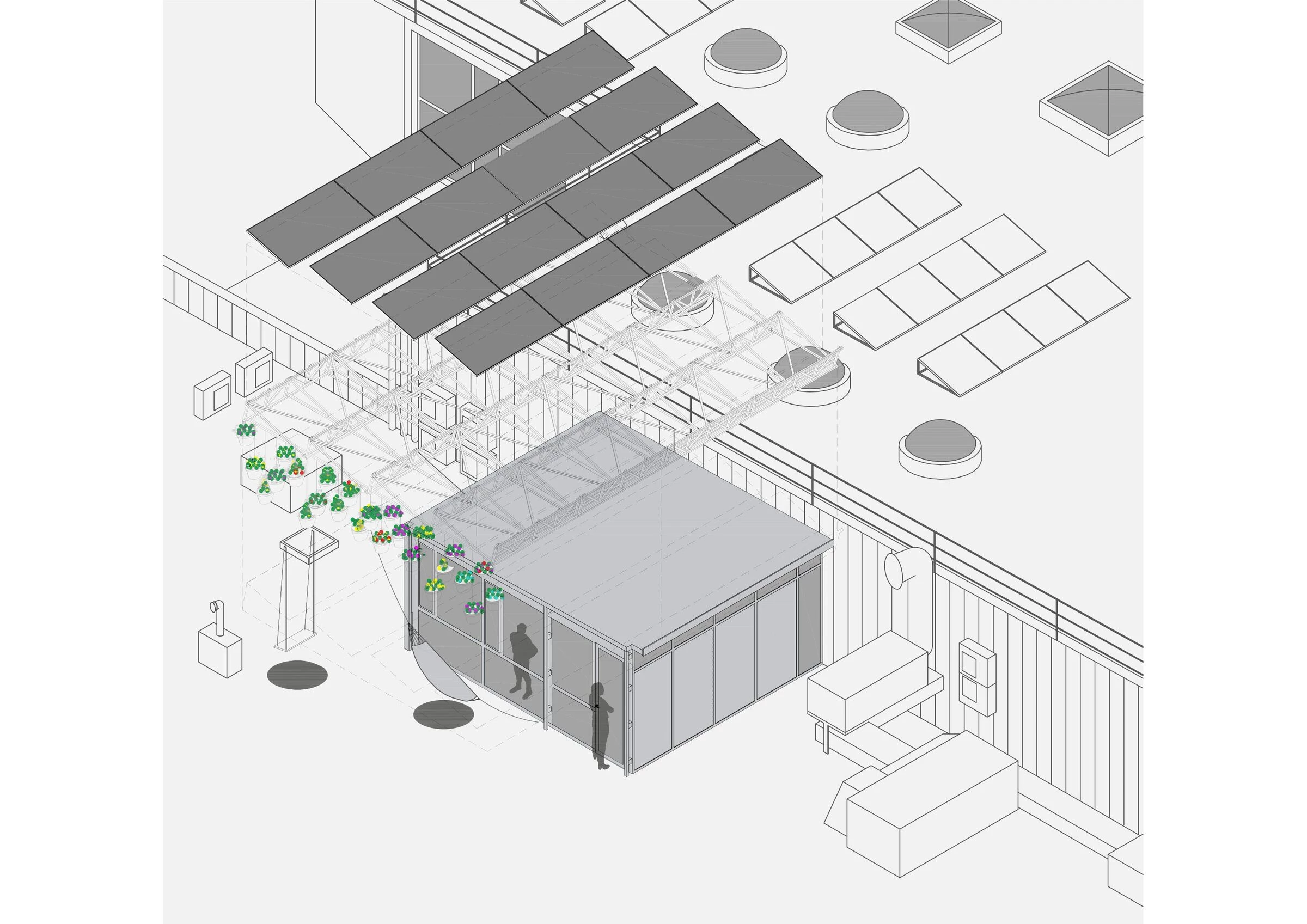

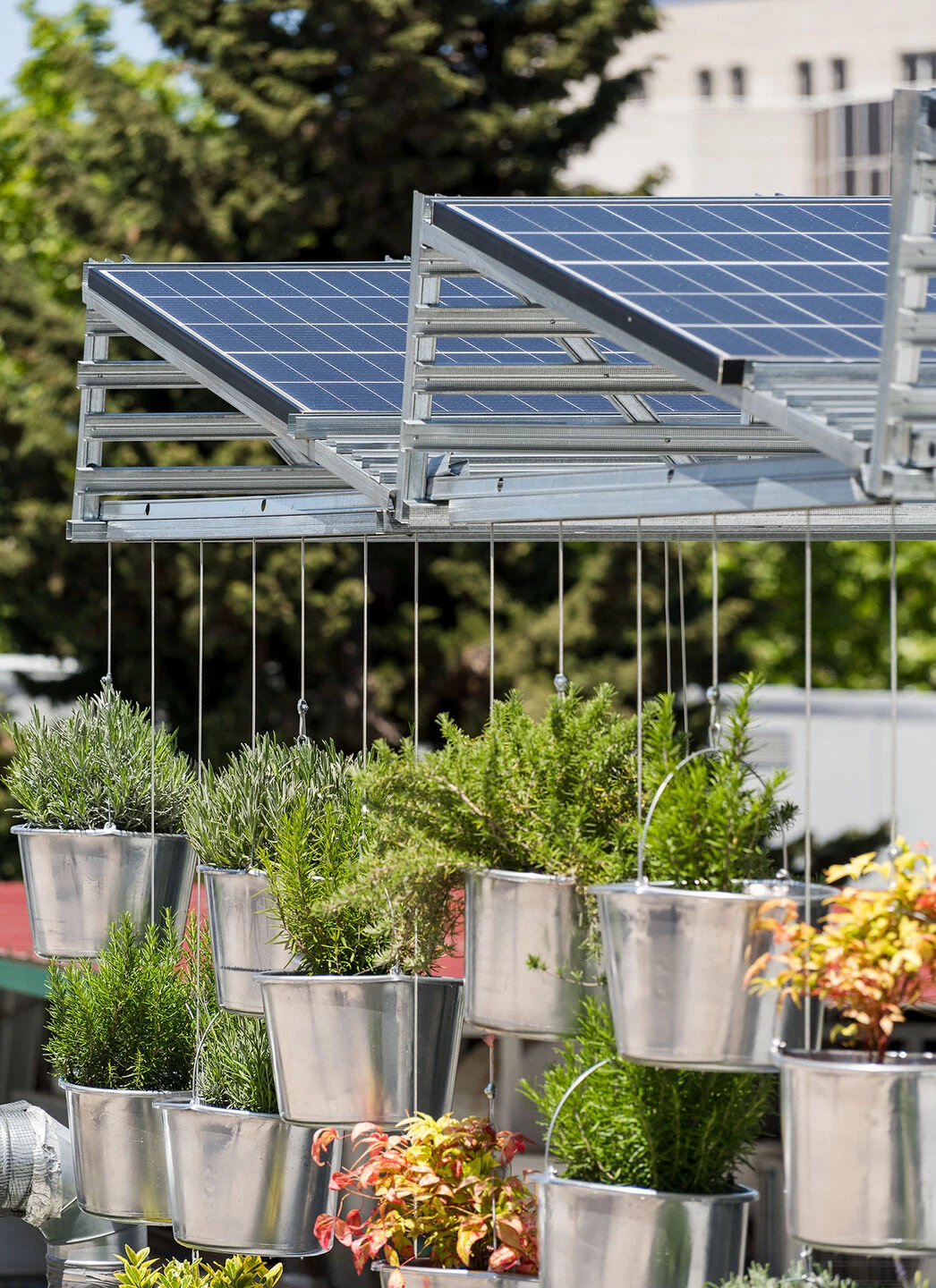

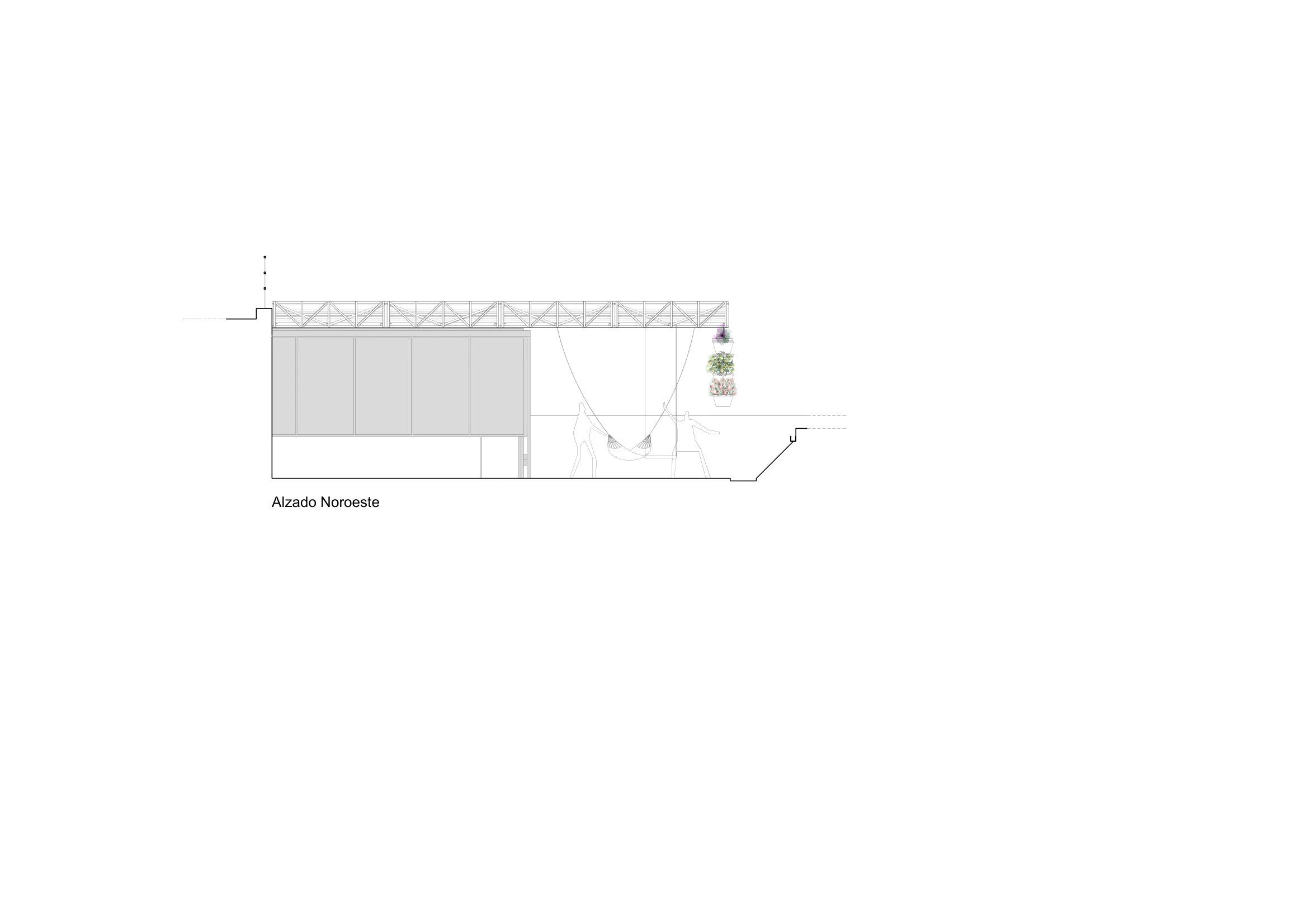

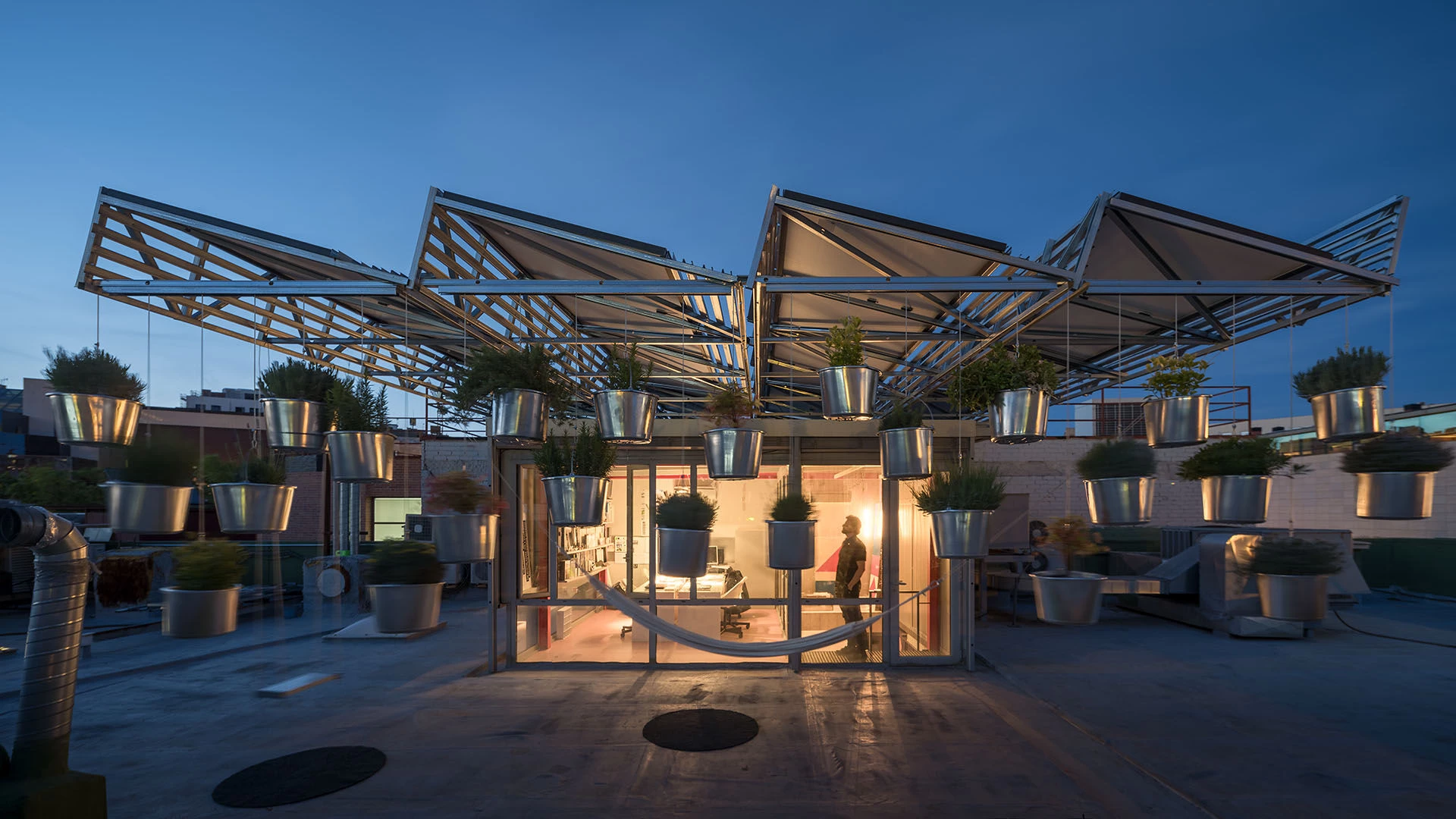

The structure is made with four 9m long trusses that are supported only in the center, spanning 4.5m on each side. On the side above the existing building, it is anchored to prevent the structure from swaying, and at the opposite end there are some flowerpots hanging that, in addition to improving the environmental humidity conditions, represent a counterweight against wind suction.

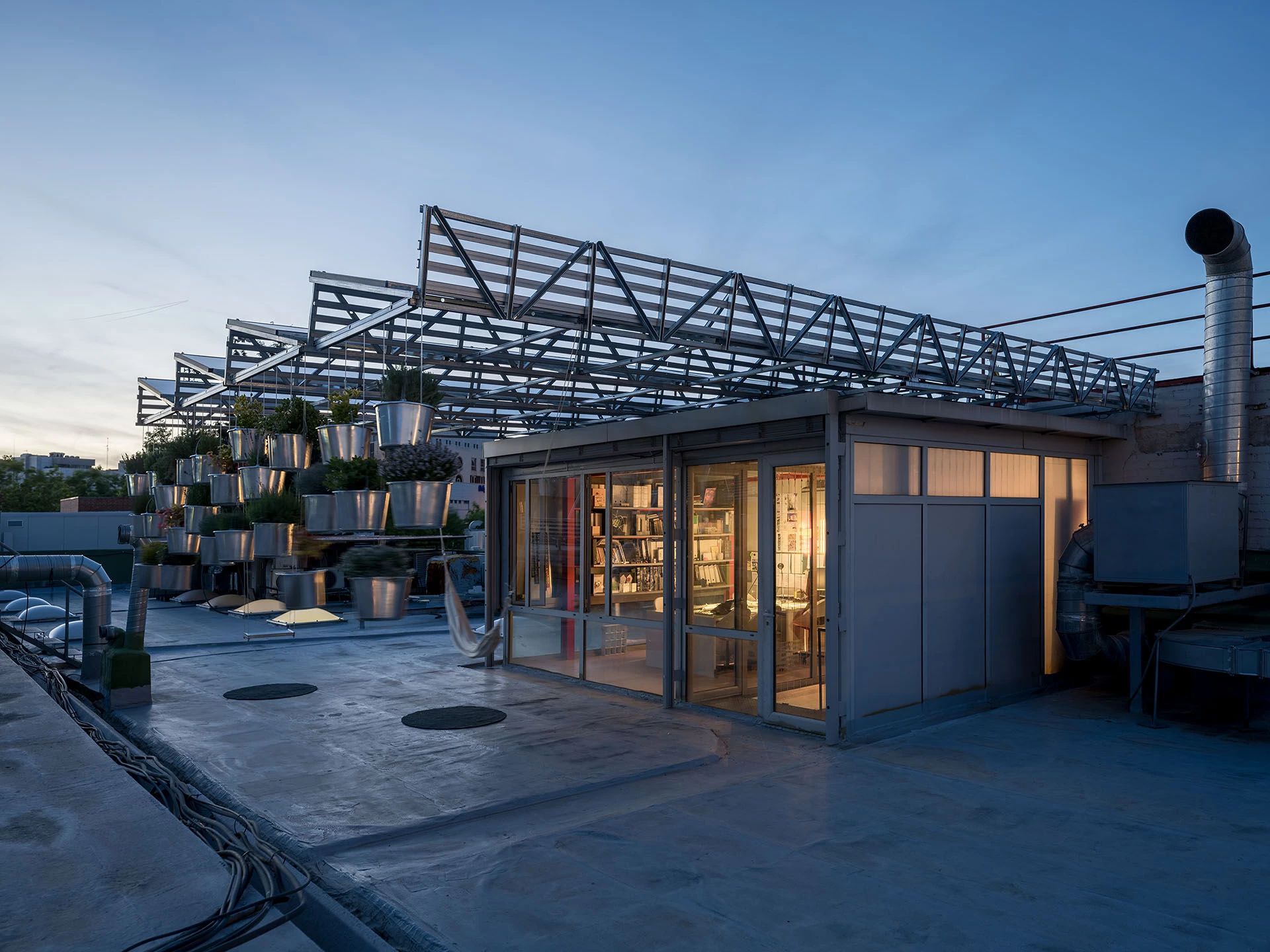

The structure is made with light profiles (plasterboard standard system) screwed in situ and assembled without the need for any auxiliary means.

The set is reversible. All joints are removable

Design, Construction, Structure: Ignacio Borrego

Design team: Ignacio Borrego Gómez-Pallete, Adrián Castro Ampuero, Paolo Mura

Developer: Tasvalor

Solar installation: Lodeal Energía

Fotos: c (Miguel de Guzman + Rocio Romero)
