Art Museum 建筑设计竞赛方案

Art Museum

YAC architectural competition - Finalists

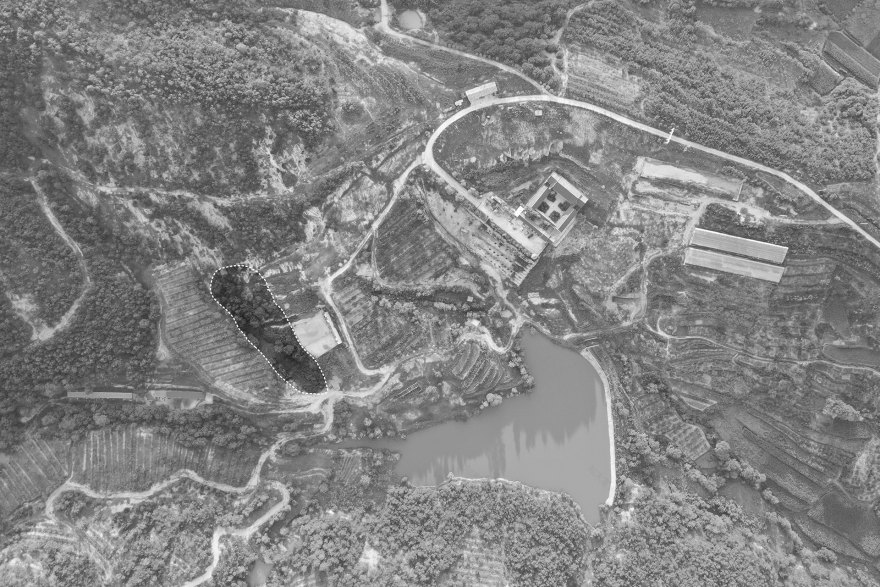

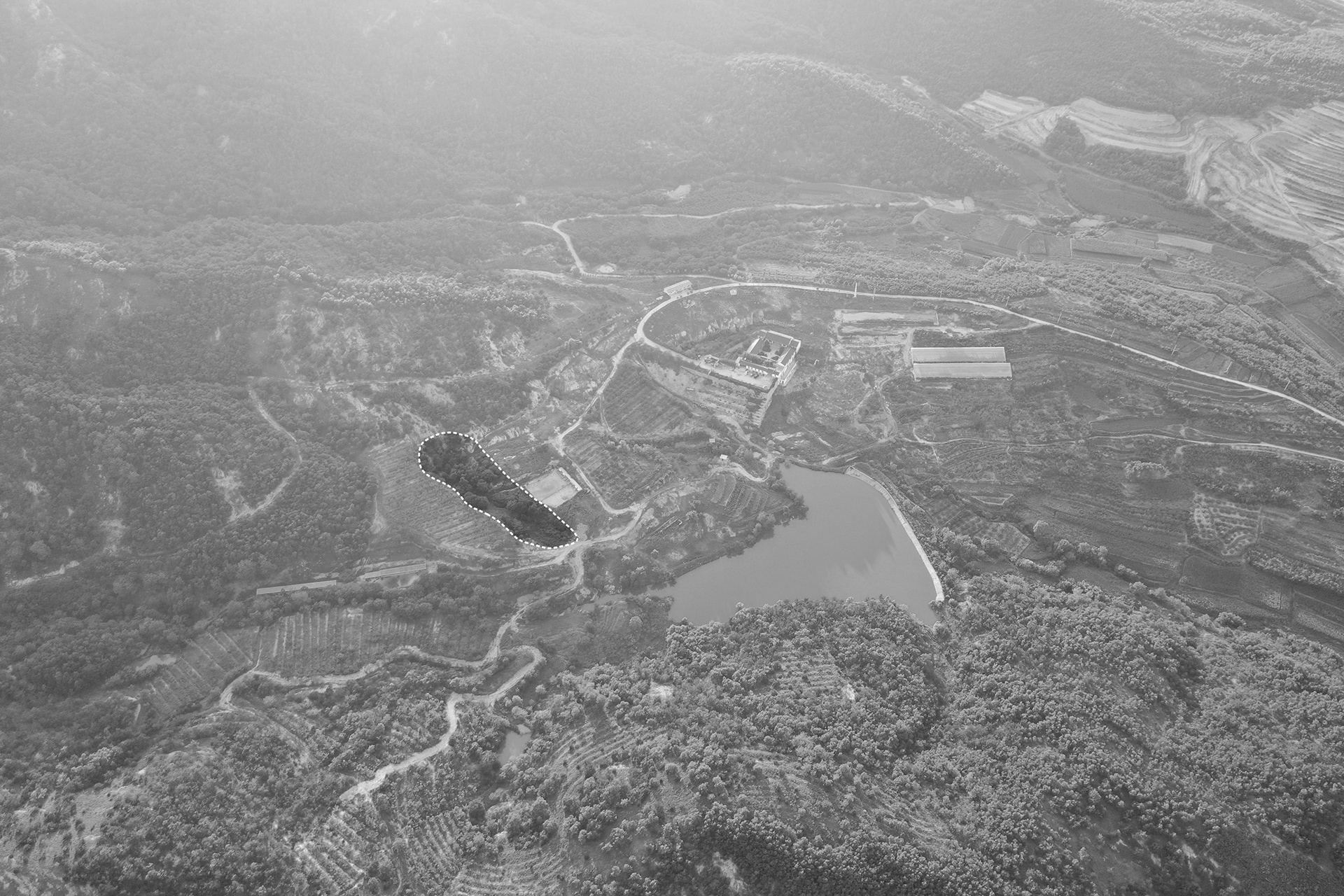

Drone photos provided by YAC

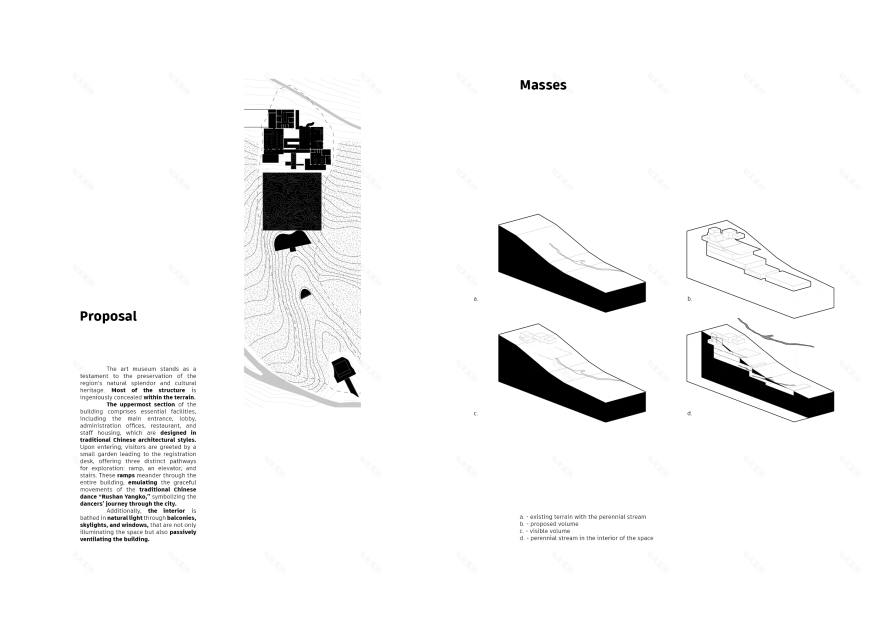

Core strategy

local traditions + contemporary architecture + nature preservation

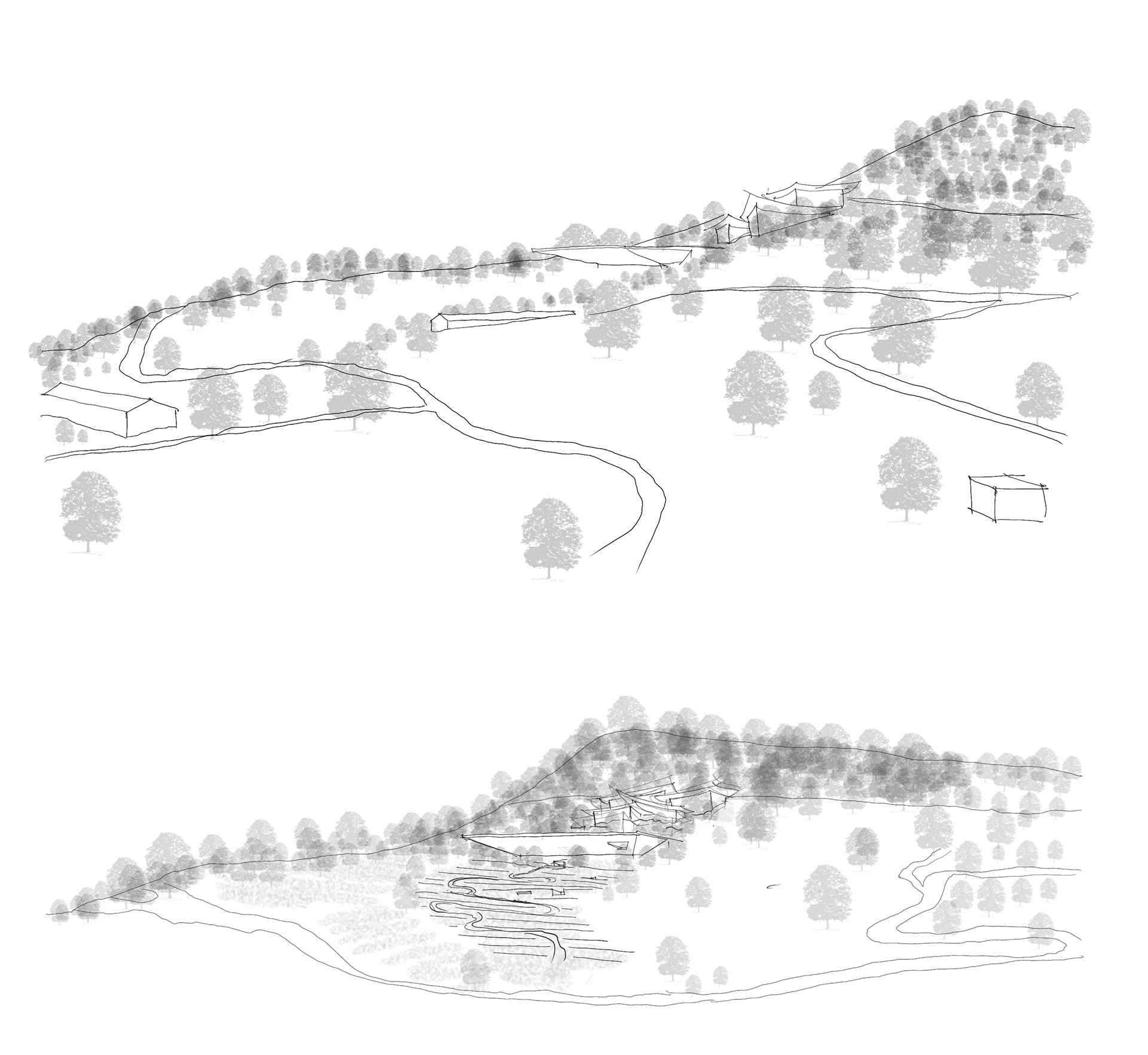

Sketches

Description

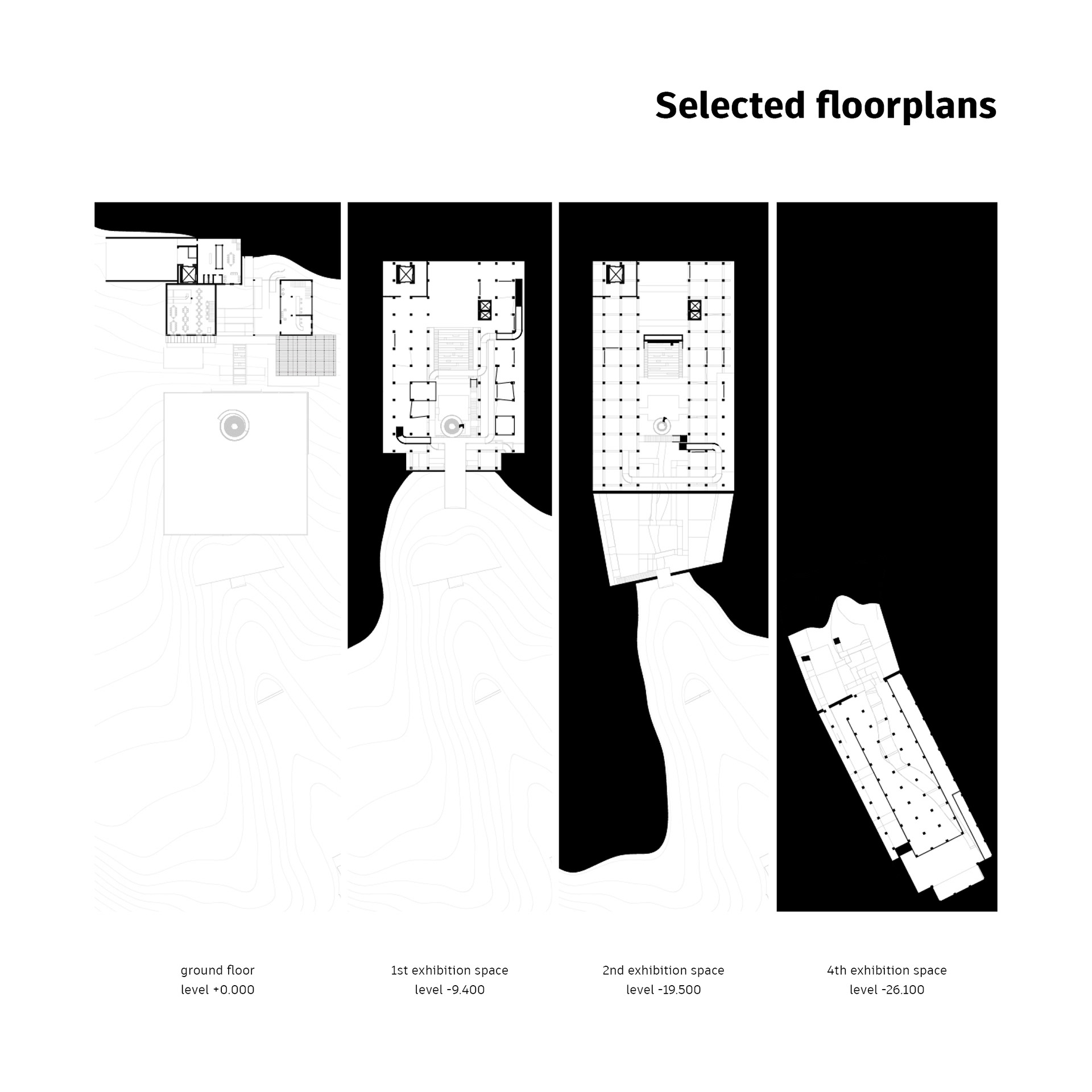

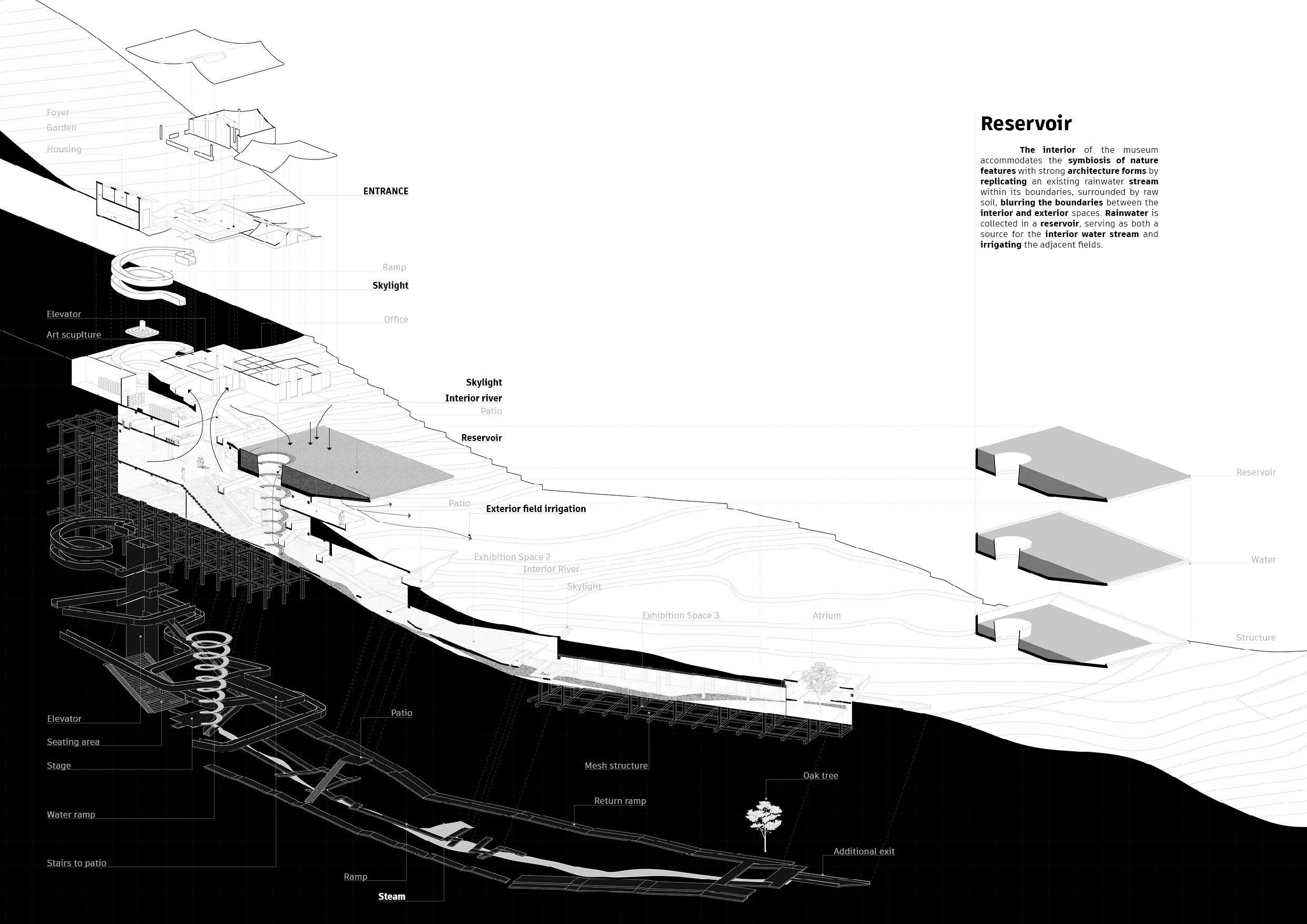

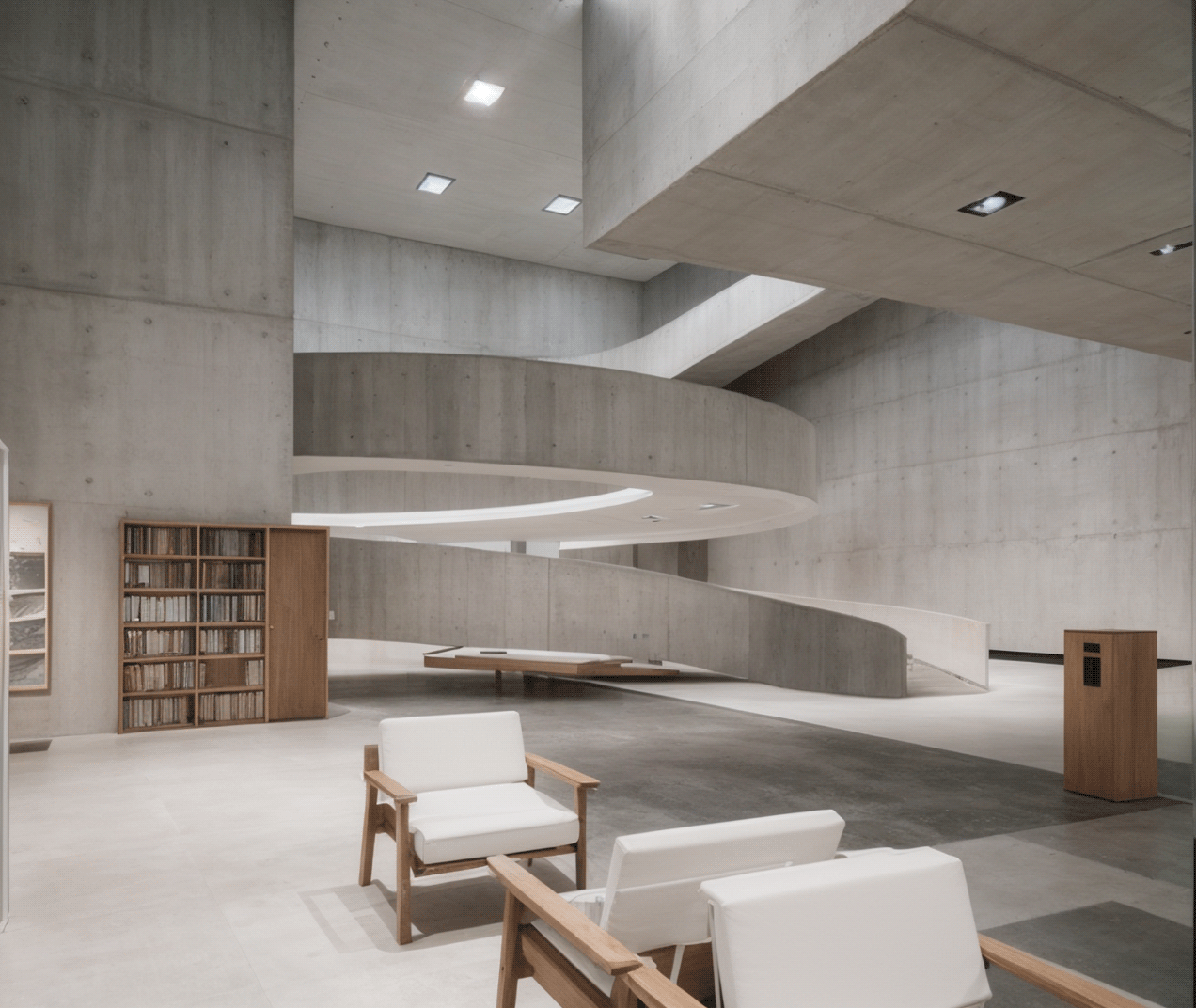

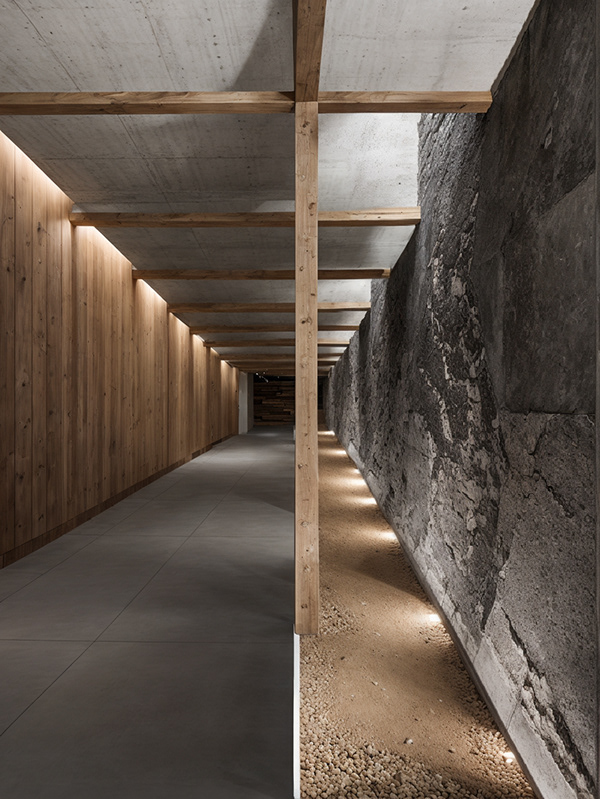

The museum begins with a welcoming floor at ground level, featuring a foyer with a garden that is connected to the restaurant and terraces that offer stunning views of the area. Following the ramps visitors would arrive at the main atrium, where they welcomed with a stage and a fountain that cascades water down the ramp. This gradual diving leads them into the primary exhibition space, featuring a grid of columns that have been inspired by traditional Chinese architecture. The bottom floor is a mix of raw rocky terrain soil with concrete slabs. Within this and the following spaces, visitors can step out onto multiple patios that are placed in every volume and admire the picturesque landscape views of Weihai.

Post process

3ds max + Stable Diffusion + Photoshop

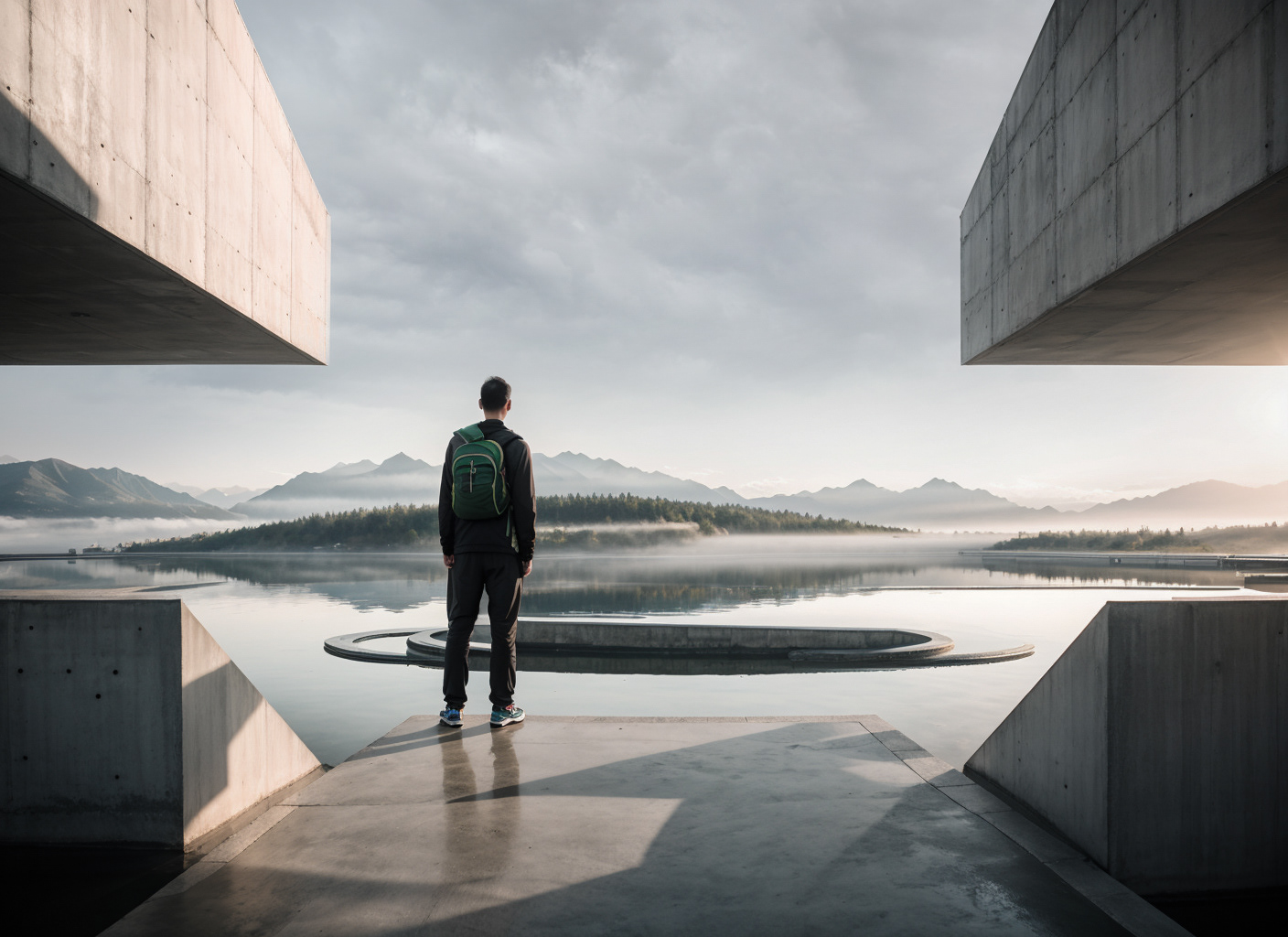

For the main image, we used a combination of a draft raw 3D render with Stable Diffusion generated images. Which were later matte-painted in Photoshop.
