Guardería Petit Mamut 托儿所丨西班牙

Architect：AMB - Àrea metropolitana de Barcelona

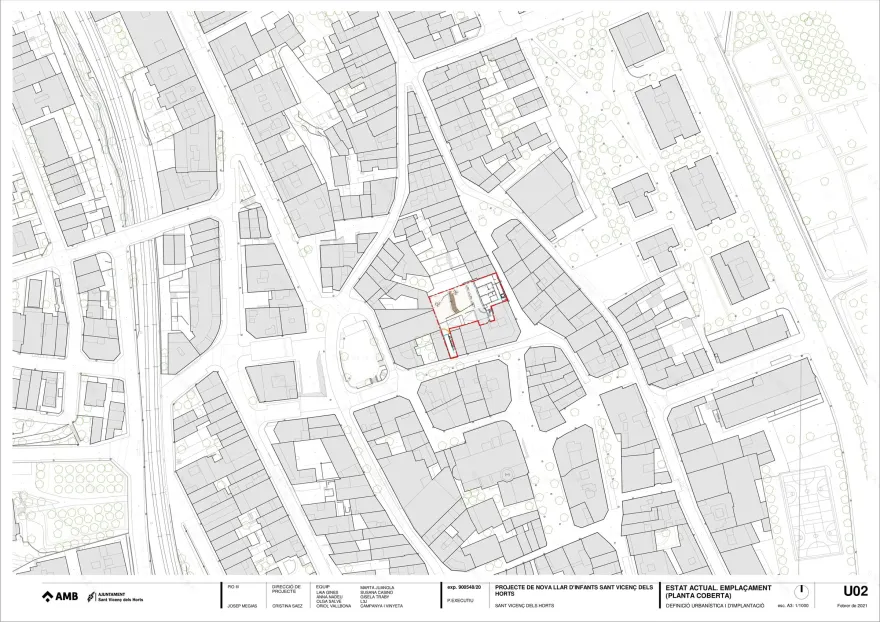

Location：Carrer de Barcelona, 25, 08620 Sant Vicenç dels Horts, Spain; | ;View Map

Project Year：2023

Category：Nurseries

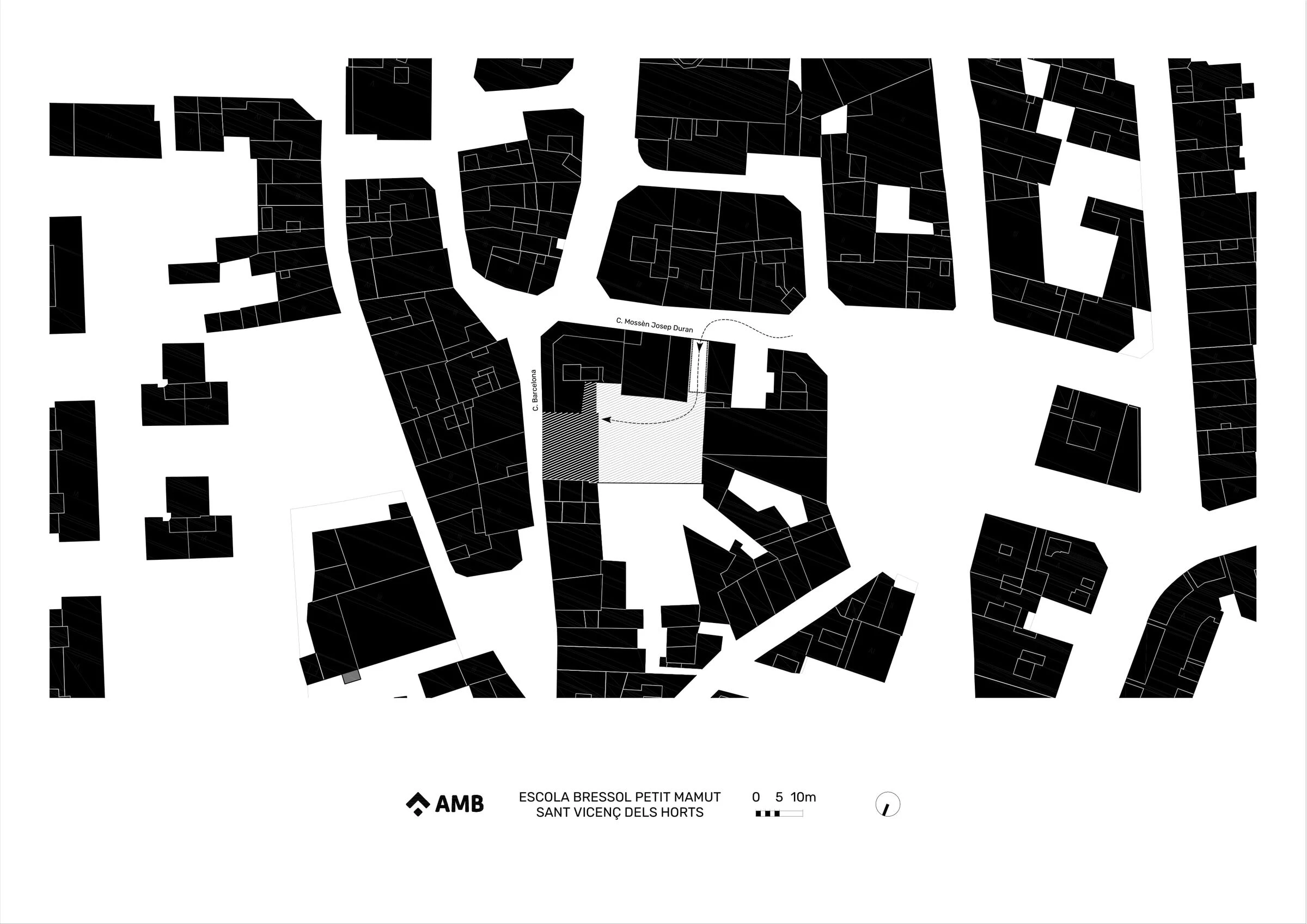

The Petit Mamut nursery in Sant Vicenç dels Horts is a single-line educational school with a capacity for 41 students. Located on one of the main thoroughfares of the old town, Barcelona Street, the approach to the school is via traffic-calmed streets, which promotes sustainable mobility.

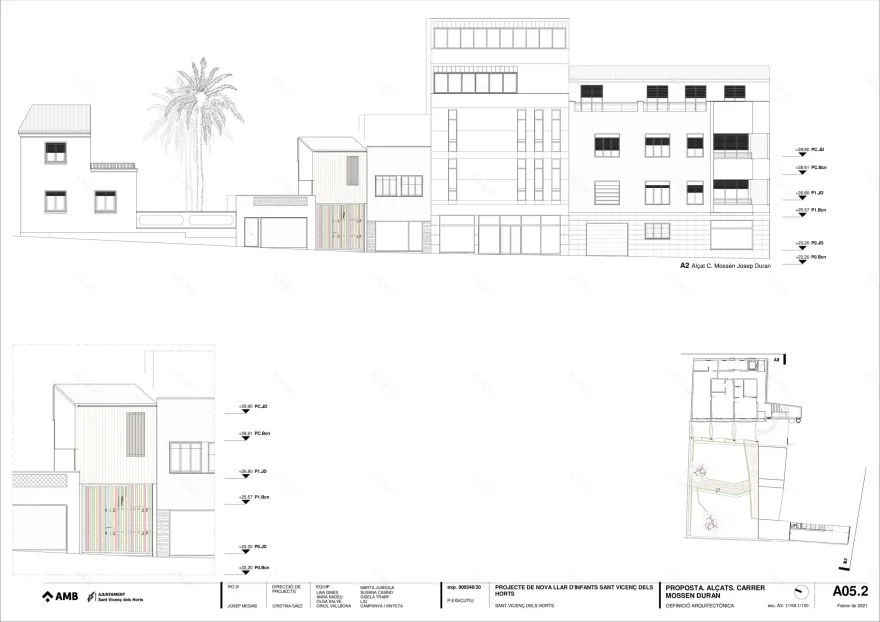

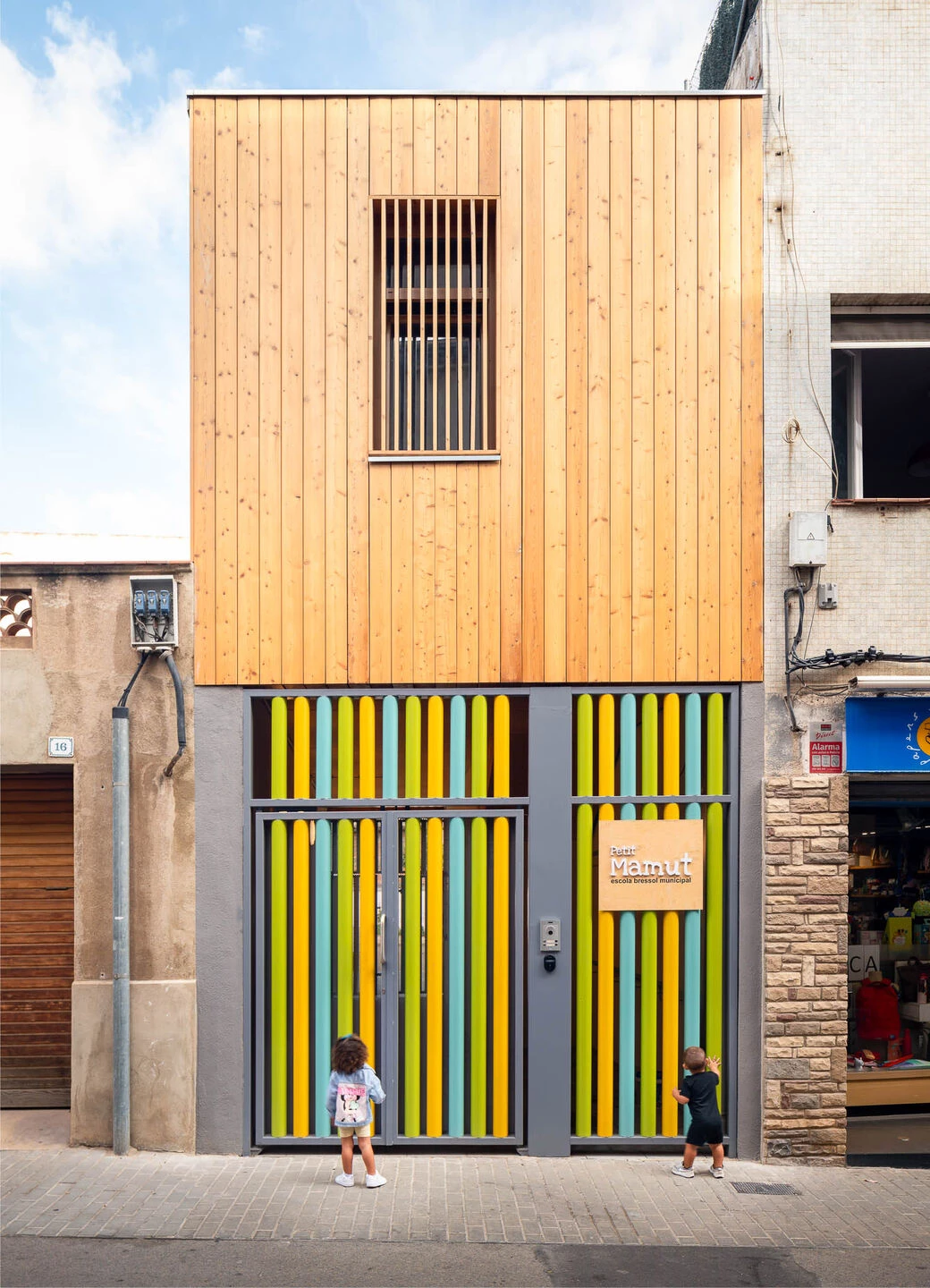

The main entrance of the building on Josep Duran Street is accessed through a porch that leads to the playground. This arrangement ensures a safe and protected route for children during the school's arrivals and departures.

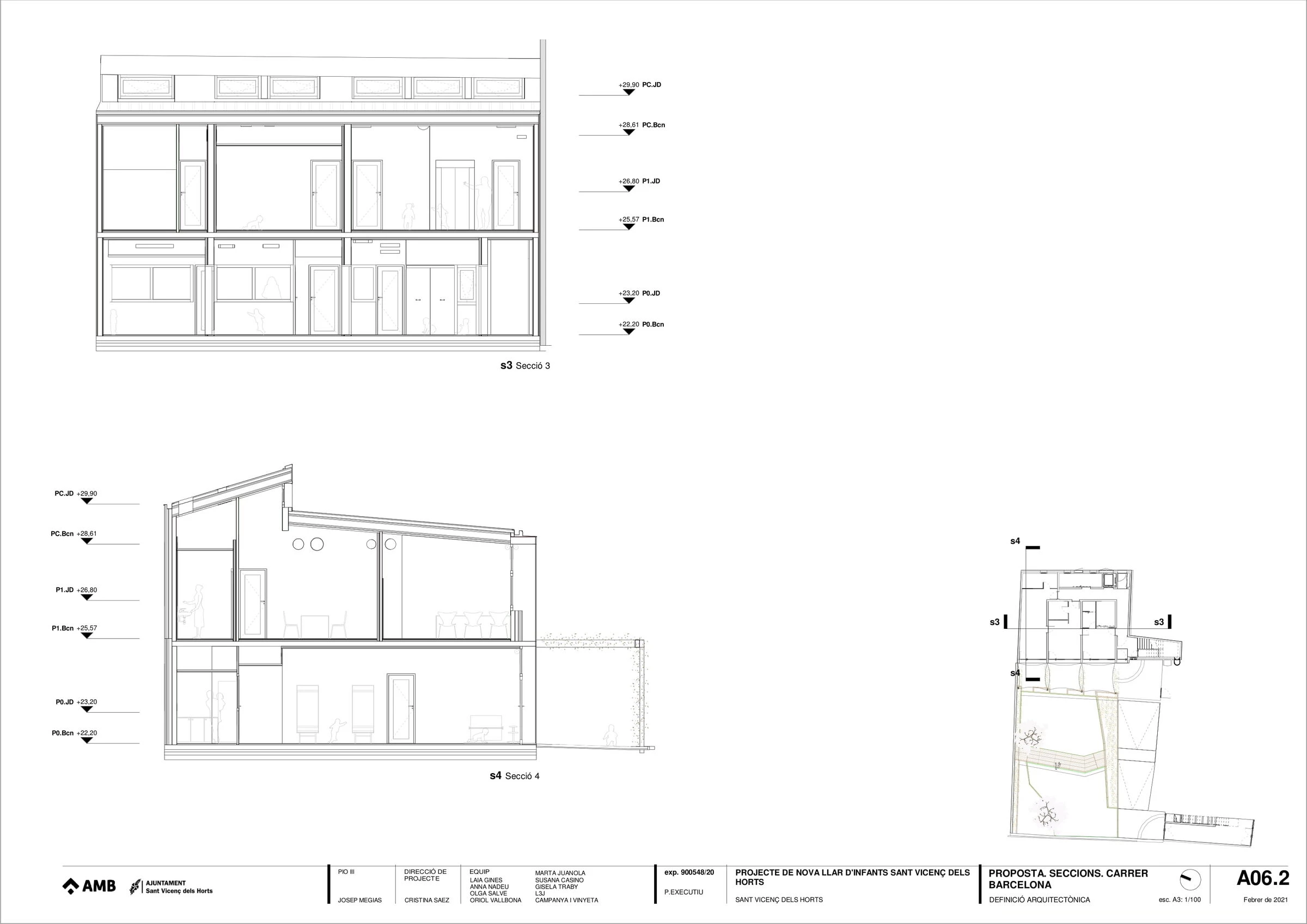

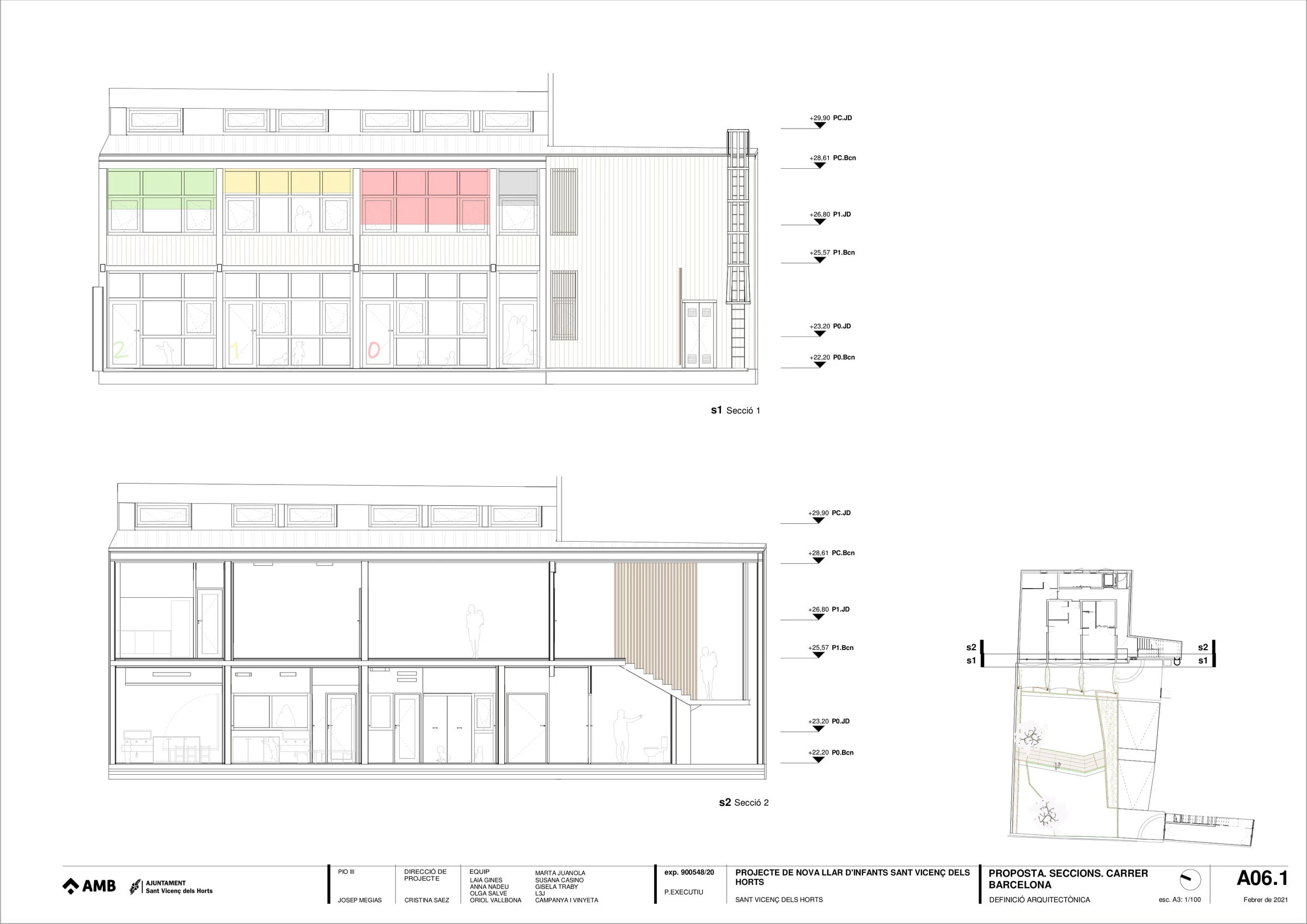

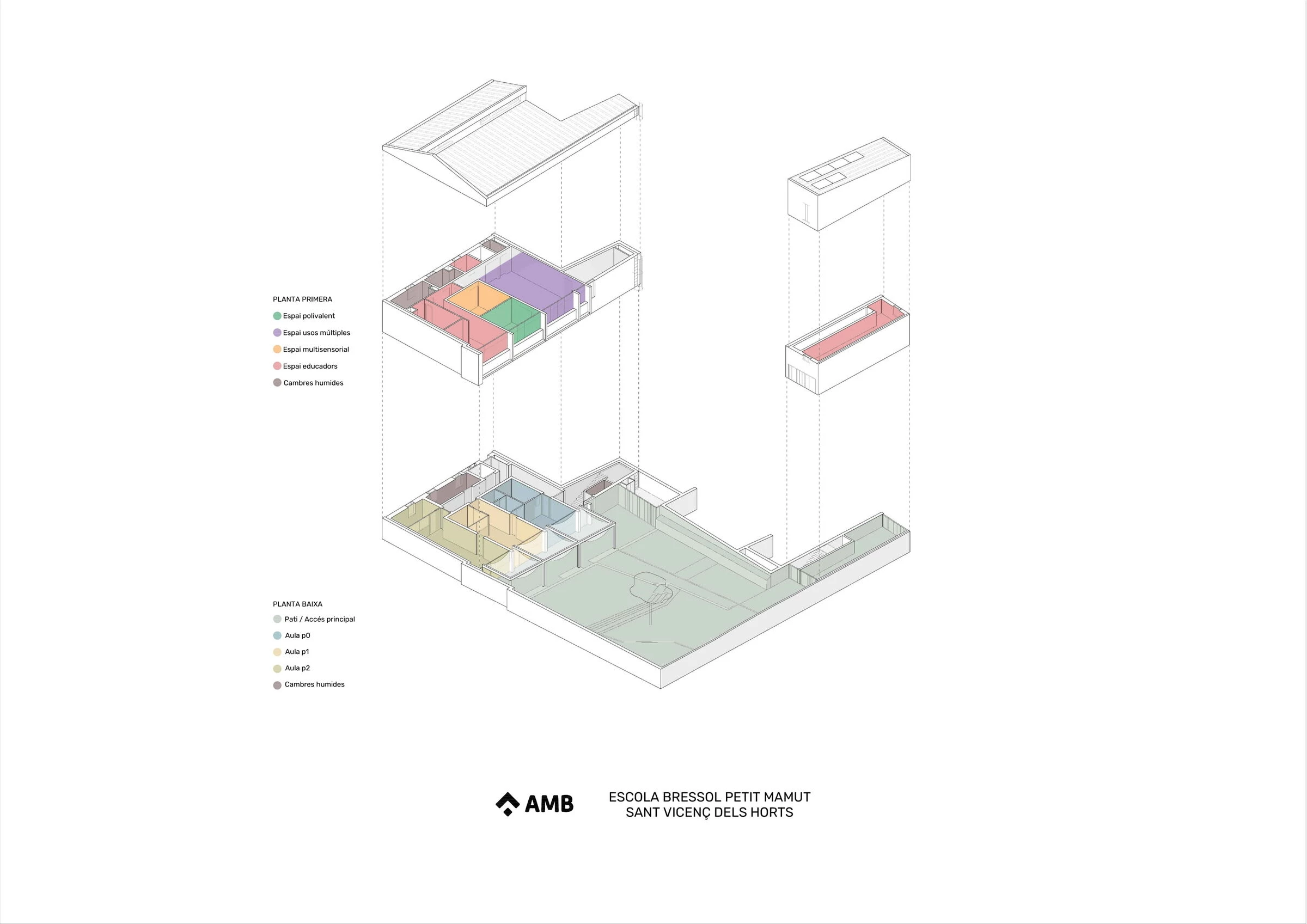

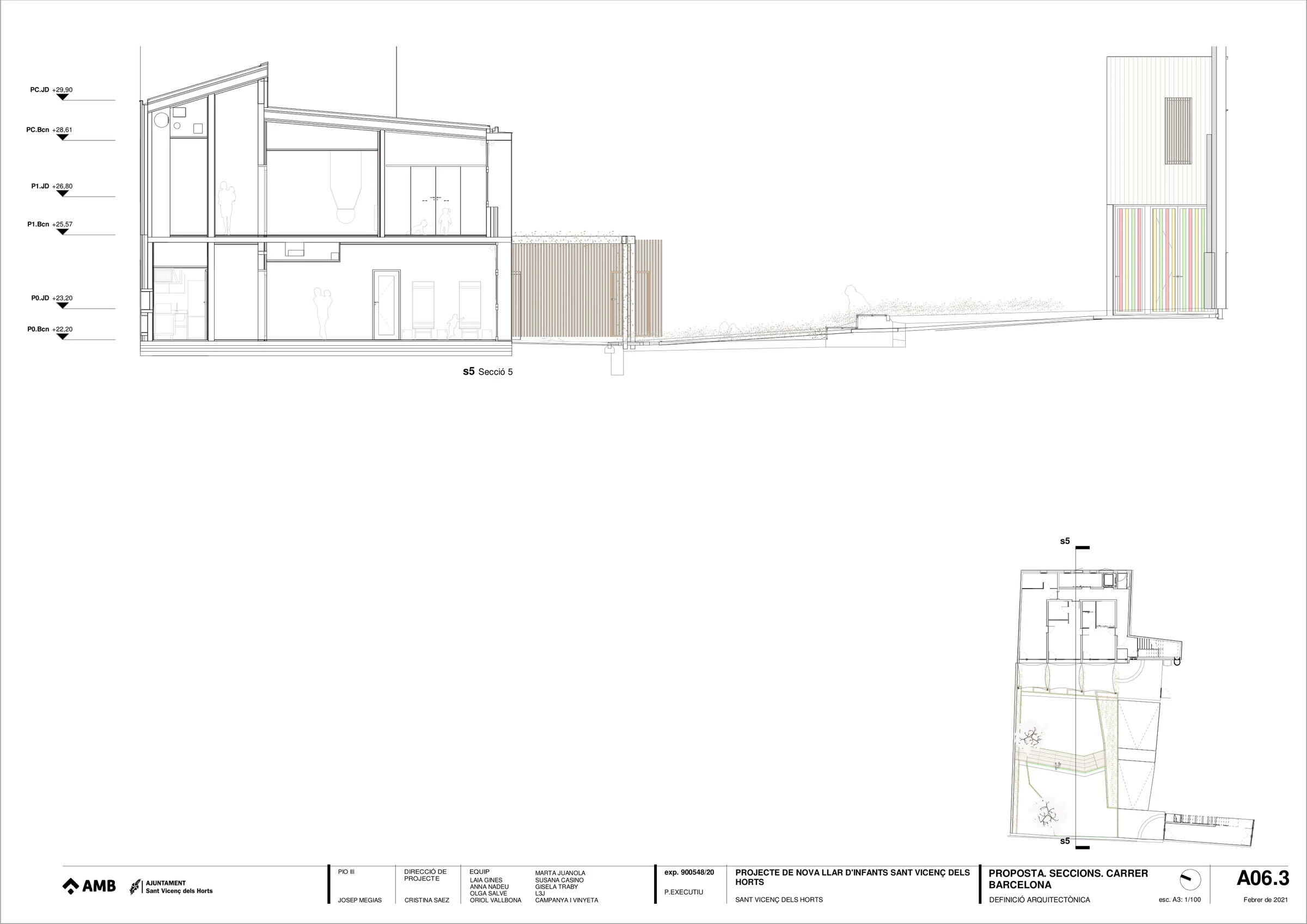

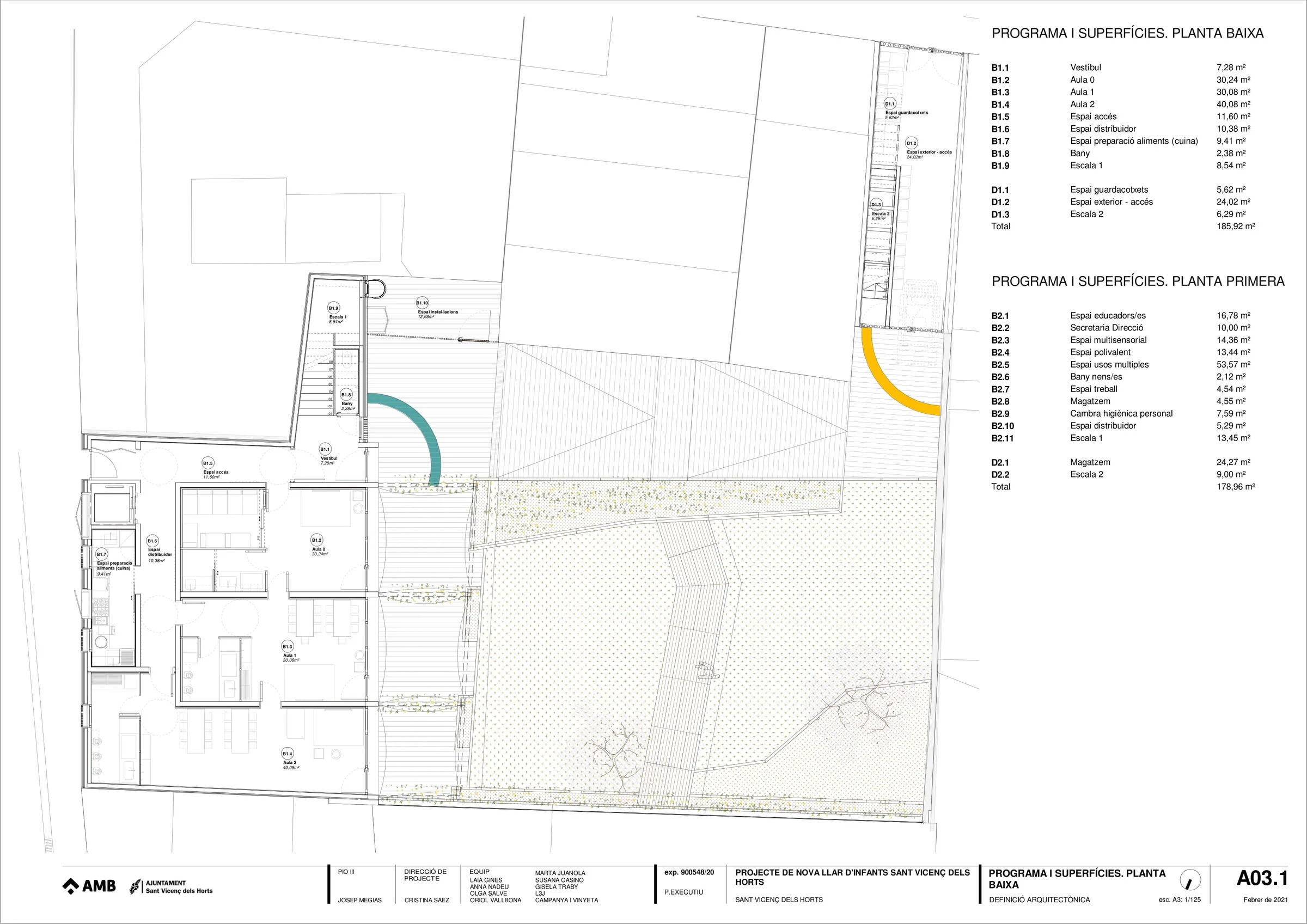

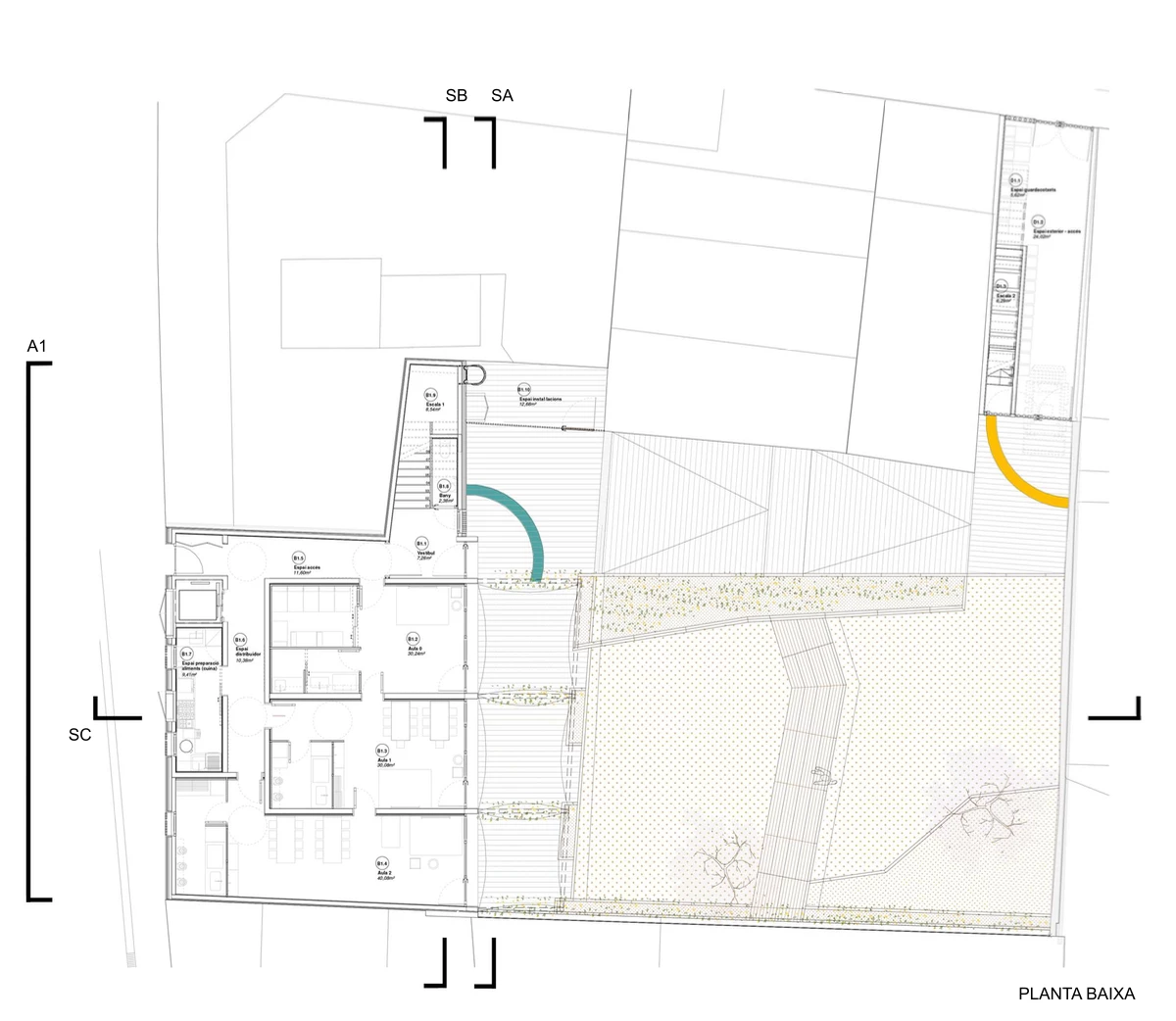

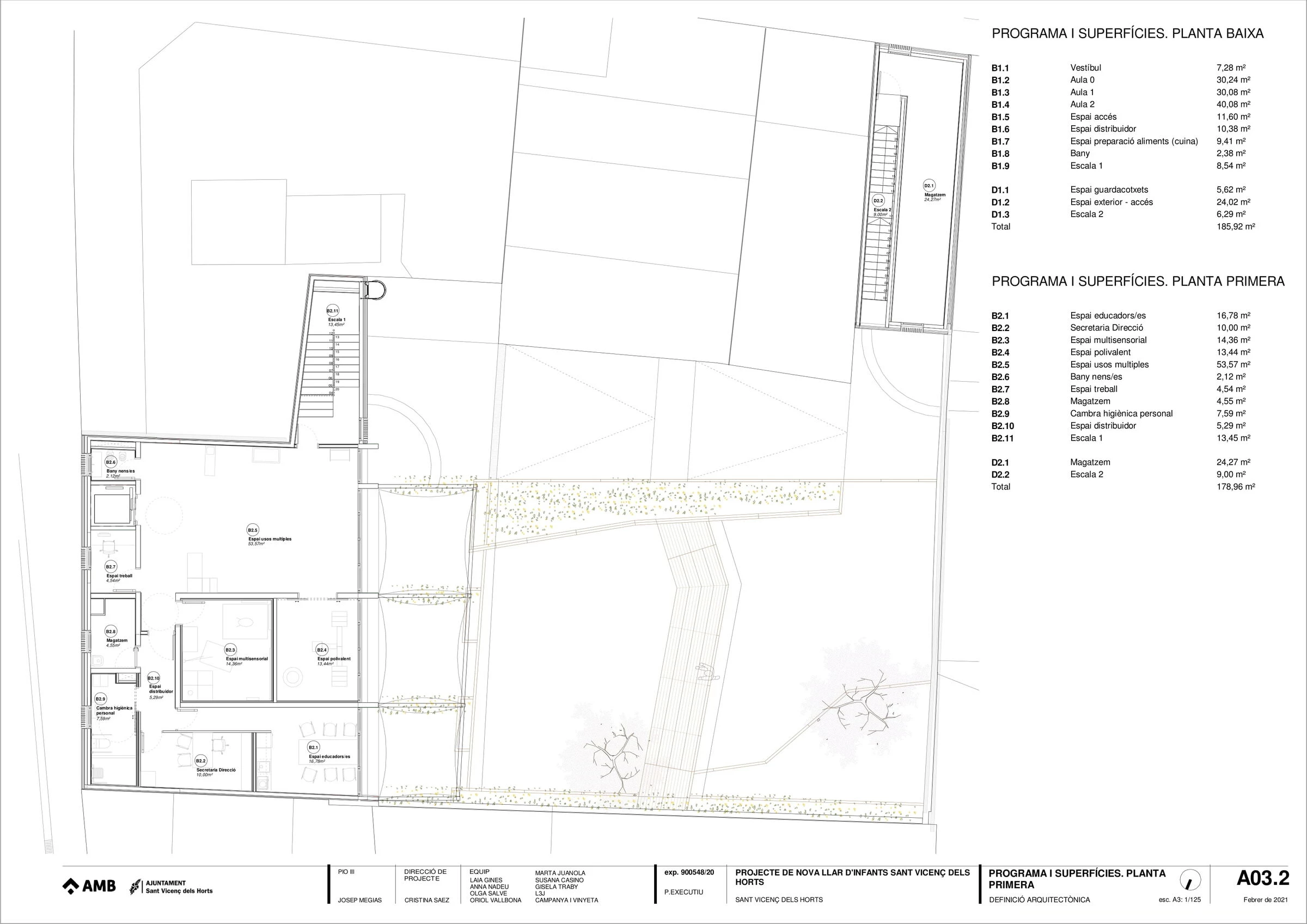

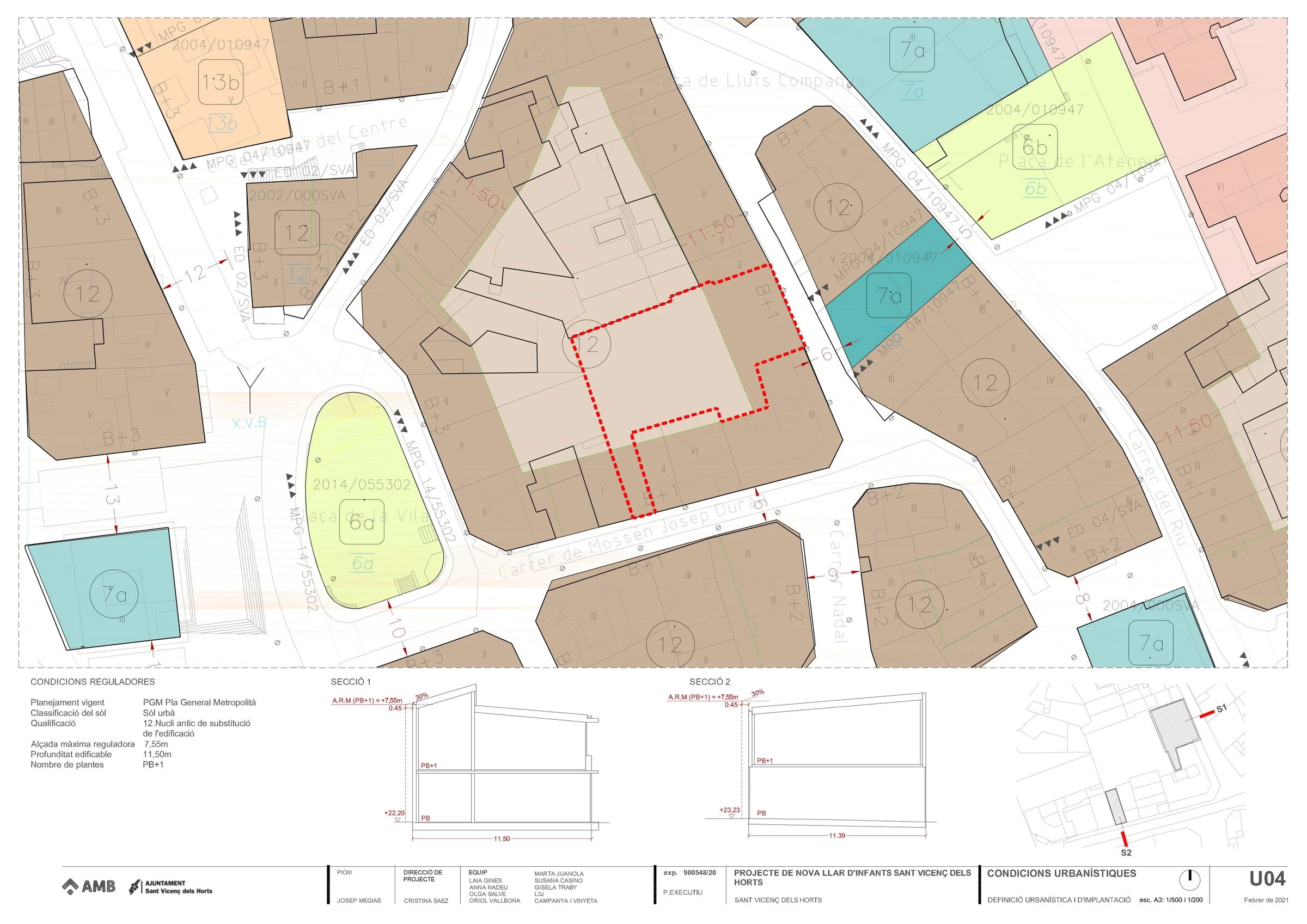

Following the urban planning guidelines of the plot, the project consists of two distinct buildings, with ground and first floors, covering a constructed area of 460m² and a playground of 420m². The main building features three classrooms (one per age group), a kitchen space, a multipurpose room, a multifunctional room, bathrooms, administration and management offices, as well as a multisensory room. The latter is designed as a space for children with disabilities, allowing them to interact with the environment through sensory stimulation. The secondary building consists of the entrance porch and the main storage space on the first floor.

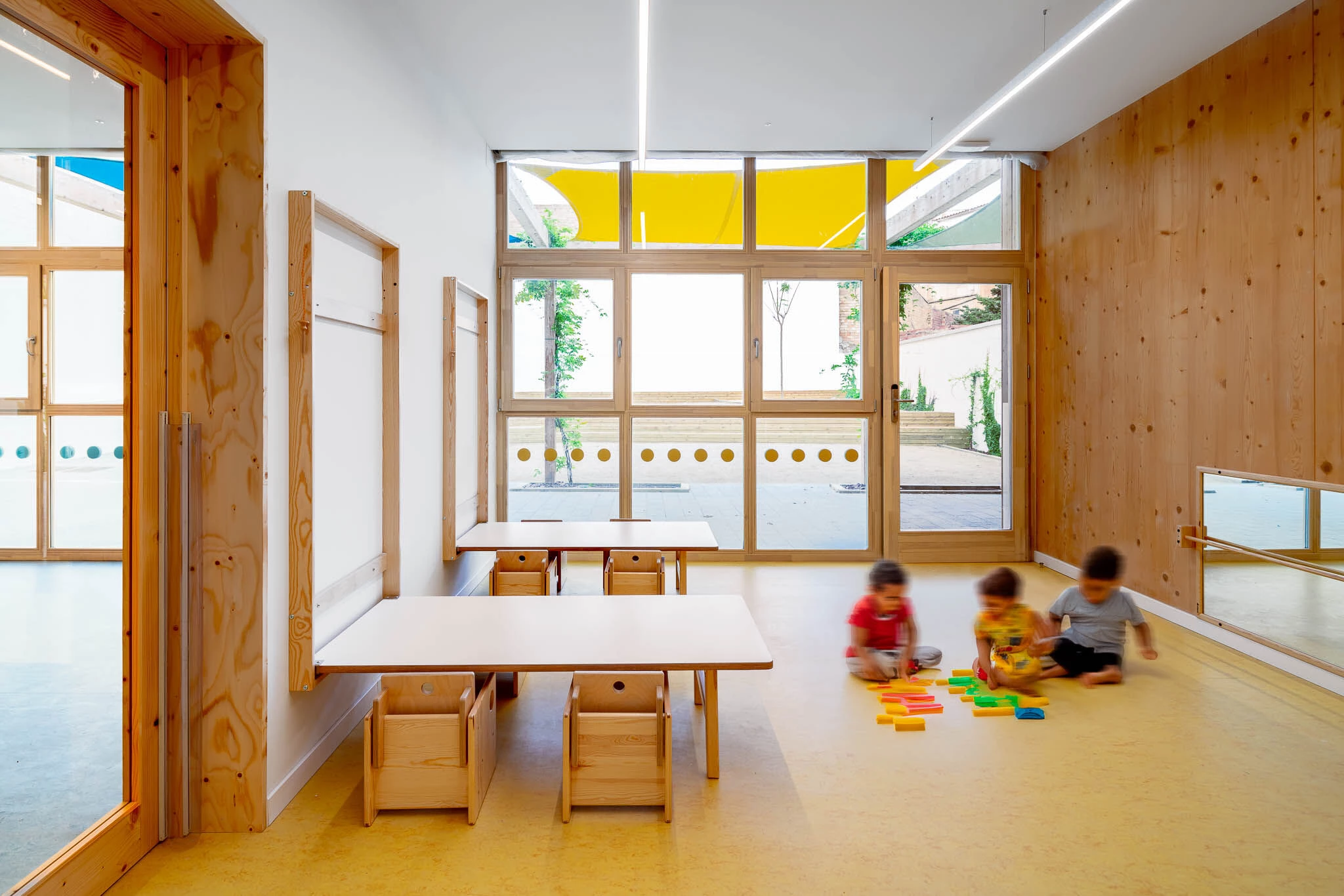

This facility is built with cross-laminated timber (CLT) panels, a system that reduces the carbon footprint compared to conventional systems. Due to its increasing industrialization, it also improves construction quality and reduces the building's construction time. The predominantly wooden structure enhances the building's haptic qualities (temperature, texture, smell, and hydrothermal performance).

The building has heat transfer coefficients well below the average for A-rated energy buildings, resulting in low annual energy consumption. It generates renewable energy through photovoltaic panels and features passive regulation systems, such as cross ventilation and natural light in all spaces. A home automation control system monitors consumption, and a circadian lighting system replicates the tones and intensity of natural light, synchronized with the children's biological rhythms.

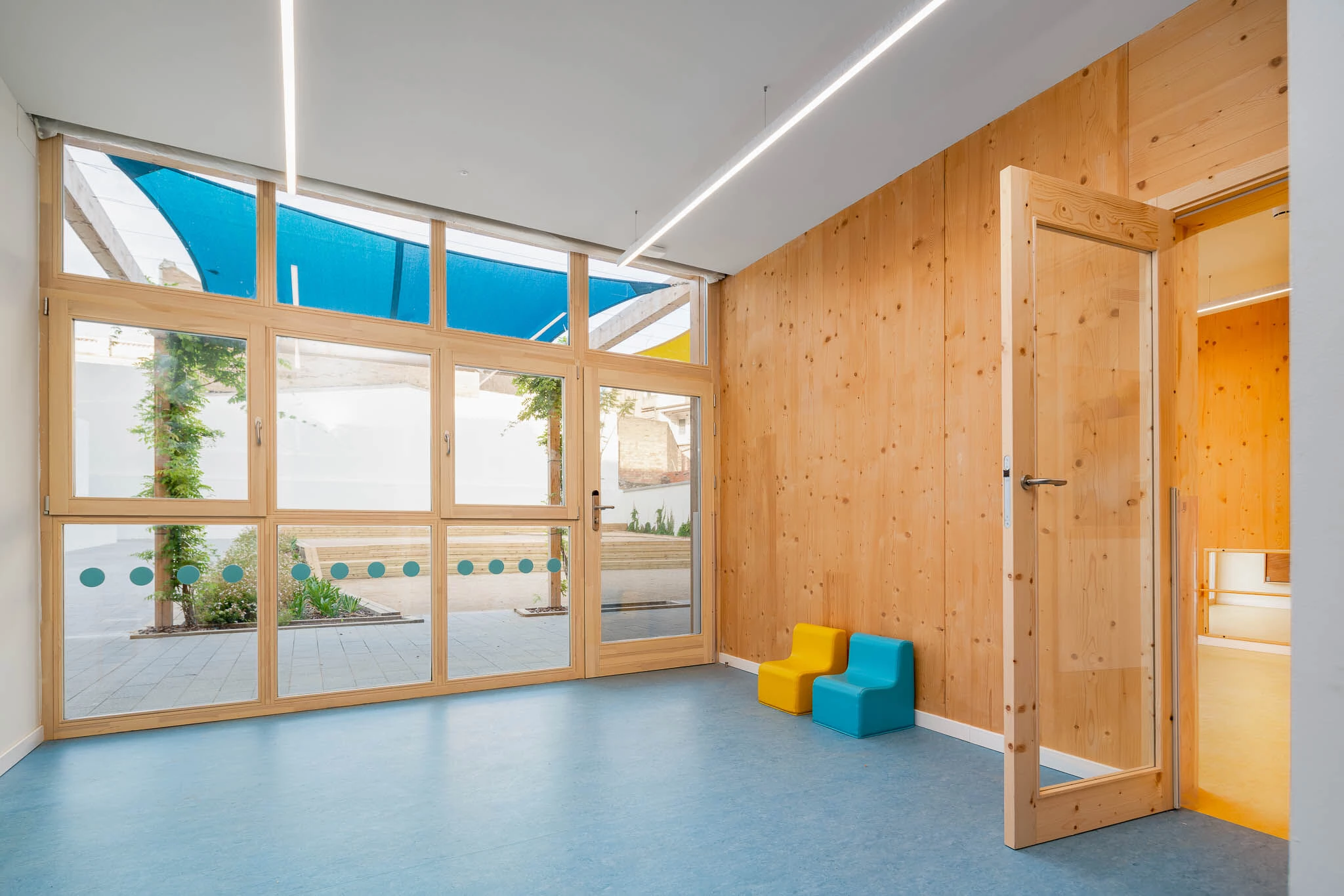

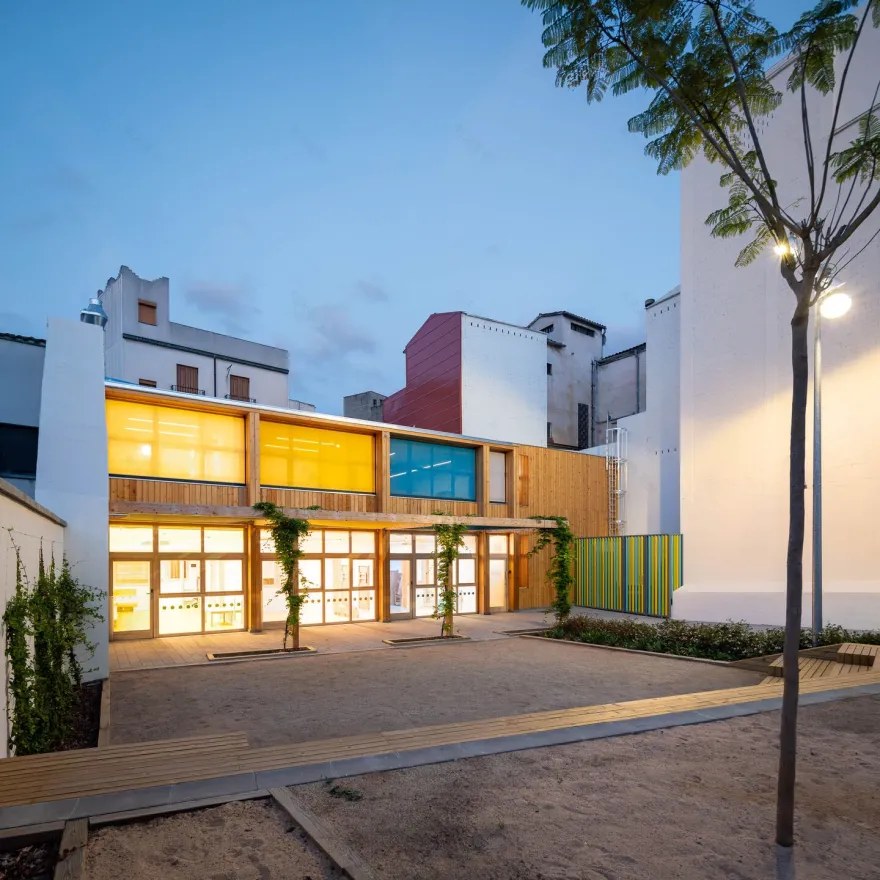

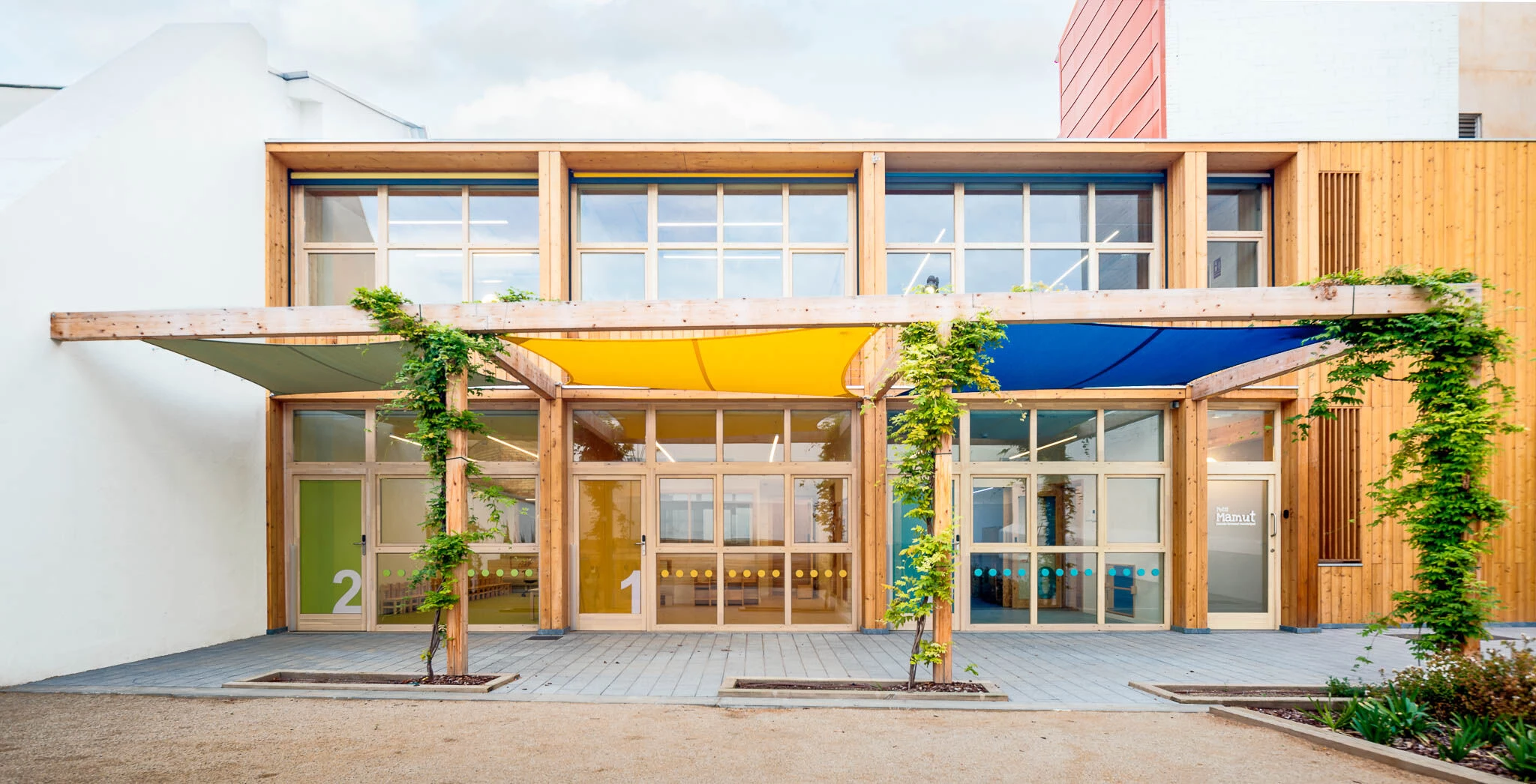

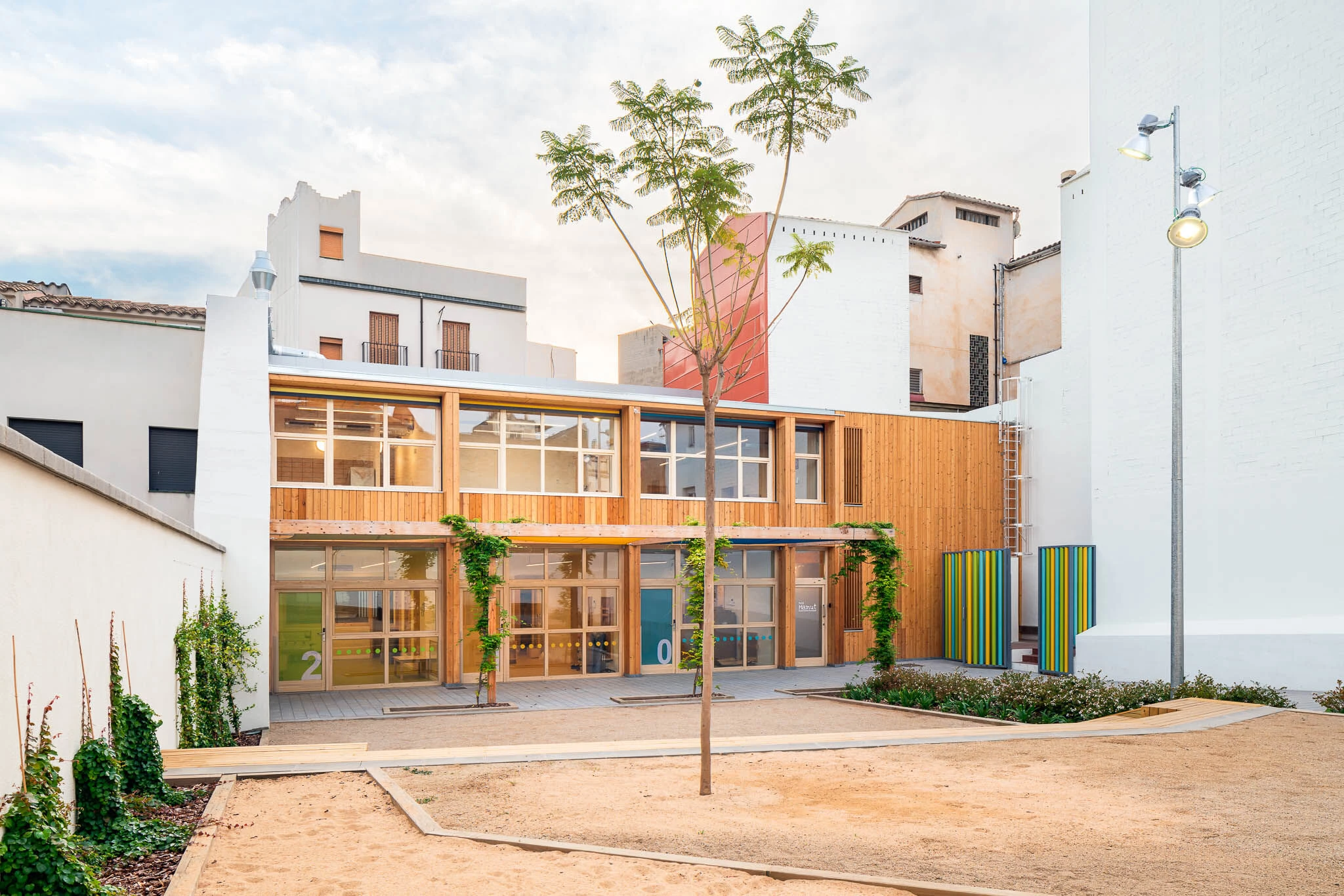

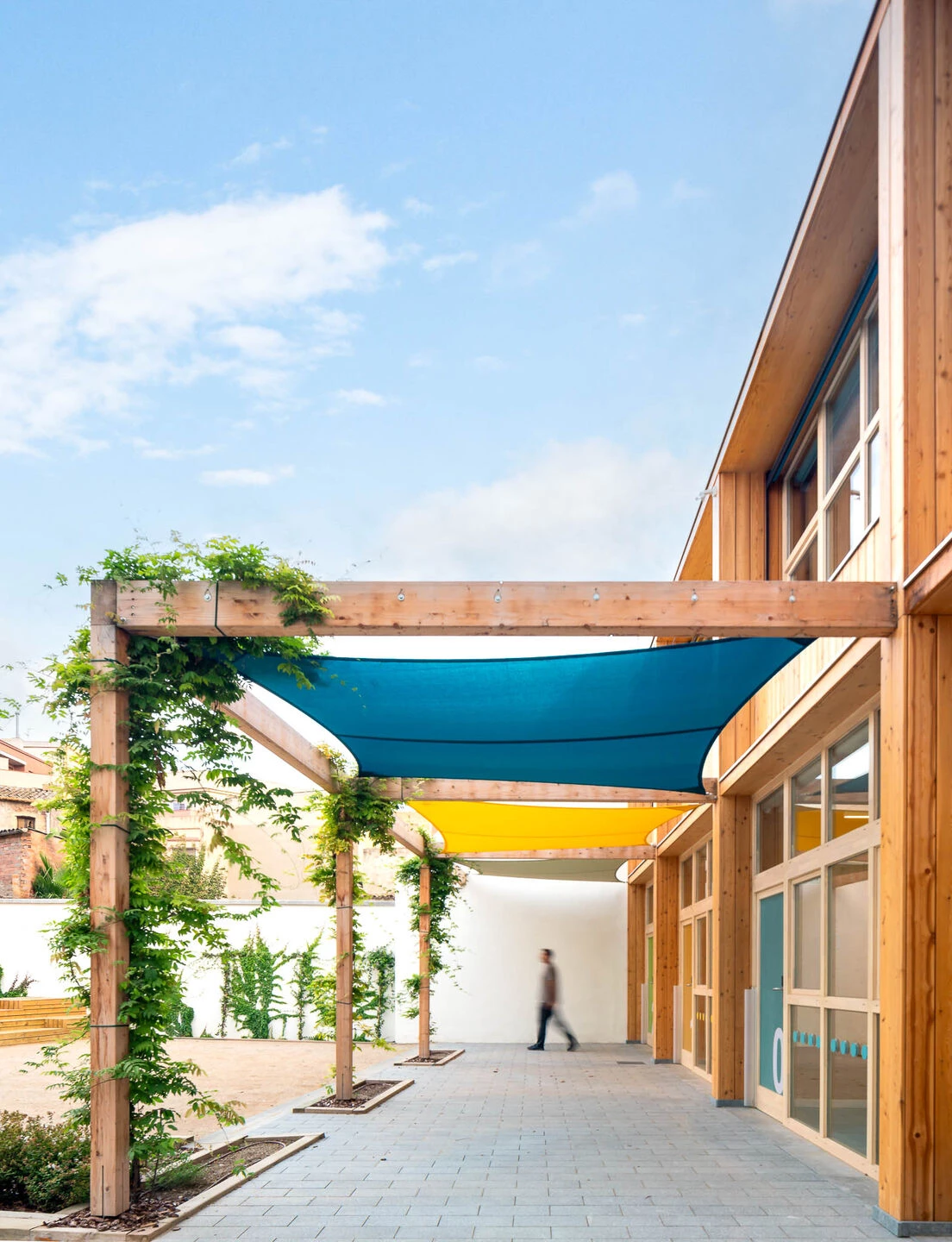

The classrooms are directly connected to the playground to encourage outdoor interaction. In front of the classrooms is a porch area with deciduous vegetation and non-permanent awnings that provide solar protection according to the seasonal needs.

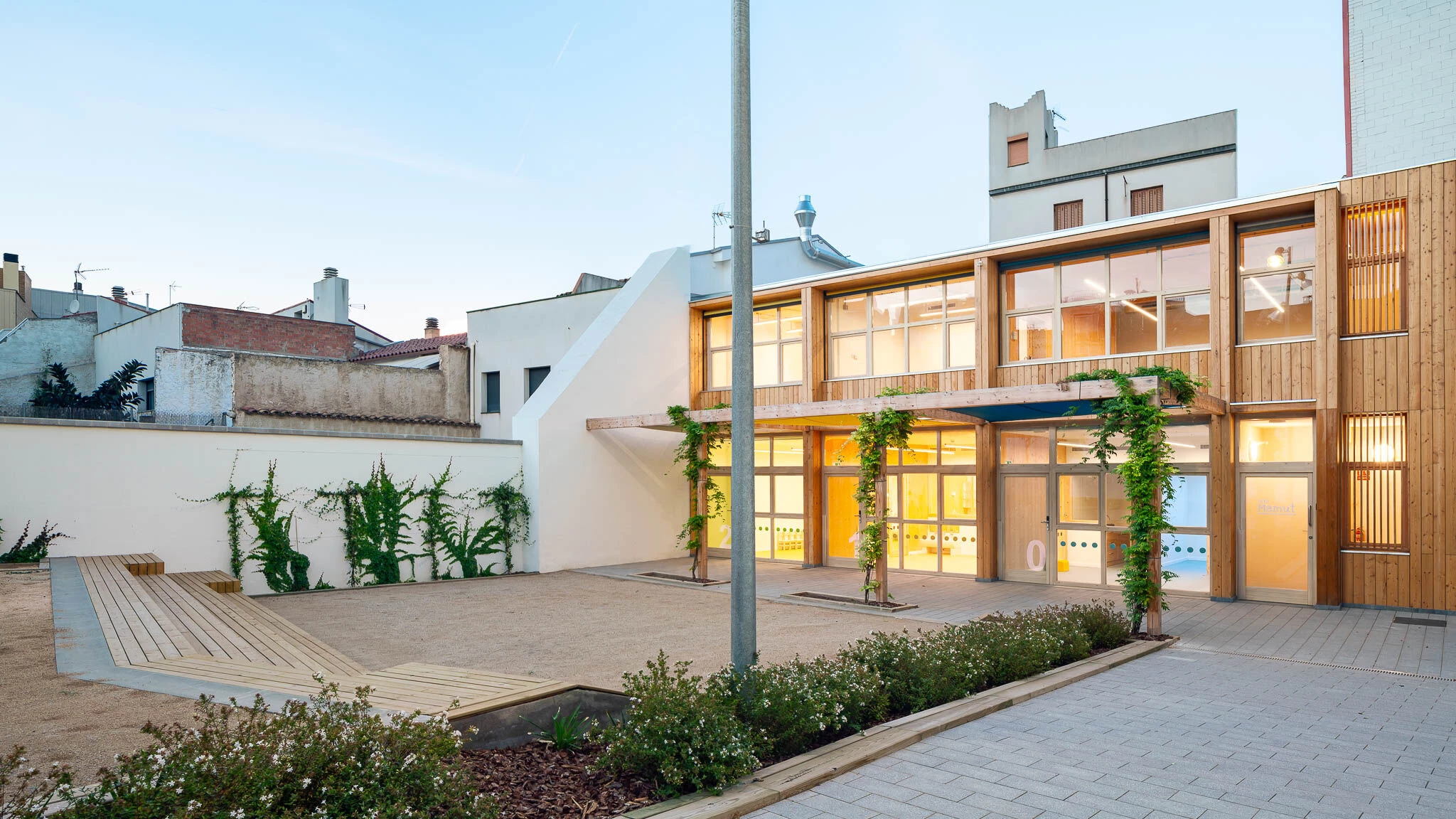

To create a pleasant and peaceful playground, the party walls of neighbouring buildings have been modified, with some transformed into green walls.

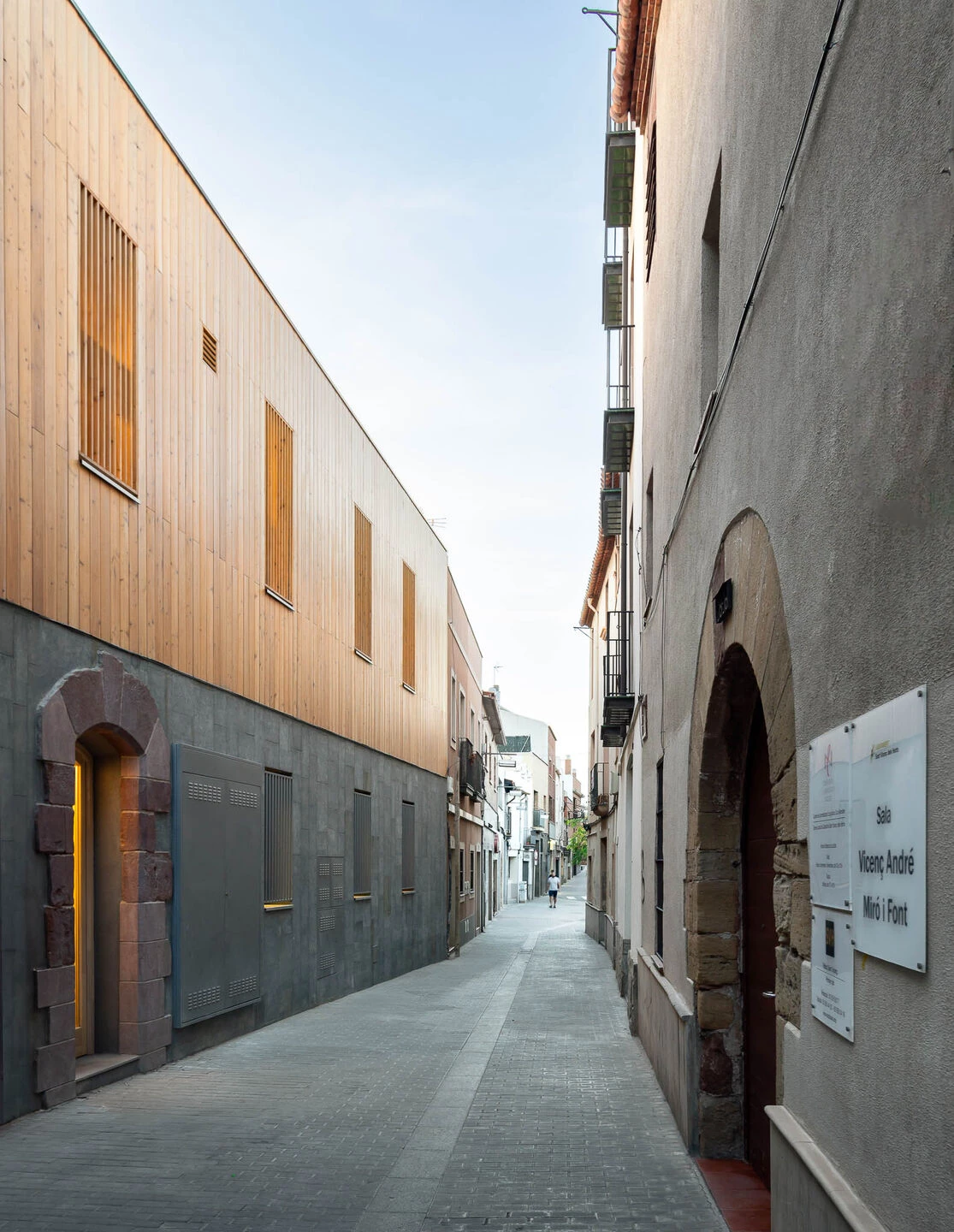

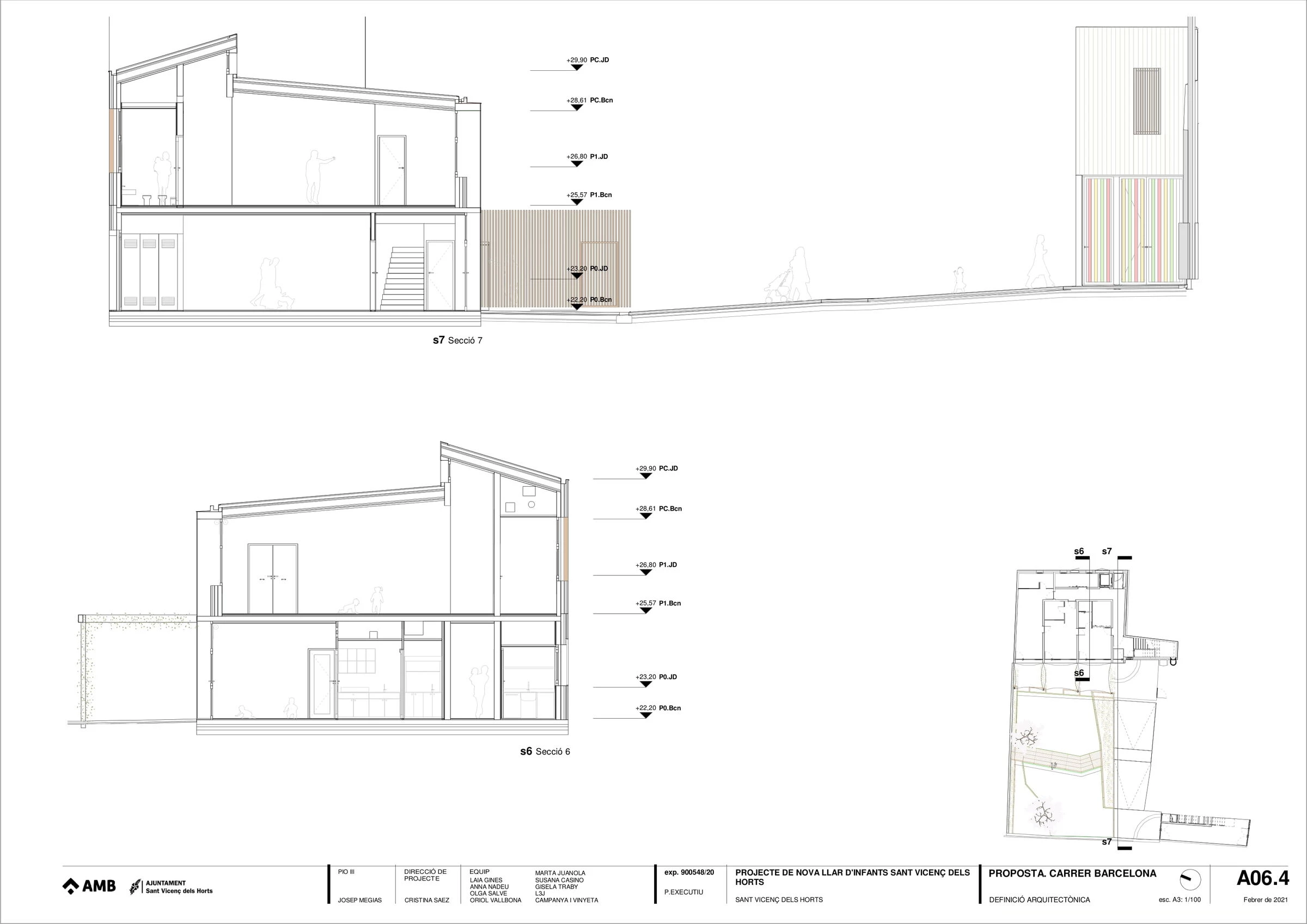

The façade facing Barcelona Street includes a secondary entrance where the original red stone —characteristic of Sant Vicenç— arch from Ca la Manela, the house that used to be on the site where the school was built, has been restored and relocated.

Team:

Architects: AMB Cristina Sáez

Construction: Constructora y Rehabilitadora Secla,S.A.; Carles Campanyà

Structural Calculations: Campanyà i Vinyeta Serveis d’arquitectura SLP

Design Team:

AMB Cristina Sáez, arquitecta directora

AMB Marta Iglesias, arquitecta técnica

AMB Marta Juanola, arquitecta técnica

AMB Laia Ginés, arquitecta

AMB Anna Nadeu, arquitecta

AMB Gisela Traby, ingeniera mecánica

AMB Jordi Bardolet, ingeniero agroambiental y del paisaje

Photographer: Simon Garcia

Materials Used:

Wooden structure: Velima

Wood facade: Reus Disseny

Exterior carpentry: Roi

Classroom flooring: Tarkett

Classroom furniture: Albera

Patio awnings: Toldos Taialà
