KUPURI 度假屋丨墨西哥

2024/07/12 10:16:07

查看完整案例

微信扫一扫

下载

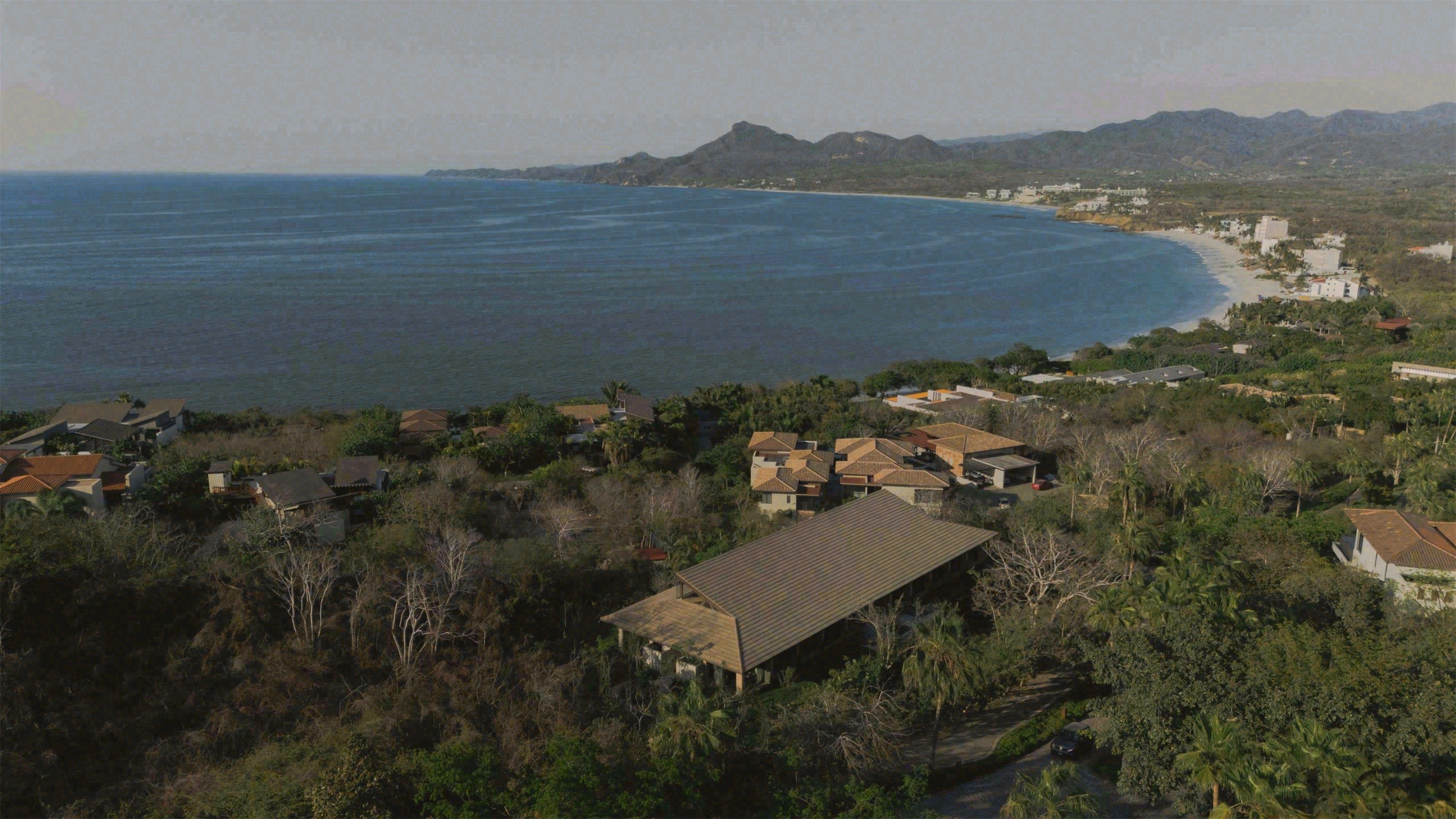

Módica Ledezma：Kupuri 是位于墨西哥纳亚里特州蓬塔米塔的一个接待性独栋住宅项目，由 Módica Ledezma 事务所与 Central de Arquitectura 合作设计。建筑位于太平洋沿岸较高的景观地带，拥有绝佳的观景视野。

Módica Ledezma：Kupuri is a hospitality single-family housing project located in Punta Mita, Nayarit (Mexico), designed by the Módica Ledezma office in collaboration with Central de Arquitectura on land in the third line of view of the Pacific, offering great viewing opportunities.

▽项目视频 video

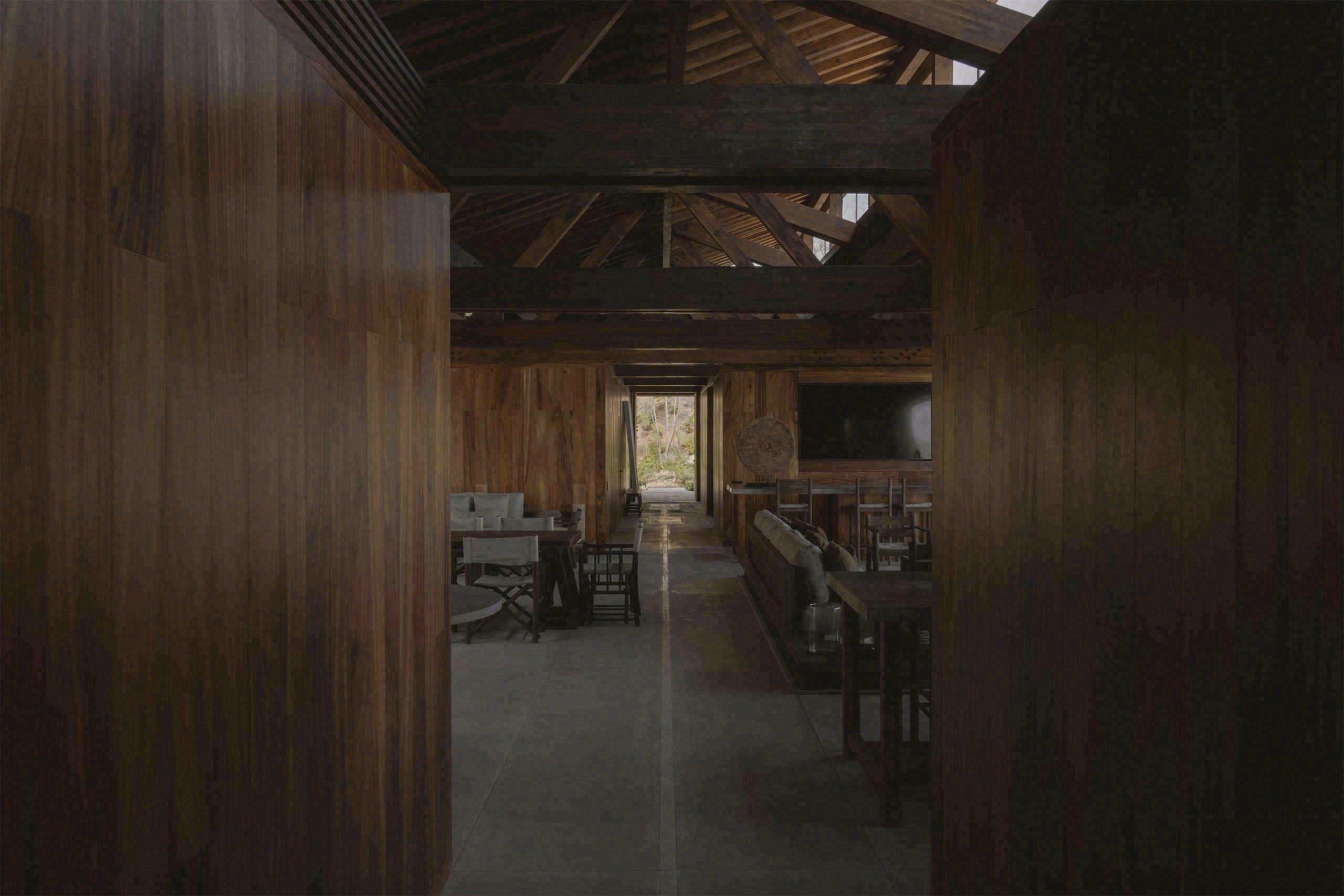

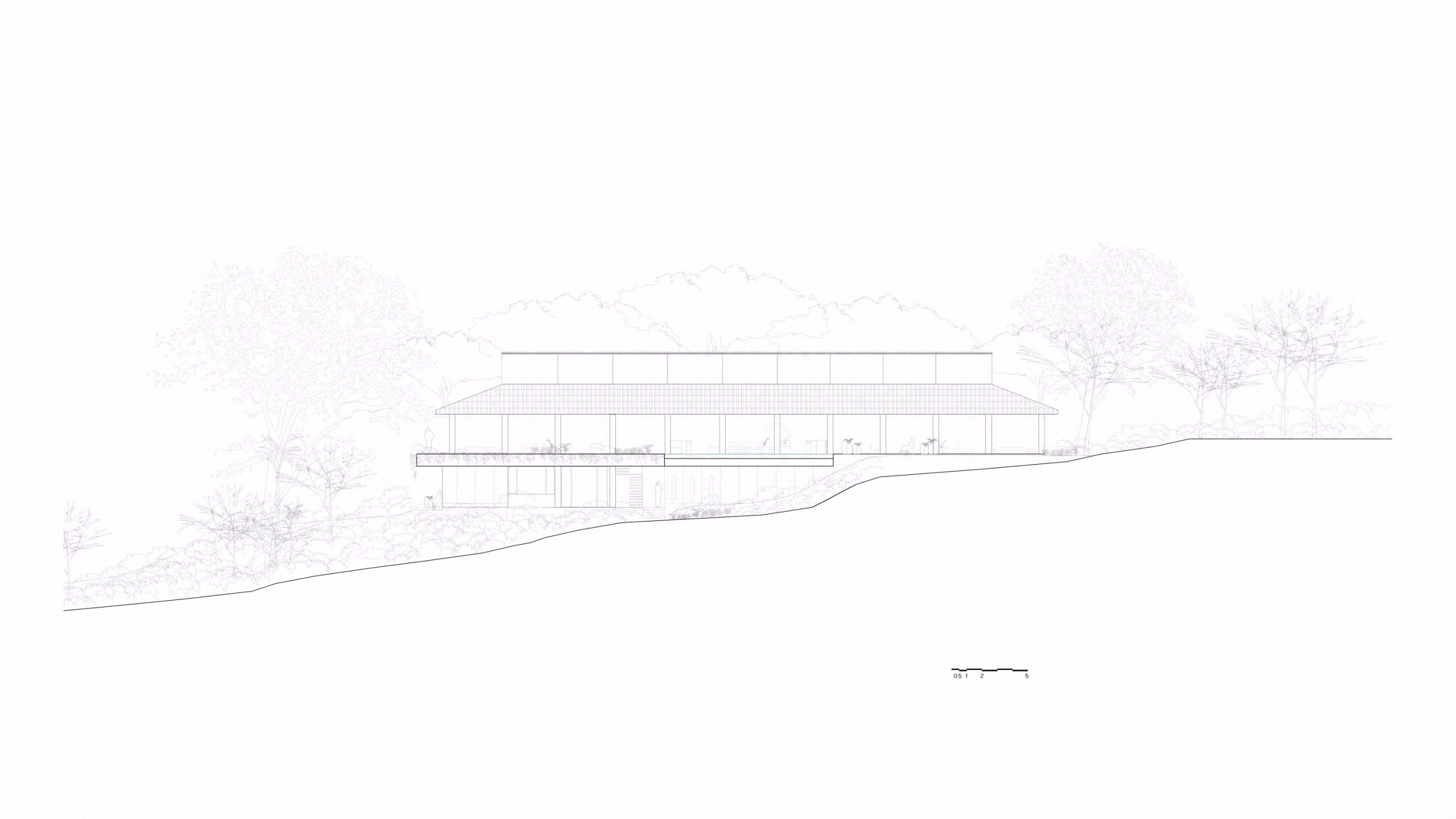

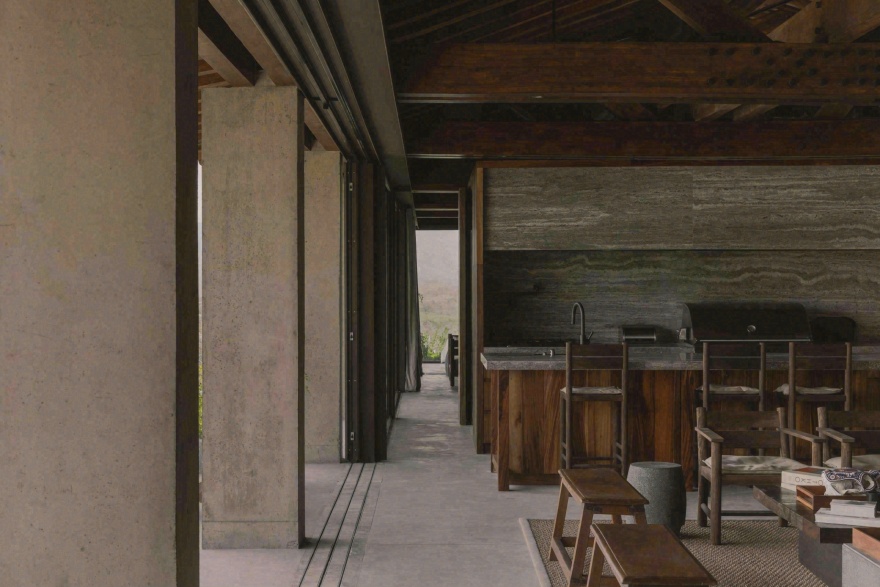

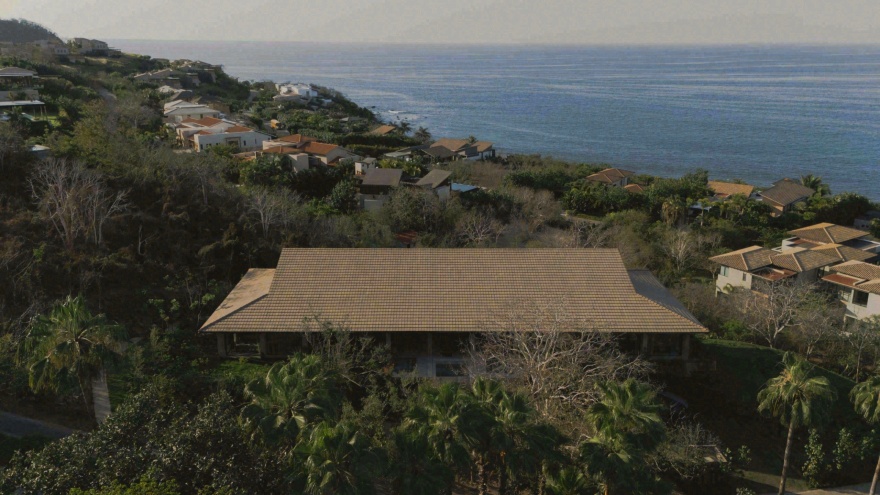

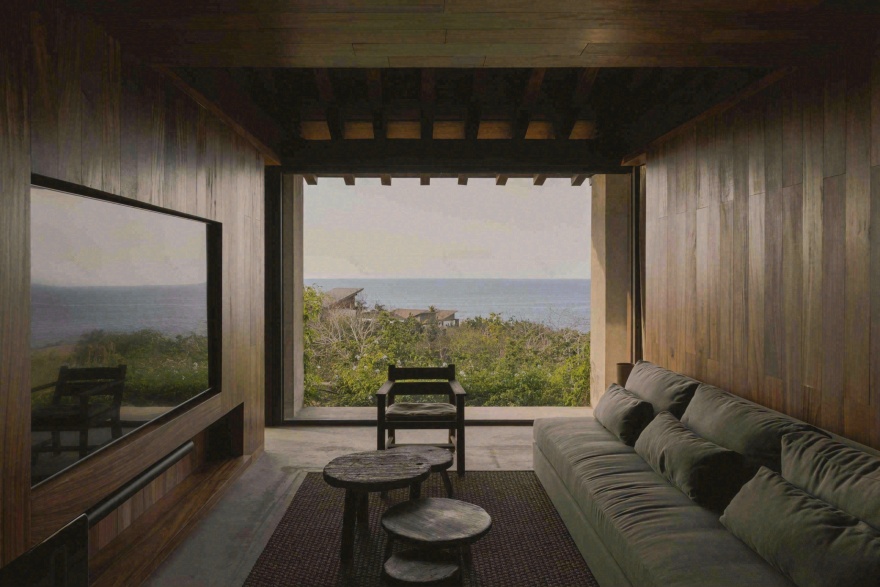

为充分利用四周的景观，房屋斜对着海湾布置，有着明确的结构语言：一个包容的混凝土基础。建筑体量只占据了一半的空间，其余为下降的地形和填充物。四周的混凝土底座支撑着木质屋顶；在室内，空间隔断是充当墙壁的家具。房屋的主要构思是一个可居住的地下房间，有混凝土间隔和周边结构，该结构使用混凝土和木材加固物，支撑着覆盖瓦片的屋顶。

The house is located diagonally towards the bay, a premise based on taking advantage of the views. It has an unambiguous structural language: a concrete base that generates containment. The volume of the architectural program occupies only half of the space; the rest is descending terrain and fill. A perimeter concrete plinth supports a wooden roof. Inside, dividers are pieces of furniture that act as walls. The main idea is a habitable basement with concrete spaces and a perimeter structure that supports a roof using concrete and wood reinforcements, covered with tiles.

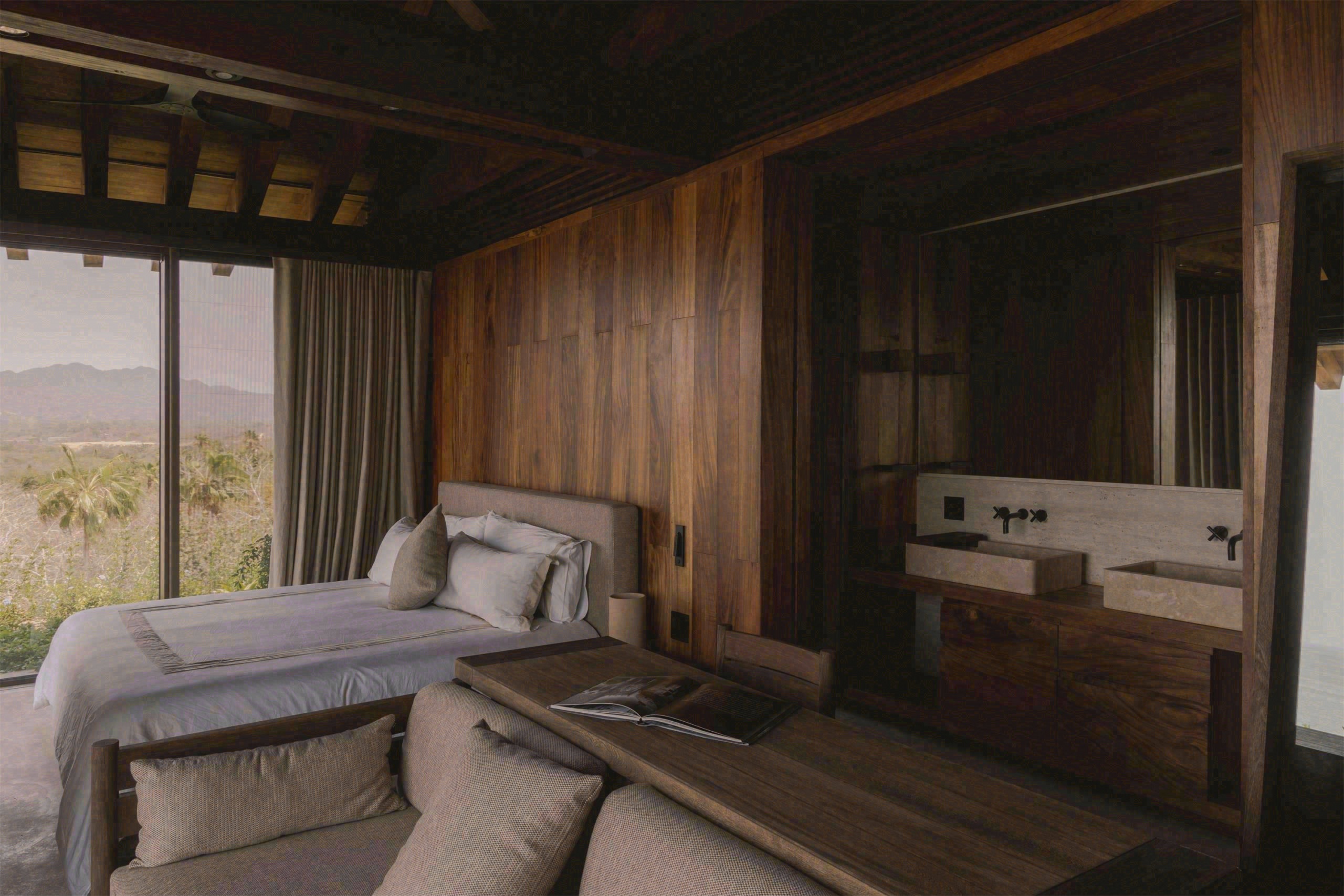

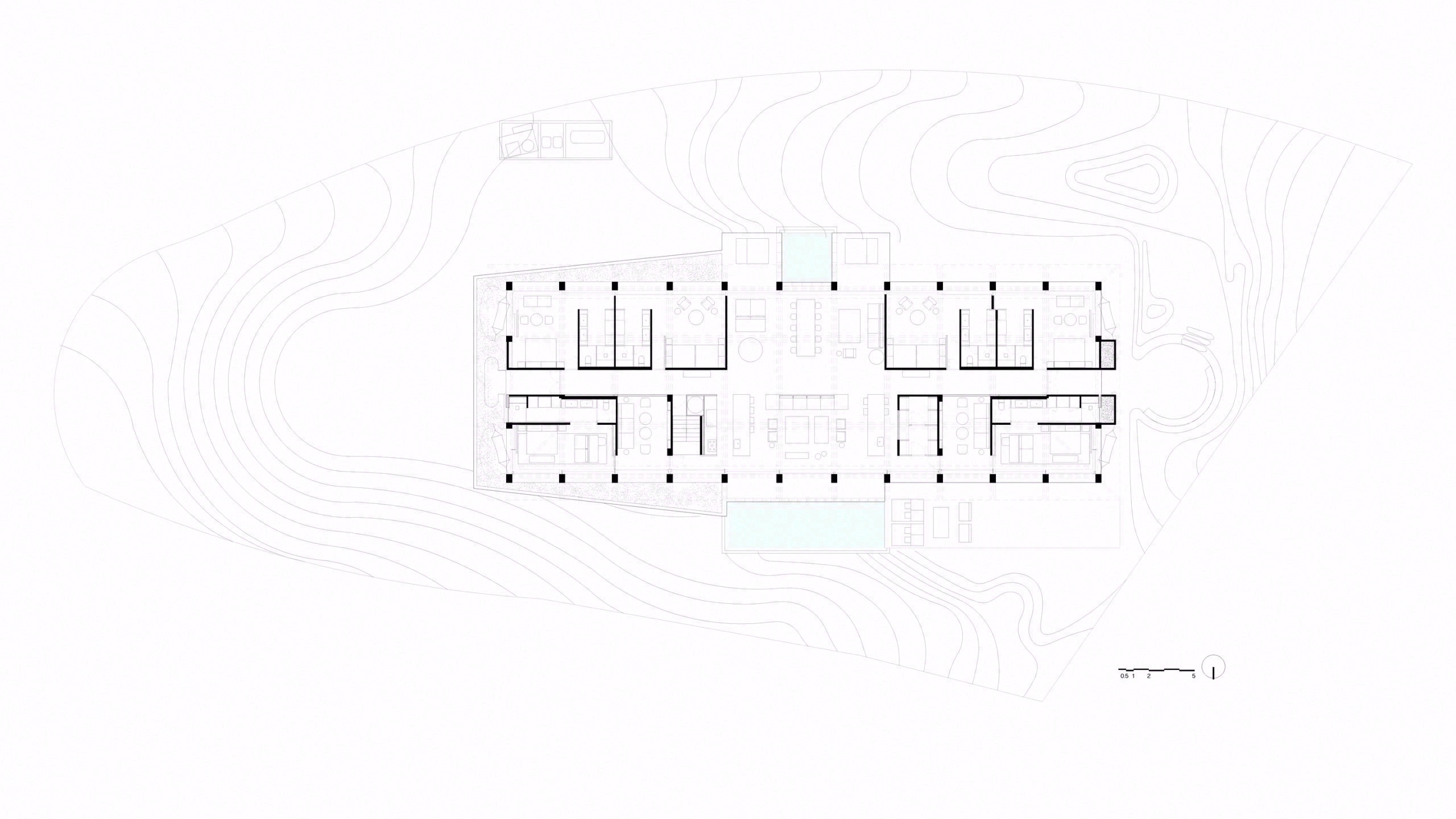

The architectural program was approached this way since it is a vacation development. It has two symmetrical poles of use, being a house for two families, with two main bedrooms in the corners. The idea is that two poles come together in a social area to share. Sea views were privileged for the bedrooms on one floor, while the others have views of the gardens.

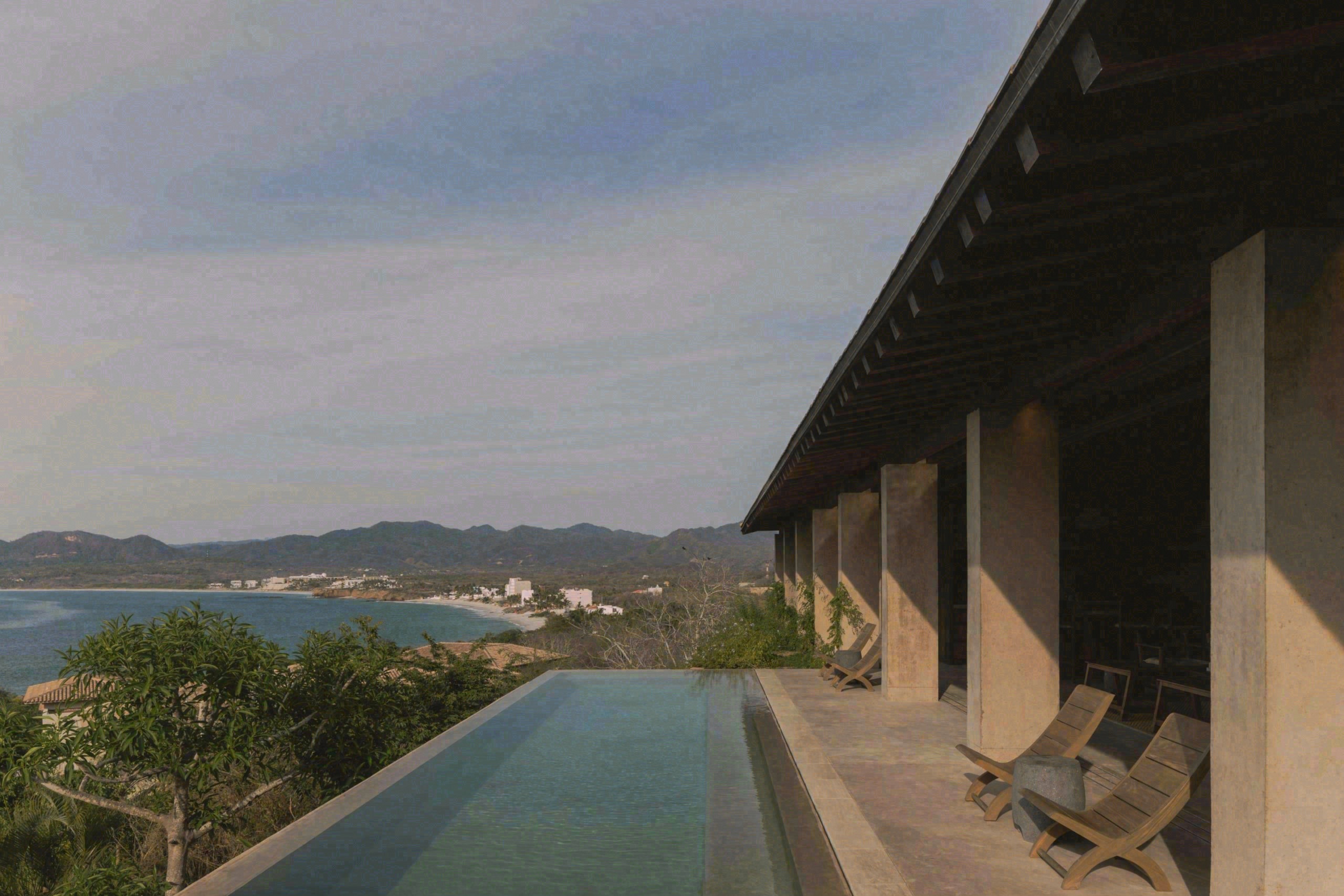

当在海滩附近设计水体时，降温是非常重要的考虑因素。于是，设计师决定建造两个泳池：一个斜着朝向花园，另一个则作为日光浴池，可欣赏太平洋的美景。

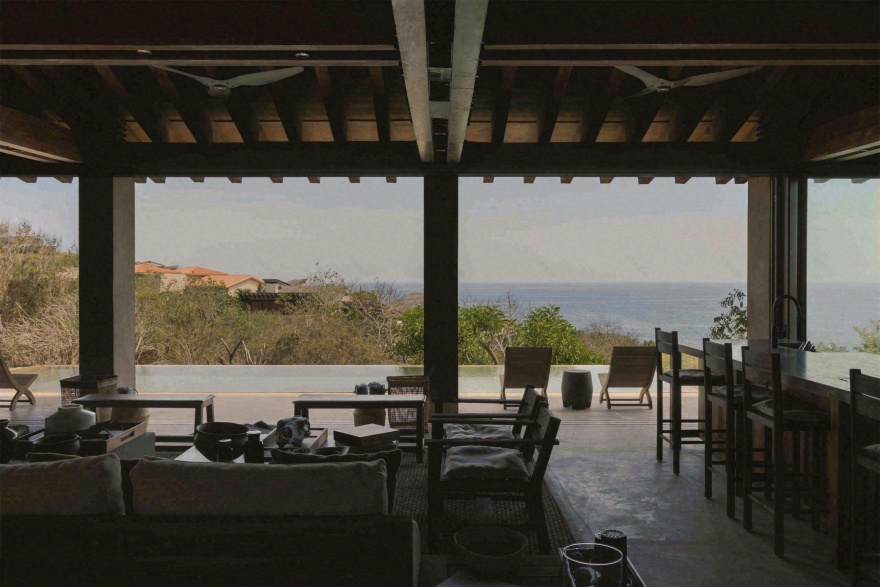

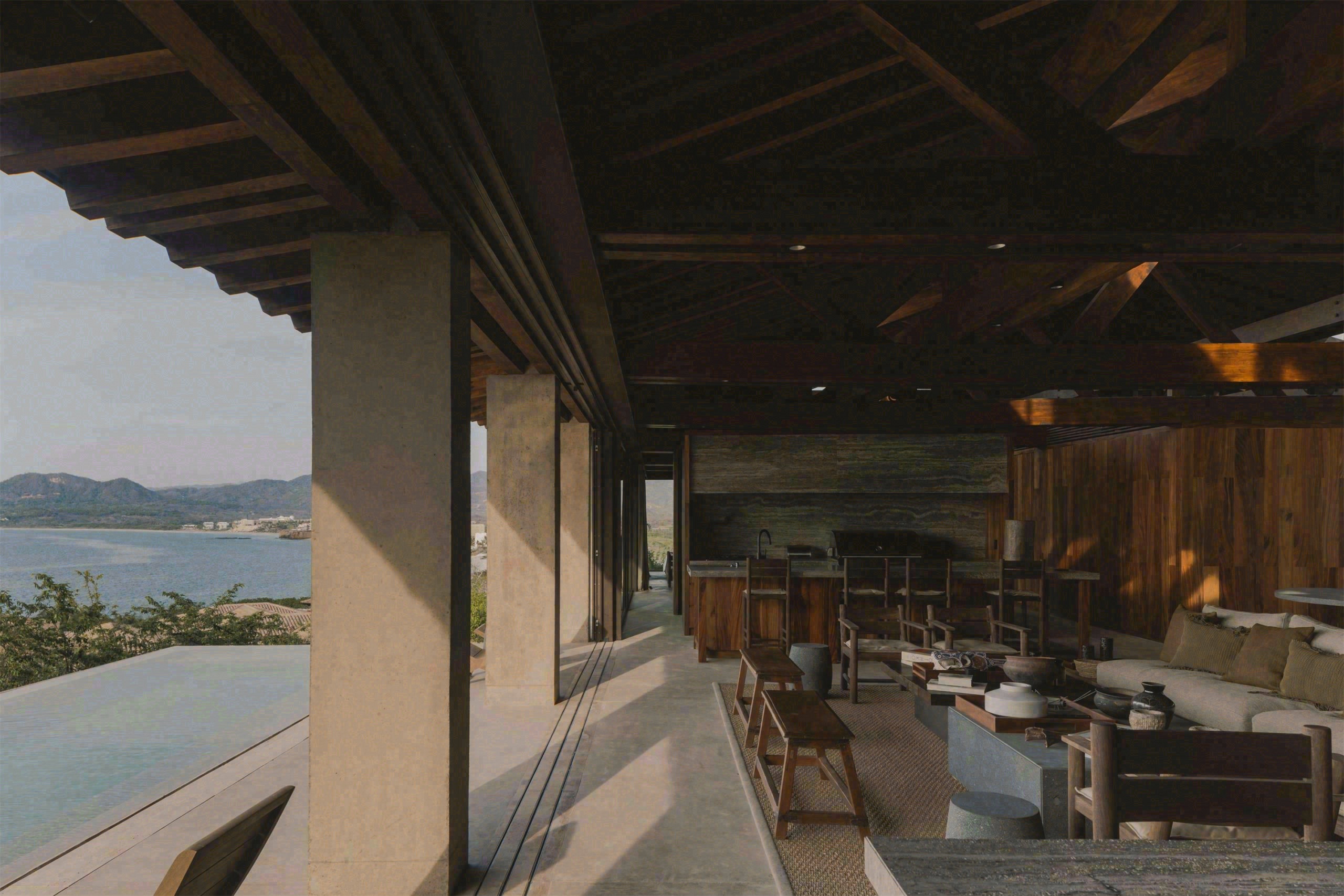

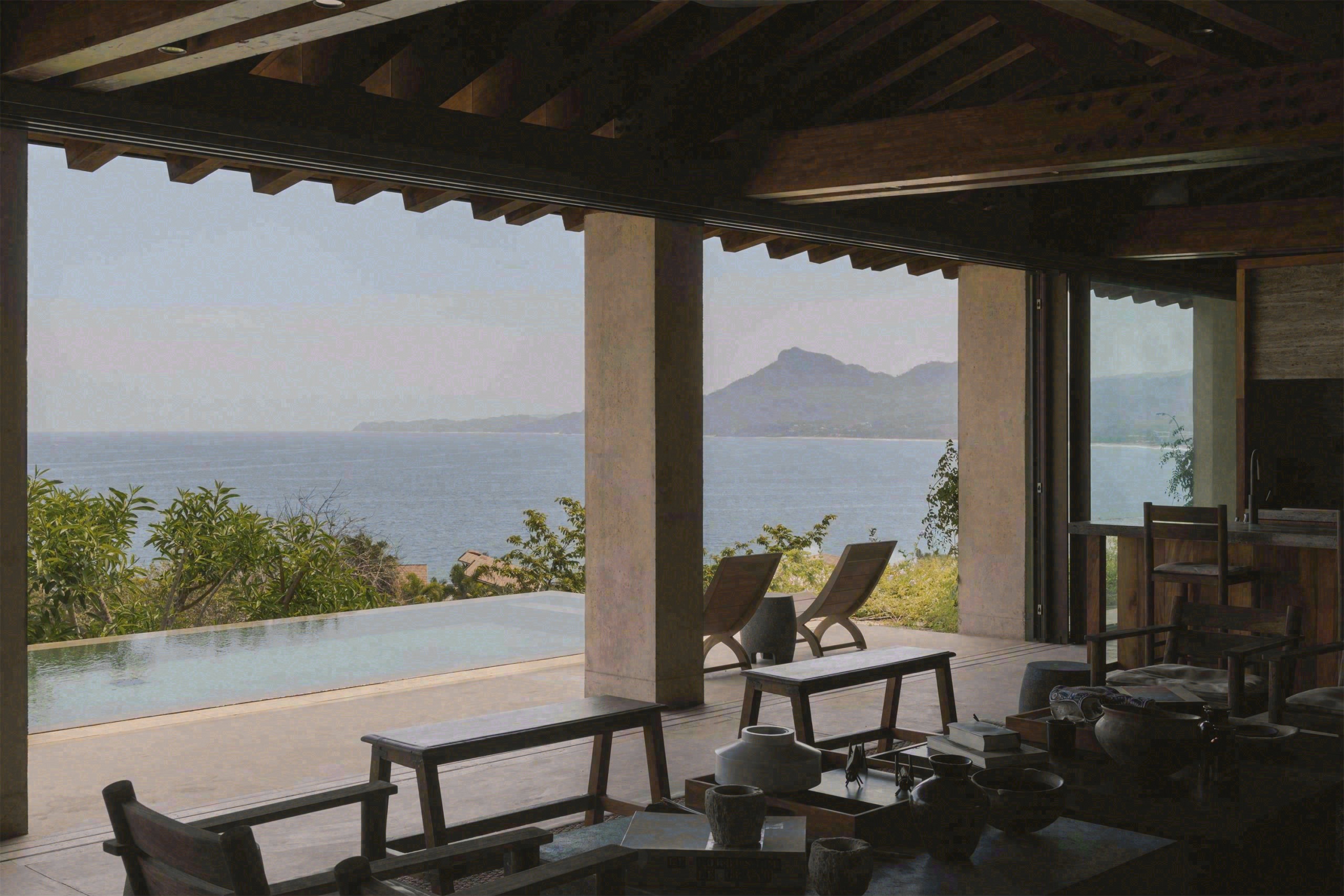

When making decisions about bodies of water at a beach location, it is very important to consider the need for cooling. It was decided to build two pools: one facing the gardens, located diagonally, and another that functions as a sundeck pool offering a scenic view of the Pacific.

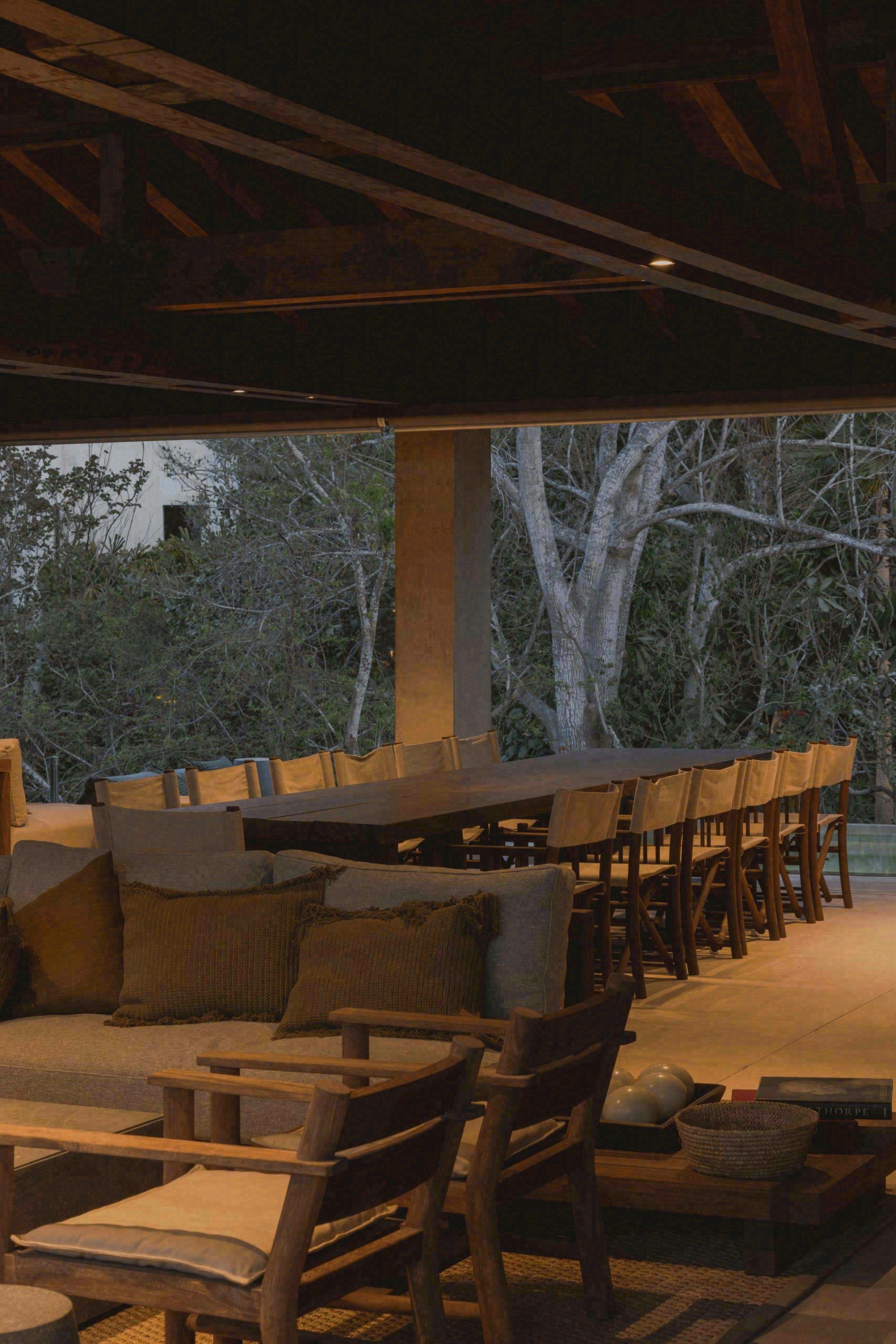

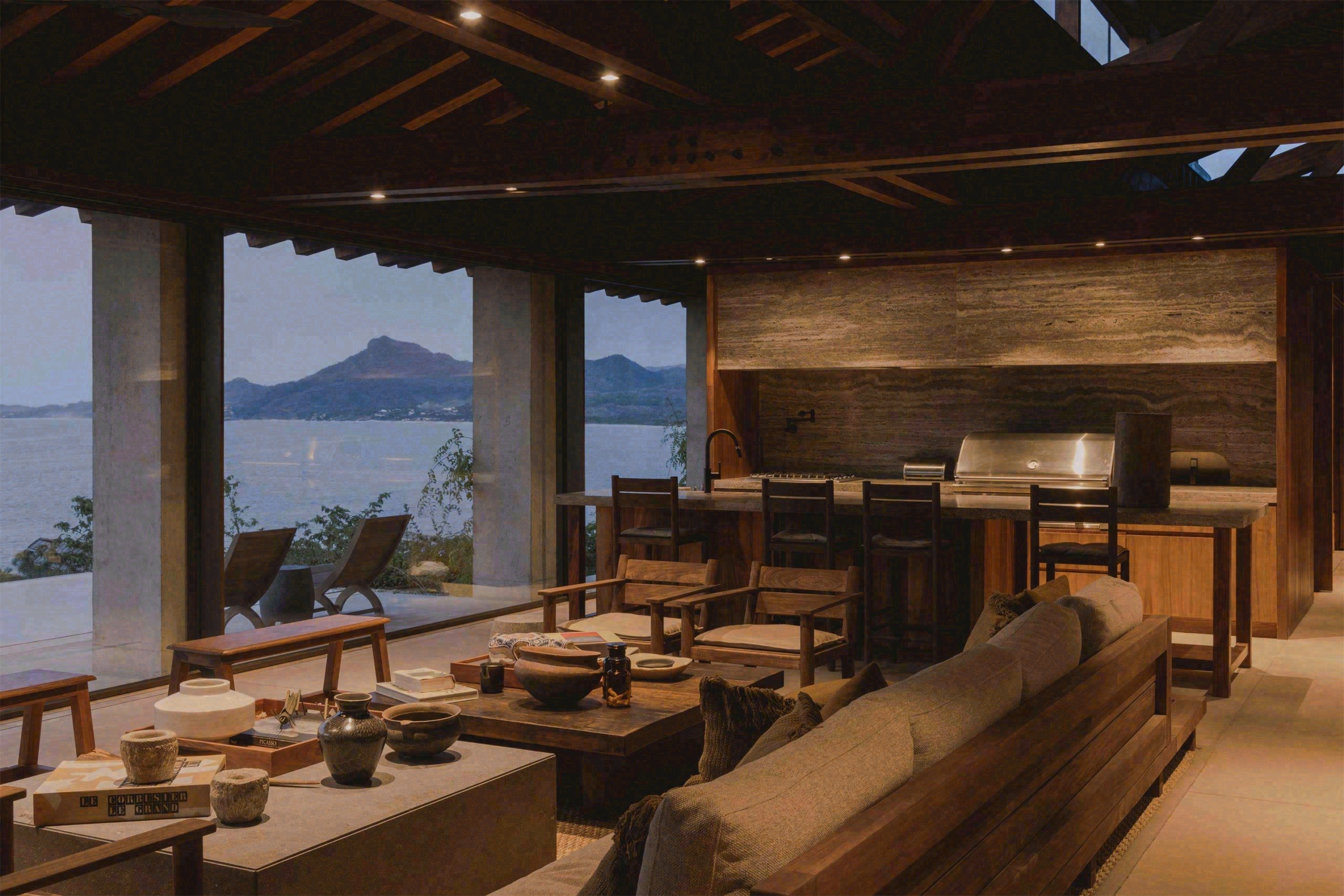

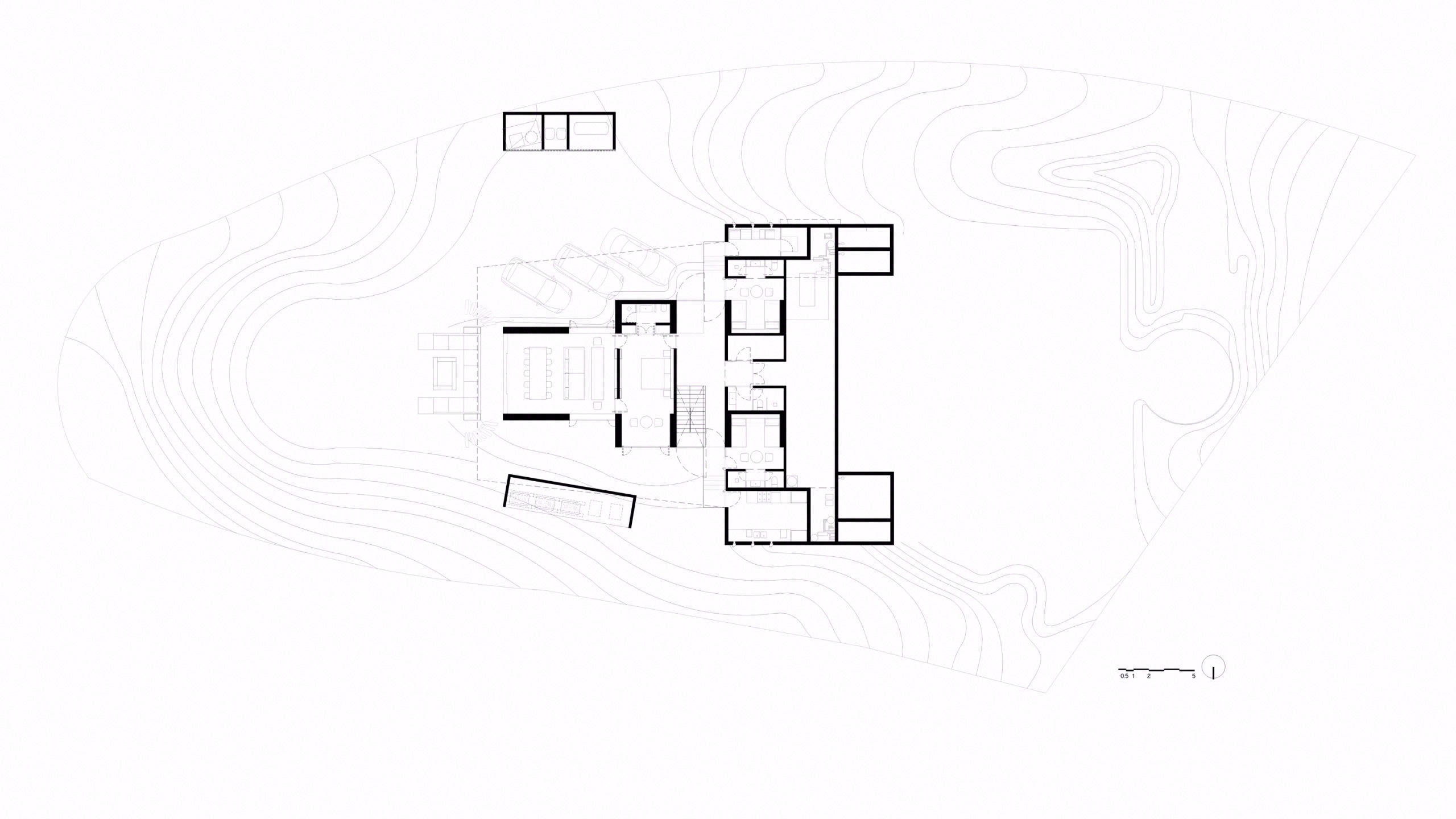

最终，形成了一个非常清晰的项目结构。由于房屋的开放部分没有暖气，设计的重中之重是要实现交叉循环通风。因此，无论是朝向地形、景观还是地平线的一面，都实现了视觉上的完美观感。混凝土结构的房屋内设有服务设施和客房或独立套房。在房屋的两侧之间，还有一个位于等高线内的与园林融为一体的房间。

The result is a project that is very clear in its quadrants. The most important thing was to achieve a cross circulation of winds since the open part of this plant is not heated. Thus, a visual finish is achieved both towards the topography and gardening and towards the horizon. The concrete volume houses the services and a type of guest house or independent apartment. Between the legs of the house, there is an apartment that is integrated with gardening, since it is within the contour line.

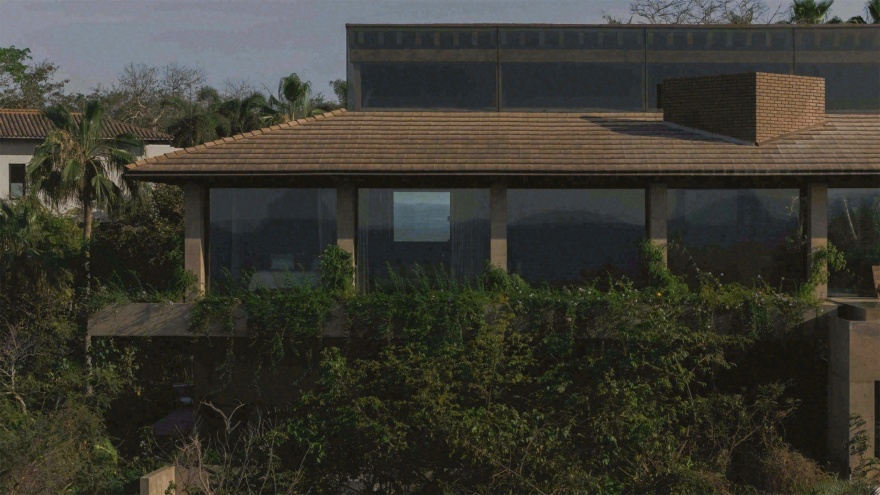

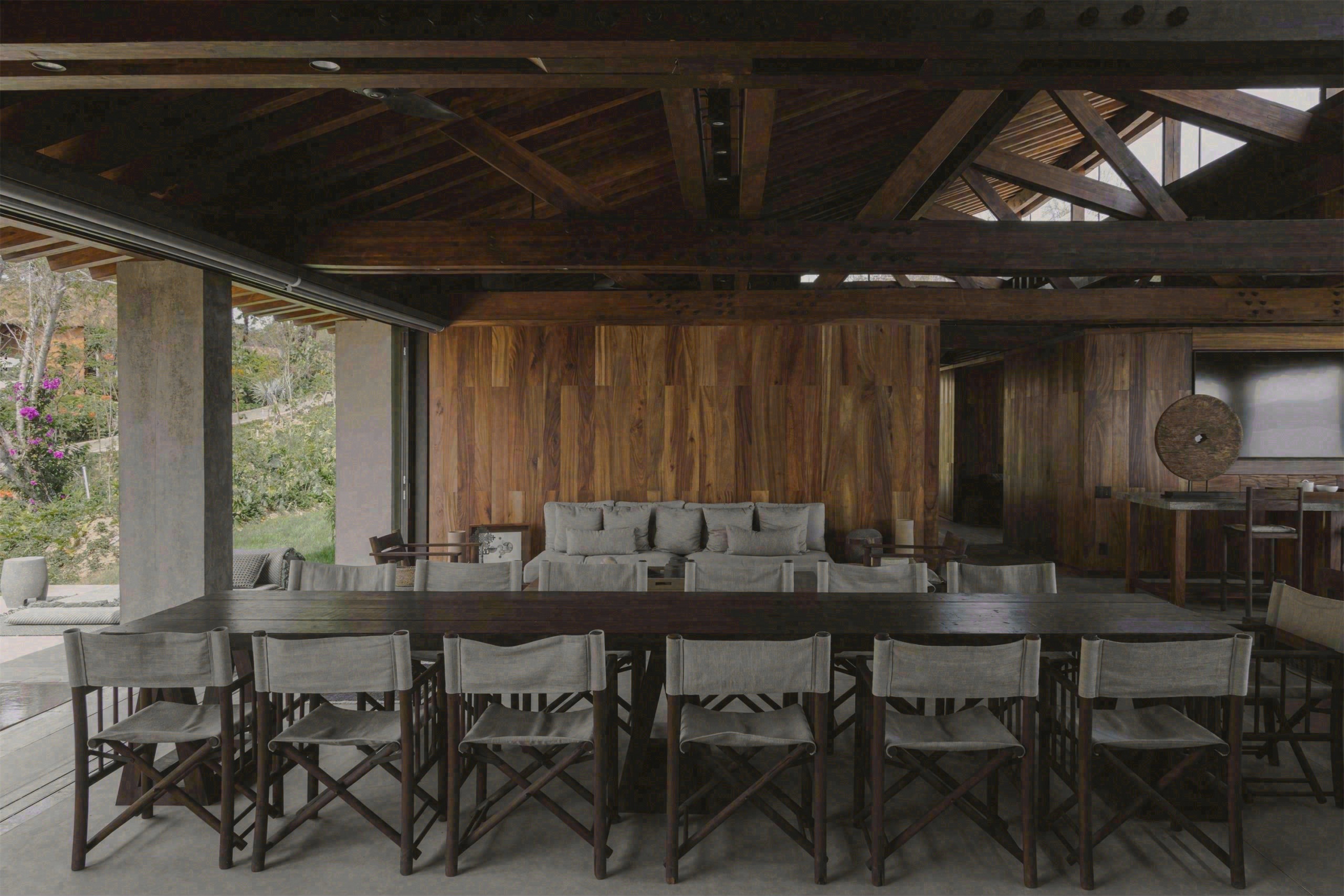

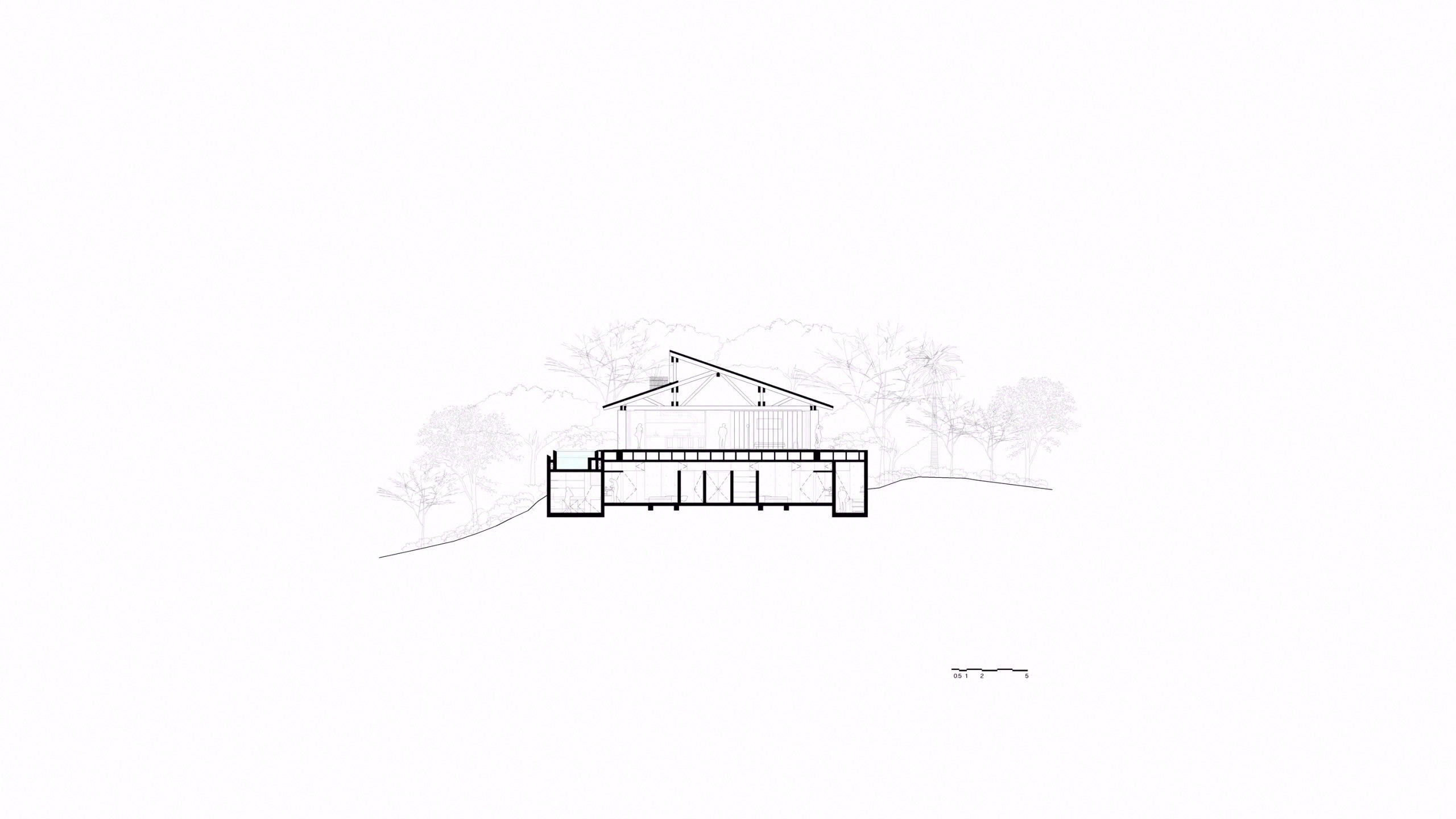

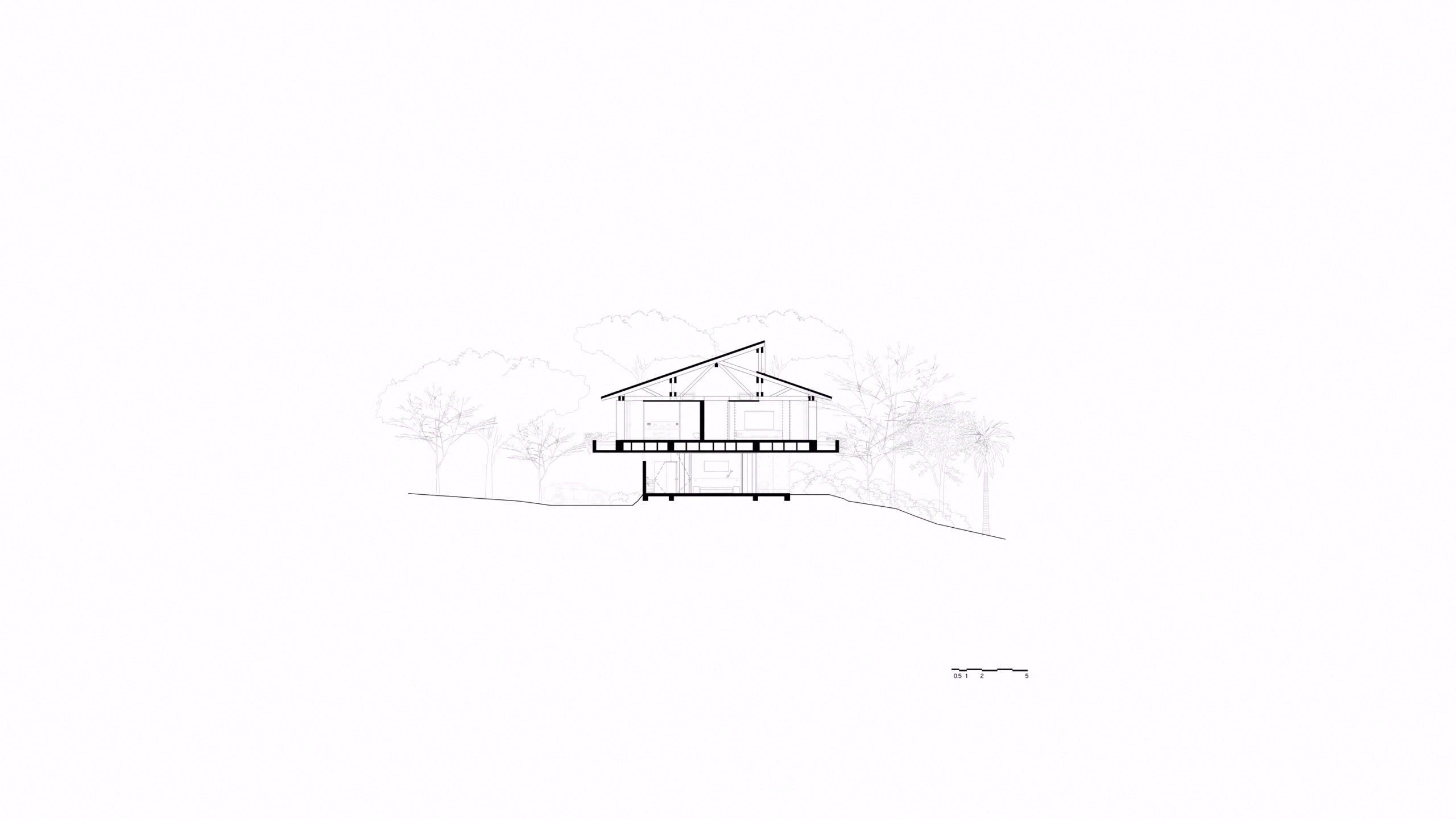

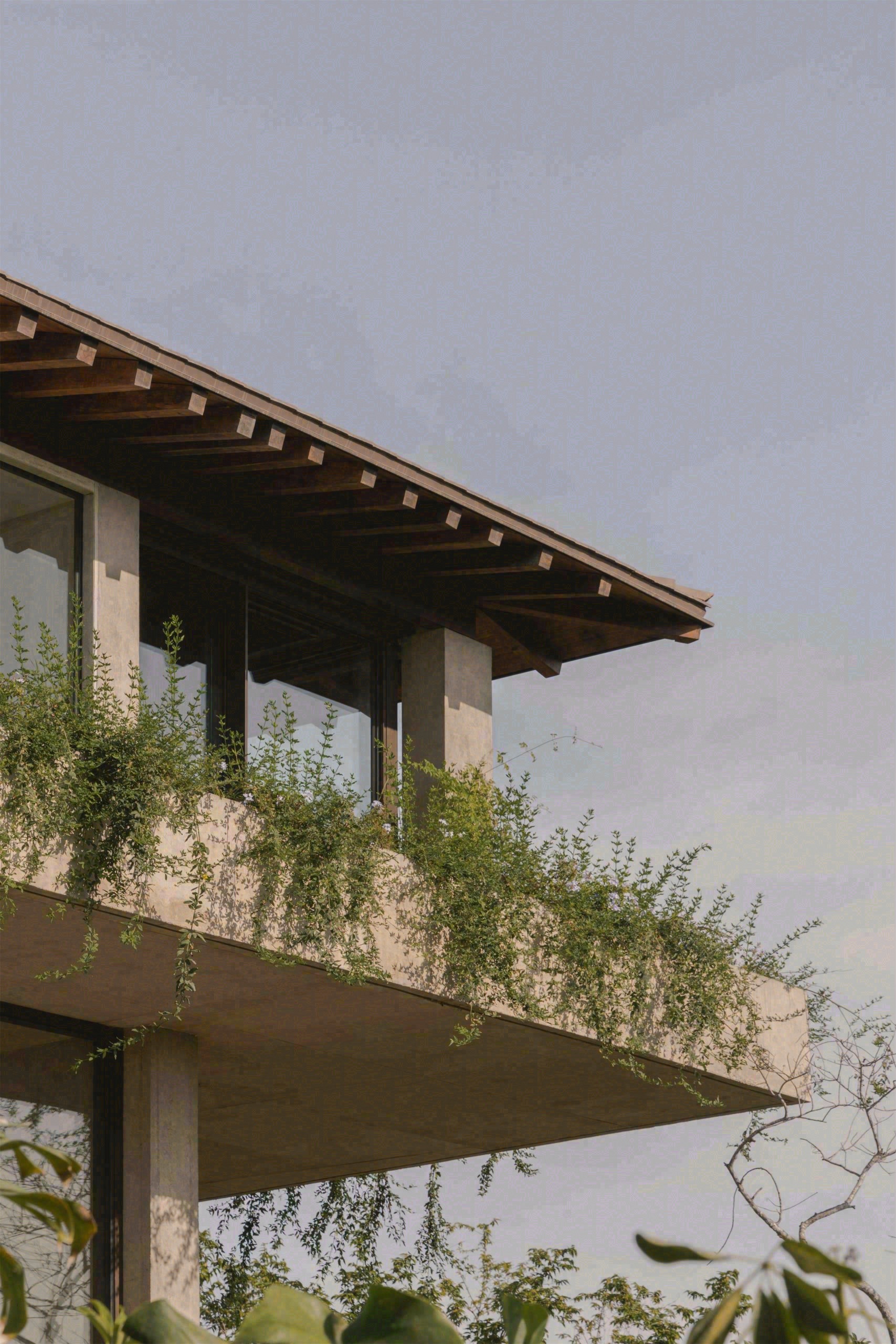

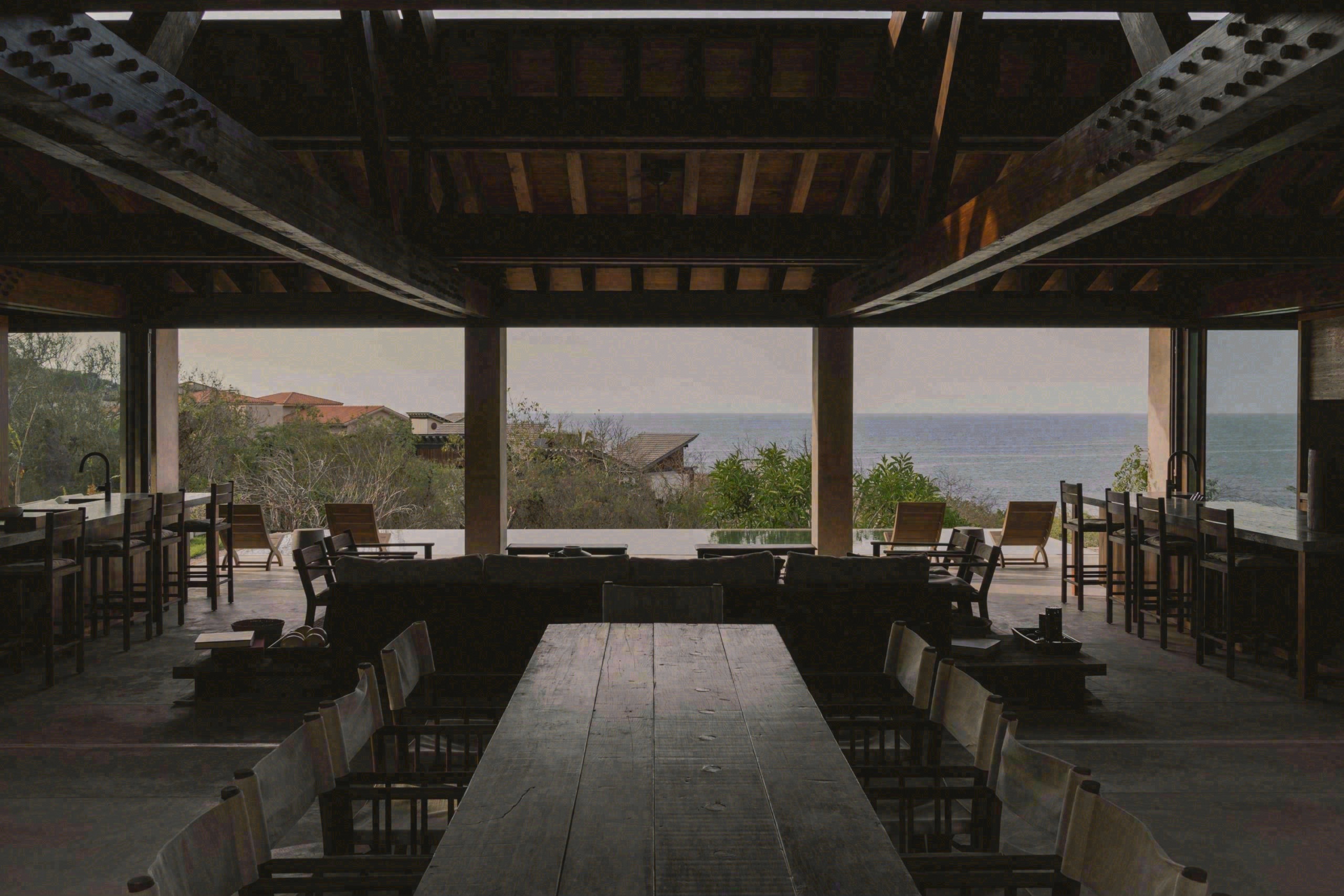

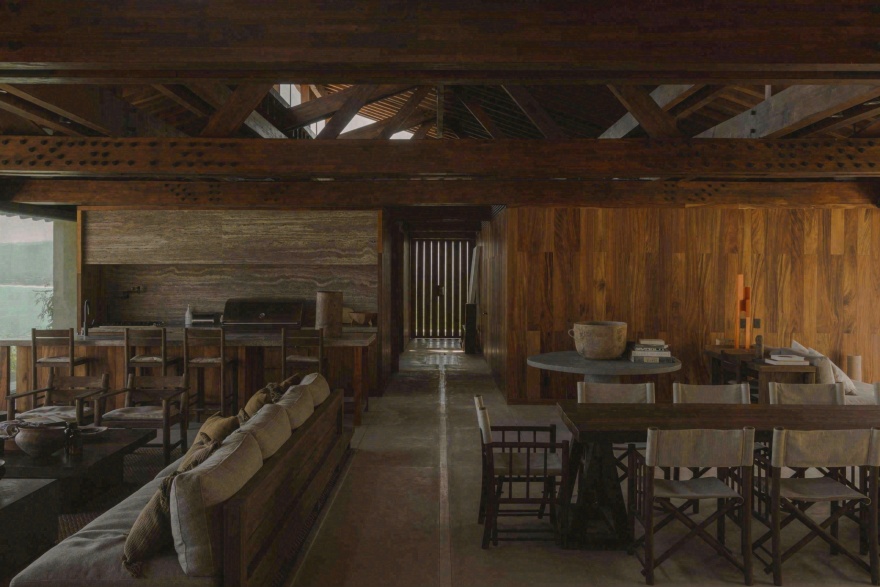

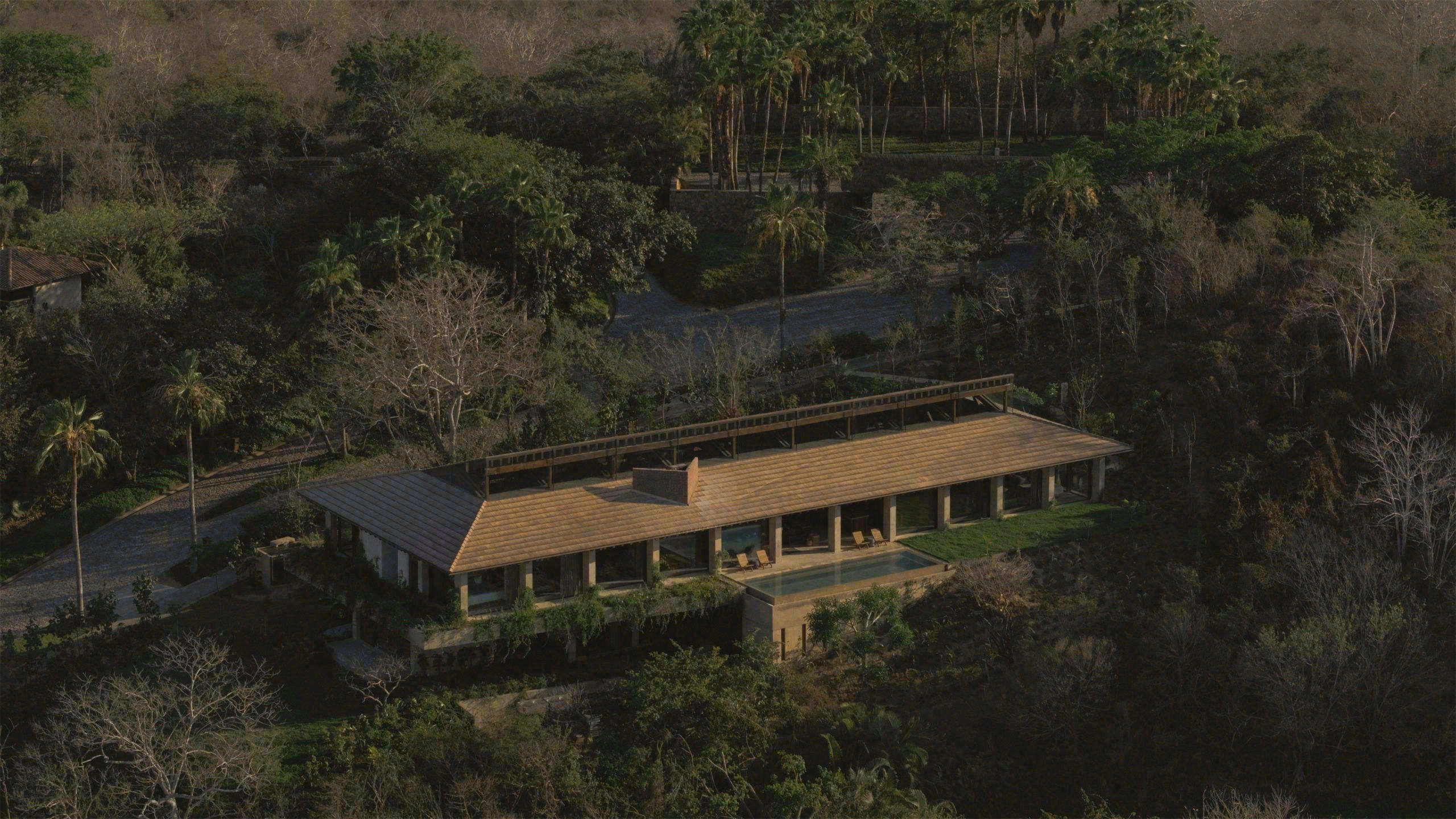

屋顶是一个非常简单的坡屋顶结构，向北开了一个天窗，使柔和的光线得以进入，以避免建筑上部分空间黑暗封闭。最后，建筑系统以地下室的一块混凝土为基础，通过柱子抬高，并由一个加固装置支撑，这样就可以从建筑一侧看到另一侧的清晰视野。

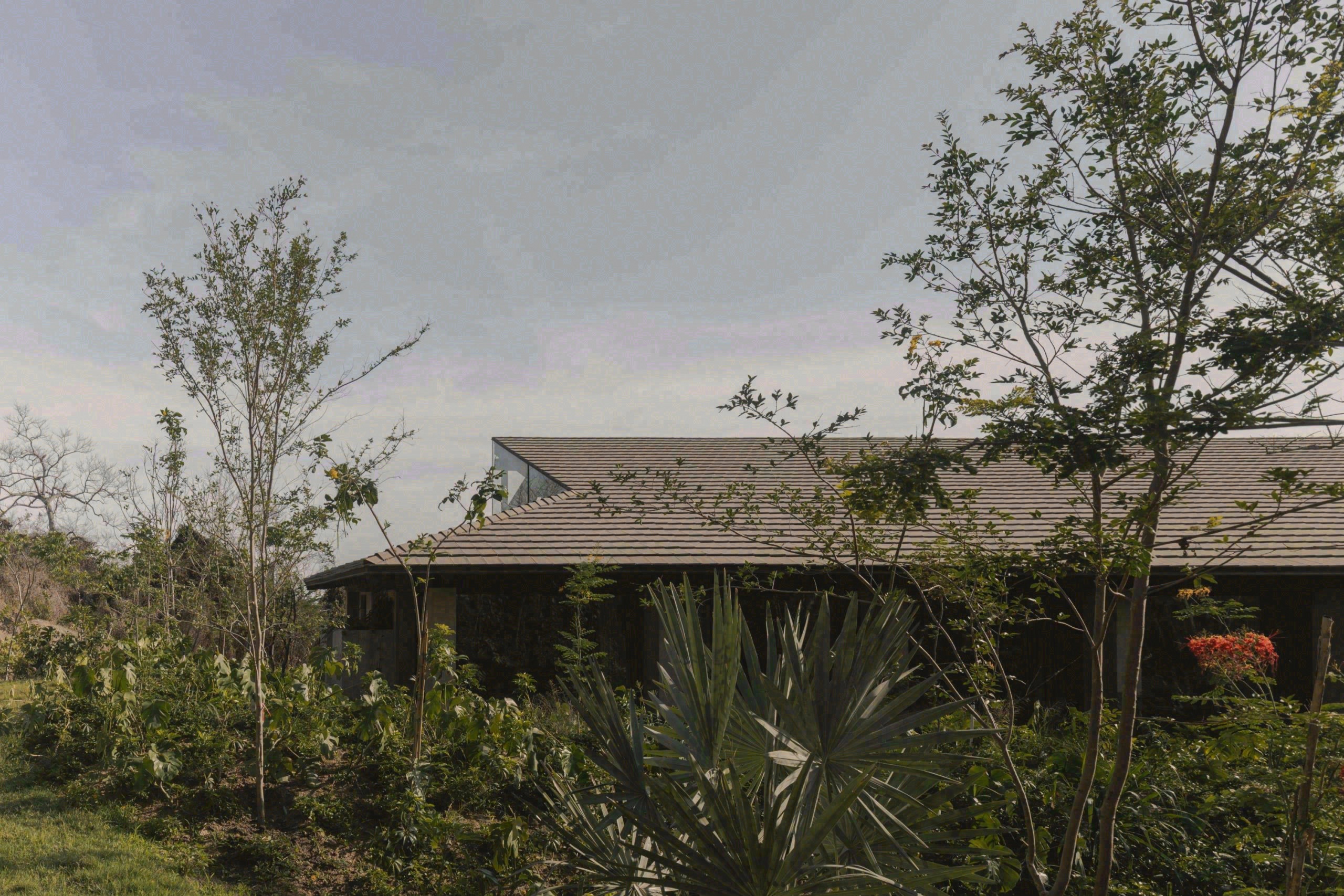

The roof is very simple, a hipped structure where a skylight was opened to the north to prevent the tip from being a dark and closed place, allowing the entry of benign light. Finally, the construction system is based on a piece of concrete in the basement, which is raised through columns and supported by a reinforcement that allows for a clear view from side to side.
