SPORTS PARK 体育公园丨埃及

" G R A D U A T I O N    P R O J E C T "

" S P O R T S   P A R K "

* Location : Mansoura , Egypt

* Land total area : 35000

* Covered area ratio : 30 %

* Content :

1- Olympic Swimming Pool Hall

2- Multiple purpose sports hall

3- Running Track

4- Open air Playgrounds

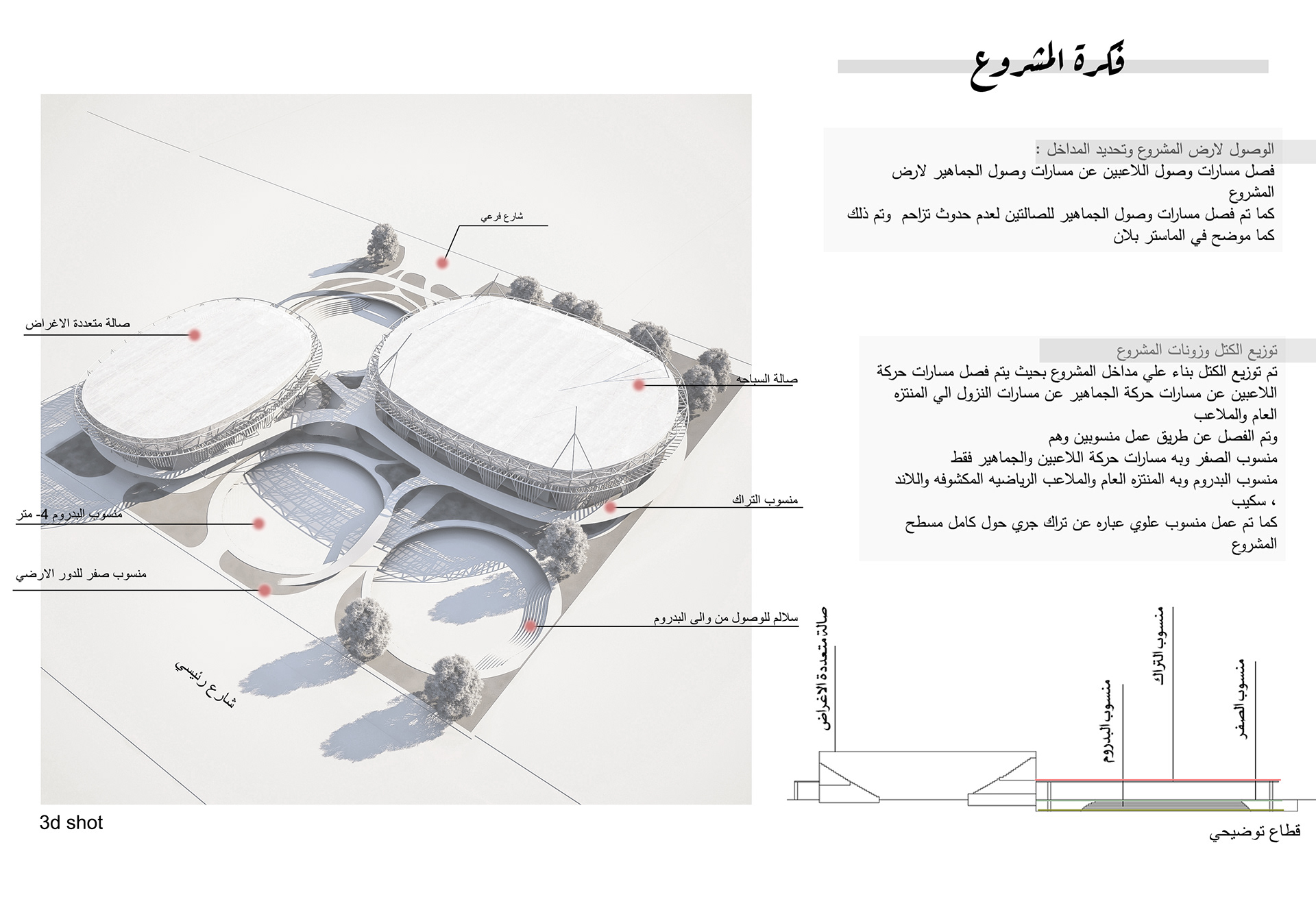

Concept :

Concept of the project was carried out in two phases :

The first one :

-Define project entrances based on site analysis , To separate the players ’ path from the fans’ one .

-The second one : The project is divided into 3 levels based on Project entrances :

-Lower level on -4 meter level for the open air playgrounds Surface level on 0 level for the players and fans pathsUpper level on +5 meter level for the running track < >​​​​​​​

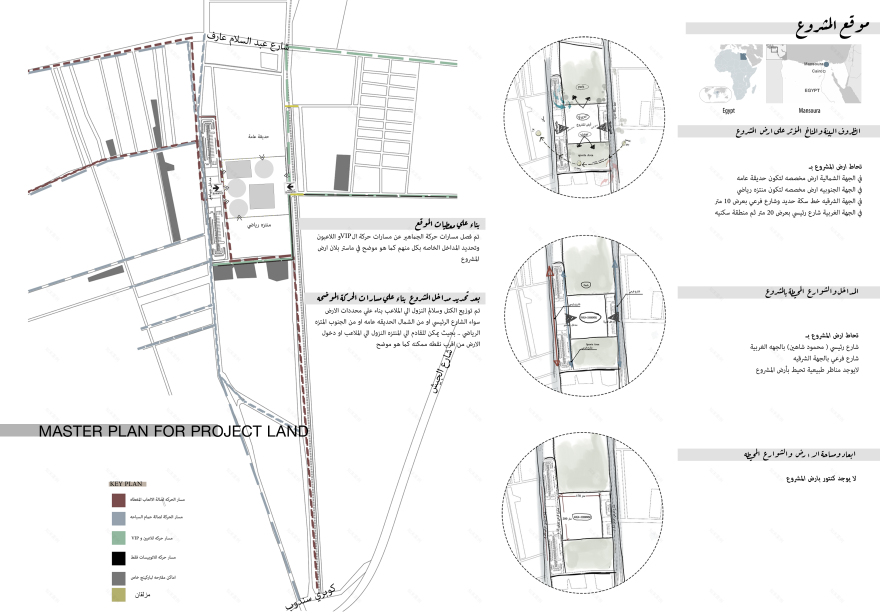

Site Analysis

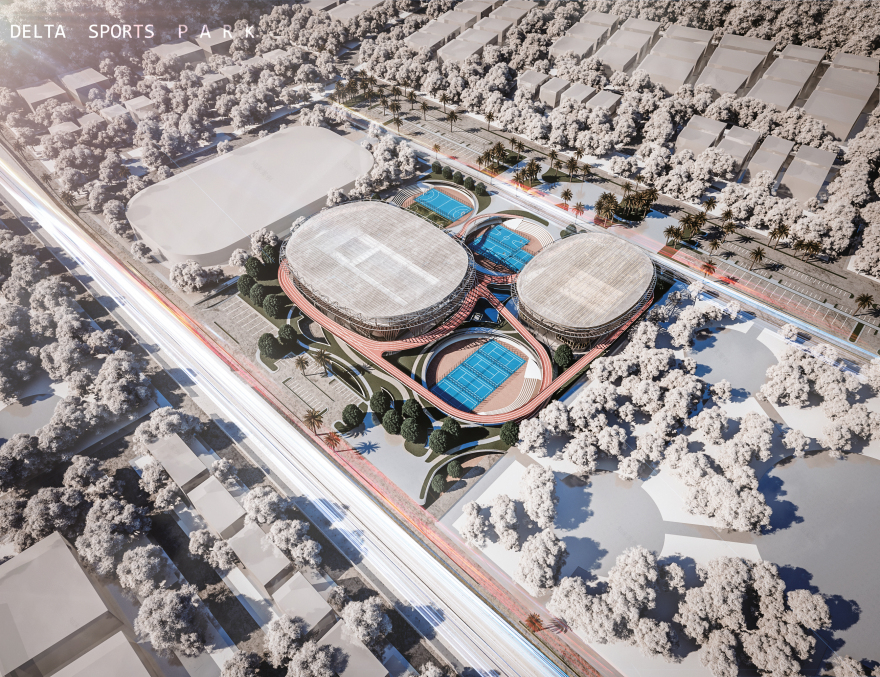

Master Plan

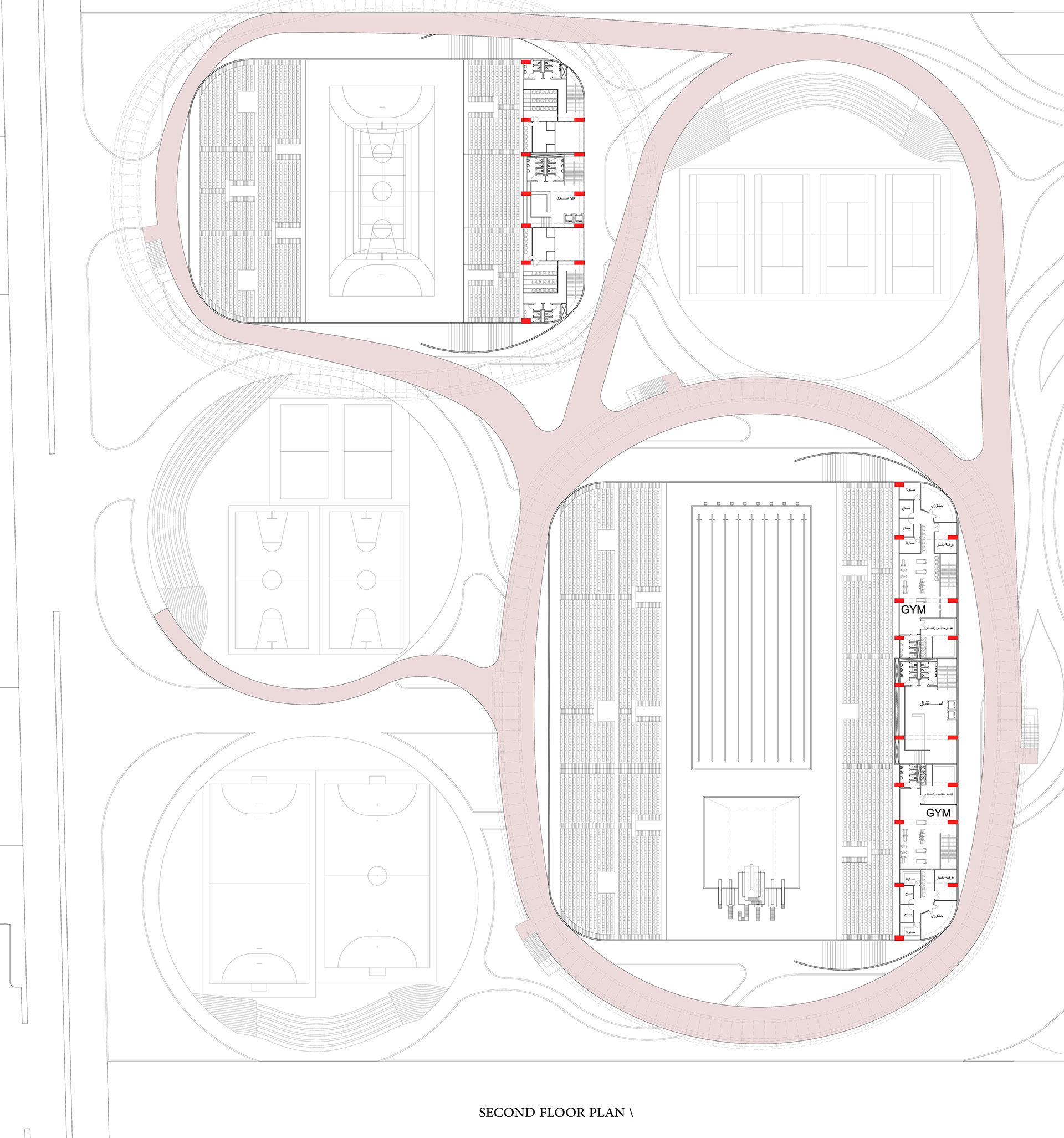

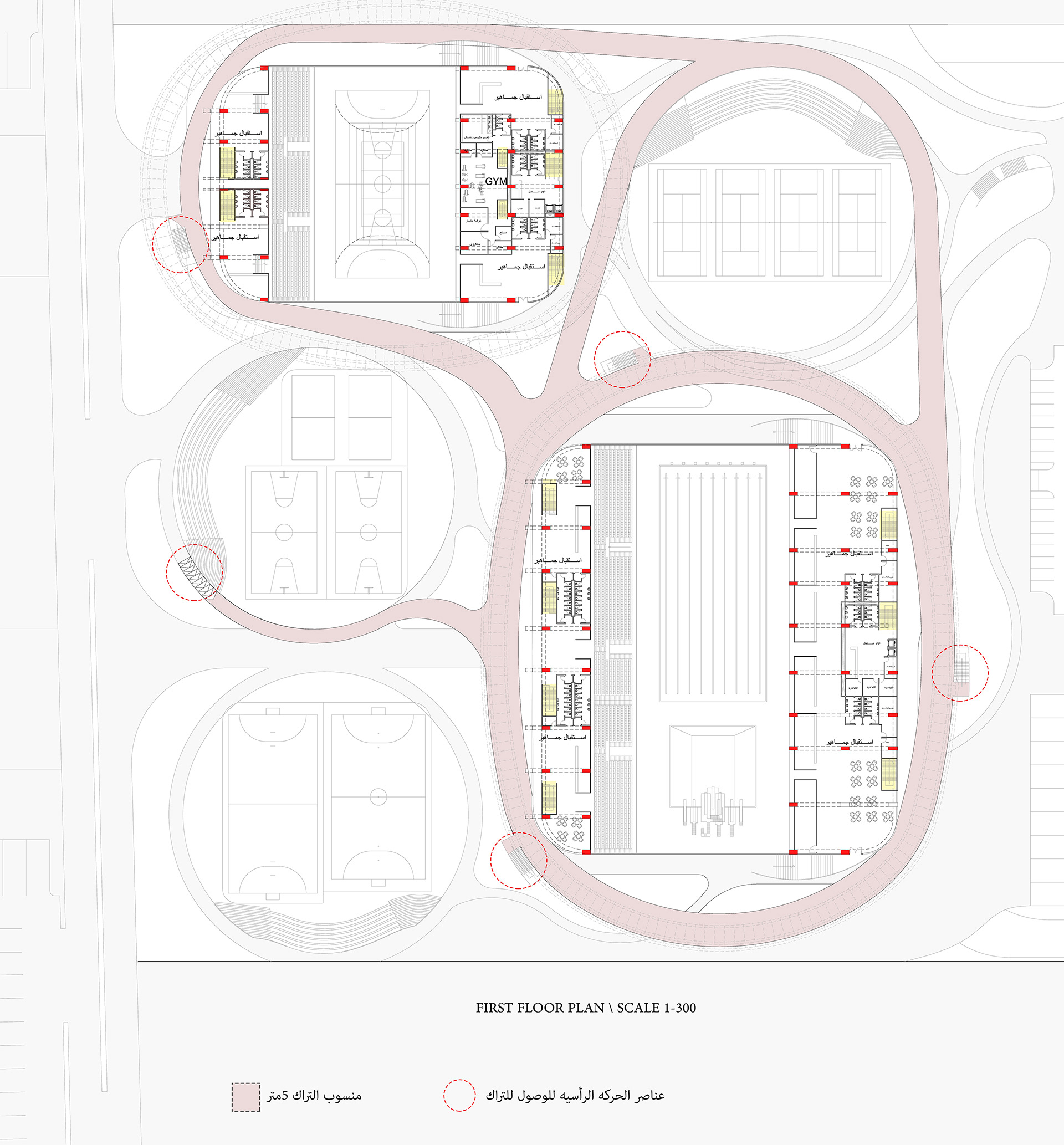

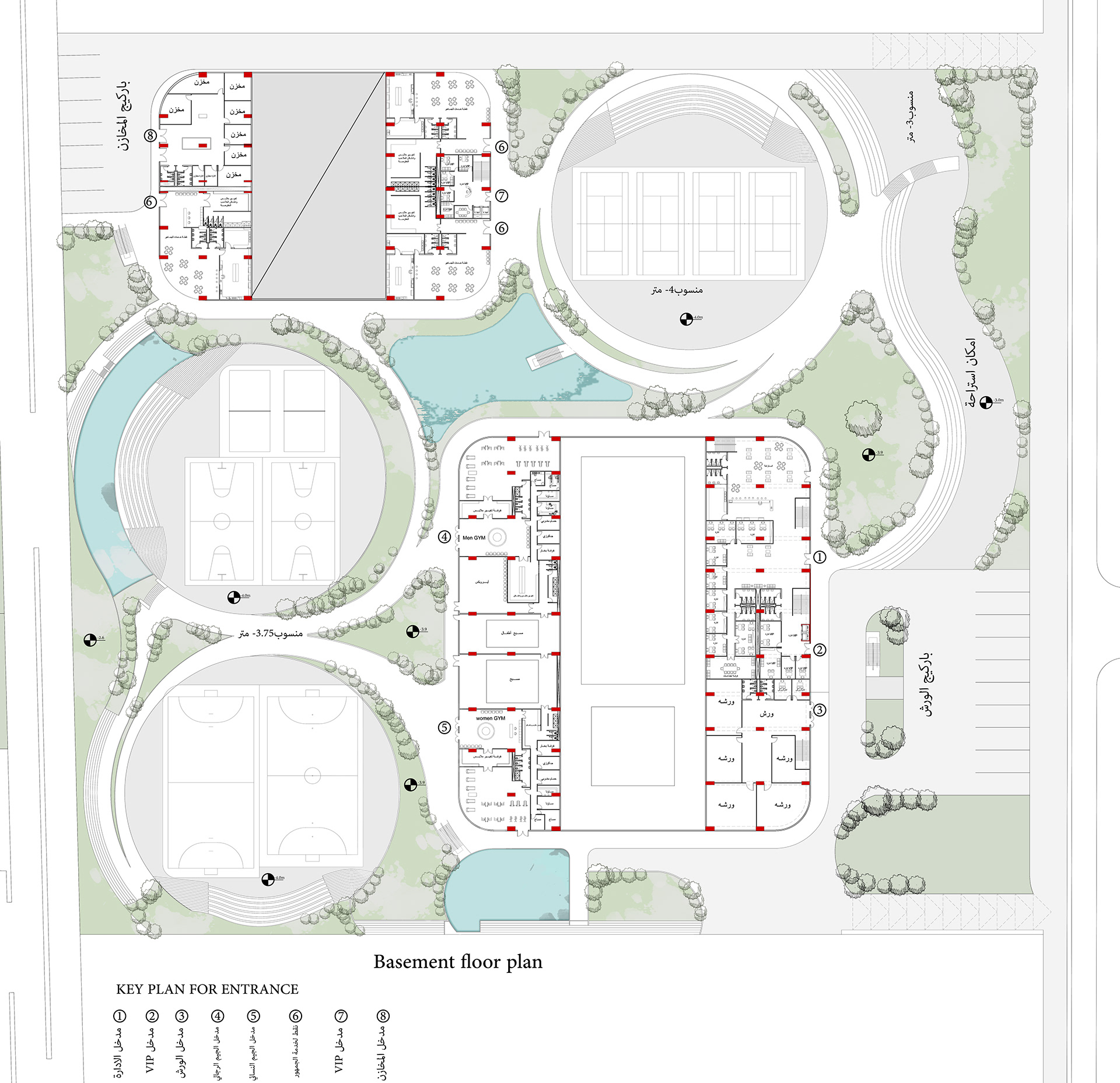

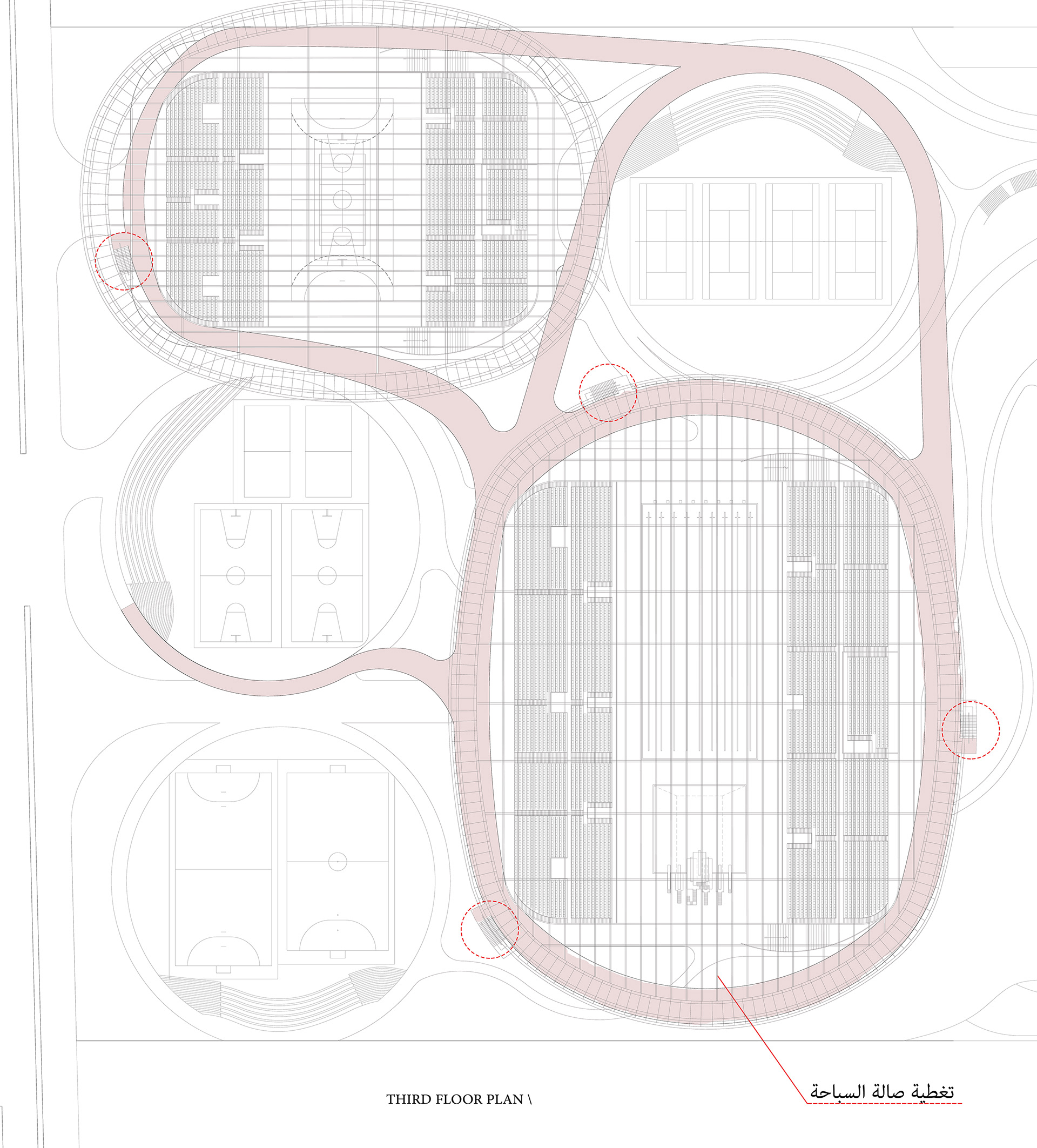

2D Levels

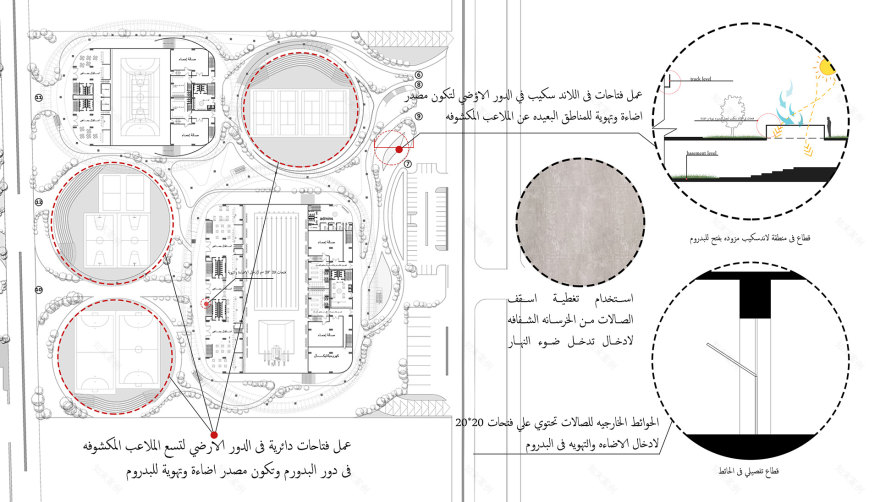

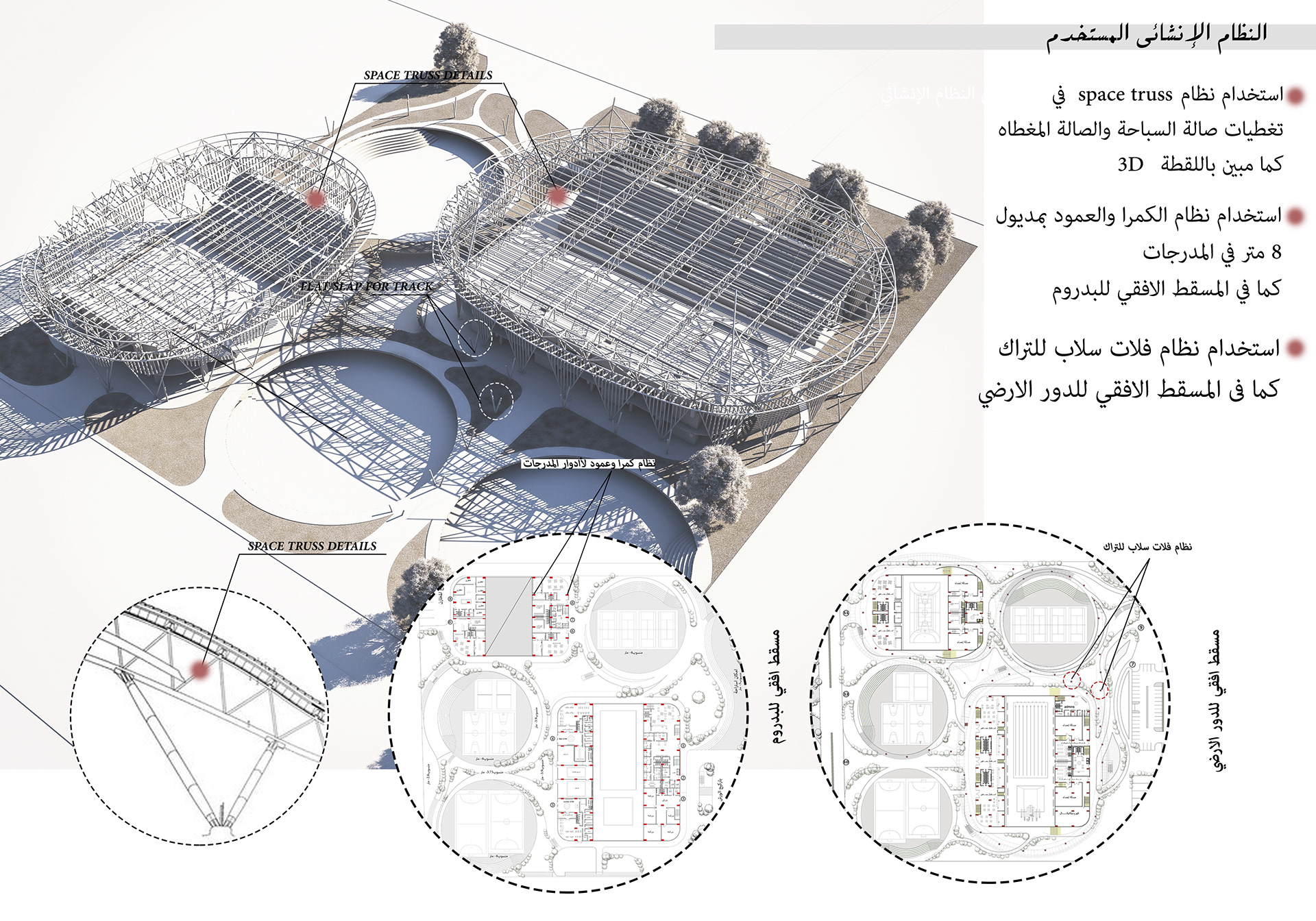

Studies

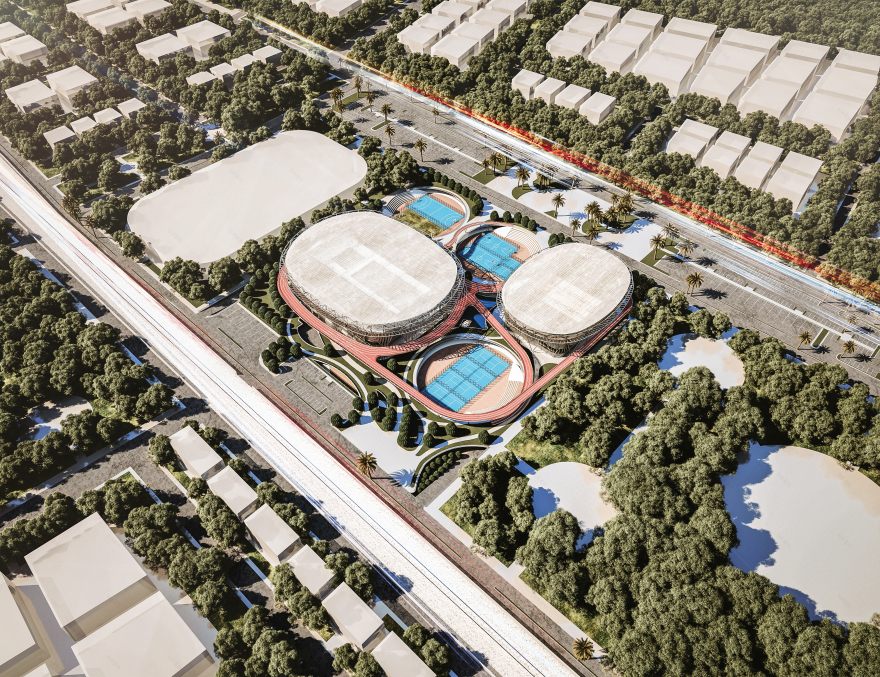

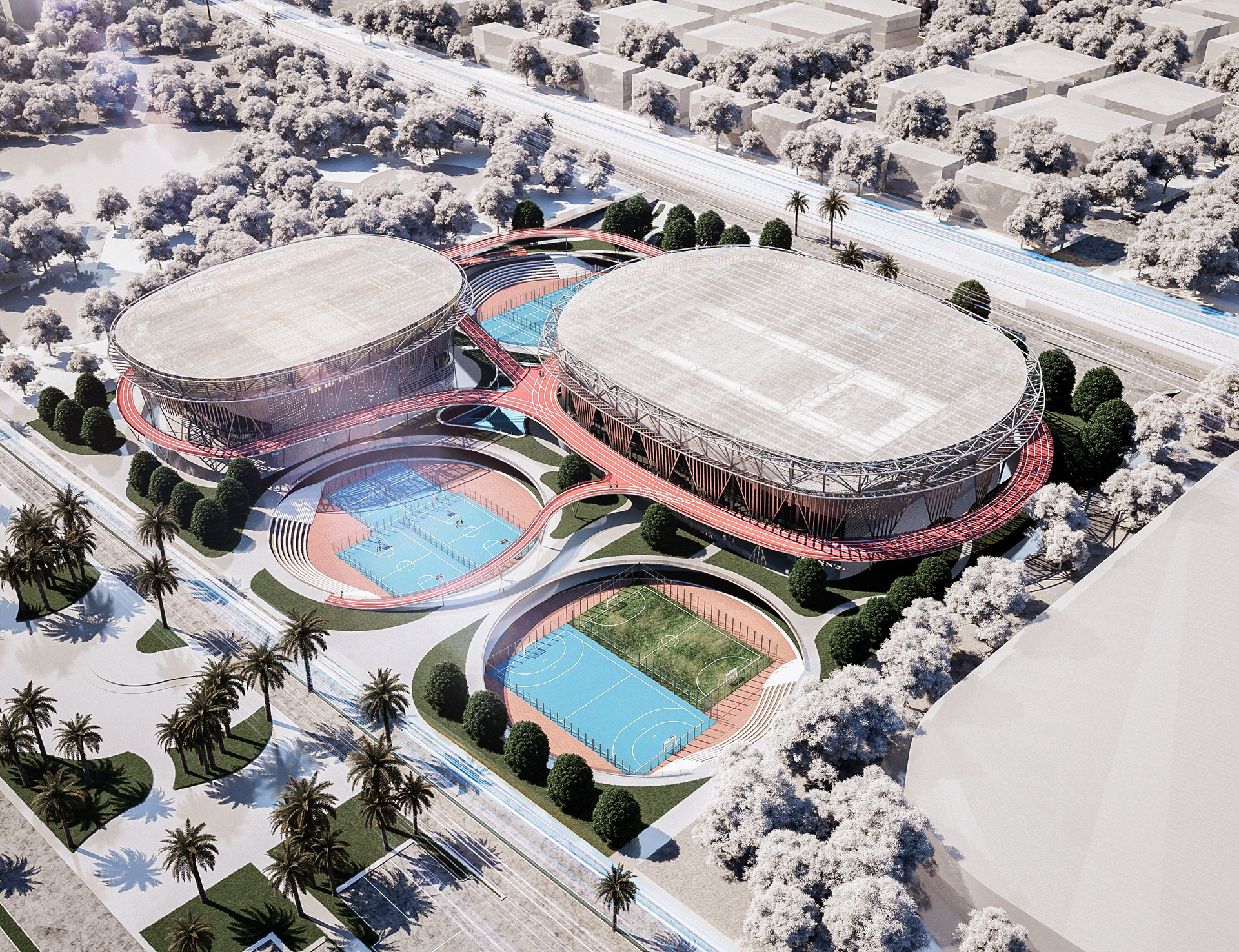

Close shots

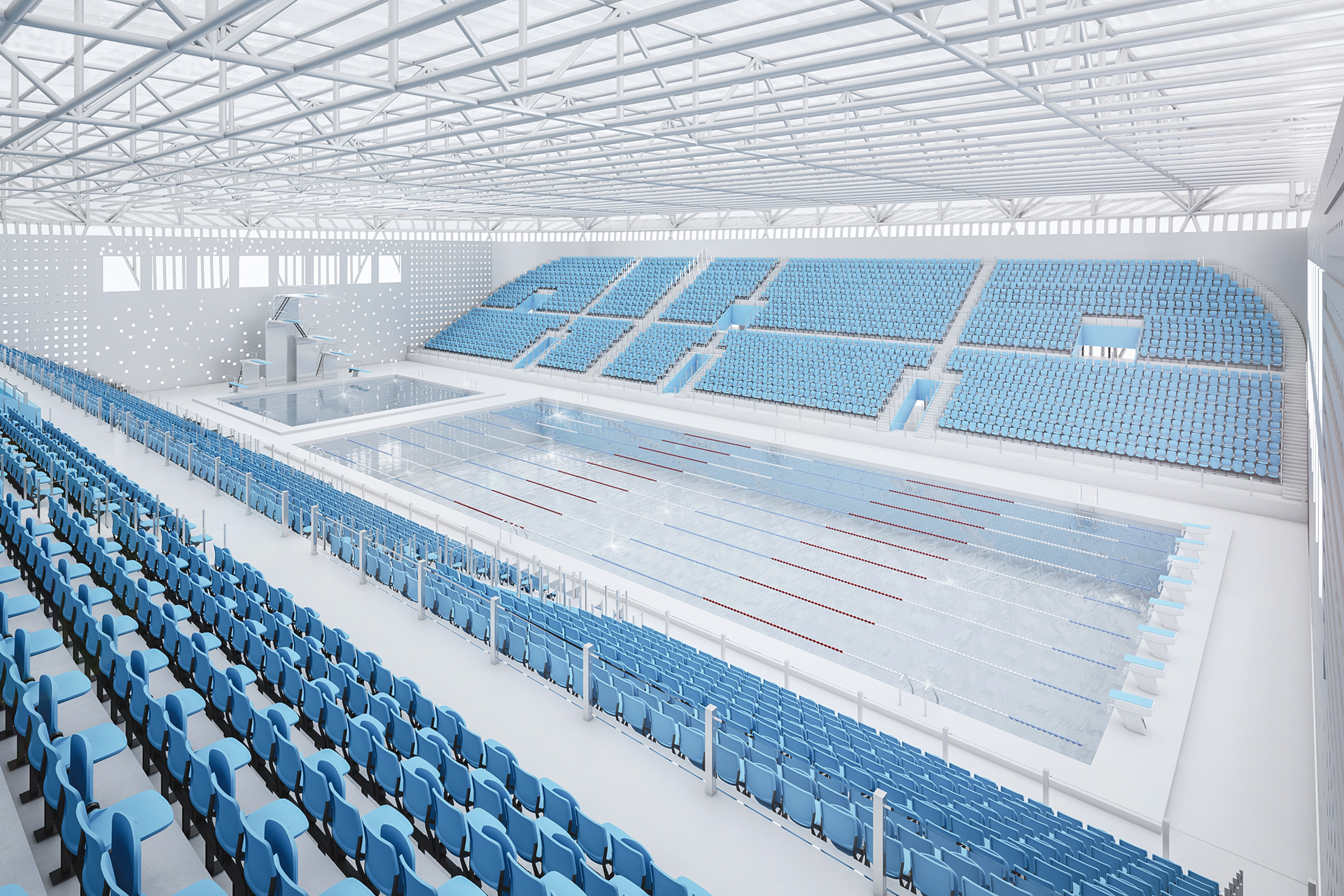

Interior Shots

Thank you
