林业管理用码头设计

2022/07/06 22:16:59
查看完整案例
微信扫一扫
收藏
下载
翻译
Architectural design
volume 2
I was commisioned to design the pier on the slight pond - for forestry administration - to use in educational and recreation purpose.
The goal was: it need to be simple (low-tech wooden construction) and possible to bulid (building-site pond is in the middle of the mountains).
After the research I decided to build it completly on the bank - with no use of the heavy (and costly) floating and pilling machine. The hanging 'bridge-like' construction from massive wooden logs, seems to fit  exactly for this job.
林业管理用码头设计-5

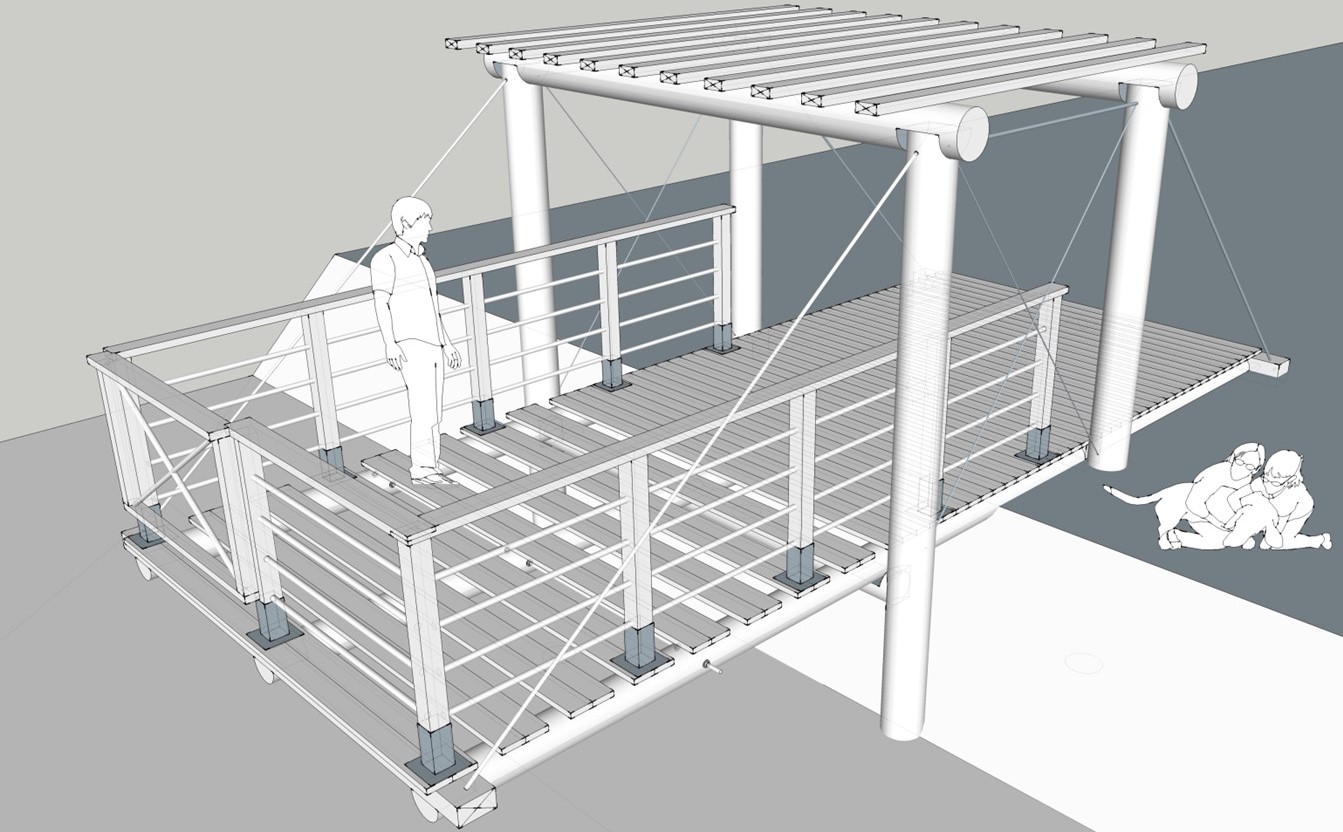

^  A hanging pier made from wooden logs  ^
林业管理用码头设计-7

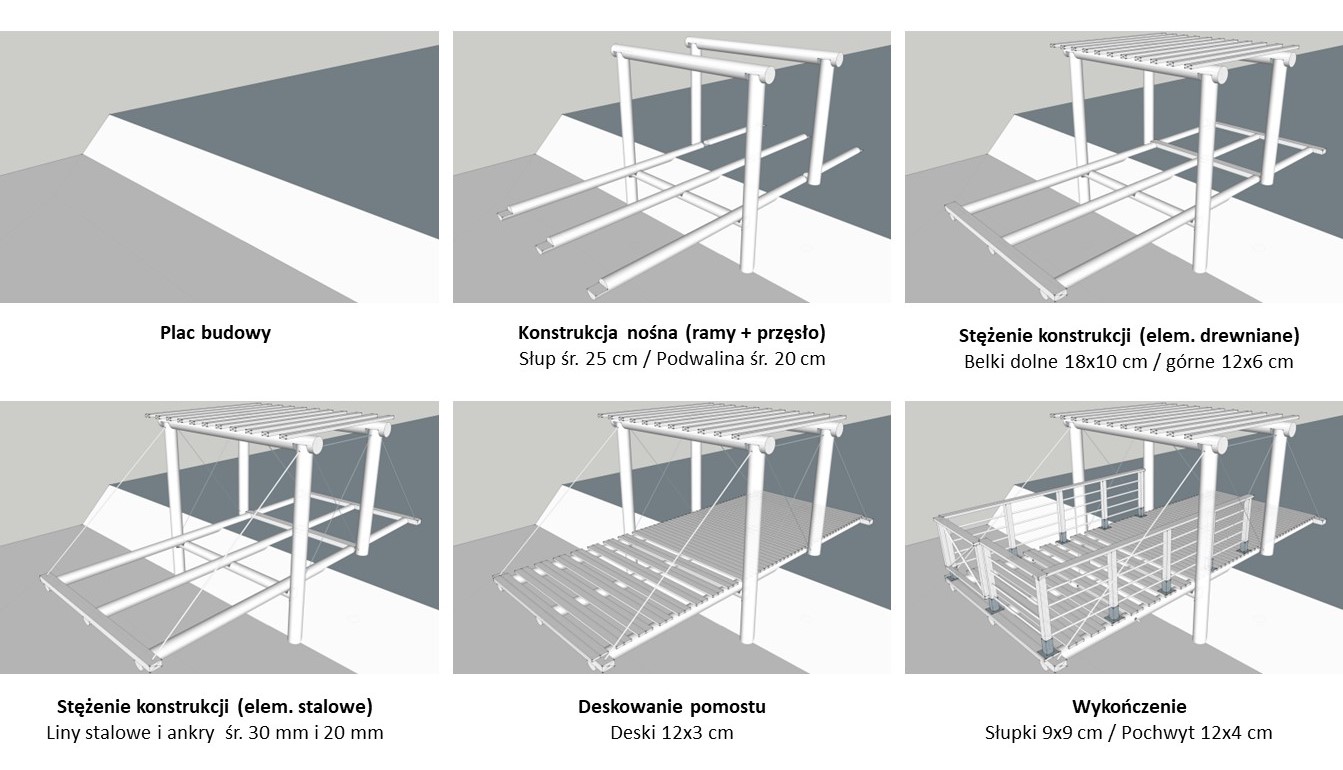

^  A hanging pier - building process  ^
However the contractor have no technical abilities to install the pillars in the ground - the pond's bank was too rocky. We need to fix the project quickly...
I designed... a floating 'like-ferry' bark. Project has been saved :)
林业管理用码头设计-11
林业管理用码头设计-12

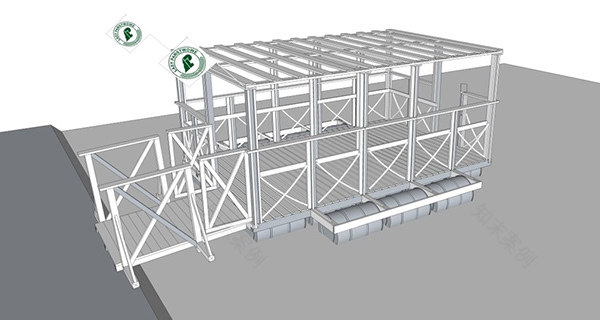

^  A floating bark in a 'cable-ferry' techique  ^
林业管理用码头设计-14

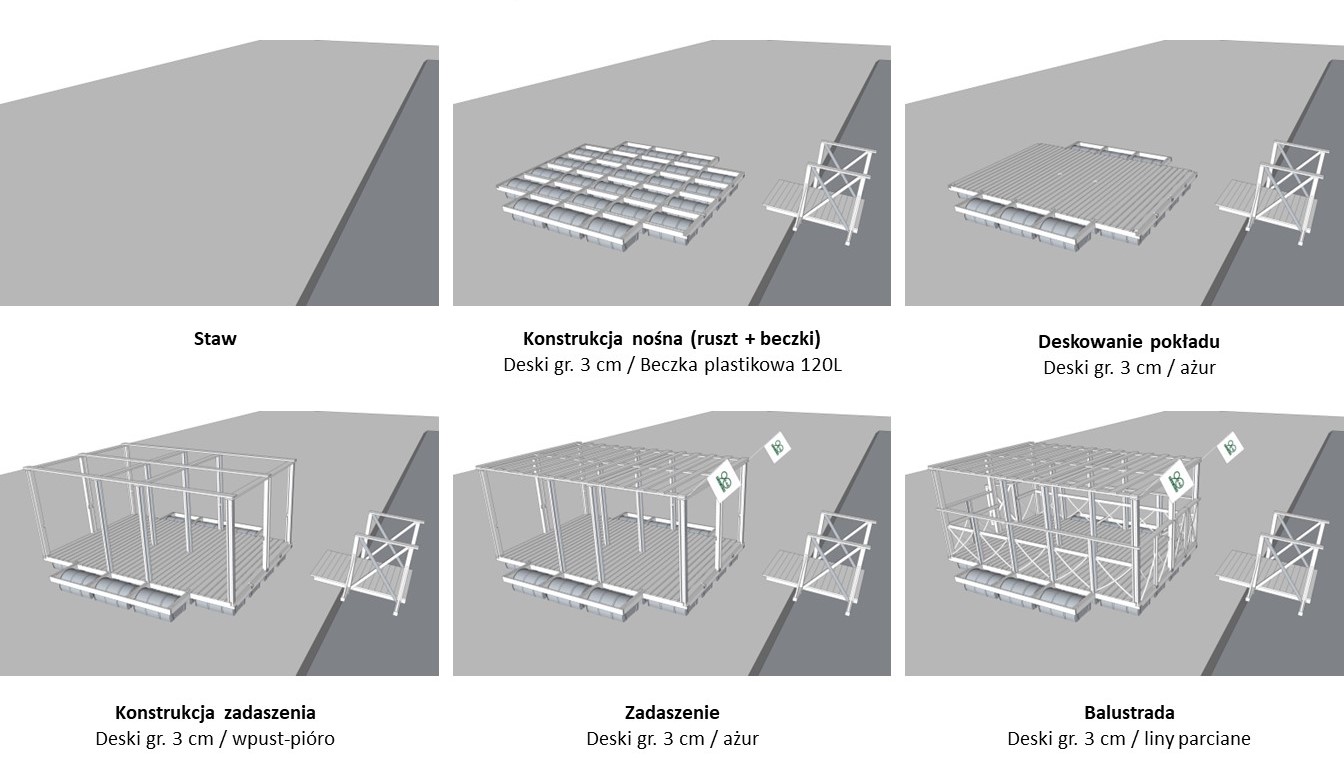

^  A floating bark in a 'cable-ferry' techique - building process  ^
林业管理用码头设计-16

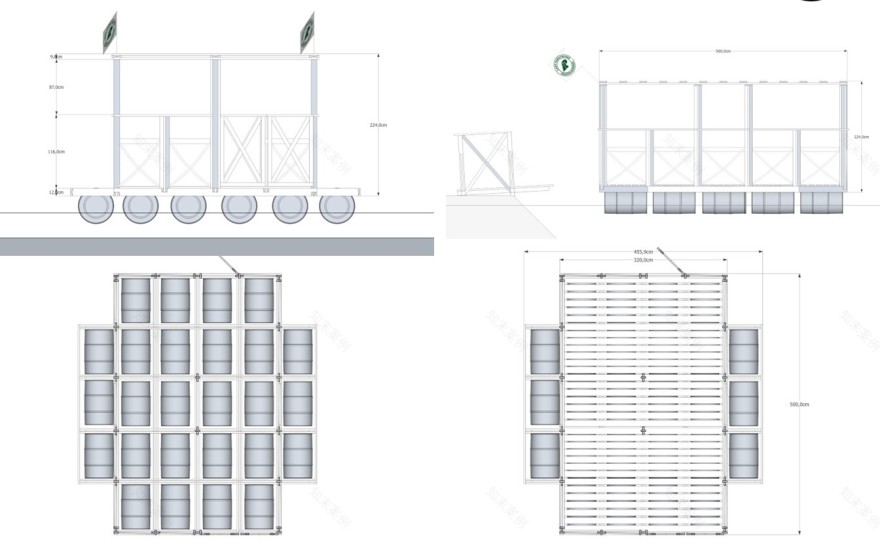

^  A floating bark in a 'cable-ferry' techique - technical specification  ^
林业管理用码头设计-18
林业管理用码头设计-19

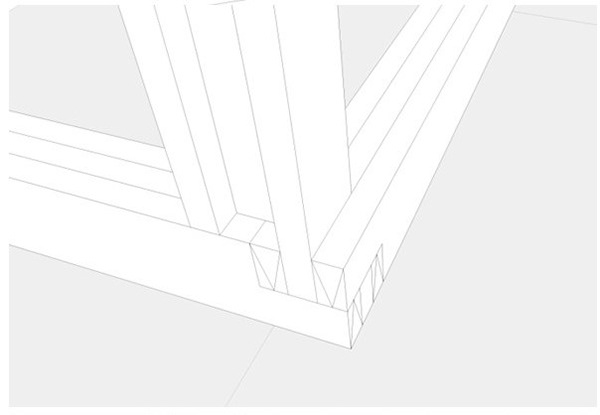

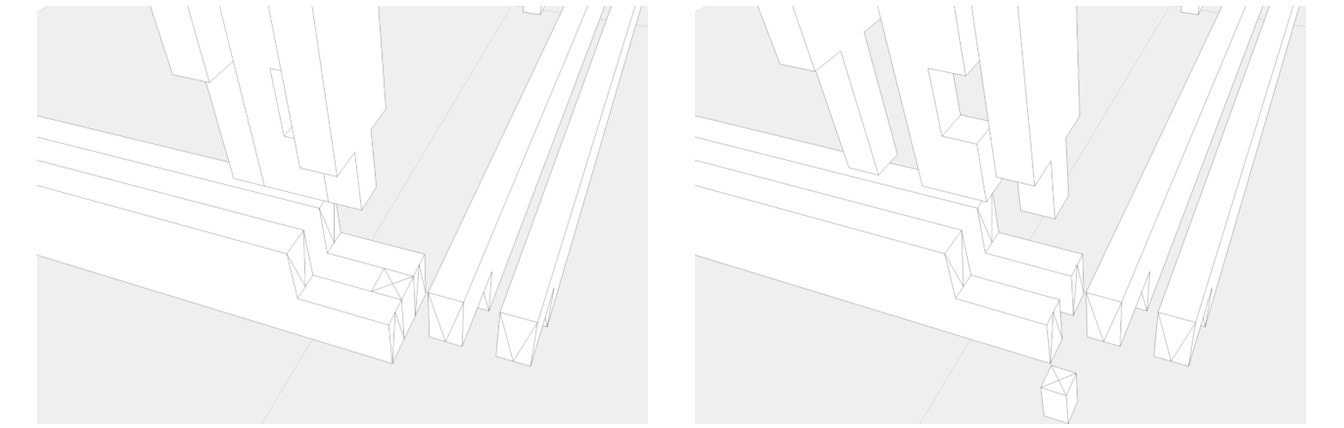

^  A floating bark in a 'cable-ferry' techique - construction details  ^
林业管理用码头设计-21
Architectural design - volume 2
Sometimes designer need to see things 'out of the box'.
Also sometimes it's good to 're-invent' own strategy and ideas.
Thankful for utterance.
