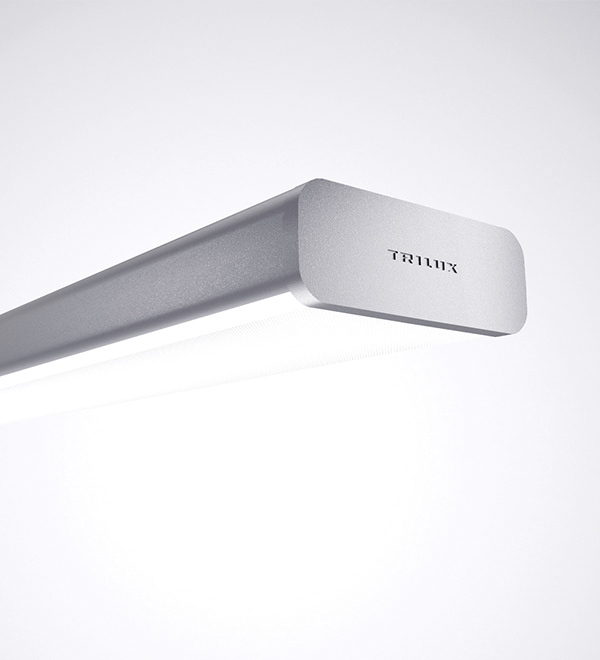

Trilux Parelia

Axis-parallel office light.

in cooperation with Graft

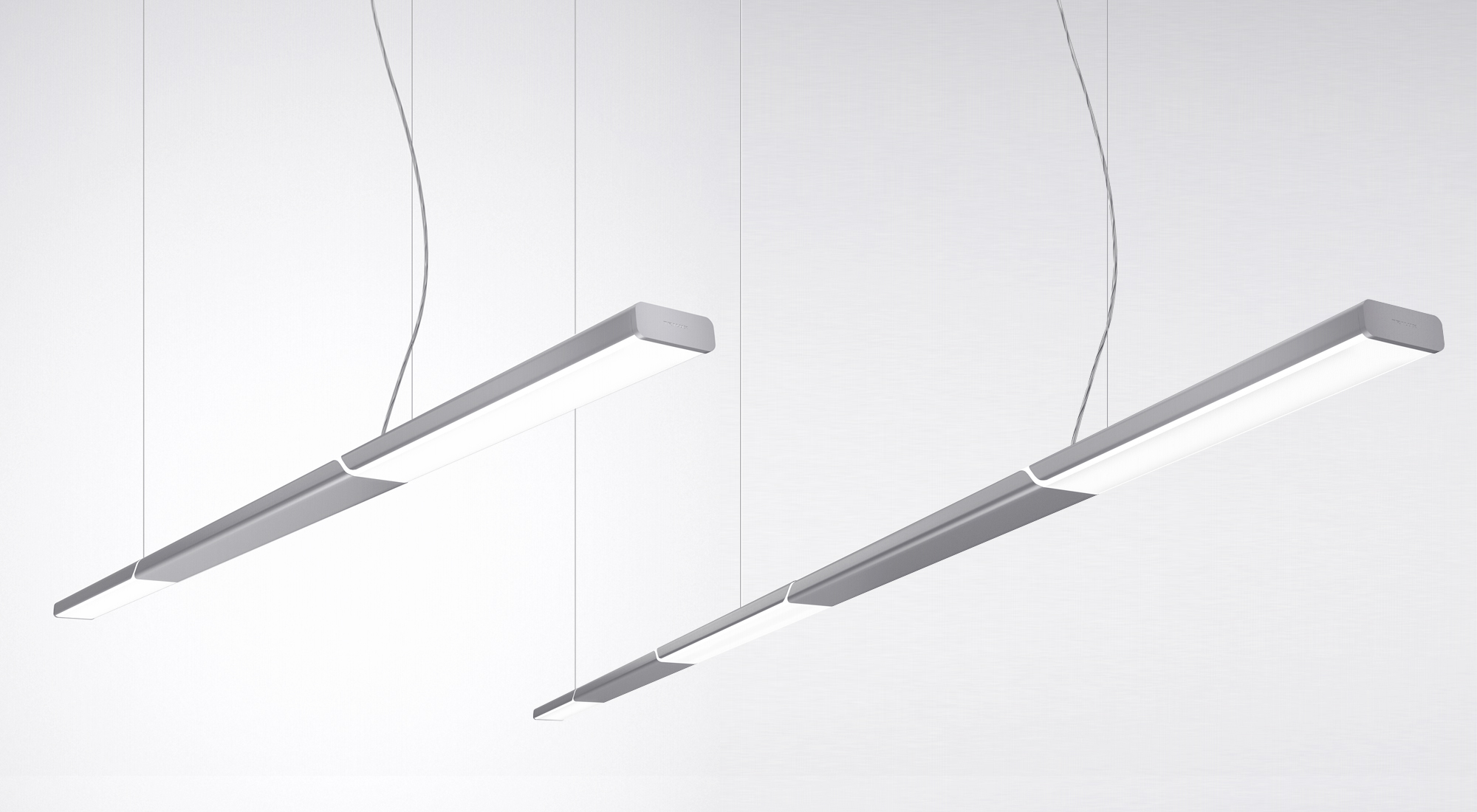

Exclusive suspended LED luminaire with direct and indirect luminous flux component and laterally visible light line. For use as single luminaire or as a start/end luminaire in a continuous line. Wire suspension included in the scope of supply. For suspended mounting as a single- or continuous line luminaire. Wire suspension included in the scope of supply. Standard suspension length: 1.000 mm. In addition to standard mounting parallel to the window front, the luminaire can also be planned and installed parallel to the building axis of the building. With inner highly efficient microprismatics CDP-I. Clear cover with lateral light emission edge. With symmetric wide light distribution, direct-indirect.

Technical Details

VDU-compliant according to EN 12464-1. Glare evaluation compliant to CIE: UGR ≤ 19. The side arrangement of the light modules means that reflections on shiny surfaces are almost completely avoided. Luminaire luminous flux 13.100 lm, connected load 105 W, luminous efficiency of luminaire 125 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) R a > 80. Mean service life L80(t q 25 °C) = 50,000 h. Luminaire body of sheet steel, end caps of PC, powder-coated solvent-free. Colour white. Dimensions (L x W): 2.107,5 mm x 102 mm, luminaire height 37 mm.

Conforming to standards

Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK02/0,2 J, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Transparent connection cable included in the scope of supply. With two electronic ballasts, digitally dimmable (DALI). Weight 6,7 kg. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
