Instant Campus

University Campus

Location: Milan, Italy

Type: Hospitality / Education

Project developed in collaboration with Silvia

STEP 01 - Defining the intervention area: The plot is divided into tow distinct zone; Green outdoor spaces (light yellow) and building spaces (dark yellow).

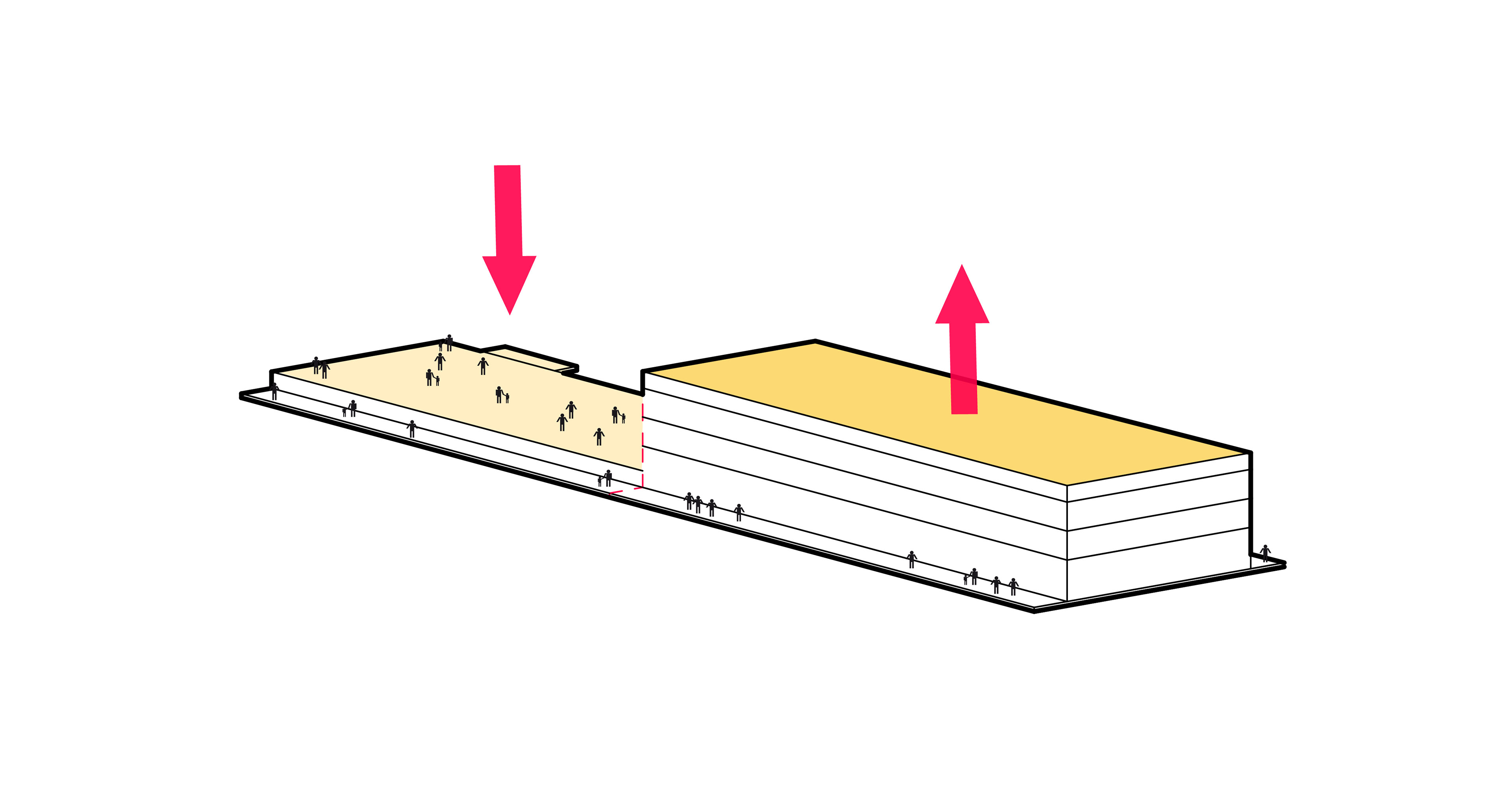

STEP 02 - A "Standard" configuration of the plot where the 100% of the construction goes on the front and a traditional, enclosed courtyard is created behind.

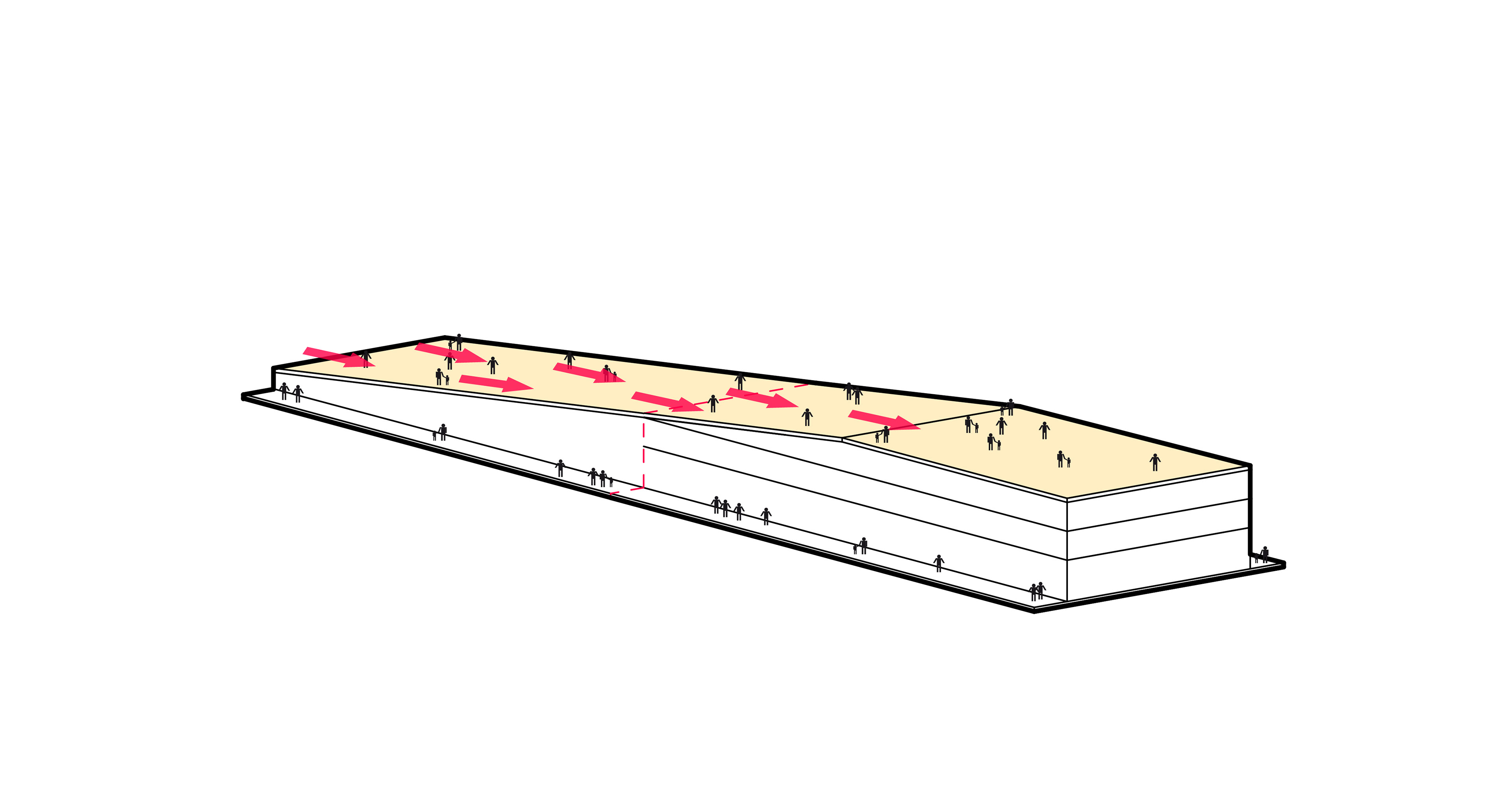

STEP 03 - By distributing the functional spaces of the build on both areas we are able to merge indoor and outdoor spaces and create a continuous line between landscape and building.

STEP 04 - Solar analysis on the South/West facades helped to maximise natural shading during summer days and maximise sun radiation during winter months.

STEP 05 - The louvers on the facade protects the Canyon-shaped exterior  and allows to control sun and shading during the day and during different seasons reducing the consumption of energy for lighting, heating and cooling.

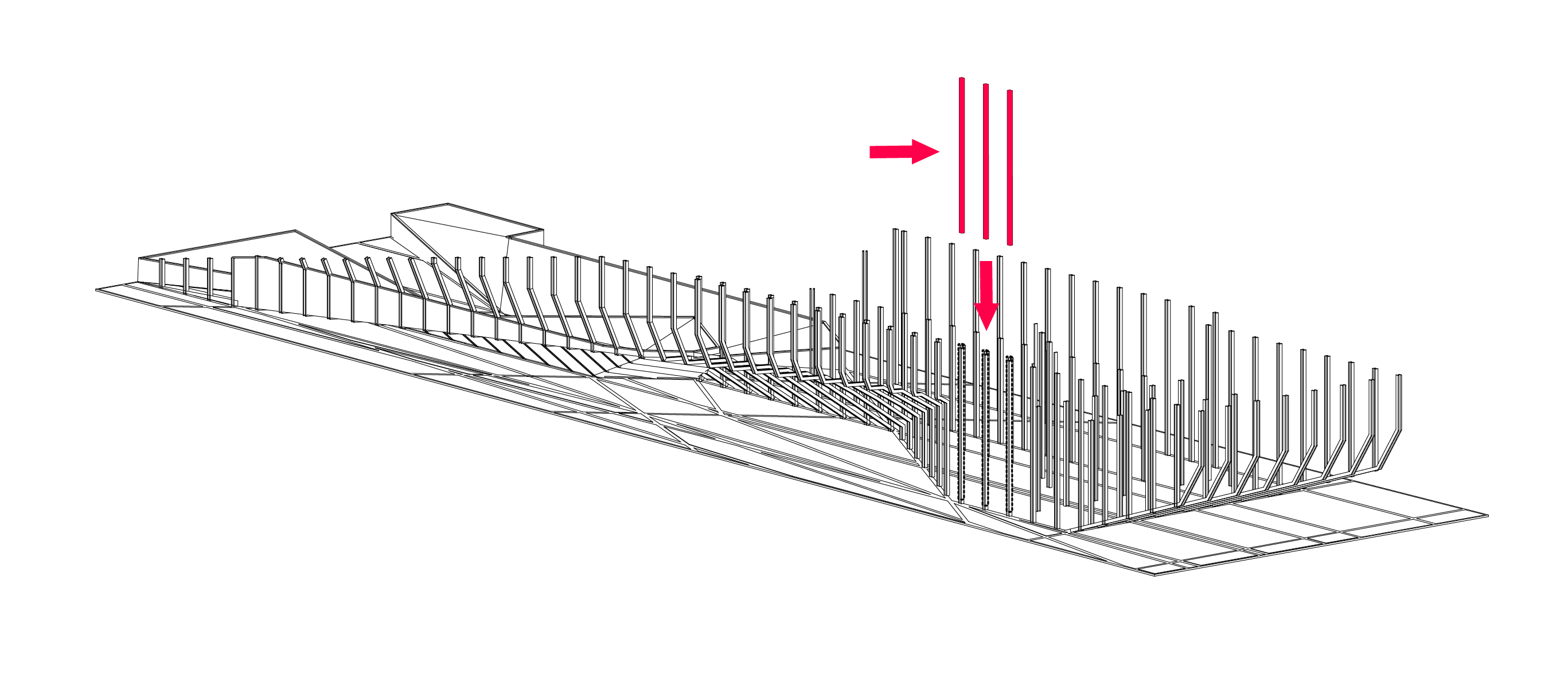

STEP 06 - The vertical timber elements supporting the overall structures are positioned. ​​​​​​​

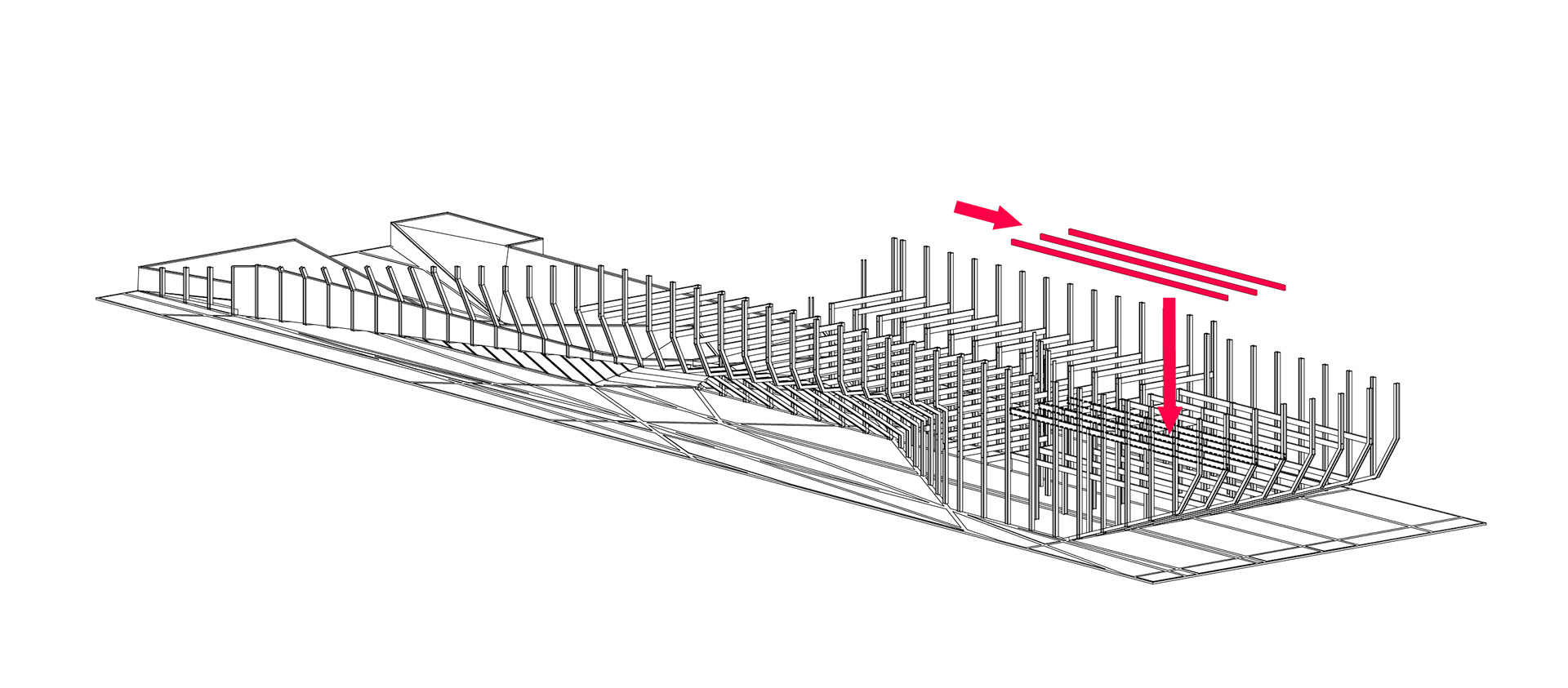

STEP 07 - The track beams that will support the first and second layers of modular rooms are anchored to the vertical supports.

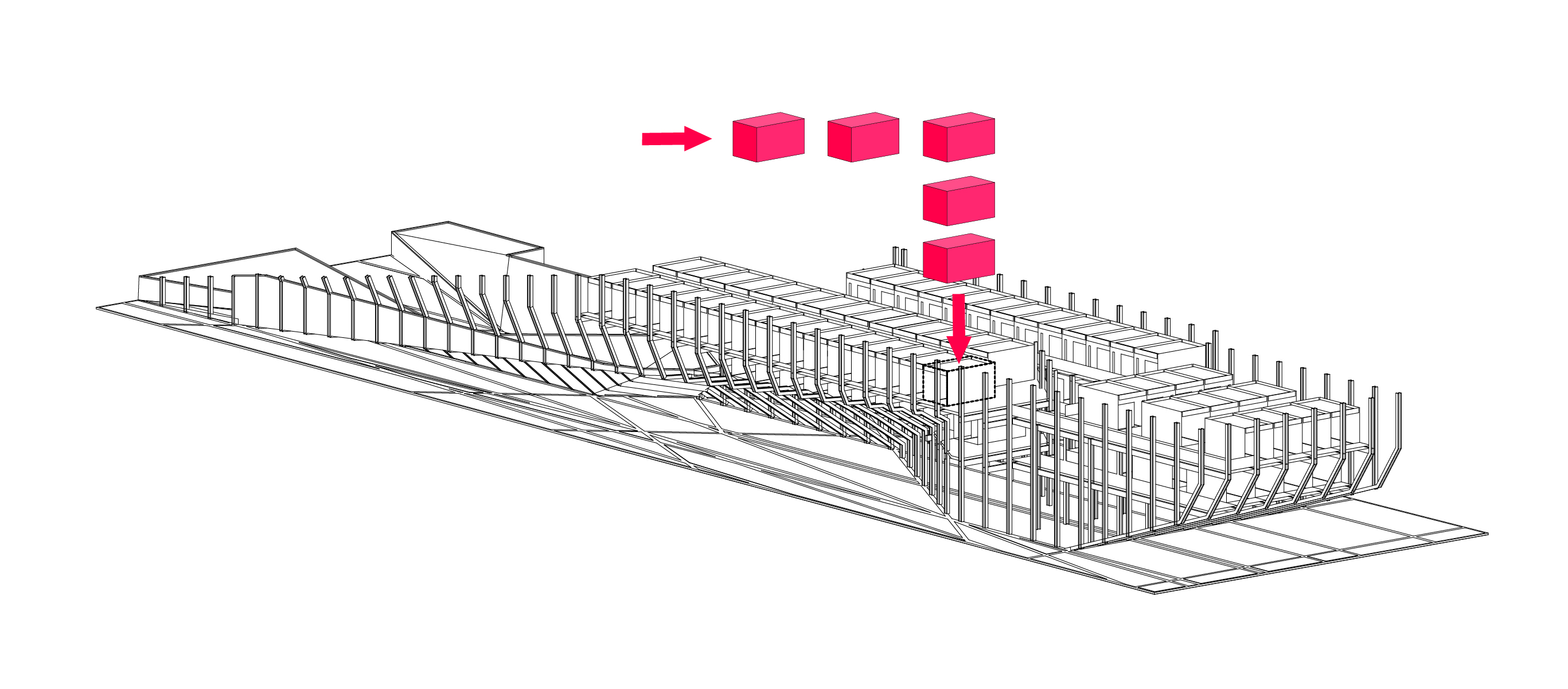

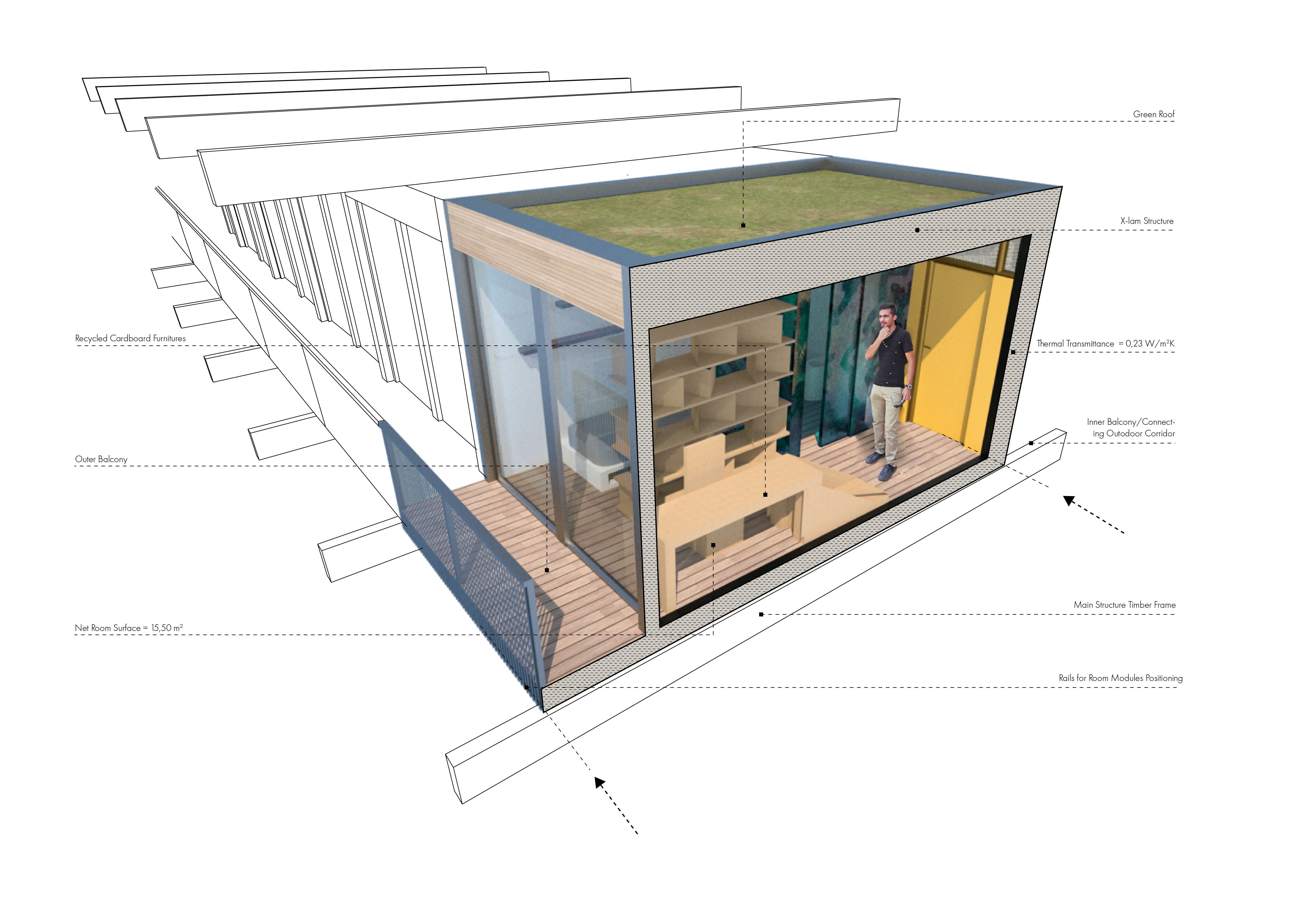

STEP 08 - Now It is possible to insert the "instant modules" entirely prefabricated in the factory.

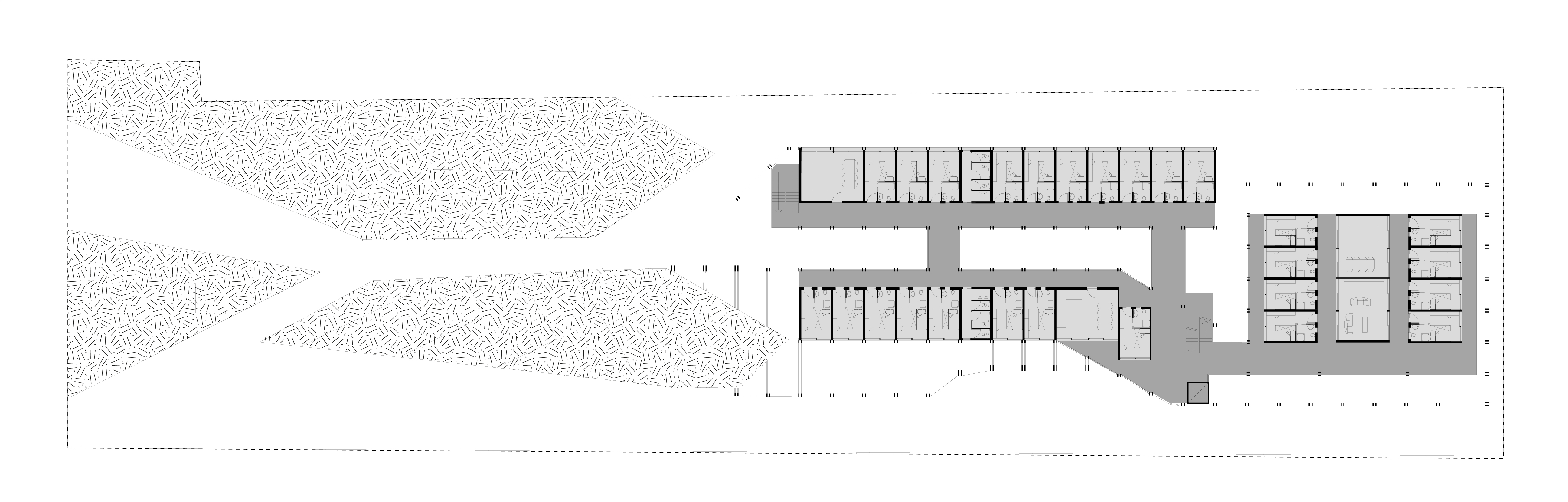

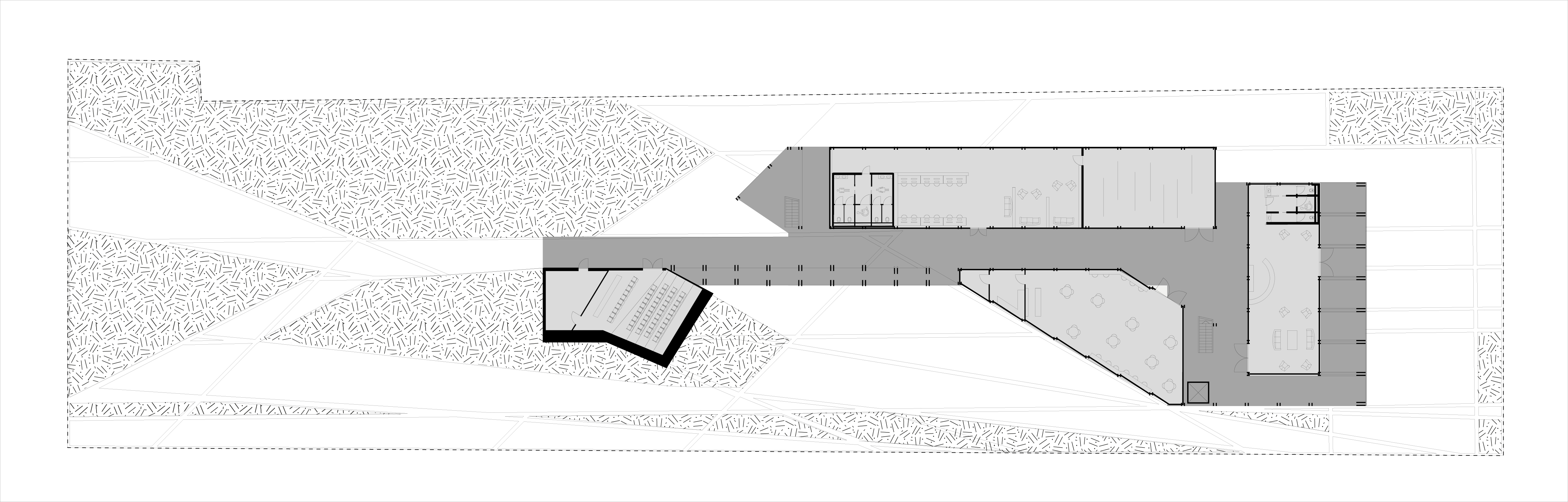

Ground Floor

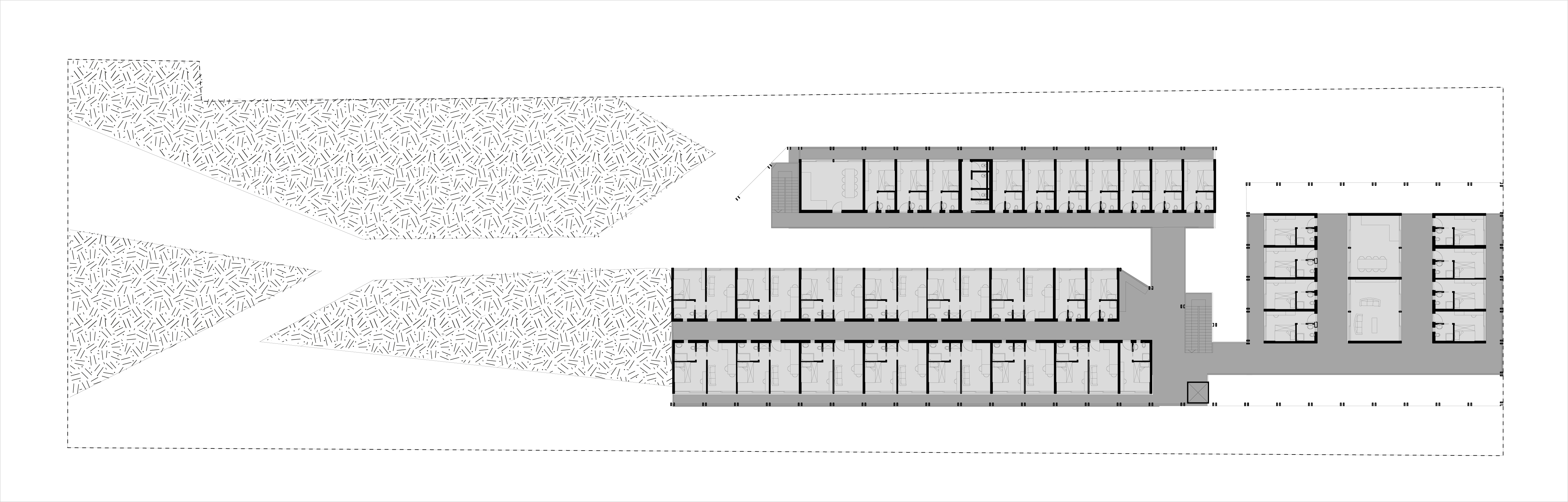

1st Floor

2nd Floor
