Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau

2024/09/13 17:27:18
查看完整案例
微信扫一扫
收藏
下载
自 2006 年凭借参赛作品 Meander 在国际邀请赛中获胜以来,这座由斯蒂芬·霍尔设计的建筑杰作就一直处于酝酿之中。18 年后的今天,这座独特而复杂的建筑综合体由 Newil&Bau 公司最终完成。在芬兰,斯蒂芬·霍尔以赫尔辛基奇亚斯玛当代艺术博物馆的主要设计师身份而闻名。
Designed by U.S. architect Steven Holl, this architectural masterpiece has been in the making since 2006 when Steven Holl Architects won the international invitational competition with his entry, Meander. Now, 18 years later, this unique and detailed complex has been completed by Newil&Bau. In Finland, Steven Holl is known especially for being the principal designer of the Kiasma Museum of Contemporary Art in Helsinki.

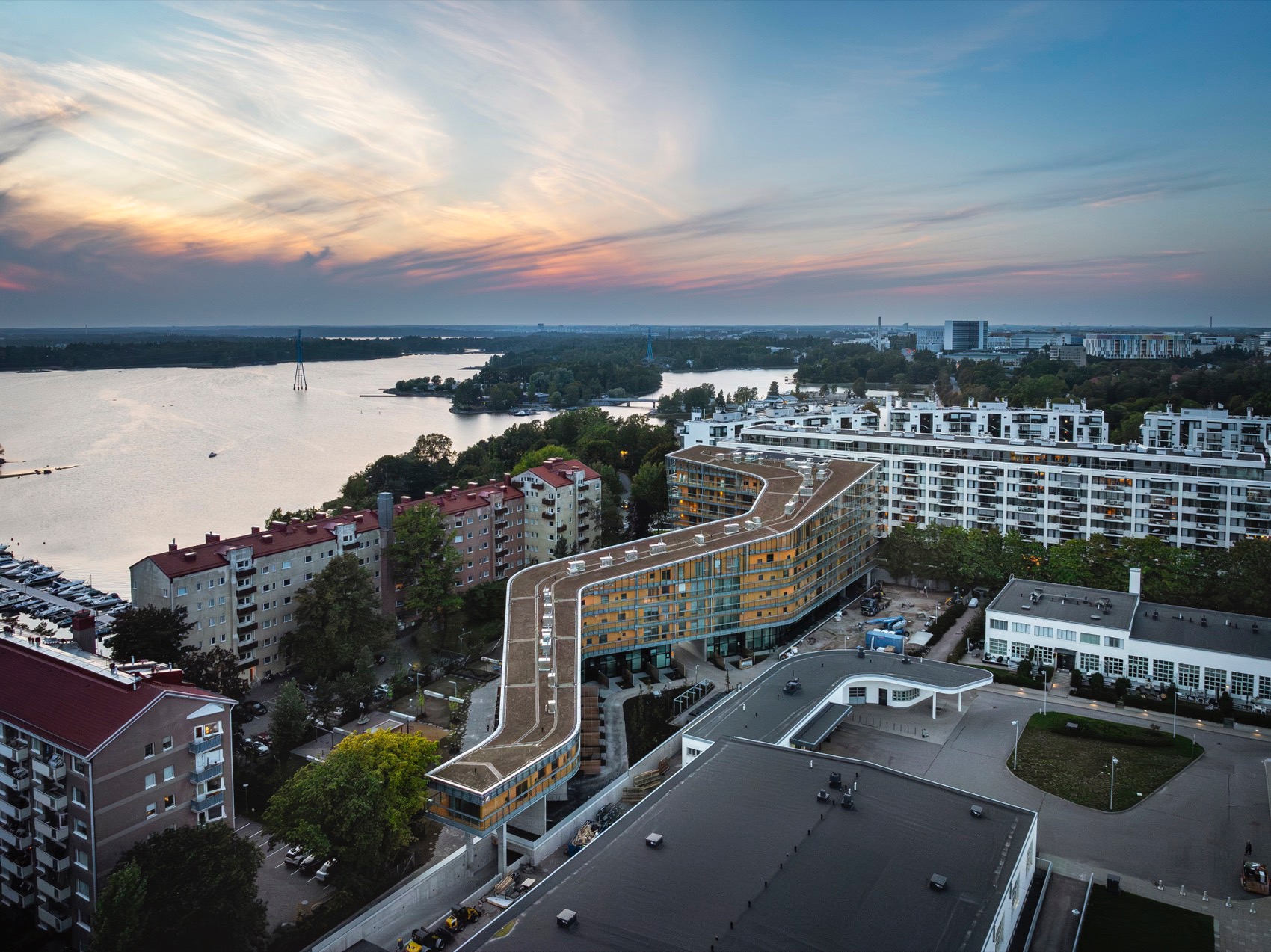

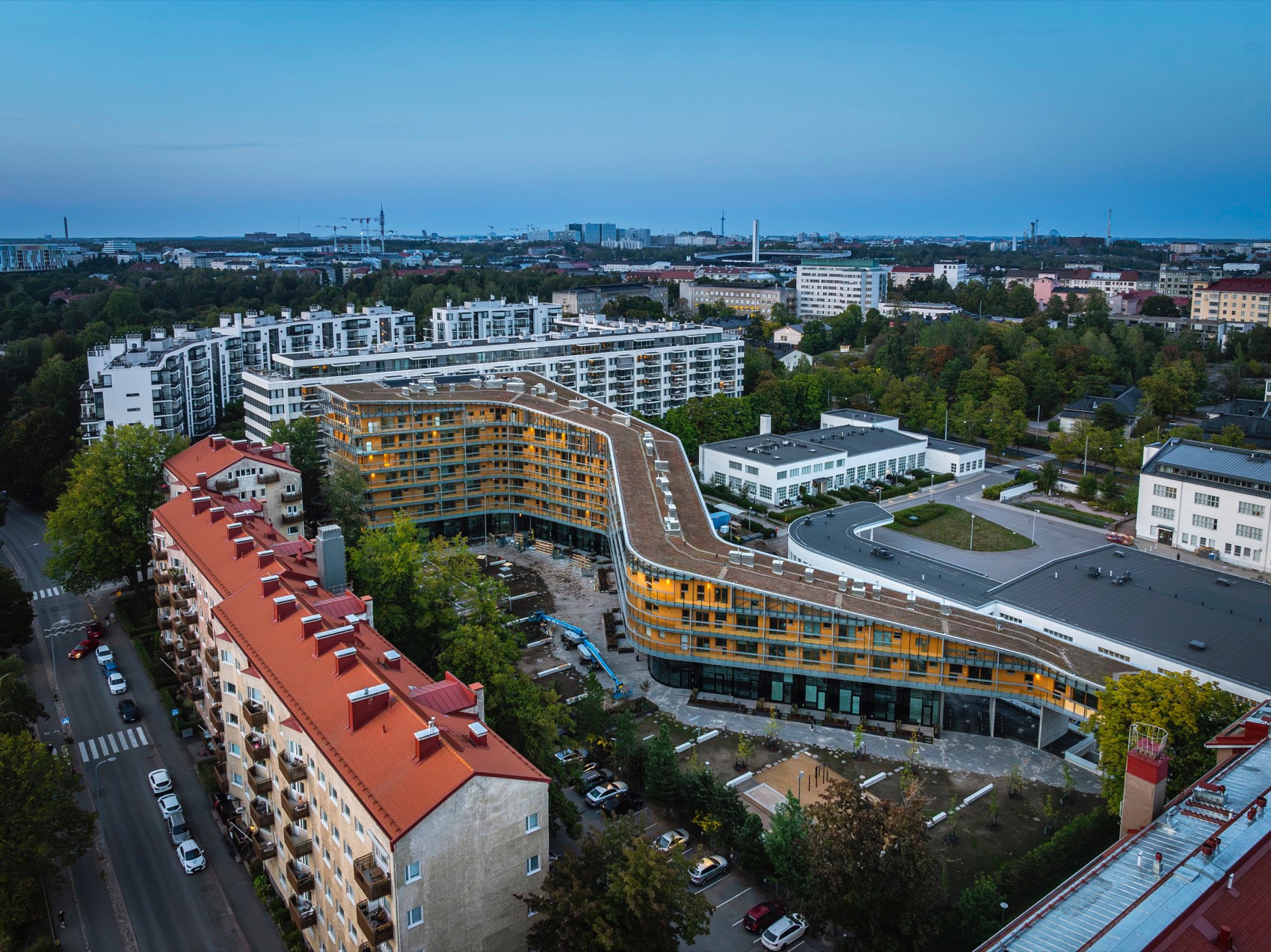

▼鸟瞰,aerial view © kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-3
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-4
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-5
在收购 Meander 的产权后,Newil&Bau 与斯蒂芬·霍尔建筑事务所及其芬兰合作伙伴 ARK-house Arkkitehdit 事务所合作,重新启动了设计流程。该项目结合了霍尔的雕塑化设计和强调务实的强烈愿景,以及 Newil&Bau 以人为本的运营理念。霍尔的设计塑造了 Meander 体量内部的空腔,同时最大限度地利用了景观,最终形成了一件有意和环境及太阳朝向联系在一起的完整艺术品。
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-7

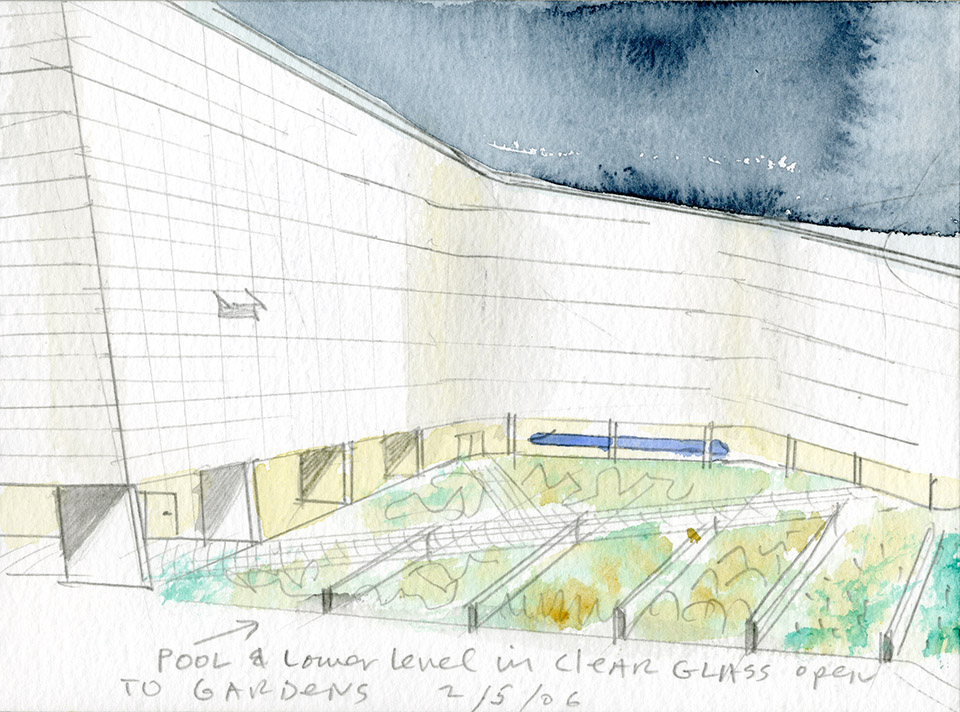

▼景观手绘,garden drawing©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-9
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-10
After acquiring the Meander property, Newil&Bau restarted the design process in cooperation with Steven Holl Architects and its Finland-based partner office ARK-house Arkkitehdit. The property combines Holl’s strong vision of sculptural design and practicality with Newil&Bau’s human-oriented implementation. Holl’s design shapes void spaces within Meander’s urban block while maximizing views, resulting in a complete work of art that is deliberately connected to its environment and the rotation of the sun.

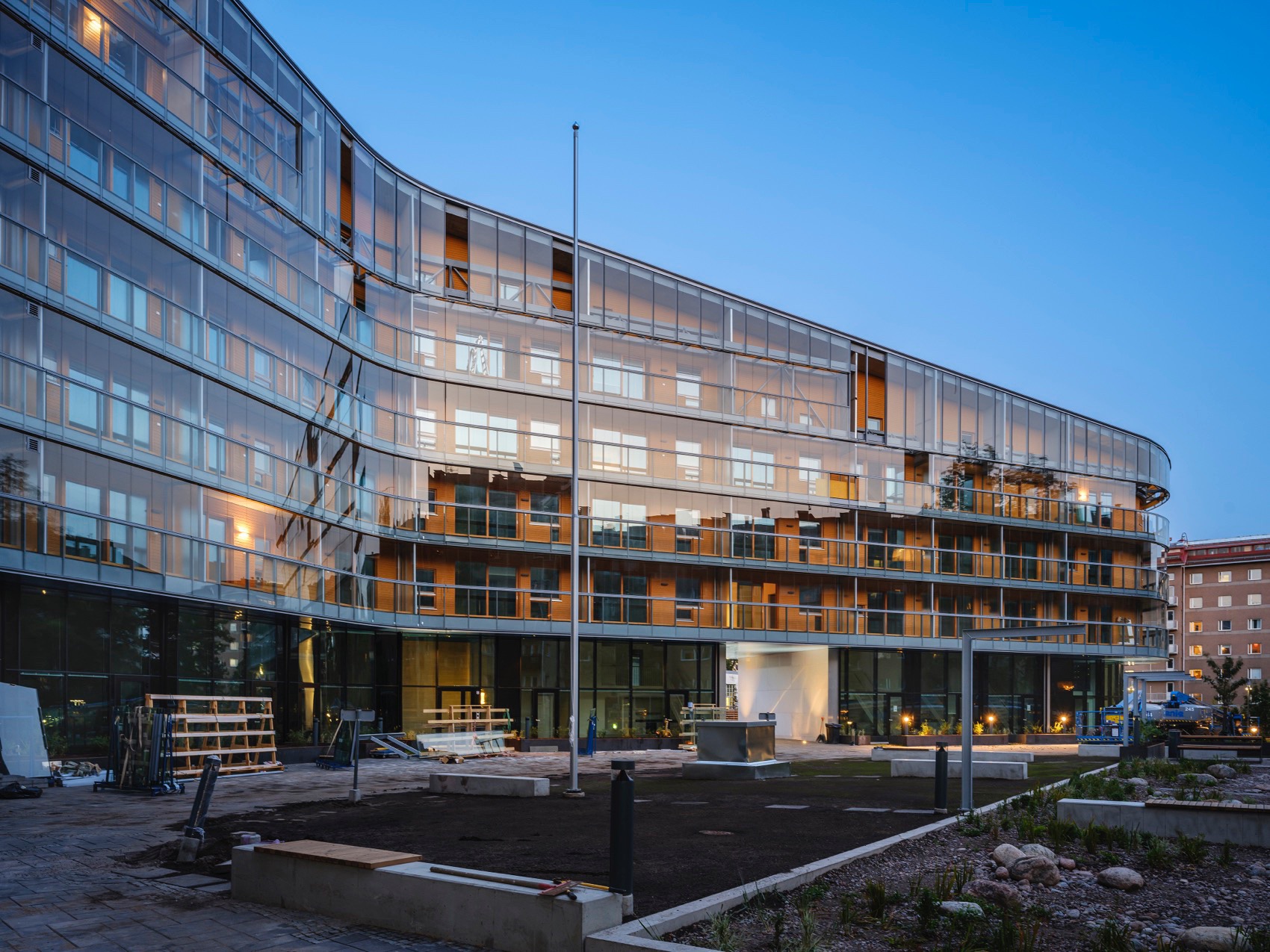

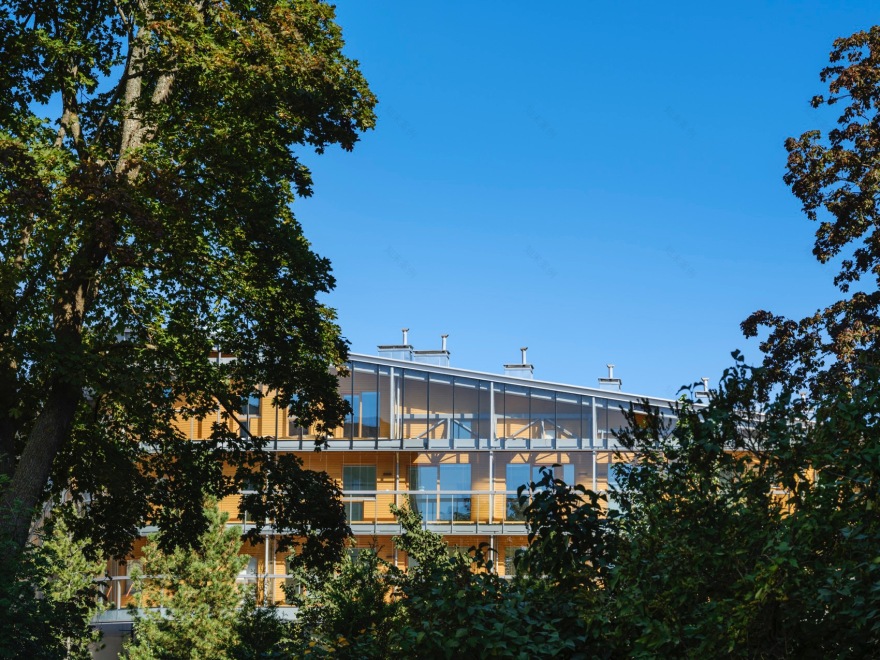

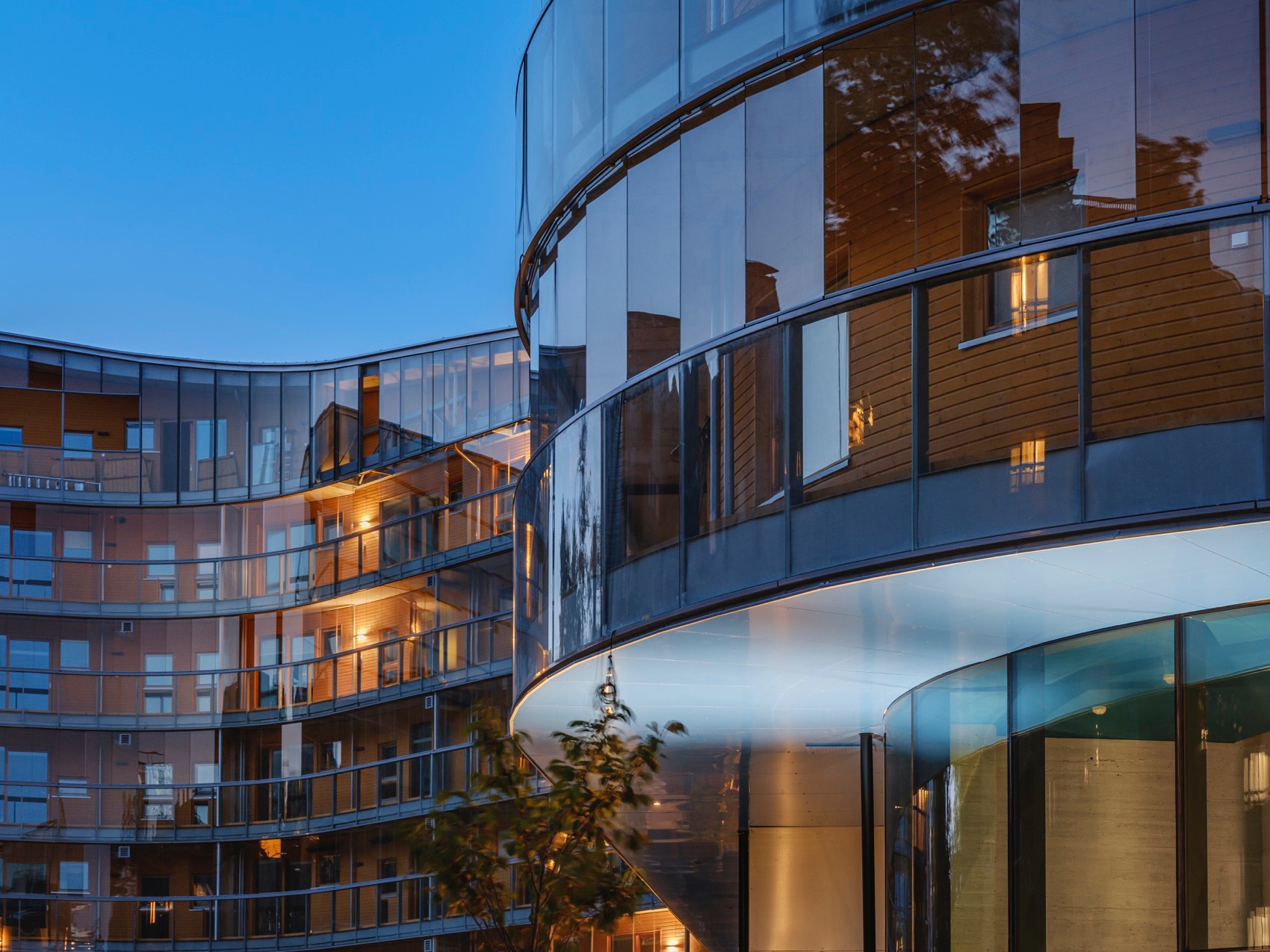

▼外部立面,exterior facade©kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-13
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-14
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-15

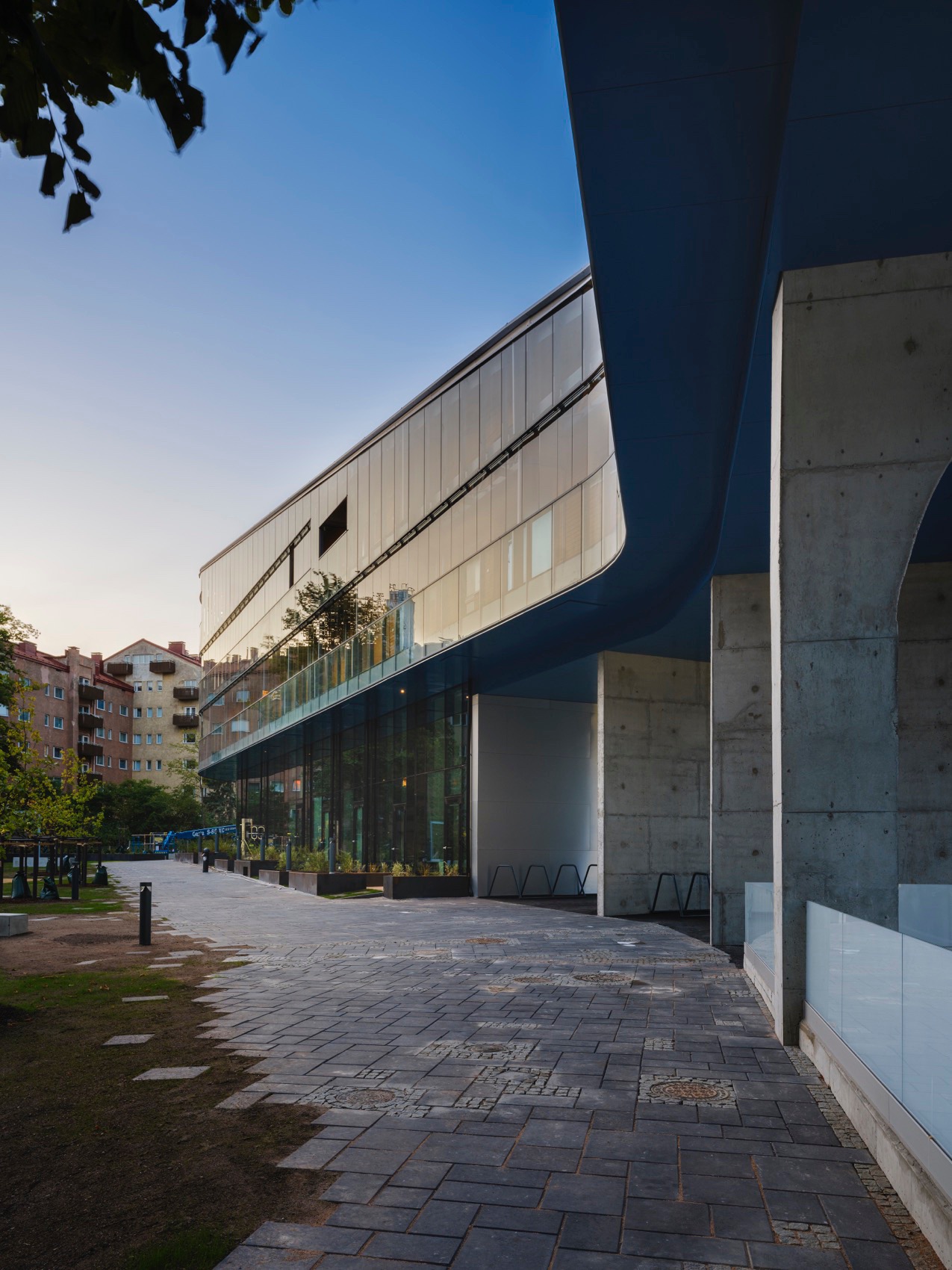

▼檐下空间,ground floor covered space©kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-17

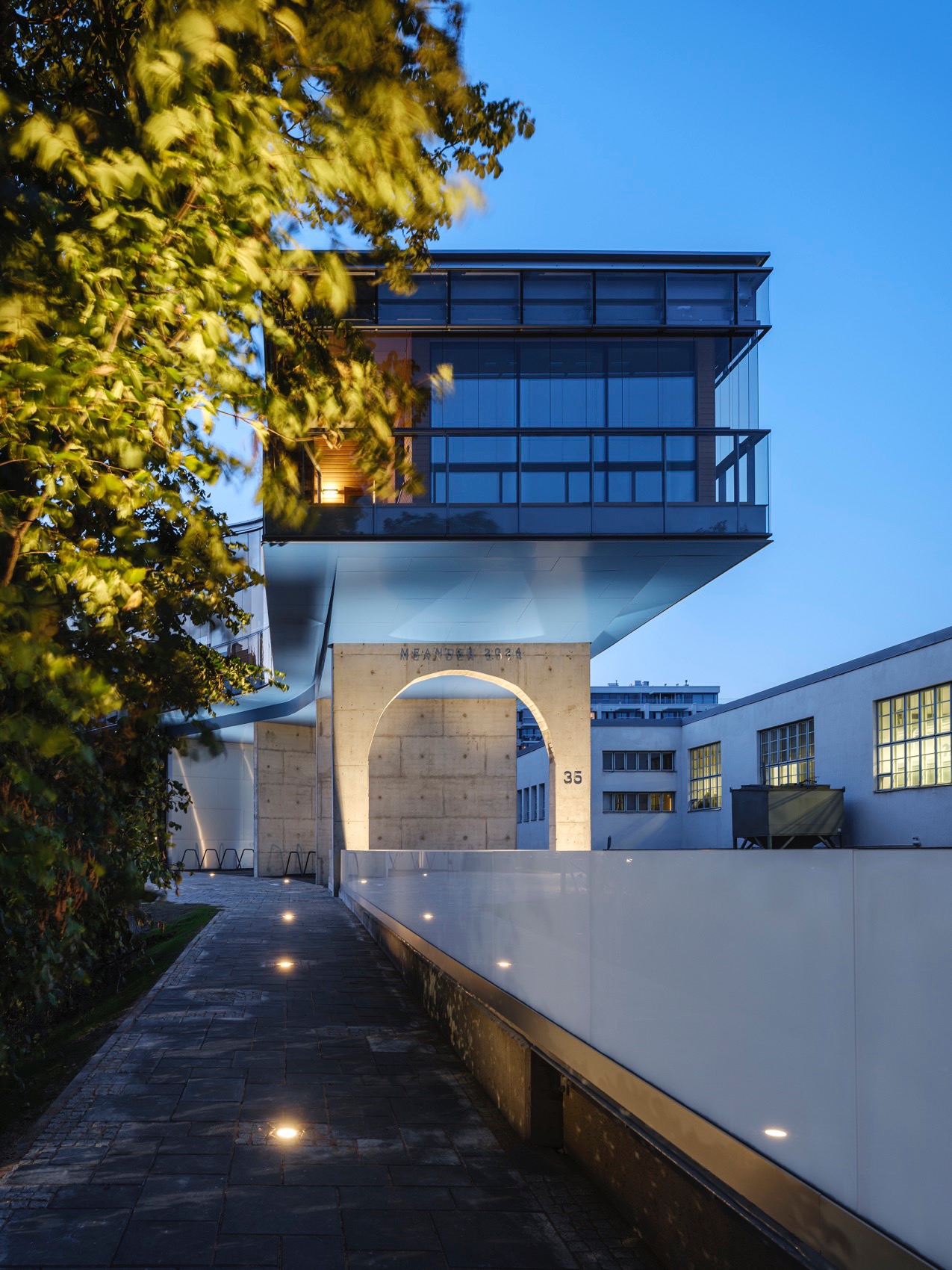

▼出挑,cantilevered volume©kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-19

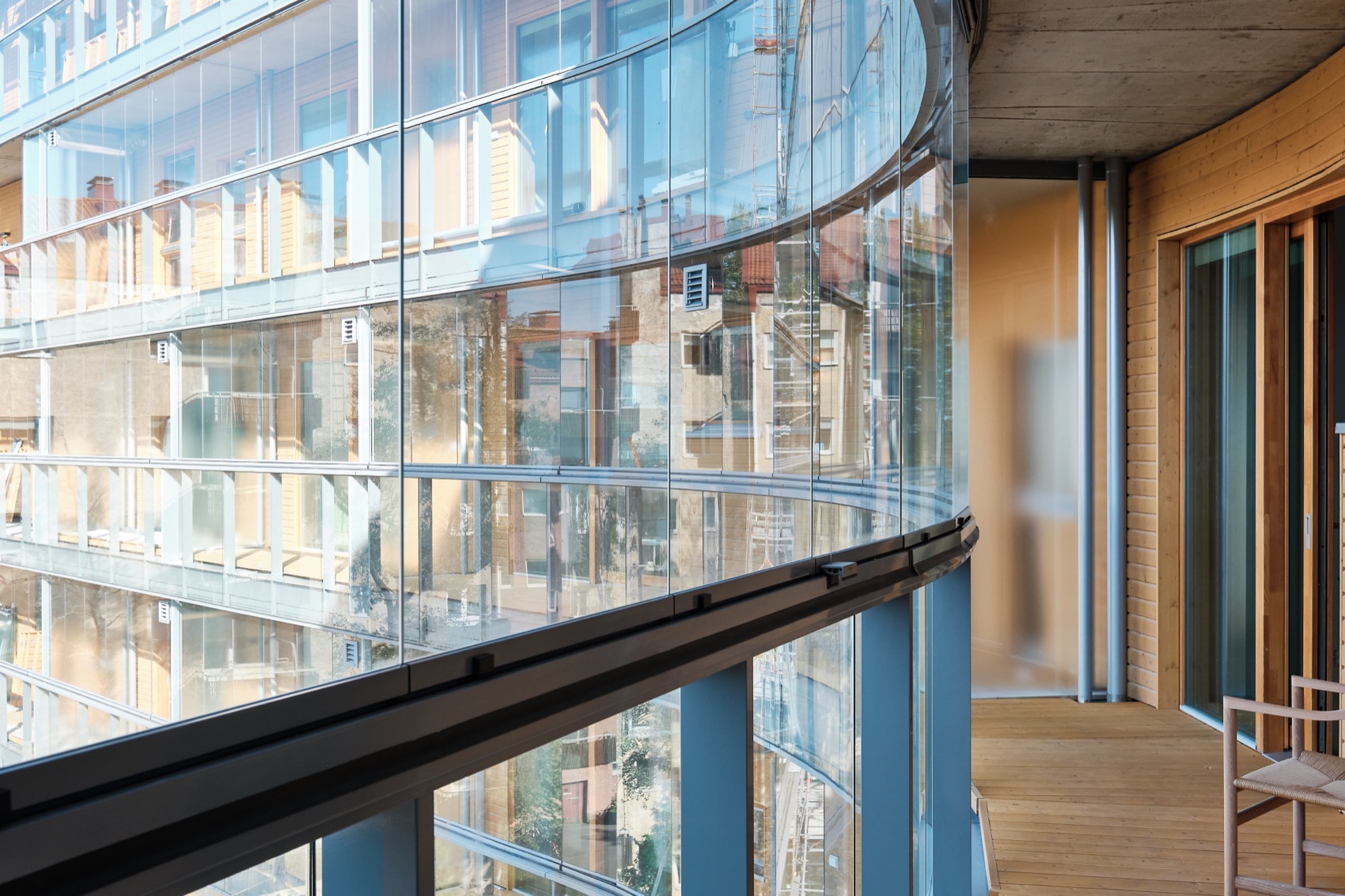

▼阳台,balcony©Jenny Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-21

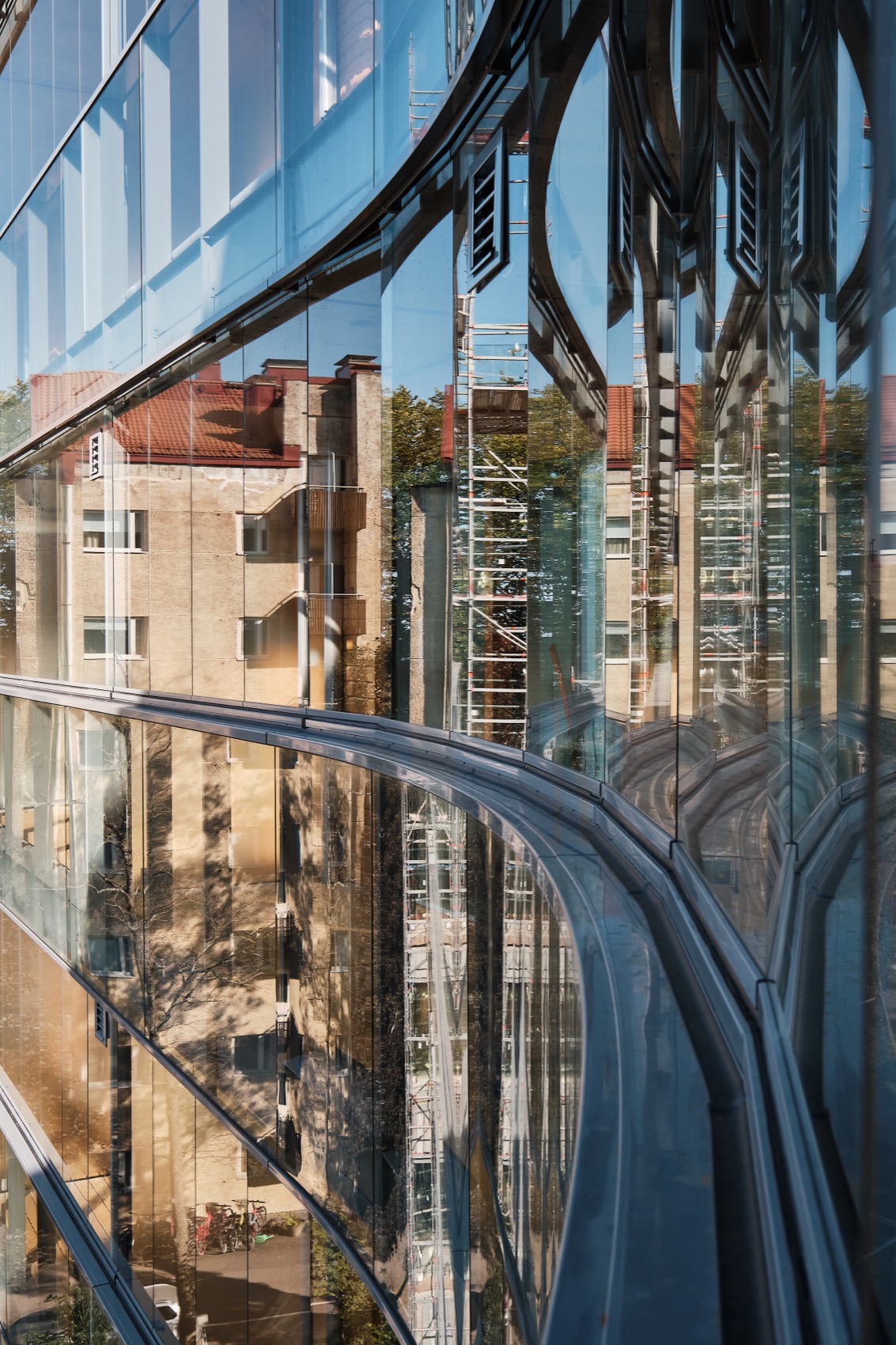

▼立面细部,facade detail©Jenny Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-23

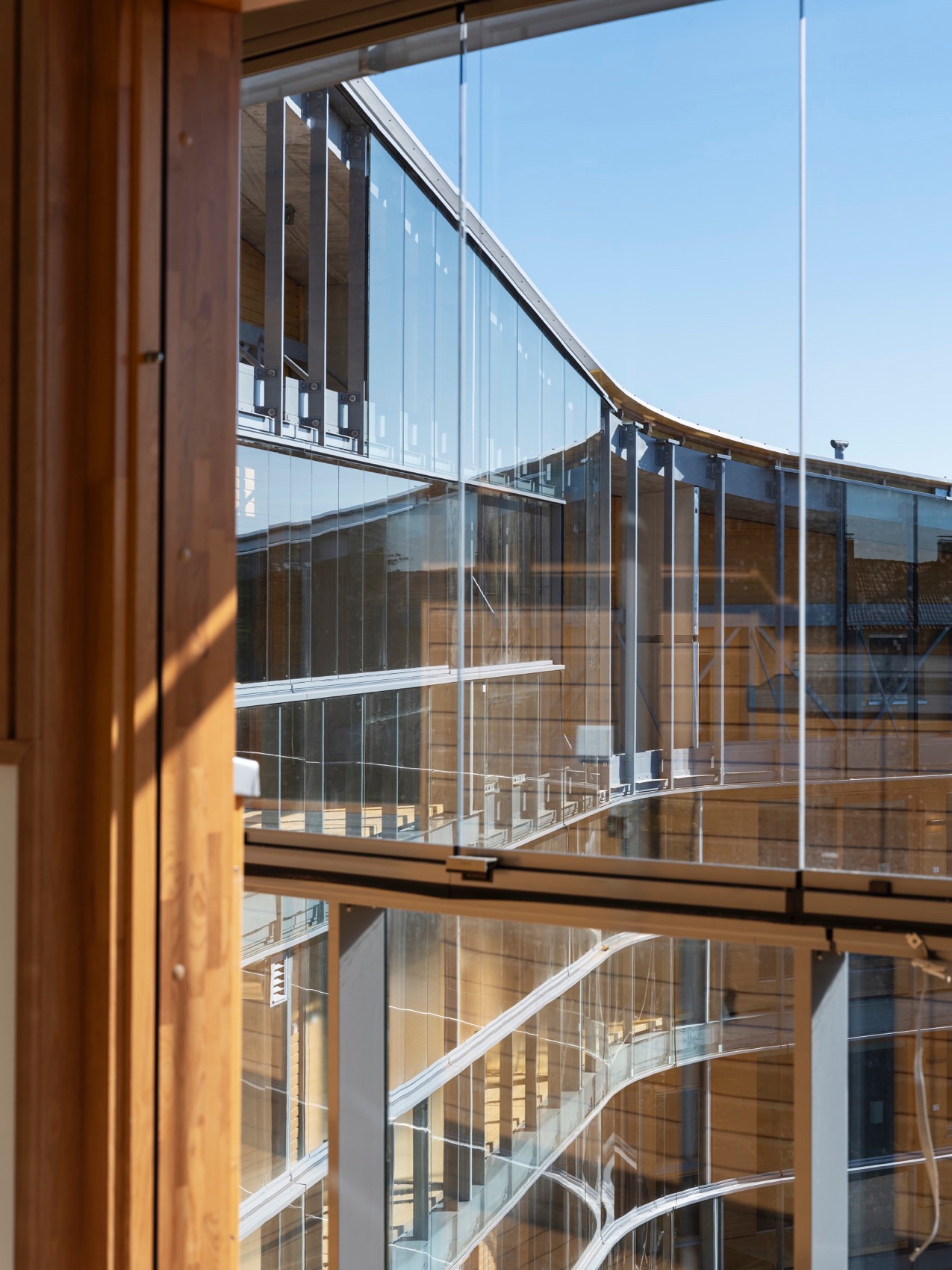

▼从室内望向建筑,view from interior©kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-25
除了建筑之外,Meander 的绿地、公寓和室内设计、公共区域以及生态方面被重新设计,以符合 Newil&Bau 事务所着重细节的五点设计理念。
Besides its architecture, Meander’s green spaces, apartments and interior design, communal areas as well as ecological aspects were redesigned in accordance with Newil&Bau’s five-point “Newil is in the Details” design philosophy.

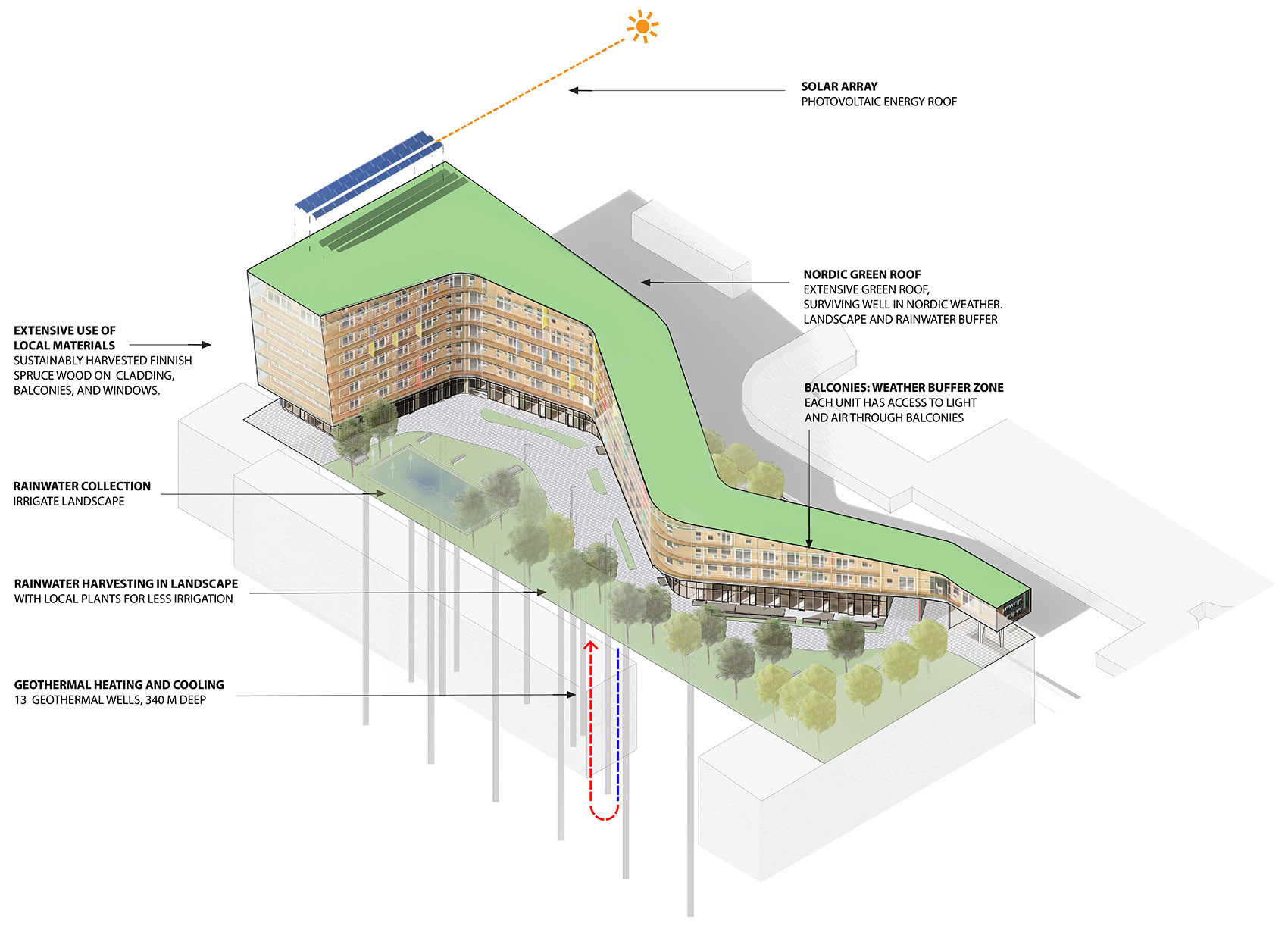

▼概念轴测,conceptual axon©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-29
像河流一样蜿蜒的建筑全部由玻璃覆盖,包含 115 套独特的公寓和庭院、一个酒窖、一个水疗中心、一个电影院、一个瑜伽室以及众多细部:从霍尔设计的狗饮水池到青铜门把手、照明灯具和木制长凳。此外,每位住户还将获得由艺术家 Fanny Tavastila 设计的丝网印刷艺术品。这件艺术作品介于抽象和写实的图形艺术之间,由三层颜色组成,采用丝网印刷术逐层制作,因此每层都是独一无二的。
▼狗狗饮水池手绘,sketch of dog bowl©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-32
▼Fanny Tavastila 设计的丝网印刷艺术品,Fanny Tavastila’s artwork
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-34
Meandering like a river and completely covered with glass, the building contains 115 unique apartments and gardens, a wine cellar, a spa, a movie theater, a yoga studio as well as numerous details, from a drinking bowl for dogs designed by Holl to bronze door handles, lighting fixtures and carpenter’s benches. In addition, each resident will get a silk screen print designed by artist Fanny Tavastila. Representing a middle ground between abstract and representational graphic arts, the work of art is comprised of three layers of color and created one by one using silk screen printing, thus making each of them unique.

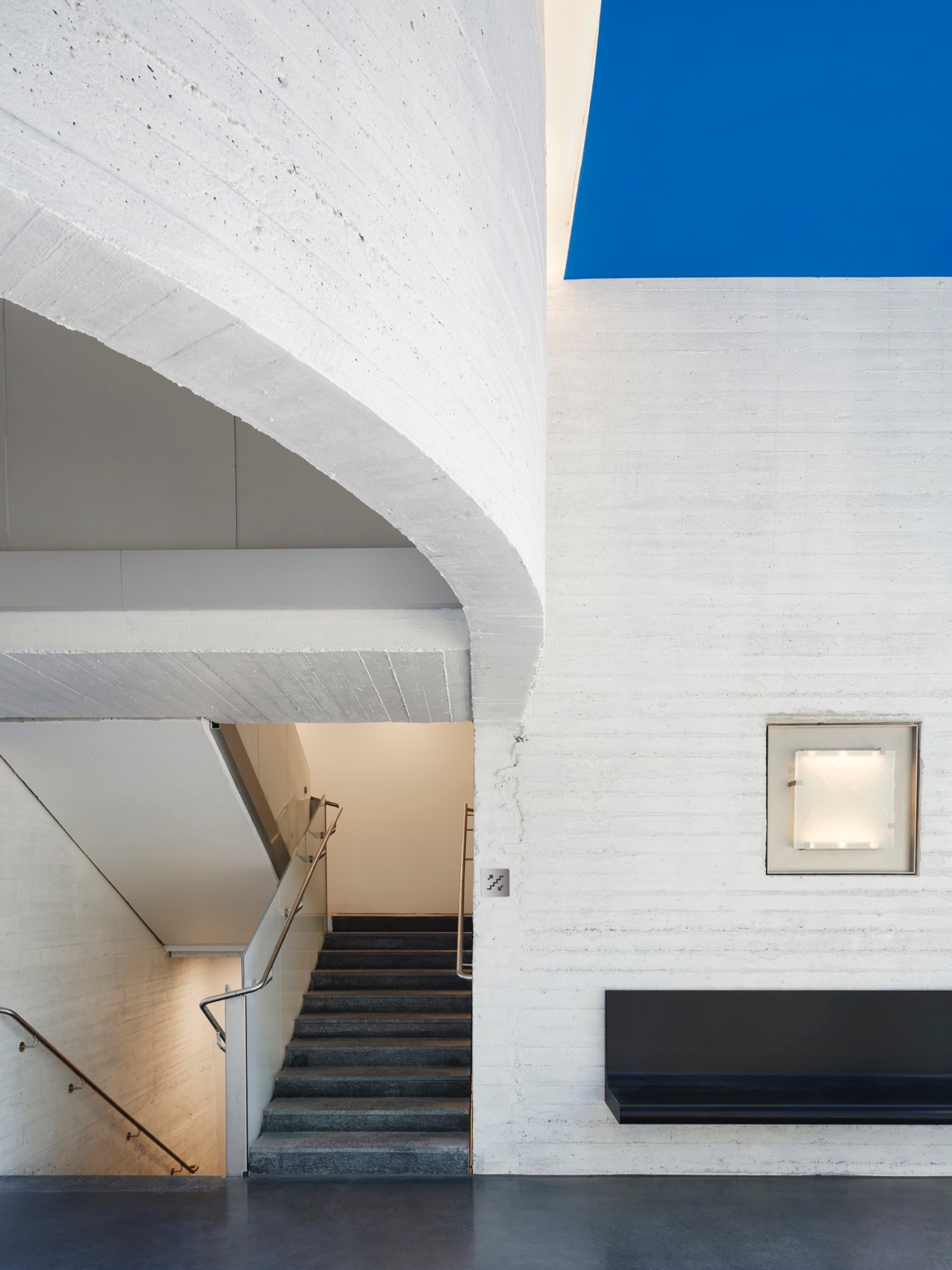

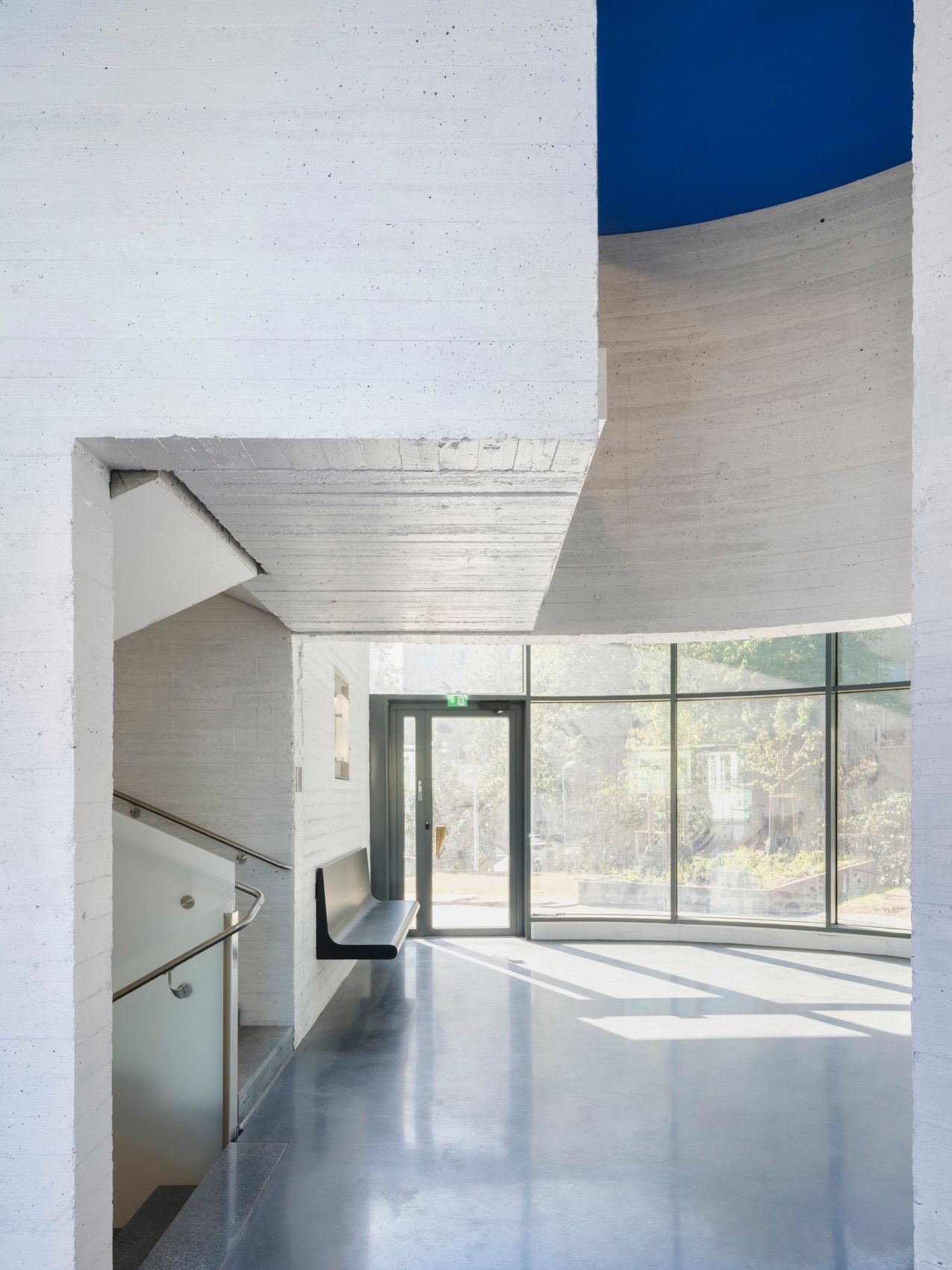

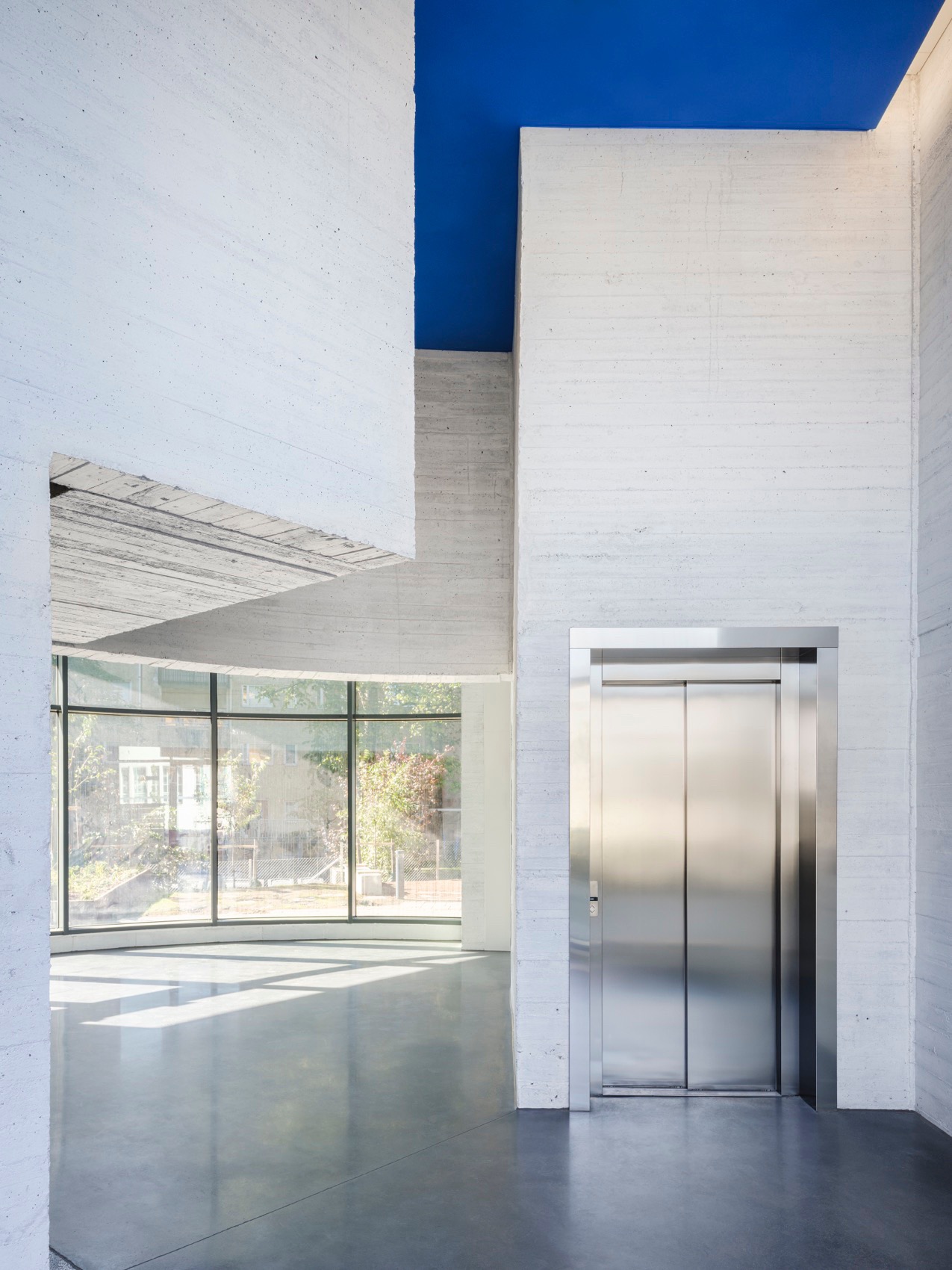

▼大堂空间,hall space© kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-37
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-38
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-39

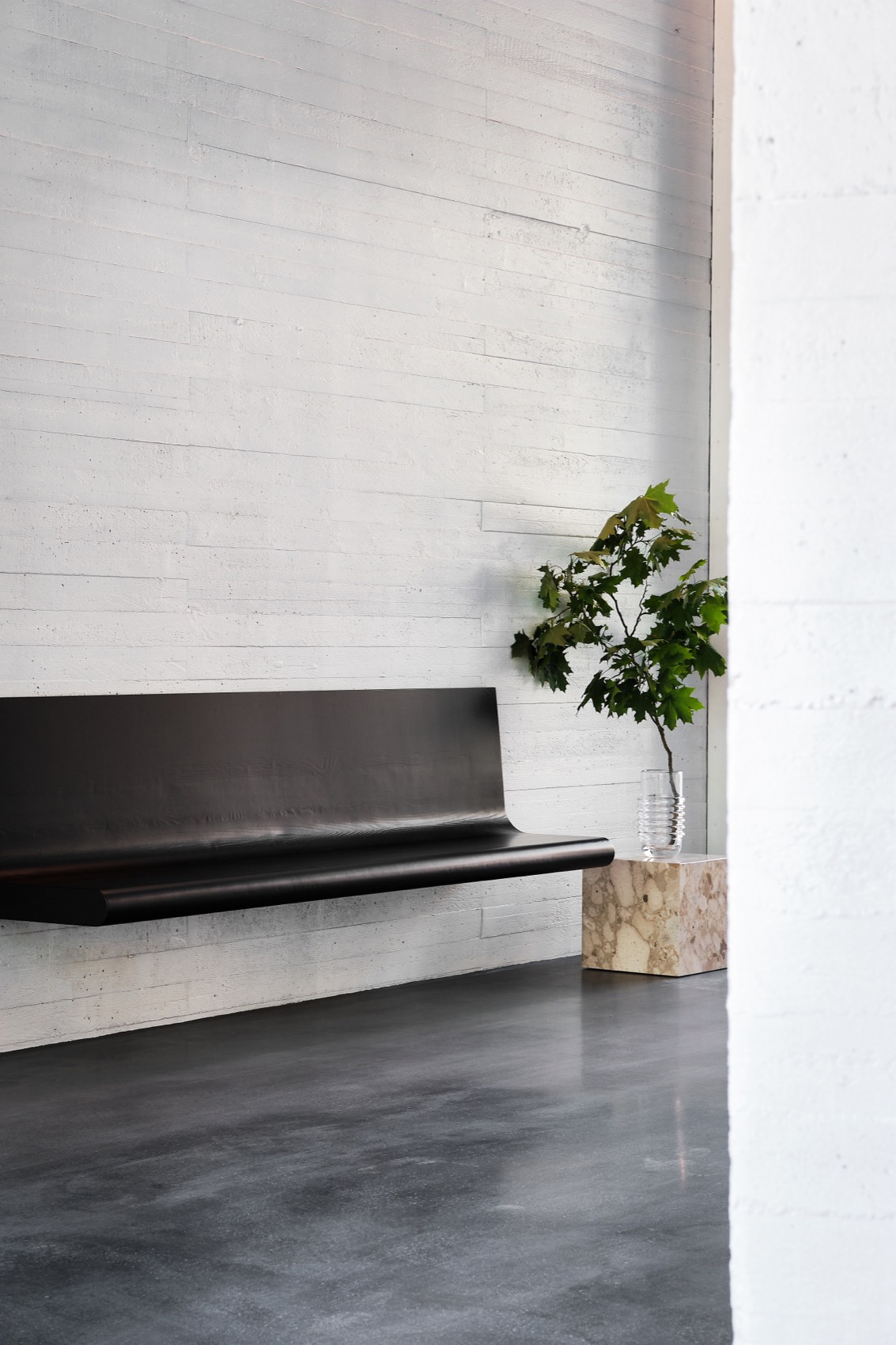

▼座椅细部,seating close-up© Jenny Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-41
▼细部,details ©️ kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-43

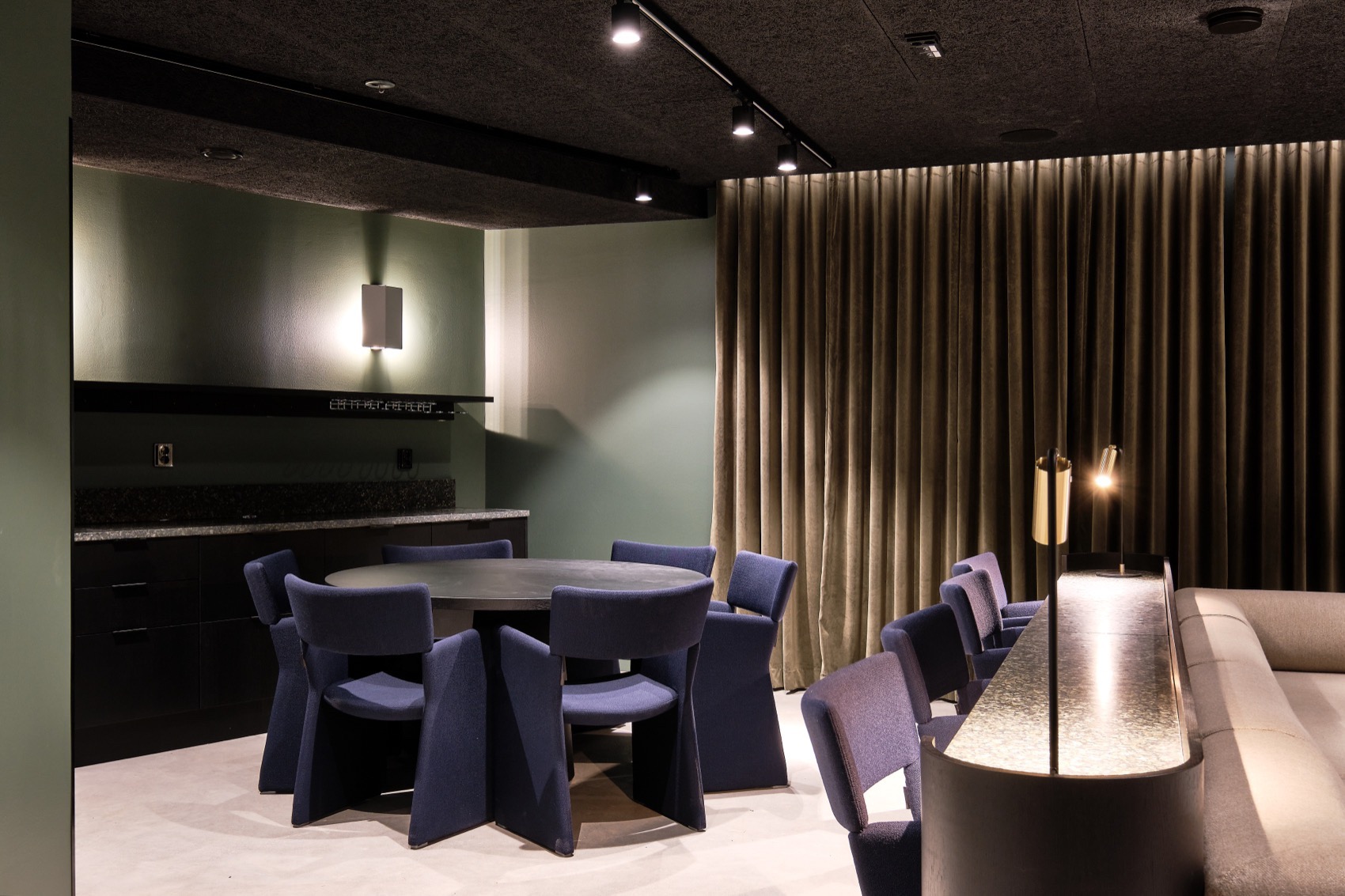

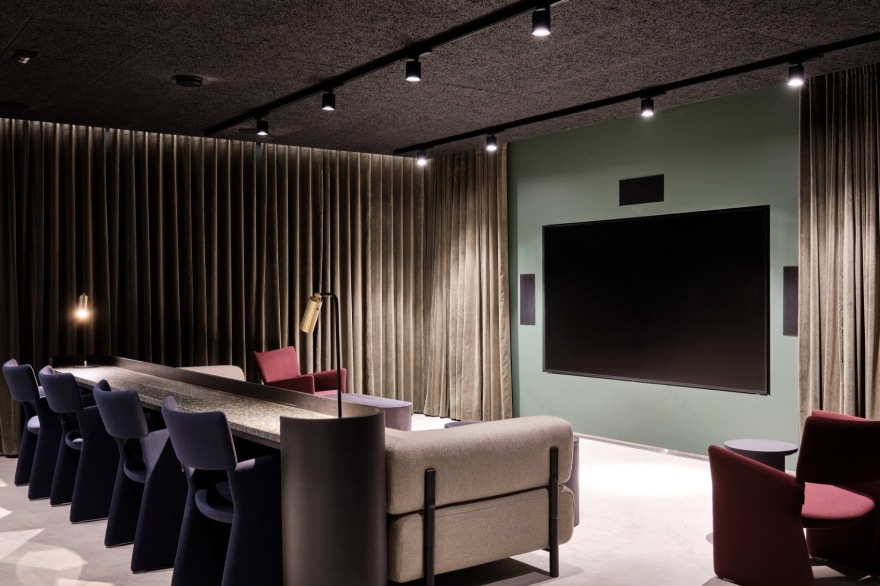

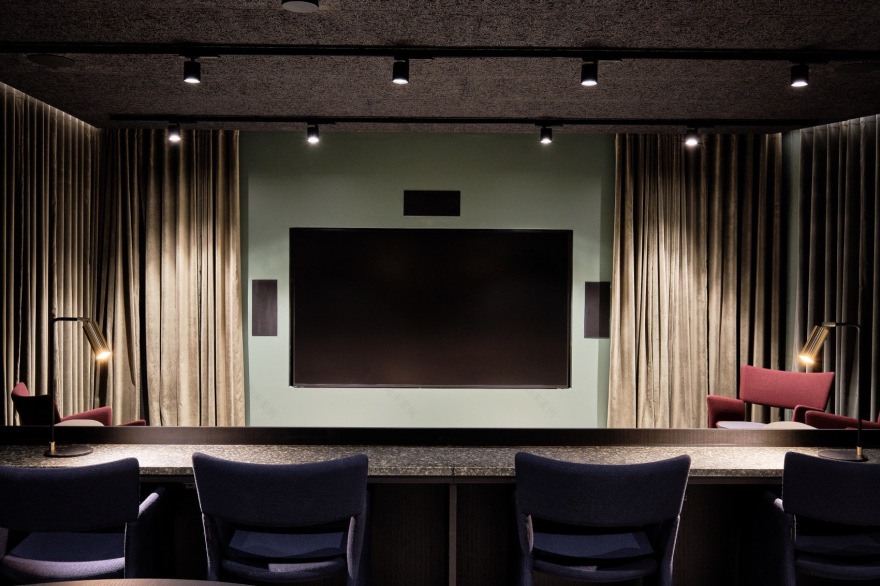

▼影音室,cinema room© Jenny Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-45
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-46
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-47

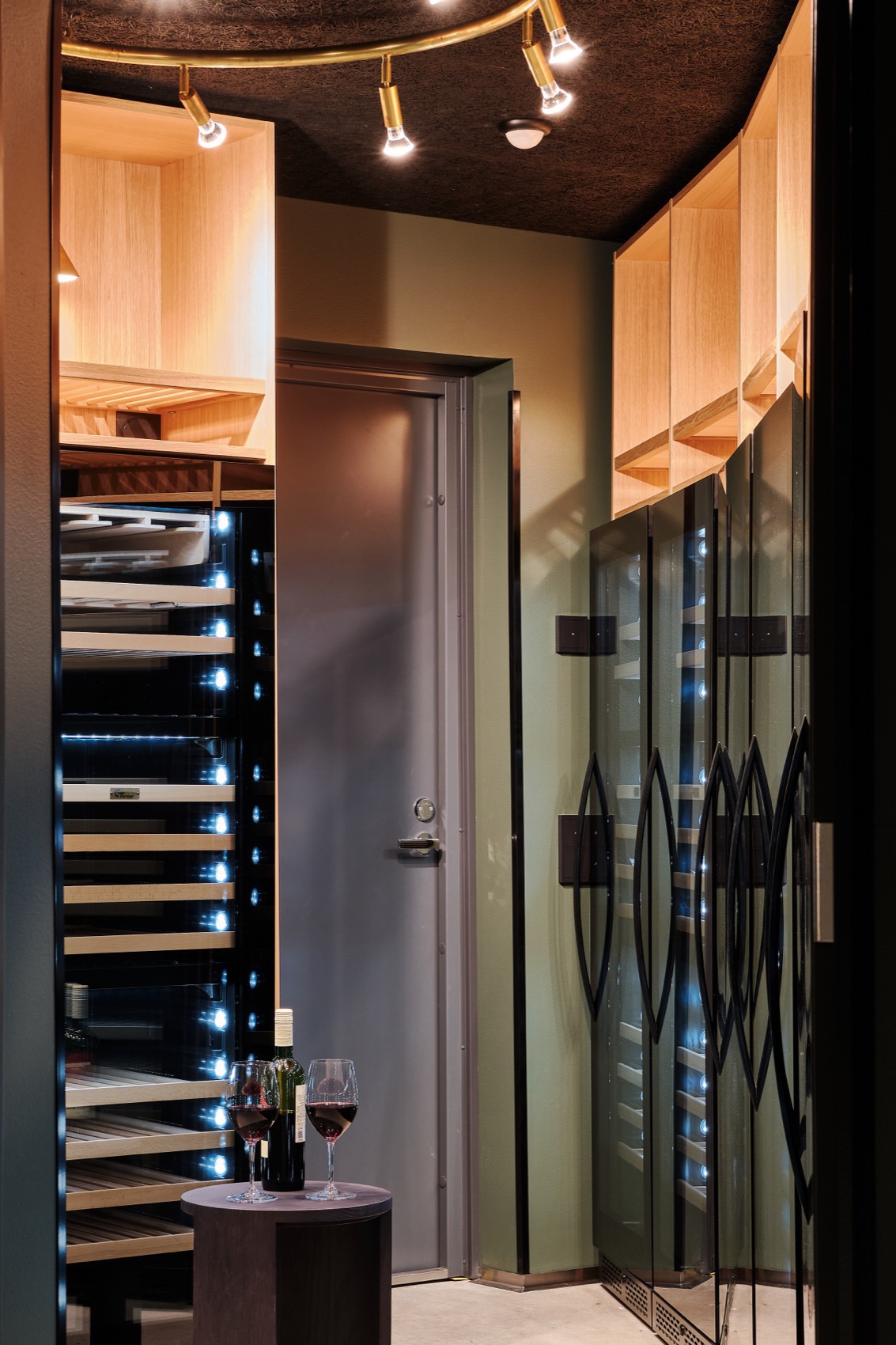

▼酒窖,wine cellar©Jenny Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-49
Meander 是可持续设计的典范。在使用阶段,该建筑的碳足迹约为传统公寓楼的 50%。Meander 采用了地热供暖系统、太阳能电池板、智能楼宇自动化系统以及优化的门窗设计方案。建筑结构的设计使用寿命超过 100 年,然后才需更换。
▼室内景色手绘,interior view sketch©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-52
Meander is an example of sustainable design. During its use phase, the building’s carbon footprint is approximately 50% of the carbon footprint of a conventional apartment building. Meander features a geothermal heating system, solar panels, smart building automation as well as optimized design solutions for doors and windows. The building structures are designed to last for more than 100 years before they require refurbishment.
▼走廊,corridor© kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-55

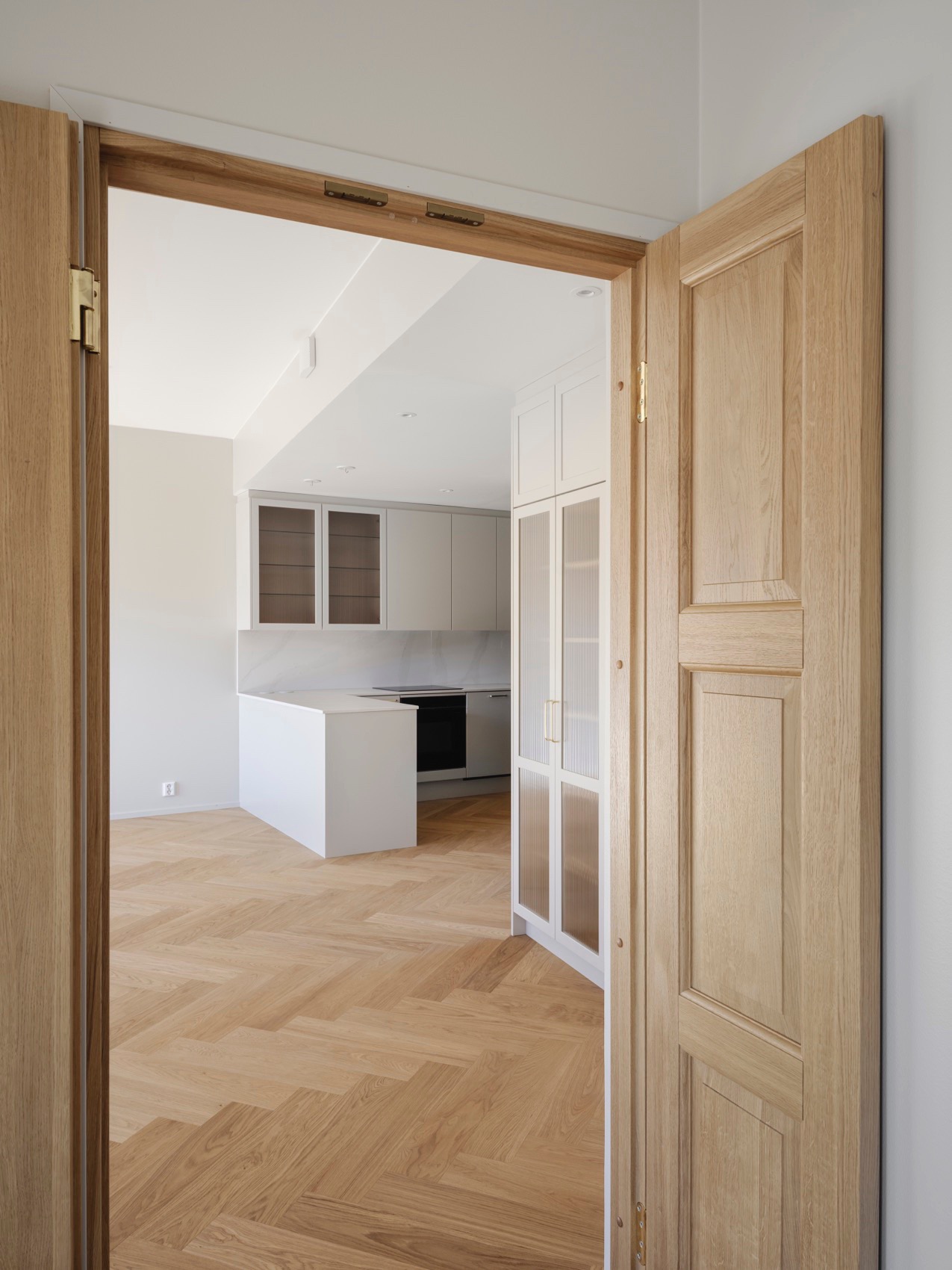

▼室内一瞥,a glimpse at interior©kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-57

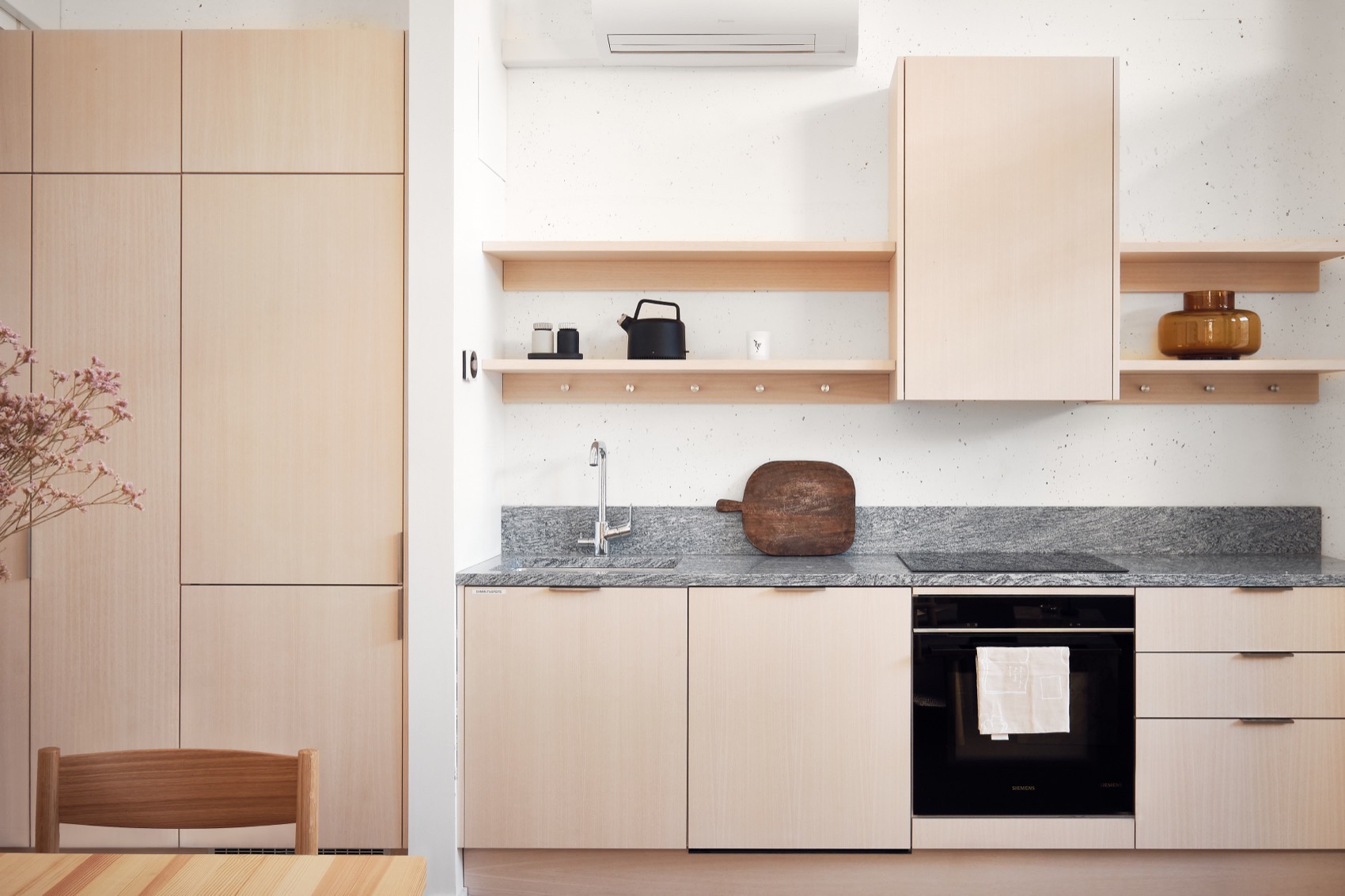

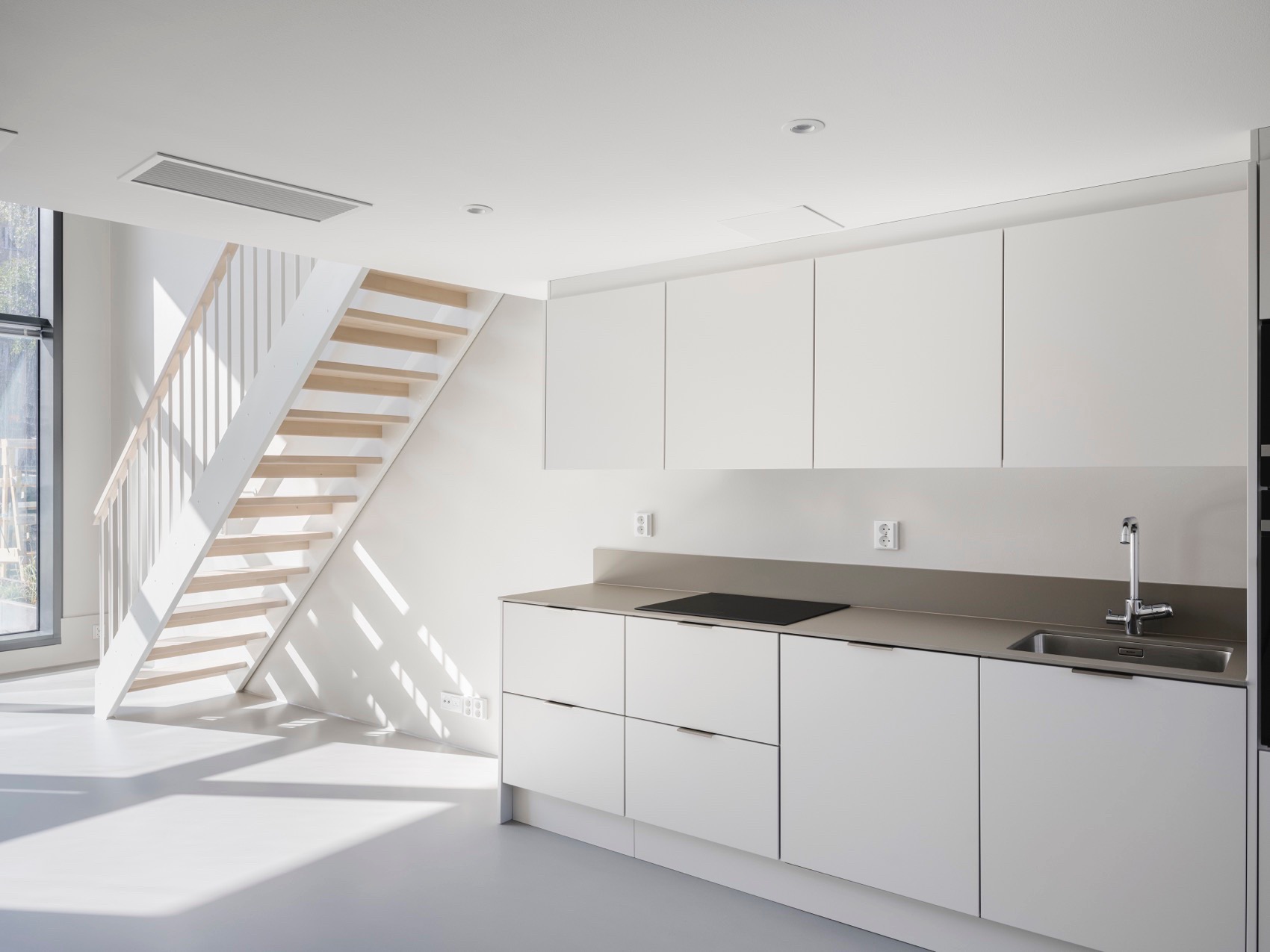

▼厨房,kitchen©kuvatoimistokuviooy
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-59
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-60

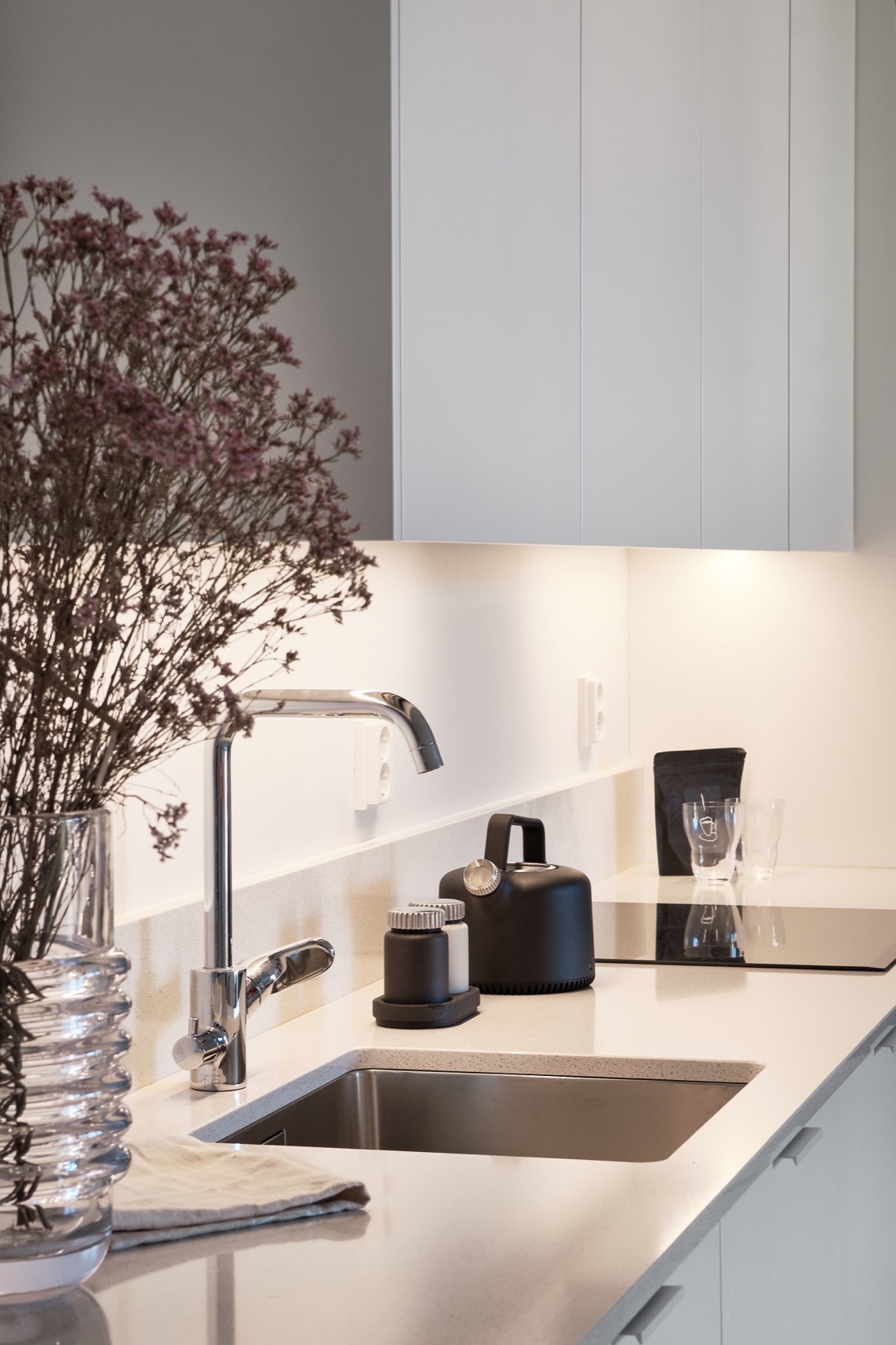

▼厨房台面,kitchen tabletop© Jenny-Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-62

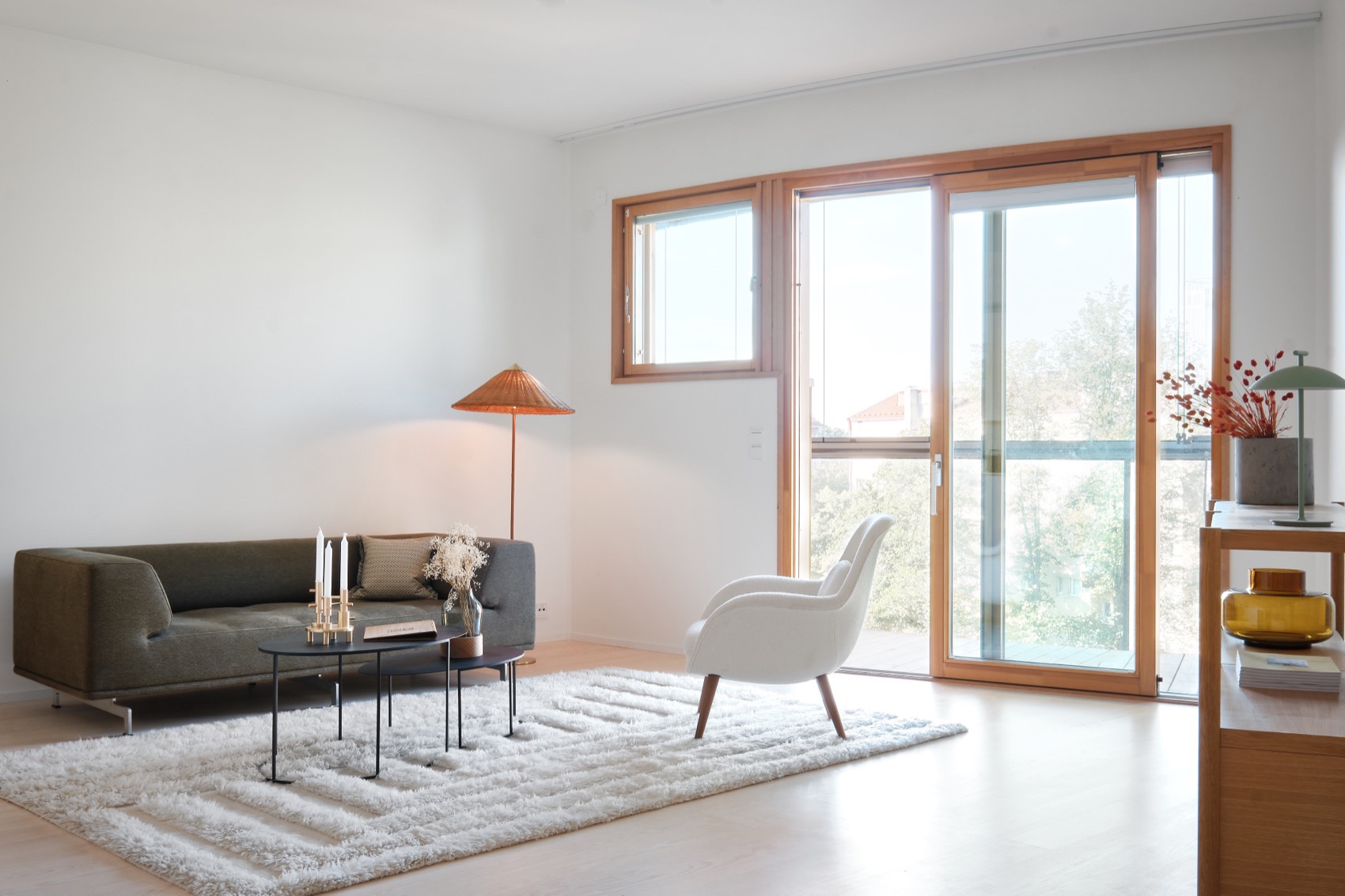

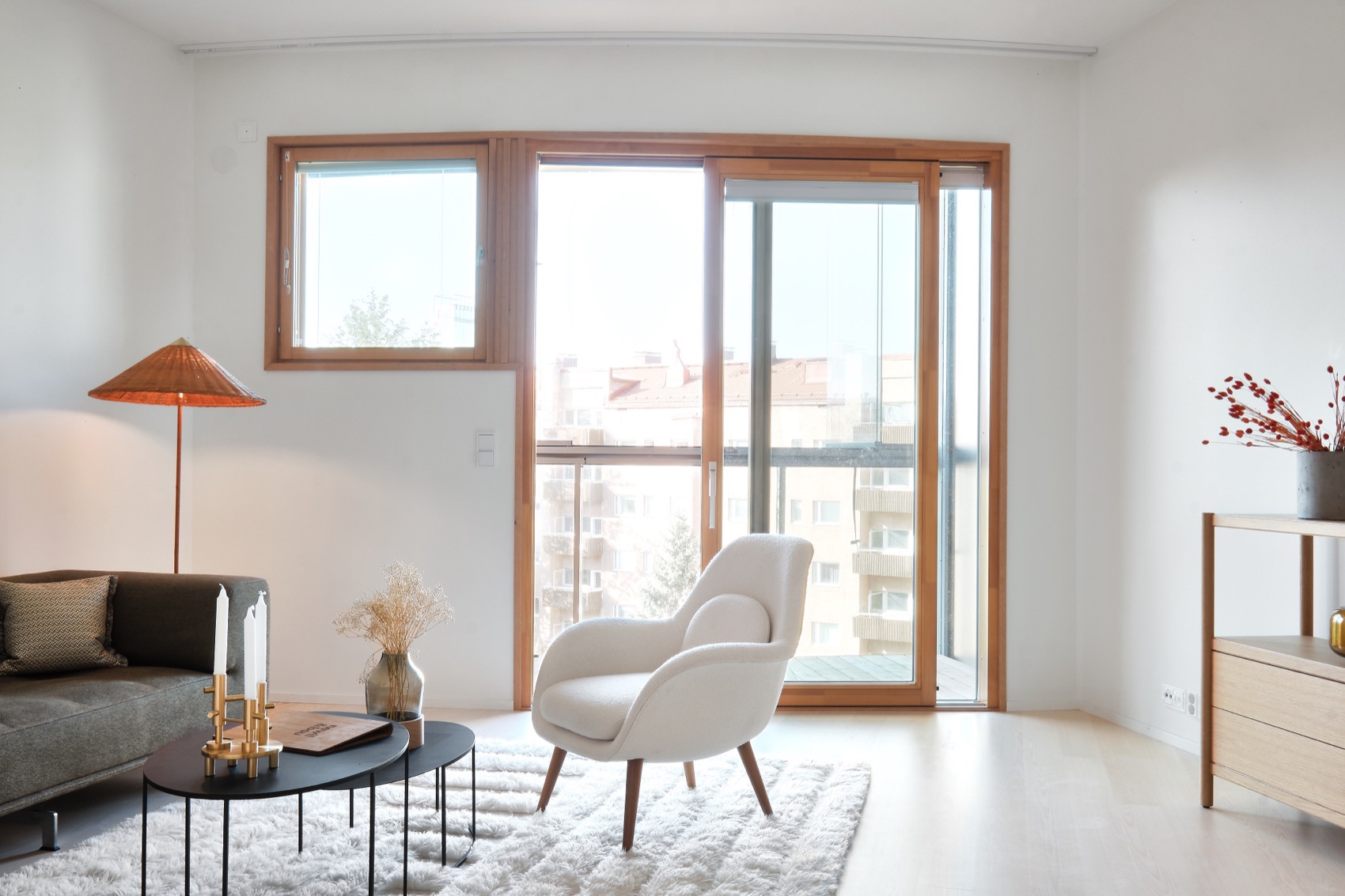

▼起居空间,living room©Jenny-Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-64
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-65

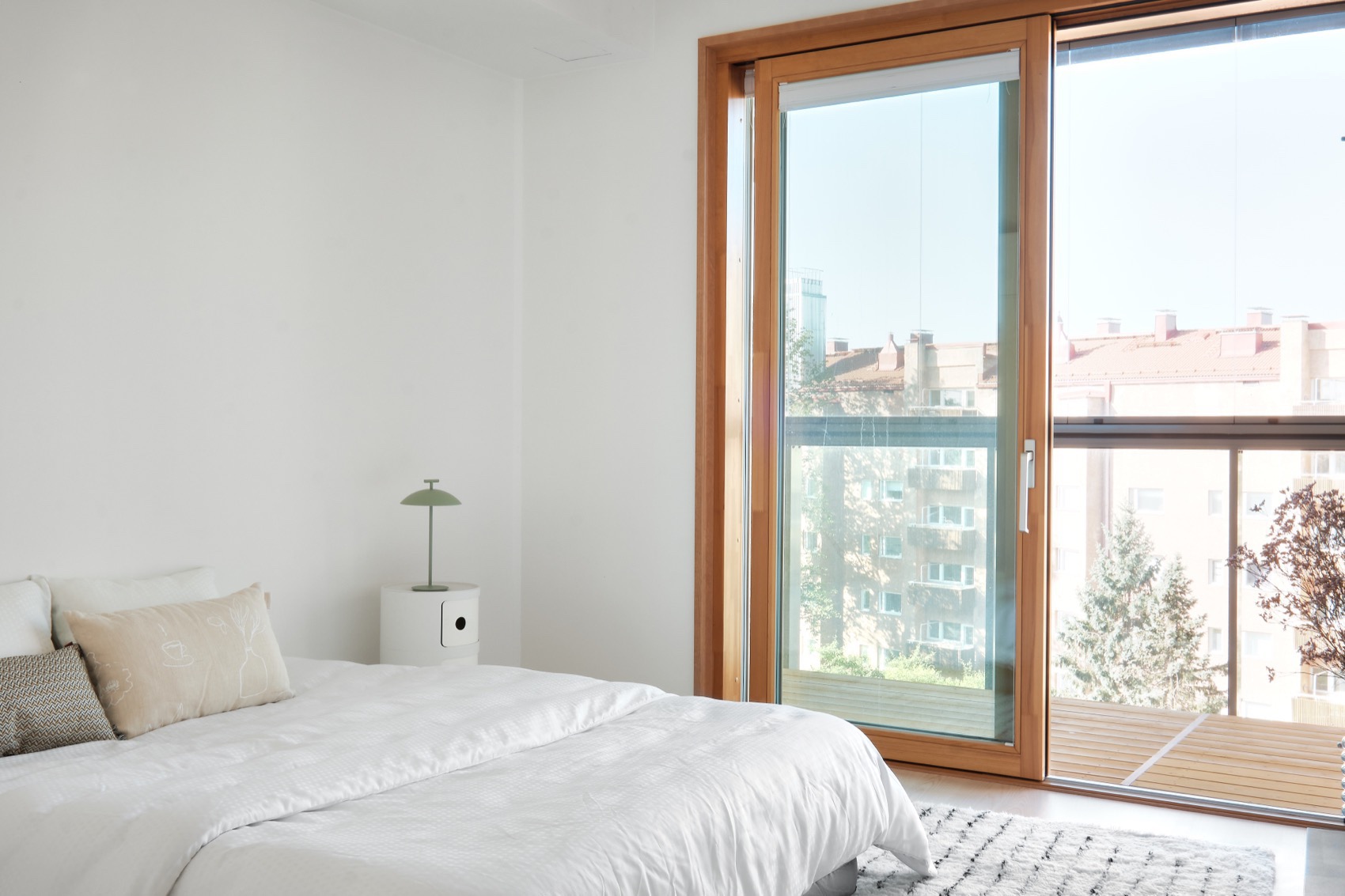

▼卧室,bedroom©Jenny-Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-67
Newil&Bau 公司首席执行官 Petri Ylivuori 欣喜地说:“最终结果比我们在效果照片上看到的更加令人惊叹。Meander 的施工,尤其是最终落地,是在一个充满挑战的市场环境中进行的——毕竟,该房产的总销售价值接近 1 亿欧元。90%以上的公寓已经售出,仅剩少量家庭公寓在售。因此,人们仍有机会在这座独一无二的建筑中安置新家。”
“The end result is even more amazing than what we saw in the virtual photos,” rejoices Petri Ylivuori, CEO of Newil&Bau. “The construction, and especially the completion, of Meander took place in a challenging market environment – after all, the combined sales value of the property is nearly 100 million euros. More than 90% of the apartments have been sold, and only a few family homes remain available. So, one still has a chance to find a new home in this unique building.”

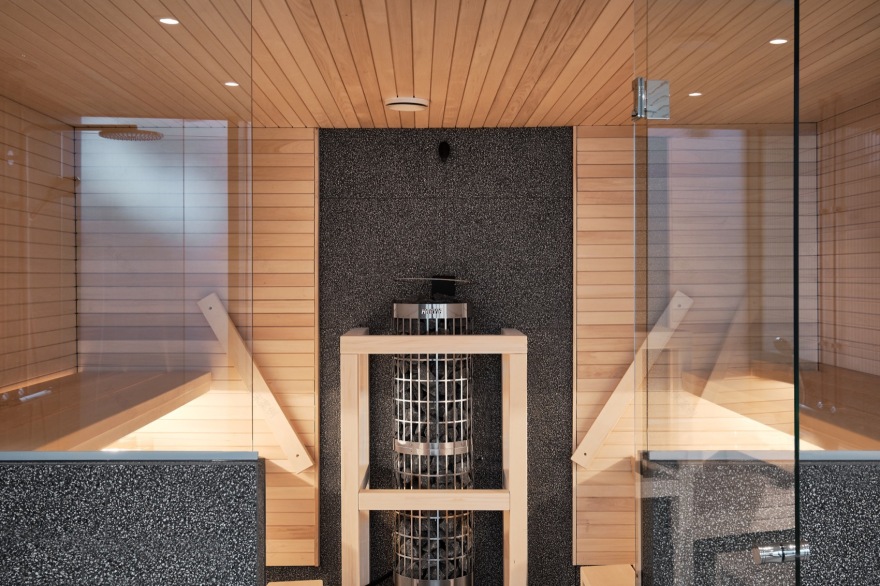

▼桑拿,sauna©Jenny-Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-71

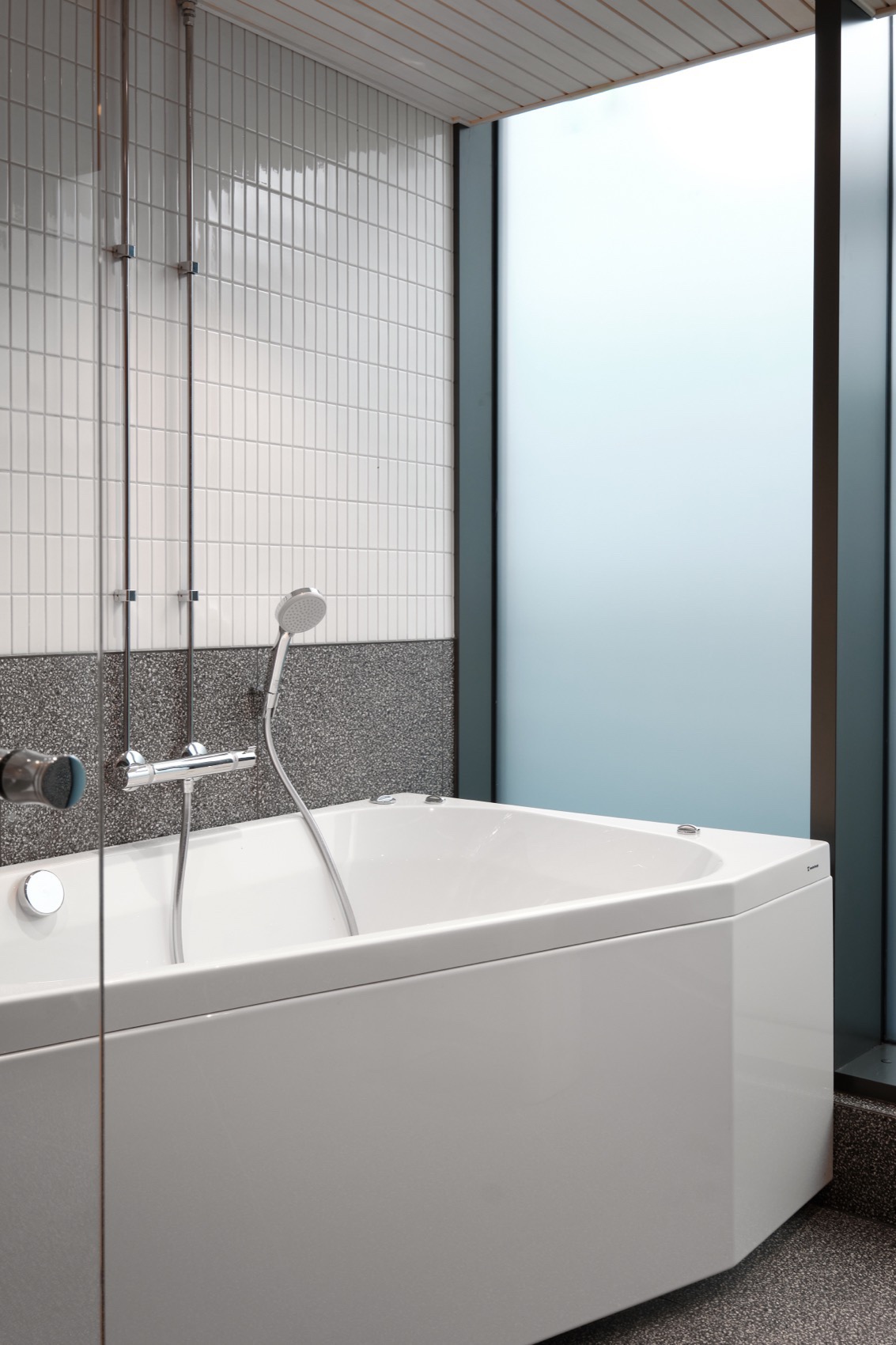

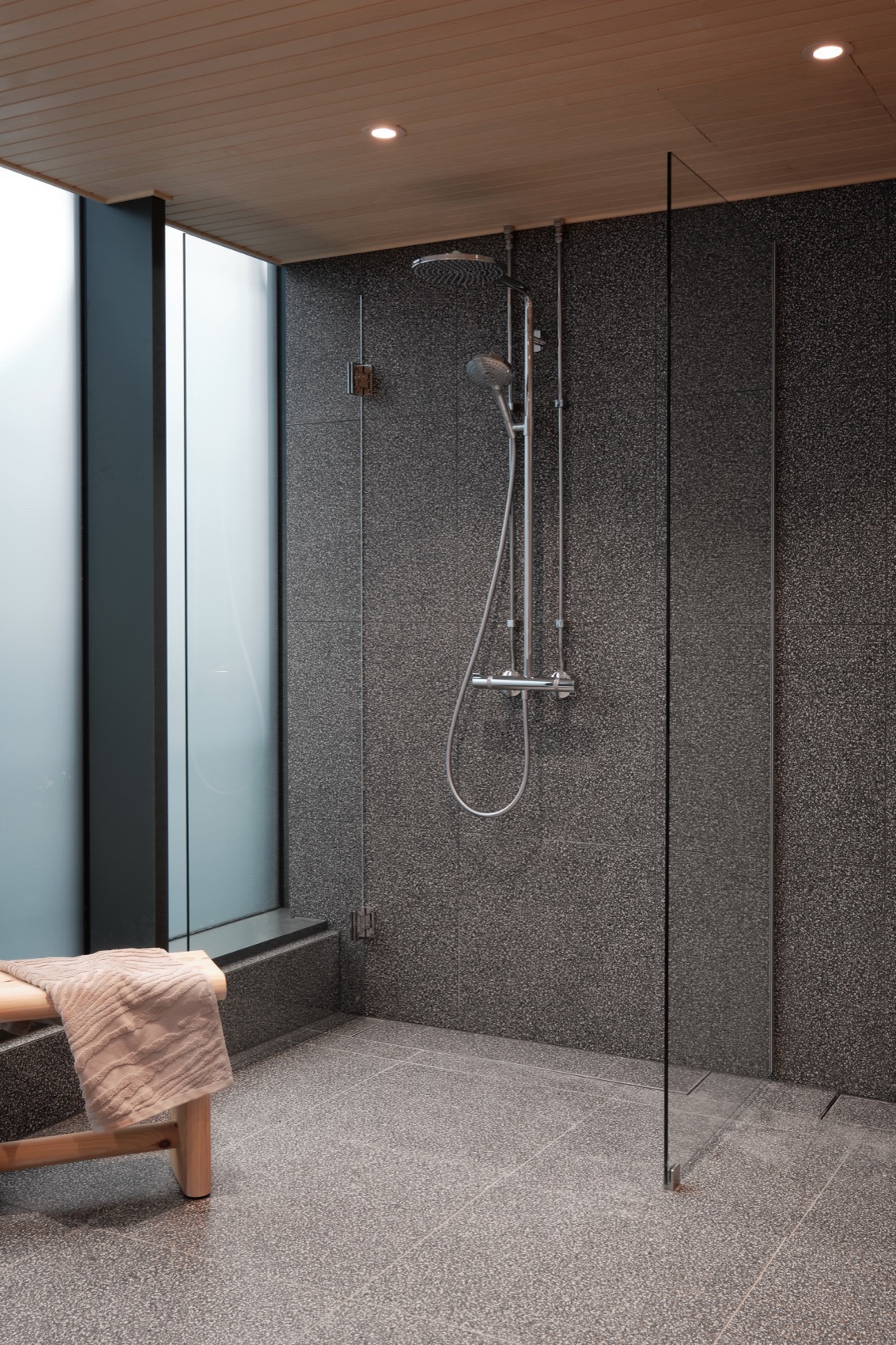

▼桑拿淋浴间,sauna shower and bath©Jenny-Kallio
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-73
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-74

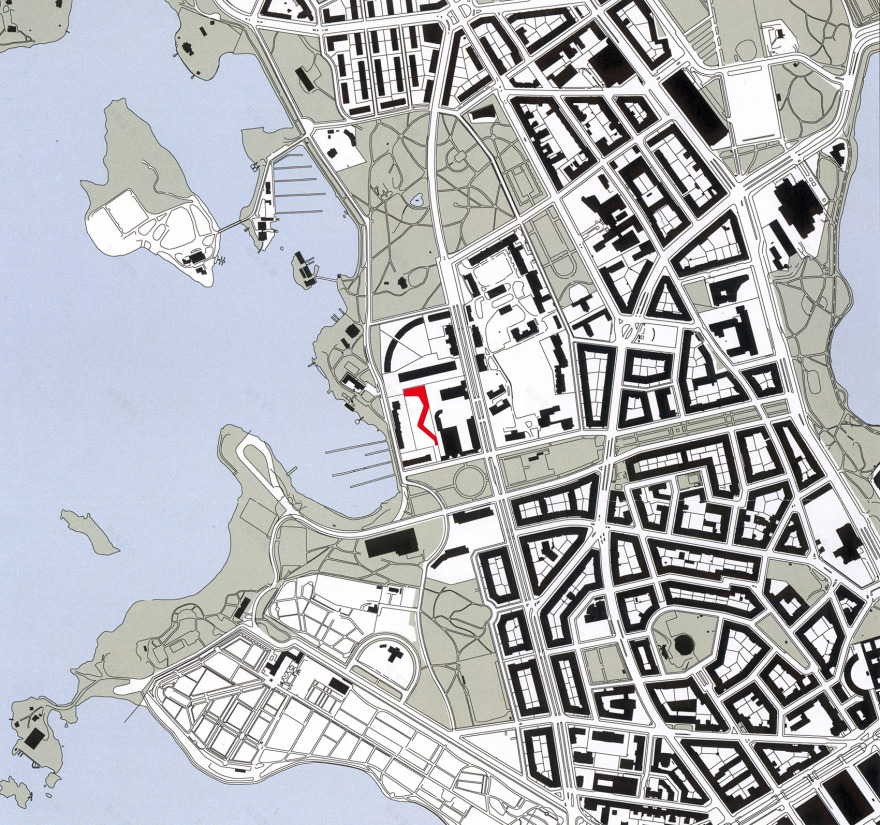

▼区位图,location map©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-76

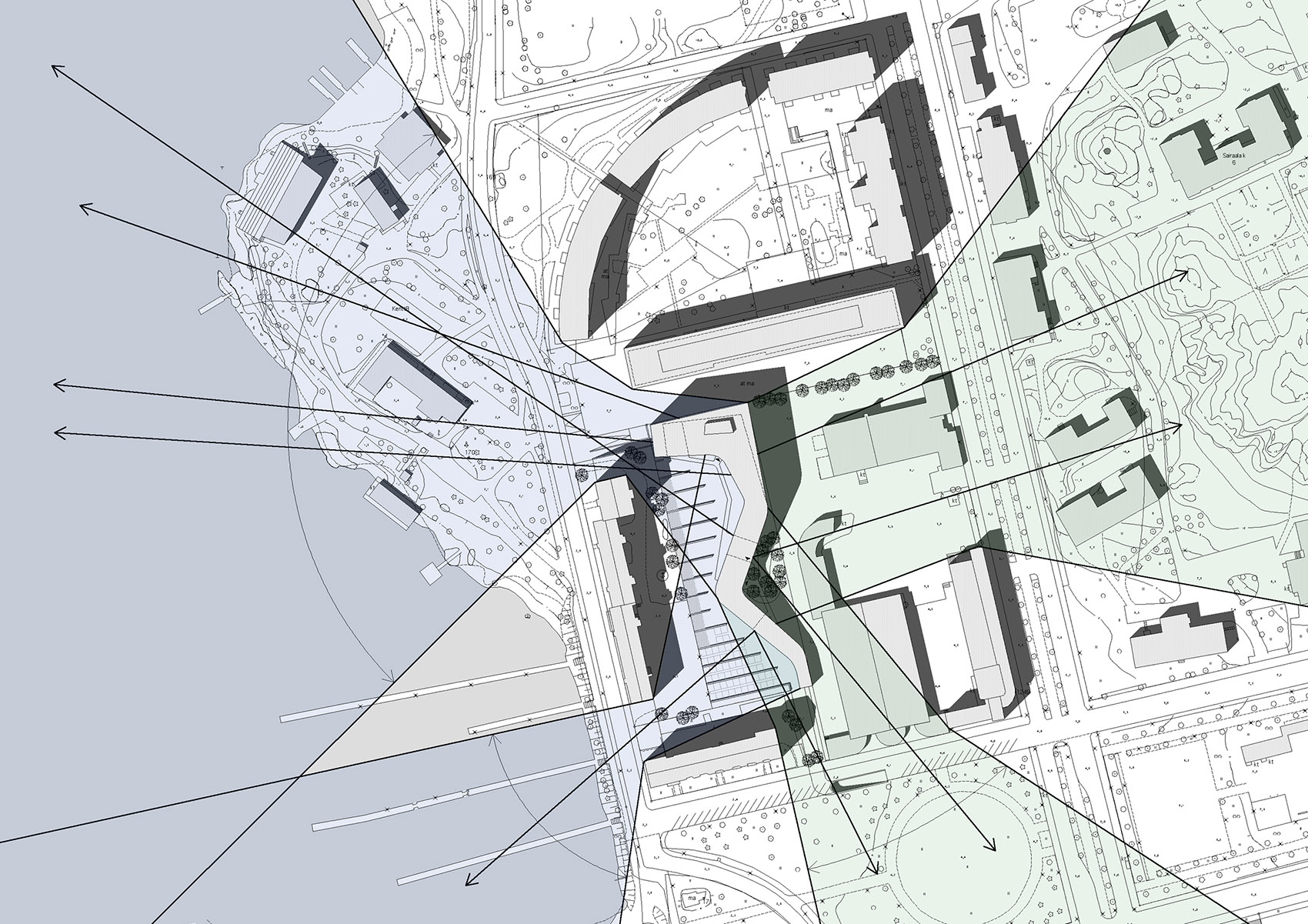

▼总平面图,overall site plan©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-78
▼场地平面图,close-up site plan©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-80
▼地下平面图,BF plan©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-82

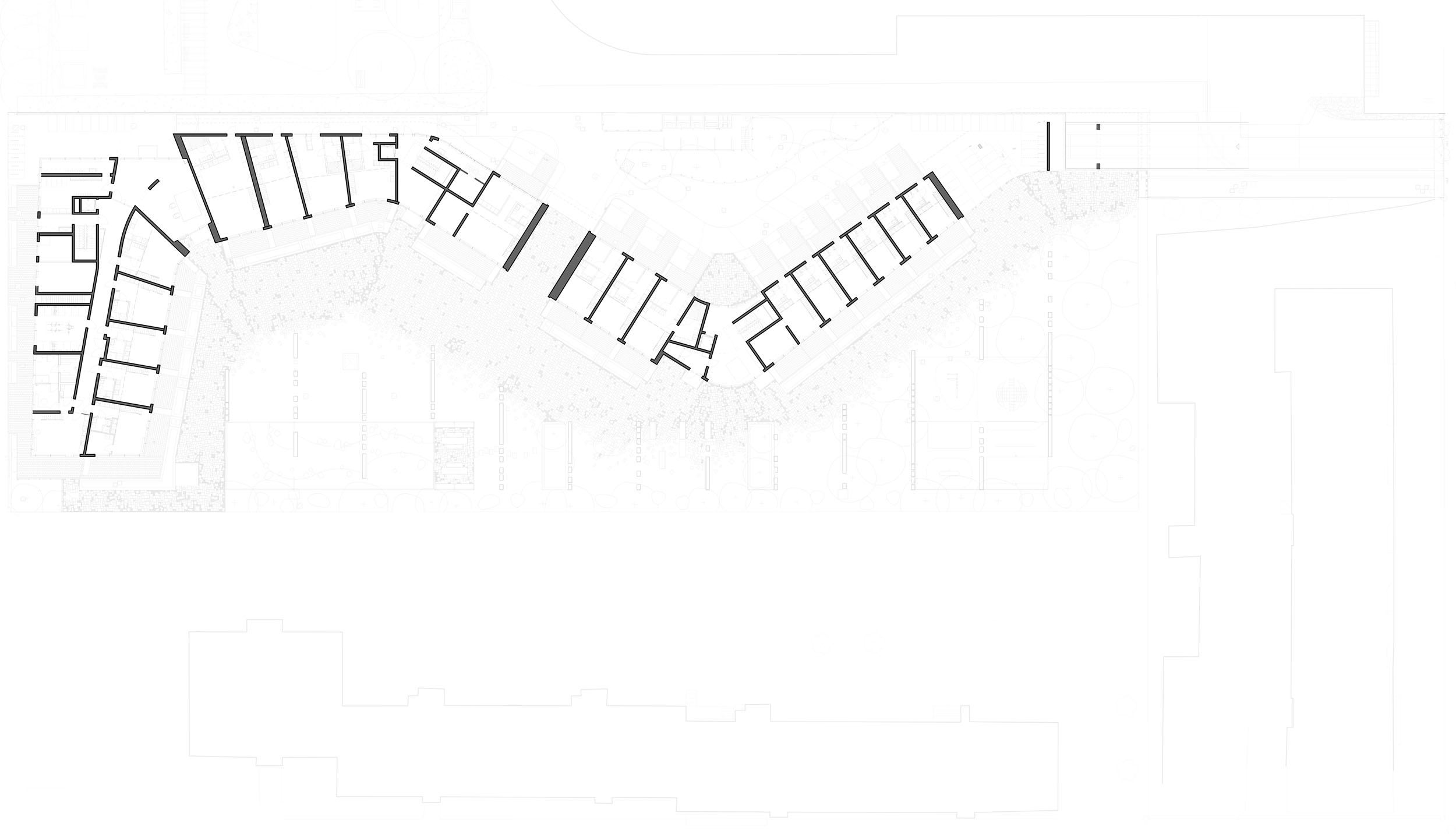

▼首层平面图,first floor plan©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-84
▼二层平面图,second floor plan©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-86
▼屋顶层平面图,roof floor plan©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-88

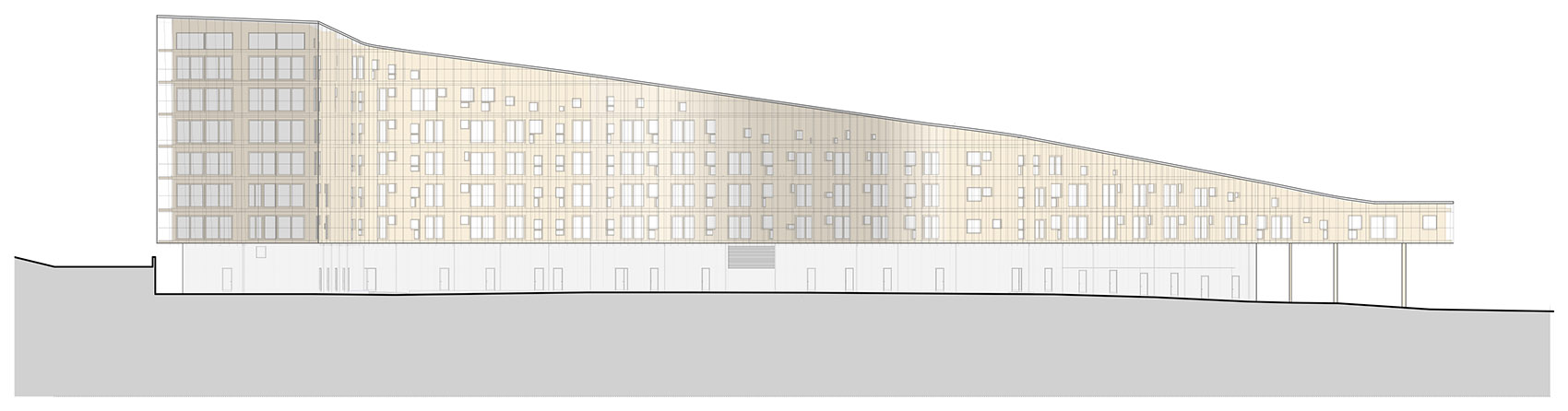

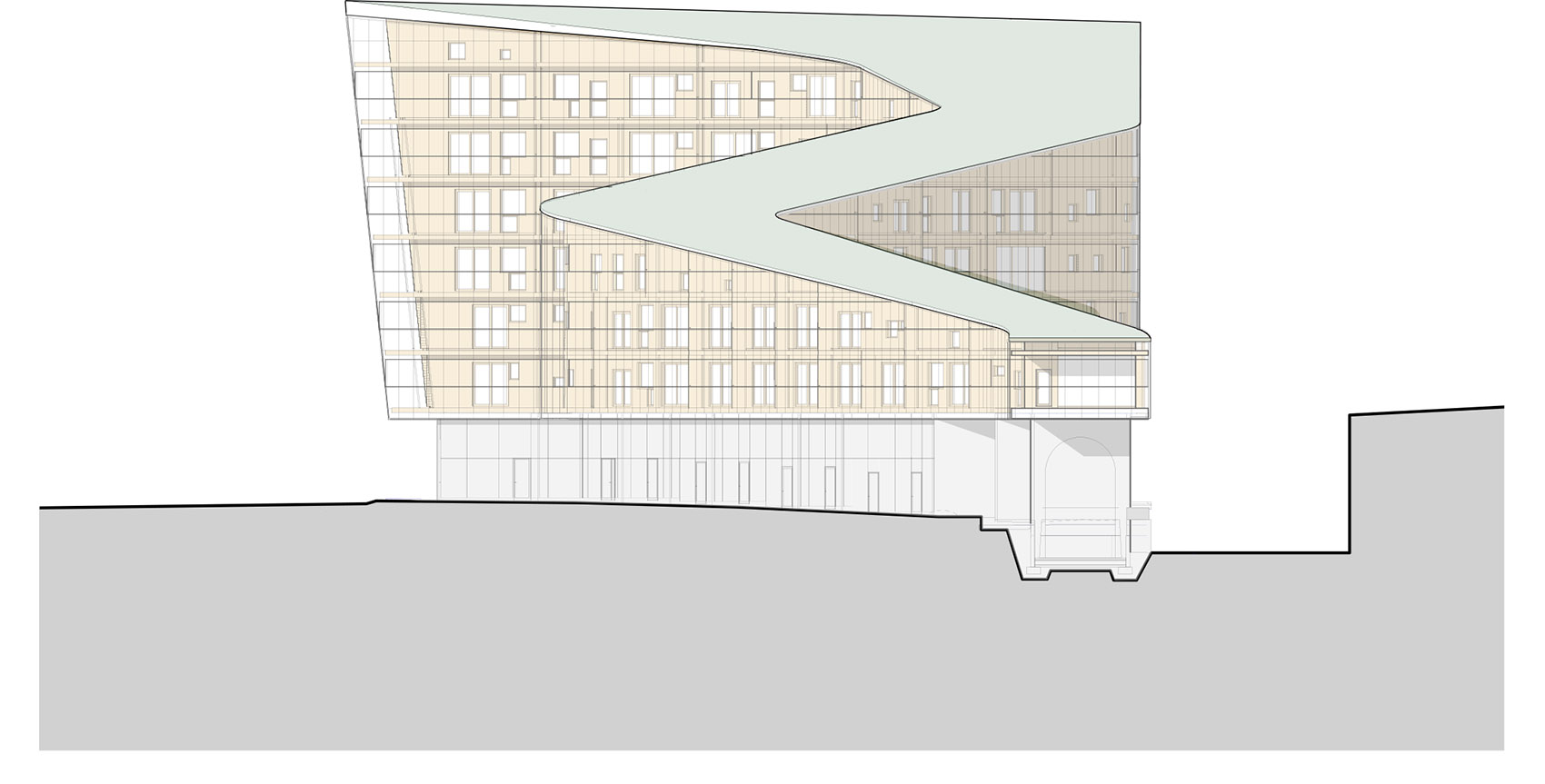

▼立面图,elevations©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-90
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-91

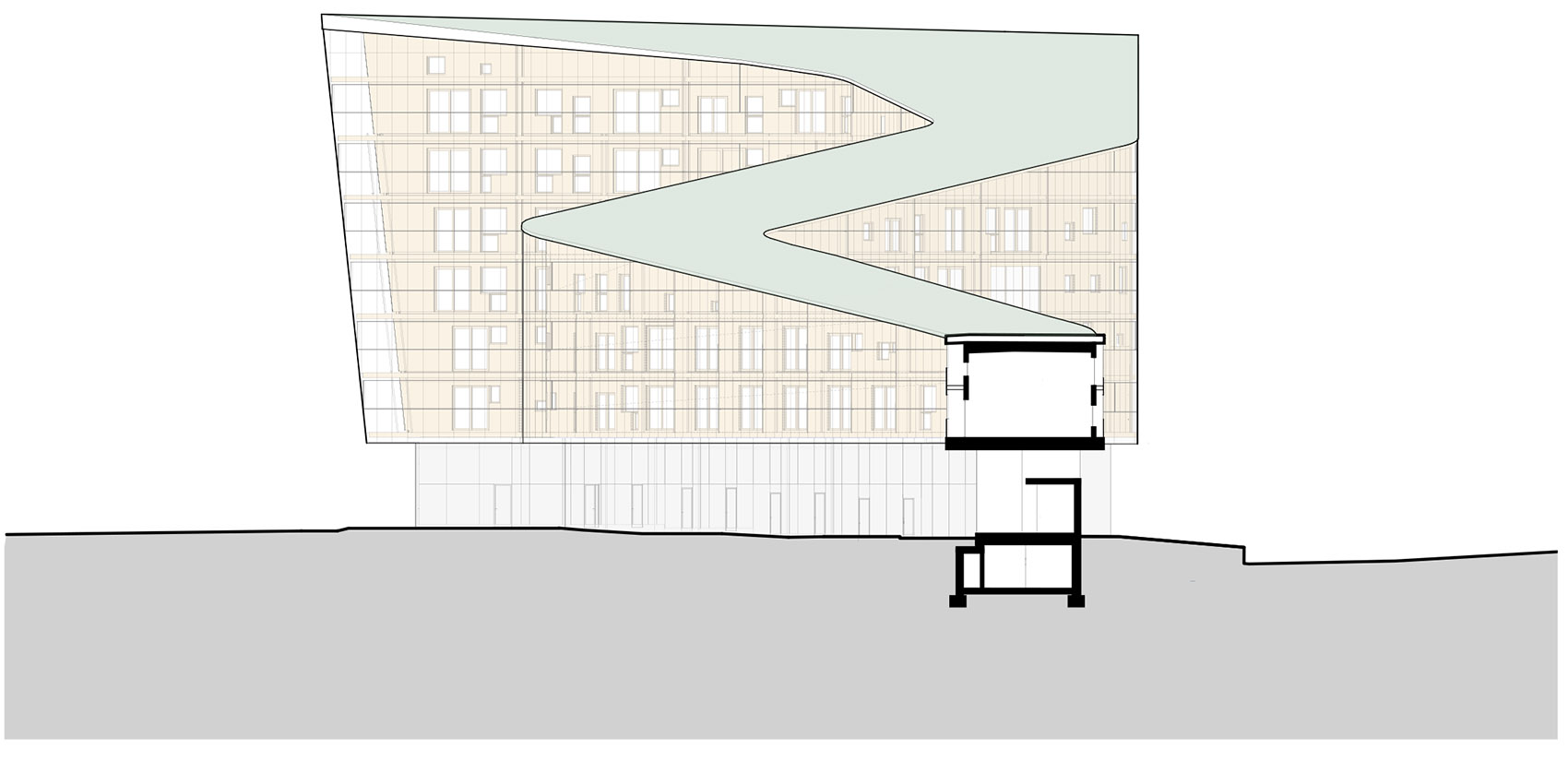

▼剖面图,sections©SHA
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-93
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-94
Meander 公寓楼丨芬兰赫尔辛基丨Steven Holl Architects+Newil&Bau-95
Length: 180 meters
Height: 28.5 meters
Floors: 8
Apartments: 115
Total area: 7,500 m2
Smallest apartment: 22.5 m2
Largest apartment: 218.5 m2
