J 屋丨印度丨Malik Architecture

Architects:Malik Architecture

Area:642m²

Year:2024

Photographs:Bharath Ramamrutham

Lead Architect:Jay Jani

Directors:Kamal Malik, Arjun Malik

Project Architect:Rucha Pimprikar

Interior Designer:Jignesh Vadhia

Engineering:SEMAC, Global Engg. Services, Mr.Vivek Garg

Electrical Contractors:Imperial Electricals

Facade Contractors:Destal India

Hvac Contractors:Clinton

City:Mumbai

Country:India

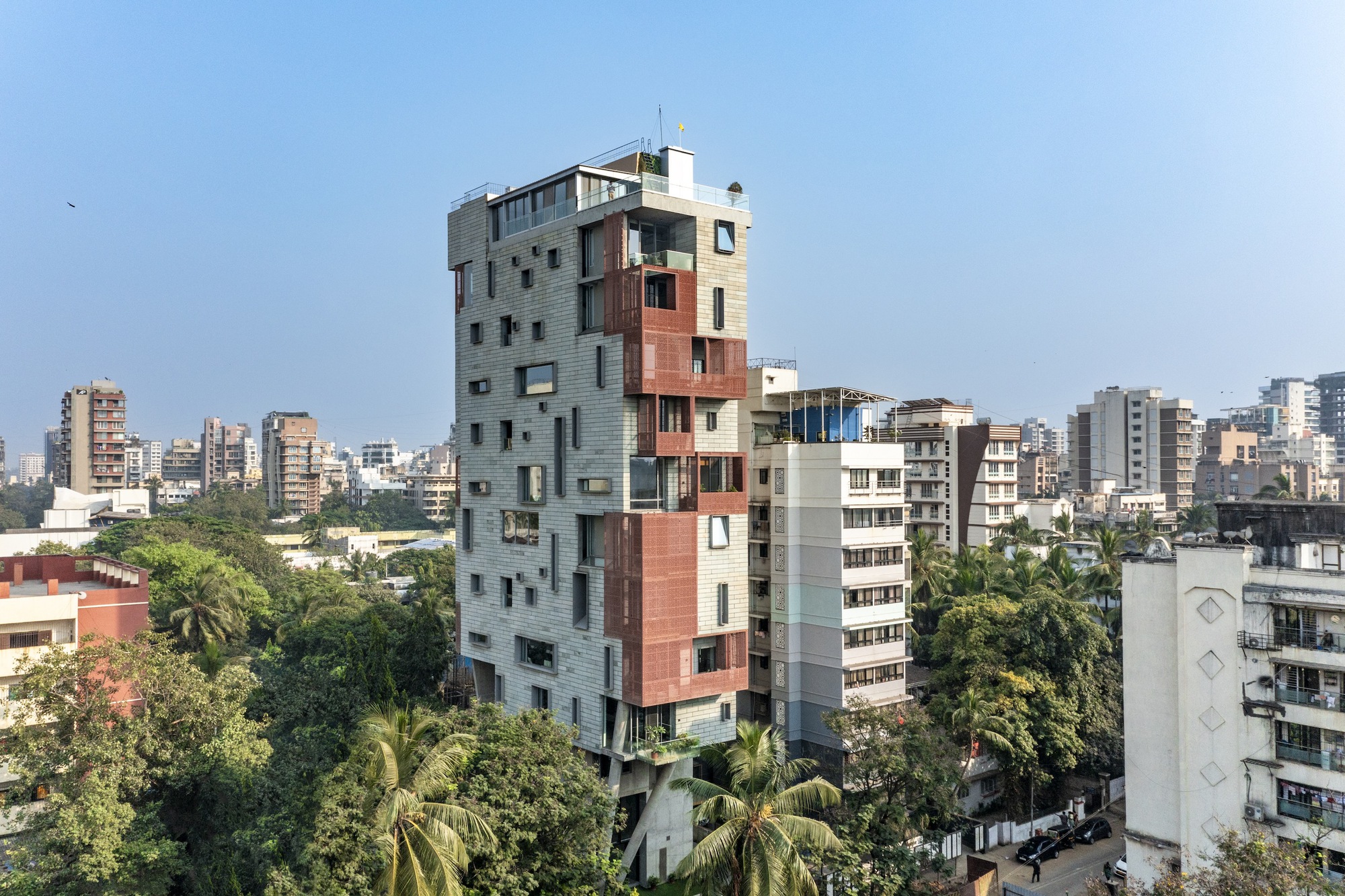

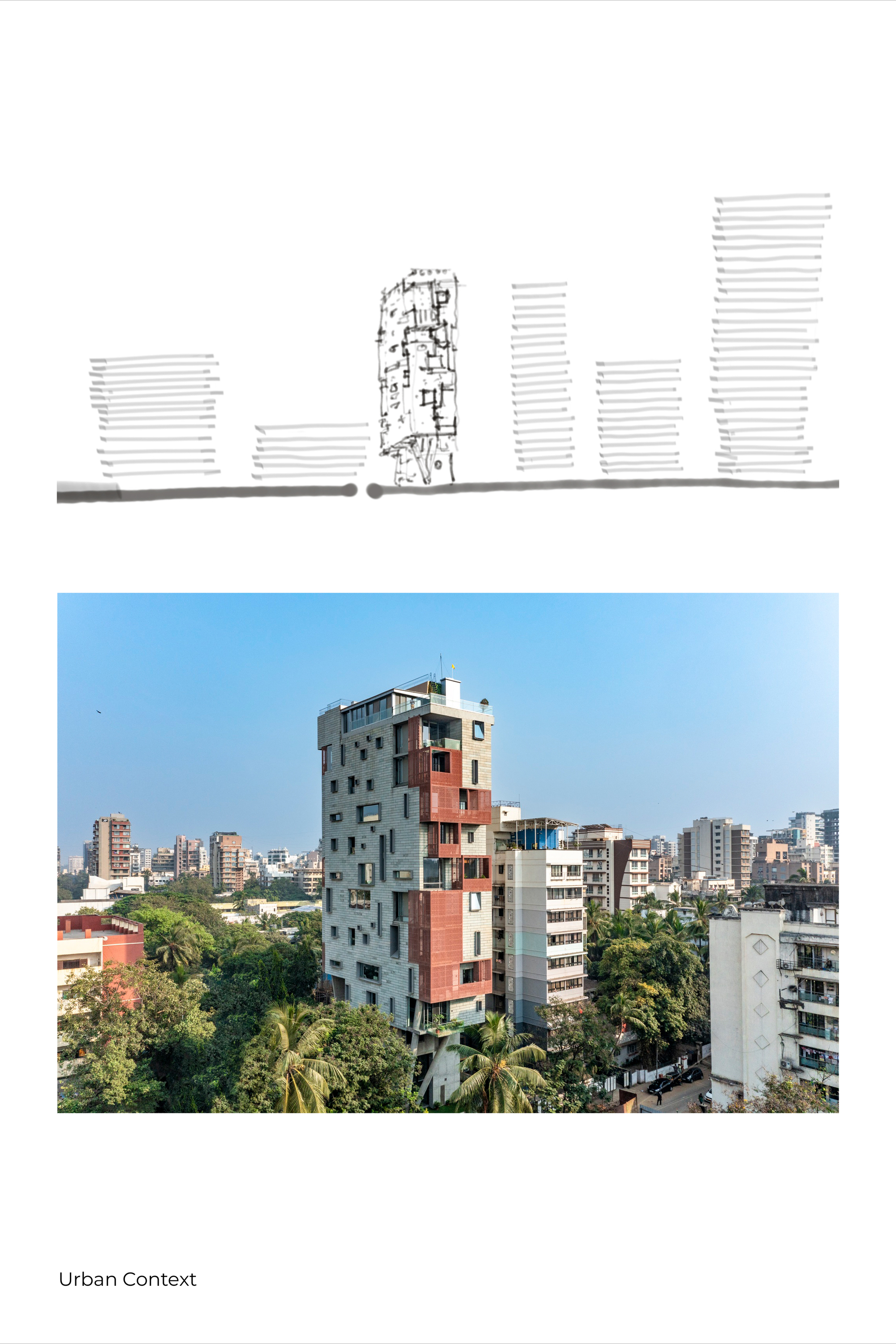

Text description provided by the architects. The streets of Khar used to be lined with low rise homes set back from the street and hidden behind trees and shallow front gardens. Densification and the demand for floor space has transformed these neighbourhoods' into rows of tall structures battling for light and air and eliminating any manner of dialogue with the street, owing to the concentration of "decorative" multi-storey parking structures at the ground level. The sea lies to the west of the site, a direction from which the harshest sun and rain originate.

Major parameters for design were:

To find answers, we looked at 3 indigenous devices viz:

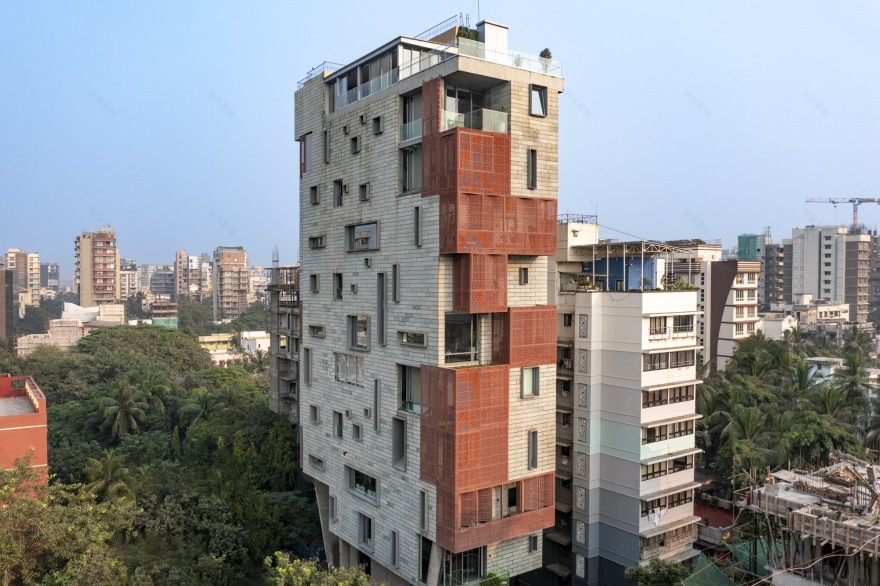

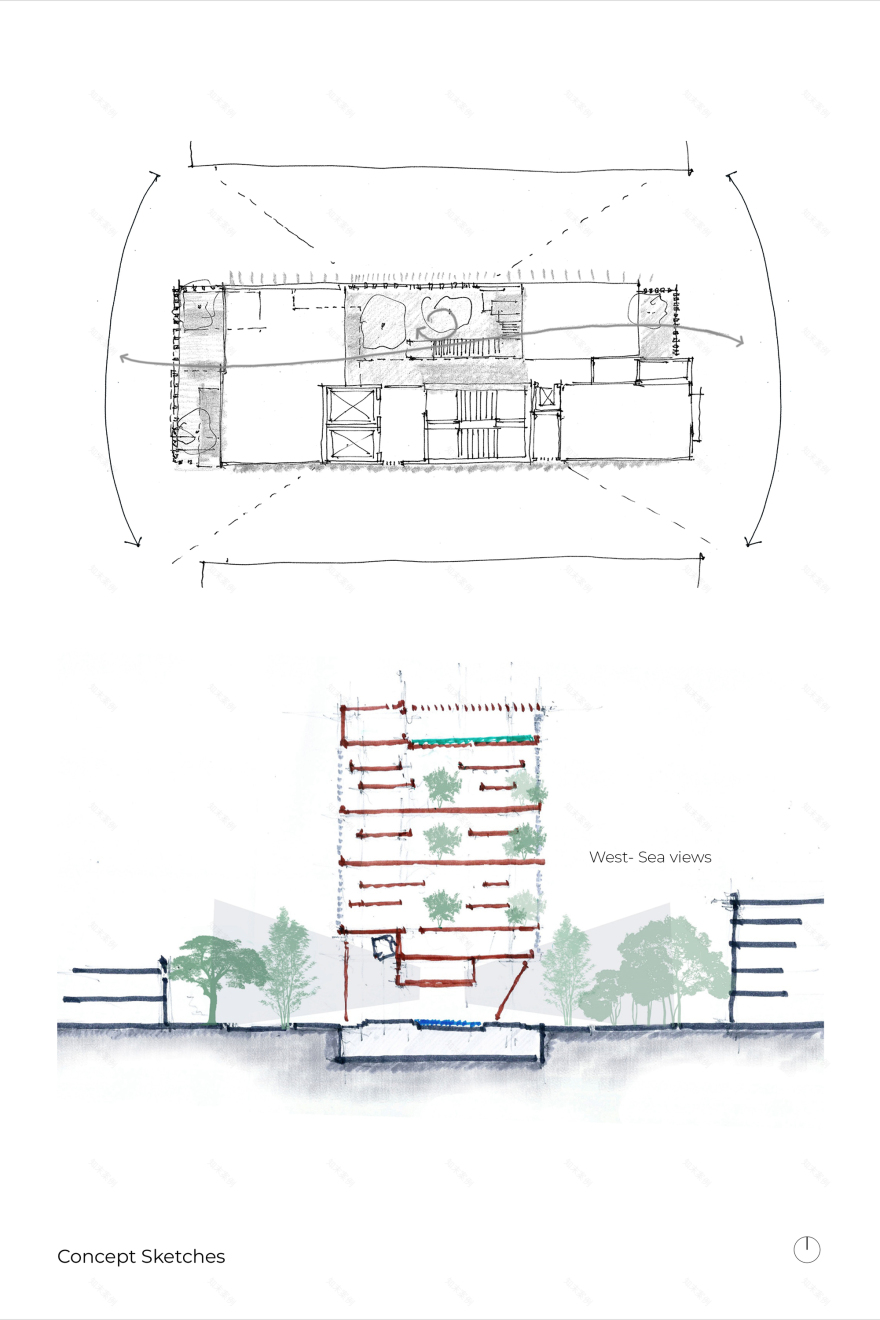

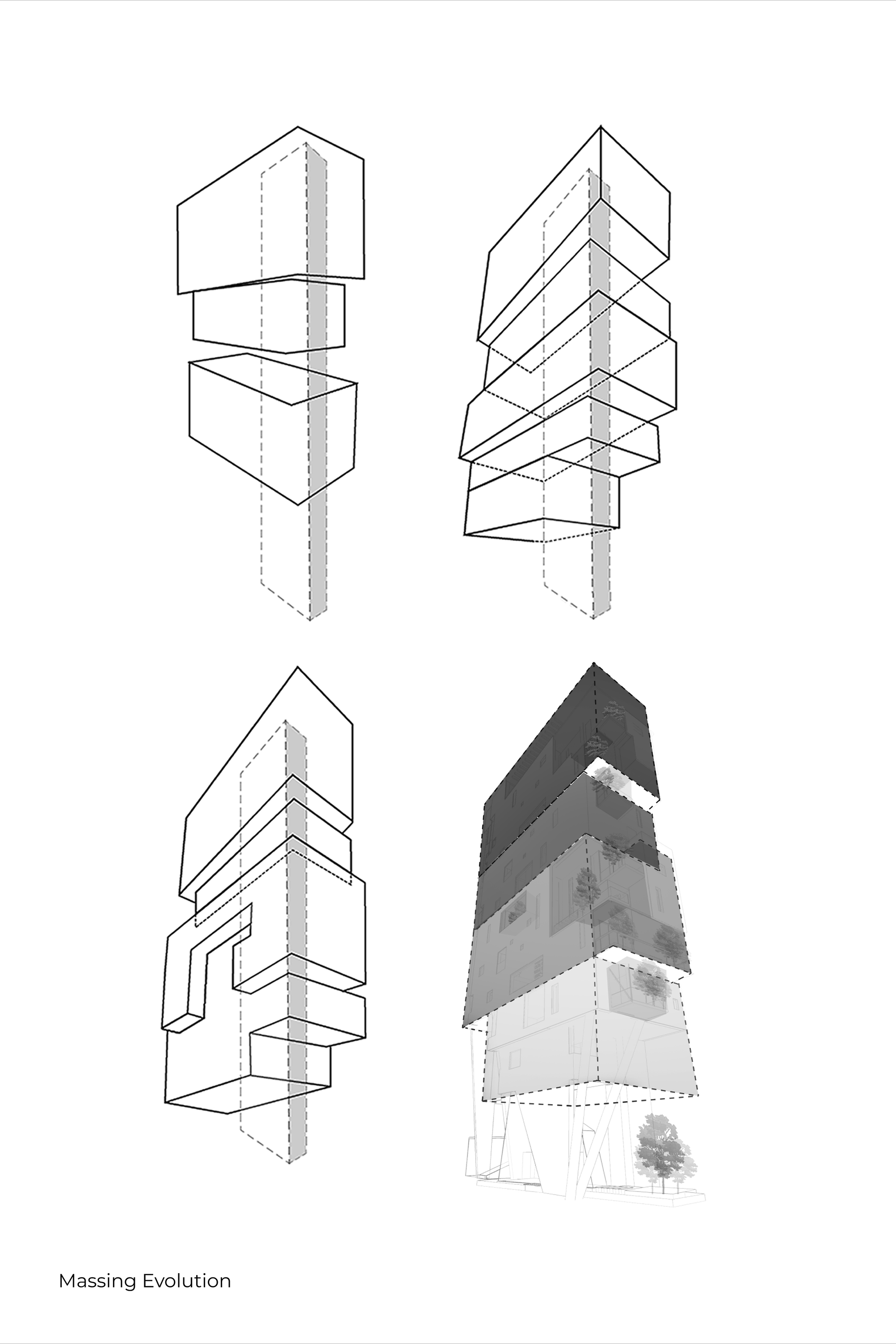

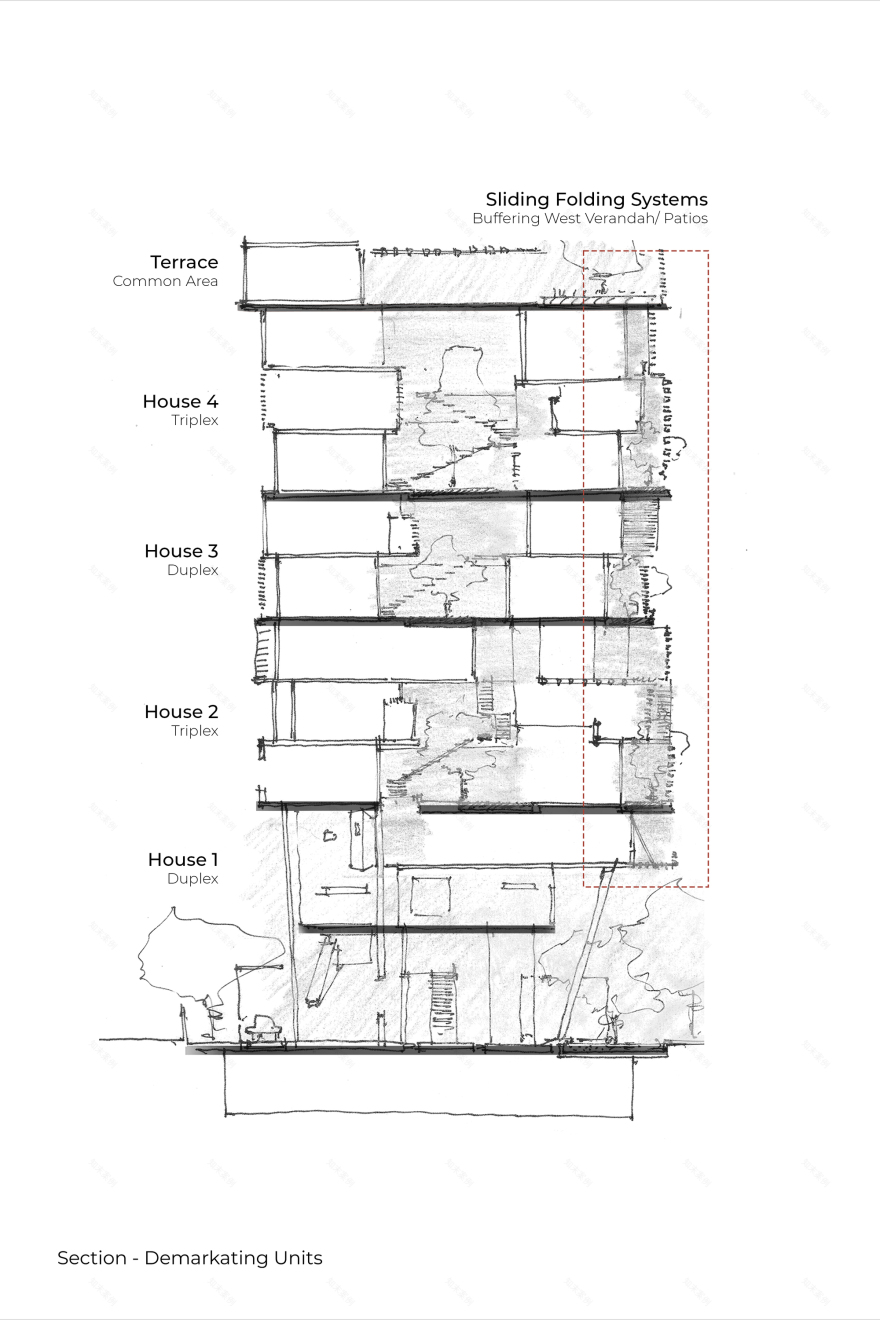

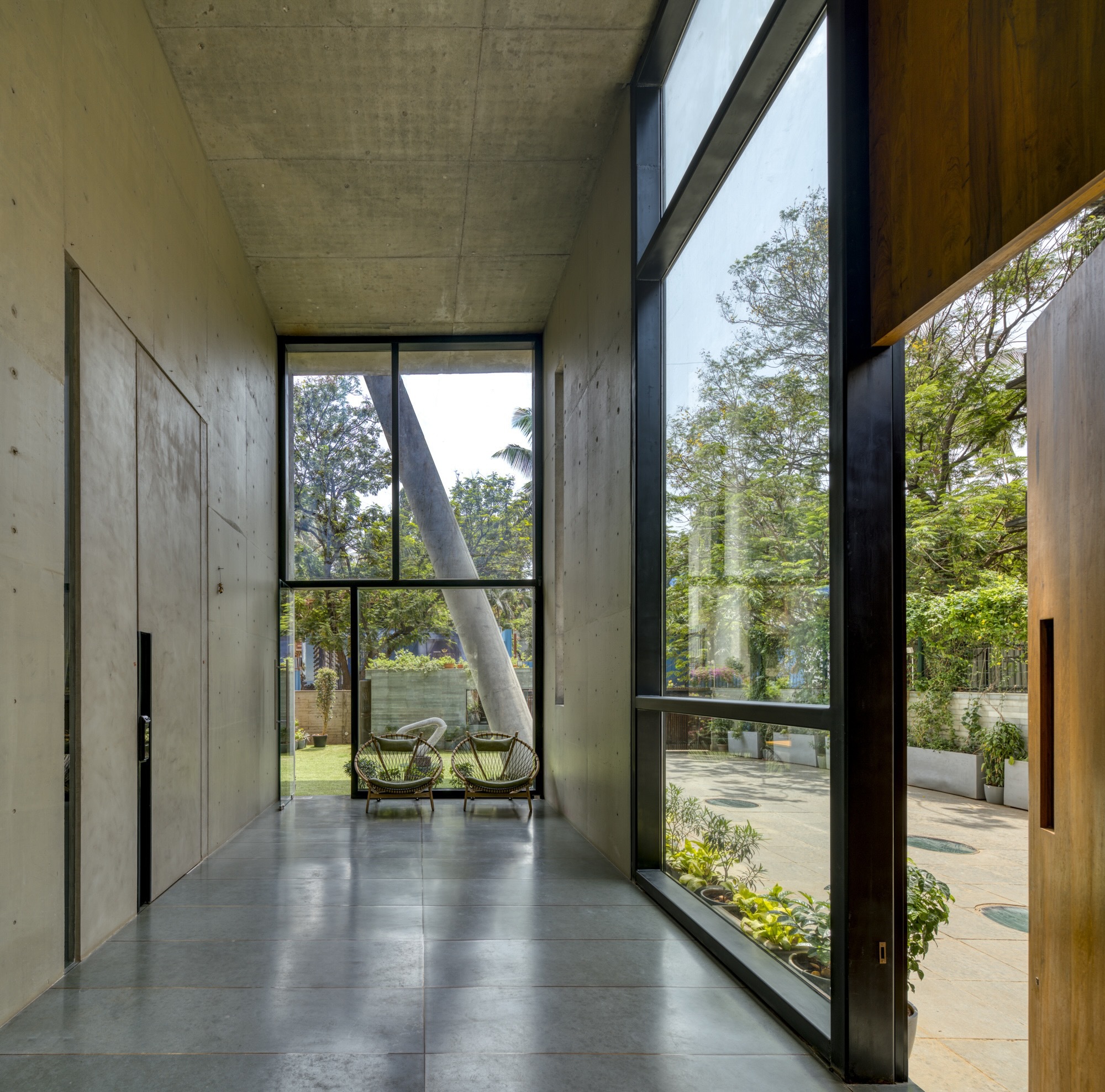

The plan and section have evolved through iterations of these three devices. By accommodating the parking within the basement, the street level, up to a height of 11.0m is devoid of residential spaces. Instead, structure and volume are set back from the street and organized within a garden shaded by the cantilevered residential volumes above. At the street level the language of water, trees and low rise, set back spaces create the first point of mediation with the urban condition.

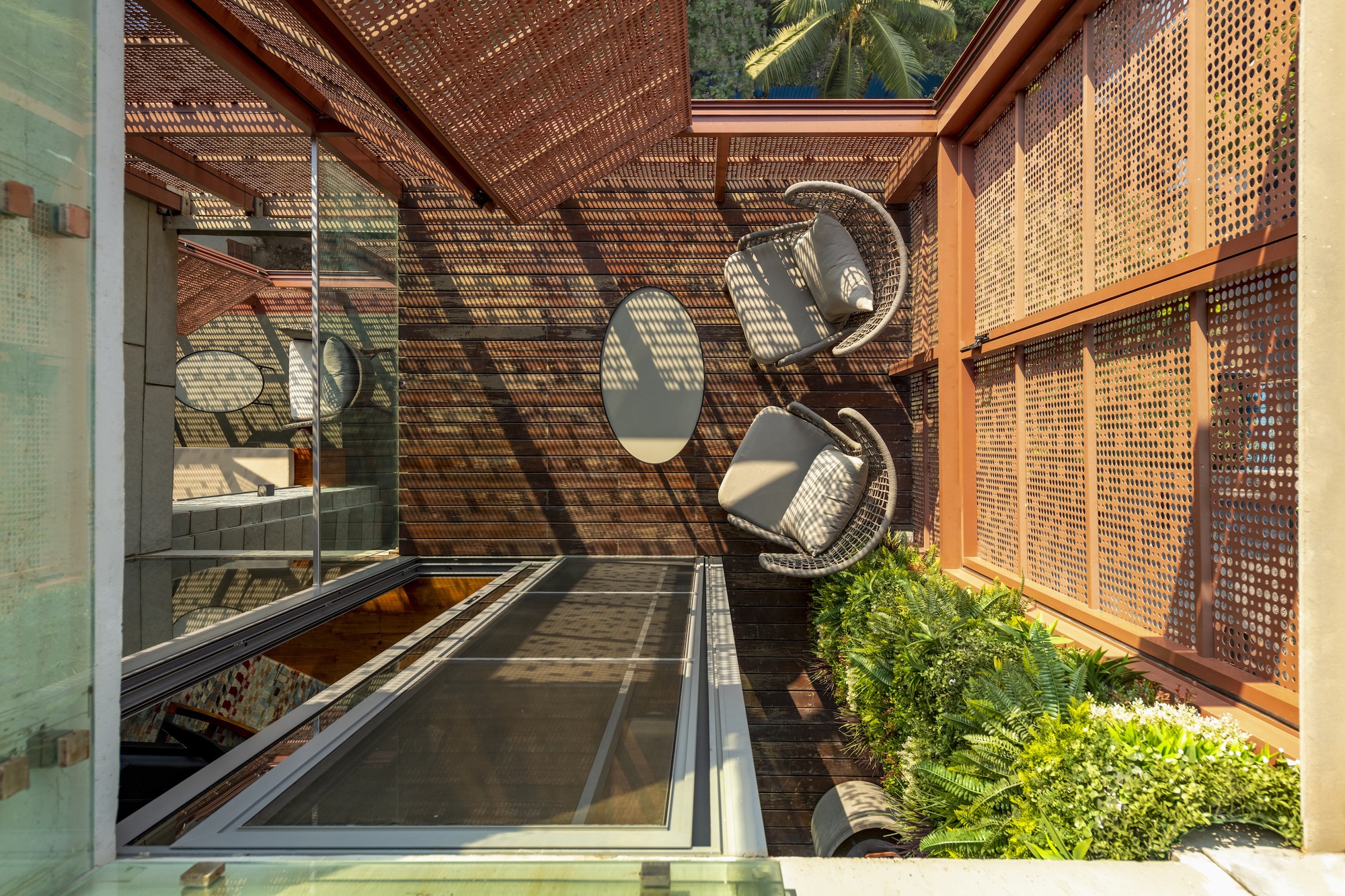

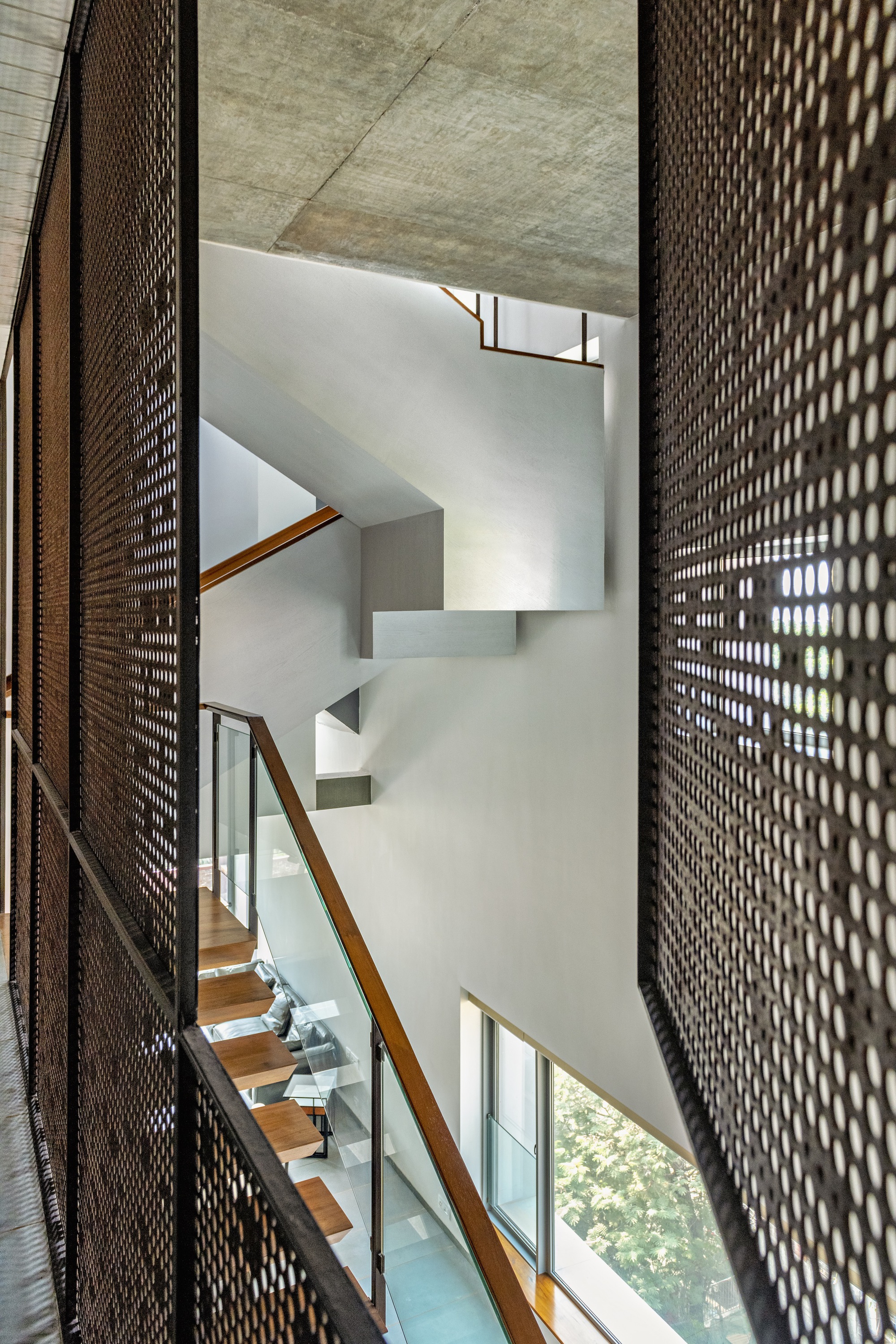

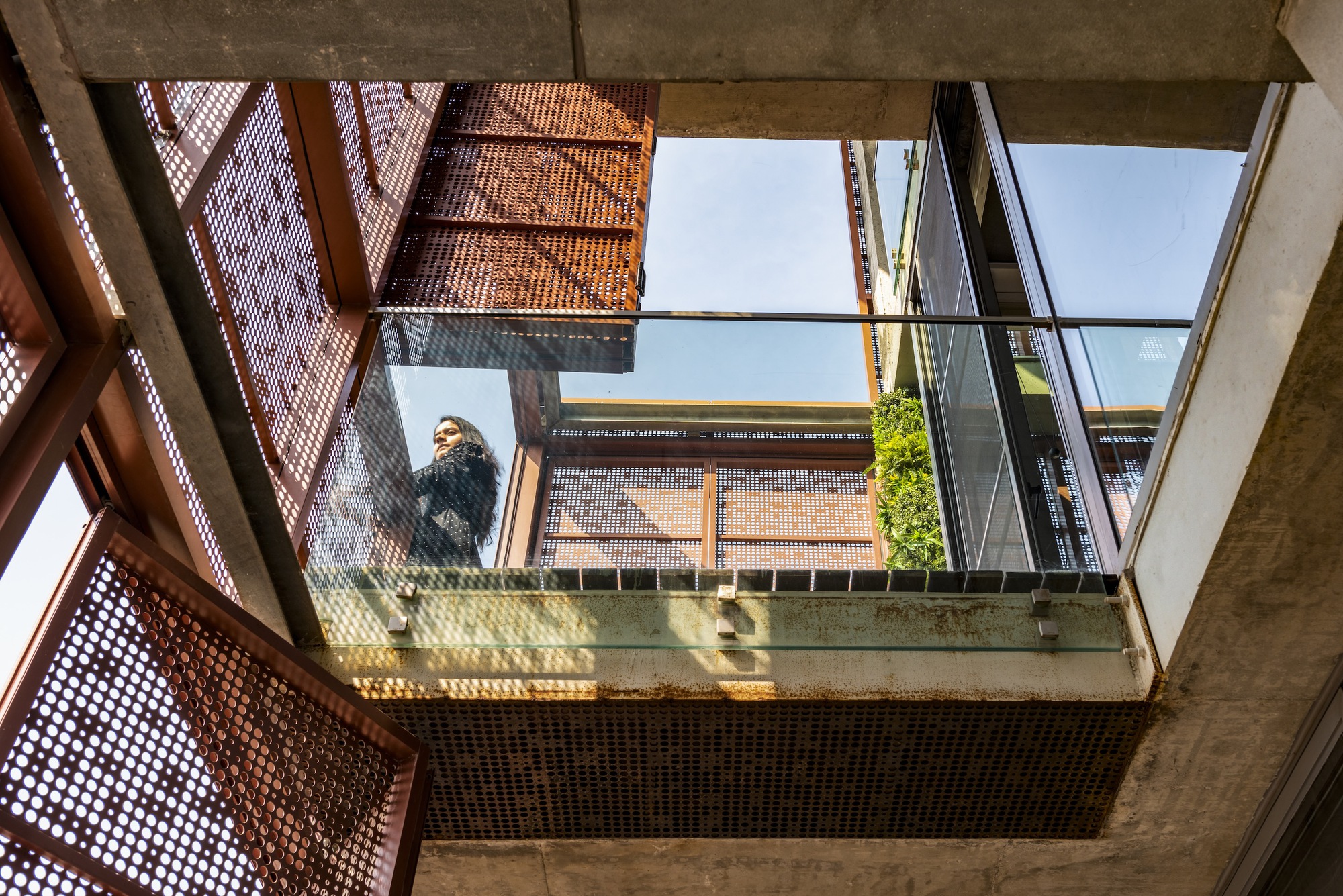

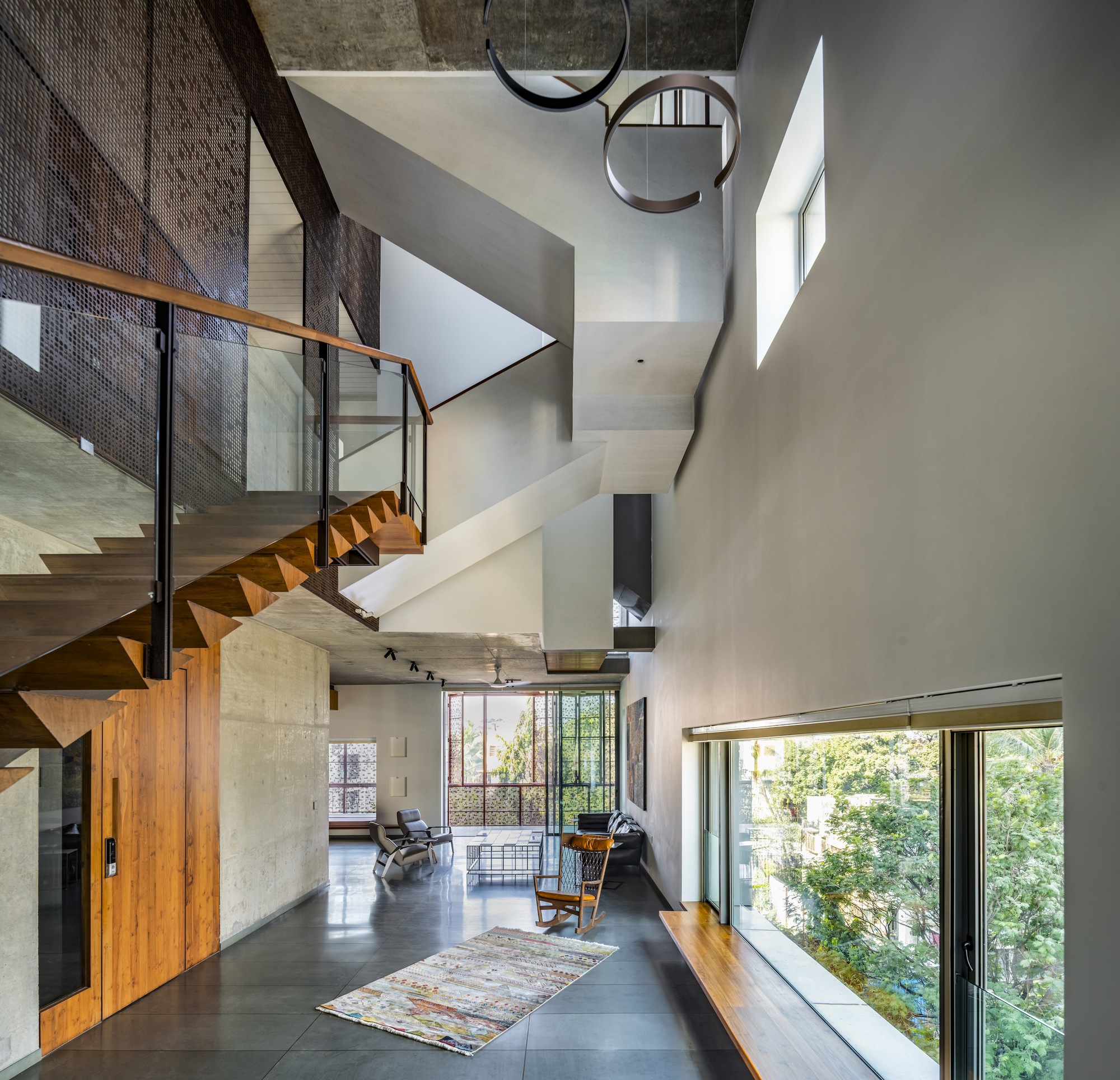

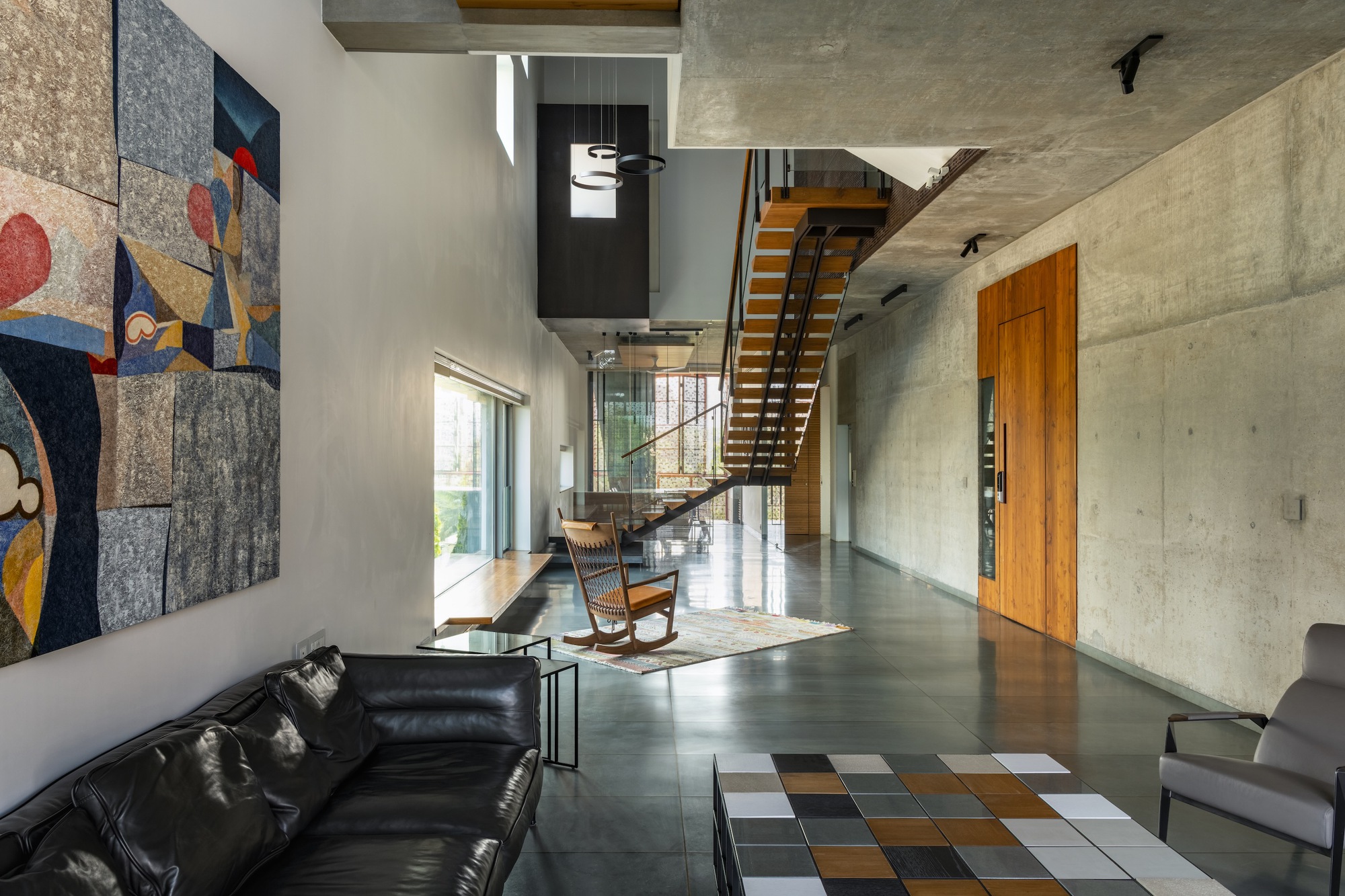

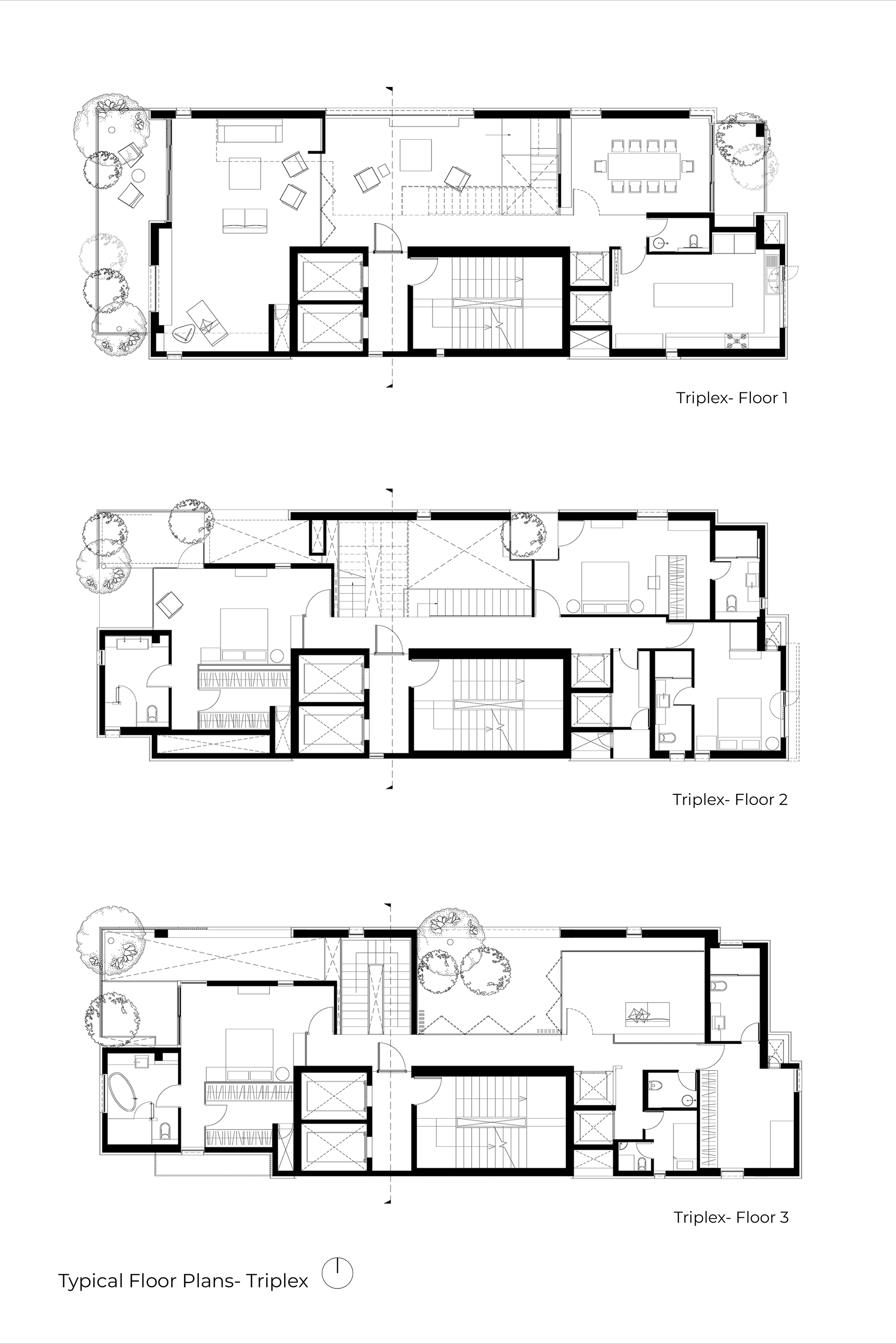

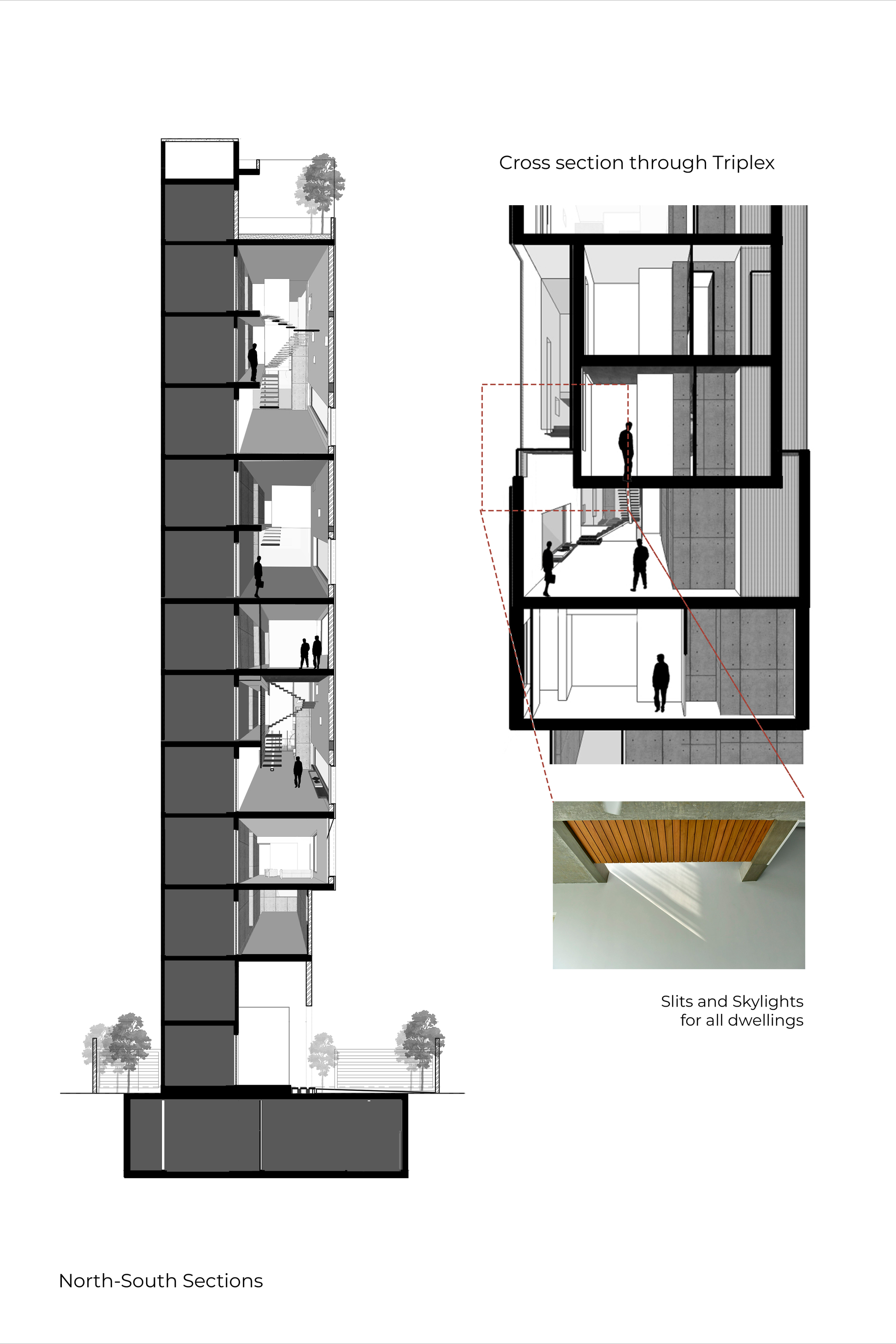

The individual "bungalows" are planned around central north facing courtyards with the public/private spaces located at the east and west zones to establish views into the funnels between the surrounding buildings. The individual courtyards bind the internal spaces and allow for natural light and breezes to flow through the house, behaving, in the hot months, like a thermal stack. Internal shifts in space and structure make the courtyard extend into the private spaces creating a network of deep voids and punctuated skylights. The sensation of living under the sky permeates through the house.

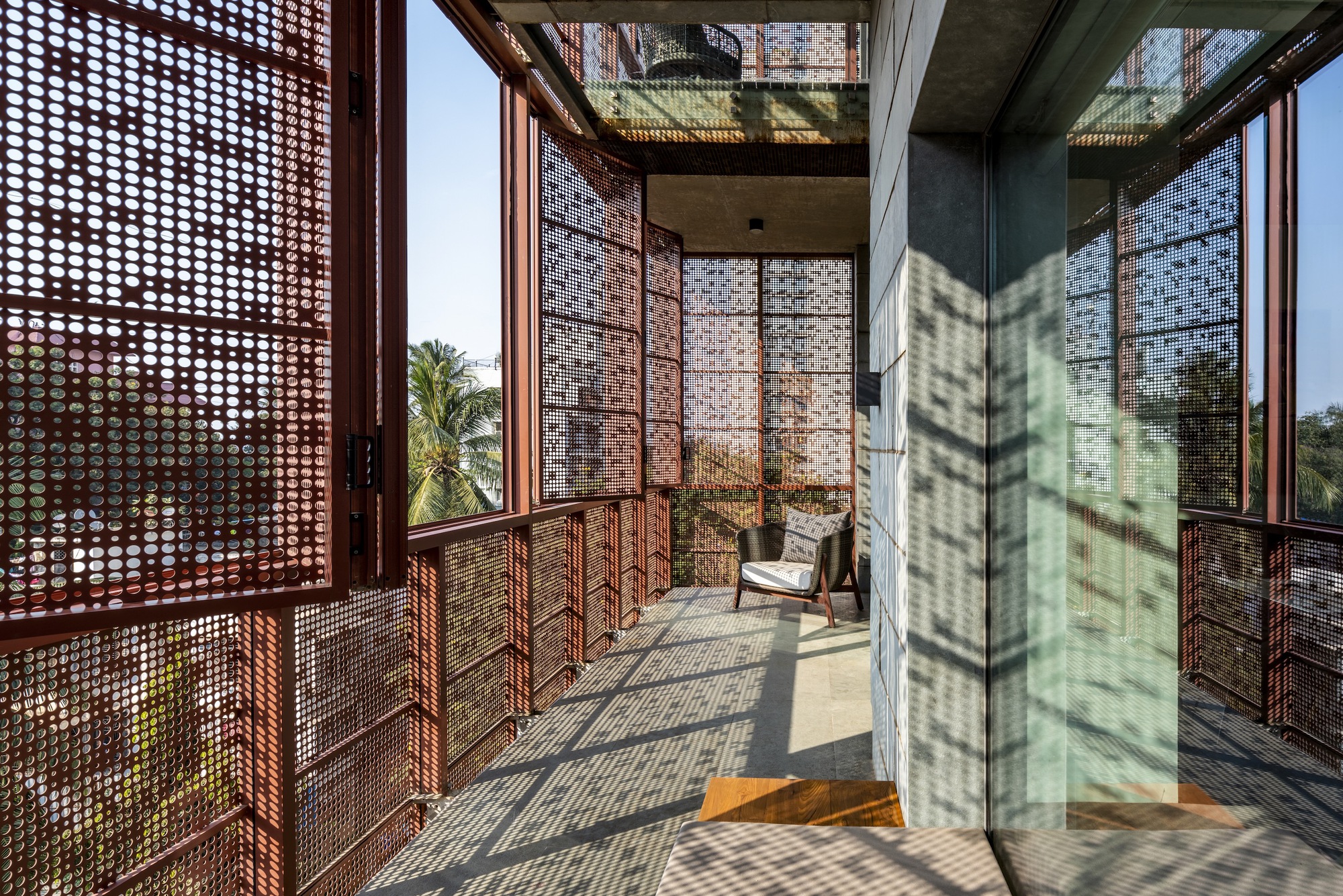

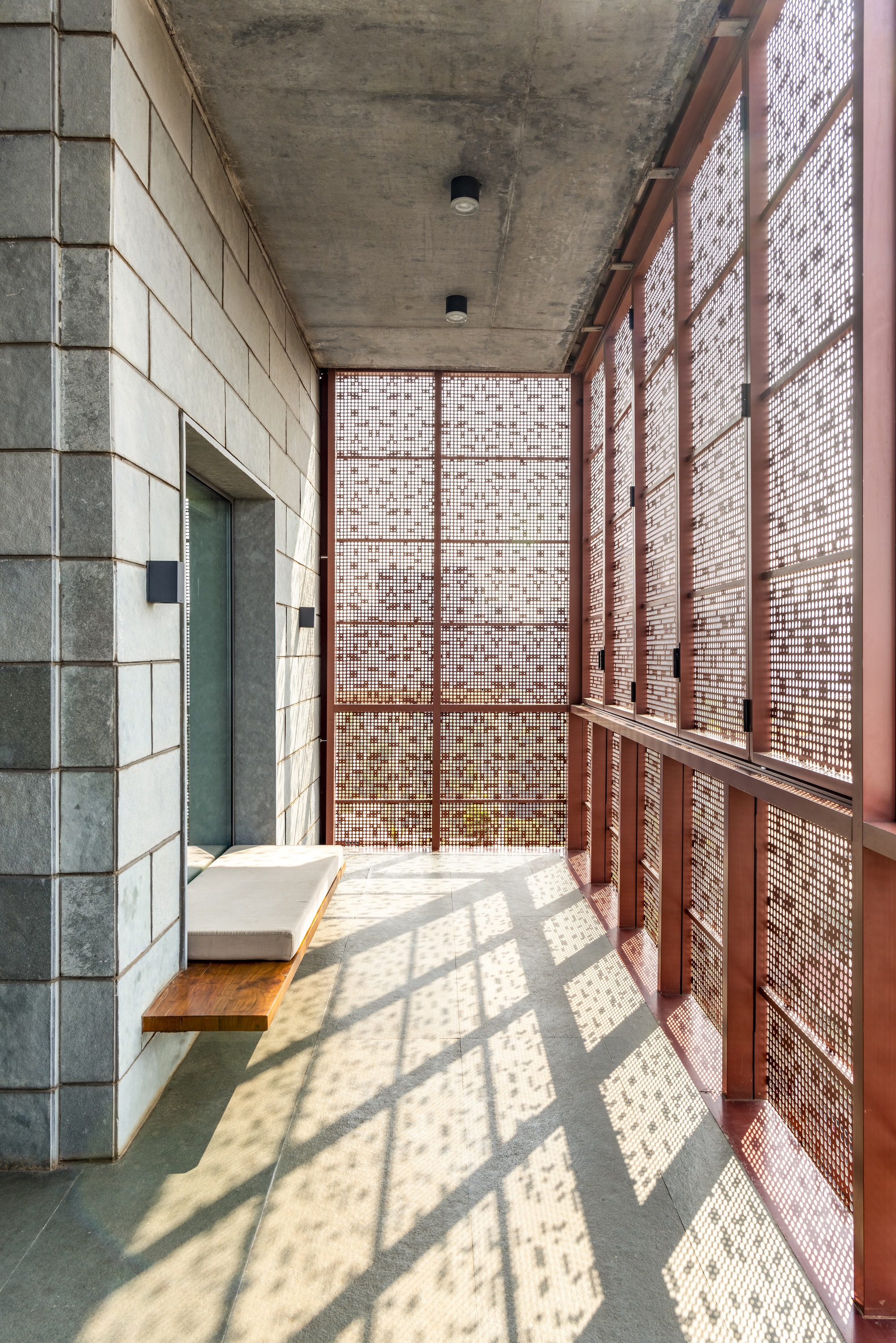

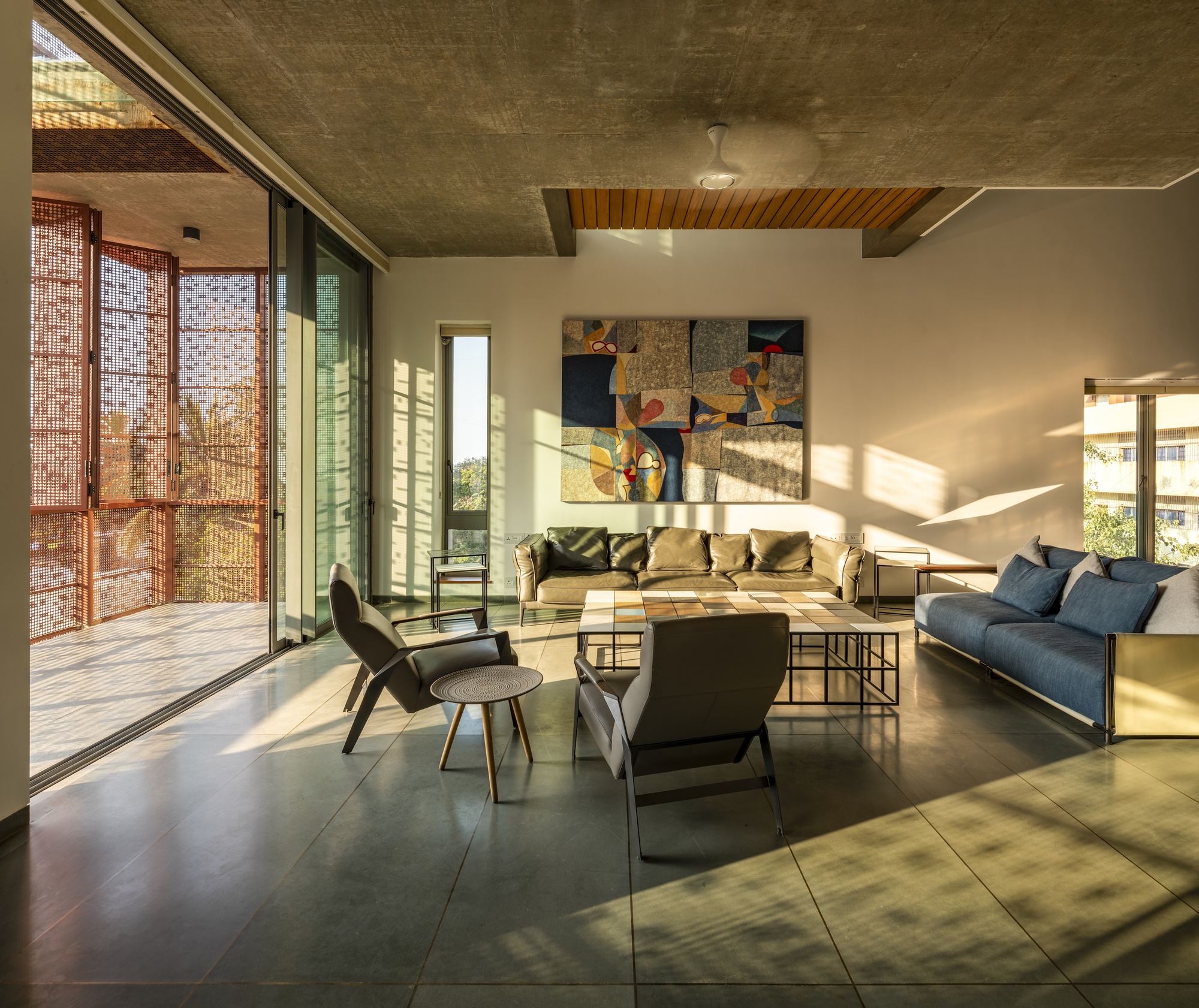

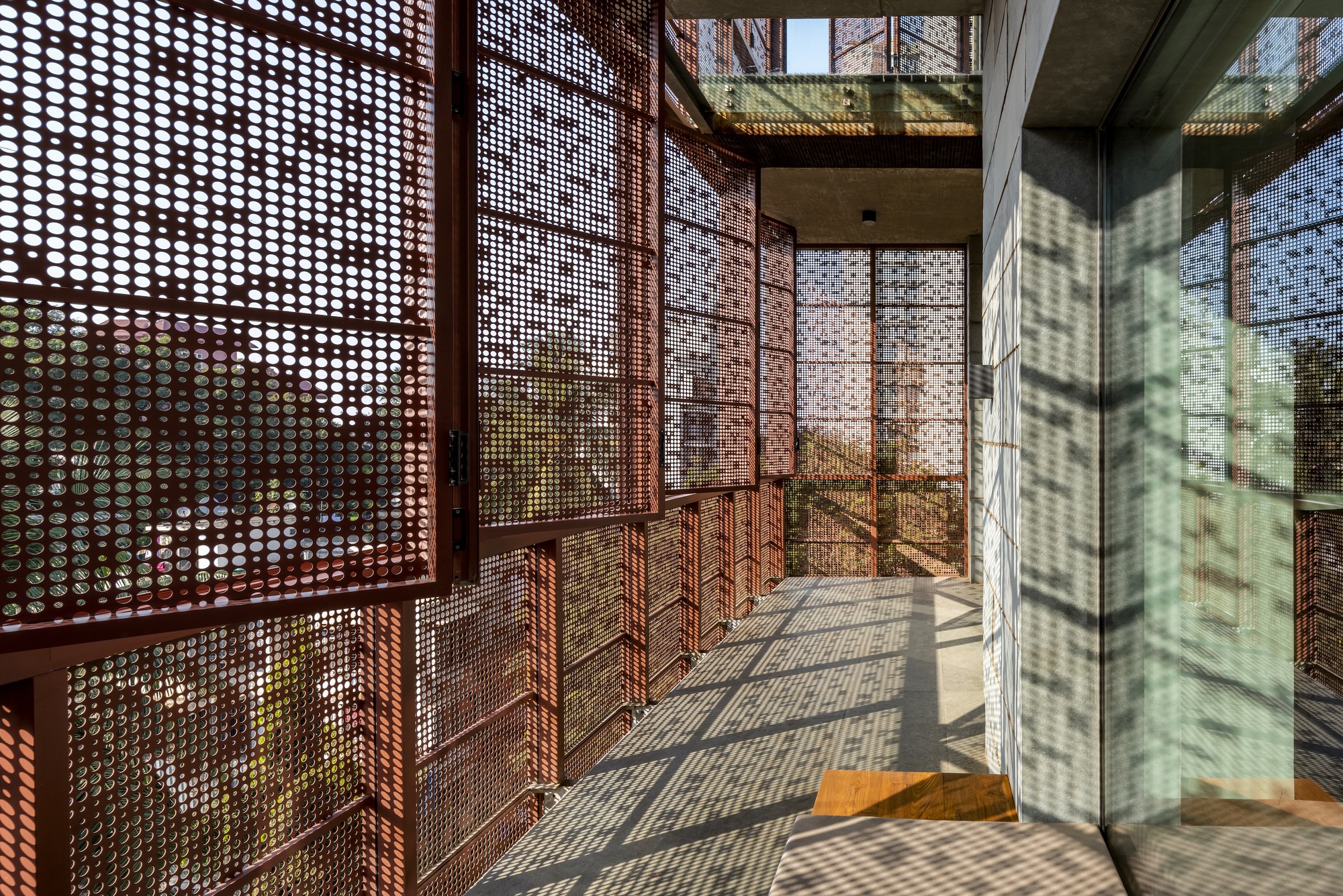

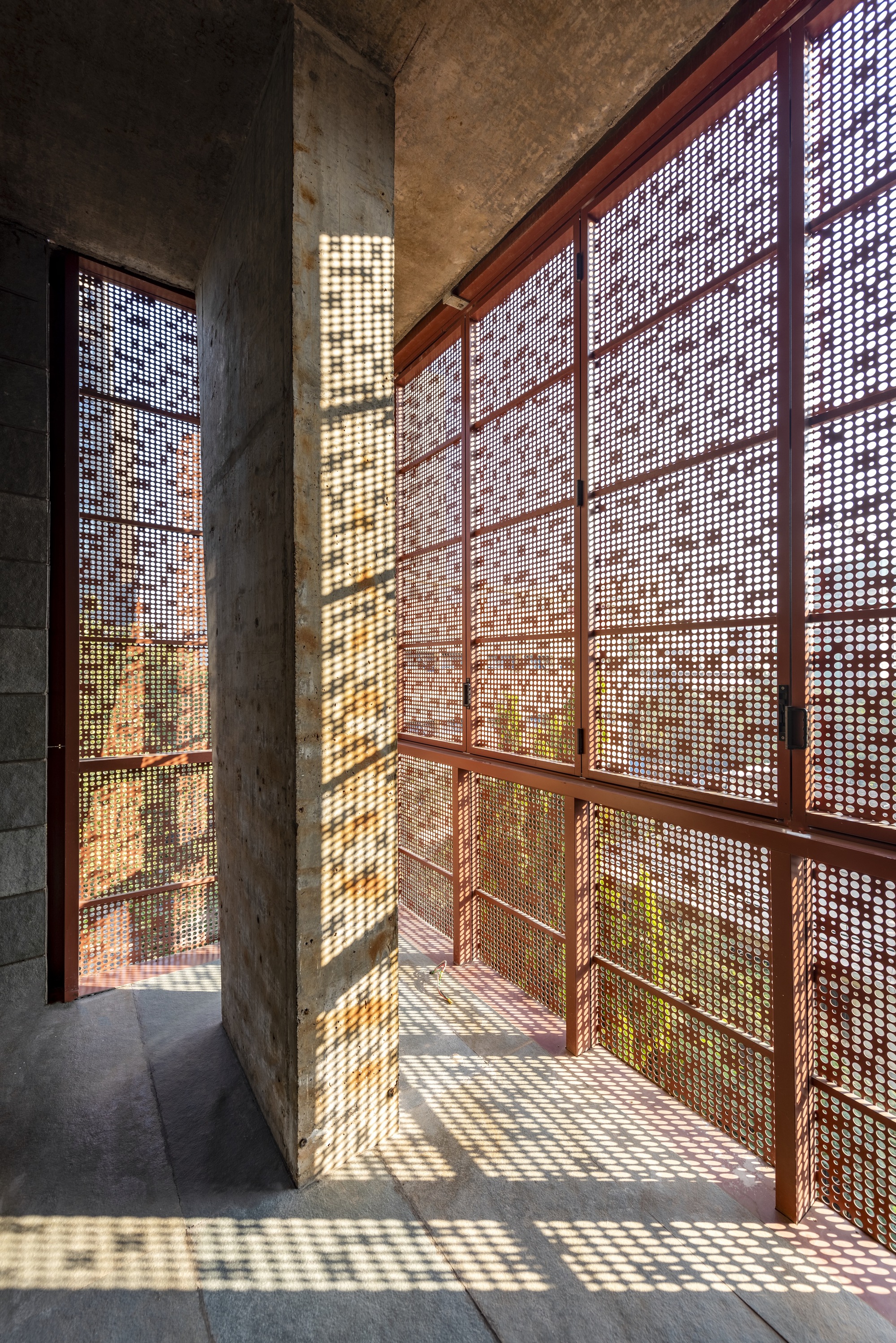

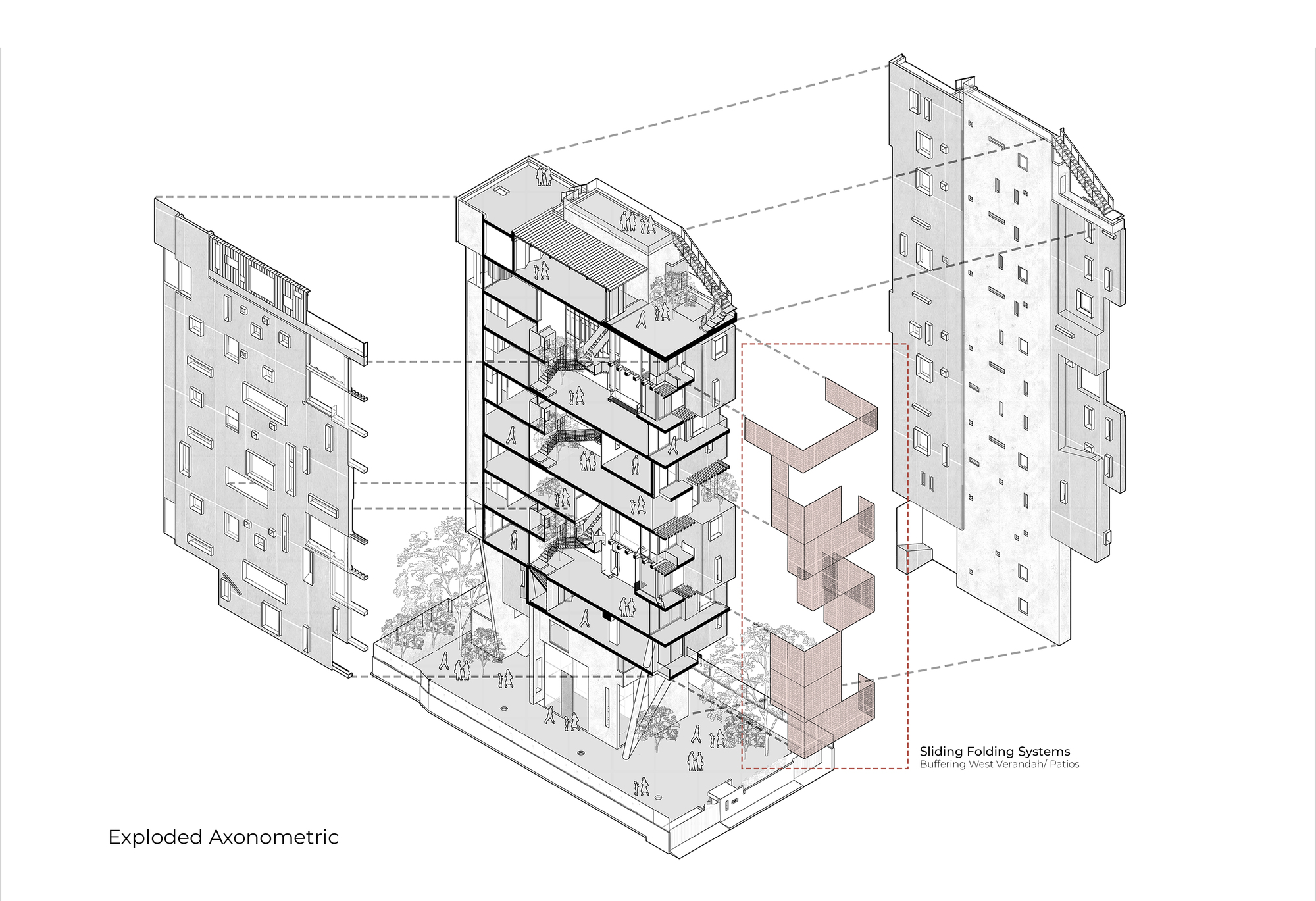

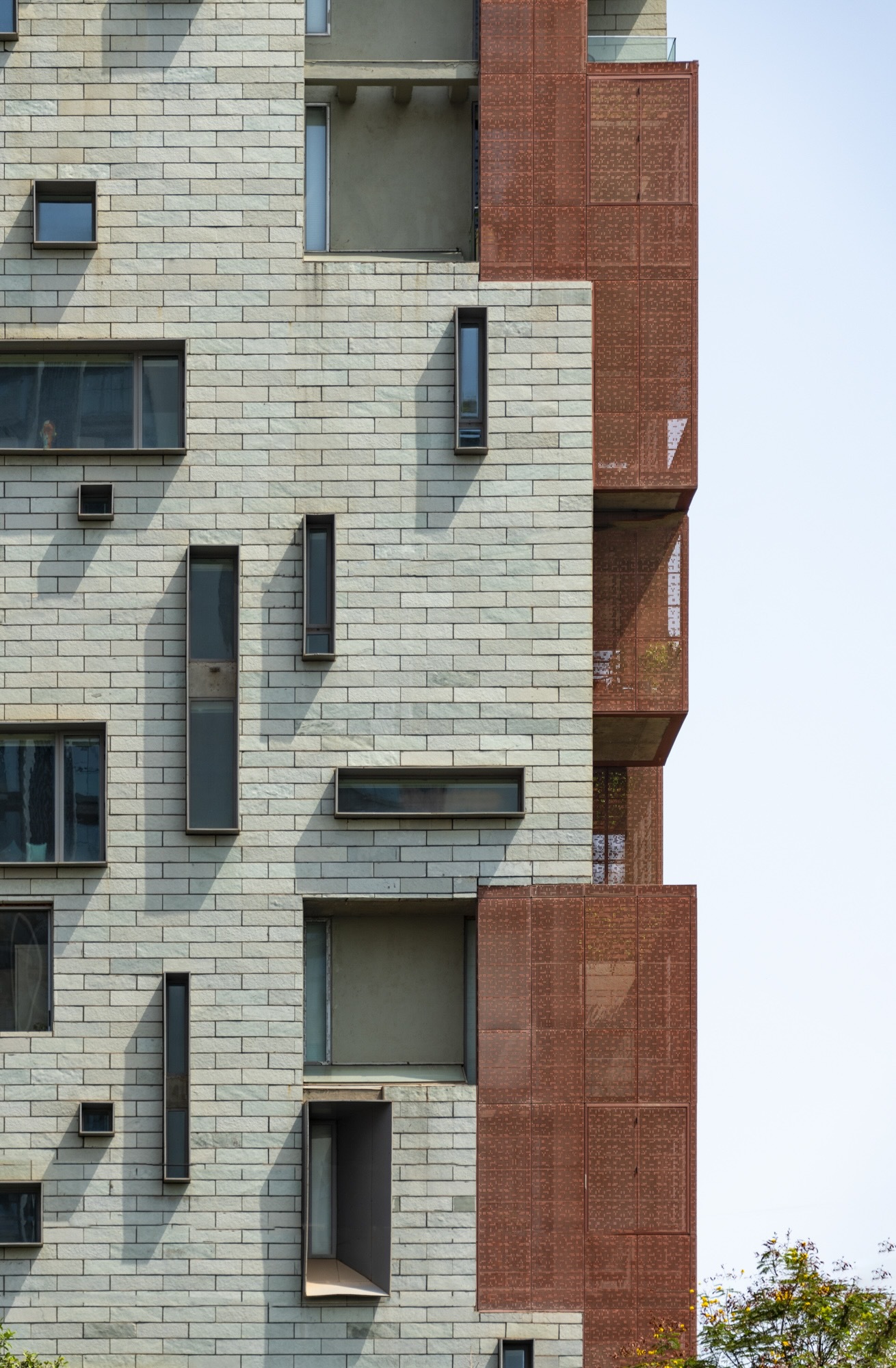

The western edge, with its views of the sea, and its propensity to be subjected to the maximum force of the elements is organized as a series of deep shaded verandahs with fixed and operable screens. The Verandah spaces shift profiles within this tall void, based on the relationship with the interior, and each bungalow develops its own proportion of verandahs'. The operable screens create privacy and shading making those spaces perennially habitable. Through the analysis and adaptation of vernacular devices a plausible solution to the urban impact of these rapidly proliferating building types seems possible.
