Architects:As Arquitectura + Diseño
Area:553m²
Year:2022
Photographs:Tamara Uribe
Architects In Charge:Arq. Alejandra Abreu Sacramento, Arq. Xavier Abreu Sacramento
Design Team:Arq. Alejandra Abreu Sacramento, Arq. Xavier Abreu Sacramento, Arq. Efraín Góngora, Arq. Jonathan Góngora, Arq. Karla Navarrete, Arq. Aida Ordoñez
Interior Design:Arq. Rebecca Novelo, Arq. Pamela Monsreal
Lighting Design:Luminica iluminación
Air Conditioning Engineering:Tecnoterma
Electrical Installations Contractor:Ilurgia
Criterio De Instalación Hidrosanitaria:Itres
Hydrosanitary Engineering:Estacionamiento, área de animales, cuarto del velador, cochera, bodega, recámara de visitas, 2 recámaras secundarias, recámara principal, área de basura, cuarto de máquinas, patio de tendido, alacena, cocina, sala de tv, bar, terraza, piscina y palapa.
Access Area:32.53 m2
Palapa Area:76.80 m2
City:San Benito
Country:Mexico

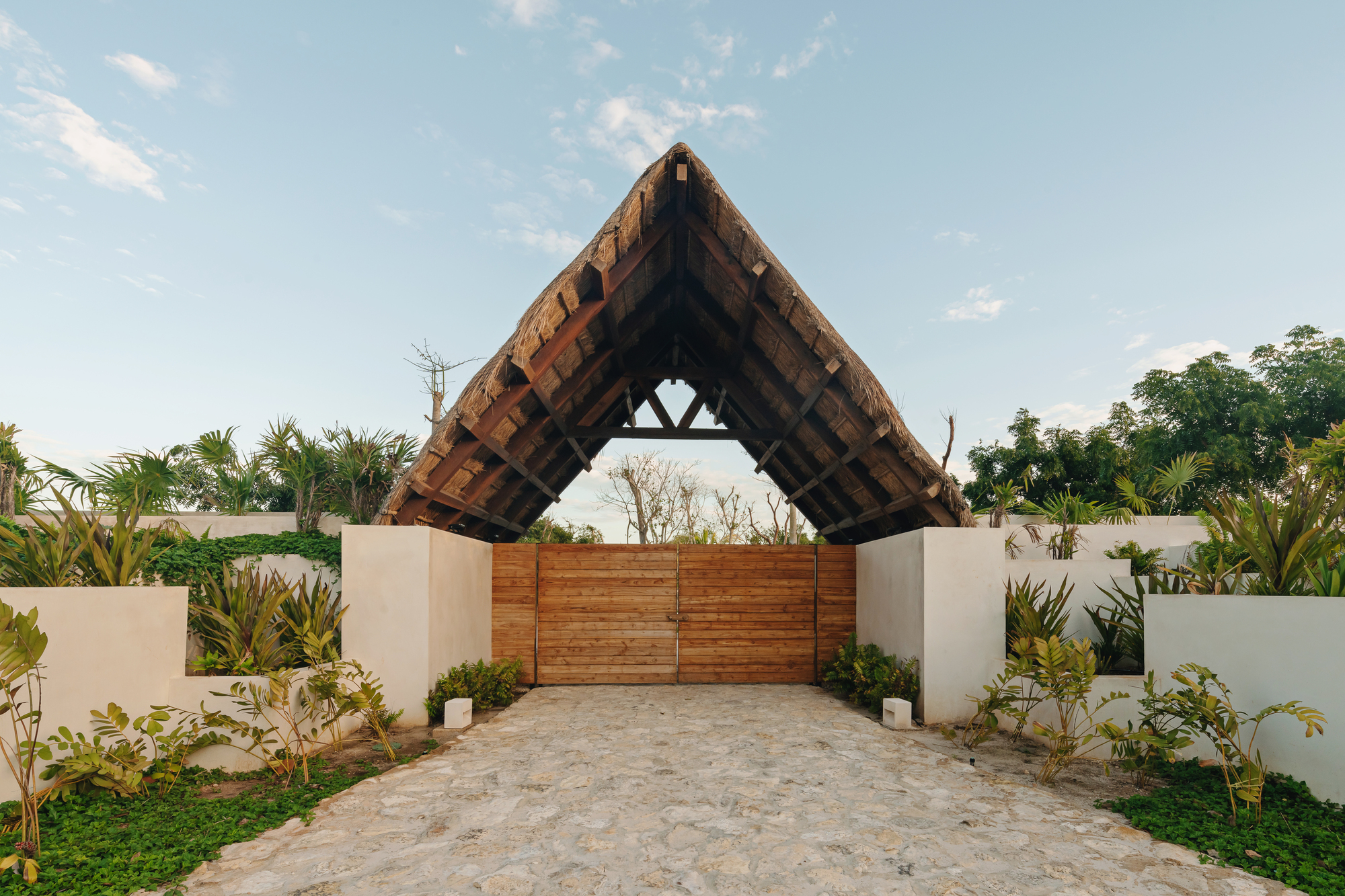

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-16
Text description provided by the architects. Tulum 21 is a summer house located on San Benito beach in Yucatán. Our work was developed in three stages: architectural design, interior design, and subsequently the expansion of a palapa in the area closest to the sea.
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-18

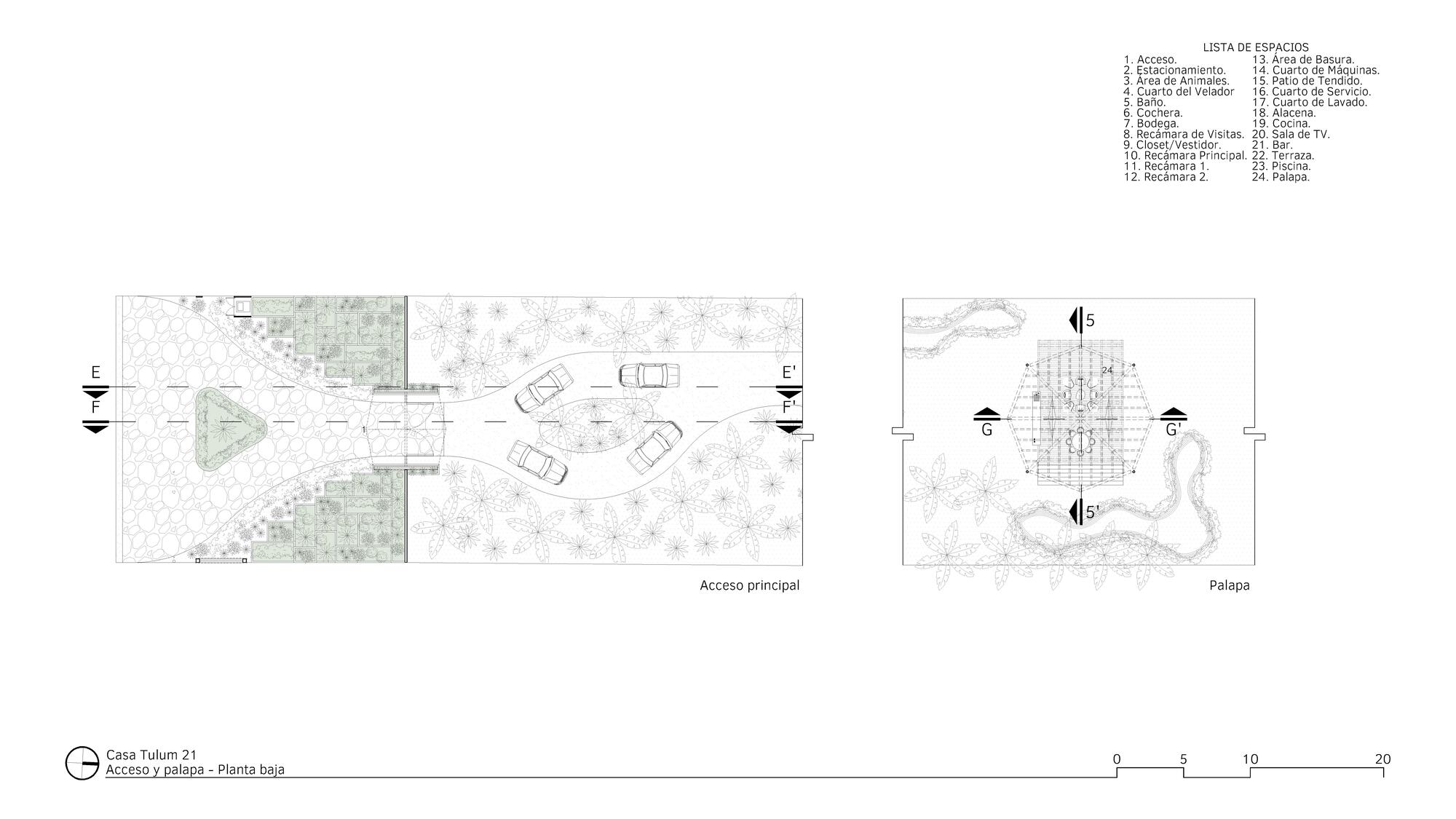

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-19

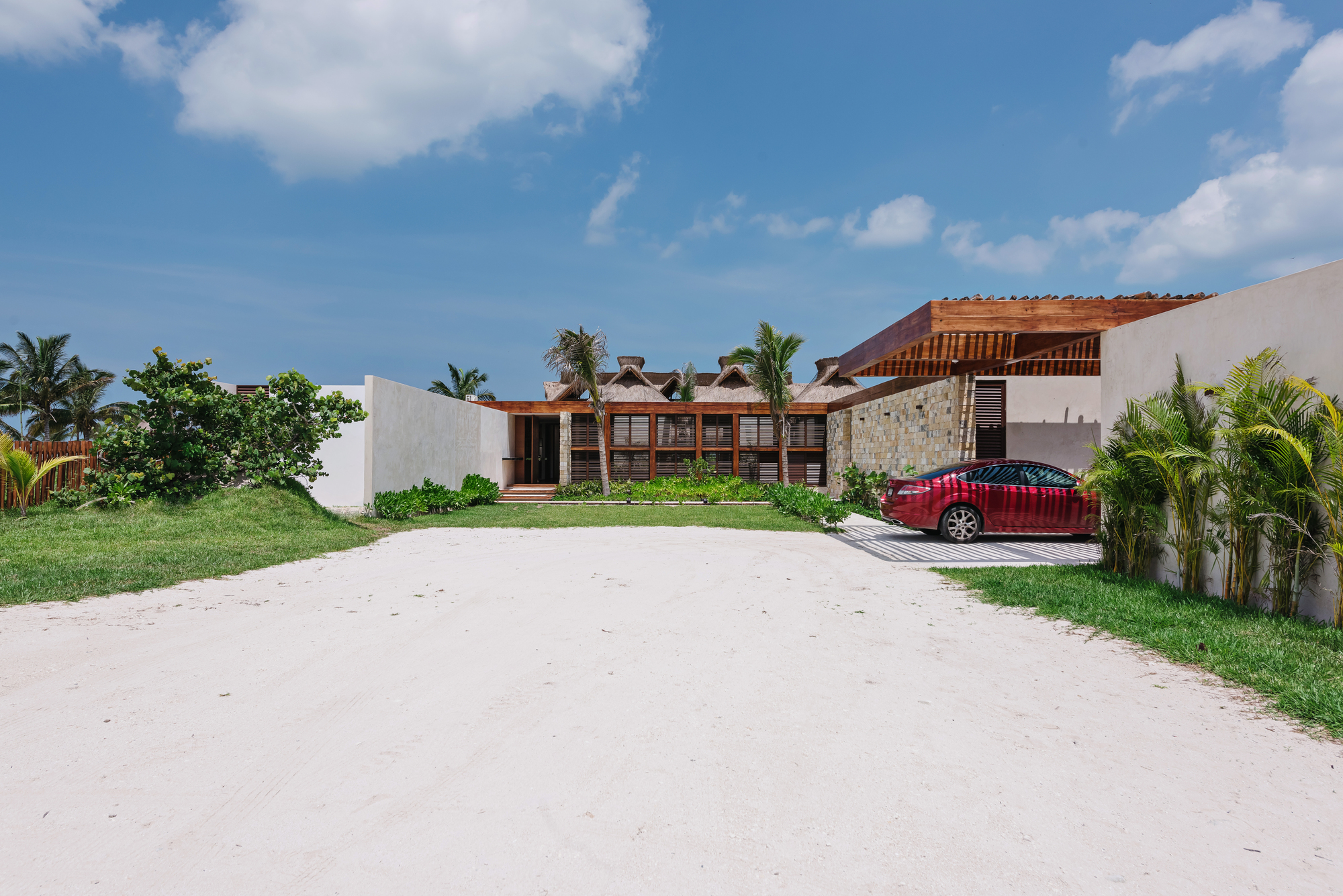

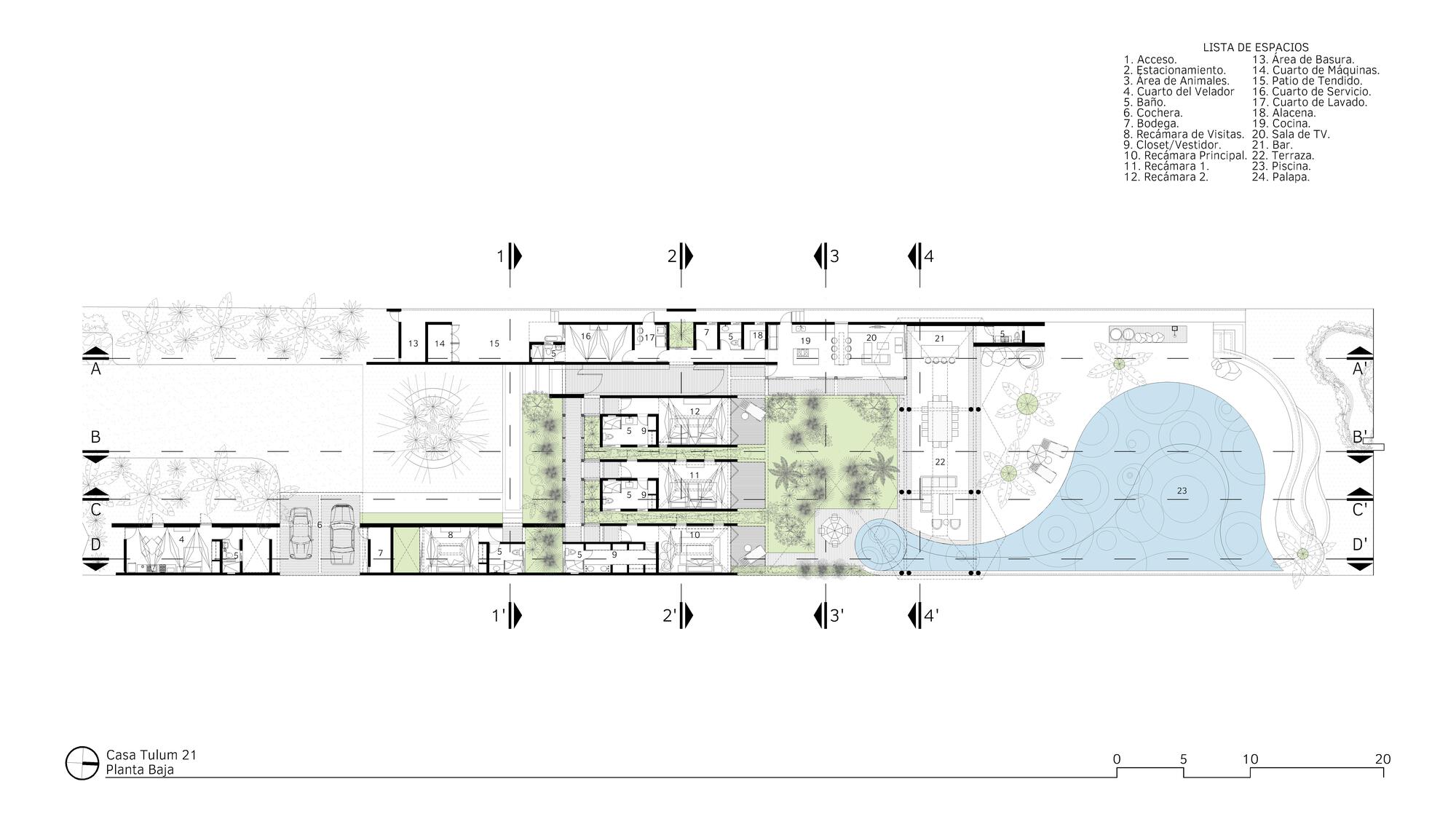

The design is inspired by traditional Mexican Caribbean houses, which feature palapa roofs, wooden shutter windows, and stone walls, among others. To make the most of the narrow land, the house adopts a "C" shape that surrounds a central patio, allowing all areas to enjoy views of the sea. This patio acts as a "buffer" between the private and public zones, while the service areas are integrated laterally into a more enclosed block.
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-21
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-22

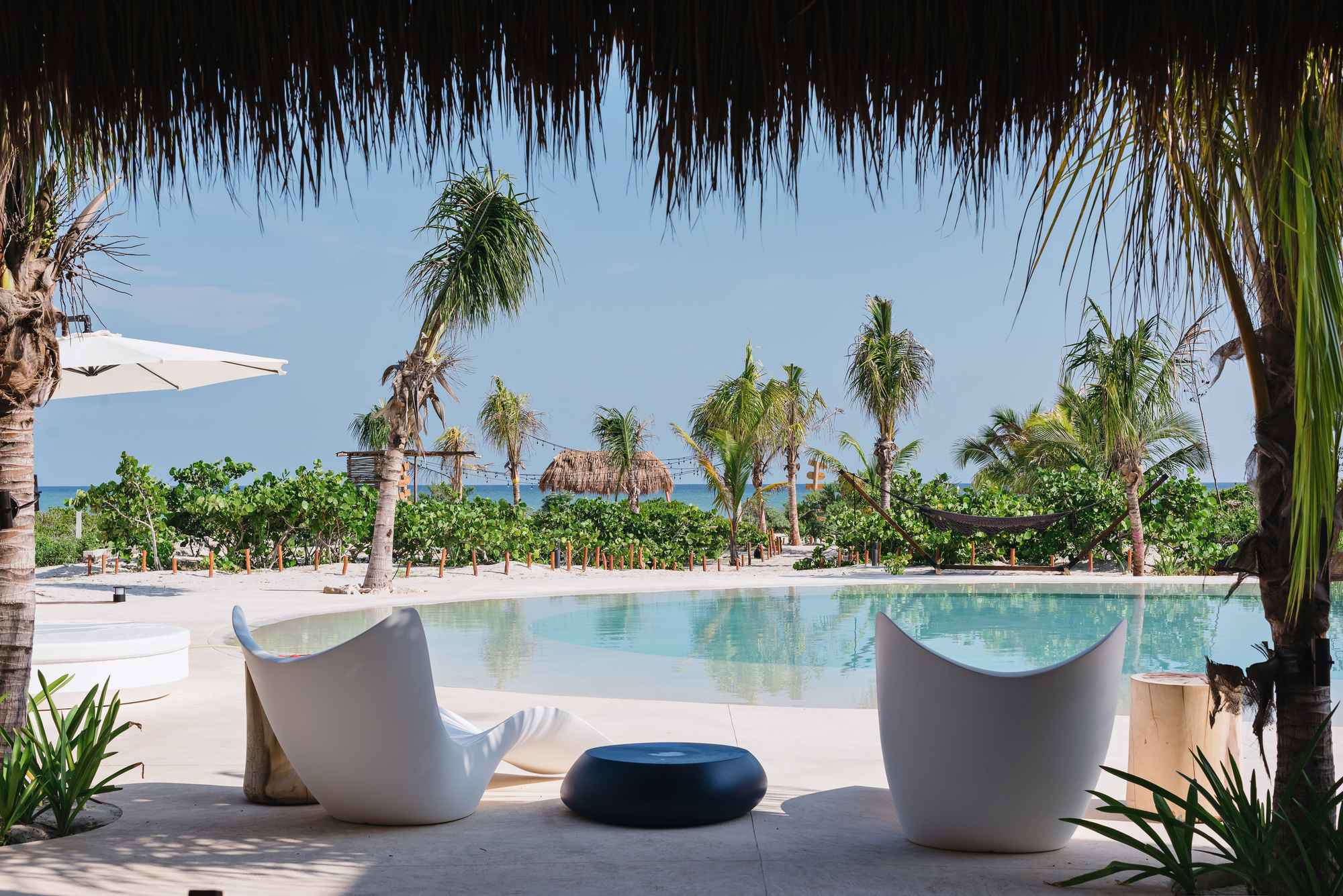

The terrace and pool are designed to be the main social area, where users can enjoy the coastal atmosphere. The curved shape and slight slope of the pool recreate a visual connection to the shoreline just a few steps from the house, inviting relaxation.
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-24
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-25

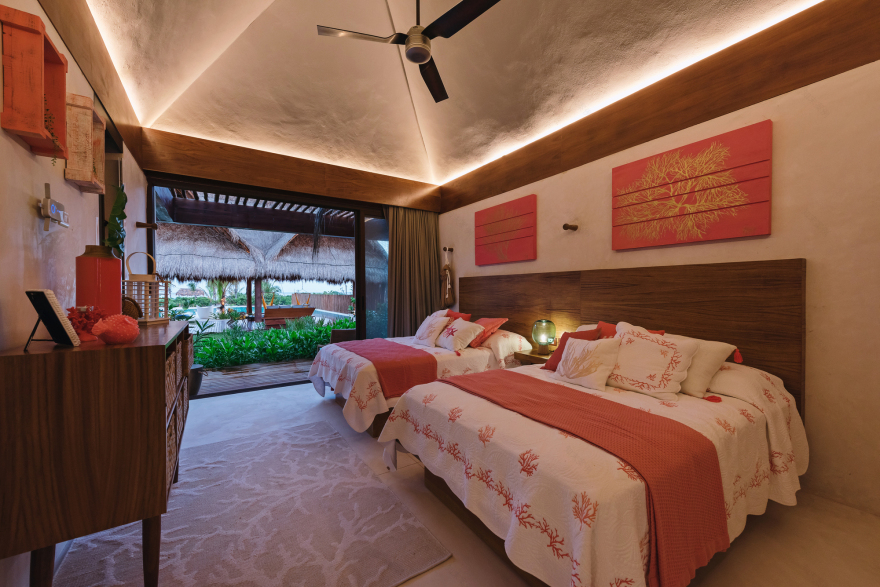

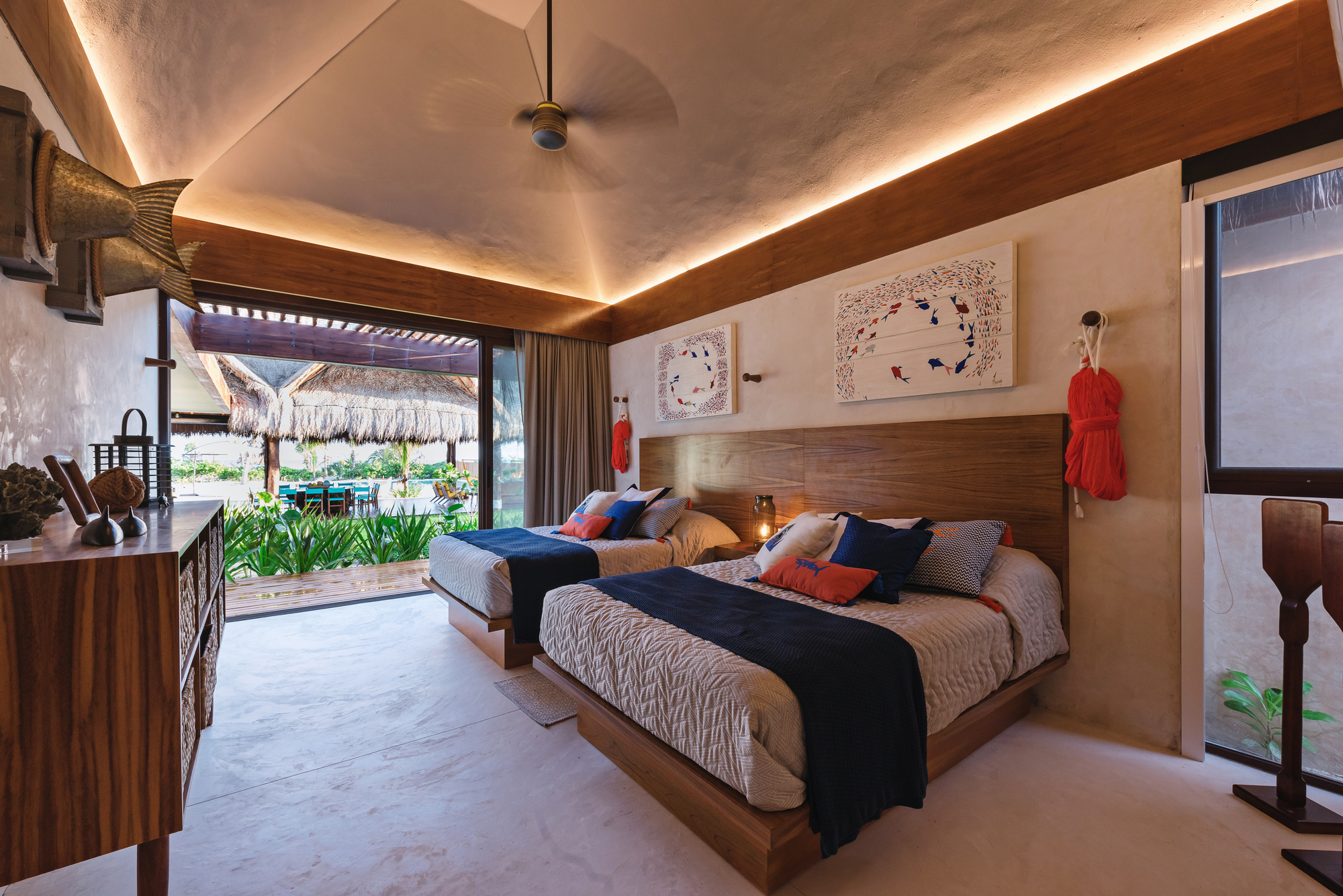

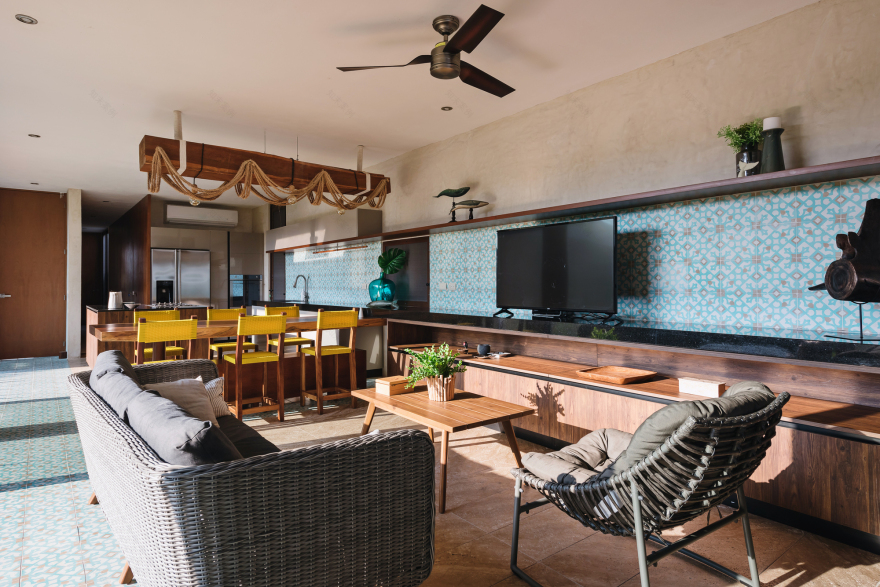

The use of existing vegetation played an important role in blending the project with the environment through patios that facilitate the transition between spaces, creating a connection between the interior and the exterior. The permeability in the design creates sensations of spaciousness and connection with nature. Additionally, due to the arrangement of spaces in the project, a subtle division is established between public, private, and service areas. The interior design was sought with rustic elements highlighting the naturalness of the materials used in both the furniture and the organic decorative elements, through the use of natural textiles and various types of treated woods to preserve their qualities for a longer time.
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-27
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-28

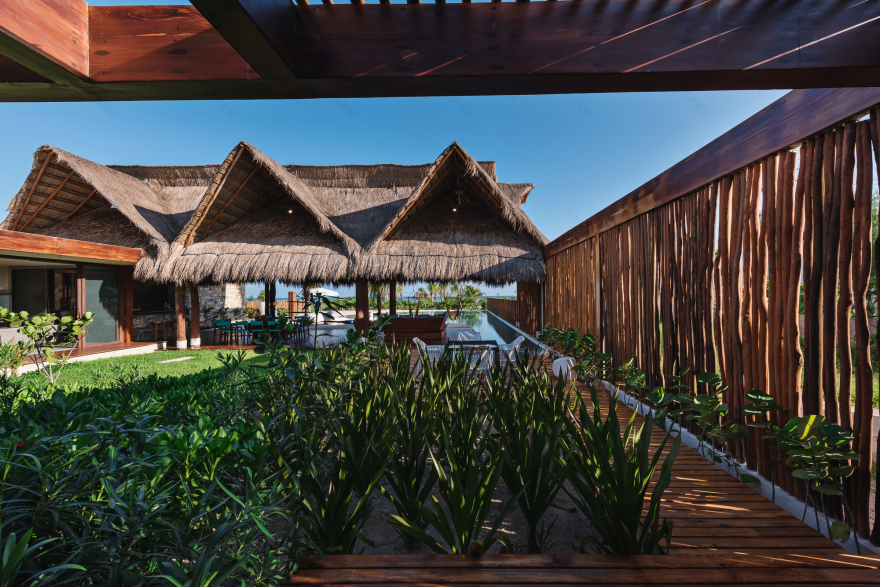

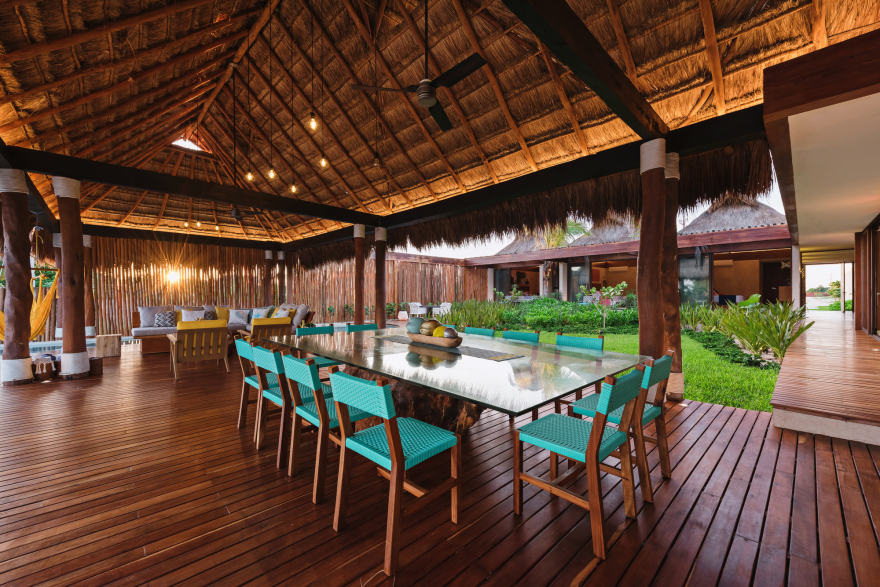

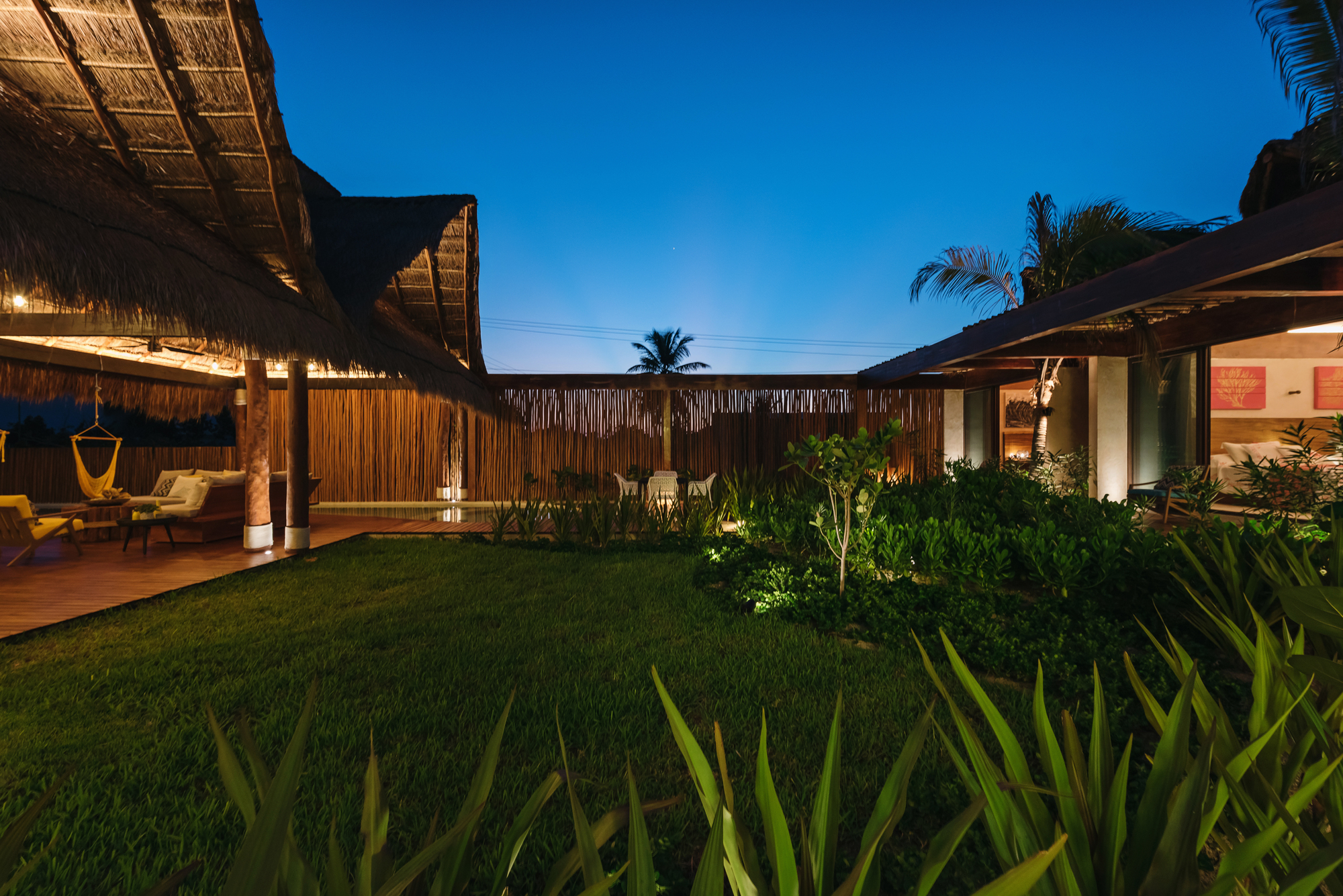

Traditional construction systems and regional materials were employed, such as wooden and thatch palapas, cement-plastered walls with chukum, decks, shutter doors, windows, and hardwood beams and columns from the region, as well as local stone walls. This selection of materials, combined with the interior design, achieves a harmonious fusion between the traditional and the contemporary.
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-30
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-31

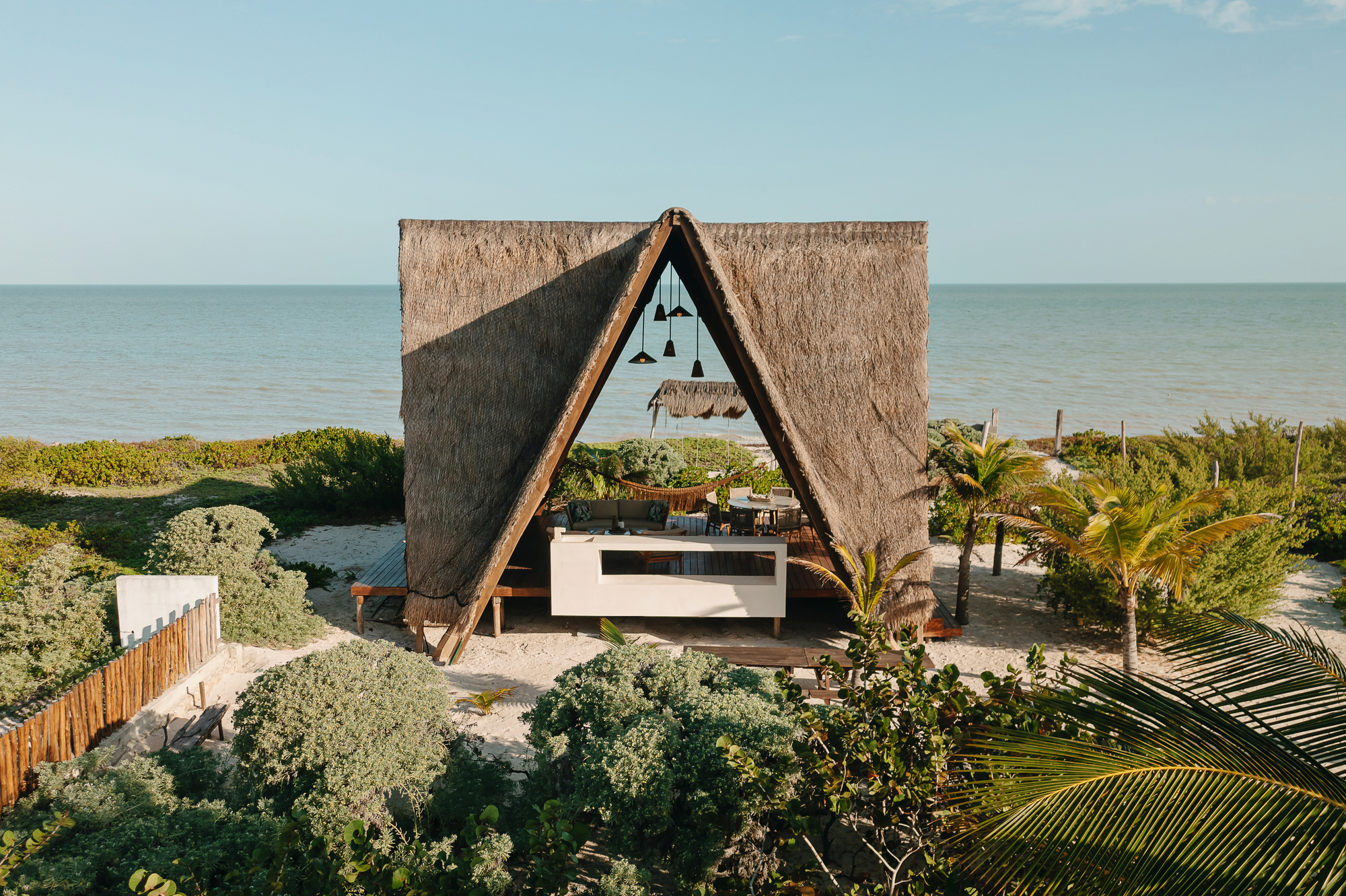

The expansion of the palapa responds to the owner's need for a multi-purpose space close to the sea, ideal for contemplating the coastal landscape, as well as for practicing yoga and relaxing.
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-33
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-34

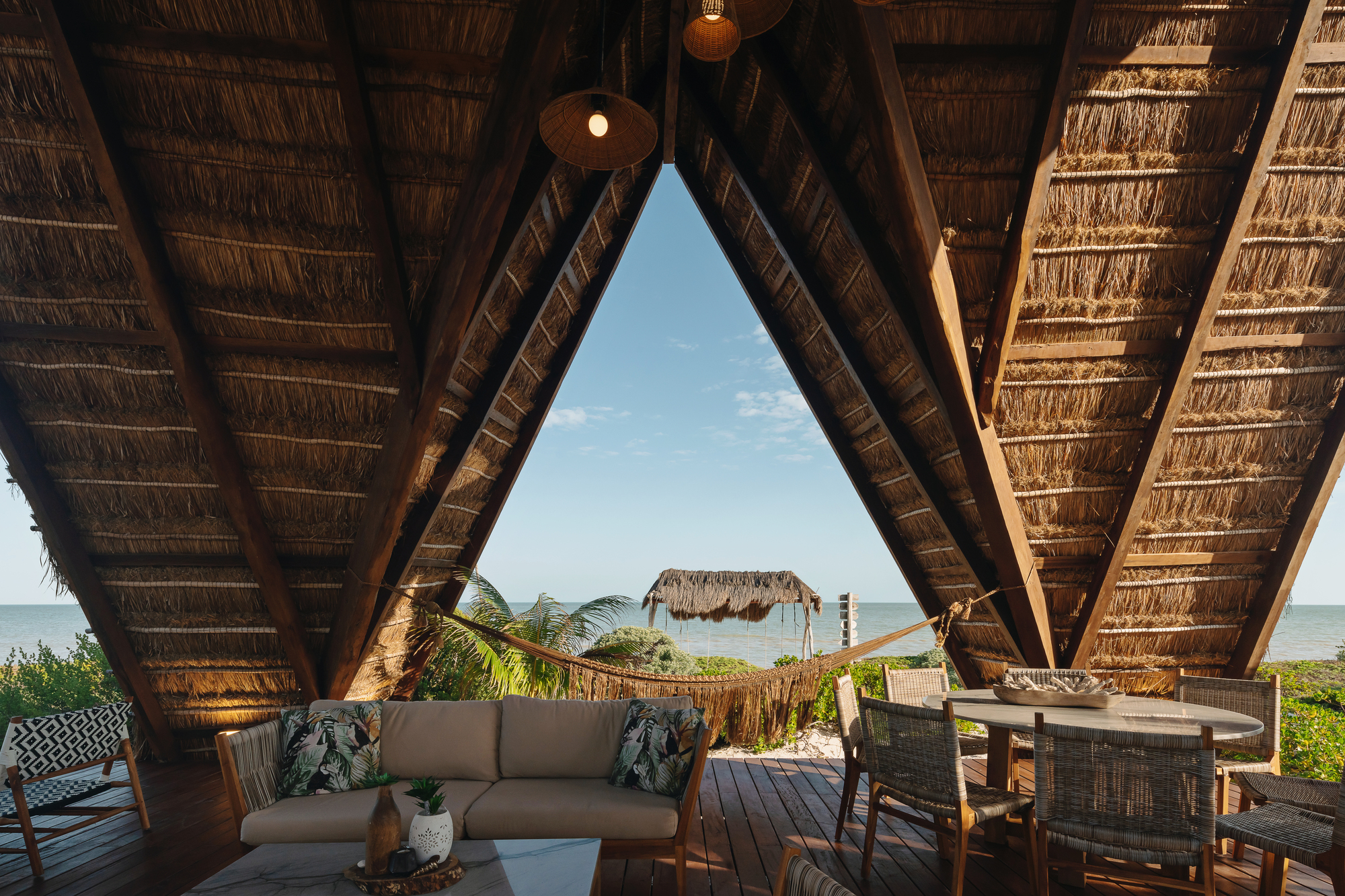

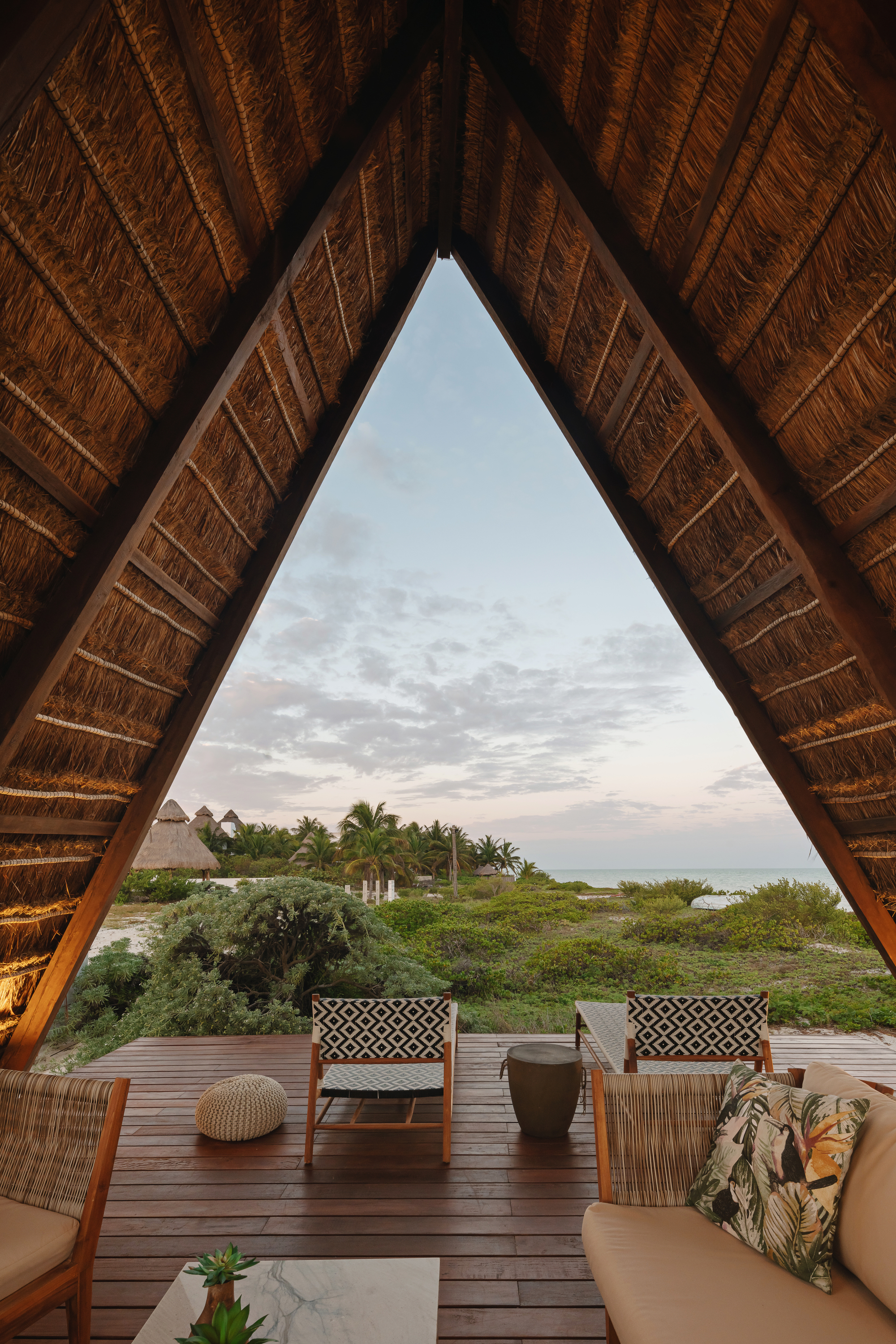

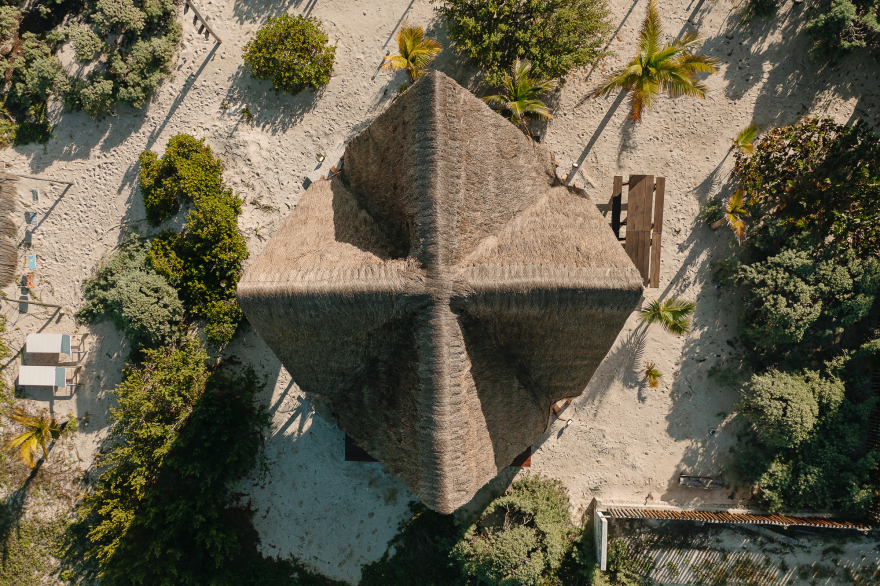

The proposal was to create a space composed of two independent elements that do not touch, which together achieve a sense of space and protection, as well as views toward the surroundings, resulting in a rectangular platform with a concrete pile structure and a wooden deck, elevated from the ground to allow the natural passage of vegetation below and a roof that opens to the four cardinal points to achieve the desired views and provide shaded areas during the day, opting for a palapa structure with an octagonal plan and 8 slopes resting at 4 points directly on the ground.
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-36
Project gallery
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-38
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-39

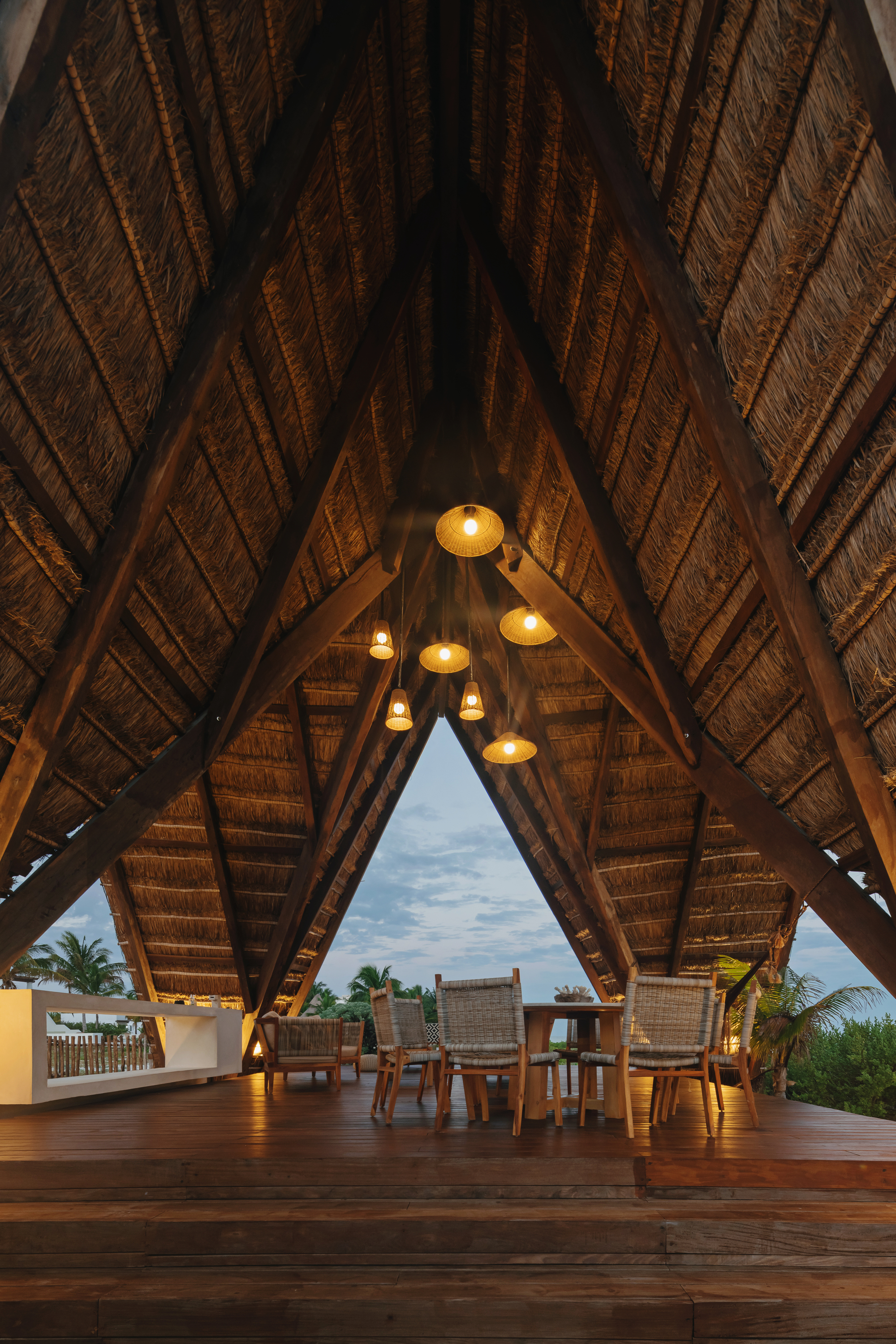

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-40

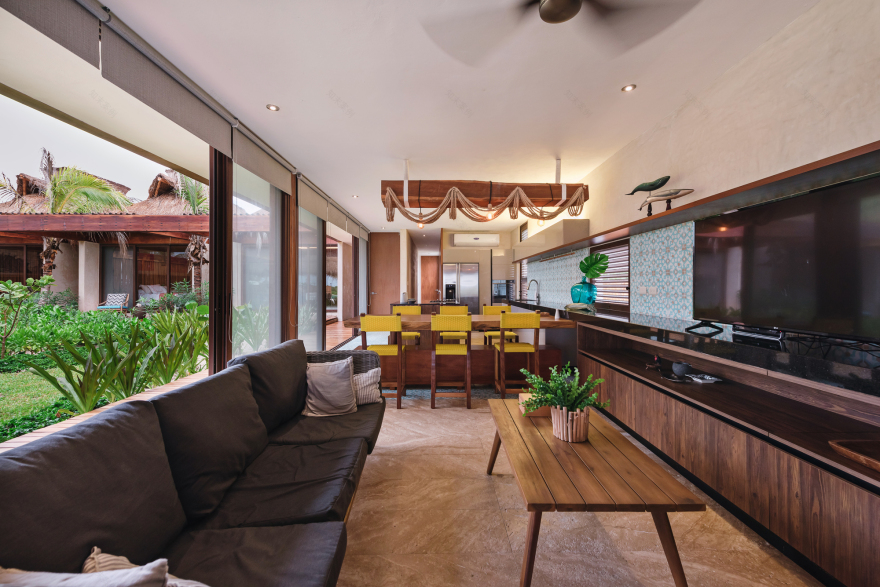

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-41
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-42
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-43
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-44

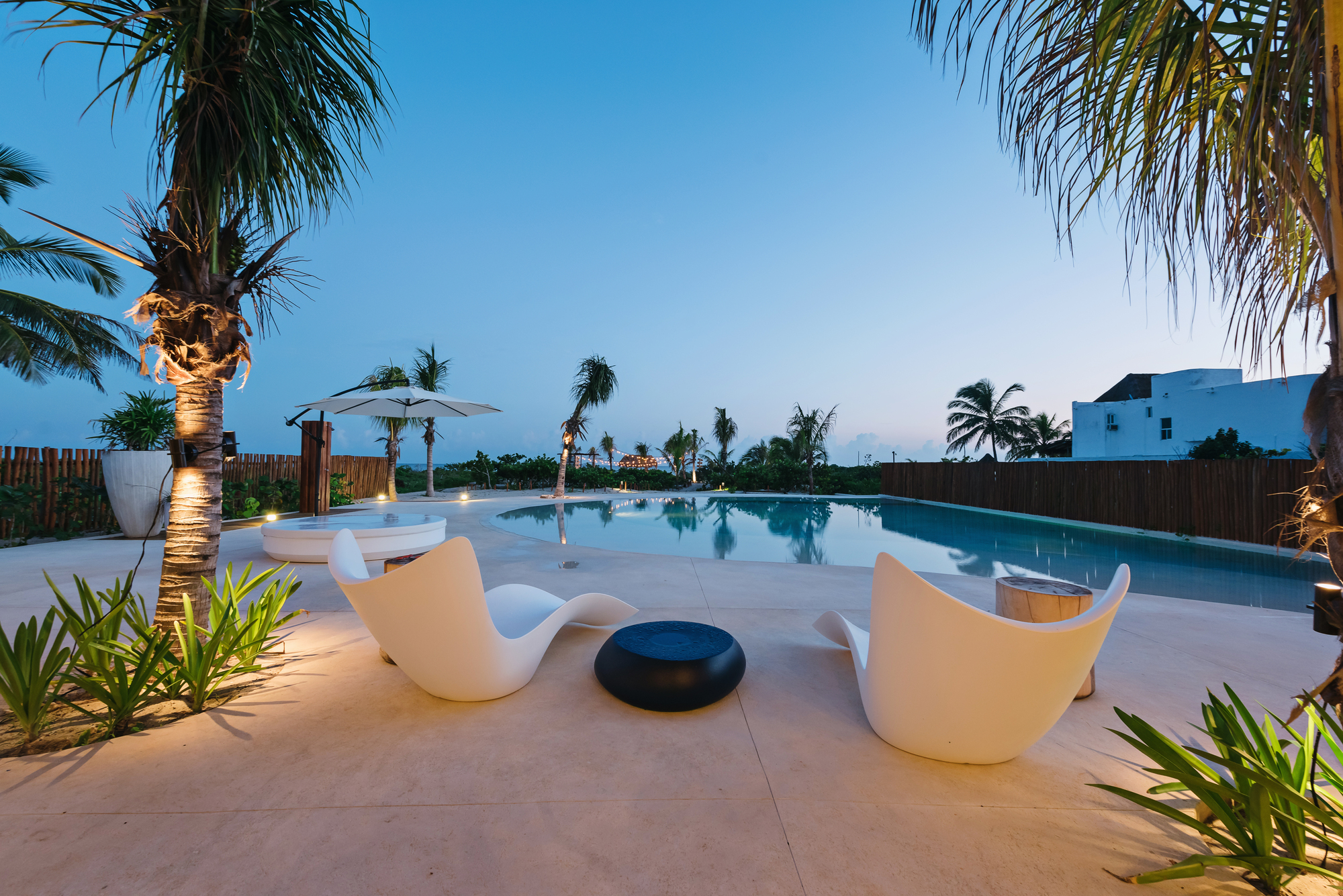

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-45
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-46
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-47
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-48
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-49
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-50
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-51
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-52
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-53
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-54
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-55
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-56
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-57
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-58
图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-59

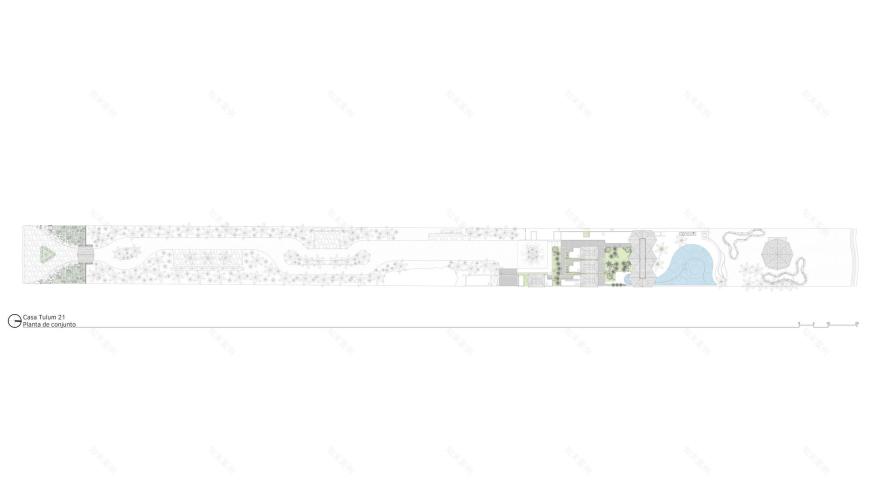

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-60

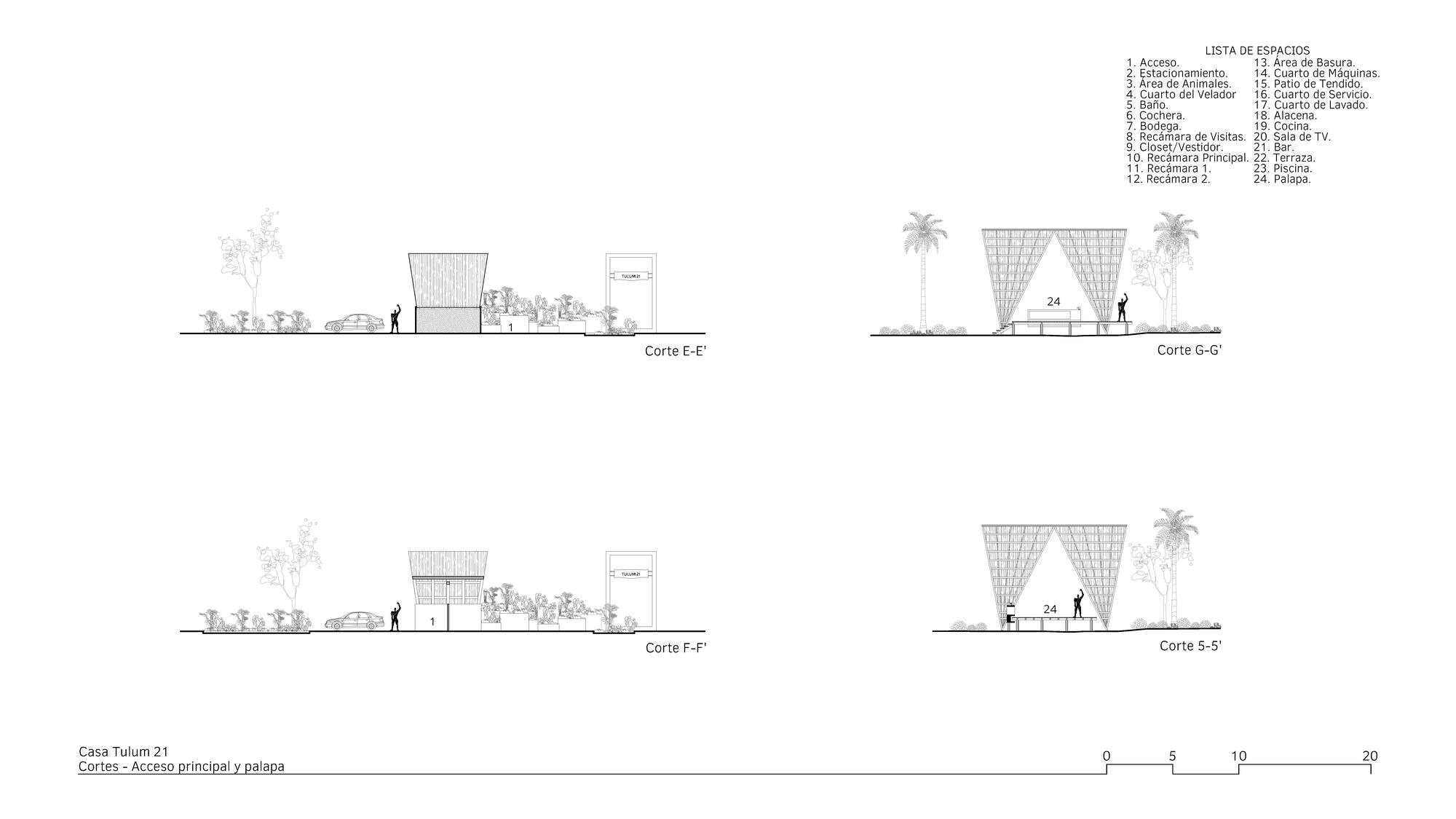

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-61

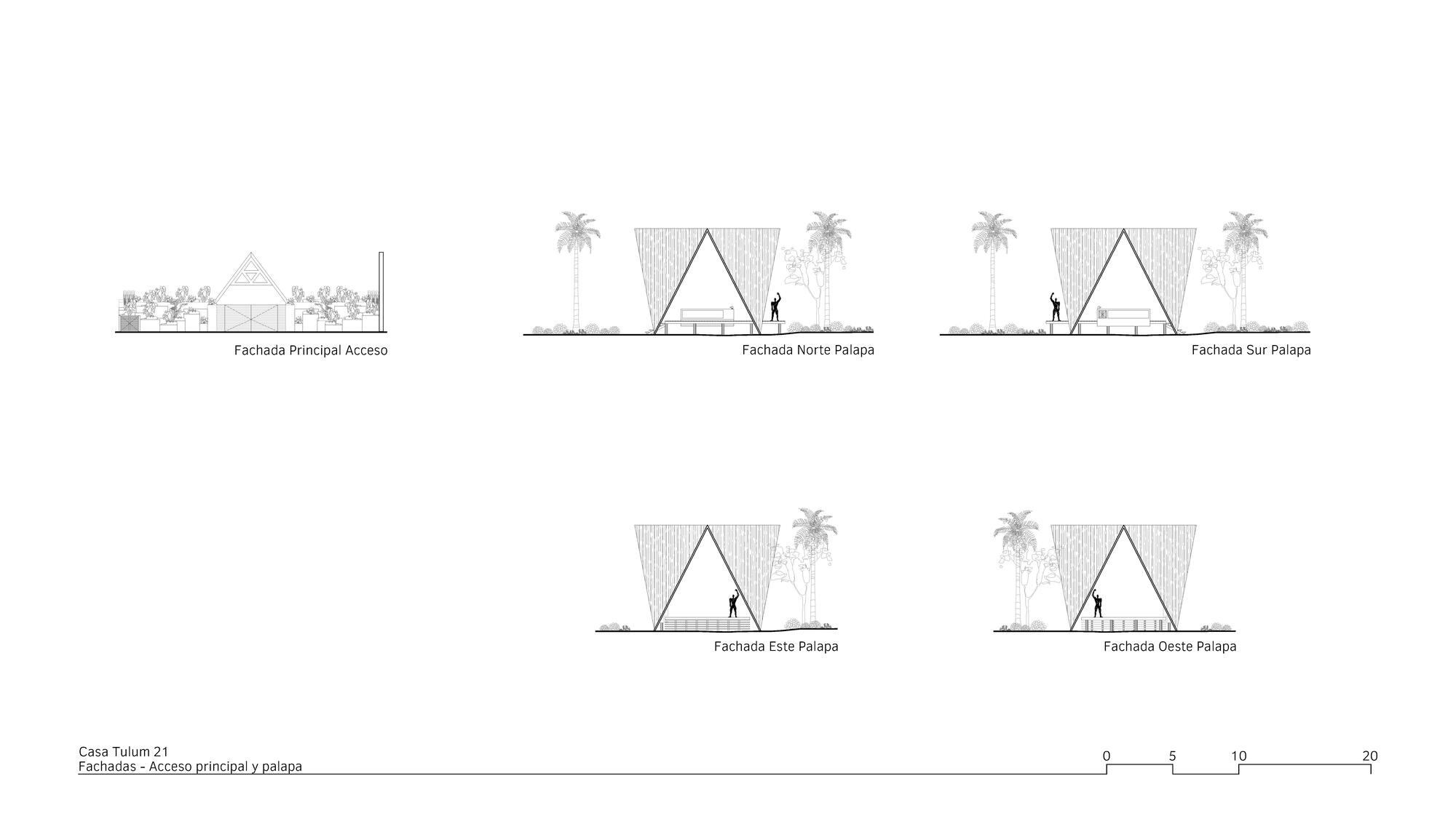

图卢姆 21 号住宅丨墨西哥丨As Arquitectura + Diseño-62
