C·O·M·S· 金属木匠公司新办公楼丨意大利丨Nicola Martinoli Architects

Architect：Nicola Martinoli Architects

Location：Esine, BS, Italy; | ;View Map

Project Year：2021

Category：Offices

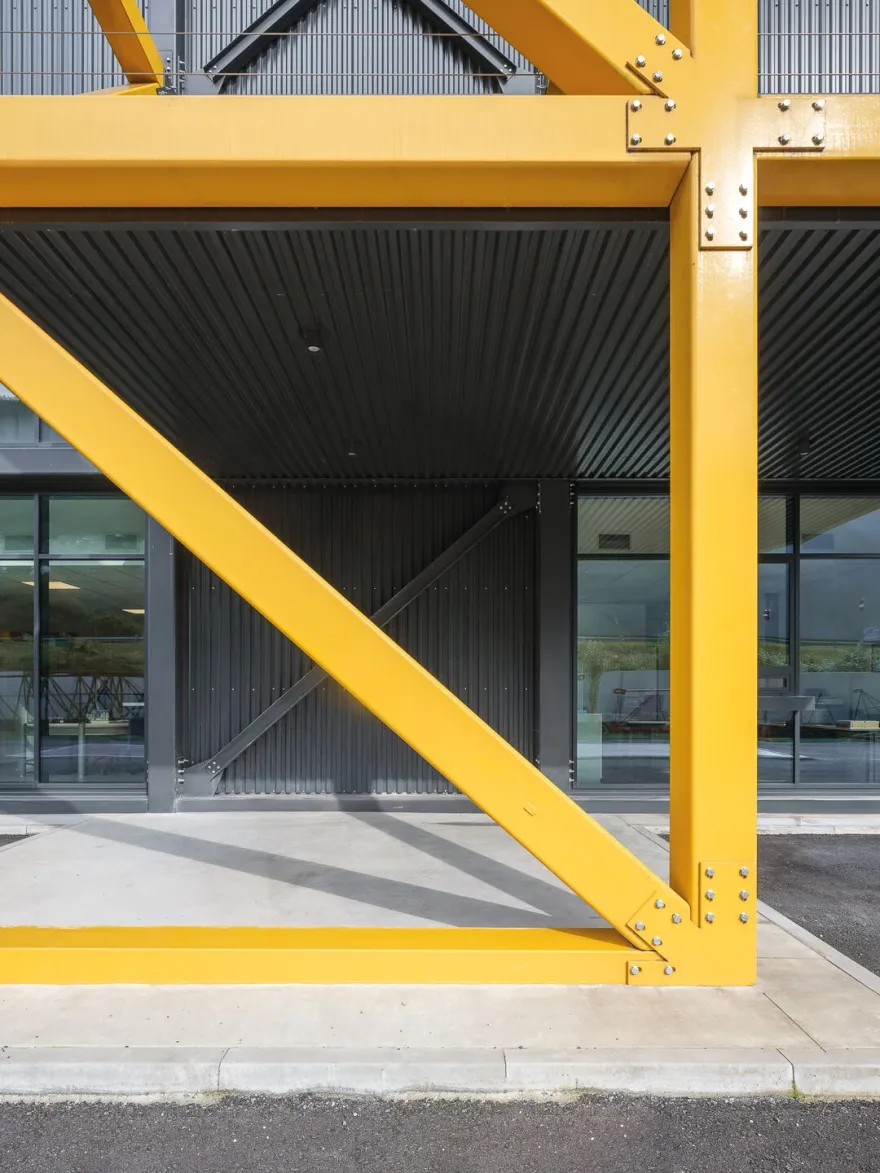

The design of C.O.M.S. Metal Carpentry's new office building stemmed from a specific request from the client: to conceive a modular, repeatable and flexible all-steel construction system. This system had to be simple to design, quick to produce and extremely versatile depending on the functions it was to fulfill. For these reasons, a 4.25x3.85m module made of 300x300x10mm steel tubulars was designed, which, repeated and assembled n times in the three spatial directions could accommodate any function within it.

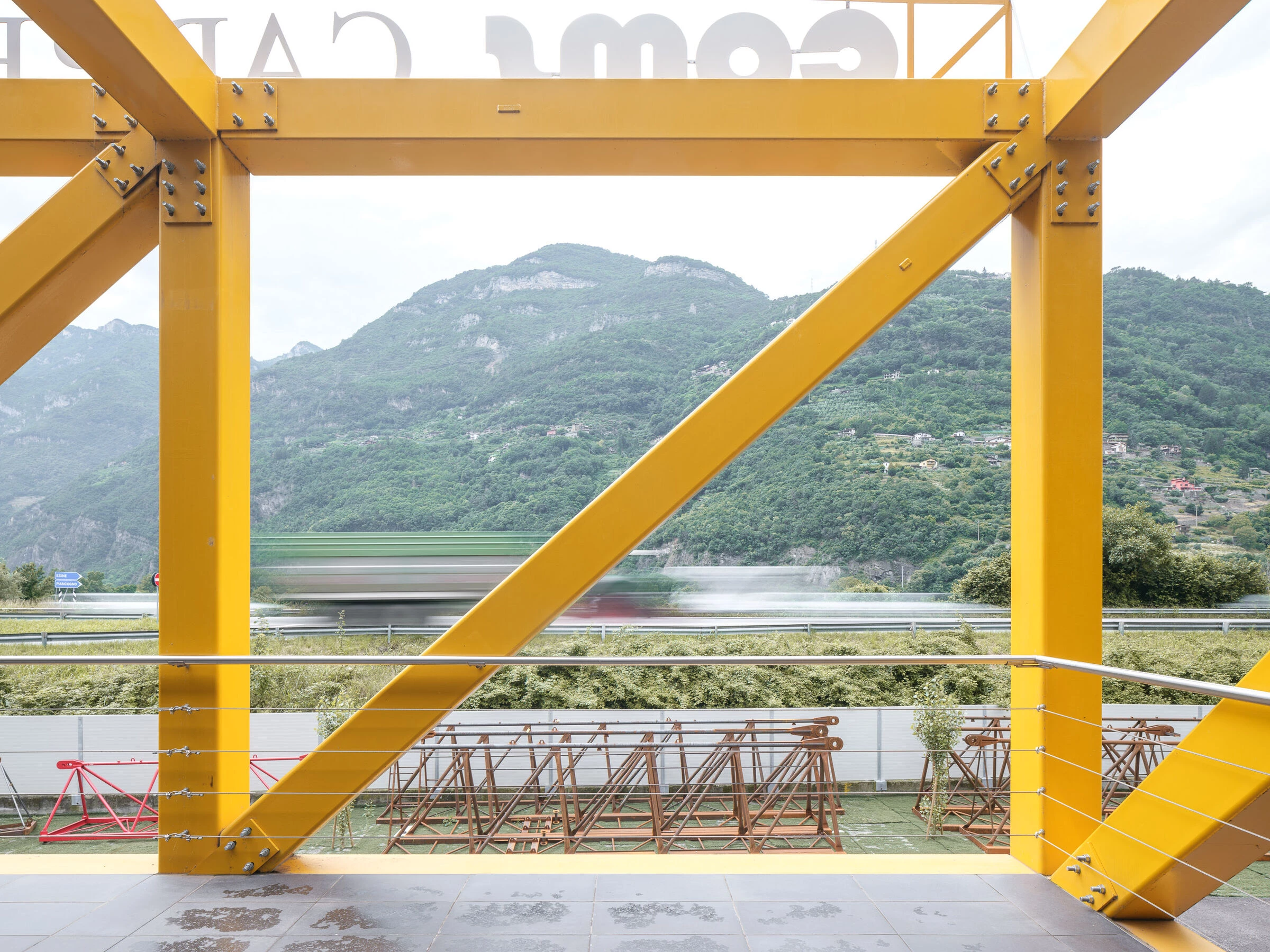

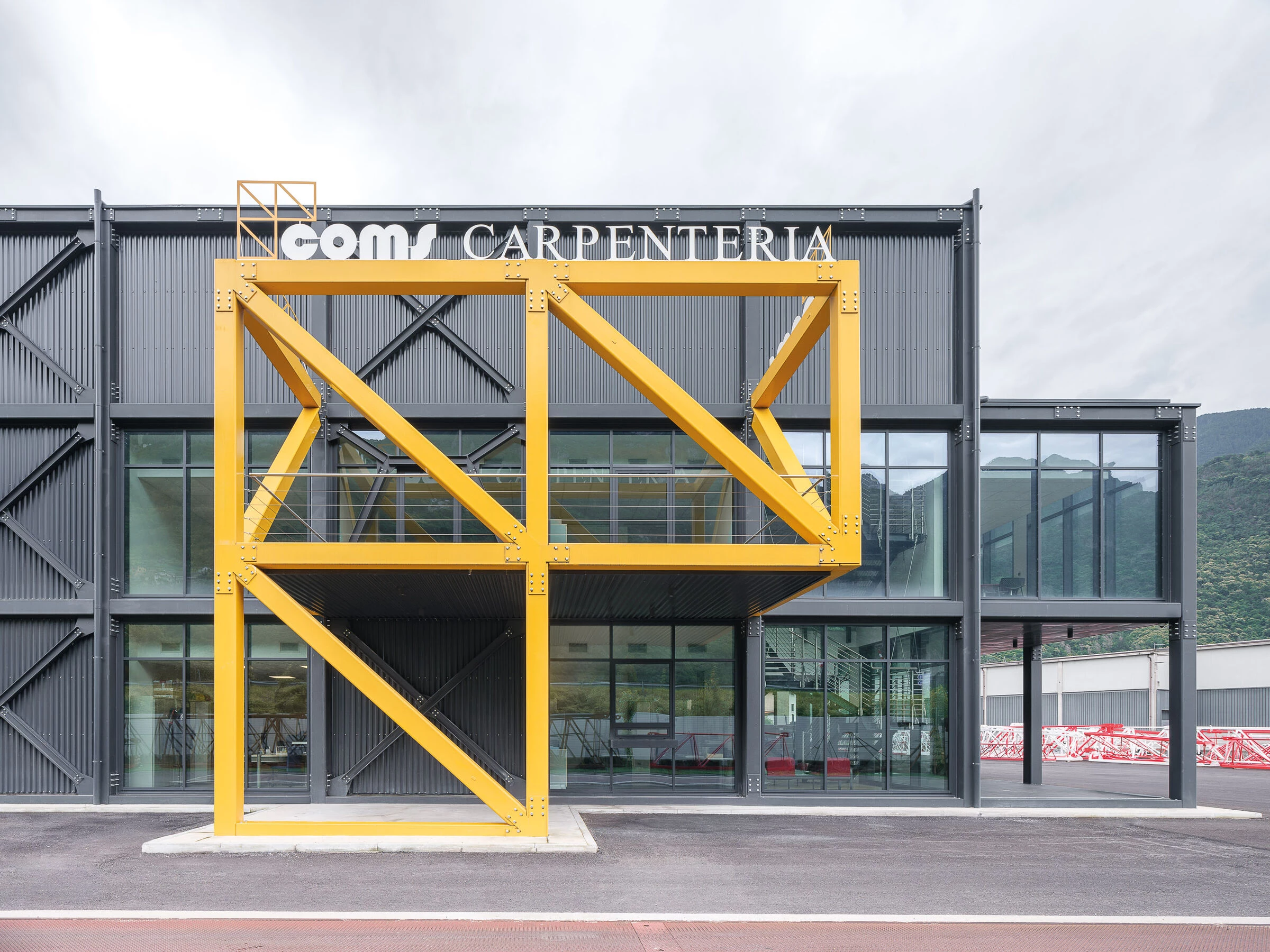

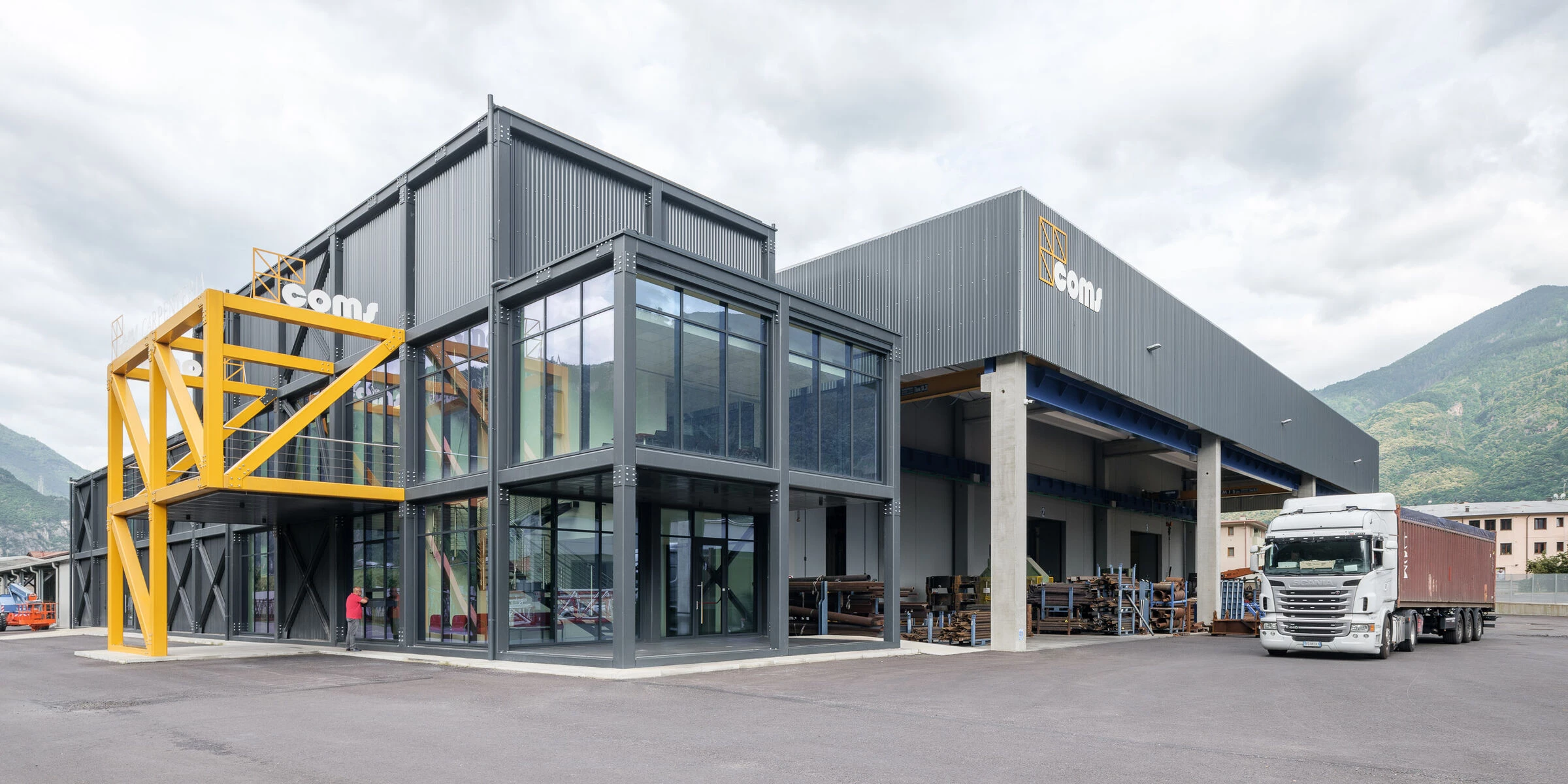

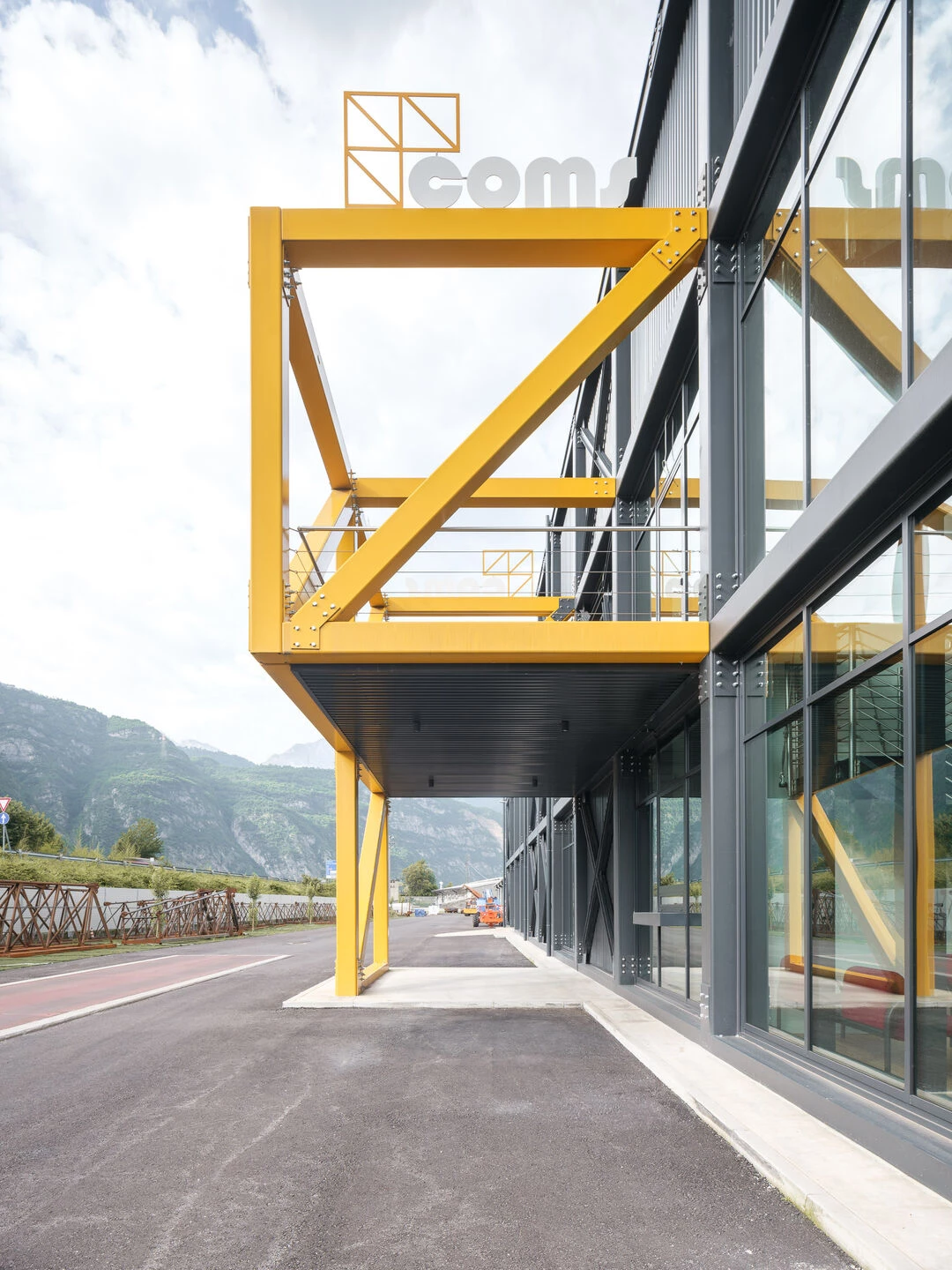

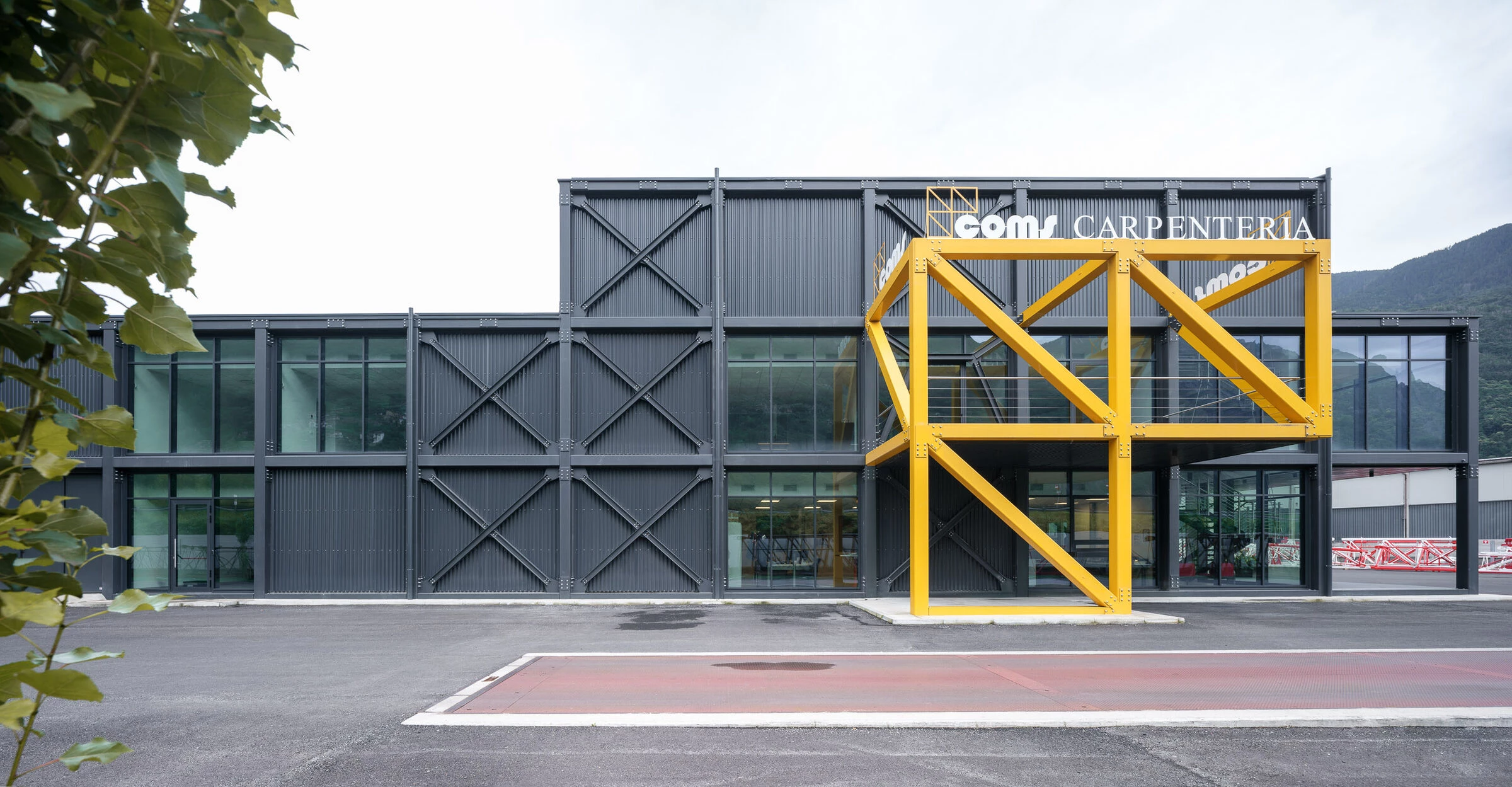

The building that houses the new office building is a kind of catalog and showcase of the countless configurations that this building system can allow for: there are in fact modules for single offices, for double offices, for a meeting room, for service functions such as locker rooms, bathrooms and canteen, for a two-story warehouse and for an archive. The module was even used to create, three-dimensionally and full-scale, the company's logo, which will be prominently displayed on the main façade, clearly visible to the many persons who drive daily along the route SS42.

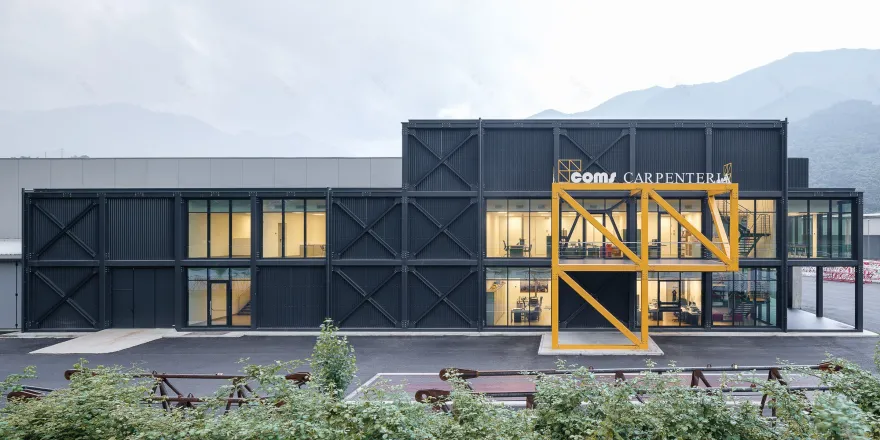

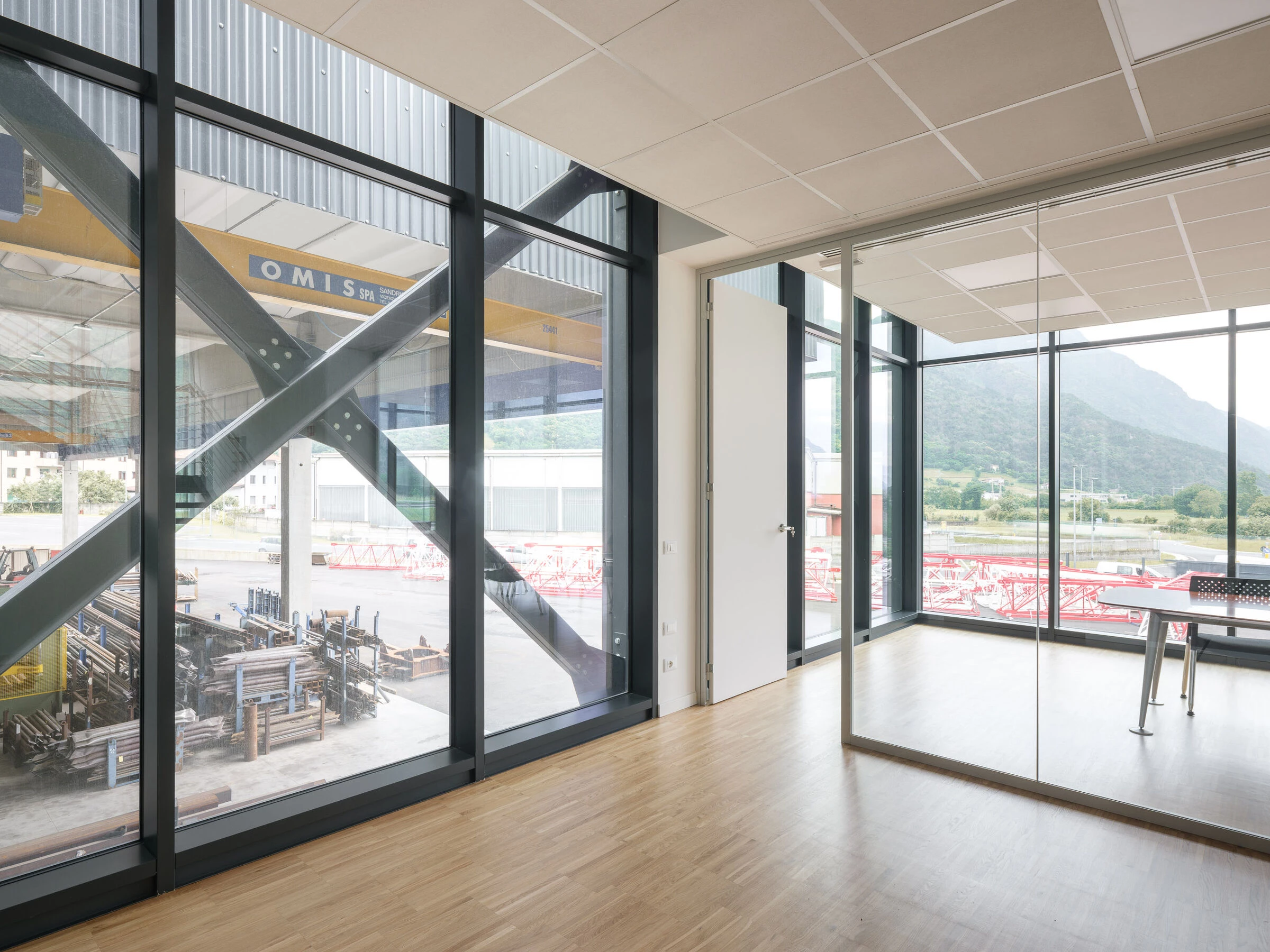

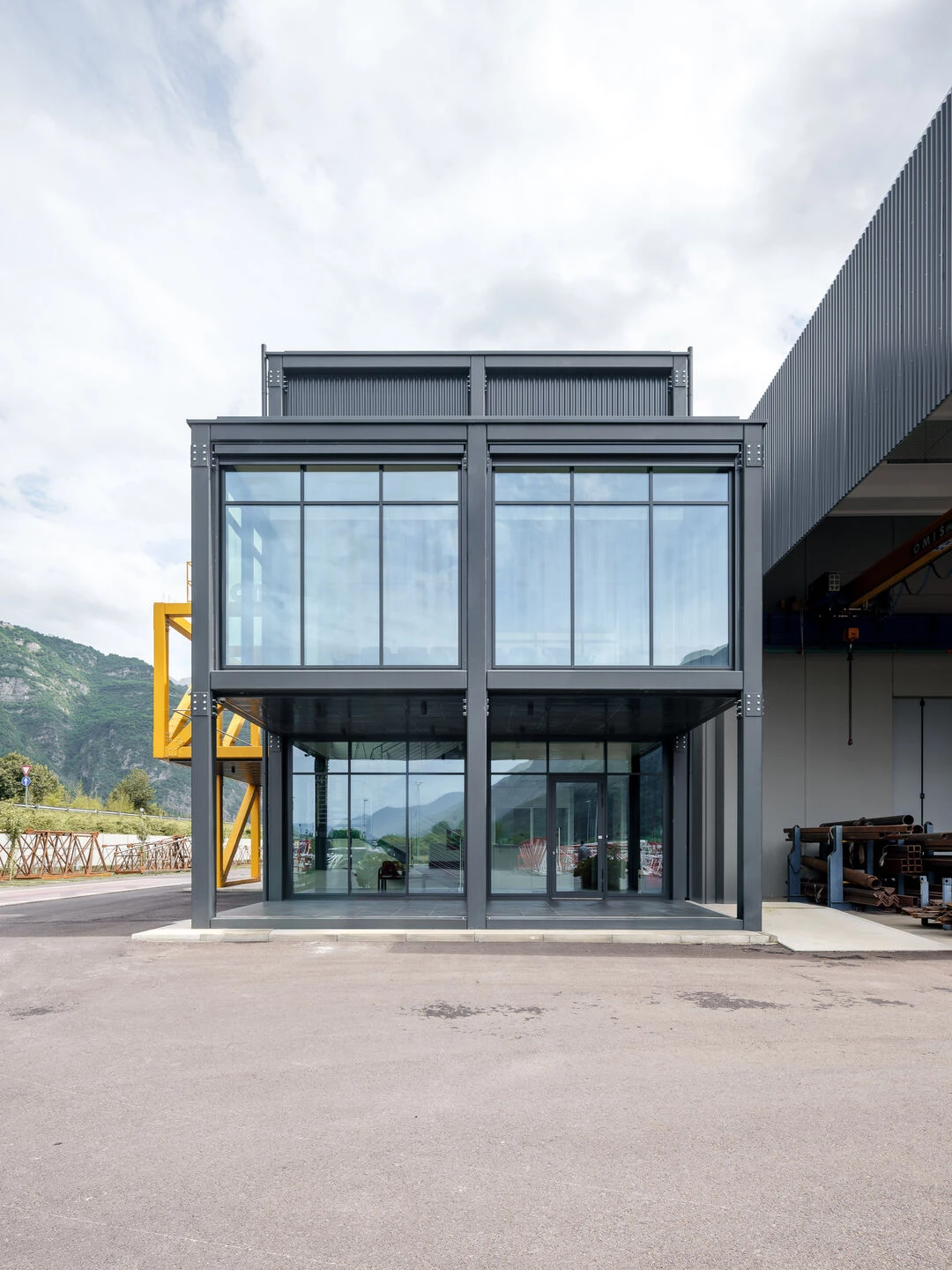

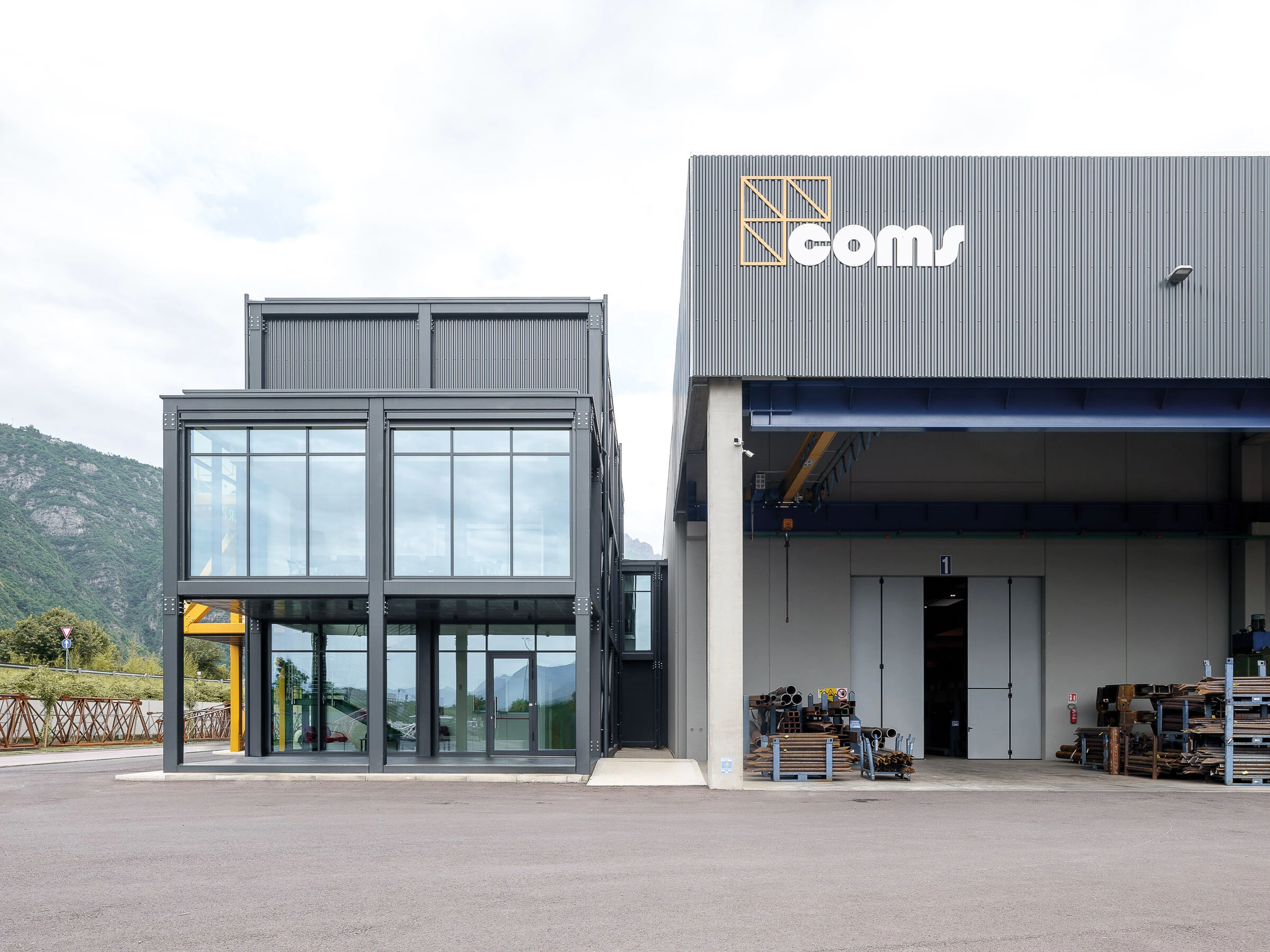

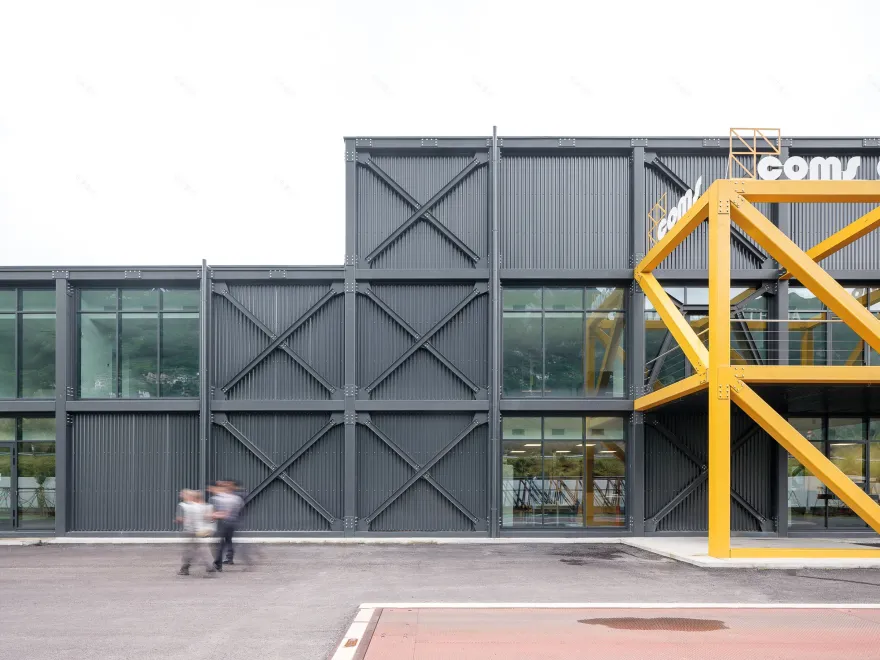

The concept of modularity is also found on the façade where fully glazed and fully blind modules alternate. The glazed parts were made with a mullion and transom curtain wall system, with the inclusion of some opening modules corresponding to the entrance to the administrative offices and the entrance to the workers' locker rooms. The blind modules were made with a dry curtain walling system using high-performance energy-efficient materials. The outer cladding of these modules is made of an anthracite gray painted metal trapezoidal sheet with a 28-mm corrugation. In each module, 3 sheets of trapezoidal metal sheet precut to size were laid to minimize production waste and allow installers to optimize assembly time.

This material was chosen in keeping with the original philosophy of the concept to meet the needs for flexibility, modularity and speed of installation that this project required. Also, from an aesthetic point of view, this solution responded perfectly to the conceptual language of this building: in fact, it gives an “industrial” and “mechanical” look to the blind modules, but at the same time, thanks to the light ribbing laid vertically, it guarantees vibration and lightness to the partitions.

Client :

C.O.M.S. S.p.A.

Location

: Esine (BS), Italy

Procedure

: direct contracting

Program

: offices, warehouse, locker rooms, canteen, archives

Architectural designer and construction manager of the office building

: Arch. Nicola  Martinoli

Designer of carpentry structures

: MG Engineering

Designer of mechanical and plumbing systems

: Eng. Simone Carreri

Electrical systems designer

: Eng. Sergio Damiola

Production building structures designer

: Eng. Giordano Tignonsini

Production building construction manager

: Arch. Dario Gheza, Arch. Diana Gheza and Eng. Giordano Tignonsini

Construction office building

: C.O.M.S. S.p.A.

Construction of production building

: Magnetti Building S.p.A.

Area

: 1,040 m2 (office building) - 5,700 m2 (production building) - 19,000 m2 (project area)

Missions

: feasibility project, preliminary design, final design and construction permit, executive design, construction supervision

Timeline

: project 2019/2020 - construction site 2020/2021

Suppliers

Windows and doors: SCHÜCO

Drywall: AURORA COSTRUZIONI s.r.l.

Roofing: AT GROUP s.a.s

Office partitions: CENTRUFFICIO LORETO s.p.a.

Locker room and bathroom furniture: SINKO s.r.l. unipersonale
