启德邮轮码头丨中国香港丨Foster + Partners

新建的启德邮轮码头位于香港前启德机场旧跑道的末端，本项目的建造使香港成为了首屈一指的区域邮轮枢纽，该码头有停泊两艘长 360 米、每艘可载超过 4000 名乘客和 2000 名船员的大型邮轮的能力，并且能够满足下一代大型船舶的停靠需求。

The new Kai Tak Cruise Terminal is located on the site of Hong Kong’s former airport, at the tip of the old runway. Establishing Hong Kong as the preeminent regional hub for cruise liners, the terminal has capacity to berth two large 360-metre-long vessels, each with more than 4,000 passengers and over 2,000 crew, as well as anticipating the demands of a next generation of larger ships.

▼码头概览，Overall view© John Nye

▼码头鸟瞰，Bird’s eyeview© John Butlin

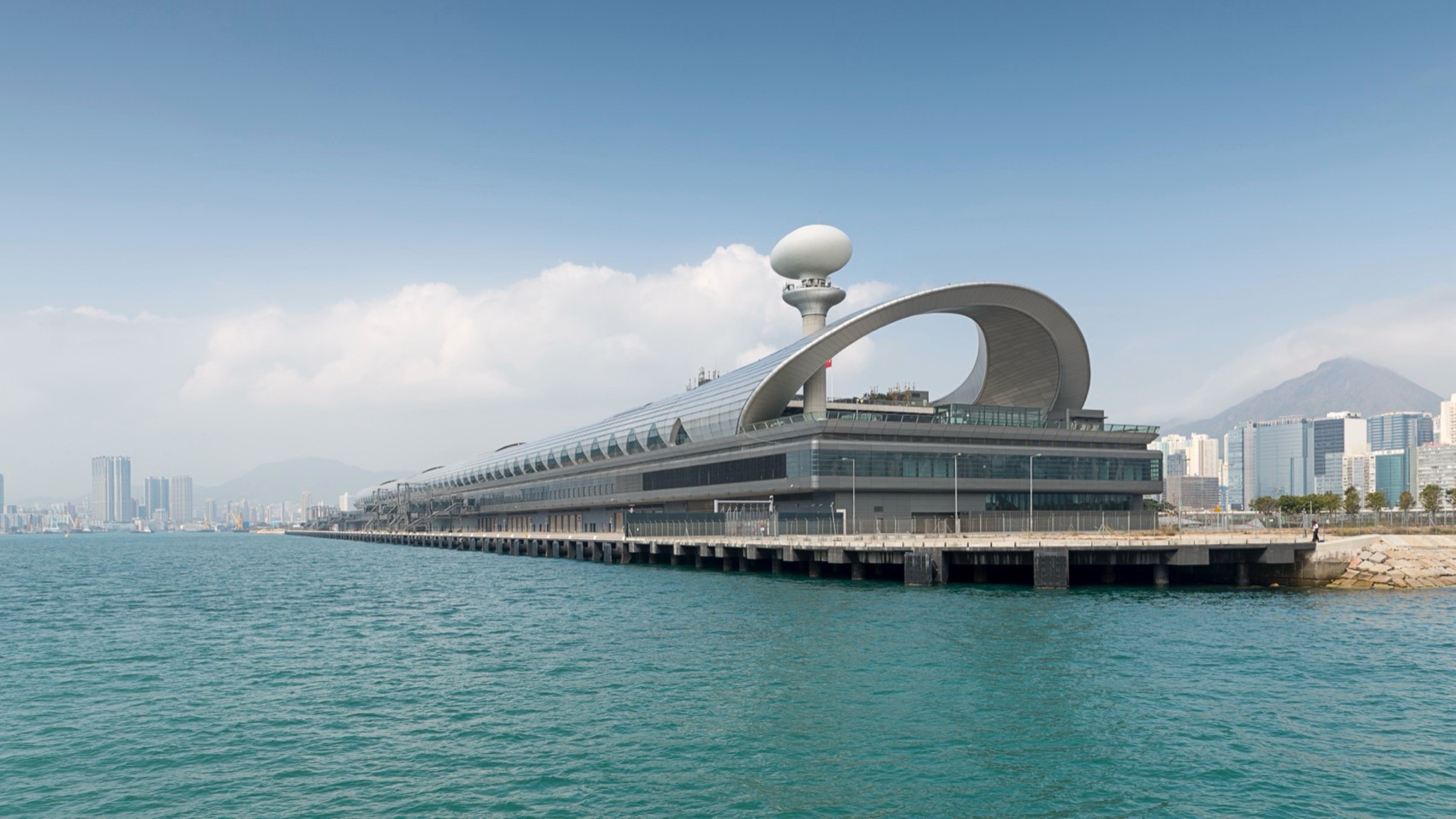

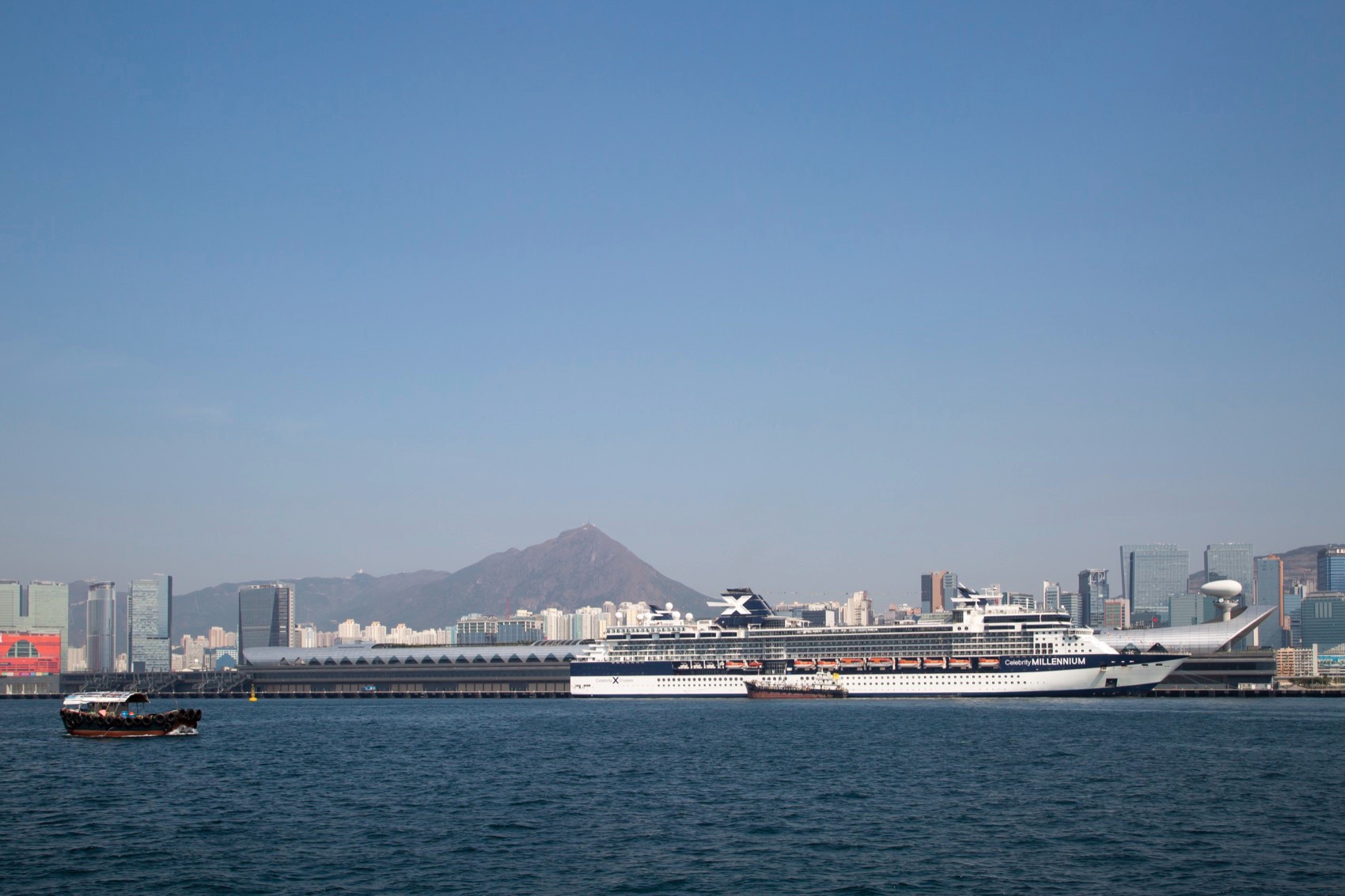

▼远观，Distant view© Nigel Young / Foster + Partners

▼近景，Close view© Nigel Young / Foster + Partners

明亮的乘客候船室为直线式设计，简洁易用。码头大楼的占地面积非常大，呈矩形，共分为三个主要楼层，其幕墙被一层格子型大片的白色“翅片”所覆盖，阳光能够透过格子照射到候船室。服务设施与整个建筑结构浑然一体，不同的楼层通过环绕型人行道相连。行李搬运区、海关大厅以及办公区域设在一层，到港大厅设在一楼和二楼间的夹层中。二楼设有登船和候船区以及公共走廊、商店和咖啡厅。

The linear arrangement of light-filled passenger areas is characterised by its clarity and ease of use. The terminal has a generous, rectangular footprint and is arranged over three main levels, encased by a lattice of large white ‘fins’ that allow daylight to filter through to the passenger waiting spaces. Services are integrated with the structure and the different levels are fused with the surrounding pedestrian walkways. The baggage handling area, customs hall, back office functions and the passenger arrival area are placed at ground level, with the passenger drop-off area on the level above. The second floor incorporates the check-in and waiting areas, as well as a public colonnade, shops and cafes.

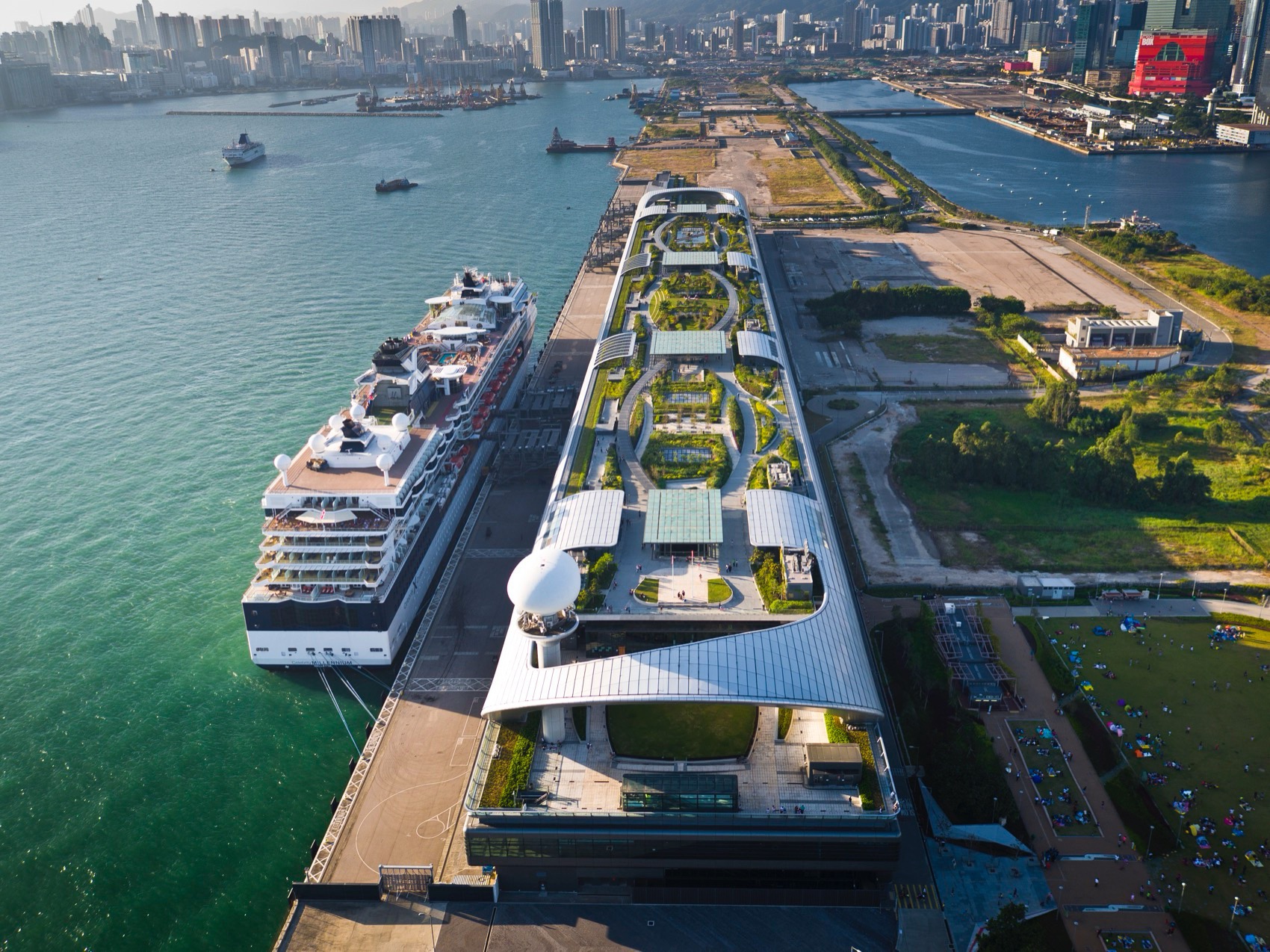

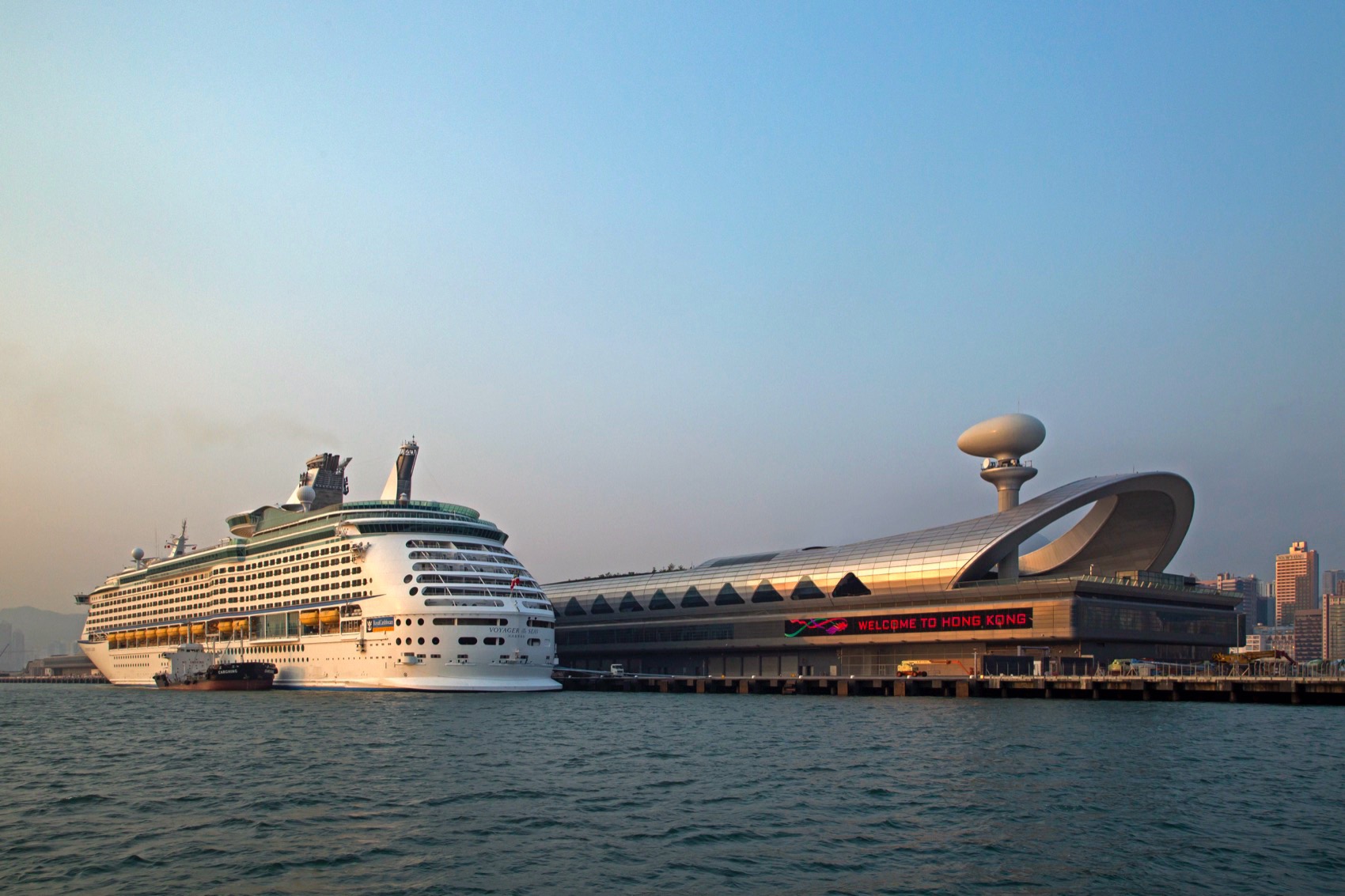

▼停靠大型邮轮，Large cruise ship docking © John Nye

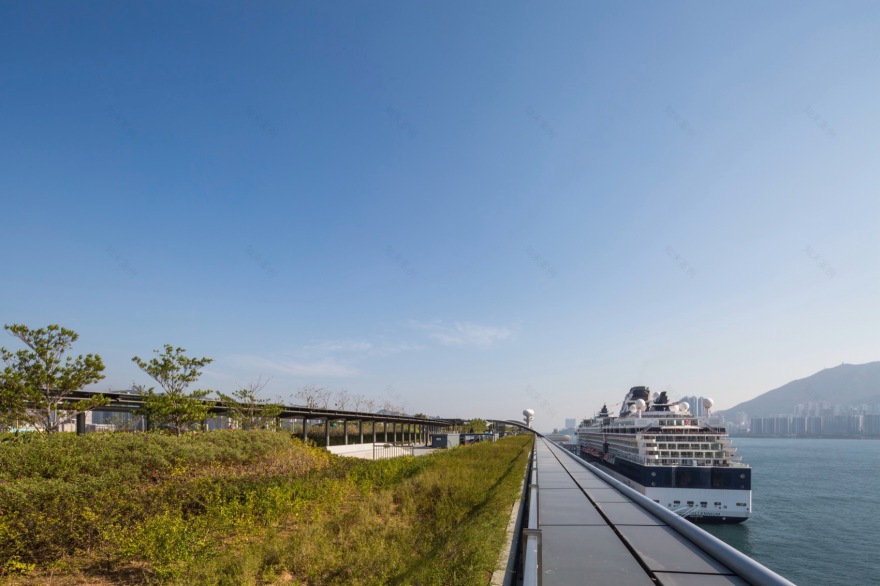

▼大型公共屋顶花园，The large public roof garden © John Nye

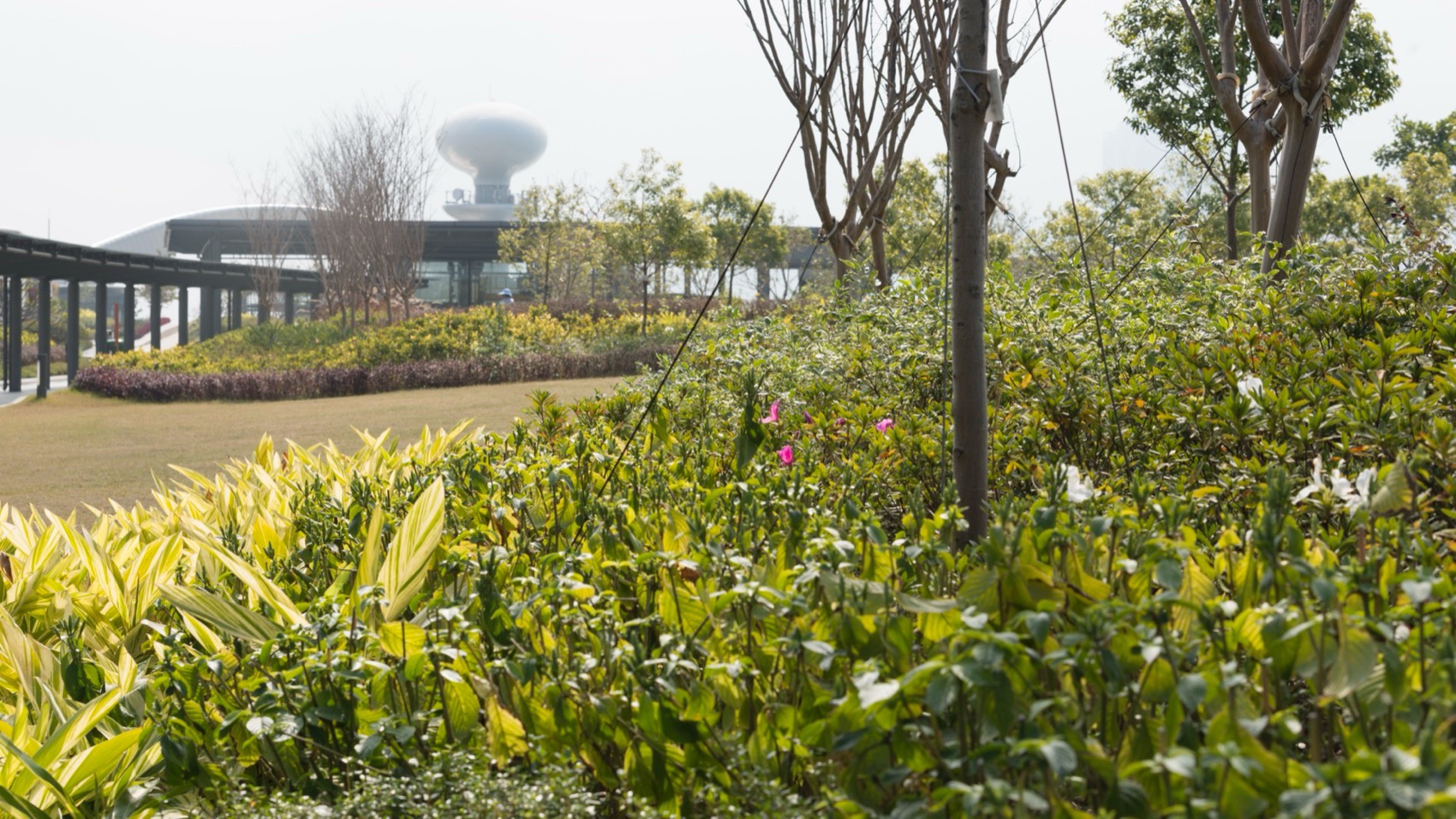

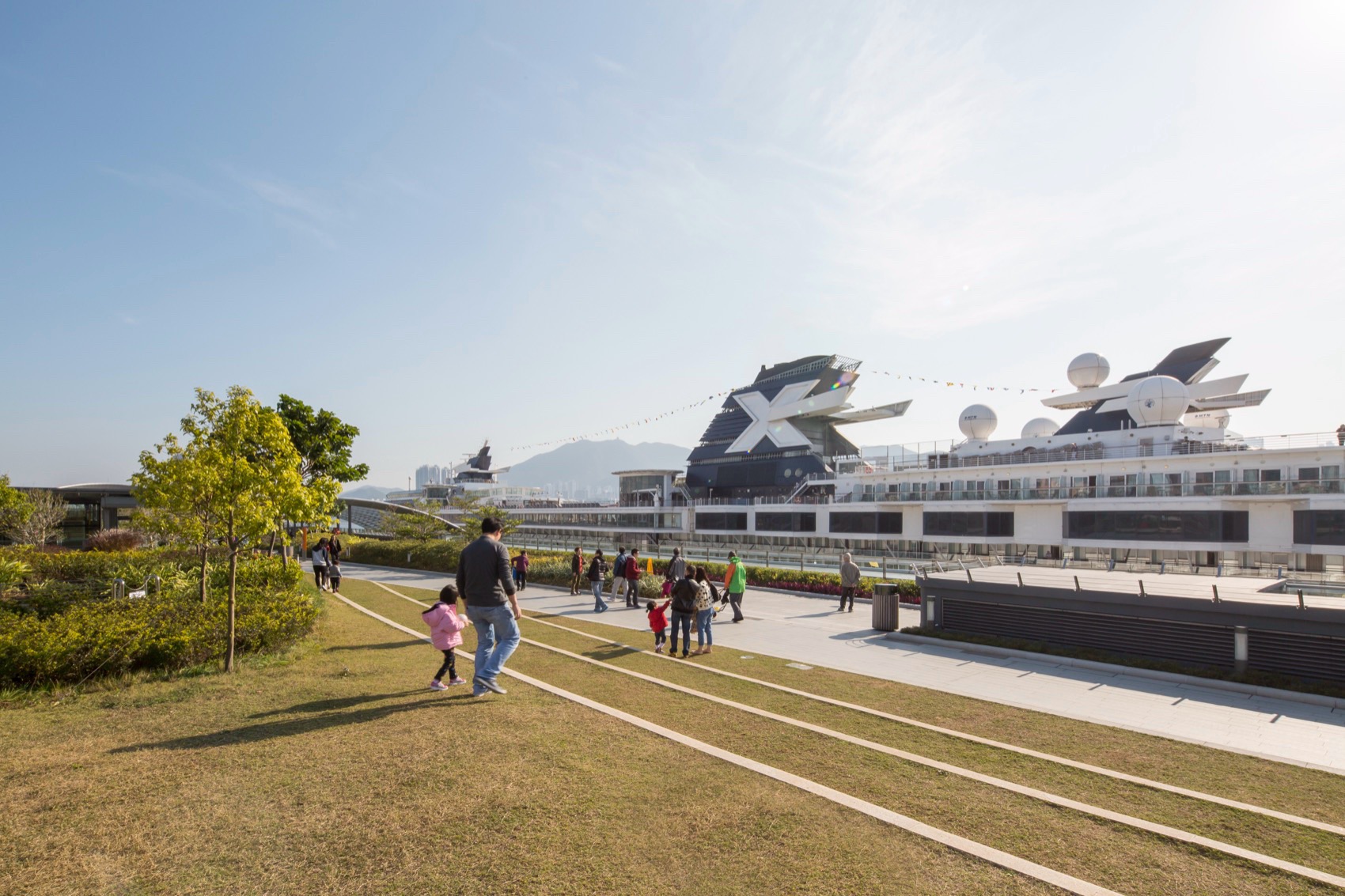

▼大型公共屋顶花园近景，The large public roof garden © Nigel Young / Foster + Partners

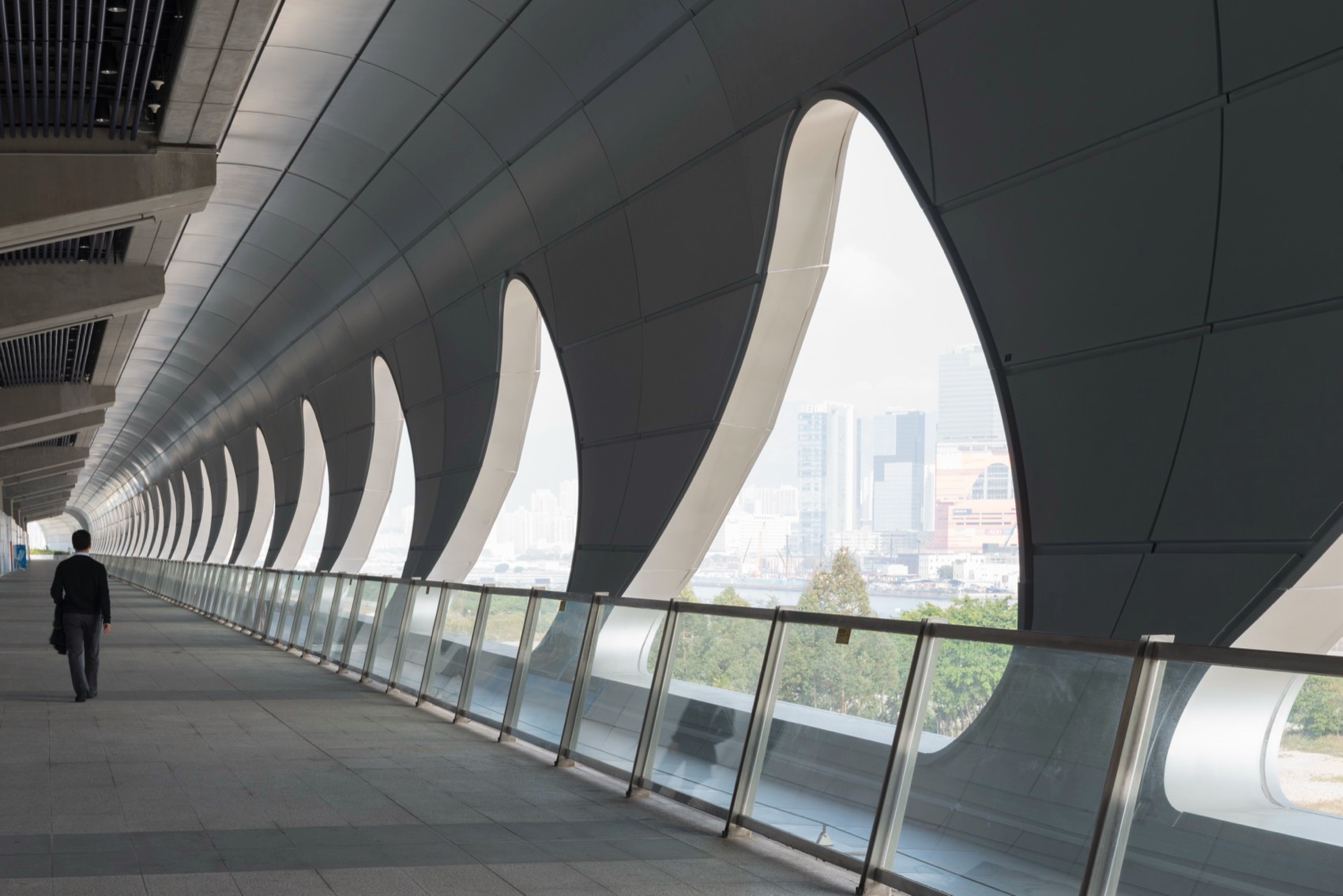

▼步行长廊，Pedestrian route © John Nye

通过一个步行长廊可以穿越建筑物和开放空间到达建筑的高层，进入一个大型公共屋顶花园。那里有很多露天和封闭空间，可供非正式聚餐、室外用餐以及一些开放式的活动使用，如婚礼宴会，让人有一种远离城市喧嚣的感觉。从原机场跑道西南端码头向东的港口望去，整个香港岛和九龙都一览无余。

A pedestrian route starting from the waterfront promenade progresses up through the building and opens onto a large public roof garden, with open and sheltered spaces for informal picnics and outdoor dining, set against the stunning backdrop of the city. The site on the south-western tip of the former runway has unobstructed views of the eastern entrance to the harbour, framing both Hong Kong Island and Kowloon.

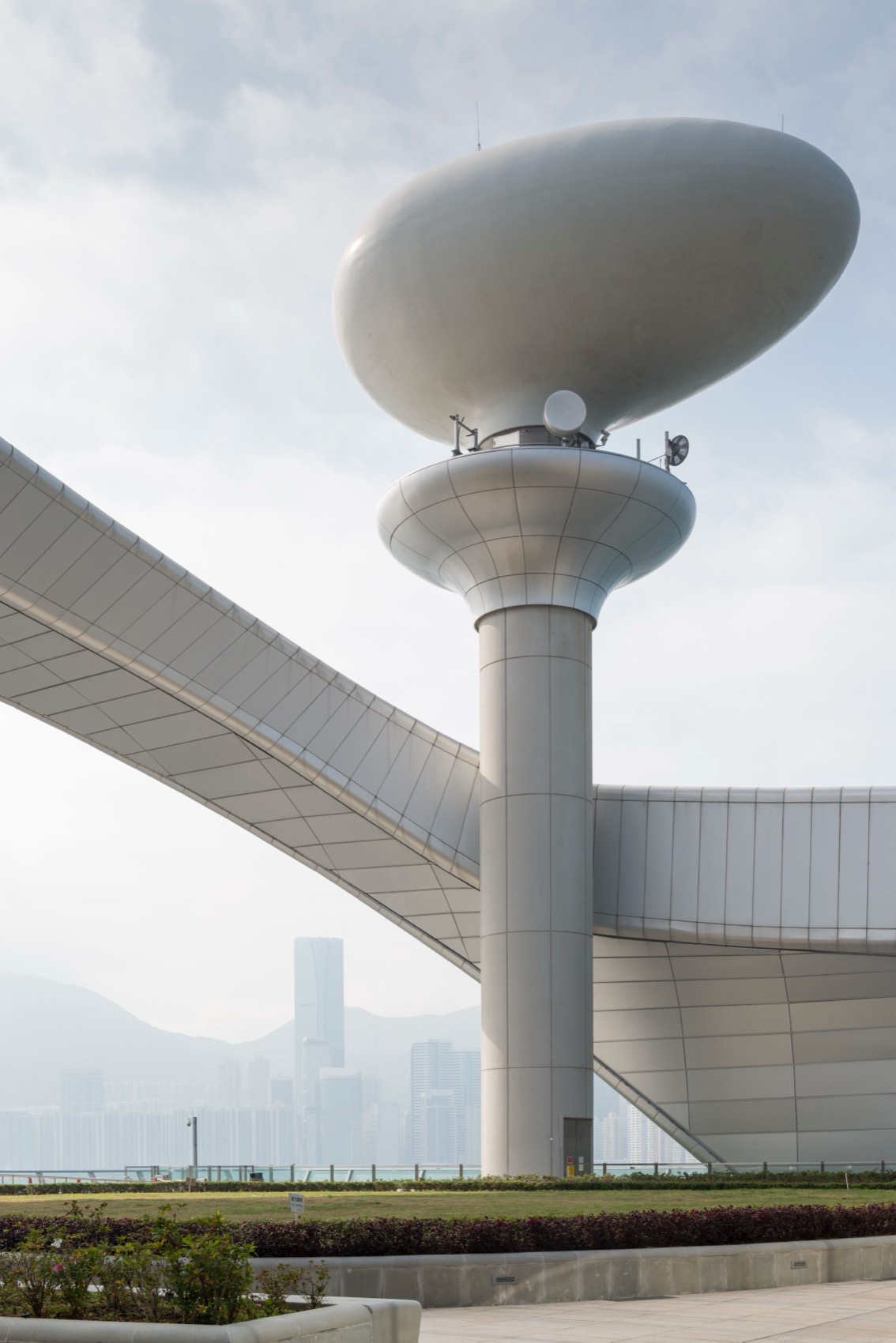

▼眺望塔，Observation tower © Nigel Young / Foster + Partners

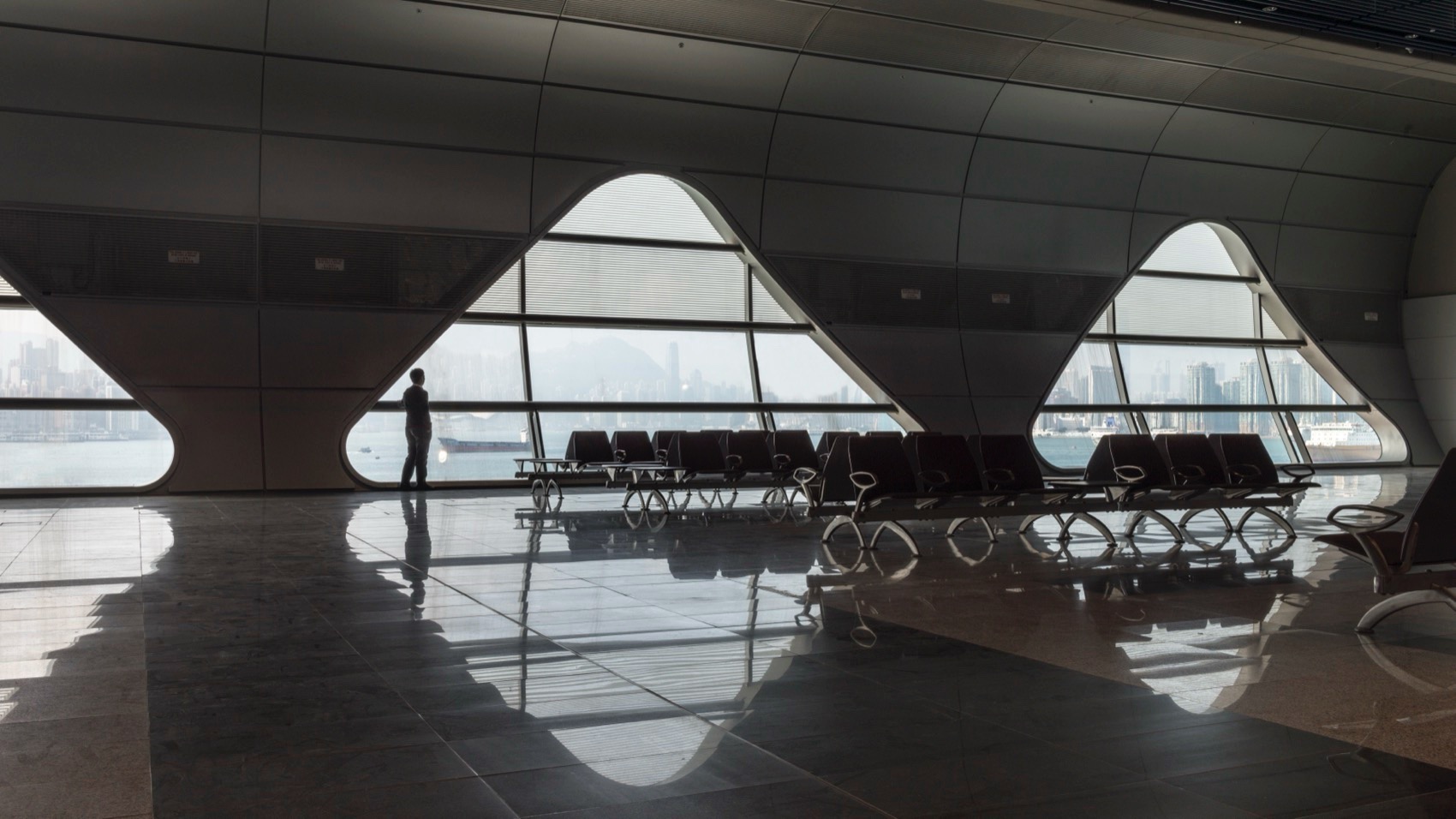

▼候船厅，Passenger areas © Nigel Young / Foster + Partners

该码头的设计非常灵活，其中布置了起到替代作用的空间。码头可以全年使用，充分利用了“休航时间”。宽敞的内部空间跨度超过 42 米，候船室还为表演、活动和展览提供场所，并配备了各种餐厅和商店。本项目的可持续设计结合了多种节能措施，并利用了可再生能源发电和回收雨水进行冷却。

The design is highly flexible, incorporating spaces that are suitable for alternative functions and enabling the building to be used all year round, fully utilising ‘down time’. The spacious interior spans just over 42 metres and the waiting areas can be converted into a venue for performances, events and exhibitions, supported by a variety of restaurants and shops. The sustainable design also combines a number of energy saving measures, as well as generating power from renewable sources and making use of recycled rain water for cooling.

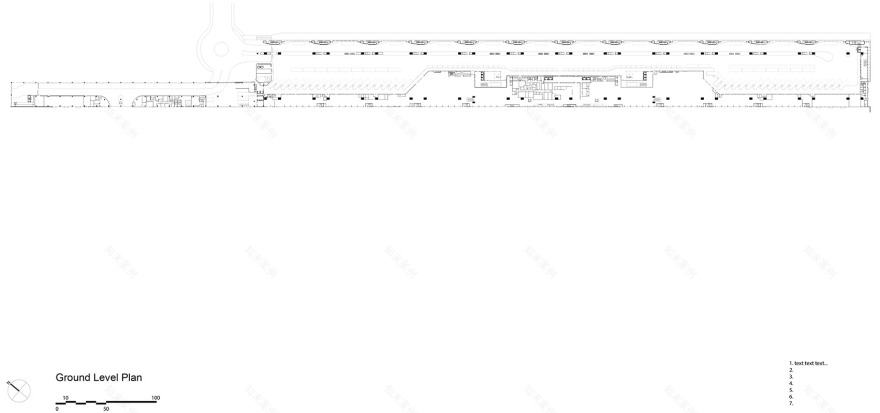

▼首层平面图，ground level plan© Foster + Partners

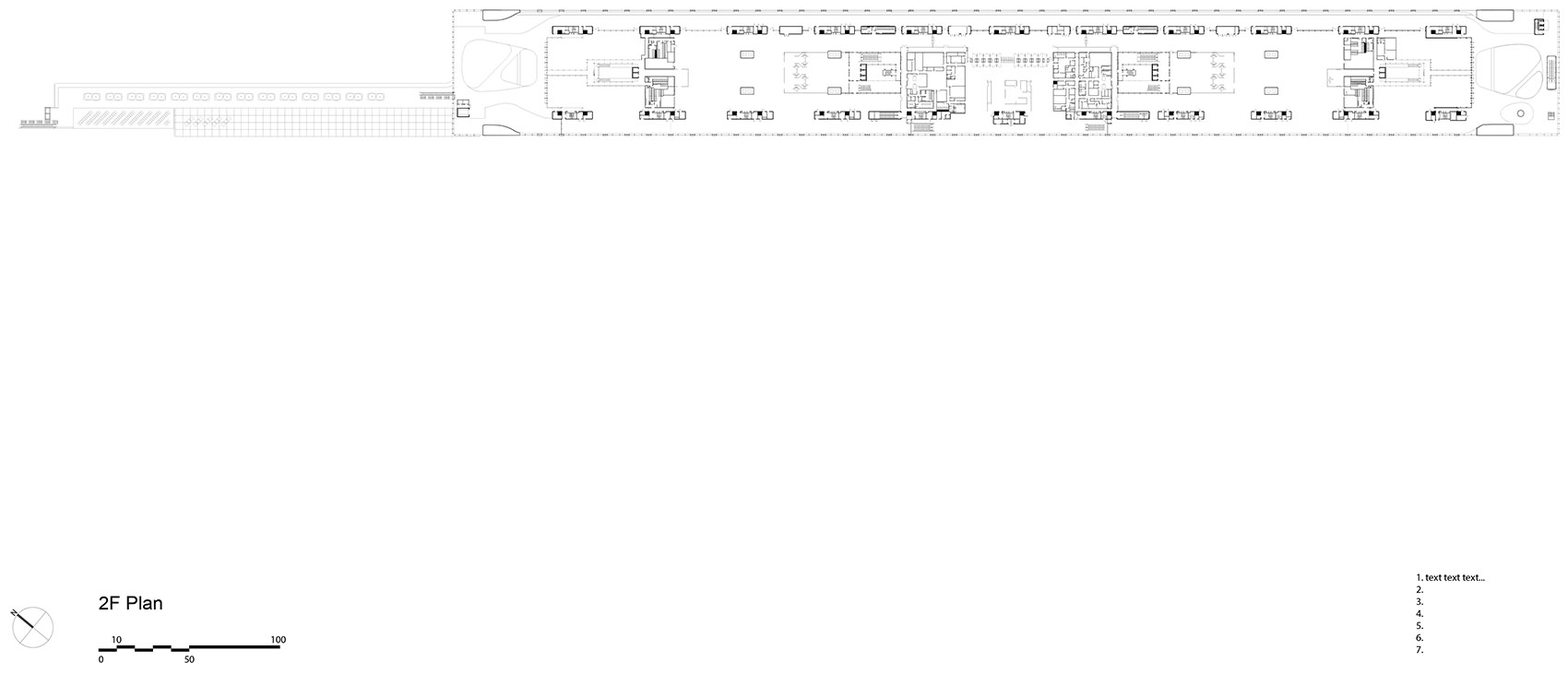

▼二层平面图，2F plan© Foster + Partners

▼屋顶平面图，roof plan© Foster + Partners

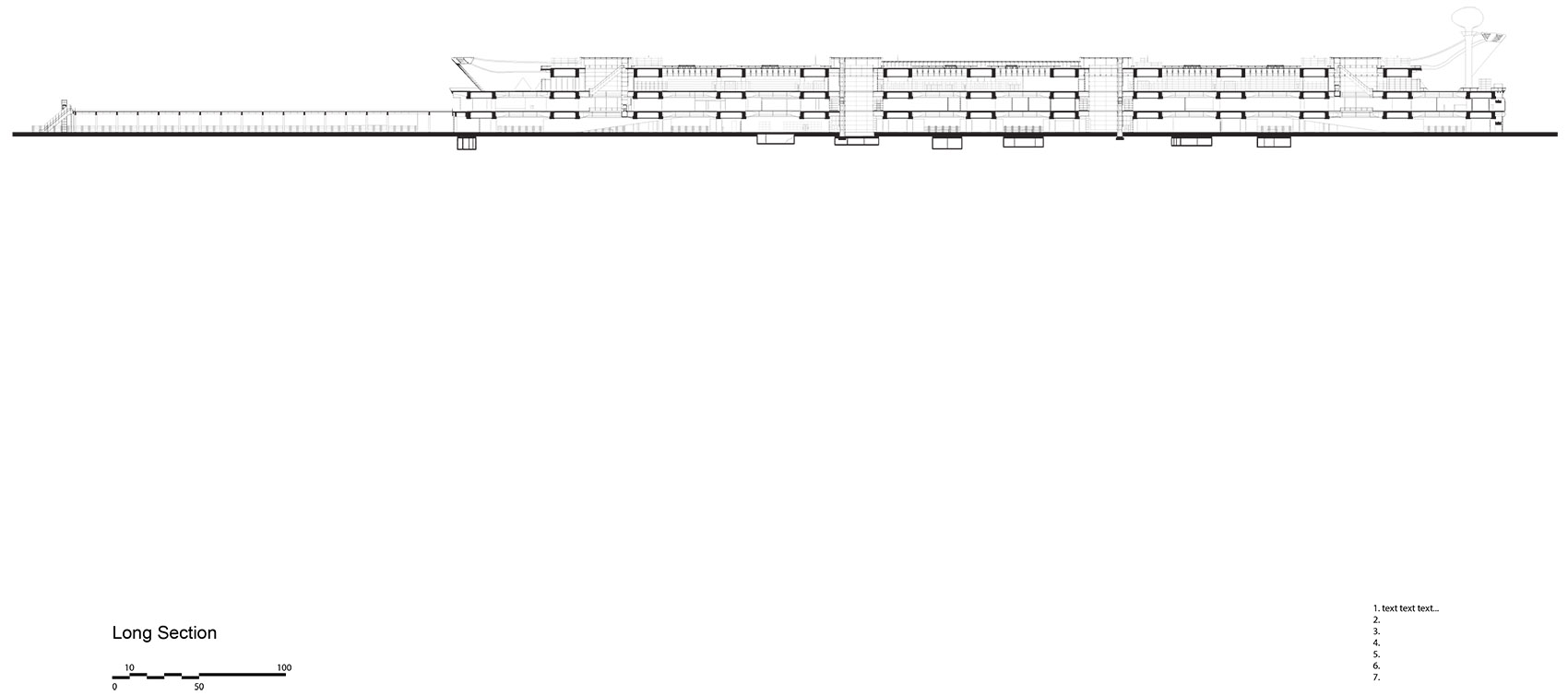

▼剖面图，long section© Foster + Partners

Client: Hong Kong SAR Architectural Services Department

Architect: Foster + Partners

Foster + Partners Design Team:

Mouzhan Majidi

David Nelson

Spencer de Grey

Luke Fox

Andy Bow

Jonathan Parr

Richard Hawkins

Brian Timmoney

Armstrong Yakubu

Yan Ting (Joyce) Chan

Steven Chiu

Howard Chung

Veronica Kan

Marian Lee

Randy Liekenjie

Benedict Lu

Connie Luk

Simon Mok

Daniel Pang

Eric Po

Stanley Pun

Lawrence Wong

Reine Kit Shun Wong

Collaborating Architect: Wong Tung & Partners

Structural Engineer: AECOM

Mechanical Engineers: AECOM

Fire Consultant: AECOM

Façade Consultant: ALT

Landscape Architect: AECOM

Interior Design: Barrie Ho Architecture Interiors Ltd.

Retail Design: Benoy

Wayfinding Design: Graphia

Cruise Terminal Planning: Passenger Terminal Amsterdam

Main Contractor: Dragages Hong Kong
