亭；阁；展馆丨BrazilBrasilia丨STUDIO PIPPA

Architects:STUDIO PIPPA

Area:592ft²

Year:2023

Photographs:Júlia Tótoli

Manufacturers:EKSPER,Multipedras,São Geraldo

Lead Architect:Priscila Gabriel

Project Coordinator:Virgínia Castro

Engineering:Fine Engenharia

Project Managers:Robson Wilton dos Santos, Priscila Gabriel e Virgínia Castro

Program:Multipurpose Pavilion

Country:Brazil

Text description provided by the architects. The pavilion project originated from the client's premise: it needs to look like it has always been there.

The area delimited for intervention is located in the garden of a pre-existing house whose plasticity and materiality are reminiscent of the Brazilian modernist movement, evidenced by its exposed concrete roof structure, exposed ceramic brick fences, wooden structural elements and glass frames that provide visual permeability and enable interaction with the landscape.

In defiance of current trends in construction, where imposing and increasingly robust elements are prized, we took the path of human architecture, which welcomes its users and dialogues harmoniously with the organic elements of the landscape.

The design process consisted of searching for the essence of the existing house, and therefore maintaining the gene of its predominantly concrete materiality, which becomes the object of study in a game of scales and proportions.

The study of the volumetric proportion, and especially the height of the ceiling, was a decisive factor in establishing a smaller scale, in order to bring the architecture closer to everyday experiences while also interacting with the landscape.

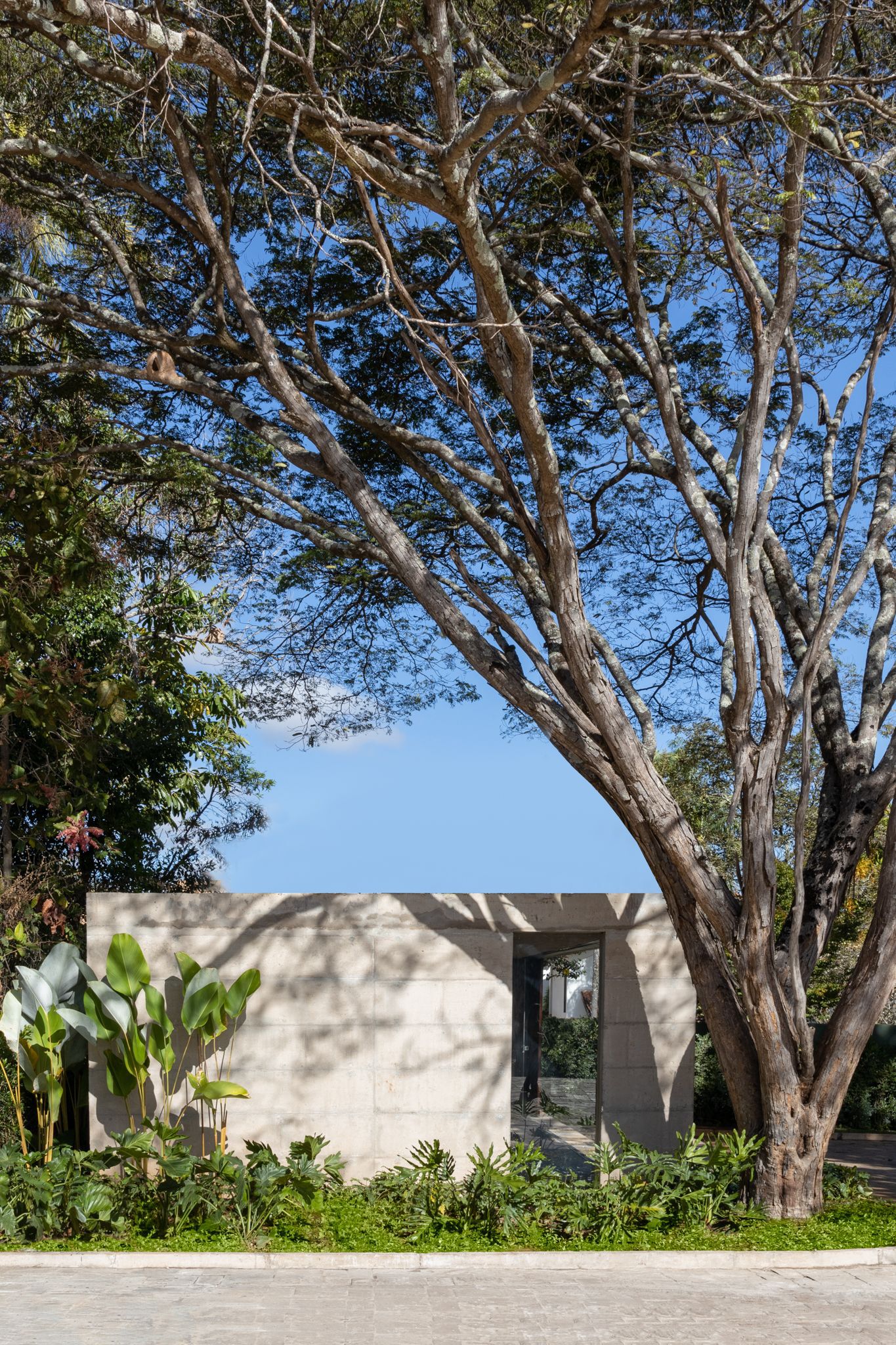

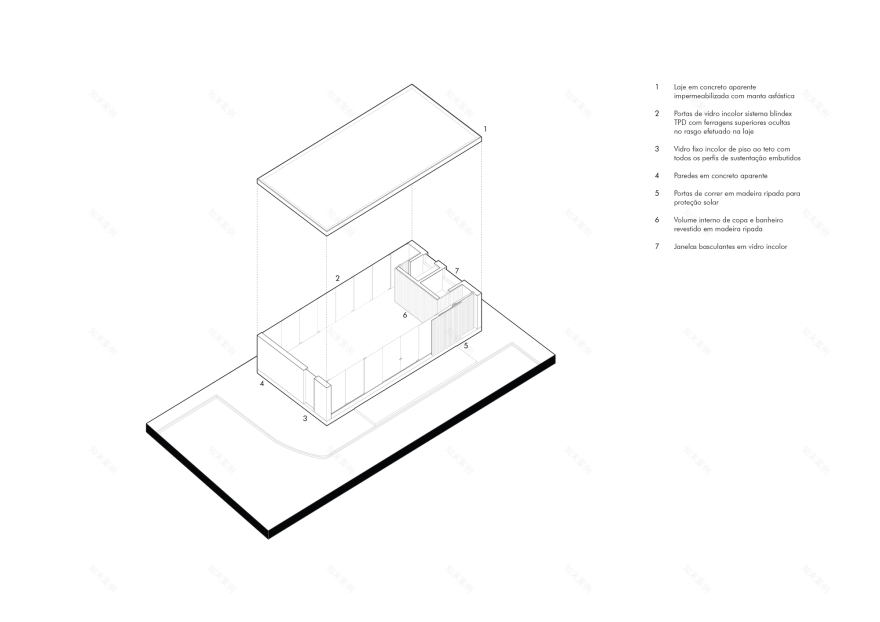

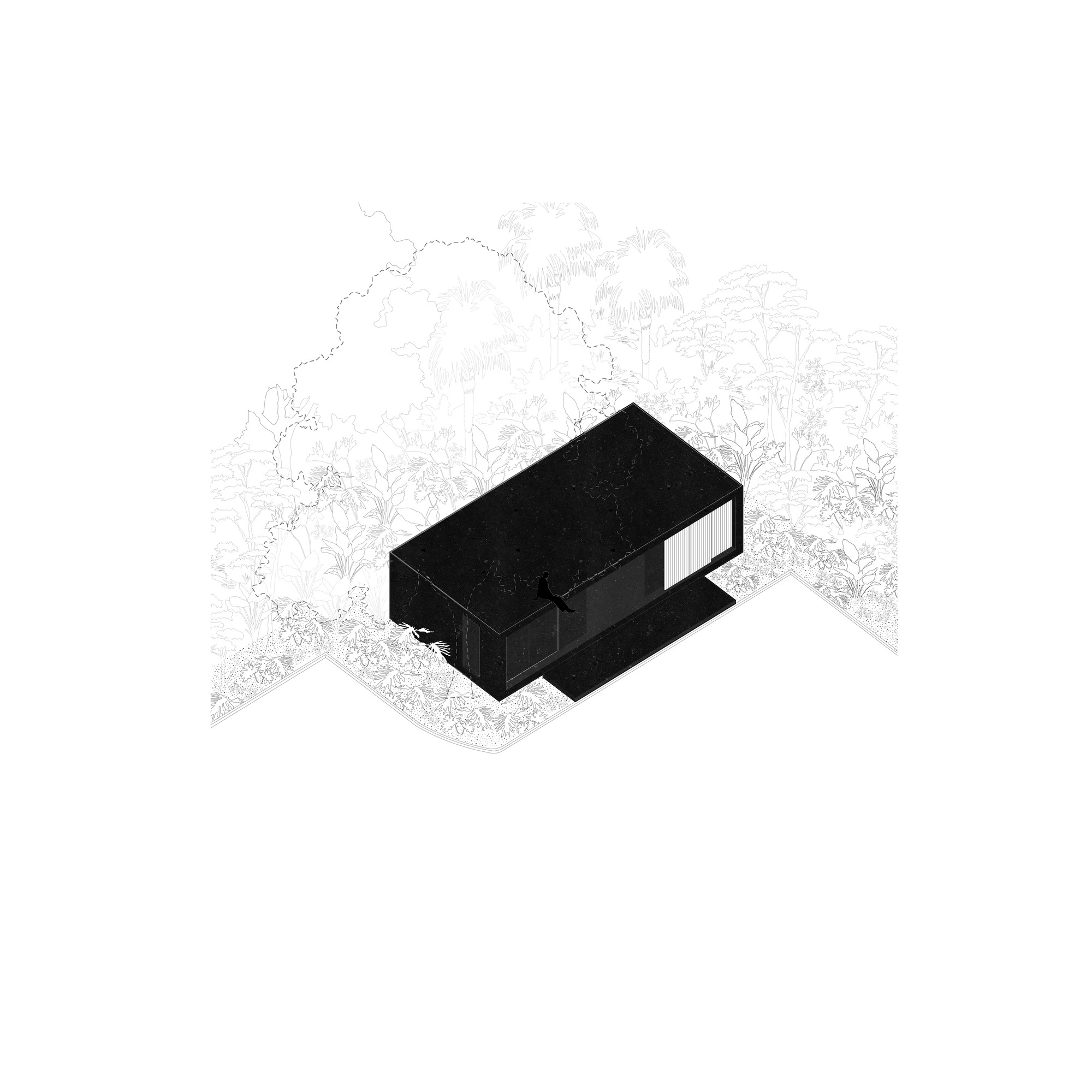

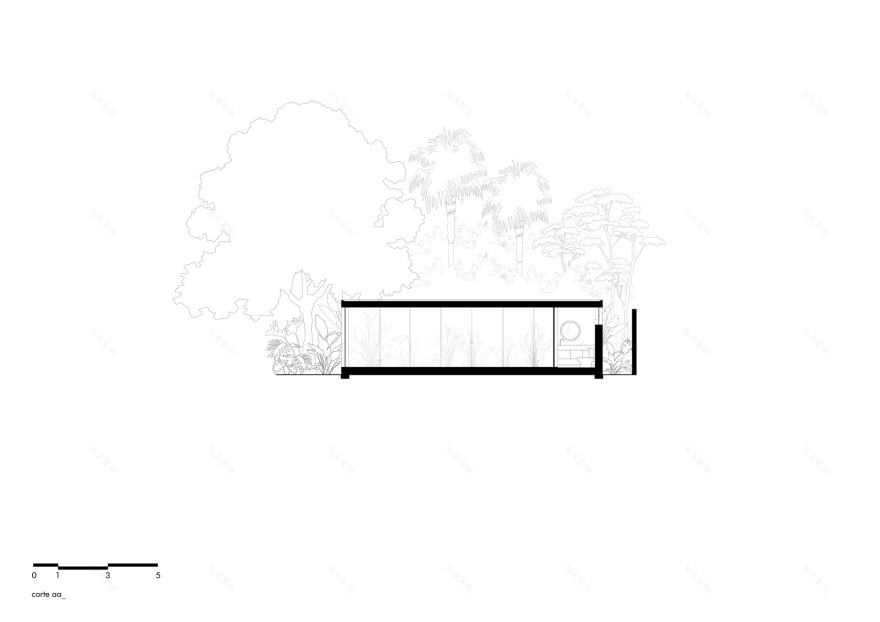

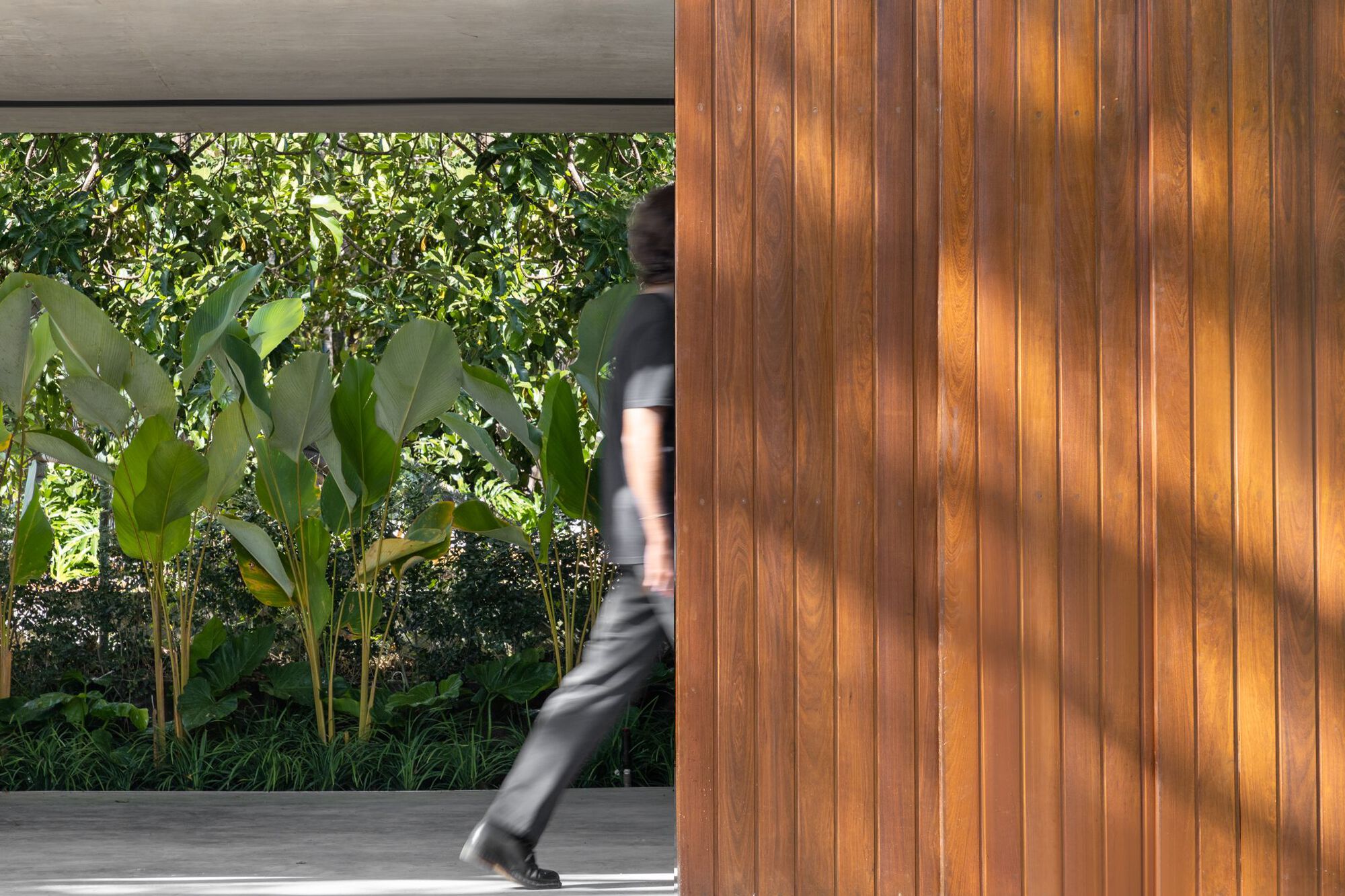

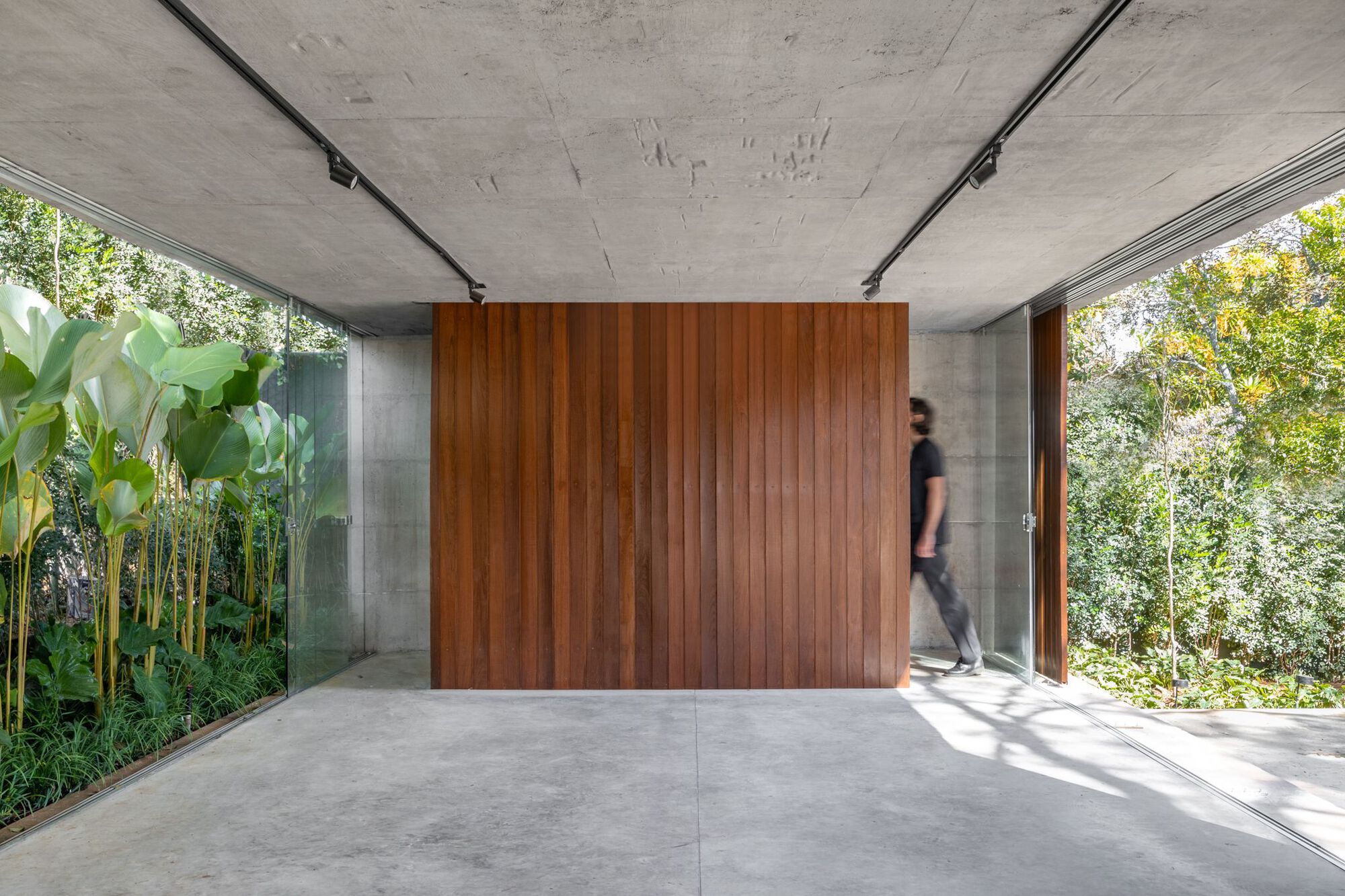

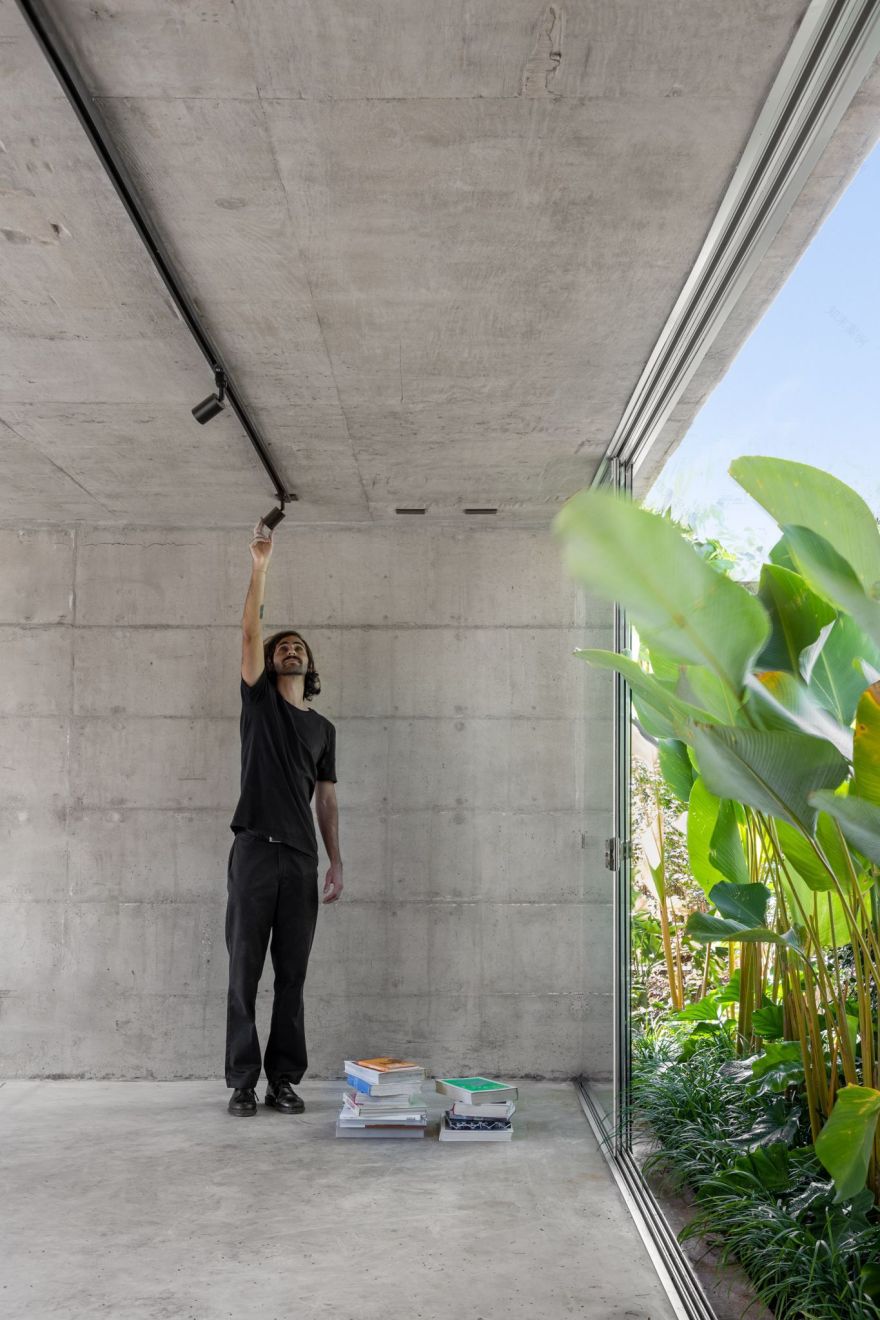

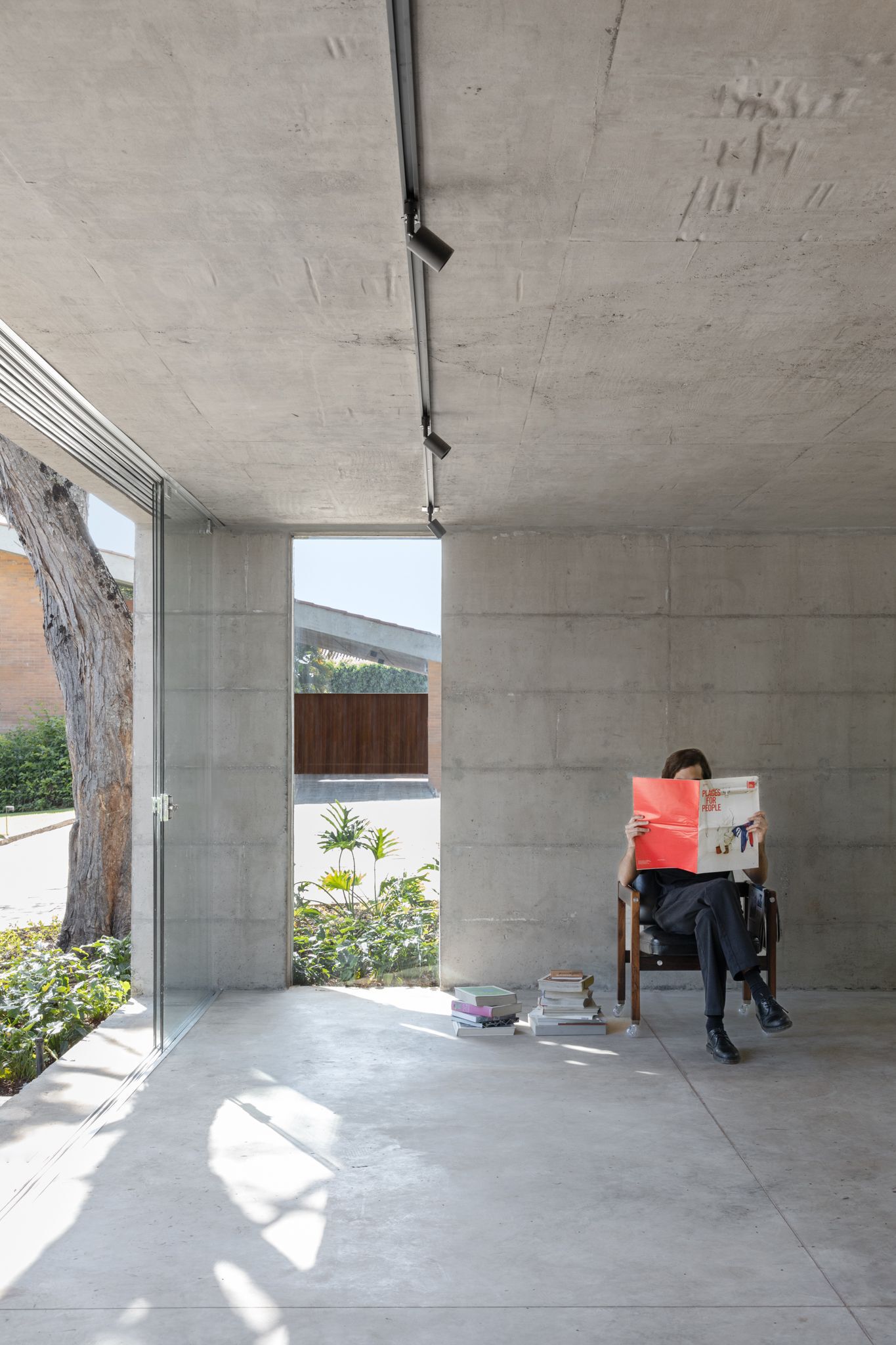

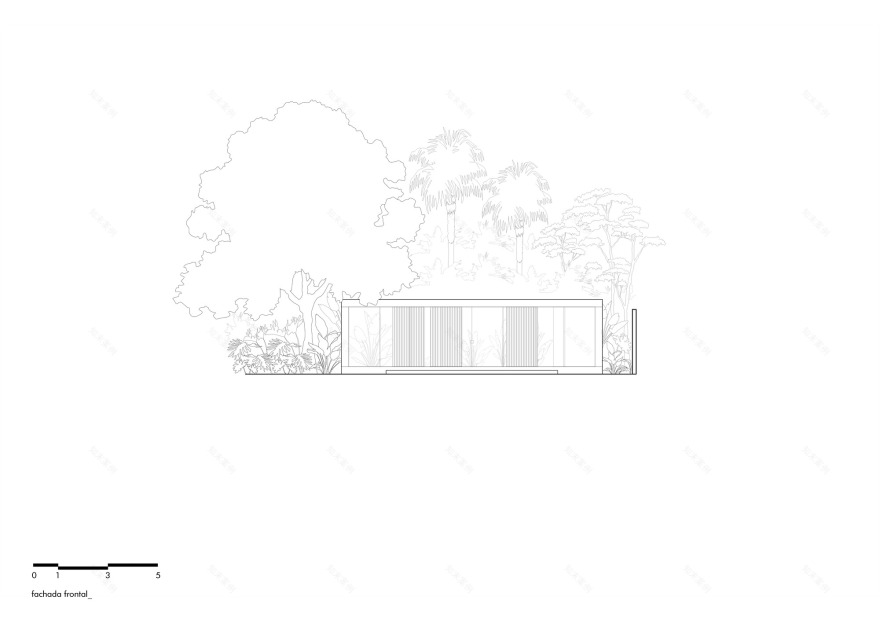

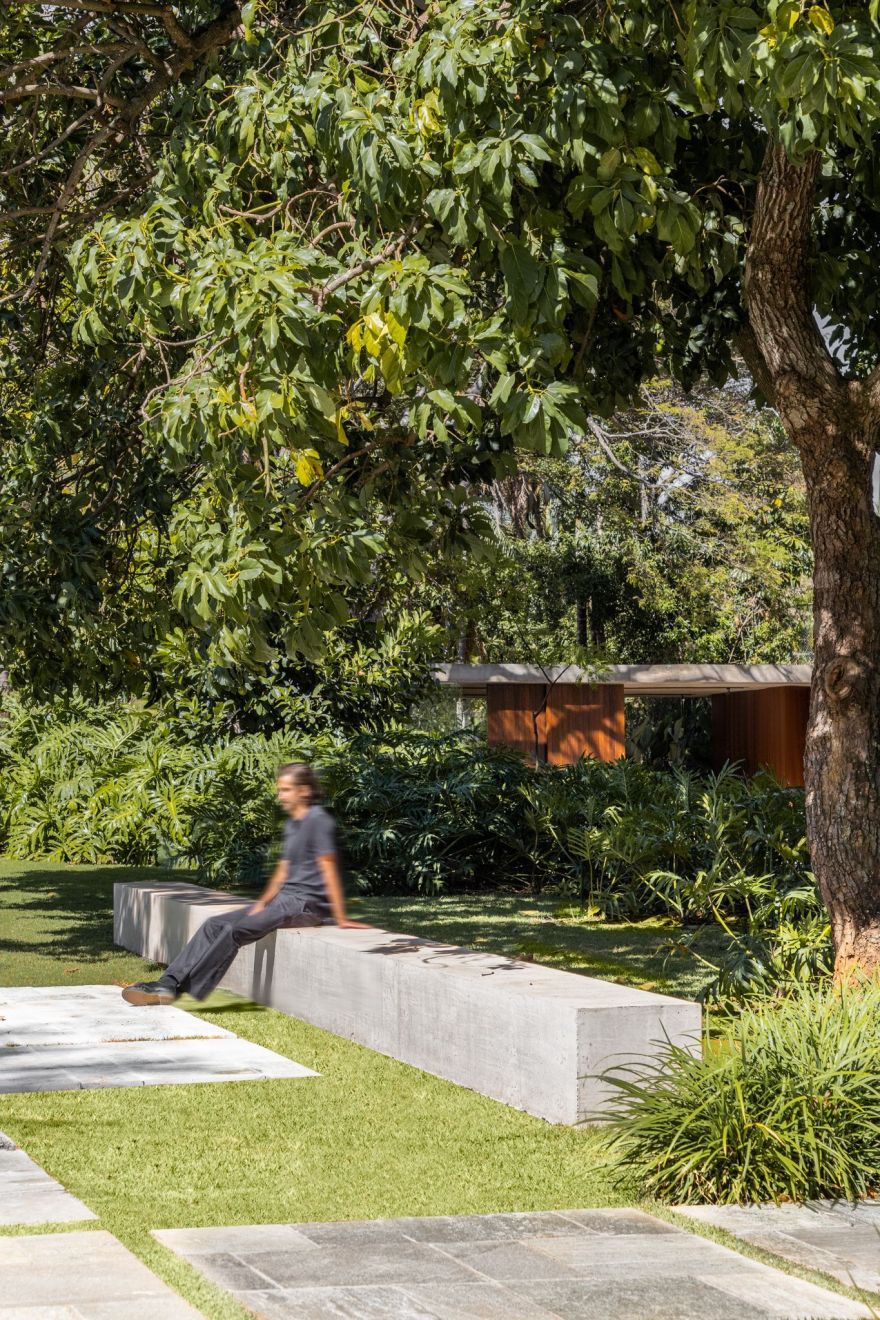

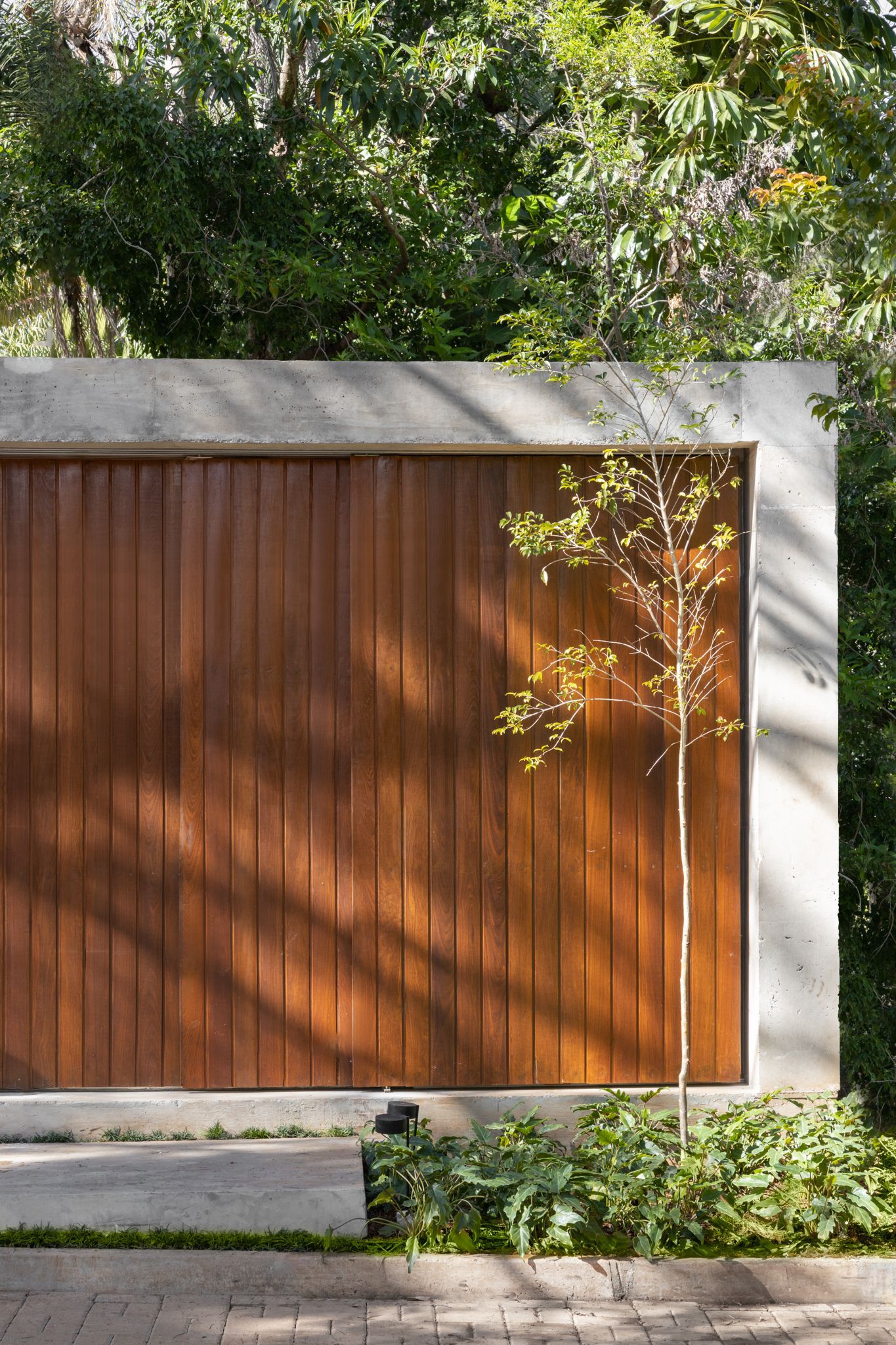

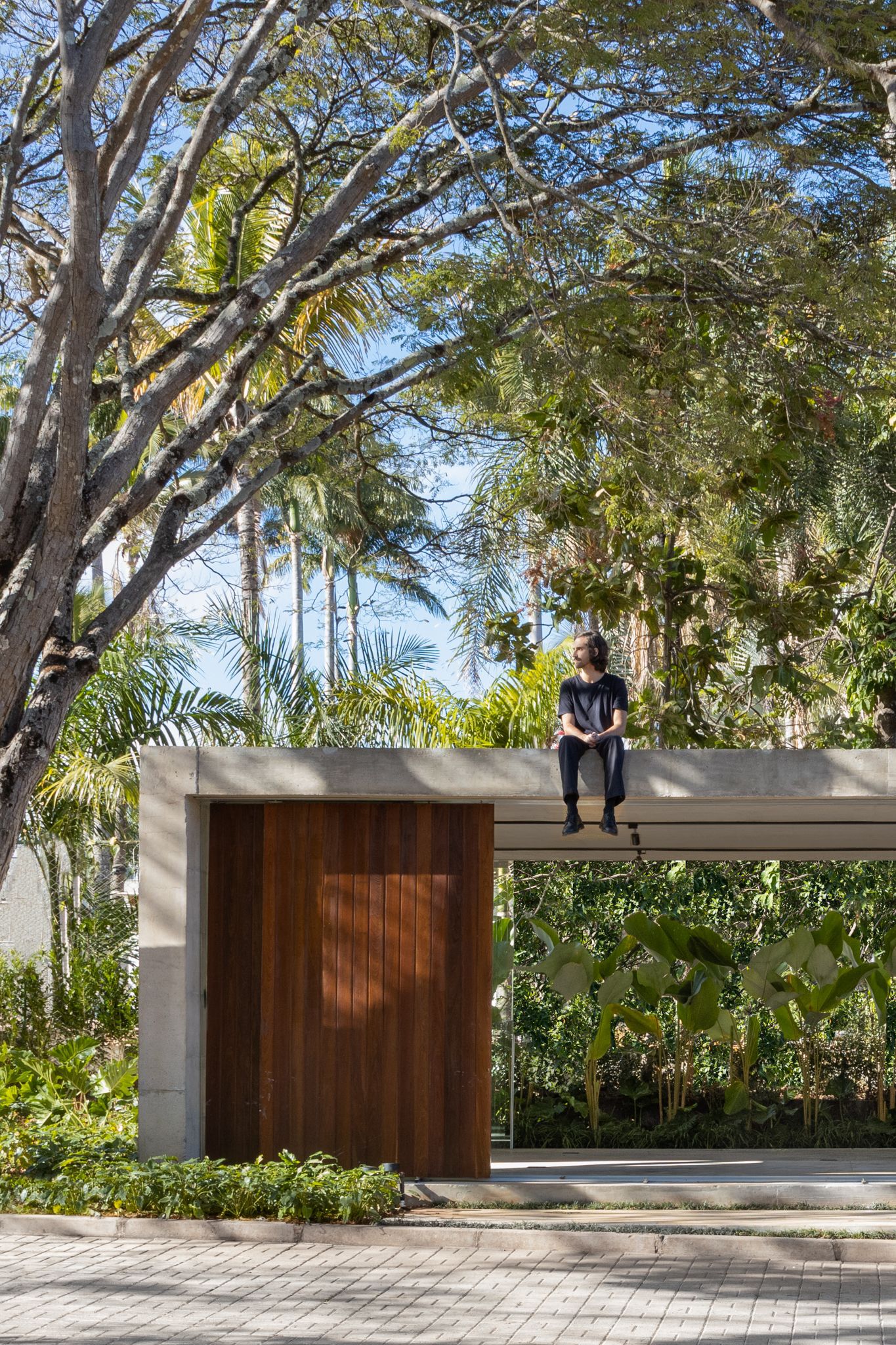

A rectangular concrete block was proposed, measuring 10.5x5.25m and 3m high, which rests in the garden, adjacent to a tree that embraces it as if premeditating its existence. The thicknesses of the slab and structural walls in exposed reinforced concrete were based on the thicknesses of the existing slabs of the house and the slatted panels in Ipê wood are also appropriate references to the pre-existing building. The glazing on the side openings are made up of sliding clear glass doors to integrate the vegetation of the garden into the interior of the pavilion, associated with sliding brise-soleils to control the incidence of sunlight and allow moments of privacy, as well as bringing dynamism to the façade.

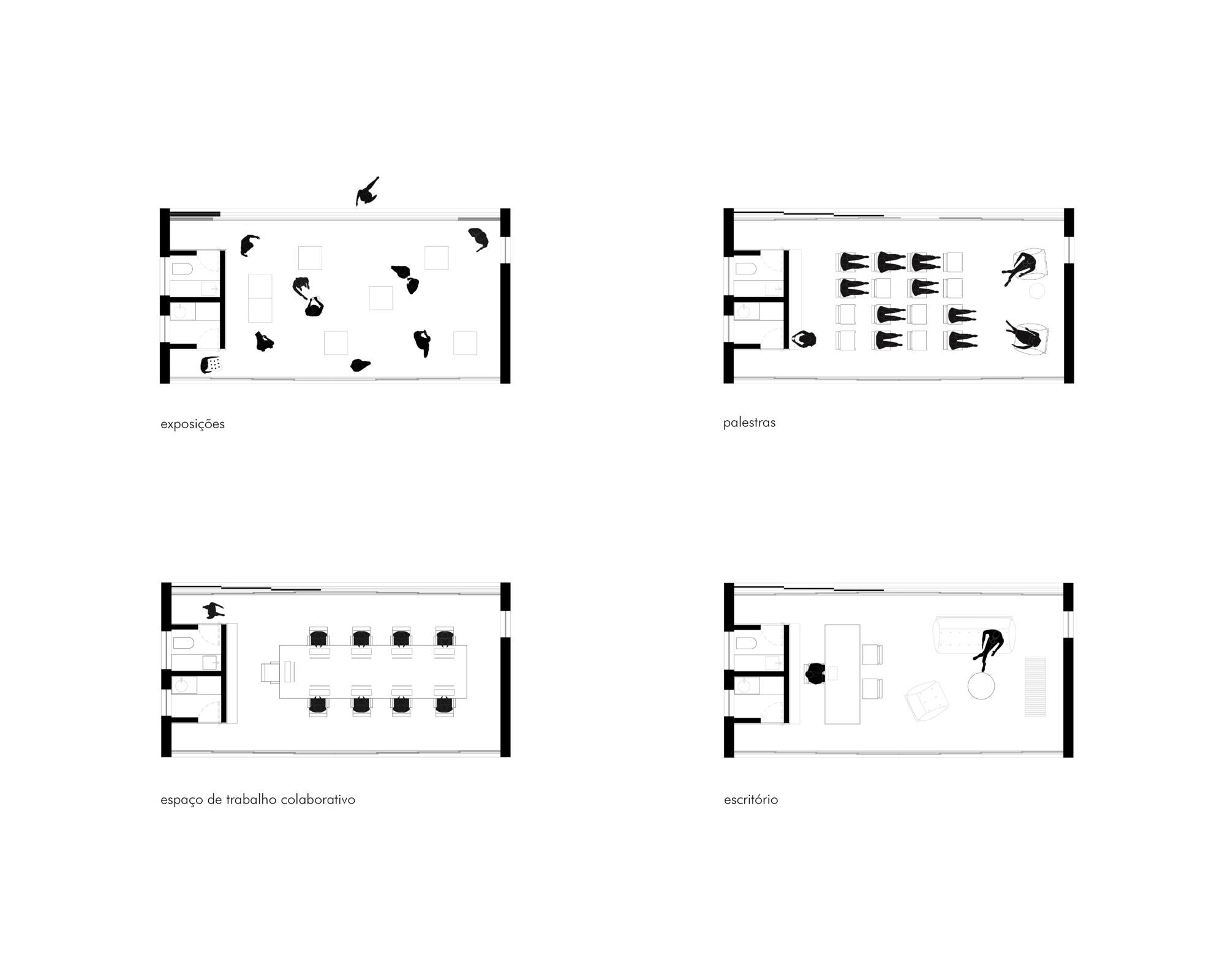

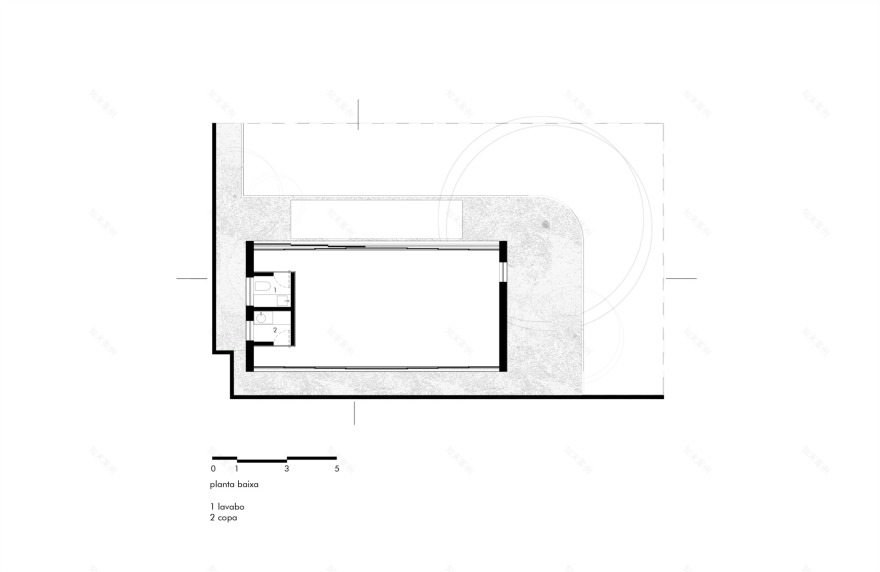

The pavilion's design briefing consisted of a restroom and a pantry, which delimit the core of the hydraulic installations, and an 8m clear span area, which can be adapted for a variety of uses such as presentation halls, exhibitions, offices and collaborative work spaces.

Project gallery

Project location

Address:South Lake, Brasilia, Brazil
