Palais Rameau 修复项目丨法国里尔丨Atelier 9.81

2025/01/30 07:00:00
查看完整案例
微信扫一扫
收藏
下载
翻译
Architects:Atelier 9.81
Area:4090m²
Year:2024
Photographs:Nicolas da Silva Lucas
Manufacturers:CLAREO LIGHTING,Edwood,Fermacell,Gerflor,Knauf,Steico
Landscaper:Les Saprophytes
Associate Architect Design Manager:Geoffrey Galand, Cédric Michel
Design Architect:Anne Evrard et Alice Cladet
Design Architect + Executive Architect:Anne Evrard et Valentin Carpentier
Circular Economy Consultant:Lateral Thinking Factory
Conservator:Perrot & Richard architectes
Engineer:Verdi Ingénierie, P2L
Environmental Engineer :Elan
Historian:Elyne Olivier
Scheduling:REFL-EXE
Management:REFL-EXE
Coordination:REFL-EXE
Safety And Health Coordinator:Bureau Veritas
Technical Controller:Socotec
Country:France
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-20

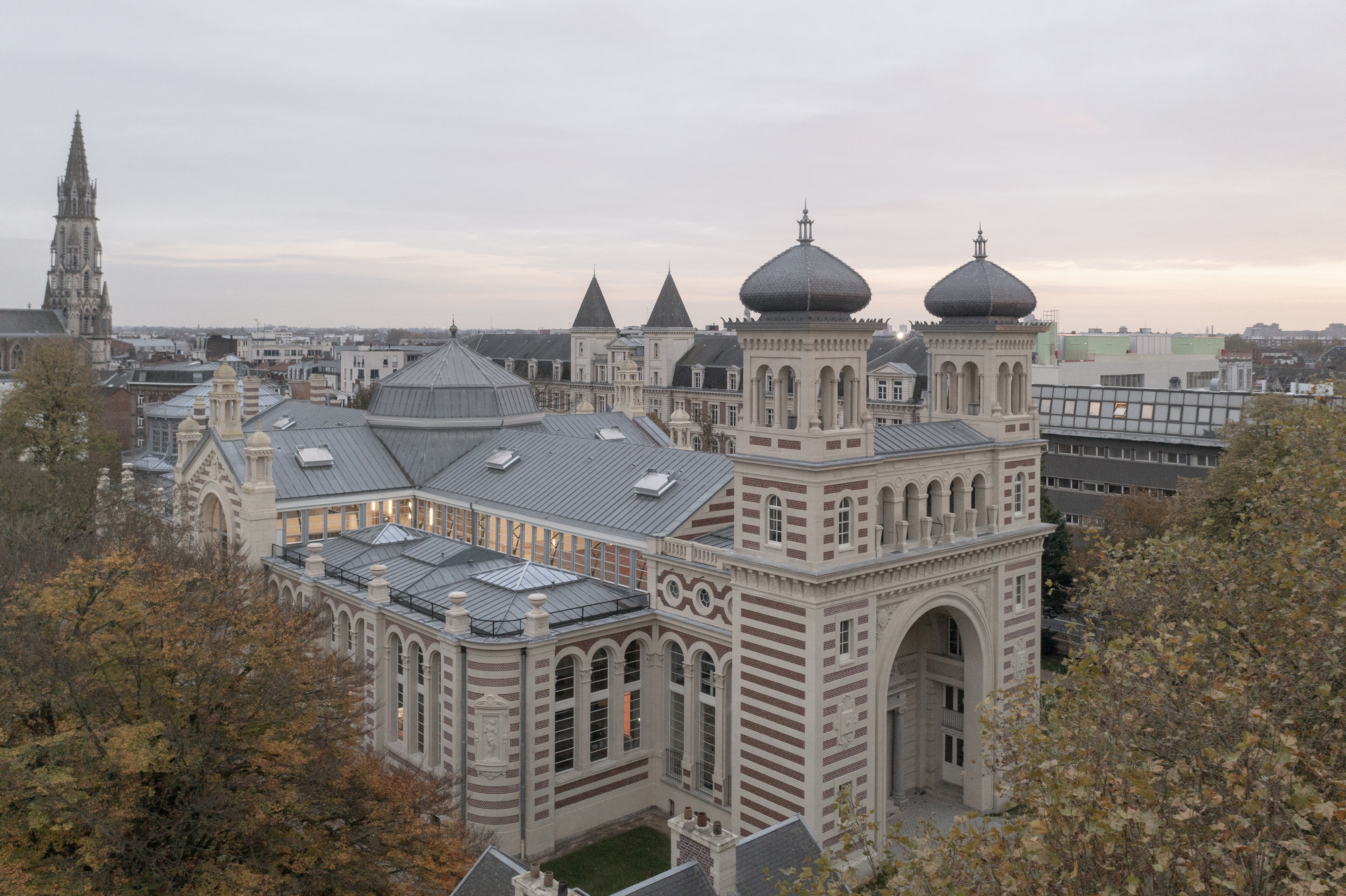

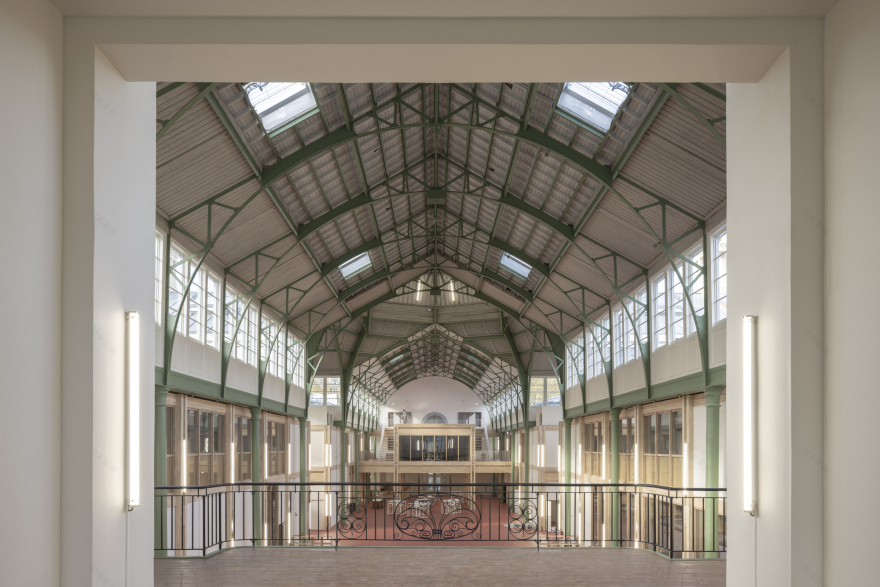

Text description provided by the architects. An emblematic building in Lille, the Palais Rameau was built in 1878 thanks to the legacy of Charles Rameau, President of the Lille Horticultural Society. The project was entrusted to Lille architects Auguste Mourcou and Henri Contamine. Its architecture, based on the principle of a horticultural greenhouse, combines regional and oriental influences.

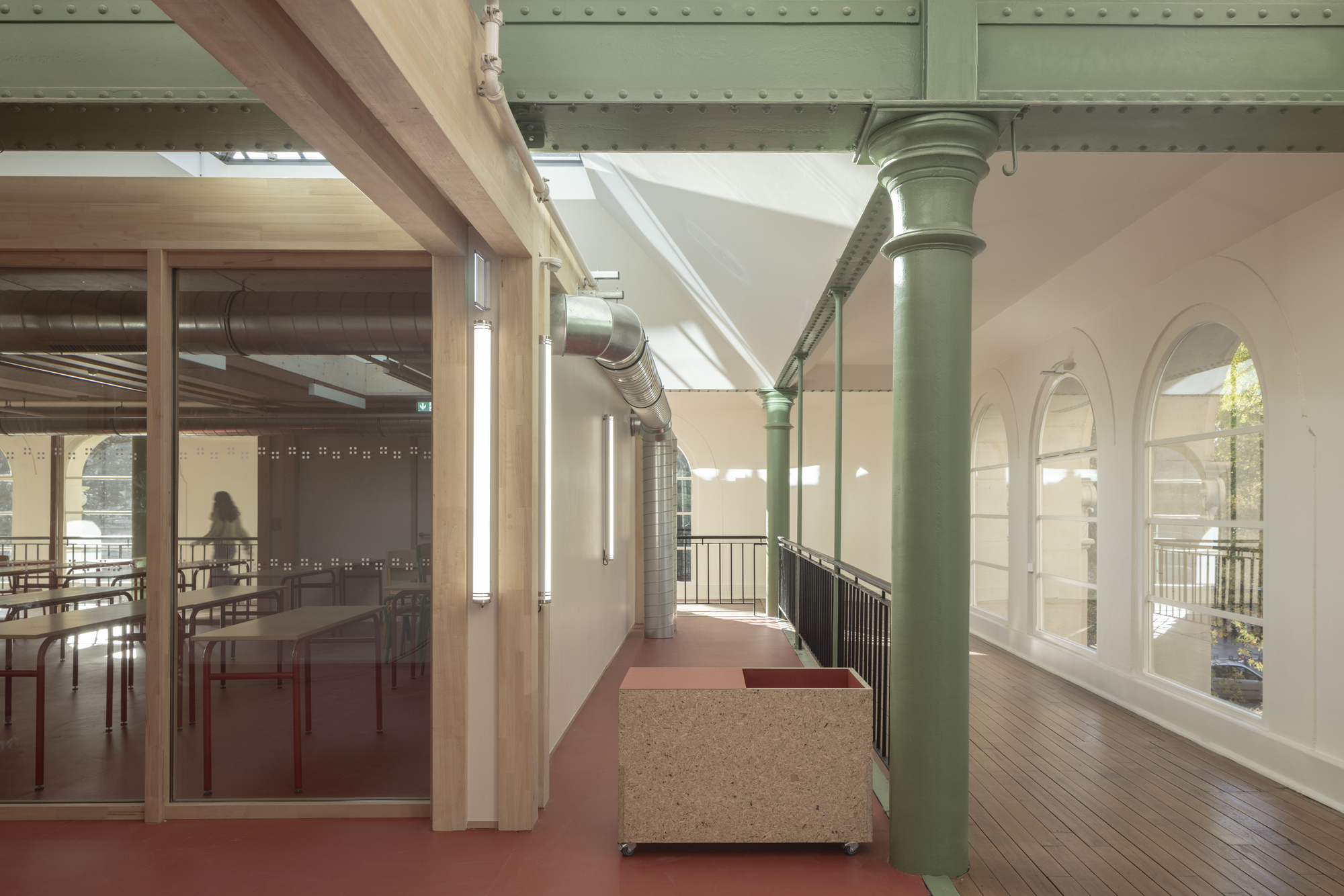

Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-22
The city of Lille is handing over the Palais Rameau, by means of a 25-year emphyteutic lease, to JUNIA (Engineering school), which is giving it a new lease of life while respecting the soul of the place. With its listed historic building and impressive volumes, it has allowed us to imagine a place dedicated to higher education and is becoming the "Village Square" of JUNIA's campus.
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-24
The Palais Rameau rehabilitation project is characterized by a holistic and sustainable approach. The project not only preserves and enhances the historic monument, but also creates an exemplary space for living, research and innovation, meeting contemporary needs while respecting the requirements of sustainability and flexibility.

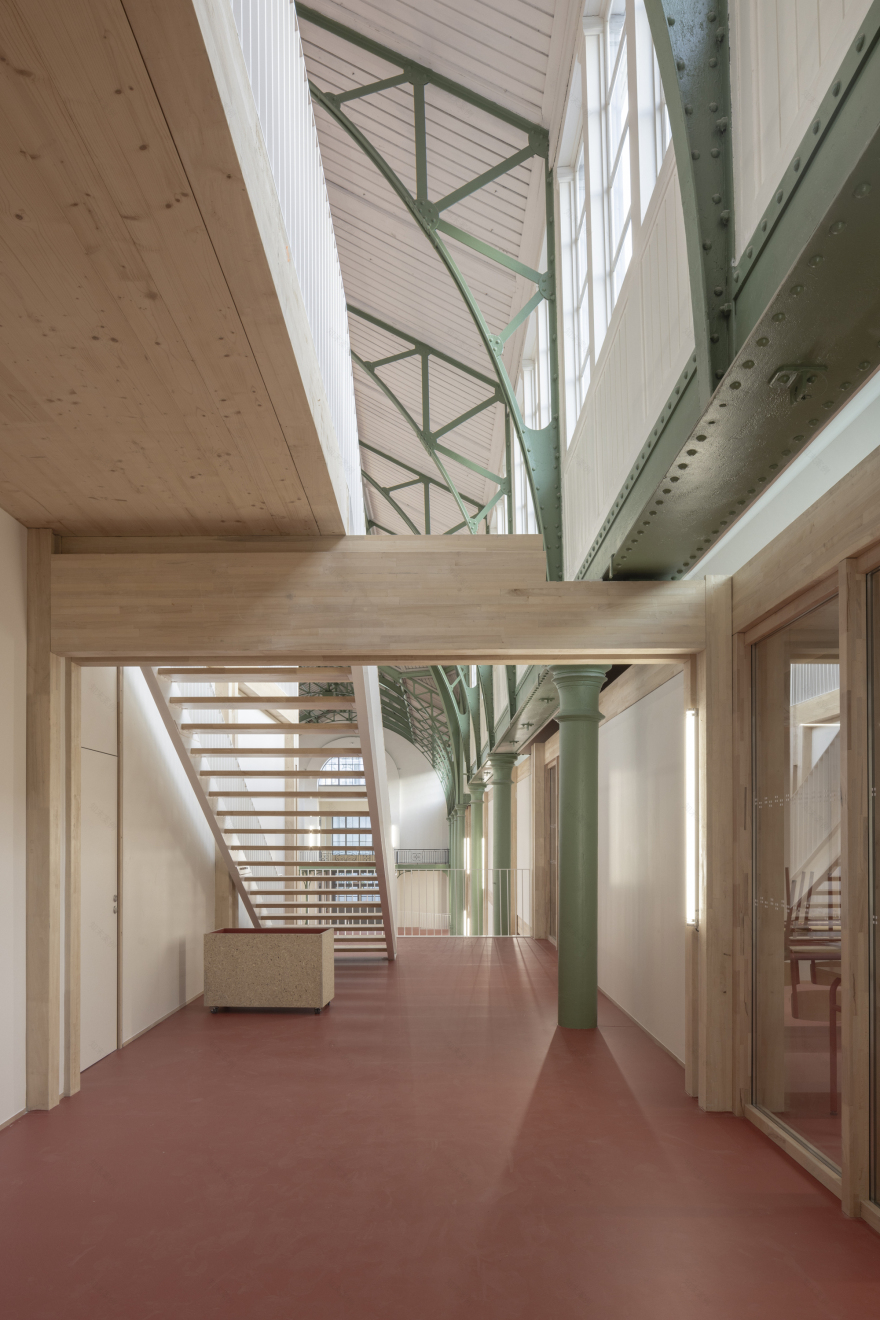

Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-26

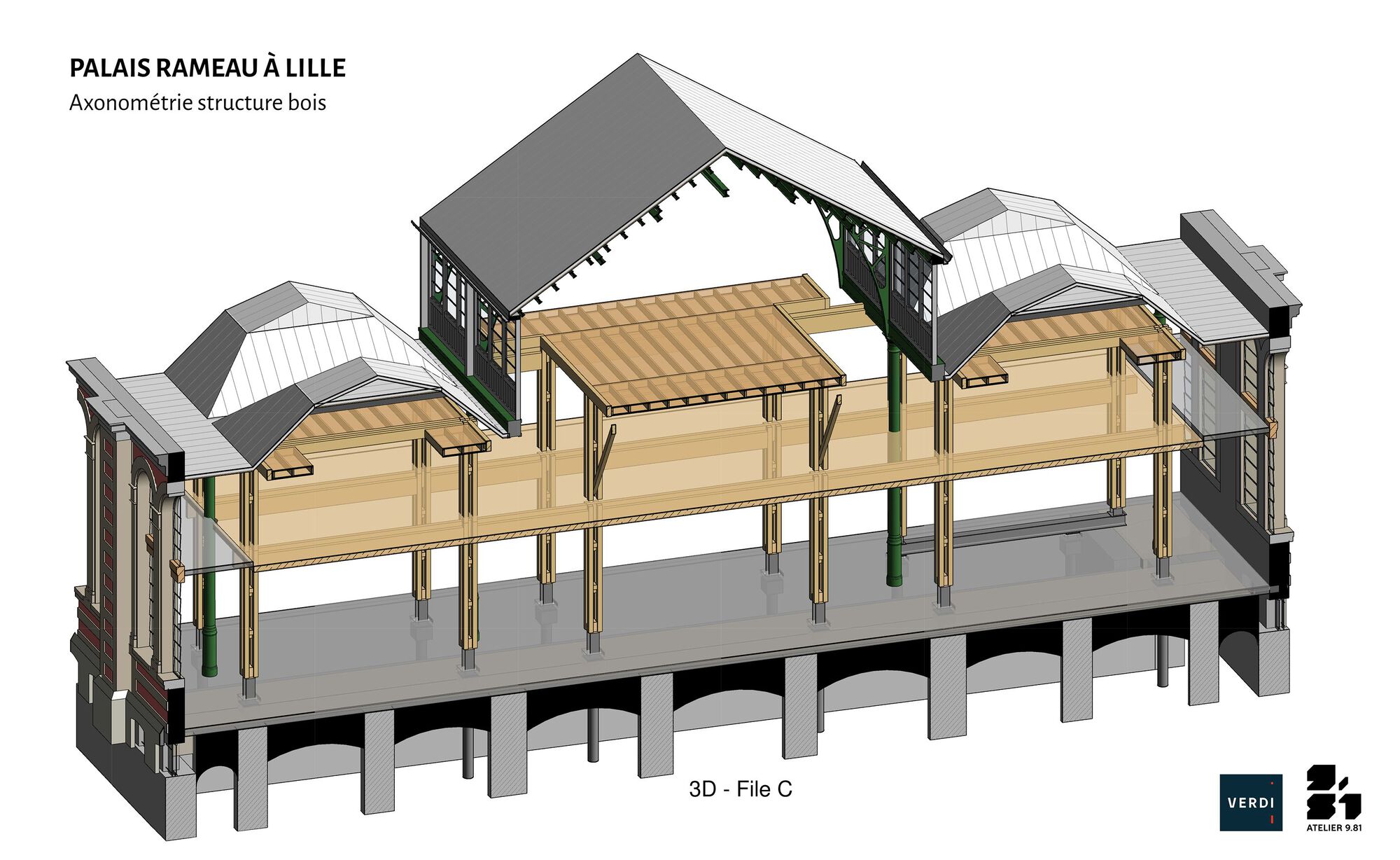

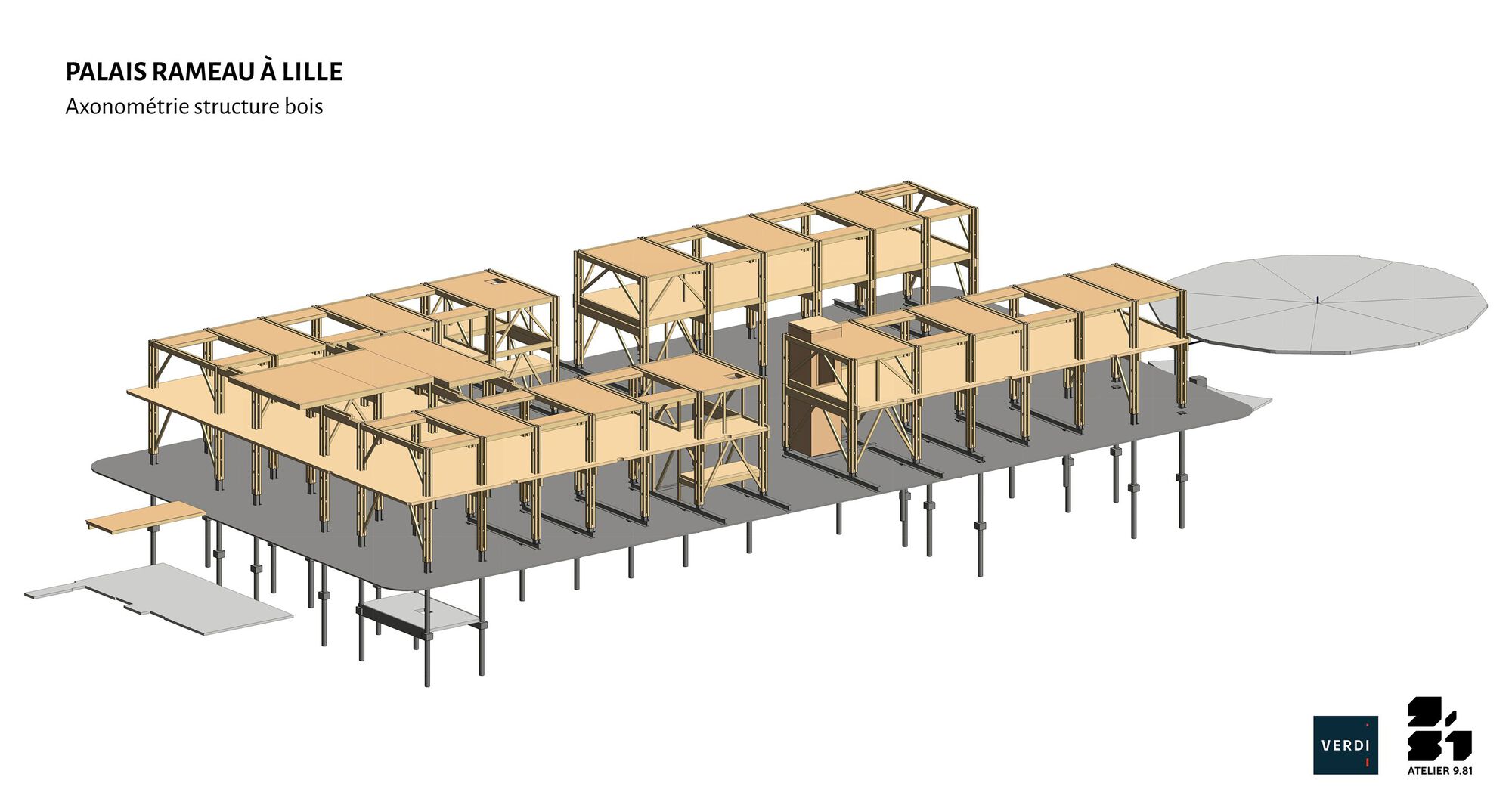

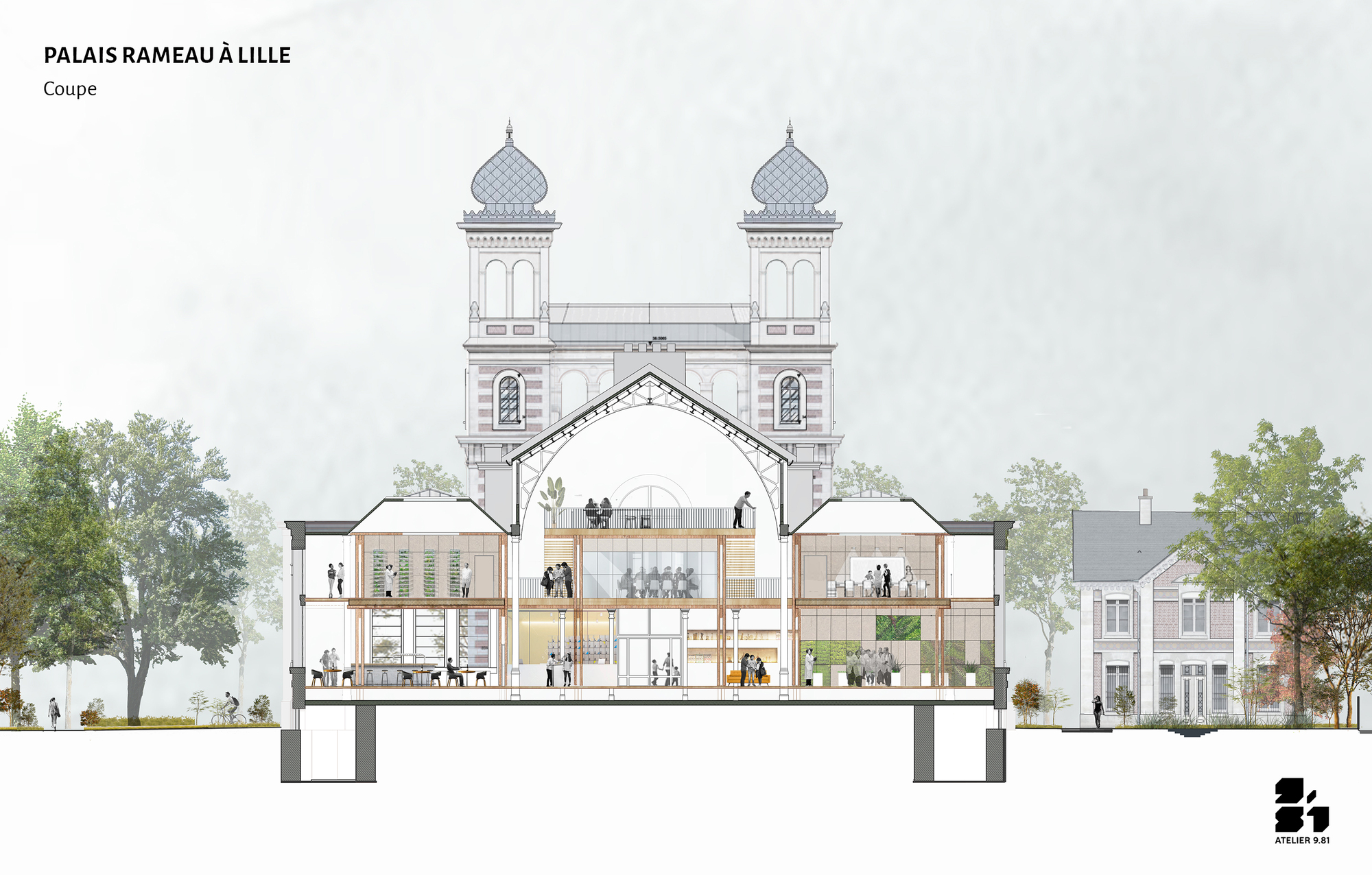

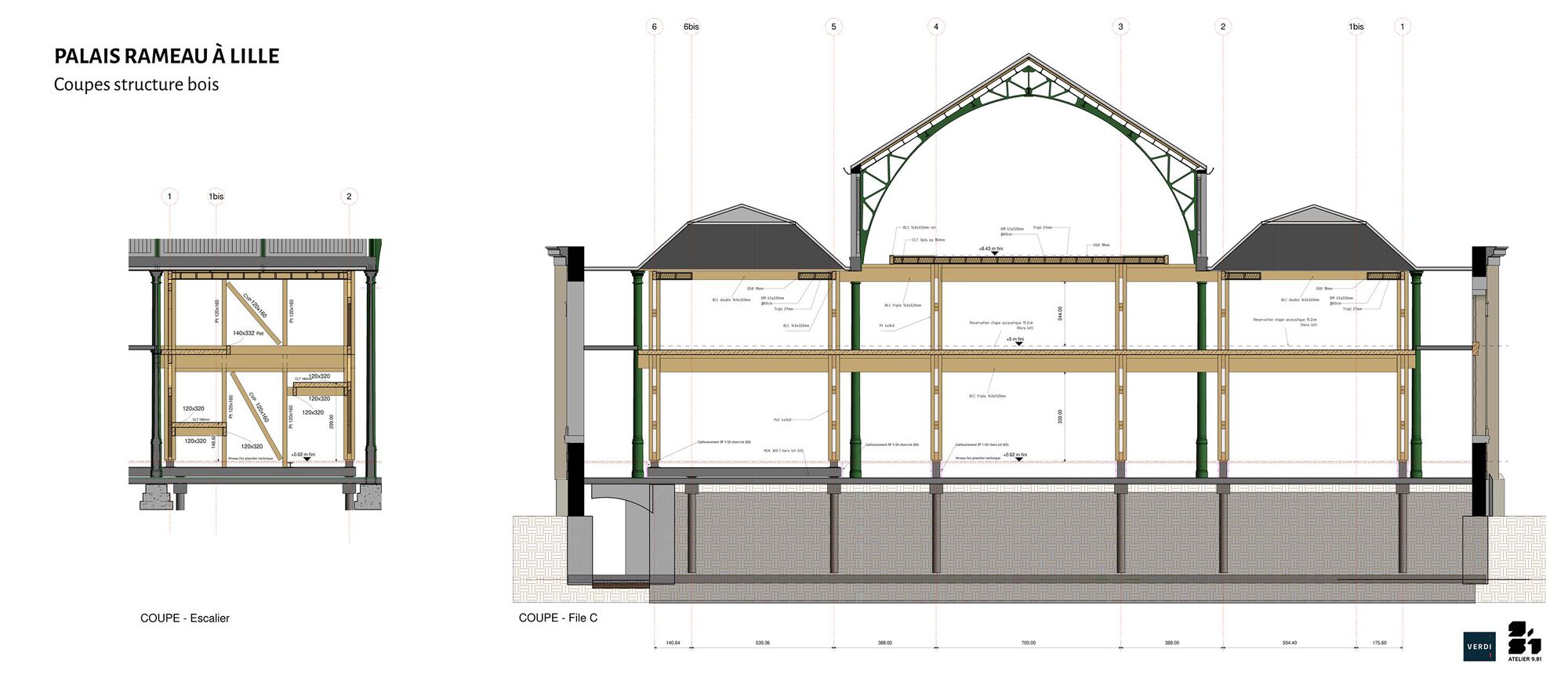

Taking into account the heritage issues of the site, the question of the reversibility of the project was a key point. An innovative and demonstrative architecture is proposed, through a modular and scalable project, designed to consider the future. An interior design solution, detached from the envelope of the historic monument, was designed, thus allowing the building to be restored to its original state. A system of primary structure (a skeleton of posts and beams) and secondary (partitions composed of removable modules) visible, make it possible to integrate the scalable dimension of the program.
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-28

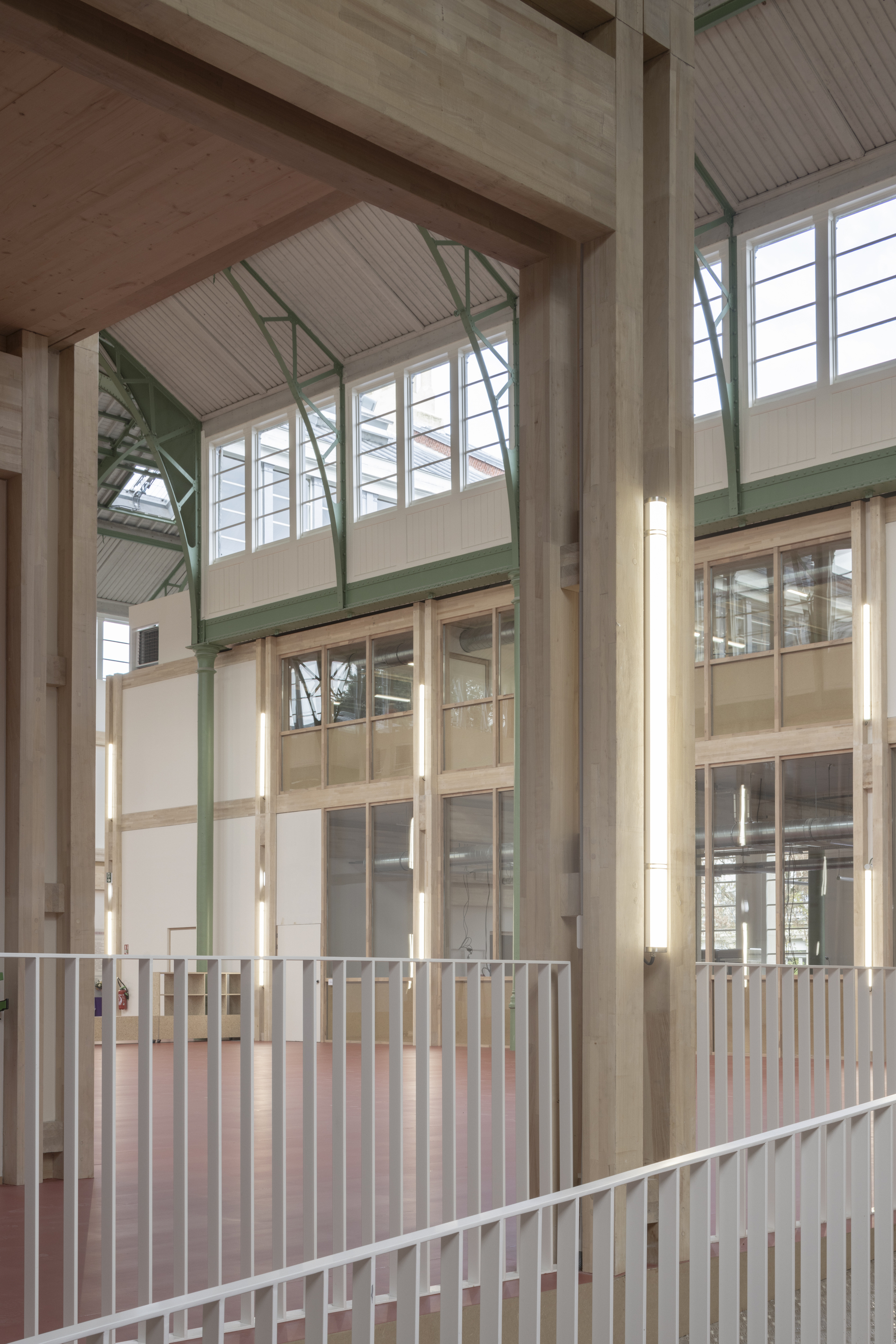

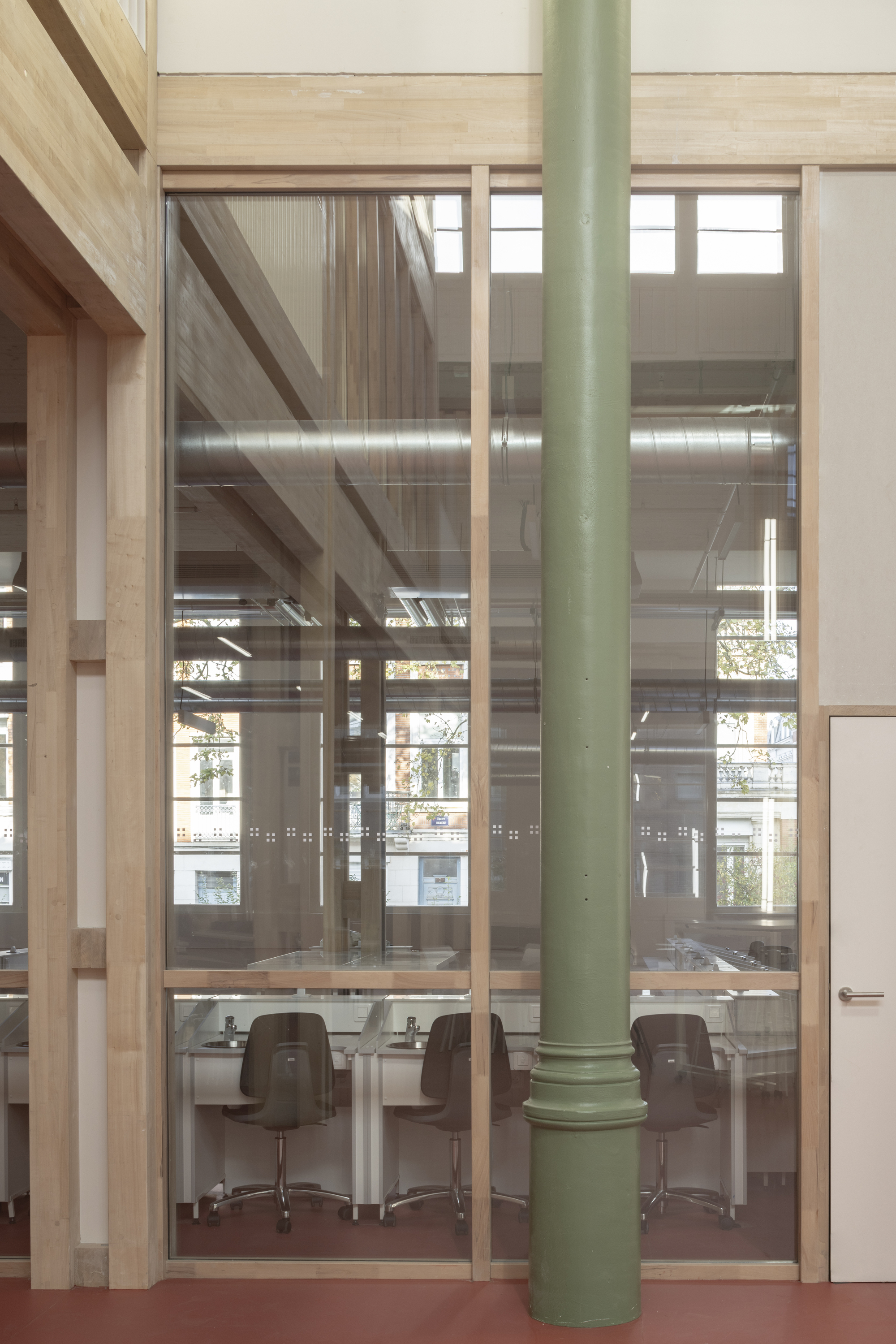

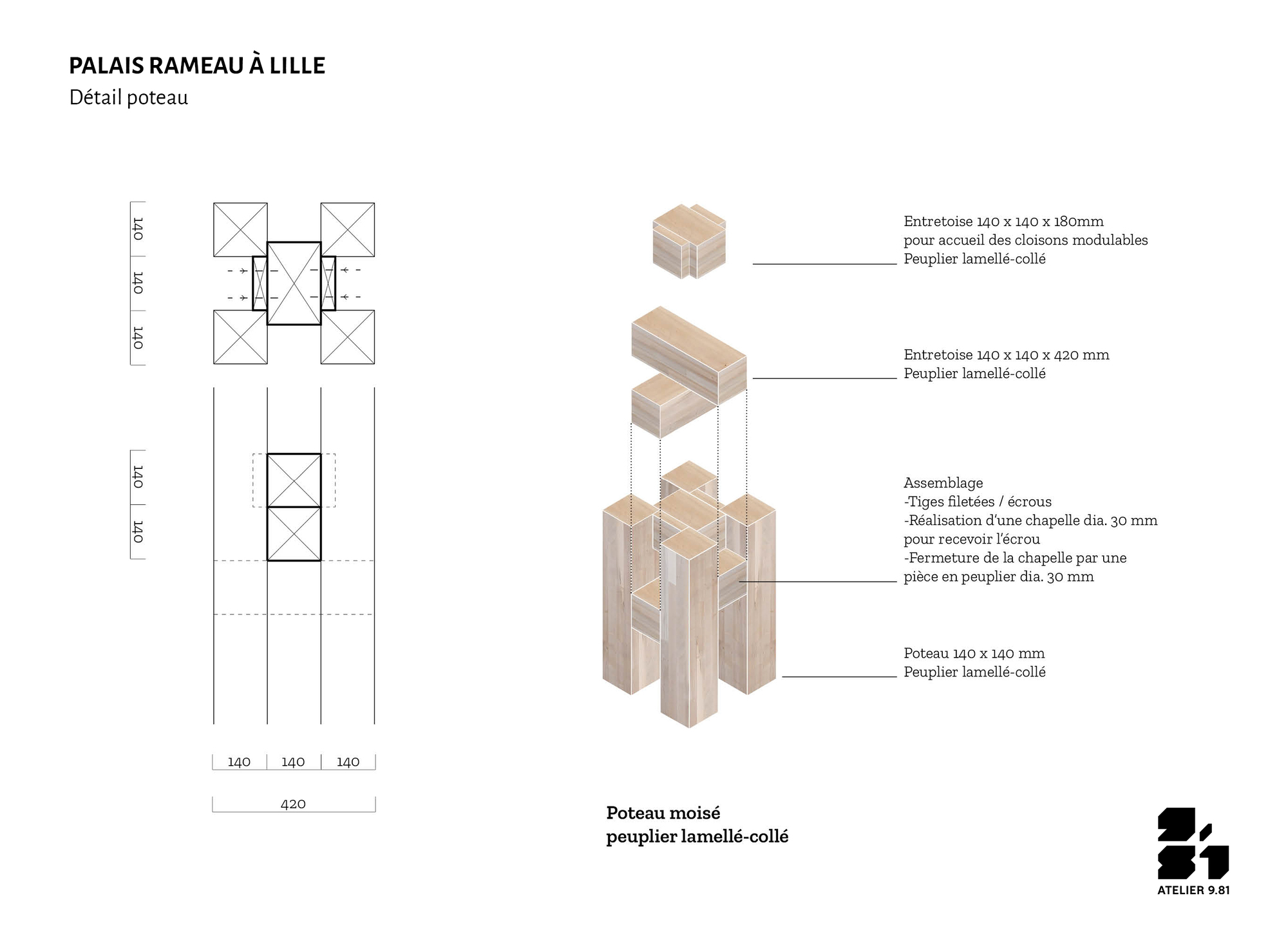

Different types of wood are used, thus creating a visual and material contrast: the post-beam structure is made of local glued laminated poplar, the partitioning is also in wood frame, all the floors are made of CLT panels in spruce wood.
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-30
The prefabrication and assembly of wooden modules reduces waste and the carbon footprint while ensuring the mutability and flexibility of spaces. This approach not only respects the history and soul of the place, but also meets tomorrow's requirements in terms of sustainability, efficiency and flexibility of spaces.
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-32
The project's Cradle-to-Cradle approach aims to produce elements in a reasoned manner, without generating waste, while using materials that are healthy for humans and the environment: wood fiber, Fermacell, wood wool, spruce CLT, poplar glued laminated timber.
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-34
Project gallery
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-36
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-37
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-38
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-39
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-40
Palais Rameau 修复项目丨法国里尔丨Atelier 9.81-41
