瓷砖礼拜堂丨Jimenez Arquitectos + FB+ estudio

Architects:FB+ estudio,Jimenez Arquitectos

Area:25m²

Year:2020

Manufacturers:AutoDesk,Taquil

A Lead Architects:Iván Jimenez, Freddy Bonilla

Graphics And Plans:Mateo Figueroa

Layout:Kelly Lituma

Illustrations Of The Altar:Belén Oviedo

Illustrations Of The Chapet:Oscar Cuenca

Drone Video:Francisco Samaniego

Parish Priest Of Taquil:Victor Manuel Yanangómez Tandazo

Artistic Collaboration:Boris Salinas / Ñaño Casa Museo

Clay Sculpture:Bayardo Cuenca

Community Liaison:Bolívar Bonilla

Trustees Of The Parish And Church:Rosita, Walter, Jhon

Black And White Illustrations:Carlos Valarezo

Construction:Habitantes de Taquil

Country:Ecuador

Text description provided by the architects. The task consists of building a new chapel in the Taquil cemetery, where an annual mass will be held in honor of the deceased. The project will be managed by the parish priest, the syndics, and the community.

Our main challenge is to find an architectural solution with the least construction and economic resources possible that we can find in the sector.

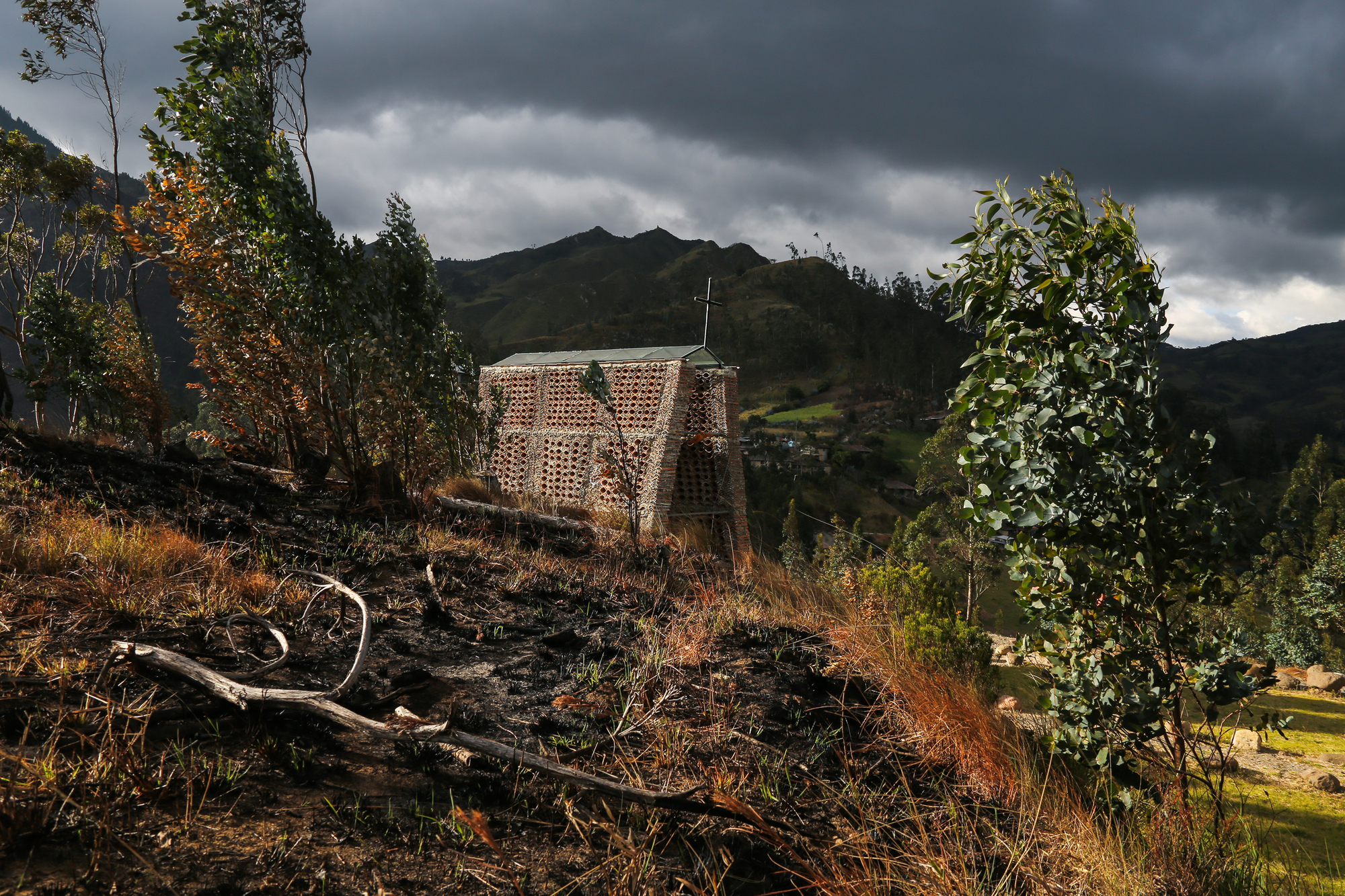

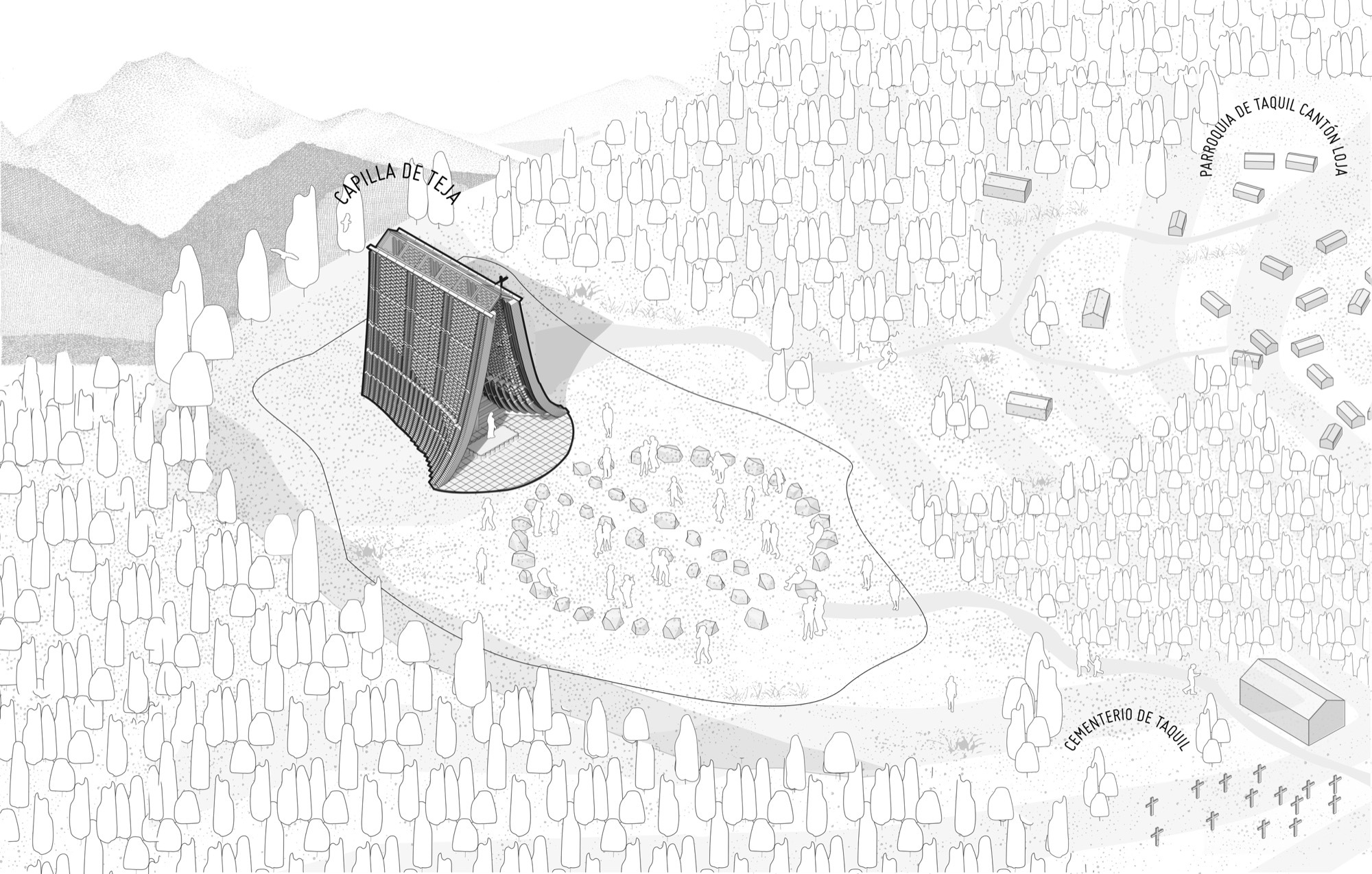

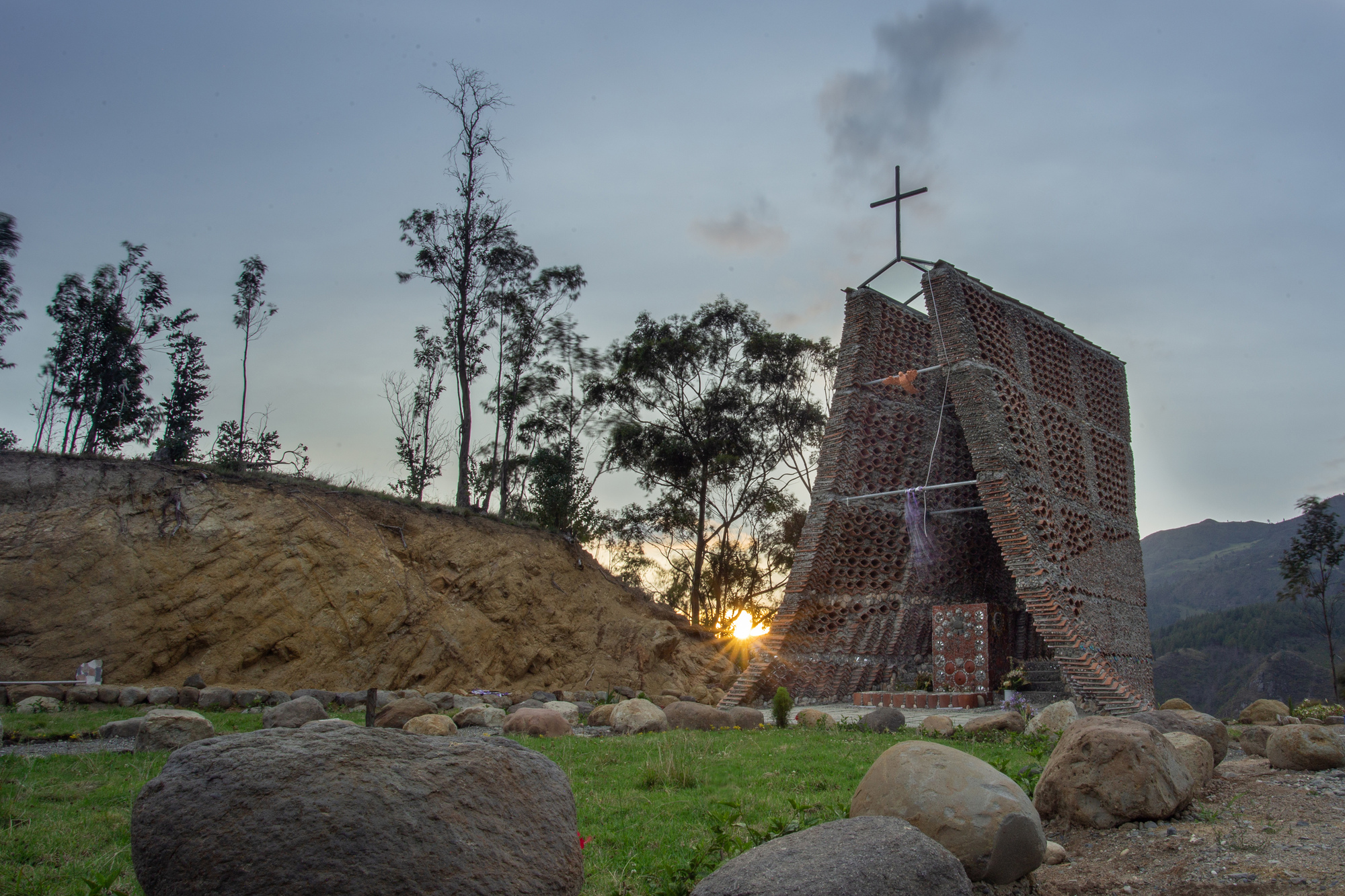

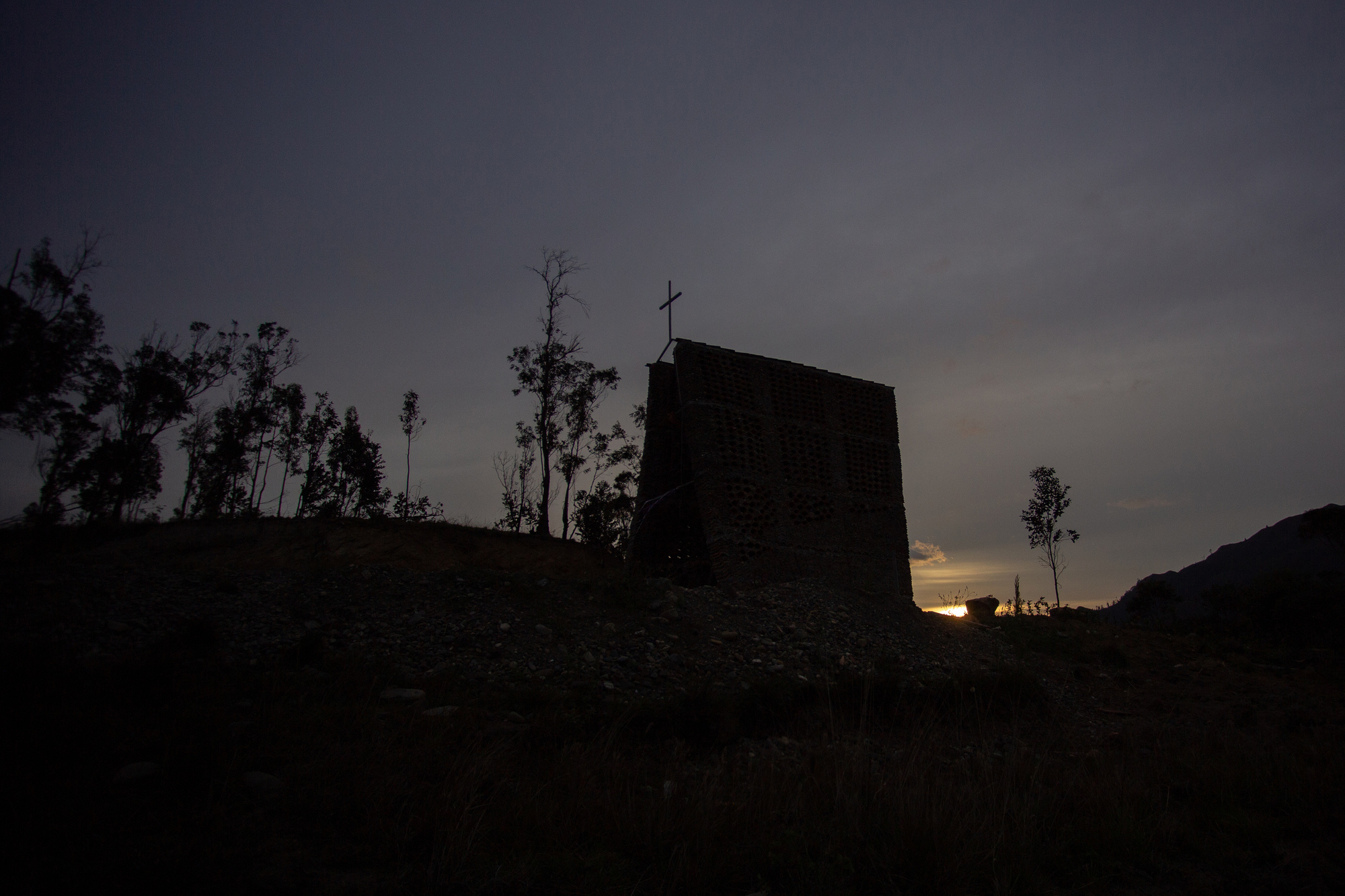

Taquil, a rural parish in the city of Loja, Ecuador, is characterized by its rural practices, where the community still retains its connection to the Catholic religion. Therefore, this chapel will be an important point in the territory and the lives of the people. Most of these activities take place outdoors, so open-air masses are held regularly. Thus, the architectural response seeks to enhance these ways of living; for this purpose, an open chapel will be developed, situated at the top of the cemetery mountain.

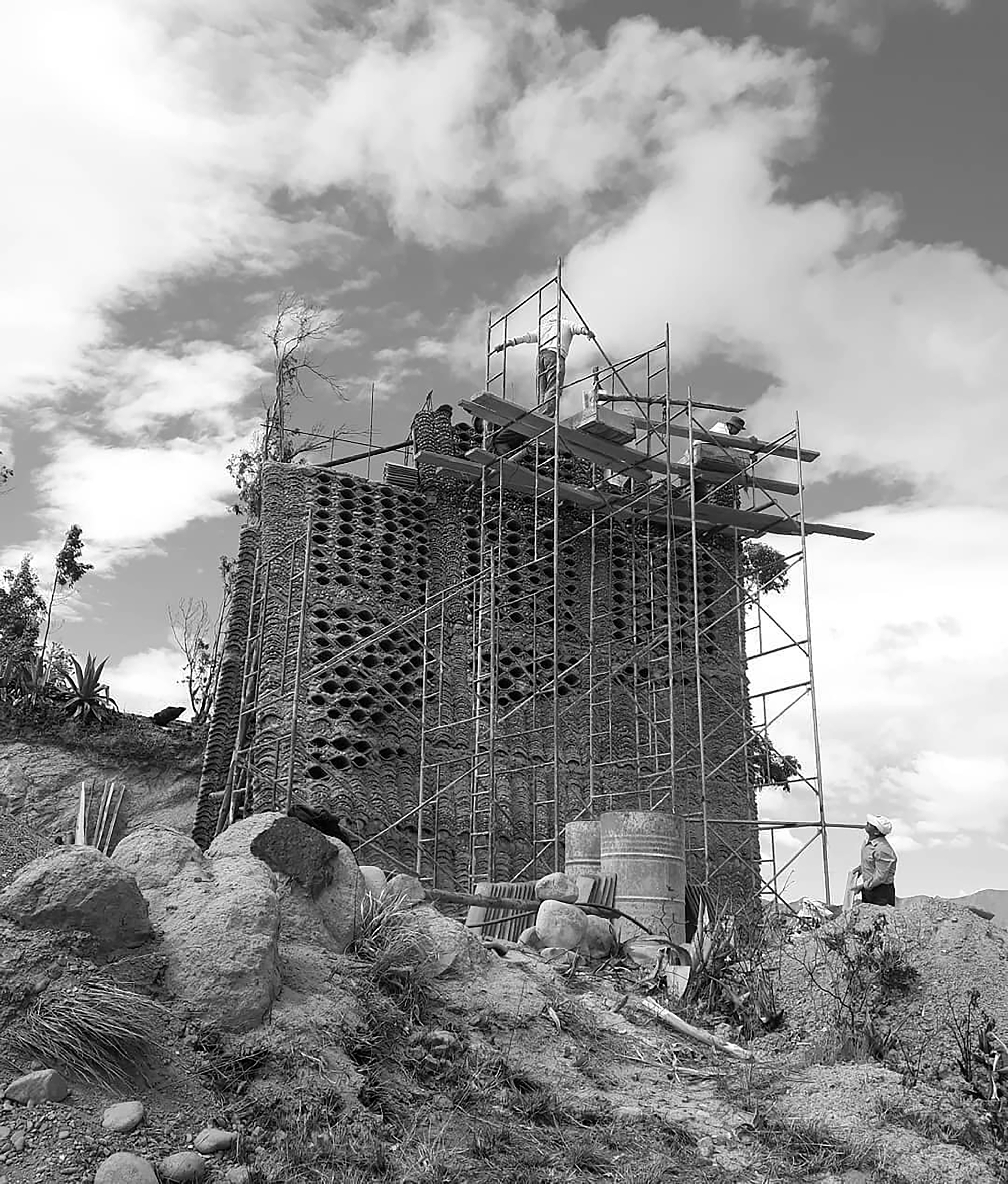

The community work as a means of self-construction is the main resource, as all the neighbors of the parish (the main beneficiaries of the cemetery) come daily to build their chapel.

Knowing that the limited economic resource is an important variable to address, the focus is on local construction methods, where stone, earth, wood, and tiles are established as the initial materials.

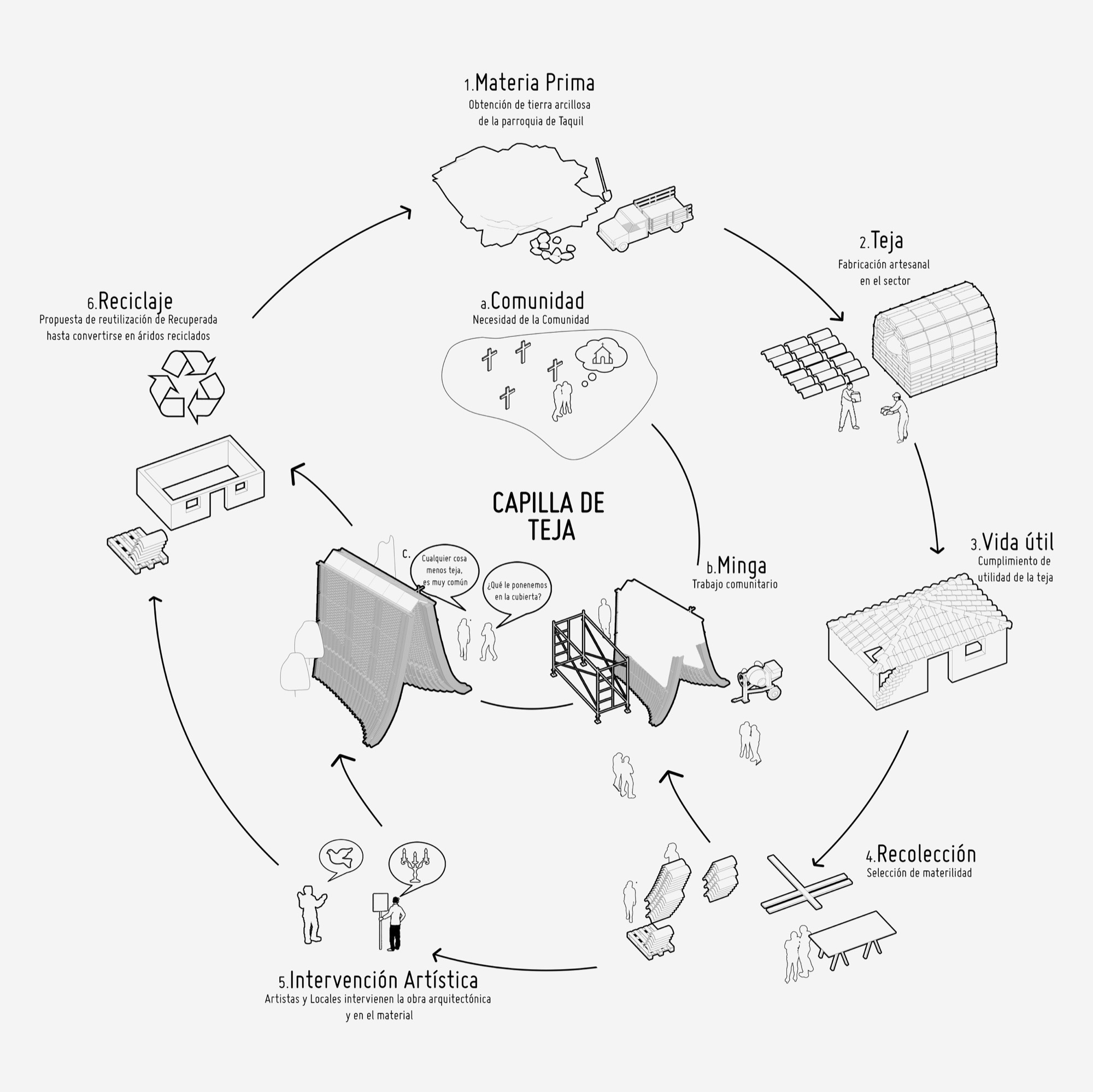

The migration from rural to urban areas has caused many of the houses in the sector to be abandoned, where tiles have prevailed over time with the capacity for recycling. Therefore, it is chosen as the main construction material due to its recyclability, resistance to the elements, and ability to be reused.

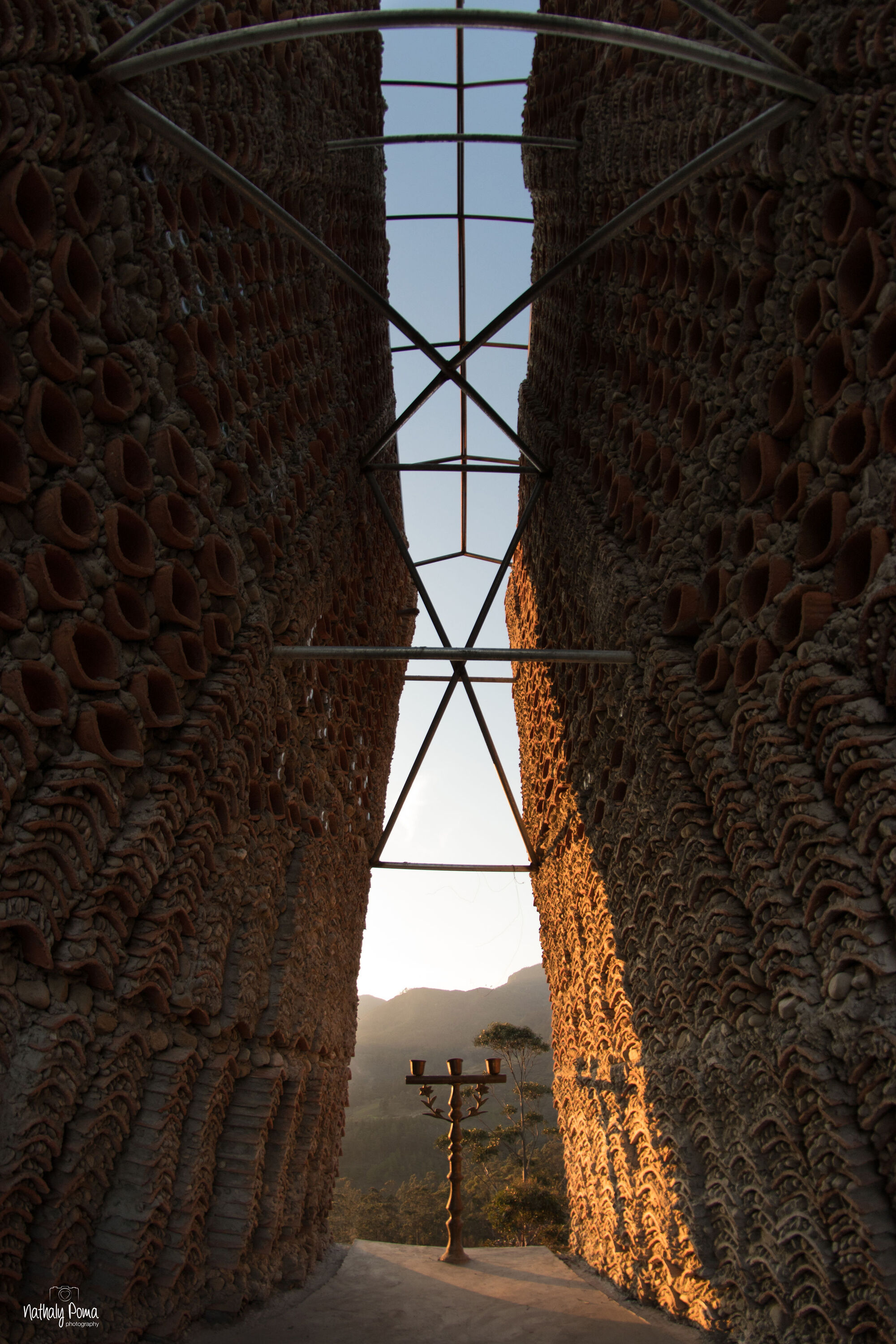

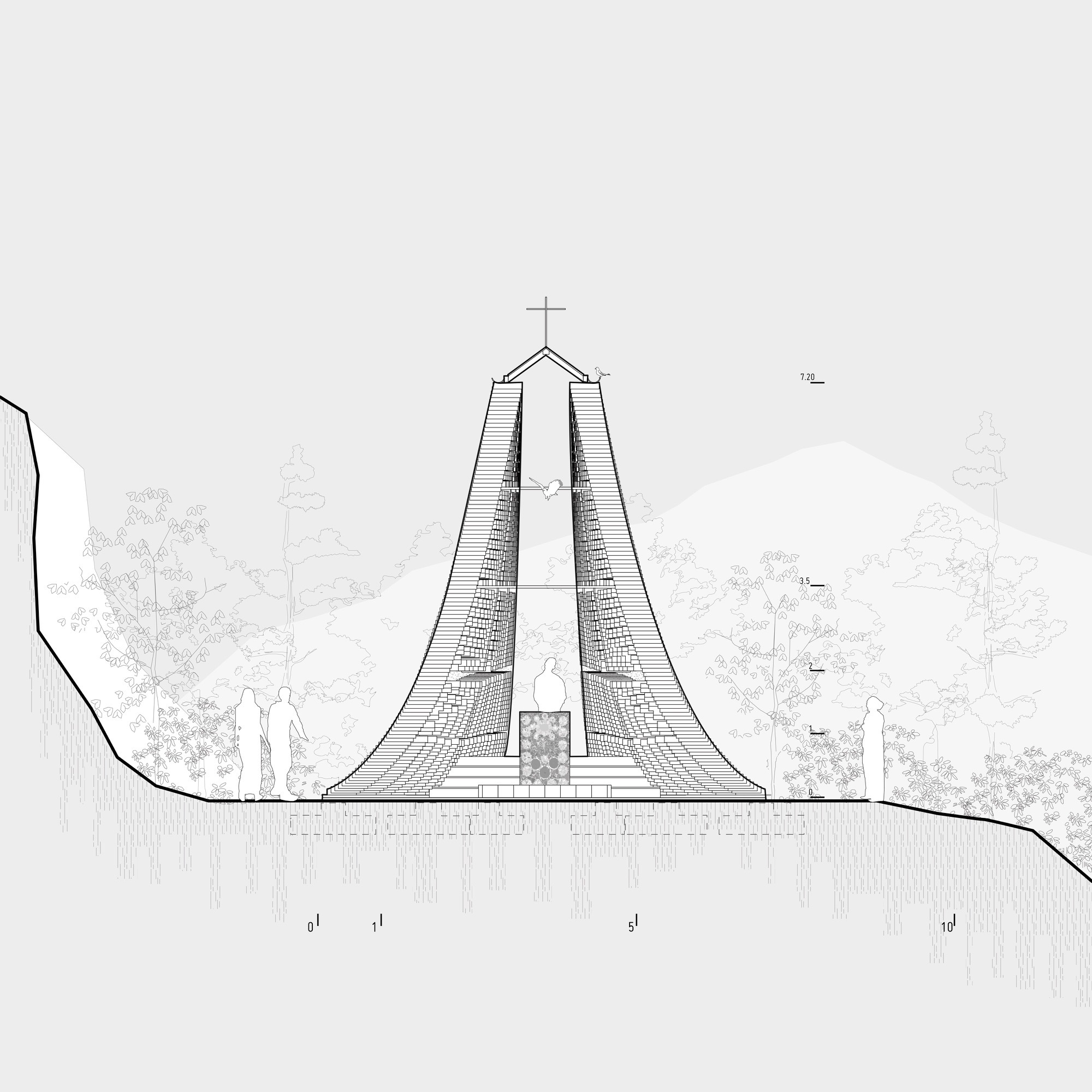

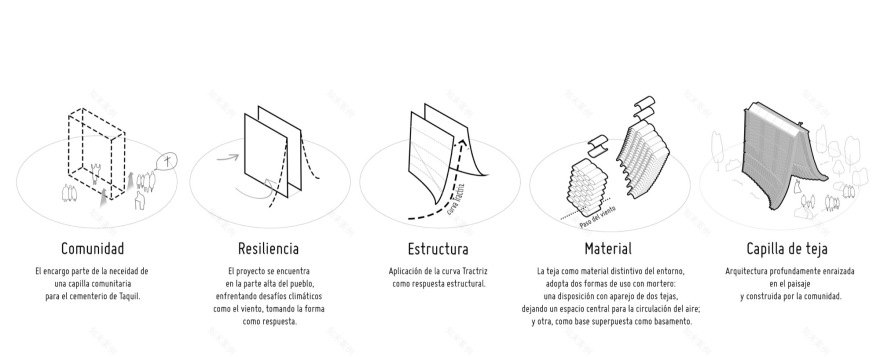

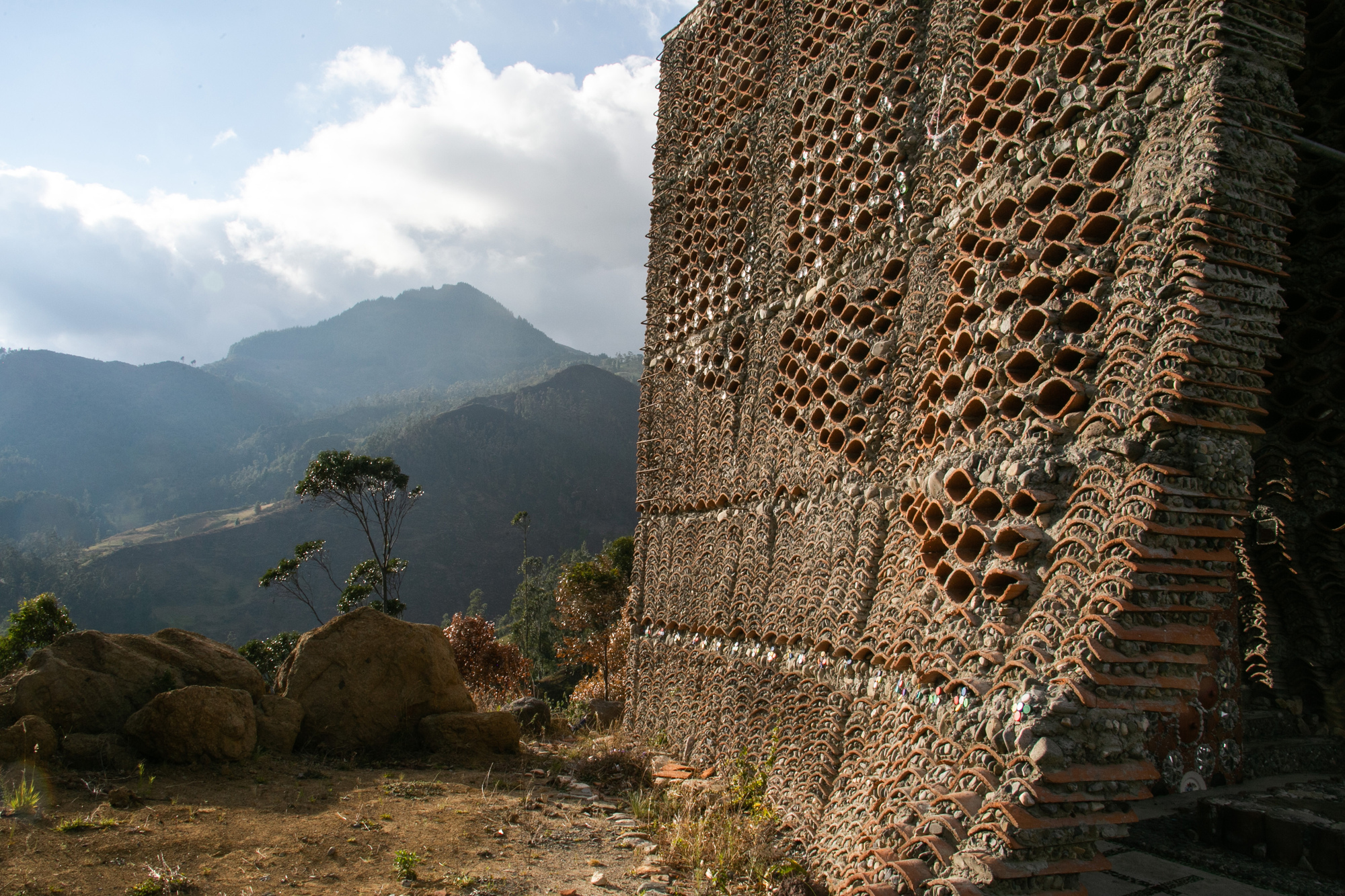

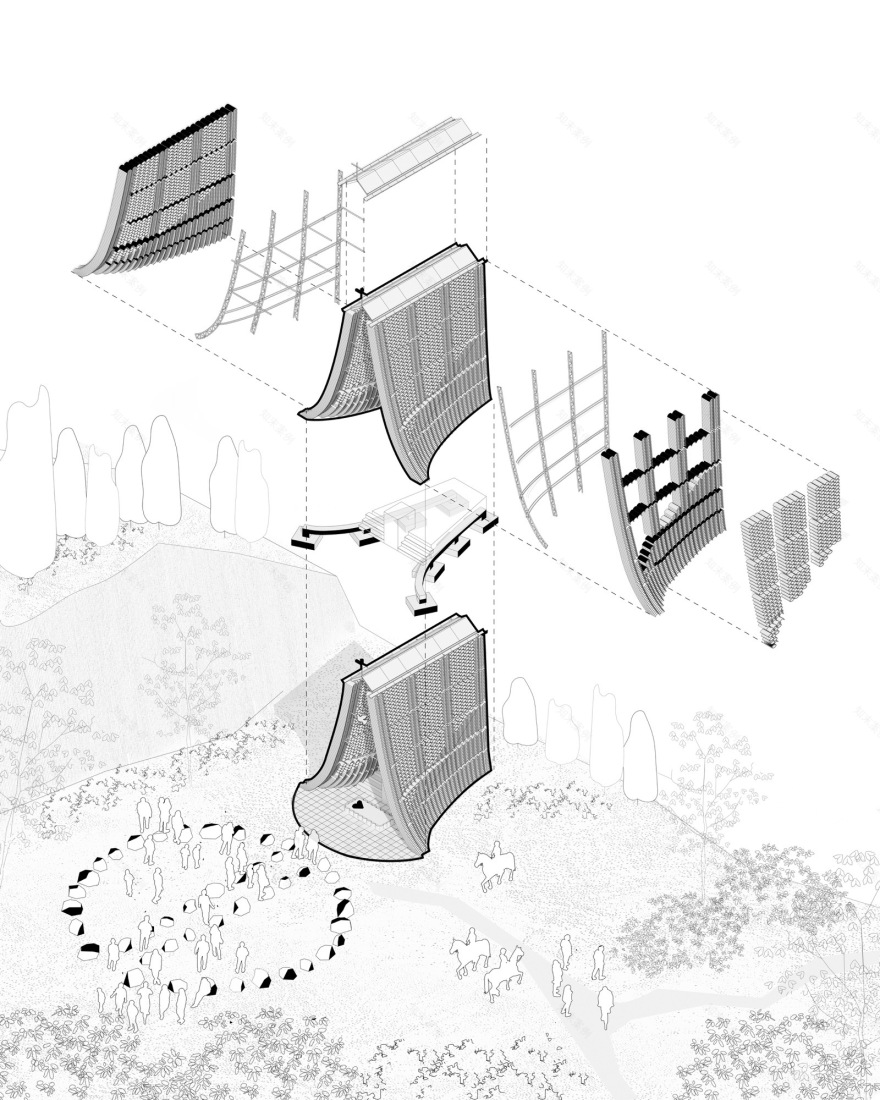

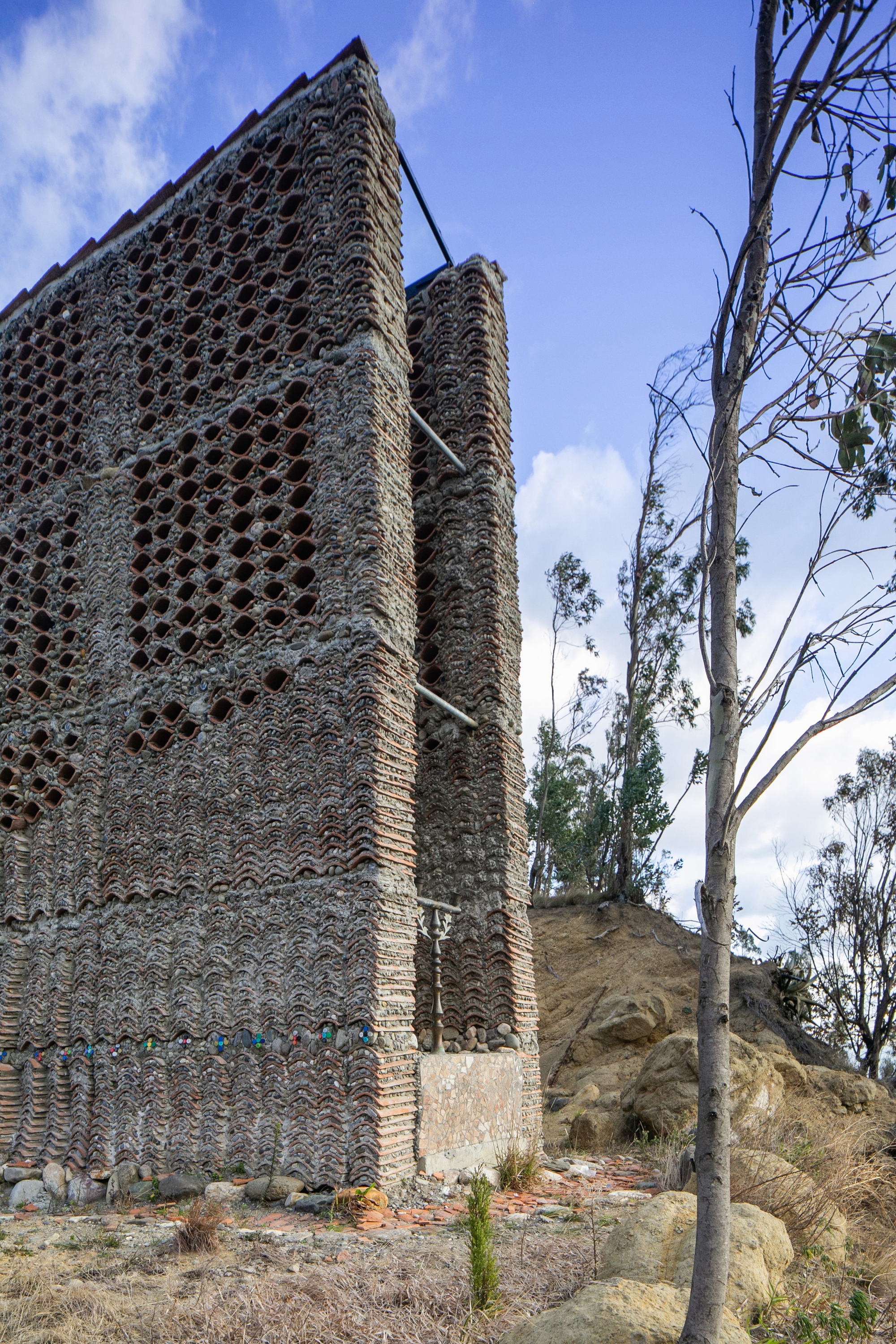

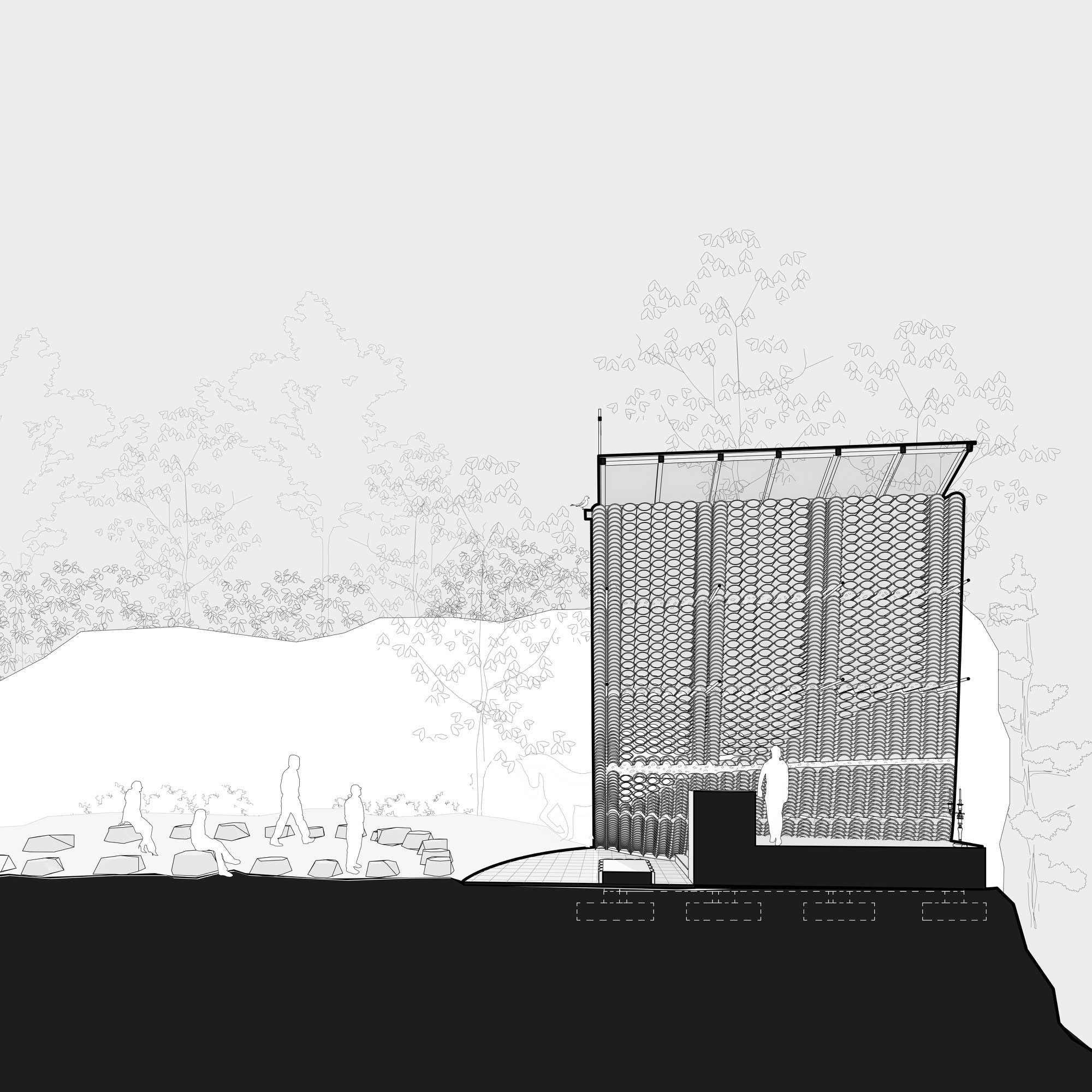

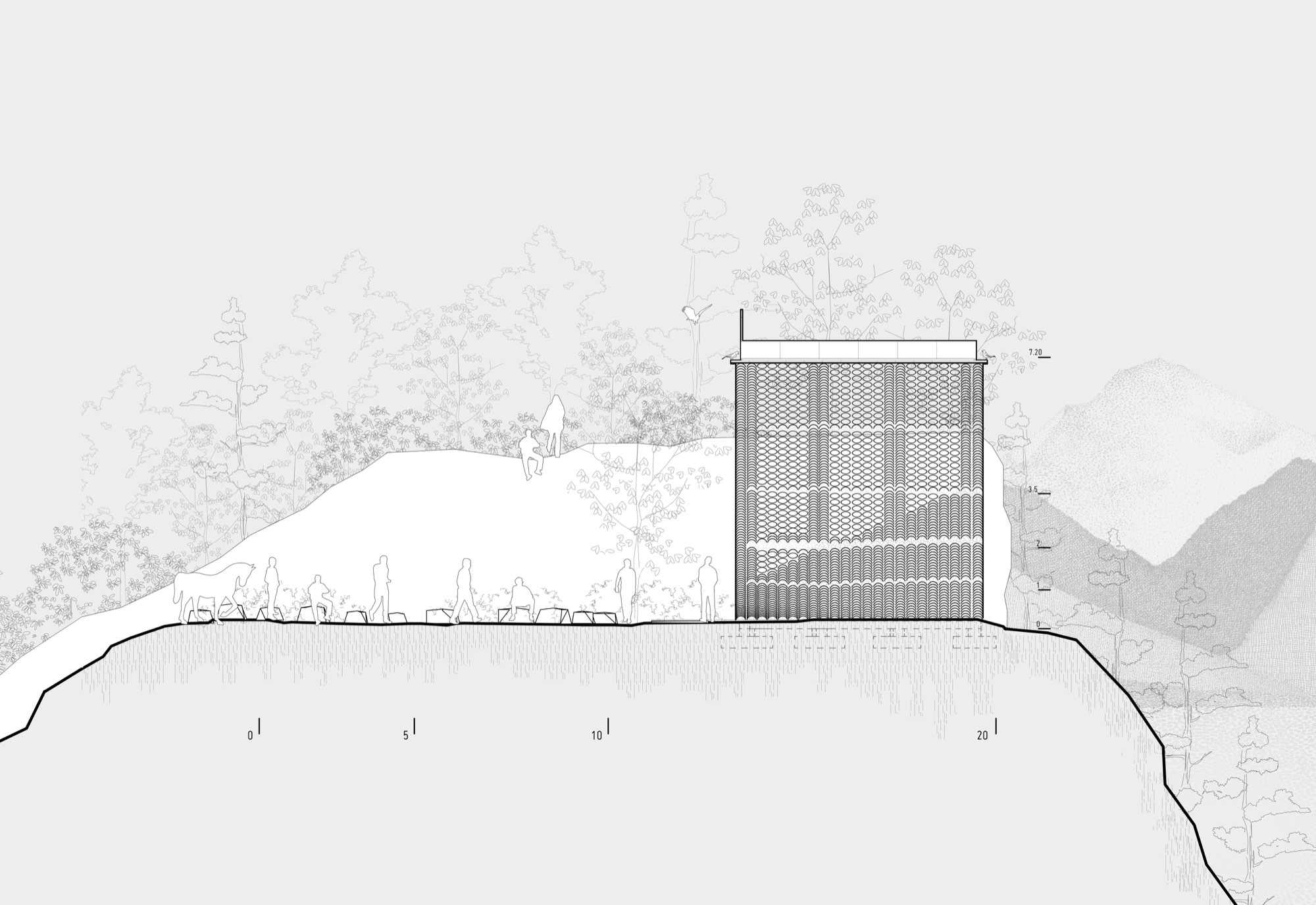

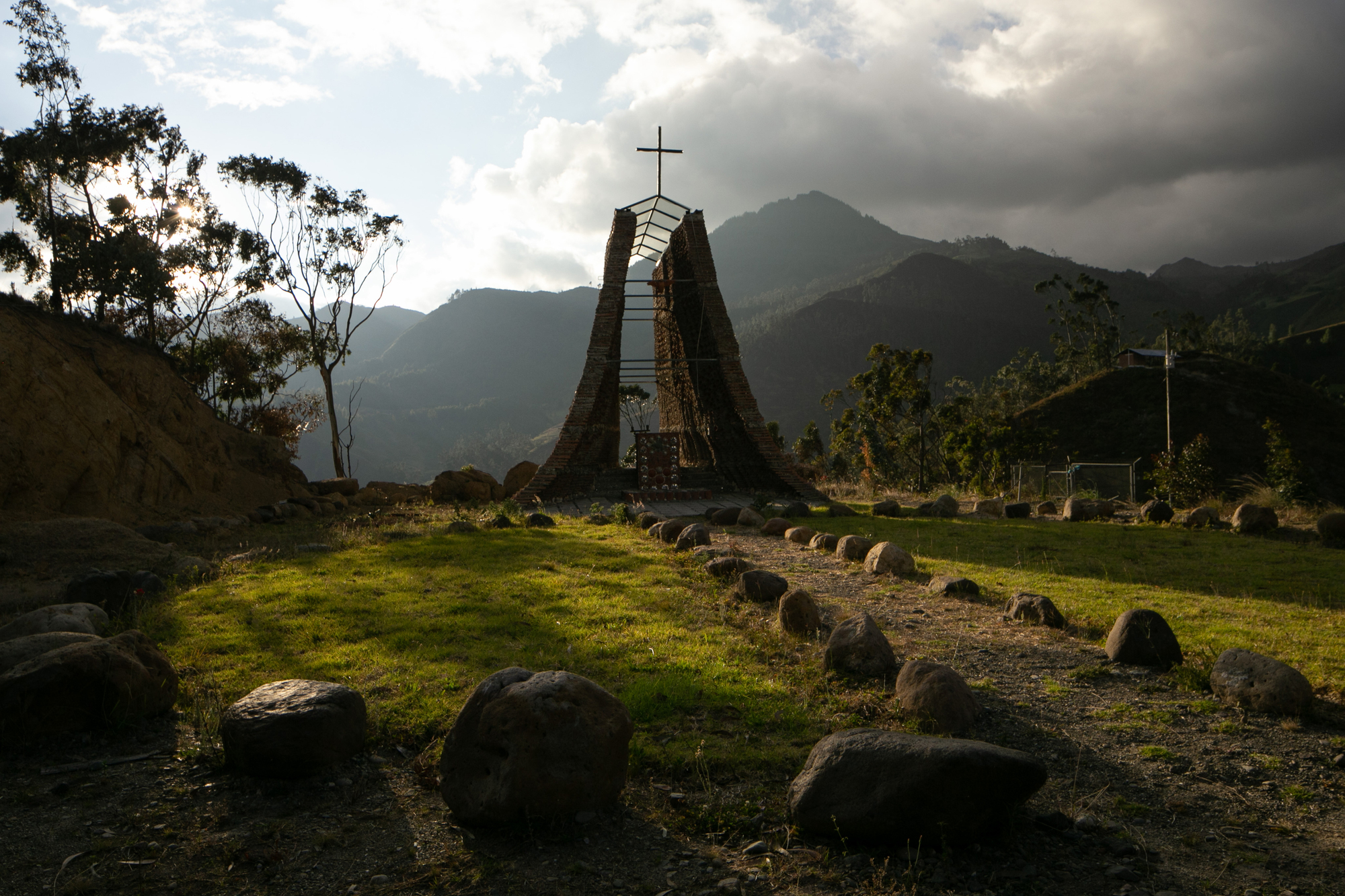

The construction system is based on placing tile upon tile to assemble the structure, where the first third is continuous tile and the remaining two-thirds are arranged with wind channeling tubes. In addition, the reinforced tile walls curve following the "tractrix curve" to help dissipate the wind and create a channel that highlights the landscape. The work culminates with an opening to the sky that allows zenithal light to enter.

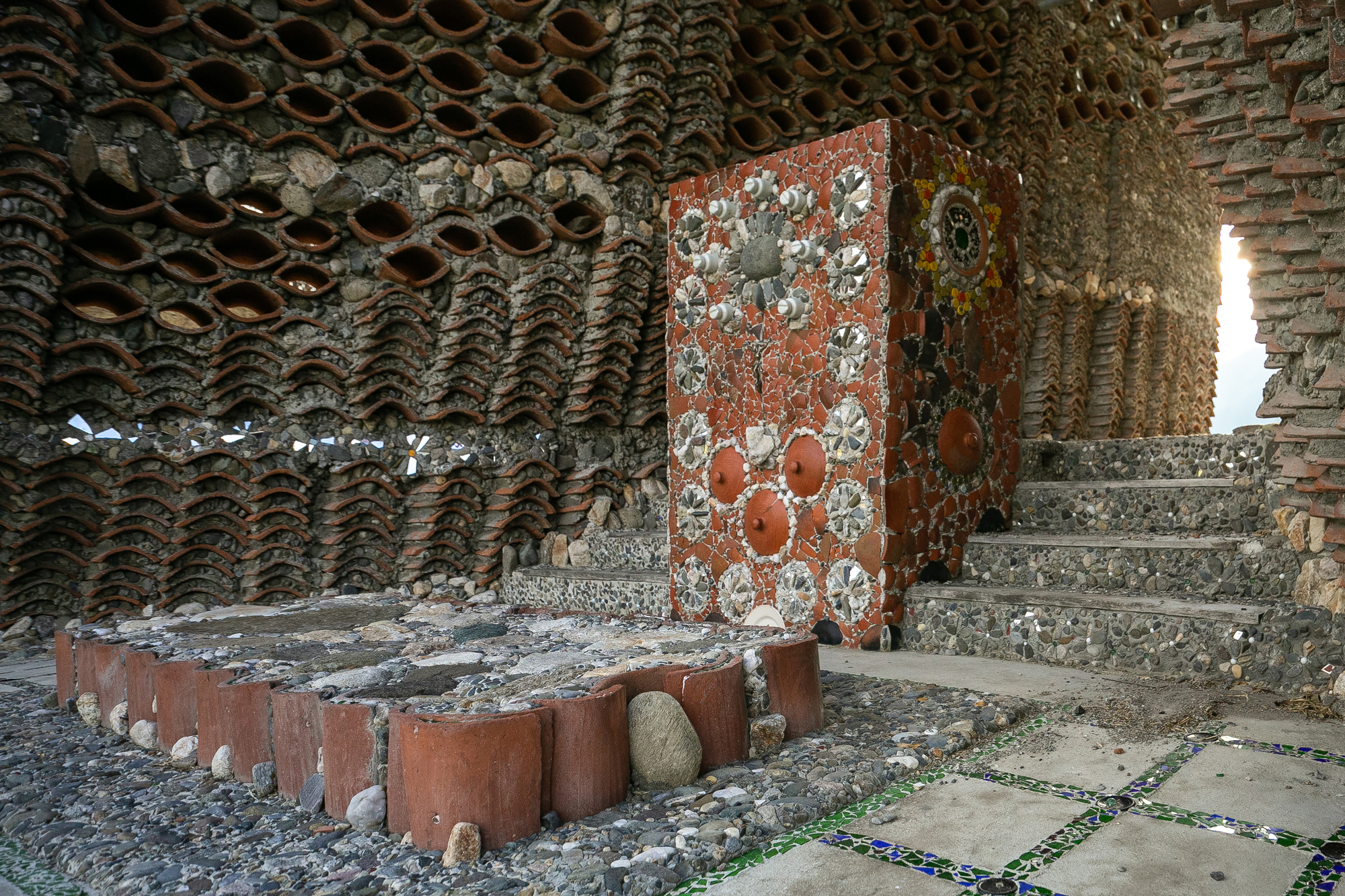

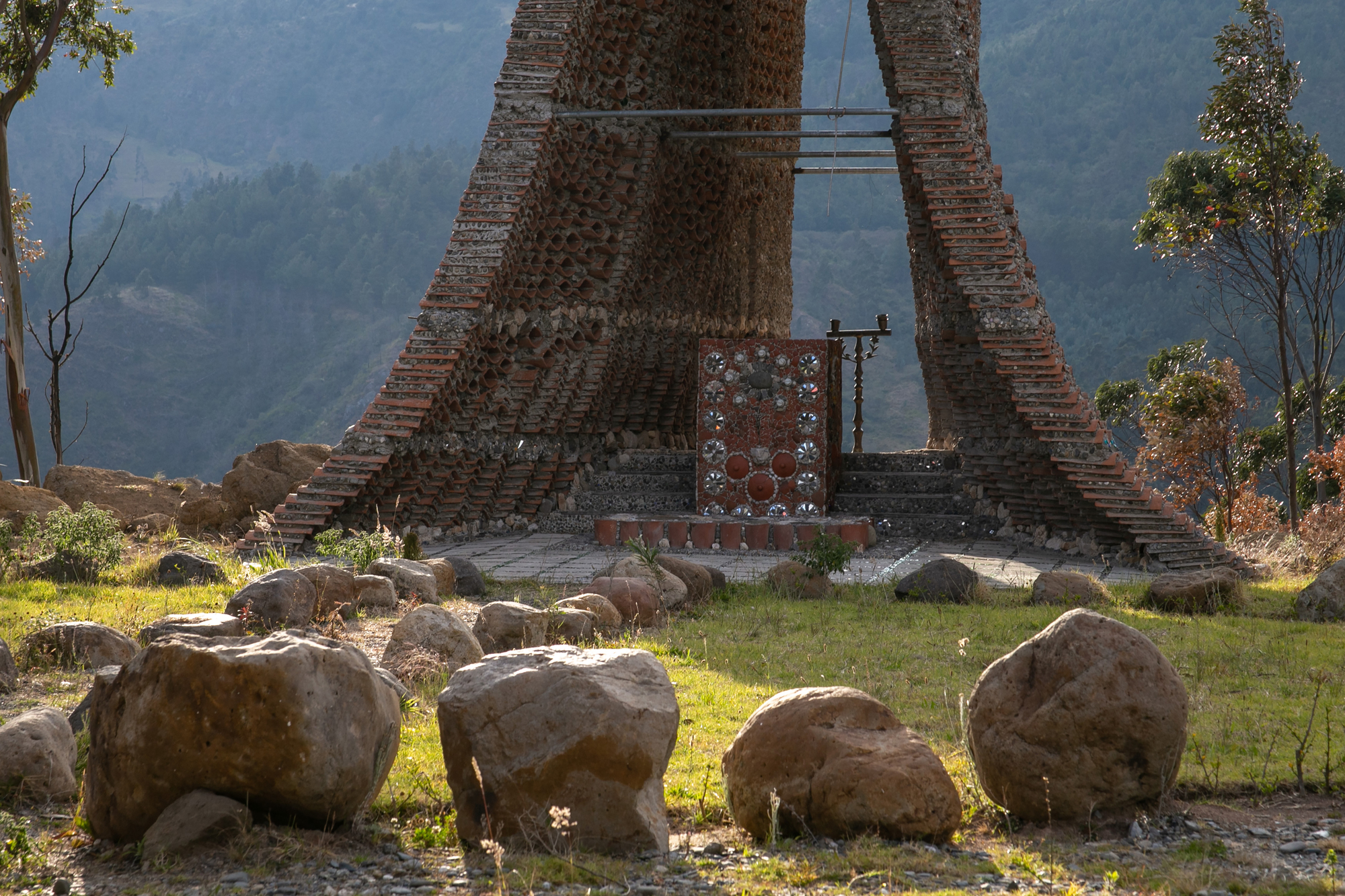

All of this is intensified by the intervention of art; the sculpture of the "Holy Spirit" hangs at the top of the facade; the mosaics made from recycled materials cover the altar, floor, and part of the tile masonry, and the placement of stones (between the joints), one by one, by the community.

Finally, this work has become a landmark for the community where they celebrate mass once a year, and it is also valued by the tourism sector, where there is an influx of visitors from various origins that activate local microeconomies.
