飞檐住宅丨Lorenz Bachmann Architect ETH SIA

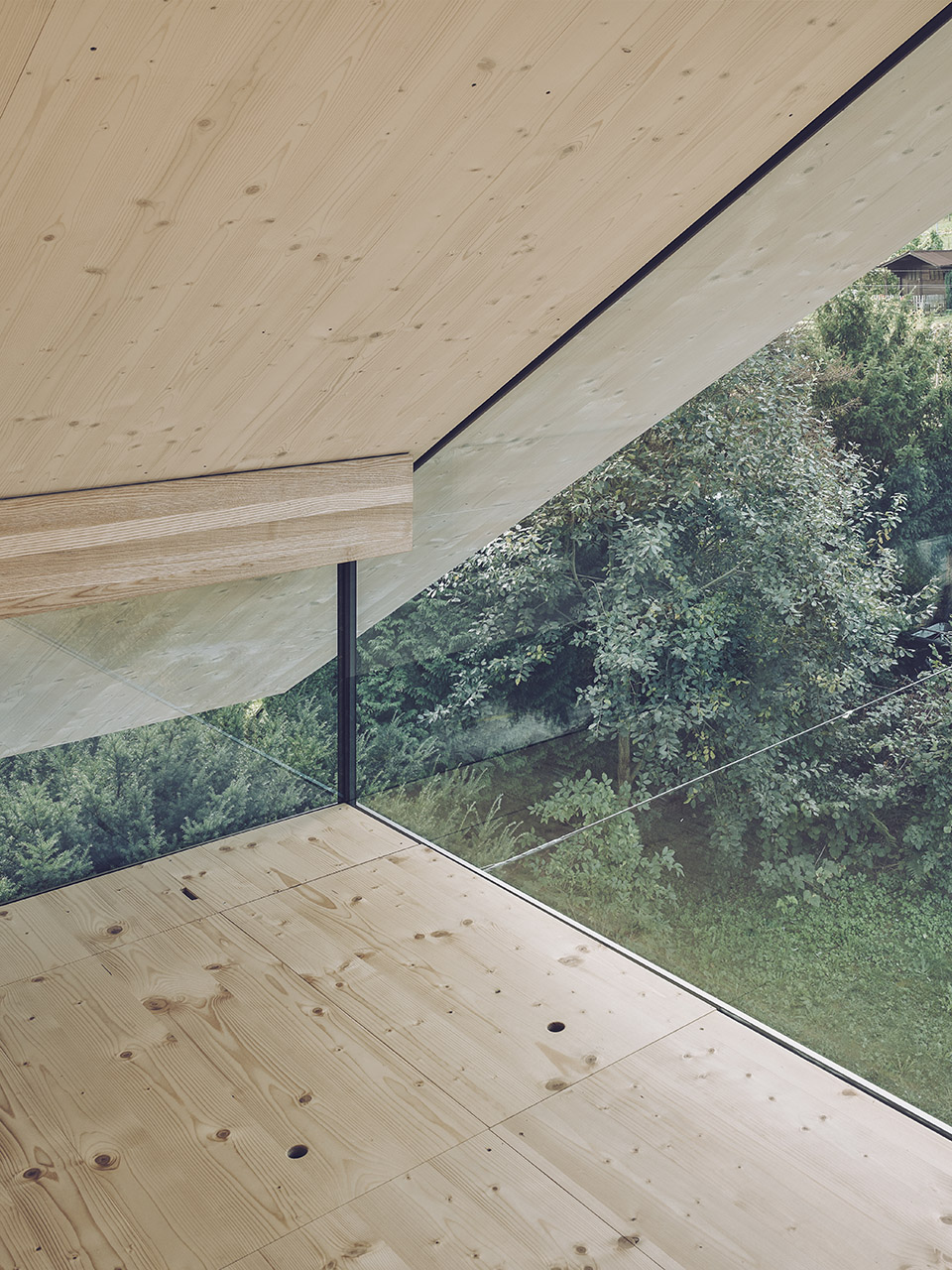

这个空间被定义为“屋顶中的房间”，由地板与两侧屋面构成唯一的边界。在这里，视线可从四周望向花园与连绵的丘陵景观，让空间既隐蔽而安静，又仿佛无限延展。

The spatial idea is a room in the roof, defined only by horizontal elements: the floor and the two roof surfaces. On all sides, there are views down into the garden and across the hilly landscape. The room is sheltered and, at the same time, seemingly endless.

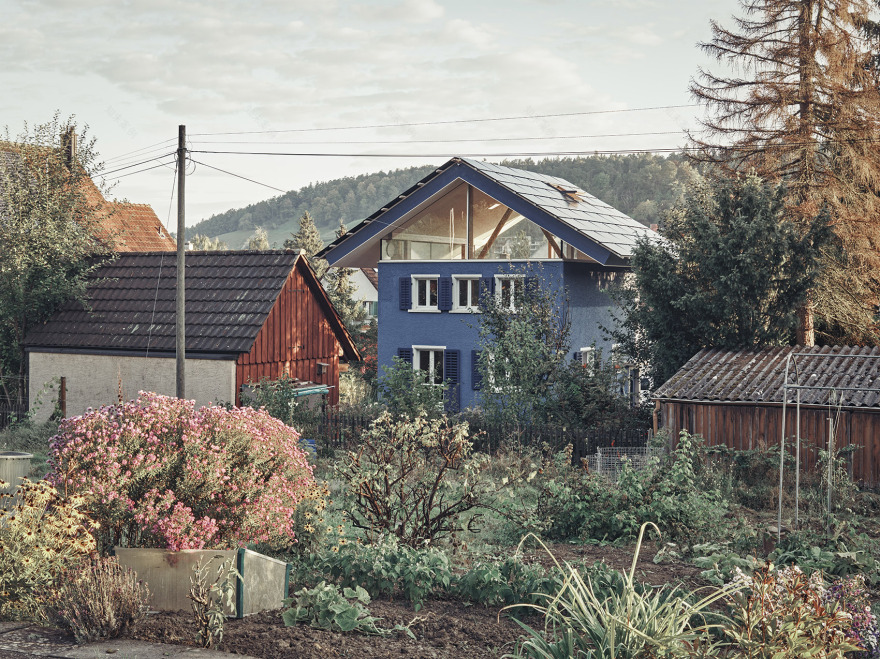

▼住宅概览，overview of the project ©Lukas Murer

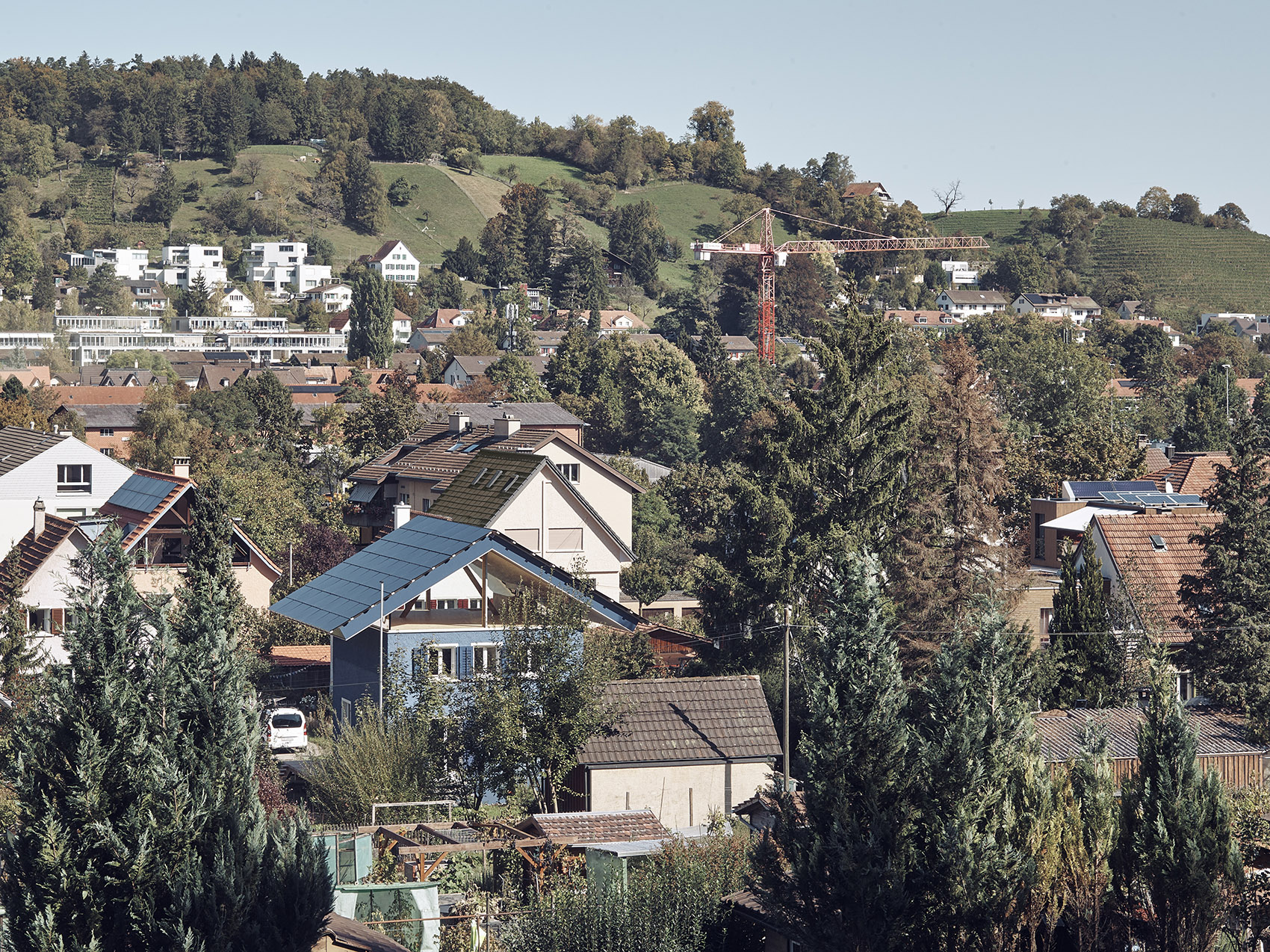

▼住宅鸟瞰，aerial view of the project ©Lukas Murer

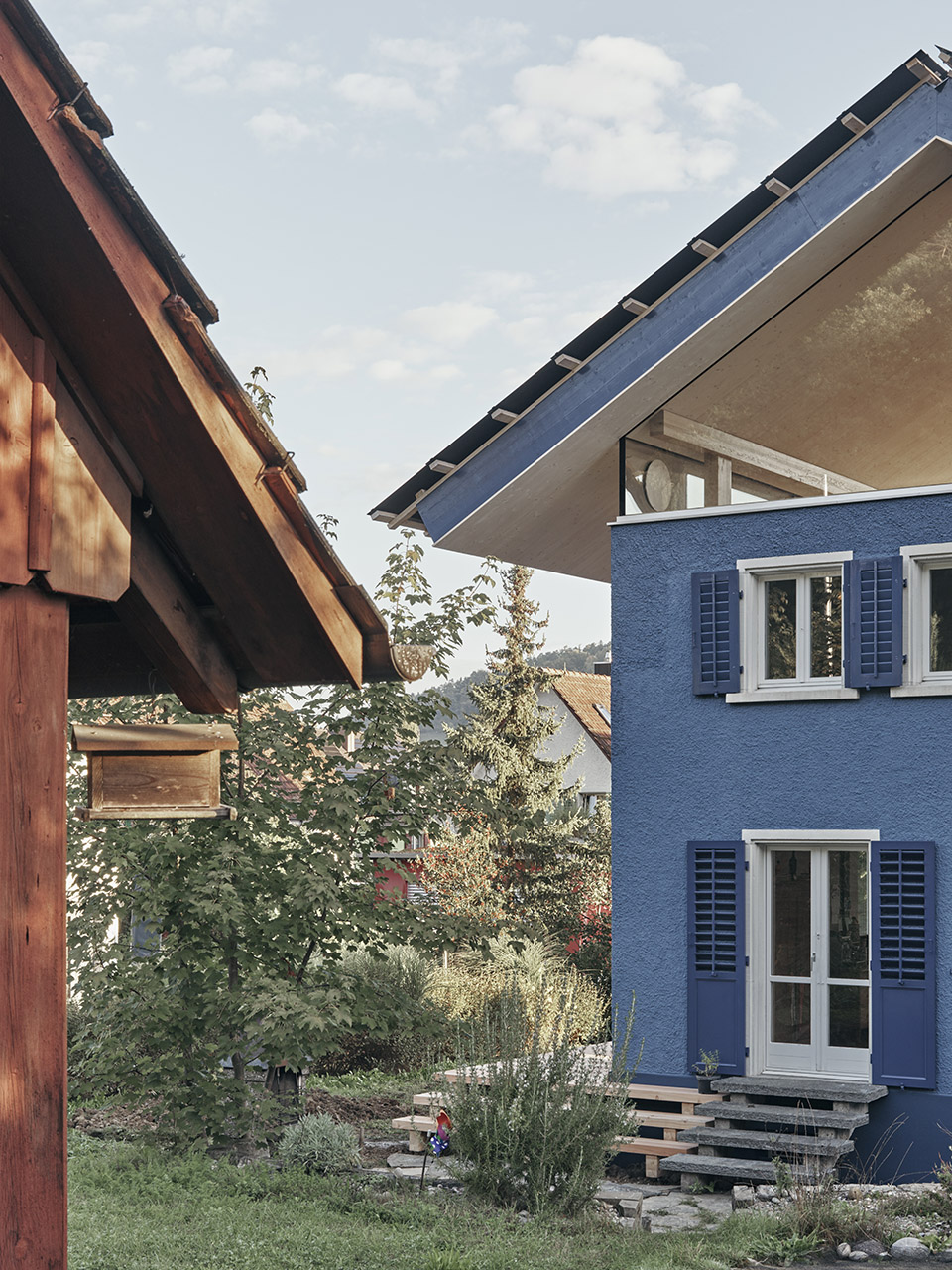

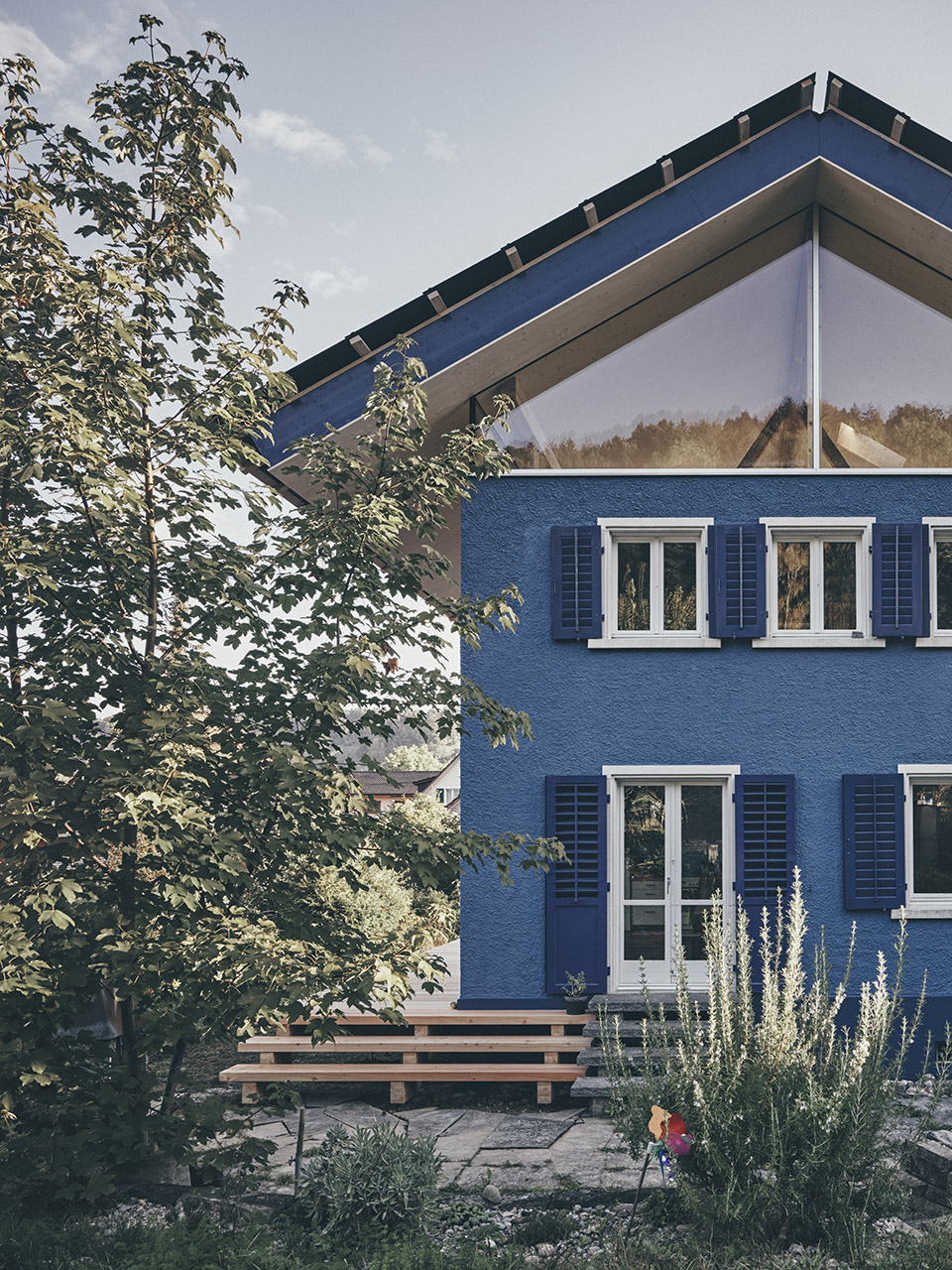

▼住宅外观，exterior of the project ©Lukas Murer

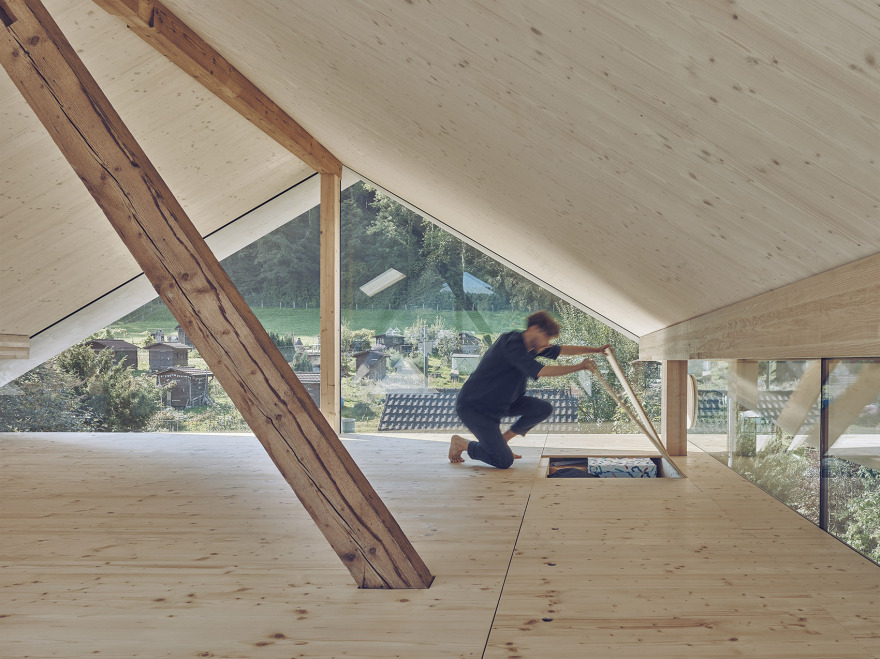

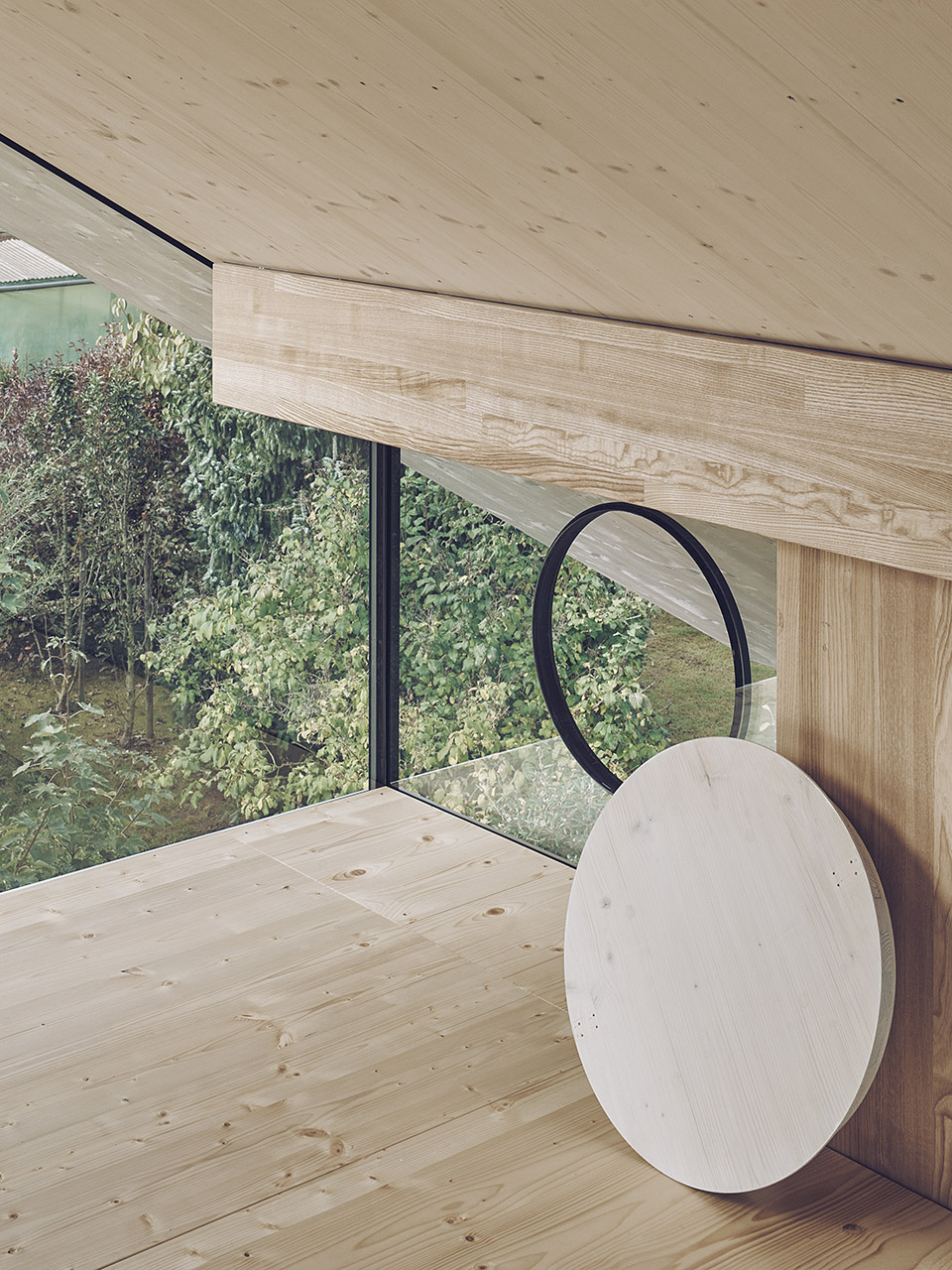

这是Lara和Marcel的私密休憩空间，他们可以在这里弹奏乐器或安静阅读。地板暗藏储物舱口，可存放他们需要的物品，使空间保持整洁。空间通过楼梯、屋顶天窗及固定玻璃上的圆形开口，与住宅、花园与天空形成多重联系。

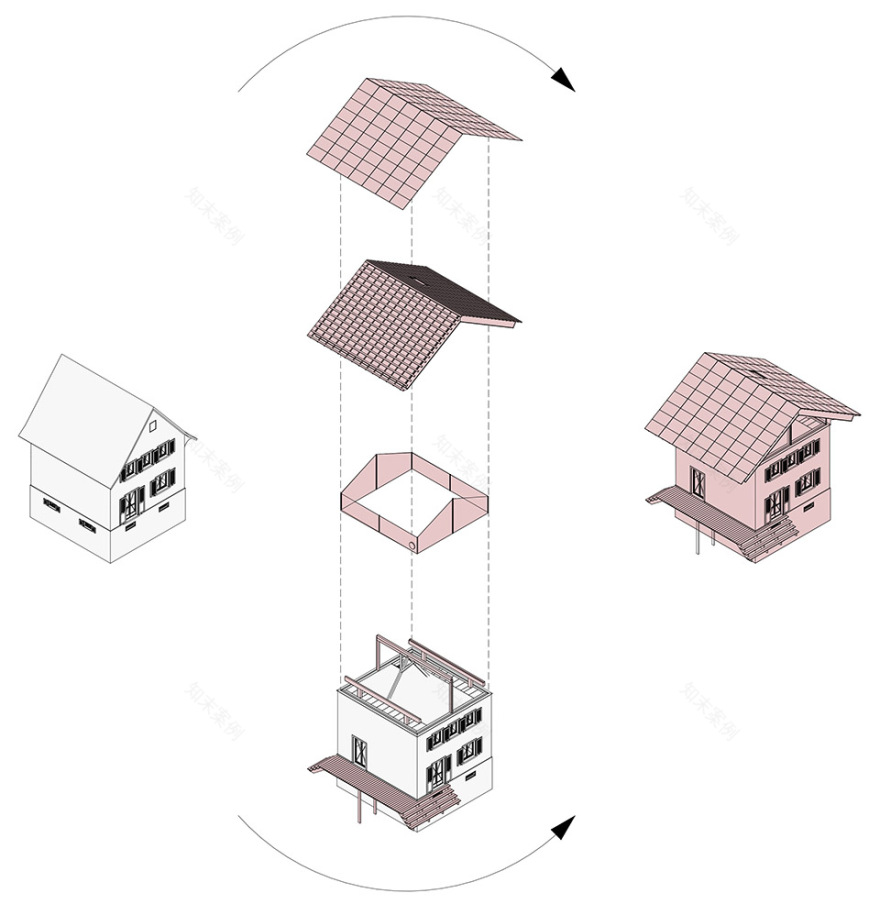

▼改造策略轴测图，strategy axonometric ©Lorenz Bachmann Architect

It is Lara and Marcel‘s retreat. Here they play their musical instruments or read a book in peace. There are flaps in the floor with sufficient storage space for everything they want to do in the room. The stairs, a roof window and a hole in the fixed glazing connect the room with the house, the garden and the sky.

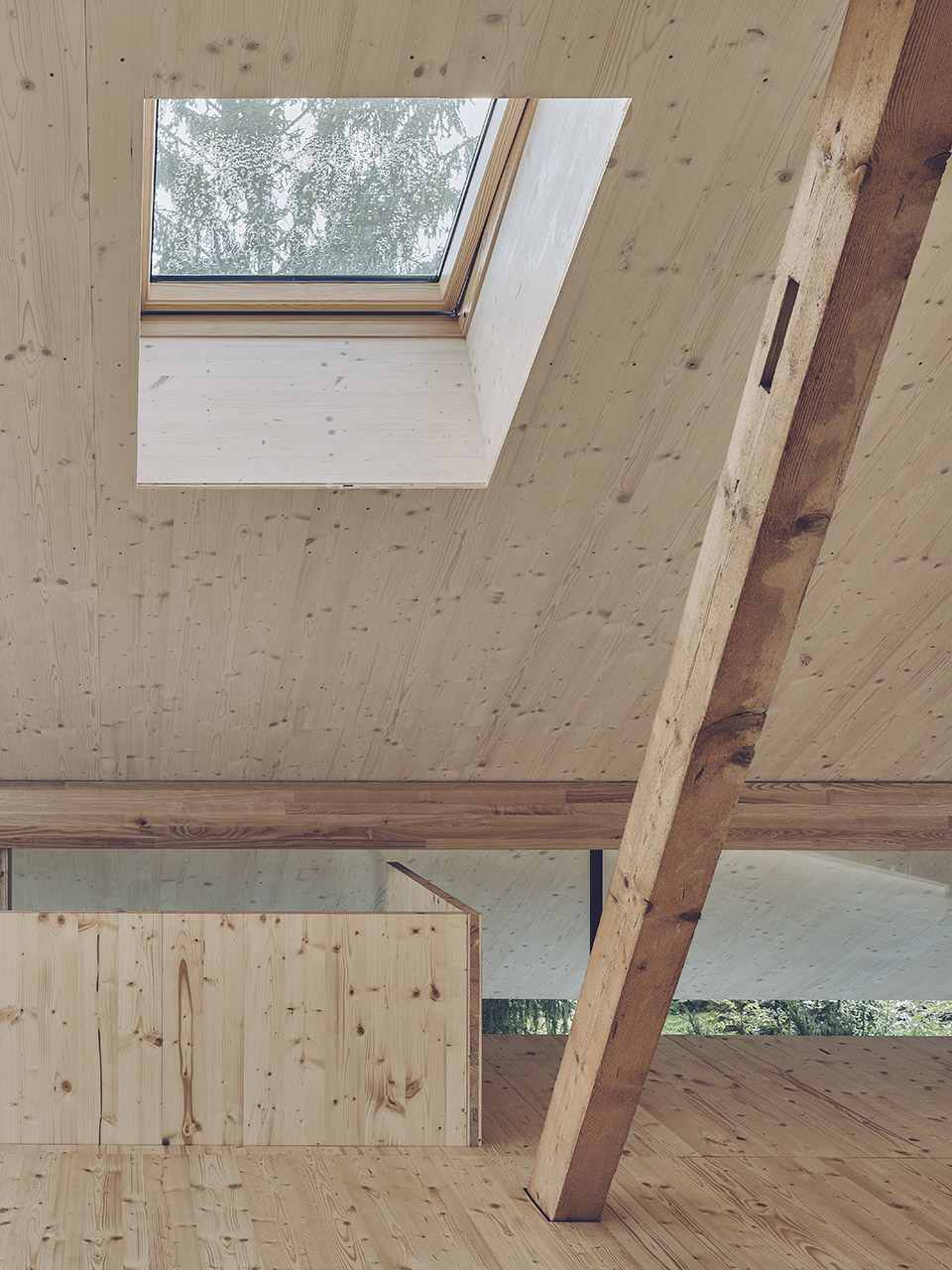

▼整体以木材为主要材料，using wood as the main material ©Lukas Murer

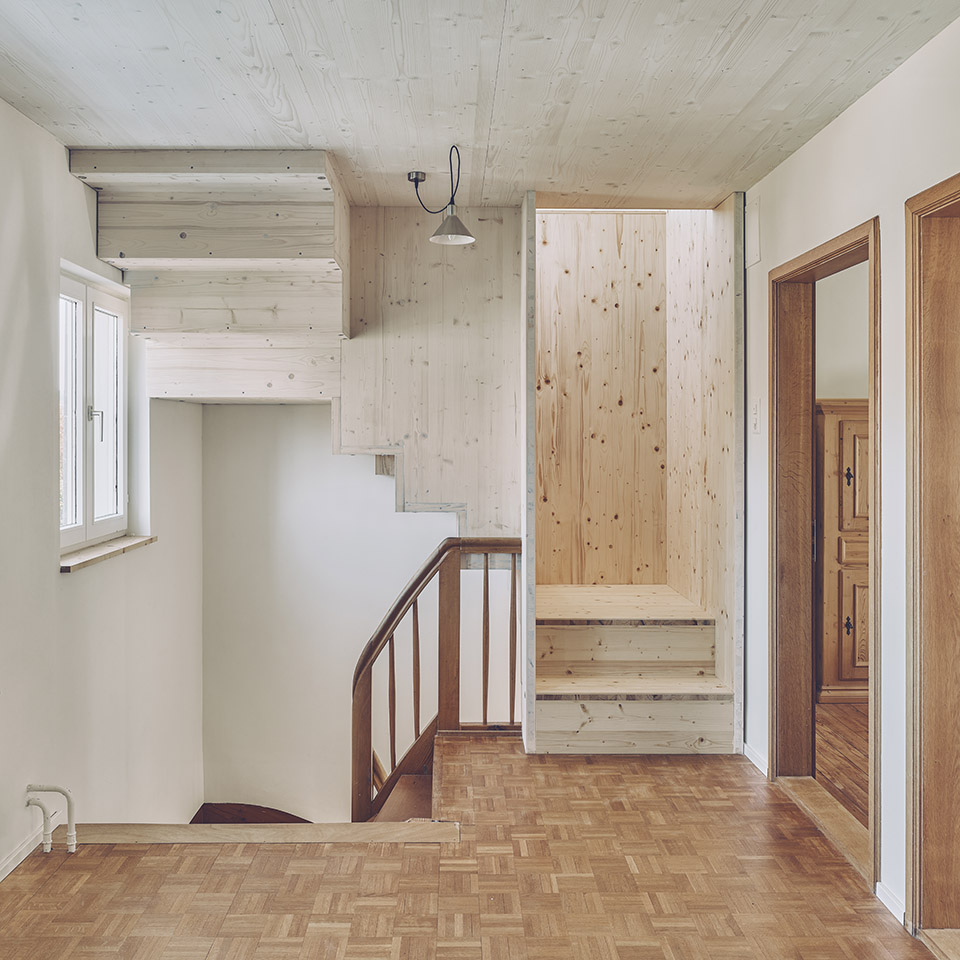

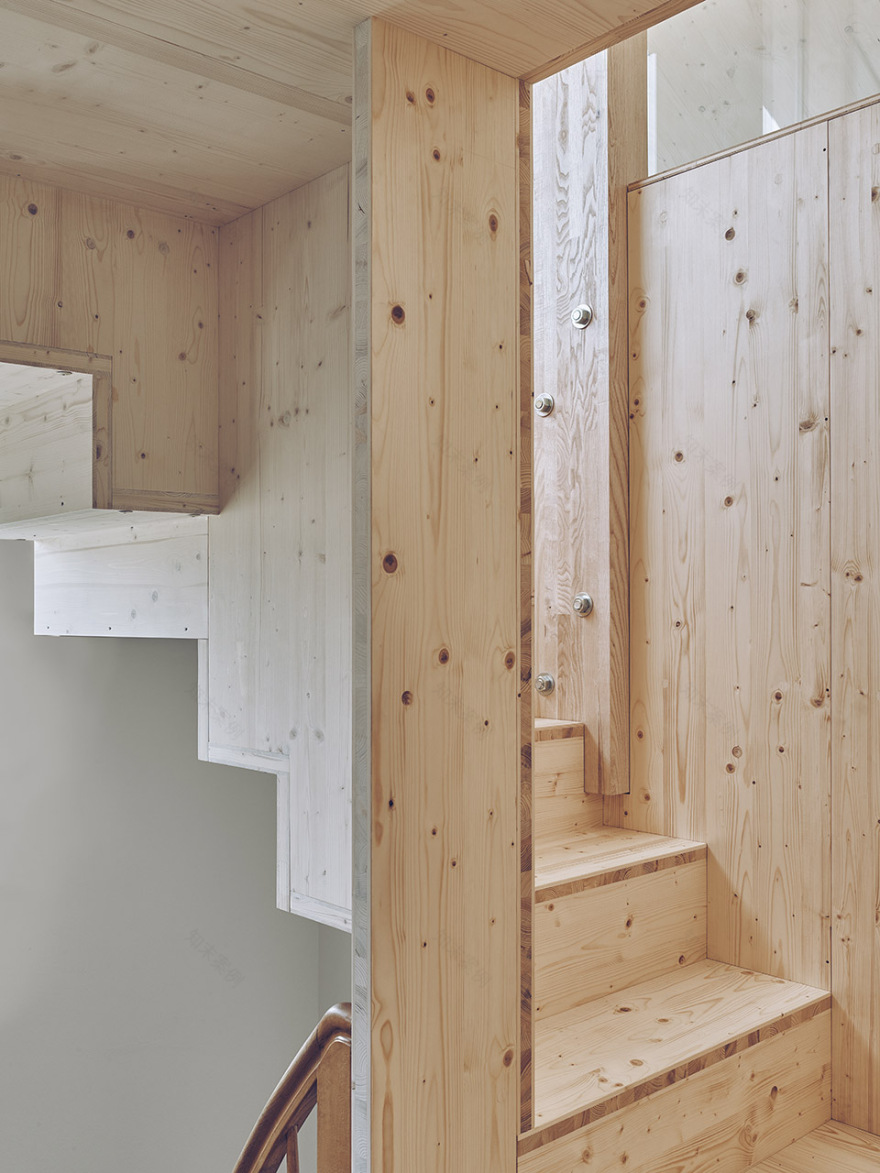

▼木质楼梯，wood staircase ©Lukas Murer

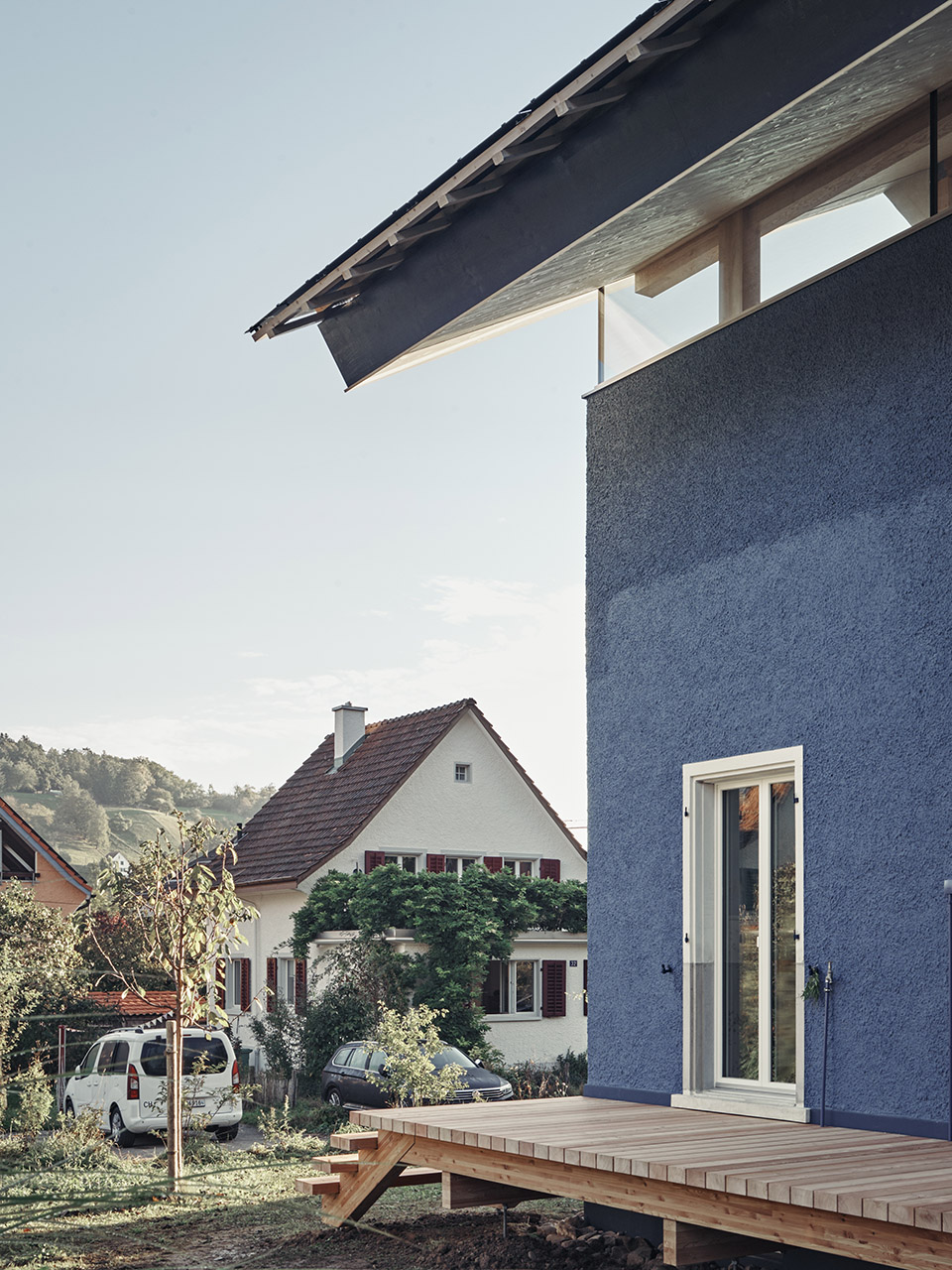

双坡屋顶向两侧悬挑，创造出两个半室外遮蔽空间：一侧作为入口区，可停放自行车与玩具。另一侧设有厨房露台，连接抬高的地面层与花园，增强室内外的互动。

The gable roof cantilevers on both sides, creating two sheltered outdoor spaces. On one side, there is an entrance area where bicycles and toys can be kept. On the other side, there is a new kitchen terrace that connects the elevated ground floor with the garden.

▼双坡屋顶空间，the gable roof space ©Lukas Murer

▼双坡屋顶空间，the gable roof space ©Lukas Murer

▼坡屋顶下空间，the space under the gable roof ©Lukas Murer

光伏屋顶系统为整栋建筑提供能源供应，同时抵御天气影响。黑色光伏面板由金属小挂钩固定，确保美观与稳定性。

The photovoltaic in-roof system protects against the weather and supplies the house with energy. The black PV panels are held on all sides by small metal hooks.

▼光伏屋顶系统，the photovoltaic in-roof system ©Lukas Murer

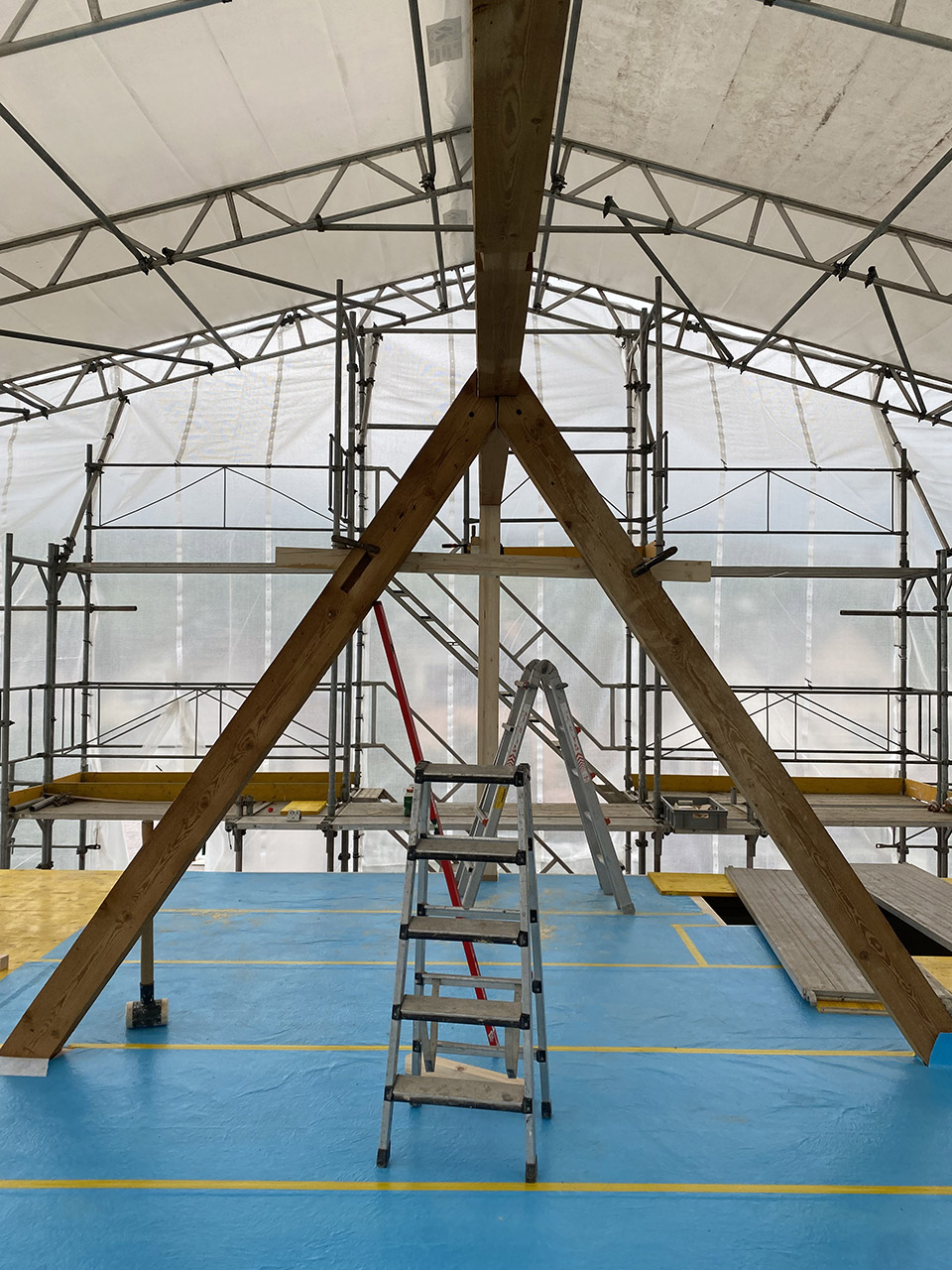

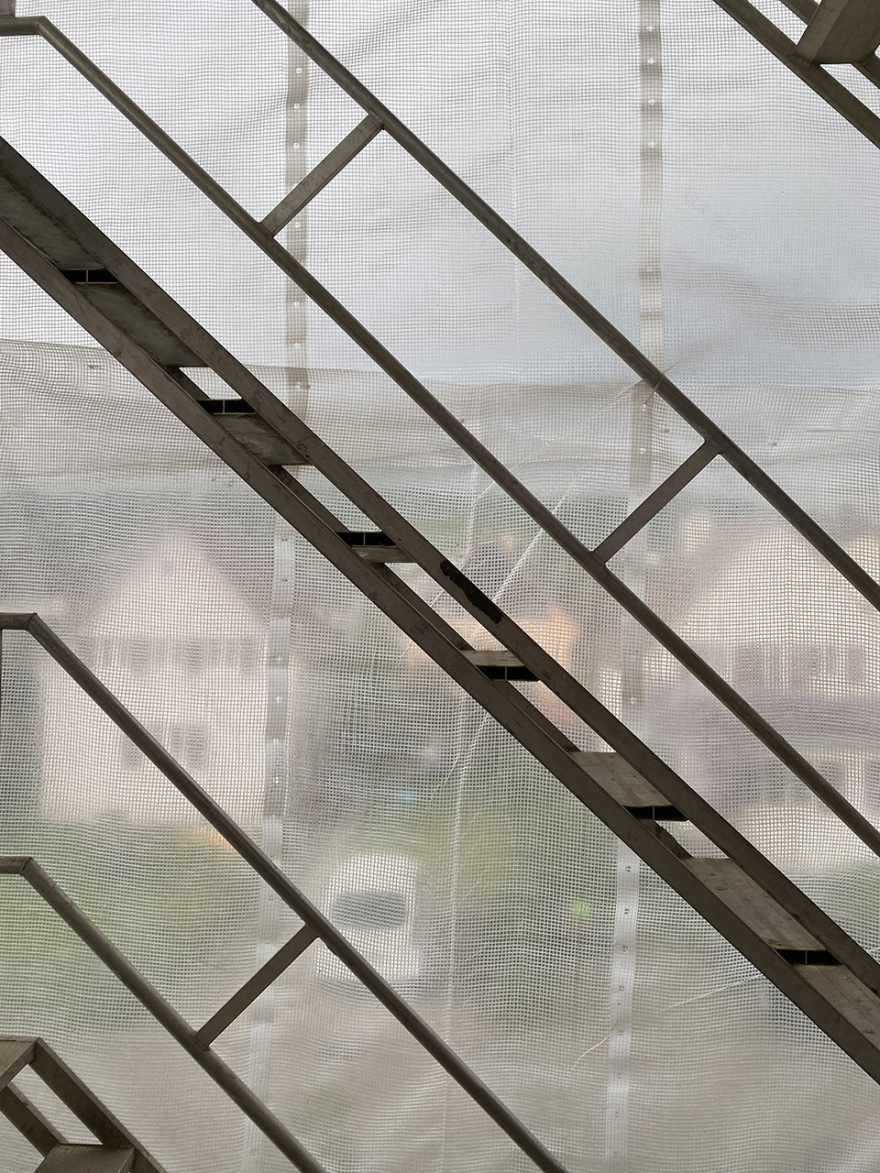

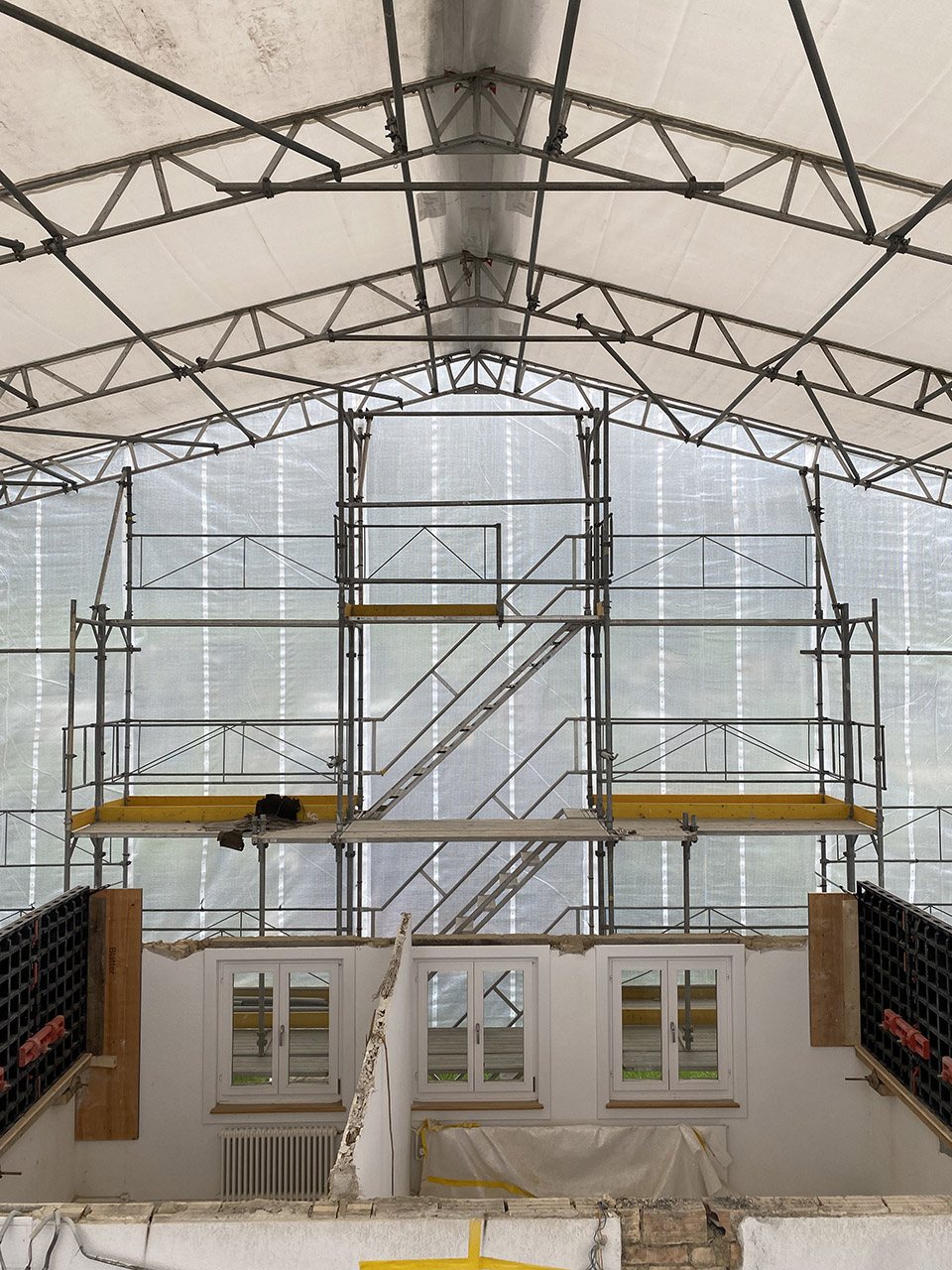

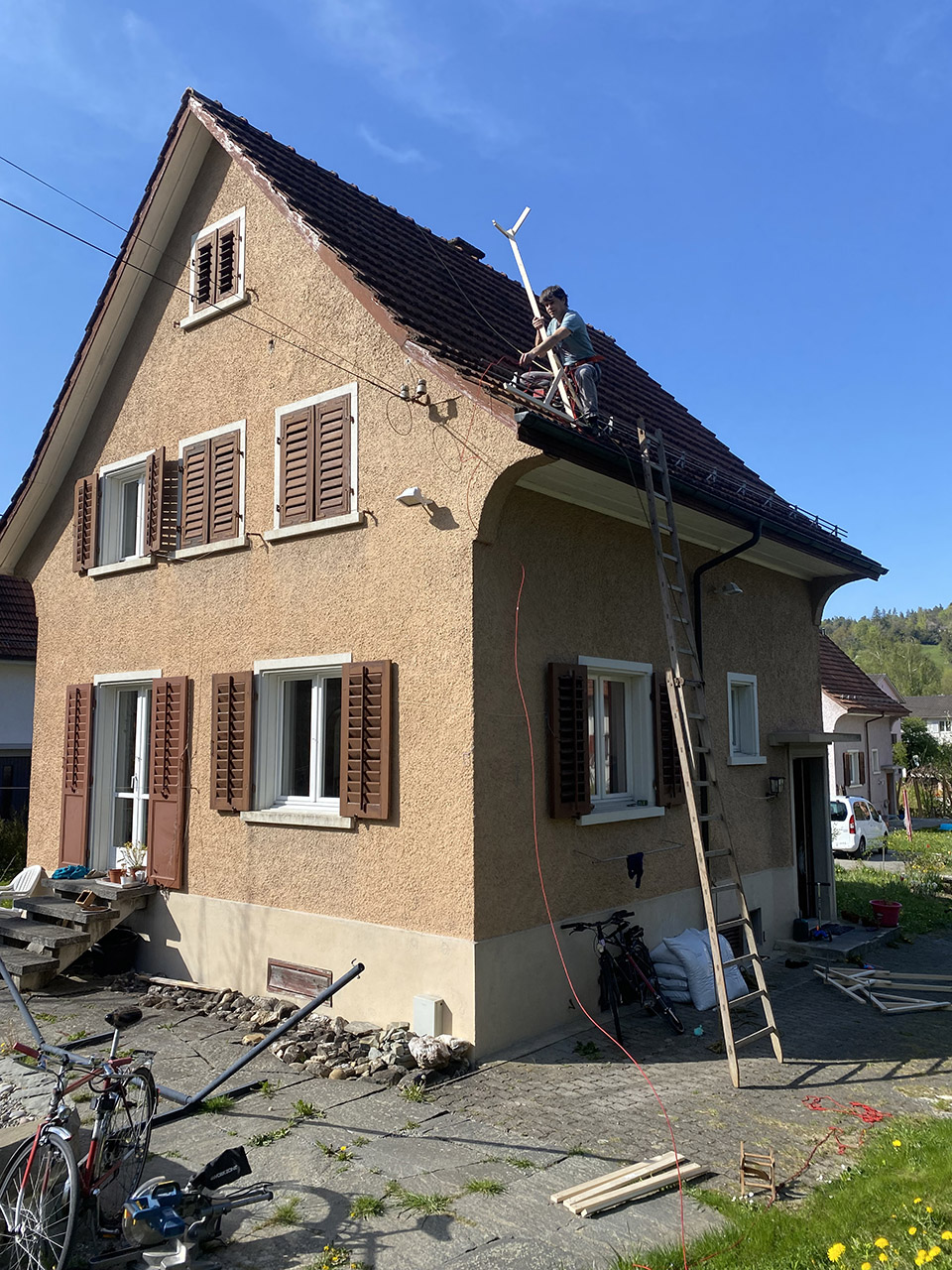

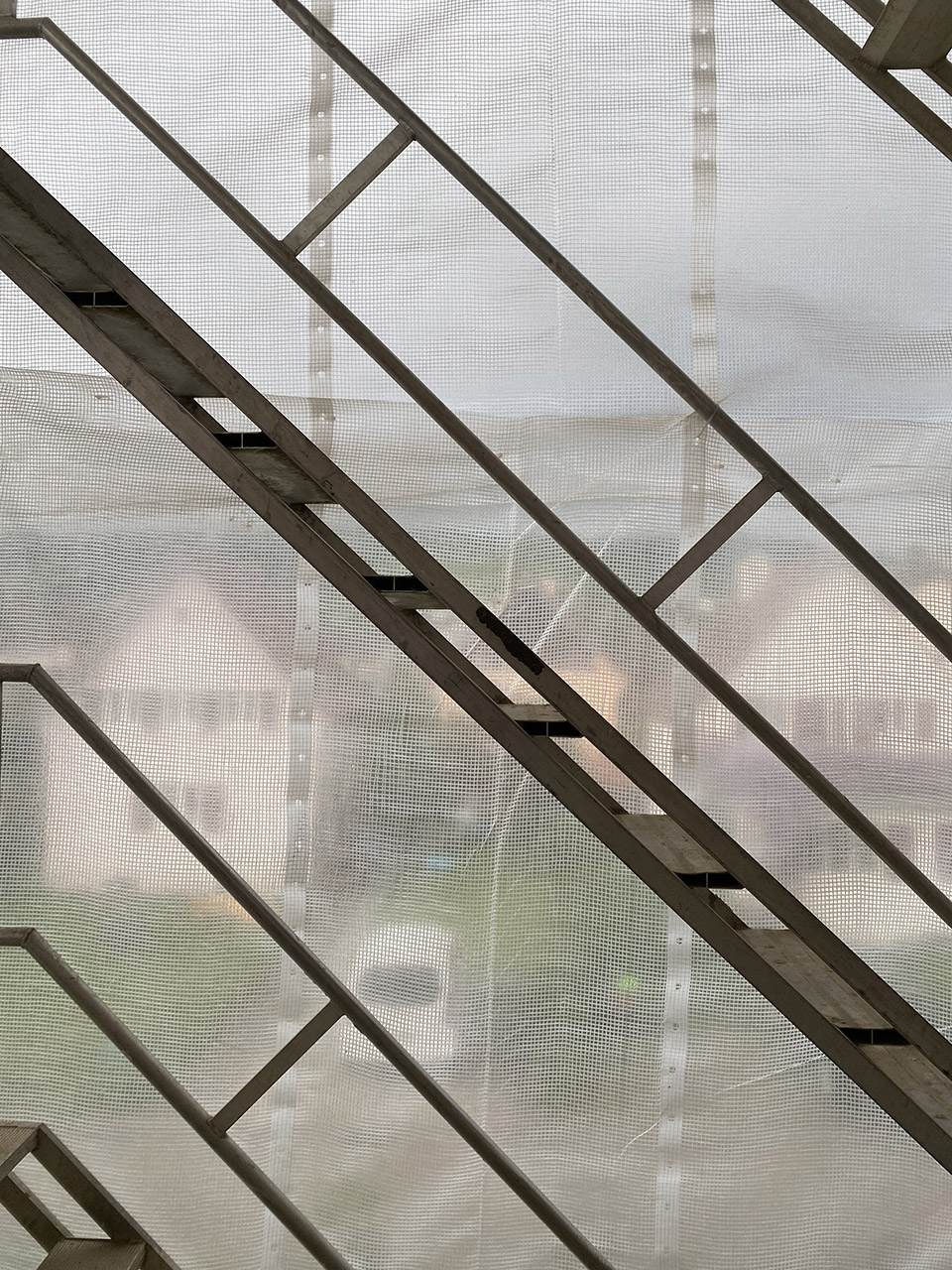

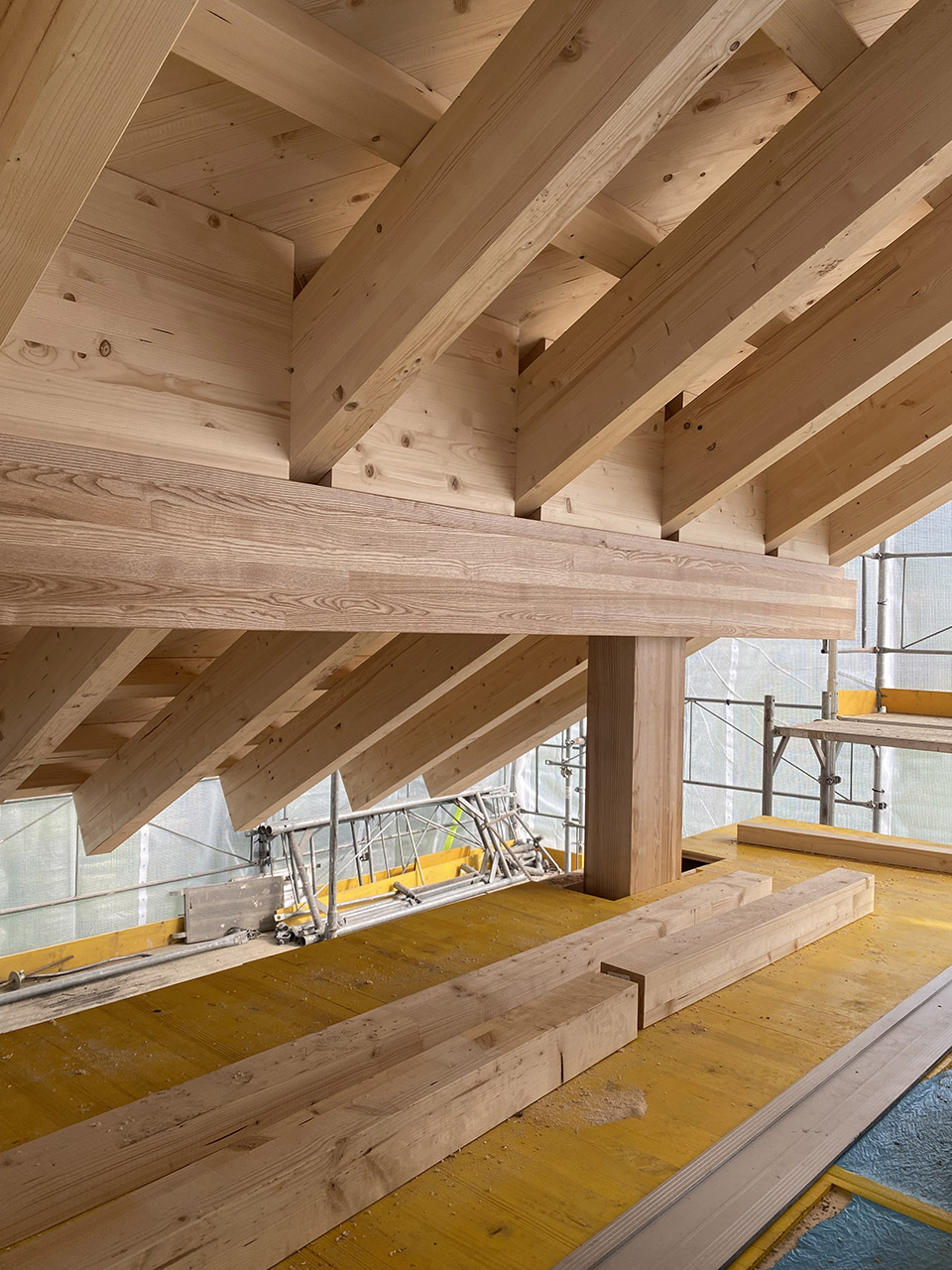

▼施工过程，construction progress ©Lorenz Bachmann Architect

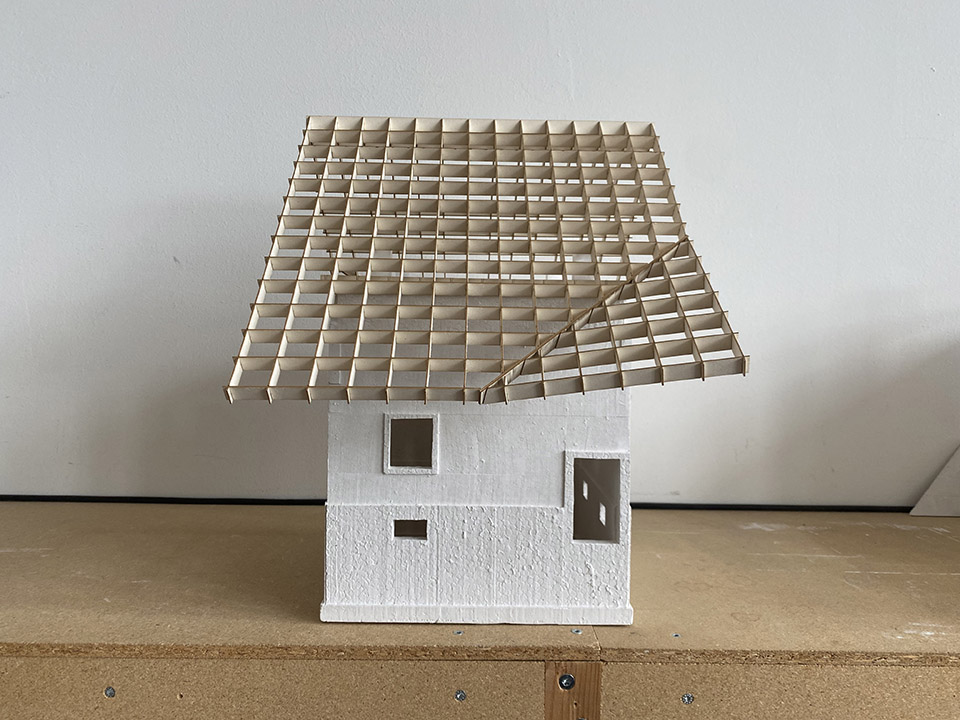

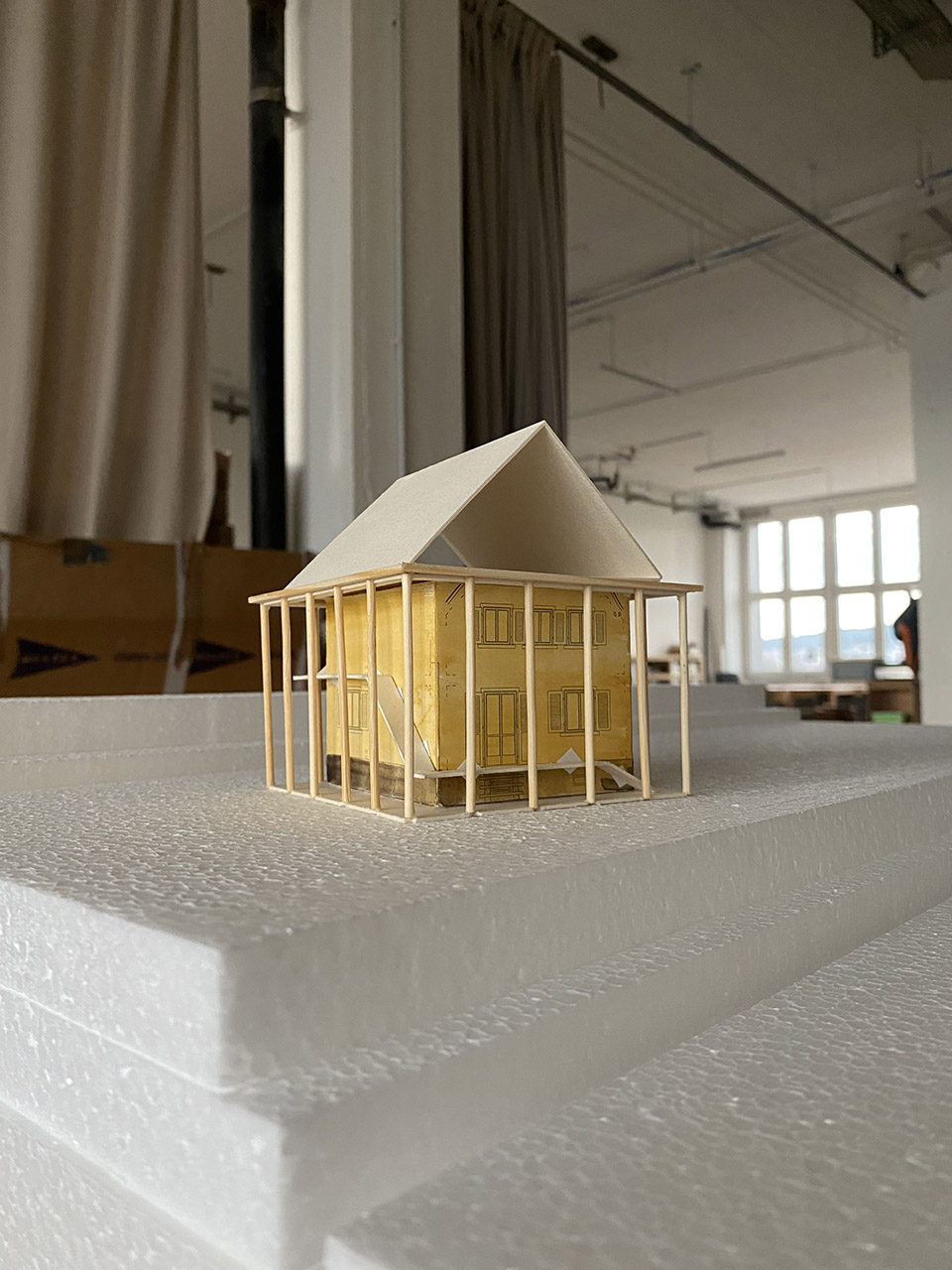

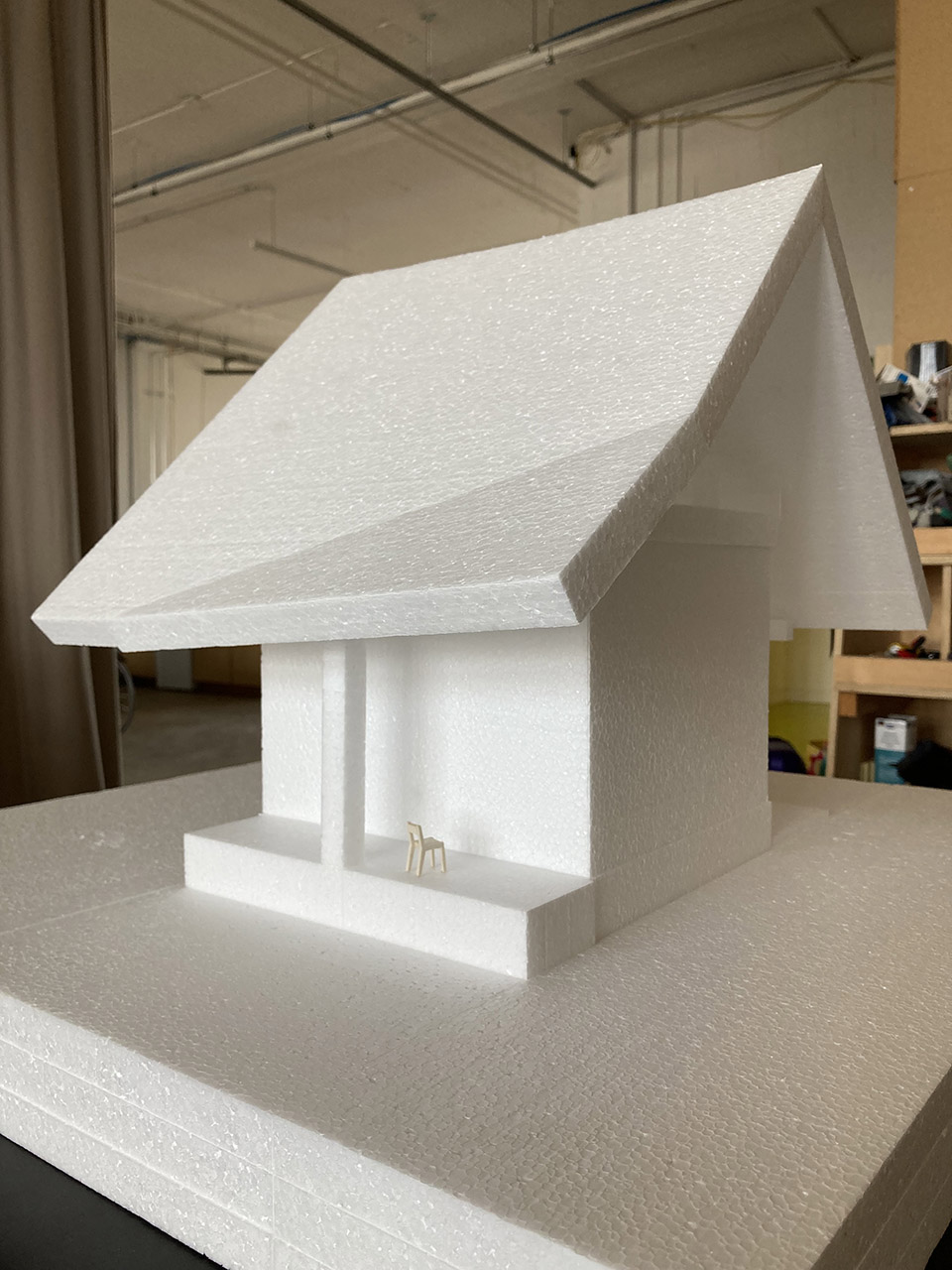

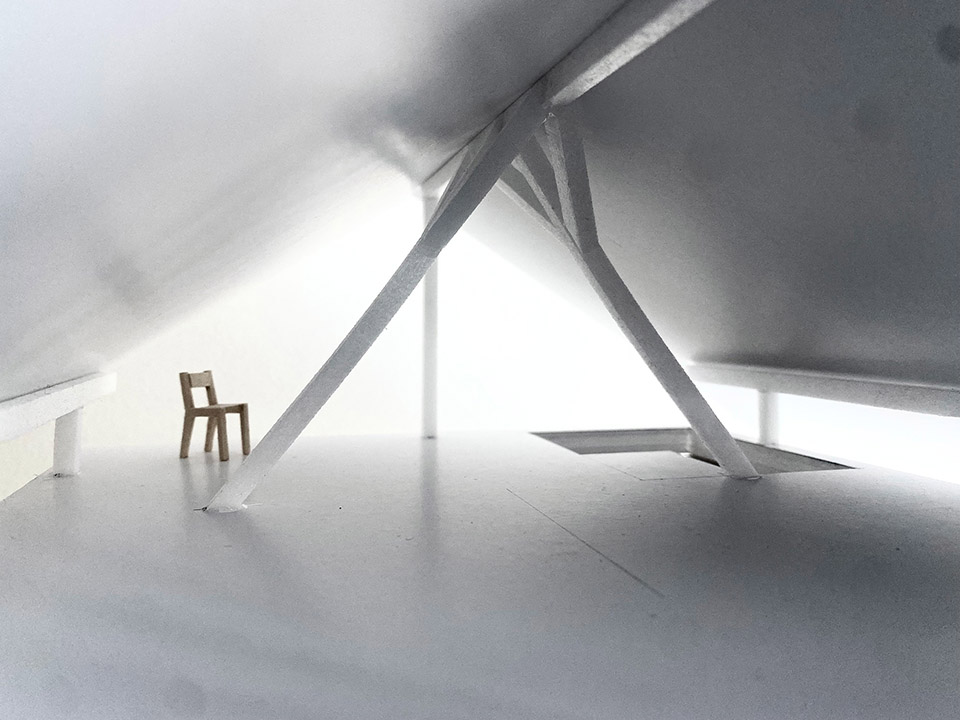

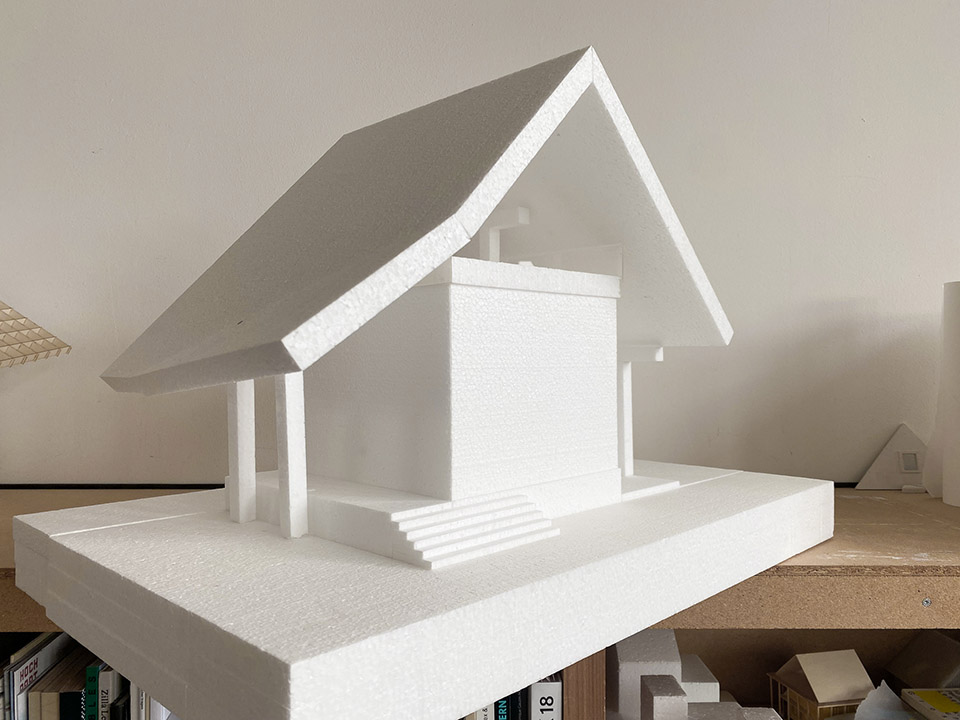

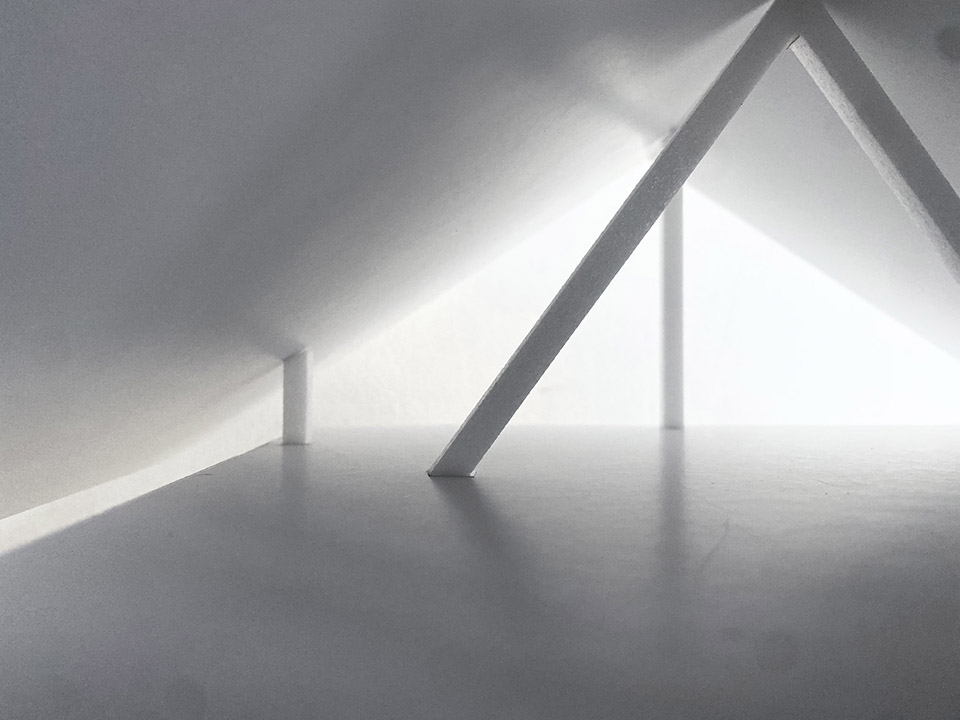

▼模型，model ©Lorenz Bachmann Architect

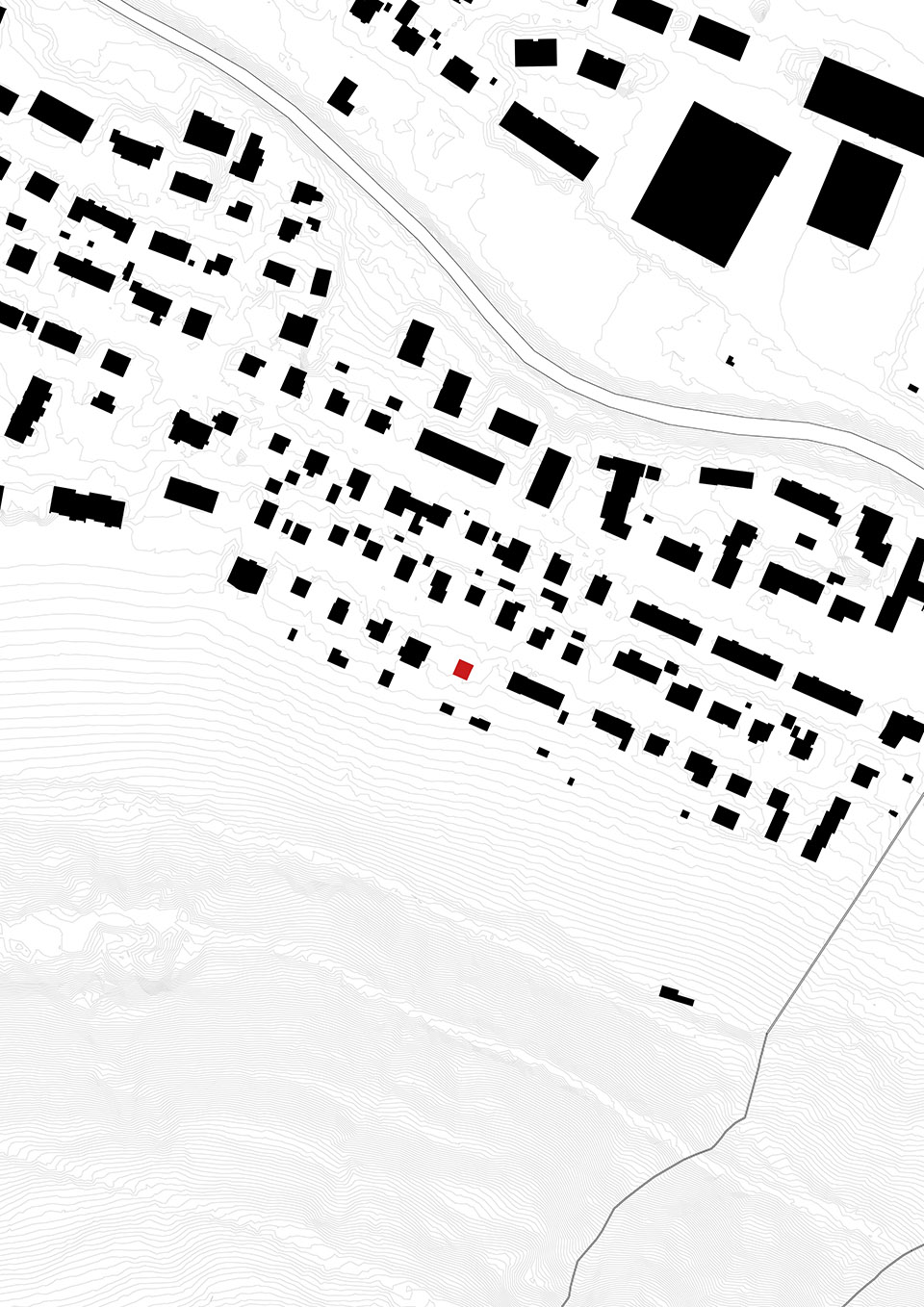

▼场地平面，site plan ©Lorenz Bachmann Architect

▼一层平面前后对比，ground floor plan before and after renovation ©Lorenz Bachmann Architect

▼二层平面前后对比，first floor plan before and after renovation ©Lorenz Bachmann Architect

▼三层平面前后对比，second floor plan before and after renovation ©Lorenz Bachmann Architect

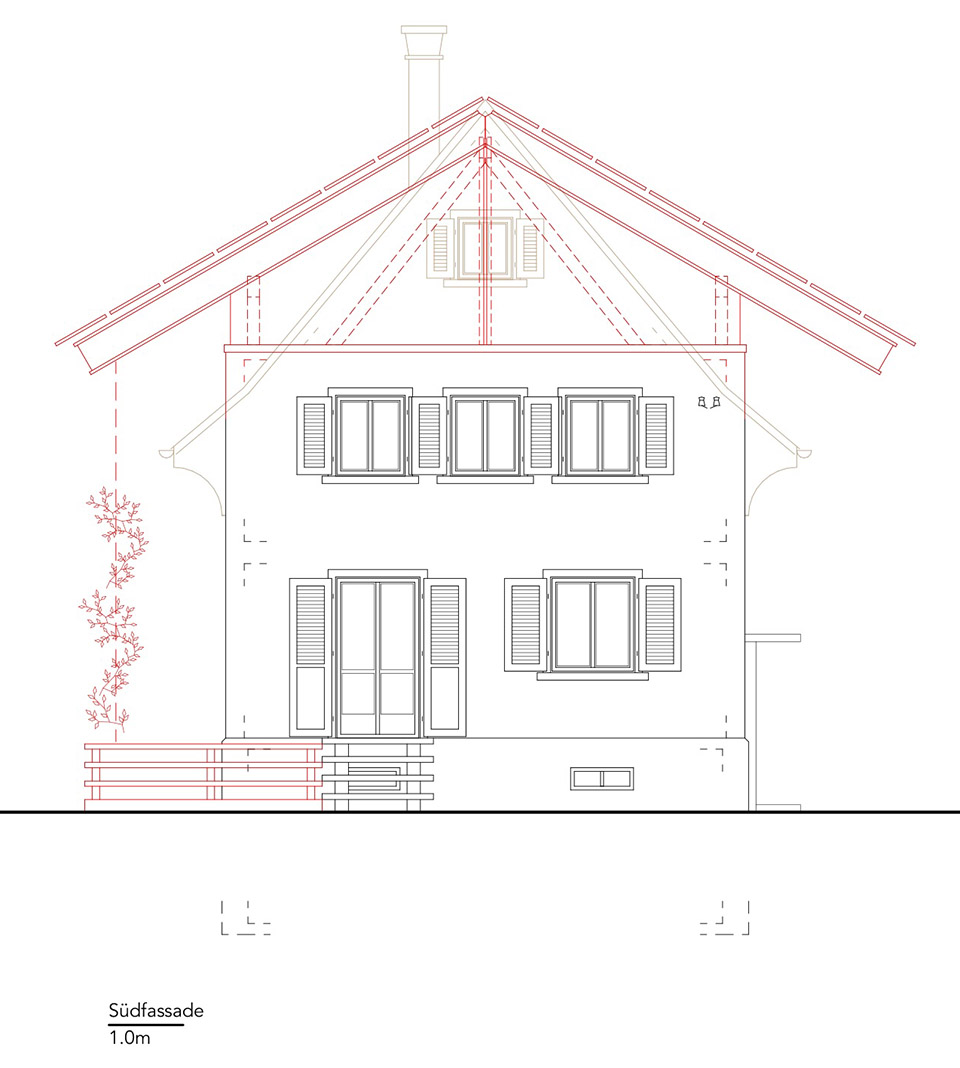

▼立面前后对比，elevation before and after renovation ©Lorenz Bachmann Architect

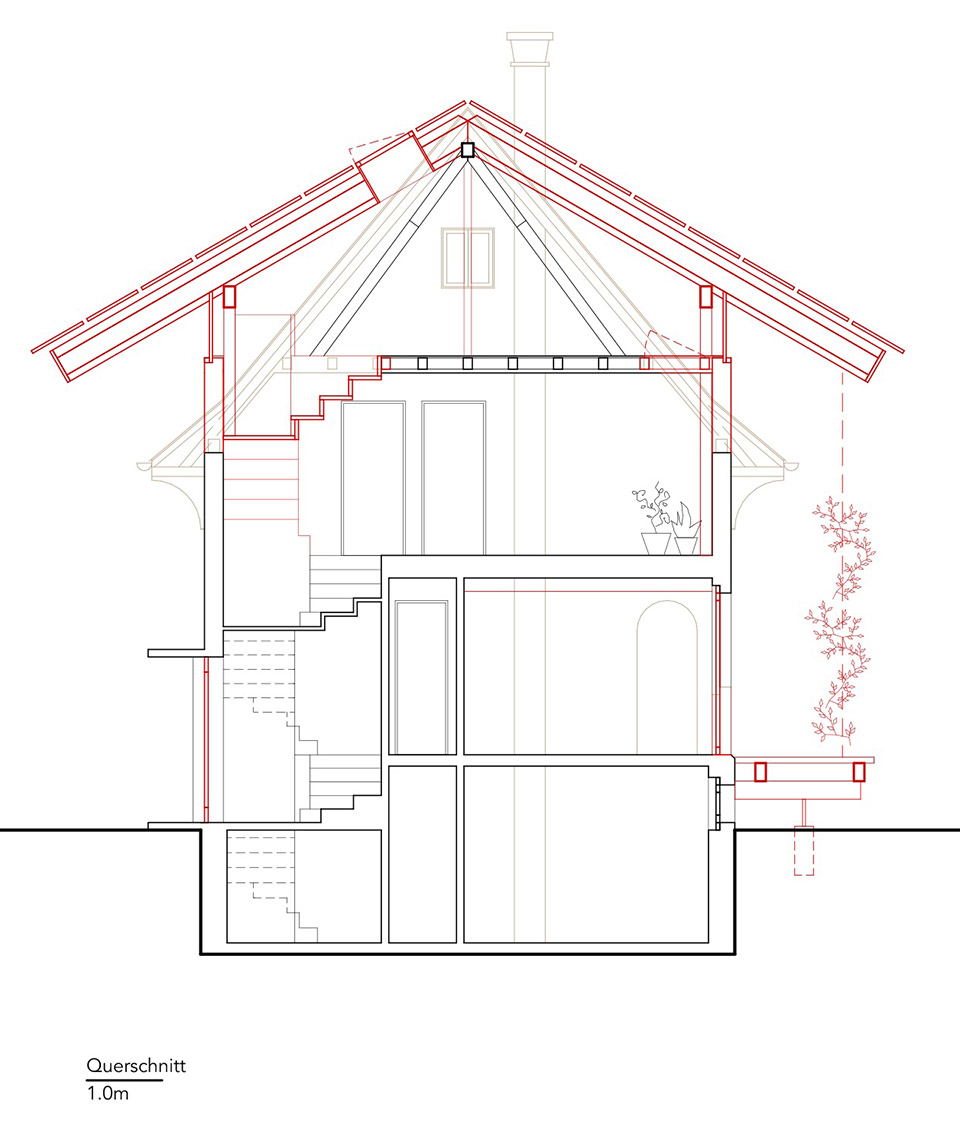

▼剖面前后对比，section before and after renovation ©Lorenz Bachmann Architect

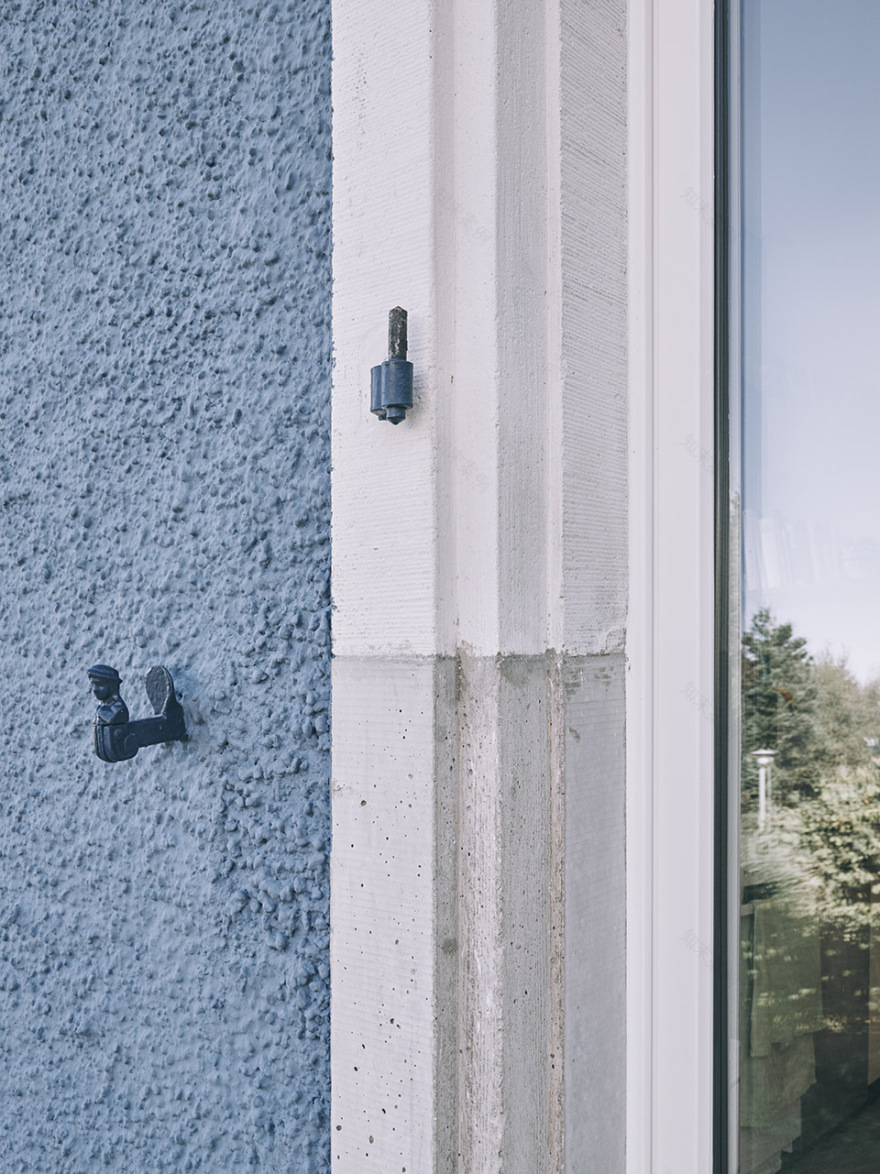

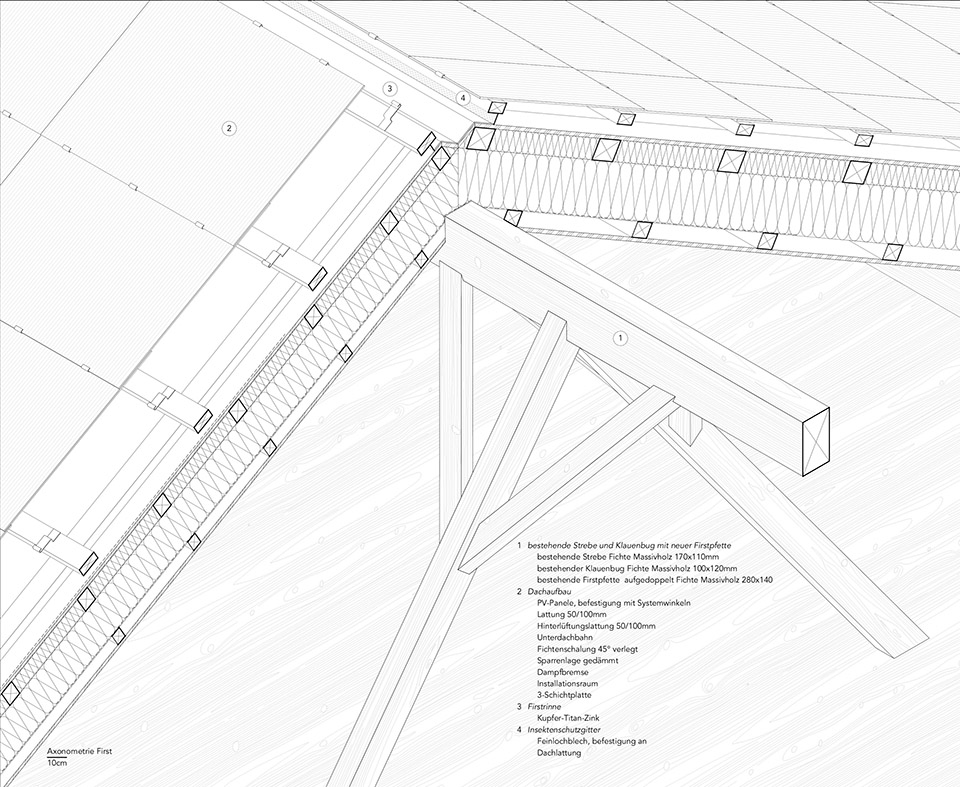

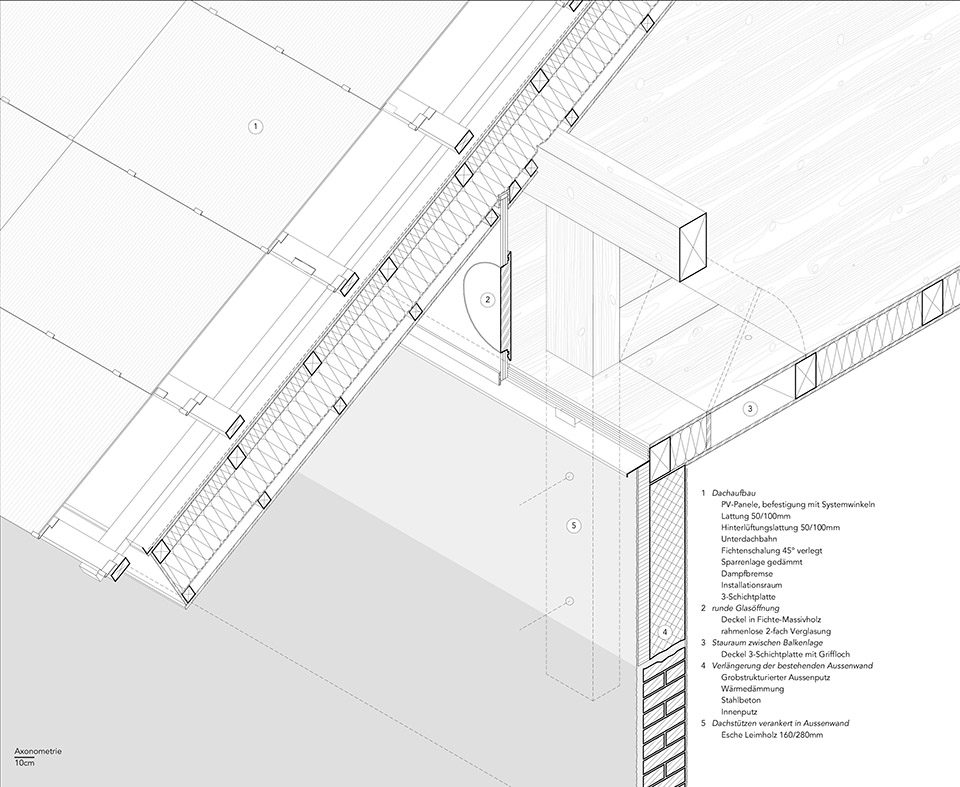

▼细部，detail ©Lorenz Bachmann Architect

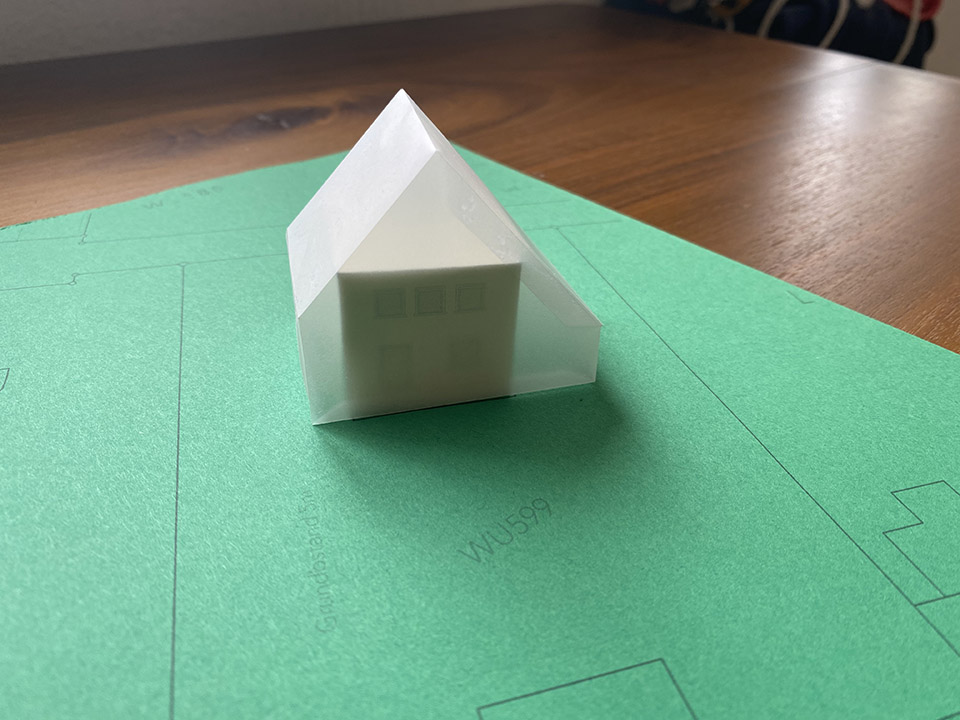

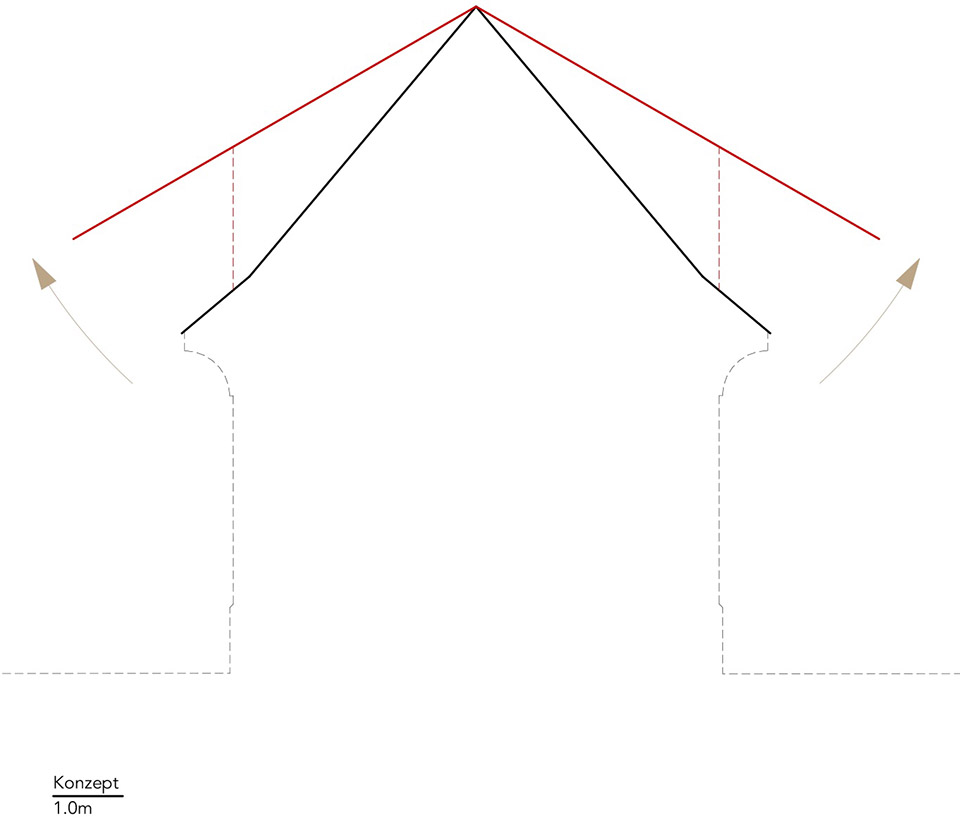

▼概念，concept ©Lorenz Bachmann Architect

Project title: House with a flying roof

Typology: Conversion

Location: Tannenweg 33, 8408 Winterthur

Program: Housing

Planning and construction: 2021 – 2023

Land area: 763 m2

Usable floor space: 130 m2

Volume: 540 m3

Costs: CHF 500‘000

Clients: private

Architecture: Lorenz Bachmann Architect ETH SIA

Member of the Architekturgenossenschaft C/O

Team: Lorenz Bachmann, Philip Meile, Milena Isaak

Civil engineer:  Walter Bieler AG Holzbau

Timber construction:  Zehnder Holz und Bau AG

Building physicist:  Zehnder & Kählin AG

Solar system:  EWG Winterthur

Photography: Lukas Murer
