Subterranean Ruins by A Threshold

Photographer : Edmund Sumner

Kaggalipura is a small town situated 40km south of Bengaluru city. The 3-acre farmland is a fruit orchard where trees such as mango, sapota, banana, coconut, butter fruit, and jackfruit are grown.

The site offered various opportunities for design. A sloping landscape allowed a rainwater collection system to be created to sustain the existing farming practices. A steep four metre drop preceded by flat land allowed the building to be tucked into the landscape with minimal cutting. The southern side is sunken along this drop, mitigating heat gain, while the northern side opens to the landscape and takes advantage of the light. The rooftops are filled, lending a sense of continuity to the landscape, increase thermal mass and keep the spaces underneath cool, and offer opportunities for small-scale farming above.

The idea started with multifunctional caves, tucked within the earth with its existing terrain, like unfinished ruins, planned in and around existing trees, eventually over the years becoming part of nature.

The materials used are all locally sourced, with a minimal footprint. The larger boulders excavated from site were used for the retaining wall, while the smaller rocks and pebbles were used as flooring material in the courtyards. The construction of the building employed local masons, artists and crafts people, found in and around Kaggalipura village, as a form of community building activity.

Bangalore,Karnataka,India

Architects : A Threshold

Area : 1776 sq. ft.

Year : 2022

Website :

Consultants : Structural Consultants – Raghvendra- Skanda Structural Consultants, Civil Contractor – Mohan and team, Landscape - Divakar and A Threshold

Design Team : Ar. Avinash Ankalge, Ar. Harshith Nayak

Lead Architect Designer : Ar. Avinash Ankalge, Ar. Harshith Nayak

More Specs

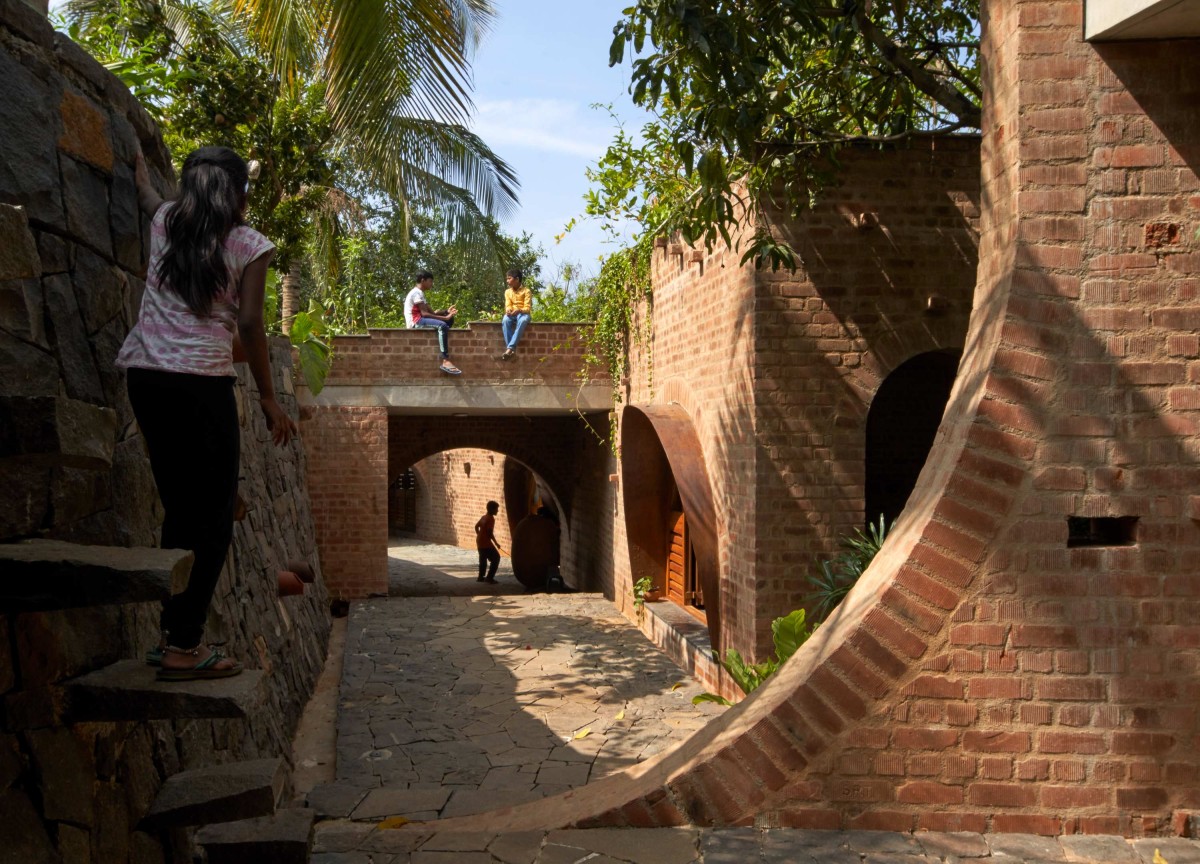

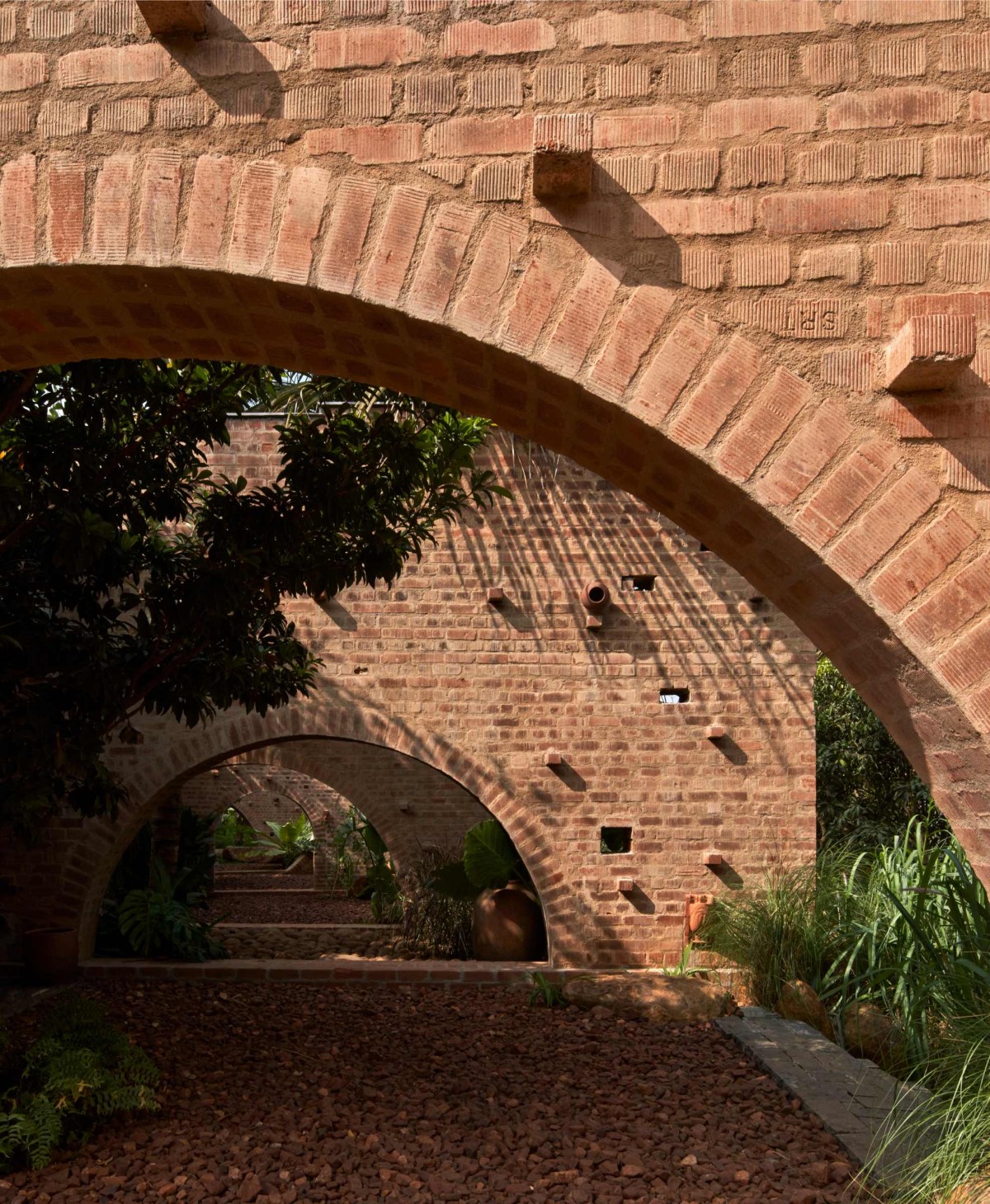

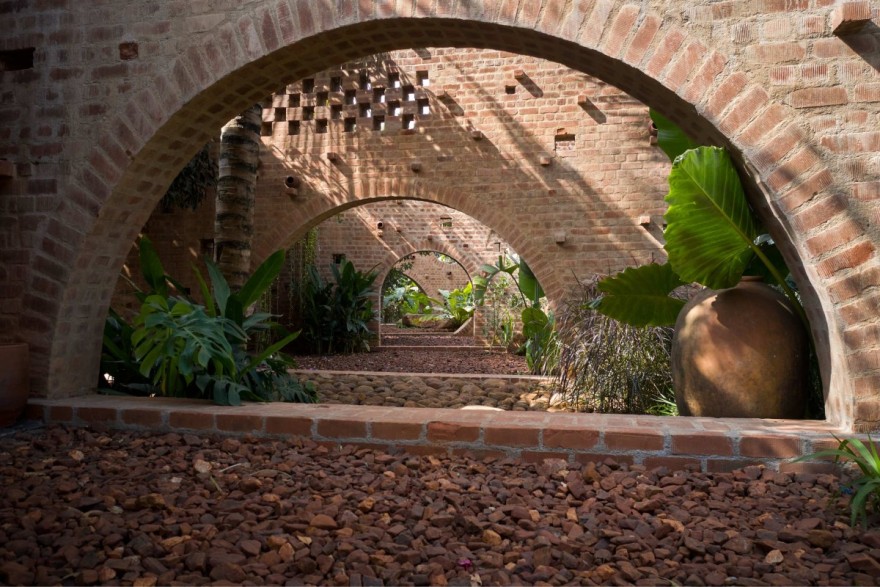

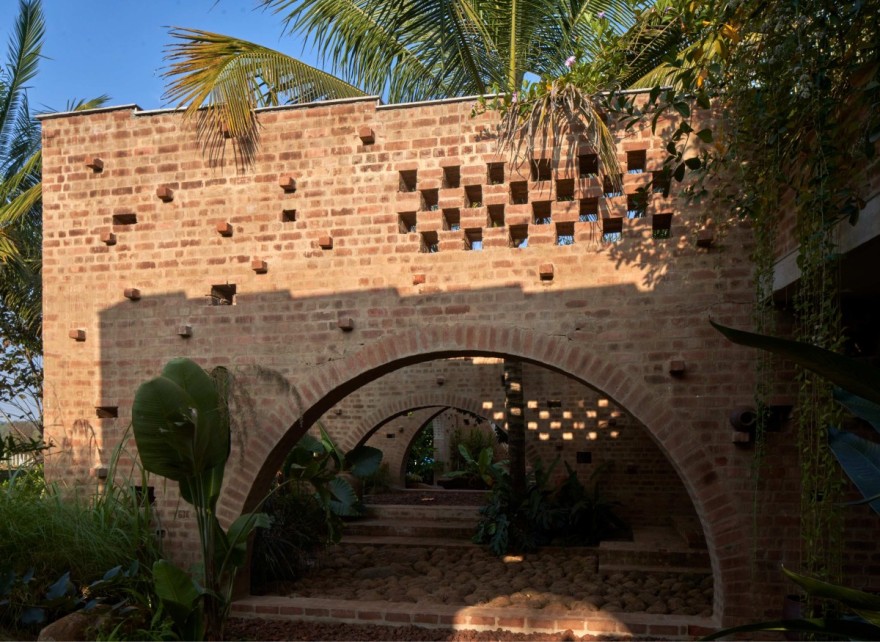

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

The entire programme of a built and unbuilt was imagined to be multifunctional which can be used for many activities over the time.

The client’s initial requirements of a farmhouse which would be used on occasion did not warrant a building of such a scale, so suggestions were made to amend the brief. Spaces are instead designed to be flexible and host various functions which fulfils one of the primary design objectives to support the local community and its activities. The alternate built and unbuilt configuration allows functions to take place within the caves and spill out onto the open courts. For instance, classes for local school children may be conducted within the caves, while the open courts may be used as spill out spaces for children to eat and play.

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold 08

In addition, the open court can act as a transition between the classroom and the open ground to the north, with the stairs becoming seating spaces to watch. In another instance, it may take on programs to support the thriving local artisans and craftspeople. The sunken passageway to the north with its niches could become displays of the artisans’ work, while the caves and open courts could become workshops for artisans to practice, teach and sell their work.

The built-unbuilt compliments each other, the unbuilt spaces in the form of void imagined around existing trees to be used for various spill over activities, so these caves and courtyards can be used a home stay, can be a kindergarten or a primary school, these spaces can be used by village people for community activities or gatherings, also as artists residency where the nearby artists can come and stay to spread their skills and craft-knowledge amongst the around village people.

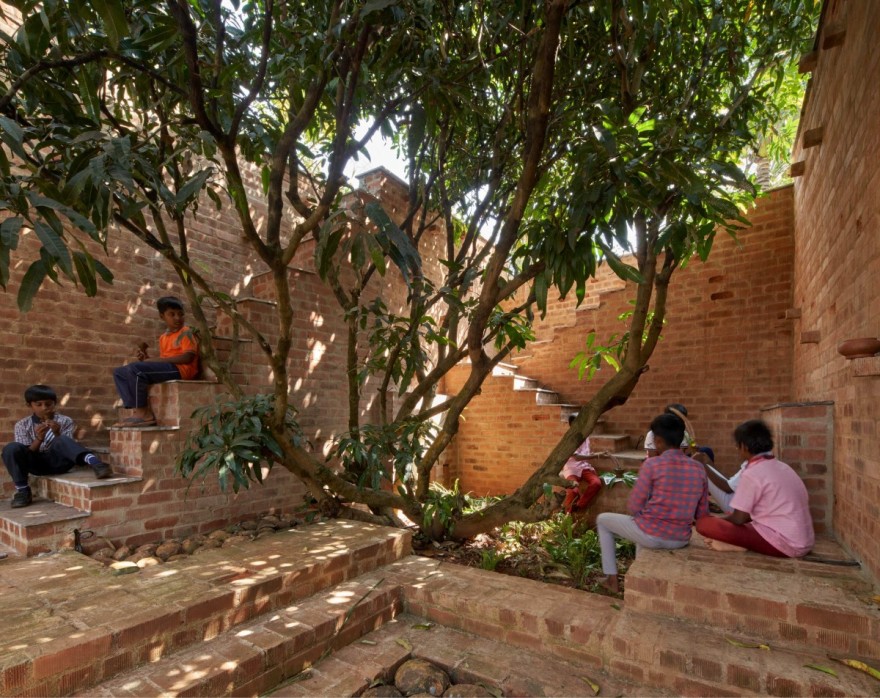

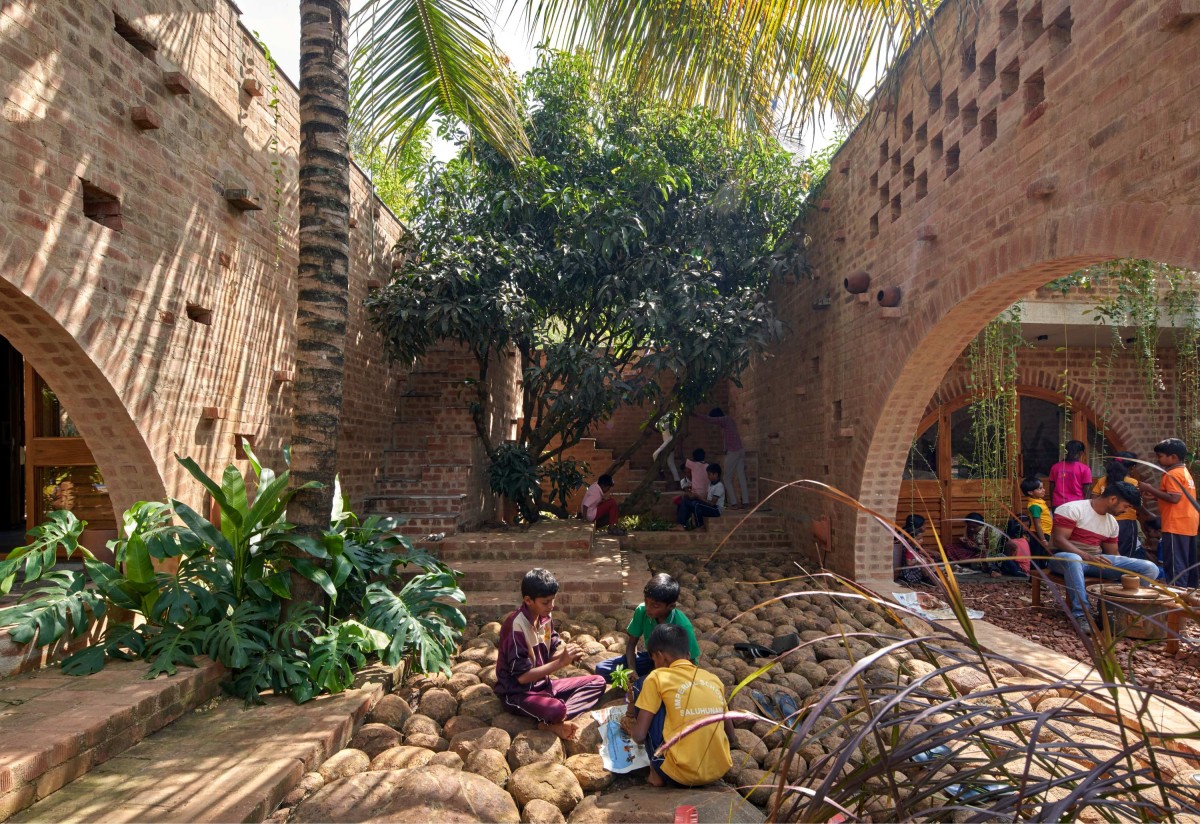

Court of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Exterior view of Subterranean Ruins by A Threshold

Interior view of Subterranean Ruins by A Threshold

Garden of Subterranean Ruins by A Threshold

Dusk light exterior view of Subterranean Ruins by A Threshold

Dusk light exterior view of Subterranean Ruins by A Threshold

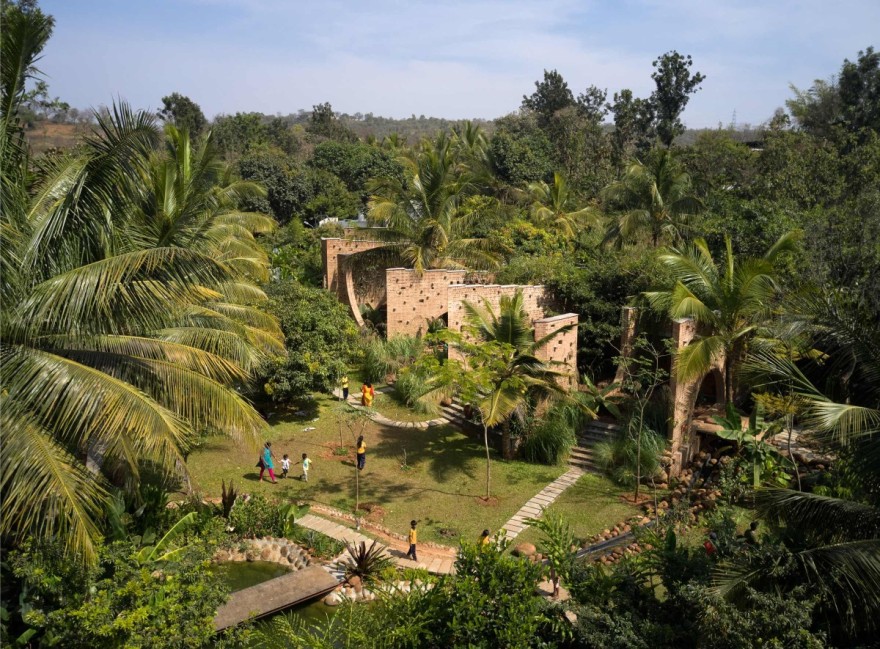

Bird eye view of Subterranean Ruins by A Threshold

Bird eye view of Subterranean Ruins by A Threshold

Bird eye view of Subterranean Ruins by A Threshold
