德州历史委员会 | 跨越百年的标准化导示设计

This project at fd2s was particularly interesting in that I took over many roles during its duration. For this project I was Lead, Project Manager, Designer, and even Surveyor.

THE SCOPEThe deliverable consisted of a standardized wayfinding signage program for multiple historic sites. Not only does each site have its own unique programmatic needs and existing, disparate signage; with historic timeframes ranging from pre-columbian civilization to early twentieth century the architectural references span hundreds of years.How to consolidate hundreds of years of history? How to keep signage from interfering with the site’s specific aesthetics, while performing the important function of guiding visitors through, sometimes a densely packed site in what is now a hotel, sometimes through acres upon acres of beautiful (far-west) Hill Country landscape?

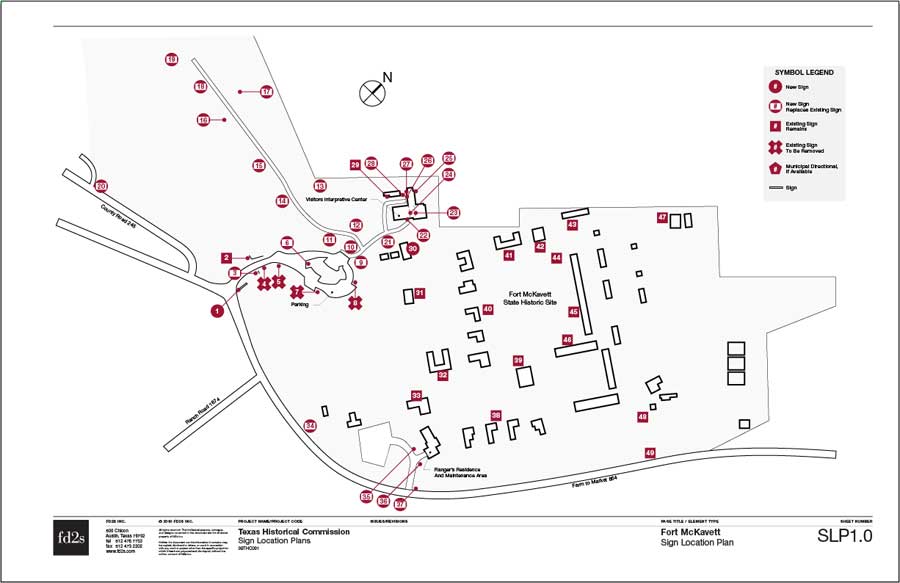

The challenge seemed daunting at first. The process became a design-guiding trip – in more ways than one – that I’l never forget. The first step in this project was to fully document – and understand – the current state of wayfinding signage in the eighteen sites in the Scope. I also assessed opportunities for improvement.Presenting these findings became something of its own challenge. There were existing signs to be demolished and replaced, discarded, new signs in places where there were none, and so on. In order to clearly convey all this information, I devised an easy to use symbol legend where each symbol (distinct even when reproduced in black and white) would communicate the conditions of each location.

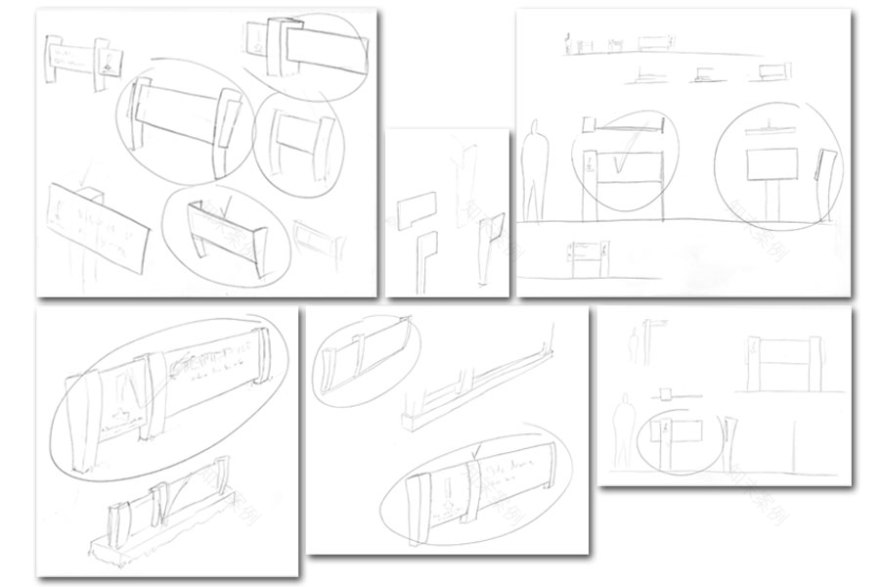

Once I had a better understanding of the needs of the system it was easier to think about the “container” for these messages. But there was still the question of how to consolidate so many dissimilar sites.

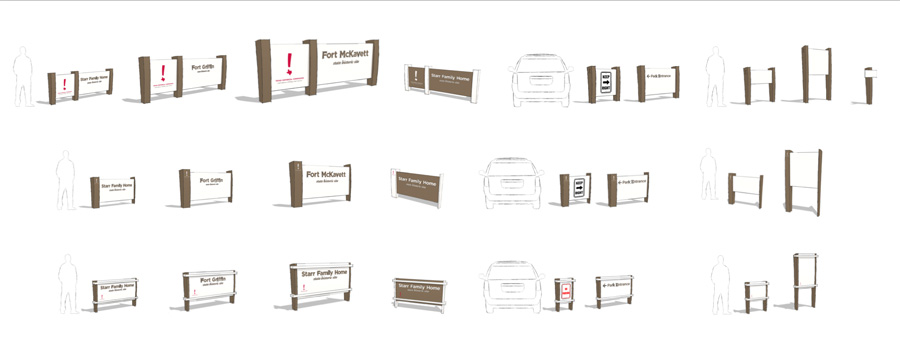

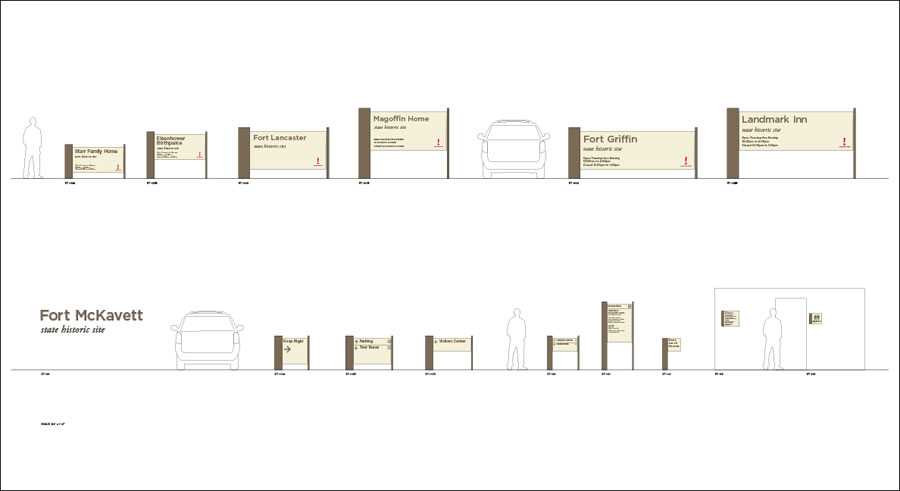

My approach was to design a sign that conveyed the Texas Historical Commission brand. Taking in consideration their existing brand guidelines, budget and material considerations I produced a simple post and panel system.

These are signs that, rather than trying to blend in a faux-period-style fashion, embrace their contrast and announce the sites belong to an organization whose mission and reach extends beyond the current site (and time). Bold enough to stand out, sober enough to allow for the historical site’s own characteristics to shine.

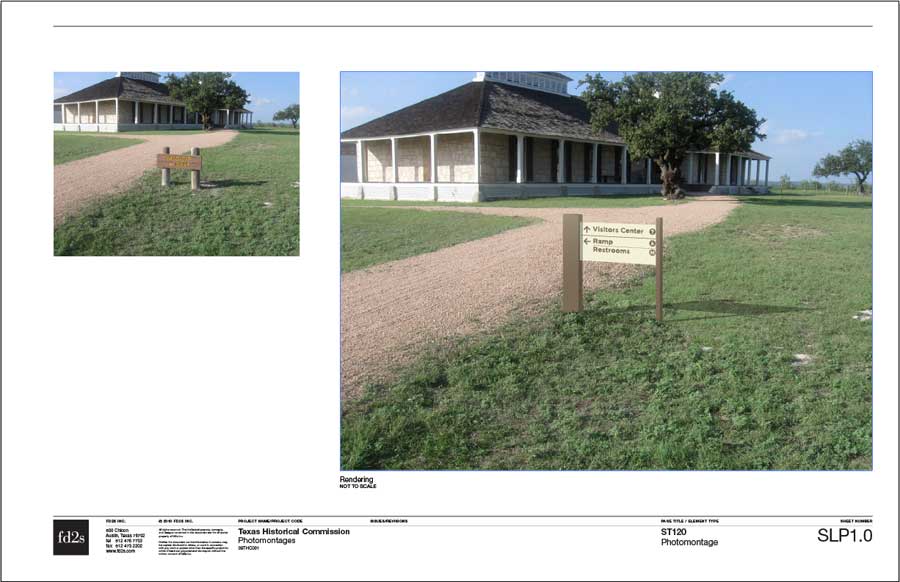

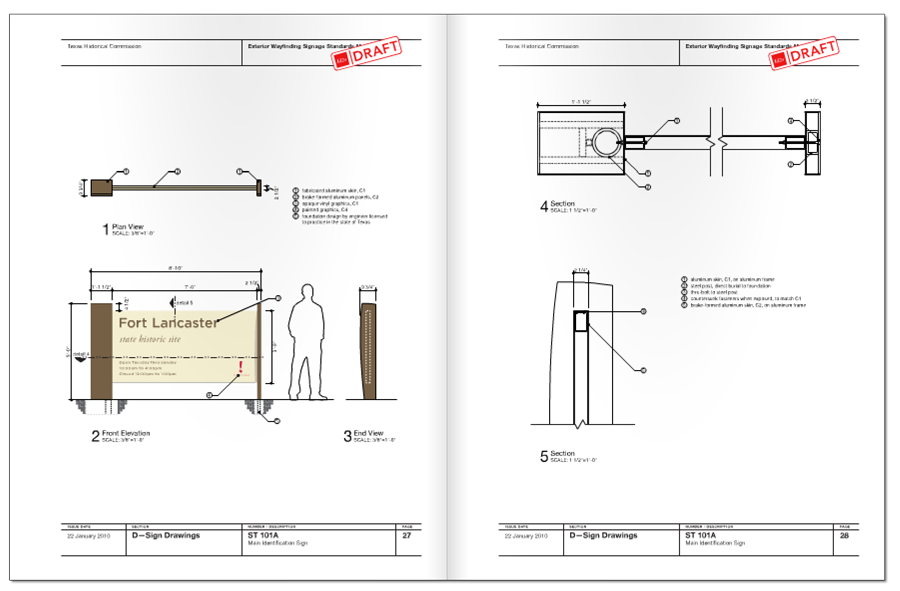

WAYFINDING SIGNAGE MANUALThe final deliverable included message schedules with sign location plans for all sites, as well as a detailed wayfinding sign standards manual.

RESULTS(Photos courtesy of fd2s)

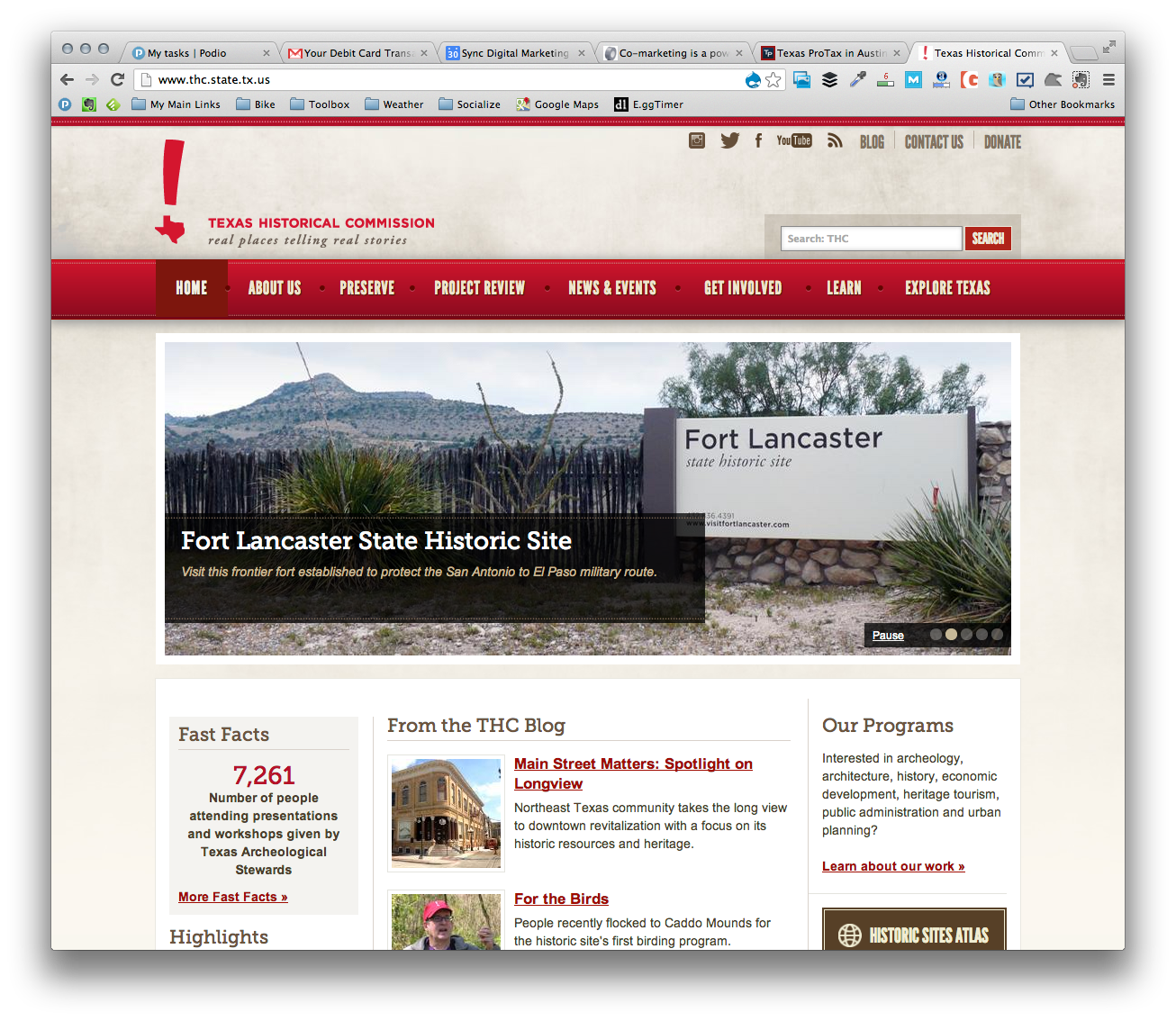

As is often the case, signage ends up becoming a strong representation of an organization across diverse media. Here was their website shortly after implementation.

I couldn’t just leave you with that. Not after seeing more Texas than most. Here’s a look of the Chihuahuan Desert on the way to Fort Lancaster.
