Albina Yard - A new urban frontier?

Albina Yard - A new urban frontier?

Last winter we started

hearing things

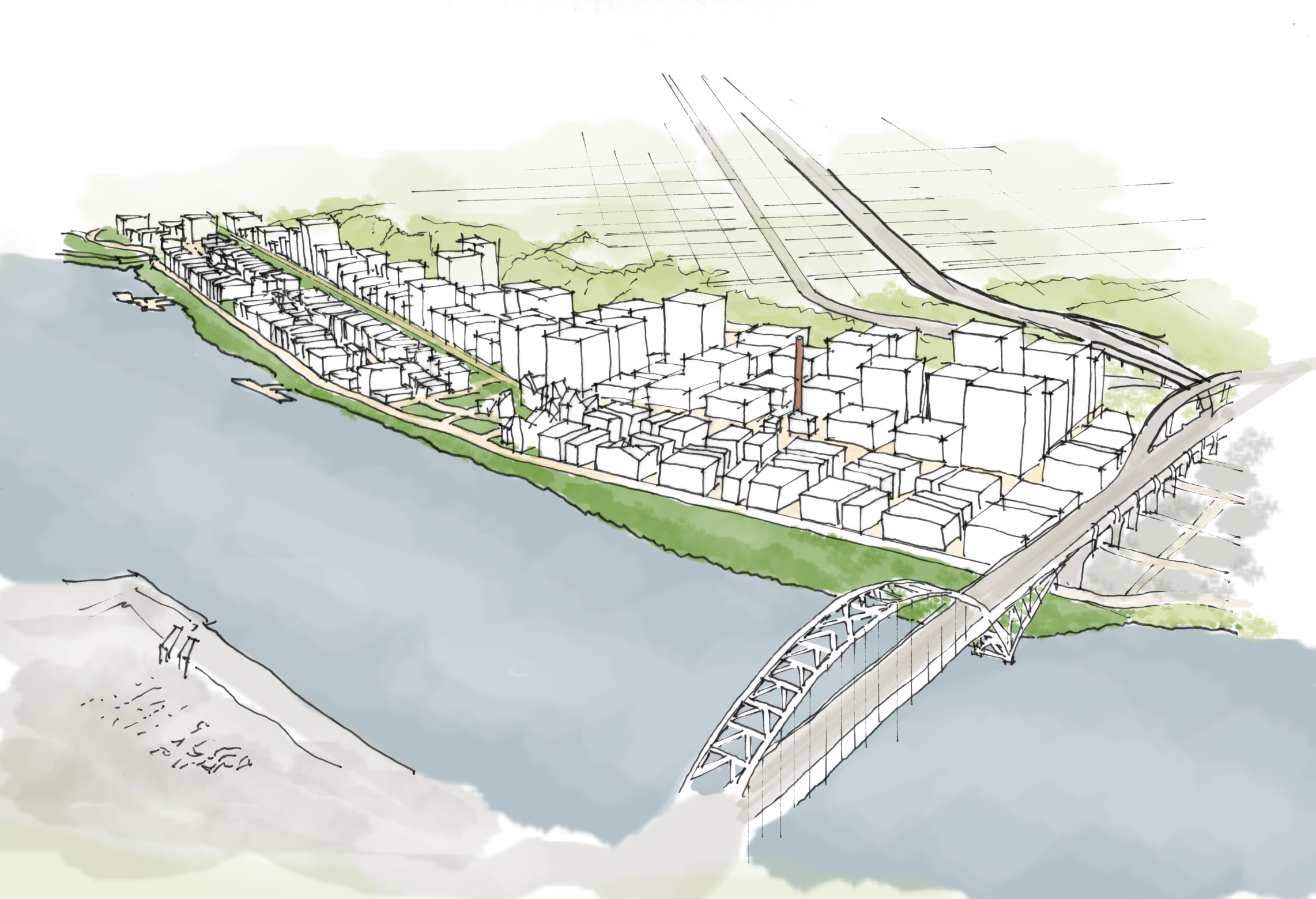

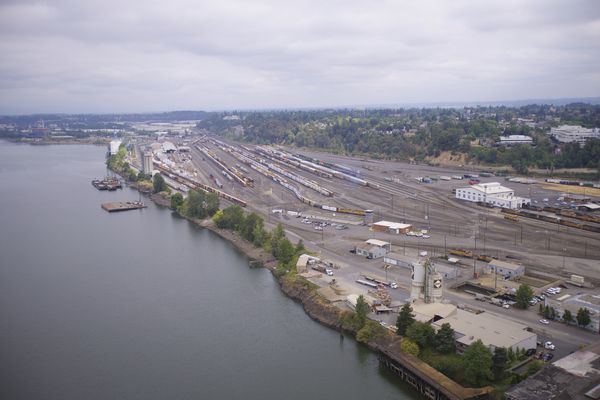

about a plan to move Union Pacific’s Albina Yard from its location on the bank of the Willamette below the Overlook neighborhood and redevelop the property for urban uses. Last month, we finally caught up with Mohammed Baddredine, the visionary behind the initiative. We were really excited about this and decided to take Mo’s work as a starting point for some visualizations of how an urban neighborhood could develop here. We drew inspiration from the new urban districts we’ve visited in northern Europe where obsolete port facilities from Manchester to Rotterdam to Malmö have been reclaimed as vibrant neighborhoods.

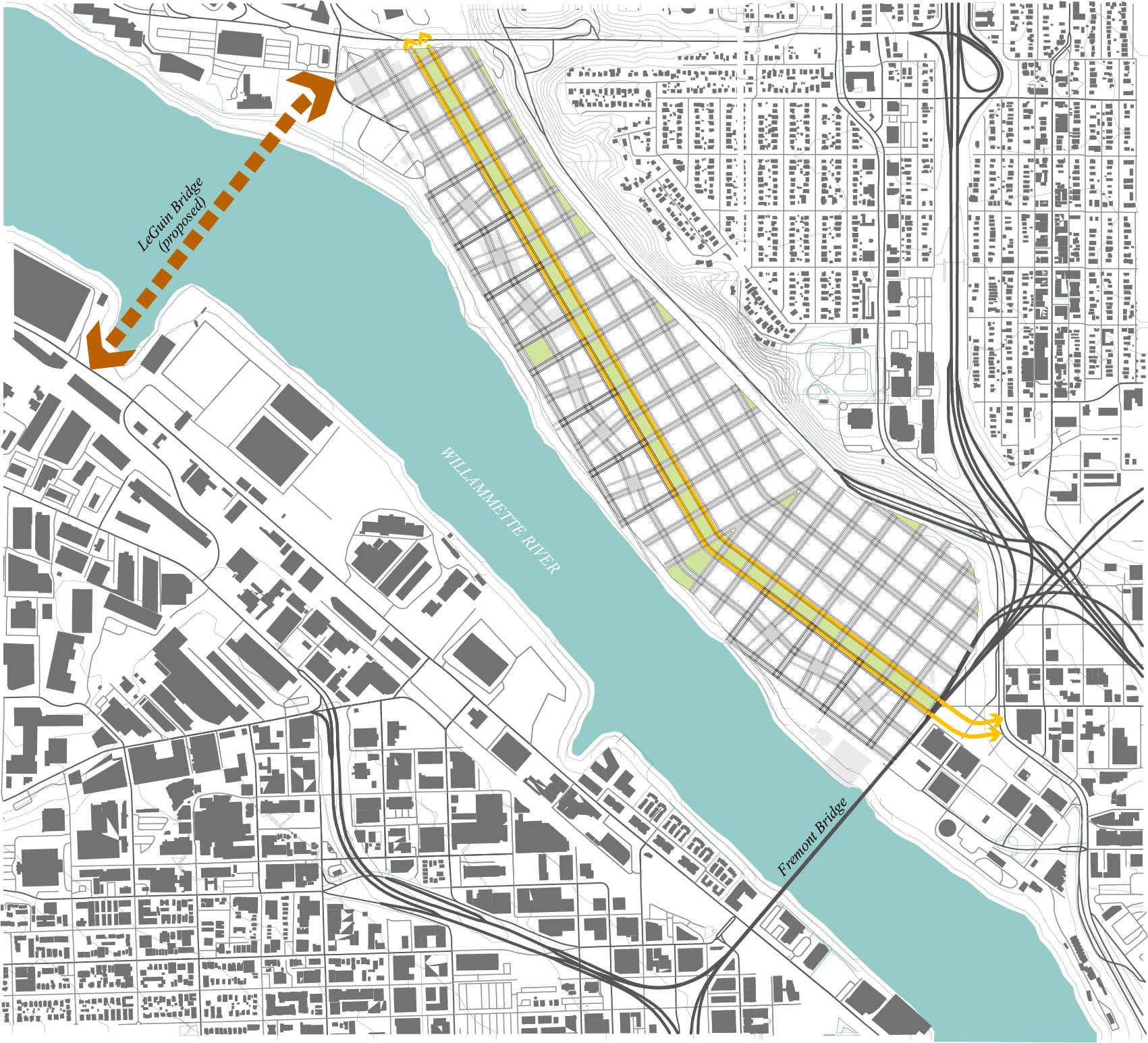

Our concept starts starts with a grid of 200 by 200 foot blocks, following the pattern of downtown Portland.

In order to improve circulation, we propose adding a new bridge - we suggest dedicating it to the late Portland author,

Ursula K. Leguin

. It would cross to the north of the Terminal 4 site, which has been proposed as the site for a

Major League Baseball park

.

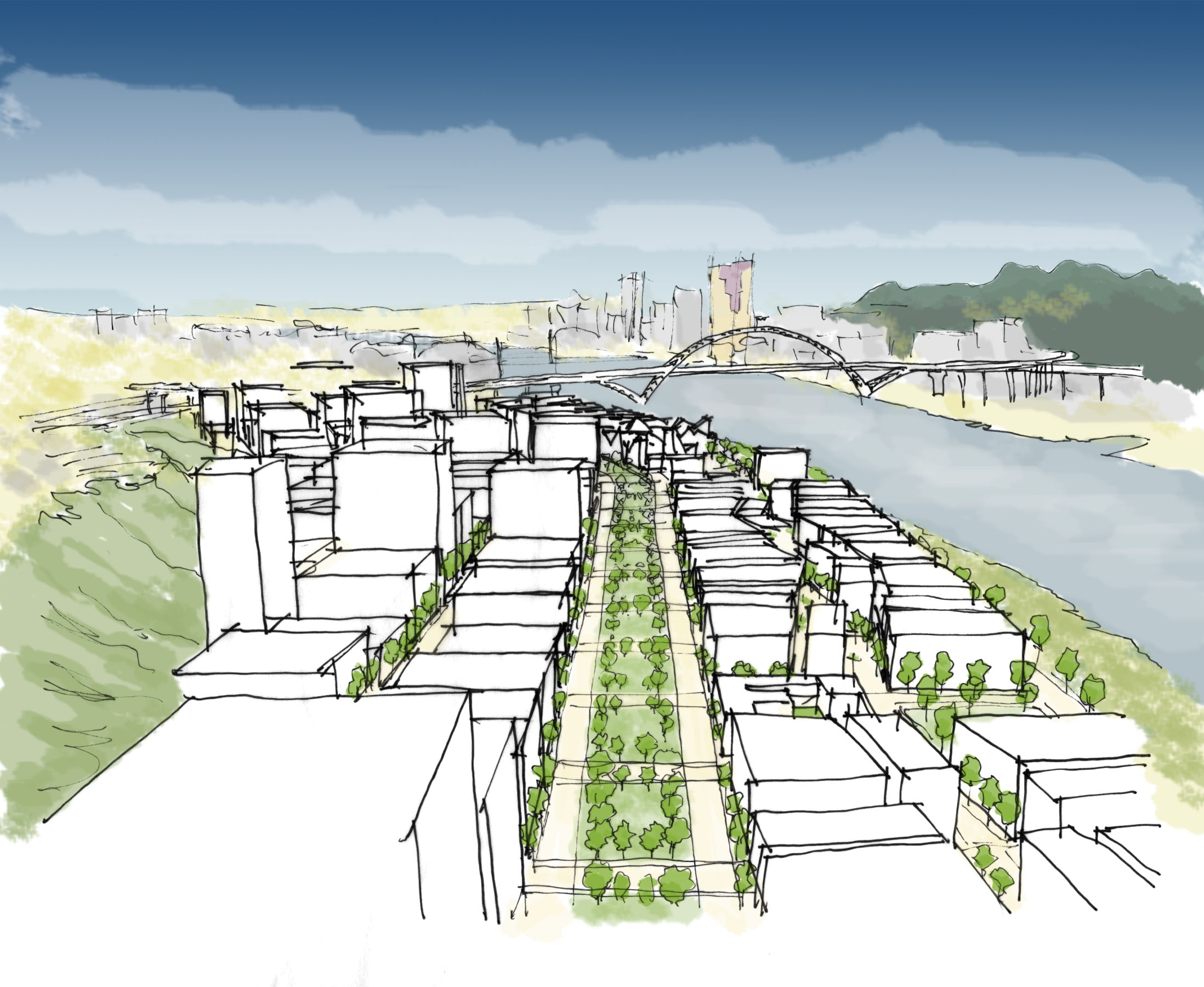

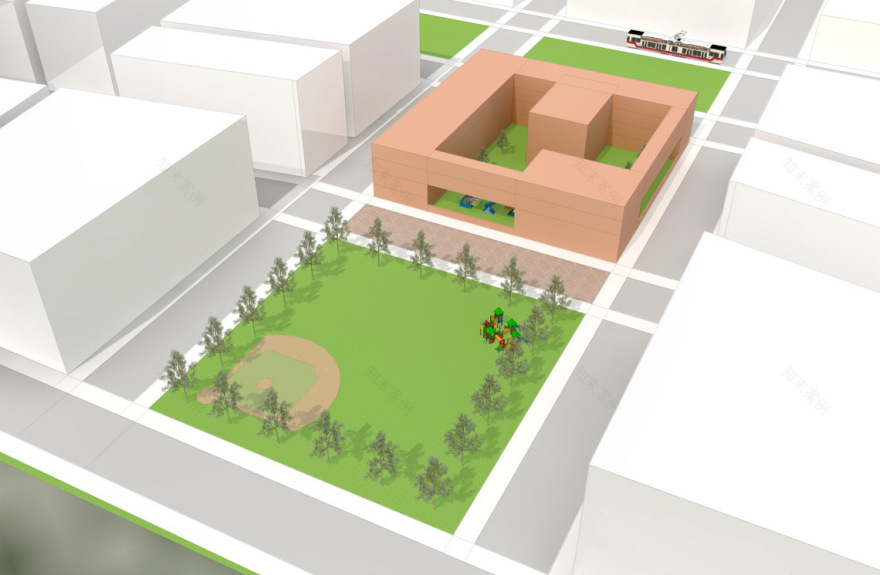

We created over seven acres of new parks within the site, in addition to upgrading the Willamette river bank for more useable open space and habitat. The centerpiece is a spine of park blocks that runs the length of the site. Additional plazas and parks are provided including one dedicated to a new K-6 elementary school.

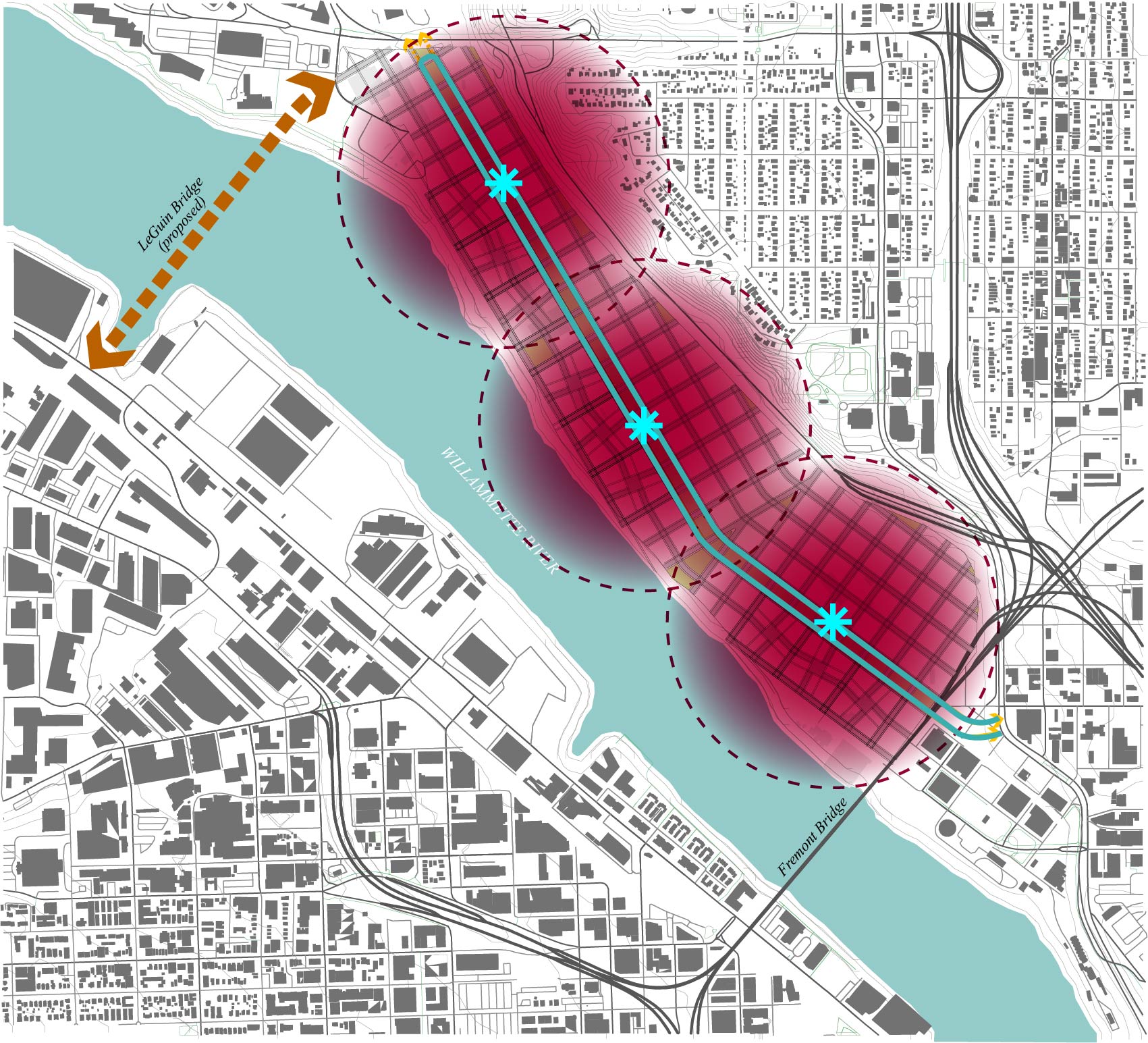

A spur line of the Max Yellow Line would run along either side of the park blocks, adding three new stops. All portions of the site would be within a quarter mile of a stop. This 1.3 mile line could potentially extend an extra 3/4 mile north to serve Swan Island, which is a major employment center.

We located primarily residential blocks closest to the river. These blocks would allow limited commercial uses but would consist mainly of homes. The rest of the northern portion would be mixed use with a focus on employment; office and light industry/fabrication. Housing and hotels would be permitted here. The southern commercial area would have a similar profile, but would allow much more intensive development.

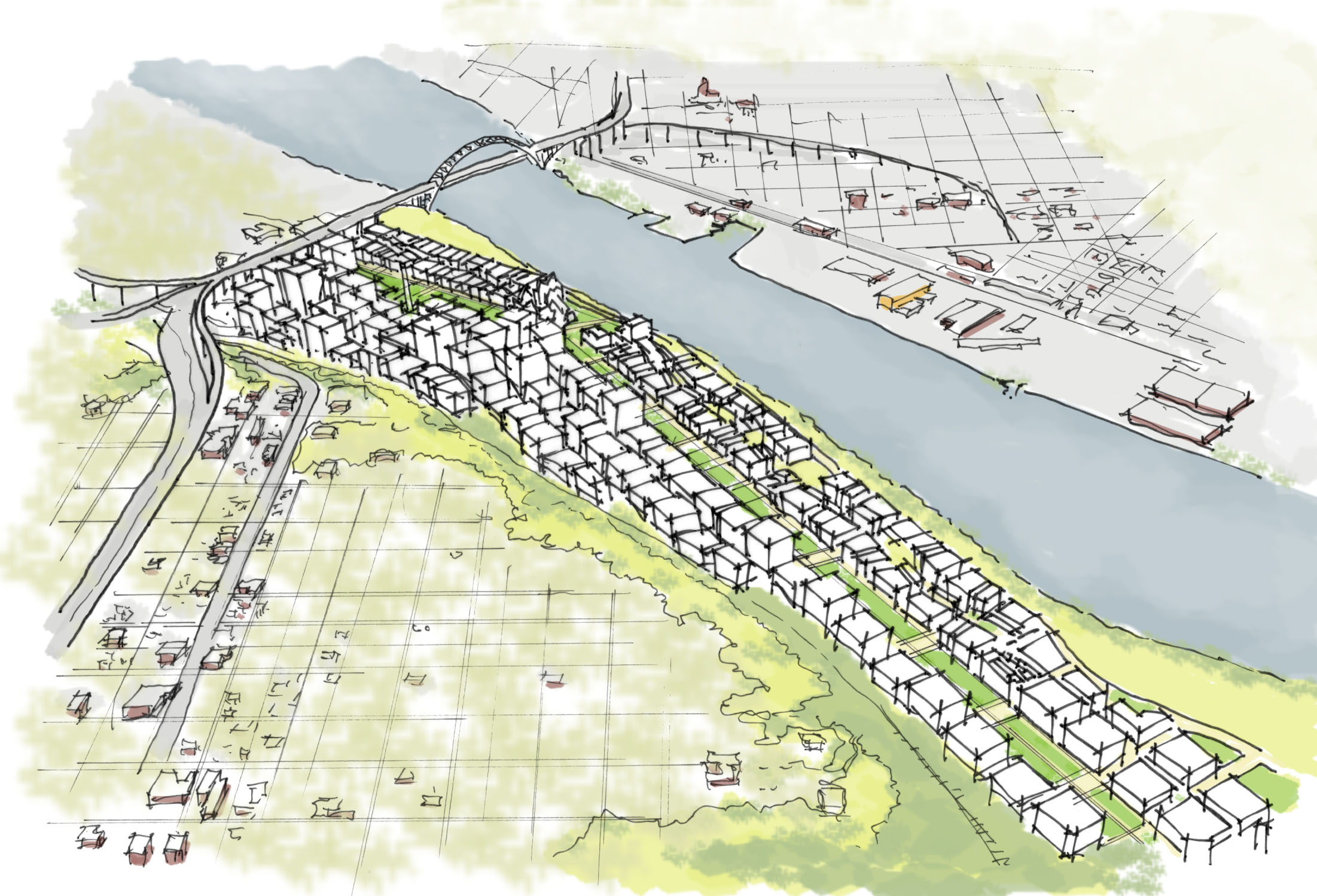

These proposed patterns are reflected in the district’s height limits. These limits are also designed to avoid disrupting views of the river and Forest Park from the plateau above.

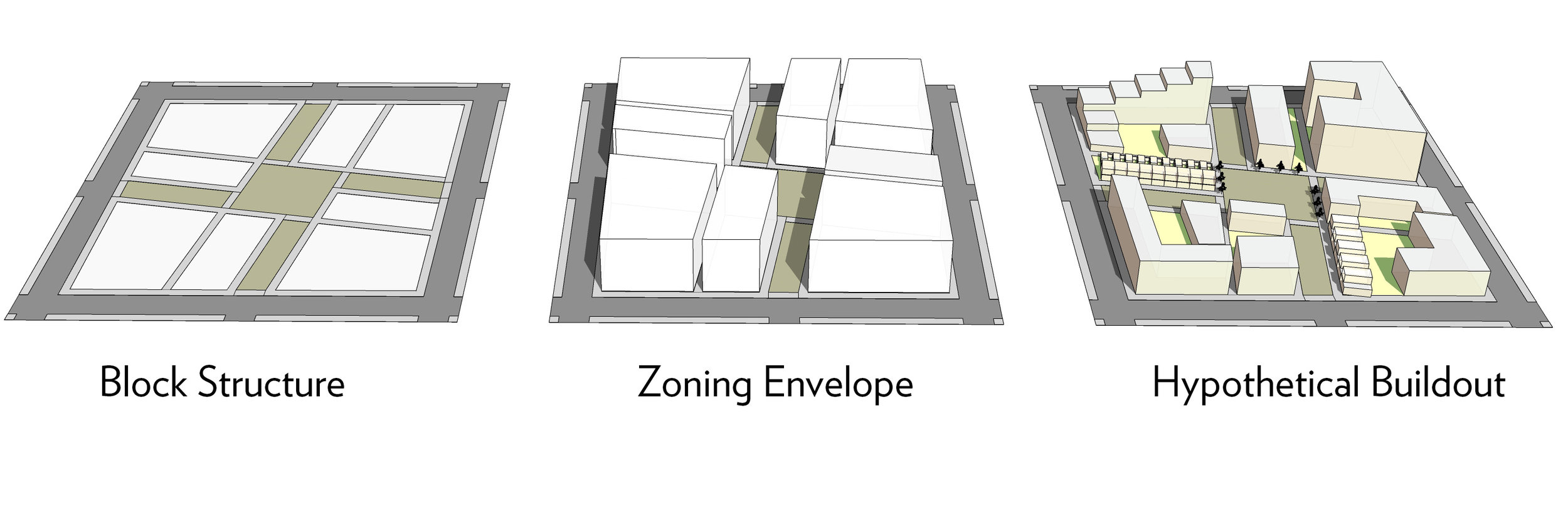

Residential areas deserve special attention, creating blocks that foster slow movement, pedestrian circulation and public spaces conducive to social interaction.

Finally, we feel it’s important to preserve and showcase the iconic chimney, a landmark and testimonial to the area’s 19th century industrial past.

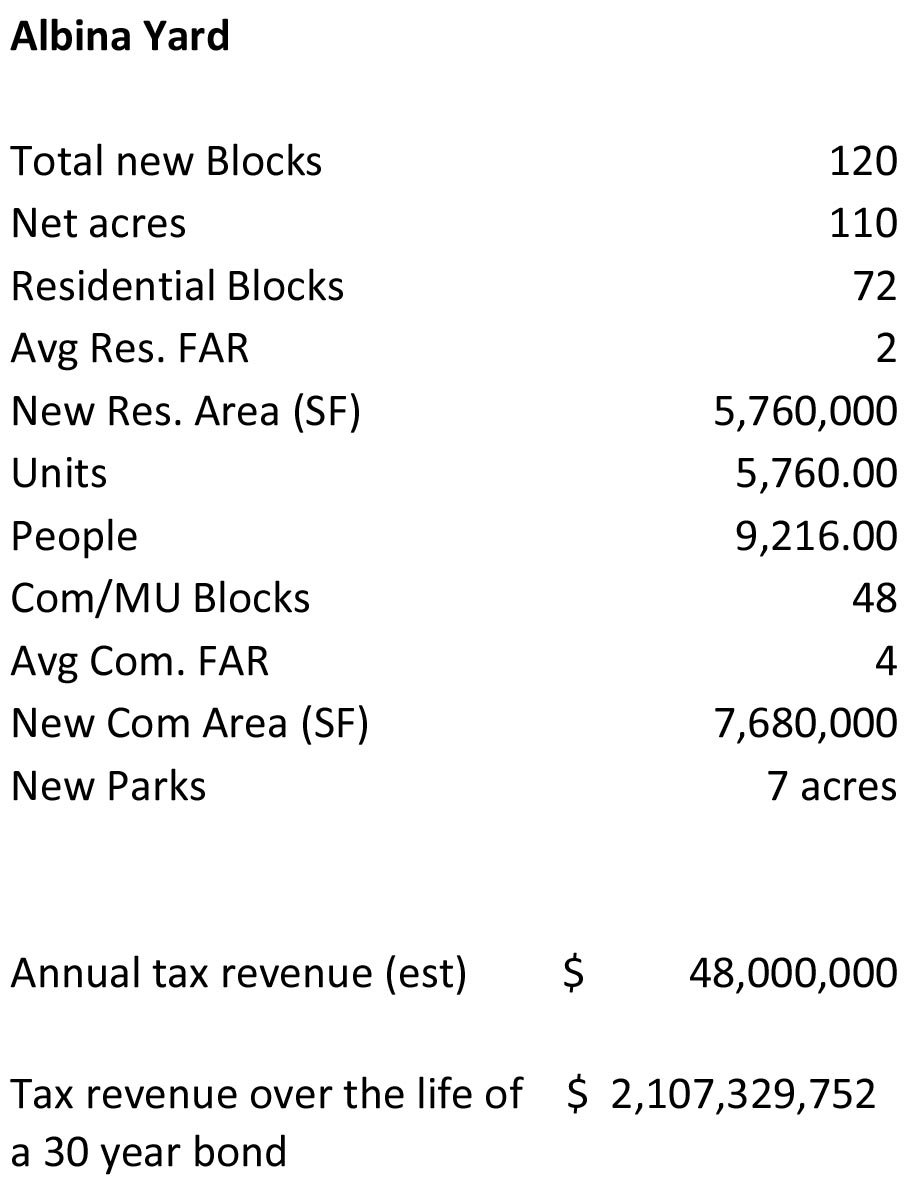

Here’s our model, by the numbers:
