RE-MOVABLE CLINIC
Palestinian Territories
ARCò - Architecture and Cooperation
First-aid mobile center for the palestinians
health & sanitation
in use
ARCò - Architecture & Cooperation
The MOBILECLINIC, designed by ARCò – Architecture & Cooperation and promoted by NGO Vento di Terra is a prototype which offers an alternative to the current first-aid situation in Palestine. The target is to provide a mobile system able to guarantee the basic medical assistance for Area C population, and able to undergo the existing military laws.
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-8

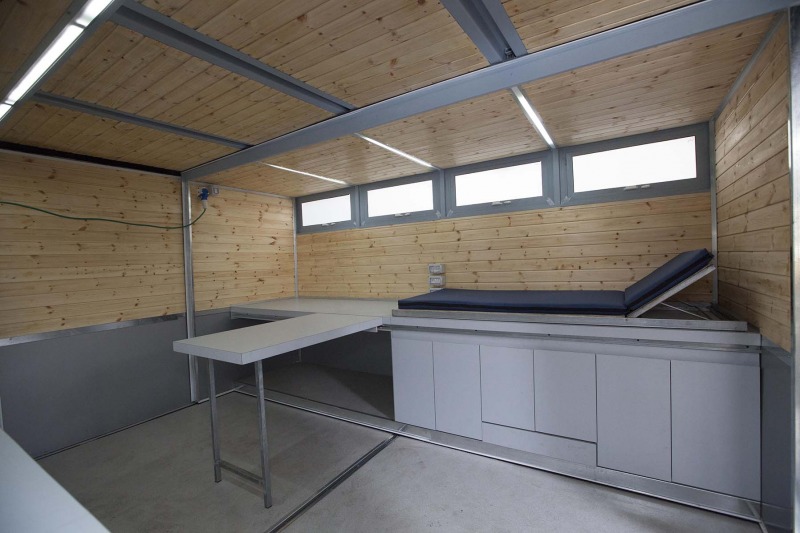

Internal Space
Around 150.000 Palestinians are currently living in an area labeled as Area C of the West Bank, where construction permits depend on the Israeli Civil Administration which on the practice doesn’t release permits for Palestinian citizens. Major part of Area C population live in communities without basic health facilities.
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-11

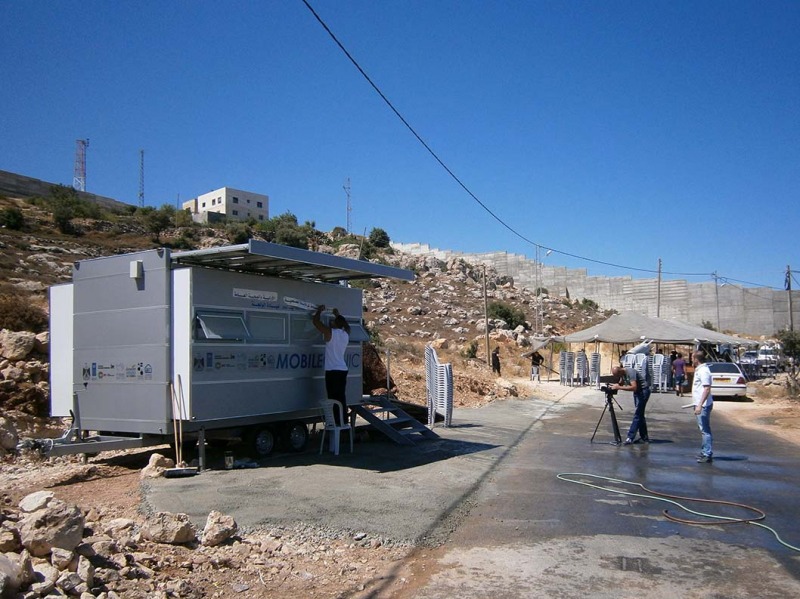

Clinic in Palestine
The MOBILECLINIC is easy to be built and doesn’t need high-tech solutions. All the materials and technical details have been conceived on low-tech principles, decision that came from the necessity of constructing the whole unit locally, with materials, skills, and technologies available on the Palestinian Territory.
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-14

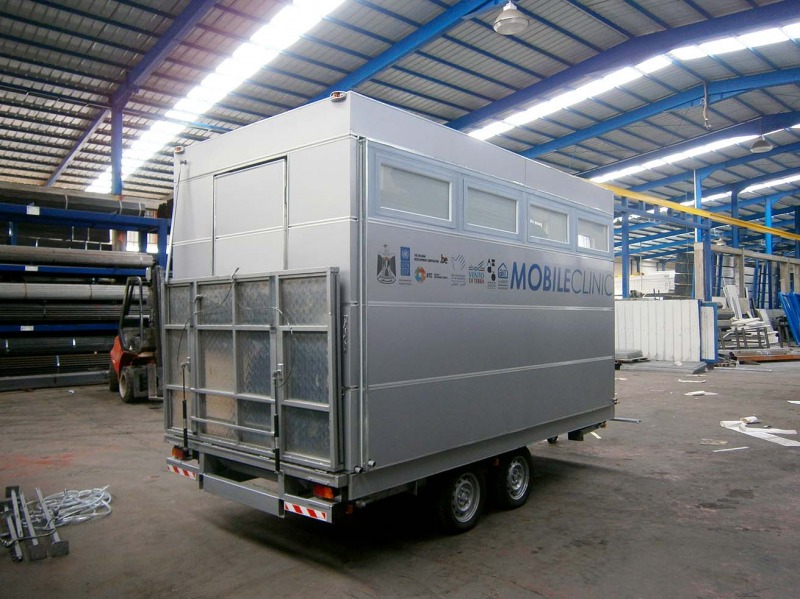

Clinic in the factory
The sustainability is on the basis of the whole project, on its economic, social and environmental aspects. The clinic is provided with a photovoltaic system able to cover the electricity demands of all the devices: fridge, internal lighting, laptops and medical equipment. The inverter and controller of that system are placed inside the unit and the batteries on a special box welded under the trailer.
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-17
Solar panel on the top of the Clinic

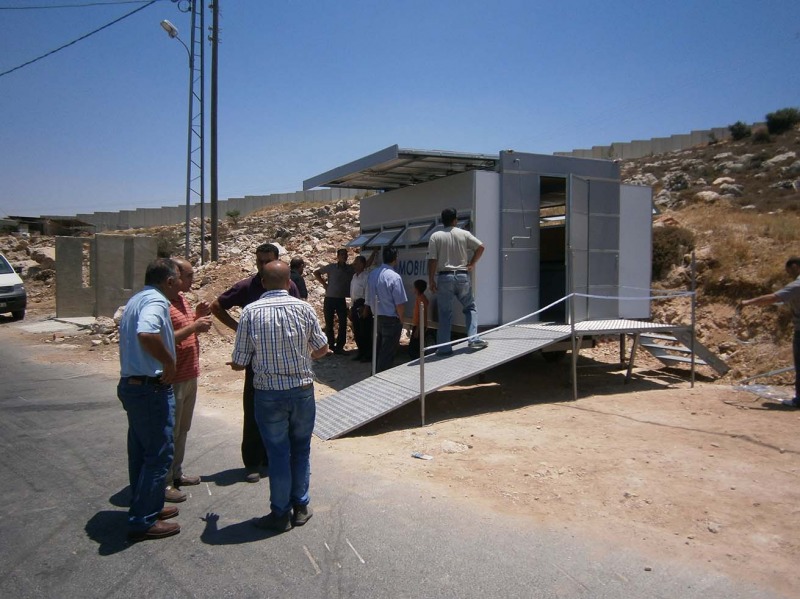

RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-19
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-20

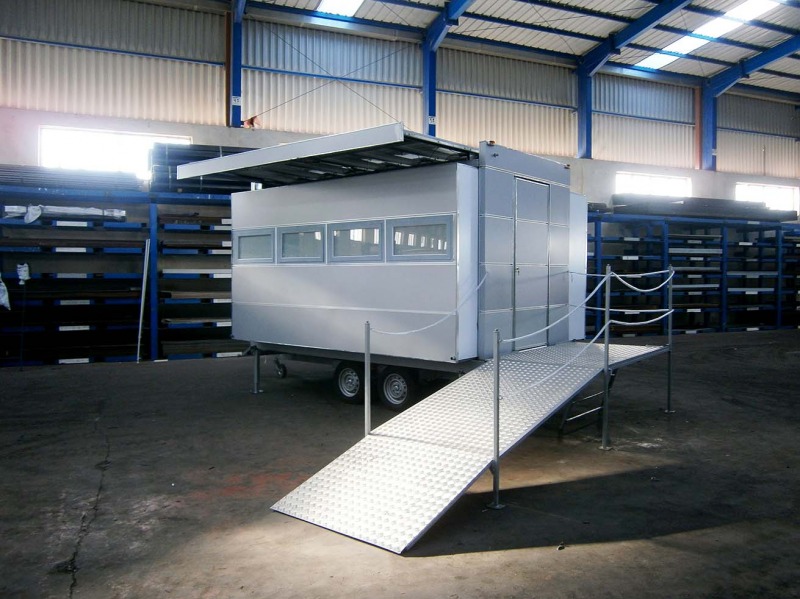

Clinic in factory
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-22

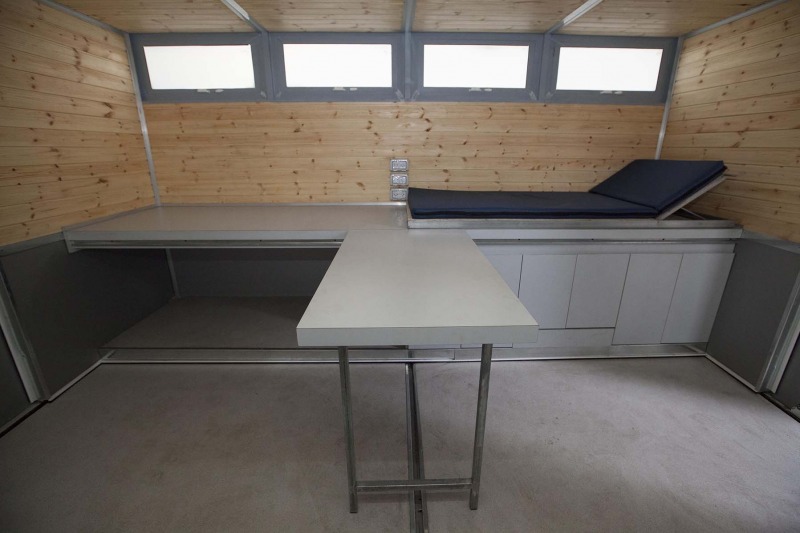

Internal view
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-24

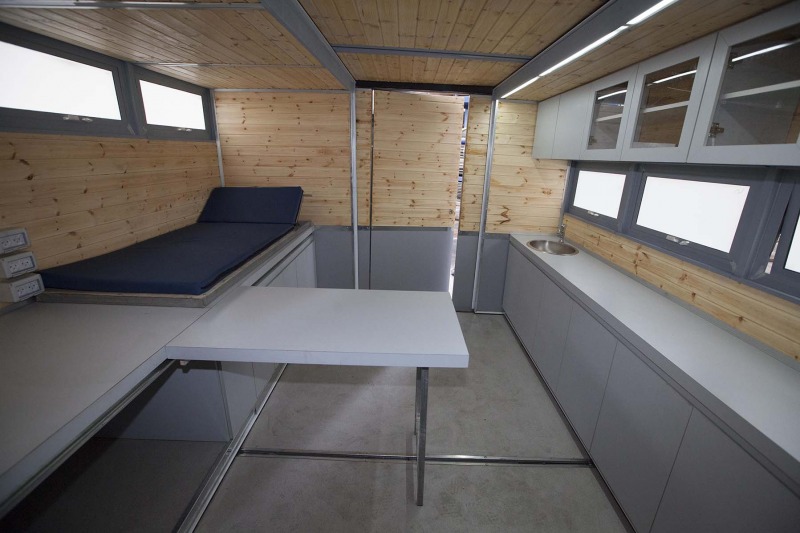

Internal view
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-26
Internal view
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-28

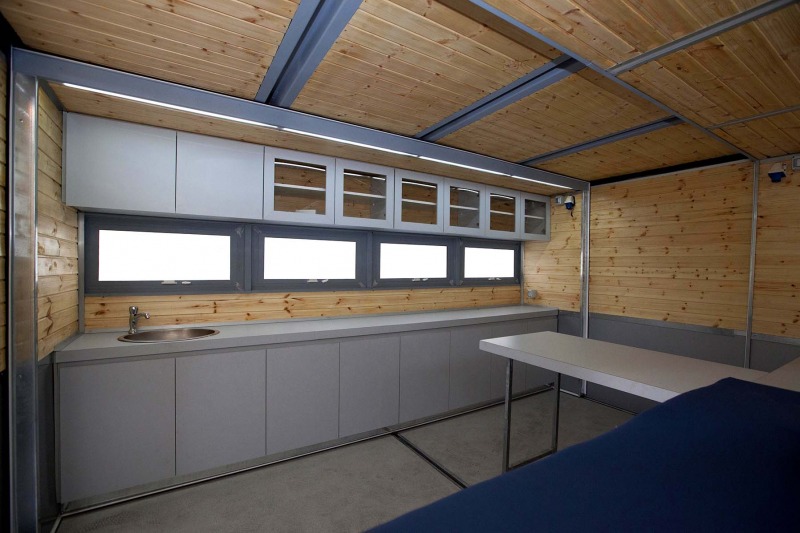

Internal view
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-30

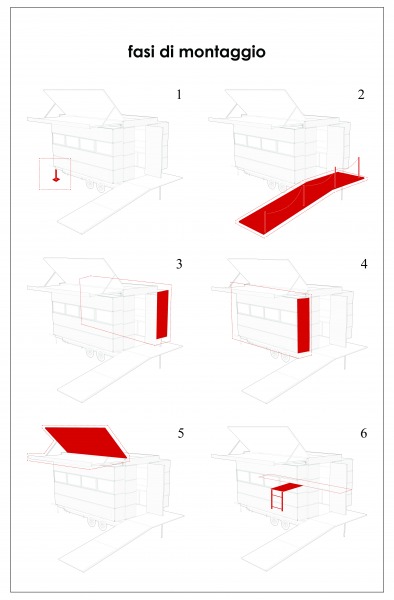

Clinic construction phases
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-32

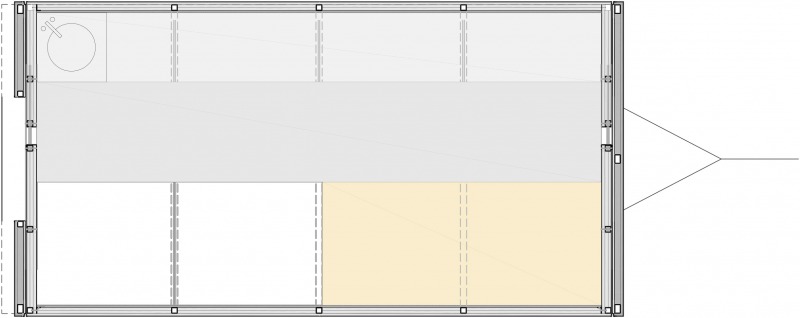

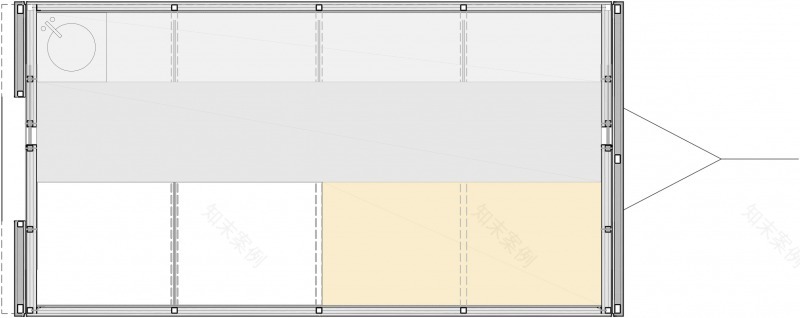

Closed Clinic Plan
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-34
Opened Clinic Plan
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-36
Facade 1
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-38

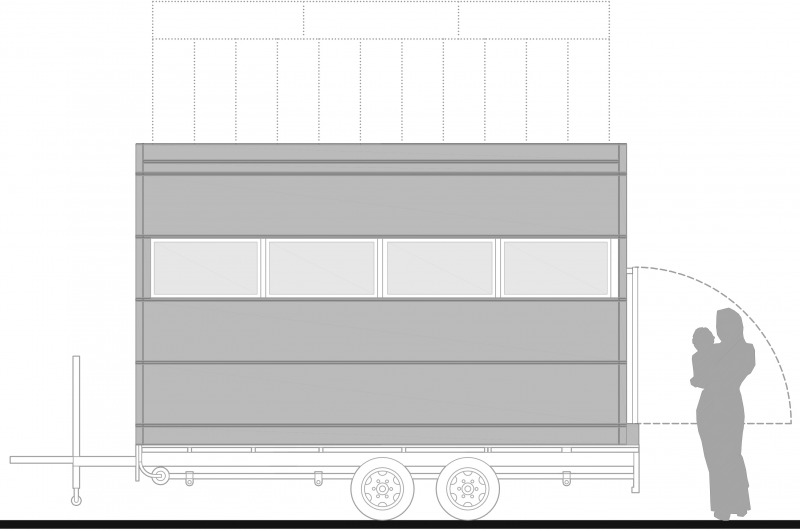

Facade 2
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-40

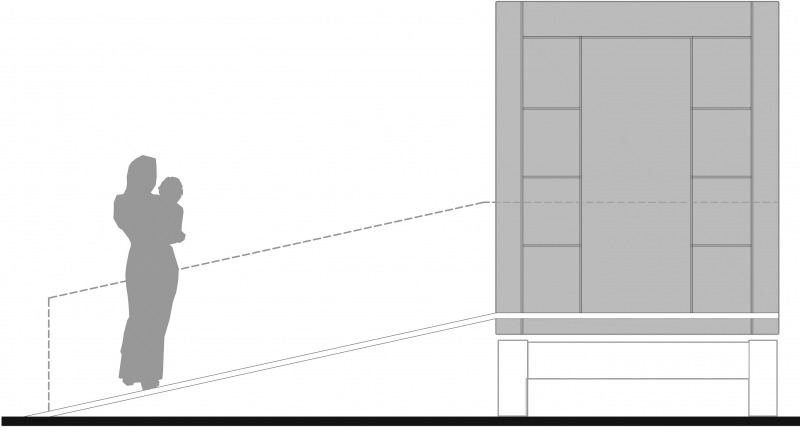

Back Facade
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-42
Longitudinal Section 1
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-44
Longitudinal Section 2
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-46

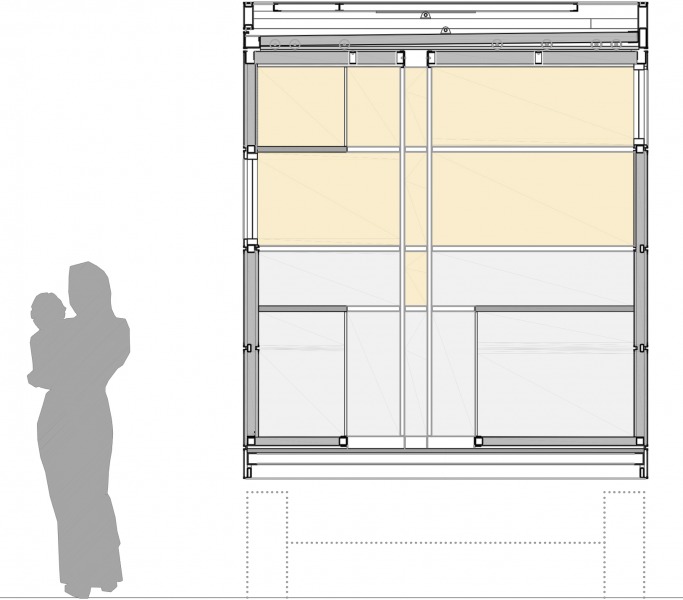

Transversal section step 1
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-48

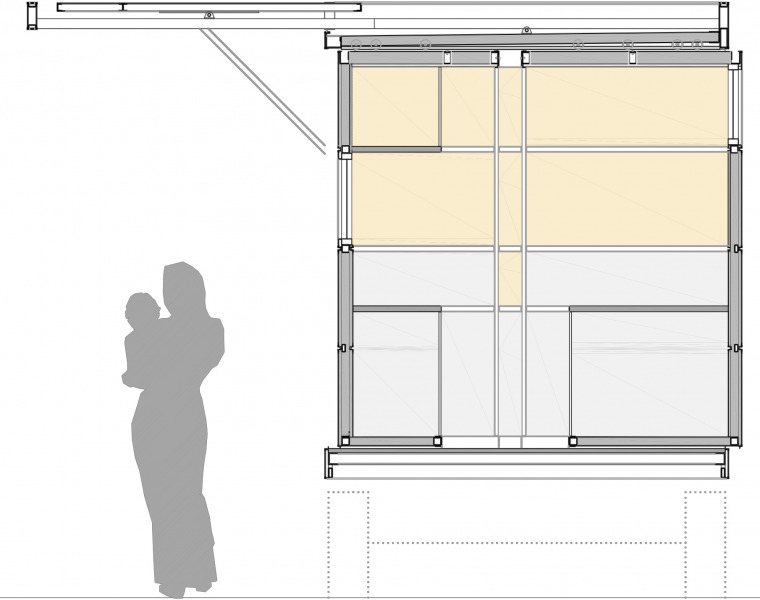

Tranversal Section step 2
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-50

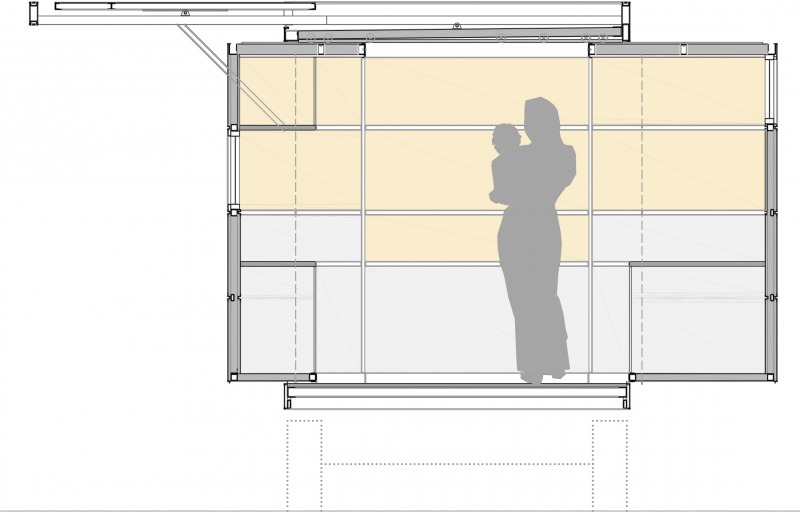

Transversal Section step 3
RE MOVABLE CLINIC（可移动诊所）丨巴勒斯坦丨ARCò Architecture & Cooperation-52
Transversal Section step 4
