Architects:MALVINA ZAYAT estudio de arquitectura
Area:131m²
Year:2024
Photographs:Juan Cruz Paredes
Category:Houses
Structural Engineering:Edgar Morán
Country:Argentina
丨阿根廷-7

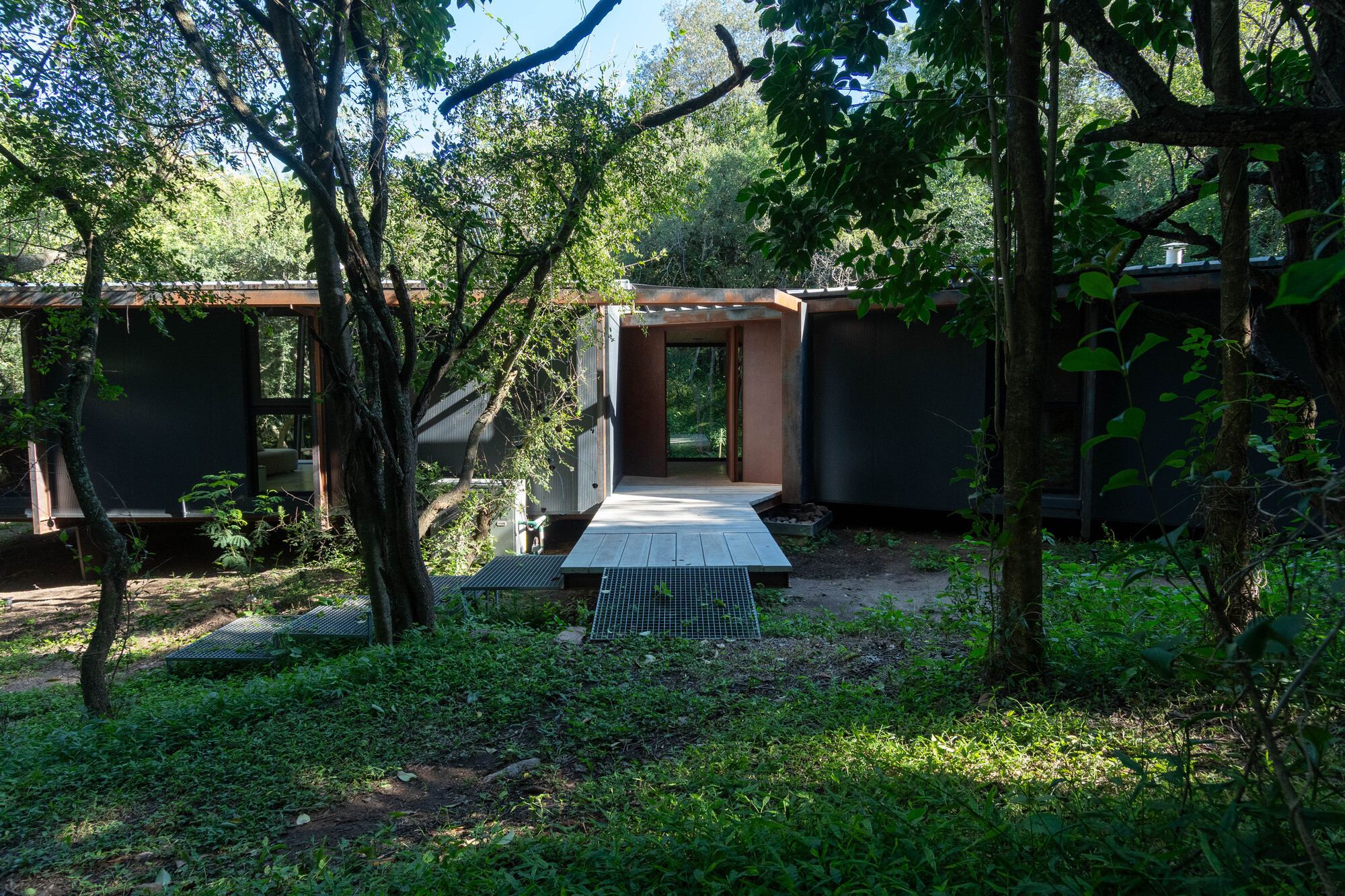

Text description provided by the architects. House in the forest is located on a 12-hectare plot in the Sierras Chicas. The location was chosen with the goal of ensuring the house is embraced and protected by the trees.
丨阿根廷-9
丨阿根廷-10

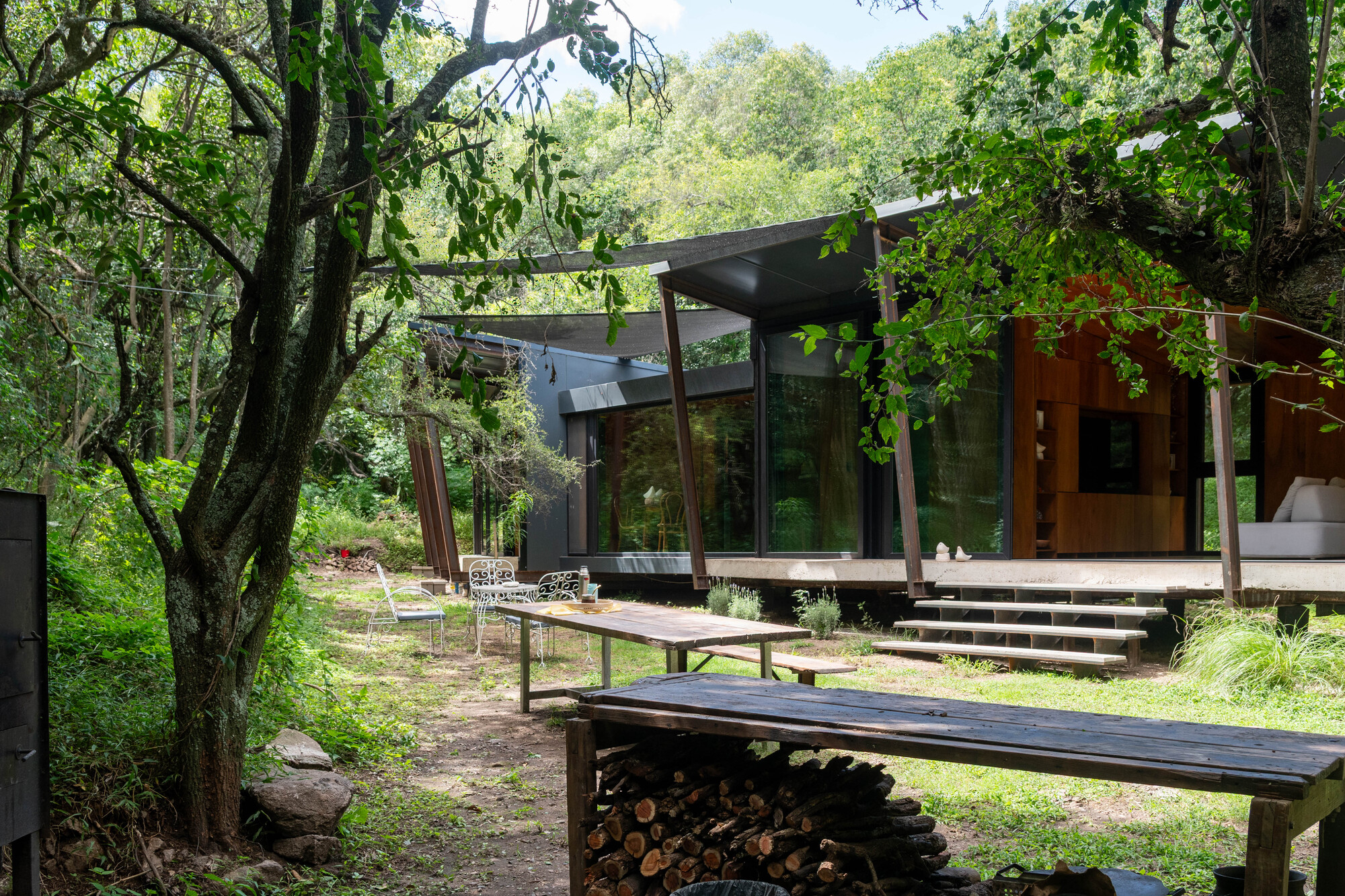

Three factors were decisive in the project: the maximum preservation of the existing forest, the absence of a water supply network, and the artisan blacksmith profession of one of the clients, who would be the ones to build their home.
丨阿根廷-12

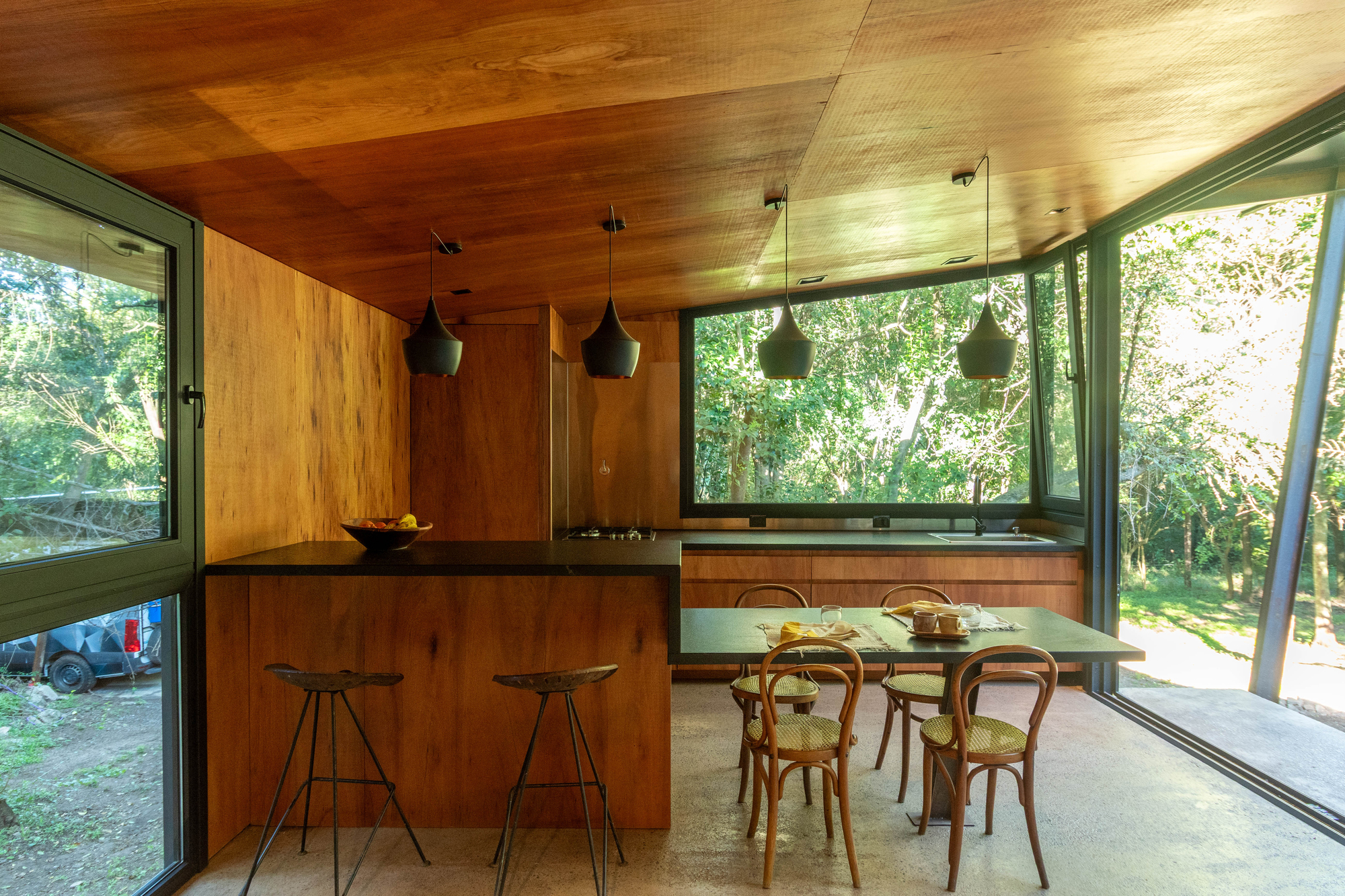

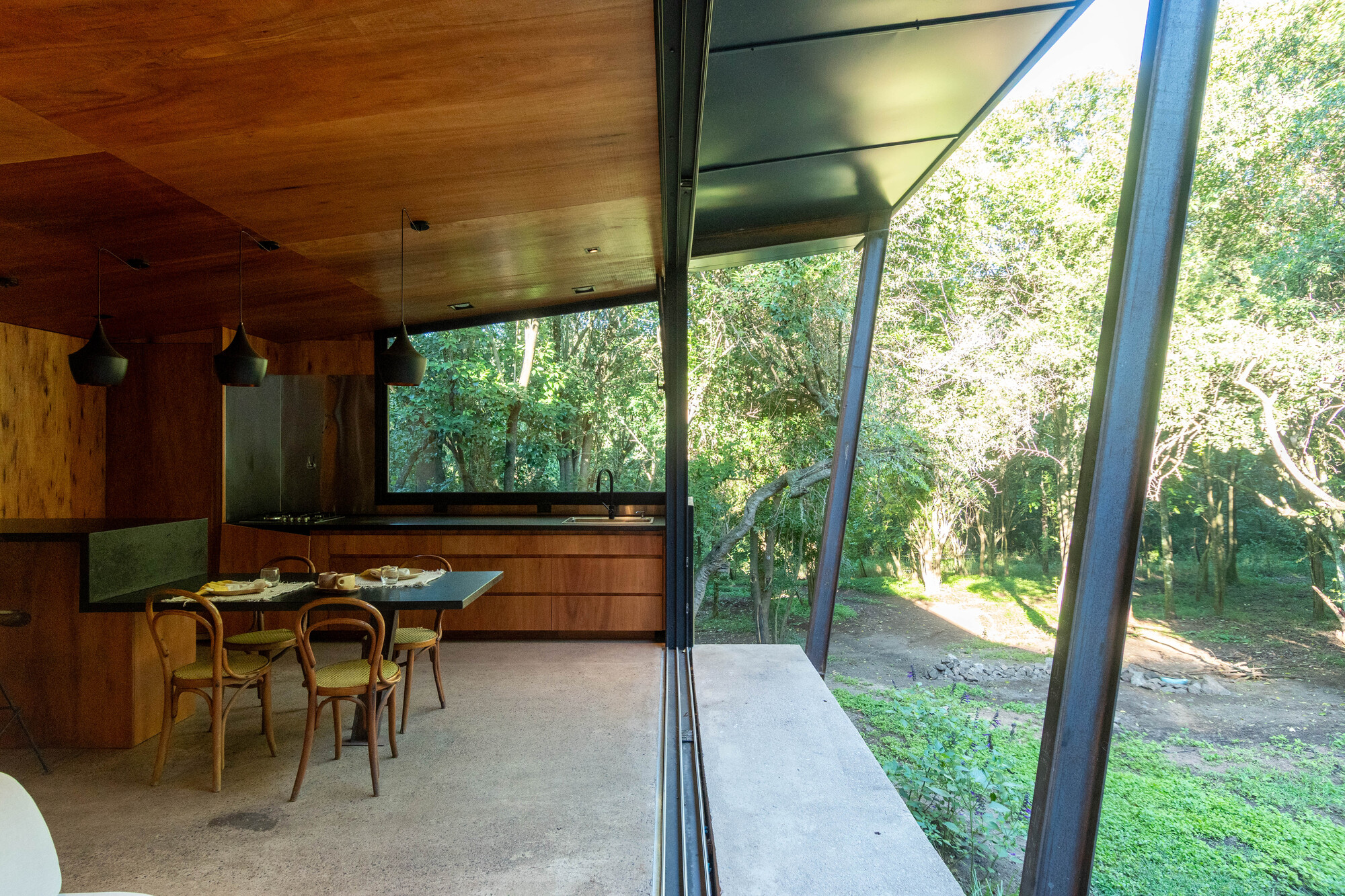

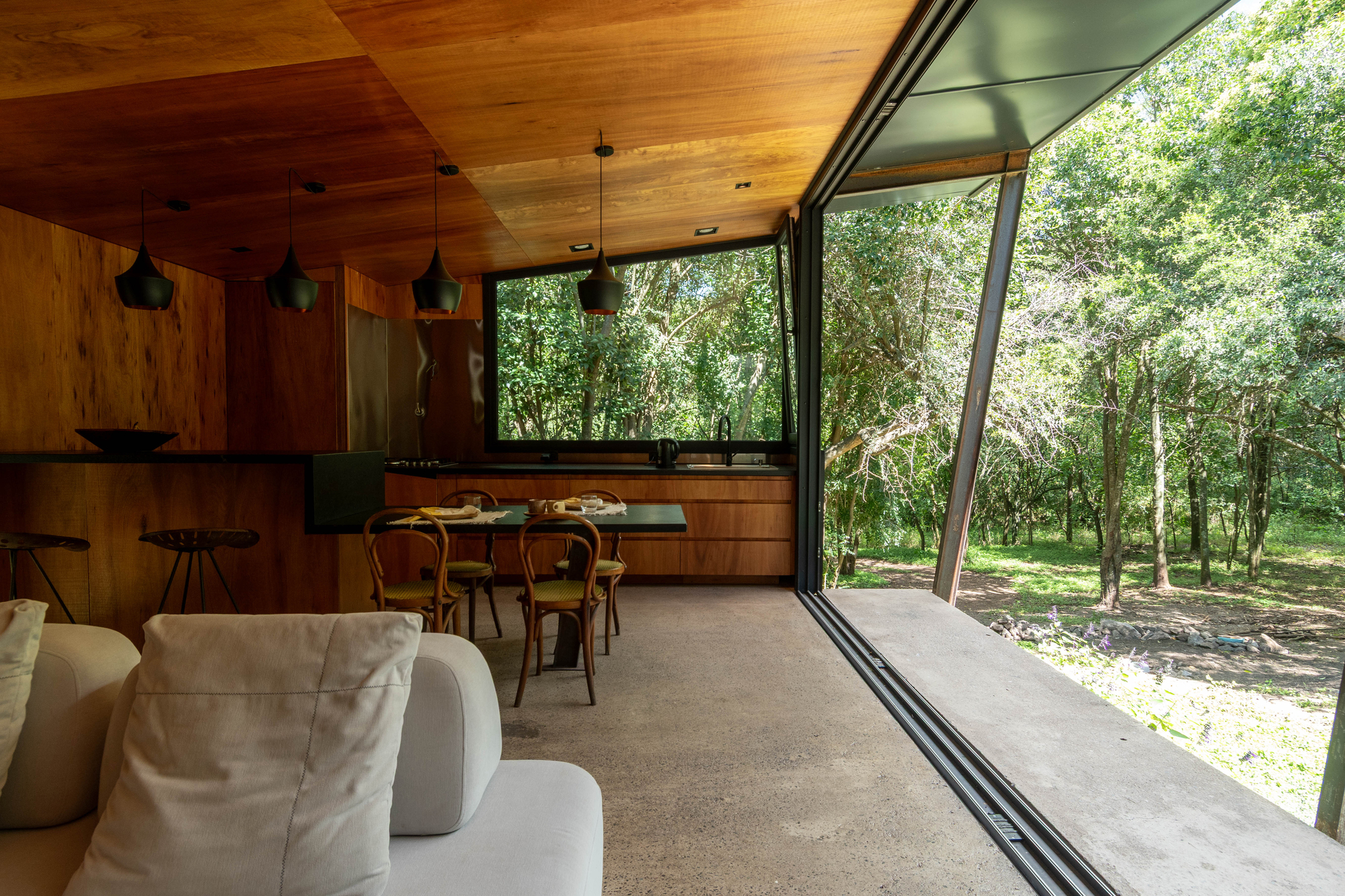

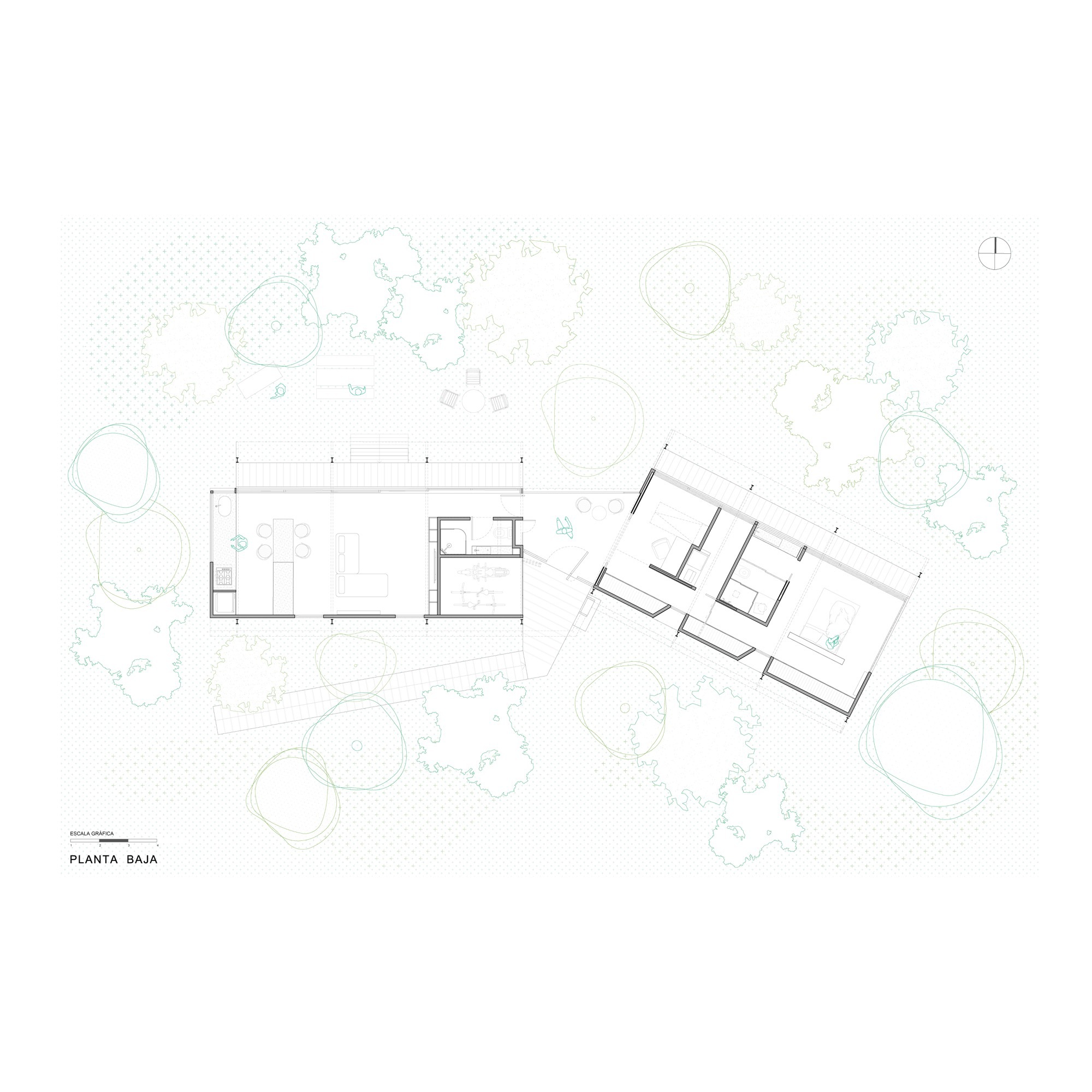

Two volumes are arranged between the trees: one includes the living room, kitchen, dining room, and a storage area for motorcycles and bicycles, while the other contains the main bedroom, bathroom, laundry room, and guest room.
丨阿根廷-14
The connection between them occurs through a third volume that links the two wings of the house and provides access.

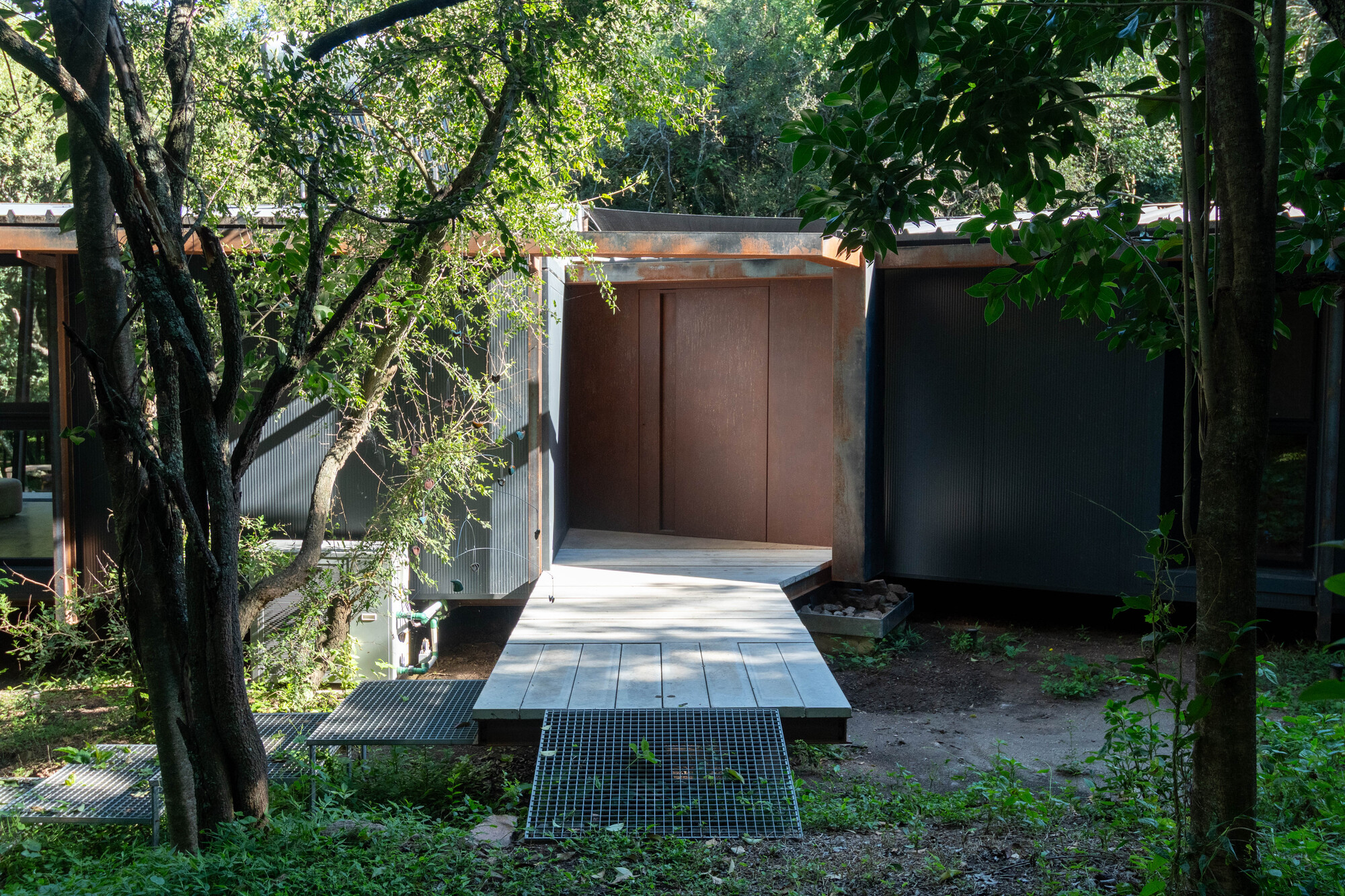

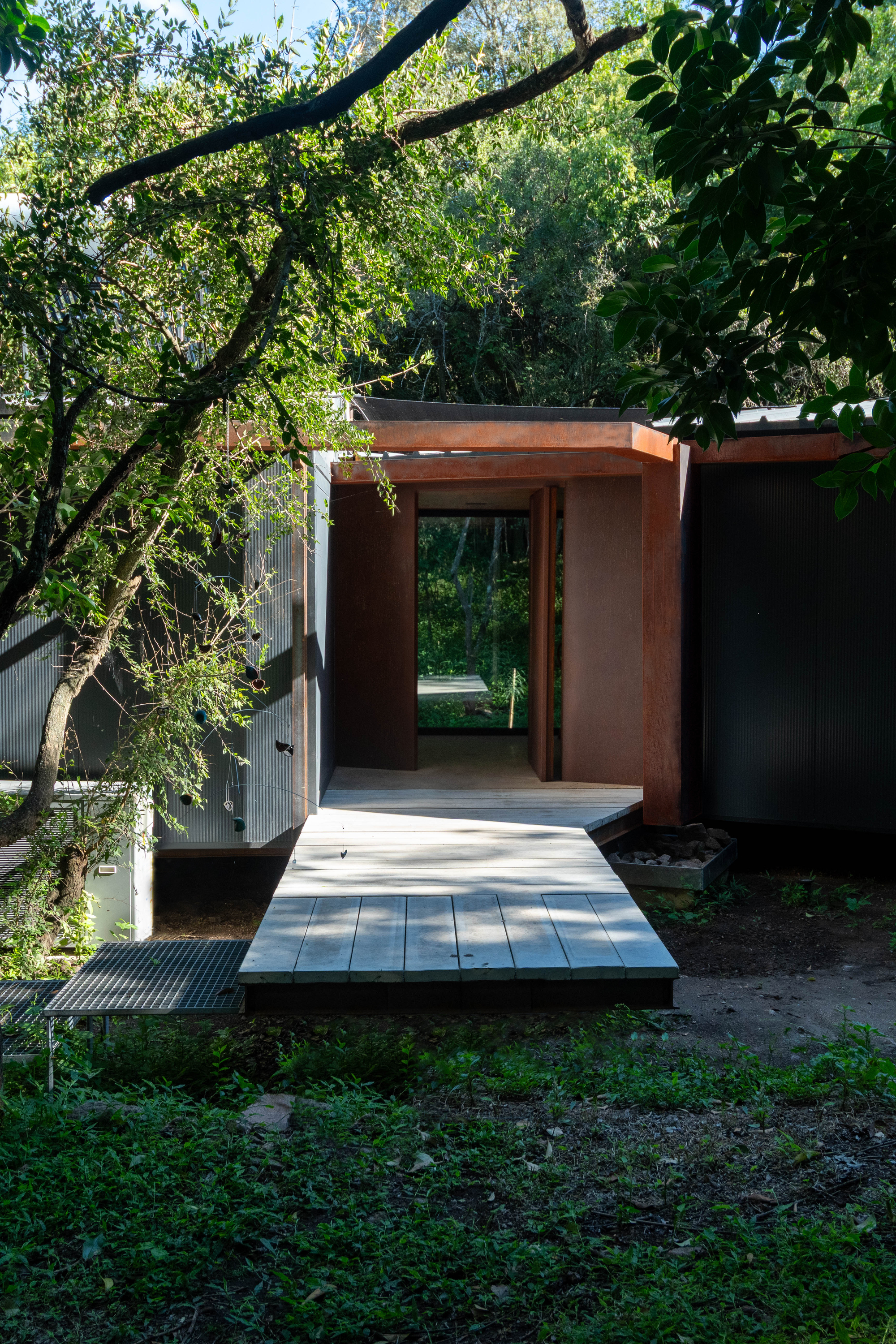

The house was conceived to enhance the experience of the landscape. To enter, a walkway begins to rise between the trees, leading to an entrance atrium. Here, the path of rainwater becomes present: gutters, suspended like trays from the structure, frame the sky and converge into a vertical metal drain, which collects the water and lets it fall noisily, serving as a welcoming sound.
丨阿根廷-17
丨阿根廷-18

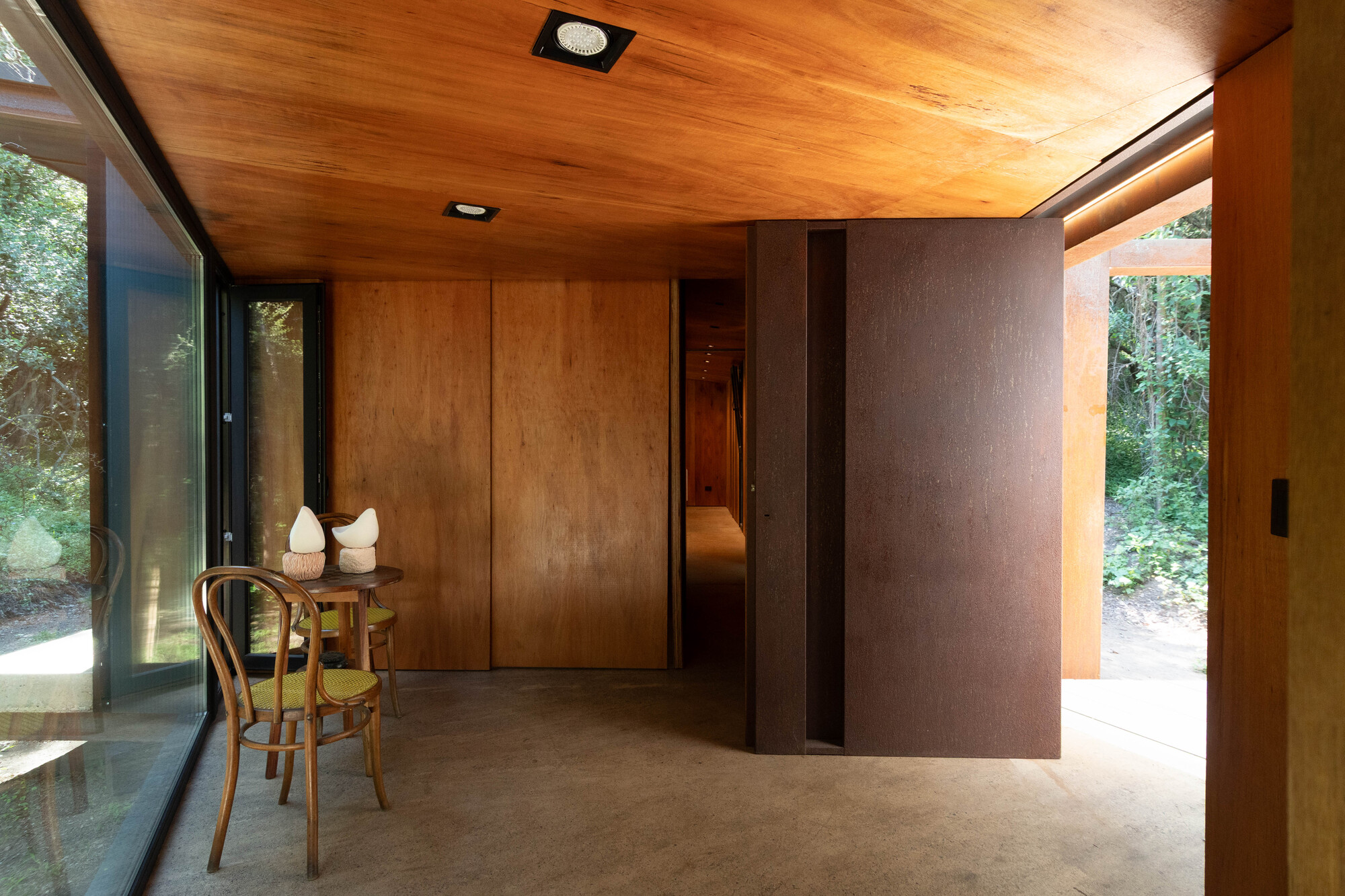

The entrance door is a completely blind façade, designed to emphasize the surprise when it is opened. When this happens, the architecture disappears, and the landscape appears. The low-scale horizontal ceiling, the presence of wood on the sides, and minimal furniture form this space, which serves as a transition between the exterior and interior, while also linking the two rotated volumes.
丨阿根廷-20

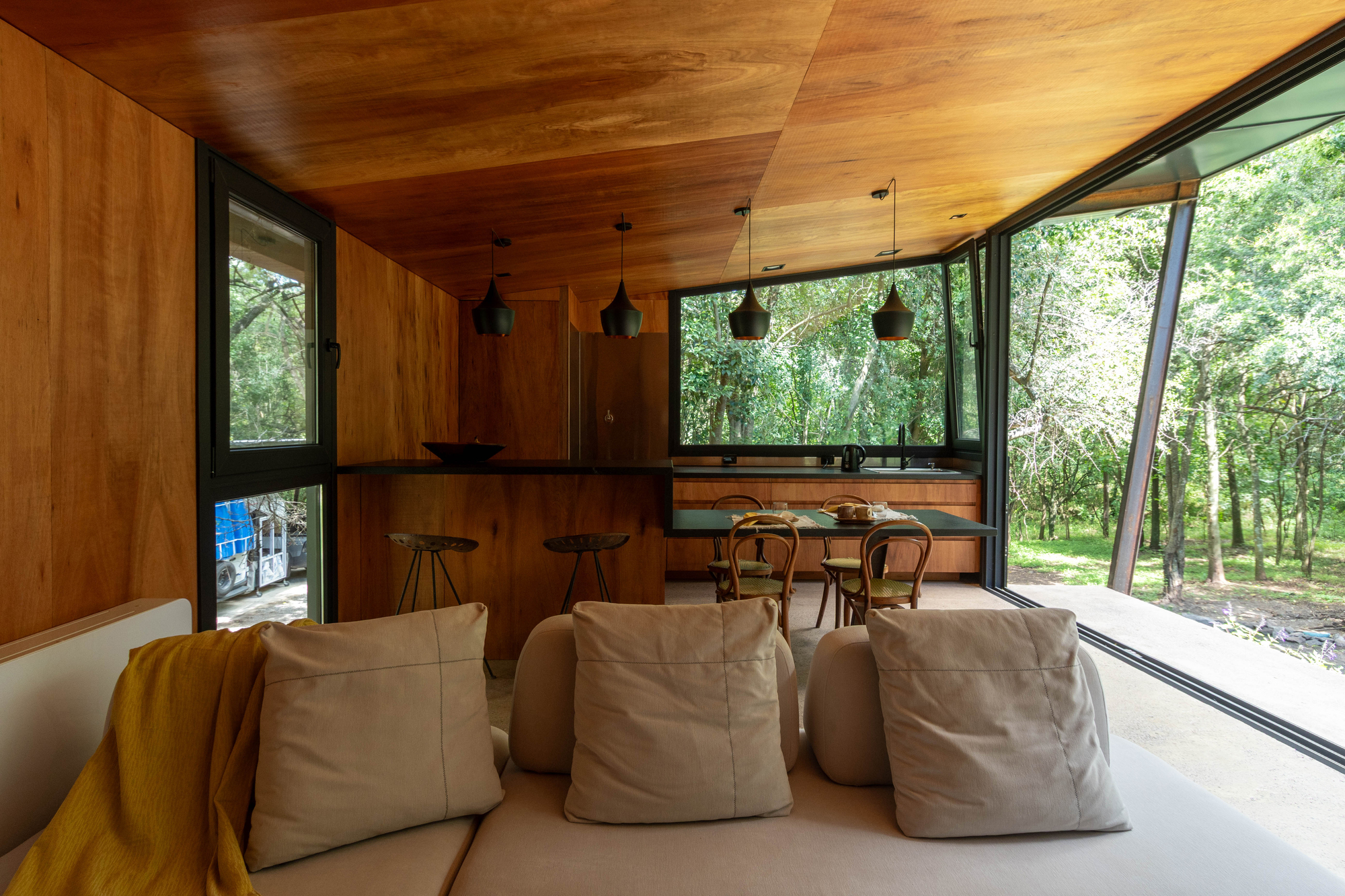

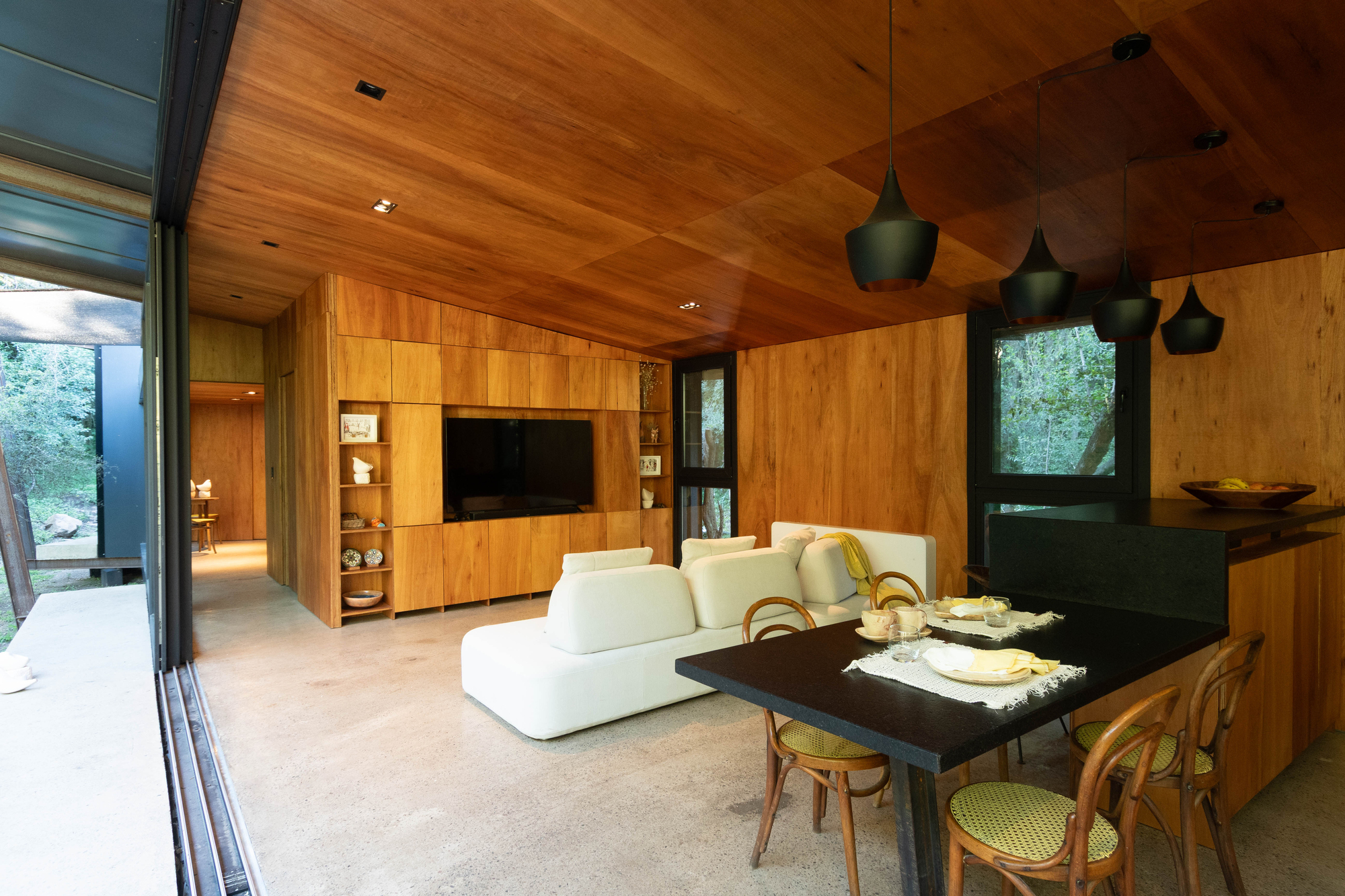

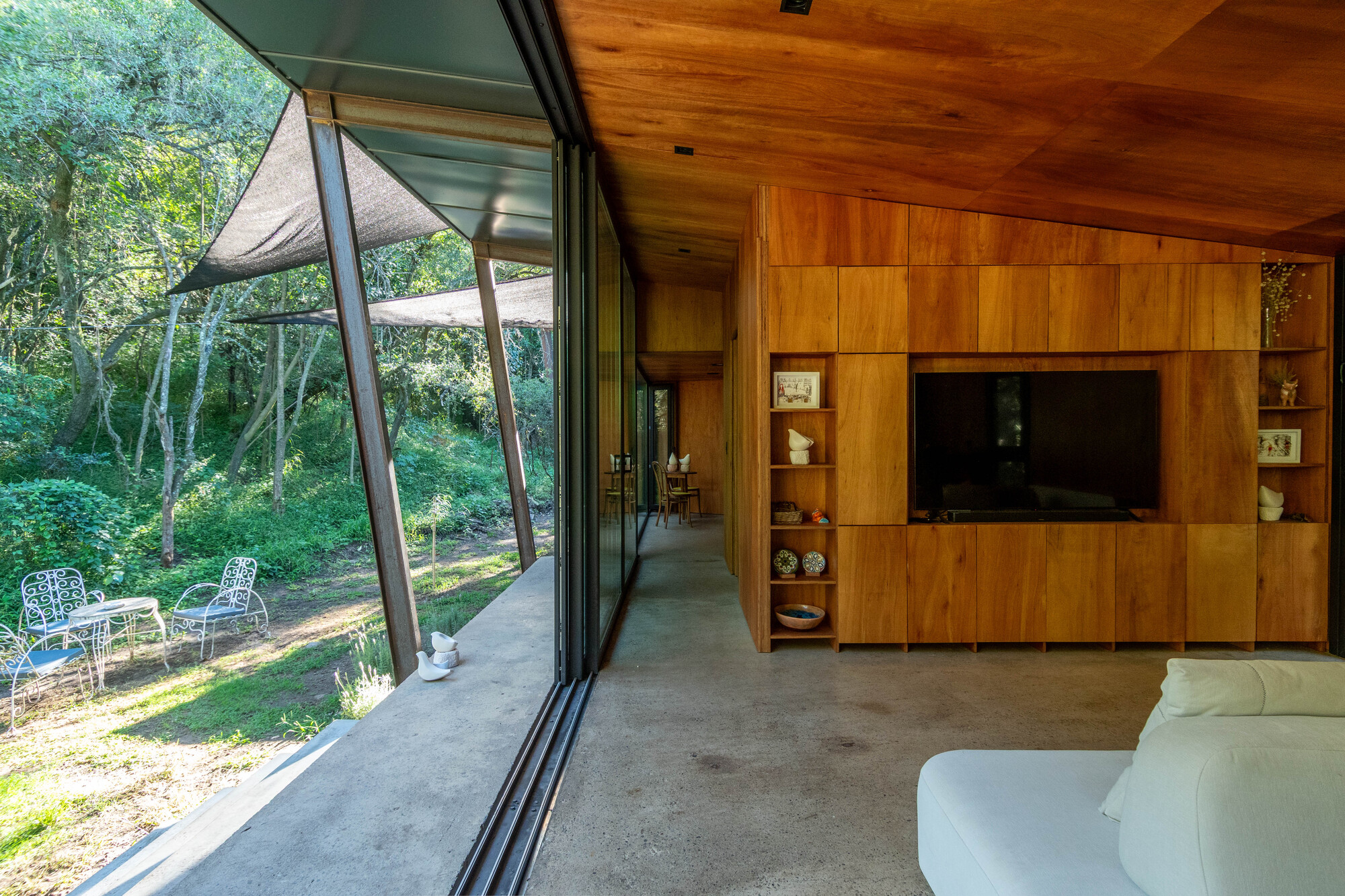

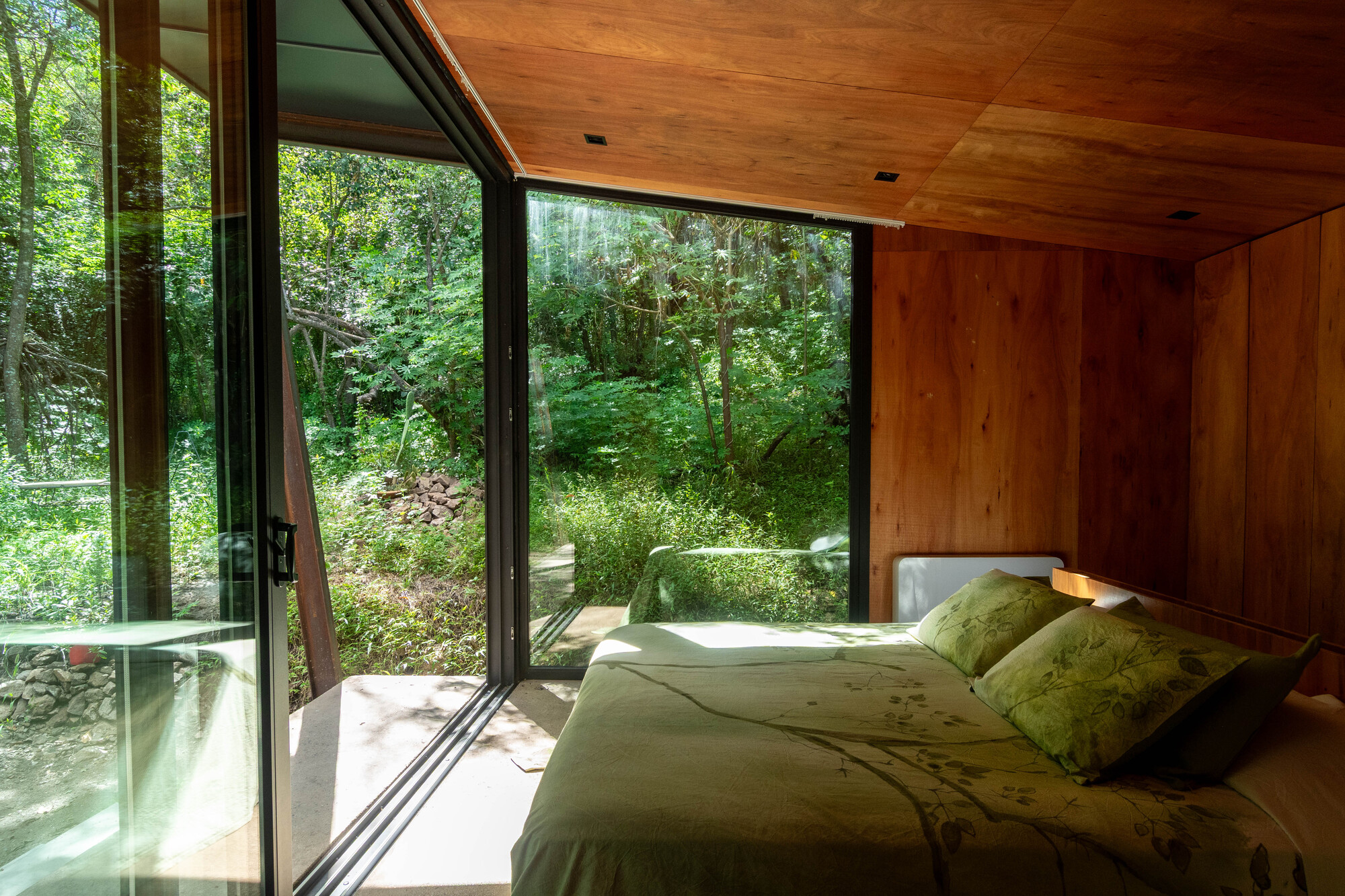

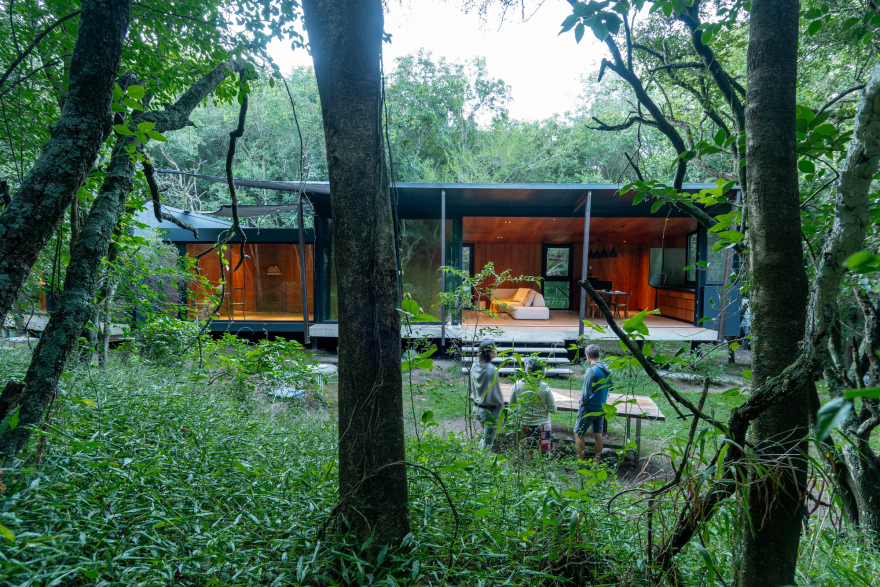

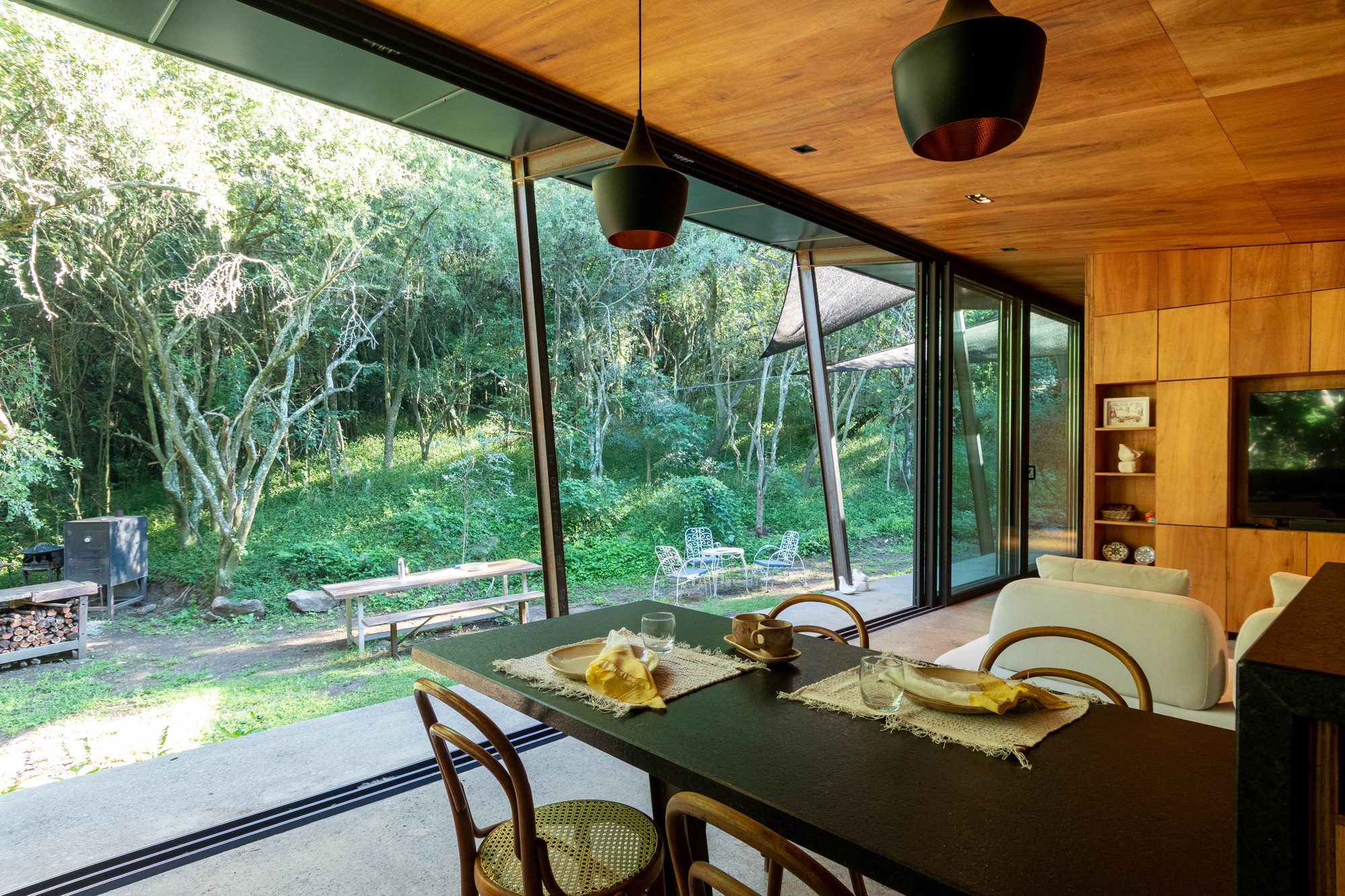

The interior space of the house is completed by the exterior forest. The glazed façade on the north and northeast sides incorporates the trees into the interior spaces, blending shadows, colors, and sounds.
丨阿根廷-22
丨阿根廷-23
丨阿根廷-24

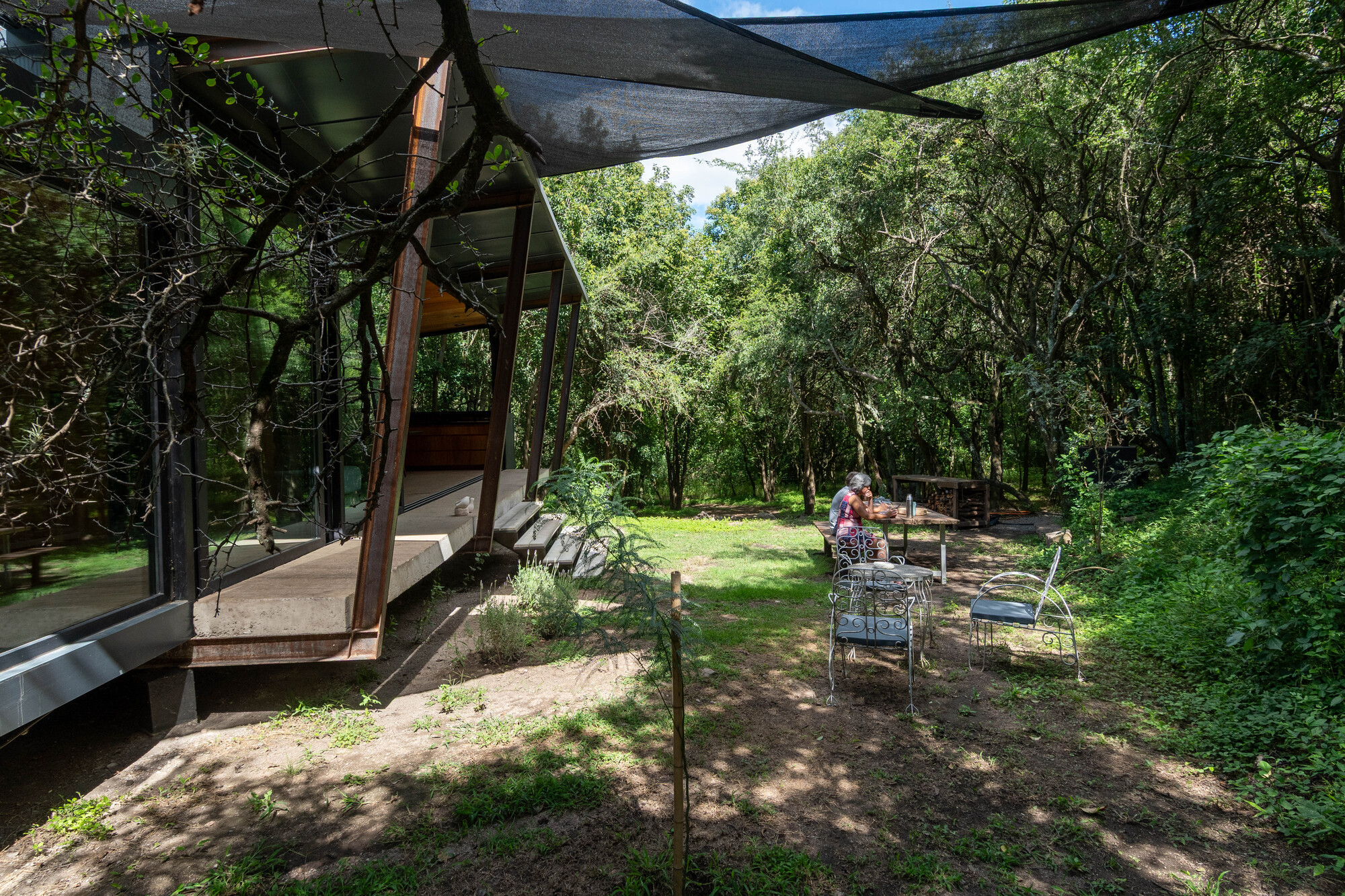

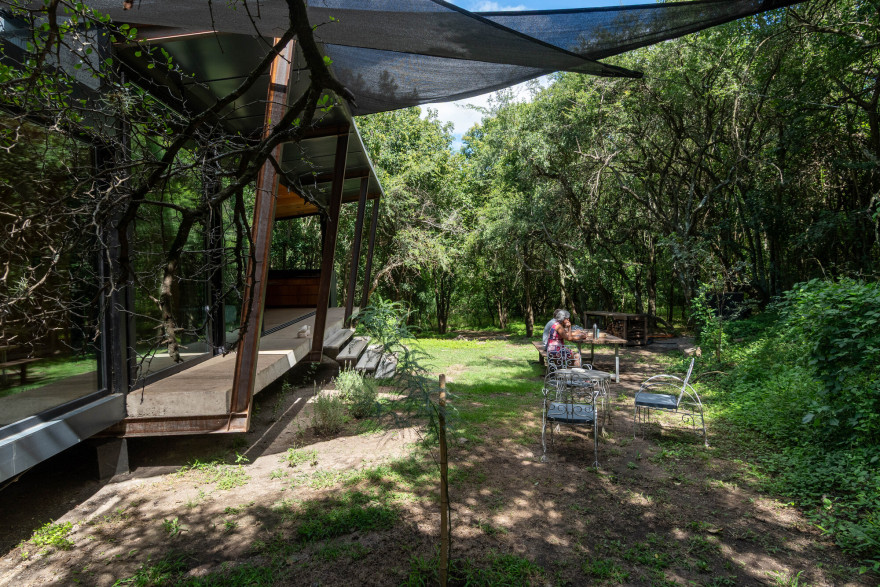

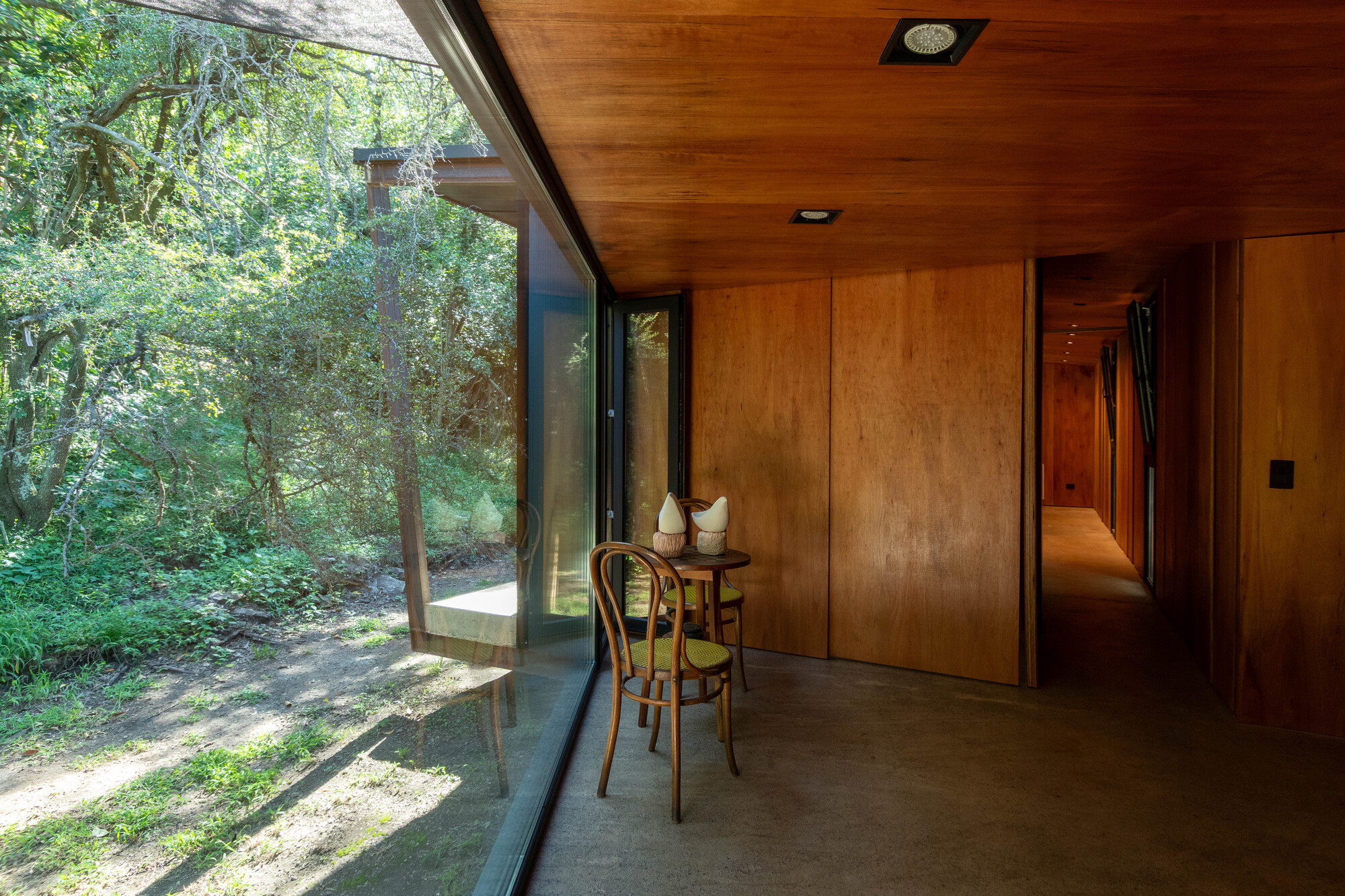

The exit threshold acts as a transitional space: a place for sculptures, seating, and an extension of the house.
丨阿根廷-26

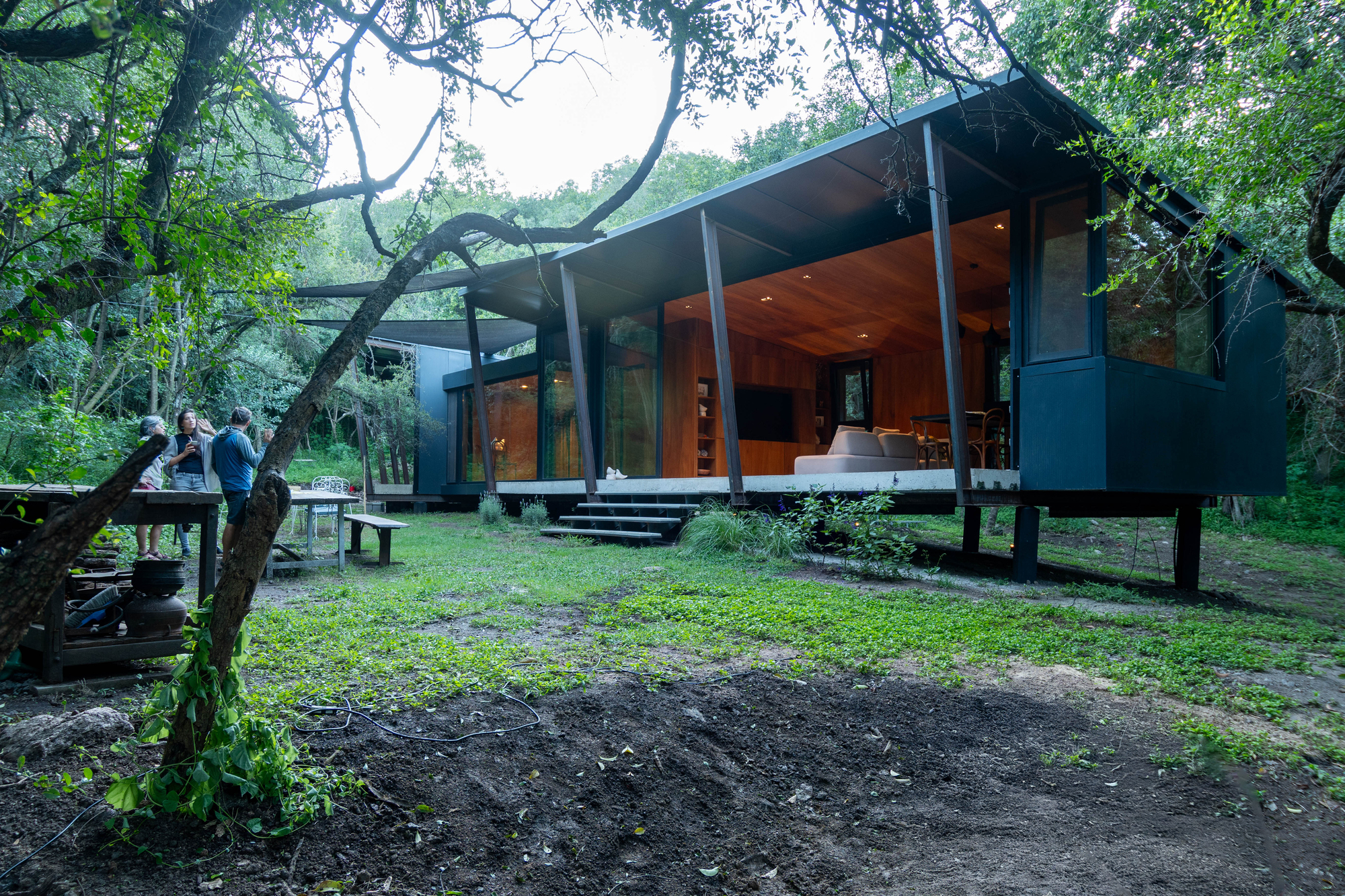

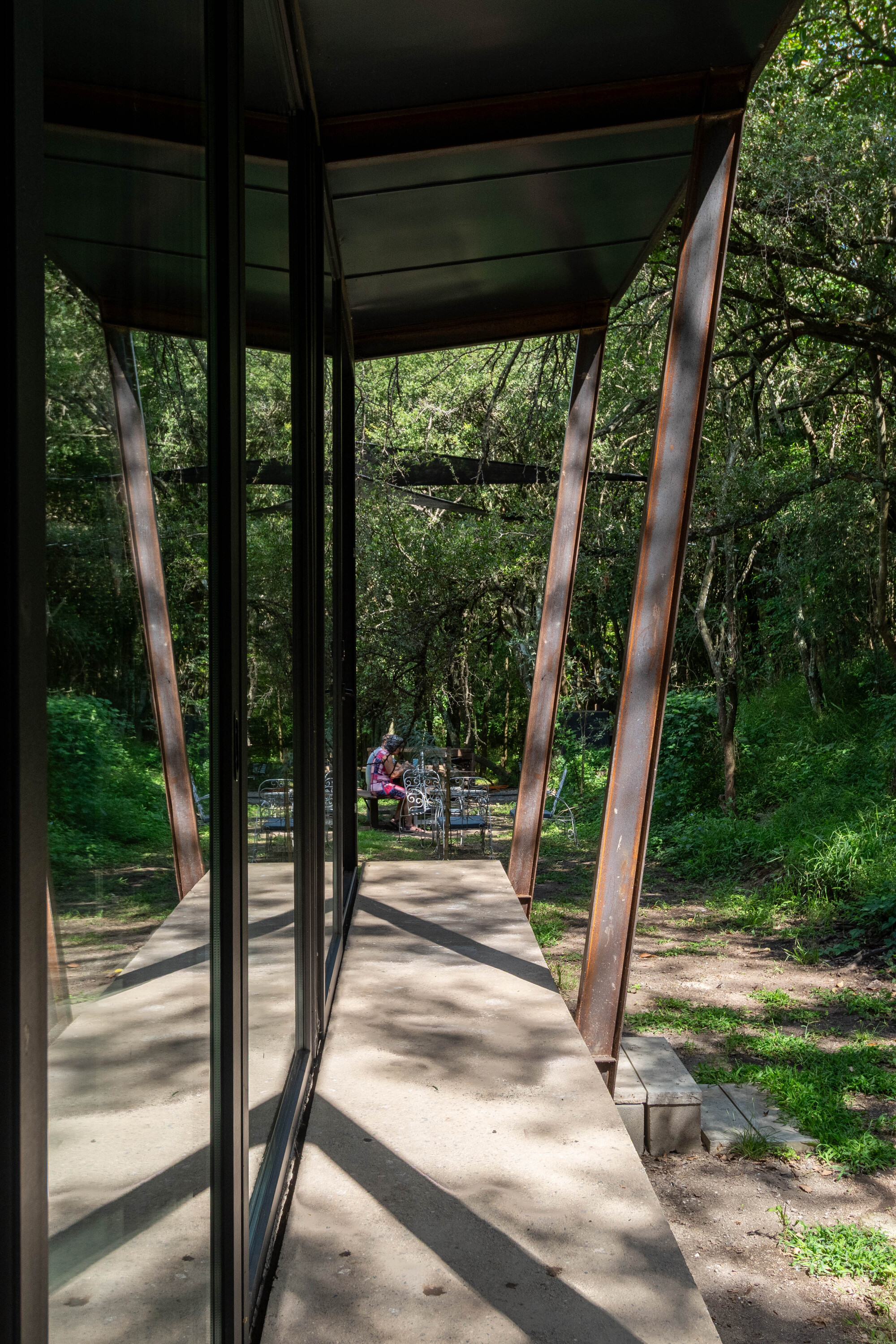

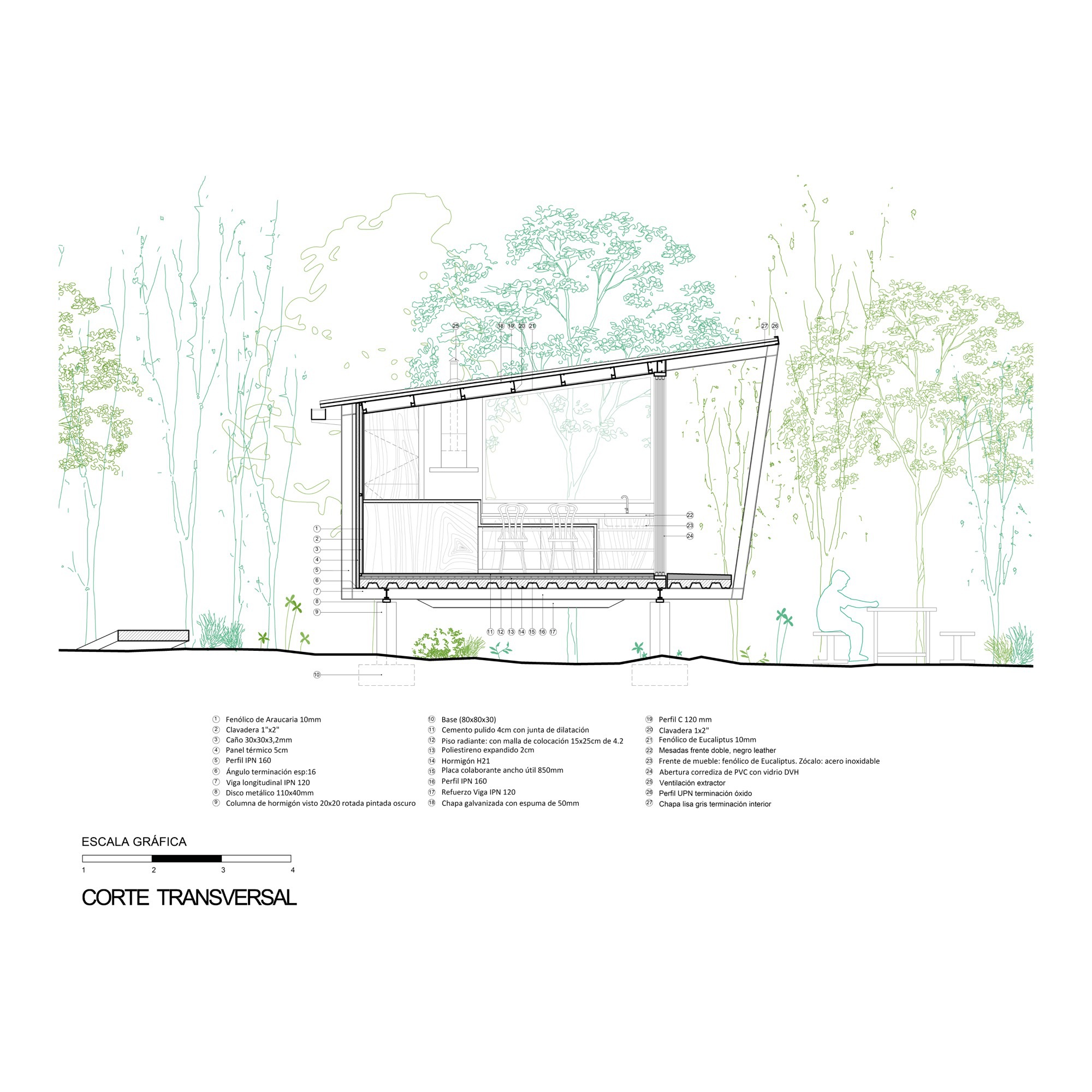

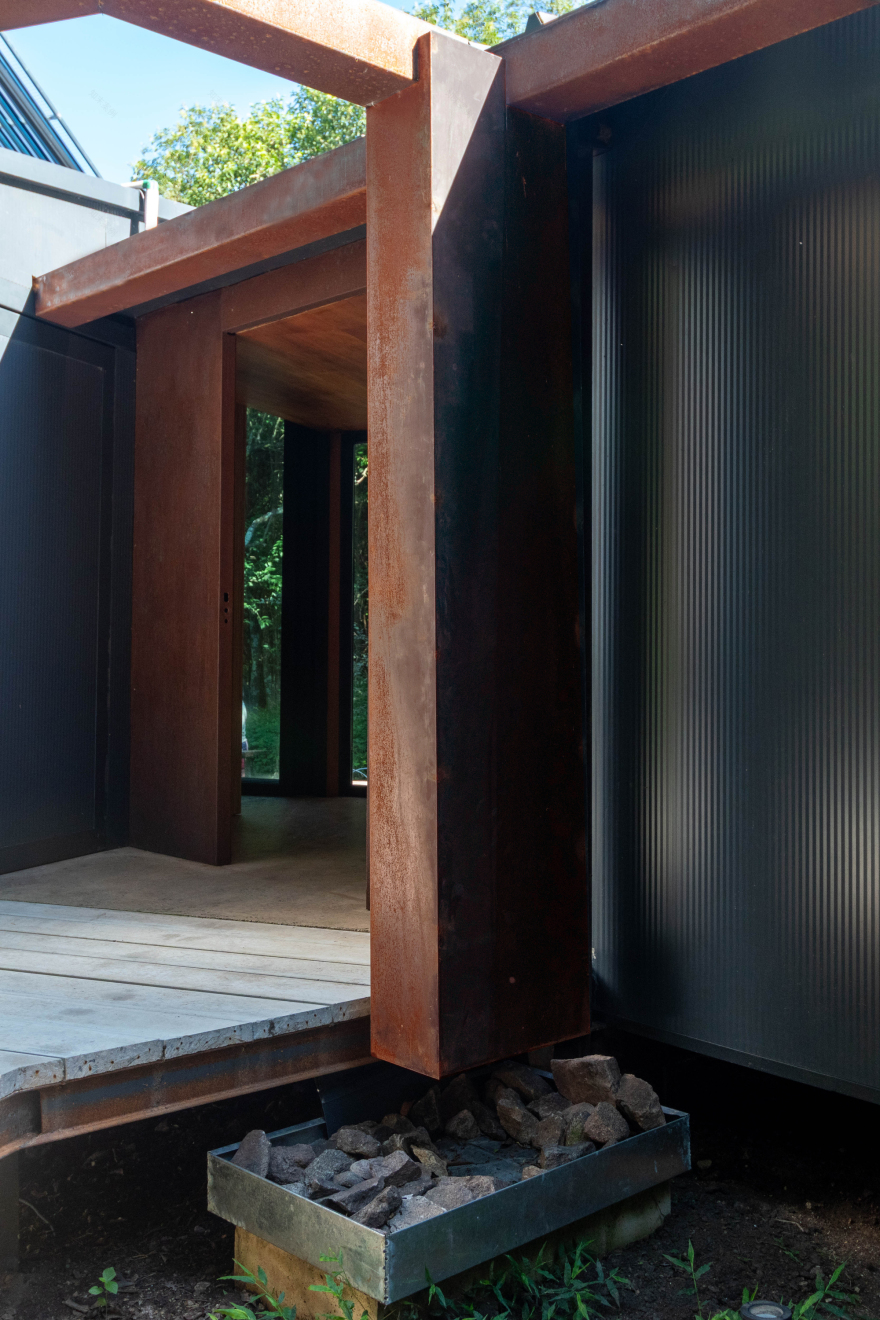

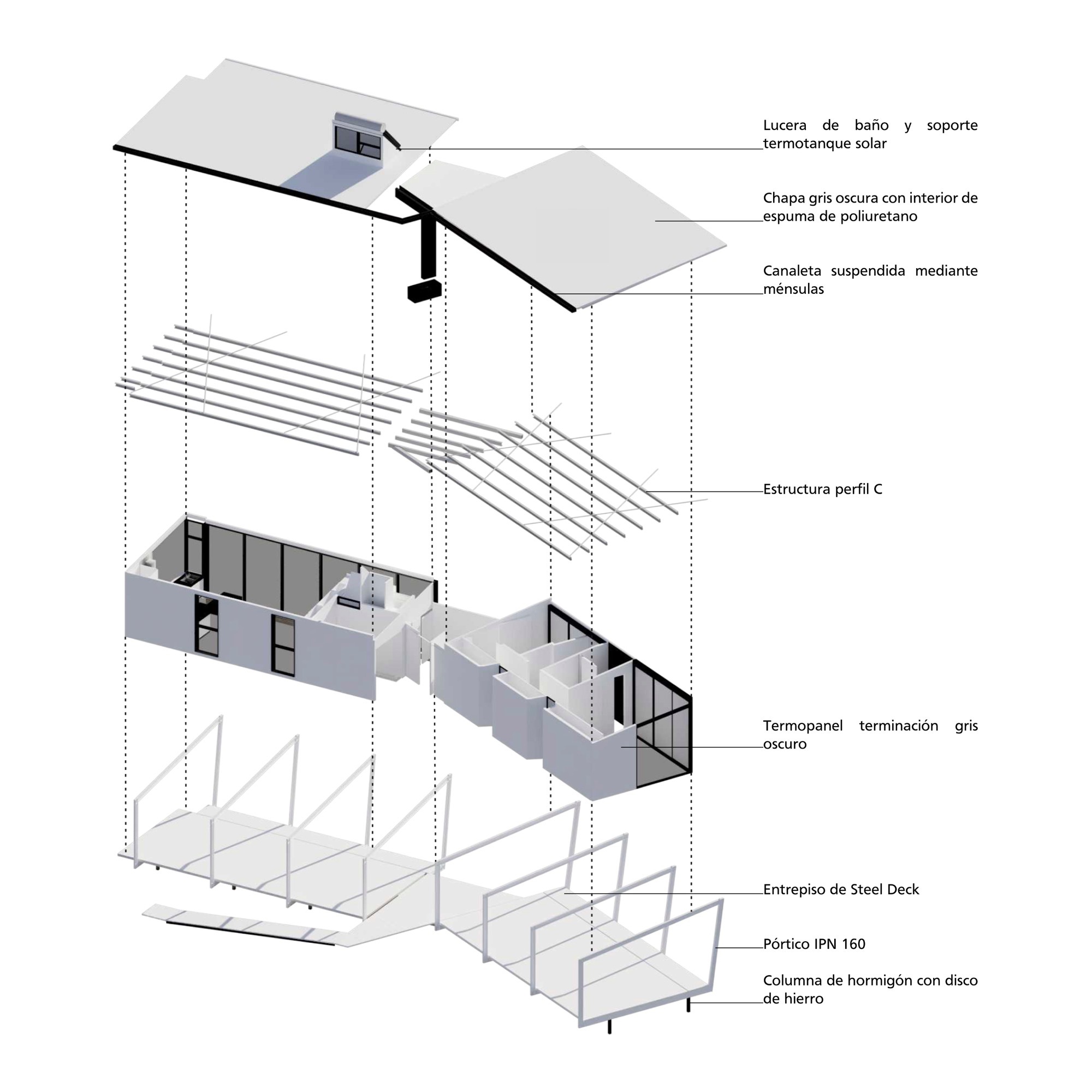

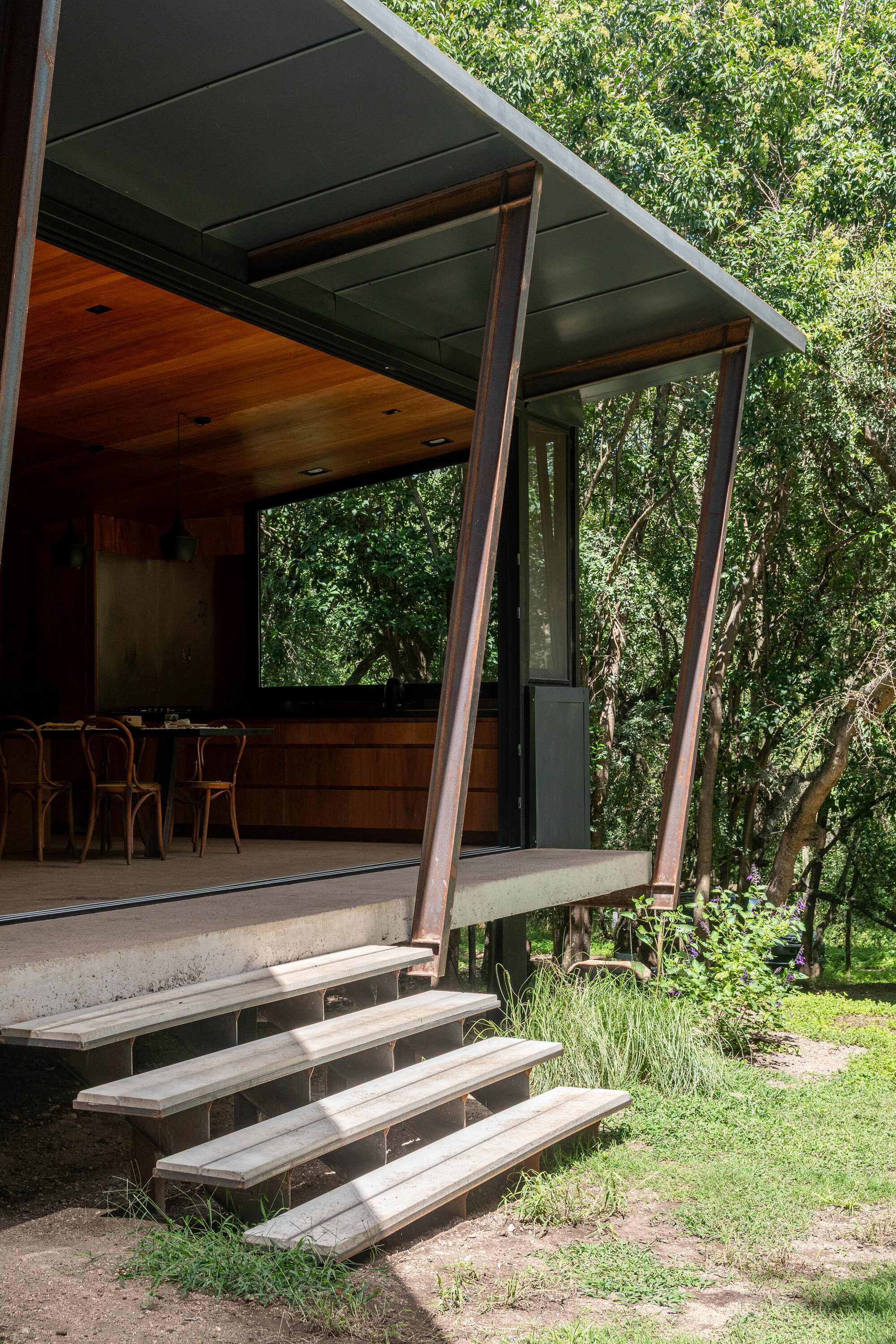

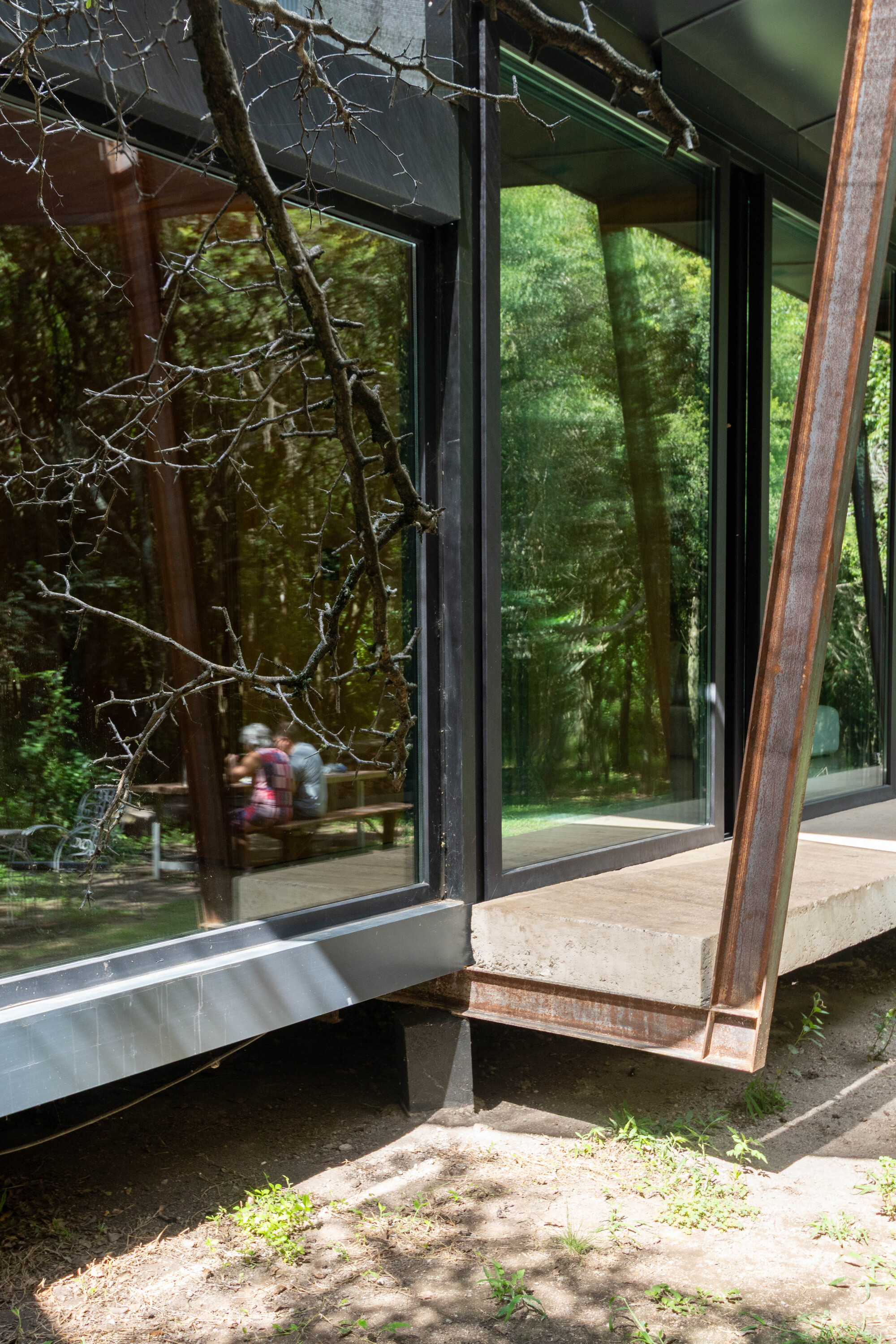

The structure envelops and suspends the house above the ground. Four steel frames form each volume, transferring their loads to the floor via concrete columns that disappear into the shadows and bushes.
丨阿根廷-28
丨阿根廷-29

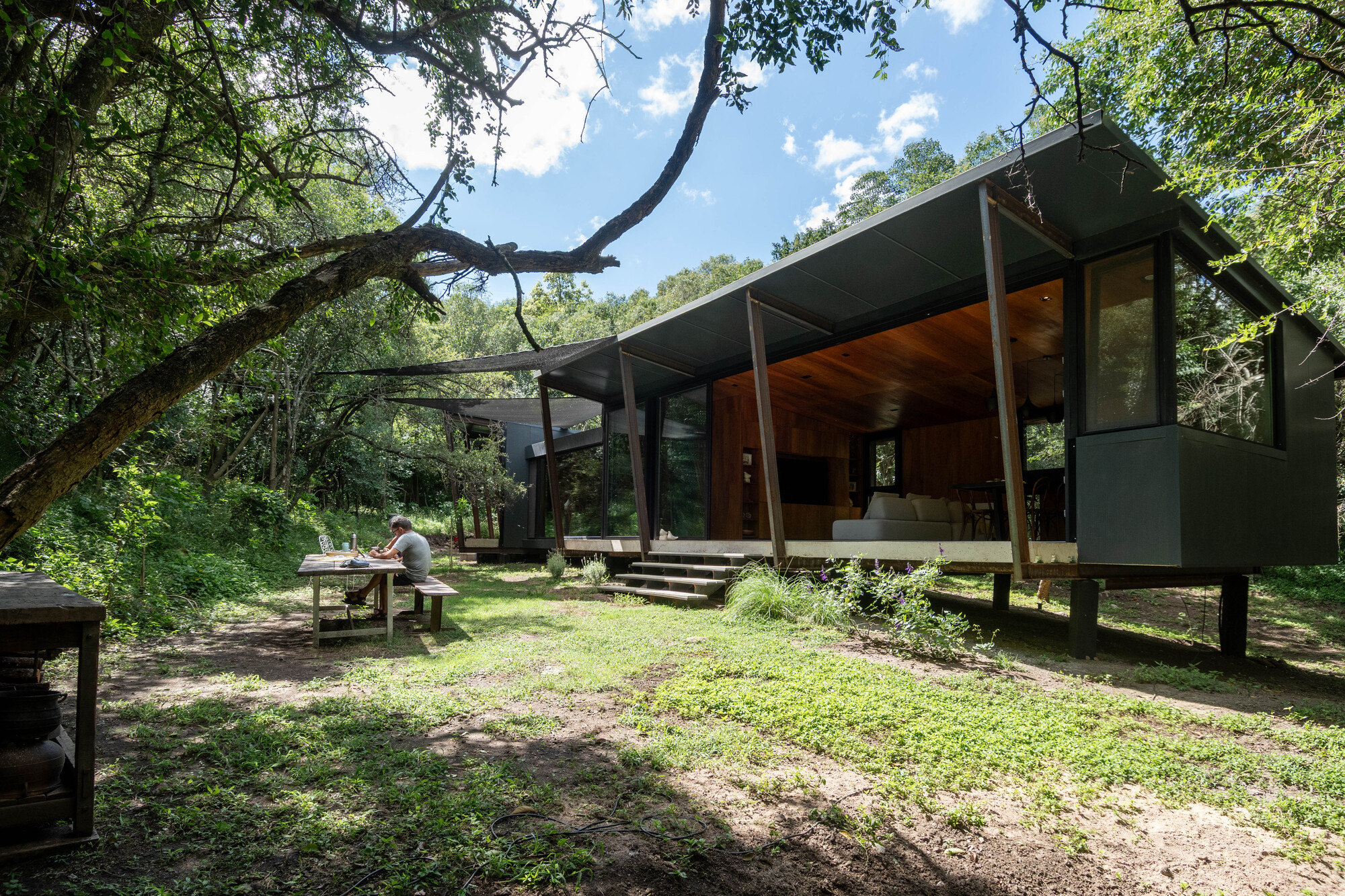

The frames take on the color of the trees and establish a rhythm. On the south side, they support the gutters and drains.
丨阿根廷-31

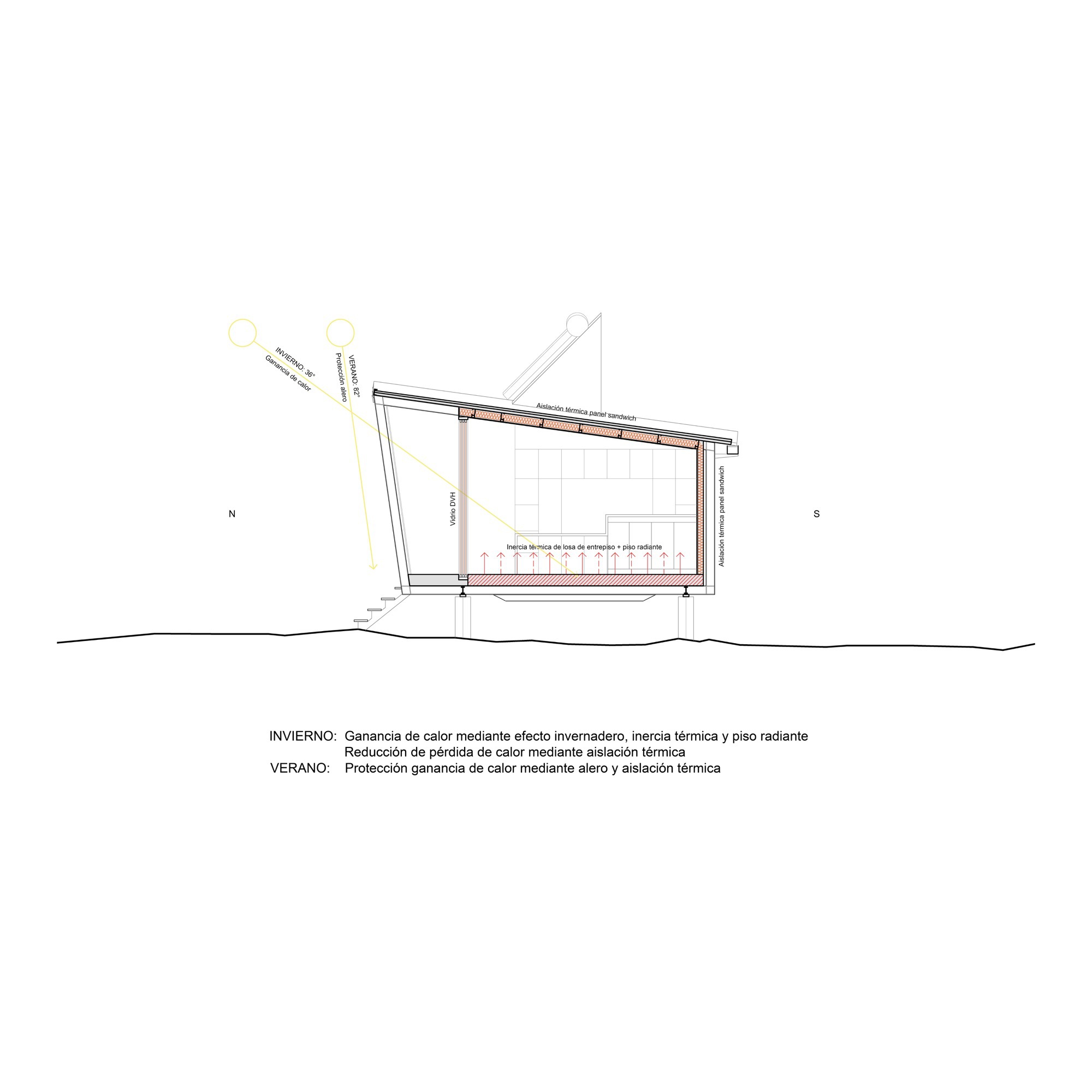

The climatic conditions and the absence of certain services intensified the focus on the home's energy efficiency, opting for maximum thermal insulation with polyurethane insulating panels in the ceilings and walls, PVC windows with double-glazed glass (DVH), and thermal bridge breakage.
丨阿根廷-33

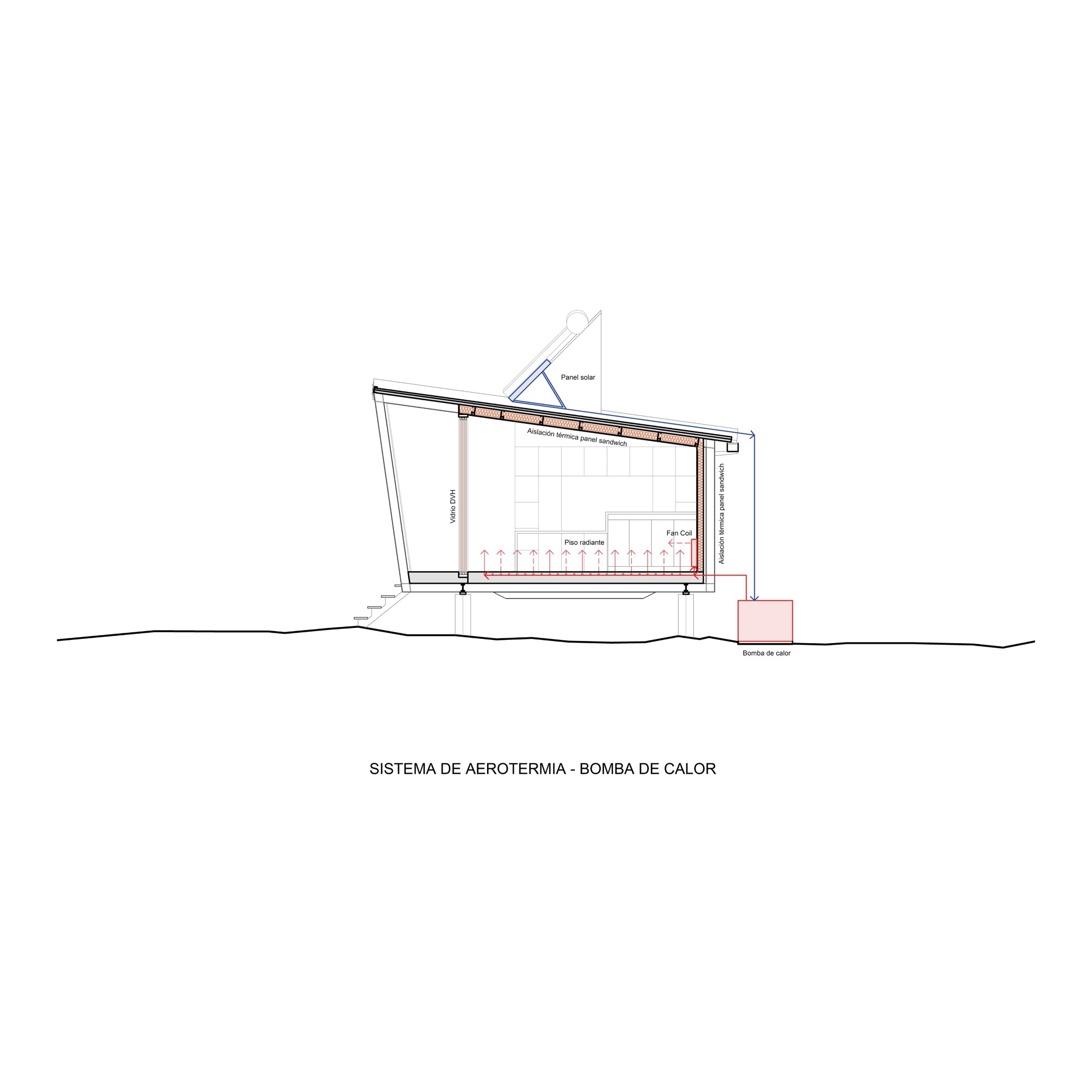

For heating, a heat pump system was chosen, which supplies fan coils and underfloor heating.
丨阿根廷-35

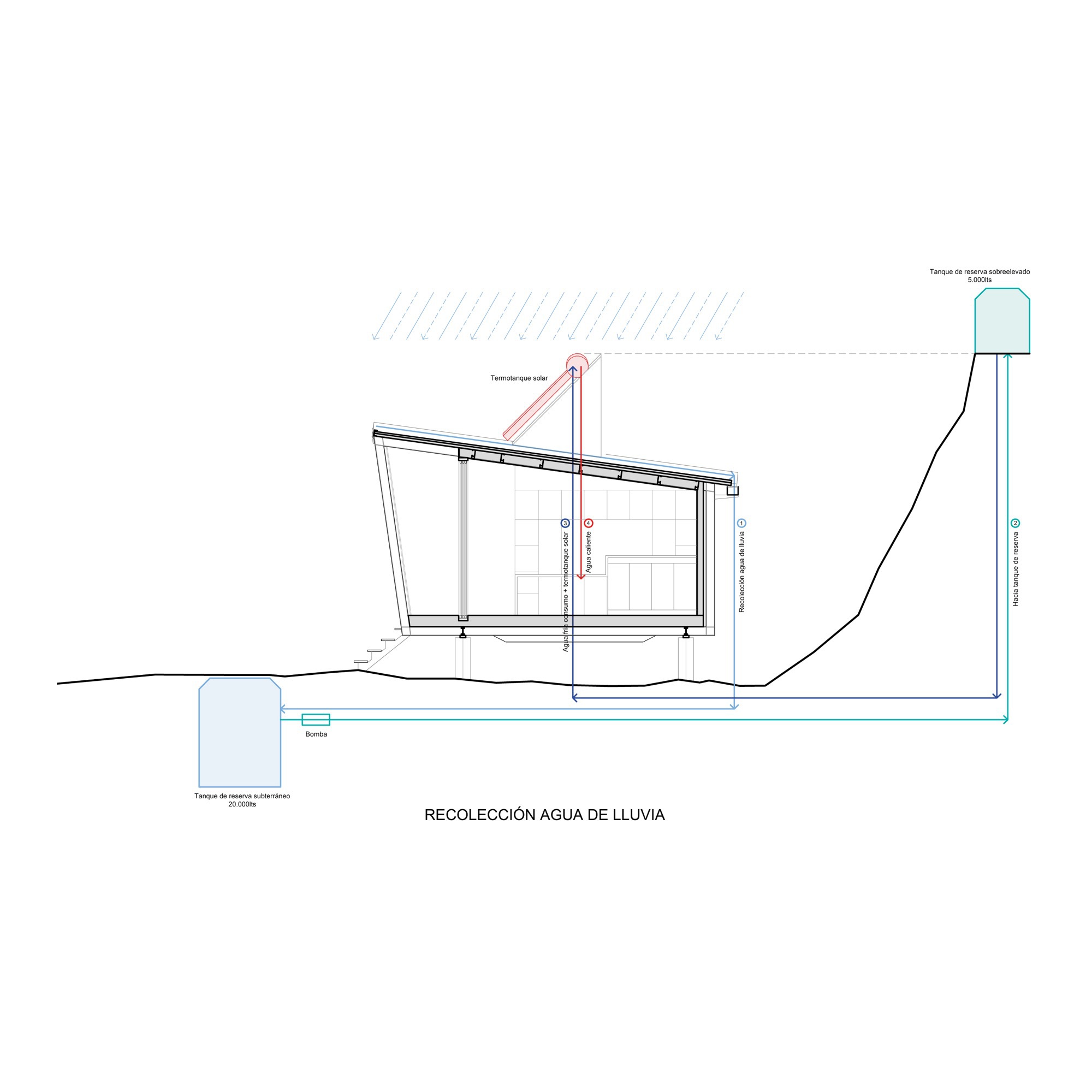

Rainwater is collected, stored, and reused. The house’s wastewater is treated using phytoremediation systems for black water and sedimentation treatment for gray water, which is then used for irrigation.
丨阿根廷-37
丨阿根廷-38
Project gallery
丨阿根廷-40
丨阿根廷-41
丨阿根廷-42
丨阿根廷-43
丨阿根廷-44
丨阿根廷-45
丨阿根廷-46
丨阿根廷-47
丨阿根廷-48
丨阿根廷-49
丨阿根廷-50
丨阿根廷-51
丨阿根廷-52
丨阿根廷-53
丨阿根廷-54
丨阿根廷-55
丨阿根廷-56
丨阿根廷-57

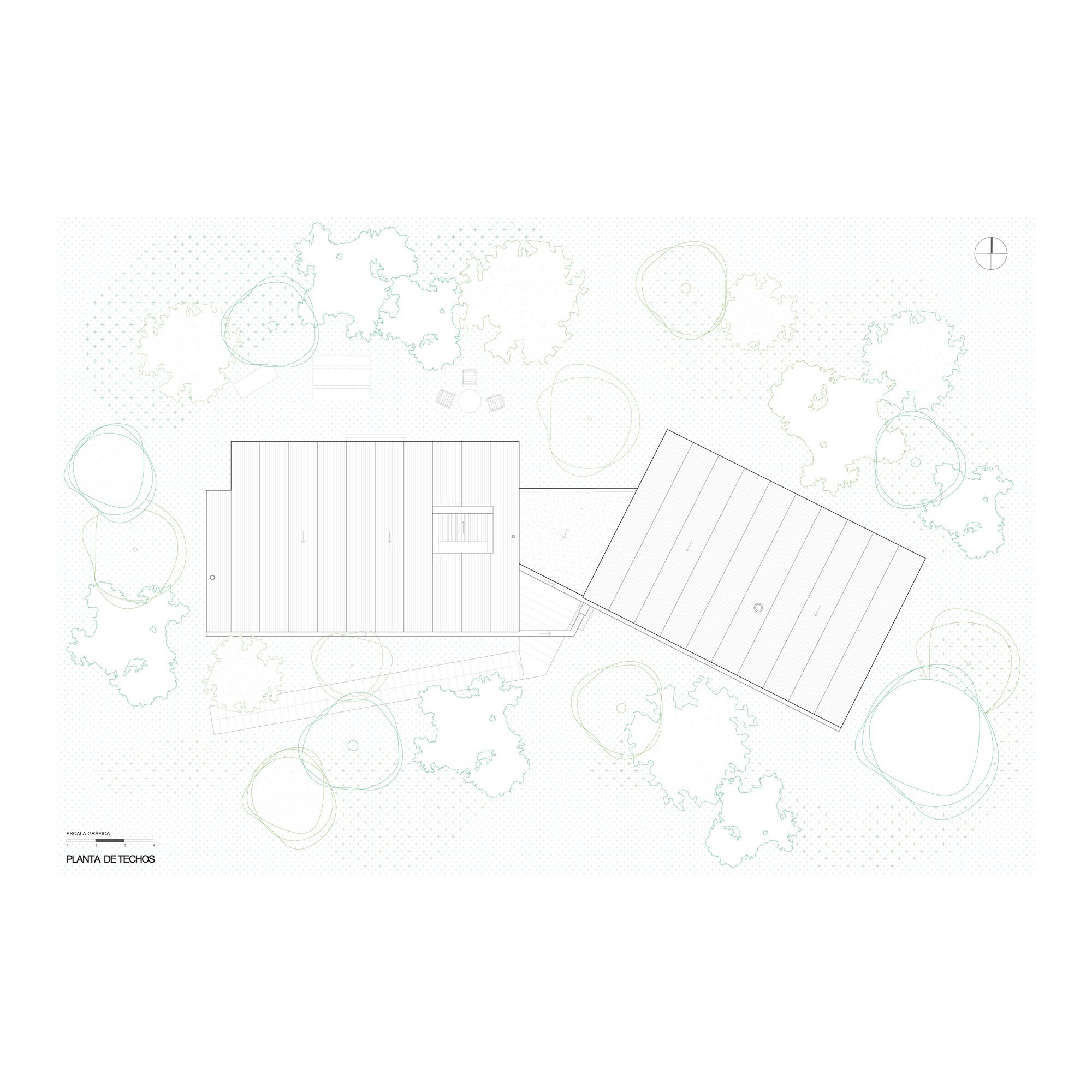

丨阿根廷-58
