加拿大 Conestoga 学院学生娱乐中心——绿色更新，健身社交一体化

© Shai Gil

(C)Shai Gil

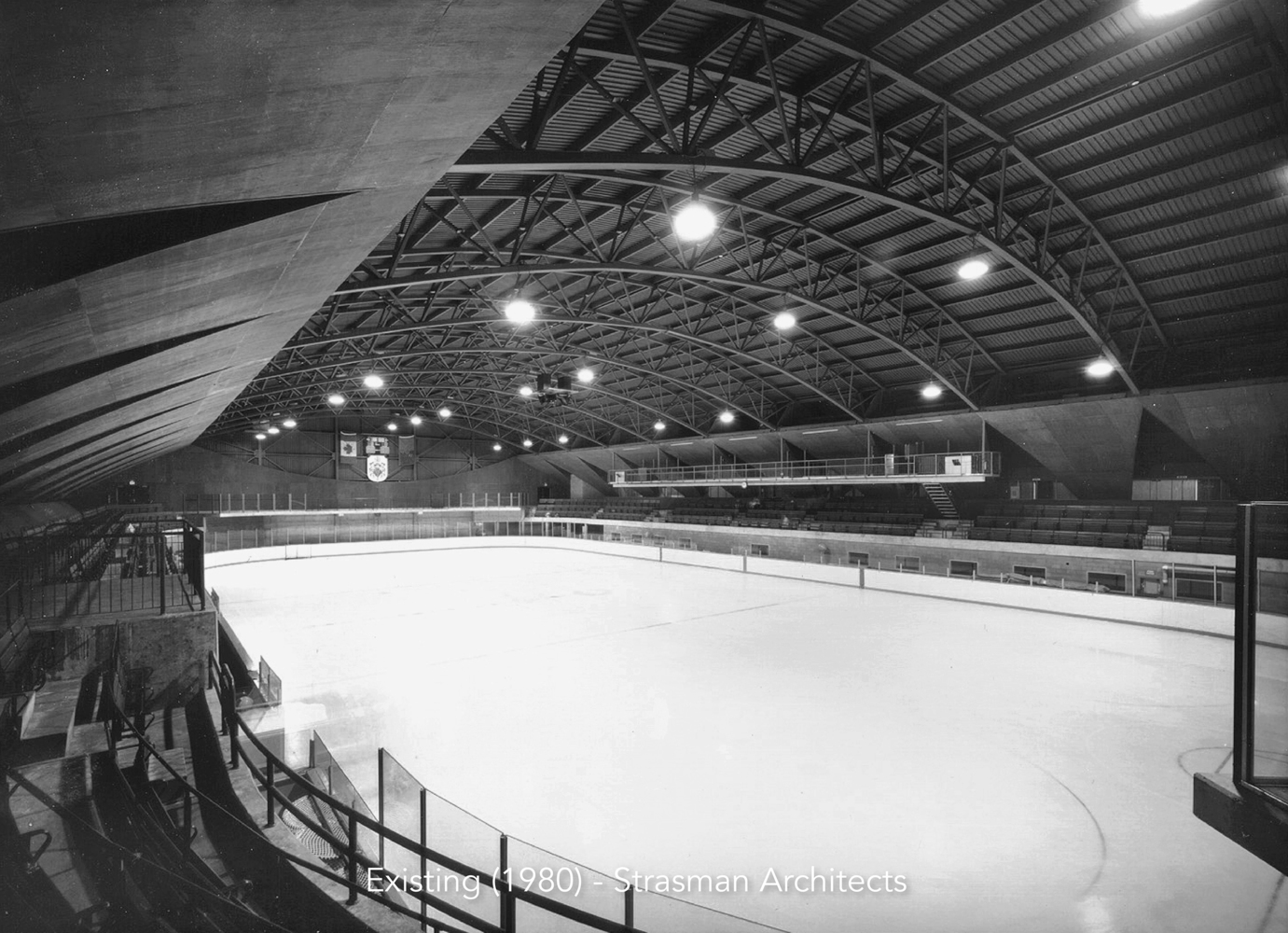

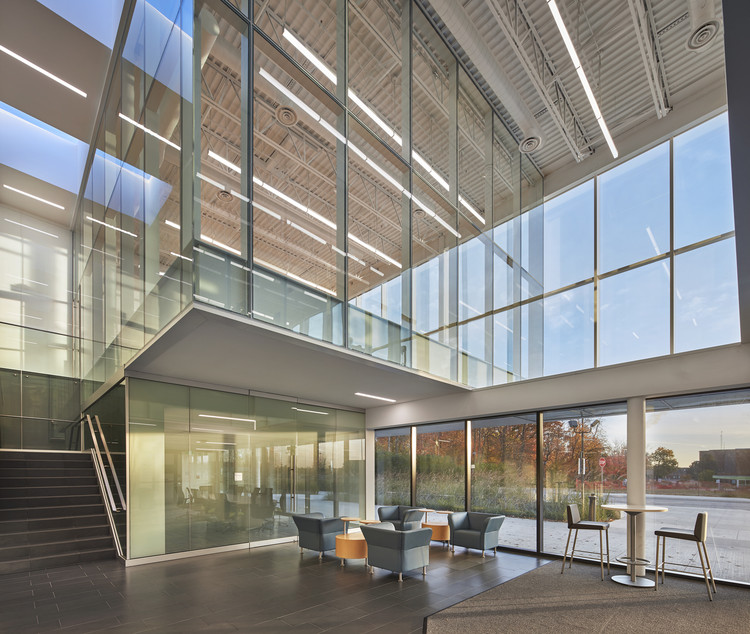

架构师提供的文本描述。该项目更新和扩大了现有的老化设施，以提高学生在校园的生活，促进健康，积极的生活。现有设施设有一个体育馆和一个未得到充分利用的竞技场。一项校园调查显示，只有1%的学生使用冰，需要更多的体操、健身和社交空间。重新设计更新了现有的健身房，自适应地使用了一个新的三重健身房和跑道，以及在第二层大厅中的大型学生共享和教室。新增加的前台包括大型接待、健康中心、治疗室、学生室、二级健身中心和多功能工作室。

Text description provided by the architects. The project renovates and expands an existing aging facility to enhance student-life on campus and promote healthy, active living. The existing facility housed a gymnasium and an underutilized arena. A campus survey indicated only one-percent of students used the ice and a need for more gymnasia, fitness, and social space. The redesign updates the existing gym, adaptively reuses the arena with a new triple-gym and track, and a large student commons and classrooms at the second-level concourse. The new front addition contains a large welcoming reception, wellness centre, therapy rooms, and student rooms, and second-level fitness centre and multipurpose studios.

© Shai Gil

(C)Shai Gil

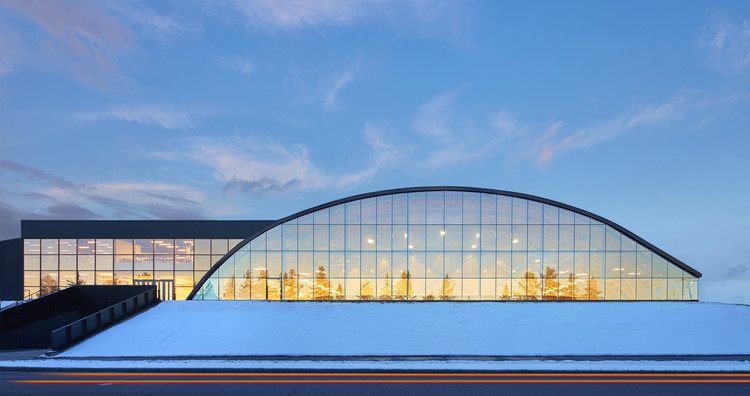

最初的项目简介要求拆除现有的竞技场，用一个新的预先设计的建筑来容纳学生和健身空间。规划研究确定，现有的双抛物线屋顶综合体可以较低的成本进行再利用，而原有的竞技场空间可以自适应地再用于增加体育馆。主要入口被重新定位到校园，前面是新的灯笼，增加了健身和学生节目，还有一个新的学生广场连接着新大楼和校园。新的配置保留了原有建筑群的标志性形式，而扩展则为校园呈现了一个新的、更轻松的面貌。

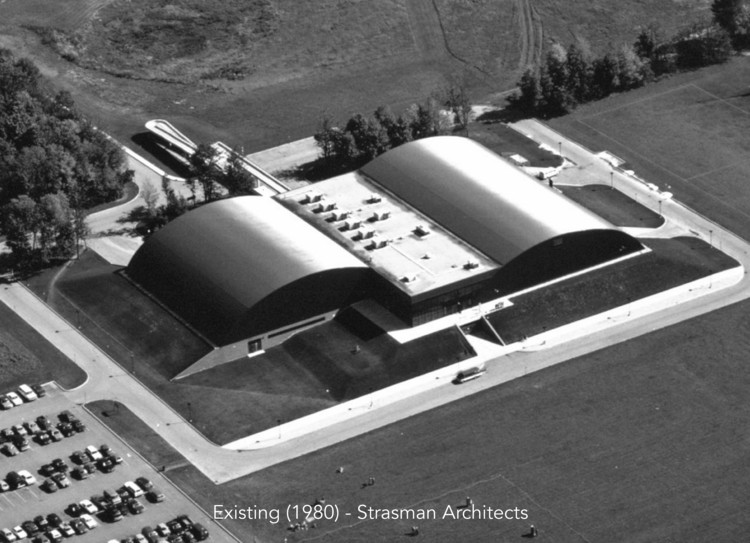

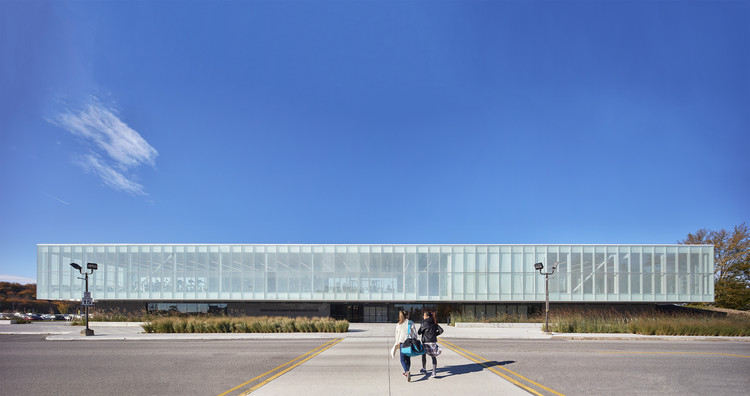

The original project brief called for demolition of the existing arena with a new pre-engineered building to house student and fitness space. Planning research determined the existing double parabola roof complex could be repurposed at less cost with the former arena space adaptively reused for additional gymnasia. The main entry is reoriented to the campus, fronted by the new lantern-like addition of fitness and student programming, and a new student plaza connecting the new building to its campus. The new configuration retains the iconic form of the original complex while the expansion presents a new lighter face to the campus.

© Shai Gil

(C)Shai Gil

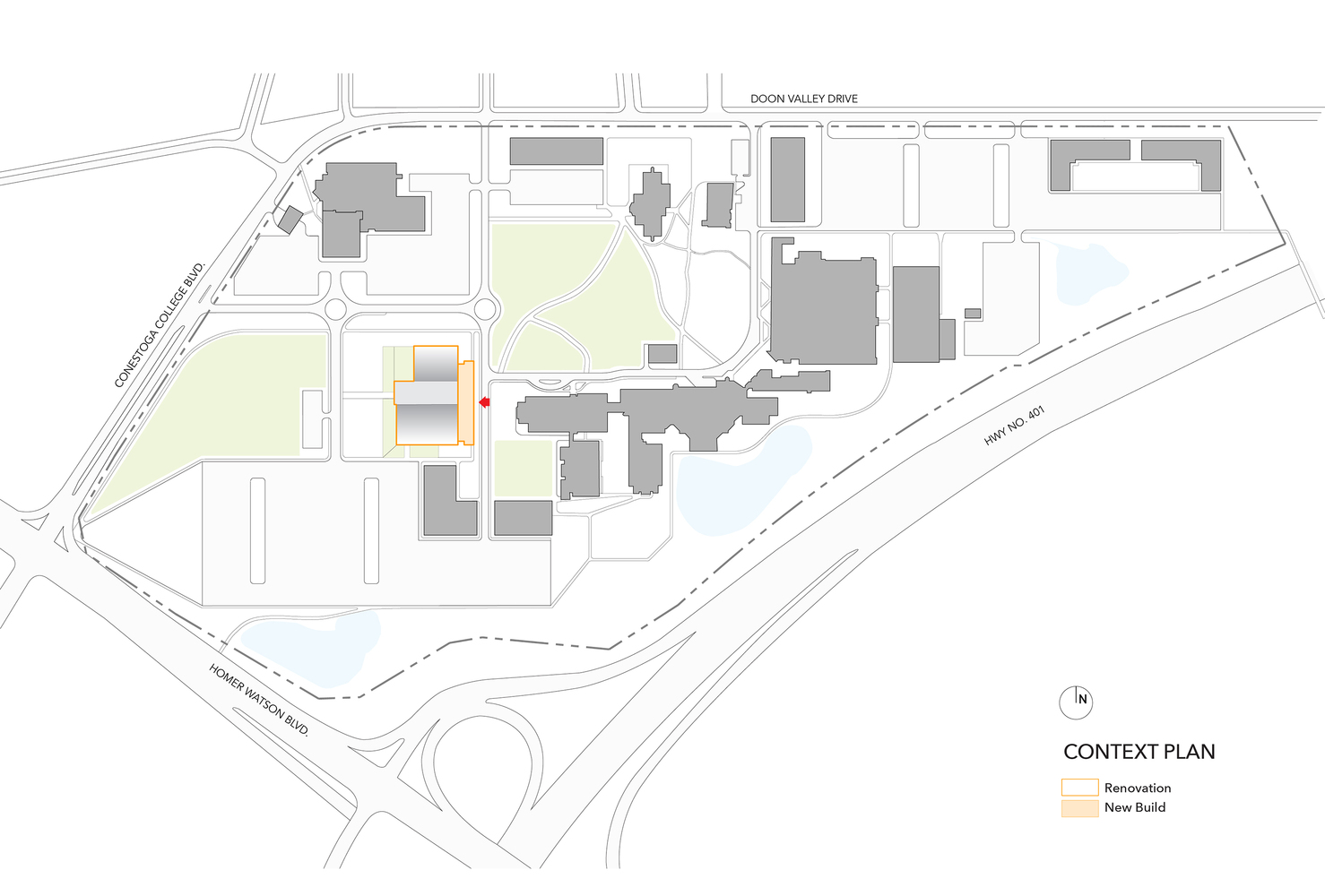

振兴后的娱乐中心位于基奇纳的Conestoga Doon校区，重新调整了其在校园的位置，将主要入口设在地面，面向校园，而不是现有计划中的停车场。全玻璃的健身和多用途工作室悬挂在学生广场上，提供了一个覆盖的室外公共空间。一个绿色屋顶的天篷连接着相邻的学术大楼，取代了一条很少使用的开放式高架道。新的设计引入了一个地面的校园规划和架构，以取代现有的上层二级连接。

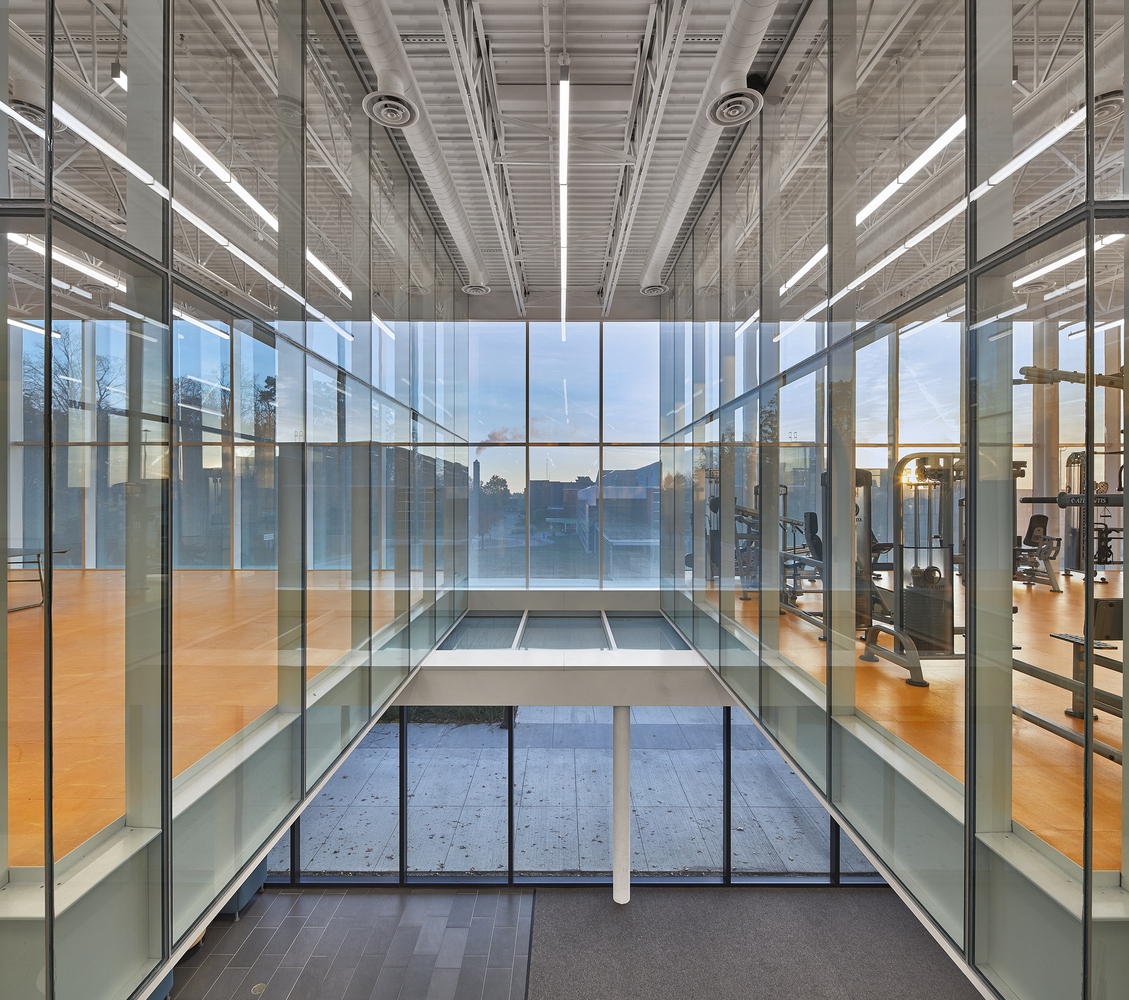

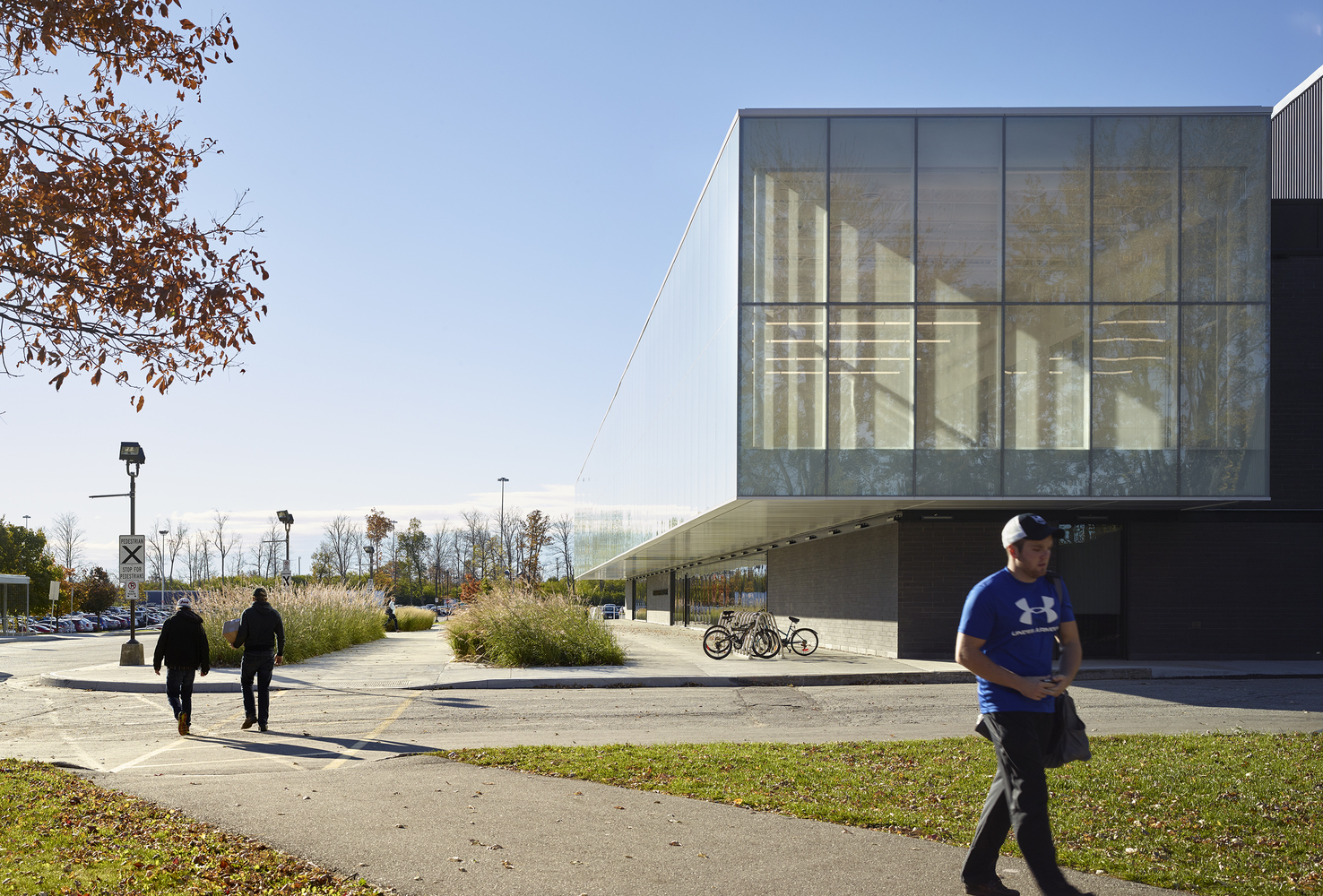

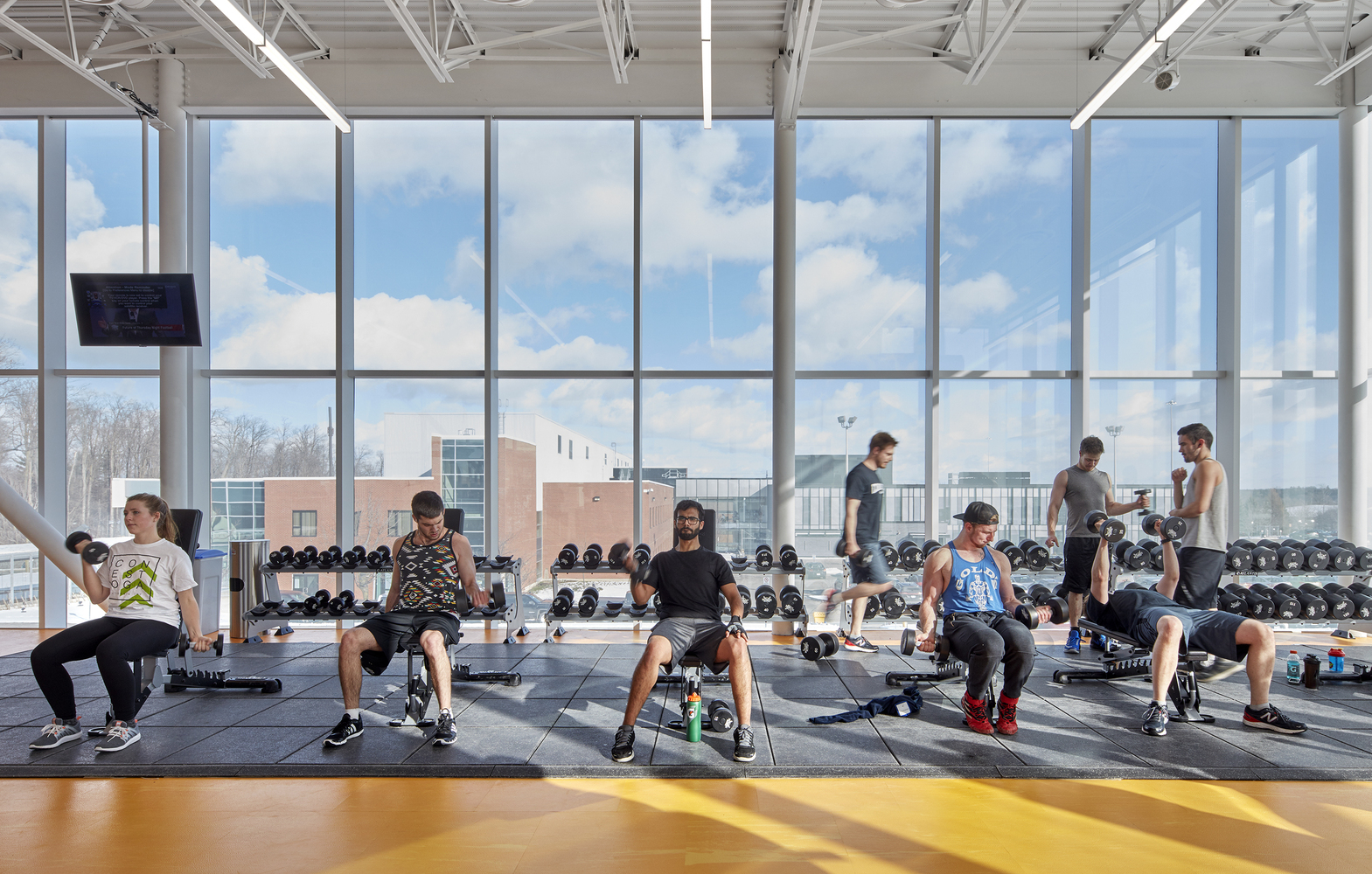

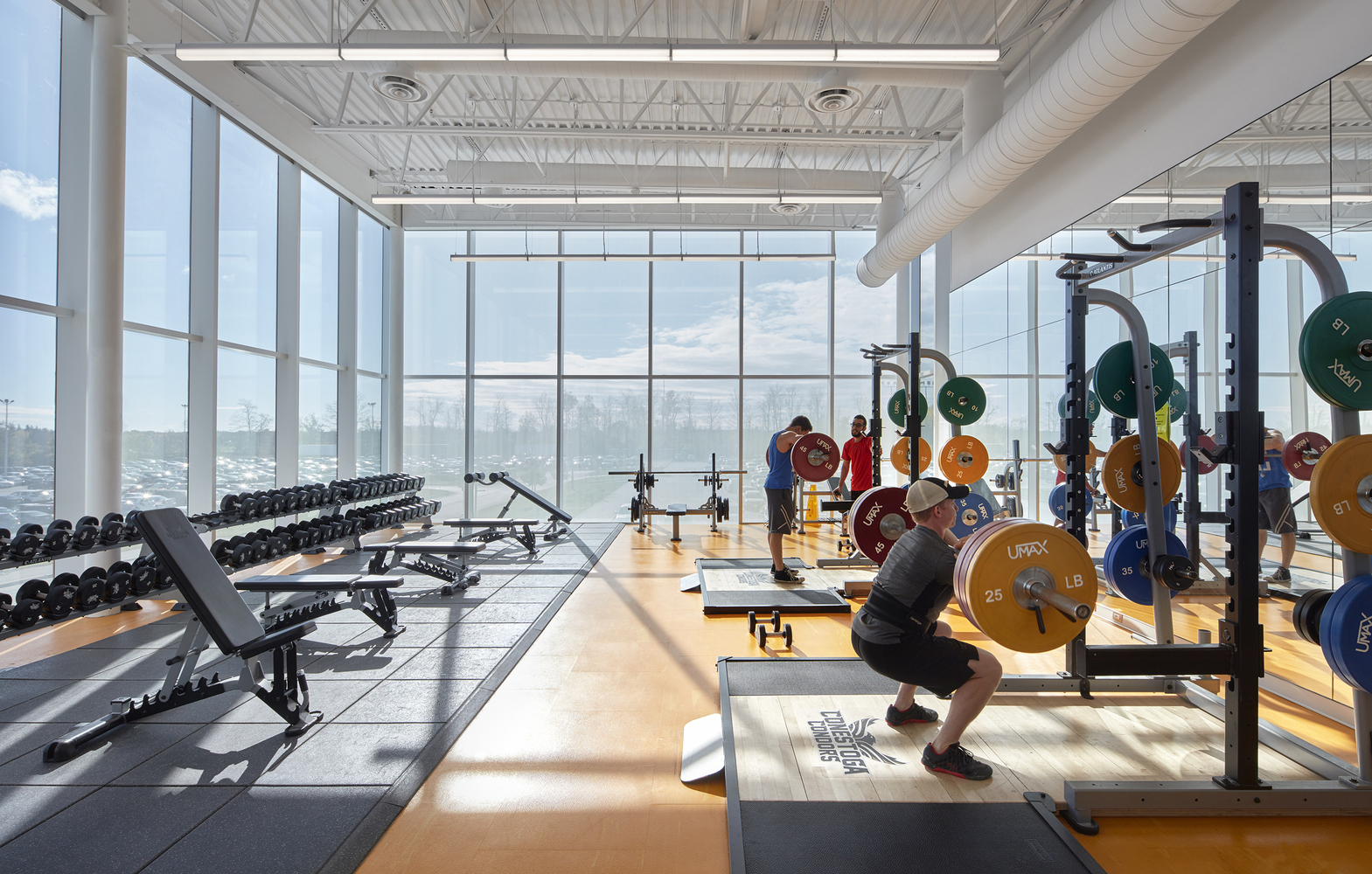

Located on Conestoga’s Doon Campus in Kitchener, the revitalized recreation centre reorganizes its’ position on campus by placing the main entrance at ground level towards the campus rather than to the parking lot as in the existing plan. The fully glazed addition of fitness and multipurpose studios is suspended over the student plaza providing a covered outdoor public space. A green roofed canopy connects the adjacent academic building and replaces a seldom-used open overhead walkway. The new design introduces a ground level campus plan and architecture to replace the existing upper level secondary connections.

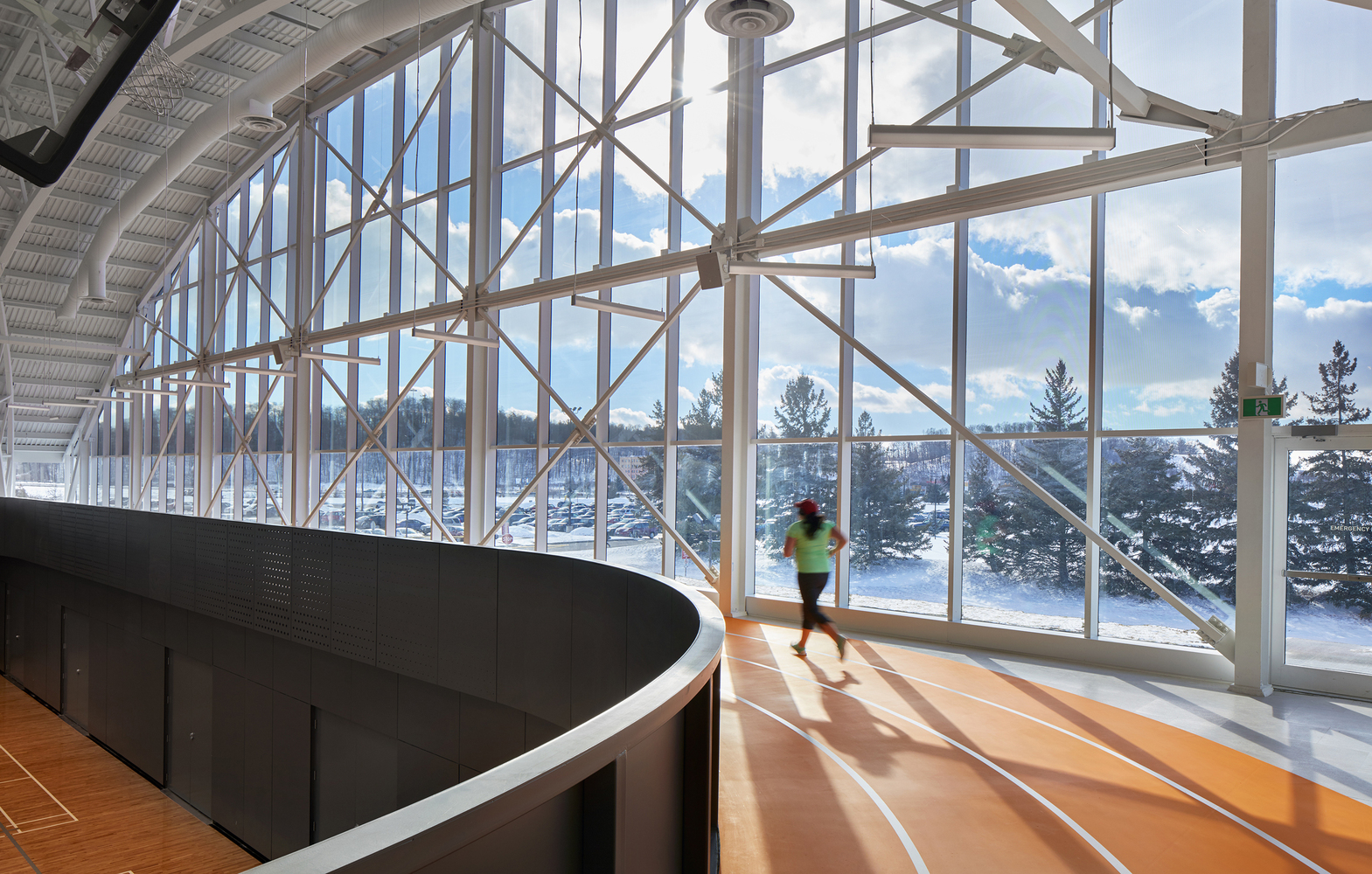

主要的可持续举措是保留和翻新现有的竞技场外壳。这不仅节省了资本成本，还保留了一个非常漂亮和有用的外壳，并成功地重新利用了它。现有的地区是重新屋顶和隔热，以提高热性能.改造后，在新体育馆和跑道上引入自然光，大大减少了电气照明负荷。所有的玻璃利用玻璃图案来管理太阳能增益，所有的照明都是用LED代替或设计的。新广场的设计与生物沼泽地种植床，以管理所有硬地面径流，而不需要雨水下水道连接。

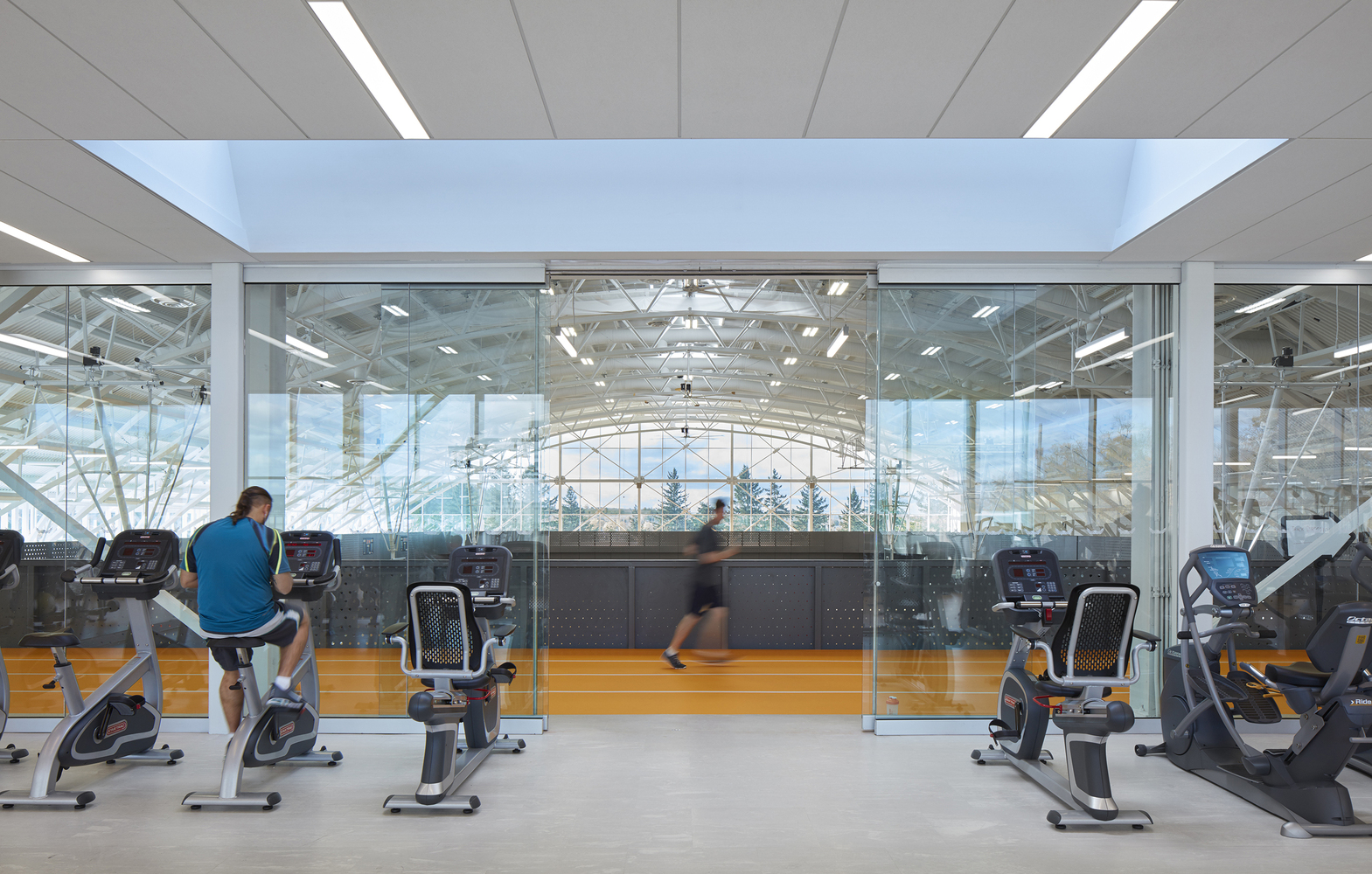

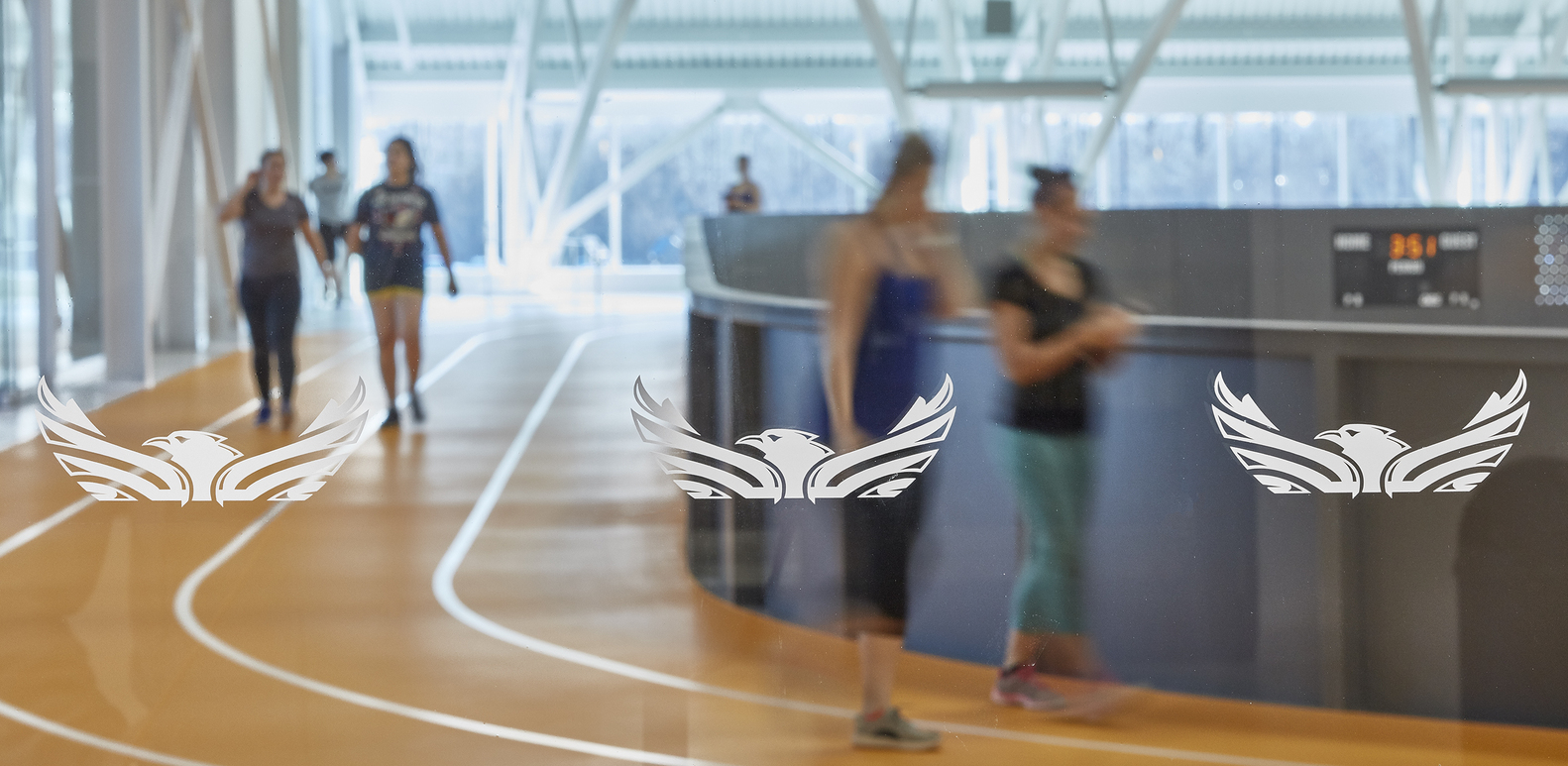

The primary sustainable initiative is retaining and renovating the existing arena shell. This not only saves on capital costs, it retains a very beautiful and useful shell that is successfully repurposed. The existing areas are re-roofed and insulated for increased thermal performance. The renovation introduces natural light throughout the new gymnasium and running track to greatly reduce electrical lighting load. All glazing utilizes frit patterns to manage solar gain and all lighting is replaced or designed with LED. The new plaza is designed with bio-swale planting beds to manage all hard surface runoff without the need for stormwater sewer connections.

© Shai Gil

(C)Shai Gil

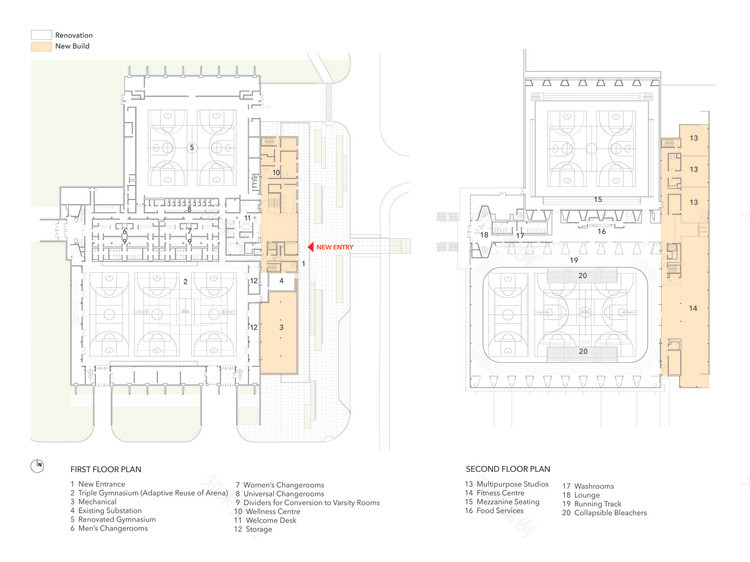

Floor Plans

平面图

© Shai Gil

(C)Shai Gil

学生娱乐中心是一个更新和扩展，恢复老化的体育设施，并将其转变为一个充满活力的中心，学生的生活，活动和健康。与学院和学生协会密切合作，该设施被重新设想为校园生活的中心，除了健身之外，学生们还可以聚集在一起，找到健康的食物选择，并接受咨询和治疗。新的扩建改变了校园的主入口，增加了连接性。入口处有一个学生广场和有盖的人行道，为社会互动、行人移动提供了更好的机会，并有助于校园的人性化。

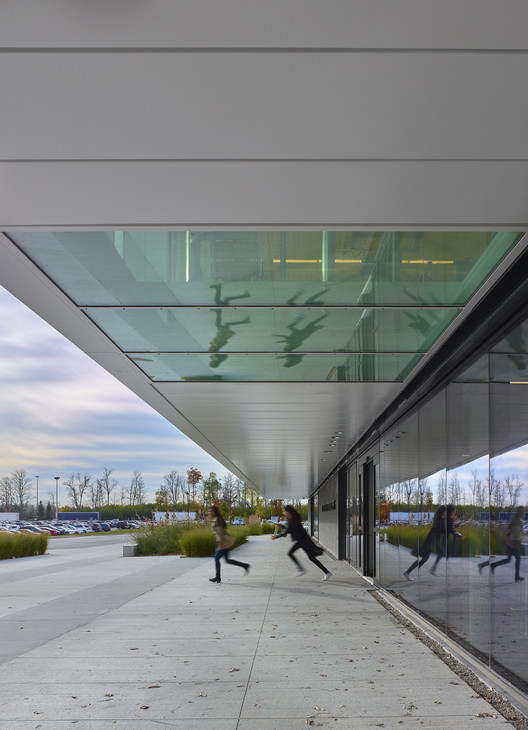

The Student Recreation Centre is a renovation and expansion that restores an aging athletic facility and transforms it into a dynamic hub for student life, activity, and wellness. Working closely with the College and Students Association, the facility is re-imagined as a central hub of campus life, where in addition to fitness, students can congregate, find healthy food options, and receive counseling and therapy. The new expansion flips the main entrance to engage the campus and increase connectivity. A student plaza and covered walkway at the entrance offer improved opportunity for social interaction, pedestrian movement, and help humanize the campus.

© Shai Gil

(C)Shai Gil

Architects MJMA

Location Kitchener, ON, Canada

Project Year 2016

Photographs Shai Gil

Category Refurbishment

Manufacturers Loading...
