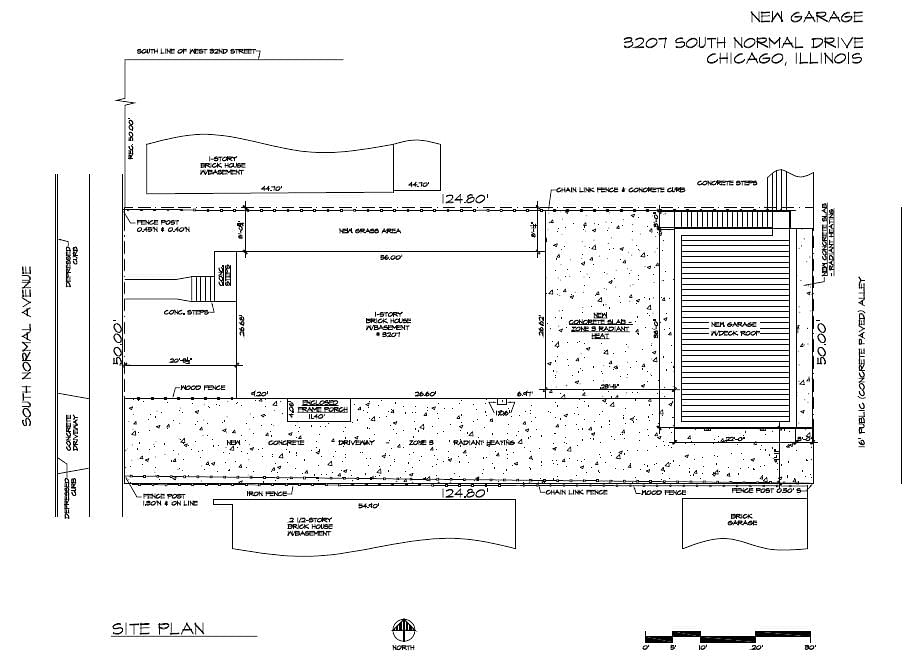

Site Plan

Garage Renovation

This was an existing garage with interior renovations of adding lavatory, new doors, and roof deck.. I based my drawings on photos and field sketch.

Status:

Unbuilt

Location:

Chicago, IL, US

My Role:

Architectural Drafter

Additional Credits:

Ed Yung, supervising architect.

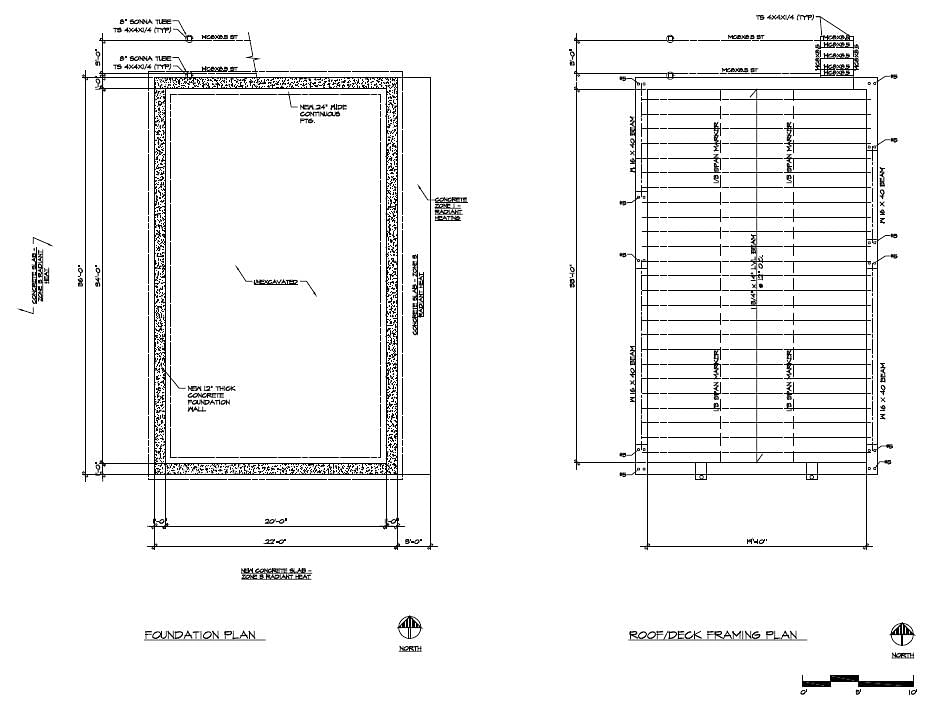

Foundation Plan & Framing Plan

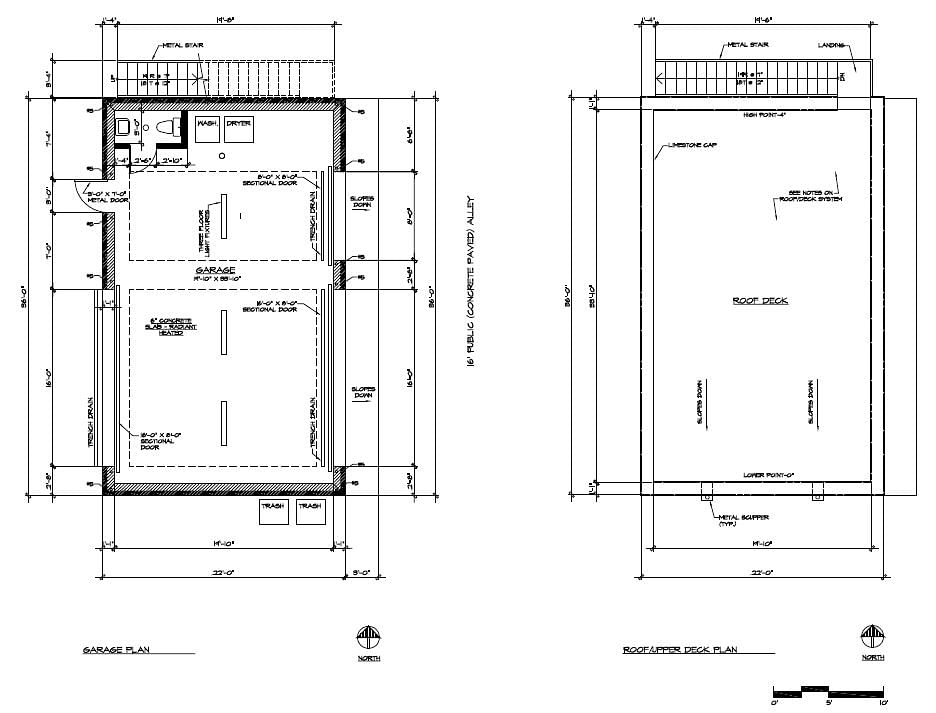

Floor Plan & Roof Deck

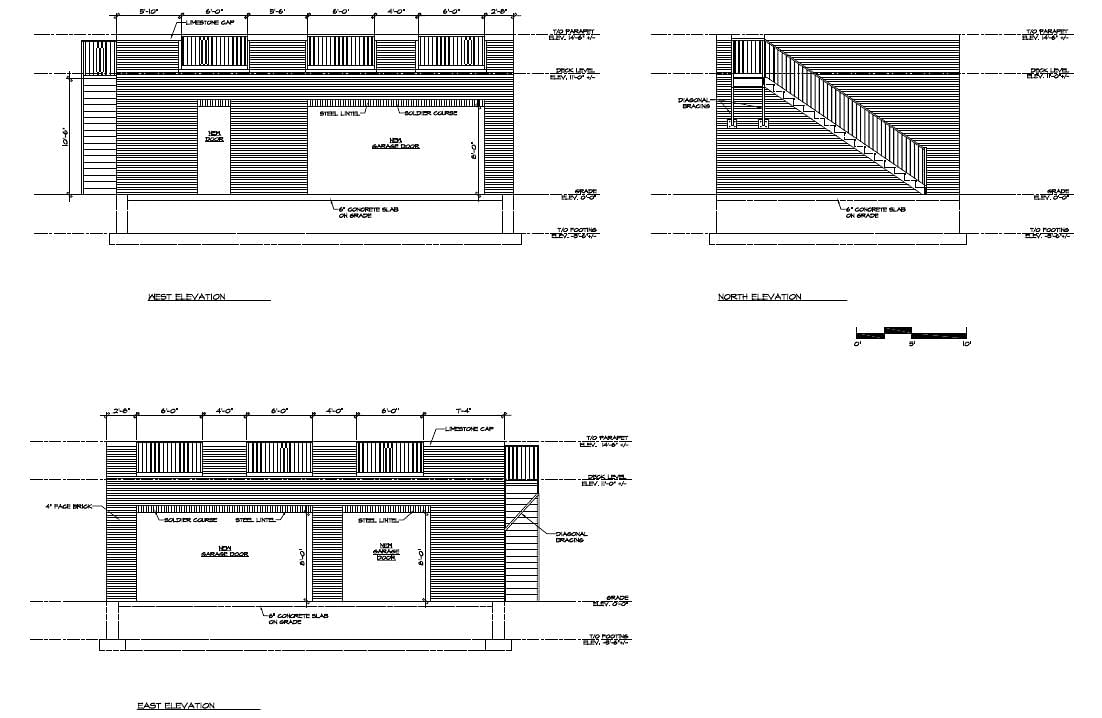

Elevations

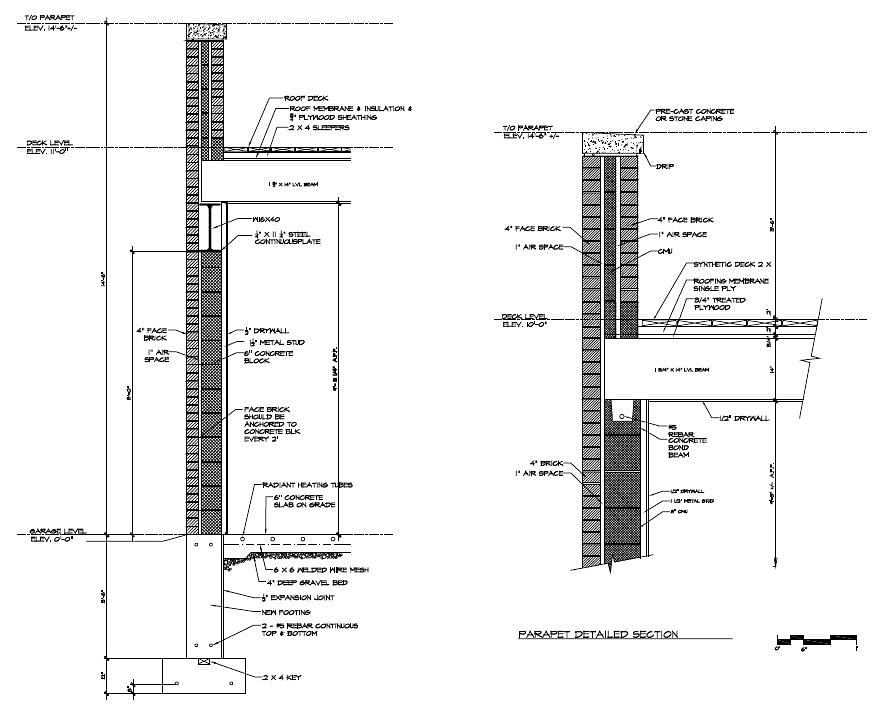

Wall Sections

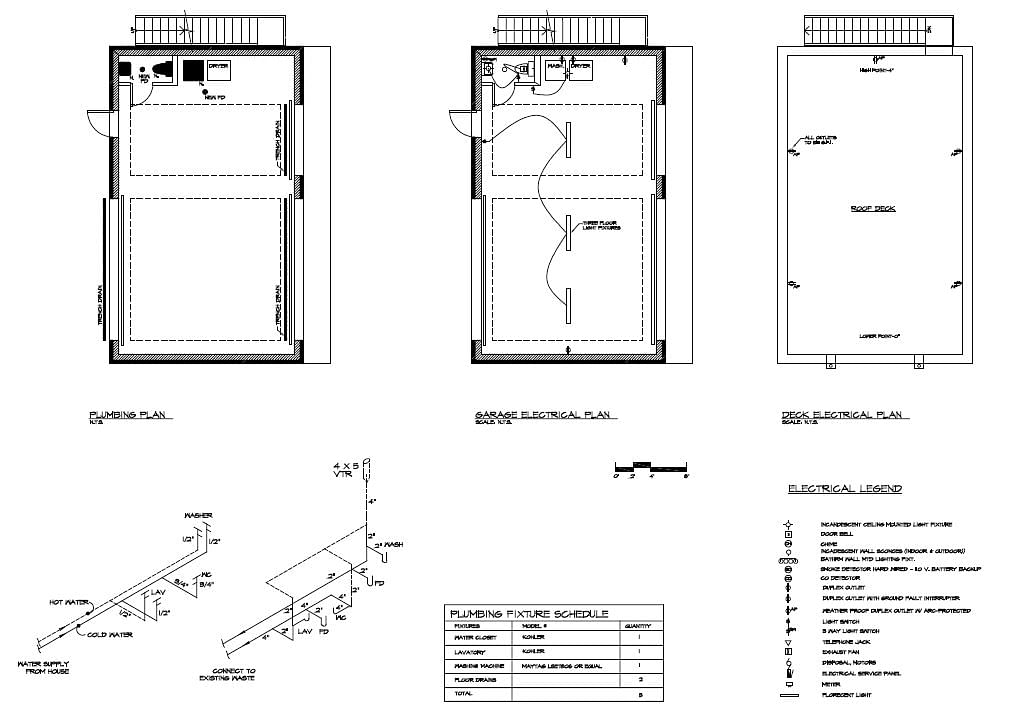

MEPs
