Zaha Hadid Architects completes arching bridge across China’s Jiangxi River

Construction has been completed on the

Zaha Hadid Architects

-designed Chengdu West First Bridge in

China

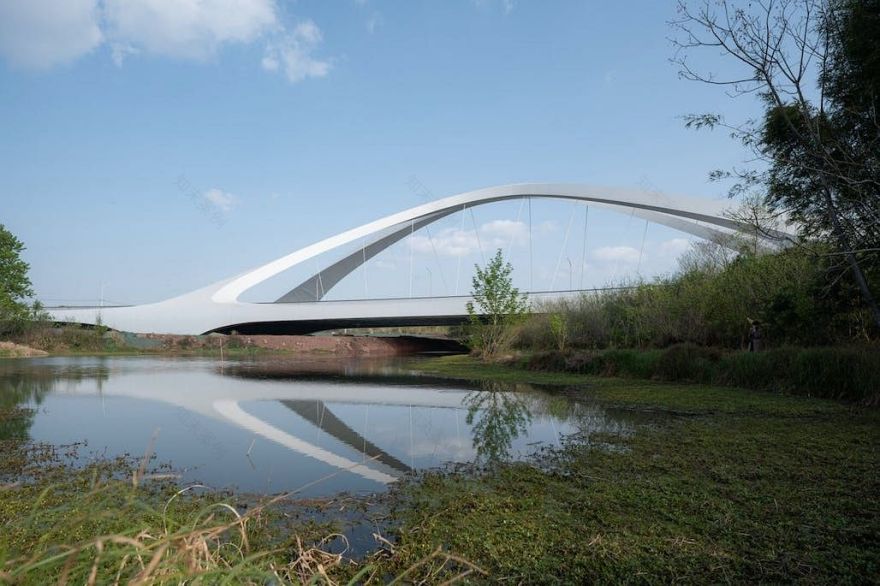

. Spanning 600 feet across the Jiangxi River, the

bridge

caters to motorists, cyclists, and pedestrians.

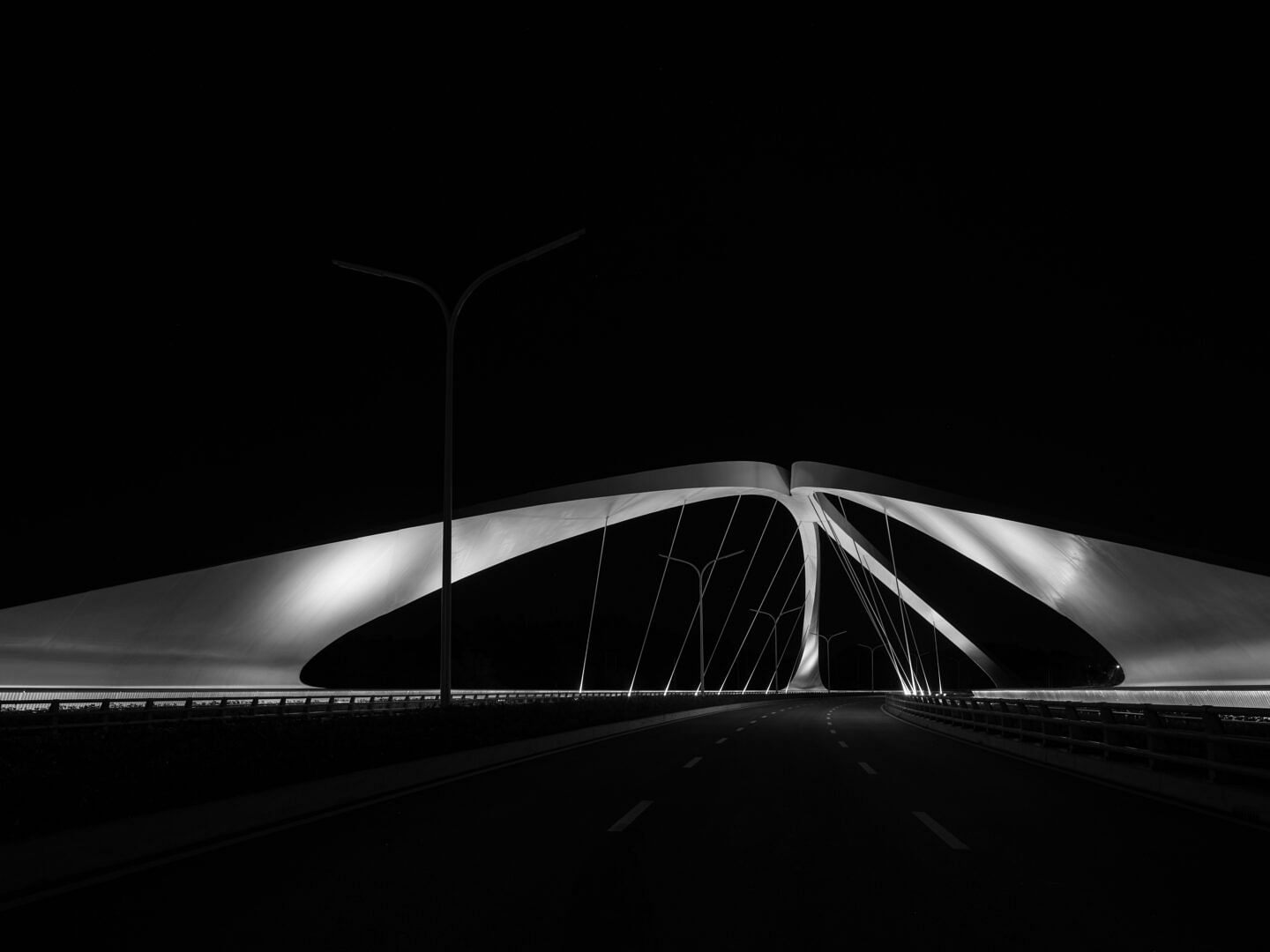

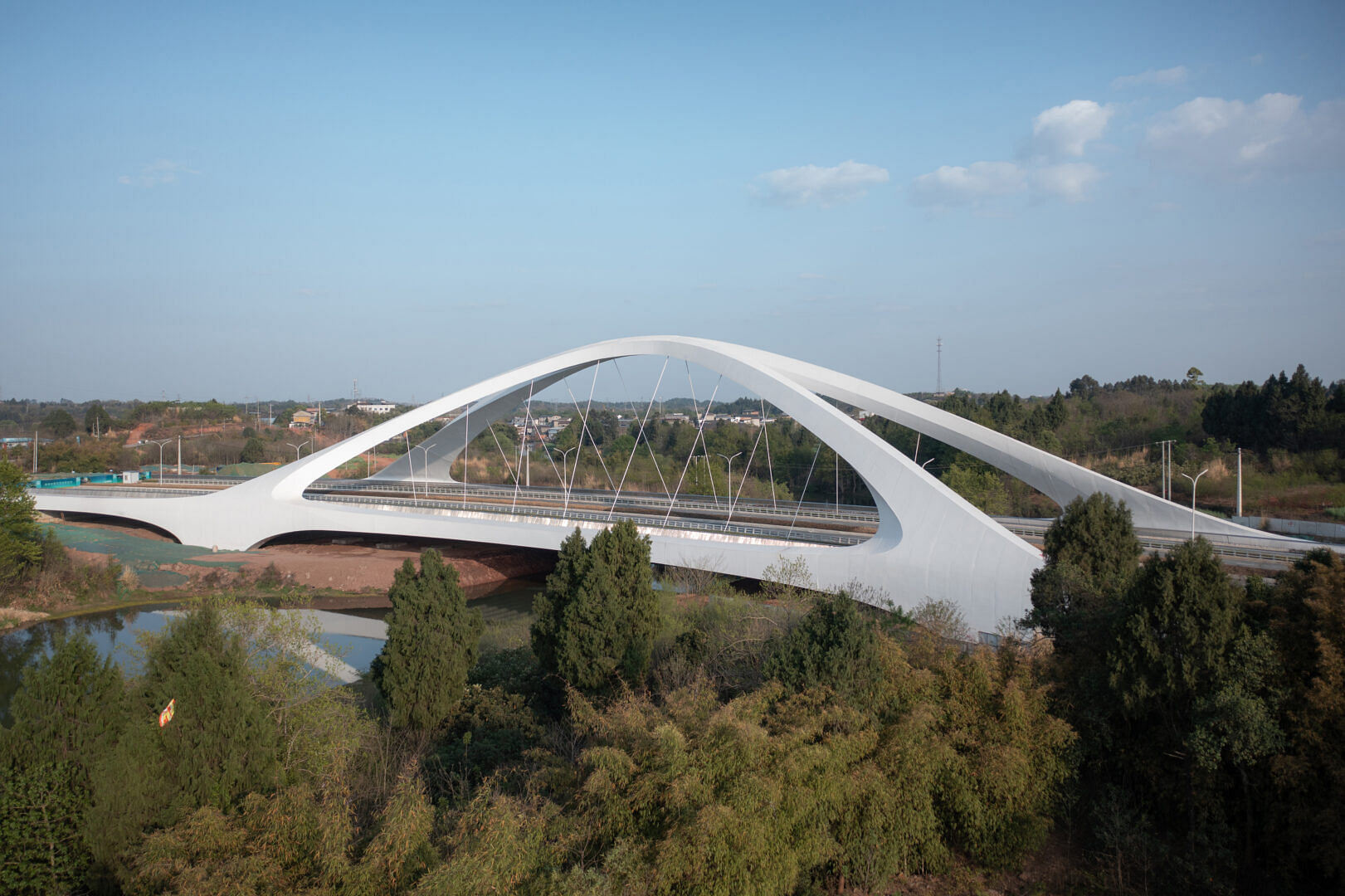

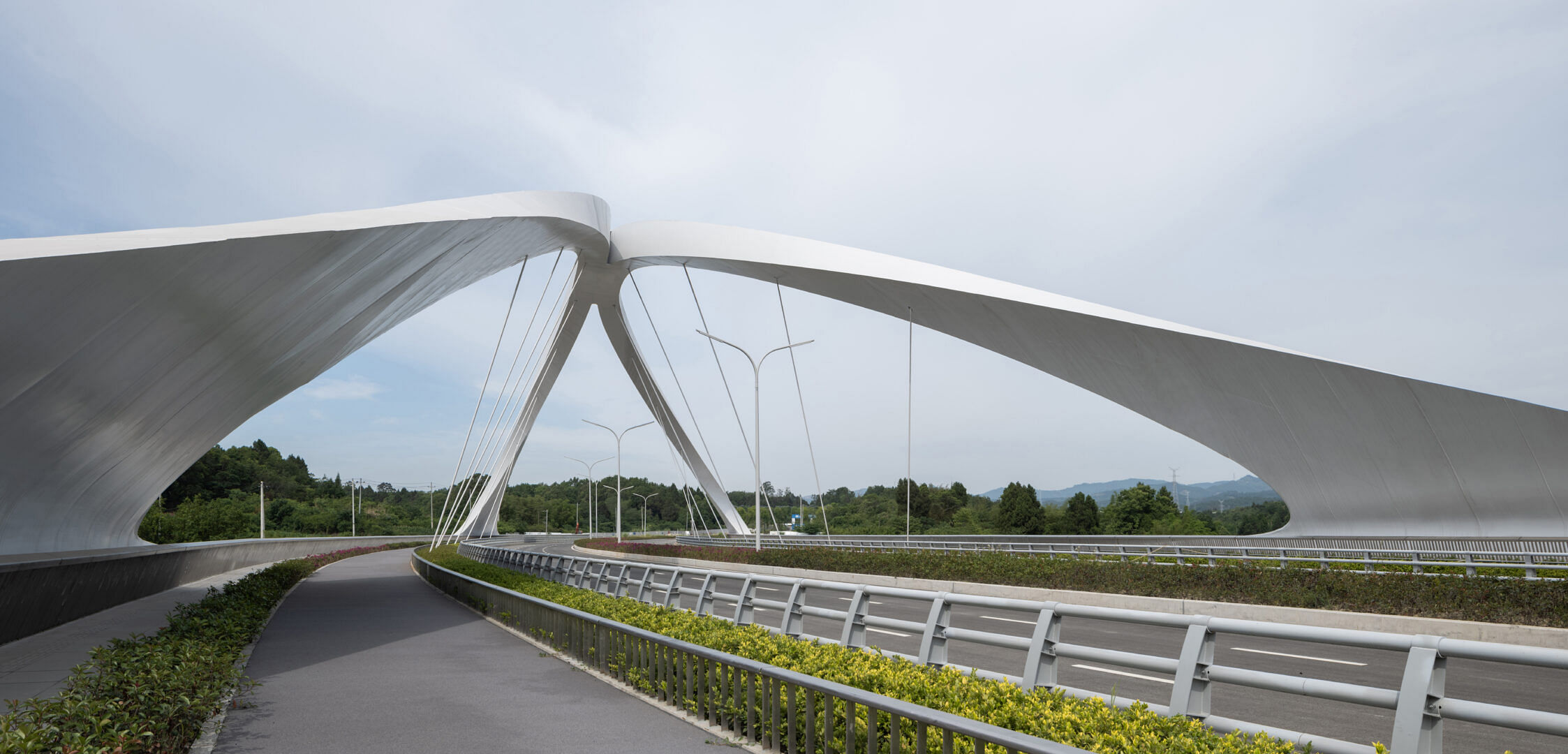

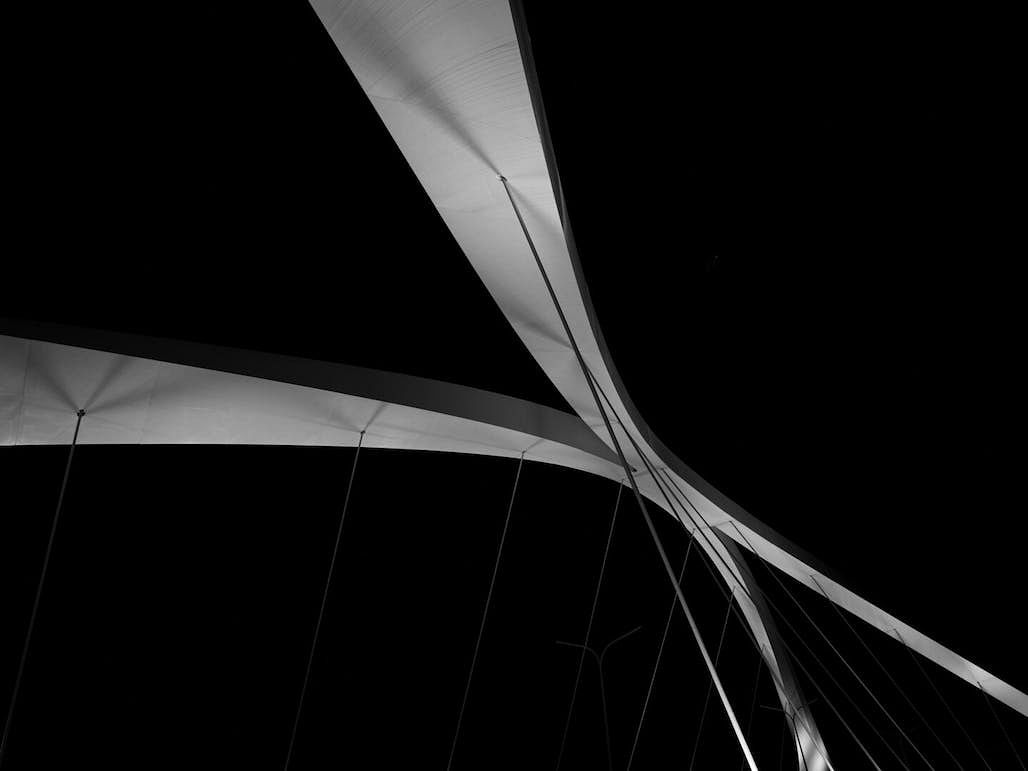

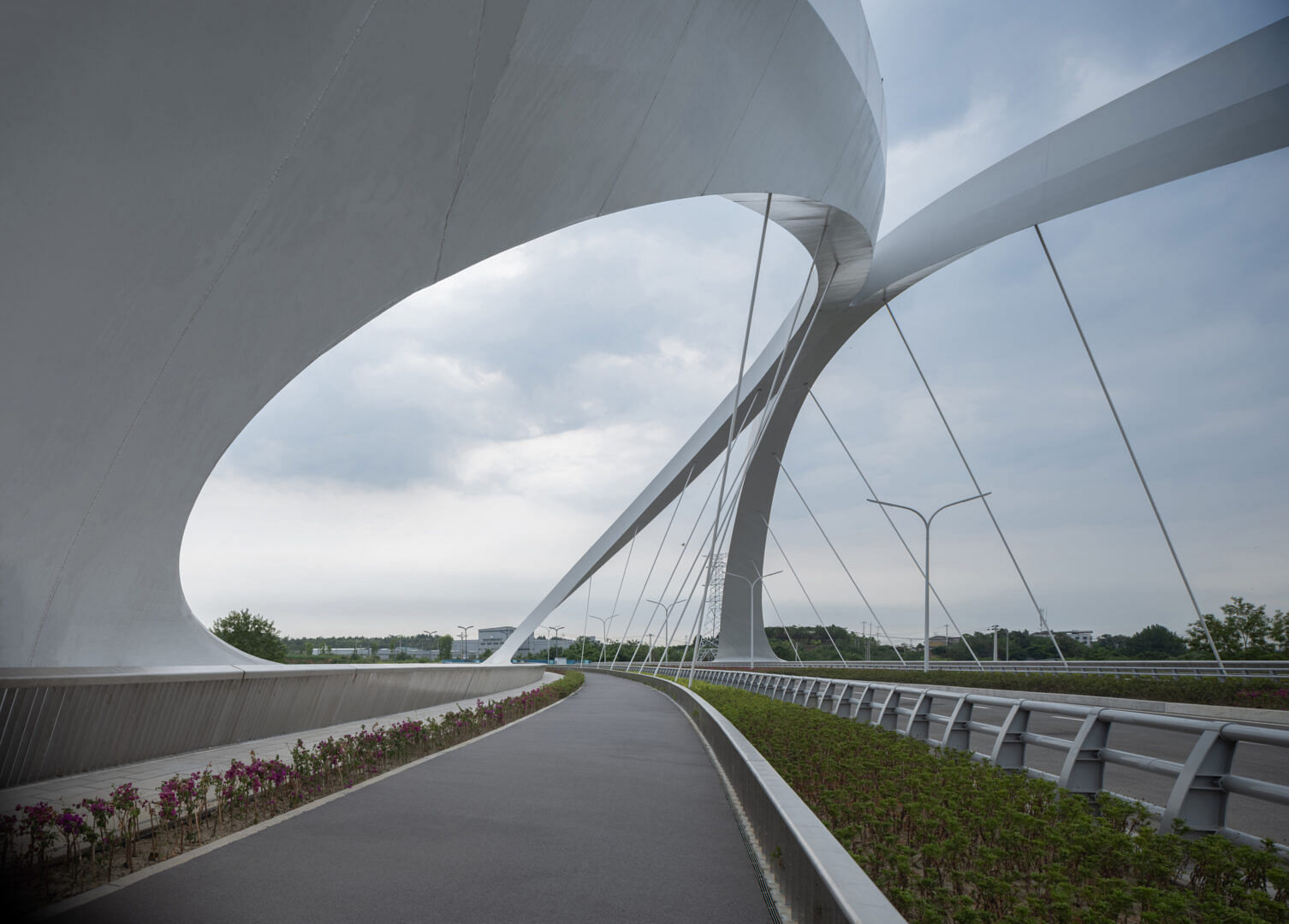

The symmetrical bridge comprises two primary steel arches that rise from either side of the road deck. The arches lean together as they rise to touch tangentially at the bridge's peak, offering stability from lateral wind loads.

The bridge’s arches are tied together at their base by longitudinal box girders that run along the edge of the road deck. The ties are designed to counteract the outward horizontal pressure of each arch and thus significantly reduce the horizontal loads on the bridge’s foundations.

“The dynamic curvature of the bridge’s supporting piers and abutments taper into its primary arches and road deck, defining a sculptural landmark within Chengdu’s transport infrastructure,” Zaha Hadid Architects say about the scheme. “Concrete abutments at either end of the bridge incorporate connectors linking the road deck to the West Line Road’s surface. With no foundations in the Jiangxi River, intermediate piers are located beneath the springing points of the arches on each riverbank.”

The bridge’s bored piles and abutments are constructed using in-situ reinforced concrete, with steel box sections for each arch

prefabricated

and assembled on-site. The edge box girder sections, which include the cable anchorages, were also prefabricated before being spliced together with on-site welding.
