Set N Rise餐厅丨印度尼西亚巴厘丨Studio Kota

2025/07/07 10:46:57

查看完整案例

微信扫一扫

下载

Set N Rise是一家半开放式的亚洲烧烤餐厅，其设计旨在反映并赞美巴厘岛独特的梯田景观。项目位于Pererenan——这是距离热闹的Canggu地区仅几分钟车程的宁静住宅社区，设计灵感源自当地传统的水稻梯田系统“terasering”。

Set n Rise is a semi open-air Asian grill restaurant designed to reflect and celebrate the unique terraced landscapes of Bali. Located in Pererenan—a calm and understated neighborhood just minutes from the bustling Canggu area—the project draws inspiration from terasering, the traditional Balinese rice terrace system.

▼餐厅外观概览，overall of the restaurant©Indra Wiras

建筑坐落在一块狭长、由前向后落差达5米的坡地上，其体量顺应地形自然延展，并未强行植入统一的设计语言，而是以阶梯式布局呼应周围层叠起伏的稻田景观，形成与场地地貌相契合的空间节奏。三角形的建筑平面朝东南敞开，最大化引入自然采光，并为室内空间提供充足的田野景观视野。这种朝向策略确保建筑内部几乎每一处都与户外保持强烈的视觉联系，进一步模糊了内外界限，强化了空间与自然的融合。

Occupying a narrow, sloping site with a 5-meter elevation drop from front to back, the building is carefully shaped to follow the natural contours of the land. Rather than imposing a singular gesture, the architecture steps down gradually with the terrain, creating a spatial sequence that mirrors the layered character of the surrounding rice fields.The building’s triangular footprint opens toward the east and south, optimizing exposure to natural daylight and maximizing views of the terraced landscape. This orientation ensures that nearly every part of the building maintains a strong visual connection to the outdoors, reinforcing a seamless relationship between interior space and nature.

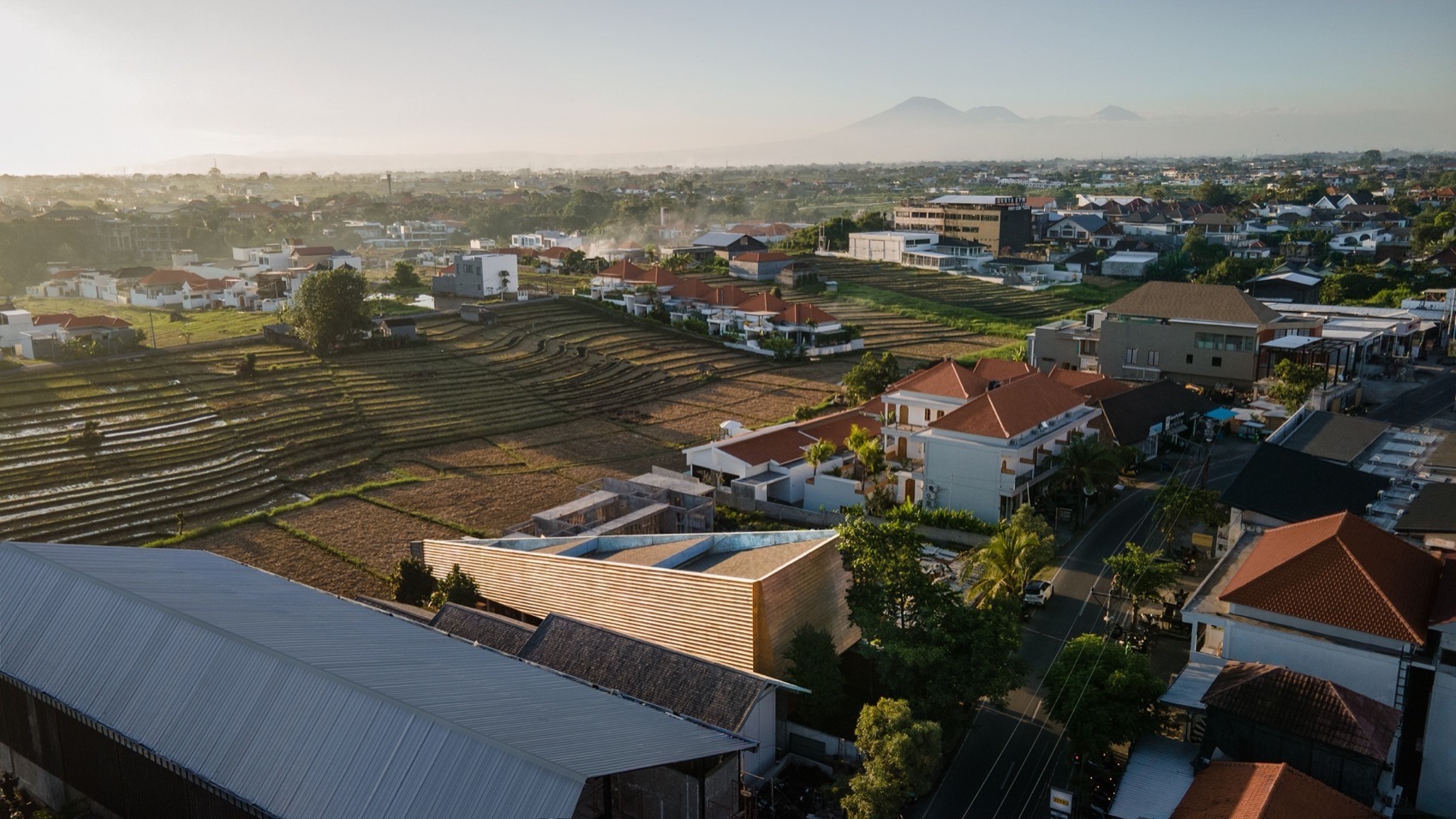

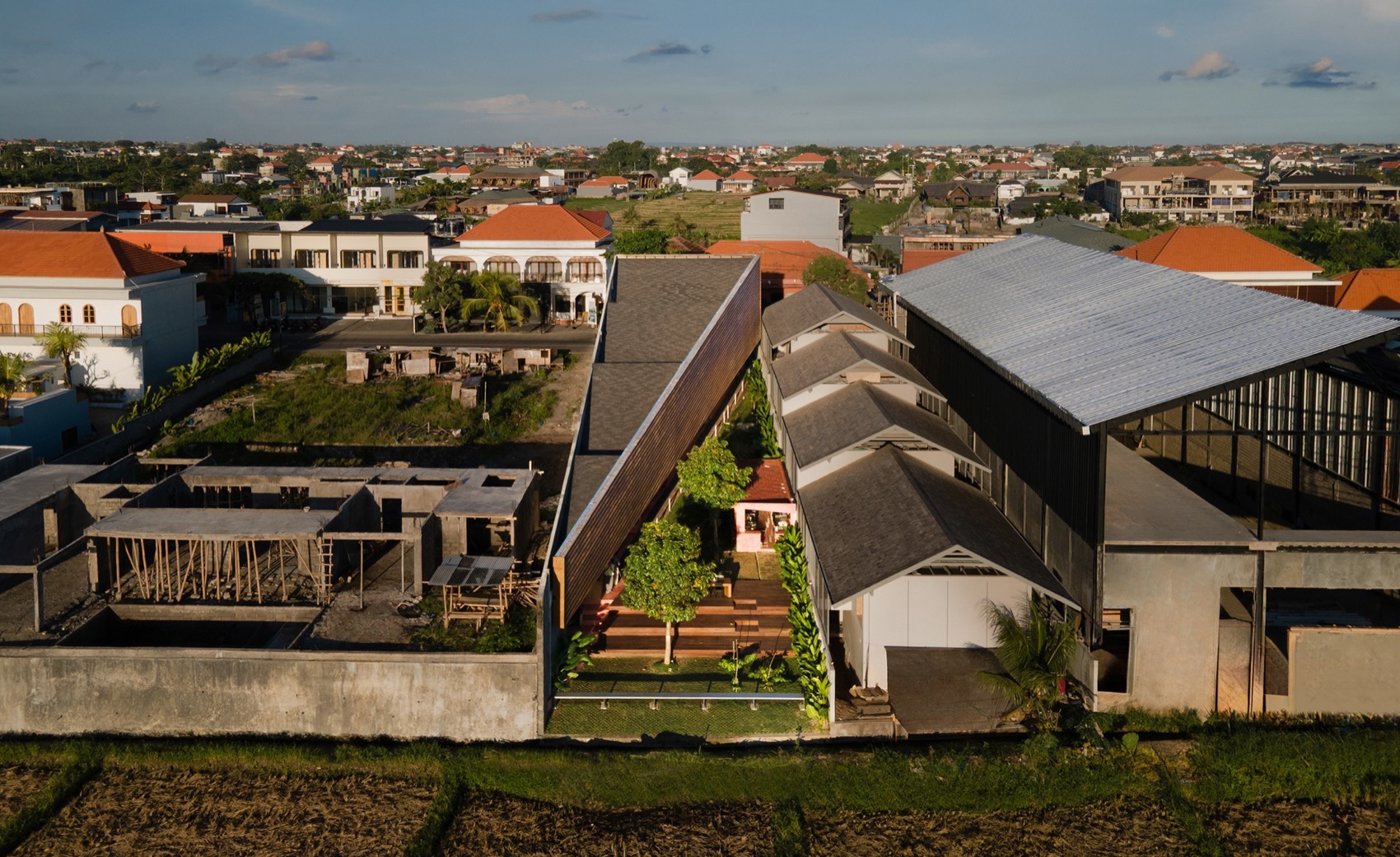

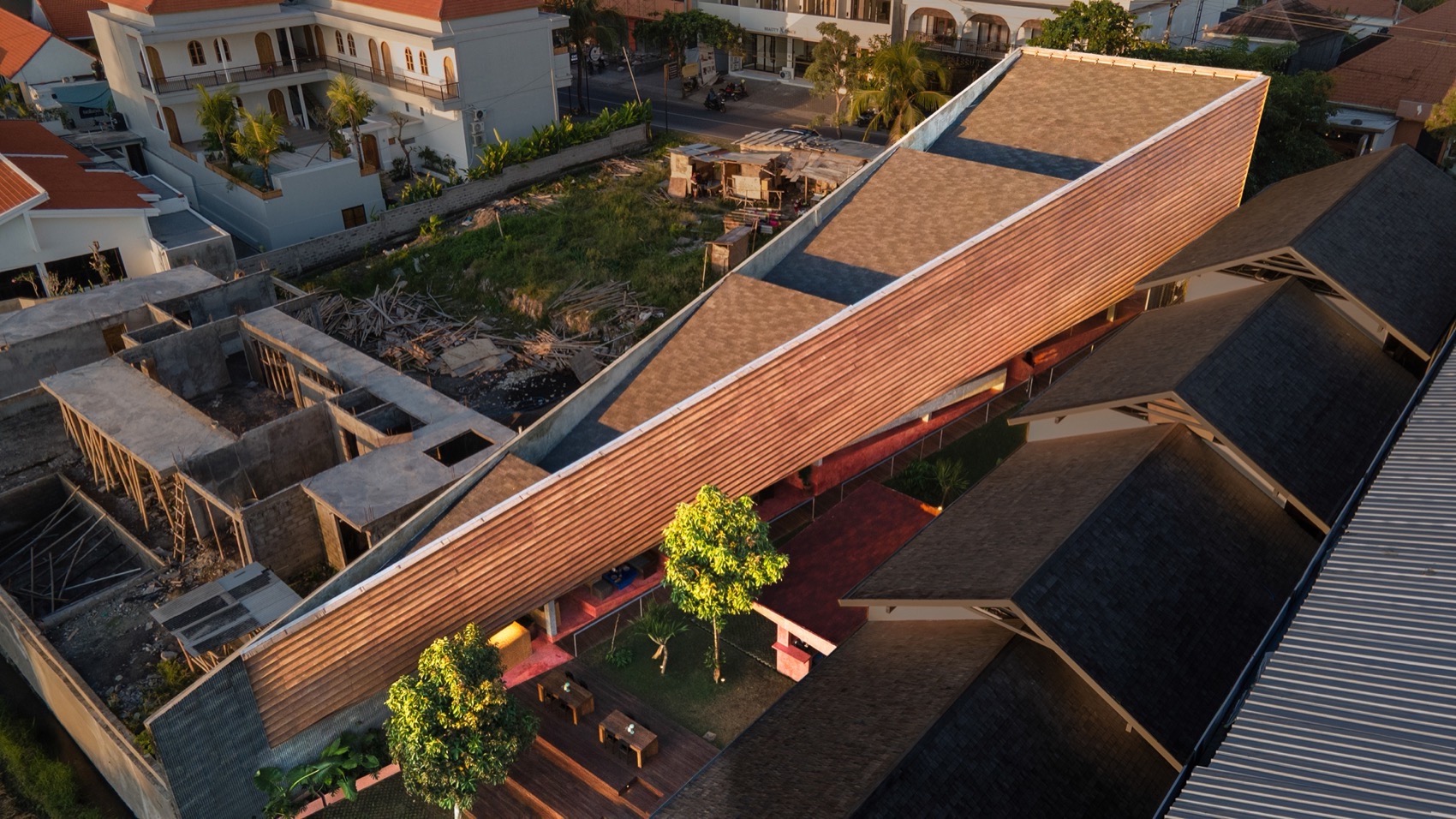

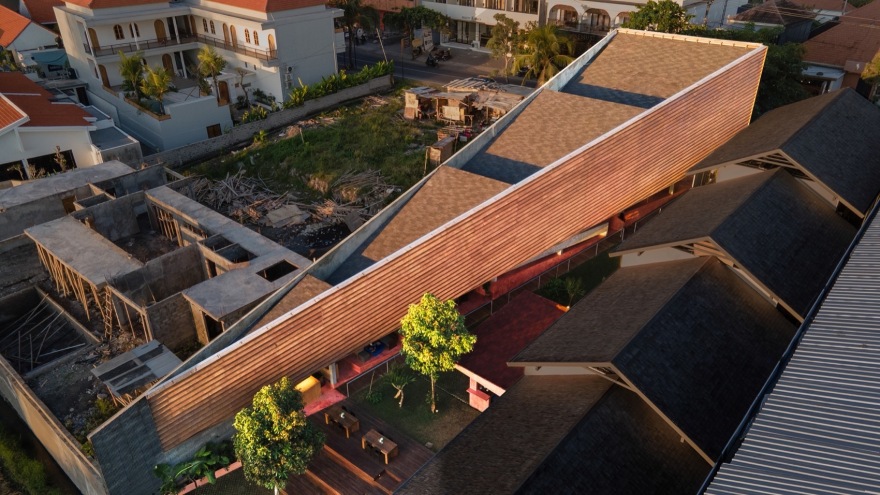

▼鸟瞰，aerial view of the project©Indra Wiras

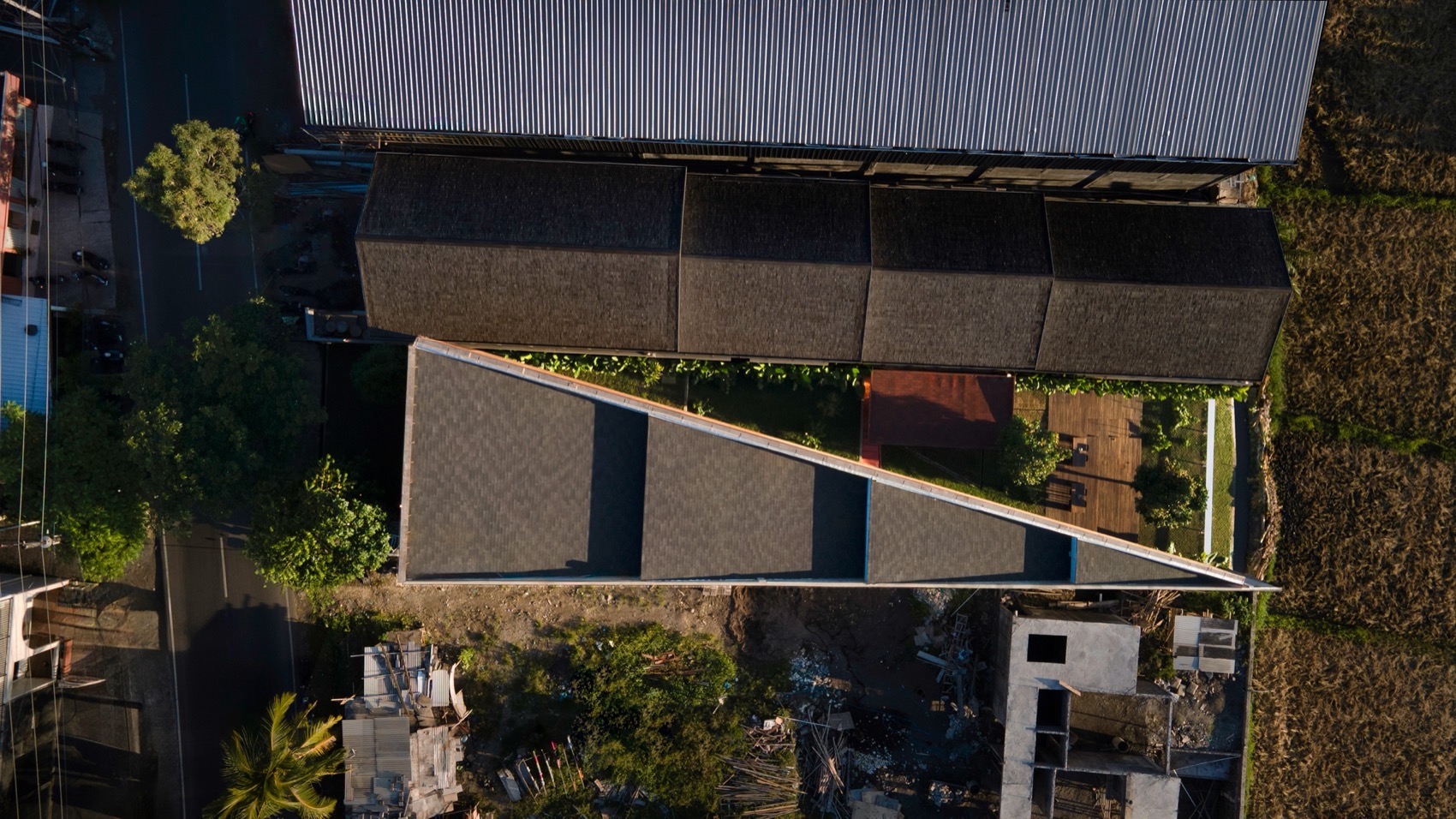

▼顶视图，top views©Indra Wiras

功能布局与空间组织

Program and Spatial Organization

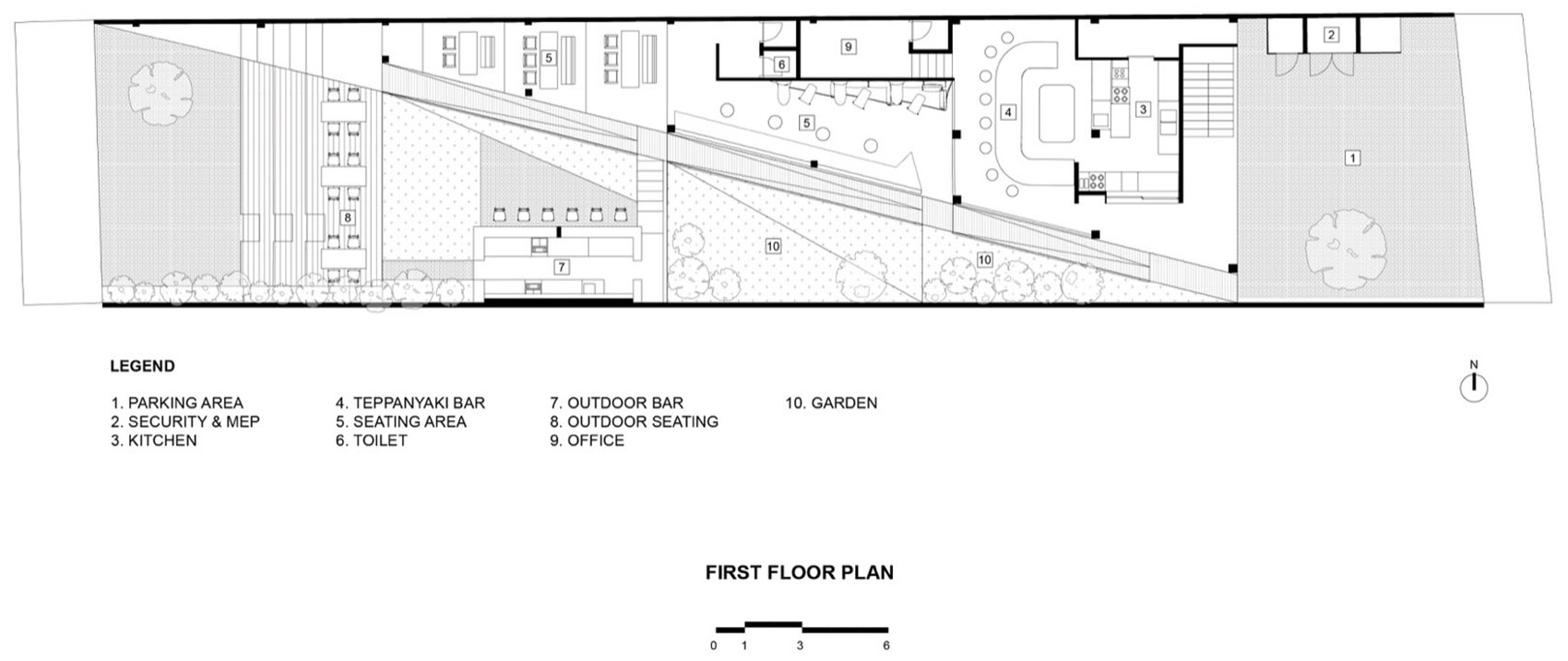

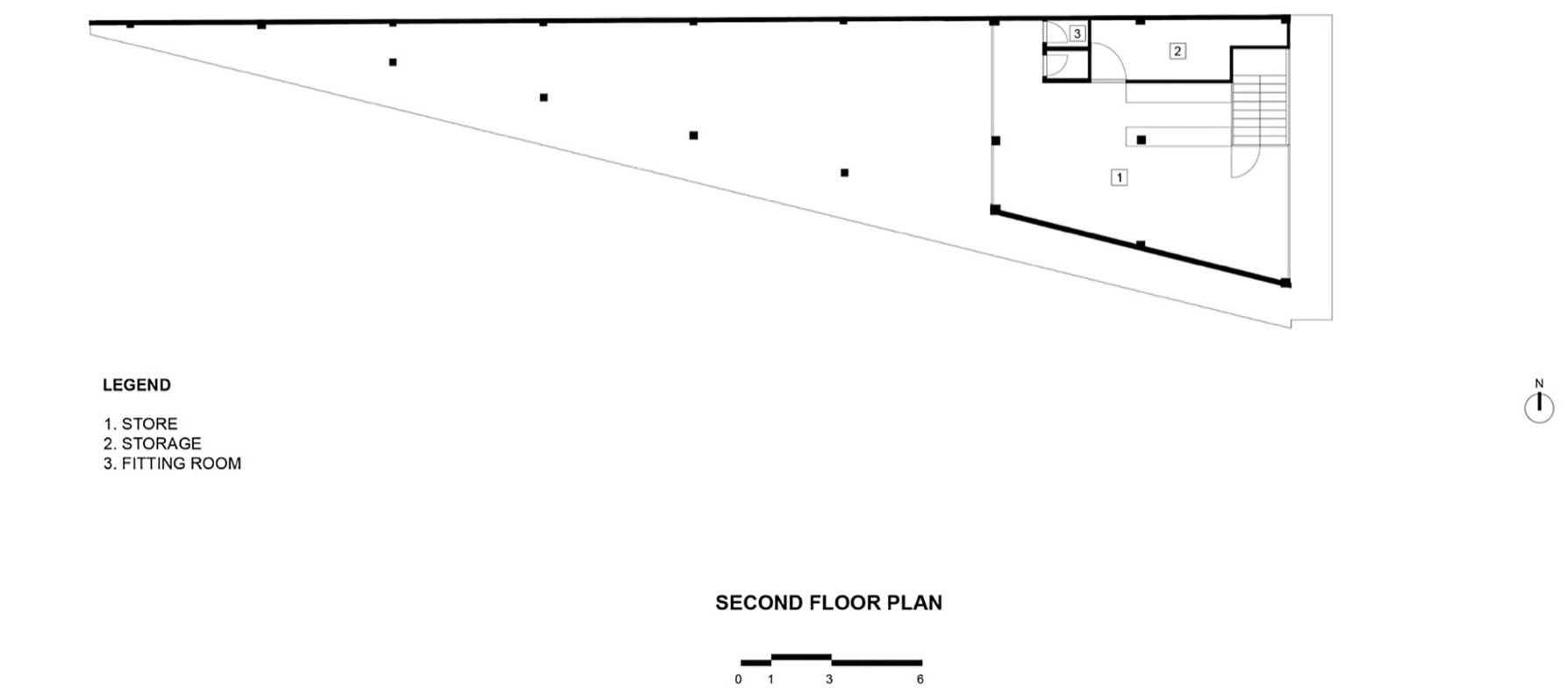

项目在紧凑的占地面积内容纳了一层餐厅和一层时装精品店，实现了餐饮与零售功能的平衡。餐厅空间沿地形顺势分为四个高差平台，并通过中央坡道相连，使顾客可流畅通行于各层平台，同时满足无障碍通行需求。

The project houses a restaurant on the ground floor and a fashion boutique above, balancing hospitality and retail within a compact footprint. Inside the restaurant, the dining areas unfold across four staggered platforms, each aligned with the site’s natural topography. A central ramp acts as the main circulation spine, allowing guests to move fluidly through the space while maintaining accessibility across all levels.

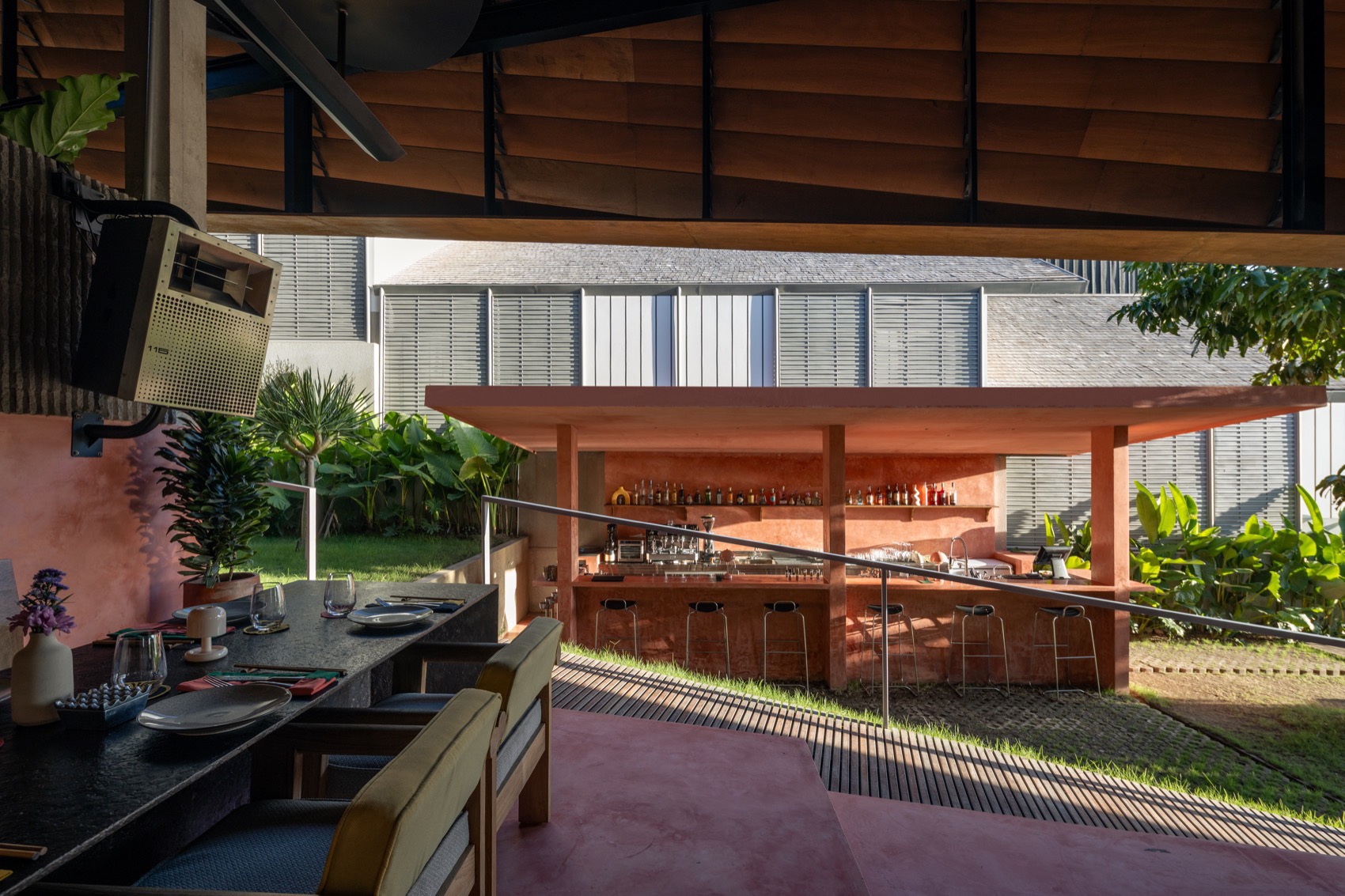

▼露台，terrace area©Indra Wiras

各平台提供不同的空间体验

Each platform provides a distinct spatial experience:

平台一（临街层）：设有开放式烧烤台与主厨房。吧台采用木基层上现浇树脂饰面，搭配粗糙质感的混凝土基座，确立起触感丰富、富有原始气息的材料语言。

平台二：提供混合式座位，包括悬挑混凝土长凳和内嵌式沙发，洗手间则隐藏于服务核心后方。

平台三：设有标准四人餐桌，紧邻户外酒吧与DJ台，适合举办社交或夜间活动。

平台四（最低层）：作为通往花园和户外活动区的过渡空间，其终点为一个梯形下沉剧场，将客人带入最接近稻田的观景位置。

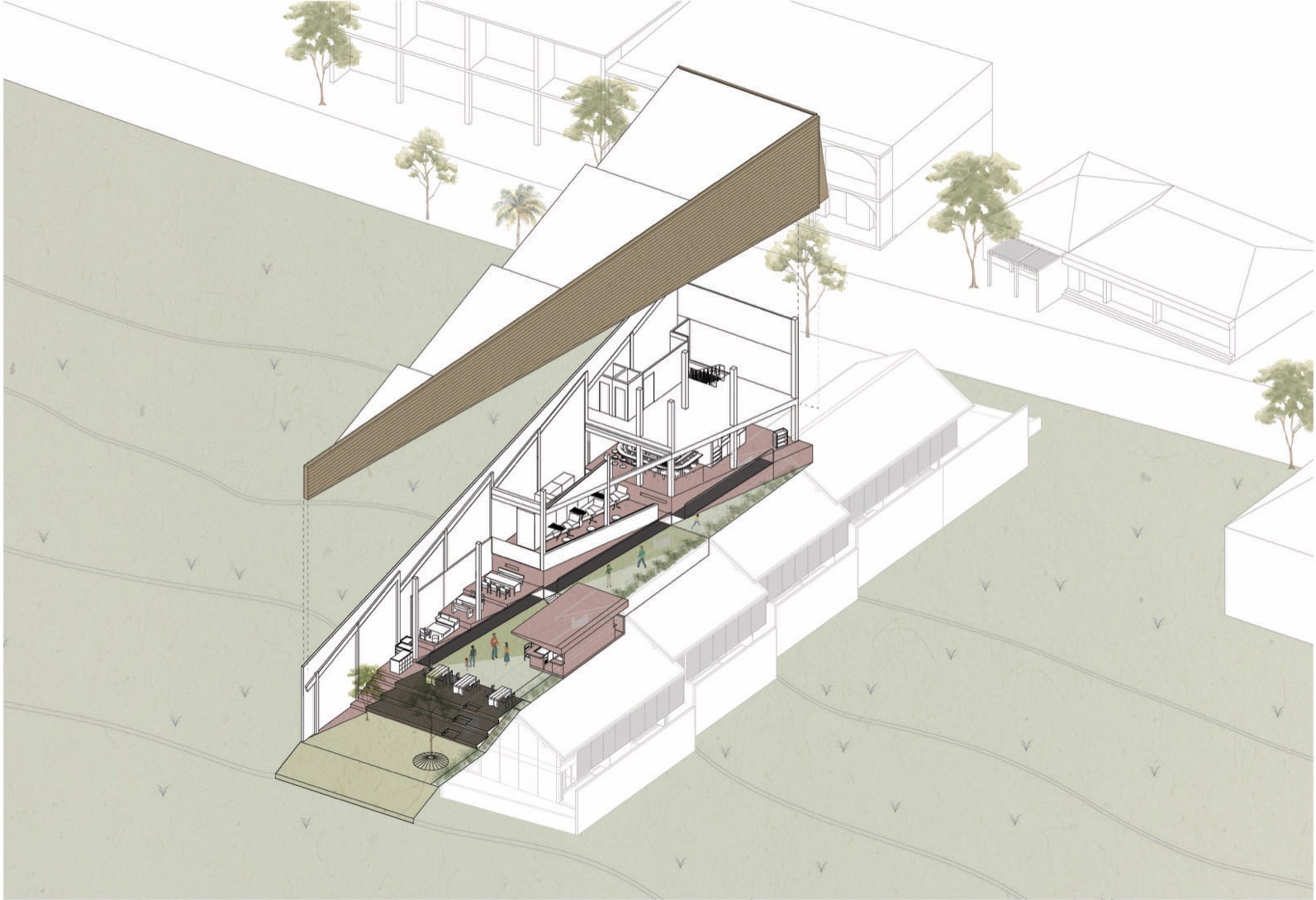

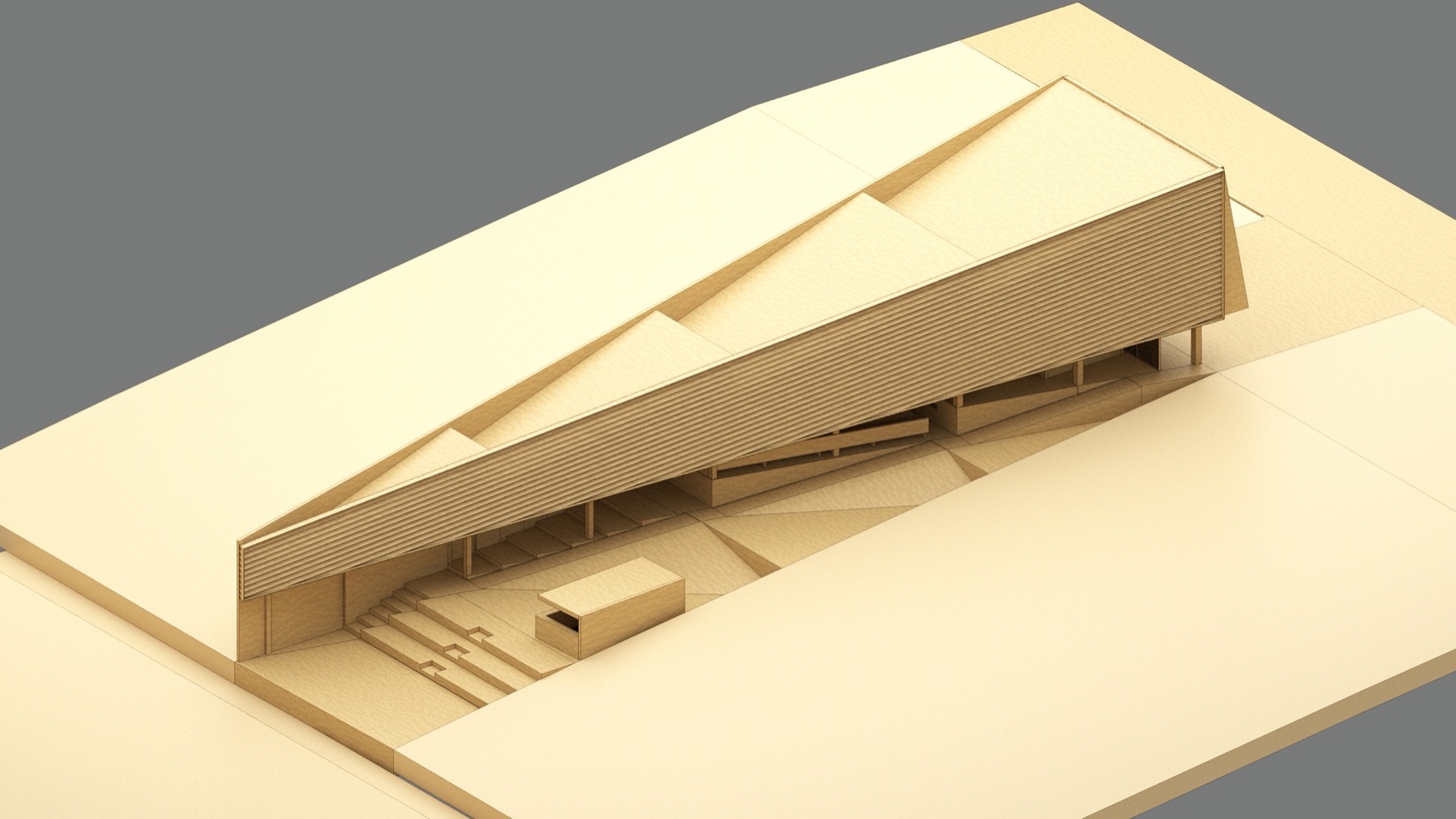

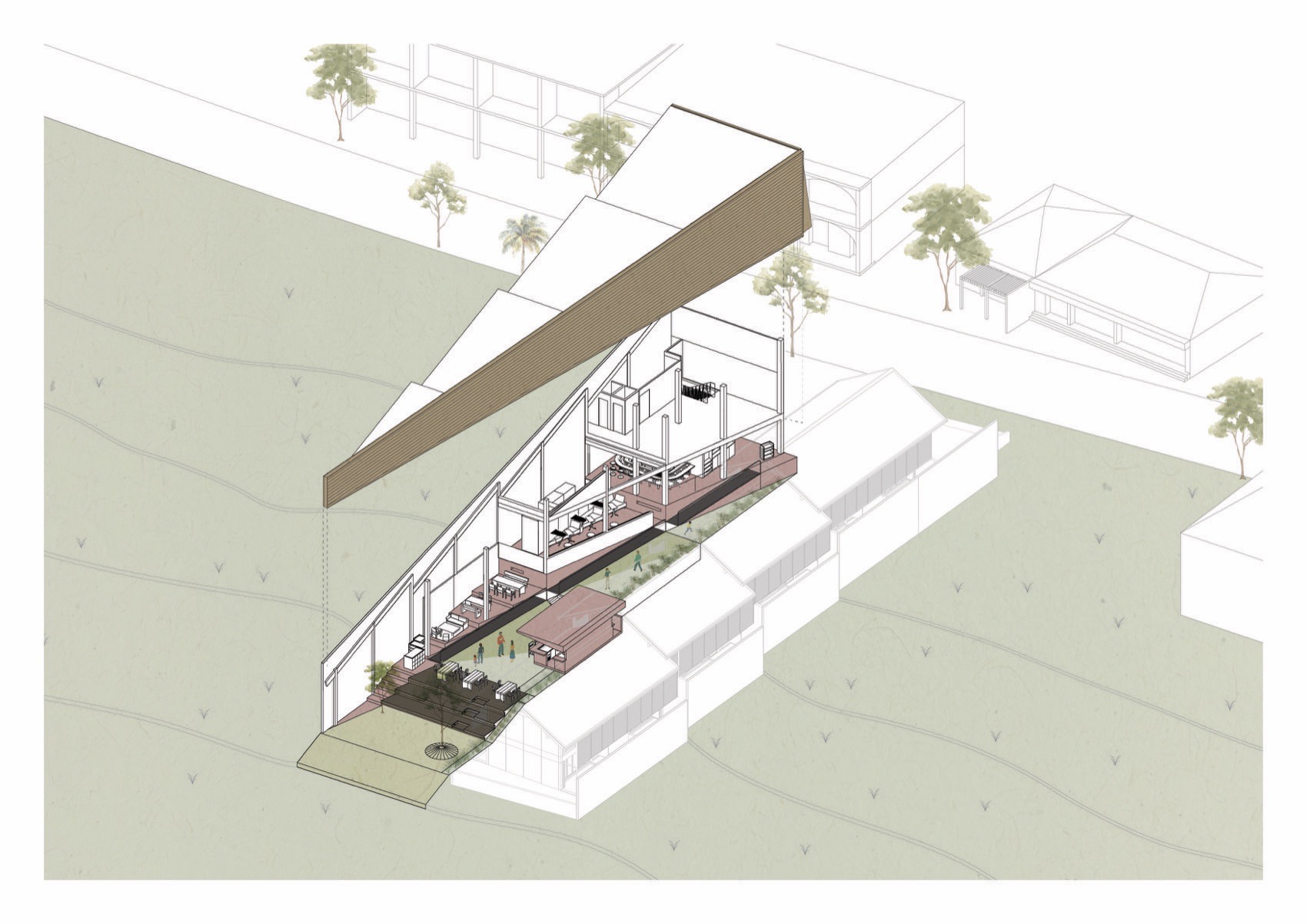

▼分析图，analysis diagram© Studio Kota

Platform 1 (Street level): Contains the grill station and main kitchen. The bar counter is crafted from cast in-situ resin over wood, set atop a textured concrete base—establishing a tactile and elemental material palette.

Platform 2: Offers a mix of seating options, including suspended concrete benches and integrated sofas, accompanied by restrooms tucked behind a service core.

Platform 3: Features standard dining tables for four, positioned adjacent to an outdoor bar and DJ booth—designed for more social or evening gatherings.

Platform 4 (Lowest level): Acts as a transitional space leading to the garden and outdoor event area. It culminates in a terraced amphitheater that brings patrons closest to the rice fields.

▼室内概览，overview of the indoor space©Indra Wiras

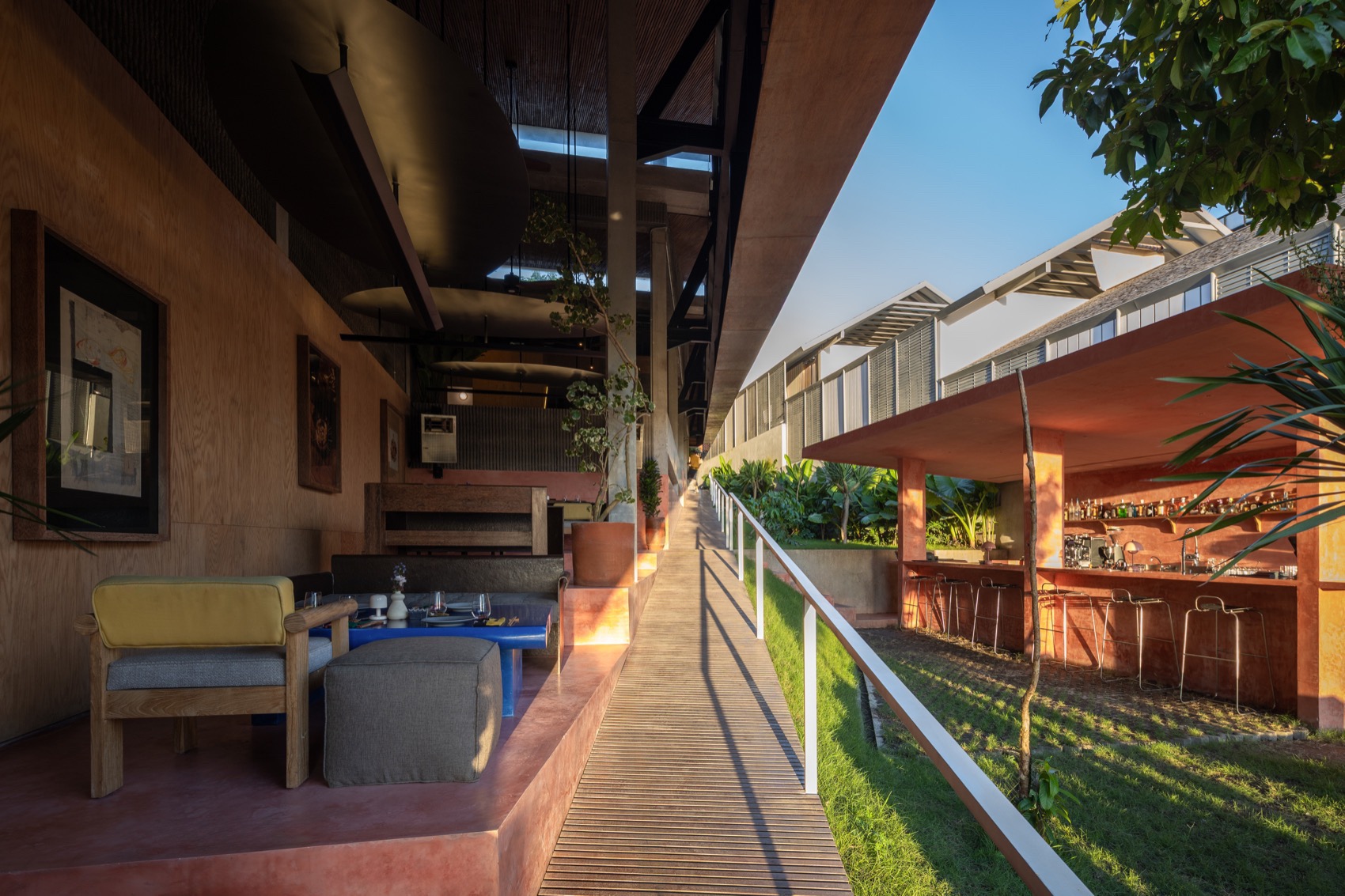

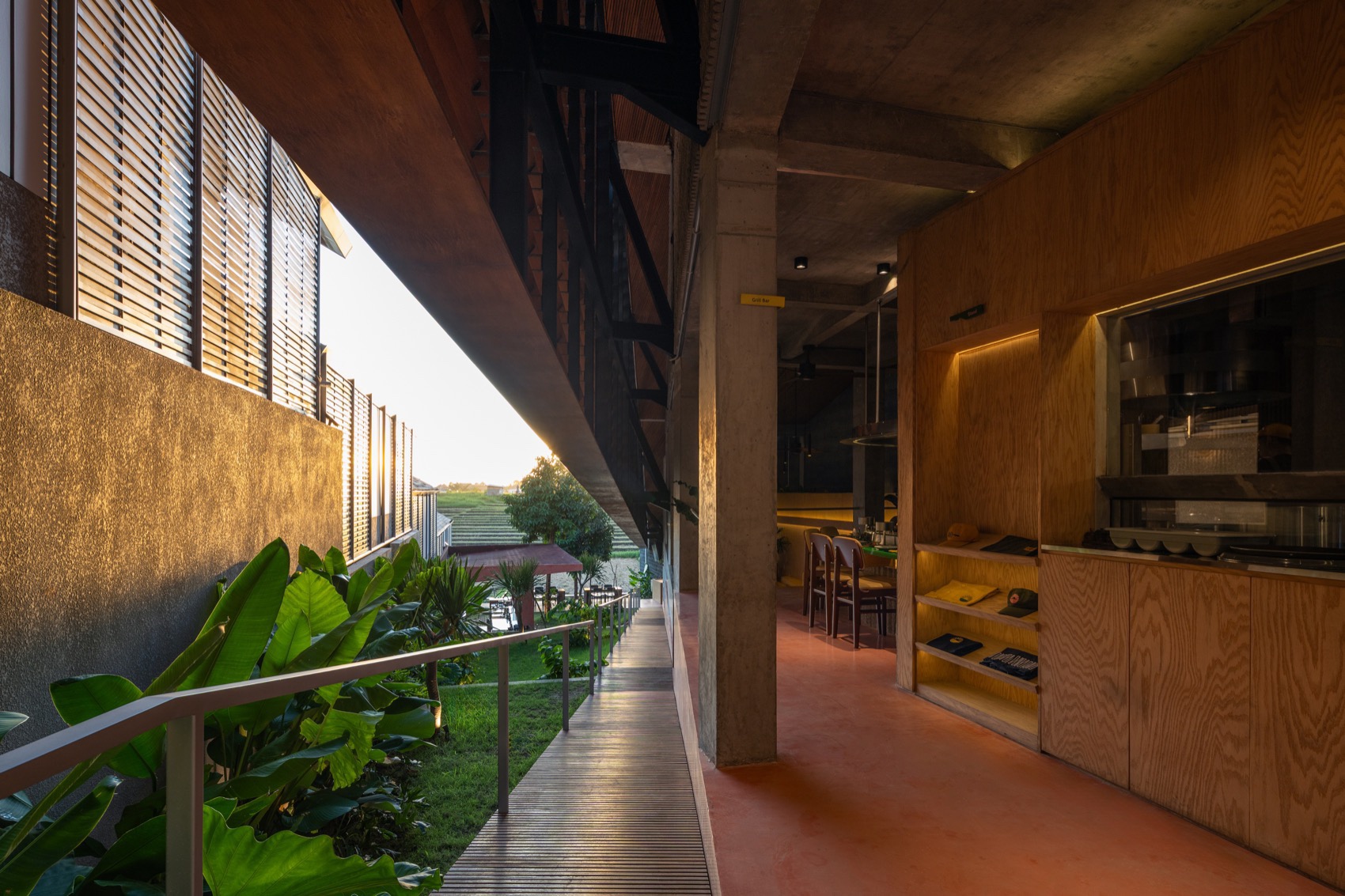

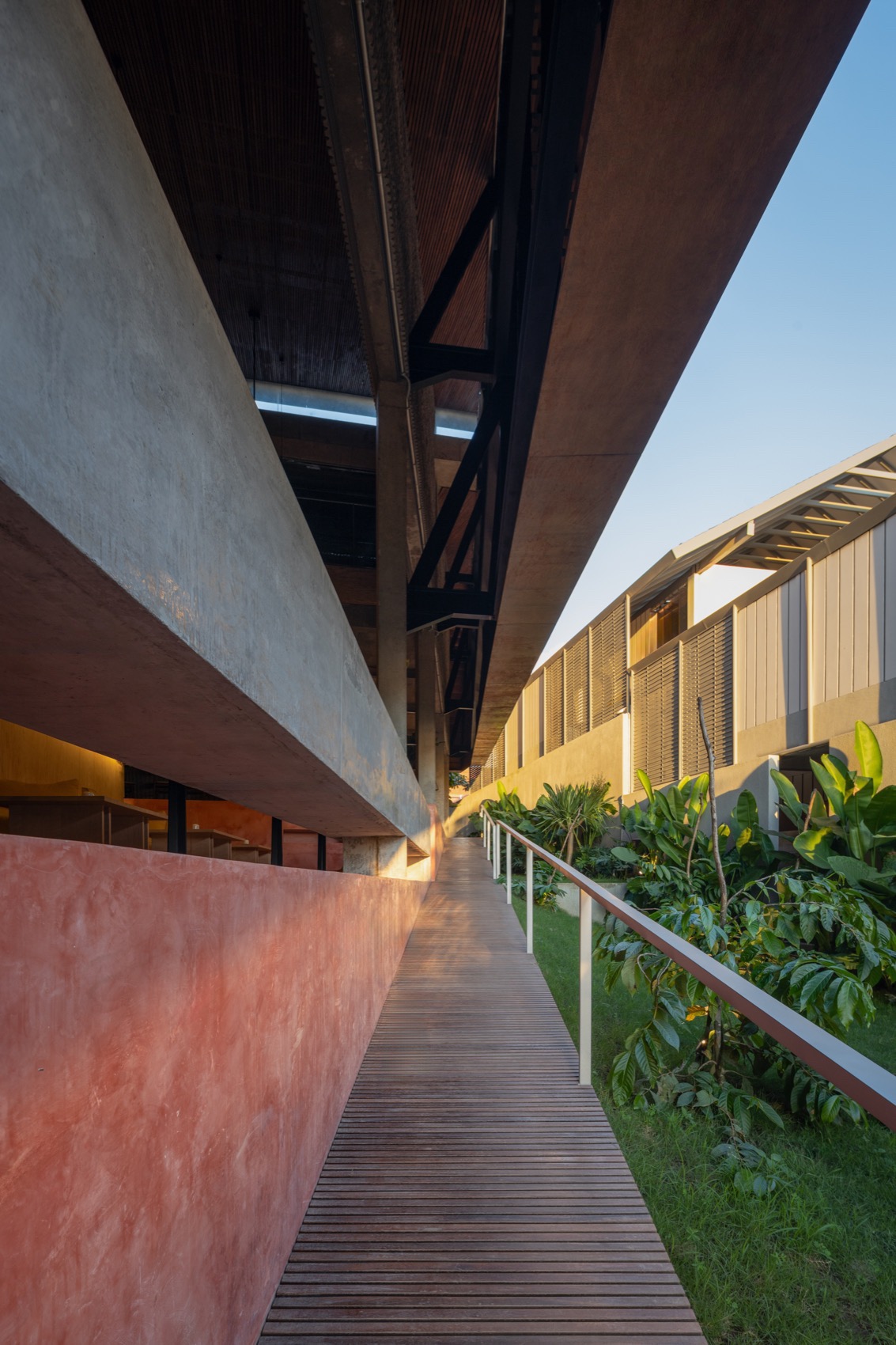

▼坡道，ramp©Indra Wiras

花园沿着建筑三角形几何形态展开，将室内的节奏自然延伸至景观中。它既是一处热带绿色背景，也是一个功能性活动空间，带有阶梯式座位。站在最低点，宾客可与稻田持平而视，进一步加深餐饮体验与场地生态之间的联系。

The garden follows the triangular geometry of the building and extends the spatial rhythm of the interiors into the landscape. It serves both as a lush tropical backdrop and as a functional event space with tiered seating. From this lowest point, guests can experience the paddy fields at eye level, further grounding the dining experience in the site’s ecology.

▼下沉花园，sunken garden©Indra Wiras

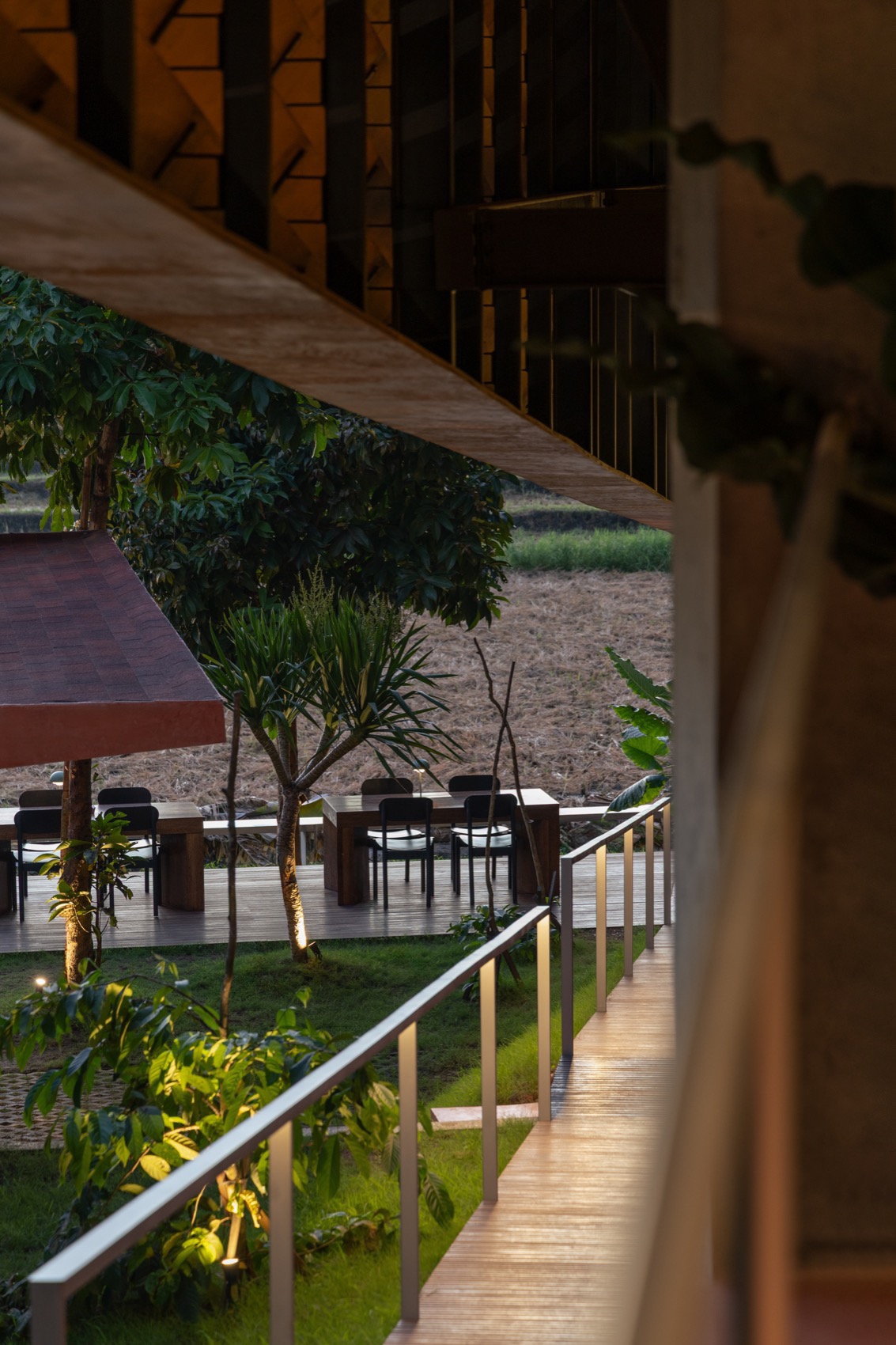

▼坡道，ramp©Indra Wiras

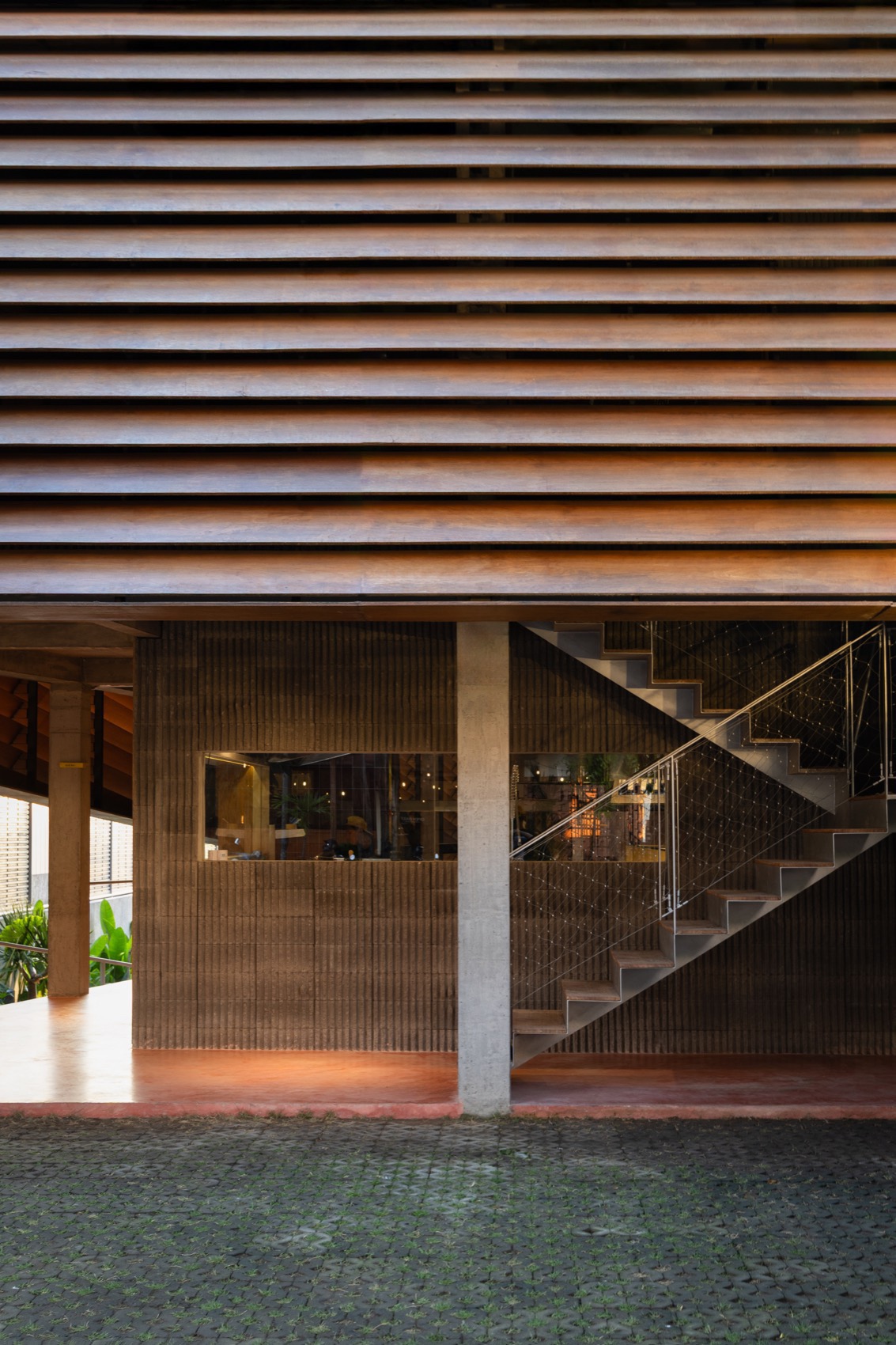

▼细部，details©Indra Wiras

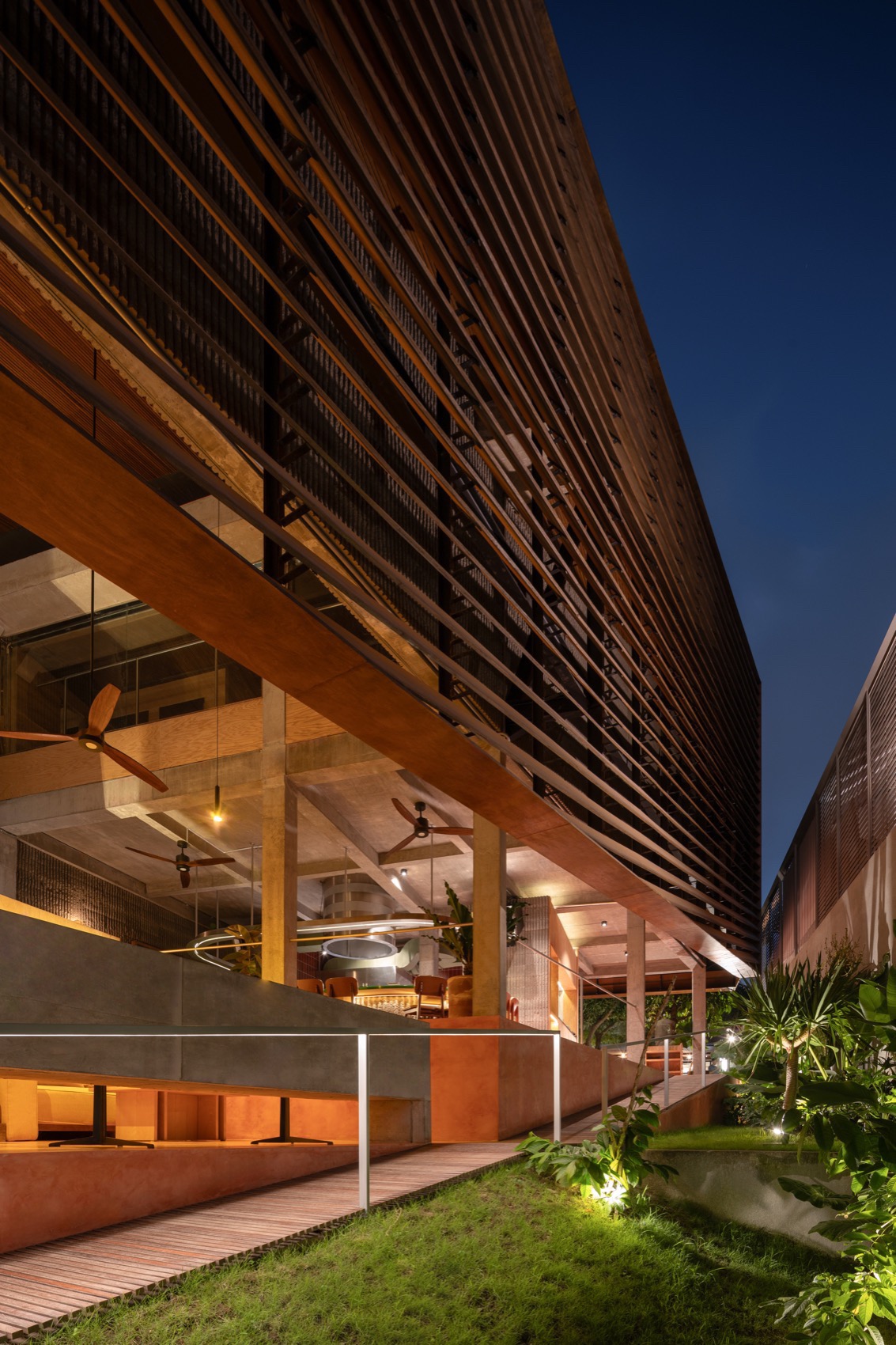

▼室外夜景，night view of exterior©Indra Wiras

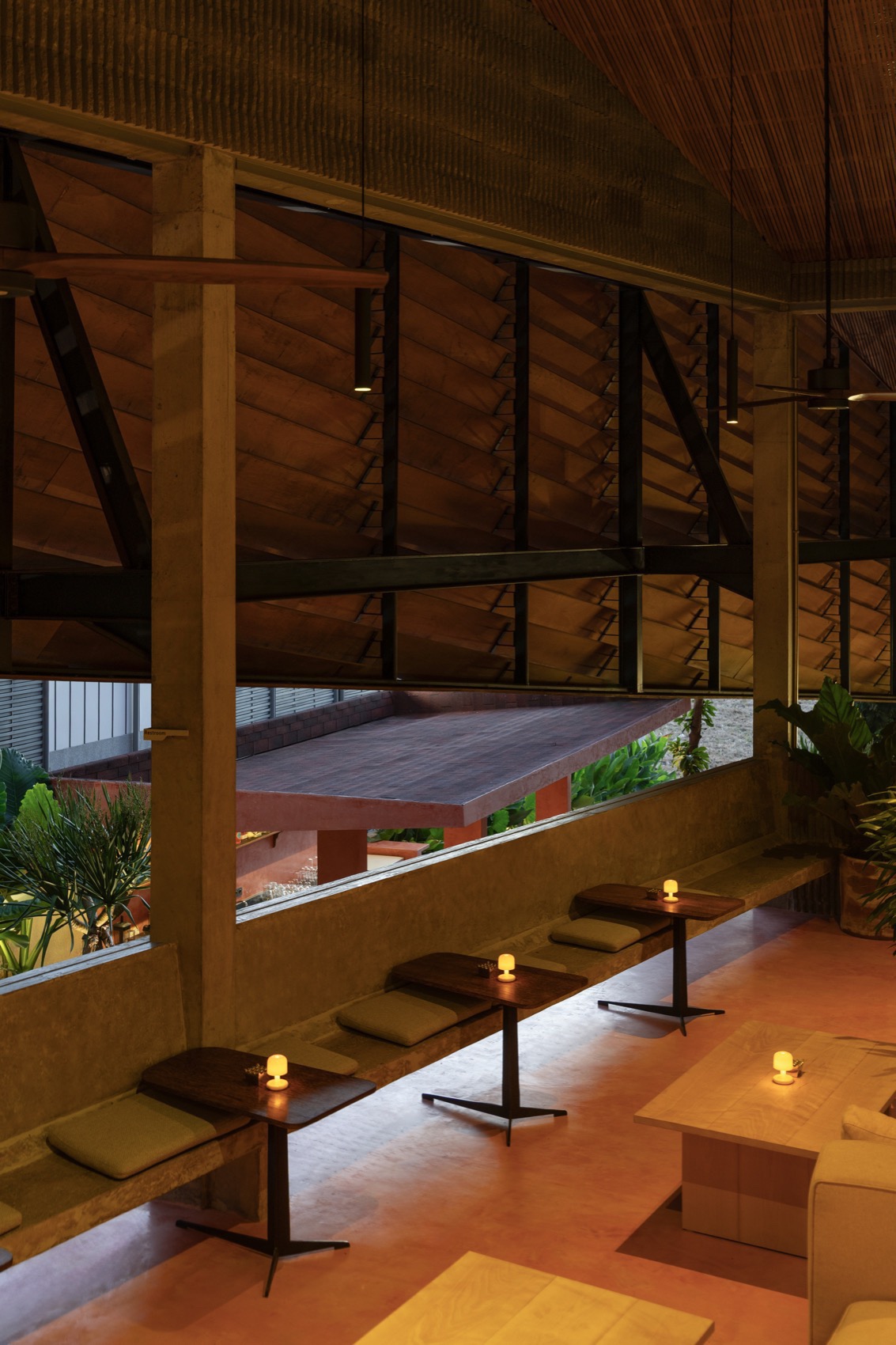

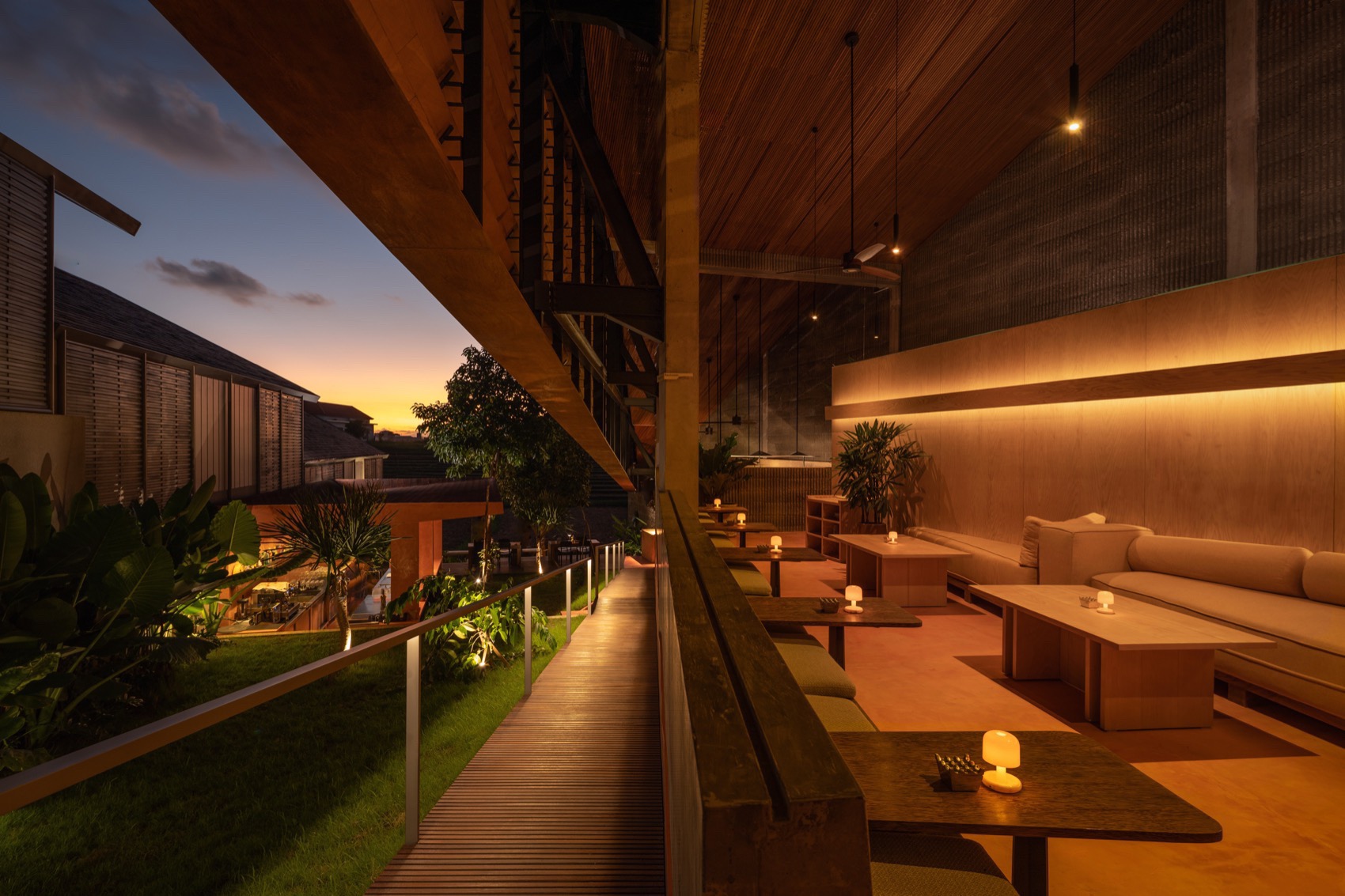

▼室内夜景，night view of the indoor space©Indra Wiras

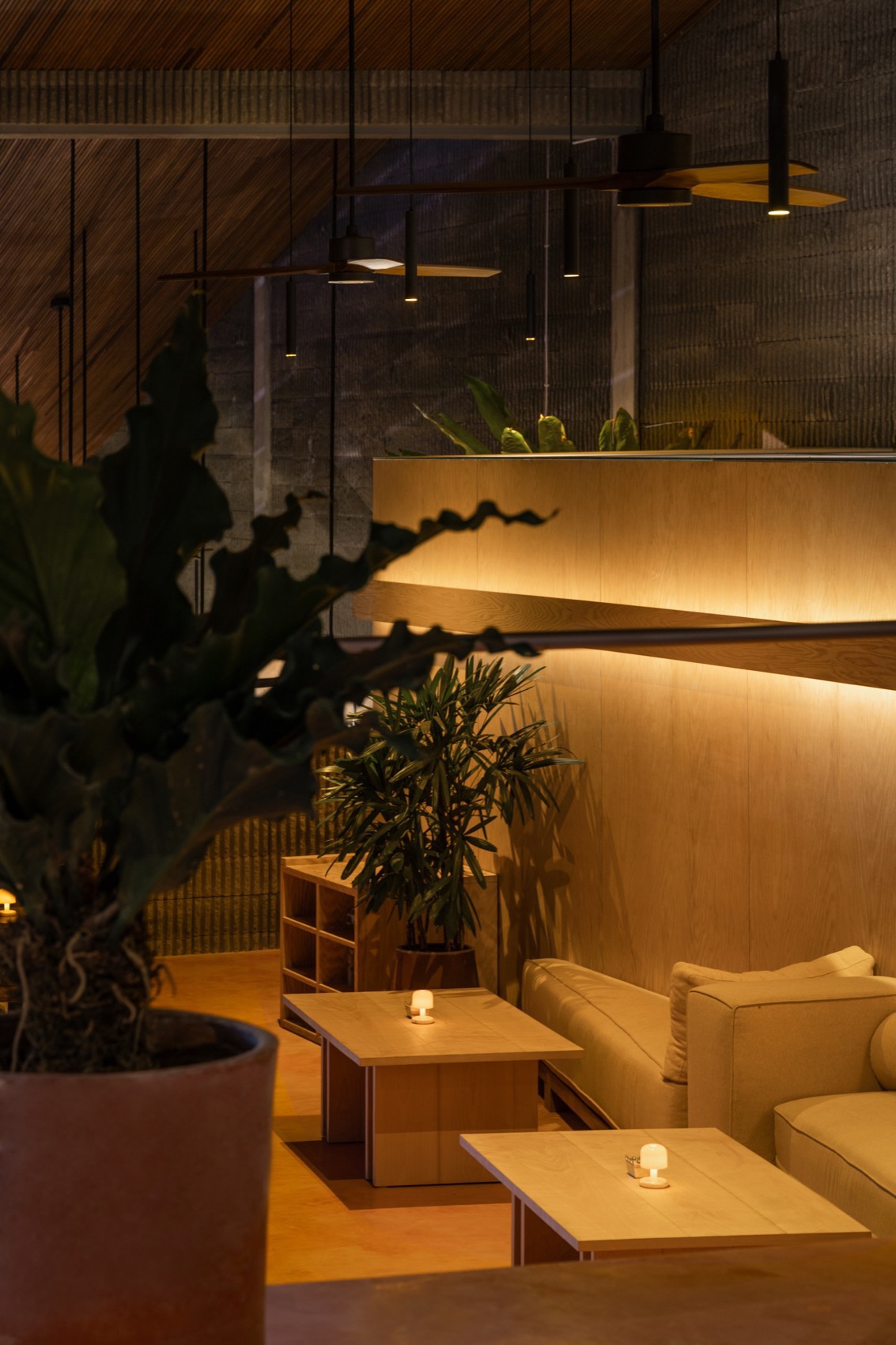

▼室内夜景细部，details of interior©Indra Wiras

材料策略与气候响应

Material Strategy and Climate Response

项目材料策略强调在地性、可持续性与感官体验。平台地面采用带色水泥，粗质混凝土与本地采购木材之间的对话，则在刚与柔之间创造出与环境相呼应的触觉层次。这种粗糙与精致并置的质感，亦呼应了自然景观的肌理。

Material selection throughout the project is driven by a commitment to locality, sustainability, and sensory experience. Pigmented cement defines the floors of each platform, while rough-textured concrete and locally sourced timber create a tactile dialogue between mass and warmth. This interplay between rough and refined surfaces mirrors the texture of the surrounding landscape.

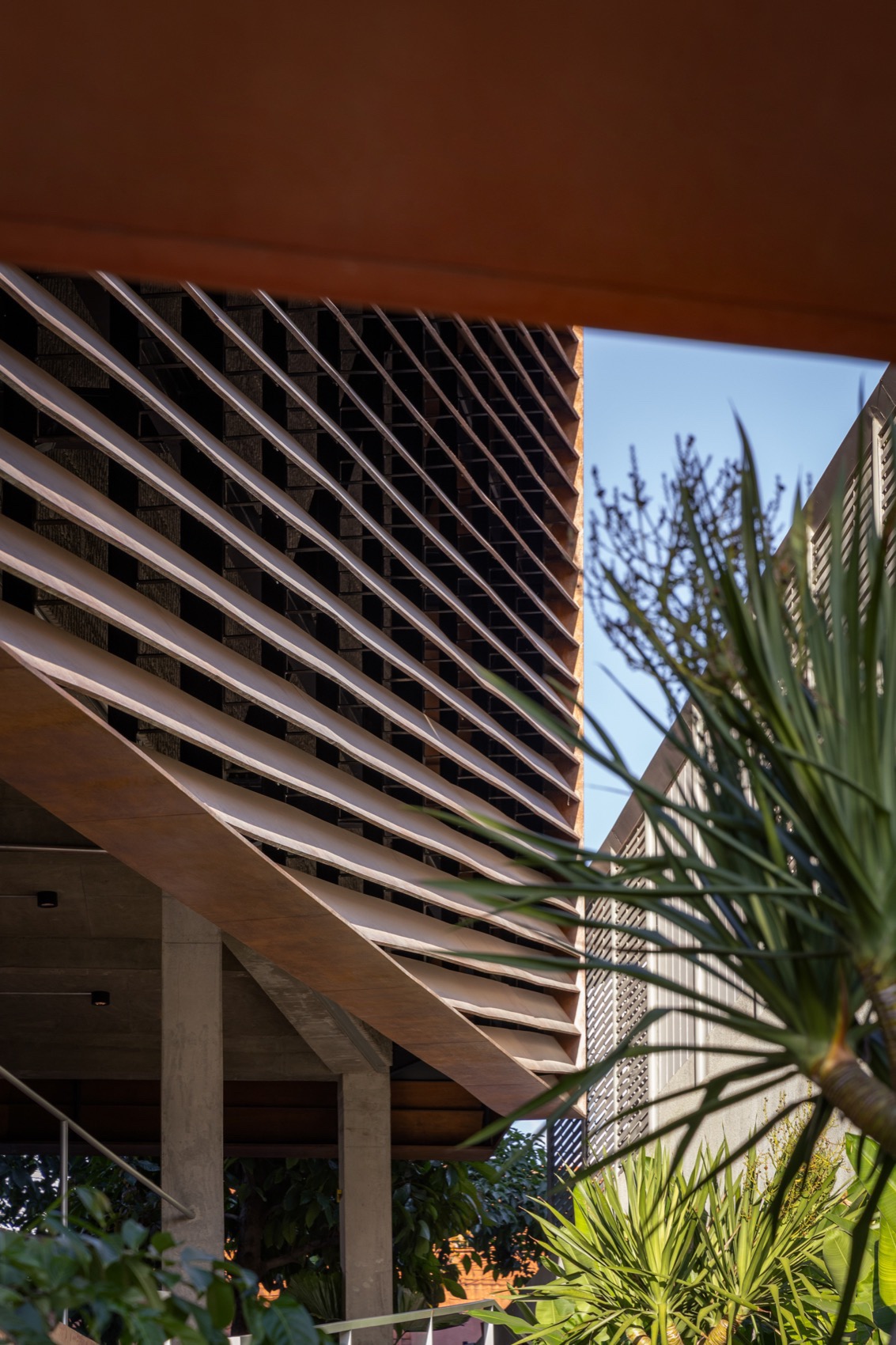

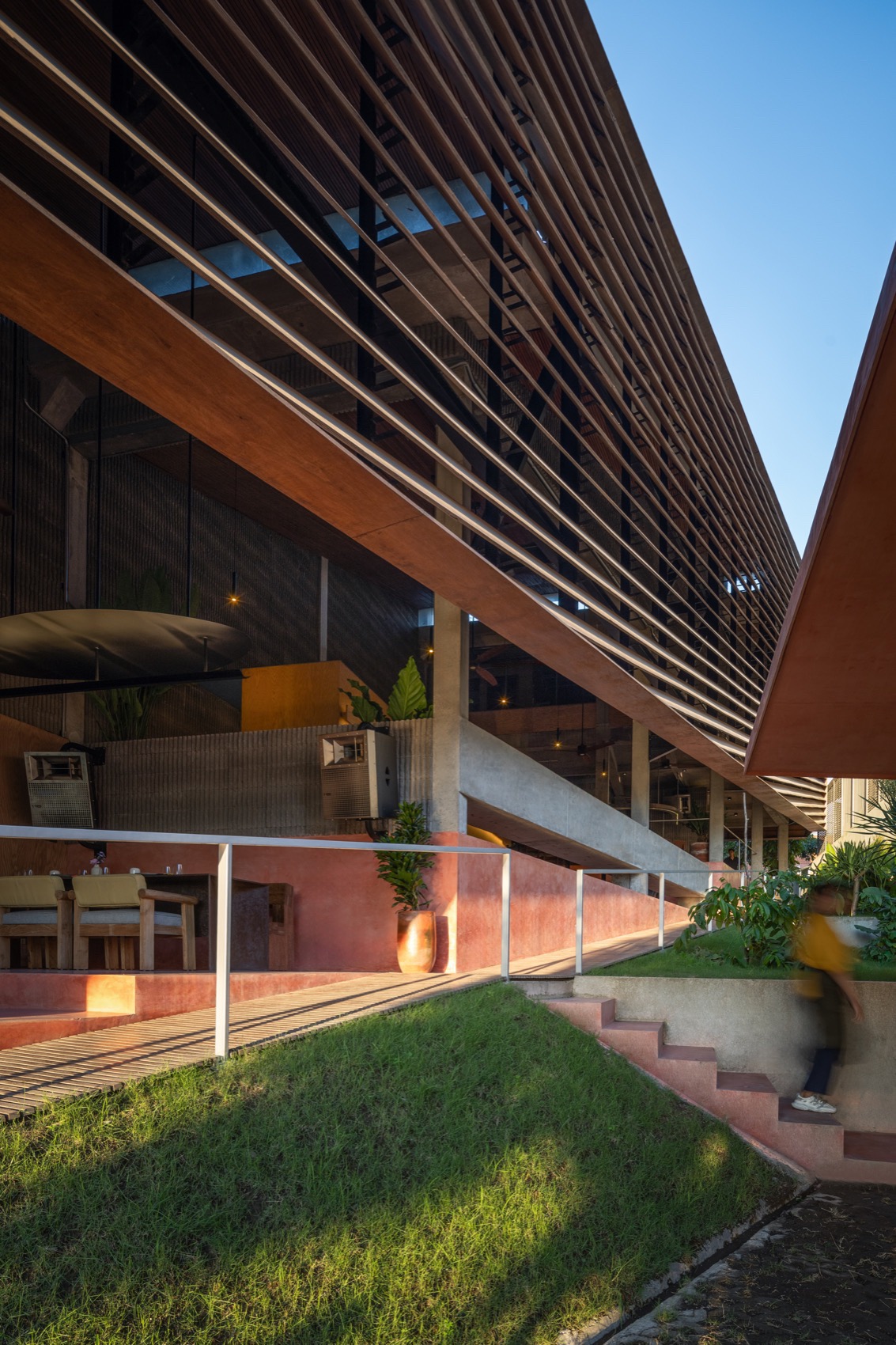

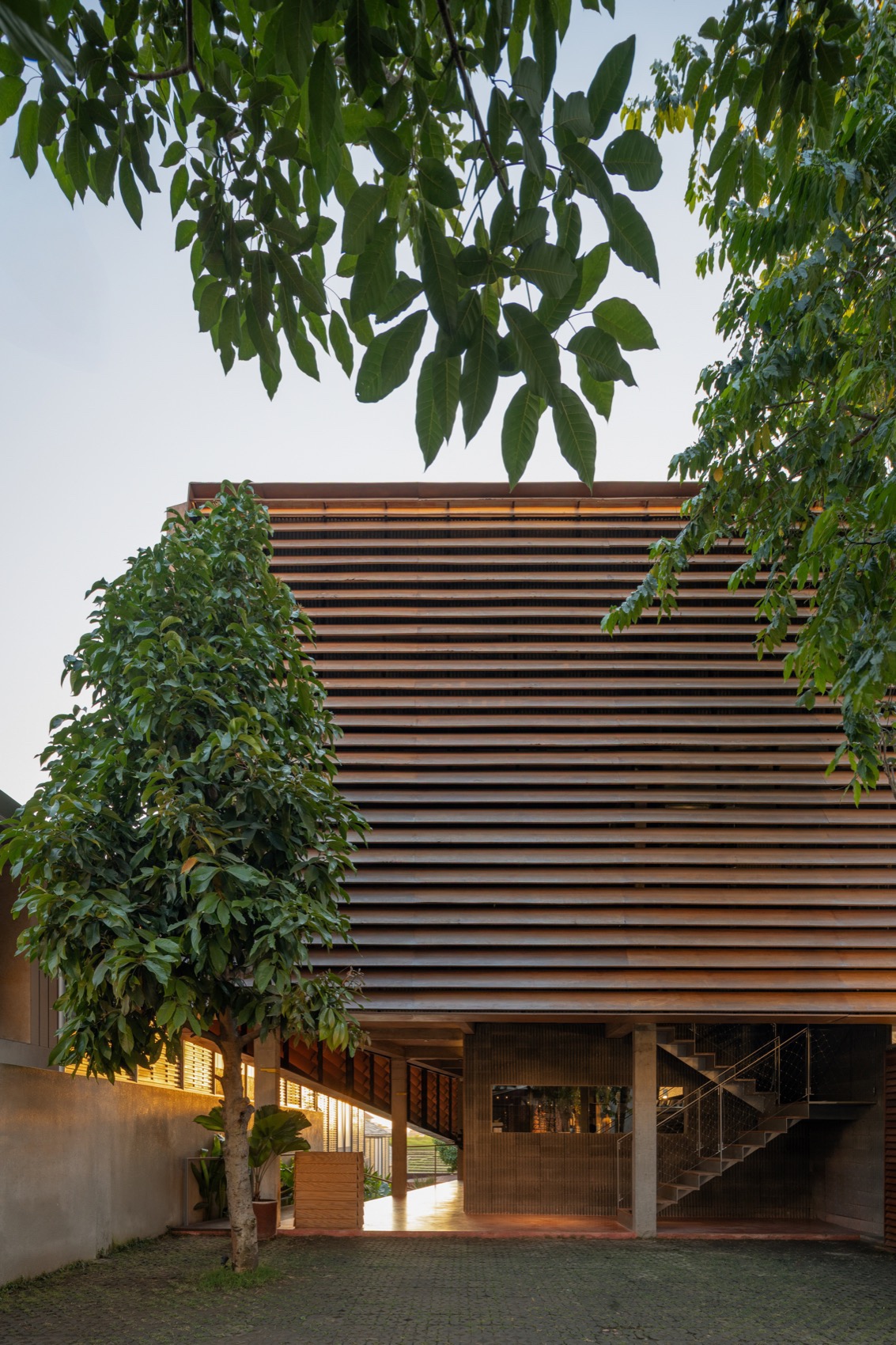

▼建筑外立面包裹着水平木格栅，

the facade is wrapped in horizontal timber fins©Indra Wiras

建筑外立面包裹着水平木格栅，灵感源自俯瞰下的梯田等高线。这些木格既起到遮阳与挡雨作用，也使光线与微风自然渗透，优化建筑在热带气候下的被动环境性能。木格栅柔化了三角形体量，并在统一建筑外观肌理的同时保持良好的通透性与景观连接。

The facade is wrapped in horizontal timber fins—referencing the contour lines of rice terraces as seen from above. These slats function as passive shading and rain protection while allowing daylight and breeze to filter through, enhancing the building’s environmental performance in Bali’s tropical climate. The timber fins help to soften the triangular massing and provide a unifying texture, they offer protection while maintaining visual permeability and a connection to the outside.

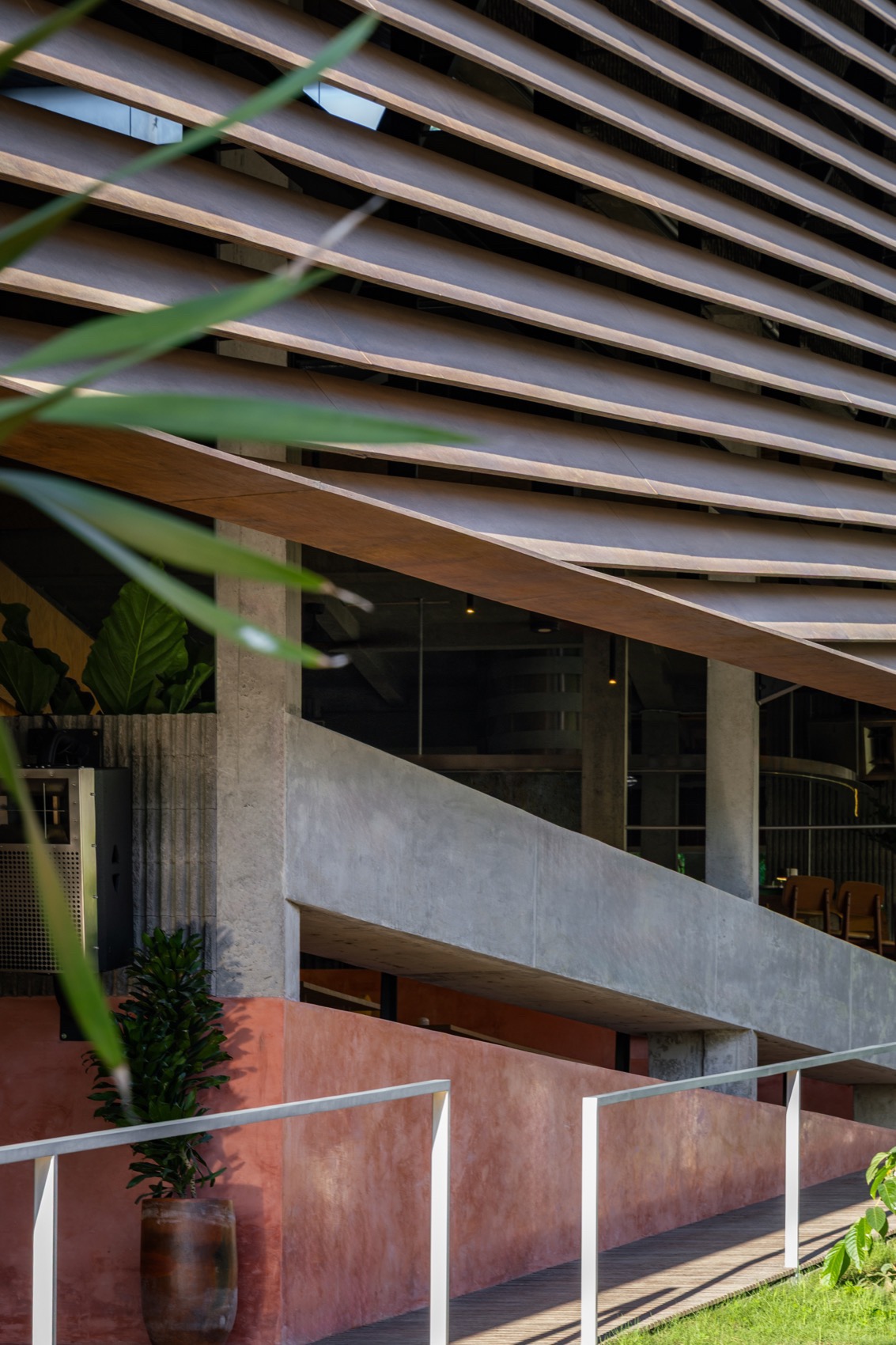

▼细部，details©Indra Wiras

在地融合与文化回应

Contextual Integration

Set N Rise不仅在形式与材料层面回应场地语境，更在精神层面与之共鸣。建筑顺应地势敞开，与周边景观形成对话，并将传统空间逻辑转译进当代功能之中，营造出一种既贴地又广阔的沉浸式用餐体验。该项目也回应了巴厘岛建筑界日益兴起的趋势——探索如何在现代语境中建立扎根于地缘、气候与文化的设计实践，使建筑在地性与当代表达之间达成新的平衡。

Set n Rise is a response to its context, not only in form and materiality but also in spirit. It embraces the site’s natural slope, opens itself to the surrounding landscape, and incorporates traditional spatial logic into a contemporary program. The result is a layered and immersive dining experience that feels simultaneously grounded and expansive. This project contributes to the growing movement in Balinese architecture that seeks to create modern spaces rooted in place—where climate, culture, and community intersect in thoughtful, site-responsive design.

▼室内夜景，night view of the indoor space©Indra Wiras
