汉彻音乐厅 | 校园艺术新地标

© Goldberg/Esto

戈德堡/埃斯托

架构师提供的文本描述。汉彻被公认为委托新的舞蹈和音乐作品，汉彻接触到的观众远远超过爱荷华州大学。这所著名学府的新家位于爱荷华市。

Text description provided by the architects. Hancher Widely recognized for commissioning new works of dance and music, Hancher reaches audiences well beyond the University of Iowa. The new home for this renowned institution occupies a prominent location in Iowa City.

© Goldberg/Esto

戈德堡/埃斯托

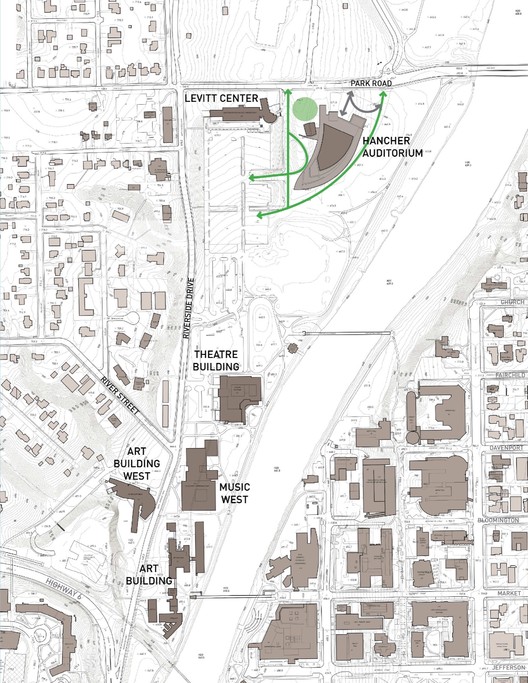

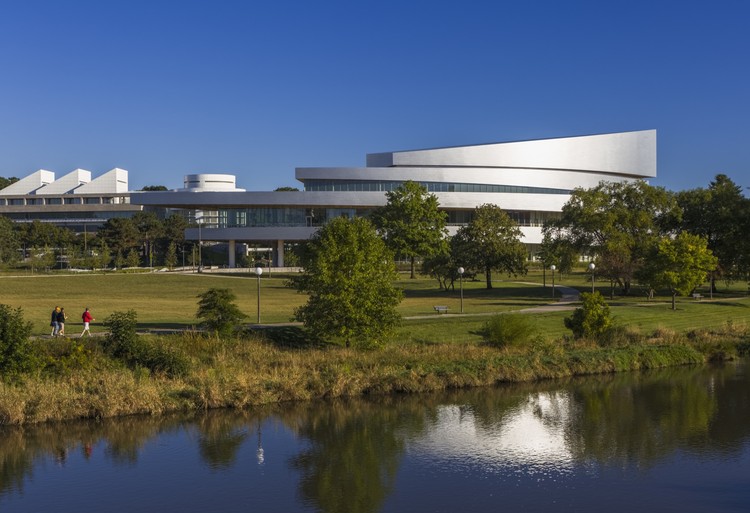

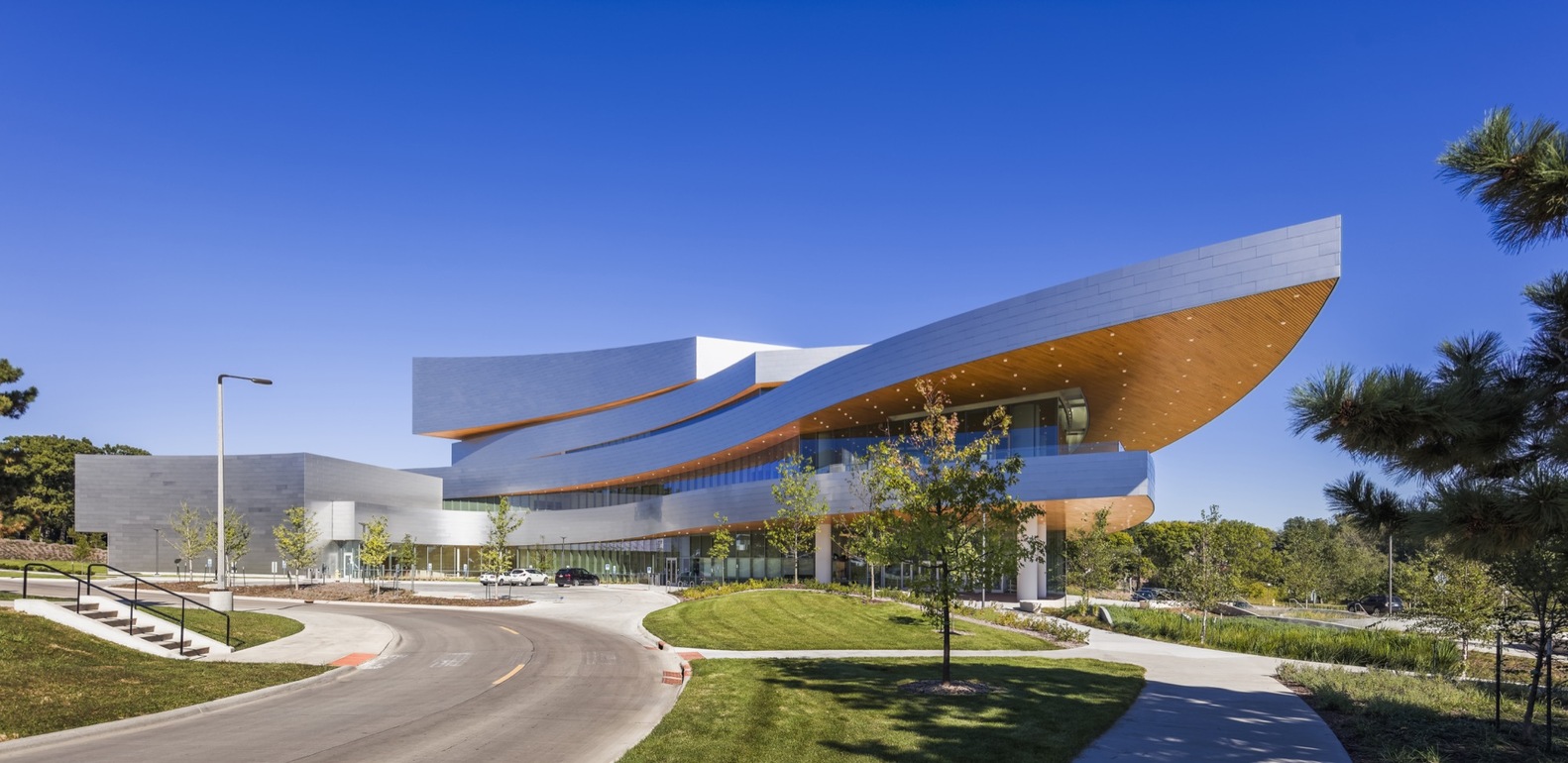

整体规划/体量设计响应于其在外部的站点和上下文，以及其在内部的计划和规划邻接关系。外部建筑设计特别受艾奥瓦河向东、公园路和城市公园到其北部、LevittCenter到其西部以及艺术园区到其南部的影响。建筑物的长吹扫曲线响应爱荷华河流的弯曲和流动及其周围地形。它的锥形和悬臂式形式允许公共大厅各级的最大透明度。沿着公园路的较小比例的元素反映了相邻LevittCenter的形式。LevittCenter的Rotunda和Hancher排练室的音量一起构成了艺术园区的隐喻网关。

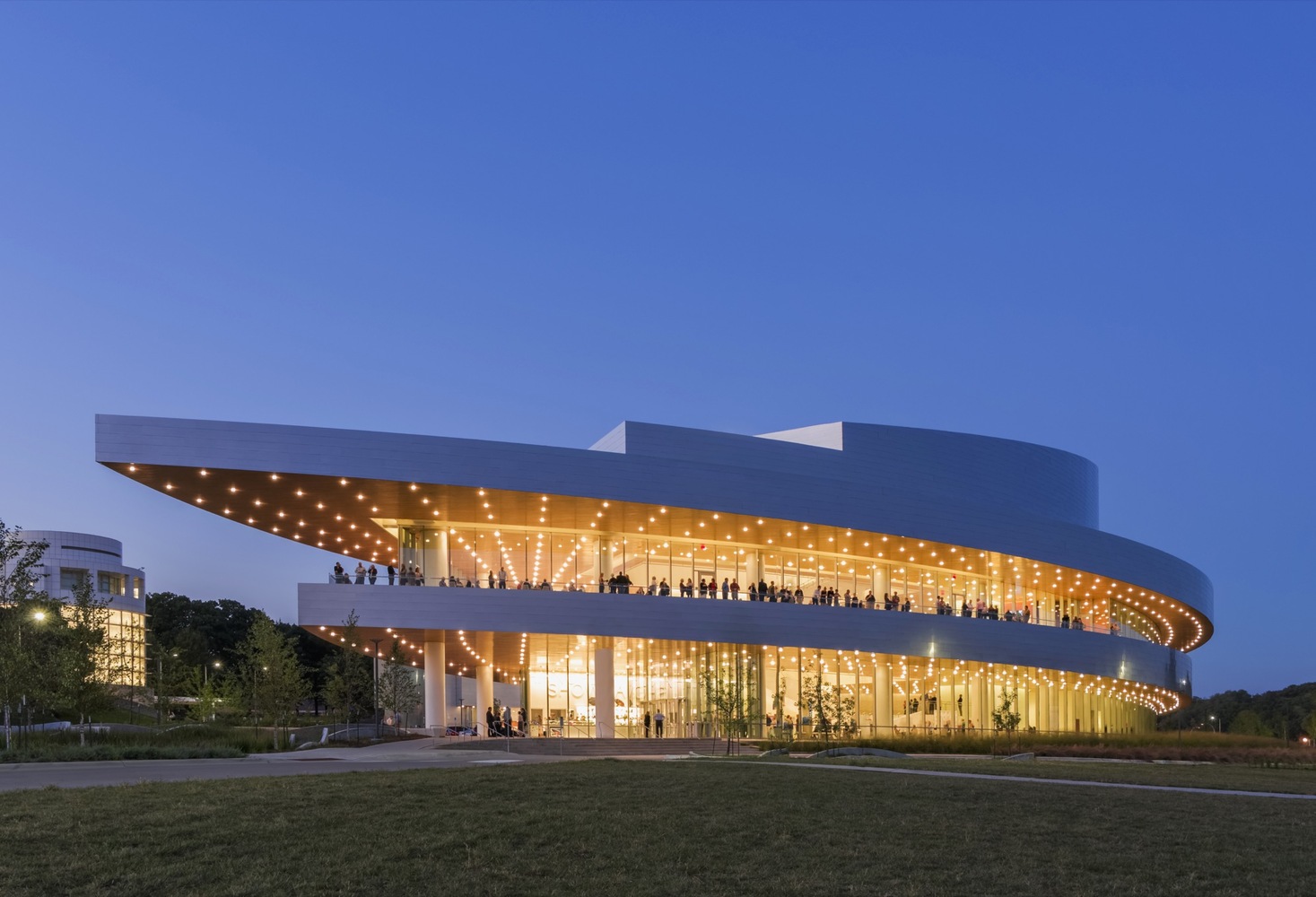

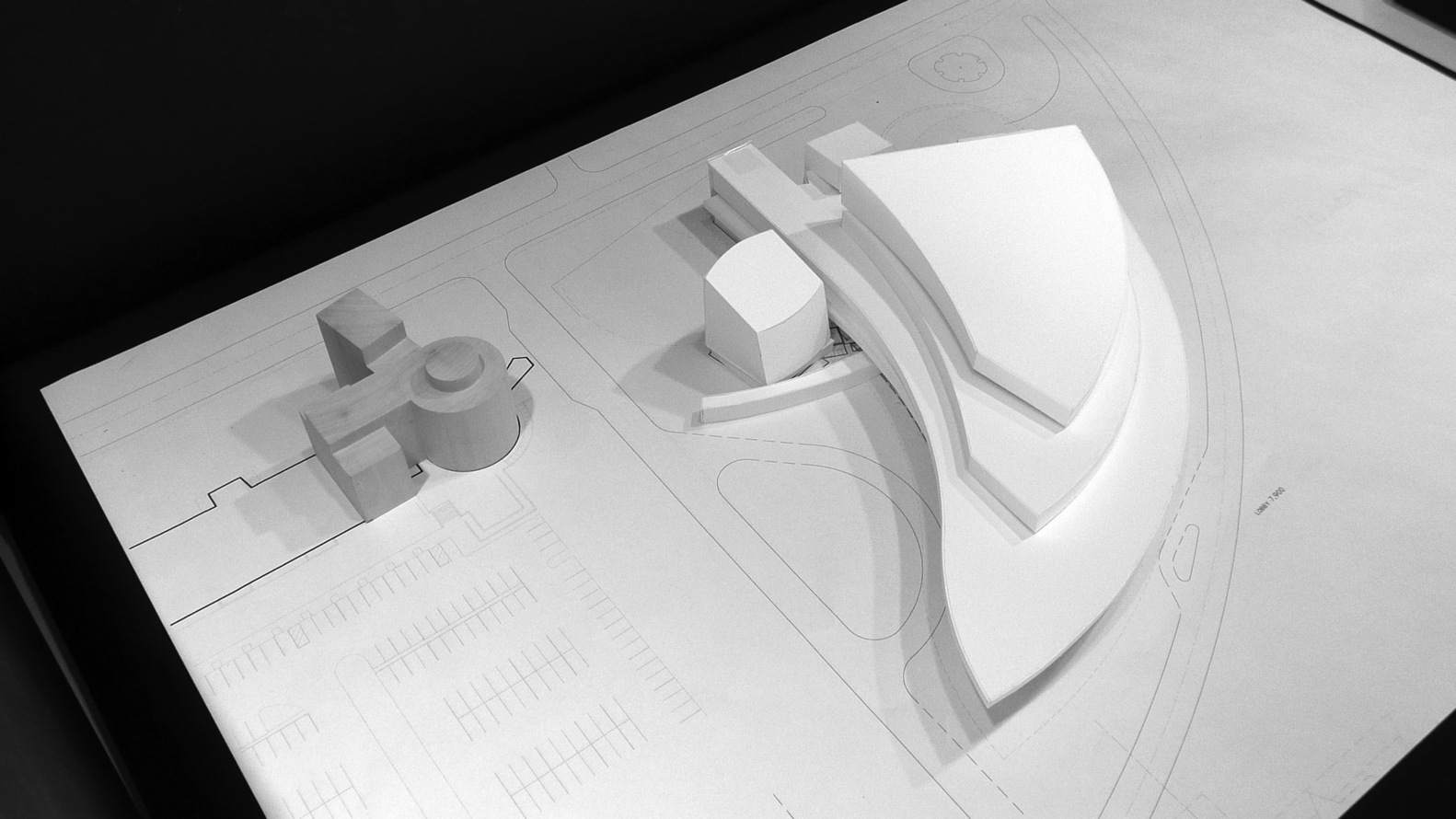

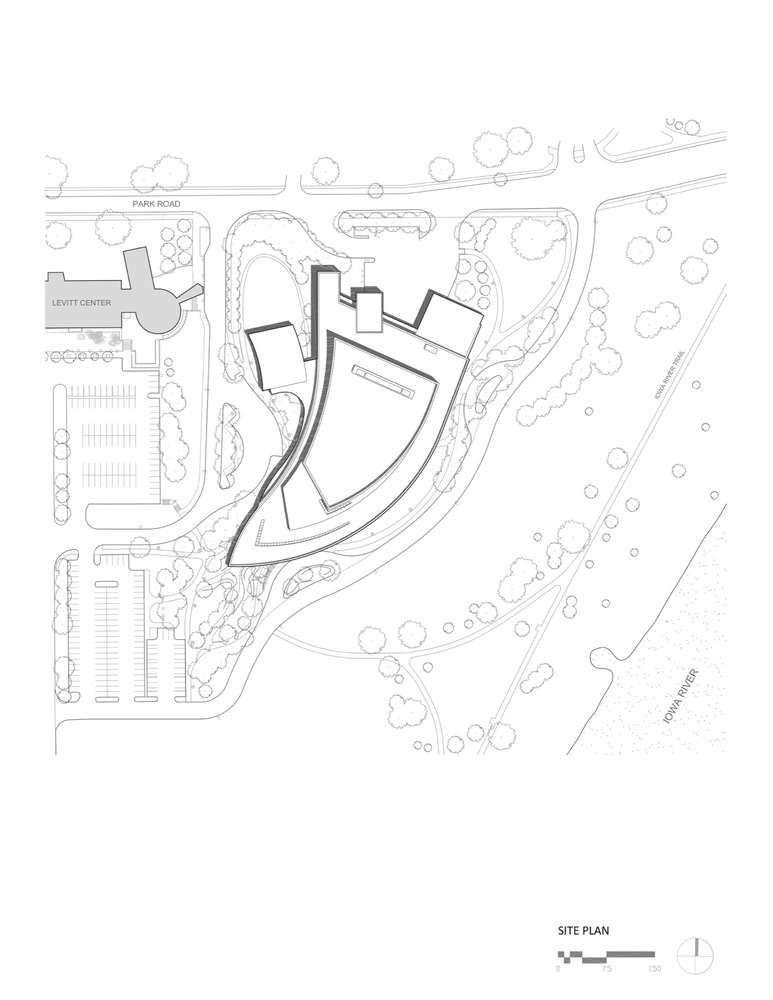

Overall Planning/Massing The design responds to its site and context on the exterior, and to its program and planning adjacencies on the interior. The exterior building design is specifically influenced by the Iowa River to its east, Park Road and City Park to its north, the Levitt Center to its west, and the Arts Campus to its south. The long sweeping curves of the building respond to the bend and flow of the Iowa River and its surrounding topography. Its tapered and cantilevered forms allow for the maximum amount of transparency at all levels of the public lobbies. Smaller scaled elements along Park Road echo the forms of the adjacent Levitt Center.  The Levitt Center’s rotunda, along with the Hancher Rehearsal Room volume, forms a metaphorical gateway to the Arts campus.

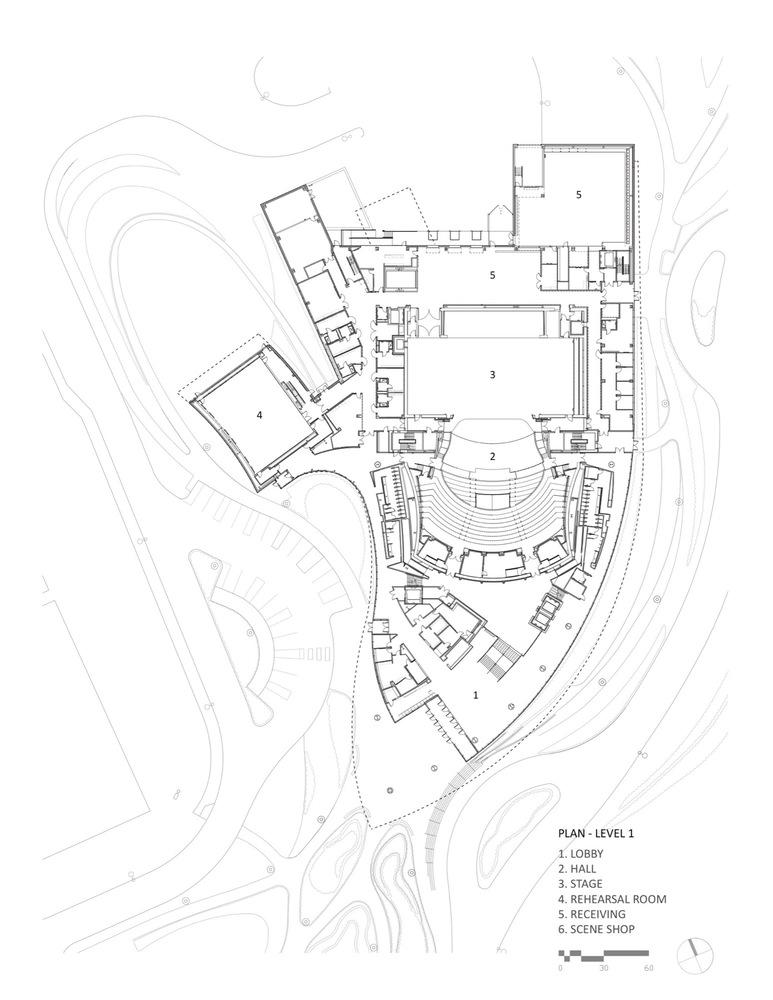

在大楼的东南角和西南角有两个可以进入的公共入口。公园路外的装货码头和装货场是为了容纳半卡车所需的大转弯半径而设计的。三个泊位/卡车码头负荷进入现场码头/转运区，该区域与主舞台直接相邻。更衣室，生产办公室，船员室都是为了最大的效率和方便的舞台关系而设计的。

There are two ADA accessible, pubic entrances at the south east and south-west corners of the building. The loading dock and loading court off of Park road was designed to accommodate large turning radii required by semi-trucks. Three berths/truck-docks load into the scene dock/transfer area, which is directly adjacent to the main stage. The dressing rooms, the production offices, crew rooms are all designed for maximum efficiency and convenient stage relationships.

© Goldberg/Esto

戈德堡/埃斯托

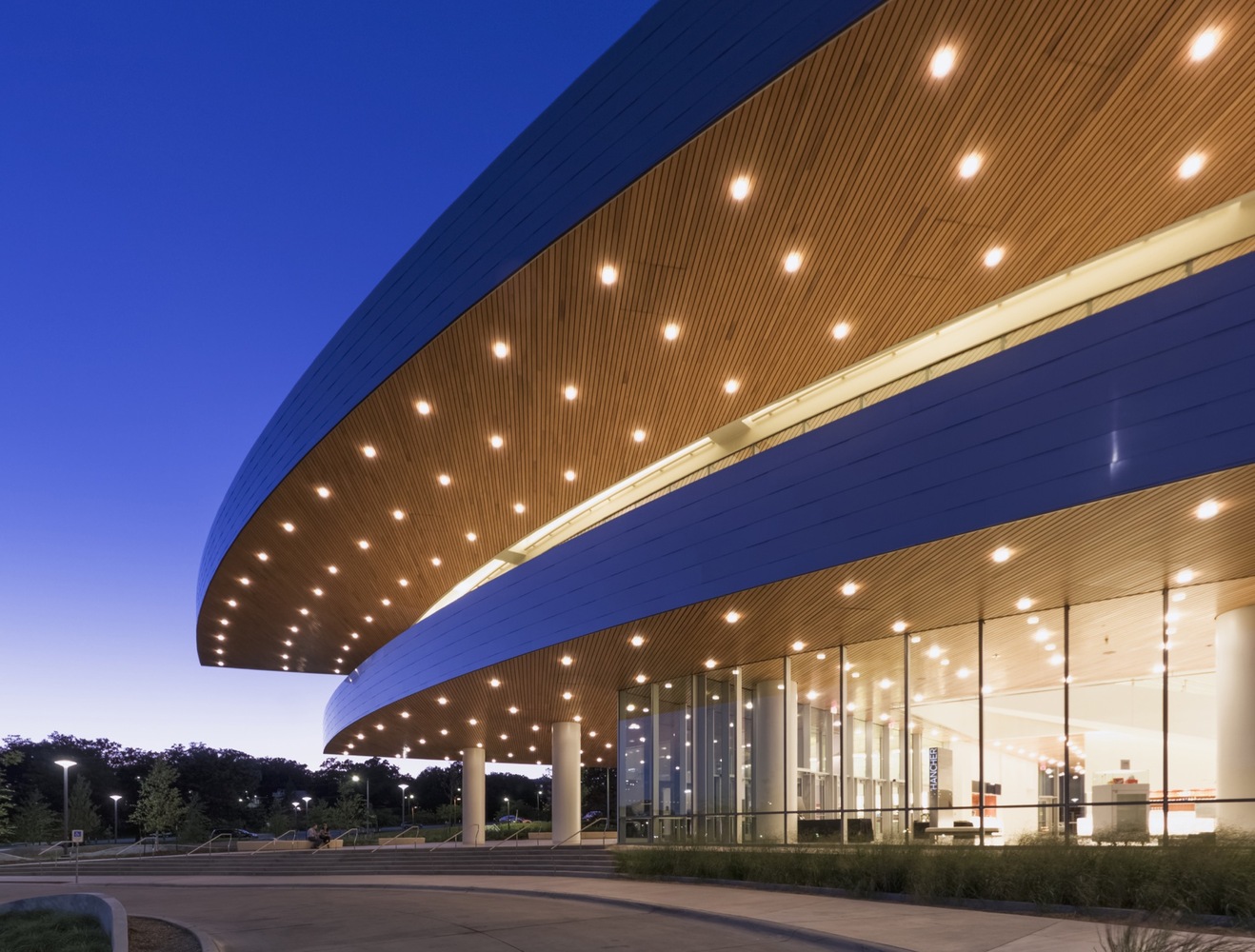

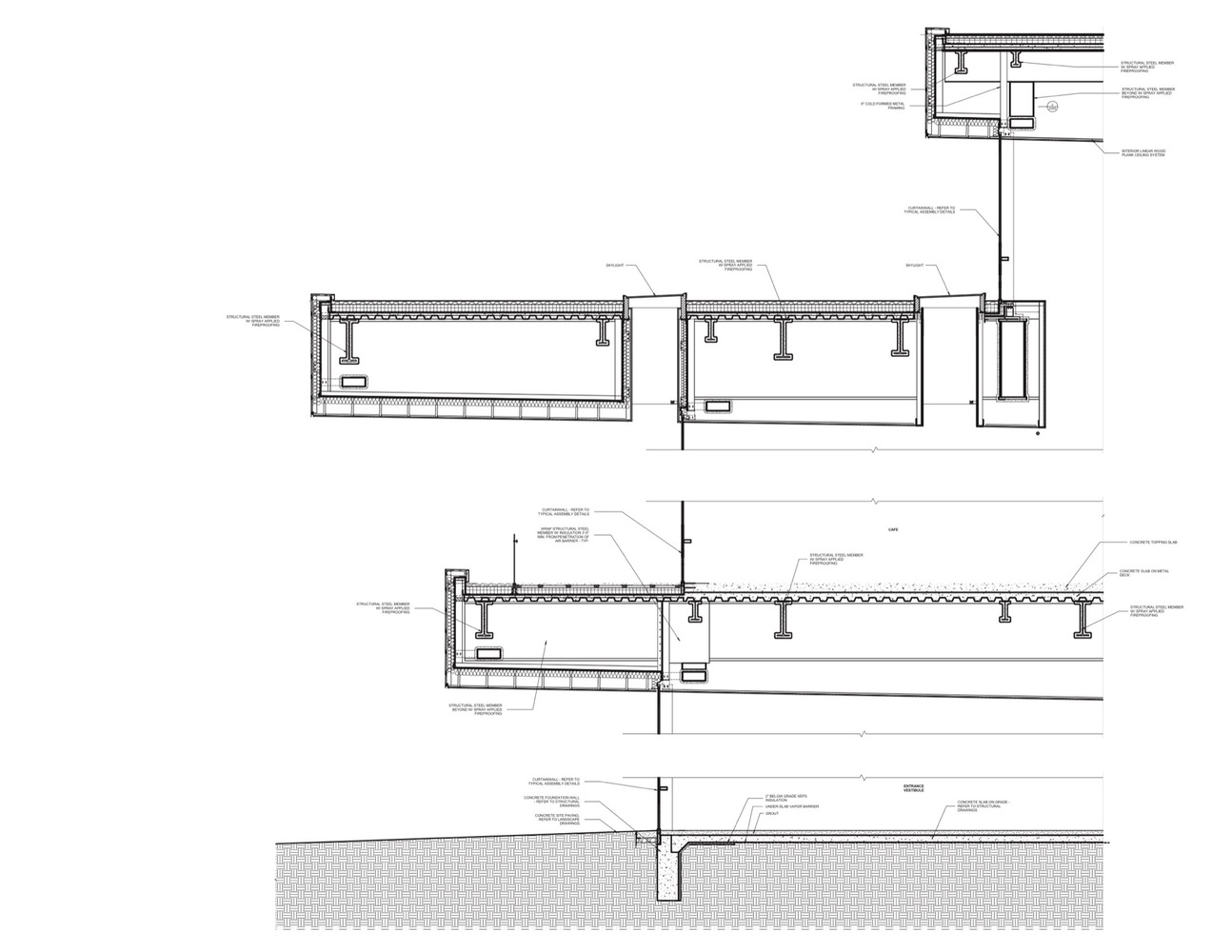

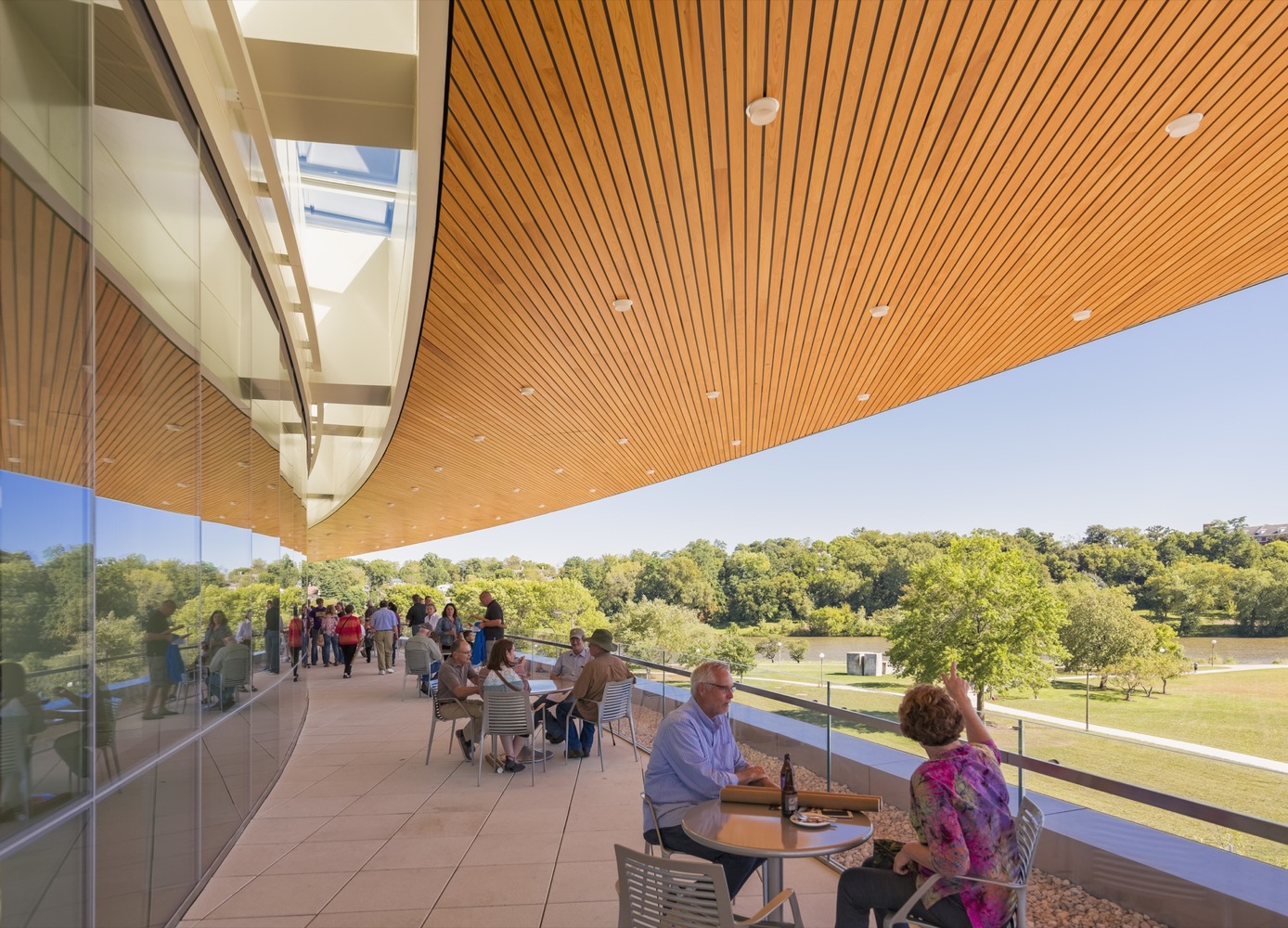

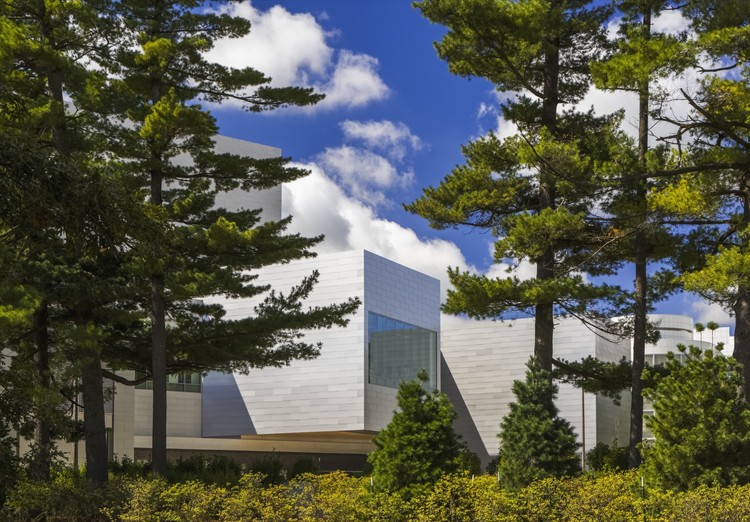

外部材料外皮是由不锈钢和玻璃丝带组成。柏木松露给建筑带来了欢迎和邀请的品质，增强了空间从外部到内部的自然温暖。

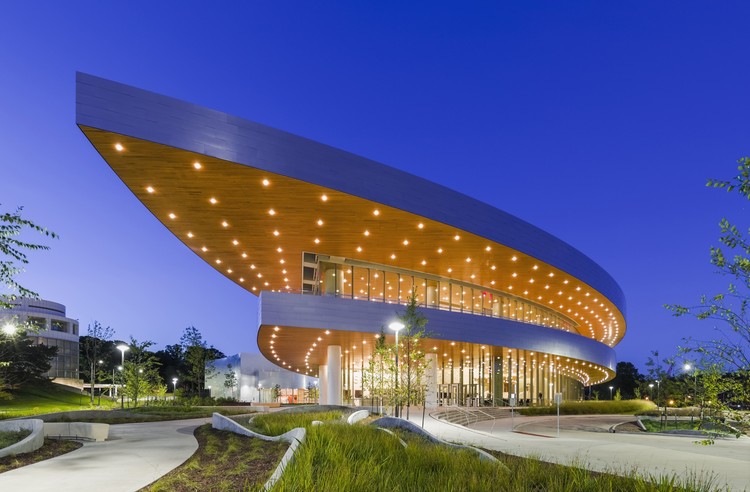

Exterior Materials The exterior skin is comprised of stainless steel and glass ribbons. The cypress wood soffits lend a welcoming and inviting quality to the building, enhancing the natural warmth of the spaces as it transitions from exterior to the interior.

© Goldberg/Esto

戈德堡/埃斯托

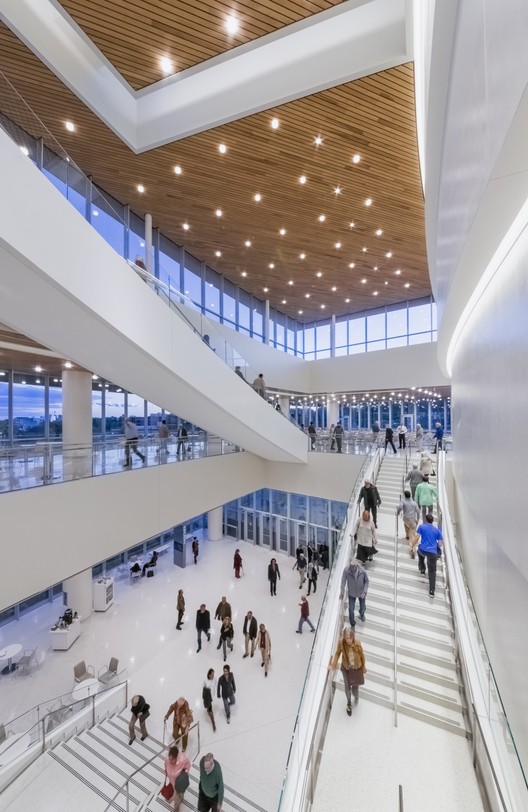

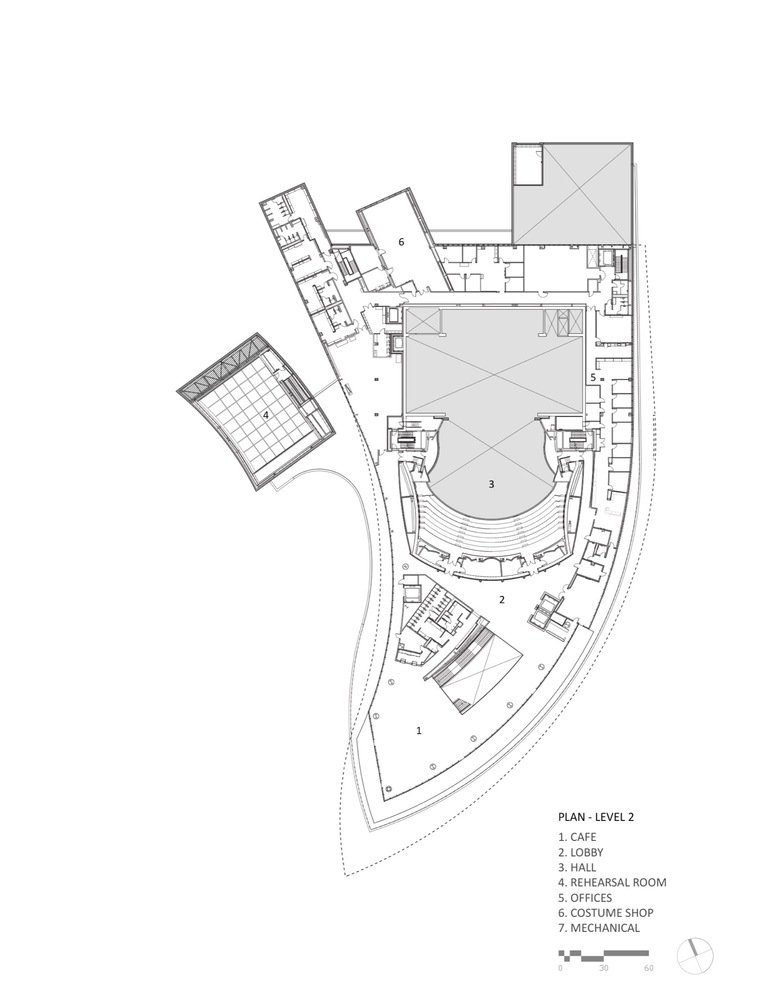

大堂所有公共空间提供河流和校园全景。大厅中庭是一个轻盈的空间，有一个丝带，像水磨石，宏伟的楼梯，螺纹和连接的四个大厅水平在其上升。大厅的西面墙体现了建筑的形状和运动，是用一种特殊的珠光石膏完成的。在不同的水平上出现的天窗加强了建筑物的形状，并允许戏剧性的次级照明和透明度。

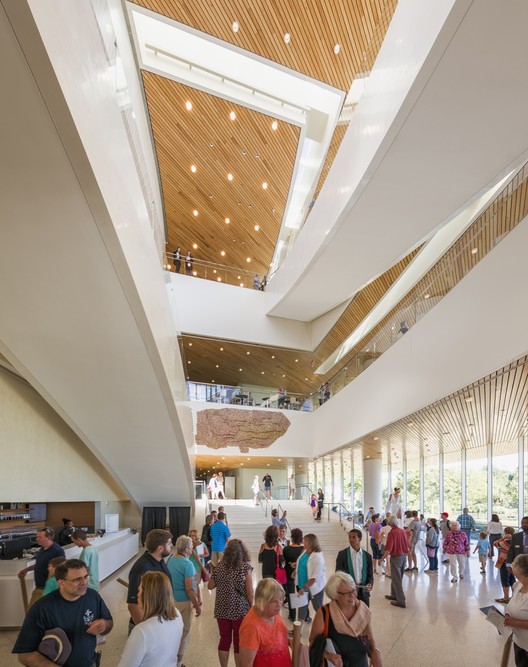

Lobby All public spaces offer panoramic views of the river and the campus. The lobby atrium is a light filled space with a ribbon like terrazzo grand stair threading and connecting the four lobby levels on its ascent. The west wall of the lobby expresses the shaping and movement of the building and is finished in a special pearlescent plaster. The skylights that appear on different levels reinforce the shape of the building and allows for dramatic secondary lighting and transparency.

© Goldberg/Esto

戈德堡/埃斯托

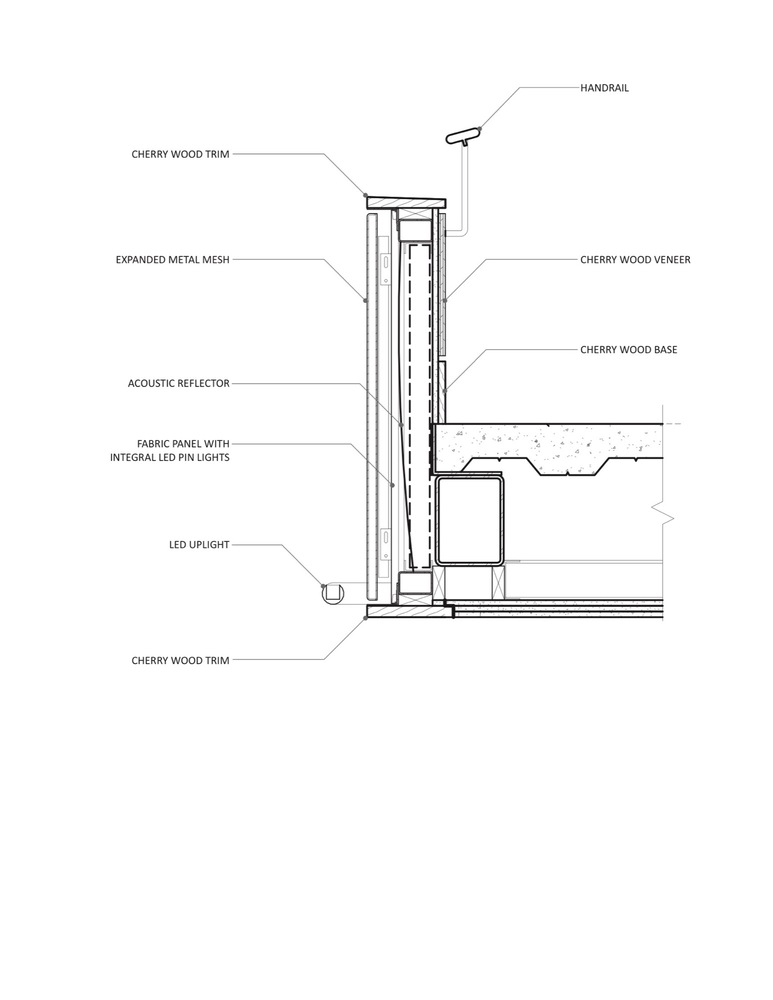

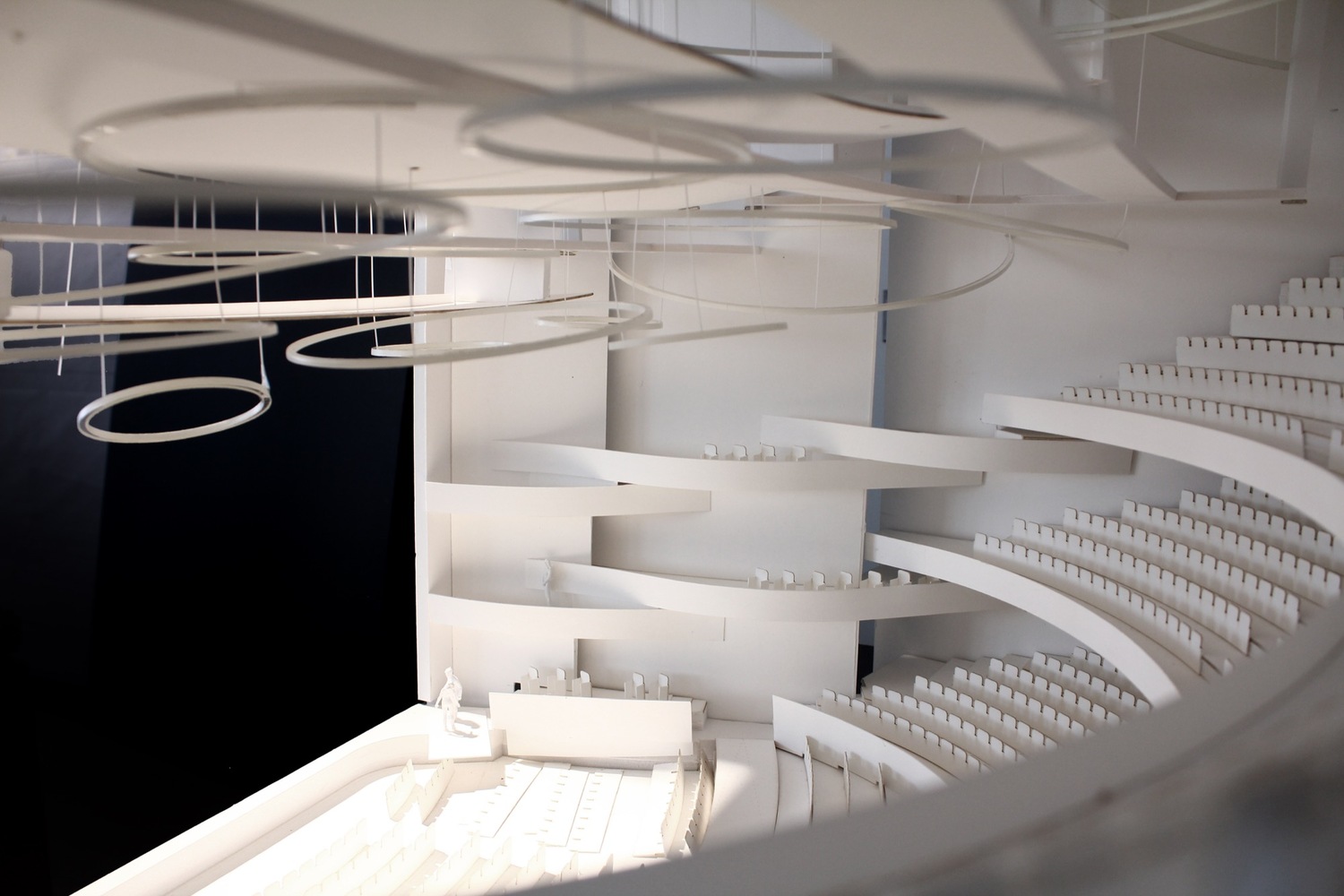

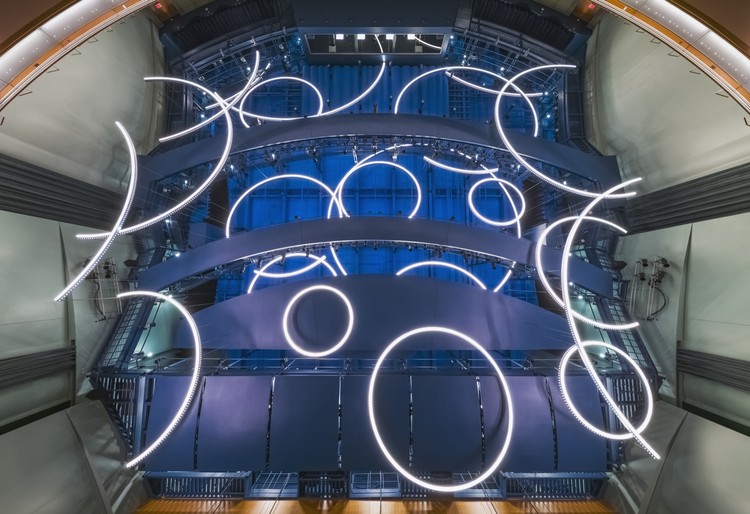

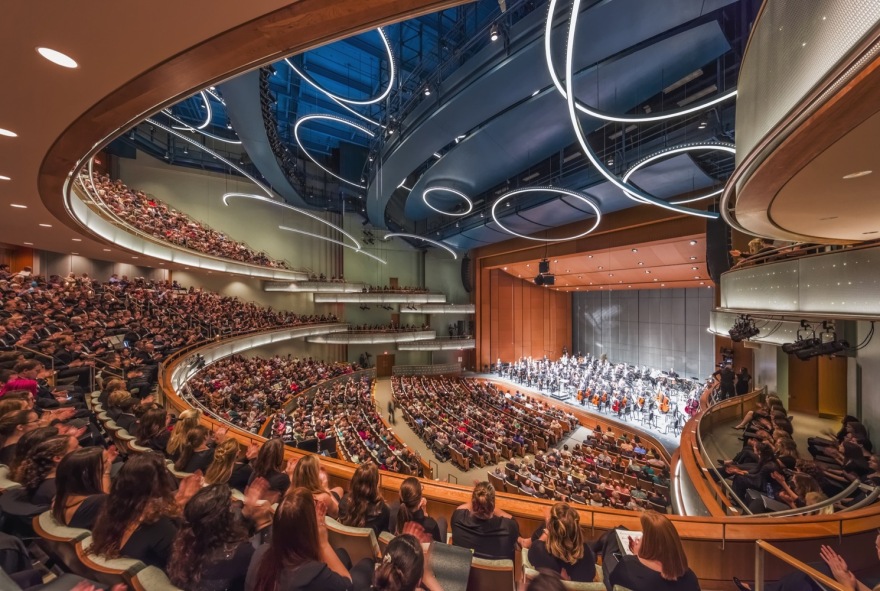

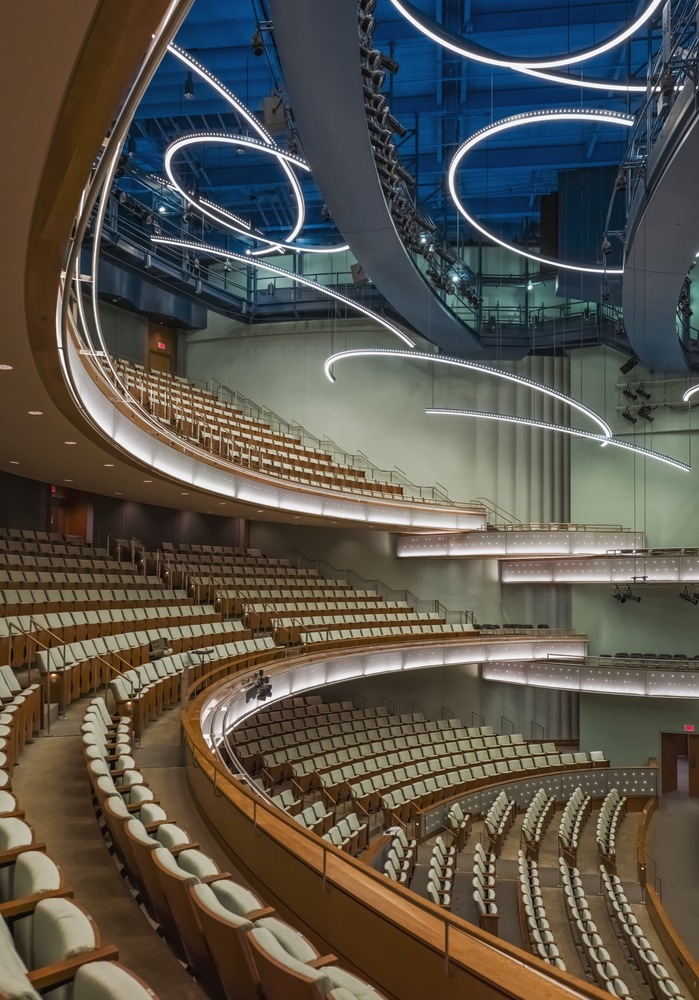

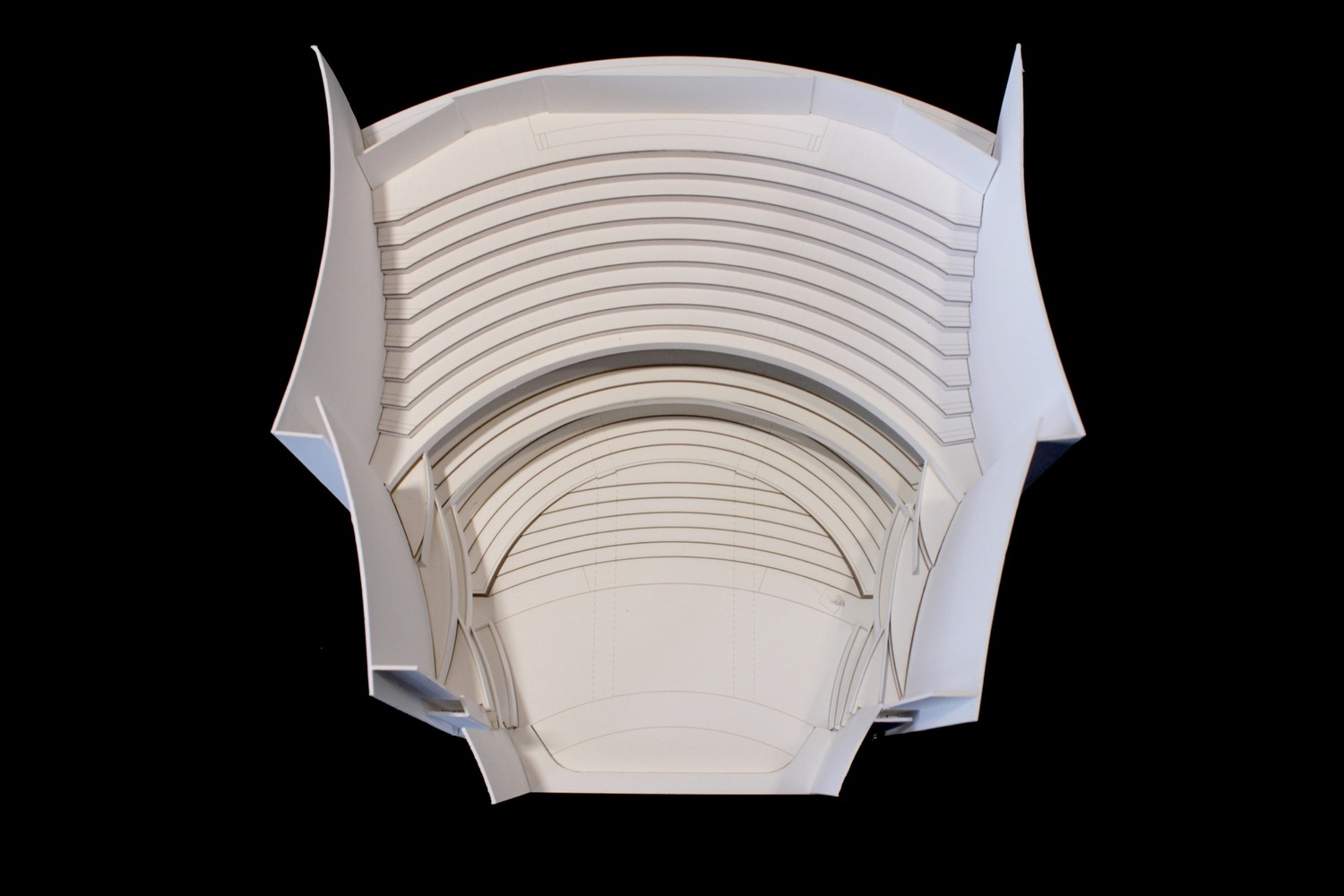

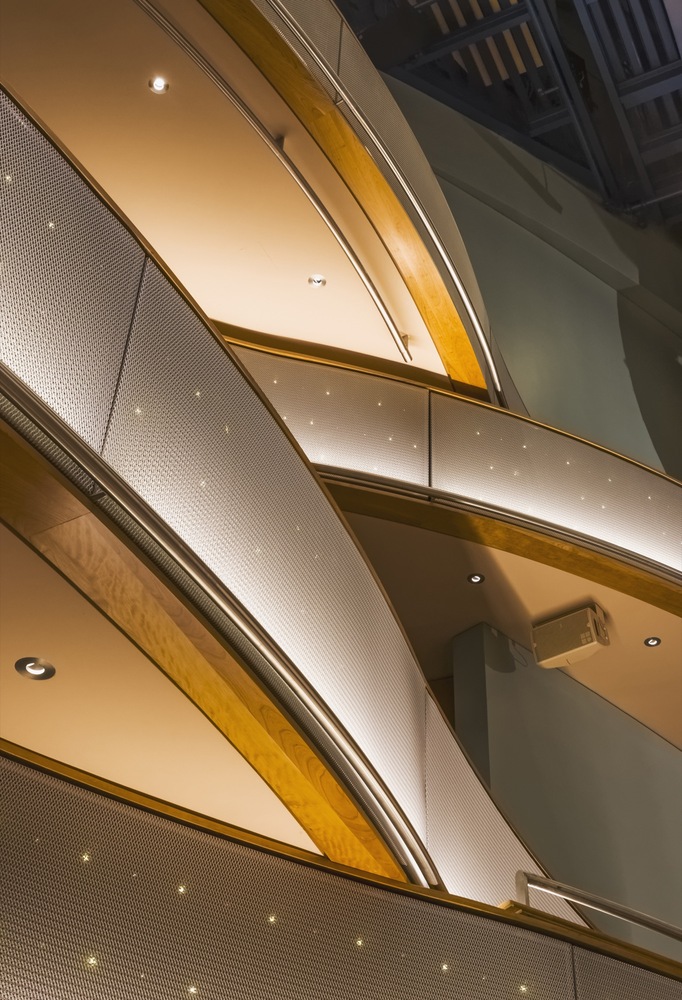

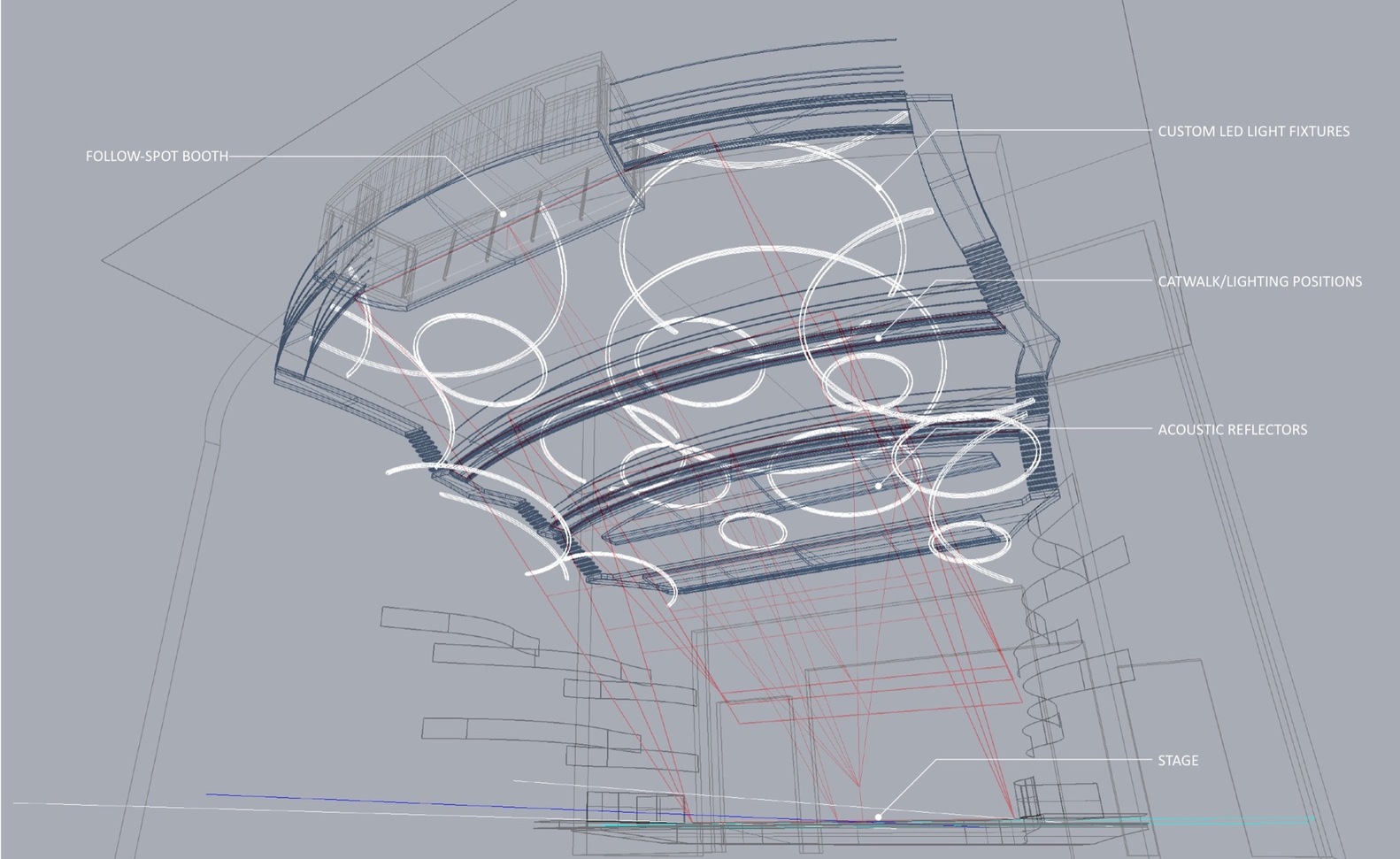

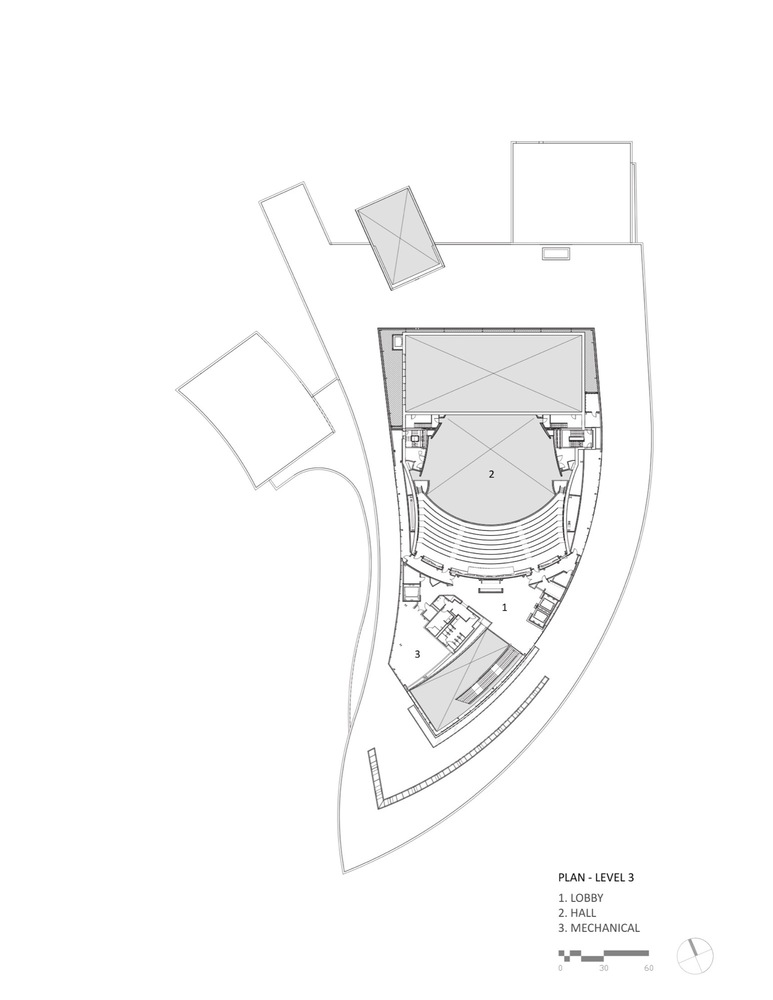

大厅，新礼堂创造了一个亲密的经验，赞助人和表演者在舞台上。弯曲的，扫地的阳台和露台延续了整个大厅内部的外部丝带的想法。单独可调的弧形LED照明装置加强了建筑和大厅的形状和几何形状，并创造了戏剧性的戏剧体验。一个可折叠的管弦乐队外壳，可调的音响，AV系统和生产照明，使大厅可以专门为表演，从管弦乐队和歌剧，百老汇表演和舞蹈。

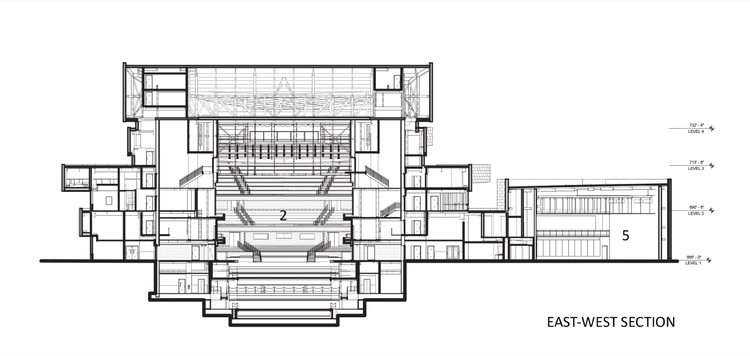

Hall The new auditorium creates an intimate experience between the patrons and the performers on stage. The curved, sweeping balconies and terraces continue the idea of the exterior ribbons throughout the interior of the hall. The individually adjustable arced LED lighting fixtures reinforce the shape and geometry of both the building and the hall and creates a dramatic theatrical experience. A collapsible orchestra shell, adjustable acoustics, AV systems and production lighting allow the hall to be tailored specifically for performances ranging from orchestra and opera to Broadway presentations and dance.

© Goldberg/Esto

戈德堡/埃斯托

© Goldberg/Esto

戈德堡/埃斯托

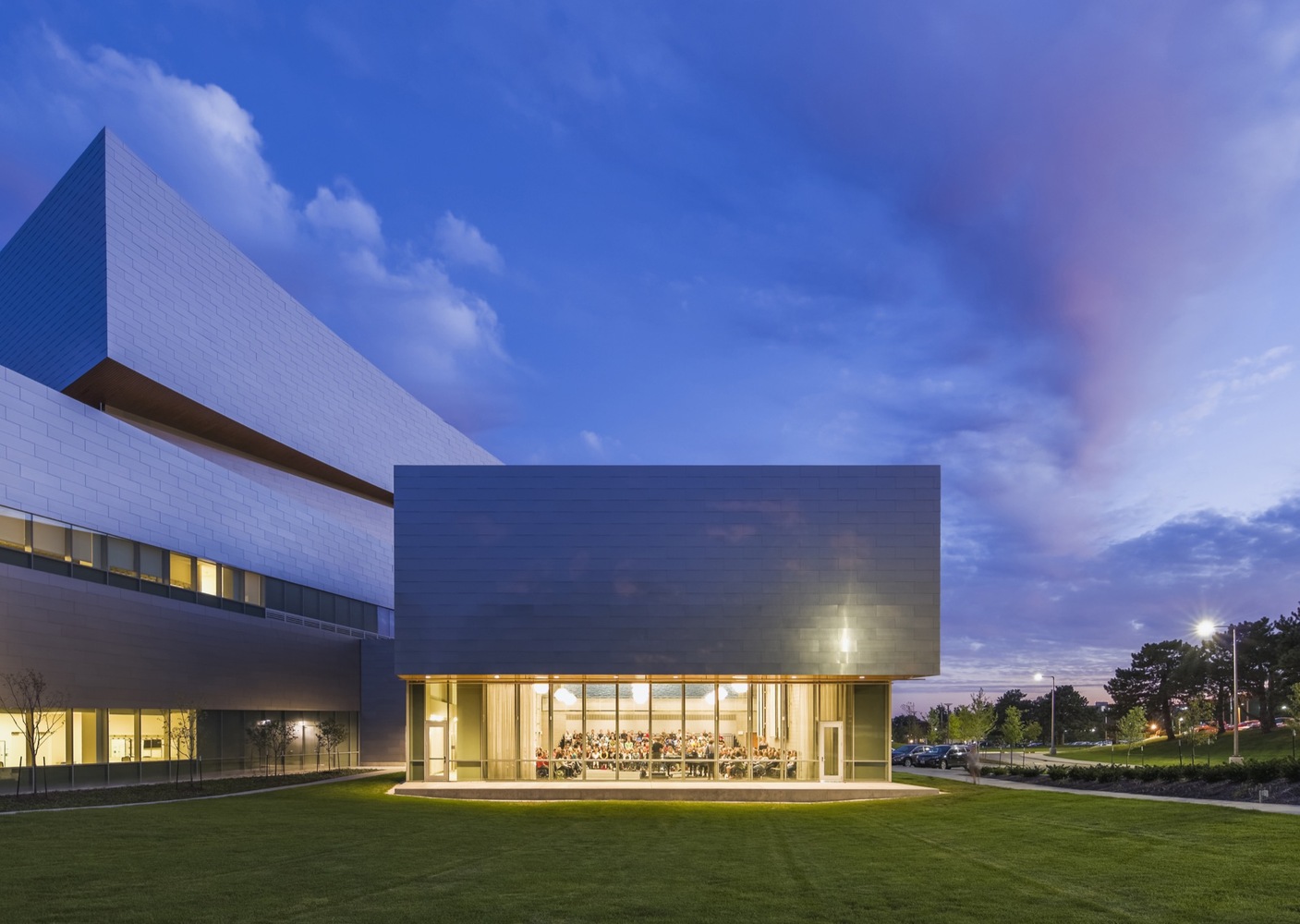

彩排室虽然有自己的外部入口，但一个大画廊连接到主大厅。这间在声学上和剧场上灵活的房间可以举办从接待室到实验剧场的各种活动，包括利用声学玻璃幕墙和亲密的室外竞技场的潜在活动。

Rehearsal Room Although the rehearsal room has its own exterior entrance, a grand gallery connects it to the main lobby. This acoustically and theatrically flexible room can host events ranging from receptions to experimental theater, including potential events utilizing the acoustically glazed north wall and intimate outdoor amphitheater.

© Goldberg/Esto

戈德堡/埃斯托

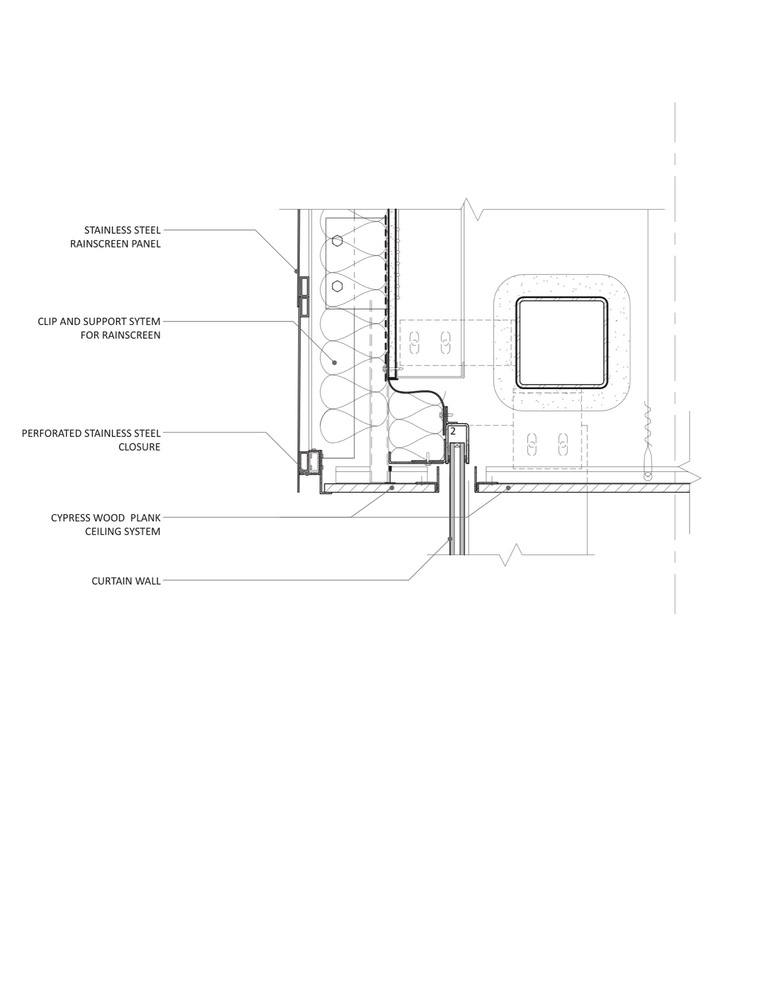

产品描述：外部不锈钢面板系统是由爱荷华州的AWS建筑墙系统公司定制的。这种雨屏系统是由18“x60”2毫米厚的不锈钢面板组成。该面板使用的是一种无方向刷漆，它能分散光线和反射。它们是以交错的模式安装的，是不连续的，允许在任何时候更改各个面板。建筑上，这导致了一个教导和微妙纹理的皮肤，崇高地反映了不断变化的天空，阳光和景观。

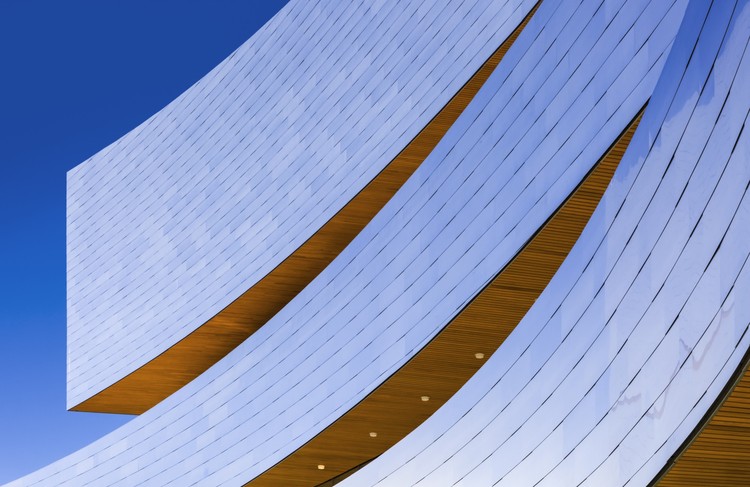

Product Description. The exterior stainless steel panel system was custom manufactured by AWS, Architectural Wall Systems, of Iowa. This rain screen panel system is made of 18”x60” 2mm thick stainless steel panels. The panels utilize a non-directional brushed finish that diffuses the light and reflection. They are installed in a staggered pattern and are non-sequential, allowing individual panels to be changed at any time. Architecturally, this results in a taught and subtly textured skin that sublimely reflects the ever-changing sky, sunlight, and landscape.

© Goldberg/Esto

戈德堡/埃斯托

Architects Pelli Clarke Pelli Architects

Location Iowa City, IA, USA

Category Auditorium

Area 190000.0 ft2

Project Year 2016

Photographs Pelli Clarke Pelli Architects
